© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 1 of 11

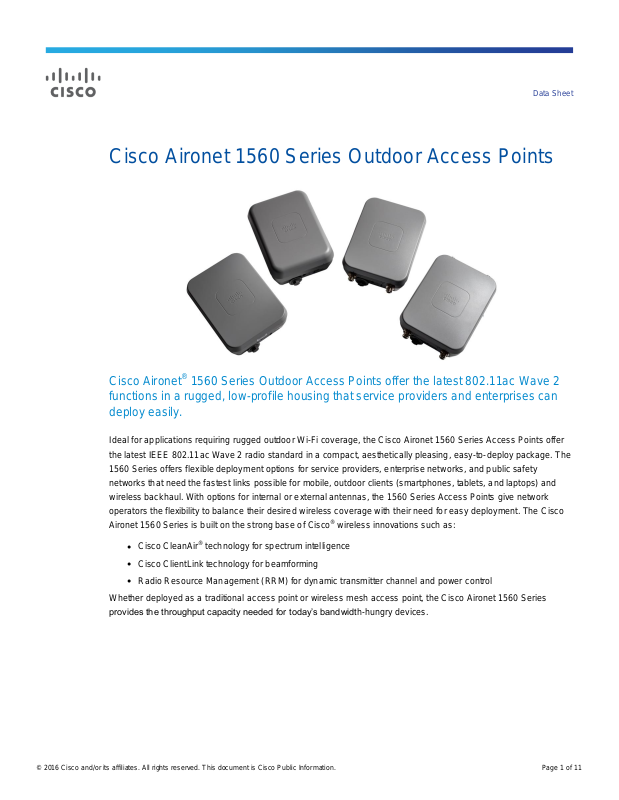

Data Sheet
Cisco Aironet 1560 Series Outdoor Access Points
Cisco Aironet® 1560 Series Outdoor Access Points offer the latest 802.11ac Wave 2 functions in a rugged, low-profile housing that service providers and enterprises can deploy easily.
Ideal for applications requiring rugged outdoor Wi-Fi coverage, the Cisco Aironet 1560 Series Access Points offer the latest IEEE 802.11ac Wave 2 radio standard in a compact, aesthetically pleasing, easy-to-deploy package. The 1560 Series offers flexible deployment options for service providers, enterprise networks, and public safety networks that need the fastest links possible for mobile, outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. With options for internal or external antennas, the 1560 Series Access Points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment. The Cisco Aironet 1560 Series is built on the strong base of Cisco® wireless innovations such as:
Cisco CleanAir® technology for spectrum intelligence
Cisco ClientLink technology for beamforming
Radio Resource Management (RRM) for dynamic transmitter channel and power control
Whether deployed as a traditional access point or wireless mesh access point, the Cisco Aironet 1560 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.
Page 2
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 11
Feature
Benefit
802.11ac Wave 2 radio
Provides up to 1.3-Gbps data rates with 3 x 3 multiple input, multiple output (MIMO) and up to three spatial streams
Multiuser MIMO (MU-MIMO)
Allows transmission of data to multiple 802.11ac Wave 2-capable clients simultaneously to improve client experience; prior to 802.11ac Wave 2, access points could transmit data to only one client at a time, typically referred to as single-user MIMO
Flexible deployment modes
Allows f or deployment of the 1560 in a variety of ways including point -to-point and mesh networks; it can also be deployed with the Cisco Mobility Express Solution, which is ideal f or small to medium -sized deployments that that require 25 or fewer access points without a physical controller; all deployment modes are easy to set up and
configure
Small Form-Factor Pluggable (SFP) port
Supports optical fiber-based network connectivity for remote locations
Features and Benefits
Table 1 lists the features and benefits of the Cisco Aironet 1560 Series.
Table 1. Features and Benefits of Cisco Aironet 1560 Series
Prominent Feature/Differentiator/Capability
The Cisco Aironet 1560 Series offers the following features:
Improved performance for multiple client devices: The 802.11ac Wave 2 access points use MU-MIMO technology, which allows different data streams to all flow at once from the access point to multiple
802.11ac Wave 2-supported devices. Now, multiple 802.11ac Wave 2 devices can connect at the same time, getting the information they need quicker.
5-GHz support: The Cisco Aironet 1560 Series doubles the scale of 5 -GHz mobile devices and raises the performance of high-density environments.
Cisco Flexible Antenna Port technology uses software configurable for either single- or dual-band antennas. It allows you to use the same antenna ports for either dual-band antennas to reduce footprint or single-band antennas to optimize radio coverage.
Cisco Mobility Express: This solution is designed to bring enterprise-class wireless access to small and
medium-sized networks. Easy to set up with low maintenance, Mobility Express includes advanced features from Cisco and does not require a physical controller appliance.
Cisco High Density Experience (HDX): Cisco HDX comes standard on the 1560, giving this access point top-of-the-line network efficiency over a large number of wireless clients. HDX uses customized chipsets to target the needs of high-density networks. It is built with best-in-class RF architecture and gives a better user experience for high-performance applications.
Page 3
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 3 of 11
Item
Specification
802.11ac Wave 1 and 2 capabilities
1562I: 3 x 3 MIMO with three spatial streams
1562E/D 2 x 2 MIMO with two spatial streams
Multi- and single-user MIMO
Maximal ratio combining (MRC)
802.11ac beamforming (transmit beamforming)
20-, 40-, and 80-MHz channels
PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
802.11 dynamic frequency selection (DFS)
Cyclic-shift-diversity (CSD) support
802.11n (and related) capabilities
1562I: 3 x 3 MIMO with three spatial streams
1562E/D/PS: 2 x 2 MIMO with two spatial streams
MRC
20- and 40-MHz channels
PHY data rates up to 450 Mbps
Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
● ● 802.11 DFS
CSD support
Data rates supported
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates on 2.4 and 5 GHz:
MCS Index
GI4 = 800 ns
GI = 400 ns
20-MHz Rates (Mbps)
40-MHz Rates (Mbps)
20-MHz Rates (Mbps)
40-MHz Rates (Mbps)
0 6.5 13.5 7.2 15 1 13 27 14.4 30
2 19.5 40.5 21.7 45
3 26 54 28.9 60 4 39 81 43.3 90
5 52 108 57.8 120
6 58.5 121.5 65 135 7 65 135 72.2 150
8 13 27 14.4 30
9 26 54 28.9 60 10 39 81 43.3 90
11 52 108 57.8 120
12 78 162 86.7 180 13 104 216 115.6 240
14 117 243 130 270
15 130 270 144.4 300
16 19.5 40.5 21.7 45
17 39 81 43.3 90
18 58.5 121.5 65 135
Product Specifications
Table 2 lists the specifications of the 1560 access point.
Table 2. Specifications of Cisco Aironet 1560 Series
Page 4
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 11
Item
Specification
19
78
162
86.7
180
20
117
243
130
270
21
156
324
173.3
360
22
175.5
364.5
195
405
23
195
405
216.7
450 802.11ac Data Rates (5 GHz)
Spatial Streams
MCS
GI = 800 ns
GI = 400 ns 20 MHz
40 MHz
80 MHz
20 MHz
40 MHz
80 MHz
1 0 6.5 13.5 29.3 7.2 15 32.5
1 1 13 27 58.5 14.4 30 65 1 2 19.5 40.5 87.8 21.7 45 97.5
1 3 26 54 117 28.9 60 130
1 4 39 81 175.5 43.3 90 195 1 5 52 108 234 57.8 120 260
1 6 58.5 121.5 263.3 65 135 292.5
1 7 65 135 292.5 72.2 150 325 1 8 78 162 351 86.7 180 390
1 9
180 390
200 433.3
2 0 13 27 58.5 14.4 30 65
2 1 26 54 117 28.9 60 130
2 2 39 81 175.5 43.3 90 195
2 3 52 108 234 57.8 120 260 2 4 78 162 351 86.7 180 390
2 5 104 216 468 115.6 240 520
2 6 117 243 526.5 130 270 585 2 7 130 270 585 144.4 300 650
2 8 156 324 702 173.3 360 780
2 9
360 780
400 866.7 3 0 19.5 40.5 87.8 21.7 45 97.5
3 1 39 81 175.5 43.3 90 195
3 2 58.5 121.5 263.3 65 135 292.5 3 3 78 162 351 86.7 180 390
3 4 117 243 526.5 130 270 585
3 5 156 324 702 173.3 360 780 3 6 175.5 364.5
195 405
3 7 195 405 877.5 216.7 450 975
3 8 234 486 1053 260 540 1170 3 9 260 540 1170 288.9 600 1300
Page 5
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 11
Item
Specification
Frequency band and 20- MHz operating channels (regulatory domains)
A:
2.412 to 2.462 GHz, 11 channels
5.280 to 5.320 GHz, 3 channels
5.500 to 5.580 GHz, 5 channels
5.660 to 5.700 GHz, 3 channels
5.745 to 5.825 GHz, 5 channels
B:
2.412 to 2.462 GHz, 11 channels
5.180 to 5.240 GHz, 4 channels
5.260 to 5.320 GHz, 4 channels
5.500 to 5.720 GHz, 12 channels
5.745 to 5.825 GHz, 5 channels
C:
2.412 to 2.472 GHz, 13 channels
5.745 to 5.825 GHz, 5 channels
D:
2.412 to 2.462 GHz, 11 channels
5.745 to 5.865 GHz, 7 channels
E:
2.412 to 2.472 GHz, 13 channels
5.500 to 5.580 GHz, 5 channels
5.660 to 5.700 GHz, 3 channels
F:
2.412 to 2.472 GHz, 13 channels
5.745 to 5.805 GHz, 4 channels
G:
2.412 to 2.472 GHz, 13 channels
5.745 to 5.825 GHz, 5 channels
-H:
2.412 to 2.472 GHz, 13 channels
5.745 to 5.825 GHz, 5 channels
-I:
2.412 to 2.472 GHz, 13 channels
-K:
2.412 to 2.462 GHz, 11 channels
5.280 to 5.320 GHz, 3 channels
5.500 to 5.620 GHz, 7 channels
5.745 to 5.805 GHz, 4 channels
-L:
2.412 to 2.472 GHz, 13 channels
5.500 to 5.620 GHz, 7 channels
5.745 to 5.865 GHz, 7 channels
-M:
2.412 to 2.472 GHz, 13 channels
5.500 to 5.580 GHz, 5 channels
5.660 to 5.700 GHz, 3 channels
5.745 to 5.805 GHz, 4 channels
-N:
2.412 to 2.462 GHz, 11 channels
5.745 to 5.825 GHz, 5 channels
-Q:
2.412 to 2.472 GHz, 13 channels
5.500 to 5.700 GHz, 11 channels
-R:
2.412 to 2.472 GHz, 13 channels
5.260 to 5.320 GHz, 4 channels
5.660 to 5.700 GHz, 3 channels
5.745 to 5.825 GHz, 5 channels
Page 6
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 6 of 11
Item
Specification
-S:
2.412 to 2.472 GHz, 13 channels
5.500 to 5.700 GHz, 11 channels
5.745 to 5.825 GHz, 5 channels
-T:
2.412 to 2.462 GHz, 11 channels
5.500 to 5.580 GHz, 5 channels
5.660 to 5.700 GHz, 3 channels
5.745 to 5.825 GHz, 5 channels
-Z:
2.412 to 2.462 GHz, 11 channels
5.500 to 5.580 GHz, 5 channels
5.660 to 5.700 GHz, 3 channels
5.745 to 5.825 GHz, 5 channels
Note: Customers are responsible f or verifying approval f or use in their individual countries. To verify approval that corresponds t o a particular country, please visit http://www.cisco.com/go/aironet/compliance.
Maximum number of nonoverlapping channels
2.4 GHz
802.11b/g:
20 MHz: 3
802.11n:
20 MHz: 3
40 MHz: 1 (hardware capable)
5 GHz
802.11a:
20 MHz: 27
802.11n:
20 MHz: 27
40 MHz: 13
802.11ac:
20 MHz: 27
40 MHz: 13
80 MHz: 6
Note: This number varies by regulatory domain. Refer to the product documentation f or specific details f or each regulatory domain.
Receive Sensitivity
2.4 GHz Radio
5 GHz Radio
Spatial Streams
1562I
1562D/E
1562I
1562D/E
802.11/11b
1 Mbps
1
-100
-98
NA
NA
11 Mbps
1
-88
-87
NA
NA
802.11a/g
6 Mbps
1
-92
-90
-94
-93
24 Mbps
1
-86
-83
-89
-88
54 Mbps
1
-76
-74
-80
-79
802.11n HT20
MSC0
1
-90
-89
-91
-90
MSC4
1
-84
-82
-88
-86
MSC7
1
-77
-75
-80
-78
MSC8
2
-89
-88
-90
-89
MSC12
2
-82
-80
-85
-83
MSC15
2
-75
-72
-78
-76
MSC16
3
-89 -90
MSC20
3
-81 -84
MSC23
3
-73 -76
Page 7
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 7 of 11
Item
Specification
802.11n HT40
MSC0
1
-88
-86
-90
-90
MSC4
1
-82
-80
-85
-83
MSC7
1
-75
-74
-78
-76
MSC8
2
-87
-86
-90
-90
MSC12
2
-80
-78
-82
-81
MSC15
2
-72
-70
-75
-73
MSC16
3
-87 -90
MSC20
3
-78 -81
MSC23
3
-71 -74 802.11ac VHT20
MSC0
1
-95
-94
MSC4
1
-88
-86
MSC7
1
-81
-79
MSC8
1
-77
-75
MSC0
2
-94
-93
MSC4
2
-86
-84
MSC7
2
-78
-76
MSC8
2
-74
-72
MSC0
3
-93
MSC4
3
-85
MSC7
3
-78 MSC8
3
-72
MSC9
3
-69
802.11ac VHT40
MSC0
1
-91
-90
MSC4
1
-85
-84
MSC7
1
-79
-77
MSC8
1
-75
-73
MSC9
1
-73
-71
MSC0
2
-91
-90
MSC4
2
-83
-82
MSC7
2
-76
-74
MSC8
2
-73
-70
MSC9
2
-71
-68
MSC0
3
-91
MSC4
3
-82 MSC7
3
-74
MSC8
3
-69
MSC9
3
-68
Page 8
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 8 of 11
Item
Specification
802.11ac VHT80
MSC0
1
-88
-88
MSC4
1
-83
-81
MSC7
1
-75
-73
MSC8
1
-71
-69
MSC9
1
-69
-67
MSC0
2
-88
-88
MSC4
2
-80
-78
MSC7
2
-73
-71
MSC8
2
-69
-67
MSC9
2
-67
-65
MSC0
3
-88
MSC4
3
-78 MSC7
3
-71
MSC8
3
-67
MSC9
3
-65
Maximum conducted transmit power
1562I
2.4 GHz: 29 dBm with 3 antennas
5 GHz: 29 dBm with 3 antennas
1562D
2.4 GHz: 27 dBm with 2 antennas
5 GHz: 27 dBm with 2 antennas
1562E
2.4 GHz: 27 dBm with 2 antennas
5 GHz: 27 dBm with 2 antennas
1562PS
2.4 GHz: 27 dBm with 2 antennas
4.9 GHz: 27 dBm with 2 antennas
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation f or specific details.
Interfaces
WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in
SFP port (fiber or electrical)
Management console port (RJ-45)
Multicolor LED
DC power input
Reset button
Uplink options
Ethernet, SFP, and wireless mesh
Dimensions (L x W x D)
1562I: 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm) 1562D: 9.0 x 6.8 x 4.3 in. (22.9 x 17.1 x 10.9 cm) 1562E/PS:: 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm)
Weight
1562I: 5.6 lb (2.5 kg) 1562D: 5.7 lb (2.6 kg) 1562E/PS: 5.6 lb (2.5 kg)
Environmental
Operating temperature:
40 to 65°C (40 to 149°F) ambient air with no solar loading
● –40 to 55°C (40 to 131°F) ambient air with solar loading
Storage temperature: –40 to 85°C (–40 to 185°F)
Wind resistance:
Up to 100-mph sustained winds
Up to 165-mph wind gusts
Environmental ratings
IEC 60529 IP67
NEMA Type 4X
Icing protection NEMA 250-2008
Corrosion
NEMA 250-2008 (600 hours)
Solar radiation EN 60068-2-5 (1200 W/ m2)
Vibration
MIL-STD-810
Page 9
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 9 of 11
Item
Specification
Antennas
Integrated dual-band semi-omnidirectional antenna radome, vertically polarized (1562I) 7 dBi (2.4 GHz), 4 dBi (5 GHz)
Integrated dual-band directional antenna radome, dual polarized (1562D) 9 dBi (2.4 GHz), 10 dBi (5 GHz)
Dual Band
AIR-ANT2568VG-N 6 dBi (2.4 GHz), 8 dBi (5 GHz) Omni AIR-ANT2547VG-N 4 dBi (2.4 GHz), 7 dBi (5 GHz) Omni AIR-ANT2547V-N 4 dBi (2.4 GHz), 7 dBi (5 GHz) Omni AIR-ANT2588P3M-N= 8 dBi (2.4 GHz), 8 dBi (5 GHz) Directional AIR-ANT2513P4M-N= 13 dBi (2.4 GHz), 13 dBi (5 GHz) Directional
Single Band
2.4 GHz
AIR-ANT2450V-N= 5 dBi (2.4 GHz), Omni AIR-ANT2450VG-N= 5 dBi (2.4 GHz), Omni, vertical polarized AIR-ANT2450HG-N= 5 dBi (2.4 GHz), Omni, horizontal polarized AIR-ANT2480V-N= 8 dBi (2.4 GHz), Omni AIR-ANT2413P2M-N= 13 dBi (2.4 GHz), Directional, dual polarized
5 GHz
AIR-ANT5150VG-N= 5 dBi (5GHz), Omni, vertical polarized AIR-ANT5150HG-N= 5 dBi (5GHz), Omni, horizontal polarized AIR-ANT5180V-N= 8 dBi (5GHz), Omni AIR-ANT5114P2M-N= 14 dBi (5GHz), Directional, dual polarized
For antenna details, please refer to the antenna webpage: http://www.cisco.com/go/antennas
Powering options
AC (with AIR-PWRADPT-RGD1=, AC/DC outdoor power adapter)
44–57 VDC input
Universal Power of Ethernet (UPoE), 802.3at
Cisco power injectors:
AIR-PWRINJ-60RGD1= (outdoor rated, 60W, with NEMA 5-15 AC plug) AIR-PWRINJ-60RGD2= (outdoor rated, 60W, unterminated AC cable) AIR-PWRINJ6= (indoor, 802.3at)
Note: If 802.3at Power over Ethernet (PoE) is the source of power, the 1562I radios will shift from 3 x 3 to 2 x 2.
Power consumption
1562I 32 W (3x3:3, full power) 1562D/E/PS 25 W
Compliance
Safety
UL60950, 2nd Edition
CAN/CSA-C22.2 No. 60950,
2nd Edition
IEC 60950,
2nd Edition
EN 60950,
2nd Edition
Immunity
<= 5 mJ f or 6kV/3kA @ 8/20 ms waveform
ANSI/IEEE C62.41
EN61000-4-5 Lev el 4 AC Surge Immunity
EN61000-4-4 Lev el 4 Electrical Fast Transient Burst Immunity
EN61000-4-3 Lev el 4 EMC Field Immunity
EN61000-4-2 Lev el 2 ESD Immunity
EN60950 Overvoltage Category IV
Radio Approvals
FCC Part 15.247, 15.407
FCC Bulletin OET-65C
RSS-210
RSS-102
AS/NZS 4268.2003
ARIB-STD 66 (Japan)
ARIB-STD T71 (Japan)
EN 300 328
EN 301 893
Page 10
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 10 of 11
Item
Specification
EMI and Susceptibility
FCC part 15.107, 15.109
ICES-003
EN 301 489-1, -17
Security
Wireless bridging/mesh
X.509 digital certificates
MAC address authentication
Advanced Encryption Standard (AES)
Wireless Access
802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA
802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP -PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module
- (EAP-SIM), and Cisco LEAP
VPN pass-through
IP Security (IPsec)
Layer 2 Tunneling Protocol (L2TP)
MAC address filtering
Warranty
1-y ear limited hardware warranty
Part Number
Product Description
Aironet 1560 Series
AIR-AP1562I-x-K9: Dual-band 802.11a/g/n/ac, Wave 2, internal semi-omni antennas
AIR-AP1562E-x-K9: Dual-band 802.11a/g/n/ac, Wave 2, external antennas
AIR-AP1562D-x-K9: Dual-band 802.11a/g/n/ac, Wave 2, internal directional antennas
AIR-AP1562PS-x-K9: Dual-band 802.11a/g/n 4.9 GHz Public Safety band support
Regulatory domains: (x = regulatory domain) Customers are responsible f or verifying approval f or use in their individual countries. To verify approval that
corresponds to a particular country or the regulatory domain used in a specific country, visit
http://www.cisco.com/go/aironet/compliance.
Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List.
Cisco SMARTnet™ Service for the Cisco Aironet 1560 Series Access Points Refer to the Service part numbers available on Cisco Commerce Workspace f or available service offerings.
Ordering Information
Table 3 gives ordering information for the Cisco Aironet 1560 Series.
Table 3. Ordering Information for Cisco Aironet 1560 Series
Warranty Information
The Cisco Aironet 1560 Series Outdoor Access Points come with a 1 -year limited warranty that provides full warranty coverage of the hardware. The warranty includes 10 –day advance hardware replacement and helps ensure that software media are defect-free for 90 days. For more details, visit http://www.cisco.com/go/warranty.
Cisco and Partner Services
Realize the full business value of your technology investments faster with intelligent, customized services from Cisco and our partners. Backed by deep networking expertise and a broad ecosystem of partners, Cisco Wireless LAN Services help you deploy a sound, scalable mobility network that enables rich -media collaboration while improving the operational efficiency gained from a converged wired and wireless network infrastructure based on the Cisco Unified Wireless Network.
Page 11
© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 11 of 11
Printed in USA C78-737416-02 12/16
Together with partners, we offer expert plan, build, and run services to accelerate your transition to advanced mobility services while continuously optimizing the performance, reliability, and security of that architecture after it is deployed. For more details, please visit: http://www.cisco.com/go/wirelesslanservices.
Cisco Wireless LAN Services include:
AS-WLAN-CNSLT: Cisco Wireless LAN Network Planning and Design Service
AS-WLAN-CNSLT: Cisco Wireless LAN 802.11n Migration Service
AS-WLAN-CNSLT: Cisco Wireless LAN Performance and Security Assessment Service
Cisco Capital
Financing to Help You Achieve Your Objectives
Cisco Capital® can help you acquire the technology you need to achieve your objectives and stay competitive. We can help you reduce capital expenditures (CapEx). Accelerate your growth. Optimize your investment dollars and ROI. Cisco Capital financing gives you flexibility in acquiring hardware, software, services, and complementary third-party equipment. And there’s just one predictable payment. Cisco Capital is available in more than 100 countries. Learn more.
For More Information
For more information about the Cisco Aironet 1560 Series, visit http://www.cisco.com/go/wireless or contact your local Cisco account representative.
Loading...
