Overview

The Cisco Aironet 1550 Series Outdoor Mesh Access Point (hereafter called the access point or AP) is a modularized wireless outdoor access point designed for use in a mesh network. The access point also supports wireless client access, point-to-point bridging, point-to-multipoint bridging, and point-to-multipoint mesh wireless connectivity.

About the 1552 Access Point

The 1552 access point supports two radios (2.4-GHz and 5-GHz) and provides client access without the need for a license. The 5-GHz radios are primarily used for backhaul operations to reach a wired network and the 2.4-GHz radio is used for wireless clients. Depending on the radio, the access point can support 1 to 300 Mb/s data rates (for specific data rates, refer to Appendix D, “Access Point Specifications”).

The 1552 access point supports the modularity of the 1520 series and allows flexibility in radio configuration. In addition to full interoperability with 802.11n clients, the 1552 access point interoperates with legacy clients and offers enhanced backhaul performance. The 1552 access point can also be configured with an integrated DOCSIS 3.0/Euro DOCSIS 3.0 cable modem.

CHAP T ER

OL-24247-01

The access point is a standalone unit that can be cable strand or tower mounted. The access point can also operate as a relay node for other access points not directly connected to a wired network. Intelligent wireless routing is provided by the patented Adaptive Wireless Path Protocol (AWPP). This enables each access point to identify its neighbors and intelligently choose the optimal path to the wired network by calculating the cost of each path in terms of signal strength and the number of hops required to get to a controller.

The access point is configured, monitored, and operated through a Cisco wireless LAN controller (hereafter called a controller) as described in the Cisco Wireless LAN Controller Configuration Guide. The Cisco Wireless Mesh Access Points, Design and Deployment Guide, Release 7.3 describes how to plan and initially configure the Cisco mesh network, which supports wireless point-to-point, point-to-multipoint, and mesh deployments. The controllers use a browser-based management system, a command-line interface (CLI), or the Cisco Prime Infrastructure (PI) network management system to manage the controller and the associated access points. The access point supports hardware-based advanced encryption standard (AES) encryption between wireless nodes to provide end-to-end security.

This chapter provides information on the following topics:

• Hardware Models, page 1-2

• Hardware Features, page 1-5

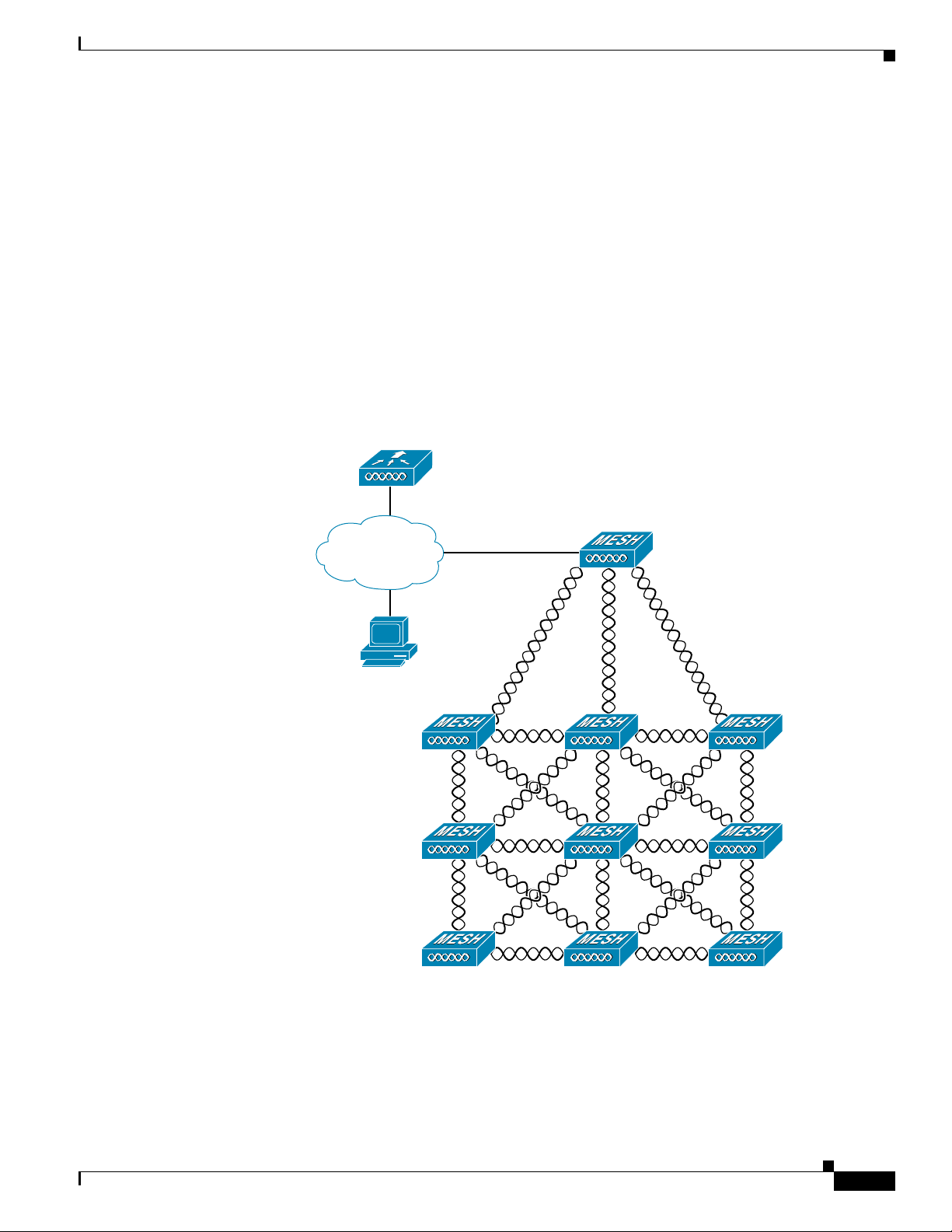

• Network Deployment Examples, page 1-25

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-1

Hardware Models

The model numbers (or part numbers) and configuration for the Cisco Aironet 1552 Outdoor Mesh Access Points are described in Table 1-1. A detailed list of components supported by each 1552 access point model is shown in Tabl e 1-2.

The Cisco Aironet 1552 Series access points includes two additional models, 1552S and 1552H, that are specifically intended for deployment in hazardous locations. For information on these models, refer to the Cisco Aironet 1550 Series for Hazardous Locations Installation Guide.

For a detailed description of the declarations of conformity and regulatory information for the 1552 access points refer to Appendix B, “Declarations of Conformity and Regulatory Information.”

Table 1-1 1552 Access Point Model Numbers and Descriptions

Model (or part number) Configuration

AIR-CAP1552E-x-K9 Two-radio (2.4 GHz and 5 GHz) modular version.

Chapter 1 Overview

This model supports three (3) external dual-band antenna ports. An optional Battery Backup Unit (BBU) and Small Form Factor Pluggable (SFP) fiber module can be ordered with the AP. Countries (regulatory domains) are represented by the variable x in the product model number.

For specific regulatory domains supported by this model, refer to the product data sheet at:

http://www.cisco.com/en/US/prod/collateral/wire less/ps5679/ps5861/product_data_sheet0900aecd 80537b6a.html

AIR-CAP1552EU-x-K9 Two-radio (2.4 GHz and 5 GHz) modular version.

This model supports three (3) 2.4 GHz antenna ports and three (3) 5 GHz antenna ports. An optional Battery Backup Unit (BBU) and Small Form Factor Pluggable (SFP) fiber module can be ordered with the AP. Countries (regulatory domains) are represented by the variable x in the product model number.

For specific regulatory domains supported by this model, refer to the product data sheet at:

http://www.cisco.com/en/US/prod/collateral/wire less/ps5679/ps5861/product_data_sheet0900aecd 80537b6a.html

1-2

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 1 Overview

Hardware Models

Table 1-1 1552 Access Point Model Numbers and Descriptions (continued)

Model (or part number) Configuration

AIR-CAP1552C-x-K9 Two-radio (2.4 GHz and 5 GHz) version with

DOCSIS 3.0 or Euro-DOCSIS 3.0 Cable Modem. This is a lightweight, low-profile AP. It supports cable modem backhaul and beamforming, and has an integrated 3-element array antenna. Countries (regulatory domains) are represented by the variable x in the product model number.

For specific regulatory domains supported by this model, refer to the product data sheet at:

http://www.cisco.com/en/US/prod/collateral/wire less/ps5679/ps5861/product_data_sheet0900aecd 80537b6a.html

AIR-CAP1552CU-x-K9 Two-radio (2.4 GHz and 5 GHz) version with

DOCSIS 3.0 or Euro-DOCSIS 3.0 Cable Modem. This model supports three (3) 2.4 GHz antenna ports and three (3) 5 GHz antenna ports. This is a lightweight, low-profile AP. It supports cable modem backhaul and beamforming, and has an integrated 3-element array antenna. Countries (regulatory domains) are represented by the variable x in the product model number.

For specific regulatory domains supported by this model, refer to the product data sheet at:

http://www.cisco.com/en/US/prod/collateral/wire less/ps5679/ps5861/product_data_sheet0900aecd 80537b6a.html

AIR-CAP1552I-x-K9 Two-radio (2.4 GHz and 5 GHz) lightweight,

low-profile version. This version consists of 1 AC power supply, Ethernet backhaul, and an integrated 3-element array antenna. Countries (regulatory domains) are represented by the variable x in the product model number.

For specific regulatory domains supported by this model, refer to the product data sheet at:

http://www.cisco.com/en/US/prod/collateral/wire less/ps5679/ps5861/product_data_sheet0900aecd 80537b6a.html

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-3

Hardware Models

Table 1-2 Components of Each 1552 Access Point Model

1552E 1552EU 1552C 1552CU 1552I

Antennas External External Integrated External Integrated

Fiber SFP Yes Yes - - -

PoE-Out Port

802.3af (for example, video)

Cable Modem

DOCSIS 3.0 Euro DOCSIS 3.0

Battery Backup Option Yes Yes - - -

Power Options AC, DC,

Yes Yes - - -

--YesYes-

AC, DC

PoE

AC, DC,

PoE

40 to 90 VAC

Power over

Cable,

12 VDC

40 to 90 VAC

Power over

Cable,

12 VDC

Chapter 1 Overview

1. When a 1552E/EU is powered with PoE, the PoE-Out port is not active.

2, PoE-In is not 802.3af; it does not work with a PoE 802.3af-capable Ethernet switch. It requires the dedicated Power Injector

(AIR-PWRINJ1500-2=).

Regulatory Domains

The “-x” in the 1552 model numbers represent the domain. For example, in AIR-CAP1552C-x-K9, the

-x represents a regulatory domain for a specific country.

For specific regulatory domains supported by each 1552 access point model, refer to the Wireless LAN Compliance Status at:

http://www.cisco.com/en/US/prod/collateral/wireless/ps5679/ps5861/product_data_sheet0900aecd805 37b6a.html

To locate the 1552 access point models, click on 802.11abgn Mesh Access Points.

1-4

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 1 Overview

Hardware Features

This section describes the hardware features of the 1552 access point models. The following hardware features are described in this section:

• Connectors, page 1-5

• Antenna Port Locations, page 1-11

• Multiple Radio Operation, page 1-12

• Antenna Configurations, page 1-13

• Multiple Power Sources, page 1-21

• Cable Modem (POC), page 1-22

• Ethernet (PoE) Ports, page 1-22

• Fiber Option, page 1-23

• Metal Enclosure, page 1-24

• Optional Hardware, page 1-24

Hardware Features

Connectors

Note The illustrations in this document show all available connections for the access point. Unused

Figure 1-1 through Figure 1-9 show the access point connectors for all models. Figure 1-10 and Figure 1-11 show the external antenna Type-N connectors.

connections are capped with a connector plug to ensure the watertight integrity of the access point. Liquid-tight adapters are provided for connector openings, which can be installed before or after deploying the access point.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-5

Hardware Features

45 6

282137

1 2 3

789

1552E/1552EU Connectors

Figure 1-1 Access Point Models AIR-CAP1552E-x-K9 and AIR-CAP1552EU-x-K9 Bottom

Chapter 1 Overview

Connectors

1 Antenna port 4 6 Fiber port 2 Antenna port 5 7 PoE-out port 3 Antenna port 6 8 LEDs (Status, Up Link, RF1, RF2) 4 Auxiliary cable gland entry (1/2-NPT) for

data cable (outdoor cat 5 STP cable)

5 AC power entry port for model

AIR-CAP1552E/EU-x-K9 only

Note Antenna ports 1, 2, and 3 are not shown in Figure 1-1. These ports are located on the top of the access

point.

9 PoE-in port

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-6

OL-24247-01

Chapter 1 Overview

1 2

Hardware Features

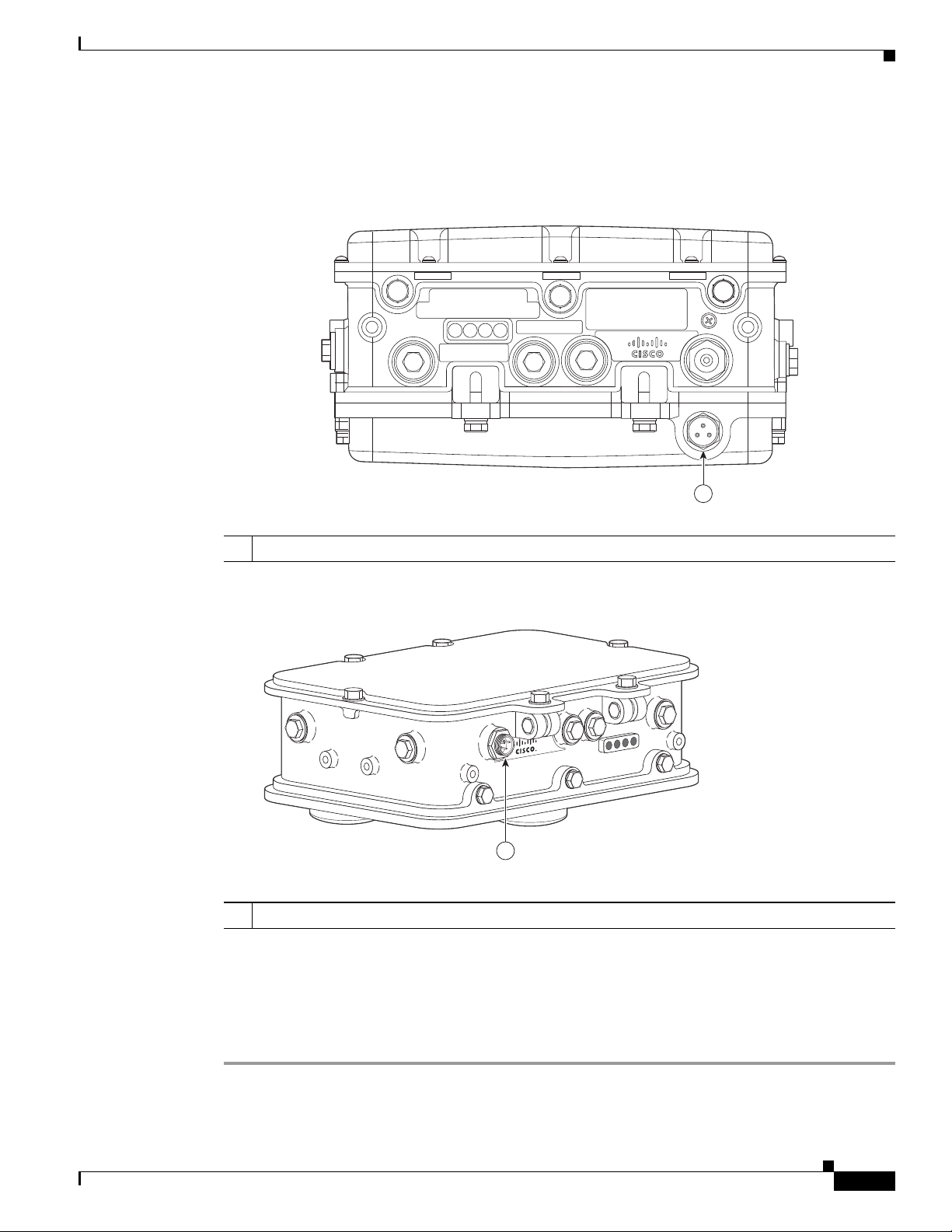

Figure 1-2 Console Port for Access Point Models AIR-CAP1552E-x-K9 and AIR-CAP1552EU-x-K9

1 Console port 2 Not used

Figure 1-3 Access Point Model AIR-CAP1552EU-x-K9 Top Connectors

23 1

1 Antenna port 1 3 Antenna port 3 2 Antenna port 2

345675

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-7

Hardware Features

1552I Connectors

Chapter 1 Overview

Figure 1-4 Access Point Model AIR-CAP1552I-x-K9 Bottom Connectors

1 2 3 54

282139

1 AC Connector 4 LEDs (Status, Up Link, RF1, RF2) 2 Not used 5 Ethernet backhaul connector 3 Console port

1552C/1552CU Connectors

Figure 1-5 Access Point Model AIR-CAP1552C-x-K9 Bottom/Side Connectors

1 2

1 F-Connector adapter (splitter) for cable POC

(optional)

2 AC power connector (Not used) 5 LEDs (Status, Up Link, RF1, RF2) 3 Not used 6 Not used

4 65

331577

4 Console port

1-8

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 1 Overview

Hardware Features

Figure 1-6 Access Point Model AIR-CAP-1552CU-x-K9 Bottom/Side Connectors

1 2 3 4 65

345703

1 F-Connector adapter (splitter) for cable POC

4 Console port

(optional)

2 AC power connector (Not used) 5 LEDs (Status, Up Link, RF1, RF2) 3 Not used 6 Not used

Figure 1-7 Access Point Model AIR-CAP1552CU-x-K9 Top Connectors

23 1

345837

OL-24247-01

1 Antenna port 1 3 Antenna port 3 2 Antenna port 2

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-9

Hardware Features

255265

Chapter 1 Overview

Figure 1-8 F-Connector Adapter (Splitter) Components (AIR-CAP1552C-x-K9 and

AIR-CAP1552CU-x-K9)

1 RF splitter attenuator (ATTN) 3 F-Connector adapter (splitter) for cable POC

(optional)

2 RF splitter shunt (SHUNT)

Shunt is a 20 amp fuse.

Connectors for All Models

Figure 1-9 Access Point DC Power Connector and Ground Lug (All Models)

1 DC power port 3 Bracket mounting nut 2 Bracket mounting hole 4 Ground lug location (connection for earth

1 3 42

282141

grounding (minimum VD 16 mm,6 AWG)

1-10

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 1 Overview

Antenna Port Locations

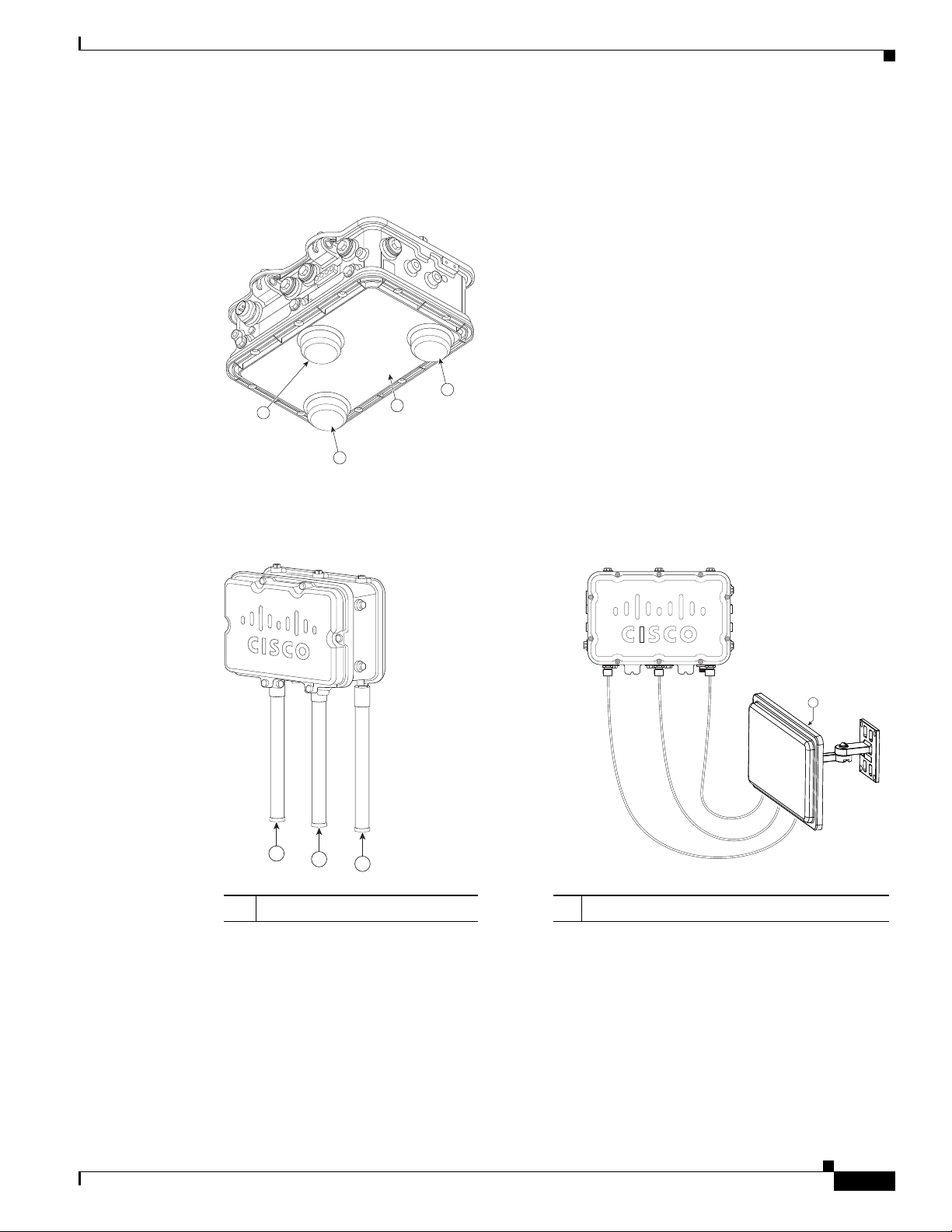

Figure 1-10 shows the antenna port locations for model AIR-CAP1552E-x-K9. The ports used depend

on the optional antennas ordered.

Figure 1-10 External Antenna Port Locations for Access Point Models AIR-CAP1552E-x-K9

Hardware Features

123

255247

456

1 Not used 4 Antenna port 4 - Type N connector (with cap) 2 Not used 5 Antenna port 5 - Type N connector (with cap) 3 Not used 6 Antenna port 6 - Type N connector (with cap)

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-11

Hardware Features

Chapter 1 Overview

Figure 1-11 shows the antenna port locations for models AIR-CAP1552CU-x-K9 and

AIR-CAP1552EU-x-K9. The ports used depend on the optional antennas ordered.

Figure 1-11 External Antenna Port Locations for Access Point Models AIR-CAP1552CU-x-K9 and

AIR-CAP1552EU-x-K9

123

1 Antenna port 3 - Type N connector (with cap) 4 Antenna port 6 - Type N connector (with cap) 2 Antenna port 2 - Type N connector (with cap) 5 Antenna port 5 - Type N connector (with cap) 3 Antenna port 1 - Type N connector (with cap) 6 Antenna port 4 - Type N connector (with cap)

Multiple Radio Operation

The 1552 access point supports simultaneous dual-radio operation using a 2.4-GHz 802.11b/g/n multiple input/multiple output (MIMO) radio and a 5-GHz 802.11a/n MIMO radio. The 2.4 GHz radio supports channels 1 to 11 in US, 1 to 13 in Europe, and 1 to 13 in Japan. It has two transmitters with a maximum total output power of 25 dBm for 802.11b/g/n operation. Output power is configurable to 5 levels. It has three receivers that enable maximum-ratio combining (MRC).

The 5-GHz radio operates in the UNII-2 band (5.25 – 5.35 GHz), UNII-2 Extended/ETSI band (5.47 –

5.725 GHz), upper ISM band (5.725 – 5.850 GHz), and the Extended India Band (5.85 – 5.875 GHz). It has two transmitters with a maximum total output power of 26 dBm for UNII-2 and Extended/ETSI bands. The total maximum output power for the upper ISM band is 28 dBm. Output power is configurable for 5 power levels in 3 dB steps. The three receivers enables maximum-ratio combining (MRC).

345674

456

1-12

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 1 Overview

Antenna Configurations

The 1552 access point supports a variety of antennas designed for outdoor use with radios operating in the 2.4-GHz and 5-GHz frequency bands. In addition to an integrated antenna array, the 1552 supports the external antennas listed in the following sections.

Two mounting configurations are available, the cable strand mount and the pole mount (refer to

“Mounting the Access Point” section on page 2-14.)

Using an optional antenna mounting bracket kit, the directional antennas AIR-ANT2413P2M-N and AIR-ANT5114P2M-N can be mounted directly on an access point in a strand mount or pole mount environment. The antenna bracket kit contains four bracket sections and fasteners that you can assemble in multiple configurations to position and aim the directional antenna in a range of positions. For more information on mounting the antenna with the optional mounting bracket, refer to Installing

Directional-Antenna Mounting Kits on Cisco 1550 Series Outdoor Mesh Access Points.

The AIR-CAP1552E-x-K9 model must always be operated with the three external antennas attached.

Figure 1-10 shows the antenna port locations for model 1552E.

Low Profile Dual-Band 2.4/5-GHz Omni Antenna Array

Hardware Features

The Low Profile Dual-Band 2.4/5 GHz Omni Antenna Array has the following basic features:

• Contains an array of three dual-band omni antennas—The three omni antennas are contained within

this single radome, which greatly reduces the antenna’s visual footprint and reduces the possibility of snagging the antenna on the cable bundle, the RF cable, or test cables.

• Operates over both 2.4 GHz and 5 GHz bands—Each of the three omni antennas is a dual-band

antenna, covering both the 2.4–2.5 GHz band, and the 5.2–5.9 GHz bands.

• Gain of about 2 dBi at 2.4 GHz, 4 dBi at 5 GHz.

• Cisco Light Gray weatherproof radome for outdoor operation.

Figure 1-12 shows an integrated low-profile dual-band (2.4 GHz and 5 GHz) 3-element array antenna

built-in only on models AIR-CAP1552I-x-K9 and AIR-CAP1552C-x-K9.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-13

Hardware Features

Chapter 1 Overview

Figure 1-12 Cisco Aironet Low Profile Dual-Band 2.4/5 GHz Omni Antenna Array- Built-in Only on

Models AIR-CAP1552I-x-K9 and AIR-CAP1552C-x-K9

209188

1 Integrated Low Profile Dual-Band 2.4/5

3 Antenna element (TX/RX)

GHz Omni Antenna Array Unit

2 Antenna element (RX only) 4 Antenna element (TX/RX)

Cisco Aironet Dual-Band Omnidirectional Antenna (AIR-ANT2547V-N)

The Dual-Band Omnidirectional Antenna, referred to as a “stick” antenna, is designed for outdoor use with Cisco Aironet Outdoor Access Points with radios operating in the 2.4-GHz and 5-GHz frequency bands (Figure 1-13). Basic operating features of the antenna are:

• Omnidirectional colinear array

• Operates in the 2.4 GHz and 5 GHz frequency bands

• Gain:

–

2400–2483 MHz — 4-dBi

–

5250–5875 MHz — 7-dBi

The antenna is designed to create an omnidirectional broadcast pattern. To achieve this pattern, mount the access point clear of any obstructions to the sides of the radiating element.

For detailed information on this antenna, refer to the Cisco Aironet Dual-Band Omnidirectional Antenna (AIR-ANT2547V-N) document. Follow all safety precautions when installing the antennas. For information on safety, refer to “Safety Precautions” section on page 2-41.

1-14

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 1 Overview

282145

Hardware Features

Figure 1-13 Cisco Aironet Dual-Band Omnidirectional Antenna - Installed Only on Model

AIR-CAP1552E-x-K9

1 Antenna connected to antenna port 4 (Type-N

connector) (TX/RX)

3 Antenna connected to antenna port 6 (Type-N

connector) (TX/RX)

2 Antenna connected to antenna port 5 (Type-N

connector) (RX only)

Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)

The Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna is designed for outdoor use with Cisco Aironet Outdoor Access Points with radios operating in both the 2.4-GHz and 5-GHz frequency bands. This antenna has 8-dBi gain in both bands.

For detailed information on this antenna, refer to the Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N) document. Follow all safety precautions when installing the antennas, for information on safety, refer to “Safety Precautions” section on page 2-41.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-15

Hardware Features

Chapter 1 Overview

Figure 1-14 Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna - Installed Only on Model

AIR-CAP1552E-x-K9

334574

Cisco Aironet 5-GHz 14-dBi 2-Port Directional Antenna (AIR-ANT5114P2M-N)

The Cisco Aironet 5-GHz 14-dBi 2-Port Directional Antenna is designed for outdoor use with Cisco Aironet Outdoor Access Points with radios operating in the 5-GHz frequency band. This antenna has 14-dBi in the 5-GHz band.

This antenna can be installed using the optional directional-antenna mounting kit AIR-CCAMK-1, which allows the antenna to be mounted on the access point and positioned in multiple configurations. For more information, refer to Installing Directional-Antenna Mounting Kits on Cisco 1550 Series Outdoor Mesh Access Points.

For detailed information on this antenna, refer to the Cisco Aironet 5-GHz 14-dBi Directional Antenna (AIR-ANT5114P2M-N) document. Follow all safety precautions when installing the antennas, for information on safety, refer to “Safety Precautions” section on page 2-41.

1-16

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 1 Overview

334576

Hardware Features

Figure 1-15 Cisco Aironet 5-GHz 14-dBi Directional Antenna - Installed Only on Models

AIR-CAP1552EU-x-K9 and AIR-CAP1552CU-x-K9

Cisco Aironet 2.4-GHz 13-dBi 2-Port Directional Antenna (AIR-ANT2413P2M-N

The Cisco Aironet 2.4-GHz 13-dBi 2-Port Directional Antenna is designed for outdoor use with Cisco Aironet Outdoor Access Points with radios operating in the 2.4-GHz frequency band. This antenna has 13-dBi gain in the 2.4-GHz frequency band.

For detailed information on this antenna, refer to the Cisco Aironet 2.4-GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N) document. Follow all safety precautions when installing the antennas, for information on safety, refer to “Safety Precautions” section on page 2-41.

Figure 1-16 Cisco Aironet 2.4-GHz 13-dBi Directional Antenna - Installed Only on Models

AIR-CAP1552EU-x-K9 and AIR-CAP1552CU-x-K9

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-17

Hardware Features

345666

Cisco Aironet 2.4-GHz 2-dBi Omnidirectional Antenna (AIR-ANT2420V-N)

The Cisco Aironet 2.4-GHz 2-dBi Omnidirectional Antenna is designed for outdoor use with Cisco Aironet Outdoor Access Points with radios operating in the 2.4-GHz frequency band. Basic operating features of the antenna are:

• Operates in the 2.4-GHz frequency band

• Gain: 2 dBi

• Right-angle antenna primarily intended for strand (side) mounting

Follow all safety precautions when installing the antennas, for information on safety, refer to “Safety

Precautions” section on page 2-41.

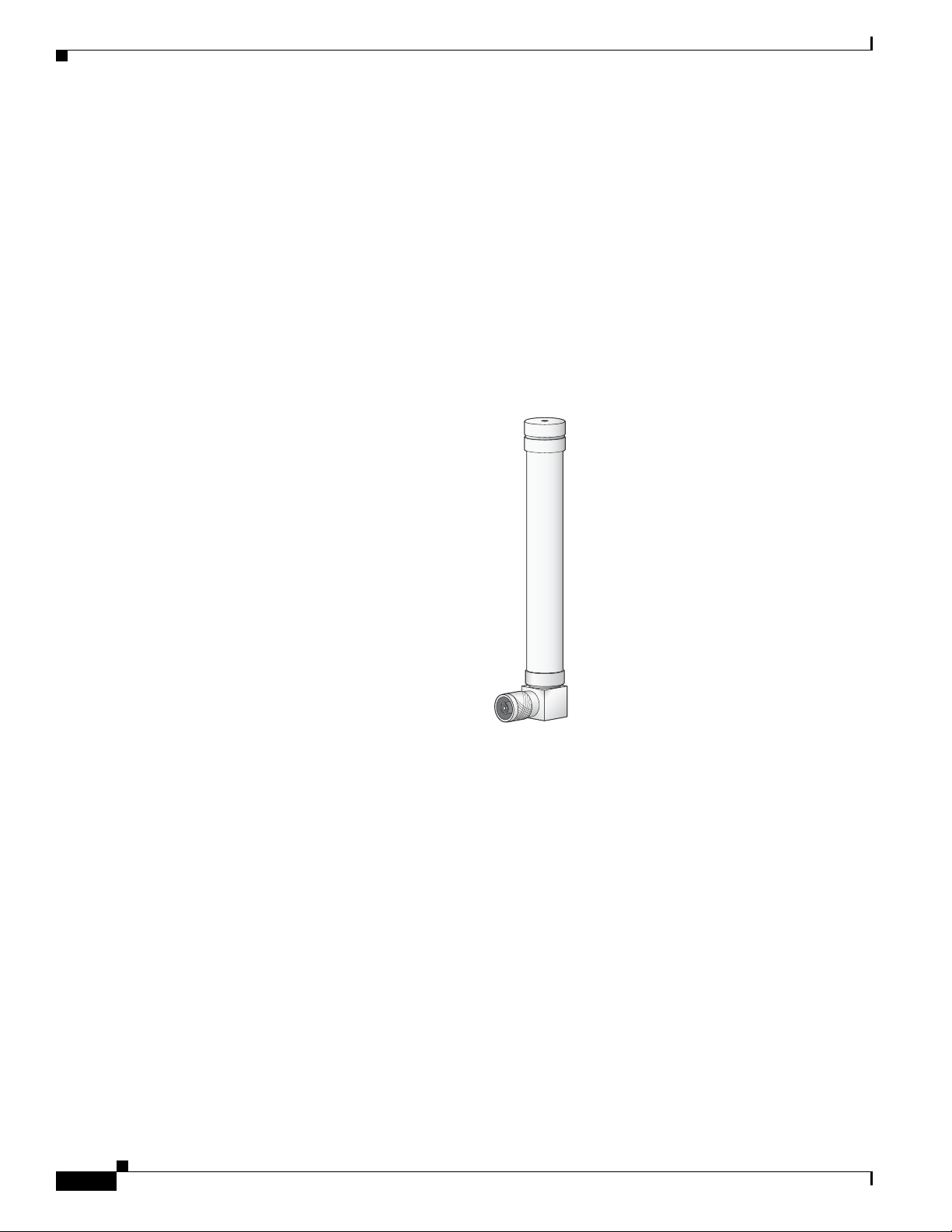

Figure 1-17 Cisco Aironet 2.4-GHz 2-dBi Omnidirectional Antenna - Installed Only on Models

AIR-CAP1552EU-x-K9 and AIR-CAP1552CU-x-K9

Chapter 1 Overview

Cisco Aironet 2.4-GHz 5-dBi Omnidirectional Antenna (AIR-ANT2450V-N)

The Cisco Aironet 2.4-GHz 5-dBi Omnidirectional Antenna is designed for outdoor use with Cisco Aironet Outdoor Access Points with radios operating in the 2.4-GHz frequency band. This antenna has 5-dBi gain in the 2.4-GHz frequency band.

For detailed information on this antenna, refer to the bilingual document Cisco Aironet 5-dBi Omnidirectional Antenna (AIR-ANT2450V-N)-French. Follow all safety precautions when installing the antennas, for information on safety, refer to “Safety Precautions” section on page 2-41.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-18

OL-24247-01

Chapter 1 Overview

231297

230540

Hardware Features

Figure 1-18 Cisco Aironet 2.4-GHz 5-dBi Omnidirectional Antenna - Installed Only on Models

AIR-CAP1552EU-x-K9 and AIR-CAP1552CU-x-K9

Cisco Aironet 2.4-GHz 8-dBi Omnidirectional Antenna (AIR-ANT2480V-N)

The Cisco Aironet 2.4-GHz 8-dBi Omnidirectional Antenna is designed for outdoor use with Cisco Aironet Outdoor Access Points with radios operating in the 2.4-GHz frequency band. This antenna has 8-dBi gain in the 2.4-GHz frequency band.

For detailed information on this antenna, refer to the document Cisco Aironet 8-dBi Omnidirectional Antenna (AIR-ANT2480V-N). Follow all safety precautions when installing the antennas, for information on safety, refer to “Safety Precautions” section on page 2-41.

Figure 1-19 Cisco Aironet 2.4-Ghz 8-dBi Omnidirectional Antenna - Installed Only on Models

AIR-CAP1552EU-x-K9 and AIR-CAP1552CU-x-K9

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-19

Hardware Features

345665

Cisco Aironet 5-GHz 4-dBi Omnidirectional Antenna (AIR-ANT5140V-N)

The Cisco Aironet 5-GHz 4-dBi Omnidirectional Antenna is designed for outdoor use with Cisco Aironet Outdoor Access Points with radios operating in the 5-GHz frequency band. Basic operating features of the antenna are:

• Operates in the 5-GHz frequency band

• Gain: 4 dBi

• Right-angle antenna primarily intended for strand (side) mounting

Follow all safety precautions when installing the antennas, for information on safety, refer to “Safety

Precautions” section on page 2-41.

Figure 1-20 Cisco Aironet 5-GHz 4-dBi Omnidirectional Antenna - Installed Only on Models

AIR-CAP1552EU-x-K9 and AIR-CAP1552CU-x-K9

Chapter 1 Overview

Cisco Aironet 5-GHz 8-dBi Omnidirectional Antenna (AIR-ANT5180V-N)

The Cisco Aironet 5-GHz 8-dBi Omnidirectional Antenna is designed for outdoor use with Cisco Aironet Outdoor Access Points with radios operating in the 5-GHz frequency band. This antenna has 8-dBi gain in the 5-GHz frequency band.

For detailed information on this antenna, refer to the document Cisco Aironet 8-dBi Omnidirectional Antenna (AIR-ANT5180V-N). Follow all safety precautions when installing the antennas, for information on safety, refer to “Safety Precautions” section on page 2-41.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-20

OL-24247-01

Chapter 1 Overview

231296

Hardware Features

Figure 1-21 Cisco Aironet 5-GHz 8-dBi Omnidirectional Antenna - Installed Only on Models

AIR-CAP1552EU-x-K9 and AIR-CAP1552CU-x-K9

Multiple Power Sources

The 1550 series access point supports these power sources:

• AC power—100 to 480 VAC, models 1552E and 1552EU access points, pole-mount configuration

• AC power—100 to 277 VAC, model 1552I access point

• Power-over-Cable (POC)—40 to 90 VAC, quasi-square wave AC, models 1552C and 1552CU

(standard power source for the cable modem configuration)

• External 12 VDC

• Power-over-Ethernet (PoE)—56 VDC power injector (AIR-PWRINJ1500-2=), only on models

1552E and 1552EU access points

• Internal 6 ampere-hour battery backup—only for the 1552E and 1552EUaccess point

Warning

Connect the unit only to DC power source that complies with the safety extra-low voltage (SELV) requirements in IEC 60950 based safety standards.

The 1552 access point can be connected to more than one power source. The access point detects the available power sources and switches to the preferred power source using the following default prioritization:

• AC power or POC power

• External 12-VDC power

• Power injector PoE power

Statement 1033

OL-24247-01

Warning

• Internal battery power

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Statement 1028

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-21

Hardware Features

Chapter 1 Overview

Warning

Caution To provide inline PoE, you must use the 1500 power injector (AIR-PWRINJ1500-2=). Other power

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

Statement 1023

injectors, PoE switches, and 802.3af power sources cannot provide adequate power, which can cause the access point to malfunction and cause over-current conditions at the power source.

Caution The 1500 power injector (AIR-PWRINJ1500-2=) must be used in an indoor environment only.

Caution When the access point is installed outdoors or in a wet or damp location, the AC branch circuit that is

powering the access point should be provided with ground fault protection (GFCI), as required by Article 210 of the National Electrical Code (NEC).

Note In the cable configuration, the cable modem is activated only when the access point is powered by POC

or external 12 VDC power. When using only PoE power, the cable modem is deactivated.

The following AC power cord options are available:

• 40-ft (12.2-m) power cord for light pole installations in the US and Canada. One end of the power

cord is terminated with an access point AC power connector and the other end is terminated with an AC plug (AIR-CORD-R3P-40NA=).

• 40-ft (12.2-m) power cord for use outside the US and Canada. One end of the power cord is

terminated with an access point AC power connector and the other end is unterminated. (AIR-CORD-R3P-40UE=).

• 4-ft (1.2-m) streetlight power tap adapter for light pole installations in the US and Canada

(AIR-PWR-ST-LT-R3P=).

Cable Modem (POC)

The access point POC cable modem configuration contains an internal cable modem for connection to the cable network from the pole-mounted cable lines. The access point can be powered using the 40-to 90-VAC (quasi-square wave AC) power provided by the cable network.

The cable modem supports these main features:

• Data Over Cable Service Interface Specifications (DOCSIS)3.0

• Backward compatibility with existing DOCSIS 1.1 and 1.0 networks

Ethernet (PoE) Ports

The access point supports an Ethernet uplink port (POE-In) and a downlink port (POE-Out). The access point PoE-in port uses an RJ-45 connector (with a liquid tight adapter) to link the access point to the 10/100/1000BASE-T network. The Ethernet cable is used to send and receive Ethernet data and to optionally supply inline 56-VDC power from the power injector.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-22

OL-24247-01

Chapter 1 Overview

Note When a 1552E or 1552EU access point is powered by PoE, the PoE-Out port is not active.

Note The PoE-out port is disabled when the access point is powered by the power injector.

Tip The access point senses the Ethernet and power signals and automatically switches internal circuitry to

Hardware Features

The access point PoE-out (10/100/1000BASE-T) port uses an RJ-45 connector to provide LAN connectivity and IEEE 802.3af power to a single peripheral customer device, such as a camera or sensor gateway. The PoE-out port should not be connected to a switch or hub. The Ethernet MAC addresses are printed on the bottom of the access point under the LEDs.

match the cable connections.

Warning

Caution To provide inline PoE, you must use the 1500 power injector (AIR-PWRINJ1500-2=). Other power

Fiber Option

Warning

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

Statement 1023

The Ethernet cable must be a shielded outdoor rated Category 5e (CAT5e) or better cable. The access point senses the Ethernet and power signals and automatically switches internal circuitry to match the cable connections.

injectors, PoE switches, and 802.3af power sources cannot provide adequate power, which may cause the access point to malfunction and cause possible over-current conditions at the power source.

Class 1 laser product.

Statement 1008

The factory-orderable fiber option provides a fiber input and output capability. Fiber data is transmitted and received over a single-strand fiber cable, which is connected to the access point using these SFP modules:

• 100BASE-BX10-U fiber Rugged small-form factor pluggable (SFP) module

• 1000BASELX single-mode Rugged SFP module

• 1000BASESX multimode Rugged SFP module

OL-24247-01

• EPON ONU Rugged SFP module

Note SFP modules are not hot-swappable.

The access point has one fiber connection, located on the bottom of the unit (shown on Figure 1-1). Client data is passed to the network controller through the fiber connection via a fiber-capable switch. Configuration information can be found in the controller configuration guide of the controller you are using.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-23

Hardware Features

GPS Option

A GPS module is required to accurately track the location of the AP and report it to the controller. to provide location information for Cisco's AIR-CAP 1552I/C/CU/E/EU/H product line.

For information on routing and securing the cable for the GPS antenna, refer to the 1550 Series GPS Hardware Mounting Guide.

Metal Enclosure

The access point uses a metal enclosure that can accommodate both indoor or outdoor operating environments and an industrial temperature operating range of –40 to 131°F (–40 to 55°C). The access point complies with NEMA 4 and IP67 requirements.

Optional Hardware

Depending on what you ordered, the following optional access point hardware may be part of your shipment:

• External antennas, depending on which ones you purchased

• Strand mount kit (AIR-ACCSMK1550=)

Chapter 1 Overview

• Pole mount kit (AIR-ACCPMK1550=)

• Band installation tool for pole mount kit (AIR-BAND-INS-TL=)

• AC power cord, 40 ft. (12.2 m) with North American plug (AIR-CORD-R3P-40NA=)

• AC power cord, 40 ft. (12.2 m) with European unterminated end (AIR-CORD-R3P-40UE=)

• Street light power tap (AIR-PWR-ST-LT-R3P=)

• Power injector (AIR-PWRINJ1500-2=)

• 1000BASELX single-mode Rugged SFP (GLC-LX-SM-RGD=)

• 1000BASESX multimode Rugged SFP (GLC-SX-MM-RGD=)

• EPON ONU Rugged SFP module

• Battery, 6 amp hour (AIR-1520-BATT-6AH)

• FIPS kit (AIRLAP-FIPSKIT=)

• Optional directional-antenna mounting kit (AIR-ACCAMK-1)

• Lightning Arrestor kit (AIR-ACC245LA-N=)

• Third-party lightning arrestors as required by local authorities

1-24

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 1 Overview

Network Deployment Examples

The access point is a wireless device designed for wireless client access and point-to-point bridging, point-to-multipoint bridging, and point-to-multipoint mesh wireless connectivity. The access point provides 5-GHz backhaul capability to link with another access point to reach a wired network connection or to provide repeater operations for other access points.

The access point plays two primary radio roles: a root access point (RAP) or a mesh (non-root) access point (MAP), which is the default role of all access points. When the access point has a fiber or wired Ethernet or cable connector connection to the controller (through a switch), the radio role is called a RAP. In order to be considered a RAP, the access point must be configured as a RAP. A RAP is a parent node to any bridging or mesh network. A controller can support one or more RAPs, each one parenting the same or different wireless networks. There can be more than one RAP for the same mesh network for redundancy. RAPs and MAPs can support wireless clients on the 2.4-GHz and 5-GHz band. Client access on 5-GHz is called universal client access.

When the access point does not have a wired Ethernet, fiber-optic, or cable connection to the controller, the radio role is called a MAP. The MAPs have a wireless connection (through the backhaul interface) to other MAPs and finally to a RAP with an Ethernet or cable connection through a switch to the controller. MAPs can also have a wired Ethernet connection to a local LAN and serve as a bridge endpoint for that LAN (using a point-to-point or point-to-multipoint bridge connection).

Network Deployment Examples

Wireless Backhaul

The access point supports wireless backhaul capability using the 5 GHz radio to bridge to another access point to reach a wired network connection to a controller (see Figure 1-22). The access point connected to the wired network is considered a RAP in this configuration. The remote access point is considered a MAP and transfers wireless client traffic to the RAP for transfer to the wired network. Control And Provisioning of Wireless Access Points (CAPWAP) control traffic is also transferred over this bridged link.

Figure 1-22 Access Point Backhaul Example

Point-to-Point Bridging

(5 GHz)

(2.4 GHz and 5 GHz)

255493

OL-24247-01

The access points can be used to extend a remote network by using the 5 GHz backhaul radio to bridge the two network segments as shown in Figure 1-23. To support Ethernet bridging, you must enable bridging on the controller for each access point. By default this capability is turned-off for all access points.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-25

Network Deployment Examples

255494

(5 GHz)

Wireless client access is supported; however, if bridging between tall buildings, the 2.4-GHz wireless coverage area may be limited and possibly not suitable for direct wireless client access.

Figure 1-23 Access Point Point-to-Point Bridging Example

Point-to-Multipoint Bridging

The access points can be used as a RAP to connect multiple remote MAPs with their associated wired networks. By default this capability is turned-off for all access points. To support Ethernet bridging, you must enable bridging on the controller for each access point. Wireless client access can be provided over the bridging link; however, if bridging between tall buildings, the 2.4-GHz wireless coverage area may be limited and possibly not suitable for direct wireless client access. Figure 1-24 illustrates an example of access point-to-multipoint bridging.

Chapter 1 Overview

(5 GHz)

255495

Figure 1-24 Access Point to Multipoint Bridging Example

1-26

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 1 Overview

148441

WCS

Network

RAP

MAP 1

MAP 2

MAP 3

MAP 4

MAP 6

MAP 5

MAP 7

MAP 8

MAP 9

Point-to-Multipoint Mesh Network

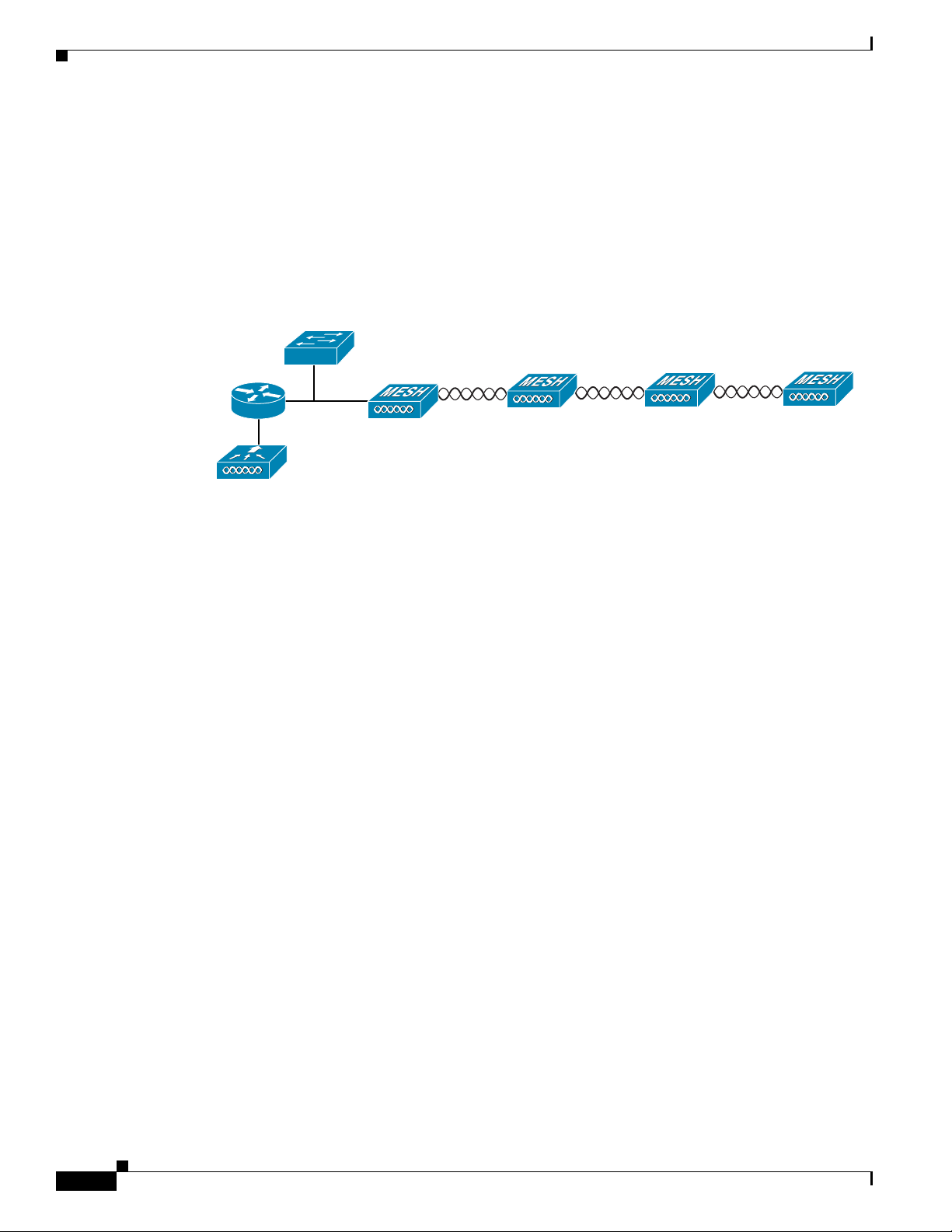

The access point is typically deployed in a mesh network configuration. In a typical mesh deployment, one or more RAPs have a wired network connection through a switch to a controller. Other remote MAPs without wired network connections use the backhaul feature to optimally link to a RAP that is connected to the wired network. In the mesh network, the links between the access points are referred to as the backhaul links.

Intelligent wireless routing is provided by the Adaptive Wireless Path protocol (AWPP). This enables each MAP to identify its neighbors and intelligently choose the optimal path to the RAP with the wired network connection by calculating the cost of each path in terms of signal strength and the number of hops required to get to a controller with signal strength given priority since signal strength determines the data rate available for backhaul.

Figure 1-25 illustrates a typical mesh configuration using MAPs and RAPs.

Figure 1-25 Typical Mesh Configuration Using Access Points

Network Deployment Examples

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

1-27

Network Deployment Examples

Layer 3 Network Operation

The access points support Layer 3 network operation. Access points and controllers in Layer 3 configurations use IP addresses and UDP packets, which can be routed through large networks. Layer 3 operation is scalable and recommended by Cisco.

Figure 1-26 illustrates a typical Layer-3 wireless network configuration containing access points and a

controller.

Figure 1-26 Typical Layer 3 Access Point Network Configuration Example

Chapter 1 Overview

1-28

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

CHAP T ER

Installing the Access Point

This chapter describes how to install the 1552 access point and contains the following sections:

• Unpacking the Access Point, page 2-2

• Tools and Hardware, page 2-2

• Warnings, page 2-4

• Safety Information, page 2-5

• Avoiding Damage to Radios in a Testing Environment, page 2-7

• Installation Guidelines, page 2-8

• Mounting the Access Point, page 2-14

• Installing Antennas, page 2-36

• Grounding the Access Point, page 2-41

• Connecting a Fiber-Optic Cable to the Access Point, page 2-42

• Powering the Access Point, page 2-45

• Configuring the Access Point, page 2-60

• What to Do Next, page 2-63

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-1

Unpacking the Access Point

When you are unpacking the access point, do not remove the foam blocks attached to the antenna connectors. The foam protects the antenna connectors during installation.

To unpack the access point, follow these steps:

Step 1 Open the shipping container and carefully remove the contents. Step 2 Return all packing materials to the shipping container, and save it. Step 3 Ensure that all items listed in “Package Contents” are included in the shipment. If any item is damaged

or missing, notify your authorized Cisco sales representative.

Package Contents

The typical access point package contains the following items:

• Access point

Chapter 2 Installing the Access Point

• Cisco product documentation and translated safety warnings

• Three liquid-tight adapters

• Two-pin DC power connector

• Ground lug (Panduit PLCD6-10A-L) and screws with lock washers

• Watertight cable glands for Power-over-Ethernet (PoE) ports (depending on the 1552 access point

model, 2 or 3 cable glands are provided)

Tools and Hardware

The tools and hardware used to install the 1552 access point are described in:

• Optional Tools and Hardware, page 2-2

• Optional Tools and Hardware That You Supply, page 2-3

• Pole Installation Hardware and Tools, page 2-3

• Cable Strand Installation Hardware and Tools, page 2-4

Optional Tools and Hardware

The optional tools and hardware that can be obtained from Cisco are:

• Optional power injector (AIR-PWRINJ1500-2=)

2-2

• Optional AC power cord

–

40-ft (12.2-m) power cord with North American plug (AIR-CORD-R3P-40NA=) for light pole installations in the US and Canada

–

AC power cord, 40 ft (12.2 m) with European unterminated end (AIR-CORD-R3P-40UE=) for light pole installations outside of the US and Canada

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

–

• Antennas, 2.4/5-GHz (refer to the “Antenna Configurations” section on page 1-13)

• Optional battery backup unit (AIR-1520-BATT-6AH=)—Used only on models 1552E and 1552EU

• FIPS kit (AIRLAP-FIPSKIT=)

• 1000BASELX single-mode Rugged SFP (GLC-LX-SM-RGD=)

• 1000BASESX multimode Rugged SFP (GLC-SX-MM-RGD=)

• EPON ONU Rugged SFP module

• Optional pole mount kit (AIR-ACCPMK1550=)

• Optional strand mount kit (AIR-ACCSMK1550=)

• Optional banding strap tool (BAND IT) (AIR-BAND-INST-TL=)

• Optional directional-antenna mounting kit (AIR-ACCAMK-1)

• Lightning Arrestor kit (AIR-ACC245LA-N=)

• Third-party lightning arrestors as required by local authorities

Tools and Hardware

4-ft (1.2-m) streetlight power tap adapter (AIR-PWR-ST-LT-R3P=) for light pole installations in the US and Canada

Optional Tools and Hardware That You Supply

Tools and materials that are user-supplied are:

• Ground lug crimping tool (Panduit CT-720 with CD-720-1 die)

• 6-AWG copper ground wire

• 13 mm box-end wrench or socket set

• Adjustable wrench, 22 mm socket, or Sealcon S-2200-WR socket wrench

• #8 Torx screwdriver

• Small flat screwdriver for DC power connector

• Optional shielded outdoor-rated Ethernet (CAT5e or better) cable with 0.20 to 0.35 in

(0.51 to 0.89 cm) diameter

• Optional Ethernet RJ-45 connector and installation tool

• Optional shielded outdoor-rated DC power cable with 0.20 to 0.35 inch (.0.51 to 0.89 cm) diameter

• Optional cable F-connector adapter (stinger)

• Optional ground rod, as required by local regulations

• Optional ladder, power lift, rope, or other tools as required

Pole Installation Hardware and Tools

OL-24247-01

To install the access point on a vertical or horizontal metal, wood, or fiberglass pole, you need the following additional hardware and tools:

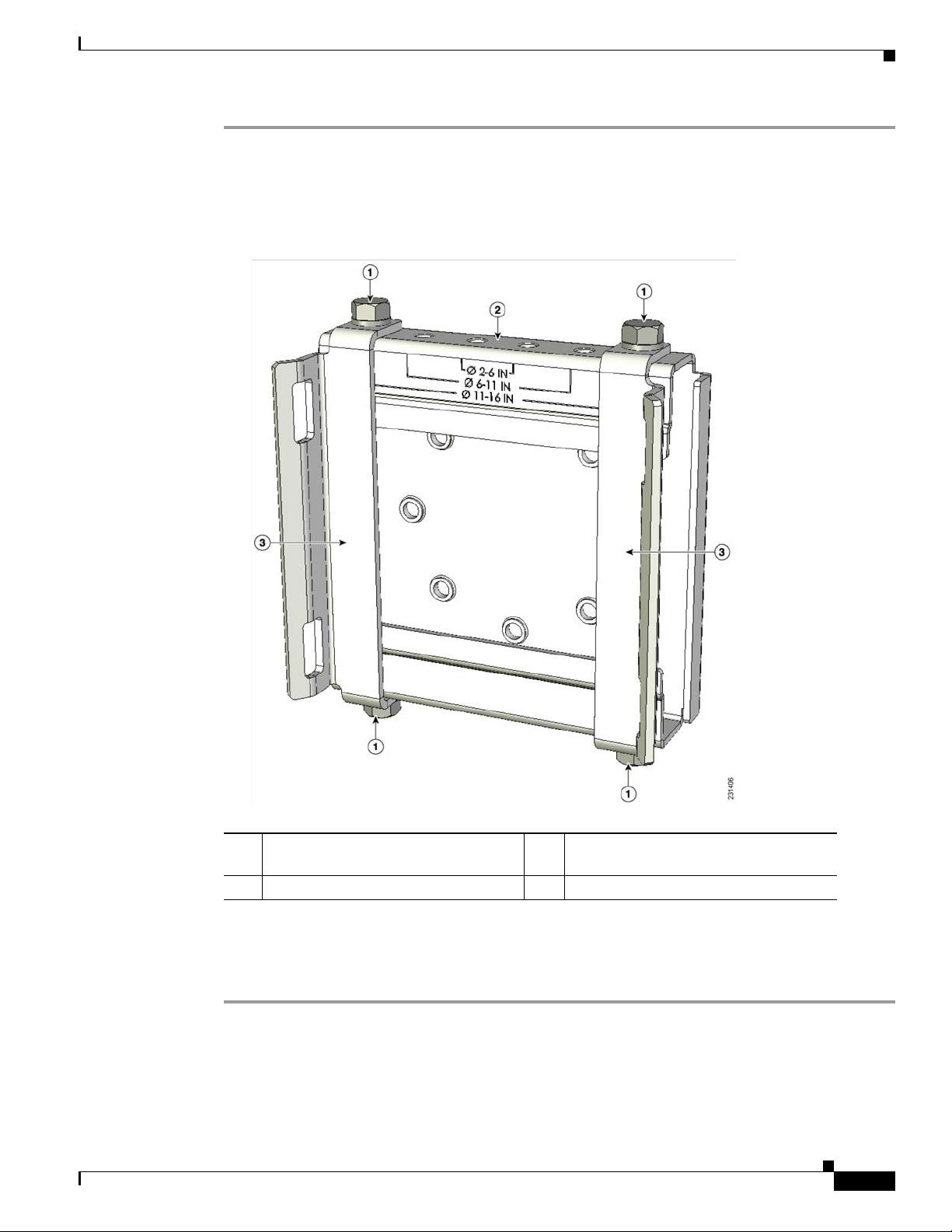

• Pole mount kit (AIR-ACCPMK1550=)

–

Pole clamp bracket

–

Two gusset strap brackets

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-3

Warnings

–

One mounting bracket

–

Twelve hex bolts (M8 x16)

–

One M8 flange nut

–

Six M8 flat washers

–

Ten M8 split lock washers

–

Two stainless steel mounting straps

• Customer banding strap tool (BAND IT)—(AIR-BAND-INST-TL=)

• Customer-supplied 13-mm and box-end wrench or socket set

• Customer-supplied adjustable wrench, 22 mm socket, or Sealcon S-2200-WR socket wrench

Cable Strand Installation Hardware and Tools

To install the access point on a cable strand, you need the following additional parts:

• Cable strand mount kit (AIR-ACCSMK1550=)

–

Four hex bolts (M8, 0x16mmL)

Chapter 2 Installing the Access Point

Warnings

Warning

–

Four M8 split lock washers (0.14 8mmoD, 2mmT)

–

Four M8 flat washers (16.0mmOD, 1.6mmT)

–

Two carriage bolt fasteners (5/16-18 x 1.25 in.)

–

Six hex nuts, serrated flange (5/16-18)

–

Four carriage bolts (5/16 x 5/8LG)

–

Strand mounting brackets—1 left bracket, 1 right bracket, 2 adjustable brackets

–

Four strap clamps

• Customer-supplied 13-mm box-end wrench or socket set

• Customer-supplied adjustable wrench, 22 mm socket, or Sealcon S-2200-WR socket wrench

Translated versions of all safety warnings are available in the safety warning document that shipped with your access point or on Cisco.com. To browse to the document on Cisco.com, refer to Appendix A,

“Translated Safety Warnings” for instructions.

IMPORTANT SAFETY INSTRUCTIONS This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device.

Statement 1071

SAVE THESE INSTRUCTIONS

2-4

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Safety Information

Warning

This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for obtaining any required local or national safety inspections of the structural integrity of the installation by the local authority/inspection department.

Do not operate the unit near unshielded blasting caps or in an explosive environment unless the device has been modified to be especially qualified for such use.

The cables specified in this installation guide that are used with the specified liquid-tight adapters provide protection against ingress of moisture for a Type 4/IP67 classified enclosure. If substitute cable are used, the installer must ensure that the size (OD) of the cable meets the acceptable range allowed by the liquid-type adaptor.

This equipment must be externally grounded using a customer-supplied ground wire before power is applied. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.

Read the installation instructions before connecting the system to the power source.

Statement 366

Statement 364

Statement 1004

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Safety Information

Follow the guidelines in this section to ensure proper operation and safe use of the access point.

FCC Safety Compliance Statement

The FCC, with its action in ET Docket 96-8, has adopted a safety standard for human exposure to RF electromagnetic energy emitted by FCC-certified equipment. When used with approved Cisco Aironet antennas, Cisco Aironet products meet the uncontrolled environmental limits found in OET-65 and ANSI C95.1, 1991. Proper operation of this radio device according to the instructions in this publication results in user exposure substantially below the FCC recommended limits.

Safety Precautions

Warning

In order to comply with FCC radio frequency (RF) exposure limits, antennas with less than 8 dBi gain should be located at a minimum of 7.9 inches (20 cm) or more from the body of all persons and 20 inches (50 cm) for antennas with up to 13 dBi gain.

Statement 332

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-5

Safety Information

Chapter 2 Installing the Access Point

Warning

The AC power supply has double pole/neutral fusing.

Statement 188

Do not work on the system or connect or disconnect cables during periods of lightning activity.

Statement 1001

Class 1 laser product.

Statement 1008

There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Statement 1015

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

Statement 1022

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

Statement 1023

Warning

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Statement 1028

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Connect the unit only to DC power source that complies with the safety extra-low voltage (SELV) requirements in IEC 60950 based safety standards.

Statement 1033

When installing or replacing the unit, the ground connection must always be made first and disconnected last.

Statement 1046.

Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, because they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code, Section 54).

Statement 1052

2-6

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Caution Before connecting or disconnecting a power cord, you must remove AC power from the power cord using

a suitable service disconnect.

For additional important safety instructions for AC power cords, refer to the AC Power Cords for Cisco Aironet 1550 Series Outdoor Mesh Access Points document that shipped with your AC power cords.

For safety and to achieve a good installation, please read and follow these safety precautions:

• Select your installation site with safety, as well as performance in mind. Remember: electric power

lines and phone lines look alike. For safety, assume that any overhead line can kill.

• Call your electric power company. Tell them your plans, and ask them to come look at your proposed

installation.

• Plan your installation carefully and completely before you begin. Successful raising of a mast or

tower is largely a matter of coordination. Each person should be assigned to a specific task and should know what to do and when to do it. One person should be in charge of the operation to issue instructions and watch for signs of trouble.

• When installing the access point and antennas, remember:

–

Avoiding Damage to Radios in a Testing Environment

Do not use a metal ladder.

–

Do not work on a wet or windy day.

–

Do dress properly—shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.

• Use a rope to lift the access point. If the assembly starts to drop, get away from it and let it fall.

• If any part of the antenna system should come in contact with a power line, do not touch it or try to

remove it yourself. Call your local power company. They will remove it safely.

If an accident should occur, call for qualified emergency help immediately.

Avoiding Damage to Radios in a Testing Environment

The radios on outdoor units (bridges) have higher transmit power levels than radios on indoor units (access points). When you test high-power radios in a link, you must avoid exceeding the maximum receive input level for the receiver. At levels above the normal operating range, packet error rate (PER) performance is degraded. At even higher levels, the receiver can be permanently damaged. To avoid receiver damage and PER degradation, you can use one of the following techniques:

• Separate the omnidirectional antennas by at least 2 ft (0.6 m) to avoid receiver damage or by at least

25 ft (7.6 m) to avoid PER degradation.

Note These distances assume free space path loss and are conservative estimates. Required separation

distances for damage and performance degradation levels in actual deployments are less if conditions are not non-line-of-sight.

OL-24247-01

•

Reduce the configured transmit power to the minimum level.

• Use directional antennas, and keep them away from each other.

• Cable the radios together using a combination of attenuators, combiners, or splitters to achieve a total

attenuation of at least 60 dB.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-7

Installation Guidelines

Caution Under no circumstances should you connect the antenna port from one access point to the antenna port

Chapter 2 Installing the Access Point

For a radiated test bed, the following equation describes the relationships among transmit power, antenna gain, attenuation, and receiver sensitivity:

txpwr + tx gain + rx gain - [attenuation due to antenna spacing] < max rx input level Where: txpwr = Radio transmit power level tx gain = transmitter antenna gain rx gain = receiver antenna gain

For a conducted test bed, the following equation describes the relationships among transmit power, antenna gain, and receiver sensitivity:

txpwr - [attenuation due to coaxial components] < max rx input level

of another access point without using an RF attenuator. If you connect antenna ports, you must not exceed the maximum survivable receive level of 0 dBm. Never exceed 0 dBm, or damage to the access point can occur. Using attenuators, combiners, and splitters having a total of at least 60 dB of attenuation ensures that the receiver is not damaged and that PER performance is not degraded.

Installation Guidelines

Because the access point is a radio device, it is susceptible to common causes of interference that can reduce throughput and range. Follow these basic guidelines to ensure the best possible performance:

• For information on planning and initially configuring your Cisco Mesh network, refer to the Cisco

Wireless Mesh Access Points, Design and Deployment Guide, Release 7.3.

• Review the FCC guidelines for installing and operating outdoor wireless LAN devices at

http://www.cisco.com/en/US/partner/prod/collateral/routers/ps272/data_sheet_c78-647116_ps114 51_Products_Data_Sheet.html.

• Perform a site survey before beginning the installation.

• Install the access point in an area where structures, trees, or hills do not obstruct radio signals to and

from the access point.

• The access points can be installed at any height, but best throughput is achieved when all the access

points are mounted at the same height. We recommend installing the access points no higher than 40 feet to allow support for wireless clients on the ground.

Note To calculate path loss and to determine how far apart to install access points, consult an RF planning

expert.

Site Surveys

2-8

Every network application is a unique installation. Before installing multiple access points, you should perform a site survey to determine the optimum use of networking components and to maximize range, coverage, and network performance.

Consider the following operating and environmental conditions when performing a site survey:

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

• Data rates—Sensitivity and range are inversely proportional to data bit rates. The maximum radio

range is achieved at the lowest workable data rate. A decrease in receiver sensitivity occurs as the radio data increases.

• Antenna type and placement—Proper antenna configuration is a critical factor in maximizing radio

range. As a general rule, range increases in proportion to antenna height. However, do not place the antenna higher than necessary, because the extra height also increases potential interference from other unlicensed radio systems and decreases the wireless coverage from the ground.

• Physical environment—Clear or open areas provide better radio range than closed or filled areas.

• Obstructions—Physical obstructions such as buildings, trees, or hills can hinder performance of

wireless devices. Avoid locating the devices in a location where there is an obstruction between the sending and receiving antennas.

Before Beginning the Installation

Before you begin the installation process:

• Ensure that a site survey has been performed.

Installation Guidelines

• Ensure that your network infrastructure devices are operational and properly configured.

• Ensure that your controllers are connected to switch trunk ports.

• Ensure that your switch is configured with untagged access ports for connecting your access points.

• Ensure that a DHCP server with Option 43 configured is reachable by your access points, or

manually configure the controller information in the access point (for additional information, refer to the “Configuring DHCP Option 43” section on page F-1).

• Become familiar with the access point installation components (see the “Becoming Familiar with

Access Point Installation Components” section on page 2-9).

Becoming Familiar with Access Point Installation Components

The access point is designed to be installed in an outdoor environment, such as the exterior roof overhang of a tall building or a streetlight pole. Carefully review the following figures to become familiar with the system components, connectors, indicators, cables, system interconnection, and grounding:

• Components in a typical access point installation (see Figure 2-1)

• Pole mount installation (see Figure 2-2)

• Cable strand mount installation (see Figure 2-3)

• Streetlight power tap installation (see Figure 2-4)

OL-24247-01

Note The illustrations in this document show all available connections for the access point. Unused

connections are capped with a connector plug to ensure the watertight integrity of the access point, except for the AC power entry connector on the 1552E access point. Liquid-tight adapters are provided for connector openings, which can be installed before or after deploying the access point.

When not using the AC input connector to power the 1552E (for example when powering using the Cisco power injector), it is important to cover the AC power entry connector. The correct cap is Remke part number 75-0086 (http://www.remke.com/).

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-9

Installation Guidelines

281938

10 8

Chapter 2 Installing the Access Point

Figure 2-1 Components in a Typical Access Point Installation

1 Building roof-overhang 6 Ground 2 Shielded outdoor-rated Ethernet

3 Water drip loop 8 Power injector 4 6-AWG copper grounding wire1 9 Shielded Ethernet (CAT5e or better) cable 5 Ground rod1 10 Controller (through a switch)

1. User supplied.

2. The safety ground wire in the AC power cord must have a ground path to a grounding rod.

3. The shielded Ethernet cable has a ground path through the power injector and the safety ground wire in the AC power cord.

Note The 1552 access point was designed with consideration for resistance to effects of lightning effects on

the access point electronics. The 1552 access point employs lightning arrestor circuitry on the Ethernet and power ports. On the input Ethernet port, Gas Discharge Tubes (GDT) are used for the Power Entry Module (PEM) to mitigate lightning effect. On the AC power, GDTs are also used along with fuses to mitigate high-current condition. For the DC power, a fuse is used to mitigate high current condition.

While not a common practice, the user may want to consider using lightning protection at the antenna ports for added protection. To meet EN/IEC60950-22 (Clause 4.2) requirements, the installer must ensure that additional protection is provided external to this equipment to reduce transient surges from Overvoltage IV to Overvoltage Category II at the AC power input of the access point. The over-voltage and fault-current protection components used to achieve this protection must comply with the IEC 61643

(CAT5e or better) cable

7 AC power cord

2-10

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

series of standards. To meet CAN/CSA-C22.2 No. 60950-22-07/UL60950-22 requirements, the installer may use alternative components to provide this additional protection. Those components may comply with ANSI/IEEE C62.11, CSA Certification Notice No. 516, CSA C22.2 No. 1, or UL 1449. Suitability of the components for the application must be determined for the intended installation. (For example, some devices are suitable for installation on the load side of the service entrance only, and some are suitable for use with cord-connected equipment only.)

Installation Guidelines

Warning

Installation of the equipment must comply with local and national electrical codes.

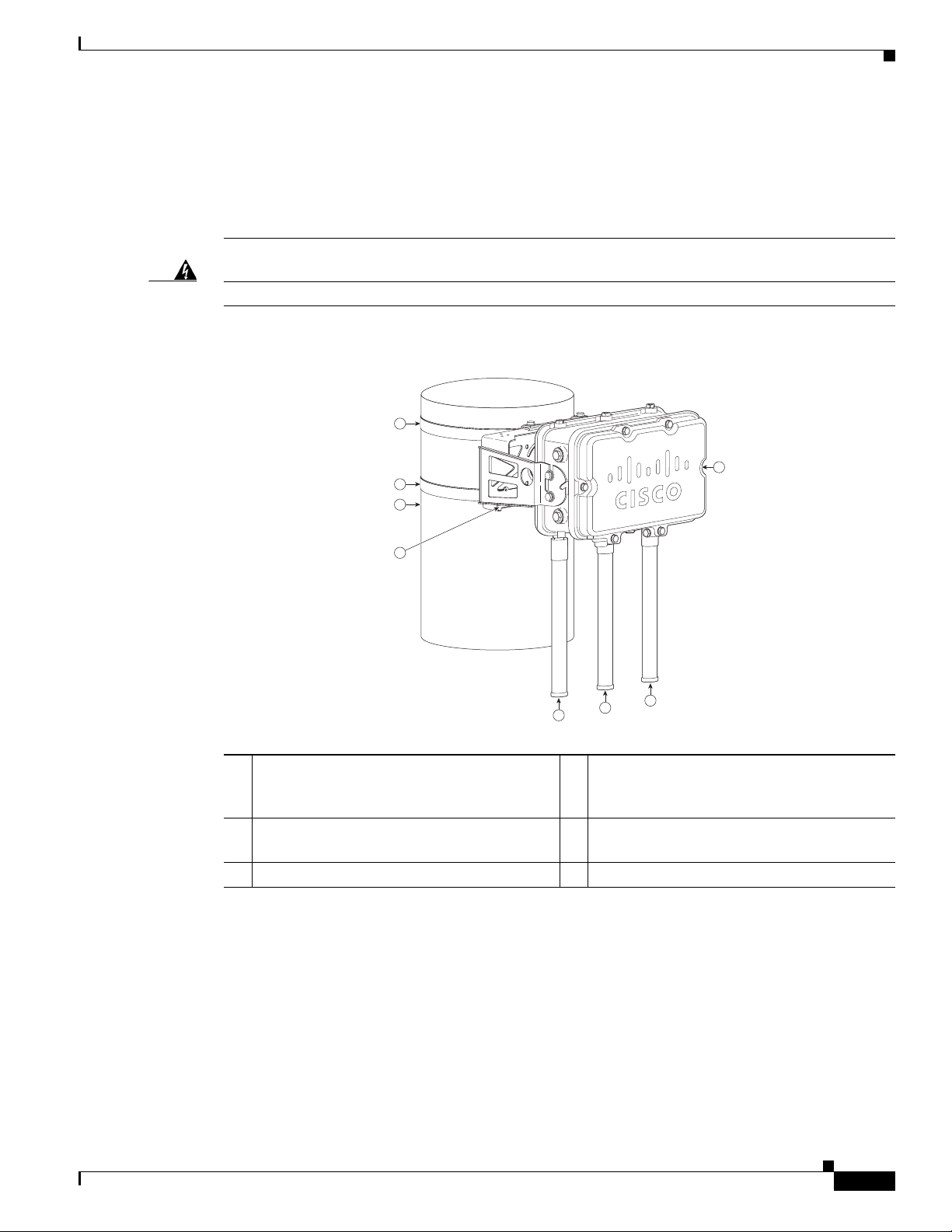

Figure 2-2 Pole Mount Installation

255239

Statement 1074

OL-24247-01

1 Stainless steel mounting straps

(part of pole mount kit)

2 Pole (wood, metal, or fiberglass)

2 to 16 in. (5.1 to 40.6 cm) diameter

3 Mounting bracket (part of pole mount kit)

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

4 Cisco Aironet Dual-Band Omnidirectional

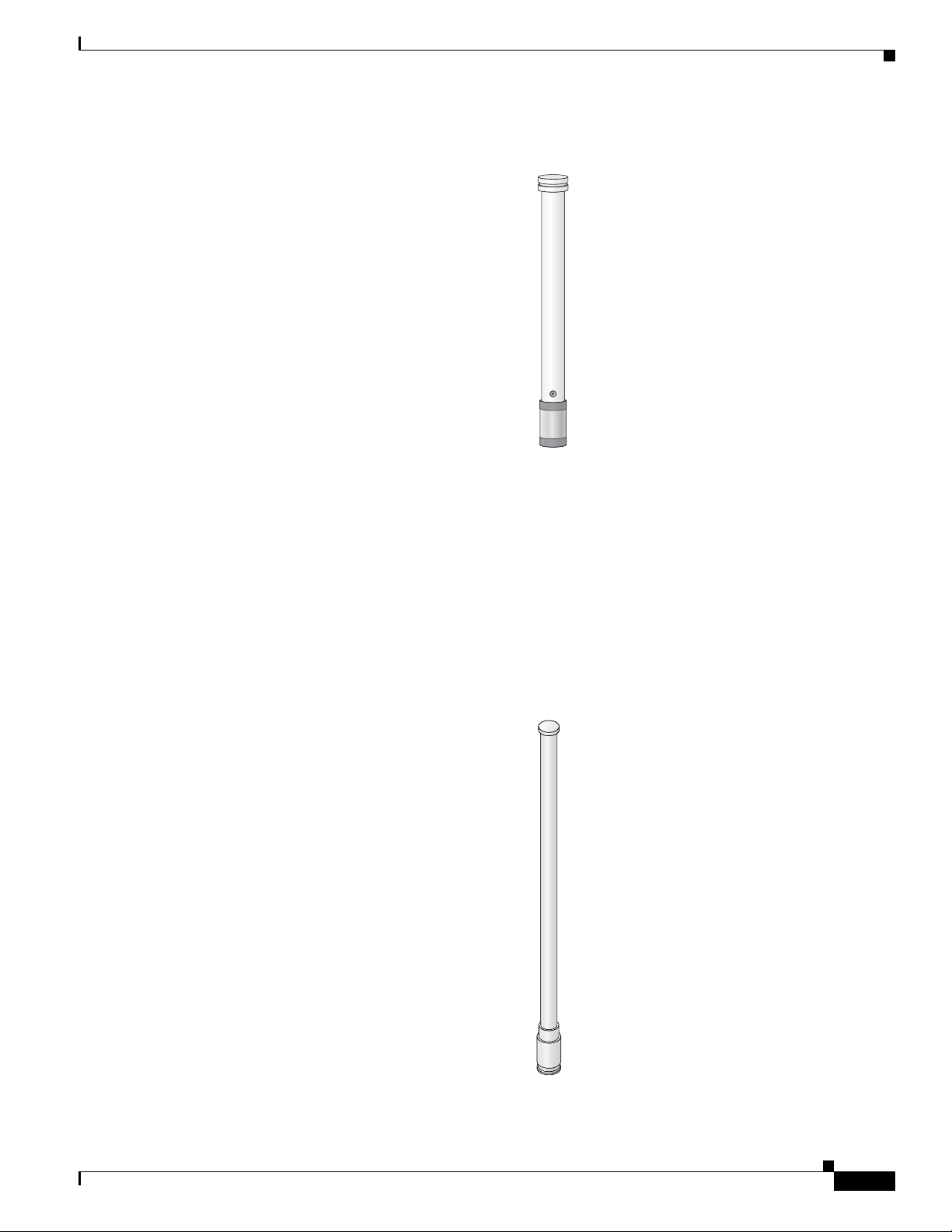

Antennas. The dual-band antenna covers both the 2.4 GHz and 5 GHz bands.

5 1552 series access point model

AIR-CAP1552E-x-K9

2-11

Installation Guidelines

Chapter 2 Installing the Access Point

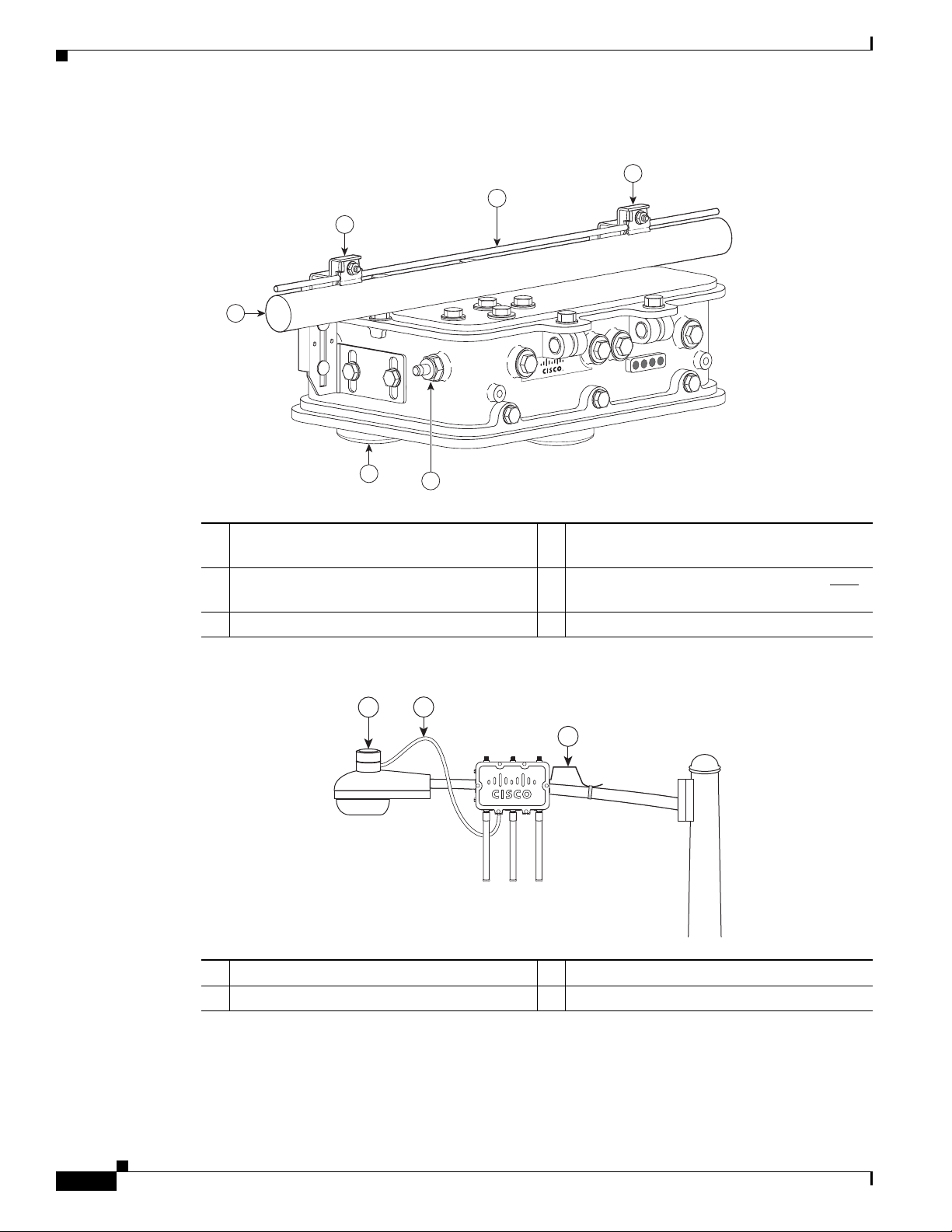

Figure 2-3 Cable Strand Mounting Example - Shown on a 1552 Model AIR-CAP1552C-x-K9

255246

1 Cable Strand Mounting Kit brackets 4 Low-profile dual-band (2.4 GHz and 5 GHz)

3-element array antenna unit

2 Strand support cable 5 F-connector adapter for the POC cable (only

on model AIR-CAP1552C-x-K9)

3 Cable bundle

Figure 2-4 Streetlight Power Tap Adapter Installation

2-12

281939

1 Outdoor light control 3 6-AWG copper grounding wire 2 Streetlight power tap adapter

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Opening the Access Point Hinged Cover

You need to open the access point hinged cover when you are installing fiber-optic SFP module and fiber cable take-up reels.

To open the access point hinged cover, follow these steps:

Step 1 Use 0.5-in (13-mm) box-end wrench or socket set to unscrew and remove the four bolts on the front cover

of the unit. Only unscrew the hinge bolts about 2 turns until they are easily turned by hand, do not remove the bolts on the hinge (Figure 2-5).

Step 2 The cover is hinged on the bottom. Carefully open the cover and remove the cover.

Note If the cover does not open easily, carefully loosen the hinge bolts again.

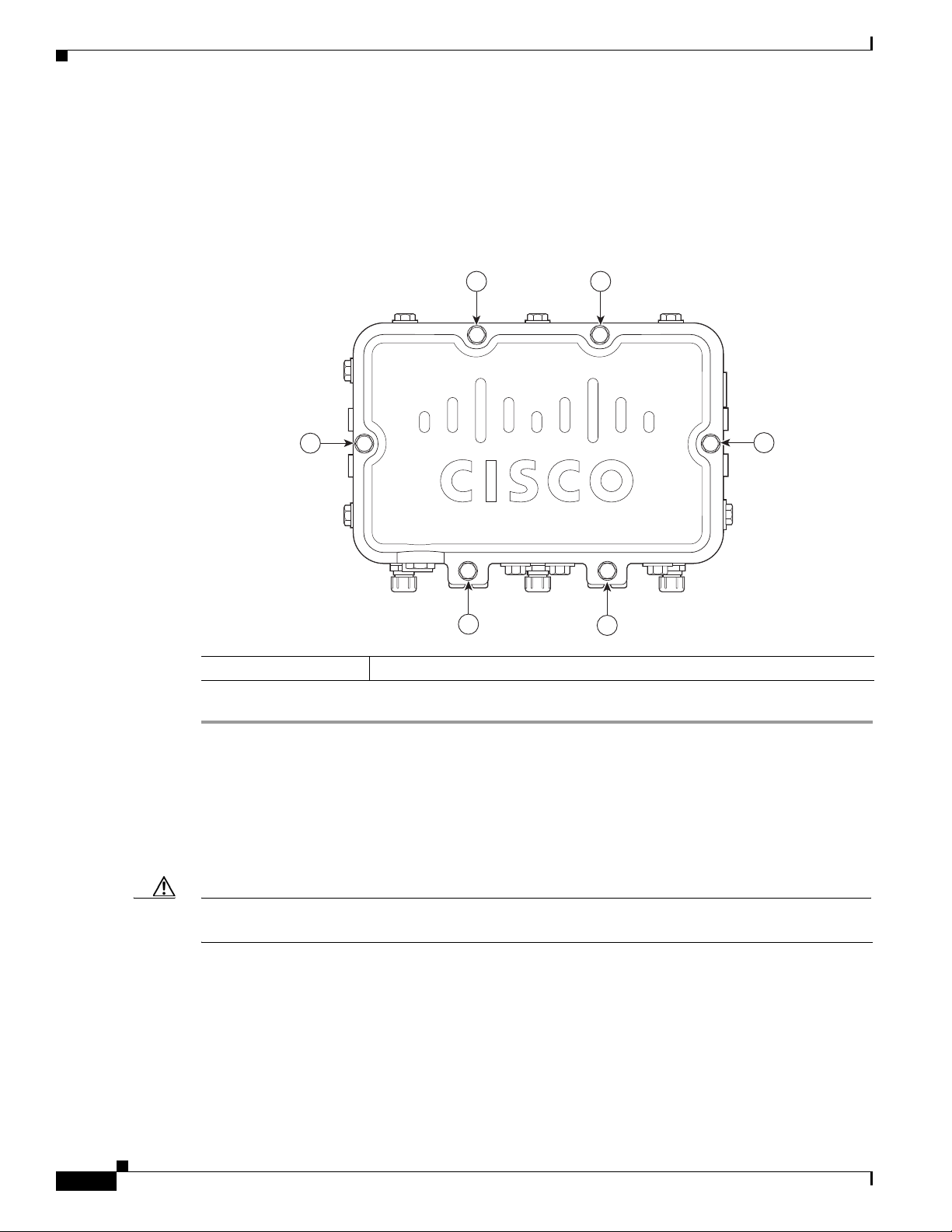

Figure 2-5 Access Point Front View of Hinged Cover

Installation Guidelines

1 M8 x32 bolts 2 Cover hinge M8 x32 bolts

255250

Closing the Access Point Hinged Cover

To close the access point cover, follow these steps:

Step 1 When closing the access point cover, be careful not to pinch internal wires. Step 2 Carefully position the cover flush with all sides of the access point, then slowly hand-tighten each bolt.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

2-13

Mounting the Access Point

Step 3 When all bolts are hand-tightened, use a 13-mm closed-end wrench or socket to partially tighten the bolts

in the tightening sequence shown in Figure 2-6. Tighten each bolt to 3 to 4 ft lbs (0.34 to 0.45 Nm).

Step 4 Repeat Step 3 using the same tightening sequence to fully tighten each bolt to 6 to 7 ft lbs

(0.68 to 0.79 Nm).

Figure 2-6 Hinged Cover Bolt Tightening Sequence

Chapter 2 Installing the Access Point

255257

1 - 6 Tighten the bolts in the numeric order shown, starting with 1.

Mounting the Access Point

This section provides instructions for installing your access points. Personnel installing the access point must understand wireless access points and bridging techniques and grounding methods.

Caution All installation methods for mounting an access point on any wall surface is subject to the acceptance of

local jurisdiction.

Installation Options

There are two optional installation kits:

• Strand mount kit—Used for cable strand installations

• Pole mount kit—Used for pole, wall, or streetlight installations

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-14

OL-24247-01

Chapter 2 Installing the Access Point

Mounting the Access Point

Warning

Caution To provide inline PoE, you must use the power injector (AIR- PWRINJ1500-2=) specified for the access

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Installation of the equipment must comply with local and national electrical codes.

Statement 1074

point. Other power injectors, PoE switches, and 802.3af power sources do not provide adequate power, which might cause the access point to malfunction and cause over-current conditions at the power source. You must ensure that the switch port connected to the access point has PoE turned off.

Refer to these sections for installation details:

• Access Point Mounting Orientation, page 2-15

• Installing the Mounting Bracket on a Wall (All Models), page 2-15

• Installing the Mounting Bracket on a Pole (All Models), page 2-18

• Installing 1552E, 1552EU, or 1552I in the Mounting Bracket, page 2-23

• Installing 1552C or 1552CU in the Mounting Bracket, page 2-26

–

Cable Strand Mounting the 1552C or 1552CU Access Point, page 2-26

–

Mounting the 1552C or 1552CU Access Point on a Pole/Wall, page 2-30

–

Mounting the 1552C or 1552CU Access Point Facing Up in a Vault Application, page 2-33

Access Point Mounting Orientation

When mounting an access point on a horizontal or vertical surface, you must ensure that the access point is oriented with the LED indicators pointing down (see Figure 2-2, Figure 2-3, and Figure 2-4). This positioning allows the LEDs to be visible to someone on the ground below the access point.

You must also ensure the access point is mounted with the hinged access cover facing out.

Note Omnidirectional antennas are vertically polarized and should be mounted vertically with the antennas

facing down.

Installing the Mounting Bracket on a Wall (All Models)

The optional pole mount kit contains a mounting bracket for wall mounting. You can use the mounting bracket as a template to mark the positions of the mounting holes for your installation. You then install the mounting plate, and attach the access point when you are ready. Ta ble 2-1 lists the material that you will need to provide in addition to the pole mount kit.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-15

Mounting the Access Point

Table 2-1 Material Needed to Mount the Mounting Bracket to a Vertical Wall

Materials Required In Kit

•

Ground lug and screws (provided with access point)

Chapter 2 Installing the Access Point

Yes

• Crimping tool for ground lug, Panduit CT-720 with

CD-720-1 die (http://onlinecatalog.panduit.com)

• Four M8 or 5/16 in. (31 mm) screws

• Four wall anchors (specified for wall material)

• Drill bit for wall anchors

• Electric drill and standard screwdriver

• #6-AWG ground wire

• Shielded outdoor-rated Ethernet (CAT5e or better) cable

• Grounding block

• Grounding rod

• 13-mm box-end wrench or socket set

Caution The mounting surface, attaching screws, and optional wall anchors must be able to support a 50-lb

(22.7 kg) static weight.

To mount the access point on a vertical wall, follow these instructions:

Step 1 Use the mounting bracket as a template to mark four screw hole locations on your mounting surface. See

Figure 2-7 for the mounting bracket screw hole locations. You can optionally use the individual

mounting holes or the mounting slots.

2-16

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

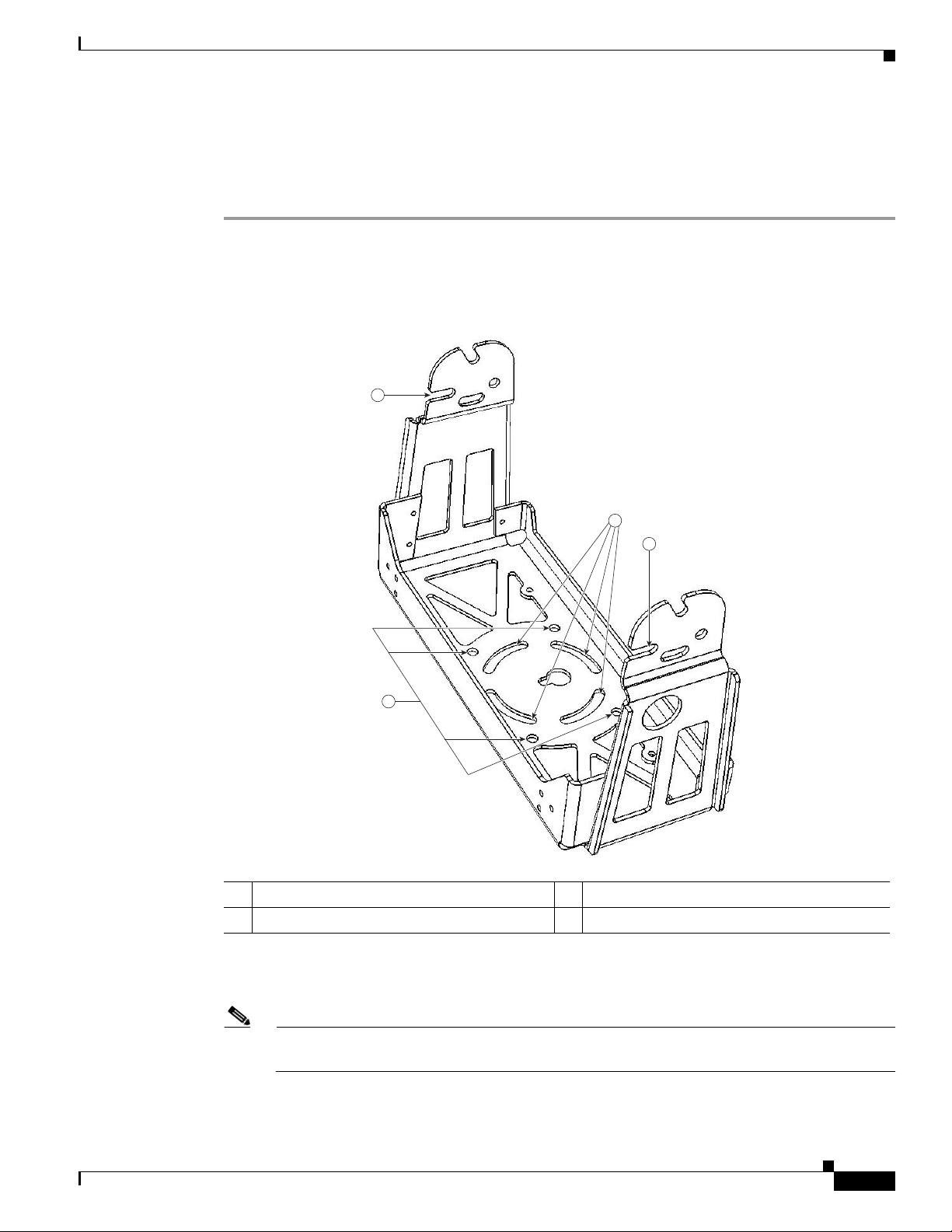

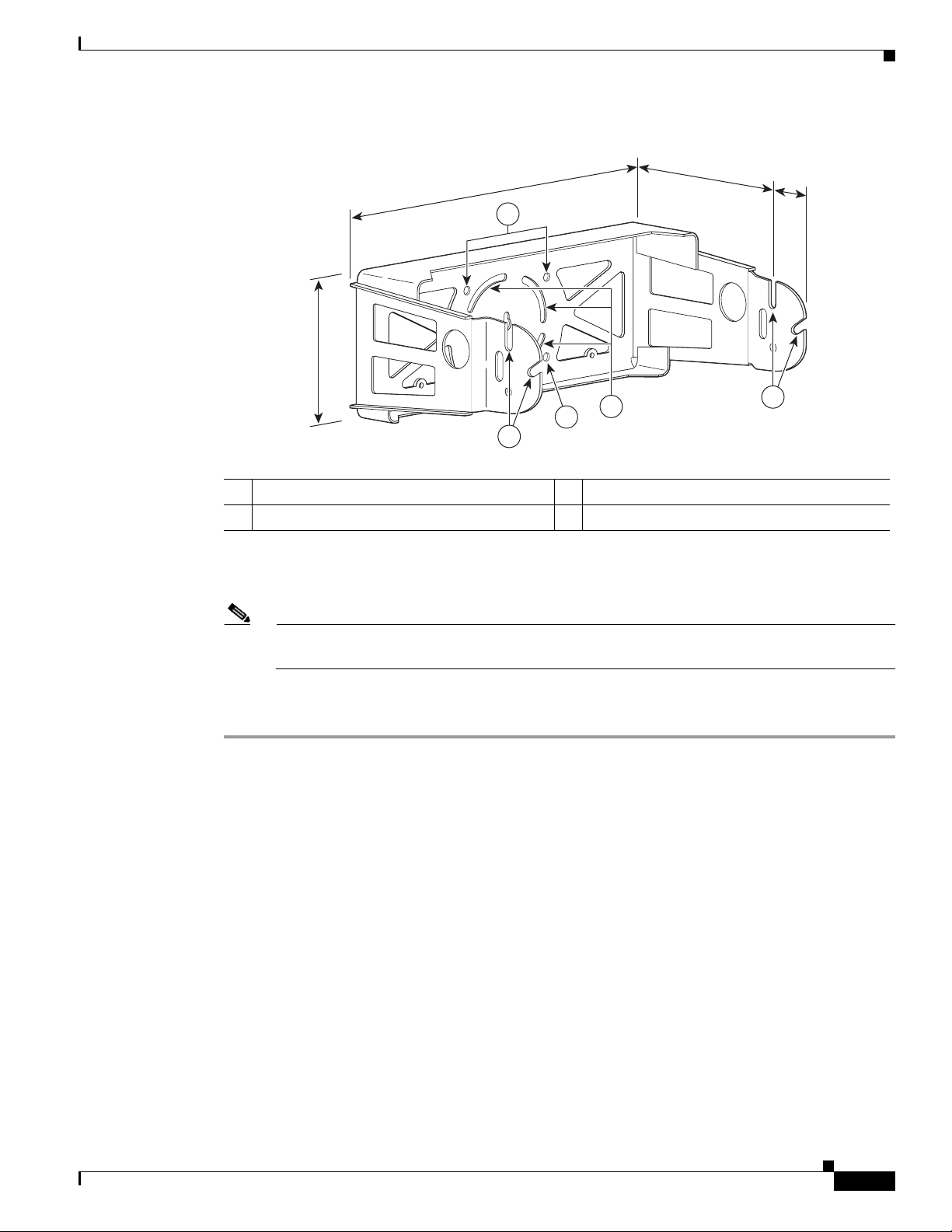

Figure 2-7 Mounting Bracket for Wall Mounting

Mounting the Access Point

13.9”

6.8”

1.5”

5.2”

345584

1 Access point quick mount notches 3 Mounting slots (allows bracket rotation) 2 Mounting holes

Step 2 Use four customer-supplied screws and optional screw anchors to attach the mounting plate to the

mounting surface.

Note If necessary, use suitable screw anchors and an exterior-grade plywood backboard to mount the

access point to stucco, cement, or drywall.

Step 3 Continue with Installing 1552E, 1552EU, or 1552I in the Mounting Bracket, page 2-23 or Installing

1552C or 1552CU in the Mounting Bracket, page 2-26, depending on what you purchased.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-17

Mounting the Access Point

Installing the Mounting Bracket on a Pole (All Models)

When installing an access point on a vertical pole, mast, or a streetlight pole, you should use the optional Cisco pole mount kit. The kit supports metal, wood, or fiberglass poles from 2 to 16 inches in diameter.

Assembling the Pole Clamp Bracket and the Mounting Bracket

When installing an access point on a pole, mast, or a streetlight, you should use the optional Cisco pole mount kit. The kit supports metal, wood, or fiberglass poles from 2 to 16 inches in diameter.

The pole mount kit contains several parts that you must assemble prior to mounting on a pole. First you need to assemble two strap brackets on the pole clamp bracket that are positioned for the pole diameter you are using to mount the access point. Figure 2-8 illustrates the pole diameter indicators and bolt holes on the pole clamp bracket.

Figure 2-8 Pole Clamp Bracket Adjustment Hole Locations

Chapter 2 Installing the Access Point

2-18

1 Pole size indicators

• 2 to 6 in.

• 6 to 11 in.

• 11 to 16 in.

To assemble the pole clamp bracket, follow these steps:

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2 Bolt holes for pole diameters (11 to 16

inches indicated)

OL-24247-01

Chapter 2 Installing the Access Point

Step 1 Position the strap brackets on the pole clamp bracket for the pole diameter you are using and secure each

strap bracket with two M8 x16 bolts (with lock washers) (see Figure 2-9). Tighten the bolts to 13 to 15 ft lbs (17.6 to 20.3 Nm).

Figure 2-9 Assembled Pole Clamp Bracket and Strap Brackets

Mounting the Access Point

OL-24247-01

1 M8 x1.25x16 bolts (with lock washers) 3 Strap bracket (shown positioned for 11

to 16 inch diameter pole)

2 Pole clamp bracket

Step 2

Screw the M8 nut onto the pole clamp bracket support bolt, and tighten just enough to prevent the bolt from falling off.

Step 3 Go to the “Mounting Bracket Assembly on a Pole” section on page 2-20.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-19

Mounting the Access Point

Mounting Bracket Assembly on a Pole

The access point can be installed where power is available, without the need for a wired LAN connection. The access point uses intelligent wireless routing that is based on the Adaptive Wireless Path Protocol (AWPP). AWPP enables a remote access point to dynamically optimize the best route to the wired LAN network using another access point.

The 1552 access point uses the 5-GHz radio for the Mesh backhaul and connections. The 2.4-GHz radio is used for local wireless client access.

To mount your access point on a vertical pole or streetlight pole, you need to install two metal bands around the pole to support the access point. This process requires extra tools and material not provided in the pole mount kit (see Tab le 2-2 ).

Table 2-2 Material Needed to Mount Access Point on a Pole

Mounting Method Materials Required In Kit

Vertical or streetlight pole • Two 0.75-in (1.9 cm) stainless steel bands

Chapter 2 Installing the Access Point

• Banding strap tool (BAND IT) (Cisco

AIR-BAND-INST-TL=)

• Ground lug (provided with access point)

Yes

• Crimping tool for ground lug, Panduit CT-720 with

CD-720-1 die (http://onlinecatalog.panduit.com)

• #6 AWG ground wire

To mount the access point onto a vertical pole or streetlight pole, follow these steps:

Step 1 Select a mounting location on the pole to mount the access point. You can attach the access point to any

pole from 2 to 16 inch (5.1 to 40.6 cm) in diameter.

Note If you will be using a streetlight power tap adapter, position the access point within 3 ft (1 m) of

the outdoor light control.

Step 2 For poles larger than 3.5 inch (8.9 cm), mount the pole clamp bracket assembly to a pole (see

Figure 2-10) using two metal straps. Following the instructions provided with the banding strap tool

(BAND IT) (AIR-BAND-INST-TL=), loop each metal strap twice through the slots on the strap bracket.

Caution Do not place the metal straps in the large open area between the pole clamp bracket and the strap

brackets, because this does not properly secure the access point.

2-20

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Figure 2-10 Clamp Bracket Assembly Mounted on Poles Larger than 3.5 inch (8.9 cm)

Mounting the Access Point

1 Pole clamp bracket 3 Metal mounting strap 2 Strap slot in strap bracket 4 Pole

Step 3 For pole diameters of 3.5 inch (8.9 cm) or less, mount the pole clamp bracket assembly to a pole using

two metal straps looped through the space between the pole clamp bracket and the strap brackets (see

Figure 2-11) to provide maximum holding strength for extreme environments. Following the instructions

provided with the banding strap tool (BAND IT) (AIR-BAND-INST-TL=), loop each metal strap twice.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-21

Mounting the Access Point

Figure 2-11 Metal Strap Open Space for 3.5 inch (8.9 cm) and Smaller Poles

Chapter 2 Installing the Access Point

2-22

1 Metal strap open space

Caution Do not place the metal straps in the large open area between the pole clamp bracket and the strap brackets

because this does not properly secure the access point.

Step 4 Position the pole clamp bracket on the pole as needed before tightening the metal bands.

Note When the metal bands are tightened to the full tension, the pole clamp bracket cannot be adjusted

unless the metal bands are cut or disassembled.

Step 5 Tighten the metal bands using the banding strap tool (BAND IT) (Cisco AIR-BAND-INST-TL=) by

following the operating instructions in the box with the tool. Ensure that the metal bands are as tight as possible.

Step 6 Place the mounting bracket onto the pole clamp bracket support bolt (see Figure 2-12). Step 7 For vertical poles, position the mounting bracket as shown in Figure 2-12. For horizontal streetlight

poles, rotate the mounting bracket 90

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

from the position shown in Figure 2-12.

OL-24247-01

Chapter 2 Installing the Access Point

281940

Step 8 Install four M8 x16 bolts (with flat and lock washers) into the bolt holes.

Figure 2-12 Screw Hole Locations on the Mounting Bracket and Pole Clamp Bracket Assembly

Mounting the Access Point

1 Pole clamp bracket assembly 3 Bolt holes 2 Access point support bolt

4 Mounting bracket

(M8 flange nut not shown)

Step 9 Hand-tighten the bolts and the nut (do not overtighten). Step 10 Adjust the top edge of the mounting bracket until it is horizontal and tighten the bolts and the flange nut

(see Figure 2-12) to 13 to 15 ft lbs (17.6 to 20.3 Nm).

Note The mounting bracket can be adjusted up to 45

to compensate for tilted horizontal streetlight

poles.

Step 11 Continue with Installing 1552E, 1552EU, or 1552I in the Mounting Bracket, page 2-23 or Installing

1552C or 1552CU in the Mounting Bracket, page 2-26, depending on what you purchased.

Installing 1552E, 1552EU, or 1552I in the Mounting Bracket

Step 1 Screw a M8 x16 bolt (without a flat or lock washer) in the top support bolt hole on each side of the access

point (see Figure 2-13 or Figure 2-14, depending on what you purchased). These bolts are supplied with pole mount kit. Do not screw the bolt all the way in. Leave a gap of approximately 0.25 inch (0.635 cm).

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-23

Mounting the Access Point

255254

345827

Figure 2-13 Location of Access Point Top Support Bolt Hole on 1552E/1552EU

Chapter 2 Installing the Access Point

1 Ground lug screw holes location 3 Second M8 x16 bolt hole location 2 M8 x16 bolt hole (top support bolt hole)

Figure 2-14 Location of Access Point Top Support Bolt Hole on 1552I

1 M8 x16 bolt hole 3 Ground lug location 2 M8 x16 bolt hole (top support bolt hole)

2-24

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

255256

Step 2 Position the two bolts on the access point into the appropriate quick mount notches on each side of the

mounting bracket (see Figure 2-15 for the 1552E/1552EU model or Figure 2-16 for the 1552I model).

Note For the 1552E/1552EU model, ensure that the hinged door is facing out. The 1552E/1552EU

access point should be positioned with the LEDs on the bottom to allow viewing from the ground and with the hinged cover facing out.

Note For the 1552I model, ensure that the access point is positioned with the LEDs facing inward

toward the mounting bracket.

Figure 2-15 Access Point 1552E/1552EU Hanging in Mounting Bracket

Mounting the Access Point

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-25

Mounting the Access Point

345826

Figure 2-16 Access Point 1552I Hanging in Mounting Bracket

Chapter 2 Installing the Access Point

Step 3

Screw a M8 x16 bolt (with flat and lock washers) into the second bolt hole on each side of the access point (see Figure 2-15).

Step 4 Depending on what you purchased, ensure that the front of the 1552E/EU access point is vertical, or that

the 1552I access point is horizontal, and tighten the four bolts to 13 to 15 ft lbs (17.6 to 20.3 Nm).

Step 5 For the 1552E/EU model continue with Installing Antennas, page 2-36. For the 1552I model continue

with Grounding the Access Point, page 2-41 and Powering the Access Point, page 2-45.

Installing 1552C or 1552CU in the Mounting Bracket

There are three different options for mounting the 1552C or 1552CU access point:

• Cable Strand Mounting the 1552C or 1552CU Access Point, page 2-26

• Mounting the 1552C or 1552CU Access Point on a Pole/Wall, page 2-30

• Mounting the 1552C or 1552CU Access Point Facing Up in a Vault Application, page 2-33

Cable Strand Mounting the 1552C or 1552CU Access Point

When mounting the access point on a cable strand, you must use the optional strand mount kit. The kit contains several parts that you should assemble before mounting on a cable strand. To install the access point to a cable strand, you need to perform these operations:

• Assemble cable brackets; attach cable clamps to the clamp bracket.

• Attach the strand brackets to the access point.

2-26

• Attach the clamp bracket to the fiber or cable strand.

• Attach a ground wire.

• Connect cables and power to the access point.

Note The access point must be installed on a cable strand by a professional cable installer.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Note The 1552C and 1552CU access points can be installed using the pole mount kit in special circumstances.

Refer to “Mounting the 1552C or 1552CU Access Point on a Pole/Wall” section on page 2-30 or

“Mounting the 1552C or 1552CU Access Point Facing Up in a Vault Application” section on page 2-33

for installation instructions.

To mount the access point, follow these steps:

Step 1 Assemble the cable clamps to the clamp bracket on both cable brackets (Figure 2-17). You should only

hand-tighten the nuts sufficiently to prevent them from falling off.

Figure 2-17 Assemble Cable Brackets

Mounting the Access Point

Step 2

1 M8 flange nut and flat washer 2 Cable Clamps

Secure each strap bracket with two M8 x16 bolts (with lock washers) on each side of the access point with the antennas facing down. (Figure 2-18). Only hand-tighten the bolts to 13 to 15 ft lbs (17.6 to 20.3 Nm).

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-27

Mounting the Access Point

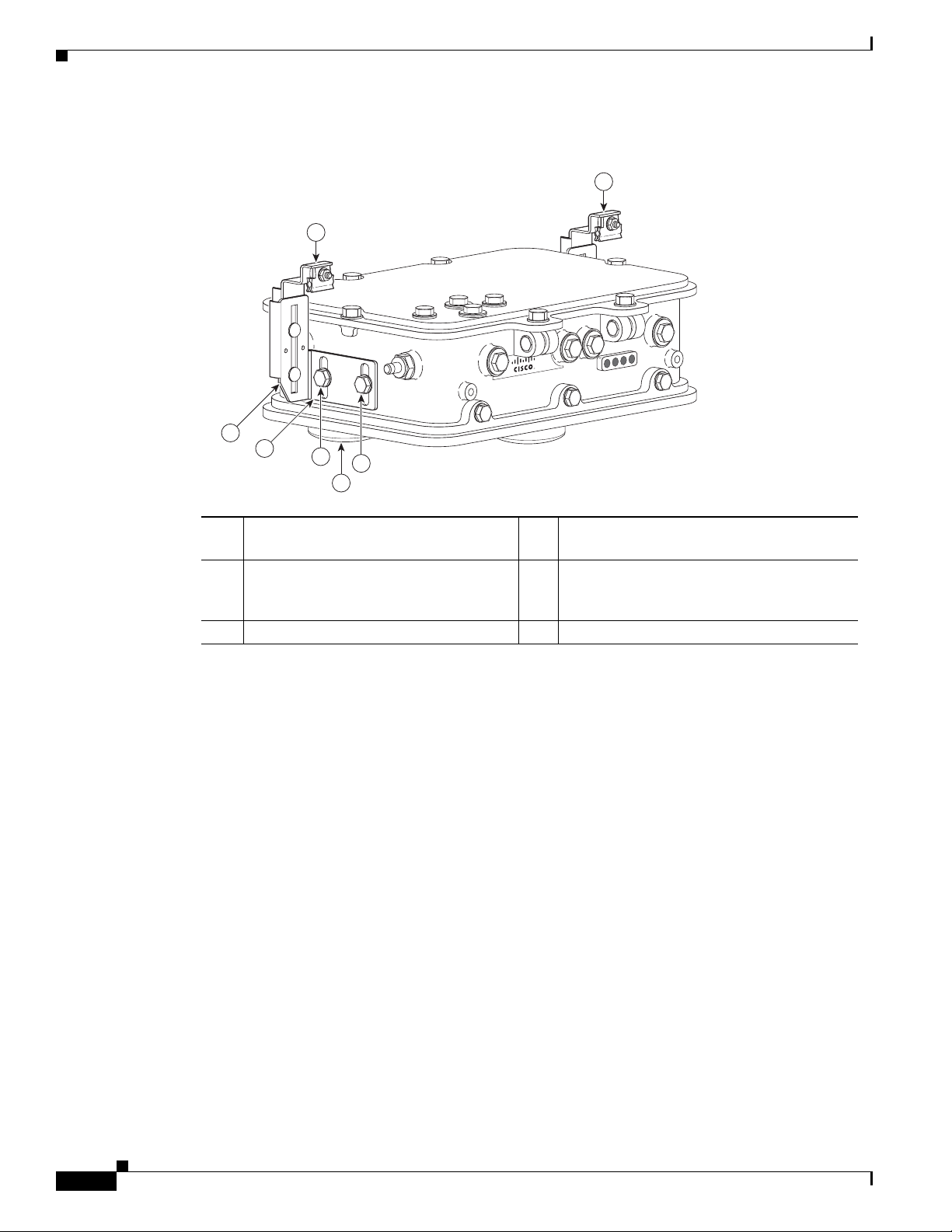

Figure 2-18 Attach Strap Brackets to Access Point

Chapter 2 Installing the Access Point

255245

1 M8 x16 bolts with lock washers

(supplied with cable mount kit)

2 Antenna unit assembly (shown with the

Low Profile Dual-Band 2.4/5 GHz Omni Antenna Array)

3 Strap bracket assemblies

4 Height and Pivot Adjustment

5 Height and Tilt Adjustment

2-28

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

255246

Step 3 Place the clamp bracket on the strand support cable (see Figure 2-19). On each cable support bolt, ensure

that one cable clamp is placed on each side of the support cable. Tighten the two M8 flange nuts to 13 to 15 in. lbs (17.6 to 20.3 Nm). Ensure the cable is mounted to the bottom side of the access point.

Figure 2-19 Attach the Cable Strand to the Cable Mount Brackets

Mounting the Access Point

1 Strap bracket assemblies 4 Antenna unit assembly (shown with the Low

Profile Dual-Band 2.4/5 GHz Omni Antenna Array)

2 Strand support cable 5 F-Connector Adapter (for Cable Modem

models only); sometimes referred to as a “stringer”

3 Fiber or Cable bundle

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-29

Mounting the Access Point

Step 4 The assembled cable mounting kit is shown from the top view of the access point (Figure 2-20).

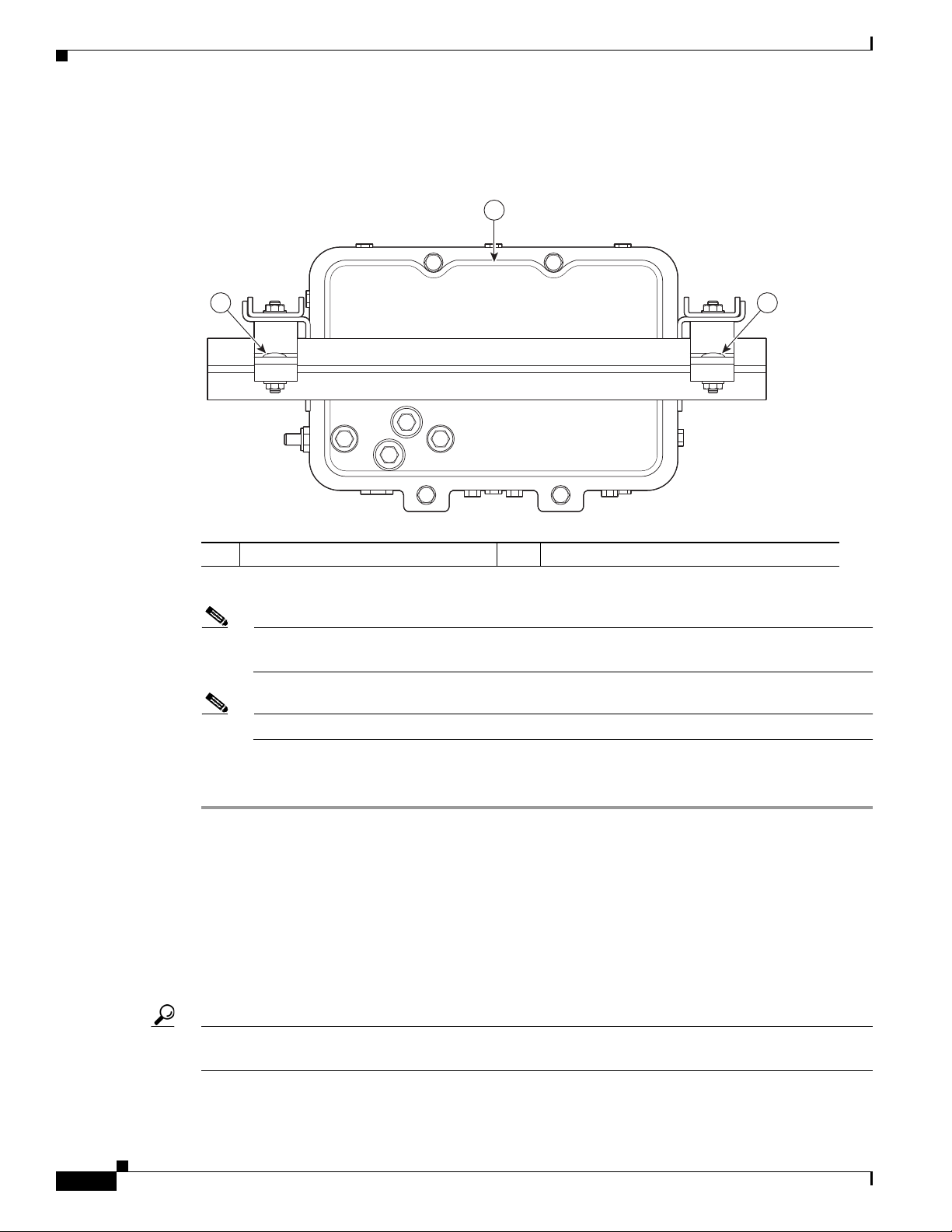

Figure 2-20 Clamp Brackets Attached to Cable Strand-Top View of Access Point

Chapter 2 Installing the Access Point

2 2

N T

SS TP

1 Top view of access point 2 Cable strand bracket

Note The strand support cable might have to be pulled away from the fiber or cable bundle. Be sure

to resecure the cable as necessary.

Note The strand support cable and the mounting hardware provide grounding for the access point.

Step 5 For the 1552CU access point, continue with Installing Antennas, page 2-36. For the 1552C access point,

continue with Grounding the Access Point, page 2-41 and Powering the Access Point, page 2-45.

Mounting the 1552C or 1552CU Access Point on a Pole/Wall

The 1552C or 1552CU access point can be mounted on a wall, pole, or a below-ground vault location, using the pole mount kit. You can use the mounting bracket as a template to mark the positions of the mounting holes for your installation. You then install the mounting plate, attach the grounding lug, and attach the access point when you are ready.

To mount the 1552C or 1552CU access point on a vertical wall, follow these instructions:

255243

2-30

Tip When installing the 1552C or 1552CU access point using the pole mount kit, the grounding lug and cable

must be attached to the access point before attaching the access point to the mounting bracket.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Tip When installing the 1552C or 1552CU access point in this configuration, you can use only one hole in

the grounding block (see Figure 2-21).

Step 6 Attach the grounding lug and cable to the access point. Refer to “Grounding the Access Point” section

on page 2-41.

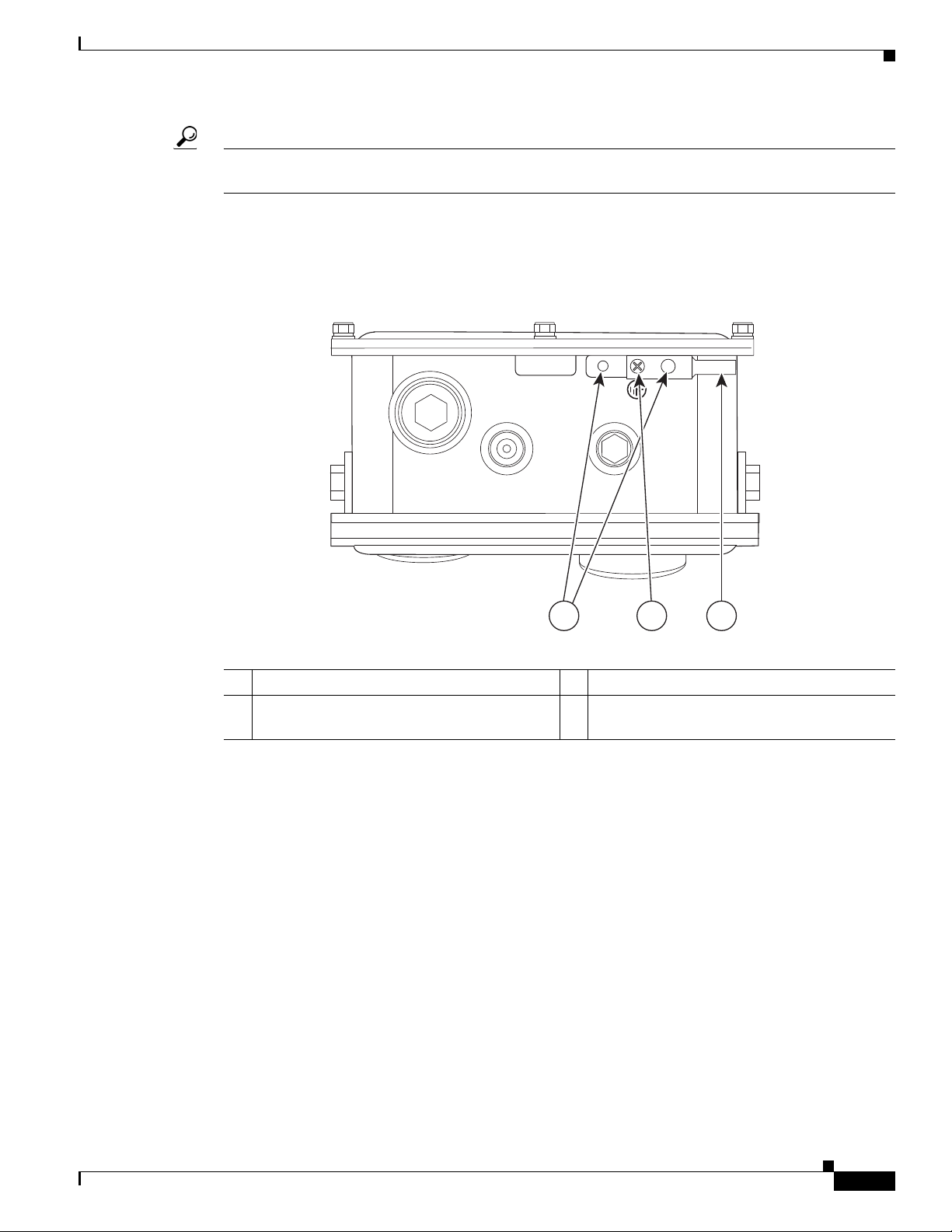

Figure 2-21 Attaching Grounding Lug to Grounding Point

Mounting the Access Point

2 3

1 Unused 3 Grounding lug 2 Phillips head M4 x10mm screw (supplied

with pole mount kit)

331578

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-31

Mounting the Access Point

Step 7 Screw a M8 x16 bolt in the top support bolt hole on each side the access point (see Figure 2-22). Do not

screw the bolt all the way in; leave approximately a 0.25 inch (0.635 cm) space.

Figure 2-22 Position of 1552C or 1552CU Access Point in Pole Mount Bracket

Chapter 2 Installing the Access Point

1 2 3

331579

1 M8 x16 bolt (supplied with pole mount kit) 3 F-connector 2 M8 x16 bolt (supplied with pole mount kit)

Step 8

Position the two bolts on the access point into the appropriate quick mount notches on each side of the mounting bracket (see Figure 2-22). Ensure that the hinged door is facing out.

Step 9 Screw a M8 x16 bolt (with flat and lock washers) into the second bolt hole on each side of the access

point.

Step 10 Ensure that the front of the access point is vertical, and tighten the four bolts to 13 to 15 ft lbs

(17.6 to 20.3 Nm).

Step 11 For the 1552CU access point, continue with Installing Antennas, page 2-36. For the 1552C access point,

continue with Connecting a Cable POC Power to the Access Point, page 2-58.

2-32

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Mounting the 1552C or 1552CU Access Point Facing Up in a Vault Application

To mount the 1552C or 1552CU access point on a horizontal surface in a below-ground vault location, follow these instructions:

Step 1 Use the mounting bracket as a template to mark four screw hole locations on your mounting surface. See

Figure 2-23 for the mounting bracket screw hole locations. You can optionally use the individual

mounting holes or the mounting slots.

Figure 2-23 Mounting Bracket Position for Vault Mounting

Mounting the Access Point

1 Access point quick mount notch 3 Mounting slots (allows bracket rotation)

Step 2

2 Mounting holes

Use four customer-supplied screws and optional screw anchors to attach the mounting plate to the mounting surface.

Note If necessary, use suitable screw anchors and an exterior-grade plywood backboard to mount the

access point to the base.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

2-33

Mounting the Access Point

Tip When installing the 1552C or 1552CU access point using the pole mount kit, the grounding lug and cable

must be attached to the access point before attaching the access point to the mounting bracket.

Step 3 Attach the grounding lug and cable to the access point. Refer to “Grounding the Access Point” section

on page 2-41. See Figure 2-24.

Figure 2-24 Attaching Grounding Lug to Grounding Point

Chapter 2 Installing the Access Point

Step 4

1 Phillips head M4 x10mm screws (supplied

2 Grounding lug

331581

with pole mount kit)

Screw a M8 x16 bolt in the top support bolt hole on each side the access point (see Figure 2-22). Do not screw the bolt all the way in; leave approximately a 0.25 inch (0.635 cm) space.

2-34

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

331582

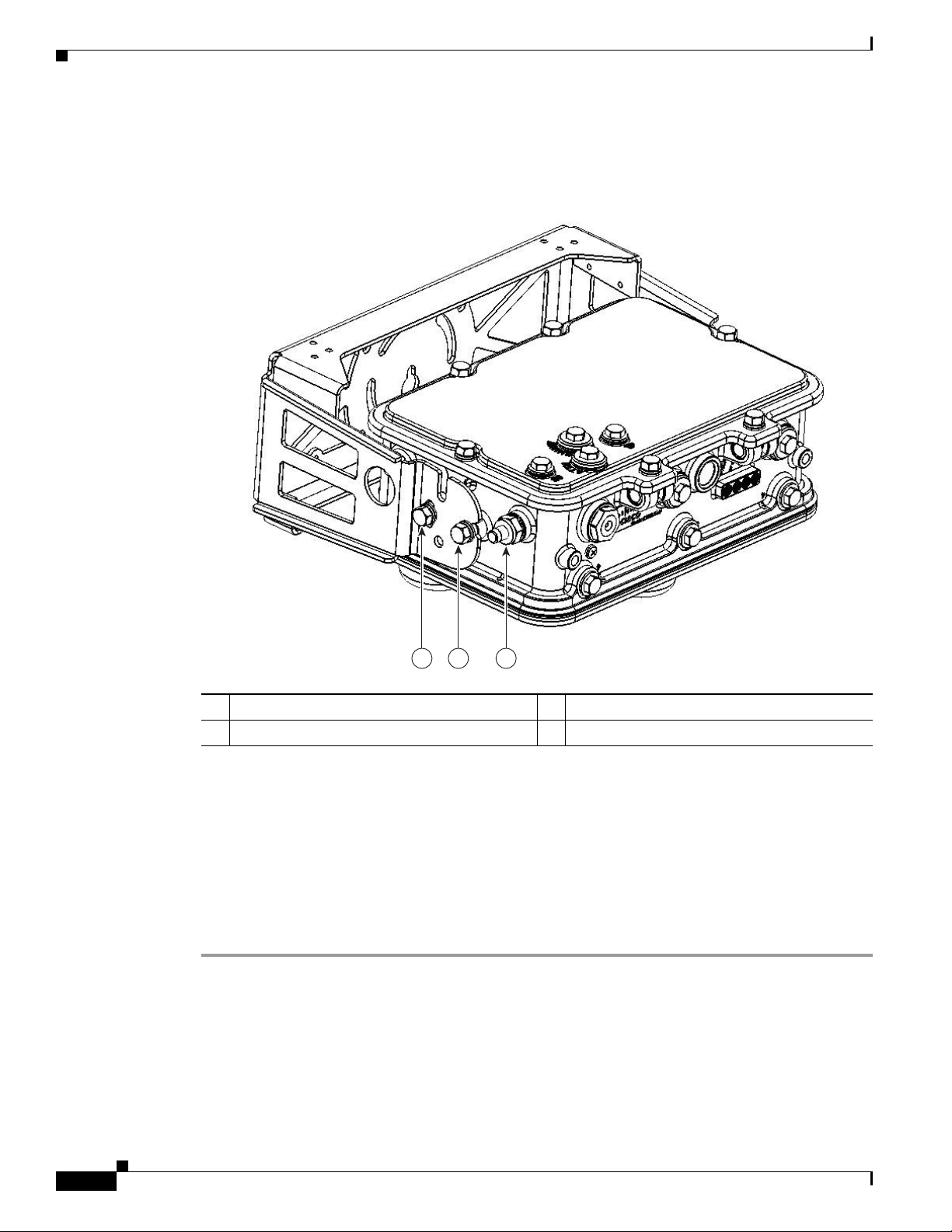

Figure 2-25 1552C Access Point Facing Up in Vault Location

Mounting the Access Point

1 M8 x16 bolt (supplied with pole mount kit) 3 F-connector 2 M8 x16 bolt (supplied with pole mount kit)

Step 5

Position the two bolts on the access point into the quick mount notches on each side of the mounting bracket (see Figure 2-23). Ensure that the hinged door is facing out.

Step 6 Screw a M8 x16 bolt (with flat and lock washers) into the second bolt hole on each side of the access

point.

Step 7 Ensure that the front of the access point is vertical, and tighten the four bolts to 13 to 15 ft lbs

(17.6 to 20.3 Nm).

Step 8 For the 1552CU access point, continue with Installing Antennas, page 2-36. For the 1552C access point,

continue with Powering the Access Point, page 2-45.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-35

Installing Antennas

Table 2- 3 shows the antennas supported by the 1552 access point and provides required quantities for

each model.

Table 2-3 1552 Access Point Supported External Antennas

Chapter 2 Installing the Access Point

Frequency

Product ID

AIR-ANT2547V-N 2.4 / 5 GHz 4 / 7 dBi Omnidirectional 1552E (3)

AIR-ANT2588P3M-N 2.4 / 5 GHz 8 / 8 dBi Directional 1552E (1)

AIR-ANT2420V-N 2.4 GHz 2 dBi Omnidirectional 1552EU (3)

AIR-ANT2450V-N 2.4 GHz 5 dBi Omnidirectional 1552EU (3)

AIR-ANT2480V-N 2.4 GHz 8 dBi Omnidirectional 1552EU (3)

AIR-ANT2413P2M-N 2.4 GHz 13 dBi Directional 1552EU (1)

AIR-ANT5140V-N 5 GHz 4 dBi Omnidirectional 1552EU (3)

AIR-ANT5180V-N 5 GHz 8 dBi Omnidirectional 1552EU (3)

AIR-ANT5114P2M-N 5 GHz 14 dBi Directional 1552EU (1)

For installation instructions and detailed information on these antennas, refer to the appropriate document located at:

http://www.cisco.com/en/US/products/hw/wireless/ps469/prod_installation_guides_list.html

Band Gain Type

Supported AP and Required Quantity

1552CU (3)

1552CU (1)

1552CU (3)

1552CU (1)

2-36

Follow all safety precautions when installing the antennas. For information on safety, refer to “Safety

Precautions” section on page 2-41.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Antenna N-Type Connector Locations

The access point antenna N-type connectors are located on the bottom of model AIR-CAP1552E-x-K9 and on both the top and bottom of the AIR-CAP1552EU-x-K9 and the AIR-CAP1552CU-x-K9. The N-type connectors support variety of the Cisco Aironet antennas. For detailed information on these antennas, refer to Antenna Configurations, page 1-13. Figure 2-26 and Figure 2-27 shows the antenna port locations viewed from the RF cover side.

Figure 2-26 Antenna Port Locations - Model AIR-CAP1552E-x-K9

Installing Antennas

123

255247

456

1 Not used 4 Antenna port 4 - Type N connector (with cap) 2 Not used 5 Antenna port 5 - Type N connector (with cap) 3 Not used 6 Antenna port 6 - Type N connector (with cap)

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-37

Installing Antennas

345674

123

456

Chapter 2 Installing the Access Point

Figure 2-27 Antenna Port Locations - Models AIR-CAP1552CU-x-K9 and AIR-CAP1552EU-x-K9

Antenna Mounting Options

Two mounting configurations are available, the cable strand mount and the pole mount (refer to

“Mounting the Access Point” section on page 2-14.)

Directional-Antenna Mounting Kits on Cisco 1550 Series Outdoor Mesh Access Points.

Figure 2-28 through Figure 2-31 show the antenna mounting options supported by the various 1552

access point models.

2-38

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

345762

282145

Figure 2-28 shows the integrated low-profile dual-band (2.4 GHz and 5 GHz) 3-element array antenna

built-in only on models AIR-CAP1552I-x-K9 and AIR-CAP1552C-x-K9.

Figure 2-28 AIR-CAP1552C-x-K9 and AIR-CAP1552I-x-K9

The AIR-CAP1552E-x-K9 model must always be operated with the three external antennas attached, as shown in Figure 2-29.

Installing Antennas

209188

Figure 2-29 AIR-CAP1552E-x-K9

1-3 AIR-ANT2547V-N 2 AIR-ANT2588P3M-N

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-39

Installing Antennas

345763

2.4 GHz

5 GHz

345761

Chapter 2 Installing the Access Point

The AIR-CAP1552E-x-K9 model can be operated in either of the configurations shown below. In addition, it can be operated with one directional antenna installed for one frequency band and three omnidirectional “stick” antennas installed for the other frequency band.

Figure 2-30 AIR-CAP1552EU-x-K9

1 1 1

2 2 2

345741

1 AIR-ANT5180V-N 1 AIR-ANT5114P2M-N 2 AIR-ANT2450V-N or

2 AIR-ANT2413P2M-N

AIR-ANT2480V-N

The AIR-CAP1552CU-x-K9 model can be operated with the same configurations as the AIR-CAP1552EU-x-K9 model on a pole mount configuration, as shown in Figure 2-30. In addition, when installed in a cable strand mount configuration, the AIR-CAP1552CU-x-K9 model can be operated with configuration shown in Figure 2-31.

Figure 2-31 AIR-CAP1552CU-x-K9

2-40

1 5-GHz antenna AIR-ANT5140V-N 2 2.4-GHz antenna AIR-ANT2420V-N

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Safety Precautions

Grounding the Access Point

Warning

Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local codes (e.g. U.S.: NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code, Section 54).

Statement 280

For your safety, read and follow these safety precautions.

1. Before you install an antenna, contact your Cisco account representative to explain which mounting

method to use for the size and type of antenna that you are about to install.

2. Select your installation site with safety, as well as performance, in mind. Remember that electric

power lines and phone lines look alike. For your safety, assume that any overhead line can kill you.

3. Contact your electric power company. Tell them your plans and ask them to come look at your

proposed installation.

4. Plan your installation carefully and completely before you begin. Each person involved in an

installation should be assigned to a specific task and should know what to do and when to do it. One person should be in charge of the operation to issue instructions and watch for signs of trouble.

5. When installing your antenna, follow these guidelines:

–

Do not use a metal ladder.

–

Do not work on a wet or windy day.

–

Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

6. If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable,

and metal guy wires are all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an electrical path through the antenna and the installer.

7. If any part of the antenna system should come in contact with a power line, do not touch it or try to

remove it yourself. Call your local power company to have it removed safely.

8. If an accident should occur with the power lines, call for qualified emergency help immediately.

Grounding the Access Point

The access point must be grounded before connecting power.

Warning

OL-24247-01

Installation of the equipment must comply with local and national electrical codes.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

Statement 366

Statement 1074

2-41

Connecting a Fiber-Optic Cable to the Access Point

Note When the access point is cable strand mounted, the strand support cable and the mounting hardware

provide grounding for the access point.

In all outdoor installations and when powering the access point with AC power, you must follow these instructions to properly ground the case:

Step 1 If using insulated 6-AWG copper ground wire, strip the insulation as required for the grounding lug. Step 2 Use the appropriate crimping tool to crimp the bare 6-AWG copper ground wire to the supplied

grounding lug (Panduit PLCD6-10A-L).

Note The grounding lug and hardware used must comply with local and national electrical codes.

Step 3 Open the electrical joint compound (supplied), and apply a liberal amount over the metal surface where

the ground strap screw holes are located (see Figure 2-13).

Step 4 Connect the grounding lug to the access point grounding screw holes (see Figure 2-13) using the

supplied two Phillips head screws (M4 x10 mm) with lock washers. Tighten the grounding screw to 22 to 24 in. lbs (2.49 to 2.71 Nm).

Step 5 If necessary, strip the other end of the ground wire, and connect it to a reliable earth ground such as a

grounding rod (see Figure 2-2), an appropriate grounding point on a metal streetlight pole that is grounded (see Figure 2-38), or a grounded cable on a cable strand.

Chapter 2 Installing the Access Point

Connecting a Fiber-Optic Cable to the Access Point

The fiber-optic kit (AIR-1520-FIB-REEL=) enables the access point to support fiber-optic network

connections. The kit contains these parts:

• Eight screws

• Two small take-up reels

• Two large take-up reels

• One liquid-tight adapter—Accepts a cable diameter of 0.20 to 0.35 inches (0.51 to 0.89 cm)

Note Fiber backhaul is only possible on the 1552E and 1552EU access points.

Warning

Note You need a customer-supplied outdoor-rated fiber-optic cable with an LC connector. The cable diameter

Class 1 laser product.

Statement 1008

must be 0.20 to 0.35 in. (0.52 to 0.89 cm) in diameter.

To connect a fiber-optic cable to the access point, follow these steps:

2-42

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Step 1 Ensure that all power sources have been disconnected from the access point.

Connecting a Fiber-Optic Cable to the Access Point

Warning

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Note If your access point contains a backup battery pack, you must depress the reset button for

Statement 1028

10 seconds or more (see the “Disabling Backup Battery Power” section on page 3-10).

Step 2 Open the hinged cover (see the “Opening the Access Point Hinged Cover” section on page 2-13 for

instructions).

Step 3 Place the two large reels with the small reels on top as shown in Figure 2-32. Step 4 Align the screw holes in the large and small reels, and insert four attachment screws in each of the reel

pairs. Tighten the screws to 3 to 4 in. lbs (0.34 to 0.45 Nm).

Step 5 Remove the plug from the end of the SFP module, and insert the module into the SFP receptacle (see

Figure 2-32).

Figure 2-32 Fiber-Optic Cable Components

OL-24247-01

1 Not used 4 Four screws for each reel assembly 2 SFP module slot 5 Fiber-optic connector plug 3 Fiber reels (large reel with small reel on top)

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-43

Connecting a Fiber-Optic Cable to the Access Point

Step 6 Loosen the round end of the liquid-tight connector by turning counterclockwise, but do not remove (see

Figure 2-33).

Figure 2-33 Liquid -Tight Adapter

Chapter 2 Installing the Access Point

1 Thread end 2 Round end

Step 7 Step 8 Use an adjustable wrench, the 22 mm socket, or the Sealcon S-2200-WR wrench to tighten the threaded

Carefully screw the threaded end of the adapter into the access point and hand-tighten.

end of the adapter to 6 to 7 ft lbs (8.1 to 9.5 Nm).

Step 9 Carefully remove approximately 1 to 2 ft (30.5 cm) of the external jacket from the fiber-optic cable,

exposing the inner strand.

Step 10 Carefully insert the fiber-optic LC cable connector into the rounded end of the liquid-tight adapter (see

Figure 2-33), and push through the adapter.

Step 11 Wrap excess fiber-optic cable around the take-up reels in a figure eight (8) pattern. Step 12 Insert the fiber-optic LC cable connector into the SFP module. Step 13 Use an adjustable or open-end wrench to tighten the round end of the adapter to 2.7 to 3.2 ft lbs

(3.66 to 4.34 Nm).

Step 14 Close the hinged cover (see the “Closing the Access Point Hinged Cover” section on page 2-13).

2-44

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Powering the Access Point

The access point can be powered by one of these methods:

• PoE—56 VDC; for 1552E and 1552EU access points

–

Connecting a 1500 Series Power Injector, page 2-45

• AC power

–

110 to 240 VAC for a 1552I access point—Connecting Streetlight AC Power, page 2-51

–

110 to 480 VAC for 1552E and 1552EU access points—Connecting Streetlight AC Power,

page 2-51

–

120 VAC—Connecting an AC Power Cable to the Access Point, page 2-54

• External 12 VDC

–

Connecting a DC Power Cable to the Access Point, page 2-55

• POC—40 to 90 VAC (Quasi-AC); only for a 1552C and 1552CU access points

–

Connecting a Cable POC Power to the Access Point, page 2-58

Powering the Access Point

Note In all cases above, the AC branch circuit powering the access point must be limited to no more than 20A

from the over-protection device supplied by the user. This branch power protection must meet all local and national electrical codes.

Connecting a 1500 Series Power Injector

The power injector provides (AIR-PWRINJ1500-2=) 56 VDC to the access point over the Ethernet cable and supports a total end-to-end Ethernet cable length of 100 m (328 ft) from the switch to the access point.

Note The PoE-Out port is disabled when the access point is powered by the power injector.

Note When not using the AC input connector to power the 1552E or 1552EU (for example when powering

using the Cisco power injector), it is important to cover the AC power entry connector. The correct cap is Remke part number 75-0086 (http://www.remke.com/).

When your access point is powered by an optional power injector, follow these steps to complete the installation:

Step 1 Before applying PoE to the access point, ensure that the access point is grounded (see the “Grounding

the Access Point” section on page 2-41.

Step 2 Review Figure 2-2 to identify the components needed for the installation.

OL-24247-01

Note The 1550 power injector can only be used in an indoor environment, therefore, the cable from

the injector must travel from the protected location to the outside mounted access point.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-45

Powering the Access Point

Step 3 Connect a CAT5e or better Ethernet cable from your wired LAN network to the power injector.

Chapter 2 Installing the Access Point

Warning

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

Statement 1023

Use only the 1500 power injector (AIR-PWRINJ1500-2=) for the access point. This power injector is designed to meet the power requirements of the access point and is a listed Class 2 limited power source (LPS).

Note The installer is responsible for ensuring that powering the access point from this type of power injector

is allowed by local and/or national safety and telecommunications equipment standards.

Tip To forward bridge traffic, add a switch between the power injector and controller. Refer to the

Cisco Wireless Mesh Access Points, Design and Deployment Guide, Release 7.0 for more information.

Step 4 Ensure that the antennas are connected and that a ground is attached to the access point before you apply

power to the access point.

Step 5 Connect a shielded outdoor-rated Ethernet (CAT5e or better) cable between the power injector and the

PoE-in connector of the access point (see Figure 2-34).

Step 6 Connect the Ethernet cable to the access point PoE-In port (see “Connecting an Ethernet Cable to the

Access Point” section on page 2-46).

Note When a 1552E or1552EU access point is powered by PoE, the PoE-Out port is not active.

Step 7 Continue with What to Do Next, page 2-63.

Connecting an Ethernet Cable to the Access Point

You need to supply these tools and materials:

• Shielded outdoor-rated Ethernet (CAT5e or better) cable with 0.2 to 0.35 in. (0.51 to 0.89 cm)

diameter

Note The PoE-out port is disabled when the access point is powered by the power injector.

• RJ-45 connector and installation tool

• Adjustable wrench

To connect the shielded Ethernet cable to the access point, follow these steps:

Step 1 Disconnect power to the power injector, and ensure all power sources to the access point are turned off.

2-46

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

45 6

255260

1 2

Powering the Access Point

Warning

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Statement 1028

Note If your access point contains a backup battery pack, you must press the reset button for 10

seconds or more (see the “Disabling Backup Battery Power” section on page 3-10).

Step 2 Ensure a 6 AWG ground wire is connected to the access point (see the “Grounding the Access Point”

section on page 2-41).

Step 3 Use an adjustable wrench, a 22-mm socket, or the Sealcon S-2200-WR wrench to remove the Ethernet

connector plug from the access point (see Figure 2-34 for the location).

Figure 2-34 Location of Ethernet Liquid-Tight Adapters (Only Models AIR-CAP1552E-x-K9 and

AIR-CAP1552EU-x-K9)

1 PoE-in port 2 PoE-out port

Note For information on data cable entry, refer to Figure 1-1 on page 1-6

Step 4 Loosen the round end of the liquid-tight adapter by turning counterclockwise, but do not remove (see

Figure 2-35).

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

2-47

Powering the Access Point

Figure 2-35 liquid-tight Adapter

1 Thread end 2 Round end

Step 5 Insert the unterminated end of the Ethernet cable into the round end of the liquid-tight adapter (see

Figure 2-35), and pull several inches of cable through the adapter.

Chapter 2 Installing the Access Point

Step 6 Install an RJ-45 connector on the unterminated end of the Ethernet cable using your Ethernet cable

installation tool.

Warning

Step 7 Carefully insert the RJ-45 cable connector into the Ethernet port opening on the access point, and

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

Statement 1023

connect to the internal Ethernet connector (see Figure 2-36).

Figure 2-36 Inserting RJ-45 Connector into the Ethernet Port Opening in Case

2-48

1 Liquid-tight adapter 3 RJ-45 connector 2 Ethernet port opening in access point case 4 Shielded outdoor-rated Ethernet (CAT5e or

better) cable

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Powering the Access Point

Step 8 Slide the liquid-tight adapter towards the access point, and screw the threaded end of the adapter into the

access point, and hand-tighten.

Step 9 Use an adjustable wrench, a 22-mm socket, or a Sealcon S-2200-WR wrench to tighten the threaded end

of the adapter to 6 to 7 ft lbs (8.1 to 9.5 Nm).

Step 10 Use an adjustable wrench and tighten the round end of the adapter to 2.7 to 3.2 ft lbs (3.66 to 4.34 Nm). Step 11 Ensure that the antennas are connected to the access point before you apply power to the access point. Step 12 Route your Ethernet cable, and cut off any excess cable. Step 13 Install an RJ-45 connector on the unterminated cable end, and insert it into the power injector. For typical

installation components, see Figure 2-2.

Step 14 Turn on power to the power injector.

AC Power Cords for Cisco Aironet 1550 Series Outdoor Mesh Access Points

The Cisco Aironet 1550 series outdoor mesh access point supports these AC power cord options:

• 40-ft (12.2-m) power cord (AIR-CORD-R3P-40NA=) for light pole installations in the US and

Canada.

• 40-ft (12.2-m) power cord (AIR-CORD-R3P-40UE=) for light pole installations in the European

Union.

• 4-ft (1.2-m) streetlight power tap adapter (AIR-PWR-ST-LT-R3P=) for light pole installations in the

US and Canada.

Warning

Caution Prior to connecting or disconnecting a power cord, you must remove AC power from the power cord

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

1022

Statement

using a suitable service disconnect.

Note European Union users need to install a country-specific plug to the blunt cut end of the cable assembly.

Note In all installations, the detachable power cord (pluggable Type B) must be an approved type acceptable

to the authorities in the country where the unit is sold, and must meet all local and national electrical codes.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-49

Powering the Access Point

255269

Table 2-4 AC Power Cord Information

AC Power Cord Cord Diameter Comment

AIR-CORD-R3P-40NA= 0.398 to 0.413 in.

AIR-CORD-R3P-40UE= 0.398 to 0.413 in.(10.1 mm

AIR-PWR-ST-LT-TAP= Strain relief bushing not

When using a user-supplied AC power plug on the AIR-CORD-R3P-40UE= power cord, ensure that the plug is certified for outdoor use and that it has a minimum IP67 rating, such as Interpower 84131251 or Hubbell HBL316P6W (IEC/EN 60309) pin-and-sleeve type connectors. The European Union power cord plug pinouts are listed in Figure 2-37. For the location of the AC power connectors, see Figure 2-39 and Figure 2-40.

Figure 2-37 European Union Plug Pinouts

(10.1 mm to 10.5 mm)

to 10.5 mm)

needed

Chapter 2 Installing the Access Point

The three prong plug is limited to 120 VAC. Internal wiring is rated at 600 VAC insulation protection.

Power cord rating is 100 to 480 VAC. Internal wiring is 16 AWG.

Power cord rating is 100 to 480 VAC

Pin Description Conductor Color Pin Description Conductor Color

1 Ground Green/Yellow 3 Neutral Blue

2 Live Brown

Caution All AC power plugs and AC receptacles must be protected from water and other outdoor elements. Use

a UL listed waterproofing enclosure suitable for covering the AC receptacle and AC power plug that supplies power to the unit as described in Article 406 of the NEC. If the power cord goes through a metal cover, install a bushing to prevent fraying of the cord.

When using a strain relief bushing, you should follow these recommendations:

• Use properly sized parts (see Table 2- 4 for the power cord diameter)

• Use bushings that are safety certified

• Use parts that are suitable for outdoor installation

Caution If your power cord does not use an AC power plug, you must ensure that the power source is OFF before

connecting or disconnecting the power cord wires from the power source.

2-50

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Powering the Access Point

Warning

When installing or replacing the unit, the ground connection must always be made first and disconnected last.

Statement 1046

Connecting Streetlight AC Power

The access point can be installed on a streetlight pole and powered from a streetlight outdoor light control using the optional streetlight power tap adapter.

Caution The access point can be powered by a light pole twist-lock outdoor light control that provides

100-to 480-VAC 50/60 Hz power. Do not connect to an outdoor light control powered by higher voltages.

When powering the access point with AC power other than the streetlight power tap adapter, you must ensure that the following conditions are observed:

1. AC power can be conveniently removed from the unit. The power should not be removed by

disconnecting the AC power connector on the unit.

Warning

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

Statement 1022

Caution Before connecting or disconnecting a power cord, you must remove AC power from the power cord using

a suitable service disconnect.

2. You must protect any AC power plugs and AC receptacles from water and other outdoor elements.

You can use a UL-listed waterproofing enclosure suitable for covering the AC receptacle and AC power plug that supplies power to the unit as described in Article 406 of the NEC.

3. When you install the access point outdoors or in a wet or damp location, the AC branch circuit that

powers the access point should have ground fault protection (GFCI), as required by Article 210 of the National Electrical Code (NEC).

Warning

Be very careful when connecting the streetlight adapter to Category 3 pole-top power. If you are not careful, you may electrocute yourself or fall.

Statement 363

For additional important safety instructions for AC power cords, refer to the AC Power Cords for Cisco Aironet 1550 Series Outdoor Mesh Access Points document that shipped with your AC power cords.

To install an access point on a streetlight pole, follow these steps:

Step 1 Before beginning the installation, ensure the AC power to the streetlight pole is turned off. Step 2 Turn off power to the AC power source at the designated circuits.

Warning

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Statement 1028

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-51

Powering the Access Point

281939

Caution For your safety, when connecting the access point AC power connector, always connect the access point

end of the cable FIRST. When removing the AC power connector, always disconnect the access point end of the cable LAST.

If your access point contains a backup battery pack, you must press the reset button for 10 seconds or more (see the “Disabling Backup Battery Power” section on page 3-10.)

Step 3 When using the streetlight power tap adapter (AIR-PWR-ST-LT-R3P=), ensure that the access point is

mounted within 3 feet (1 m) of the outdoor light control. For mounting instructions, refer to the

“Installing the Mounting Bracket on a Pole (All Models)” section on page 2-18.

Step 4 Ensure that a 6-AWG ground wire is attached to the access point (see Figure 2-38) and connected to the

streetlight pole (for instructions see Grounding the Access Point, page 2-41).

Figure 2-38 Using the Streetlight Power Tap Adapter

Chapter 2 Installing the Access Point

1 Outdoor light control 3 6-AWG copper grounding wire 2 Streetlight power tap adapter

Step 5

Ensure that the streetlight power tap adapter, which uses a 3-pronged LC-10 twist-lock adapter, is placed between the outdoor light control and its fixture (refer to Figure 2-38). The LC-10 twist-lock adapter is designed to be used with LC-10 listed outdoor light controls operating at 100 to 480 VAC, 50 to 60 Hz.

Step 6 Disconnect the outdoor light control from its fixture. Step 7 Verify that the voltage available at the fixture is between 100 and 480 VAC, 50 to 60 Hz. Step 8 Turn off power to the fixture at the designated circuits.

Caution When installing the streetlight power tap adapter to the access point AC power connector, always

connect the access point end of the cable FIRST. When removing the streetlight power tap adapter, always disconnect the access point end of the cable LAST.

Note Ensure that your antennas are connected to the access point before you apply power to the access

point.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-52

OL-24247-01

Chapter 2 Installing the Access Point

45 6

255259

255258

Step 9 Connect the streetlight power tap adapter to the access point AC power connector, as shown in

Figure 2-39 and Figure 2-40. Hand-tighten the connector.

Figure 2-39 AC Power Connector - Shown on Access Point Model AIR-CAP1552E-x-K9

Powering the Access Point

1 AC power connector

Figure 2-40 AC Power Connector - Shown on Access Point Model AIR-CAP1552I-x-K9

1 AC power connector

Step 10 Step 11 Plug the outdoor light control into the streetlight power tap adapter. Step 12 Ensure that the antennas are connected to the access point before you apply power to the access point. Step 13 Turn on the power to the outdoor light control fixture at the designated circuits.

Plug the streetlight power tap adapter into the outdoor light control fixture, as shown in Figure 2-38.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-53

Powering the Access Point

Connecting an AC Power Cable to the Access Point

When powering the access point with AC power other than the streetlight power tap adapter, you must ensure that the following conditions are observed:

1. AC power can be conveniently removed from the unit. The power should not be removed by

disconnecting the AC power connector on the unit.

Chapter 2 Installing the Access Point

Warning

Caution Before connecting or disconnecting a power cord, you must remove AC power from the power cord using

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

Statement 1022

a suitable service disconnect.

2. You must protect any AC power plugs and AC receptacles from water and other outdoor elements.

You can use a UL-listed waterproofing enclosure suitable for covering the AC receptacle and AC power plug that supplies power to the unit as described in Article 406 of the NEC.

3. When you install the access point outdoors or in a wet or damp location, the AC branch circuit that

powers the access point should have ground fault protection (GFCI), as required by Article 210 of the National Electrical Code (NEC).

Note For additional important safety instructions for AC power cords, refer to the AC Power Cords for Cisco

Aironet 1550 Series Outdoor Mesh Access Points document that shipped with your AC power cords.

The access point supports this Cisco AC power cable:

• 40 ft (12.2 m) AC power cable (AIR-CORD-R3P-40NA=)

To connect an AC power cable to the access point, perform these steps:

2-54

Step 1 Prior to applying AC power, ensure the access point is grounded (see Grounding the Access Point,

page 2-41).

Step 2 Turn off power to the AC power source at the designated circuits.

Warning

Caution When connecting the access point AC power connector, always connect the access point end of the cable

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Statement 1028

FIRST. When removing the AC power connector, always disconnect the access point end of the cable LAST.

Note If your access point contains a backup battery pack, you must press the reset button for 10

seconds or more (see the “Disabling Backup Battery Power” section on page 3-10).

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Cisco Systems AIRPWRINJ15002, AIRCAP1552EAK9RF, AIRCAP1552EUAK9 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
