Cisco Unified IP Phone 9971

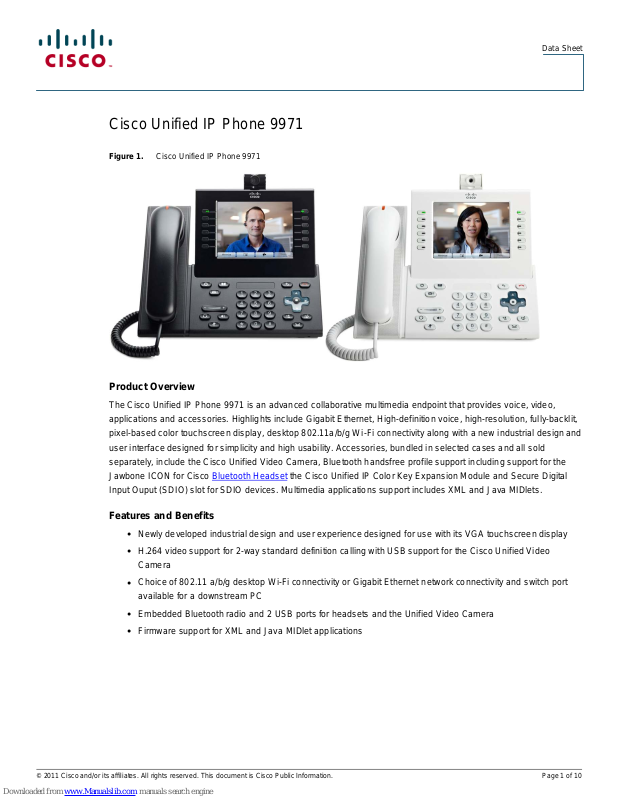

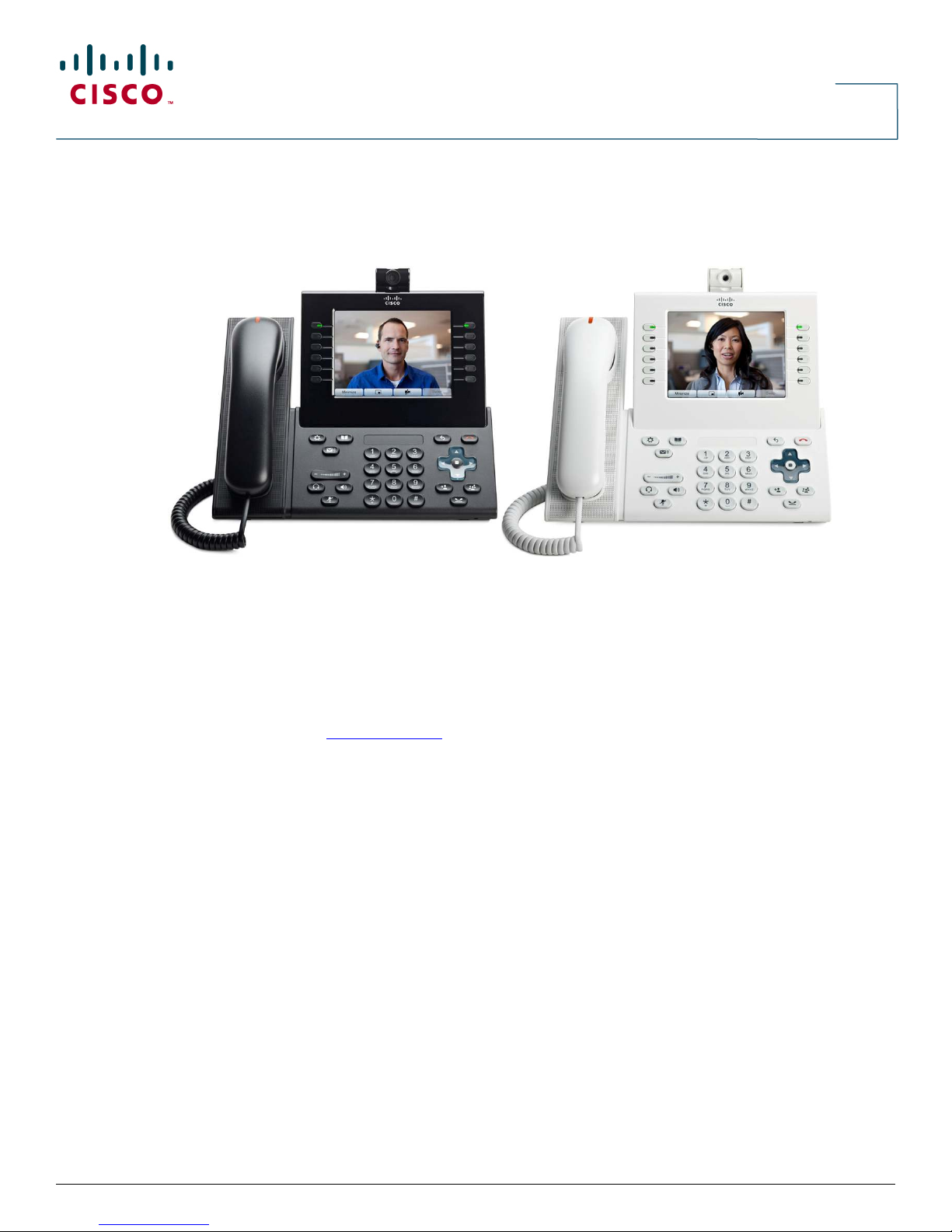

Figure 1. Cisco Unified IP Phone 9971

Data Sheet

Product Overview

The Cisco Unified IP Phone 9971 is an advanced collaborative multimedia endpoint that provides voice, video, applications and accessories. Highlights include Gigabit Ethernet, High-definition voice, high-resolution, fully-backlit, pixel-based color touchscreen display, desktop 802.11a/b/g Wi-Fi connectivity along with a new industrial design and user interface designed for simplicity and high usability. Accessories, bundled in selected cases and all sold separately, include the Cisco Unified Video Camera, Bluetooth handsfree profile support including support for the Jawbone ICON for Cisco Bluetooth Headset the Cisco Unified IP Color Key Expansion Module and Secure Digital Input Ouput (SDIO) slot for SDIO devices. Multimedia applications support includes XML and Java MIDlets.

Features and Benefits

●

Newly developed industrial design and user experience designed for use with its VGA touchscreen display

●

H.264 video support for 2-way standard definition calling with USB support for the Cisco Unified Video Camera

●

Choice of 802.11 a/b/g desktop Wi-Fi connectivity or Gigabit Ethernet network connectivity and switch port available for a downstream PC

●

Embedded Bluetooth radio and 2 USB ports for headsets and the Unified Video Camera

●

Firmware support for XML and Java MIDlet applications

Data Sheet

Table 1. Features and Benefits

Feature Benefits

Hardware Ergonomic Design Highly usable and intuitive arrangement of lines, features and calls. Transfer, Conference and Hold appear

Customization This model can be ordered as Arctic White or Charcoal Gray. Handsets are available internationally as

Display VGA presentation for calling, video calling and applications. 5.6-inch (14 cm) graphical TFT color

Ethernet Internal 2-port Cisco Ethernet switch allows for a direct connection to a 10/100/1000 BASE-T Ethernet

Desktop Wi-Fi Ethernet As an alternative to wired Ethernet, this model supports an on-board Wi-Fi radio and antenna that enables

Bluetooth Mobility for headset users within 30 feet of their desktop to enable the freedom to go to the printer, a

USB 2 USB ports accelerate the usability of call handling and applications by enabling accessories such as the

External Audio Ports General Purpose Audio In and Audio Out ports enable a relaxed speakerphone experience over external

Secure Digital Input Ouput (SDIO) Enables an additional option for portability and presentation of confidential data, video and sample

6 lines expanding to 114 with 3 Unified IP Color Key Expansion Modules

Buttons 6 feature buttons with state indicating LEDs

Accessories Unified IP Color Key Expansion Module Available separately, enables advanced use of lines, speed dials and features. Cisco Unified Video Camera Available separately, enables 2-way video calling between phones or video conferencing through a media

Cisco Unified Video Advantage Support

Headset Support Integrated design & advanced, updateable firmware for Jawbone ICON for Cisco Bluetooth Headset which

Firmware New user experience Advanced organization of lines, speed dials and programmable features separate from call appearances.

SIP Signaling SIP interoperation with the call control and partner applications enables a rich unified communications

Application Support XML and Java MIDlet applications provided by Cisco’s application development partners or customers’

on hard keys to reduce the number of presented softkeys to a maximum of 4 per call state.

slimline (5oz, 140g) or standard (6oz, 170g) and can be mixed and matched between users within the same work environment to enable a feeling of customization and ownership among the users.

touchscreen display, 24-bit color depth, 640 x 480 effective pixel resolution, with backlight. Display also supports localization requiring double-byte Unicode encoding for fonts.

network through an RJ-45 interface with single LAN connectivity for both the phone and a co-located PC. System administrator can designate separate VLANs (802.1Q) for the PC and phone, providing improved security and reliability of voice and data traffic.

connectivity to a wi-fi access point thereby saving on the labor costs of pulling Ethernet cables to every work location. Complete Wi-Fi specifications are included in Table 4.

colleague’s desk or nearby private location while on a call. The IP Phone 9971 supports the Hands-free and Headset Bluetooth profiles, including support for the Jawbone ICON for Cisco Bluetooth Headset.

Cisco Unified IP Camera, wired and wireless headsets.

speakers and microphone.

applications. The convenience of many speed dials or programmable features, or the necessity of following the activity

of many lines. Up to 200 calls supported per device.

6 call session buttons with state indicating LEDs Applications, Directories, Voicemail Conference, Transfer, Hold Volume Up/Down Back-lit Mute, Speakerphone, Headset Back, End Call, 5-Way Navigation Pad

conference unit. Alternatively to supporting the Cisco Unified Video Camera, the Cisco Unified Video Advantage camera

and application (running on a PC) are also supported.

also works with all major mobile phone models. Also supports standard Bluetooth and USB headsets via the hands-free and headset Bluetooth profiles. Wideband analog headset support also provided via a dedicated RJ9 headset port on the rear of the phone.

Great for those who make few calls per day; better for those who handle dozens of calls per hour.

solution.

own development staff.

Data Sheet

Unified Communications Manager Support

●

Cisco Unified Communications Manager version 7.1(3a)SU1 or later.

●

Survivable Remote Site Telephony (SRST) version 4.3 or later.

Licensing

Phone licensing is dependent on the call control platform and its policies. For the Cisco Unified Communications Manager, the IP Phone 9971 requires 4 Device License Units (DLUs) or an Enhanced IP User Connect License for UCM release 7.1(5) or later. There are no special licence plus phone bundles for Tier II distributors. The IP Phone 9971 is not supported on non-Cisco third party call control systems.

Product Specifications

Table 2. Product Specifications

Protocols SIP for signaling

H.264 for video

Connectivity 10/100/1000 wired Ethernet network port plus switched PC port

802.11a/b/g wi-fi

Options Arctic White or Charcoal Gray color

Slimline (5oz, 140g) or Standard (6oz, 170g) handset

Language support Arabic, Bulgarian, Catalan, Chinese (People’s Republic of China), Chinese (Hong Kong), Chinese

Physical dimensions (HxWxD) 9.2” (23.4 cm) x 10.33”(26.25 cm) x 1.56”(3.97 cm)

Power IEEE Power over Ethernet 802.3af and 802.3at supported, class 4. The IP Phone 9971 is compatible with

Temperature range Operational Temperature Temperature: 23°F (-5°C) ~ 131°F (55°C) Non-Operational Temperature Shock Temperature: -13°F (-25°C) ~ 158°F (70°C) Temperature-Altitude (Operational) Temperature: 140°F (40°C) Ambient condition to 9843 ft (3,000 m) Temperature-Altitude (Non-

Operational) Temperature-Humidity (Non-

Operational) Non-Operational Hot Temperature

(Storage) Non-Operational Cold Temperature

(Storage) Quantity Shipped per Pallate 320 units

(Taiwan), Croatian, Czech, Danish, Dutch, English - plus localized prompts for the UK, Estonian, French, Finnish, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese (Portugal), Portuguese (Brazil), Romanian, Russian, Spanish (Spain), Slovak, Swedish, Serbian (Republic of Serbia), Serbian (Republic of Montenegro), Slovenian, Thai, Turkish

In slab mode with the footstand removed.

both class 3 and class 4 IEEE PoE switch blades and supports both Cisco Discovery Protocol (CDP) and Link Layer Discovery Protocol - Power over Ethernet (LLDP-PoE)

Ambient condition to 15,000 ft (4,572 m)

Humidity: 90% ± 5% Relative Humidity

Temperature: 158° F (70°C) ± 2° C

Temperature: -40°F (-40°C) ± 2° C

Data Sheet

SKU Description Weight: Hardware

lb (kg)

CP-9971-C-K9= Cisco Unified IP Endpoint

CP-9971-CL-K9= Cisco Unified IP Endpoint

CP-9971-W-K9=

CP-9971-WL-K9=

CP-89/9900-HS-C=

CP-89/9900-HS-CL=

CP-89/9900-HS-W=

CP-89/9900-HS-WL=

9971, Charcoal, Standard Handset

9971, Charcoal, Slimline Handset

Cisco Unified IP Endpoint 9971, Arctic White, Standard Handset 3.66(1.660) 4.62(2.094) 38.65(17.530)

Cisco Unified IP Endpoint 9971, Arctic White, Slimline Handset 3.59(1.629) 4.56(2.067) 38.17(17.315)

Spare Handset for 8900 or 9900 Series, Charcoal, Standard 0.39(0.177)

Spare Handset for 8900 or 9900 Series, Charcoal, Slimline 0.32(0.146)

Spare Handset for 8900 or 9900 Series, Arctic White, Standard 0.41(0.187)

Spare Handset for 8900 or 9900 Series, Arctic White, Slimline 0.34(0.156)

3.48(1.577) 4.55(2.065) 38.00(17.235)

3.41(1.546) 4.36(1.979) 36.62(16.610)

Weight: Single Carton lb (kg)

Weight: Master Pack of 8 Cartons

lb (kg)

Table 3. Calling Features

Feature Specifications

Calling Feature Support

Audio Codec Support G.711a, G.711u, G.729a, G.729ab, G.722, iSAC and iLBC audio compression codecs.

Configuration Options

●

+ Dialing

●

Abbreviated dialing

●

Adjustable ringing and volume levels

●

Adjustable display brightness

●

Agent Greeting/Whisper Coaching

●

Application Launch Pad

●

Auto-answer

●

Auto-detection of headset

●

Barge

●

Callback

●

Call forward

●

Call history lists

●

Call park

●

Call pickup

●

Call timer

●

Call waiting

●

Caller ID

●

Corporate directory

●

Conference

●

Direct transfer

●

Extension mobility service

●

Fast-dial service

●

Group call pickup

●

Hold

●

Intercom

●

Immediate divert

●

Join

●

Last-number redial

●

Malicious-caller ID

●

Message-waiting indicator

●

Meet-me conference

●

Music on hold

●

Mute

●

Network profiles (automatic)

●

On- and off-network distinctive ringing

●

OPickUp

●

Personal directory

●

Predialing before sending

●

Privacy

●

Redial

●

Ring tone per line appearance

●

Service URL

●

Shared line

●

Time and date display

●

Transfer

●

Visual Voice Mail

●

Voice Mail

●

Dynamic Host Configuration Protocol (DHCP) client or static configuration

●

Support for online firmware upgrades using Trivial File Transfer Protocol (TFTP)

●

Domain Name System (DNS)

●

HTTP Firmware Management

Data Sheet

Feature Specifications

Network Features

Security Features

Provisioning and Manufacturing

●

Cisco Discovery Protocol (CDP)

●

Link Layer Discovery Protocol Power over Ethernet (LLDP-PoE)

●

Transparent secure roaming

●

Provisioning of network parameters through DHCP

●

Switch Auto-Negotiation

●

VPN Client

●

Certificates

●

Image authentication

●

Device authentication

●

File authentication

●

Signaling authentication

●

Media encryption using Secure Real-Time Protocol (SRTP)

●

Signaling encryption using Transport Layer Security (TLS) Protocol

●

Certificate authority proxy function (CAPF)

●

Secure profiles

●

Encrypted configuration files

●

Cisco Unified Communications Manager Express Version Negotiation

●

Web server for configuration and statistics

●

QoS reporting: jitter, delay, dropped packets, and latency on a per-call basis

●

Real Time Control Protocol (RTCP) support and monitoring

●

Syslog

Data Sheet

Table 4. Wi-Fi Features and Specifications

Feature Specifications

Protocol IEEE 802.11a, 802.11b, and 802.11g Frequency band and operating

channels Support mode IEEE 802.11a

Data rates IEEE 802.11a:

Nonoverlapping channels IEEE 802.11a: Up to 23 (including radar channels)

Wireless modulation IEEE 802.11a: OFDM

Receiver sensitivity (typical)

Uses IEEE 802.11d to identify band ranges and channels

IEEE 802.11b/g Autosensing, IEEE 802.11b/g preferred over IEEE 802.11a Received signal strength indicator (RSSI) (default)

IEEE 802.11b:

6, 9, 12, 18, 24, 36, 48, and 54 Mbps

IEEE 802.11b/g: 3 (Japan uses 4) (Bluetooth 2.0 also makes use of the 2.4 GHz spectrum, so IEEE 802.11a is recommended when using

Bluetooth 2.0)

IEEE 802.11b: Direct sequence spread spectrum (DSSS) IEEE 802.11g: OFDM and DSSS

IEEE 802.11a: 6 Mbps: -91 dBm 9 Mbps: -90 dBm 12 Mbps: -88 dBm 18 Mbps: -86 dBm 24 Mbps: -82 dBm 36 Mbps: -80 dBm 48 Mbps: -77 dBm 54 Mbps: -75 dBm

1, 2, 5.5, and 11 Mbps

IEEE 802.11b: 1 Mbps: -96 dBm 2 Mbps: -95 dBm

5.5 Mbps: -90 dBm 11 Mbps: -87 dBm

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54

Mbps

v802.11g: 6 Mbps: -91 dBm 9 Mbps: -90 dBm 12 Mbps: -87 dBm 18 Mbps: -86 dBm 24 Mbps: -82 dBm 36 Mbps: -80 dBm 48 Mbps: -77 dBm 54 Mbps: -76 dBm

Feature Specifications

Transmitter output power IEEE 802.11a OFDM:

40 mW (16 dBm) 32 mW (15 dBm) 20 mW (13 dBm) 8 mW (9 dBm)

3.2 mW (5 dBm) 1 mW (0 dBm)

Range (stated ranges are from measured open-site range testing)

Access point support Cisco 500 Series Wireless

Wireless security Authentication:

QoS IEEE 802.11e and Wi-Fi Multimedia (WMM)

Radar detection Dynamic frequency selection (DFS) and transmit power control (TPC) according to IEEE 802.11h

IEEE 802.11a: 6 Mbps: 604ft (184 m) 9 Mbps: 604 ft (184 m) 12 Mbps: 551 ft (168 m) 18 Mbps: 545 ft (166 m) 24 Mbps: 512 ft (156 m) 36 Mbps: 420 ft (128 m) 48 Mbps: 322 ft (98 m) 54 Mbps: 289 ft (88 m)

Ranges and actual throughput vary based on numerous environmental factors so individual performance may differ.

Express Access Points Cisco 1000 Series Lightweight

Access Point Cisco Aironet 1100 Series Access

Point Cisco Aironet 1130 AG Series Cisco Aironet 1200 Series Cisco Aironet 1140 AG Series Cisco Aironet 1230 AG Series Cisco Aironet 1240 AG Series Cisco Aironet 1250 Series Cisco Aironet 1300 Series

Cisco Wireless Security Suite IEEE 802.1X

Lightweight Extensible Authentication Protocol (LEAP) Authentication

Extensible Authentication Protocol and Flexible Authentication with Secure Tunneling (EAP-FAST)

Wi-Fi Protected Access (WPA) Versions 1 and 2: Personal and Enterprise

Cisco Centralized Key Management (CKM)

Traffic Specification (TSPEC) Enhanced Distributed Channel Access (EDCA) QoS Basic Service Set (QBSS)

IEEE 802.11b CCK: 50 mW (17 dBm) 20 mW (13 dBm) 8 mW (9 dBm)

3.2 mW (5 dBm) 1 mW (0 dBm)

IEEE 802.11b: 1 Mbps: 1,010 ft (308 m) 2 Mbps: 951 ft (290 m)

5.5 Mbps: 919 ft (280 m) 11 Mbps: 902 ft (275 m)

Required versions: Cisco Wireless LAN Controller (lightweight) Minimum: Version 4.0.217.0 Recommended: Version 5.1.151.0 or later Cisco IOS® Software access points (autonomous) Minimum: Version 12.3(8)JEA Recommended: Version 12.3(4g)JA1 or later

Encryption: 40- and 128-bit static Wired Equivalent Privacy (WEP) Temporal Key Integrity Protocol (TKIP) and Message Integrity Check

(MIC) Advanced Encryption Standard (AES)

IEEE 802.11g OFDM: 40 mW (16 dBm) 32 mW (15 dBm) 20 mW (13 dBm) 8 mW (9 dBm)

3.2 mW (5 dBm) 1 mW (0 dBm)

IEEE 802.11g: 6 Mbps: 709 ft (216 m) 9 Mbps: 650 ft (198 m) 12 Mbps: 623 ft (190 m) 18 Mbps: 623 ft (190 m) 24 Mbps: 623 ft (190 m) 36 Mbps: 495 ft (151 m) 48 Mbps: 413 ft (126 m) 54 Mbps: 394 ft (120 m)

Data Sheet

Table 5. Video Features and Specifications

Feature Specifications

Video standards H.264/AVC Frame rates 30 fps (maximum) using H.264/AVC for video Frame or picture formats SQCIF (128 x 96 pixels)

QCIF (176 x 144 pixels) QVGA (320 x 240 pixels) SIF (352 x 240 pixels) CIF (352 x 288 pixels) VGA (640 x 480 pixels)

Ordering Information

Help customers understand all the components or parts they need to purchase in order to install and use the product. This section also provides a direct link to the Cisco Ordering Tool and lists part numbers for customer convenience.

To place an order, visit the Cisco Ordering Home Page. To download software, visit the Cisco Software Center.

Table 6. Ordering Information

Product Name Part Number

Cisco Unified IP Phone 9971, Charcoal, Standard Handset, Configurable with Camera CP-9971-C-K9 Cisco Unified IP Phone 9971, Charcoal, Slimline Handset, Configurable with Camera CP-9971-CL-K9 Cisco Unified IP Phone 9971, White, Standard Handset, Configurable with Camera CP-9971-W-K9 Cisco Unified IP Phone 9971, White, Slimline Handset, Configurable with Camera CP-9971-WL-K9 Cisco Unified IP Phone 9971, Charcoal, Standard Handset, Spare CP-9971-C-K9= Cisco Unified IP Phone 9971, Charcoal, Slimline Handset, Spare CP-9971-CL-K9= Cisco Unified IP Phone 9971, White, Standard Handset, Spare CP-9971-W-K9= Cisco Unified IP Phone 9971, White, Slimline Handset, Spare CP-9971-WL-K9=

Table 7. Spare Parts

Spare Handset for 8900 or 9900 Series, White, Slimline CP-89/9900-HS-WL= Spare Handset for 8900 or 9900 Series, White, Standard CP-89/9900-HS-W= Spare Handset for 8900 or 9900 Series, Charcoal, Slimline CP-89/9900-HS-CL= Spare Handset for 8900 or 9900 Series, Charcoal, Standard CP-89/9900-HS-C= Spare Handset Cord, White CP-HS-CORD-W= Spare Handset Cord, Charcoal CP-HS-CORD-C= Spare footstand for 8900 or 9900 Series, White CP-89/9900-FS-W= Spare footstand for 8900 or 9900 Series, Charcoal CP-89/9900-FS-C=

Table 8. Accessories

Accessories include the Cisco Unified Video Camera, Jawbone ICON for Cisco Bluetooth Headset, the Cisco Unified IP Color Key Expansion Module and Locking Wall Mount Kits. The Cisco Unified Video Camera is offered at no additional hardware price when ordered with the configurable phone SKUs or with phone and camera bundles listed in Table 6.

For more information about accessories, go to:

●

Cisco Unified Video Camera for the IP Phones 9900 Series

●

Jawbone ICON for Cisco Bluetooth Headset

●

Cisco Unified IP Color Key Expansion Module

Cisco Unified Video Camera for the 9900 Series IP Phone, Charcoal CP-CAM-C= Cisco Unified Video Camera for the 9900 Series IP Phone, White CP-CAM-W= Jawbone ICON for Cisco Bluetooth Headset, Charcoal, Australia Power Cube, Spare CP-ICON-HS-C-AU= Jawbone ICON for Cisco Bluetooth Headset, Arctic White, Australia Power Cube, Spare CP-ICON-HS-W-AU= Jawbone ICON for Cisco Bluetooth Headset, Charcoal, Europe Power Cube, Spare CP-ICON-HS-C-CE= Jawbone ICON for Cisco Bluetooth Headset, Arctic White, Europe Power Cube, Spare CP-ICON-HS-W-CE= Jawbone ICON for Cisco Bluetooth Headset, Charcoal, North America Power Cube, Spare CP-ICON-HS-C-NA= Jawbone ICON for Cisco Bluetooth Headset, Arctic White, North America Power Cube,

Spare Jawbone ICON for Cisco Bluetooth Headset, Charcoal, United Kingdom Cube, Spare CP-ICON-HS-C-UK= Jawbone ICON for Cisco Bluetooth Headset, Arctic White, United Kingdom Cube, Spare CP-ICON-HS-W-UK= Cisco Unified IP Color Key Expansion Module, Charcoal CP-CKEM-C= Cisco Unified IP Color Key Expansion Module, White CP-CKEM-W= Locking Wallmount Kit for 8900 or 9900 Series, Charcoal CP-89/9900-LWMK-C= Locking Wallmount Kit for 8900 or 9900 Series, Arctic White CP-89/9900-LWMK-W= Locking Wallmount Kit for 8900 or 9900 Series and KEM, Charcoal CP-89/9900-LK-K-C= Locking Wallmount Kit for 8900 or 9900 Series and KEM, Arctic White CP-89/9900-LK-K-W=

CP-ICON-HS-W-NA=

Data Sheet

Table 9. Local Power Options: Cube and Regional Cords

The power cube is new for the IP Phones 8900 and 9900 Series, but the cords are the same cords as used with the 7900 series. Power Cube 4 supports up to 44W and is internationally rated for different power grids worldwide.

Product Name Part Number

Cisco Unified IP Endpoint Power Cube 4: 48V; 0.917A; 47-63Hz; 100-240V~0.8A CP-PWR-CUBE-4= Asia Pacific CP-PWR-CORD-AP= Argentina CP-PWR-CORD-AR= Australia CP-PWR-CORD-AU= European Community CP-PWR-CORD-CE= China CP-PWR-CORD-CN= Japan CP-PWR-CORD-JP= North America CP-PWR-CORD-NA= Switzerland CP-PWR-CORD-SW= United Kingdom CP-PWR-CORD-UK=

Cisco Services

Cisco Services integrates closely with CMO teams as an essential element of any technology solution. Please contact your Cisco Services marcom manager if you have not already received targeted services content blocks for integration. Please e-mail

[email protected] if you are not sure of the appropriate contact.

For More Information

For additional information on the Cisco Unified IP Phones 9900 Series, go to

http://www.cisco.com/go/ipphones/9900 or contact your account representative.

Data Sheet

Printed in USA C78-565717-02 06/11
