CHAPTER
Deploying the C65/76M
This chapter describes how to deploy the Cisco 6500/7600 Series Manager, and
consists of these sections:
• Managing a Catalyst 6000 Family Switch or a Cisco 7600 Series Internet
Router, page 4-1
• Deployment and Commissioning Process, page 4-6
Managing a Catalyst 6000 Family Switch or a
Cisco 7600 Series Internet Router
Managing a Catalyst 6000 family switch or a Cisco 7600 series Internet Router
using CEMF is a two-step process:
1. Deploy objects that need to be managed.
C65/76M objects can be discovered automatically or deployed manually.
4
OL-2209-01
2. Commission the objects to allow CEMF to manage them.
Cisco 6500/7600 Manager User Guide
4-1
Managing a Catalyst 6000 Family Switch or a Cisco 7600 Series Internet Router
Deploying Objects
The deployment process should be done after you install the C65/76M software
for the first time, or after you install new hardware. Deployment informs the C65/
76M of the presence of supported hardware.
The C65/76M objects can be automatically discovered or manually deployed.
Objects can also be predeployed in CEMF before the actual installation of a
Catalyst 6000 family switch or a Cisco 7600 series Internet Router in the field.
Predeployment is the process of reserving a space in CEMF for network
equipment, which has not yet been physically slotted into the system rack. When
an object or device is predeployed,the physical device or object is not present, but
CEMF has been preconfigured to hold an object of similar type. As a result, C65/
76M module objects can be deployed and the C65/76M will not monitor their
status. When a module is then placed in the physical equipment, the new module
will be automatically detected and management of the module will be
automatically started.
C65/76M Object Hierarchy
Chapter 4 Deploying the C65/76M
4-2
A fully deployed C65/76M object in CEMF has the following object hierarchy:
Network Element
Chassis
Power Supplies
Supervisor Modules
Ethernet Interfaces
Ethernet Modules
Ethernet Interfaces
Switch Fabric Modules
FlexWAN Modules
Port Adapter
ATM Port Adapter
ATM SONET Interfaces
ATM E3 Interfaces
ATM T3 Interfaces
OSM GeWAN Modules
OSM GeWAN Interfaces
OSM PoS Modules
Ethernet Interfaces
OSM PoS Interfaces
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Software
The top-level Network Element object represents the entire switch including the
physical and logical components of the switch. The Chassis object, which is a
child of the Network Element object, represents all the physical components of
the switch. For example, the chassis frame, power supplies, modules, and ports
are all represented under the Chassis object. The Software object, which is a peer
of the Chassis object, represents all the logical components of the switch. For
example, VLAN configurations, EtherChannels, and routing protocols are
represented under the Software object.
Managing a Catalyst 6000 Family Switch or a Cisco 7600 Series Internet Router
OSM Channelized SONET Modules
Ethernet Interfaces
OSM Channelized SONET Interfaces
OSM Serial Sub-interfaces
OSM PoS Sub-interfaces
Content Switching Modules
EtherChannels
Syslog
EIGRP
BGP
OSPF
VTP
VLAN
STP
IS-IS
ACL
NDE
Loopback
QoS
QoS Policy Map
OL-2209-01
Note The Software object and its children are available only under the
Catalyst6000Manager, Catalyst6500Manager, and Cisco7600Manager
containment views.
Cisco 6500/7600 Manager User Guide
4-3
Managing a Catalyst 6000 Family Switch or a Cisco 7600 Series Internet Router
Commissioning Objects
Commissioning is the action required to notify CEMF to start activelymonitoring
the object. Only the following C65/76M objects can be commissioned and
decommissioned by the user:
• Network Element
• Supervisor Module
• Ethernet Module
• Switch Fabric Module
• FlexWAN Module
• Content Switching Module
• Port Adapter
• OSM Module
When applied to these objects, the commissioning process is propagated down to
all the object’s children. For example, if the Network Element object is
commissioned, all the C65/76M objects are also commissioned. If only a
Supervisor Module object is commissioned,then its Ethernet Interface objects are
also commissioned.
When the Network Element object is commissioned, a subchassis discovery is
started to determine the contents of the switch. If objects on the switch are
discovered that do not currently exist in CEMF, then these objects are
automatically created and populated. For example, an Ethernet module would be
automatically populated with the appropriate number of interfaces when it is
discovered. If the object already exists in CEMF, then a type match is made
against the CEMF object and the one found during discovery. If a mismatch is
found, the object is placed into the Mismatched state and an error is generated. If
there is no mismatch, then the object is commissioned successfully and CEMF
begins to monitor it.
Figure 4-1 shows the CEMF Map Viewer application with the C65/76M software
installed. When an object is deployed in CEMF, the objects are automatically
added to the Network, Physical, and the appropriate Manager Views. In this
example, the Network Element objects are called “may” and “morar,”the Chassis
objects are called “may-Chassis” and “morar-Chassis,” and the Software objects
are called “may-Software” and “morar-Software.”
Chapter 4 Deploying the C65/76M
4-4
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Under the Network container, the Network Element objects are labelled by their
IP addresses and added to the group representing the subnet that they belong to
(192.168.12.0). Under the Physical container, the Network Element and Chassis
objects are available.
Note The Software objects are available only under the Catalyst6000Manager,
Catalyst6500Manager, and Cisco7600Manager containment views.
Figure 4-1 Hierarchical Structure of Deployed and Commissioned Objects
Managing a Catalyst 6000 Family Switch or a Cisco 7600 Series Internet Router
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-5
Chapter 4 Deploying the C65/76M
Deployment and Commissioning Process
Deployment and Commissioning Process
There are three methods that can be used to enable CEMF to monitor a
Catalyst 6000 family switch or a Cisco 7600 series Internet Router:
• IP Auto Discovery
This method should be used to deploy a large number of devices that are
currently connected to the network. This method automatically deploys the
Network Element and Software objects for each Catalyst 6000 family switch
or Cisco 7600 series Internet Router discovered.
• Manual deployment
This method should be used if a small number of devices that are connected
to the network need to be deployed. This method will deploy the Network
Element and Software objects for the Catalyst 6000 family switches or
Cisco 7600 series Internet Routers specified.
• Predeployment
This method should be used to predeploy a device that is not connected to the
network. The following objects can be predeployed:
–
Network Element and Software
–
Chassis
–
Supervisor Modules
–
Ethernet Modules
–
Switch Fabric Modules
–
FlexWAN Modules
–
Port Adapters
–
OSM Modules
The remaining C65/76M objects are automatically discovered when the Network
Element object is commissioned.
4-6
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
IP Auto Discovery
The CEMF Auto Discoveryapplication is used to search an existingnetwork. The
network is examined for IP and SNMP devices. An object is created for each new
device discovered. The IP discovery window can be launched from either the
Discoveryicon from the CEMF Launchpad (Figure 3-2) or from the Deployment/
Auto Discovery... pop-up menu item on a selected object as shown in Figure 4-2.

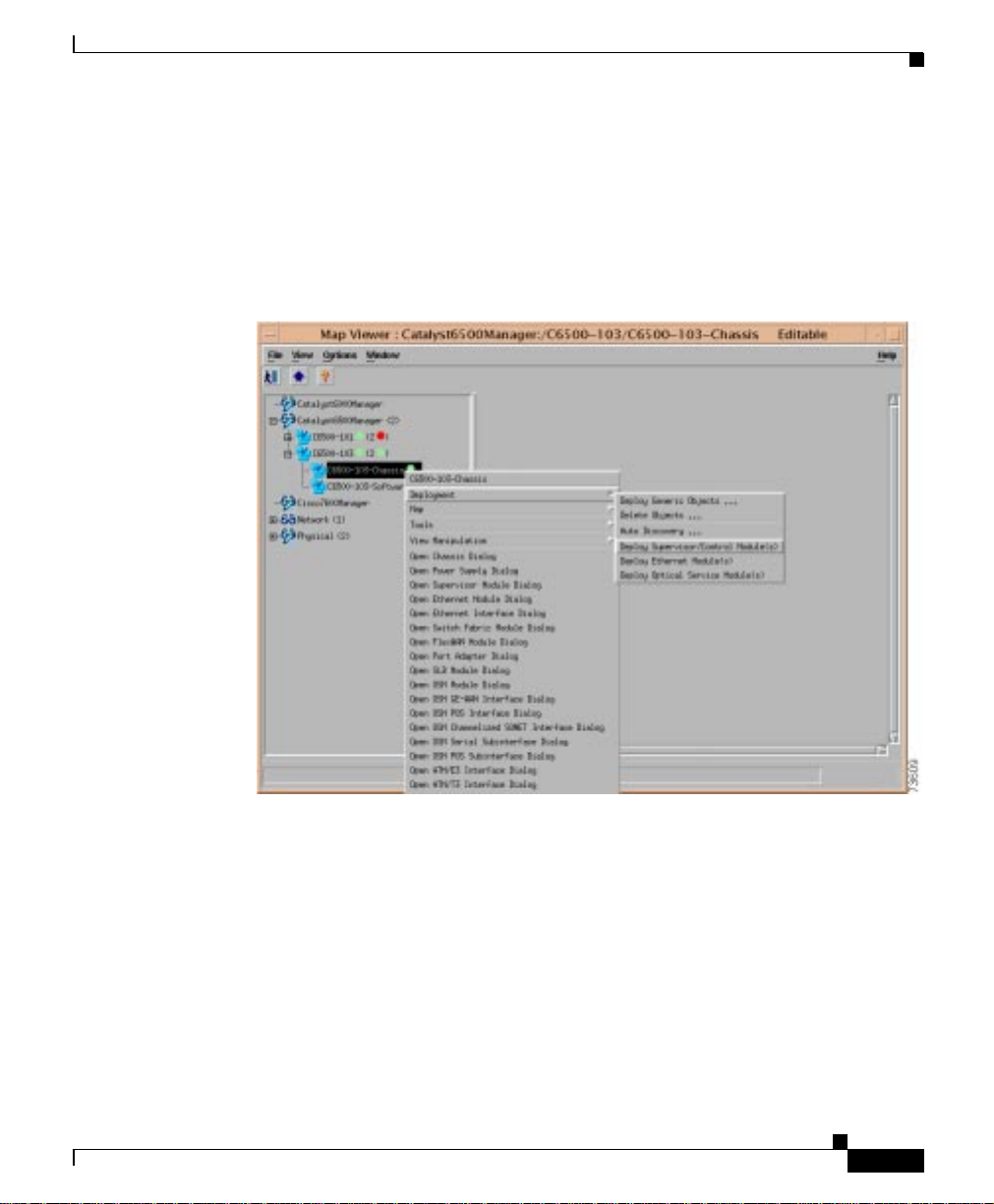

Figure 4-2 Launching the IP Discovery Window from the Map Viewer
Deployment and Commissioning Process
OL-2209-01
When first launched, the IP Discovery window will resemble Figure 4-3.
Cisco 6500/7600 Manager User Guide
4-7
Deployment and Commissioning Process
Figure 4-3 IP Discovery Window
Chapter 4 Deploying the C65/76M
4-8
The contents of this window depend on how the window was launched. For
example, if this window was launched from an object in the physical containment
view, then the Physical Location parameter would be automatically set to the
location from which the window was launched, as shown in Figure 4-3. For more
information on the CEMF Auto Discovery process, refer to the “Auto Discovery”
chapter of the CEMF 3.1 Users Guide.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Note When specifying the SNMP community string, use the read-write community
string for the switch. If the read community string is used or appears first in
the list of community strings, then that will be the SNMP community string
used for both the read and read-write operations by the C65/76M. As a result,
set operations will fail.
After the discovery process is complete, newly discovered objects will be
automatically added to the Network containers and Physical containers. In the
Network container, the object will be placed under the appropriate subnet. In the
Physical container, discovered objects will be placed in the location based on the
value of the Physical Location parameter.
If one of the discovered devices is a Catalyst 6000 family switch or a Cisco 7600
series Internet Router, then a C65/76M Network Element object will also be
added into the Network containers, Physical containers, and the appropriate
Manager Views. The Software object is also automatically added to the Manager
View. In Figure 4-4, the Network Element object is labelled “192.168.12.105”
and the Software object is labelled “192.168.12.105-Software.”
Deployment and Commissioning Process
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-9
Deployment and Commissioning Process
Figure 4-4 Map Viewer with a Newly Discovered Catalyst 6500 Switch
Chapter 4 Deploying the C65/76M
4-10
After the Network Element and Software objects have been created by the Auto
Discovery process, their contents need to be determined. This determination is
made by commissioning the Network Element object. When theNetworkElement
object is commissioned, it executes a subchassis discovery process that
communicates with the switch to automatically determine the contents of the
switch.
However, before the Network Element object can be commissioned, additional
parameters are required. Specifically, the Telnet and Enable passwords and the
SNMP communities are required. To specify the passwords and SNMP
communities, right-click on the Network Element object (192.168.12.105 in
Figure 4-4) and choose Open Network Element Dialog from the pop-up menu,
which will launch a window that resembles Figure 4-5.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-5 Network Element Dialog Box
Deployment and Commissioning Process
OL-2209-01
When the dialog box is displayed, select the Configuration tab. In the CLI
Passwords section, specify the TelnetPasswordandEnable Password parameters.
The Telnet Password is the password used to connect to the switch using the
Telnet protocol. The Enable Password is the password used to enter the enable
mode on the switch or router. All values entered in these text fields will be
displayed as “*”.
To specify the SNMP read and write community strings, select the SNMP tab and
enter the correct SNMP read/write community strings.
Note The IP Discovery process only fills in the SNMP community strings based on
the version of SNMP discovered on the switch or router. In Figure 4-6, the
read and read-write community strings are specified as public and private,
respectively, because “private” was specified in the IP Discovery window
(see Figure 4-3). The community string used in the IP Discovery window
should be the read-write SNMP community.
Cisco 6500/7600 Manager User Guide
4-11
Deployment and Commissioning Process
Figure 4-6 SNMP Tab in the Network Element Dialog Box
Chapter 4 Deploying the C65/76M
4-12
Click the Commission button from the Configurationtab (Figure 4-5) to start the
subchassis discovery process, which allows the C65/76M to determine which
modules are installed on the switch or the router and also allows CEMF to start
monitoring the switch or the router.
Note Commissioning may take a few minutes.
After the Network Element object is commissioned, the Physical view will
resemble Figure 4-7.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-7 Fully IP-Discovered and Commissioned Catalyst 6513 Switch
Deployment and Commissioning Process
Manual Deployment
The manual deployment method is used when discovery of the entire network is
not needed and the specific IP address and type of device that is connected to the
network is known.
To manually deploy a Catalyst 6000 family switch or a Cisco 7600 series Internet
Router, choose the pop-up menu item, Deployment >Deploy Manager, from the
appropriate container. The following example describes how to manually deploy
a Catalyst 6500 series switch. To manually deploy other devices, use the pop-up
menu from the other manager containers.
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-13
Deployment and Commissioning Process
Choose Deployment > Deploy Catalyst 6500 Manager from the pop-up menu.
This pop-up menu item, shown in Figure 4-8, is available from the Site level in
the Physical container and at the top level of the Catalyst6500Manager container.
Figure 4-8 Pop-up Menu for Manually Deploying a C65/76M Switch Object
Chapter 4 Deploying the C65/76M
4-14
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
When you select this item, the Deployment Wizard window shown in Figure 4-9
is displayed.
Figure 4-9 Deployment Wizard—Templates
Deployment and Commissioning Process
OL-2209-01
Property Description
Catalyst 6500 Switch
Network Element Only
(Auto-discovered
chassis)
Catalyst 6500 Switch
Network Element and
Chassis
This option deploys the Network Element and
Software objects. Used when you want to perform
a subchassis discovery to automatically populate
the Network Element object.
Thisoption deploystheNetworkElement,Chassis
and Software objects. Used when you want to
perform predeployment operations.
Cisco 6500/7600 Manager User Guide
4-15
Deployment and Commissioning Process
Choose the Catalyst 6500 Switch Network Element Only option and click the
Forward button. The Object Parameters window, shown in Figure 4-10, is
displayed.
Tips The Catalyst 6500 Switch Network Element and Chassis option is used for
the predeployment processes (see the “Predeployment” section).
Figure 4-10 Deployment Wizard—Object Parameters
Chapter 4 Deploying the C65/76M
4-16
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Property Description
Number of Catalyst
6500 Switch elements
Enter the number of Catalyst 6500 series switches or Cisco 7600 series Internet
Routers that you want to deploy at the same time and click the Forward button.
The remaining screens of this wizard are displayed for each switch or router to be
deployed. The Object Parameters window, shown in Figure 4-11, is displayed.
Figure 4-11 Deployment Wizard—Object Parameters Details
Deployment and Commissioning Process
The number of switches or routers that you want
to deploy at the same time.
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-17
Deployment and Commissioning Process
Property Description
Catalyst 6500 Switch
Name
IP Address IP address of the switch or router.
SNMP V1 Read
Community
SNMP V1 Write
Community
SNMP V2c Read
Community
SNMP V2c Write
Community
SNMP Version The versionof the SNMP agent running on the device.
IOS Telnet Password The password used to allow the C65/76M to access
IOS Enable Password The password used to allow the C65/76M to access
Chapter 4 Deploying the C65/76M
Name of the Network Element object thatis displayed
in the Map Viewer application.
SNMP v1 read community used by the device.
SNMP v1 write community used by the device.
SNMP v2c read community used by the device.
SNMP v2c write community used by the device.
This is a drop-down menu containing:
• SNMPv1
• SNMPv2c
• SNMPv3 - not supported
the enable level of the Network Element using a
Telnet connection. The value entered in this text box
is not in plain text.
the Network Element using a Telnet connection. The
value entered in this text box is not in plain text.
4-18
Enter the details for this window and then click the Forward button. The Views
window,showninFigure 4-12, maybedisplayed if the system requires a selection
of the “location” of the network element within the physical hierarchy.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Note The Network Element object can be deployed and commissioned without the
IOS Telnetorenablepasswordsbeing set. However, some of the attributes will
have the value of “ERROR” because those values are retrieved using IOS
commands.
Figure 4-12 Deployment Wizard—Views
Deployment and Commissioning Process
OL-2209-01
Property Description
Physical Location in the Physical containment view where the new
object will be deployed.
Cisco 6500/7600 Manager User Guide
4-19
Deployment and Commissioning Process
If the wizard was launched from a Site object in the Physical containment view,
this screen will not be displayed, and the Physical parameter is set automatically.
If this wizard is launched from any other containment view, this screen is
displayed and you must specify the appropriate location in the Physical
containment where the new object should be added. Youcan use the Select button
to specify the Physical containment (Figure 4-13). Click the Forward button
when completed.
Figure 4-13 Physical Containment Selection
Chapter 4 Deploying the C65/76M
4-20
Choose the Physical containment view and then click Apply button. The
Summary window, shown in Figure 4-14, is displayed.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-14 Deployment Wizard—Summary
Deployment and Commissioning Process
OL-2209-01
You can either cancel the operation by clicking Cancel or click Finish to create
the object. If you click the Finish button, the Network Element and Software
objects are added to the Map Viewer. The resulting Map Viewer resembles
Figure 4-4.
After the Network Element and Software objects are created by the Deployment
Wizard, the type of switch and its contents need to be determined. This
determination is made by commissioning the Network Element object. When the
Network Element object is commissioned, it executes a subchassis discovery
process that communicates with the switch to automatically determine the
contents of the switch.
To commission the Network Element object, right-click on the Network Element
object and choose Open Network Element Dialog from the pop-up menu, which
launches a window that resembles Figure 4-15.
Cisco 6500/7600 Manager User Guide
4-21
Deployment and Commissioning Process
Figure 4-15 Network Element Dialog Box
Chapter 4 Deploying the C65/76M
4-22
Click the Commission button from the Configuration tab to start the subchassis
discovery, which allows the C65/76M to determine which modules are installed
on the switch or router, and also allows CEMF to start monitoring the switch or
router.
Note Commissioning may take a few minutes.
Unlike the Auto Discovery process (see the “IP Auto Discovery” section on
page 4-7), no additional parameters need to be specified. These parameters were
specified in the manual Deployment Wizard (Figure 4-11). After the object is
commissioned, the Physical view will resemble Figure 4-16.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-16 Manually Deployed and Commissioned Catalyst 6506 Switch
Deployment and Commissioning Process
OL-2209-01
If an error is encountered when the object is commissioned, the Network Element
object might go into the Mismatched or Lostcomms state and an alarm would be
raised.
The Network Element is placed inthe Mismatched state if the IP address specified
during the deployment wizard does not correspond to the device type that was
deployed. If this occurs, the Network Element object must be deleted from CEMF
and redeployed with the correct IP address or type.
The Network Element is placed in the Lostcomms state if the SNMP read
community string specified in during the deployment wizard is incorrect. If this
occurs, open the Network Element dialog box, decommission the Network
Element object, go to the SNMP tab (Figure 4-6) and enter the correct SNMP read
community, and then recommission the Network Element object.
Cisco 6500/7600 Manager User Guide
4-23
Deployment and Commissioning Process
Predeployment
This deployment option is used to deploy the Catalyst 6000 family switch or
Cisco 7600 series Internet Router into CEMF before it has been attached to the
network. After an object has been predeployed, CEMF keeps the object in a
decommissioned state until the device corresponding to the object is added to the
network. After the switch is brought on-line, the predeployed object will be
commissioned automatically. The following objects can be predeployed:
• Network Element, Software and Chassis
• Supervisor Modules
• Ethernet Modules
• Switch Fabric Modules
• FlexWAN Modules
• Port Adapter
• Content Switching Module
• EtherChannel Modules
The remaining C65/76M objects are automatically discovered when the Network
Element object is commissioned.
Chapter 4 Deploying the C65/76M
Network Element, Software, and Chassis Object Predeployment
To manually predeploy the Network Element, Software, and Chassis C65/76M
objects, select the pop-up menu item, Deployment > Deploy Manager, from the
appropriate container. The following example describes how to manually
predeployaCatalyst 6500 series switch. Tomanuallypredeployotherdevices, use
the pop-up menu from the other manager containers.
Choose Deployment > Deploy Catalyst 6500 Manager from the pop-up menu.
This pop-up menu item, shown in Figure 4-17, is available from the Site level in
the Physical container and at thetop levelofthe Catalyst 6500 Manager container.
Cisco 6500/7600 Manager User Guide
4-24
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-17 Manually Deploying a C65/76M Object
Deployment and Commissioning Process
OL-2209-01
When you choose the Deployment > Deploy Catalyst 6500 Manager option, the
Deployment Wizard—Templates window, shown in Figure 4-18, is displayed.
Cisco 6500/7600 Manager User Guide
4-25
Deployment and Commissioning Process
Figure 4-18 Deployment Wizard—Templates
Chapter 4 Deploying the C65/76M
4-26
Property Description
Catalyst 6500 Switch
NetworkElementOnly
(Auto-discovered
chassis)
Catalyst 6500 Switch
Network Element and
Chassis
Cisco 6500/7600 Manager User Guide
This option deploys the Network Element and
Software objects. Used when you want to perform
a subchassis discovery to populate the Network
Element object automatically.
This option deploys the Network Element,
Chassis, and Software objects. Used when you
want to perform predeployment operations.
OL-2209-01
Chapter 4 Deploying the C65/76M
Choose the Catalyst 6500 Switch Network Element and Chassis option and
click the Forward button. The Object Parameters window, shown in Figure 4-19,
is displayed.
Tips The Catalyst 6500 Switch Network Element Only option is used for the
manual deployment process (see the “Manual Deployment” section).
Figure 4-19 Deployment Wizard—Object Parameters
Deployment and Commissioning Process
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-27
Deployment and Commissioning Process
Property Description
Number of Catalyst
6500 Switch elements
Enter the number of Catalyst 6500 series switches or Cisco 7600 series Internet
Routers that you want to predeploy at the same time and click the Forward
button. The detailed Object Parameters window, shown in Figure 4-20, is
displayed. The remaining screens in this wizard will be displayed for each switch
or router to be predeployed.
Figure 4-20 Deployment Wizard—Object Parameters Details
Chapter 4 Deploying the C65/76M
The number of switches or routers that you want
to predeploy at the same time.
4-28
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Property Description
Catalyst 6500 Switch
Name
IP Address IP address that is givento the switch or router when it
SNMP V1 Read
Community
SNMP V1 Write
Community
SNMP V2c Read
Community
SNMP V2c Write
Community
SNMP Version The versionof the SNMP agent running on the device.
IOS Telnet Password The password used to allow the C65/76M to access
IOS Enable Password The password used to allow the C65/76M to access
Deployment and Commissioning Process
Name of the Network Element object thatis displayed
in the Map Viewer application.
is connected to the network.
SNMP v1 read community used by the device.
SNMP v1 write community used by the device.
SNMP v2c read community used by the device.
SNMP v2c write community used by the device.
This is a drop-down menu containing:
• SNMPv1
• SNMPv2c
• SNMPv3 - not supported
the Network Element using a Telnet connection. The
value entered in this text box will not be in plain text.
the enable level of the Network Element using a
Telnet connection. The value entered in this text box
will not be in plain text.
OL-2209-01
Enter the details for the switch and then click the Forward button. The Views
window may be displayed if the system requires a selection of the “location” of
the network element within the physical hierarchy (see Figure 4-21).
Cisco 6500/7600 Manager User Guide
4-29
Deployment and Commissioning Process
Figure 4-21 Deployment Wizard—Views
Chapter 4 Deploying the C65/76M
4-30
Property Description
Physical Location in the Physical containment view where the new
object will be deployed.
If this wizard was launched from a site in the Physical containment view, this
screen will not be displayed. In this case, the Physical parameter is set
automatically. If this wizard is launched from any other containment view, this
screen is displayed and you must specify the appropriate location in the Physical
containment view where the new object should be added. Click the Select button
to select the Physical location parameter (see Figure 4-22). Click the Forward
button when completed.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-22 Physical Location Selection
Deployment and Commissioning Process
OL-2209-01
Click the Apply button when the Physical containment has been selected. The
Object Parameters window, shown in Figure 4-23, is displayed.
Cisco 6500/7600 Manager User Guide
4-31
Deployment and Commissioning Process
Figure 4-23 Deployment Wizard—Object Parameters
Chapter 4 Deploying the C65/76M
4-32
Property Description
Catalyst 6500 Chassis
Name
Chassis Type This value specifies the type of chassis to deploy.
Cisco 6500/7600 Manager User Guide
Label that is used for the Chassis object in the Map
Viewer.
It is a drop-down list containing the chassis types
in the chassis series:
• wsc6506
• wsc6509
• wsc6509NEB
• wsc6513
OL-2209-01
Chapter 4 Deploying the C65/76M
Note If you are deploying a Catalyst 6000 series switch, the following chassis types
will be displayed in the Chassis Type drop down menu.
Property Description
Catalyst 6000 Chassis
Name
Chassis Type This value specifies the type of chassis to deploy.
Note If you are deploying a Cisco 7600 series Internet Router, the followingchassis
types will be displayed in the Chassis Type drop down menu.
Deployment and Commissioning Process
Label that is used for the Chassis object in the Map
Viewer.
It is a drop-down list containing the chassis types
in the chassis series:
• wsc6006
• wsc6009
OL-2209-01
Property Description
Cisco 7600 Chassis
Name
Label that is used for the Chassis object in the Map
Viewer.
Chassis Type This value specifies the type of chassis to deploy.
It is a drop-down list containing the chassis types
in the chassis series:
• wsc7603
• wsc7606
• wsc7609
Specify the name of the Chassis object and the type of chassis to predeploy, and
click the Forward button. The Summary window, shown in Figure 4-24, is
displayed.
Cisco 6500/7600 Manager User Guide
4-33
Deployment and Commissioning Process
Figure 4-24 Deployment Wizard—Summary
Chapter 4 Deploying the C65/76M
4-34
You can either cancel the operation by clicking the Cancel button, or click the
Finish button to create the object.
If you click the Finish button, the Network Element, Chassis, and Software
objects are added to the Map Viewer. The chassis image that is displayed will
depend on the value used for the Chassis Type. Figure 4-25 shows an example of
a predeployed Catalyst 6509 chassis. Note that the chassis is empty and has cross
hashes indicating that it is in the decommissioned state.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-25 Predeployed Catalyst 6509 Chassis Object
Deployment and Commissioning Process
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-35
Deployment and Commissioning Process
Predeploying Subchassis Modules
The next step in predeploying a Catalyst 6000 family switch or a Cisco 7600
series Internet Router in CEMF is to deploy the modules within the chassis. The
following subchassis objects can be predeployed:
• Supervisor Modules
• Ethernet Modules
• Switch Fabric Modules
• FlexWAN Modules
• Port Adapters
• Optical Services Modules
• Content Switching Module
Tips Supporting modules, such as AC or DC power supplies, are automatically
added through subchassis discovery. You cannot manually deploy these
objects.
Chapter 4 Deploying the C65/76M
Supervisor Module
Cisco 6500/7600 Manager User Guide
4-36
To predeploy a Supervisor Module, choose Deployment > Deploy Supervisor/
Control Modules(s)from the pop-up menu of the Chassis object (see
Figure 4-26).
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-26 Predeploying Supervisor Modules
Deployment and Commissioning Process
OL-2209-01
The Supervisor Module Deployment Wizard—Object Parameters window, as
shown in Figure 4-27, is displayed.
Cisco 6500/7600 Manager User Guide
4-37
Deployment and Commissioning Process
Figure 4-27 Supervisor Module Deployment Wizard—Object Parameters
Chapter 4 Deploying the C65/76M
4-38
Property Description
Number of Modules The number of supervisor modules to deploy.
Enter the number of supervisor modules to predeploy and click the Forward
button. The Supervisor Module Deployment Wizard—Object Parameters Details
window is displayed for each module to deploy (see Figure 4-28).
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-28 Supervisor Module Deployment Wizard—Object Parameters
Deployment and Commissioning Process
Details
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-39
Deployment and Commissioning Process
Property Description
Module Name The name given to the Supervisor Module object.
Module Type Thetypeofsupervisormoduletobedeployed.The
Chassis Slot Number The slot in which the supervisor module is to be
Chapter 4 Deploying the C65/76M
types are shown in a drop-down list with the
following values:
• ws-x6k-sup1a-msfc—Supervisor Engine 1A
with MSFC
• ws-x6k-s1a-msfc2—Supervisor Engine 1A
with MSFC2
• ws-x6k-s2-msfc2—Supervisor Engine 2 with
MSFC2
deployed.
4-40
Note Use ws-x6k-s1a-msfc2 to deploy both the Supervisor Engine 1A with MSFC
or Supervisor Engine 1A with MSFC2.
Note Use ws-x6k-s2-msfc2 to deploy the Supervisor Engine 2 with 256 MB DRAM
and MSFC2 (ws-x6k-s2u-msfc2).
Enter the details for the Supervisor Module object and click the Forward button.
The Supervisor Module Deployment Wizard—Summary window is displayed
(see Figure 4-29).
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-29 Supervisor Module Deployment Wizard—Summary
Deployment and Commissioning Process
OL-2209-01
You can either click the Cancel button to cancel the operation, or click the Finish
button to create the object. If the Chassis Slot Number corresponds to an occupied
slot, an error message will be displayed. The error message resembles the
message shown in Figure 4-30.
Cisco 6500/7600 Manager User Guide
4-41
Deployment and Commissioning Process
Figure 4-30 Predeployment Failure Due to an Occupied Slot
Chapter 4 Deploying the C65/76M
Ethernet Module
Cisco 6500/7600 Manager User Guide
4-42
To predeploy an Ethernet module (standard Ethernet, Fast Ethernet, or Gigabit
Ethernet), choose the Deployment > Deploy Ethernet Module(s) option from
the pop-up menu of the Chassis object (see Figure 4-31).
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-31 Predeploying Ethernet Modules
Deployment and Commissioning Process
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-43
Deployment and Commissioning Process
After you choose the Deploy Ethernet Module option, the window shown in
Figure 4-32 is displayed.
Figure 4-32 Ethernet Module Deployment Wizard—Object Parameters
Chapter 4 Deploying the C65/76M
4-44
Property Description
Number of Modules The number of Ethernet modules to
deploy.
Enter the number of Ethernet module objects to be predeployed at the same time
and click the Forward button. The window shown in Figure 4-33 is displayed.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-33 Ethernet Module Deployment Wizard—Object Parameters Details
Deployment and Commissioning Process
Property Description
Module Name
Module Type
The name given to the Ethernet Module object.
The type of Ethernet card to be deployed. This is a drop-down list with the
following values:
• wsx6224100fxmt—24-port 100FX
• wsx6324100fxmm—24-port 100FX multimode with enhanced QoS
• wsx6324100fxsm—24-port 100FX single-mode with enhanced QoS
• wsx6248rj45—48-port 10/100TX with RJ-45 connectors
• wsx6248tel—48-port 10/100TX with RJ-21 connectors
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-45
Deployment and Commissioning Process
Property Description
Module Type
(continued)
•
wsx6248atel—48-port 10/100TX with RJ-21 connectors and enhanced QoS
• wsx6348rj45—48-port 10/100TX with RJ-45 connectors, enhanced QoS,
and upgradeable voice card
• wsx6348rj45v—48-port 10/100TX with RJ-45 connectors, enhanced QoS,
and voice card
• wsx6348rj21—48-port 10/100, RJ-21, upgradable to voice
• wsx6524-100fxmm—Fabric-enabled 100FX Fast Ethernet Module,
multimode fiber, MT-RJ
• wsx6548rj21—Fabric-enabled 10/100 Fast Ethernet Modules, RJ-21
• wsx6548rj45—Fabric-enabled 10/100 Fast Ethernet Modules, RJ-45
• wsx6408gbic—8-port Gigabit Ethernet
• wsx6408agbic—8-port Gigabit Ethernet with enhanced QoS
• wsx6416gbic—16-port Gigabit Ethernet
• wsx6416gemt—16-port Gigabit Ethernet with MT-RJ connectors
• wsx6516gbic—16-port Gigabit Ethernet with switch fabric connection
• wsx6816gbic—16-port Gigabit Ethernet with dual switch fabric
connections
• wsx6316getx—16-port Gigabit Ethernet with RJ-45 connectors
• wsx6516-getx—16-port Gigabit Ethernet with RJ-45 connectors, x-bar
• wsx6501-10gex4—One-port 10GBASE-EX4 metro extended reach 10
Gigabit Ethernet Module (single-mode fiber)
Chassis Slot Number
The slot in which the Ethernet Module is to be deployed.
Chapter 4 Deploying the C65/76M
4-46
Enter the details for the Ethernet Module object and click the Forward button.
The Ethernet Module Deployment Wizard—Summary window is displayed (see
Figure 4-34).
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-34 Ethernet Module Deployment Wizard—Summary
Deployment and Commissioning Process
OL-2209-01
You can either click the Cancel button to cancel the operation or click the Finish
button to create the object. If the Chassis Slot Number corresponds to an occupied
slot, an error message is displayed. The error message resembles the message
shown in Figure 4-30.
Cisco 6500/7600 Manager User Guide
4-47
Deployment and Commissioning Process
Switch Fabric Module
To predeploy a Switch Fabric Module, choose the Deployment > Deploy
Supervisor/Control Module(s) option in the pop-up menu from the Chassis
object (see Figure 4-35).
Figure 4-35 Predeploying Switch Fabric Modules
Chapter 4 Deploying the C65/76M
4-48
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
After you choose the Deploy Switch Fabric Module(s) option, the Switch
Fabric Module Deployment Wizard—Object Parameters window is displayed
(see Figure 4-36).
Figure 4-36 Switch Fabric Module Deployment Wizard—Object Parameters
Deployment and Commissioning Process
OL-2209-01
Property Description
Number of
Modules
The number of Switch Fabric Modules to deploy at the
same time.
Cisco 6500/7600 Manager User Guide
4-49
Deployment and Commissioning Process
Enter the number of Switch Fabric Modules to be deployed at the same time
and click the Forward button. The Switch Fabric Module Deployment
Wizard—Object Parameters Details window is displayed for each module to
deploy (see Figure 4-37).
Figure 4-37 Switch Fabric Module Deployment Wizard—Object Parameters
Chapter 4 Deploying the C65/76M
Details
4-50
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Property Description
Module Name The name given to the Switch Fabric Module object.
Module Type The type of Switch Fabric Module to be deployed.
Chassis Slot Number The slot in which the Switch Fabric Module is to be
Enter the details for the Switch Fabric Module object and click the Forward
button. The Switch Fabric Module Deployment Wizard—Summary window is
displayed (see Figure 4-38).
Deployment and Commissioning Process
This is a drop-down list with the following values:
• wsc6500sfm—Switch Fabric Module
• wsc6500sfm2—Switch Fabric Module (for the
Catalyst 6513 chassis)
deployed.
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-51
Deployment and Commissioning Process
Figure 4-38 Switch Fabric Module Deployment Wizard—Summary
Chapter 4 Deploying the C65/76M
4-52
You can either click the Cancel button to cancel the operation or click the Finish
button to create the object. If the Chassis Slot Number corresponds to an occupied
slot, an error message is displayed. The error message resembles the message
shown in Figure 4-30.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
FlexWAN Module
To predeploy a FlexWAN Module, choose the Deployment > Deploy Supervisor/
Control Module(s) option in the pop-up menu from the Chassis object
(see Figure 4-39).
Figure 4-39 Predeploying FlexWAN Modules
Deployment and Commissioning Process
OL-2209-01
After you choose the Deploy FlexWANModule(s)option, the FlexWAN Module
Deployment Wizard—Object Parameters window is displayed (see Figure 4-40).
Cisco 6500/7600 Manager User Guide
4-53
Deployment and Commissioning Process
Figure 4-40 FlexWAN Module Deployment Wizard—Object Parameters
Chapter 4 Deploying the C65/76M
4-54
Property Description
Number of Modules The number of FlexWAN modules to be deployed at
the same time. This value cannot be greater than 12.
Enter the number of FlexWAN modules to be deployed at the same time and click
Forwardbutton.TheFlexWAN Module Deployment Wizard – Object Parameters
Details window is displayed for each module to be deployed (see Figure 4-41).
Note This value cannot be greater than 12. If it is, an error message will be
displayed and the Forward button will not work.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-41 FlexWAN Module Deployment Wizard—Object Parameters Details
Deployment and Commissioning Process
OL-2209-01
Property Description
Module Name The name given to the FlexWAN Module object.
Module Type The type of FlexWAN Module to be deployed.
This is a drop-down list with the following values:
• wsx61822pa—FlexWAN Module
Chassis Slot Number The slot in which the FlexWAN is to be deployed.
The FlexWAN Modules can be deployed on slots
2 through 13.
Cisco 6500/7600 Manager User Guide
4-55
Deployment and Commissioning Process
Enter the details for the FlexWAN Module object and click the Forward button.
The FlexWANModule Deployment Wizard—Summary window is displayed (see
Figure 4-42).
Figure 4-42 FlexWAN Module Deployment Wizard—Summary
Chapter 4 Deploying the C65/76M
4-56
You can either click the Cancel button to cancel the operation or click the Finish
button to create the object. If the Chassis slot number corresponds to an occupied
slot, an error message is displayed. The message resembles the message shownin
Figure 4-30.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Port Adapters
To predeploy a port adapter, the FlexWAN module must first be deployed (see the
“FlexWAN Module” section on page 4-53). Choose the Deployment > Deploy
Port Adapter(s) option in the pop-up menu from the FlexWAN object (see
Figure 4-43).

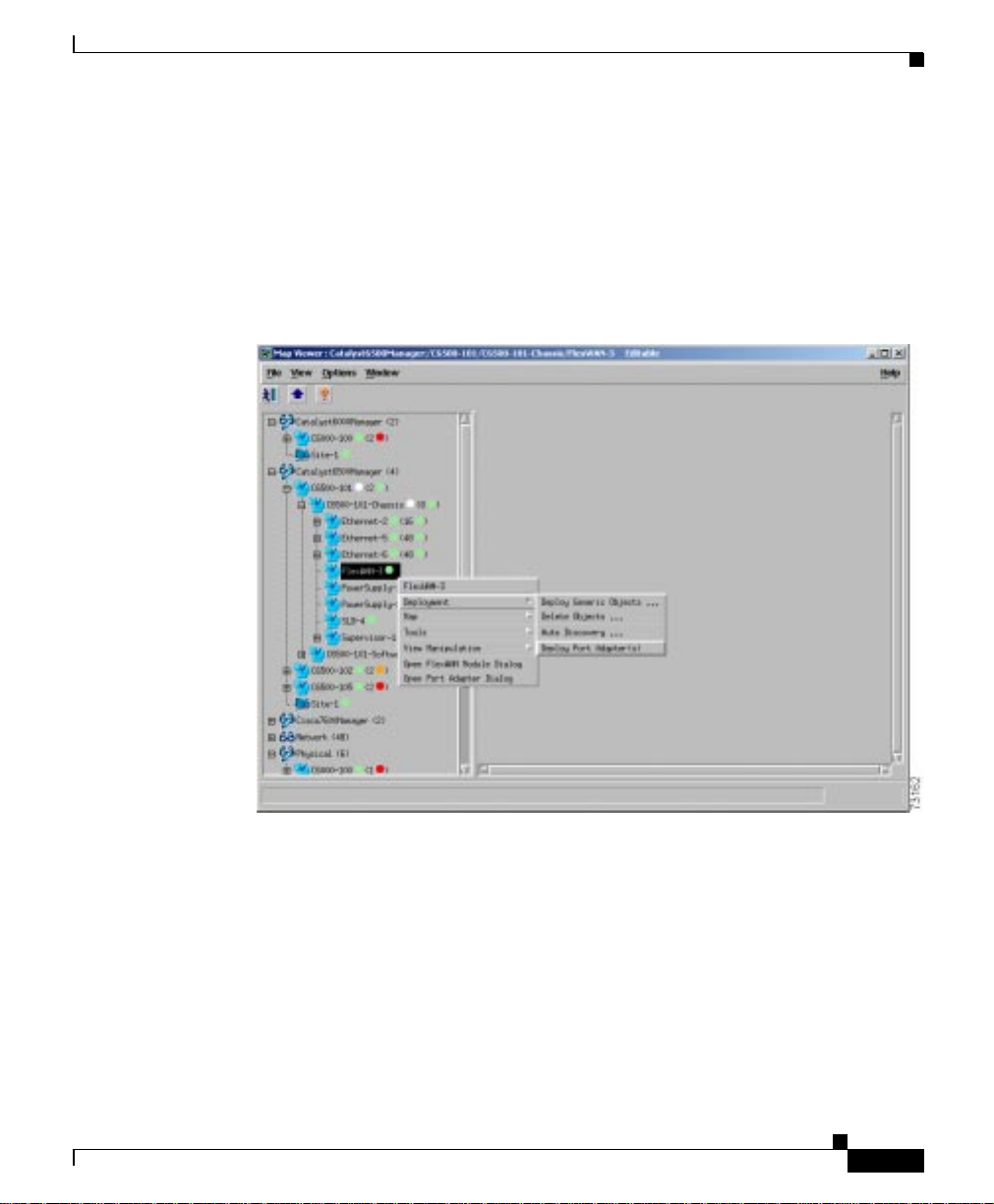

Figure 4-43 Predeploying Port Adapters
Deployment and Commissioning Process
OL-2209-01
The Port Adapter Deployment Wizard—Object Parameters window is displayed
(see Figure 4-44).
Cisco 6500/7600 Manager User Guide
4-57
Deployment and Commissioning Process
Figure 4-44 Port Adapter Deployment Wizard—Object Parameters
Chapter 4 Deploying the C65/76M
4-58
Property Description
Number of Modules The number of port adapters to be deployed at the
same time.
Enter the number of port adapters to be deployed at the same time and click
Forward button. The Port Adapter Deployment Wizard – Object Parameters
Details window is displayed for each module to be deployed (see Figure 4-45).
Note This value cannot be greater than 2. If it is, an error message will be displayed
and the Forward button will not work
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-45 Port Adapter Deployment Wizard—Object Parameters Details
Deployment and Commissioning Process
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-59
Deployment and Commissioning Process
Property Description
Port Adapter Name
Port Adapter Type
Chapter 4 Deploying the C65/76M
The name given to the Port Adapter object.
The type of port adapter to be deployed. This is a
drop-down list with the following values:
• pa-ah1t
• pa-ah2t
• pa-4t-plus
• pa-a8t-v35
• pa-atmdx-ds3
• pa-atmdx-e3
• pa-atmdx-sml-oc3
• pa-atmdx-smi-oc3
• pa-atmdx-mm-oc3
• pa-a8t-x21
• pa-a8t-rs232
• pa-1e3
• pa-2e3
• pa-1t3
• pa-2t3
• pa-8ct1-csu
• pa-8ce1
• pa-ce3
• pa-possw-sm
• pa-possw-mm
• pa-possw-lr
4-60
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Property Description
Port Adapter Type (continued)
FlexWAN Bay Number
Note Valid FlexWAN bay numbers are 0 or 1. If you enter any other number, an
error message is displayed and the Forward button will not work.
Enter the details for the Port Adapter object and click the Forward button.
The Port Adapter Deployment Wizard—Summary window is displayed
(see Figure 4-46).
Deployment and Commissioning Process
•
pa-1t3-plus
• pa-2t3-plus
• pa-mct3
• pa-mc2t3
• pa-san-fc1
The FlexWAN bay in which the port adapter is to
be deployed. The port adapter can be deployed in
bays 0 and/or 1.
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-61
Deployment and Commissioning Process
Figure 4-46 Port Adapter Deployment Wizard—Summary
Chapter 4 Deploying the C65/76M
4-62
You can either click the Cancel button to cancel the operation or click the Finish
button to create the object. If the Chassis slot number corresponds to an occupied
slot, an error message is displayed. The message resembles the message shownin
Figure 4-30.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Content Switching Module
The Content Switching Module is a line card that provides server load balancing
(SLB) of client traffic to server farms, firewalls, secure sockets layer (SSL)
devices, or VPN termination devices. To predeploy a Content Switching Module
(CSM),choose the Deployment>DeploySupervisor/ControlModule(s)option
in the pop-up menu from the Chassis object (see Figure 4-47).
Figure 4-47 Predeploying Content Switching Modules
Deployment and Commissioning Process
OL-2209-01
After you choose the Deploy Supervisor/Control Module(s) option, the
Deployment Wizard—Object Parameters window is displayed (see Figure 4-48).
Cisco 6500/7600 Manager User Guide
4-63
Deployment and Commissioning Process
Figure 4-48 Deployment Wizard—Object Parameters
Chapter 4 Deploying the C65/76M
4-64
Property Description
Number of Modules The number of Content Switching Modules to be
deployed at the same time. This value cannot be
greater than 1 for IOS 12.1(8a)E3 and earlier, and no
greater than 11 for IOS 12.1(8a)EX and later.
Enter the number of Content Switching Modules to be deployed at the same time
and click Forward button. The Deployment Wizard—Object Parameters Details
window is displayed for each module to be deployed (see Figure 4-49).
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Note The C65/76M manager supports management and configuration of the CSM if
only one CSM is deployed. If you choose to deploy more than one CSM in the
chassis, inventory of the CSMs are supported, but the management and
configuration of the CSMs are not supported.
Caution If multiple CSMs are deployed on a chassis, appropriate user access controls
should be implemented in CEMF to preventusers from accidentally using the
C65/76M manager to modify the CSM configurations. Refer to the Cisco
Element Manager Framework User Guide for additional information about
user access control.
Deployment and Commissioning Process
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-65
Deployment and Commissioning Process
Figure 4-49 Deployment Wizard—Object Parameters Details
Chapter 4 Deploying the C65/76M
4-66
Property Description
Module Name The name given to the Content Switching Module
object.
Module Type The type of Content Switching Module to be
deployed. This is a drop-down list with the
following value:
• ws-x6066-slb-apc—Content Switching
Module
Chassis Slot Number The slot in which the Content Switching Module
is to be deployed. The Content Switching Modules
can be deployed on slots 2 through 13.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Enter the details for the Content Switching Module object and click the Forward
button. The Deployment Wizard—Summary window is displayed (see
Figure 4-50).
Figure 4-50 Deployment Wizard—Summary
Deployment and Commissioning Process
OL-2209-01
You can either click the Cancel button to cancel the operation or click the Finish
button to create the object. If the Chassis slot number corresponds to an occupied
slot, an error message is displayed. The message resembles the message shownin
Figure 4-30.
Cisco 6500/7600 Manager User Guide
4-67
Deployment and Commissioning Process
Optical Services Module
To predeploy an Optical Services Module (OSM), choose the Deploy Module(s),
Deploy OSM Module option in the pop-up menu from the Chassis object (see
Figure 4-51).
Figure 4-51 Predeploying OSM Modules
Chapter 4 Deploying the C65/76M
4-68
After you choose the Deploy OSM Module(s) option, the OSM Module
Deployment Wizard—Object Parameters window is displayed (see Figure 4-52).
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Figure 4-52 OSM Module Deployment Wizard—Object Parameters
Deployment and Commissioning Process
OL-2209-01
Property Description
Number of Modules The number of OSMs to be deployed at the same time.
Enter the number of OSMs to be deployed at the same time and click Forward
button.TheDeploymentWizard—ObjectParametersDetailswindow is displayed
for each module to be deployed (see Figure 4-53).
Cisco 6500/7600 Manager User Guide
4-69
Deployment and Commissioning Process
Figure 4-53 OSM Module Deployment Wizard—Object Parameters Details
Chapter 4 Deploying the C65/76M
4-70
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Property Description
Module Name
Module Type
Deployment and Commissioning Process
The name given to the OSM object.
The type of OSM to be deployed. This is a
drop-down list with the following values:
• osm-4ge-wan-gbic—4-port Gigabit Ethernet
Optical Services Module, GBIC
• osm-4oc12-pos-mm—4-port OC-12/STM-4
SONET/SDH OSM, MM, with 4 ports of
Gigabit Ethernet
• osm-4oc12-pos-si—4-port OC-12/STM-4
SONET/SDH OSM, SM-IR, with 4 ports of
Gigabit Ethernet
• osm-4oc12-pos-sl—4-port OC-12/STM-4
SONET/SDH OSM, SM-LR, with 4 ports of
Gigabit Ethernet
• osm-1oc48-pos-ss—1-port OC-48/STM-16
SONET/SDH OSM, SM-SR, with 4 ports of
Gigabit Ethernet
• osm-1oc48-pos-si—1-port OC-48/STM-16
SONET/SDH OSM, SM-IR, with 4 ports of
Gigabit Ethernet
• osm-1oc48-pos-sl—1-port OC-48/STM-16
SONET/SDH OSM, SM-LR, with 4 ports of
Gigabit Ethernet
• osm-16oc3-pos-mm—16-port OC-3/STM-1
SONET/SDH OSM, MM, with 4 ports of
Gigabit Ethernet
• osm-16oc3-pos-si—16-port OC-3/STM-1
SONET/SDH OSM, SM-IR, with 4 ports of
Gigabit Ethernet
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-71
Deployment and Commissioning Process
Property Description
Module Type (continued)
Chapter 4 Deploying the C65/76M
•
osm-16oc3-pos-sl—16-port OC-3/STM-1
SONET/SDH OSM, SM-LR, with 4 ports of
Gigabit Ethernet
• osm-2oc12-pos-mm—2-port OC-12/STM-4
SONET/SDH OSM, MM, with 4 ports of
Gigabit Ethernet
• osm-2oc12-pos-si—2-port OC-12/STM-4
SONET/SDH OSM, SM-IR, with 4 ports of
Gigabit Ethernet
• osm-2oc12-pos-sl—2-port OC-12/STM-4
SONET/SDH OSM, SM-LR, with 4 ports of
Gigabit Ethernet
• osm-8oc3-pos-mm—8-port OC-3/STM-1
SONET/SDH OSM, MM, with 4 ports of
Gigabit Ethernet
• osm-8oc3-pos-si—8-port OC-3/STM-1
SONET/SDH OSM, SM-IR, with 4 ports of
Gigabit Ethernet
• osm-8oc3-pos-sl—8-port OC-3/STM-1
SONET/SDH OSM, SM-LR, with 4 ports of
Gigabit Ethernet
• osm-1choc48/t3-ss—1-port short reach OC48
with 4 Gigabit Ethernet
• osm-1choc48/t3-si—1-port channelized
OC-48, SM-IR, with 4 ports of Gigabit
Ethernet
4-72
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Property Description
Module Type (continued)
Chassis Slot Number
Deployment and Commissioning Process
•
osm-2choc48/t3-si—2-port channelized
OC-48, SM-IR, with 4 ports of Gigabit
Ethernet
• osm-2choc48/t3-ss—2-port short reach
OC48, with 4 ports of Gigabit Ethernet
• osm-4choc12/t3-mm—4-port channelized
OC-12, MM, with 4 ports of Gigabit Ethernet
• osm-4choc12/t3-si—4-port channelized
OC-12, SM-IR, with 4 ports of Gigabit
Ethernet
• osm-8choc12/t3-mm—8-port channelized
OC-12, MM, with 4 ports of Gigabit Ethernet
• osm-8choc12/t3-si—8-port channelized
OC-12, SM-IR, with 4 ports of Gigabit
Ethernet
The slot in which the OSM is to be deployed. The
OSMs can be deployed on slots 2 through 13.
OL-2209-01
Enter the details for the OSM object and click the Forward button. The
Deployment Wizard—Summary window is displayed (see Figure 4-54).
Cisco 6500/7600 Manager User Guide
4-73
Deployment and Commissioning Process
Figure 4-54 OSM Deployment Wizard—Summary
Chapter 4 Deploying the C65/76M
4-74
You can either click the Cancel button to cancel the operation or click the Finish
button to create the object. If the Chassis slot number corresponds to an occupied
slot, an error message is displayed. The message resembles the message shownin
Figure 4-30.
Cisco 6500/7600 Manager User Guide
OL-2209-01
Chapter 4 Deploying the C65/76M
Commissioning Predeployed Objects
A predeployed Network Element and subobjects are commissioned automatically
when a coldStart SNMP trap that is issuedfrom the switch or the router is received
by the CEMF server.
Note For the automatic commissioning to work, the switch or router must be
configured to send SNMP traps and the CEMF server host must be in the trap
client list.
The subchassis discovery task is executed during commissioning. The discovery
task does the following:
• Verifies the predeployed objects.
• If a mismatch between the predeployed object and the discovered object
exists, then the predeployed object is placed in a Mismatched state. For
example, if a Supervisor Engine 2 MSFC2 is predeployed but a Supervisor
Engine 1A MSFC2 is discovered, the Supervisor Module object will be
placed in a Mismatched state. If the wrong object was predeployed, delete the
object and recommission the Network Element. If the wrong module was
inserted in the switch or router, insert the correct module and recommission
the object.
• Checks for switch or router components that were not predeployed. Any
objects that are discovered will be created and commissioned automatically.
• Automatically creates and commissions the remaining C65/76M objects.
These objects include the power supply and all of the logical objects.
If the coldStart trap is not received by the CEMF server when the switch is first
brought on-line, then the predeployed Network Element object needs to be
commissioned manually by opening the Network Element dialog box and
selecting the Commission button (see Figure 4-15).
Deployment and Commissioning Process
OL-2209-01
Cisco 6500/7600 Manager User Guide
4-75
Deployment and Commissioning Process
Chapter 4 Deploying the C65/76M
4-76
Cisco 6500/7600 Manager User Guide
OL-2209-01
Loading...
