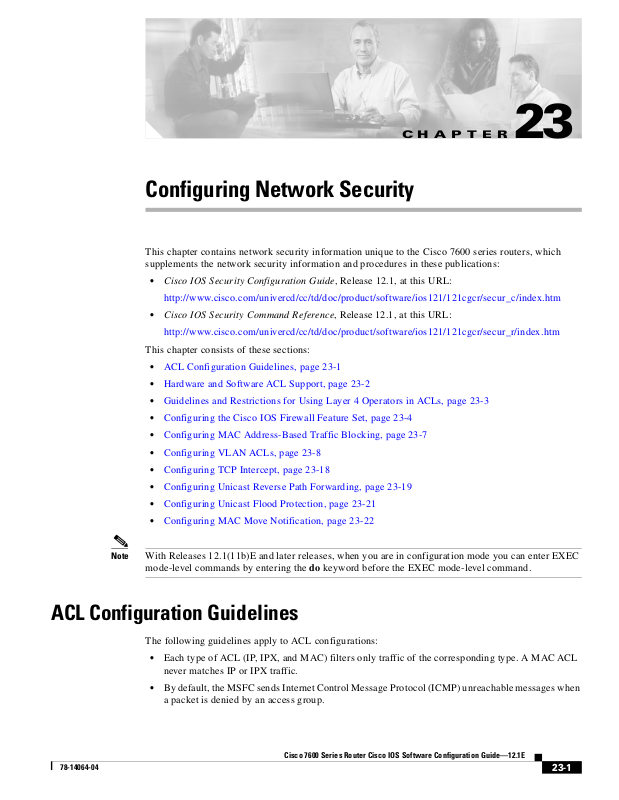

CHA PTER
23
Configuring Network Security
This chapter contains network security information unique to the Cisco 7600 series routers, which
supplements the network security information and procedures in these publications:
• Cisco IOS Security Configuration Guide, Release 12.1, at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/secur_c/index.htm
• Cisco IOS Security Command Reference, Release 12.1, at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/secur_r/index.htm
This chapter consists of these sections:
• ACL Configuration Guidelines, page 23-1
• Hardware and Software ACL Support, page 23-2
• Guidelines and Restrictions for Using Layer 4 Operators in ACLs, page 23-3
• Configuring the Cisco IOS Firewall Feature Set, page 23-4
• Configuring MAC Address-Based Traffic Blocking, page 23-7
• Configuring VLAN ACLs, page 23-8
• Configuring TCP Intercept, page 23-18
• Configuring Unicast Reverse Path Forwarding, page 23-19
• Configuring Unicast Flood Protection, page 23-21
• Configuring MAC Move Notification, page 23-22
Note With Releases 12.1(11b)E and later releases, when you are in configuration mode you can enter EXEC
mode-level commands by entering the do keyword before the EXEC mode-level command.
ACL Configuration Guidelines
The following guidelines apply to ACL configurations:
• Each type of ACL (IP, IPX, and MAC) filters only traffic of the corresponding type. A MAC ACL
never matches IP or IPX traffic.
• By default, the MSFC sends Internet Control Message Protocol (ICMP) unreachable messages when
a packet is denied by an access group.
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
78-14064-04
23-1
Hardware and Software ACL Support
With the ip unreachables command enabled (which is the default), a Supervisor Engine 2 drops
most of the denied packets in hardware and sends only a small number of packets to the MSFC2 to
be dropped (10 packets per second, maximum) , which generates ICMP-unreachable messages.
With the ip unreachables command enabled, a Supervisor Engine 1 sends all the denied packets to
the MSFC to be dropped, which generates ICMP-unreachable messages. With a Supervisor
Engine 1, to drop access list-denied packets in hardware, you must disable ICMP-unreachable
messages using the no ip unreachables interface configuration command.
To eliminate the load imposed on the MSFC CPU by the task of dropping denied packets and
generating ICMP-unreachable messages, do the following:
–
With Supervisor Engine 1, enter the no ip unreachables interface configuration command.
–
With Supervisor Engine 2, enter the no ip unreachables and the no ip redirects interface
configuration commands. (CSCdr33918)
• ICMP unreachable messages are not sent if a packet is denied by a VACL.
Hardware and Software ACL Support
Chapter 23 Configuring Network Security
Access control lists (ACLs) can be processed in hardware by the Policy Feature Card (PFC or PFC2),
the Distributed Forwarding Card (DFC), or in software by the Multilayer Switch Feature Card (MSFC
or MSFC2). The following behavior describes software and hardware handling of ACLs:
• ACL flows that match a “deny” statement in standard and extended ACLs (input and output) are
dropped in hardware if “ip unreachables” is disabled.
• ACL flows that match a “permit” statement in standard and extended ACLs (input and output) are
processed in hardware.
• VLAN ACL (VACL) flows are processed in hardware. If a field specified in a VACL is not supported
by hardware processing that field is ignored (for example, the log keyword in an ACL) or the whole
configuration is rejected (for example, a VACL containing unsupported IPX ACL parameters).
• VACL logging is processed in software.
• Dynamic ACL flows are processed in the hardware; however, idle timeout is processed in software.
• IP accounting for an ACL access violation on a given port is supported by forwarding all denied
packets for that port to the MSFC for software processing without impacting other flows.
• Extended name-based MAC address ACLs are supported in hardware.
• The following ACL types are processed in software:
–
Standard XNS access list
–
Extended XNS access list
–
DECnet access list
–
Internetwork Packet Exchange (IPX) access lists
23-2
–
Extended MAC address access list
–
Protocol type-code access list
Note IP packets with a header length of less than five will not be access controlled.
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
78-14064-04
Chapter 23 Configuring Network Security
Guidelines and Restrictions for Using Layer 4 Operators in ACLs
• Flows that require logging are processed in software without impacting nonlogged flow processing
in hardware.
• The forwarding rate for software-processed flows is substantially less than for hardware-processed
flows.
• When you enter the show ip access-list command, the match count displayed does not include
packets processed in hardware.
Guidelines and Restrictions for Using Layer 4 Operators in ACLs
These sections describe guidelines and restrictions when configuring ACLs that include Layer 4 port
operations:
• Determining Layer 4 Operation Usage, page 23-3
• Determining Logical Operation Unit Usage, page 23-4
Determining Layer 4 Operation Usage
You can specify these types of operations:
• gt (greater than)
• lt (less than)
• neq (not equal)
• eq (equal)
• range (inclusive range)
We recommend that you do not specify more than nine different operations on the same ACL. If you
exceed this number, each new operation might cause the affected ACE to be translated into more than
one ACE.
Use the following two guidelines to determine Layer 4 operation usage:
• Layer 4 operations are considered different if the operator or the operand differ. For example, in this
ACL there are three different Layer 4 operations (“gt 10” and “gt 11” are considered two different
Layer 4 operations):
... gt 10 permit
... lt 9 deny
... gt 11 deny
Note There is no limit to the use of “eq” operators as the “eq” operator does not use a logical
operator unit (LOU) or a Layer 4 operation bit. See the “Determining Logical Operation
Unit Usage” section on page 23-4 for a description of LOUs.
78-14064-04
• Layer 4 operations are considered different if the same operator/operand couple applies once to a
source port and once to a destination port. For example, in this ACL there are two different Layer 4
operations because one ACE applies to the source port and one applies to the destination port.
... Src gt 10 ...
... Dst gt 10
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
23-3
Configuring the Cisco IOS Firewall Feature Set
Determining Logical Operation Unit Usage
Logical operation units (LOUs) are registers that store operator-operand couples. All ACLs use LOUs.
There can be up to 32 LOUs; each LOU can store two different operator-operand couples with the
exception of the range operator. LOU usage per Layer 4 operation is as follows:
• gt uses 1/2 LOU
• lt uses 1/2 LOU
• neq uses 1/2 LOU
• range uses 1 LOU
• eq does not require a LOU
For example, this ACL would use a single LOU to store two different operator-operand couples:
... Src gt 10 ...
... Dst gt 10
A more detailed example follows:
ACL1
... (dst port) gt 10 permit
... (dst port) lt 9 deny
... (dst port) gt 11 deny
... (dst port) neq 6 permit
... (src port) neq 6 deny
... (dst port) gt 10 deny
Chapter 23 Configuring Network Security
ACL2
... (dst port) gt 20 deny
... (src port) lt 9 deny
... (src port) range 11 13 deny
... (dst port) neq 6 permit
The Layer 4 operations and LOU usage is as follows:
• ACL1 Layer 4 operations: 5
• ACL2 Layer 4 operations: 4
• LOUs: 4
An explanation of the LOU usage follows:
• LOU 1 stores “gt 10” and “lt 9”
• LOU 2 stores “gt 11” and “neq 6”
• LOU 3 stores “gt 20” (with space for one more)
• LOU 4 stores “range 11 13” (range needs the entire LOU)
Configuring the Cisco IOS Firewall Feature Set
Note Release 12.1(11b)E and later releases include firewall feature set images.
23-4
These sections describe configuring the Cisco IOS firewall feature set on the Cisco 7600 series routers:
• Cisco IOS Firewall Feature Set Support Overview, page 23-5
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
78-14064-04
Chapter 23 Configuring Network Security
• Firewall Configuration Guidelines and Restrictions, page 23-6
• Configuring CBAC on Cisco 7600 Series Routers, page 23-6
Cisco IOS Firewall Feature Set Support Overview
The firewall feature set images support these Cisco IOS firewall features:
• Context-based Access Control (CBAC)
• Port-to-Application Mapping (PAM)
• Authentication Proxy
These are the firewall feature set image names:
• c6sup22-jo3sv-mz
• c6sup22-po3sv-mz
• c6sup12-jo3sv-mz
• c6sup12-po3sv-mz
For more information about Cisco IOS firewall features, refer to the Cisco IOS Security Configuration
Guide, Release 12.1, “Traffic Filtering and Firewalls” online publications:
Configuring the Cisco IOS Firewall Feature Set
• The “Cisco IOS Firewall Overview” chapter at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/secur_c/scprt3/scdfirw
l.htm
• The “Configuring Context-Based Access Control” chapter at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/secur_c/scprt3/scdcbac
.htm
• The “Configuring Authentication Proxy” chapter at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/secur_c/scprt3/scdauth
p.htm
• Cisco IOS Security Command Reference publication at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/secur_r/index.htm
The following features are supported with and without the use of a Cisco IOS firewall image:
• Standard access lists and static extended access lists
• Lock-and-key (dynamic access lists)
• IP session filtering (reflexive access lists)
• TCP intercept
• Security server support
• Network address translation
• Neighbor router authentication
• Event logging
78-14064-04
• User authentication and authorization
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
23-5
Configuring the Cisco IOS Firewall Feature Set
Note Cisco 7600 series routers support the Intrusion Detection System Module (IDSM) (WS-X6381-IDS).
Cisco 7600 series routers do not support the Cisco IOS firewall IDS feature, which is configured with
the ip audit command.
Firewall Configuration Guidelines and Restrictions
Follow these guidelines and restrictions when configuring the Cisco IOS firewall features:
Restrictions
• On other platforms, if you enter the ip inspect command on a port, CBAC modifies ACLs on other
ports to permit the inspected traffic to flow through the network device. On Cisco 7600 series
routers, you must enter the mls ip inspect commands to permit traffic through any ACLs that would
deny the traffic through other ports. See the “Configuring CBAC on Cisco 7600 Series Routers”
section on page 23-6.
• With Supervisor Engine 2 and PFC2, reflexive ACLs and CBAC have conflicting flow mask
requirements. When you configure CBAC on a switch with Supervisor Engine 2 and PFC2, reflexive
ACLs are processed in software on the MSFC2.
Chapter 23 Configuring Network Security
• CBAC is incompatible with VACLs. You can configure both CBAC and VACLs on the switch but
not in the same subnet (VLAN) or on the same interface.
Note The Intrusion Detection System Module (IDSM) uses VACLs to select traffic. To use the
IDSM in a subnet where CBAC is configured, enter the mls ip ids acl_name interface
command, where acl_name is configured to select traffic for the IDSM.
Guidelines
• To inspect Microsoft NetMeeting (2.0 or greater) traffic, turn on both h323 and tcp inspection.
• To inspect web traffic, turn on tcp inspection. To avoid reduced performance, do not turn on http
inspection to block Java.
• You can configure CBAC on physical ports configured as Layer 3 interfaces and on VLAN
interfaces.
• QoS and CBAC do not interact or interfere with each other.
Configuring CBAC on Cisco 7600 Series Routers
You need to do additional CBAC configuration on the Cisco 7600 series routers. On a network device
other than a Cisco 7600 series router, when ports are configured to deny traffic, CBAC permits traffic to
flow bidirectionally through the port if it is configured with the ip inspect command. The same behavior
applies to any other port that the traffic needs to go through, as shown in this example:
Router(config)# ip inspect name permit_ftp ftp
Router(config)# interface vlan 100
Router(config-if)# ip inspect permit_ftp in
Router(config-if)# ip access-group deny_ftp_a in
Router(config-if)# ip access-group deny_ftp_b out
23-6
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
78-14064-04
Chapter 23 Configuring Network Security
Router(config-if)# exit
Router(config)# interface vlan 200
Router(config-if)# ip access-group deny_ftp_c in
Router(config-if)# ip access-group deny_ftp_d out
Router(config-if)# exit
Router(config)# interface vlan 300
Router(config-if)# ip access-group deny_ftp_e in
Router(config-if)# ip access-group deny_ftp_f out
Router(config-if)# end
If the FTP session enters on VLAN 100 and needs to leave on VLAN 200, CBAC permits the FTP traffic
through ACLs deny_ftp_a, deny_ftp_b, deny_ftp_c, and deny_ftp_d. If another FTP session enters on
VLAN 100 and needs to leave on VLAN 300, CBAC permits the FTP traffic through ACLs deny_ftp_a,
deny_ftp_b, deny_ftp_e, and deny_ftp_f.
On a Cisco 7600 series router, when ports are configured to deny traffic, CBAC permits traffic to flow
bidirectionally only through the port configured with the ip inspect command. You must configure other
ports with the mls ip inspect command.
If the FTP session enters on VLAN 100 and needs to leave on VLAN 200, CBAC on a Cisco 7600 series
router permits the FTP traffic only through ACLs deny_ftp_a and deny_ftp_b. To permit the traffic
through ACLs deny_ftp_c and deny_ftp_d, you must enter the mls ip inspect deny_ftp_c and mls ip
inspect deny_ftp_d commands, as shown in this example:
Router(config)# mls ip inspect deny_ftp_c
Router(config)# mls ip inspect deny_ftp_d
Configuring MAC Address-Based Traffic Blocking
With the example configuration, FTP traffic cannot leave on VLAN 300 unless you enter the mls ip
inspect deny_ftp_e and mls ip inspect deny_ftp_f commands. Enter the show fm insp [detail]
command to verify the configuration.
The show fm insp [detail] command displays the list of ACLs and ports on which CBAC is configured
and the status (ACTIVE or INACTIVE), as shown in this example:
Router# show fm insp
interface:Vlan305(in) status :ACTIVE
acl name:deny
interfaces:
Vlan305(out):status ACTIVE
On VLAN 305, inspection is active in the inbound direction and no ACL exists. ACL deny is applied on
VLAN 305 in the outbound direction and inspection is active.
To display all of the flow information, use the detail keyword.
If a VACL is configured on the port before configuring CBAC, the status displayed is INACTIVE;
otherwise, it is ACTIVE. If PFC resources are exhausted, the command displays the word “BRIDGE”
followed by the number of currently active NetFlow requests that failed, which have been sent to the
MSFC2 for processing.
Configuring MAC Address-Based Traffic Blocking
With 12.1(13)E and later releases, to block all traffic to or from a MAC address in a specified VLAN,
perform this task:
78-14064-04
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
23-7
Configuring VLAN ACLs
Command Purpose
Router(config)# mac-address-table static mac_address
vlan vlan_ID drop
Router(config)# no mac-address-table static
mac_address vlan vlan_ID
Blocks all traffic to or from the configured MAC address in
the specified VLAN.
Clears MAC address-based blocking.
This example shows how to block all traffic to or from MAC address 0050.3e8d.6400 in VLAN 12:
Router# configure terminal
Router(config)# mac-address-table static 0050.3e8d.6400 vlan 12 drop
Configuring VLAN ACLs
Note Releases 12.1(11b)E or later supports VLAN ACLs (VACLs).
Chapter 23 Configuring Network Security
The following sections describe VACLs:
• Understanding VACLs, page 23-8
• Configuring VACLs, page 23-11
• Configuring VACL Logging, page 23-17
Understanding VACLs
These sections describe VACLs:
• VACL Overview, page 23-8
• Bridged Packets, page 23-9
• Routed Packets, page 23-10
• Multicast Packets, page 23-11
VACL Overview
VACLs can provide access control for all packets that are bridged within a VLAN or that are routed into
or out of a VLAN or, with releases 12.1(13)E or later, a WAN interface for VACL capture. Unlike regular
Cisco IOS standard or extended ACLs that are configured on router interfaces only and are applied on routed
packets only, VACLs apply to all packets and can be applied to any VLAN or WAN interface. VACLS are
processed in hardware. VACLs use Cisco IOS ACLs. VACLs ignore any Cisco IOS ACL fields that are not
supported in hardware.
23-8
You can configure VACLs for IP, IPX, and MAC-Layer traffic. VACLs applied to WAN interfaces
support only IP traffic for VACL capture.
When you configure a VACL and apply it to a VLAN, all packets entering the VLAN are checked against
this VACL. If you apply a VACL to the VLAN and an ACL to a routed interface in the VLAN, a packet
coming in to the VLAN is first checked against the VACL and, if permitted, is then checked against the
input ACL before it is handled by the routed interface. When the packet is routed to another VLAN, it
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
78-14064-04
Chapter 23 Configuring Network Security
is first checked against the output ACL applied to the routed interface and, if permitted, the VACL
configured for the destination VLAN is applied. If a VACL is configured for a packet type and a packet
of that type does not match the VACL, the default action is deny.
Note • VACLs and CBAC cannot be configured on the same interface.
• TCP Intercepts and Reflexive ACLs take precedence over a VACL action if these are configured on
the same interface.
• IGMP packets are not checked against VACLs.
Bridged Packets
Figure 23-1 shows a VACL applied on bridged packets.
Figure 23-1 Applying VACLs on Bridged Packets
Configuring VLAN ACLs
VACL Bridged
Host A
(VLAN 10)
Catalyst 6500 Series Switch
with PFC
Host B
(VLAN 10)
26961
78-14064-04
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
23-9
Configuring VLAN ACLs
Routed Packets
Chapter 23 Configuring Network Security
Figure 23-2 shows how ACLs are applied on routed and Layer 3-switched packets. For routed or
Layer 3-switched packets, the ACLs are applied in the following order:
1. VACL for input VLAN
2. Input Cisco IOS ACL
3. Output Cisco IOS ACL
4. VACL for output VLAN
Figure 23-2 Applying VACLs on Routed Packets
Routed
Input IOS ACL
Bridged
VACL
Host A
(VLAN 10)
MSFC
Catalyst 6500 series switches
with MSFC
Output IOS ACL
VACL
Bridged
Host B
(VLAN 20)
26964
23-10
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
78-14064-04
Chapter 23 Configuring Network Security
Multicast Packets
Figure 23-3 shows how ACLs are applied on packets that need multicast expansion. For packets that
need multicast expansion, the ACLs are applied in the following order:
1. Packets that need multicast expansion:
a. VACL for input VLAN
b. Input Cisco IOS ACL
2. Packets after multicast expansion:
a. Output Cisco IOS ACL
b. VACL for output VLAN (not supported with PFC2)
3. Packets originating from router—VACL for output VLAN
Figure 23-3 Applying VACLs on Multicast Packets
Input IOS ACL
Bridged
Routed
Catalyst 6500 Series Switch
with MSFC
MSFC
Configuring VLAN ACLs
IOS ACL for
output VLAN
for packets
originating from
router
Output IOS ACL
VACL (Not supported
on PFC2)
Host A
(VLAN 10)
Host C
(VLAN 10)
Configuring VACLs
These sections describe configuring VACLs:
• VACL Configuration Overview, page 23-12
• Defining a VLAN Access Map, page 23-12
• Configuring a Match Clause in a VLAN Access Map Sequence, page 23-13
• Configuring an Action Clause in a VLAN Access Map Sequence, page 23-14
• Applying a VLAN Access Map, page 23-14
• Verifying VLAN Access Map Configuration, page 23-15
VACL
Bridged
Host B
(VLAN 20)
26965
Host D
(VLAN 20)
78-14064-04
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
23-11
Configuring VLAN ACLs
• VLAN Access Map Configuration and Verification Examples, page 23-15
• Configuring a Capture Port, page 23-16
VACL Configuration Overview
VACLs use standard and extended Cisco IOS IP and IPX ACLs, and MAC-Layer named ACLs (see the
“Configuring MAC-Layer Named Access Lists (Optional)” section on page 32-39) and VLAN access maps.
VLAN access maps can be applied to VLANs or, with releases 12.1(13)E or later, to WAN interfaces for
VACL capture. VACLs attached to WAN interfaces support only standard and extended Cisco IOS IP
ACLs for VACL capture.
Each VLAN access map can consist of one or more map sequences, each sequence with a match clause
and an action clause. The match clause specifies IP, IPX, or MAC ACLs for traffic filtering and the action
clause specifies the action to be taken when a match occurs. When a flow matches a permit ACL entry,
the associated action is taken and the flow is not checked against the remaining sequences. When a flow
matches a deny ACL entry, it will be checked against the next ACL in the same sequence or the next
sequence. If a flow does not match any ACL entry and at least one ACL is configured for that packet
type, the packet is denied.
To use access-control for both bridged and routed traffic, you can use VACLs alone or a combination of
VACLs and ACLs. You can define ACLs on the VLAN interfaces to use access-control for both the input
and output routed traffic. You can define a VACL to use access-control for the bridged traffic.
The following caveats apply to ACLs when used with VACLs:
• Packets that require logging on the outbound ACLs are not logged if they are denied by a VACL.
Chapter 23 Configuring Network Security
• VACLs are applied on packets before NAT translation. If the translated flow is not subject to access
control, the flow might be subject to access control after the translation because of the VACL
configuration.
The action clause in a VACL can be forward, drop, capture, or redirect. Traffic can also be logged.
VACLs applied to WAN interfaces do not support the redirect or log actions.
Note VACLs have an implicit deny at the end of the map; a packet is denied if it does not match any ACL
entry, and at least one ACL is configured for the packet type.
Note If an empty or undefined ACL is specified in a VACL, any packets will match the ACL and the associated
action is taken.
Defining a VLAN Access Map
To define a VLAN access map, perform this task:
Command Purpose
Router(config)# vlan access-map map_name [0-65535]
Router(config)# no vlan access-map map_name 0-65535
Router(config)# no vlan access-map map_name
Defines the VLAN access map. Optionally, you can specify
the VLAN access map sequence number.
Deletes a map sequence from the VLAN access map.
Deletes the VLAN access map.
23-12
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
78-14064-04
Chapter 23 Configuring Network Security
When defining a VLAN access map, note the following syntax information:
• To insert or modify an entry, specify the map sequence number.
• If you do not specify the map sequence number, a number is automatically assigned.
• You can specify only one match clause and one action clause per map sequence.
• Use the no keyword with a sequence number to remove a map sequence.
• Use the no keyword without a sequence number to remove the map.
See the “VLAN Access Map Configuration and Verification Examples” section on page 23-15.
Configuring a Match Clause in a VLAN Access Map Sequence
To configure a match clause in a VLAN access map sequence, perform this task:
Command Purpose
Router(config-access-map)# match {ip address {1-199 |
1300-2699 | acl_name} | ipx address {800-999 |
acl_name}| mac address acl_name}
Router(config-access-map)# no match {ip address
{1-199 | 1300-2699 | acl_name} | ipx address {800-999
| acl_name}| mac address acl_name}
Configures the match clause in a VLAN access map sequence.
Deletes the match clause in a VLAN access map sequence.
Configuring VLAN ACLs
When configuring a match clause in a VLAN access map sequence, note the following syntax
information:
• You can select one or more ACLs.
• VACLs attached to WAN interfaces support only standard and extended Cisco IOS IP ACLs.
• Use the no keyword to remove a match clause or specified ACLs in the clause.
• For information about named MAC-Layer ACLs, refer to the “Configuring MAC-Layer Named
Access Lists (Optional)” section on page 32-39.
• For information about Cisco IOS ACLs, refer to the Cisco IOS Security Configuration Guide,
Release 12.1, “Traffic Filtering and Firewalls,” “Access Control Lists: Overview and Guidelines,”
at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/secur_c/scprt3/index.htm
See the “VLAN Access Map Configuration and Verification Examples” section on page 23-15.
78-14064-04
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
23-13
Configuring VLAN ACLs
Configuring an Action Clause in a VLAN Access Map Sequence
To configure an action clause in a VLAN access map sequence, perform this task:
Command Purpose
Router(config-access-map)# action {drop [log]} |
{forward [capture]} | {redirect {{ethernet |
fastethernet | gigabitethernet | tengigabitethernet}
slot/port} | {port-channel channel_id}}
Router(config-access-map)# no action {drop [log]} |
{forward [capture]} | {redirect {{ethernet |
fastethernet | gigabitethernet | tengigabitethernet}
slot/port} | {port-channel channel_id}}
When configuring an action clause in a VLAN access map sequence, note the following syntax
information:
• You can set the action to drop, forward, forward capture, or redirect packets.
• VACLs applied to WAN interfaces support only the forward capture action. VACLs applied to WAN
interfaces do not support the drop, forward, or redirect actions.
• Forwarded packets are still subject to any configured Cisco IOS security ACLs.
• The capture action sets the capture bit for the forwarded packets so that ports with the capture
function enabled can receive the packets. Only forwarded packets can be captured. For more
information about the capture action, see the “Configuring a Capture Port” section on page 23-16.
• The log action is supported only on Supervisor Engine 2.
• VACLs applied to WAN interfaces do not support the log action.
• When the log action is specified, dropped packets are logged in software. Only dropped IP packets
can be logged.
• The redirect action allows you to specify up to five interfaces, which can be physical interfaces or
EtherChannels. You cannot specify packets to be redirected to an EtherChannel member or a VLAN
interface.
• For systems with a Supervisor Engine 2, the redirect interface must be in the VLAN for which the
VACL access map is configured. For systems with Supervisor Engine 1, the redirect interface must
be in the redirected packet’s source VLAN.
• Use the no keyword to remove an action clause or specified redirect interfaces.
See the “VLAN Access Map Configuration and Verification Examples” section on page 23-15.
Configures the action clause in a VLAN access map
sequence.
Deletes the action clause in from the VLAN access map
sequence.
Chapter 23 Configuring Network Security
Applying a VLAN Access Map
To apply a VLAN access map, perform this task:
Command Purpose
Router(config)# vlan filter map_name {vlan-list
vlan_list | interface type
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
1
number2} CP_CmdPlain
23-14
Applies the VLAN access map to the specified VLANs or
WAN interfaces.
78-14064-04
Chapter 23 Configuring Network Security
Command Purpose
Router(config)# no vlan filter map_name [vlan-list
vlan_list | interface type
1. type = pos, atm, or serial
2. number = slot/port or slot/port_adapter/port; can include a subinterface or channel group descriptor
1
number2]
Removes the VLAN access map from the specified VLANs or
WAN interfaces.
When applying a VLAN access map, note the following syntax information:
• You can apply the VLAN access map to one or more VLANs or WAN interfaces.
• The vlan_list parameter can be a single VLAN ID or a comma-separated list of VLAN IDs or VLAN
ID ranges (vlan_ID–vlan_ID).
• If you delete a WAN interface that has a VACL applied, the VACL configuration on the interface is
also removed.
• You can apply only one VLAN access map to each VLAN or WAN interface.
• VACLs applied to VLANs are active only for VLANs with a Layer 3 VLAN interface configured.
VACLs applied to VLANs without a Layer 3 VLAN interface are inactive. With releases 12.1(13)E
and later, applying a VLAN access map to a VLAN without a Layer 3 VLAN interface creates an
administratively down Layer 3 VLAN interface to support the VLAN access map. If creation of the
Layer 3 VLAN interface fails, the VACL is inactive.
• You cannot apply a VACL to a secondary private VLAN. VACLs applied to primary private VLANs
also apply to secondary private VLANs.
• Use the no keyword to clear VLAN access maps from VLANs or WAN interfaces.
Configuring VLAN ACLs
See the “VLAN Access Map Configuration and Verification Examples” section on page 23-15.
Verifying VLAN Access Map Configuration
To verify VLAN access map configuration, perform this task:
Command Purpose
Router# show vlan access-map [map_name]
Verifies VLAN access map configuration by displaying the
content of a VLAN access map.
Router# show vlan filter [access-map map_name | vlan
vlan_id | interface type
1. type = pos, atm, or serial
2. number = slot/port or slot/port_adapter/port; can include a subinterface or channel group descriptor
1
number2]
Verifies VLAN access map configuration by displaying the
mappings between VACLs and VLANs.
VLAN Access Map Configuration and Verification Examples
Assume IP-named ACL net_10 and any_host are defined as follows:
Router# show ip access-lists net_10
Extended IP access list net_10
permit ip 10.0.0.0 0.255.255.255 any
Router# show ip access-lists any_host
Standard IP access list any_host
permit any
78-14064-04
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
23-15
Configuring VLAN ACLs
Chapter 23 Configuring Network Security
This example shows how to define and apply a VLAN access map to forward IP packets. In this example,
IP traffic matching net_10 is forwarded and all other IP packets are dropped due to the default drop
action. The map is applied to VLAN 12 to 16.
Router(config)# vlan access-map thor 10
Router(config-access-map)# match ip address net_10
Router(config-access-map)# action forward
Router(config-access-map)# exit
Router(config)# vlan filter thor vlan-list 12-16
This example shows how to define and apply a VLAN access map to drop and log IP packets. In this
example, IP traffic matching net_10 is dropped and logged and all other IP packets are forwarded:
Router(config)# vlan access-map ganymede 10
Router(config-access-map)# match ip address net_10
Router(config-access-map)# action drop log
Router(config-access-map)# exit
Router(config)# vlan access-map ganymede 20
Router(config-access-map)# match ip address any_host
Router(config-access-map)# action forward
Router(config-access-map)# exit
Router(config)# vlan filter ganymede vlan-list 7-9
This example shows how to define and apply a VLAN access map to forward and capture IP packets. In
this example, IP traffic matching net_10 is forwarded and captured and all other IP packets are dropped:
Router(config)# vlan access-map mordred 10
Router(config-access-map)# match ip address net_10
Router(config-access-map)# action forward capture
Router(config-access-map)# exit
Router(config)# vlan filter mordred vlan-list 2, 4-6
Configuring a Capture Port
A port configured to capture VACL-filtered traffic is called a capture port.
Note To apply IEEE 802.1Q or ISL tags to the captured traffic, configure the capture port to trunk
unconditionally (see the “Configuring the Layer 2 Switching Port as an ISL or 802.1Q Trunk” section
on page 7-8 and the “Configuring the Layer 2 Trunk Not to Use DTP” section on page 7-9).
To configure a capture port, perform this task:
Command Purpose
Step 1
Step 2
Step 3
Router(config)# interface {{type1slot/port}
Router(config-if)# switchport capture allowed
vlan {add | all | except | remove} vlan_list
Router(config-if)# no switchport capture allowed
vlan
Router(config-if)# switchport capture
Router(config-if)# no switchport capture
1. type = ethernet, fastethernet, gigabitethernet, or tengigabitethernet
Specifies the interface to configure.
(Optional) With Release 12.1(13)E and later releases,
filters the captured traffic on a per-destination-VLAN
basis. The default is all.
Clears the configured destination VLAN list and returns
to the default value (all).
Configures the port to capture VACL-filtered traffic.
Disables the capture function on the interface.
23-16
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
78-14064-04
Chapter 23 Configuring Network Security
When configuring a capture port, note the following syntax information:
• With Release 12.1(13)E and later releases, you can configure any port as a capture port. With earlier
releases, only the Gigabit Ethernet monitor port on the IDS module can be configured as a capture
port.
• When configuring a capture port with Release 12.1(13)E and later releases, note the following
syntax information:
–
The vlan_list parameter can be a single VLAN ID or a comma-separated list of VLAN IDs or
VLAN ID ranges (vlan_ID–vlan_ID).
–
To encapsulate captured traffic, configure the capture port with the switchport trunk
encapsulation command (see the “Configuring a Layer 2 Switching Port as a Trunk” section on
page 7-8) before you enter the switchport capture command.
–
To not encapsulate captured traffic, configure the capture port with the switchport mode access
command (see the “Configuring a LAN Interface as a Layer 2 Access Port” section on
page 7-14) before you enter the switchport capture command.
–
The capture port supports only egress traffic. No traffic can enter the router through a
capture port.
This example shows how to configure a Fast Ethernet interface 5/1 as a capture port:
Router(config)# interface gigabitEthernet 5/1
Router(config-if)# switchport capture
Router(config-if)# end
Configuring VLAN ACLs
This example shows how to display VLAN access map information:
Router# show vlan access-map mordred
Vlan access-map "mordred" 10
match: ip address net_10
action: forward capture
Router#
This example shows how to display mappings between VACLs and VLANs. For each VACL map, there
is information about the VLANs that the map is configured on and the VLANs that the map is active on.
A VACL is not active if the VLAN does not have an interface.
Router# show vlan filter
VLAN Map mordred:
Configured on VLANs: 2,4-6
Active on VLANs: 2,4-6
Router#
Configuring VACL Logging
When you configure VACL logging, IP packets that are denied generate log messages in these situations:
• When the first matching packet is received
• For any matching packets received during the last 5-minute interval
• If the threshold is reached before the 5-minute interval
Log messages are generated on a per-flow basis. A flow is defined as packets with the same IP addresses and
Layer 4 (UDP or TCP) port numbers.
When a log message is generated, the timer and packet count is reset.
78-14064-04
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
23-17
Configuring TCP Intercept
Command Purpose
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Router(config)# vlan access-log maxflow
max_number
Router(config)# vlan access-log ratelimit pps
Router(config)# vlan access-log threshold
pkt_count
Router(config)# exit
Router# show vlan access-log config
Router# show vlan access-log flow protocol
{{src_addr src_mask} | any | {host {hostname |
host_ip}}} {{dst_addr dst_mask} | any | {host
{hostname | host_ip}}}
[vlan vlan_id]
Router# show vlan access-log statistics
Chapter 23 Configuring Network Security
These restrictions apply to VACL logging:
• Supported only with Supervisor Engine 2.
• Because of the rate-limiting function for redirected packets, VACL logging counters may not be
accurate.
• Only denied IP packets are logged.
To configure VACL logging, use the action drop log command action in VLAN access map submode
(see the “Configuring VACLs” section on page 23-11 for configuration information) and perform this
task in global configuration mode to specify the global VACL logging parameters:
Sets the log table size. The content of the log table can be
deleted by setting the maxflow number to 0. The default
is 500 with a valid range of 0 to 2048. When the log table
is full, logged packets from new flows are dropped by the
software.
Sets the maximum redirect VACL logging packet rate.
The default packet rate is 2000 packets per second with a
valid range of 0 to 5000. Packets exceeding the limit are
dropped by the hardware.
Sets the logging threshold. A logging message is generated
if the threshold for a flow is reached before the 5-minute
interval. By default, no threshold is set.
Exits VLAN access map configuration mode.
(Optional) Displays the configured VACL logging
properties.
(Optional) Displays the content of the VACL log table.
(Optional) Displays packet and message counts and other
statistics.
This example shows how to configure global VACL logging in hardware:
Router(config)# vlan access-log maxflow 800
Router(config)# vlan access-log ratelimit 2200
Router(config)# vlan access-log threshold 4000
Configuring TCP Intercept
With Supervisor Engine 2 and PFC2, TCP intercept flows are processed in hardware.
With Supervisor Engine 1 and PFC, TCP intercept flows are processed in software.
For configuration procedures, refer to the Cisco IOS Security Configuration Guide, Release 12.1,
“Traffic Filtering and Firewalls,” “Configuring TCP Intercept,” at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/secur_c/scprt3/scddenl.htm
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
23-18
78-14064-04
Chapter 23 Configuring Network Security
Configuring Unicast Reverse Path Forwarding
Configuring Unicast Reverse Path Forwarding
These sections describe configuring Cisco IOS Unicast Reverse Path Forwarding (Unicast RPF):
• Understanding Unicast RPF Support, page 23-19
• Configuring Unicast RPF, page 23-19
• Enabling Self-Pinging, page 23-19
• Configuring the Unicast RPF Checking Mode, page 23-20
Understanding Unicast RPF Support
The PFC2 supports Unicast RPF with hardware processing for packets that have a single return path. The
MSFC2 processes traffic in software that has multiple return paths (for example, load sharing).
With a PFC2, if you configure Unicast RPF to filter with an ACL, the PFC2 determines whether or not
traffic matches the ACL. The PFC2 sends the traffic denied by the RPF ACL to the MSFC2 for the
Unicast RPF check.
Note • Because the packets in a denial-of-service attack typically match the deny ACE and are sent to the
MSFC2 for the unicast RPF check, they can overload the MSFC2.
• The PFC2 provides hardware support for traffic that does not match the Unicast RPF ACL, but that
does match an input security ACL.
With Supervisor Engine 1 and PFC, the MSFC or MSFC 2 supports Unicast RPF in software.
Configuring Unicast RPF
For configuration procedures, refer to the Cisco IOS Security Configuration Guide, Release 12.1, “Other
Security Features,” “Configuring Unicast Reverse Path Forwarding” at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/secur_c/scprt5/scdrpf.htm
Enabling Self-Pinging
With Unicast RPF enabled, the router cannot ping itself. To enable self-pinging, perform this task:
Command Purpose
Step 1
Step 2
Step 3
Router(config)# interface {{vlan vlan_ID} |
1
{type
Router(config-if)# ip verify unicast source
reachable-via any allow-self-ping
Router(config-if)# no ip verify unicast source
reachable-via any allow-self-ping
Router(config-if)# exit
slot/port} | {port-channel number}}
1. type = ethernet, fastethernet, gigabitethernet, or tengigabitethernet
Selects the interface to configure.
Enables the router to ping itself or a secondary address.
Disables self-pinging.
Exits interface configuration mode.
78-14064-04
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
23-19
Configuring Unicast Reverse Path Forwarding
This example shows how to enable self-pinging:
Router(config)# interface gigabitethernet 4/1
Router(config-if)# ip verify unicast source reachable-via any allow-self-ping
Router(config-if)# end
Configuring the Unicast RPF Checking Mode
There are two Unicast RPF checking modes:
• Strict checking mode, which verifies that the source IP address exists in the FIB table and verifies
that the source IP address is reachable through the input port.
• Exist-only checking mode, which only verifies that the source IP address exists in the FIB table.
Note The most recently configured mode is automatically applied to all ports configured for Unicast RPF
checking.
To configure Unicast RPF checking mode, perform this task:
Chapter 23 Configuring Network Security
Step 1
Step 2
Step 3
Command Purpose
Router(config)# interface {{vlan vlan_ID} |
1
{type
Router(config-if)# ip verify unicast source
reachable-via {rx | any} [allow-default] [list]
Router(config-if)# no ip verify unicast
Router(config-if)# exit
slot/port} | {port-channel number}}
1. type = ethernet, fastethernet, gigabitethernet, or tengigabitethernet
Selects an interface to configure.
Note Based on the input port, Unicast RPF verifies the
Configures the Unicast RPF checking mode.
Reverts to the default Unicast RPF checking mode.
Exits interface configuration mode.
When configuring the Unicast RPF checking mode, note the following syntax information:
• Use the rx keyword to enable strict checking mode.
• Use the any keyword to enable exist-only checking mode.
• Use the allow-default keyword to allow use of the default route for RPF verification.
• Use the list option to identify an access list.
–
If the access list denies network access, spoofed packets are dropped at the port.
–
If the access list permits network access, spoofed packets are forwarded to the destination
address. Forwarded packets are counted in the interface statistics.
–
If the access list includes the logging action, information about the spoofed packets is sent to
the log server.
best return path before forwarding the packet on
to the next destination.
23-20
Note When you enter the ip verify unicast source reachable-via command, the Unicast RPF checking mode
changes on all ports in the router.
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
78-14064-04
Chapter 23 Configuring Network Security
This example shows how to enable Unicast RPF exist-only checking mode on Gigabit Ethernet port 4/1:
Router(config)# interface gigabitethernet 4/1
Router(config-if)# ip verify unicast source reachable-via any
Router(config-if)# end
Router#
This example shows how to enable Unicast RPF strict checking mode on Gigabit Ethernet port 4/2:
Router(config)# interface gigabitethernet 4/2
Router(config-if)# ip verify unicast source reachable-via rx
Router(config-if)# end
Router#
This example shows how to verify the configuration:
Router# show running-config interface gigabitethernet 4/2
Building configuration...
Current configuration : 114 bytes
!
interface GigabitEthernet4/2
ip address 42.0.0.1 255.0.0.0
ip verify unicast reverse-path
no cdp enable
end
Router# show running-config interface gigabitethernet 4/1
Building configuration...
Current configuration : 114 bytes
!
interface GigabitEthernet4/1
ip address 41.0.0.1 255.0.0.0
ip verify unicast reverse-path (RPF mode on g4/1 also changed to strict-check RPF mode)
no cdp enable
end
Router#
Configuring Unicast Flood Protection
Configuring Unicast Flood Protection
The unicast flood protection feature protects the system from disruptions caused by unicast flooding.
The Cisco 7600 series routers use forwarding tables to direct traffic to specific ports based on the VLAN
number and the destination MAC address of the frame. When there is no entry corresponding to the
frame’s destination MAC address in the incoming VLAN, the frame is sent to all forwarding ports within
the respective VLAN, which causes flooding. Limited flooding is part of the normal switching process,
but continuous flooding can cause adverse performance effects on the network.
When you enable the unicast flood protection feature, the system sends an alert when the rate limit has
been exceeded, filters the traffic, or shuts down the port generating the floods when it detects unknown
unicast floods exceeding a threshold.
To configure unicast flood protection, perform this task:
Command Purpose
Step 1
Step 2
Router(config)# [no] mac-address-table
unicast-flood {limit kfps} {vlan vlan} {filter
timeout | alert | shutdown}
Router# show mac-address-table unicast-flood
78-14064-04
Enables unicast flood protection globally.
Displays unicast flood protection information.
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
23-21
Configuring MAC Move Notification
When configuring unicast flood protection, note the following syntax information:
• Use the limit keyword to specify the unicast floods on a per source MAC address and per VLAN
basis; valid values are from 1 to 4000 floods per second (fps).
• Use the filter keyword to specify how long to filter unicast flood traffic; valid values are from 1 to
34560 minutes.
• Use the alert keyword to configure the system to send an alert message when frames of unicast
floods exceed the flood rate limit.
• Use the shutdown keyword to configure the system to shut down the ingress port generating the
floods when frames of unicast floods exceed the flood rate limit.
This example shows how to configure the system to filter unicast flood traffic for 5 minutes and set the
flood rate limit to 3000 fps:
Router(config)# mac-address-table unicast-flood limit 3 vlan 100 filter 5
Router # show mac-address-table unicast-flood
Unicast Flood Protection status: enabled
Configuration:
vlan Kfps action timeout
------+----------+-----------------+--------- 100 3 filter 5
Chapter 23 Configuring Network Security
Mac filters:
No. vlan souce mac addr. installed on time left (mm:ss)
-----+------+-----------------+------------------------------+------------------
Router(config)#
Configuring MAC Move Notification
When you configure MAC move notification, a message is generated when a MAC address moves from
one port to another.
Note The MAC address move notification feature does not generate a notification when a new MAC address
is added to the CAM or when a MAC address is removed from the CAM.
To configure MAC move notification, perform this task:
Command Purpose
Step 1
Step 2
Router(config)# [no] mac-address-table
notification mac-move
Router# show mac-address-table notification
mac-move
Enables MAC move notification globally.
Displays MAC move notification information.
23-22
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
78-14064-04
Chapter 23 Configuring Network Security
This example shows how to enable the MAC move notification feature:
Router(config)# mac-address-table notification mac-move
Router# show mac-address-table notification mac-move
MAC Move Notification: enabled
Router#
Configuring MAC Move Notification
78-14064-04
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
23-23
Configuring MAC Move Notification
Chapter 23 Configuring Network Security
23-24
Cisco 7600 Series Router Cisco IOS Software Configuration Guide—12.1E
78-14064-04
Loading...
