Cisco 7206 Router Quick Start Guide

1 Documentation and Resources 2 Prepare for Installation 3 Rack-Mount the Router 4 Connect the Router to the Network 5 Start and Configure the Router 6 After Installation 7 Technical Assistance

1 Documentation and Resources

This section contains information to help you prepare for installing the Cisco 7206 router. I contains a list of online documentation and resources.

Document Revision History

The Document Revision History below, records technical changes to this document.

Tab le 1 Do cu me nt Re vision History

Document Version Date Notes

78-12771-04 March, 2006 Adding documentation survey information.

Documentation Survey

Is Cisco documentation helpful? Click here or go to http://forums.cisco.com/eforum/servlet/viewsflash?cmd=showform&pollid=rtgdoc01!rtgdoc

Port Adapter Documentation

• Cisco 7200 Series Port Adapter Hardware Configuration Guidelines—DOC-783471=

(This document provides bandwidth point information for Cisco 7200 series routers and port adapters.)

http://www.cisco.com/univercd/cc/td/doc/product/core/7206/port_adp/config/index.htm

• Port adapter documentation—See the document that ships with the port adapter for the customer order number. Port adapter documentation is online at:

http://www.cisco.com/univercd/cc/td/doc/product/core/7206/port_adp/index.htm

• Port adapter cable documentation:

–

Installing High-Speed Serial Interface Cables—DOC-784260

http://www.cisco.com/univercd/cc/td/doc/product/access/acs_mod/cis4000/4000cn/4260hcab.htm

–

Installing the 75-Ohm In-Line Coaxial Attenuator on Cisco Port Adapters—DOC-7812884

http://www.cisco.com/univercd/cc/td/doc/product/core/7206/fru/12884att.htm

–

Installing the 75-120 Ohm Adapter Cable on E1 Multi-Channel Port Adapters—DOC-786728

http://www.cisco.com/univercd/cc/td/doc/product/core/7206/port_adp/multich/6728cabl.htm

Obtaining Documentation

The following sections explain how to obtain documentation from Cisco Systems.

World Wide Web

You can access the most current Cisco documentation on the World Wide Web at the following URL:

http://www.cisco.com

Translated documentation is available at the following URL:

http://www.cisco.com/public/countries_languages.shtml

Documentation CD-ROM

Cisco documentation and additional literature are available in a Cisco Documentation CD-ROM package, which is shipped with your product. The Documentation CD-ROM is updated monthly and may be more current than printed documentation. The CD-ROM package is available as a single unit or through an annual subscription.

Ordering Documentation

Cisco documentation is available in the following ways:

• Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from the Networking Products MarketPlace:

http://www.cisco.com/cgi-bin/order/order_root.pl

• Registered Cisco.com users can order the Documentation CD-ROM through the online Subscription Store: http://www.cisco.com/go/subscription

• Nonregistered Cisco.com users can order documentation through a local account representative by calling Cisco corporate headquarters (California, USA) at 408 526-7208 or, elsewhere in North America, by calling 800 553-NETS (6387).

Documentation Feedback

If you are reading Cisco product documentation on Cisco.com, you can submit technical comments electronically . Click the Fax or Email option under the “Leave Feedback” at the bottom of the Cisco Documentation home page.

You can e-mail your comments to bug-doc@cisco.com. To submit your comments by mail, use the response card behind the front cover of your document, or write to the following

address: Cisco Systems

Attn: Document Resource Connection 170 West Tasman Drive San Jose, CA 95134-9883

We appreciate your comments.

2 Prepare for Installation

Warning Only trained and qualified personnel should install, replace, or service this equipment.

Warning Read the installation instructions before you connect the system to its power source.

Warning This unit is intended for installation in restricted access areas. A restricted access area is where access can only be

gained by service personnel through the use of a special tool, lock and key, or other means of security, and is controlled by the authority responsible for the location.

Before beginning this router installation, read the Site Preparation and Safety Guide and the Regulatory Safety and Compliance Information for Cisco 7200 Series Routers docum ent.

Site Preparation and Unpacking

• Lift the router safely out of the packing container.

• Ensure the power service at the site is suitable for the router you are installing.

• Check the packing slip to ensure that all the proper components are present.

• Locate and have accessible the Site Log for recording information about this installation.

Tools and Parts

• Number 2 Phillips screwdriver and a 3/16-inch flat-blade screwdriver

• Tape measure and level (optional)

• The rack-mount and cable-management kit:

–

Two rack-mount brackets and two cable-management brackets

–

Four M4 x 8-mm Phillips flathead screws

–

Six 10-32 x 3/8-inch slotted binderhead screws

• Grounding lug and wires:

–

A grounding lug with two number-10 screw holes with a 0.63-inch (16.002-mm) spacing between them

–

A wire receptacle large enough to accept a 6-AWG multistrand, copper wire

–

One grounding wire—6-AWG, 0.162-inch (4.115-mm) diameter, with approximately 0.108-inch (2.743-mm) insulation, for a total wire diameter of approximately 0.27 inches (6.858 mm). The wire length depends on your router location and site environment.

–

T wo Phillips-head machine screws with locking washers—M5 (metric), 0.031-inch (.08-mm) pitch, 0.315-inch (8-mm) length

–

A crimping tool to fit the grounding lug wire receptacle

–

A wire stripper

• Data service unit (DSU) to connect each serial port to an external network

• One serial port adapter cable for each serial port to connect the port with the remote device or network

Ethernet transceiver

• Appropriate cables to connect the router to the network and console terminal

• Power cord

• ESD-preventative wrist strap

• Port adapter documentation for configuring the interfaces

• T1 channel service unit/data service unit (CSU/DSU) that converts the High-Level Data Link Control (HDLC) synchronous

serial data stream into a T1 data stream with the correct framing and ones density to connect a serial port to a T1 network. (Some telephone systems require a minimum number of 1 bits per time unit in a data stream, called ones density.) Several T1 CSU/DSU devices are available as additional equipment, and most provide a V.35, EIA/TIA-449, or EIA-530 electrical interface.

Preparing for Workbench or Tabletop Installation

For a workbench or tabletop installation, verify the following before installing the router:

1. The router is off the floor and has adequate ventilation.

2. An adequate chassis ground (earth) connection exists for the router.

3. The router has at last 3 inches (7.62 cm) of clearance at the inlet and exhaust vents (sides of router).

4. The router has 19 inches (48.3 cm) clearance at the front and rear to allow for field replaceable unit (FRU) replacement or

installation, or to access cables or equipment.

5. Port adapter and power supply filler panels are installed if port adapters and a second power supply are not installed. There must be no empty slots.

For cable-management bracket installation instructions, see page 7.

Preparing for Rack-Mount Installation

Make these decisions before you begin the rack-mounting tasks:

• Decide whether or not you want to front- or rear-mount the chassis.

• Decide whether or not you want to attach cable-management brackets.

• Determine the type of rack—four-post or two-post—that you will be using.

Note To install the Cisco 7206 as a router shelf in a Cisco AS5800 Universal Access Server, refer to the Cisco AS5800

Universal Access Server publications online at http://www.cisco.com/univercd/cc/td/doc/product/access/acs_serv/as5800/index.htm.

3 Rack-Mount the Router

ENABLED

Cisco 7200

Series

ENABLED

LINK

SLOT 1

EJECT

SLOT 0

PCMCIA

TOKEN RING

FAST ETHERNET

ETHERNET-10BFL

IN-RING

ENABLED

4/16 Mbps

ETHERNET 10BT

ENABLED

FAST SERIAL

FE MII

FE LINK

ENABLE

CPU RESET

1O POWER

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

1 2

Rack-mount bracket Cable-management bracket

M4 x 8-mm Phillips flathead screws

53498

Brackets Front-Mounted—Chassis Protrudes from the Rack

Locate the rack-mount and cable-management brackets and screws (1, 2, 3 in the illustration above) and a Number 2 Phillips screwdriver.

1. Align the rack-mount bracket (1)—as shown above—to the side of the router. Insert and tighten the screws (3) if you are not adding the cable-management brackets. Repeat this step on the other side of the router.

Go to the “Two-Post or Four-Post Rack Installation” section on page 10.

2. If you are using the cable-management brackets, align the rack-mount bracket (1) to the side of the router, align the cable-management bracket (2) over the rack-mount bracket—as shown above—and insert the screws (3) through both. Tighten the screws. Repeat this step on the other side of the router.

Go to the “Two-Post or Four-Post Rack Installation” section on page 10.

KEN RING

T E N

ER H T

T S A

ET-10BF

N HER

Cisco 7200

Series

E L B

ENABLED

SLOT 1

EJECT

SLOT 0

PCMCIA

ENABLED

4/16 Mbps

ETHERNET 10BT

L B A

N E

FE MII

FE LINK

ENABLE

CPU RESET

1O POWER

X R

LINK

FAST ETHERNET INPUT/OUTPUT CONTROLLER

IN-RING

1 2

Cable-management bracket Rack-mount bracket

M4 x 8-mm Phillips flathead screws

53499

Brackets Front-Mounted—Chassis Recessed in Rack

Locate the rack-mount and cable-management brackets and screws (1, 2, 3 in the illustration above) and a Number 2 Phillips screwdriver.

1. Align the cable-management bracket (1) to the side of the router. Align the rack-mount bracket over it—as shown above—and insert and tighten the screws (3).

Go to the “Two-Post or Four-Post Rack Installation” section on page 10.

2. If you are not using the cable-management brackets, align the rack-mount brackets (2)—as shown above—to the router and insert and tighten the screws.

Go to the “Two-Post or Four-Post Rack Installation” section on page 10.

53500

TOKEN RING

FAST ETHERNET

ETHERNET-10BFL

Cisco 7200

Series

ENABLED

LINK

SLOT 1

EJECT

SLOT 0

PCMCIA

ENABLED

4/16 Mbps

ETHERNET 10BT

ENABLED

FAST SERIAL

FE MII

FE LINK

ENABLE

CPU RESET

1O POWER

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

IN-RING

1 2

Rack-mount bracket M4 x 8-mm Phillips flathead screws

Cable-management bracket

M4 x 8-mm Phillips flathead screws

Brackets Rear-Mounted—Front Protrudes from the Rack

1. Locate the threaded screw holes in the rear sides of the chassis.

2. Align a rack-mount bracket (1) to the threaded holes in the right side of the chassis.

3. Using a Number 2 Phillips screwdriver and two M4 x 8-mm Phillips flathead screws (2), attach the rack-mount bracket to

the router.

4. Repeat Steps 2 and 3 for the bracket on the other side of the router. If you are not installing cable-management brackets, skip to the “T wo-Pos t or Four-Post Rack Installation” section on page 10 for rack-mount instructions. Otherwise continue with Step 5.

5. Align a cable-management bracket (3) to the threaded holes in the front of the chassis.

6. Using two M4 x 8-mm Phillips flathead screws (4), thread and tighten the screws through the cable-management brack et

and into the chassis. Go to the “Two-Post or Four-Post Rack Installation” section on page 10.

TOKEN RING

FAST ETHERNET

ETHERNET-10BFL

57003

Cisco 7200

Series

ENABLED

LINK

SLOT 1

EJECT

SLOT 0

PCMCIA

ENABLED

4/16 Mbps

ETHERNET 10BT

ENABLED

FAST SERIAL

FE MII

FE LINK

ENABLE

CPU RESET

1O POWER

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

IN-RING

1 2

Rack-mount bracket M4 x 8-mm Phillips flathead screws

Cable-management bracket

M4 x 8-mm Phillips flathead screws

Brackets Rear-Mounted—Front Recessed in the Rack

1. Locate the threaded screw holes in the rear sides of the chassis.

2. Align the first rack-mount bracket (1) to the threaded holes in the right side of the chassis.

3. Using a Number 2 Phillips screwdriver and two M4 x 8-mm Phillips flathead screws (2), attach the rack-mount bracket to

the router.

5. Align a cable-management bracket (3) to the threaded holes in the front of the chassis.

6. Using two M4 x 8-mm Phillips flathead screws (4), thread and tighten the screws through the cable-management brack et

and into the chassis. Go to the “Two-Post or Four-Post Rack Installation” section on page 10.

TOKEN RING

IN-RING

Cisco 7200

ENABLED

Series

PCMCIA

ENABLED

Cisco 7200

Series

LINK

ENABLED

EJECT

SLOT 0

PCMCIA

ENABLED

4/16 Mbps

ETHERNET 10BT

ENABLED

FAST SERIAL

SLOT 1

FE MII

FE LINK

ENABLE

1O POWER

CPU RESET

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

FAST ETHERNET

ETHERNET-10BFL

TOKEN RING

IN-RING

ENABLED

4/16 Mbps

ETHERNET 10BT

LINK

ENABLED

FAST SERIAL

EJECT

SLOT 0

SLOT 1

FE MII

FE LINK

ENABLE

CPU RESET

1O POWER

FAST ETHERNET

RJ45

LINK

MII

ETHERNET-10BFL

FAST ETHERNET INPUT/OUTPUT CONTROLLER

57108

1 2 3

Two-post or Telco -type rack Rack-mount bracket 10-32 x 3/8-inch slotted binderhead screws

4 5 6

Four-post rack Rack-mount bracket 10-32 x 3/8-inch slotted binderhead screws

Two-Post or Four-Post Rack Installation

Note Inner clearance (the width between the inner sides of the two posts or rails) must be at least 17.00 inches (43.18 cm).

The height of the chassis is 5.25 inches (13.34 cm).

1. Make sure that all chassis screws holding the network processing engine or network services engine, I/O controller, and power supply are tightened and that any port adapter levers are in a locked position.

2. Make sure the rack brakes are locked or the rack is stabilized.

3. Position the router so the front is closest to you and lift it carefully into the rack. To prevent injury, avoid any sudden twists

or moves.

4. Slide the chassis into the rack, pushing it back until the brackets (2, 5) meet the mounting strips or posts on both sides of the rack.

5. Keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the holes on the rack or mounting strip (3, 6).

6. For each bracket, insert and tighten three 10-32 x 3/8-inch slotted binderhead screws (3, 6), using the top, bottom, and one other location on the bracket.

57006

1 2

Chassis ground connector Grounding lug

3 4

NETWORK PROCESSING ENGINE-300

Screws Wire

Chassis Ground Connection Installation

Note The grounding lug and Phillips-head screws are not available from Cisco Systems. Get the grounding lug from an

electrical-connector vendor and the screws from a hardware vendor. See Page 4 for the parts needed.

1. Locate the chassis ground connector (1) on the rear of your router chassis.

2. Insert the two screws (3) through the holes in the grounding lug (2).

3. Ensure that the grounding lug does not interfere with other router hardware, such as power supplies or the network

processing engine (NPE).

4. Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly to the chassis. Do not overtighten the screws.

5. Use the wire stripper to strip one end of the 6-AWG wire approximately 0.75 inches (19.05 mm).

6. Insert the 6-AWG wire (4) into the wire receptacle o n the grounding lug.

7. Use the crimping tool to carefully crimp the wire receptacle around the wire; this step is required to ensure a proper

mechanical connection.

8. Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure an adeq uate chassis ground.

4 Connect the Router to the Network

FE MII

ENABLED

PCMCIA

Auxiliary port-DTE-mode; EIA/TIA-232, DTE-DB-25

SLOT 1

EJECT

SLOT 0

RJ-45

MII

RJ45

1O PWR

LINK

CPU RESET

FAST ETHERNET INPUT/OUTPUT CONTROLLER

57007

Modem

connector (for modem, CSU/DSU, etc.)

Console port-DCE-mode; EIA/TIA-232, DCE-DB-25

Console terminal

connector (for data terminal)

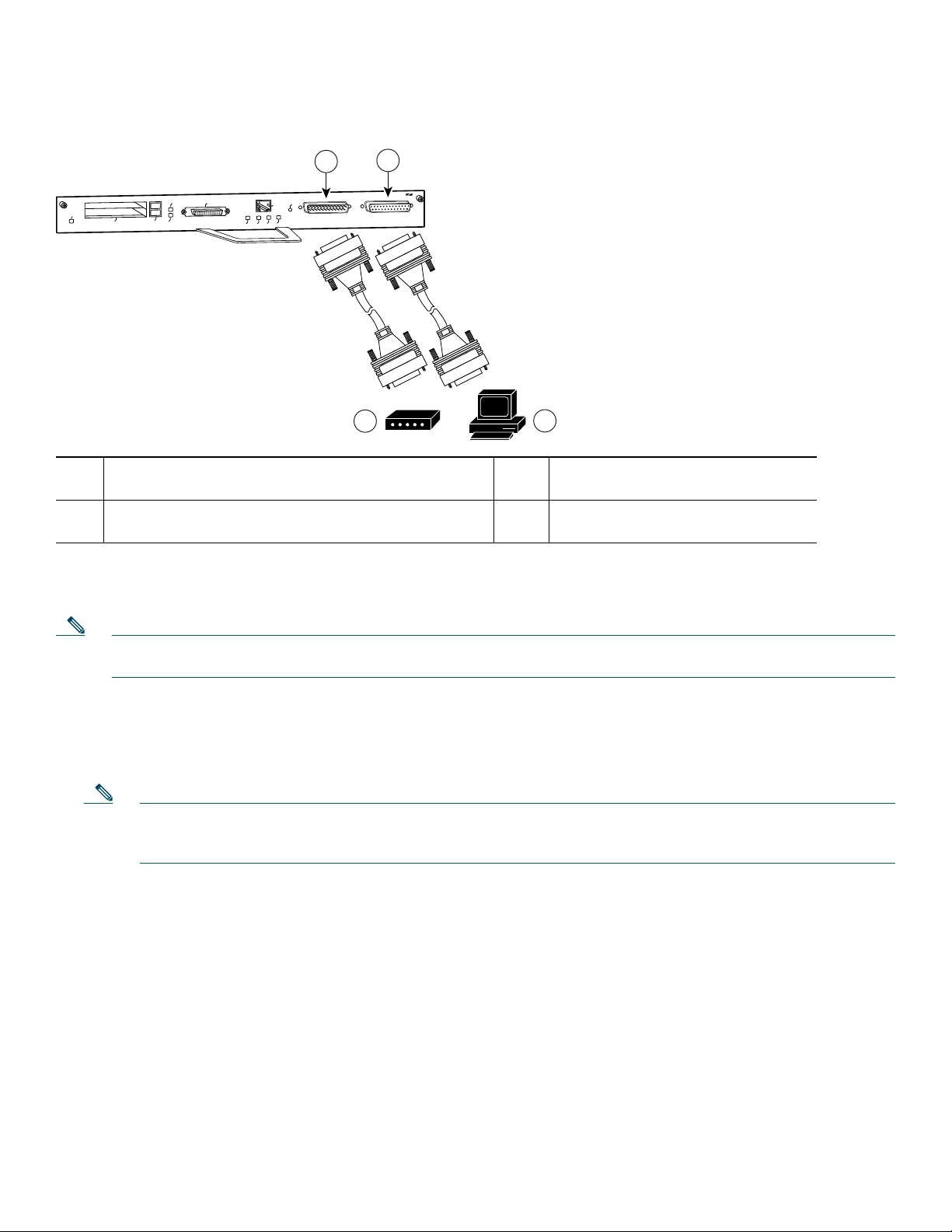

I/O Controller Console and Auxiliary Port Cable Connections

Note Both the console and auxiliary ports are asynchronous serial ports; any devices connected to these ports must be capable

of asynchronous transmission.

1. Before connecting a terminal to the console port, configure the terminal to match the router console port as follows: 9600 baud, 8 data bits, no parity, 2 stop bits (9600 8N2).

2. Use an EIA/TIA-232 DCE console cable to connect the terminal to the console port. After you establish normal router operation, you can disconnect the terminal.

Note You must supply your own interface cable between the auxiliary port and the equipment you are connecting. For

console and auxiliary port pinouts, see the online Cisco 7206 Installation and Configuration Guide, Chapter 3, “Console Port Signals and Auxiliary Port Signals.”

Depending on the I/O controller installed in your Cisco 7206 router, y ou may have an MII port, RJ-45 ports, or no Ethernet port. The following table provides information about the types of ports on different I/O controller models.

Product Number Description

C7200-I/O-2FE/E 2 autosensing Ethernet/Fast Ethernet ports; equipped with 2 RJ-45 receptacles for 10/100-Mbps

operation.

Note This I/O controller works only with an NPE-225, board label 72-3453 rev. A0 or higher, or

faceplate label 800-05418-03 rev. A0 or higher. To check for the correct NPE-225 version in software, use the show 7200 command and look under CPU EEPROM, for Hardware Revision

1.3 or higher.

C7200-I/O-FE

C7200-I/O Has no Fast Ethernet port. C7200-I/O-FE-MII

1. The Product Number C7200-I/O-FE does not specify MII because both an MII and an RJ-45 receptacle are included.

2. The I/O controller with the Product Number C7200-I/O-FE-MII has a single MII Fast Ethernet receptacle only.

1 Fast Ethernet port; equipped with an MII receptacle and a n RJ-45 receptacle for use at 100-Mbp s full-duplex or half-duplex operation. Only 1 receptacle can be configured for use at a time .

1 Fast Ethernet port; equipped with a single MII receptacle.

Ethernet Port Connections

I/O controllers have the possibility of one or two types of Ethernet connections: MII connections and RJ-45 connections for 10/100-Mbps operation. For more information about Ethernet ports, see the online Cisco 7206 Installation and Configuration

Guide.

MII Connections

Attach the MII cable to the MII port and tighten the knurled thumbscrews on the cable to the jackscrews on the port.

RJ-45 Connections

Warning

To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45 connectors. Use caution when connecting cables.

To ide ntify the RJ-45 ca ble type, hold the two ends of the cable next to ea ch other so you can see the colored w ires inside the ends. The straight-through wire type has colored wires in the same sequence at both ends.

In the crossover wire type, the first colored wire at the far left is the third colored wire at the other end. The second colored wire at the far left is the sixth colored wire at the other end.

Attach any RJ-45 Ethernet cables to the appropriate connector.

Port Adapter Cable Connections

The instructions for connecting the cables for each port adapte r insta lled in the Cisco 7206 router is in the respectiv e online note for each port adapter. The documents are available on the Documentation CD-ROM and on Cisco.com at http://www.cisco.com/univercd/cc/td/doc/product/core/7206/port_adp/index.htm.

5 Start and Configure the Router

Power Cable Connections

Warning

This unit might have more than one power cord. To reduce the risk of electric shock, disconnect the two power supply cords before servicing the unit.

The AC power supply has double pole/neutral fusing.

Connecting AC-Input Power

1 2 3

PWR OK LED Power switch AC power cable

57012

Cable-retention clip

Hole for nylon cable

1. At the rear of the router, check that the power switch (2) is in the off (O) position.

2. Slide the cable-retention clip (4) up, away from the AC port, and plug in the power cable (3).

3. Secure the cable in the power supply AC port by sliding the cable-retention clip down until it fits around the connector. The

cable-retention clip provides strain relief for the AC power cable.

4. For AC power cable strain relief, secure the cable to the power supply handle by inserting a nylon cable tie through the hole (5) in the handle and around the cable.

5. Plug the AC power supply cable into the AC power source. Repeat Step 1. through Step 5. for the second power supply (if present).

Connecting DC-Input Power

Note The color coding of the DC-input power supply leads depends on the color coding of the DC power source at your site.

Typically, green or green/yellow is used for ground. Make certain the l ead color coding you ch oose for the DC-input power supply matches lead color coding used at the DC power source.

Warning

When you install the unit, the ground connection must always be made first and disconnected last.

57013

1 2

1. At the rear of the router, check that th e power switch is in the off (O) position.

2. Ensure that the –V and +V leads are disconnected from the power source.

3. Using a wire stripper, strip approximately 0.55 inch (14 mm) from the –V, +V, and ground leads (2).

4. Insert the stripped end of the ground lead (1) all the way into the ground lead receptacle on the DC-in put power supply,

5. Insert the stripped end of the +V lead all the way into the +V lead receptacle and tighten the receptacle screw using the same

6. After tightening the receptacle screw for the ground, +V, and –V DC-input leads, use a cable tie (3) to secure the three leads

Ground lead service loop DC power leads

and tighten the receptacle screw using a 3/16-inch flat-blade screwdriver.

3/16-inch flat-blade screwdriver. Repeat this step for the –V lead.

Note Make sure the entire stripped end of each lead is inserted all the way into its receptacle. If any exposed wire at the

stripped end of a lead is visible after inserting the lead into its receptacle, remove the lead from the receptacle, use the wire stripper to cut the stripped end of the lead, and repeat Step 3. through Step 5.

to the power supply faceplate.

Note When securing the ground, +V, and –V DC-input leads to the power supply faceplate, leave a small service loop in

the ground lead to ensure that the ground lead is the last lead to disconnect from the power supply if a great deal of strain is placed on all three leads.

Cable tie

Power switch

7. Connect the ground, +V, and –V leads to the power so urce.

Observing System Startup and Performing a Basic Configuration

Check conditions prior to system startup:

1. Check that all hardware parts and cables are securely attached to the chassis.

2. Check that a Flash Disk or Flash memory card is installed.

3. Check that the console terminal is turned on.

Starting and Configuring the Router

1. Place the power switch in the on (|) position. Repeat this action if there is a second power suppl y.

2. Listen for the fans; they should be operating as soon as power is turned on.

3. During the boot process, observe the system LEDs. The power LED on the I/O controller comes on immediately. Port

adapter LEDs go on and off irregularly.

4. Observe the initialization process. When the system boot is complete (a few seconds), the network processing engine begins to initialize the port adapters and I/O controller. The LEDs on each port adapter behave differently (most flash on and off). The ENABLED LED on each port adapter goes on when initialization is completed and the console screen displays a script and system banner.

Note For more information on LEDs, refer to the “LED Description” section in Chapter 1 of the Cisco 7206 Installation

and Configuration Guide.

5. When you start up the router for the first time, the system automatically enters the setup command facility, which determines which port adapters are installed and prompts you for configuration information for each one. On the console terminal, after the system displays the system banner and hardware configuration, you w ill see the following System Configuration Dialog prompt:

--- System Configuration Dialog ---

At any point you may enter a questions mark ‘?’ for help. Use ctrl-c to abort configuration dialog at any prompt. Default settings are in square brackets ‘[]’.

continue with configuration dialog? [yes]:

6. Enter yes or press Return to enter the initial configuration dialog.

You have the option of proceeding with the setup command facility to configure the interfaces, or exiting from setup and using configuration commands to configure global (system-wide) and interface-specific parameters. You do not have to configure the interfaces immediately; however, you cannot ena ble the interfaces or connect them to any networks until you have configured them.

Many of the port adapter LEDs do not go on until you have configured the interfaces. To verify correct operation of each interface, complete the first-time startup procedures and configuration, and then refer to the configuration note for each port adapter for LED descriptions and to check the status of the interfaces.

If the system does not complete each of the steps in the startup procedure, refer to the online Cisco 7 206 Installation and Configuration Guide, Appendix A, “Troubleshooting the Installation,” for troubleshooting recommendations and procedures.

Note You need to acquire the correct network addresses from your system administrator or consult your network plan to

determine correct addresses before you can complete the router configuration.

Performing a Basic Configuration Using the Setup Facility

If you do not plan to use AutoInstall, do not connect the router’s serial (WAN) cable to the channel service unit/data service unit (CSU/DSU). If the WAN cable is not connected, the router boots from Flash memory and goes auto matically into the setup facility.

Note You can run the setup facility any time you are at the enable prompt (#) by entering the setup command.

If the serial (WAN) cable is connected to the CSU/DSU and the ro uter does not have a co nfiguration stored in NVRAM, the router attempts to run AutoInstall at startup. The router may take several minutes to determine that AutoInstall is not set up to a remote TCP/IP host. Once the router determines that AutoInstall is not configured, it defaults to the setup facility.

Configuring Global Parameters

When you first start the setup program, you must configure the global parameters. These parameters are used for controlling system-wide settings. Complete the following steps to enter the global parameters:

1. Connect a console terminal to the console port on the I/O controller.

2. Power on the router.

The system boots from Flash memory. After startup, the console screen displays a script and a system banner—after about 30 seconds—similar to the following. When you see this information, you have success fully booted your router:

Restricted Rights Legend

Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) of the Commercial Computer Software - Restricted Rights clause at FAR sec. 52.227-19 and subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS sec. 252.227-7013.

cisco Systems, Inc. 170 West Tasman Drive San Jose, California 95134-1706

Cisco Internetwork Operating System Software IOS (tm) 7200 Software (C7200-J-M), Released Version 11.1(17)CA Copyright (c) 1986-1996 by cisco Systems, Inc. Compiled Sun 21-Apr-96 04:10 by Image text-base: 0x60010890, data-base: 0x605F0000

ROM: System Bootstrap, Version 11.1(17)CA, RELEASED SOFTWARE ROM: 7200 Software (C7200-J-M), Released Version 11.1(17)CA

router uptime is 8 minutes System restarted by reload System image file is "c7200-j-mz", booted via tftp from 10.1.10

cisco 7206 (NPE 150) processor with 12288K/4096K bytes of memory. R4700 processor, Implementation 33, Revision 1.0 (Level 2 Cache) Last reset from power-on Bridging software. SuperLAT software copyright 1990 by Meridian Technology Corp). X.25 software, Version 2.0, NET2, BFE and GOSIP compliant.

TN3270 Emulation software (copyright 1994 by TGV Inc). 4 Ethernet/IEEE 802.3 interfaces. 5 FastEthernet/IEEE 802.3 interfaces. 8 Serial network interfaces. 125K bytes of non-volatile configuration memory.

20480K bytes of Flash PCMCIA card at slot 0 (Sector size 128K). 4096K bytes of Flash internal SIMM (Sector size 256K). Configuration register is 0x0

Note The first two sections of the configuration script (the banner and the installed hardware) appear only at initial

system startup. On subsequent uses of the setup command facility, the script begins with a System Configuration Dialog as shown in the following example:

--- System Configuration Dialog ---

At any point you may enter a question mark '?' for help. Use ctrl-c to abort configuration dialog at any prompt. Default settings are in square brackets '[]'.

3. When asked if you want to enter the initial configuration dialog and see the current interface summary, enter yes or press Return:

Would you like to enter the initial configuration dialog? [yes]:

First, would you like to see the current interface summary? [yes]:

In the following example, the summary shows a Cisco 7206 router at first-time startup; that is, nothing is configured:

Any interface listed with OK? value "NO" does not have a valid configuration

Interface IP-Address OK? MethodStatus Protocol Ethernet0/0 unassigned NO not set downdown Ethernet0/1unassigned NO not set downdown

4. Choose which protocols to support on your interfaces. For Internet Protocol (IP)-only installations, you can accept the default values for most of the questions. A typical configuration using IP , IPX, and AppleTalk follows and continues through Step 10.:

Configuring global parameters:

Enter host name [Router]:

5. Enter enable secret, enable, and virtual terminal passwords:

The enable secret password is a one-way cryptographic secret password used instead of the enable password when it exists.

Enter enable secret: barney

The enable password is used when there is no enable secret password and when using older software and some boot images.

Enter enable password: betty

Enter virtual terminal password: fred

6. The Simple Network Management Protocol (SNMP) is the most widely supported open standard for network management. It provides a means to access and set configuration and run-time parameters of routers and communication servers. SNMP defines a set of functions that can be used to monitor and control network elements.

Enter yes or press Return to accept SNMP management; enter no to refuse it:

Configure SNMP Network Management? [yes]: Community string [public]:

7. For the following query, do not enable CLNS:

Configure CLNS? [no]:

8. For the following queries, enable routing on AppleTalk and IPX:

Configure AppleTalk? [no]: yes Multizone networks? [no]: yes

Configure IPX? [no]: yes

9. For the following queries, do not enable VINES, XNS, DECnet, or bridging:

Configure Vines? [no]: Configure XNS? [no]: Configure DECnet? [no]: Configure bridging? [no]:

10. In most cases you will use IP routing. If you are using IP routing, you must also select an interior routing protocol. You can specify only one of two interior routing protocols to operate on your system usi ng the setup faci lity: Interior Gateway Routing Protocol (IGRP) or Routing Information Protocol (RIP). To configure IP routing, enter yes (the default) or press Return, and then select an interior routing protocol:

Configure IP? [yes]: Configure IGRP routing? [yes]: Your IGRP autonomous system number [1]: 15

In the following example, routing is enabled on AppleTalk and IPX; IP is already selected:

Configure AppleTalk? [no]: yes Multizone networks? [no]: yes

Configure IPX? [no]: yes

The following sample display includes a continuous listing of all configuration parameters selected in Step 4. through Step 10.. These parameters are shown in the order in which they appear on your console terminal. Only IP, IPX, and AppleTalk are the selected protocols for this example.

Configuring global parameters:

Enter host name [Router]: router

The enable secret is a one-way cryptographic secret used instead of the enable password when it exists.

Enter enable secret: barney

The enable password is used when there is no enable secret and when using older software and some boot images.

Enter enable password: betty Enter virtual terminal password: fred

Configure SNMP Network Management? [yes]: Community string [public]: Configure IP? [yes]: Configure IGRP routing? [yes]: Your IGRP autonomous system number [1]: 15 Configure Vines? [no]: Configure IPX? [no]: y Configure AppleTalk? [no]: y Multizone networks? [no]: y Configure Apollo? [no]: Configure DECnet? [no]: Configure XNS? [no]: Configure CLNS? [no]: Configure bridging? [no]:

11. Save your settings to NVRAM. (Refer to the “Saving the Running C onfiguration to NVRAM” section on p age 27.)

Configuring Interfaces

Following are the steps for configuring interfaces to allow communication over a LAN or WAN. To configure the interface parameters, you need your interface network addresses and subnet mask information. Consult with your network administrator for this information.

Configuring Ethernet Interfaces

In the following example, the system is being configured for an Ethernet LAN using IP.

1. Respond to the prompts as follows, using your own addresses and mask at the setup prompts:

Configuring interface parameters: Configuring interface Ethernet0/0:

Is this interface in use? [yes]:

Use the 100 Base-TX (RJ-45) connector? [yes]:

Configure IP on this interface? [no]: yes

IP address for this interface: 10.1.1.10 Number of bits in subnet field [0]: Class A network is 1.0.0.0, 0 subnet bits; mask is 255.0.0.0

2. Determine if you are going to enable IPX on thisinterface; if you are, enter the unique IPX network number:

Configure IPX on this interface? [no]: yes IPX network number [2]:

3. If you will be using AppleTalk on the interface, enter yes. Enter yes to configure for extended AppleT alk networks, and then enter the cable range number. Enter the zone name and any other additional zones that are associated with your local zone:

Configure AppleTalk on this interface? [no]: yes

Extended AppleTalk network? [no]: yes AppleTalk starting cable range [0]:

4. Save your settings to NVRAM. (Refer to the “Saving the Running Configuration to NVRAM” section on p age 27.)

Note If additional Ethernet interfaces are available in your sy stem, you are promp ted for their configuration as well.

Configuring Synchronous Serial Interfaces

Synchronous serial interfaces are configured to allow connection to WA Ns through a CSU/DSU. Complete the followi ng steps to configure the serial ports:

1. To co nfigure serial port 0, enter yes:

Configuring interface Serial1/0:

Is this interface in use? [no]: yes

2. Determine which protocols you want on the synchronous serial interface and enter the appropriate responses:

Configure IP unnumbered on this interface? [no]:

IP address for this interface: 10.1.1.20 Number of bits in subnet field [0]: Class A network is 1.0.0.0, 0 subnet bits; mask is 255.0.0.0

Configure IPX on this interface? [no]: yes

IPX network number [2]:

Configure AppleTalk on this interface? [no]: yes

Extended AppleTalk network? [no]: AppleTalk network number [1]:

3. Save your settings to NVRAM. (Refer to the “Saving the Running Configuration to NVRAM” section on p age 27.)

Note If additional synchronous serial interfaces are available in your system, you are prompted for their configuration as

well.

The following sample display includes a continuous listing of all interface configuration parameters selected for Ethernet and synchronous serial interfaces. These parameters are shown in the order in which they appear on your console termi nal. Only one Ethernet and one synchronous serial interface are configured for this example.

Configuring interface parameters:

Configuring interface Ethernet0/0:

Is this interface in use? [no]: yes Configure IP on this interface? [no]: yes

IP address for this interface: 10.1.1.10 Number of bits in subnet field [0]: Class A network is 1.0.0.0, 0 subnet bits; mask is 255.0.0.0

Configure IPX on this interface? [no]: yes

IPX network number [2]: 10

Configure AppleTalk on this interface? [no]: yes

Extended AppleTalk network? [no]: yes AppleTalk starting cable range [0]:

Configuring interface Serial1/0:

Is this interface in use? [no]: yes Configure IP on this interface? [no]: yes Configure IP unnumbered on this interface? [no]:

IP address for this interface: 10.1.1.20 Number of bits in subnet field [0]: Class A network is 1.0.0.0, 0 subnet bits; mask is 255.0.0.0

Configure IPX on this interface? [no]: yes

IPX network number [2]:

Configure AppleTalk on this interface? [no]: yes

Extended AppleTalk network? [no]: AppleTalk network number [1]:

The following configuration command script was created:

hostname Router enable secret 5 $1$u8z3$PMYY8em./8sszhzk78p/Y0 enable password wilma line vty 0 4 password s snmp-server community public

ip routing no vines routing ipx routing appletalk routing no apollo routing no decnet routing no xns routing no clns routing no bridge 1 ! Turn off IPX to prevent network conflicts. interface Ethernet0/0 no ipx network

interface Ethernet0/0 ip address 10.1.1.10 255.0.0.0 appletalk cable-range 0-0 0.0 appletalk discovery no mop enabled !

interface serial1/0 ip address 10.1.1.20 255.0.0.0 ip route-cache cbus no keepalive ! router igrp 15 network 1.0.0.0

! end

Use this configuration? [yes/no]: yes [OK] Use the enabled mode ‘configure’ command to modify this configuration.

Press RETURN to get started!

Your Cisco 7206 router is now minimally configured and ready to use. You can use the setup command if you want to modify the parameters after the initial configuration. To perform more complex configurations, use the configure command.

For information on additional interface configuration and specific system configurations, refer to the modular configuration and modular command reference publications in the Cisco IOS software configuration documentation set that corresponds to the software release installed on your Cisco hardware. See Page 1 for documentation URLs.

Saving the Running Configuration to NVRAM

To store the configuratio n or changes to your startup configuration in NVRAM, enter the copy running-config startup-config command at the Router# prompt:

Router# copy running-config startup-config

Using this command saves the configuration settings that you created in the router using configuration mode and the setup facility. If you fail to do this, your configuration will be lost the next time you reload the router.

Checking the Running Configuration Settings

To ch eck th e value of th e settings you have en tered, e nter the show running-config comman d at the Router# prompt:

Router# show running-config

T o review chan ges you make to the configuration, use the EXEC mode show startup-config command to display the information stored in NVRAM.

Viewing Your System Configuration

You can use the show version (or show hardware) and the show diag commands to displ ay the sy stem hardware (the network processing engine and the number of interfaces installed), the software version, the names and sources of configuration files, and the boot images. Use the show diag command to determine what type of port adapters and I/O controller are installed.

For specific information on the show version, show diag, and other commands, refer to the modular configuration and modular command reference publications in the Cisco IOS software configuration documentation set that corresponds to the software release installed on your Cisco hardware.

Performing Complex Configurations

After you have installed your Cisco 7206 router hardware and minimally configured the system, you might need to perform more complex configurations, which are beyond the scope of this publication.

For specific information on system and interface configuration, refer to the modular configuration and modular command reference publications in the Cisco IOS so ft ware configuration documentation set that corresponds to the software release installed on your Cisco hardware. These publications contain additional information on using the configure command.

Replacing or Recovering a Lost Password

See the Cisco 7206 Installation and Configuration Guide , Chapter 4, “Observing System Startup and Performing a Basic Configuration” for instructions. It is possible to recover the enable or console login password. The enable secret password is encrypted and must be replaced with a new enable secret password.

6 After Installation

57014

This section contains hardware replacement instructions and information about contacting the Technical Assistance Center.

Note The Flash memory card, Flash Disk, and port adapters support online insertion and removal (OIR).

NETWORK PROCESSING ENGINE-300

Network processing engine

Captive installation screws

Replace the Network Processing Engine

1. Power down the router.

2. Disconnect the router from the power source.

3. On the network processing engine (NPE) (1), unscrew the captive installation screws (2).

4. Grasp the handle and pull the NPE from the chassis.

5. Insert the NPE and tighten the captive installation screws.

6. Connect the router to the power source and power up the router.

Also see the Network Processing Engine or Network Services Engine Installation and Configuration publication at http://www.cisco.com/univercd/cc/td/doc/product/core/7206/fru/npense/index.htm.

ENABLED

4/16 Mbps

ETHERNET 10BT

ENABLED

FAST SERIAL

FE MII

ENABLE

FE LINK

CPU RESET

1O POWER

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

Cisco 7200

Series

ENABLED

LINK

SLOT 1

EJECT

PCMCIA

SLOT 0

IN-RING

12 2

TOKEN RING

FAST ETHERNET

ETHERNET-10BFL

57015

I/O controller

Captive installation screws

Replace the I/O Controller

Note Before powering down the router , use the copy running-config tftp command to save the router’s running configuration

to a TFTP file server.

1. Power down the router.

2. Disconnect the router from the power source.

3. Remove any I/O controller cables.

4. On the I/O controller (1), unscrew the captive installation screws (2).

5. Grasp the handle and pull the I/O controller from the chassis.

6. Insert the I/O controller and tighten the captive installation screws.

7. Connect any I/O controller cables.

8. Connect the router to the power source and power up the router.

9. Retrieve and restore the configuration from the TFTP server and copy it to NVRAM. Use the copy tftp running-config

command to copy the saved configuration from the TFTP file server.

10. Enter the show running-config command to display the currently running configuration on the terminal. Review the display and ensure that the configuration information is complete and correct.

11. When you have verified that the currently running configuration is correct, enter the copy running-config startup-config command to save the retrieved configuration in NVRAM. Otherwise, the new configuration will be lost when y ou restart the system.

See the Input/Output Controller Replacement Instructions for complete instructions: http://www.cisco.com/univercd/cc/td/doc/product/core/7206/fru/3224iofe.htm.

57016

1 2 3

SLOT 1

EJECT

ENABLED

1 2

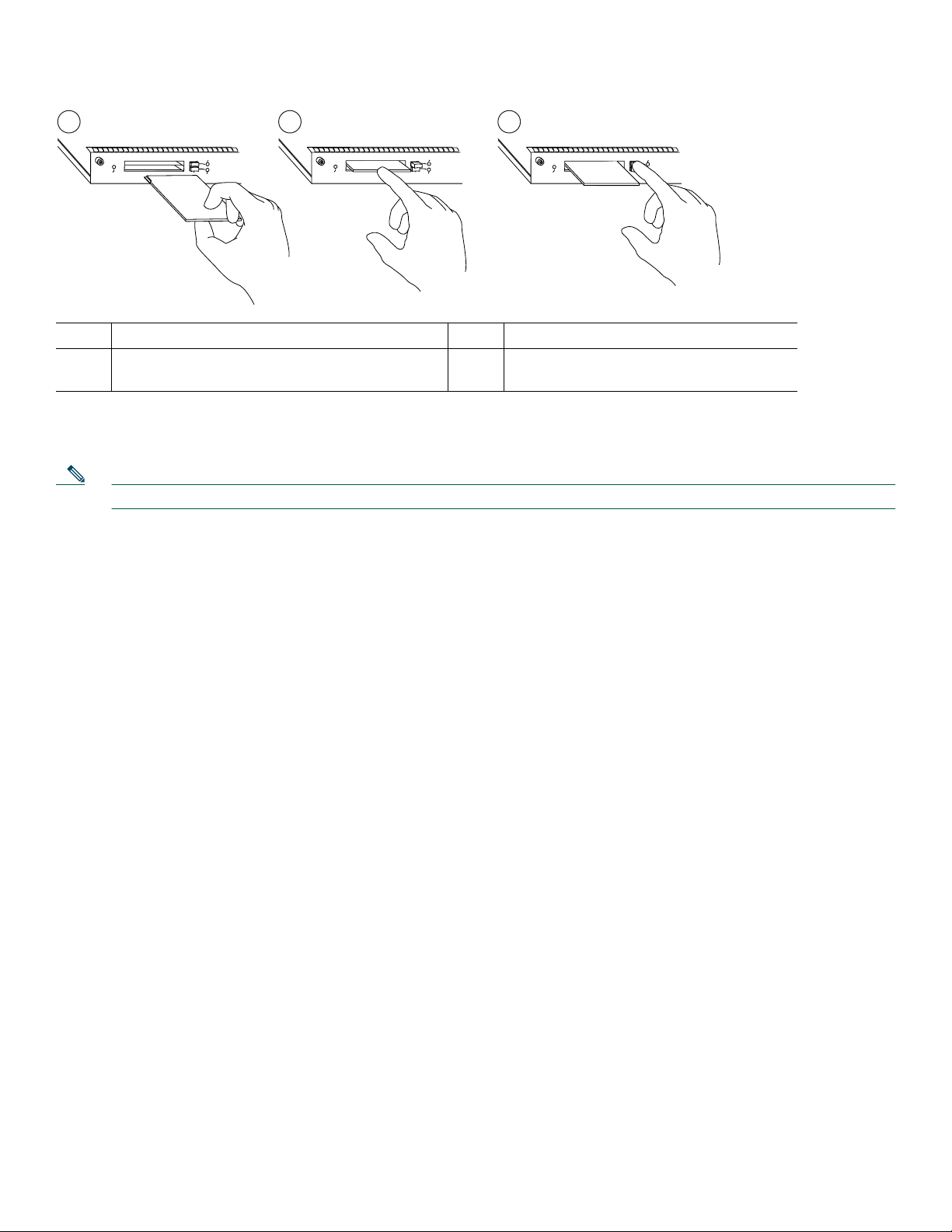

Insert the Flash memory card or F lash Disk Insertion complete—Flash memory card or

SLOT 0

ENABLED

SLOT 1

EJECT

SLOT 0

ENABLED

Press the ejector button

SLOT 1

EJECT

SLOT 0

Flash Disk protrudes

Replace the Flash Memory Card or Flash Disk

Note Flash memory cards and Flash Disks are replaceable while the system is operating.

12. Remove the Flash memory card or Flash Disk by pushing the ejector button (3).

13. Insert the new Flash memory card or Flash Disk (1 and 2). The Flash memory card or Flash Disk protrudes from the I/O

controller when it is completely inserted.

Also see Using the Flash Disk at http://www.cisco.com/univercd/cc/td/doc/product/core/cis7000/ frus/5819fdsk.htm. Also see Memory Replacement Instructions for the Network Processing Engine or Network Services Engine and I/O

Controller at http://www.cisco.com/univercd/cc/td/doc/product/core/7206/fru/memory/index.htm.

LINK

ENABLED

Cisco 7200

Series

ENABLED

1 2 3

Port adapter in place Port adapter lever in unlocked position Port adapter partially removed or installed

SLOT 1

EJECT

SLOT 0

PCMCIA

ETHERNET 10BT

ENABLED

FAST SERIAL

CPU RESET

RJ-45

FE MII

MII

RJ45

1O PWR

LINK

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

FAST ETHERNET

Slot guide

Port adapter lever in locked position

Cisco 7200

Series

ENABLED

PCMCIA

ETHERNET 10BT

LINK

EJECT

ENABLED

FE MII

SLOT 1

SLOT 0

CPU RESET

RJ-45

MII

RJ45

1O PWR

LINK

TOKEN RING

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

TOKEN RING

FAST ETHERNET

57037

Replace a Port Adapter or Service Adapter

1. To remove a port adapter, place the port adapter lever in the unlocked position (2).

2. Grasp the handle and pull the port adapter from the router, about halfway out of its slot (3). If you are removing a blank

port adapter, pull the blank port adapter completely out of the chassis slot.

3. With the port adapter halfway out of the slot, disconnect all cables from the port adapter. After disconn ecting the cables, pull the port adapter from its chassis slot.

4. T o insert the port adapter, carefully align the port adapter carrier between the upper and the lower edges of the port adapter slot (4) and slide the new port adapter halfway into the port adapter slot (3).

5. Connect all required cables to the port adapter. After connecting all required cables, carefully slide the port adapter all the way into the slot until the port adapter is seated in the router midplane.

6. After the port adapter is properly seated, lock the port adapter lever (5).

Also see the appropriate port adapter documentation at http://www.cisco.com/univercd/cc/td/doc/product/core/7206/port_adp/index.htm.

280-Watt AC-Input Power Supply Replacement Instructions at http://www.cisco.com/univercd/cc/td/doc/product/core/7206/fru/3227pwr6.htm.

280-Watt DC-Input Power Supply Replacement Instructions at http://www.cisco.com/univercd/cc/td/doc/product/core/7206/fru/3420dcp6.htm.

1 2 3

Power switch PWR OK LED AC/DC power input connection

5 4

Captive installation screws

Handle

7038

Caution Do not mix power supplies in Cisco 7206 routers. In dual power supply configurations, both power supplies must

be of the same type (two AC-input power supplies or two DC-input power supplies).

Caution To ensure adequate airflow across the router power supplies, a power supply or a power supply filler plate must be

installed in each power supply bay . The illustration on page 29 shows a Cisco 7206 with an installed power supply filler plate.

Replace the Power Supply

1. Power down the router.

2. Disconnect the router from the power source (3).

3. Unscrew the captive installation screws (4).

4. Grasp the handle (5) and pull the power supply out of the chassis.

5. Insert a new power supply of the same type that you removed and tighten the captive installa tion screws.

6. Connect the power supply to the power source and power up the router. Also see the power supply documentation URLs

listed on page 32.

7 Technical Assistance

Cisco provides Cisco.com as a starting point for all technical assistance. Customers and partners can obtain documentation, troubleshooting tips, and sample configurations from online tools by using the Cisco Technical Assistance Center (TAC) Web Site. Cisco.com registered users have complete access to the techn ical su pport re sources on the Cisco TAC Web Site.

Cisco.com

Cisco.com is the foundation of a suite of interactive, networked services that provides immedi ate, open access to Cisco information, networking solutions, services, programs, and resources at any time, from anyw here in the world .

Cisco.com is a highly integrated Internet application and a powerful, easy-to-use tool that provid es a broad ra nge of features and services to help you to

• Streamline business processes and improve productivity

• Resolve technical issues with online support

• Download and test software packages

• Order Cisco learning materials and merchandise

• Register for online skill assessment, training, and certification programs

Y ou can self-register on Cisco.com to obtain customized information and service. T o access Cisco.com, go to the following URL: http://www.cisco.com

Technical Assistance Center

The Cisco TAC is available to all customers who need technical assistance with a Cisco product, technology, or solution. Two types of support are available through the Cisco TAC: the Cisco TAC Web Site and the Cisco TAC Escalation Center.

Inquiries to Cisco TAC are categorized according to the urgency of the issue:

• Priority level 4 (P4)—You need information or assistance concerning Cisco product capabilities, product installa tion, or basic product configuration.

• Priority level 3 (P3)—Your network performance is degraded. Network functionality is noticeably impaired, but most business operations continue.

• Priority level 2 (P2)—Your production network is severely degraded, affecting significant aspects of business operations. No workaround is available.

• Priority level 1 (P1)—Your production network is down, and a critical impact to business operations will occur if service is not restored quickly. No workaround is available.

Which Cisco TAC resource you choose is based on the priority of the problem and the conditions of service contracts, when applicable.

Cisco TAC Web Site

The Cisco TAC Web Site allows you to resolve P3 and P4 issues yourself, saving both cost and time. The site provides around-the-clock access to online tools, knowledge bases, and software. To access the Cisco T AC Web Site, go to the following URL:

http://www.cisco.com/tac All customers, partners, and resellers who have a valid Cisco services contract have complete access to the technical support

resources on the Cisco T AC Web Site. The Cisco TAC Web Site requires a Cisco.com login ID and password. If you have a valid service contract but do not have a login ID or password, go to the following URL to register:

http://www.cisco.com/register/

If you cannot resolve your technical issues by using the Cisco TAC Web Site, and you are a Cisco.com registered user, you can open a case online by using the TAC Case Open tool at the following URL:

http://www.cisco.com/tac/caseopen If you have Internet access, it is recommended that you open P3 and P4 cases through the Cisco TAC Web Site.

Cisco TAC Escalation Center

The Cisco TAC Escalation Center addresses issues that are classified as priority level 1 or priority level 2; these classifications are assigned when severe network degradation significantly impacts business operations. When you contact the TAC Escalation Center with a P1 or P2 problem, a Cisco TAC engineer will automatically open a case.

To obtai n a directory of toll-free Cisco TAC telephone numbers for your country, g o to the following URL: http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml Before calling, please check with your network operations center to determine the level of Cisco support services to which your

company is entitled; for example, SMARTnet, SMARTnet Onsite, or Network Supported Accounts (NSA). In addition, please have available your service agreement number and your product serial nu mber.

Corporate Headquarters

, t

Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA www.cisco.com Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 526-4100

European Headquarters

Cisco Systems International BV Haarlerbergpark Haarlerbergweg 13-19 1101 CH Amsterdam The Netherlands www-europe.cisco.com Tel: 31 0 20 357 1000 Fax: 31 0 20 357 1100

Americas Headquarters

Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA www.cisco.com Tel: 408 526-7660 Fax: 408 527-0883

Asia Pacific Headquarters

Cisco Systems, Inc. 168 Robinson Road #28-01 Capital Tower Singapore 068912 www.cisco.com Tel: +65 6317 7777 Fax: +65 6317 7799

Cisco Systems has more than 200 offices in the following countries. Addresses, phone numbers, and fax numbers are listed on the

Cisco Website at www.cisco.com/go/offices

Argentina • Australia • Austria • Belgium • Brazil • Bulgaria • Canada • Chile • China PRC • Colombia • Costa Rica • Croatia • Cyprus • Czech Republic • Denmark Dubai,UAE •Finland • France • Germany • Greece • Hong Kong SAR • Hungary • India • Indonesia • Ireland • Israel • Italy • Japan • Korea • Luxembourg • Malaysia Mexico • The Netherlands • New Zealand • Norway • Peru • Philippines • Poland • Portugal • Puerto Rico • Romania • Russia • Saudi Arabia • Scotland • Singapore Slovakia •Slovenia • South Africa • Spain • Sweden • Switzerland • Taiwan • Thailand • T urkey • Ukraine • United Kingdom • United S t a te s • Venezuela • Vietnam • Zimbabwe

CCVP, the Cisco logo, and Welcome to the Human Network are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn is a service mark of Cisco Systems, Inc.; and Access Registra Aironet, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo Cisco Unity, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, IP/TV, iQ Expertise, the iQ logo, iQ Ne Readiness Scorecard, iQuick Study, LightStream, Linksys, MeetingPlace, MGX, Networkers, Networking Academy, Network Registrar, PIX, ProConnect, ScriptShare, SMARTnet, StackWise, The Fastest Way t Increase Your Internet Quotient, and TransPath are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0711R)

Printed in the USA on recycled paper containing 10% postconsumer waste.

78-12771-04

Cisco Systems 7206 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Documentation and Resources

Document Revision History

Documentation Survey

Related Documentation

Port Adapter Documentation

Other Useful Links

Obtaining Documentation

World Wide Web

Documentation CD-ROM

Ordering Documentation

Documentation Feedback

2 Prepare for Installation

Site Preparation and Unpacking

Tools and Parts

Preparing for Workbench or Tabletop Installation

Preparing for Rack-Mount Installation

3 Rack-Mount the Router

Two-Post or Four-Post Rack Installation

Chassis Ground Connection Installation

4 Connect the Router to the Network

I/O Controller Console and Auxiliary Port Cable Connections

Ethernet Port Connections

MII Connections

RJ-45 Connections

Port Adapter Cable Connections

5 Start and Configure the Router

Power Cable Connections

Connecting AC-Input Power

Connecting DC-Input Power

Observing System Startup and Performing a Basic Configuration

Starting and Configuring the Router

Performing a Basic Configuration Using the Setup Facility

Configuring Global Parameters

Configuring Interfaces

Saving the Running Configuration to NVRAM

Checking the Running Configuration Settings

Viewing Your System Configuration

Performing Complex Configurations

Replacing or Recovering a Lost Password

6 After Installation

Replace the Network Processing Engine

Replace the I/O Controller

Replace the Flash Memory Card or Flash Disk

Replace a Port Adapter or Service Adapter

Replace the Power Supply

7 Technical Assistance

Cisco.com

Technical Assistance Center

Cisco TAC Web Site

Cisco TAC Escalation Center
