Beyond Access:

Enabling the Full-Service Branch

Quick Reference Guide: Access Routers

Cisco SOHO, 800, 1700, 2600, 3600,
3700, 7200, 7300, and 7400 Series

Beyond Access:

Enabling the Full-Service Branch

This is your guide to Cisco access routers, the widest and most

versatile portfolio of products enabling the deployment of full

services to all users, from the home office to the branch office to

the enterprise campus.

Cisco Systems is the only company to offer solutions that fully

support the enterprise-wide deployment of network-enabled

applications. By delivering intelligent services to the farthest reaches

of an organization, Cisco access routers provide the high availability,

enhanced security, and advanced quality of service (QoS) required to

support today’s most sophisticated applications, including Voice over

IP, videoconferencing, e-learning, customer relations management,

and collaborative applications.

And as you’ll discover from the pages that follow, Cisco makes

it easy to meet tomorrow’s needs as well, with modular designs

that allow incremental migration as business and network

requirements change.

So read on—and see for yourself how Cisco Systems delivers

benefits beyond access, enabling the full-service branch.

Cisco SOHO Series

Small Office, Home Office

• Multi-user access

•Firewall protection

• Manageability and reliability
of Cisco IOS software

•ADSL, ADSL over ISDN,
G.SDSL & Ethernet models

Cisco 800 Series

Business, Remote Office,
Home Office

• Stateful Firewall Protection

•IPSec 3DES for VPNs with
Cisco Easy VPN

•QoS for voice and video
Applications

•VoIP with 4 analog FXS ports
(827-4V)

• Manageability and reliability
of Cisco IOS software

•ADSL, ADSL over ISDN,
G.SDSL, ISDN, Serial and
Ethernet models

Cisco 1700 Series

Small/Medium Business

•Voice/Data integration

• Built-in Fast Ethernet

• Modular WAN interfaces,
including integrated ADSL
and G.SHDSL

• Business-class security,
including hardware
encryption

Cisco 2600 Series

Small/Medium Business or
Enterprise Branch Office

•Voice/Data integration
(Analog and Digital)

• Built in Multiple Fast Ethernet
LAN and/or Token Ring

• Completely modular solution

• Hardware or software
compression

• Hardware and software
IPSEC encryption

• Support for multiple
LAN/WAN media by way of
network modules and WICs

•Enterprise/Managed
service for service providers
(CPE-Class)

Cisco 3600 Series

Enterprise Branch Office

•High-performance processor

• Up to six network module
slots

• Built-in one/two Ethernet
10/10 0

•Voice/Data integration
(Analog and Digital)

• Completely modular solution

• Hot swappable

•Hardware and software
compression

• Support for multiple
LAN/WAN media by way of
network modules and WICs

•Higher port density for
LAN/WAN and integrated
modems

• Enterprise/managed
service for service providers
(CPE-Class)

Cisco 3700 Series Cisco 7200 Series Cisco 7300 Series Cisco 7400 Series

SOHO/800 Series

1700 Series

2600 Series

3600 Series

3700 Series

7300 Series

740 0 Series

7200 Series

Power Branch Solutions
for small to medium sized
business/branch offices

Beyond Access:

Enabling the Full-Service Branch

Quick Reference Guide

Series Overview

Cisco SOHO and 800 Series . . . . . . . . . . . . . . . . . . . . . . . .3

Cisco 1700 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Cisco 2600 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Cisco 3600 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Cisco 3700 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Cisco 7200 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Cisco 7300 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Cisco 7400 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Modules for 3700, 3600, and 2600XM Series . . . . . . . . . .x

Module Compatibility

for 3700, 3600, and 2600XM Series . . . . . . . . . . . . . . . . . .x

for the 7000 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Cisco SOHO Series
and 800 Series

Cisco SOHO Series and 800 Series routers make it easy and affordable to extend

the power of Cisco IOS technology to small businesses, small remote offices, and

telecommuters, providing superior security, reliability, and manageability at a low

cost. These routers deliver secure, multi-user access to the Internet or corporate

LAN through a single ADSL, ADSL-over-ISDN, G.SHDSL, ISDN, or serial

connections (up to 512 Kbps), or via an Ethernet WAN port connected to an

external broadband modem.

Business-Class Security

Cisco SOHO Series and 800 Series routers
provide the proven security features of Cisco
IOS software, including stateful Firewall
Protection. A stateful firewall offers more
intelligent perimeter security by denying or
permitting WAN traffic based on a session’s
state, so requests from users behind the firewall
can be received, while still preventing unautho­rized access.

Virtual Private Networking

Cisco 800 Series routers offer the added
protection of virtual private networks (VPNs),
which use data encryption and secure tunnels to
protect data as it travels from one site to
another, such as a branch office to corporate
headquarters. The Cisco 800 Series supports
IPSec 3DES, the most secure form of data
encryption. With the support of Cisco Easy VPN
Remote, it’s simple to set up, manage, and
maintain VPN connections using Cisco 800
Series routers. Users who have PC VPN software
clients can use SOHO Series routers, with
support for IPSec passthrough, to provide
managed firewall protection for remote offices
or home office networks.

Simplified Installation and Setup

Cisco SOHO Series and 800 Series routers come
with color-coded cables and connectors, as well
as default configurations, so even users with
limited technical experience can quickly install
and activate them. The Cisco Router Web Setup
(CRWS) tool, a Web-based installation software
tool, makes configuration just as simple by
providing a graphical interface and easy-to­follow instructions.

QoS

The Cisco 800 Series Routers provide Quality of
Service (QoS) for traffic management. QoS can
give precedence to mission critical applications
or delay sensitive applications such as voice and
video traffic.

Integrated Support for VoIP

The Cisco 827-4V ADSL router provides four
integrated FXS ports to deliver toll-quality voice
for interoffice voice with remote offices or
teleworkers.

Benefits and Advantages

3

When to Deploy

Series Distinctions

Cisco SOHO Series and 800 Series

4

Cisco SOHO Series Cisco 800 Series

WAN Technologies Ethernet, ADSL, ADSL Ethernet, ADSL, ADSL over

over ISDN, G.SHDSL ISDN, G.SHDSL, ISDN, Serial

Security Stateful Firewall Stateful Firewall

VPN IPSec Pass-through Only Integrated IPSec 3DES,

Easy VPN, IPSec Pass-through

QoS DSL ATM QoS only DSL ATM QoS & IP QoS

Upgradability Software Updates to Software Updates & Upgrades to

Default Software Image Only New Software Feature Set.

Upgradeable Memory

Sell the Cisco SOHO Series and 800 Series when
the customer needs:

•Secure, reliable Internet access for Small
Business and secure, managed VPN access
for small remote offices and teleworkers
(Cisco 800 Series);

•Secure, managed VPN access for small
remote offices and teleworkers (Cisco 800
Series);

• Advanced router and quality of service (QoS)
features for applications such as IP Phones
(800 Series);

• Easy to deploy products for sites with non
technical uses;

•Reduced operational costs for network
managers or service providers who work with
or provide service to small or remote office
customers;

• The proven reliability and manageability of
Cisco IOS software;

•VoIP with ADSL lines (Cisco 827-4V).

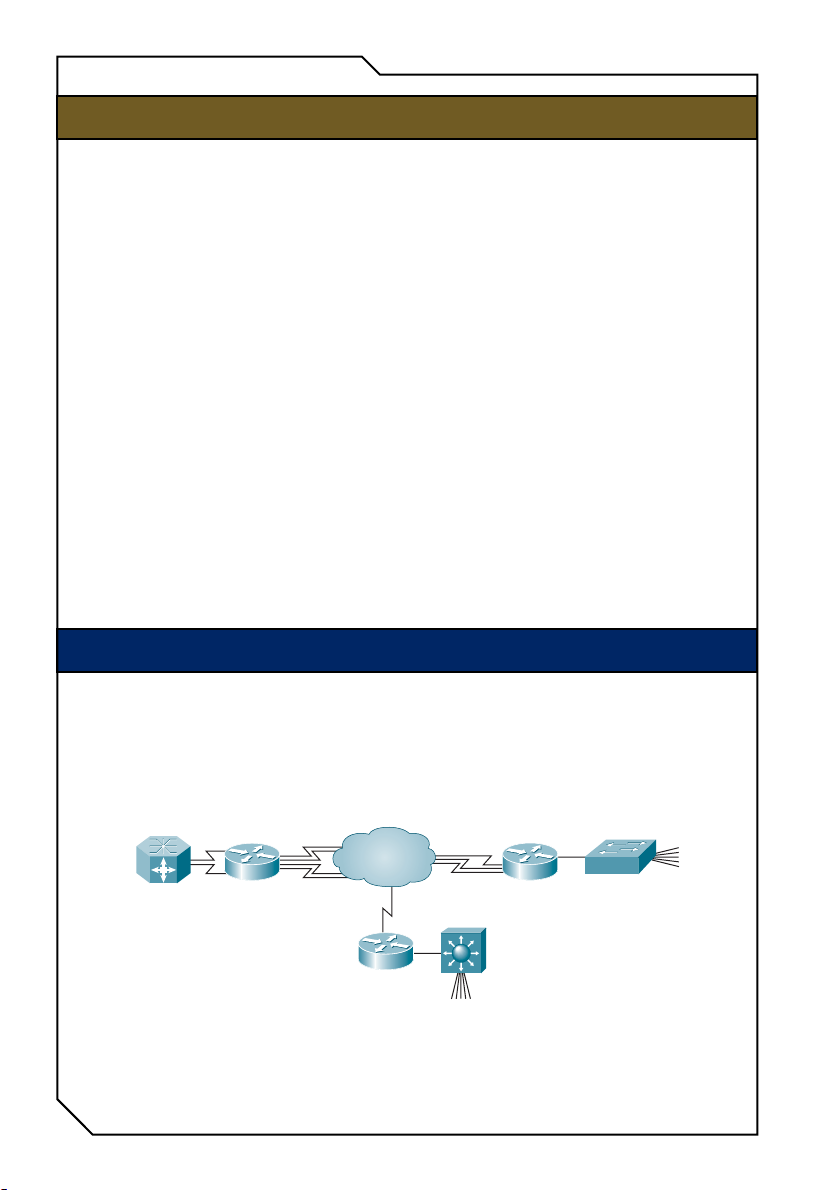

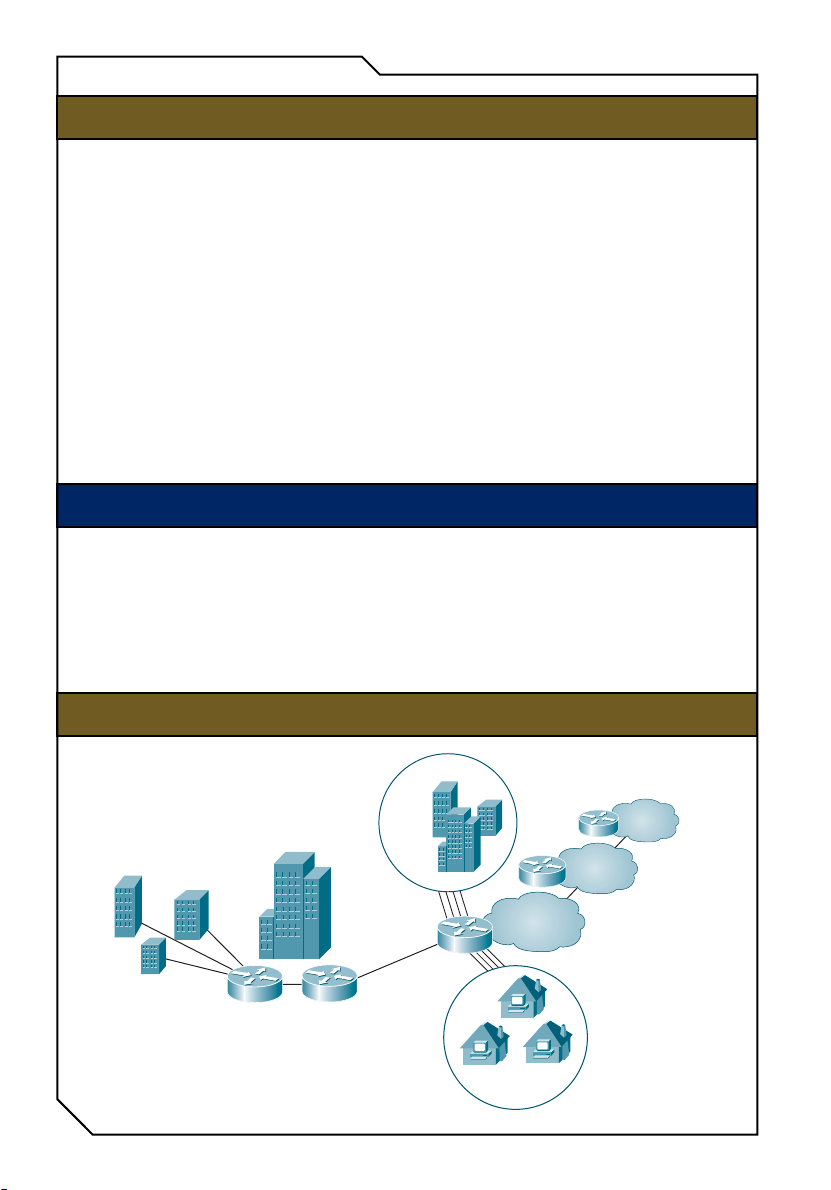

Example Customers

Cisco 800 Series

Corporate Teleworker

Cisco 800 Series

Small Remote Office

Internet

VPN Tunnels

Cisco SOHO Series or

Cisco 800 Series

Statefull Firewall

Small Business

Main Office

Tr ansition Information

Platform Overviews

Cisco SOHO Series and 800 Series

5

Platform Target Key Fixed LAN Fixed WAN Default /Max Default/Max Power

Market Features Connections Connections DRAM Flash Supply

ISDN & Serial Routers

Cisco 801 Small Business, Stateful Firewall, 1-port 1-port ISDN 4/12MB 8/12MB External

Remote Office, IPSec 3DES, QoS, Ethernet BRI (S/T)
Te leworker IOS Remote (10BASE-T)

Management

Cisco 802 Small Business, Stateful Firewall, 1-port 1-port ISDN 4/12MB 8/12MB External

Remote Office, IPSec 3DES, QoS, Ethernet BRI (U) NT-1
Te leworker IOS Remote (10BASE-T)

Management

Cisco 803 Small Business, Stateful Firewall, 4-port 1-port ISDN 4/12MB 8/12MB External

Remote Office, IPSec 3DES, QoS, Ethernet hub BRI (S/T)
Te leworker IOS Remote (10BASE-T) 2 analog

Management telephone ports

Cisco 804 Small Business, Stateful Firewall, 4-port 1-port ISDN 4/12MB 8/12MB External

Remote Office, IPSec 3DES, QoS, Ethernet hub BRI (U)
Te leworker IOS Remote (10BASE-T) NT-1, 2 analog

Management telephone ports

Cisco 805 Small Business, Stateful Firewall, 1-port 1-port serial 4/12MB 8/16MB External

Remote Office, IPSec 3DES, QoS, Ethernet (up to
Te leworker IOS Remote (10BASE-T) 512 Kpbs)

Management

Ethernet to Ethernet Routers

Cisco SOHO 71 Small Business, Stateful Firewall, 4-port 1-port 16/16MB 8/8MB External

Remote Users Web GUI,IOS Ethernet hub Ethernet
with VPN Remote (10BASE-T) (10BASE-T)
PC Clients Management

Cisco 806 Small Business, Stateful Firewall, 4-port 1-port 16/32MB 8/8MB External

Remote Office, IPSec 3DES, Ethernet hub Ethernet
Te leworker Easy VPN QoS, (10BASE-T) (10BASE-T)

IOS Remote
Management

ADSL over ISDN Routers

Cisco SOHO 76 Small Business, Stateful Firewall, 4-port 1-port 16/16MB 8/ 8MB External

Remote Users IPSec 3DES, QoS, Ethernet hub ADSL over
with VPN PC IOS Remote (10BASE-T) ISDN
Clients Management

Cisco 826 Stateful Firewall, 4-port 1-port 16/32MB 8/8MB External

IPSec 3DES, Ethernet hub ADSL over
Easy VPN, QoS, (10BASE-T) ISDN
IOS Remote
Management

The new Cisco SOHO 77H routers should be deployed in scenarios that previously called for SOHO
77 routers. Similarly, the new Cisco 827H routers are intended to take the place of Cisco 827 routers
in future deployments. These new models provide additional functionality at no additional cost.

For more information on product transitions, see page XX

Platform Overviews

Series Specifications

Cisco SOHO Series and 800 Series

6

Ta rget Key Fixed LAN Fixed WAN Default /Max Default/Max Power

Platform Market Features Connections Connections DRAM Flash Supply

ADSL Routers

Cisco SOHO 77H Small Business, Stateful Firewall, 4-port 1-port 16/16MB 8/8MB External

Remote Users Web GUI, Ethernet hub ADSL
with VPN PC IOS Remote (10BASE-T)
Clients Management

Cisco 827H Small Business, Stateful Firewall, 4-port 1-port 16/32MB 8/8MB External

Remote Office, IPSec 3DES, Ethernet hub ADSL
Te leworker Easy VPN, (10BASE-T)

QoS, IOS Remote
Management

Cisco 827-4V Small Business, Stateful Firewall, 1-port 1-port 24/32MB 8/16MB External

Remote Office, IPSec 3DES, Ethernet ADSL
Te leworker Easy VPN, QoS, (10BASE-T)

IOS Remote
Management, VoIP

G.SHDSL Routers

Cisco SOHO 78 Small Business, Firewall, Web GUI, 4-port 1-port 16/16MB 8/8MB External

Remote Users Remote Ethernet hub G.SHDSL
with VPN PC Management (10BASE-T)
Clients

Cisco 828 Small Business, Stateful Firewall, 4-port 1-port 16/32MB 8/8MB External

Remote Office, IPSec 3DES, Ethernet hub G.SHDSL
Te leworker Easy VPN, QoS, (10BASE-T)

IOS Remote
Management

Processor RISC CPU

Flash Memory 8MB-12MB (Cisco 800 Series expandable to 12MB-16MB)

System DRAM Memory 4MB-32MB (Cisco 800 Series expandable to 12MB-32MB)

Internal Power Supply No

Dimensions (H x W x D) 2.0 x 9.7 x 8.5 in. (5.1 x 24.6 x 21.6 cm)

Performance 9Mbps Clear Text

Console port 1 (up to 115.2 Kbps)

Auxiliary port No Base Configuration: Fixed configuration with single WAN port

Maximum Ethernet Ports 4-port Ethernet LAN hub

(1 Ethernet WAN on Cisco SOHO 71 & Cisco 806)

Maximum High-Speed Serial (up to 2 Mbps) 1 (Cisco 805)

Maximum Low-Speeed Serial (up to 128 Kbps) 0

Voice/Data Support (Y/N) Cisco 827-4V only

Integrated Modems 0

Maximum Number of ISDN BRI Ports 1

Maximum Number of ISDN PRI Ports 0

Integrated CSU/DSU NO

Series Specifications

continued

IOS Memory Requirements

Cisco SOHO Series and 800 Series

7

Description DRAM Flash

CISCO 801-804

c800-k8nosy6-mw IP/IPX/Firewall/IPSEC 3DES P 12 8

c800-k8osy6-mw IP/Firewall/IPSEC 3DES PLUS 12 8

c800-oy6-mw IP/Firewall 8 8

c800-sy6-mw IP Plus 8 8

c800-y6-mw IP 4 8

Cisco 805

c805-k8nosy6-mw IP/IPX/Firewall/IPSEC 3DES P 12 8

c805-k8osy6-mw IP/Firewall/IPSEC 3DES PLUS 12 8

c805-oy6-mw IP/Firewall 8 4

c805-sy6-mw IP Plus 8 8

c805-y6-mw IP 8 4

Description DRAM Flash

Cisco 827 and CISCO 826

c820-k9osv6y6-mz IP/Firewall/Voice /IPSEC 3DE 32 8

c820-k9osy6-mz IP/Firewall/IPSEC 3DES Plus 24 8

c820-ov6y6-mz IP/Firewall/Voice 24 8

c820-oy6-mz IP/Fire wall 20 8

c820-sv6y6-mz IP/Voice Plus 24 8

c820-sy6-mz IP Plus 20 8

c820-v6y6-mz IP/Voice 24 8

c820-y6-mz IP 16 8

Cisco 828

c828-k9osy6-mz IP/Firewall/IPSEC 3DES Plus 24 8

c828-oy6-mz IP/Firewall 20 8

c828-sy6-mz IP/Plus 16 8

c828-y6-mz IP 16 8

Compression (H/W or S/W) S/W

Encryption (H/W or S/W) S/W

Redundant Power Supply Support No

Minimum Cisco IOS Release Dependent upon model

Cisco IOS Memory Requirements

Ordering Information

Cisco SOHO Series and 800 Series

8

Part Number Description

Cisco SOHO Series

Cisco SOHO 71 CISCOSOHO71 Ethernet router, 1E, 4E hub, stateful firewall

Cisco SOHO 76 CISCOSOHO76 Cisco SOHO 76 Router 1 ADSL over ISDN, 4E Hub, stateful FW

Cisco SOHO 77H CISCOSOHO77 Cisco SOHO 77H router 1 ADSL,4E hub, stateful firewall

Cisco SOHO 78 CISCOSOHO78 Cisco SOHO 78 router, 1 G.SHDSL, 4E Hub

Cisco 800 Series Products

Cisco 801 CISCO801 ISDN/Ethernet Router

Cisco 802 CISCO802 ISDN BRI/ETHERNET ROUTER

Cisco 803 CISCO803 ISDN BRI/ETHERNET ROUTER, 4PORT HUB, 2 POTS

Cisco 804 CISCO804 ISDN BRI/ETHERNET ROUTER, NT-1, 4-PORT HUB, 2 POTS

Cisco 805 CISCO805 Cisco 805 Ethernet/Serial Router

Cisco 806 CISCO806 Cisco 806 Broadband Router 4E, 1E, stateful firewall

Cisco 811 CISCO811 ISDN Ethernet router with integrated Japan DSU

Cisco 813 CISCO813 ISDN/Ethernet router with integrated 4 port hub / Japan DSU

Cisco 826 CISCO826 Cisco 826 ADSL router (co-existing with ISDN local loops)

Cisco 827H CISCO827H Cisco 827H router, 1 ADSL, 4E hub, stateful FW

Cisco 827-4V CISCO827-4V Cisco 827-4V ADSL router 1E, 1ADSL, 4 Voice

Cisco 828 CISCO828 Cisco 828 G.SHDSL Router 1E, 1G.SHDSL

Cisco 828

c806-k9osy6-mz IP/Firewall/IPSEC 3DES Plus 20 8

c806-oy6-mz IP/Firewall 16 8

c806-sy6-mz IP Plus 16 8

c806-y6-mz IP 16 8

SOHO Series

soho70-y1-mz IP 16 8

soho78-y1-mz IP 16 8

soho71-oy6-mz IP/FW 16 8

9

Cisco 1700 Series

The Cisco 1700 Series of modular access routers is designed to provide a cost-

effective, integrated platform for small and midsize businesses and small branch

offices, ensuring they can efficiently roll out new services as needs change. These

routers provide flexibility and manageability to meet demanding and evolving

requirements, such as multiservice data/voice/video/fax integration, business-class

digital subscriber line (DSL) support, and comprehensive security.

Flexibility and Investment Protection

The modularity of the Cisco 1700 Series allows
it to easily adapt to evolving needs. WAN
interface cards (WICs) and voice interface cards
(VICs) enable easy additions or changes, without
requiring a forklift upgrade of an entire
platform. The wide range of available WIC
solutions supports WAN technologies such as
broadband DSL, ISDN, leased lines, and Frame
Relay, while VIC solutions can support Voice
over IP and Voice over Frame Relay. These
modules are shared with Cisco 1600, 2600,
3600, and 3700 series routers.

Comprehensive Security

To k eep networks secure and protect sensitive
information, businesses deploy a range of
security technologies, including firewalls, VPNs,
and IDSs. Cisco IOS

®

Software is the industry’s
widely accepted standard for the Internet and
private network operations. Cisco 1700 Series
routers provide powerful firewall, VPN, and
intrusion detection capabilities. As new security
technologies are developed, they often can be
simply uploaded—there’s no need for costly
hardware replacements.

Business-Class DSL Connectivity

The new WIC-ADSL and WIC-1SHDSL offer
business-class broadband service with scalable
performance, flexibility, and security for branch
and regional offices. The Cisco 1700 Series
provides the perfect solution for a variety of
businesses requiring high-speed business-class
DSL connectivity on a secure, high­performance, modular platform.

Multiservice Data/Voice/
Video/Fax Integration

In addition to supporting the same security and
business-class DSL features as the entire Cisco
1700 Series, the Cisco1751 and 1760 offer a cost­effective way to extend converged multiservice
networking to branch offices. They work with
with existing phones, faxes, and other
equipment, simplifying deployment of IP
telephony. Service integration using IP protocols
over the Internet enables administrators to
reduce long-distance toll charges between
offices, and support voice-enabled desktop
applications such as integrated messaging and
packet video.

Benefits and Advantages

10

When to Deploy

Cisco 1700 Series

Product Positioning

Sell the Cisco 1700 Series when the customer
needs:

• The flexibility to add or change WAN services
to support new needs and applications,
including VPNs, integrated voice/fax/data over
the WAN, and broadband DSL and cable
access services;

• An integrated access solution that combines a
best-in-class router with firewall, high-speed
encryption, VPN tunnel server, DSU/CSU, and
ISDN NT-1 functions in one platform;

• Business requiring high-speed business-class
DSL connectivity on a secure, high­performance modular platform;

•Integrated routing and switching functionality;

• Multiservice voice/video/fax/data integration;

• Up to five serial interfaces (including the AUX
port) for retail/point-of-sale or small bank
branch office applications.

Tr ansition Information

The new Cisco 1721 routers should be deployed in scenarios that previously called for Cisco 1720
routers. This new model provides additional functionality at no additional cost. For more information
on product transitions, see page XX.

PSTN

ISDN BRI Lines

Fax

IP Network

Analog Voice

or

V

Cisco 1760KTS/PBX

PC

Cisco Catalyst Switch

PC

PC

IP

Cisco IP Phone

11

Series Specifications

Platform Overview

Cisco 1700 Series

VICs/ Fixed Performance DRAM DRAM FLASH FLASH Power

WICs VICs WICs LAN Ports (Kpps) (default MB) (max MB) (default MB) (max MB) Supply

Cisco 1710 --- 1 ? 32 64 16 16 AC

Cisco 1721 2-- 1 12 32 96 16 16 AC

Cisco 1751 -12 1 12 32 96 16 16 AC

Cisco 1751-V -12 1 12 64 128 32 32 AC

Cisco 1760 -22 1 15 32 96 16 64 AC

Cisco 1760V -22 1 15 64 96 32 64 AC

Processor RISC CPU (additional processors on modules)

Dimensions (H x W x D)

1710,1721, 1751, 1751-V 4.0 x 11.2 x 8.7 in. (10.0 x 28.4 x 22.1 cm)

1760, 1760-V 1.7 x 17.5 x 12.8 in. (4.32 x 44.5 x 32.5 cm)

Flash Memory 16MB-32MB (expandable to 16MB-64MB)

System DRAM Memory 32MB-64MB (expandable to 64MB-96MB)

WAN Interface Cards Slots 0-2

Voice Interface Card Slots 0-2

Combination VIC/WIC Slots 0-2

Internal Expansion Slots 1

Internal Power Supply AC

Performance Ranges 12 to 15 Kpps

Console port 1 (up to 115.2 Kbps)

Auxiliary port 1 (up to 115.2 Kbps)

Base Configuration Fixed single, dual, mixed (Ethernet, 10/100 Ethernet)

ports with up to four modular slots

Maximum Ethernet Ports 3

Maximum 10/100 Ethernet Ports 1

Maximum High-Speed Serial (up to 2 Mbps) 4

Maximum Low-Speed Serial (up to 128 Kbps) 4 sync, 5 async

Voice/Data Support (Y/N) Yes (1751 only)

Maximum Number of ISDN BRI Ports 4

Maximum Number of ISDN PRI Ports 4

Integrated CSU/DSU Yes (T1/E1, Fractional T1/E1, 56k/64k)

Compression (H/W or S/W) S/W

Encryption (H/W or S/W) S/W + H/W

Redundant Power Supply Support No

Minimum Cisco IOS Release Varies depending on model

Cisco IOS Requirements

Cisco 1700 Series

12

Cisco 1760 Data Software Feature Sets for Cisco IOS Release 12.2(2)XK

Recommended

Flash DRAM

Software Product Description Software Image Memory Memory

Cisco 1700 Cisco IOS IP/ADSL/IPX/AT/IBM/FW/IDS PLUS IPSEC 56 c1700-bk8no3r2sy7-mz 16 48

Cisco 1700 Cisco IOS IP/ADSL/IPX/AT/IBM/FW/IDS PLUS IPSEC 3DES c1700-bk9no3r2sy7-mz 16 48

Cisco 1700 Cisco IOS IP/ADSL/IPX/AT/IBM PLUS c1700-bnr2sy7-mz 16 48

Cisco 1700 Cisco IOS IP/IPX/AT/IBM c1700-bnr2y-mz 8 32

Cisco 1700 Cisco IOS IP/ADSL/FW/IDS PLUS IPSEC 56 c1700-k8o3sy7-mz 16 48

Cisco 1700 Cisco IOS IP/ADSL PLUS IPSEC 56 c1700-k8sy7-mz 16 48

Cisco 1700 Cisco IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES c1700-k9o3sy7-mz 16 48

Cisco 1700 Cisco IOS IP/ADSL PLUS IPSEC 3DES c1700-k9sy7-mz 16 48

Cisco 1700 Cisco IOS IP/ADSL/IPX/FW/IDS PLUS c1700-no3sy7-mz 16 48

Cisco 1700 Cisco IOS IP/IPX c1700-ny-mz 8 24

Cisco 1700 Cisco IOS IP/FW/IDS c1700-o3y-mz 8 24

Cisco 1700 Cisco IOS IP/ADSL PLUS c1700-sy7-mz 8 32

Cisco 1700 Cisco IOS IP/ADSL c1700-y7-mz 8 24

Cisco 1700 Cisco IOS IP c1700-y-mz 8 24

Cisco 1700 Cisco IOS IP/ADSL/IPX/AT/IBM/VOICE/FW/IDS c1700-bk8no3r2sv3y7-mz 32 64

PLUS IPSEC 56

Cisco 1700 Cisco IOS IP/ADSL/IPX/AT/IBM/VOICE/FW/IDS c1700-bk9no3r2sv3y7-mz 32 64
PLUS IPSEC 3DES

Cisco 1700 Cisco IOS IP/ADSL/VOICE/FW/IDS PLUS IPSEC 56 c1700-k8o3sv3y7-mz 16 48

Cisco 1700 Cisco IOS IP/ADSL/VOICE PLUS IPSEC 56 c1700-k8sv3y7-mz 16 48

Cisco 1700 Cisco IOS IP/ADSL/VOICE/FW/IDS PLUS IPSEC 3DES c1700-k9o3sv3y7-mz 16 48

Cisco 1700 Cisco IOS IP/ADSL/VOICE PLUS IPSEC 3DES c1700-k9sv3y7-mz 16 48

Cisco 1700 Cisco IOS IP/ADSL/IPX/VOICE/FW/IDS PLUS c1700-no3sv3y7-mz 16 48

Cisco 1700 Cisco IOS IP/ADSL/VOICE/FW/IDS PLUS c1700-o3sv3y7-mz 16 48

Cisco 1700 Cisco IOS IP/ADSL/VOICE PLUS c170 0-sv3y7-mz 16 48

Cisco 1700 Cisco IOS IP/VOICE PLUS c1700-sv3y-mz 16 48

Ordering Information

Cisco 1700 Series

13

Product Number Product Description

CISCO1760 10/100 Modular Router w/ 2WIC/VIC,2VIC slots,19 inch Chassis

CISCO1760-ADSL 10/100 BaseT Modular Router w/ADSL WIC, IP/ADSL

CISCO1760-SHDSL 10/100 BaseT Modular G.shdsl Router, 19 inch Chassis

CISCO1760-VPN/K9 1760 VPN Bundle with VPN Module, 48MB DRAM, IP Plus/FW/3DES

CISCO1760-VPN/K9-A 1760 VPN Bun. w/ADSL WIC, VPN Module, 48MB DRAM, IP+/FW/3DES

CISCO1760-V 10/100 Modular Router w/Voice IP/VOICE Plus, 19 inch Chassis

CISCO1751 10/100 Modular Router w/ 3 slots, IOS IP, 16F/32D

CISCO1751-V 10/100 Modular Router w/Voice, IOS IP/VOICE Plus, 32F/64D

CISCO1751-VPN/K9 1751 VPN Bundle with VPN Module, 48MB DRAM, IP Plus/FW/3DES

CISCO1751-VPN/K9-A 1751 VPN Bun. w/ADSL WIC, VPN Module, 48MB DRAM, IP+/FW/3DES

CISCO1720-VPN-M/K8 1720 VPN Bundle, Dual-E w/1 WAN slot, VPN Module, IP/FW/DES

CISCO1720-VPN-M/K9 1720 VPN Bundle, Dual-E w/1 WAN slot, VPN Module, IP/FW/3DES

CISCO1750 10/100 Modular Router w/1VIC, 2WIC/VIC slots,Cisco IOS IP SW

CISCO1750-2V 10/100 Modular Router w/2 Voice channels, IOS IP/VOICE + SW

CISCO1750-4V 10/100 Modular Router w/4 Voice channels, IOS IP/VOICE + SW

CISCO1750-ADSL 10/100 BaseT Modular ADSL Router

CISCO1721-ADSL 10/100 BaseT Modular ADSL Router, IP/DSL

CISCO1721 10/100BaseT Modular Router w/2 WAN slots, 16M Flash/32M DRAM

CISCO1721-VPN/K9 1721 VPN Bundle with VPN Module, 48MB DRAM, IP Plus/FW/3DES

CISCO1720 10/100BaseT Modular Router w/2 WAN slots, 8M Flash/32M DRAM

CISCO1720-ADSL 10/100 BaseT Modular ADSL Router

CISCO1720-SHDSL 10/100 BaseT Modular G.SHDSL Router, IP/DSL

CISCO1721-SHDSL 10/100 BaseT Modular G.SHDSL Router, IP/DSL

CISCO1710-VPN-M/K9 Dual-Ethernet Security Access Router, VPN Module, IP/3DES/FW

Notes

Cisco 1700 Series

14

Cisco 2600 Series
Modular Access Routers

Cisco Systems extends enterprise/provider-class versatility, integration, and power to

branch offices with Cisco 2600 Series modular access routers. With more than 1.5

million 2600 Series units installed worldwide, this popular series offers network

managers and service providers flexibility and investment protection in a compact,

single-box solution. The Cisco 2600XM models and the top-of-the-line Cisco 2691

are the latest additions to the series, providing even more flexibility, performance,

and memory, as well as higher service densities to support today’s and tomorrow’s

branch office needs.

Benefits and Advantages

15

Integrated Flexible Routing
and Low-Density Switching

With the support of an optional 16-port 10/100
EtherSwitch network module, branch offices
can take advantage of the flexibility of integrat­ed routing and switching functions in one unit
for low port densities. This offers high-speed
connections between individual desktops,
servers, and other network resources in a sin­gle unit for Layer 2, and allows WAN connec­tion at Layer 3 through the router. An optional
external power chassis provides power to IP
phones and Aironet 802.11 Base Stations.

Versatility/Investment Protection

Thousands of field-upgradable customized
solutions ensure easy migration to future net­work requirements. More than 50 WAN inter­face cards (WICs) and network modules (NMs)
are shared with the Cisco 1600, 1700, 3600, and
3700 series products. Modules can be inter­changed between small, midsize, and regional
branch offices. The advanced integration mod-

ule (AIM) slot offers expandability for integra­tion of advanced services, such as hardware­assisted data compression, encryption, Voice
and ATM hardware-assisted data compression,
and encryption.

Business-Class DSL Connectivity

The new WIC-ADSL and WIC-1SHDSL offer
business-class broadband service with scalable
performance, flexibility, and security for branch
and regional offices. The Cisco 2600 Series pro­vides the perfect solution for a variety of busi­nesses requiring high-speed business-class
DSL connectivity on a secure, high-perform­ance, modular platform.

Multiservice Voice/Data Networks

Supports up to 60 simultaneous calls, using
analog and digital connections to phones,
faxes, key systems, PBXs, and PSTN switches,
enabling inter-branch toll charges to be reduced
or eliminated. Using Cisco IOS

®

quality of serv-

ice (QoS) features, such as WFQ,

16

Benefits & Advantages

continued

Benefits and Advantages

continued

Cisco 2600 Series

CAR, RSVP, and Custom and Priority Queuing,
voice traffic is digitized and encapsulated in
Frame Relay or IP packets and consolidated
with data traffic to extend multiservice infra­structure to the branch office.

Virtual Private Networking/Security

Offers advanced tunneling features, including
L2F and L2TP, standards based, hardware
supported IPSEC encryption, Cisco IOS Firewall
feature set, and diverse WAN and dial
interfaces, ideal for both VPN entry points and
home gateways.

Power

High-speed routing performance up to 70,000
packets per second, for maximum scalability to
support more concurrent services.

Interoperability/Multiprotocol
support

Offers a comprehensive set of protocols and
services, including virtual private networking,
firewall protection, encryption, WAN optimiza­tion, and enhanced multimedia
support features.

The new Cisco 2610XM, 2611XM, 2620XM, 2621XM, 2650XM, and 2651XM routers should be
deployed in scenarios that previously called for Cisco 2610, 2611, 2620, 2620, 2650, and 2651
routers, respectively. The new XM models offer improved performance and increased default mem­ory and maximum memory at no additional cost. For more information on product transitions, see
page XX

Deploy the Cisco 2600 Series when you need:

•A cost-effective solution for the long term
that adapts to evolving network require­ments;

•Virtual Private Network (VPN)/Extranet access
with firewall protection to reduce costs and
increase security for partners and employees;

• Dial concentration with async, ISDN, or
analog modems;

• Integrated routing and switching
functionality;

•Voice/fax/data multiservice integration;

•Serial device concentration of point-of-sale
devices, ATMs, alarm systems, SDLC con­trollers with legacy terminals and LAN
devices sharing a single WAN connection;

• Business requiring high-speed business-class
DSL connectivity on a secure, high-perform­ance modular platform;

• Support for advanced QoS features such as
the Resource Reservation Protocol (RSVP),
Weighted Fair Queuing (WFQ), and IP
Precedence to reduce recurring WAN costs.

When to Deploy

Tr ansition Information

17

Series Features Overview

Platform Overview

Product Positioning

Cisco 2600 Series

Fixed Performance DRAM (MB) Flash (MB) Power

NMs AIM WICs LAN Ports (Kpps) default max default max Supply

Cisco 2610XM / 2611XM 1 1 2 1 / 2 FE 20 32 128 16 48 AC, DC, RPS

Cisco 2612 1 1 2 1TR, 1E 15 32 64 8 16 AC, DC, RPS

Cisco 2620XM / 2621XM 1 1 2 1 / 2 FE 30 32 128 16 48 AC, DC, RPS

Cisco 2650XM / 2651XM 1 1 2 1 / 2 FE 40 64 128 16 48 AC, DC, RPS

Cisco 2691 1 2 3 2 FE 70 64 256 * 32 * 128 AC

* Compact Flash

Options of:

• Voice enabled routers

• VPN-enabled routers

• Integrated stateful firewall

• WCCP for Content Networking

• Dial access

• Integrated low-density switching

Headquarters

WAN

V

PSTN

IP

IP

IP

Cisco 2600XM

or 2691

Small/Medium

Branch Offices

IP

IP

IP

18

Benefits & Advantages

continued

Series Specifications

Cisco 2600 Series

Dimensions [Height x Width x Depth]:

All except Cisco2691: 1.69 x 17.5 x 11.8 in (43 x 445 x 300 mm)

1 Rack Unit (RU) height

Cisco 2691: 3.50 x 17.1 x 11.0 in (88 x 434 x 279 mm)

2 Rack Units (RU) height

Console port: 1 (up to 115.2 Kbps)

Auxiliary port: 1 (up to 115.2 Kbps)

Integrated CSU/DSU: Yes (T1/E1, Fractional T1/E1, 56k/64k)

Voice/Data Support (Y/N): Yes

Compression (H/W or S/W): S/W + H/W

Encryption (H/W or S/W): S/W + H/W

Maximum Ethernet Ports: 18

Maximum 10/100 Ethernet Ports: 18

Maximum 1000 Ethernet Ports: 1

Maximum Token Ring Ports: 1

Maximum High-Speed Serial (up to 2 Mbps): 10

Maximum Low-Speed Serial (up to 128 Kbps): 14 sync, 39 async

Maximum Integrated Modems: 22 Analog

Maximum Number of ISDN BRI Ports: 11

Maximum Number of ISDN PRI Ports: 2

Minimum Cisco IOS Release:

Cisco 2610 IOS 12.0 Mainline

Cisco 2610XM IOS 12.1(14) Mainline, 12.2(X) Mainline (future) or 12.2(8) T1

Cisco 2611 IOS 12.0 Mainline

Cisco 2611XM IOS 12.1(14) Mainline, 12.2(X) Mainline (future) or 12.2(8) T1

Cisco 2612 IOS 12.0 Mainline

Cisco 2620 IOS 12.1 Mainline

Cisco 2620XM IOS 12.1(14) Mainline, 12.2(X) Mainline (future) or 12.2(8) T1

Cisco 2621 IOS 12.1 Mainline

Cisco 2621XM IOS 12.1(14) Mainline, 12.2(X) Mainline (future) or 12.2(8) T1

Cisco 2650 IOS 12.2 Mainline

Cisco 2650XM IOS 12.1(14) Mainline, 12.2(X) Mainline (future) or 12.2(8) T1

Cisco 2651 IOS 12.2 Mainline

Cisco 2651XM IOS 12.1(14) Mainline, 12.2(X) Mainline (future) or 12.2(8) T1

Cisco 2691 IOS 12.2(8)T1

19

Series Features OverviewCisco IOS Requirements

Cisco 2600 Series

Support for Cisco 2691 starts in Cisco IOS release 12.2(8)T1

Support for Cisco 2600XM Series Routers starts in Cisco IOS mainline release 12.2.(14) and in 12.2(8)T1. In addition,
support for 2600XM Series Routers will be added in a future 12.2 mainline release.

Cisco IOS Release 12.2 T Memory Recommendations for the Cisco 2600 Series Routers

Feature Set Software Image Rec Flash Memory Rec DRAM Memory

IP c2600-i-mz 8 MB 32 MB

IP Plus c2600-is-mz 16 MB 48 MB

IP Plus IPSec 3DES c2600-ik9s-mz 16 MB 64 MB

IP Plus IPSec 56 c2600-ik8s-mz 16 MB 64 MB

IP/FW/IDS c2600-io3-mz 8 MB 32 MB

IP/FW/IDS Plus IPSec 3DES c2600-ik9o3s-mz 16 MB 64 MB

IP/FW/IDS Plus IPSec 56 c2600-ik8o3s-mz 16 MB 64 MB

IP/H.323 c260 0-ix-mz 8 MB 32 MB

IP/IPX/AT/DEC c2600-d-mz 8 MB 32 MB

IP/IPX/AT/DEC Plus c2600-ds-mz 16 MB 64 MB

IP/IPX/AT/DEC/FW/IDS Plus c2600-do3s-mz 16 MB 64 MB

Enterprise Basic c2600-j1s3-mz 16 MB 64 MB

Enterprise Plus c2600-js-mz

1

32 MB 96 MB

Enterprise Plus IPSec 3DES c2600-jk9s-mz

1

32 MB 96 MB

Enterprise Plus IPSec 56 c2600-jk8s-mz

1

32 MB 96 MB

Enterprise Plus/H.323 MCM c2600-jsx-mz

1

32 MB 96 MB

Enterprise/FW/IDS Plus IPSec 3DES c2600-jk9o3s-mz

1

32 MB 96 MB

Enterprise/FW/IDS Plus IPSec 56 c2600-jk8o3s-mz

1

32 MB 96 MB

Enterprise/SNASw Plus c260 0-a3js-mz

1

32 MB 96 MB

Enterprise/SNASw Plus IPSec 3DES c2600-a3jk9s-mz

1

32 MB 96 MB

Enterprise/SNASw Plus IPSec 56 c2600-a3jk8s-mz

1

32 MB 96 MB

1 In Cisco IOS Release 12.2(8)T, this image is supported only in the Cisco 2650 and 2651.

Cisco IOS Release 12.2 T Memory Recommendations for the Cisco 2691 Router.

Feature Set Software Image Rec Flash Memory Rec DRAM Memory

IP c2691-i-mz 32 MB 64 MB

IP Plus c2691-is-mz 32 MB 128 MB

IP Plus IPSec 3DES c2691-ik9s-mz 32 MB 128 MB

IP Plus IPSec 56 c2691-ik8s-mz 32 MB 128 MB

IP/FW/IDS c2691-io3-mz 32 MB 64 MB

IP/FW/IDS Plus IPSec 3DES c2691-ik9o3s-mz 32 MB 128 MB

IP/FW/IDS Plus IPSec 56 c2691-ik8o3s-mz 32 MB 128 MB

IP/H.323 c2691-ix-mz 32 MB 128 MB

Enterprise Plus c2691-js-mz 32 MB 128 MB

Enterprise Plus IPSec 3DES c2691-jk9s-mz 32 MB 128 MB

Enterprise Plus IPSec 56 c2691-jk8s-mz 32 MB 128 MB

Enterprise Plus/H.323 MCM c2691-jsx-mz 32 MB 128 MB

Enterprise/FW/IDS Plus IPSec 3DES c2691-jk9o3s-mz 32 MB 128 MB

Enterprise/FW/IDS Plus IPSec 56 c2691-jk8o3s-mz 32 MB 128 MB

Enterprise/SNASw Plus c2691-a3js-mz 32 MB 128 MB

Enterprise/SNASw Plus IPSec 3DES c2691-a3jk9s-mz 32 MB 128 MB

Enterprise/SNASw Plus IPSec 56 c2691-a3jk8s-mz 32 MB 128 MB

20

Benefits & Advantages

continued

Ordering Information

Cisco 2600 Series

The Cisco 2600 is ordered from components.You must specify:

•A 2600 series chassis: All Cisco 2600 chassis ship with the minimum recommended memory for
the most recent default Cisco IOS IP feature set, documentation, console, auxiliary and LAN
cables, 19” rack mount brackets, RJ-45 to DB-9 and DB-25 converters, and blank panels that cover
unused WAN interface card and or network module slots. AC, DC and RPS power options are
available for all chassis except the Cisco 2691.

•A CD software pack with desired software release.

•A power cord

Optional items are

• Cisco IOS feature set upgrade. The IP feature set is the default and included with the chassis.

• Up to two WAN Interface Cards (up to three for Cisco 2691)

•A Network Module

• An Advanced Integration Module (up to two for Cisco 2691)

• Flash Memory Upgrade

• DRAM Memory Upgrade

• Cables

• NEBS/ETSI compliance kit (not available for Cisco 2691)

21

The Cisco 3600 Series provides ideal multiservice platforms for large and midsize

offices and smaller Internet service providers. This line is optimized for the broadest

application support, including legacy protocols, analog dial, high-density terminal

server aggregation, RAS, and ATM AAL2. With more than 70 modular interface

options, the Cisco 3600 Series provides solutions for data, voice, video, hybrid dial

access, virtual private networks (VPNs), and multiprotocol data routing, without the

time and expense of managing several devices.

Benefits and Advantages

Cisco 3600 Series

Consolidation/Integration

Combines the capabilities of dial access VPN,
advanced LAN-to-LAN routing services, and
multiservice integration of voice, video, data in
one platform, substantially reducing life cycle
costs compared to multiple-device solutions.

Integrated Flexible Routing
and Low-Density Switching

With the support of optional 16-port* 10/100
EtherSwitch network modules, branch offices
can take advantage of the flexibility of
integrated routing and switching functions
in one unit for low port densities.
This offers high-speed connections between
individual desktops, servers, and other network
resources in a single unit for Layer 2, and allows
WAN connection at Layer 3 through the router.
An optional external power chassis provides
power to IP phones and Aironet 802.11
Base Stations.

Versatility/Investment Protection

Includes regular introductions of network
modules addressing additional media and
applications support. Dozens of WAN interface
cards (WICs) and network modules (NMs) are
shared with the Cisco 1600, 1700, 2600, and
3700 series products. Modules can be
interchanged between small, midsize, and
regional branch offices.

Advanced Multiservice Support

Delivers rich quality of service (QoS) features
of Cisco IOS, and the power to support them
at bandwidths in excess of multiple T1/E1.
Features such as Weighted Fair Queuing (WFQ),
IP Precedence, Resource Reservation Protocol
(RSVP) and Committed Access Rate (CAR)
provide both the traffic shaping and
prioritization necessary for a robust
multiservice platform that can handle
mission-critical networking.

* Only Cisco 3660 also accepts the 36-port EtherSwitch network module.

Benefits and Advantages

22

Benefits & Advantages

continued

Platform Overview

Benefits and Advantages

continued

When to Deploy

Cisco 3600 Series

VPN/Security

Offers advanced tunneling features, including
L2F and L2TP, standards based, hardware
supported IPSEC encryption, Cisco IOS Firewall
feature set, and diverse WAN and dial
interfaces, ideal for both VPN entry points and
home gateways.

Voice and Hybrid Dial Access

Integrates dial access and voice with traditional
LAN-to-LAN routing, with advanced standards­based support for Voice over IP, Voice over
Frame Relay, and Voice over ATM.

Integrated Cisco IOS

®

Provides extensive security features, reduced
WAN service costs, enhanced multimedia
support with robust QoS and guaranteed inter­operability across all Cisco routers.

Remote Management

Simple Network Management Protocol
(SNMP), telnet, and a console port for remote
management and monitoring.

Power

High-speed routing performance up to 120,000
packets per second, for maximum scalability to
support more concurrent services.

Interoperability/Multiprotocol
support

Offers a comprehensive set of protocols
and services, including virtual private
networking, firewall protection, encryption,
WAN optimization, and enhanced multimedia
support features.

Deploy the Cisco 3600 Series when you need:

•A single-box platform for easier
management and much lower life cycle costs
than multi-vendor/multi-box solutions;

•A flexible, cost-effective solution for the long
term that adapts to evolving network require­ments;

• Rich QoS features to ensure optimum traffic
prioritization and bandwidth utilization;

•An ideal platform for dial-up applications,
with flexible LAN media support (Ethernet,
Fast Ethernet, Token Ring) and high-density
ISDN, async, and analog and digital modem
support;

•Virtual private network/extranet access with
firewall protection to reduce costs and
increase security for partners and
employees;

• Integrated routing and switching
functionality;

• Voice/fax/data multiservice integration.

Fixed Performance DRAM (MB) FLASH(MB) Power

NMs AIM LAN Ports (Kpps) default max default max Supply

Cisco 3620 2-Use Module 40 16 64 16 32 AC/DC, RPS

Cisco 3640 4-Use Module 70 16 128 16 32 AC/DC, RPS

Cisco 3661 62 1 FE 120 32 256 16 64 AC/DC, RPS

Cisco 3662 62 2 FE 120 32 256 16 64 AC/DC, RPS

23

Product Positioning

Series Specifications

Cisco 3600 Series

Processor RISC CPU (additional processors on modules)

Dimensions [Height x Width x Depth]:

Cisco 3620: 1.75 x 17.5 x 13.5 in44 x 445 x 343 mm; 1 Rack Unit (RU) height

Cisco 3640: 3.44 x 17.5 x 15 in88 x 445 x 381 mm; 2 Rack Units (RU) height

Cisco 3660: 8.7 x 17.5 x 11.8 in 221 x 445 x 300 mm; 5 Rack Units (RU) height

Console port 1 (up to 115.2 Kbps)

Auxiliary port 1 (up to 115.2 Kbps)

Integrated CSU/DSU Yes (T1/E1, Fractional T1/E1, 56k/64k)

Voice/Data Support (Y/N) Yes

Compression (H/W or S/W) S/W + H/W

Encryption (H/W or S/W) S/W + H/W

Maximum Ethernet Ports 46

Maximum 10/100 Ethernet Ports 46

Maximum 1000 Ethernet Ports 2

Maximum Token Ring Ports 6

Maximum High-Speed Serial (up to 2 Mbps) 24

Maximum Low-Speed Serial (up to 128 Kbps) 48 sync, 192 async

Maximum Integrated Modems 96 Analog, 120 Digital

Maximum Number of ISDN BRI Ports 48

Maximum Number of ISDN PRI Ports 12

Minimum Cisco IOS Release:

Cisco 3620 – 11.1(7)AA

Cisco 3640 – 11.1(7)AA

Cisco 3661 – 12.0(5)T

Cisco 3662 – 12.0(5)T

Options of:

• Voice enabled routers

• VPN-enabled routers

• Integrated stateful firewall

• WCCP for Content Networking

• Dial access

• Integrated low-density switching

Headquarters

WAN

V

PSTN

IP

IP

IP

Cisco 3600

Medium/Regional

Branch Offices

IP

IP

IP

24

Benefits & Advantages

continued

Cisco IOS Requirements

Cisco 3600 Series

Cisco IOS Release 12.2 T Memory Recommendations for the Cisco 3620 Router

Feature Set Image Name Rec Flash Memory Rec DRAM Memory

IP c3620-i-mz 8 MB 32 MB

IP Plus c3620-is-mz 16 MB 64 MB

IP Plus IPSec 3DES c3620-ik9s-mz 16 MB 64 MB

IP Plus IPSec 56 c3620-ik8s-mz 16 MB 64 MB

IP/FW/IDS c3620-io3-mz 8 MB 32 MB

IP/FW/IDS Plus IPSec 3DES c3620-ik9o3s-mz 16 MB 64 MB

IP/FW/IDS Plus IPSec 56 c3620-ik8o3s-mz 16 MB 64 MB

IP/H.323 c3620-ix-mz 8 MB 48 MB

IP/IPX/AT/DEC c3620-d-mz 8 MB 32 MB

IP/IPX/AT/DEC Plus c3620-ds-mz 16 MB 64 MB

IP/IPX/AT/DEC/FW/IDS Plus c3620-do3s-mz 16 MB 64 MB

Enterprise Basic c3620-j1s3-mz 16 MB 64 MB

Cisco IOS Release 12.2 T Memory Recommendations for the Cisco 3640 Router

Feature Set Image Name Rec Flash Memory Rec DRAM Memory

IP c3640-i-mz 8 MB 32 MB

IP Plus c3640-is-mz 16 MB 64 MB

IP Plus IPSec 3DES c3640-ik9s-mz 16 MB 64 MB

IP Plus IPSec 56 c3640-ik8s-mz 16 MB 64 MB

IP/FW/IDS c3640-io3-mz 8 MB 32 MB

IP/FW/IDS Plus IPSec 3DES c3640-ik9o3s-mz 16 MB 64 MB

IP/FW/IDS Plus IPSec 56 c3640-ik8o3s-mz 16 MB 64 MB

IP/H.323 c3640-ix-mz 8 MB 48 MB

IP/IPX/AT/DEC c3640-d-mz 8 MB 32 MB

IP/IPX/AT/DEC Plus c3640-ds-mz 16 MB 64 MB

IP/IPX/AT/DEC/FW/IDS Plus c3640-do3s-mz 16 MB 64 MB

Enterprise Plus c3640-js-mz 32 MB 96 MB

Enterprise Plus IPSec 3DES c3640-jk9s-mz 32 MB 96 MB

Enterprise Plus IPSec 56 c3640-jk8s-mz 32 MB 96 MB

Enterprise Plus/H.323 MCM c3640-jsx-mz 32 MB 96 MB

Enterprise/FW/IDS Plus IPSec 3DES c3640-jk9o3s-mz 32 MB 96 MB

Enterprise/FW/IDS Plus IPSec 56 c3640-jk8o3s-mz 32 MB 96 MB

Enterprise/SNASw Plus c3640-a3js-mz 32 MB 96 MB

Enterprise/SNASw Plus IPSec 3DES c3640-a3jk9s-mz 32 MB 96 MB

Enterprise/SNASw Plus IPSec 56 c3640-a3jk8s-mz 32 MB 96 MB

Cisco IOS Release 12.2 T Memory Recommendations for the Cisco 3660 Series Routers

Feature Set Image Name Rec Flash Memory Rec DRAM Memory

IP c3660-i-mz 8 MB 32 MB

IP Plus c3660-is-mz 16 MB 64 MB

IP Plus IPSec 3DES c3660-ik9s-mz 32 MB 64 MB

IP Plus IPSec 56 c3660-ik8s-mz 32 MB 64 MB

IP/FW/IDS c3660-io3-mz 8 MB 64 MB

IP/FW/IDS Plus IPSec 3DES c3660-ik9o3s-mz 32 MB 64 MB

IP/FW/IDS Plus IPSec 56 c3660-ik8o3s-mz 32 MB 64 MB

25

Series Features OverviewIOS Requirements

Ordering Information

Cisco 3600 Series

Feature Set Image Name Rec Flash Memory Rec DRAM Memory

IP/H.323 c3660-ix-mz 8 MB 64 MB

IP/IPX/AT/DEC c3660-d-mz 8 MB 64 MB

IP/IPX/AT/DEC FW IDS Plus c3660-do3s-mz 16 MB 64 MB

IP/IPX/AT/DEC Plus c3660-ds-mz 16 MB 64 MB

Enterprise Plus c3660-js-mz 32 MB 96 MB

Enterprise Plus IPSec 3DES c3660-jk9s-mz 32 MB 96 MB

Enterprise Plus IPSec 56 c3660-jk8s-mz 32 MB 96 MB

Enterprise Plus/H.323 MCM c3660-jsx-mz 32 MB 96 MB

Enterprise/FW/IDS Plus IPSec 3DES c3660-jk9o3s-mz 32 MB 96 MB

Enterprise/FW/IDS Plus IPSec 56 c3660-jk8o3s-mz 32 MB 96 MB

Enterprise/SNASw Plus c3660-a3js-mz 32 MB 96 MB

Enterprise/SNASw Plus IPSec 3DES c3660-a3jk9s-mz 32 MB 96 MB

Enterprise/SNASw Plus IPSec 56 c3660-a3jk8s-mz 32 MB 96 MB

The Cisco 3600 is ordered from components.You must specify:

•A 3600 series chassis: All chassis ship with the minimum recommended memory for the most
recent default Cisco IOS IP feature set, documentation, console, auxiliary and LAN cables, 19”
rack mount brackets, RJ-45 to DB-9 and DB-25 converters, and blank panels that cover unused
WAN interface card and or network module slots. AC, DC and RPS power options are available
for all chassis.

•A CD software pack with desired software release.

•A power cord

Optional items are

•A Cisco IOS feature set upgrade or revision. The IP feature set is the default and included with the
chassis.

• Up to six WAN Interface Cards

• Up to six Network Modules, with on-board WAN and Voice Interface Cards

• Flash Memory Upgrade

• DRAM Memory Upgrade

• Cables

26

Benefits & Advantages

continued

Notes

Cisco 3600 Series

27

Cisco 3700 Series
Modular Access Routers

The Cisco 3700 Series is a new line of modular routers that enable flexible and

scalable deployment of new applications in an integrated branch office access

platform. The Cisco 3700 Series is ideal for sites and solutions requiring the highest

levels of integration at the edge for branch office IP Telephony, voice gateway, and

integrated flexible routing with low-density switching solutions. The Cisco 3700

Series provides a consolidated service infrastructure and high service density in a

compact form factor that enables the incremental integration of branch applications.

High Service Density

This series introduces a new, wider interface
form factor—the High Density Services Module
(HDSM). With four network module (NM) slots,
the Cisco 3745 can accept two HDSMs by
removing the center guides between each pair
of adjacent NM slots. With two NM slots, the
Cisco 3725 can accept an HDSM in one while
still leaving the other free. Each model also
offers three WAN Interface Card (WIC) slots and
two Advanced Integration Module (AIM) slots.

Integrated Flexible Routing
and Low-Density Switching

When configured with the new 16- or 36-port
EtherSwitch Module, the Cisco 3700 Series
offers a single, integrated platform that
combines flexible routing and low-density
switching. This offers high-speed connections
between individual desktops, servers, and other
network resources in a single unit for Layer 2,
and allows WAN connection at Layer 3 through
the router. An optional external power chassis
provides power to IP phones and Aironet 802.11
Base Stations.

Integration/Manageability

Provides a single-platform solution for branch
office IP telephony and voice gateway services,
lowering costs of ownership, simplifying
management, and allowing flexible, incremental
migration and integration.

Versatility/Investment Protection

Thousands of field-upgradable customized
solutions ensure easy migration to future
network requirements. More than 70 WAN
interface cards (WICs), and Network Modules
are shared with the Cisco 1600, 1700, 2600,
and 3600 series products. Modules can be
interchanged between small, midsize, and
regional branch offices. The advanced
integration module (AIM) slot offers
expandability for integration of advanced
services, such as hardware-assisted data
compression, encryption, Voice and ATM
hardware-assisted data compression,
and encryption.

Benefits and Advantages

28

Benefits & Advantages

continued

Benefits and Advantages

continued

When to Deploy

Cisco 3700 Series

Incremental Migration
to IP Telephony

Supports a wide range of traditional telephony
devices and newer IP telephony solutions to
enable immediate or gradual migration. Analog
telephony connectivity options start at two
analog ports and scaling to 16, 32, 48 or 64
analog ports. Digital telephony connectivity is
just as scalable, with options from 12 to 240
channels. IP telephony solutions are further
supported on the Cisco 3700 Series through a
powerful set of features including line-powered
IP phone connectivity that begins with 16 ports
and scales to 36, 52, or 72 ports.

Power

High-speed routing performance up to 225,000
packets per second, providing the scalability to
support more concurrent services.

Interoperability/Multiprotocol
support

Offers a comprehensive set of protocols and
services, including virtual private networking,
firewall protection, encryption, WAN
optimization, and enhanced multimedia
support features.

Deploy the Cisco 3700 Series when you need
need:

• New levels of branch office service density in
a compact form factor;

• Integrated flexible routing and low-density
switching (16 or 36 ports);

• Flexible, incremental, and scalable migration
to a converged branch office network;

• Compatibility with over 90% of the world’s
legacy analog and digital TDM PBXs;

• Survivable Remote Site Telephony features
that enable branch offices to leverage
centralized call control while providing local
branch IP Telephony redundancy;

• Increased default memory of 32MB Compact
Flash and 128MB DRAM;

• Support for advanced quality of service
(QoS), bandwidth optimization, and data
fragmentation, as well as voice call
admission control, call control, and
queuing mechanisms, without sacrificing
the expected data performance needed for
future growth.

Product Positioning

Options of:

• Voice enabled routers

• VPN-enabled routers

• Integrated stateful firewall

• WCCP for Content Networking

• Dial access

• Integrated low-density switching

Headquarters

V

IP

WAN

PSTN

IP

IP

Cisco 3700

More Service

Integration

Integrated Medium/Regional

Branch Offices

Option:

Integrated

Switching

IP

IP

IP

29

Series Features Overview

Series Specifications

Platform Overview

Cisco 3700 Series

Fixed Performance DRAM DRAM FLASH FLASH Power

Platform NMs AIM WICs LAN Ports (Kpps) (default MB) (max MB) (default MB) (max MB) Supply

Cisco 3725 2 2 3 2 FE 100 128 256 32 128 AC, RPS

Cisco 3745 4 2 3 2 FE 225 128 256 32 128 AC,DC, RPS

Processor: MIPS RISC Processor

Dimensions [Height x Width x Depth]:

Cisco 3725: 3.5 x 17.1 x 15 in88 x 434 x 381 mm2 Rack Unit (RU) height

Cisco 3745: 5.25 x 17.25 x 15 in133 x 438 x 381 mm3 Rack Units (RU) height

Console port: 1 (up to 115.2 Kbps)

Auxiliary port: 1 (up to 115.2 Kbps)

Integrated CSU/DSU: Yes (T1/E1, Fractional T1/E1, 56k/64k)

Voice/Data Support (Y/N): Yes

Compression (H/W or S/W): S/W + H/W

Encryption (H/W or S/W): S/W + H/W

Maximum Ethernet Ports: 46

Maximum 10/100 Ethernet Ports: 46

Maximum 1000 Ethernet Ports: 2

Maximum Token Ring Ports: 4

Maximum High-Speed Serial (up to 2 Mbps): 22

Maximum Low-Speed Serial (up to 128 Kbps) 38 sync, 134 async

Maximum Integrated Modems: 70 Analog, 60 Digital

Maximum Number of ISDN BRI Ports: 35

Maximum Number of ISDN PRI Ports: 8

Minimum Cisco IOS Release:

Cisco 3725 – IOS 12.2(8) T

Cisco 3745 – IOS 12.2(8) T

30

Benefits & Advantages

continued

Cisco IOS Requirements

Ordering Information

Cisco 3700 Series

Support for Cisco 3700 Series Routers starts in Cisco IOS release 12.2(8)T

Cisco IOS Release 12.2 T Memory Recommendations for the Cisco 3725 Router

Feature Set Image Name Rec Flash Memory Rec DRAM Memory

IP c3725-i-mz 32 MB 128 MB

IP Plus c3725-is-mz 32 MB 128 MB

IP Plus IPSec 3Des c3725-ik9s-mz 32 MB 128 MB

IP/FW/IDS c3725-io3-mz 32 MB 128 MB

IP/FW/IDS Plus IPSec 3Des c3725-ik9o3s-mz 32 MB 128 MB

Enterprise Plus c3725-js-mz 32 MB 128 MB

Enterprise Plus IPSec 3Des c3725-jk9s-mz 32 MB 128 MB

Enterprise/FW/IDS Plus IPSec 3Des c3725-jk9o3s-mz 32 MB 128 MB

Enterprise Plus/H323 MCM c3725-jsx-mz 32 MB 128 MB

IP/H323 c3725-ix-mz 32 MB 128 MB

Cisco IOS Release 12.2 T Memory Recommendations for the Cisco 3745 Router

Feature Set Image Name Rec Flash Memory Rec DRAM Memory

IP c3745-i-mz 32 MB 128 MB

IP Plus c3745-is-mz 32 MB 128 MB

IP Plus IPSec 3Des c3745-ik9s-mz 32 MB 128 MB

IP/FW/IDS c3745-io3-mz 32 MB 128 MB

IP/FW/IDS Plus IPSec 3Des c3745-ik9o3s-mz 32 MB 128 MB

Enterprise Plus c3745-js-mz 32 MB 128 MB

Enterprise Plus IPSec 3Des c3745-jk9s-mz 32 MB 128 MB

Enterprise/FW/IDS Plus IPSec 3Des c3745-jk9o3s-mz 32 MB 128 MB

Enterprise Plus/H323 MCM c3745-jsx-mz 32 MB 128 MB

IP/H323 c3745-ix-mz 32 MB 128 MB

The Cisco 3700 is ordered from components.You must specify:

•A 3700 series chassis: All chassis ship with the minimum recommended memory for the most
recent default Cisco IOS IP feature set, documentation, console, auxiliary and LAN cables, 19”
rack mount brackets, RJ-45 to DB-9 and DB-25 converters, and blank panels that cover unused
WAN interface card and or network module slots.

•A CD software pack with desired software release.

•A power cord

Optional items are

•A Cisco IOS feature set upgrade or revision. The IP feature set is the default and included with the
chassis.

• Up to three WAN Interface Cards

• Up to four Network Modules, with on-board WAN and Voice Interface Cards

• Up to two Advanced Integration Modules

• Up to two Integrated Etherswitch power supplies

• Flash Memory Upgrade

• DRAM Memory Upgrade

• Cables

Cisco 7200 Series
Modular Access Routers

Cisco 7200 series routers deliver exceptional versatility in a compact form factor.

With processing speeds up to 400,000 packets per second, port adaptors ranging

from NxDS0 to OC-12, and an unparalleled number of high-touch IP services, the

Cisco 7200 is an ideal high-end access router for large branch office environements.

A key strength of the Cisco 7200 is its modularity. With a choice of 4- and 6-slot

chassis, a selection of processors providing up to 400 kpps, an extensive range of

LAN and WAN interfaces with up to 48 ports per chassis, and single or dual power

supplies, the customer can customize their system to achieve the performance,

connectivity, and capacity desired. This modularity combined with a low initial price

point guarantees both investment protection and maximum return on investment,

allowing the customer to upgrade and/or redeploy their Cisco 7200 as their network

needs change.

Compact Form Factor

Up to six port adapters in a fully modular 3RU
form factor. Rack Density System (RDS) allows
for up to nine Cisco 7206 routers per rack with
front-to-back airflow.

Exceptional Value

As the most powerful Cisco single-processor
platform, the Cisco 7200 offers customers a
superior price/performance ratio supporting
high-speed media and high-density
configurations with up to 400 kpps processing
at a competitive price point.

Simplified Network Convergence

The Cisco 7200’s Multiservice Interchange (MIX)­enabled backplane allows for integration of data,
voice, and video in a single WAN Edge device.
With the latest quality of service (QoS) features,
the Cisco 7200 Series enables enterprises to
save money by bypassing their carrier’s long
distance charges.

Virtual Private Network
(VPN) Support

The dedicated VPN acceleration adapters
available on the Cisco 7200 enable an
integrated solution for routing, QoS, multicast,
and multiprotocol traffic across the VPN.
Utilizing the VPN Acceleration Module (VAM),
the Cisco 7200 Series VPN Router delivers IPSec
encryption scalability to 145 Mbps for the most
demanding head-end site-to-site VPN
deployments.

Enhanced Security

With support for access control lists (ACL),
network address translation (NAT), Netflow,
along with firewall, intrusion detection, and
service level validation features, the Cisco
7200 is an ideal platform for ensuring
network security.

Benefits and Advantages

31

When to Deploy

Product Positioning

Benefits and Advantages

continued

Cisco 7200 Series

32

Maximum ROI

A low price per port entry point makes the value
of the Cisco 7200 unbeatable, while still allowing
customers to upgrade and/or redeploy their
equipment as their network needs change.

Feature Rich

Full support for Cisco IOS software and enhance­ments for high-performance network services
enables the Cisco 7200 to offer industry-leading
network services including MPLS, broadband
aggregation, quality of service, security, and
multiservice.

Connectivity/Flexibility

Providing high port density and an extensive
range of LAN and WAN media, the Cisco 7200
dramatically reduces the cost per port and
allows for flexible configurations to meet your
specific network needs.

Common port adapters

By using the same port adapters as the Cisco
7500 Versatile Interface Processor (VIP), 7600
FlexWAN Module, 7100, and 7400, using the
Cisco 7200 simplifies stocking spares and
protects customer investment in interfaces.

Deploy the Cisco 7200 Series when you need a
high-performance access solution offering:

•Flexibility in configurations

•A wide range of services

•A wide range of connectivity options

• High performance in a compact form factor

Branch Offices

WAN Aggregation

Enterprise

Cisco 7200

Cisco 7200
CPE

Small
Town

Cisco 7200
Small POP

Large

POP

Midsize

POP

Small POP

Remote
Region

Series Specifications

Cisco 7200 Series

33

Processor RM7K RISC Processor

Flash Memory 48MB (expandable to 128MB)

System DRAM Memory 128MB (expandable to 512MB)

Modular Slots 4 or 6

Supported Port Adaptors 70+

Internal Power Supply AC or DC, dual option

Dimensions

7204VXR 5.25 x 16.8 x 17 in.;
7206VXR 5.25 x 16.8 x 17 in.

Performance Up to 40 0,000 (depending on configuration

Console port 1

Auxiliary port 1

Base Configuration 4 or 6-slot chassis, 1 AC power supply, IP software

Maximum Ethernet Port

7204VXR 32
7206VXR 48

Maximum 10/100 Ethernet Ports

7204VXR 4
7206VXR 6

Maximum Token Ring Ports

7204VXR 16
7206VXR 24

Maximum High-Speed Serial (up to 2 Mbps)

7204VXR 8
7206VXR 12

Maximum Low-Speeed Serial (up to 128 Kbps)

7204VXR 32
7206VXR 48

Voice/Data Support (Y/N) Yes

Integrated Modems No

Maximum Number of ISDN BRI Ports

7204VXR 32
7206VXR 48

Maximum Number of ISDN PRI Ports

7204VXR 32
7206VXR 48

Integrated CSU/DSU Yes (dependent of PA configuration)

Compression (H/W or S/W) S/W + H/W

Encryption (H/W or S/W) S/W + H/W

Redundant Power Supply Support Yes, for AC or DC

Minimum Cisco IOS Release Cisco IOS 11.1(16)CA or later

Cisco IOS Requirements

Cisco 7200 Series

34

Ordering Information

Memory Requirements

Generally, 16MB of Flash and 128MB of DRAM is recommended; however, Flash and DRAM requirements typically
vary by IOS release.

Product Description Image Name

DESKTOP/IBM c7200-ds-mz

DESKTOP/IBM IPSEC 56 c7200-dk8s-mz

DESKTOP/IBM/FW/IDS c7200-do3s-mz

DESKTOP/IBM/FW/IDS IPSEC 3DES c7200-dk9o3s-mz

DESKTOP/IBM/FW/IDS IPSEC 56 c7200-dk8o3s-mz

ENTERPRISE c7200-js-mz

ENTERPRISE IPSEC 3DES c720 0-jk9s-mz

ENTERPRISE IPSEC 56 c7200-jk8s-mz

ENTERPRISE MCM c7200-jx2-mz

ENTERPRISE SSG c7200-g4js-mz

ENTERPRISE/FW/IDS c7200-jo3s-mz

ENTERPRISE/FW/IDS IPSEC 3DES c7400-jk9o3s-mz

ENTERPRISE/FW/IDS IPSEC 56 c7400-jk8o3s-mz

ENTERPRISE/SNASW IPSEC 3DES c7400-a3jk9s-mz

ENTERPRISE/SNASW IPSEC 56 c7400-a3jk8s-mz

ENTERPRISE/SNASW PLUS c7400-a3js-mz

IP c7200-is-mz

IP IPSEC 56 c720 0-ik8s-mz

IP PLUS IPSEC 3DES c7200-ik9s-mz

IP/FW/IDS c7200-io3s-mz

IP/FW/IDS IPSEC 3DES c7200-ik9o3s-mz

Cisco 7200 Series Base Chassis, Processing Engine, and I/O Controller

CISCO7204VXR Cisco 7204VXR, 4-slot chassis, 1 AC Supply

CISCO72006VXR Cisco 7206VXR, 6-slot chassis, 1 AC Supply

NPE-225= Cisco 7200 Network Processing Engine, 225 pps

NPE-400= Cisco 7200VXR Netowork Processing Engine, 400 pps

NSE-1= Cisco 720 0VXR Network Services Engine, 300 pps plus PXF

C7200-I/O= Cisco 7200 Input/Output Controller, Spare

C7200-I/O-2FE/E Cisco 7200 Input/Output Controller with Dual 10/100 Ethernet

C7200-I/O-GE+E= Cisco 7200 Input/Output Controller with GE and Ethernet

Cisco 7300 Series
Modular Access Routers

The Cisco 7300 Series Internet Router is designed for the network edge, where high

performance IP services are required to enable profitability, service differentiation,

and business agility. Utilizing a compact, modular form factor, the Cisco 7300 Series

delivers high-touch IP services at optical speeds necessary for high-end enterprise

applications. The Cisco 7300 Series delivers an evolving set of hardware accelerated

IP services via the Cisco patented Parallel eXpress Forwarding (PXF) IP Services

Processor technology. Providing a range of IP connectivity from T3 to Gigabit

Ethernet/OC-48, engineered for high availability and multi-protocol support, the

Cisco 7300 is the optical evolution of Cisco System's mid-range routers.

Compact and Flexible

The Cisco 7300 is a 4-RU platform with four port
adapter (PA) slots per chassis. This compact form
factor reduces capital and operational expendi­tures as well as enabling "pay as you grow"
deployment to reduce upfront capital
investment.

High-performance IP
Service Application

The Cisco 7300 Series includes the award­winning PXF IP processor technology for
hardware-accelerated services such as Cisco
Express Forwarding (CEF), NetFlow v8, Turbo
access control lists (ACL), packet classification
and marking, and low latency queuing (LLQ).
Furthermore, the NSE-100 Network Services
Engine offers 3.5Mpps of forwarding
performance.

High Availability/High Productivity

With a redundant NSE-1 route processor and
redundant AC/DC power supplies, the Cisco 7300
provides 24/7 network access for your
employees, ensuring a productive and efficient
work environment year-round.

Investment Protection

With the multiprotocol support of the Cisco
7300— including IP, Internetwork Packet
Exchange [IPX], data-link switching [DLSw],
AppleTalk, and more—businesses can leverage
their existing networks and simplify integration
into new environments.

Benefits and Advantages

35

Product Positioning

When to Deploy

Cisco 7300 Series

36

Deploy the Cisco 7300 when you need:

• A compact and modular form factor that
allows for incremental investments;

• Scalable deployment with range of
connectivity options, including OC-12 POS and
OC-48 POS;

• High availability — redundant route processor,
a high-availability feature ensures reliability of
the network;

• NSE-100 Network Services Forwarding Engine,
offering 3.5 Mpps performance for PXF­accelerated services to enable optical speed at
the edge;

• 2 Gigabit Ethernet ports per NSE-100, enabling
cost-effective and high-performance Gigabit
Ethernet connectivity;

• Hardware-accelerated services;

• Multiprotocol support;

• Multiple OC-3 ports for redundant connectivity
and segregation of the network.

Service Provider Small POP

T3

OC-3

Cisco

7300

OC-12

OC-48

Internet

OC-3

Cisco

7300

GE

Enterprise HIgh Speed

WAN/MAN Aggregation

T3

T3

T3

Cisco

7300

GE

High-End Enterprise CPE

Series Specifications

Cisco IOS Requirements

Cisco 7300 Series

37

Processor RM 700 0 MIPS and Parallel eXpress Forwarding (PXF)

Flash Memory 64MB (expandable to 128MB)

System DRAM Memory 128MB (expandable to 512MB)

Modular Slots 4

Fixed Ports 2

Internal Power Supply AC or DC (both redundant)

Dimensions 7 x 17.2 x 20.5 in.

Performance Up to 3.5 Mpps

Console port 1

Auxiliary port 1

Base Configuration 4-slot chassis, NSE-100, 1 AC power supply, IP software

Maximum Ethernet Ports 2 fixed GE ports

Voice/Data Support (Y/N) Yes

Integrated Modems No

Integrated CSU/DSU Yes (T3)

Compression (H/W or S/W) S/W + H/W

Encryption (H/W or S/W) S/W + H/W

Redundant Power Supply Support Yes

Minimum Cisco IOS Release Cisco IOS 12.1.10-EX or later

Memory Requirements

Generally, 16MB of Flash and 128MB of DRAM is recommended; however, Flash and DRAM requirements typically
vary by IOS release.

Product Description Image Name

ENTERPRISE/SNASW PLUS c7300-a3js-mz

ENTERPRISE c7300-js-mz

ENTERPRISE/FW/IDS IPSEC 3DES c7300- jk9o3s -mz

ENTERPRISE/FW/IDS IPSEC 56 c730 0- jk8o3s -mz

IP PLUS c7300-is-mz

IP/FW/IDS IPSEC 3DES c7300- ik9o3s -mz

IP/FW/IDS IPSEC 56 c7300- ik8o3s -mz

Ordering Information

Cisco 7300 Series

38

CISCO7304 4-slot chassis, NSE100, 1 Power Supply, IP Software

CISCO7304= Cisco 7300, 4-slot chassis

7300-NSE-100= Cisco 730 0 Network Services Engine 100

Cisco 7300 Memory Options

7300-MEM-256 256MB SDRAM for Cisco 730 0

7300-MEM-512 512MB SDRAM for Cisco 7300

7300-I/O-CFM-64M Cisco 7300 Compact Flash Memory, 64 MB

7300-I/O-CFM-128M Cisco 7300 Compact Flash Memory, 128 MB

Cisco 7300 Line Cards

7300-7300-4OC3POS-MM= 4-port OC3 POS line card for Cisco 7300 w/ Multi-mode

7300-4OC3POS-SMI= 4-port OC3 POS line card for Cisco 7300 w/ Single-mode IR

7300-4OC3POS-SML= 4-port OC3 POS line card for Cisco 7300 w/ Single-mode LR

7300-1OC48POS-SMS= 1-port OC48 POS line card for Cisco 7300 w/ Single-mode SR

7300-1OC48POS-SMI= 1-port OC48 POS line card for Cisco 7300 w/ Single-mode IR

7300-1OC48POS-SML= 1-port OC48 POS line card for Cisco 7300 w/ Single-mode LR

7300-2OC3POS-MM= 2-port OC3 Packet over SONET/SDH line card for Cisco 7300 Multimode

7300-2OC3POS-SMI= 2-port OC3 Packet over SONET/SDH line card for Cisco 7300 Single-mode

Intermediate Reach

7300-2OC3POS-SML= 2-port OC3 Packet over SONET/SDH line card for Cisco 7300 Single-mode

Long Reach

7300-2OC3ATM-MM= 2-port OC3 ATM line card for Cisco 7300 Multimode

7300-2OC3ATM-SMI= 2-port OC3 ATM line card for Cisco 7300 Single-mode Intermediate Reach

7300-2OC3ATM-SML= 2-port OC3 ATM line card for Cisco 7300 Single-mode Long Reach

7300-1OC12POS-MM= 1-port OC-12c/STM-4 Packet over SONET/SDH, Cisco 7300 Line Card, Multimode

7300-1OC12POS-SMI= 1-port OC-12c/STM-1 Packet over SONET/SDH, Cisco 7300 Line Card,

Single-mode Intermediate Reach

7300-1OC12POS-SML= 1-port OC-12c/STM-1 Packet over SONET/SDH, Cisco 7300 Line Card,

Single-mode Long Reach

7300-2OC12POS-MM= 2-port OC-12c/STM-4 Packet over SONET/SDH, Cisco 7300 Line Card, Multimode

7300-2OC12POS-SMI= 2-port OC-12c/STM-1 Packet over SONET/SDH, Cisco 7300 Line Card,

Single-mode Intermediate Reach

7300-2OC12POS-SML= 2-port OC-12c/STM-1 Pack et over SONET/SDH, Cisco 7300 Line Card,

Single-mode Long Reach

7300-6T3= 6-Port Clear Channel T3 Card, Cisco 7300 Line Card

Cisco 7300 Power Supplies and Cords

7300-PWR-DC= Cisco 7300 DC Power Supply Spare

7300-PWR-AC= Cisco 7300 AC Power Supply Spare

7300-PWR/2-DC Cisco 7300 Redundant DC Power Supply Option

7300-PWR/2-AC Cisco 7300 Redundant AC Power Supply Option

Cisco 7300 Accessories

7300-HALFSLOTBLNK Cisco 7300 Half Slot Blank Line Card

7300-4RU/RCKBRKT= Cisco 7304 Chassis Rackmount Bracket Spare

7300-CNTR-SPTUM= Cisco 7300 Center Septum Spare

Cisco 7300 Software Options

S73CP-12109EX Cisco 7300 IOS IP PLUS

S73A-12109EX Cisco 7300 IOS ENTERPRISE

Cisco 7400 Series
Modular Access Routers

The Cisco 7400 Internet Router is the highest performance single-rack unit, service-

rich router in the industry. This modular, one-port adapter slot unit leverages over 40

standard 7200/7500/7600 series port adapters. Its compact, stackable architecture

makes the the Cisco 7400 an excellent router for either a centrallized stacked configu-

ration or a distributed ege CPE for access environments. Leveraging Cisco's patented

Parallel eXpress Forwarding (PXF) technology, the Cisco 7400 series delivers a

premium suite of hardware-accelerated network services.

Form factor with high Density

The smallest form factor with stackability
feature. One-RU Form Factor with Front-to-Back
Airflow and Single Port Adapter Slot delivers
maximum performance density .
Cisco Parallel eXpress Forwarding (PXF):
Patented technology with unique advantages
delivers high-performance, hardware­accelerated, high-touch IP services such as ACL,
NAT, NetFlow, LLQ, CAR, Trafic Shaping,
PPP,L2TP and RBE.

Flexibility/Investment Protection

Supports a broad range of connectivity options
via more than 40 port adaptors (PA), from 64Kbs
to T1/T3 & OC-3 interfaces. The Cisco 7400
supports common PA’s with the Cisco 7200,
7500 and 7600 routers, enabling stocking spares
simplification and interface investment
protection.

Comprehensive Management
Services

Includes remote management, provisioning,
trouble shooting and software upgrades. Cisco
Element Manager Framework (CEMF) simplifies
and accelerates the deployment and
management of new services and elements
across the network.

Maximum LAN Connectivity

Two Fixed 10/100/1000 Mbps ports (RJ-45 for
Fast Ethernet and Ethernet, and Gigabit Interface
Converter [GBIC] for Gigabit Ethernet),
delivering the most LAN connectivity without
the extra rack space.

Superior Efficiency

Flexibility and high availability with one-third of
traditional power consumption, with AC, DC
48V, DC 24V, or dual DC 48V with 50W power
consumption options.

Cisco IOS®Software

Supports IP network services, including quality
of service (QoS), security, compression, and IP
Security Triple Digital Encryption Standard
(IPSec 3DES) encryption at high speed.
Cisco Cluster Management Suite: Saves time
and money by enabling management of an
entire stack as a cluster using a single interface.
Stackability: ”Pay as you grow" option provides
an opportunity to build and even redeploy the
stack to other parts of the network as
requirements change.

Benefits and Advantages

39

When to Deploy

Cisco 7400 Series

Product Positioning

40

Deploy the Cisco 7400 Series when you need:

• Compact form factor with 1 RU, front-to-back
airflow for stackability. Ideal for 1 RU router
upgrades to OC3 WAN performance and GE
LAN interfaces.

• Hardware-accelerated IP network services with
Cisco PXF adaptive IP network services
processor

• Deploy as a network appliance for IPSEC,
Firewall, QoS enforcement or MPLS PE or CPE

• Cost-effective Gigabit Ethernet to Gigabit
Ethernet Layer 2-7 network services

• Deploy for complete service suite for
broadband subscriber services application for
both LAC, PTA and LNS designs (PPP, L2TP,
RBE)

•Flexible WAN connectivity supporting over 40
interfaces including serial, multichannel, ISDN,
Frame Relay, ATM, and Packet over SONET
(PoS), from NxDS0 to OC-3 speeds.

Cellular

Wireless

WAN/LAN

WAN

ASP

7400 ASR Stack

Aggregation

Router

Load

Balanced

Application

ASR

ASR

ASR

ASR

Series Specifications

Cisco 7400 Series

41

Processor RM7K RISC Processor + PXF processor

Flash Memory 64MB (expandable to 128MB)

System DRAM Memory 128MB (expandable to 512MB)

Modular Slots 1

Fixed Ports 2

Supported Port Adaptors 40+

Internal Power Supply AC, DC48V, DC24V or dual DC48V power supply

Dimensions 1.72 x 17.3 x 11.8 in.

Performance Up to 350,000 pps

Console port 1 RJ45

Auxiliary port 1 RJ45

Base Configuration 1-slot chassis, power supply, IP software

Maximum number of Ethernet Ports 10

Maximum number 10/100 Ethernet Ports 4

Maximum number of 10/100/1000 Ethernet Ports 3

Maximum High-Speed Serial (up to 2 Mbps) 8

Maximum Low-Speeed Serial (up to 128 Kbps) 8

Voice/Data Support (Y/N) Yes

Integrated Modems No

Maximum Number of ISDN BRI Ports 8

Maximum Number of ISDN PRI Ports 8

Integrated CSU/DSU Ye s

Compression (H/W or S/W) S/W + H/W

Encryption (H/W or S/W) S/W + H/W

Redundant Power Supply Support Ye s

Minimum Cisco IOS Release Cisco IOS 12.2.1 or later

Cisco IOS Requirements

Ordering Information

Cisco 7400 Series

42

Cisco 7400 Bundles

CISCO7401ASR-BB Cisco 7401, 1 slot chassis, power supply, 256-MB SDRAM, Broadband Feature Lisence

CISCO7401ASR-CP Cisco 7401, 1 slot chassis, power supply, 128-MB SDRAM, CPE Software

Cisco 7400 Memory Options

EM-COMP-FLD64M Cisco 7400 PCMCIA Flash disk, 64 MB

MEM-COMP-FLD128M Cisco 7400 PCMCIA Flash disk, 128 MB

MEM-7400ASR-256MB 256 MB memory for Cisco 7400

MEM-7400ASR-512MB 512 MB memory for Cisco 7400

Cisco 7400 ASR Transceiver Modules

GBIC-LX/LH GBIC for 1000BaseLX standard

GBIC-SX= GBIC for 1000BaseSX (short wavelength)

GBIC-ZX= Gigabit Interface Converter for 1000 BASE-ZX

Cisco 7400 ASR Power Supplies and Cords

CAB-AC= AC power cord, US (also available for UK, Europe, Italy, Australia, and Argentina)

Cisco ASR Spares and Accessories

ACS-7400-RMK= Cisco 7400 Rackmount kit and Cable Management Bracket

MAS-74KBLANK= Cisco 7400 Blank Card Carrier

MAS-74KSLOTDIV= Cisco 7400 Port Adapter Divider (spare)

PKG-7400= Cisco 7400 Spare System Packaging Material

Memory Requirements

Generally, 16MB of Flash and 128MB of DRAM is recommended; however, Flash and DRAM requirements typically
vary by IOS release.

Product Description Image Name

DESKTOP/IBM/FW/IDS IPSEC 56 c7400-dk8o3s-mz

DESKTOP/IBM IPSEC 56 c7400-dk8s-mz

DESKTOP/IBM/FW/IDS IPSEC 3DES c7400-dk9o3s-mz

DESKTOP/IBM/FW/IDS c7400-do3s-mz

DESKTOP/IBM c7400-ds-mz

IP/FW/IDS IPSEC 56 c7400-ik8o3s-mz

IP IPSEC 56 c7400-ik8s-mz

IP/FW/IDS IPSEC 3DES c7400-ik9o3s-mz

IP PLUS IPSEC 3DES c7400-ik9s-mz

IP/FW/IDS c7400-io3s-mz

IP c7400-is-mz

ENTERPRISE/FW/IDS IPSEC 56 c7400-jk8o3s-mz

ENTERPRISE IPSEC 56 c7400-jk8s-mz

ENTERPRISE/FW/IDS IPSEC 3DES c7400-jk9o3s-mz

ENTERPRISE IPSEC 3DES c7400-jk9s-mz

ENTERPRISE/FW/IDS c7400-jo3s-mz

ENTERPRISE c740 0-js-mz

ENTERPRISE MCM c7400-jx2-mz

ENTERPRISE SSG c7200-g4js-mz

Memory Requirements

Generally, 16MB of Flash and 128MB of DRAM is recommended; however, Flash and DRAM requirements typically
vary by IOS release.

Product Description Image Name

DESKTOP/IBM/FW/IDS IPSEC 56 c7400-dk8o3s-mz

DESKTOP/IBM IPSEC 56 c7400-dk8s-mz

DESKTOP/IBM/FW/IDS IPSEC 3DES c7400-dk9o3s-mz

DESKTOP/IBM/FW/IDS c7400-do3s-mz

DESKTOP/IBM c7400-ds-mz

IP/FW/IDS IPSEC 56 c7400-ik8o3s-mz

IP IPSEC 56 c7400-ik8s-mz

IP/FW/IDS IPSEC 3DES c7400-ik9o3s-mz

IP PLUS IPSEC 3DES c7400-ik9s-mz

IP/FW/IDS c7400-io3s-mz

IP c7400-is-mz

ENTERPRISE/FW/IDS IPSEC 56 c7400-jk8o3s-mz

ENTERPRISE IPSEC 56 c7400-jk8s-mz

ENTERPRISE/FW/IDS IPSEC 3DES c7400-jk9o3s-mz

ENTERPRISE IPSEC 3DES c7400-jk9s-mz

ENTERPRISE/FW/IDS c7400-jo3s-mz

ENTERPRISE c740 0-js-mz

ENTERPRISE MCM c7400-jx2-mz

ENTERPRISE SSG c7200-g4js-mz

43

Cisco 2600 Series
Modular Access Routers

Network Module Compatibility

NETWORK MODULE ROUTER COMPATIBILITY

3725 3661 3620 2691 260 0
3745 3662 3640 2600XM

Ethernet Switching Network Modules and Accessories

NM-16ESW: 16 port 10/100 EtherSwitch NM •••••

NM-16ESW-1GIG: 16 port 10/100 EtherSwitch •••••

NM with 1 GE (1000BaseT) port

NM-16ESW-PWR: 16 port 10/100 EtherSwitch NM •••••
with In-Line Power support

NM-16ESW-PWR-1GIG: 16 port 10/100 EtherSwitch NM •••••
with In-Line Power and GE

PPWR-DCARD-16ESW: In-line power daughtercard •••••
for 16 port EtherSwitch NM

NMD-36ESW: 36 port 10/10 0 EtherSwitch HDSM • • – – –

NMD-36ESW-2GIG: 36 port 10/100 EtherSwitch • • – – –

HDSM with 1 GE (1000BaseT) port

NMD-36ESW-PWR: 36 port 10/100 EtherSwitch • • – – –
HDSM with In-Line Power support

NMD-36ESW-PWR-2G: 36 port 10/100 EtherSwitch • • – – –
HDSM with In-Line Power and GE

PPWR-DCARD-36ESW: In-line power daughtercard • • – – –
for 36 port EtherSwitch NM

GE-DCARD-ESW: 1000BaseT daughter card •••••
for EtherSwitch Modules

PPWR-PS-360W: 360W power supply • ––––
for EtherSwitch Modules

PPWR-PS-CHASSIS: Power Supply Chassis – ••••
for PPWR-PS-360W

PWR-CHASSIS-360W: Power Supply Chassis – ••••
including one PPWR-PS-360W

LAN Network Modules

NM-1FE-FX: 1-Port Fast Ethernet Network Module, Future • • • –

FX Only

NM-1FE-TX: 1-Port Fast Ethernet Network Module – • • – –
(TX Only)

NM-1E: 1-Port Ethernet Network Module – • • – •

NM-4E: 4-Port Ethernet Network Module – • • – •

44

Benefits & Advantages

continued

Network Modules

Cisco Access Routers

NETWORK MODULE ROUTER COMPATIBILITY

3725 3661 3620 2691 2600
3745 3662 3640 260 0XM

LAN and WIC Combo Network Modules

NM-1FE2W: 1 10/100 Ethernet 2 WAN ••••–

Card Slot Network Module

NM-2FE2W: 2 10/100 Ethernet 2 WAN ••••–
Card Slot Network Module

NM-1FE1R2W: 1 10/100 Ethernet 1 4/16 Token-Ring ••••–
2 WAN Card Slot NM

NM-1E2W: 1 Ethernet 2 WAN Card Slot Network Module – • • – –

NM-2E2W: 2 Ethernet 2 WAN Card Slot Network Module – • • – –

NM-1E1R2W: 1 Ethernet 1 Token Ring 2 WAN Card Slot – • • – –

Network Module

NM-2W: 2 WAN Card Slot Network Module (no LAN) •••••

LAN and T1/E1 Combo Network Modules

NM-1FE1CT1: 1 Port F Ethernet 1 Port – • • – –

Channelized T1/ISDN-PRI NM

NM-1FE1CT1-CSU: 1 Port F Ethernet 1 Port – • • – –
Channelized T1/ISDN-PRI with CSU NM

NM-1FE1CE1B: 1 Port F Ethernet 1 Port – • • – –
Channelized E1/ISDN-PRI Balanced NM

NM-1FE1CE1U: 1 Port F. Ether. 1 Port – • • – –
Channelized E1/ISDN-PRI Unbalanced NM

NM-1FE2CT1: 1 Port F Ethernet 2 Port – • • – –
Channelized T1/ISDN-PRI NM

NM-1FE2CT1-CSU: 1 Port F Ethernet 2 Port – • • – –
Channelized T1/ISDN-PRI with CSU NM

NM-1FE2CE1B: 1 Port F Ethernet 2 Port – • • – –
Channelized E1/ISDN-PRI Balanced NM

NM-1FE2CE1U: 1 Port F. Ether. 2Port – • • – –
Channelized E1/ISDN-PRI Unbalanced NM

Serial Connectivity Network Modules

NM-1HSSI: Single port HSSI network module ••••–

NM-4T: 4-Port Serial Network Module – • • – –

NM-4A/S: 4-Port Async/Sync Serial Network Module •••••

NM-8A/S: 8-Port Async/Sync Serial Network Module •••••

NM-16A: 16 port Asynchronous Module Future ••••

NM-32A: 32 port Asynchronous Module Future ••••

45

Series Features OverviewNetwork Modules

Cisco Access Routers

NETWORK MODULE ROUTER COMPATIBILITY

3725 3661 3620 2691 2600
3745 3662 3640 260 0XM

Channelized T1/E1 and ISDN Network Modules

NM-1CT1: 1-Port Channelized T1/ISDN-PRI Network Module •••••

NM-1CT1-CSU: 1-Port Channelized T1/ISDN-PRI •••••

with CSU Network Module

NM-1CE1B: 1-Port Channelized E1/ISDN-PRI •••••
Balanced Network Module

NM-1CE1U: 1-Port Channelized E1/ISDN-PRI •••••
Unbalanced Network Module

NM-2CT1: 2-Port Channelized T1/ISDN-PRI Network Module •••••

NM-2CT1-CSU: 2-Port Channelized T1/ISDN-PRI •••••

with CSU Network Module

NM-2CE1B: 2-Port Channelized E1/ISDN-PRI •••••
Balanced Network Module

NM-2CE1U: 2-Port Channelized E1/ISDN-PRI •••••
Unbalanced Network Module

NM-4B-S/T: 4-Port ISDN-BRI Network Module •••••

NM-4B-U: 4-Port ISDN-BRI with NT-1 Network Module •••••

NM-8B-S/T: 8-Port ISDN-BRI Network Module •••••

NM-8B-U: 8-Port ISDN-BRI with NT-1 Network Module •••••

ATM Network Modules

NM-1A-OC3MM: Single port ATM OC-3 – • • • –

Multimode network module for 3600

NM-1A-OC3SMI: Single port ATM OC-3 – • • • –
Singlemode Intermediate Reach NM

NM-1A-OC3SML: Single port ATM OC-3 – • • • –
Singlemode Long Reach Network Module

NM-1A-OC3MM-1V: 1-port MultimodeOC-3 – • • – –
ATM CES Network Module

NM-1A-OC3SMI-1V: 1-port Singlemode – • • – –
Intermediate Reach OC-3 ATM CES NM

NM-1A-OC3SML-1V: 1-port Singlemode – • • – –
Long Reach OC-3 ATM CES NM

NM-1A-T3: 1-Port DS3 ATM Network Module •••••

NM-1A-E3: 1-Port E3 ATM Network Module •••••

NM-1ATM-25: One port ATM 25Mbps Network Module – • • – •

NM-4T1-IMA: 4-port T1 ATM Network Module with IMA •••••

NM-4E1-IMA: 4-port E1 ATM Network Module with IMA •••••

46

Benefits & Advantages

continued

Network Modules

Cisco Access Routers

NM-8T1-IMA: 8-port T1 ATM Network Module with IMA •••••

NM-8E1-IMA: 8-port E1 ATM Network Module with IMA •••••

Digital Dialup and Remote Access Network Modules and Accessories

NM-6DM: 6 Port Digital Modem Network Module • • • – –

NM-12DM: 12 Port Digital Modem Network Module • • • – –

NM-18DM: 18 Port Digital Modem Network Module • • • – –

NM-24DM: 24 Port Digital Modem Network Module • • • – –

NM-30DM: 30 Port Digital Modem Network Module • • • – –

MICA-6MOD: 6 Port Digital Modem Network Module, Spare • • • – –

Analog Dialup and Remote Access Network Modules

NM-8AM: 8-Port Analog Modem Network Module Future ••••

NM-8AM-J: 8-Port Analog Modem Network Module Future ••••

for Singapore, Japan, Malaysia

NM-16AM: 16 Port Analog Modem Network Module Future ••••

NM-16AM-J: 16 Port Analog Modem Network Module Future ••••

for Singapore, Japan, Malaysia

Analog and ISDN Basic Rate Voice Network Modules and Accessories

NM-1V: One-slot Voice/fax Network Module •••••

NM-2V: Two-Slot Voice/fax Network Module •••••

NM-HDA-4FXS: High density analog voice/fax •••••

network module with 4 FXS

EM-HDA-4FXO: 4-port voice/fax expansion module - FXO •••••

EM-HDA-8FXS: 8-port voice/fax expansion module - FXS •••••

DSP-HDA-16: 16-channel DSP module for NM-HDA •••••

High Density Digital Voice Network Modules and Accessories

NM-HDV-1T1-12: Single-Port 12 Channel T1 •••••

Voice/Fax Network Module

NM-HDV-1T1-24: Single-Port 24 Channel T1 •••••
Voice/Fax Network Module

NM-HDV-1T1-24E: Single-Port 24 Enhanced Channel T1 •••••
Voice/Fax Network Module

NM-HDV-2T1-48: Dual-Port 48 Channel T1 •••••
Voice/Fax Network Module

NM-HDV-1E1-12: Single-Port 12 Channel E1 •••••
Voice/Fax Network Module

NM-HDV-1E1-30: Single-Port 30 Channel E1 •••••
Voice/Fax Network Module

NETWORK MODULE ROUTER COMPATIBILITY

3725 3661 3620 2691 260 0
3745 3662 3640 2600XM

47

Series Features OverviewNetwork Modules

Cisco Access Routers

NM-HDV-1E1-30E: Single-Port 30 Enhanced Channel •••••
E1 Voice/Fax Network Module

NM-HDV-2E1-60: Dual-Port 60 Channel E1 •••••
Voice/Fax Network Module

NM-HDV-1J1-30: Single-Port 30 Channel J1 •••••
Voice/Fax Network Module

NM-HDV-1J1-30E: Single-Port 30 Enhanced Channel J1 •••••
Voice/Fax Network Module

PVDM-12: 12-channel Packet Voice DSP •••••
Module Upgrade - Spare

NM-HDV: High Density Voice/Fax Network Module •••••
(Single VIC Slot)

Alarm Monitoring and Control Network Modules and Accessories

NM-AIC-64: Alarm Monitoring and Control Network Module – • • – •

NETWORK MODULE ROUTER COMPATIBILITY

3725 3661 3620 2691 2600 1760 1751 1721
3745 3662 3640 2600XM

Serial WAN Interface Cards

WIC-1T: 1-Port Serial WAN – • • – ••••

Interface Card

WIC-2T: 2-Port Serial WAN ••••••••
Interface Card

WIC-1DSU-T1: 1-Port T1/Fractional – – ••••••

T1 DSU/CSU WAN Interface Card

WIC-1DSU-56K4: 1-port 4-WIRE ••••••••
56/64 KBPS WAN Interface Card

WIC-2A/S: 2-Port Async/Sync Serial ••••••••
WAN Interface Card

ISDN BRI WAN Interface Cards

WIC-1B-S/T: 1-Port ISDN WAN ••••••••

Interface Card(dial and leased line)

WIC-1B-U: 1-Port ISDN with NT-1 ••••••••
WAN Interface Card
(dial and leased line)

NETWORK MODULE ROUTER COMPATIBILITY

3725 3661 3620 2691 260 0
3745 3662 3640 2600XM

Interface Cards

48

Benefits & Advantages

continued

Interface Cards

Cisco Access Routers

DSL WAN Interface Cards

WIC-1ADSL: 1-port ADSL ••••••••

WAN Interface Card

WIC-1SHDSL: 1-Port G.SHDSL Future •••••••
WIC

Analog Modem WAN Interface Cards

WIC-1AM: One-port Analog ••••••••

Modem WAN Interface Card

WIC-2AM: Two-port Analog ••••••••
Modem WAN Interface Card

Ethernet WAN Interface Cards

WIC-1ENET: Single-port Ethernet ––––––• •

WAN Interface Card

T1, E1 and G.703 Multiflex Trunk Voice and WAN Interface Cards

VWIC-1MFT-T1: 1-Port RJ-48 ••••••••

Multiflex Trunk - T1

VWIC-2MFT-T1: 2-Port RJ-48 ••••••••
Multiflex Trunk - T1

VWIC-2MFT-T1-DI: 2-Port RJ-48 ••••••••
Multiflex Trunk - T1 With Drop and Insert

VWIC-1MFT-E1: 1-Port RJ-48 ••••••••
Multiflex Trunk - E1

VWIC-1MFT-G703: 1-Port RJ-48 ••••••••
Multiflex Trunk - G.703

VWIC-2MFT-E1: 2-Port RJ-48 ••••••••
Multiflex Trunk - E1

VWIC-2MFT-E1-DI: 2-Port RJ-48 ••••••••
Multiflex Trunk - E1 With Drop and Insert

VWIC-2MFT-G703: 2-Port RJ-48 ••••••••
Multiflex Trunk - G.703

Analog Voice Interface Cards

VIC-2FXS: Two-port Voice •••••••–

Interface Card - FXS

VIC-2FXO: Two-port Voice •••••••–
Interface Card - FXO

VIC-2FXO-EU: Two-port •••••••–
Voice Interface Card - FXO (for Europe)

VIC-2FXO-M1:Two-port Voice •••••••–

NETWORK MODULE ROUTER COMPATIBILITY

3725 3661 3620 2691 2600 1760 1751 1721
3745 3662 3640 2600XM

49

Interface Cards

Cisco Access Routers

Interface Card - FXO w/ Reversal (for US+)

VIC-2FXO-M2: Two-port Voice •••••••–

Interface Card - FXO w/ Reversal (for EU)

VIC-2FXO-M3: Two-port Voice •••••••–
Interface Card - FXO (for Australia)

VIC-2E/M: Two-port Voice •••••••–
Interface Card - EandM

VIC-2DID: Two-port DID •••••••–
(Direct Inward Dial) voice/fax Interface Card

ISDN BRI Voice Interface Cards

VIC-2BRI-NT/TE: Two-port Voice •••••••–

Interface Card - BRI (NT and TE)

VIC-2BRI-S/T-TE: Two-port Voice •••••–––
Interface Card - BRI (Terminal)

J1 Voice Interface Card for Japan

VIC-1J1: One Port Digital Voice •••••–––

Interface Card (J1) for Japan

NETWORK MODULE ROUTER COMPATIBILITY

3725 3661 3620 2691 2600 1760 1751 1721
3745 3662 3640 2600XM

Advanced Integration Modules

NETWORK MODULE ROUTER COMPATIBILITY

3725 3661 3620 2691 2600 1760 1751 1721
3745 3662 3640 2600XM

Compression Advanced Integration Modules

AIM-COMPR4: Future • – • ––––

Compression Advanced
Integration Module for Cisco 3660

NM-COMPR: ––•–––––
Compression Network Module for
Cisco 3620 and 3640

AIM-COMPR2: ––––•–––
Compression Advanced
Integration Module for Cisco 2600

50

Benefits & Advantages

continued

Advanced Integration Modules

Cisco Access Routers

NETWORK MODULE ROUTER COMPATIBILITY

3725 3661 3620 2691 2600 1760 1751 1721
3745 3662 3640 2600XM

VPN and Encryption Advanced Integration Modules

AIM-VPN/HP: DES/3DES VPN ••––––––

Advanced Integration Module for
3660 and 3745 - High Performance

AIM-VPN/EP: DES/3DES VPN •––••–––
Advanced Integration Module
for 2600 and 3725 ­Enhanced Performance

NM-VPN/MP: DES/3DES VPN ––• –––––
Network Module for 3620 and 3640

- Mid Performance

AIM-VPN/BP: DES/3DES VPN ––––• –––
Advanced Integration Module
for 2600 - Base Performance

MOD1700-VPN: –––––• • •
Cisco 1700 Series VPN Module

ATM Advanced Integration Modules

AIM-ATM: High Performance Future • – • • – – –

ATM Segmentation and
Reassembly (SAR) Advanced
Integration Module

AIM-ATM-1E1: High Performance – – – • • – – –
E1 ATM Bundle, one AIM-ATM
and one VWIC-1MFT-E1

AIM-ATM-1T1: High Performance – – – • • – – –
T1 ATM Bundle, one AIM-ATM
and one VWIC-1MFT-T1

Voice Advanced Integration Modules

AIM-ATM-VOICE-30: Future • – • • – – –

ATM SARand 30 Channel Voice/Fax
DSP Advanced Integration Module

AIM-VOICE-30: Future • – • • – – –
30 Channel Voice/Fax DSP
AdvancedIntegration Module

51

Cisco 7000 Series
Interface Cards; ATM PA’s

INTERFACE CARD ROUTER COMPATIBILITY

7600

7200VXR 7400 7500 (VIP4) FlexWAN

PA-A1-OC3-SM ••• –

1 Port ATM OC3 Single Mode
Intermediate Reach Port Adapter

PA-A2-4E1XC-OC3SM •–– –
CES OC3 Port Adapter 4E1 Ports 120ohms

PA-A2-4E1XC-E3ATM •–– –
CES Port Adapter E3/E1 120 ohms

PA-A2-4E1YC-OC3SM •–– –

PA-A2-4E1YC-E3ATM •–– –

PA-A2-4T1C-OC3SM •–– –

ATM CES Port Adapter, 4T1 CES Ports
and 1 OC3 ATM SM Port

PA-A2-4T1C-T3ATM •–– –
ATM CES Port Adapter, 4T1 CES Ports
and 1 T3 ATM Port

PA-A3-8T1IMA ••• –
8-port ATM Inverse Mux T1 Port Adapter

PA-A3-8E1IMA •–• –
8-port ATM Inverse Mux E1
(120 Ohm) Port Adapter

PA-A3-OC3-MM •••• (Native)
1-Port ATM Enhanced OC3c/STM1 • (Hybrid)
Multimode Port Adapter

PA-A3-OC12-MM ––• 4 –
1 Port ATM Enhanced OC12/STM4 multi-mode

PA-A3-T3/E3 •••• (Native)
1-Port ATM Enhanced DS3 Port Adapter • (Hybrid)

Ethernet PA’s

PA-12E/2FE •–– –

PA-2FE-TX/FX ••• –

2-Port Fast Ethernet 100Base TX/FX Port Adapter

PA-2FEISL • PA-2FEISL”> – – –

PA-4E ••• –

4-Port Ethernet 10BaseT Port Adapter

PA-5EFL •–– –
5-Port Ethernet 10BaseFL Port Adapter

Interface Cards; ATM PA’s

Cisco 7000 Series

52

PA-8E ••• –

8-Port Ethernet 10BaseT Port Adapter

PA-FE-TX/FX ••• –
1-Port Fast Ethernet 100BaseFx/Tx Port Adapter

PA-GE •–– –
Gigabit Ethernet Port Adapter

Other LAN PA’s

PA- 10 0V G ––– –

PA-4R ––– –

PA-4R-FDX ––– –

PA-4R-DTR •–– –

Port Adapter:4-Port Dedicated Token Ring,
4/16Mbps, HDX/FDX

PA-F-MM/SM ––• –
1-Port FDDI Full Duplex Multimode/Singlemode
Port Adapter

PA-F/FD-MM/SM ––• –
1-Port FDDI Full Duplex Multimode/Singlemode
Port Adapter

Serial PA’s

PA-4E1G/120 ••• –

4-Port E1 G.703 Serial Port Adapter
(120ohm/Balanced)

PA-4T ––– –
4 Port Serial Port Adapter, Enhanced

PA-4T+ •••• (Native)
4-Port Serial Port Adapter, Enhanced • (Hybrid)

PA-8T-232 •••• (Native)
8-Port Serial, 232 Port Adapter • (Hybrid)

PA-2JT(2) ––– –

High-Speed Serial PA’s

PA- H •••• (Native)

1-Port HSSI Port Adapter • (Hybrid)

PA-2H •••• (Native)
2-Port HSSI Port Adapter • (Hybrid)

PA-E3 •••• (Native)
1 Port E3 Serial Port Adapter with E3 DSU • (Hybrid)

PA-2E3 •••• (Native)
2 Port E3 Serial Port Adapter with E3 DSUs • (Hybrid)

PA- T3 •••• (Native)

1 Port T3 Serial Port Adapter with T3 DSUs • (Hybrid)

INTERFACE CARD ROUTER COMPATIBILITY

7600

7200VXR 7400 7500 (VIP4) FlexWAN

Interface Cards; ATM PA’s

Cisco 7000 Series

53

PA-2T3 •••• (Native)

2 Port T3 Serial Port Adapter with T3 DSUs • (Hybrid)

PA-T3+ •••• (Native)
1 Port T3 Serial Port Adapter Enhanced • (Hybrid)

PA-2T3+ •••• (Native)
2 Port T3 Serial Port Adapter Enhanced • (Hybrid)

Multichannel Serial PA’s

PA-2CT1/PRI ––– –

PA-2CE1/PRI-xxx ––– –

PA-4B-U •–– –

PA-8B-S/T •–– –

8-Port BRI Port Adapter, S/T Interface

PA-CT3/4T(1) ––– –

PA-MC-2T(1) •–• –

2-Port multichannel T1 port adapter
with integrated CSU/DSUs

PA-MC-4T(1) •–•• (Native)
4-Port multichannel T1 port adapter • No(Hybrid)(1)
with integrated CSU/DSUs

PA-MC-8T(1) •••• (Native)
8-Port multichannel T1 port adapter • (Hybrid)
with integrated CSU/DSUs

PA-MC-8DSX(1) •–• –

PA-MC-8TE1+ ••– –

8 port multichannel T1/E1 8PRI port adapter

PA-MC-2E1/120 ••• –
2 port multichannel E1 port adapter
with G.703 120ohm interf

PA-MC-8E1/120 •••• (Native)
8 port multichannel E1 port adapter • (Hybrid)
with G.703 120ohm interf

PA-MC-E3 •••• (Native)
1 port Multi-Channel E3 port adapter • (Hybrid)

PA-MC-T3 •••• (Native)
1 port multichannel T3 port adapter • (Hybrid)

PA-MC-2T3+ •(2) • • • (Native)
2 port multichannel T3 port adapter • (Hybrid)

PA-MC-STM-1MM •–•4 • ???(Native)
1-Port multichannel STM-1 12.1(7)E
multimode port adapter • (Hybrid)

INTERFACE CARD ROUTER COMPATIBILITY

7600

7200VXR 7400 7500 (VIP4) FlexWAN

Interface Cards; ATM PA’s

Cisco 7000 Series

54

PA-MCX-2TE(1) •–– –

2-Port MIX-enabled multichannel T1/E1
with CSU/DSU

PA-MCX-4TE(1) •–– –
4-Port MIX-enabled multichannel T1/E1
with CSU/DSU

PA-MCX-8TE(1) •–– –
8-Port MIX-enabled multichannel T1/E1
with CSU/DSU

Sonet PA’s

PA-POS-OC3-MM ••• •

1-Port Pack et/SONET OC3c/STM1
Multimode Port Adapter

Other PA’s and SA’s

PA-1C-P •–– –

PA-1C-E •–– –

PA-4C-E •–– –

1 Port Enhanced ESCON Channel Port Adapter

SA-ISA •1 – – –
Integrated Services Adapter for IPSec
or MPPE encryption

SA-VAM •–– –
VPN Acceleration Module
for Cisco 7100 and 7200 Series

SA-COMP/x ––– –

SA-ENCRYPT ––– –

Encryption Service Adapter - Spare

PA-SRP-OC12SMI • PA-SRP-OC12”> – – –
DPT-OC12 Singe-mode intermediate PA

PA-SRP-OC12SMX •–– –
DPT-OC12 Singe-mode extended reach PA

PA-VXC-2TE1 •–– –
2 port TE1 hi-capacity enhanced voice PA

PA-VXC-2TE1+ •–• –
2 port TE1 hi-capacity enhanced voice PA

PA-VXB-2TE1 •–– –
2 port T1/E1 moderate capacity enhanced voice PA

PA-VXB-2TE1+ ••• –
2 port T1/E1 moderate capacity enhanced voice PA

PA-VXA-1TE1-24+ ••• –
1-Port T1/E1 Digital Voice Port Adapter with 24 Channels

INTERFACE CARD ROUTER COMPATIBILITY

7600

7200VXR 7400 7500 (VIP4) FlexWAN

55

Cisco 2600 Series
Modular Access Routers

Network Modules for
Cisco 3700, 3600 and 2600XM series

LAN and Mixed Media Network Modules

Ethernet Switching Network Modules and Accessories

NM-16ESW

16 port 10/100 EtherSwitch
Network Module

Provides 16 switch ports
and one internal port to
the router engine. Features
amongst other 802.1p
prioritization and 802.1Q
VLAN, and 802.1D
Spanning Tree protocol.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(2)XT

3640 – 12.2(2)XT

3620 – 12.2(2)XT

2691 – 12.2(8)T

2600XM series – 12.2(8)T1

2650 series – 12.2(2)XT

2620 series – 12.2(2)XT

2610 series – 12.2(2)XT

Requires an IOS “PLUS”
feature set.

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-16ESW-1GIG

16 port 10/100 EtherSwitch
Network Module with 1 GE
(1000BaseT) port

Provides 16 switch ports,
one GE port and one
internal port to the router
engine. Features amongst
other 802.1p prioritization
and 802.1Q VLAN, and

802.1D Spanning Tree
protocol.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(2)XT

3640 – 12.2(2)XT

3620 – 12.2(2)XT

2691 – 12.2(8)T

2600XM series – 12.2(8)T1

2650 series – 12.2(2)XT

2620 series – 12.2(2)XT

2610 series – 12.2(2)XT

This is a bundle of one
NM-16-ESW and one GE­DCARD-ESW.

Requires an IOS “PLUS”
feature set.

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-16ESW-PWR

16 port 10/100 EtherSwitch
Network Module with In­Line Power support

Provides 16 switch ports
with in-line power support
and one internal port to
the router engine. Features
amongst other 802.1p
prioritization and 802.1Q
VLAN, and 802.1D
Spanning Tree protocol.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(2)XT

3640 – 12.2(2)XT

3620 – 12.2(2)XT

2691 – 12.2(8)T

2600XM series – 12.2(8)T1

2650 series – 12.2(2)XT

2620 series – 12.2(2)XT

2610 series – 12.2(2)XT

This is a bundle of one
NM-16-ESW and one
PPWR-DCARD-16ESW.

Requires an IOS “PLUS”
feature set.

Requires an external
power supply chassis
PWR-CHASSIS-360W
when installed in a 2600 or
3600 series router or an
internal power supply
PPWR-PS-360W when
installed in a 3700 series
router.

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

56

LAN and Mixed Media Network Modules

NM-16ESW-PWR-1GIG

16 port 10/100 EtherSwitch
Network Module with In­Line Power and GE

Provides 16 switch ports
with in-line power support,
one GE port and one
internal port to the router
engine. Features amongst
other 802.1p prioritization
and 802.1Q VLAN, and

802.1D Spanning Tree
protocol.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(2)XT

3640 – 12.2(2)XT

3620 – 12.2(2)XT

2691 – 12.2(8)T

2600XM series – 12.2(8)T1

2650 series – 12.2(2)XT

2620 series – 12.2(2)XT

2610 series – 12.2(2)XT

This is a bundle of one
NM-16-ESW, one GE­DCARD-ESW and one
PPWR-DCARD-16ESW.

Requires an IOS “PLUS”
feature set.

Requires an external
power supply chassis
PWR-CHASSIS-360W
when installed in a 2600 or
3600 series router or an
internal power supply
PPWR-PS-360W when
installed in a 3700 series
router.

PPWR-DCARD-16ESW

In-line power
daughtercard for 16 port
EtherSwitch Network
Module

Enables in-line power
capability to the NMD­16ESW. Note that a power
supply is required.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(2)XT

3640 – 12.2(2)XT

3620 – 12.2(2)XT

2691 – 12.2(8)T

2600XM series – 12.2(8)T1

2650 series – 12.2(2)XT

2620 series – 12.2(2)XT

2610 series – 12.2(2)XT

Requires a 16 port 10/100
Etherswitch Network
Module.

Requires an external
power supply chassis
PWR-CHASSIS-360W
when installed in a 2600 or
3600 series router or an
internal power supply
PPWR-PS-360W when
installed in a 3700 series
router.

NMD-36ESW

36 port 10/100 EtherSwitch
HDSM

Provides 36 switch ports
and one internal port to
the router engine. Features
amongst other 802.1p
prioritization and 802.1Q
VLAN, and 802.1D
Spanning Tree protocol.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(8)T

3640 – Not Available

3620 – Not Available

2691 – Not Available

2600XM series –
Not Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires an IOS “PLUS”
feature set.

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NMD-36ESW-2GIG

36 port 10/100 EtherSwitch
HDSM with GE
(1000BaseT) port

Provides 36 switch ports,
two GE ports and one
internal port to the router
engine. Features amongst
other 802.1p prioritization
and 802.1Q VLAN, and

802.1D Spanning Tree
protocol.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(8)T

3640 – Not Available

3620 – Not Available

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

This is a bundle of one
NMD-36-ESW and two GE­DCARD-ESW.

Requires an IOS “PLUS”
feature set.

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

57

LAN and Mixed Media Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NMD-36ESW-PWR

36 port 10/100 EtherSwitch
HDSM with In-Line Power
support

Provides 36 switch ports
with in-line power support
and one internal port to
the router engine. Features
amongst other 802.1p
prioritization and 802.1Q
VLAN, and 802.1D
Spanning Tree protocol.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(8)T

3640 – Not Available

3620 – Not Available

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

This is a bundle of one
NMD-36-ESW and one
PPWR-DCARD-36ESW.

Requires an IOS “PLUS”
feature set.

Requires an external
power supply chassis
PWR-CHASSIS-360W
when installed in a 3660
series router or an internal
power supply PPWR-PS­360W when installed in a
3700 series router.

NMD-36ESW-PWR-2G

36 port 10/100 EtherSwitch
HDSM with In-Line Power
and GE (1000BaseT) port

Provides 36 switch ports
with in-line power support,
two GE ports and one
internal port to the router
engine. Features amongst
other 802.1p prioritization
and 802.1Q VLAN, and

802.1D Spanning Tree
protocol.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(8)T

3640 – Not Available

3620 – Not Available

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

This is a bundle of one
NMD-36-ESW, two GE­DCARD-ESW and one
PPWR-DCARD-36ESW.

Requires an IOS “PLUS”
feature set.

Requires an external
power supply chassis
PWR-CHASSIS-360W
when installed in a 3660
series router or an internal
power supply PPWR-PS­360W when installed in a
3700 series router.

PPWR-DCARD-36ESW

In-line power
daughtercard for 36 port
EtherSwitch Network
Module

Enables in-line power
capability to the NMD­36ESW. Note that a power
supply is required.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(8)T

3640 – Not Available

3620 – Not Available

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires a 36 port 10/10 0
Etherswitch High-Density
Service Module.

Requires an external
power supply chassis
PWR-CHASSIS-360W
when installed in a 3660
series router or an internal
power supply PPWR-PS­360W when installed in a
3700 series router.

GE-DCARD-ESW

1000BaseT daughter card
for EtherSwitch Modules

Provides one Gigabit port
for a file server or future
intra-chassis stacking of
Etherswitch modules.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(2)XT

3640 – 12.2(2)XT

3620 – 12.2(2)XT

2691 – 12.2(8)T

2600XM series – 12.2(8)T1

2650 series – 12.2(2)XT

2620 series – 12.2(2)XT

2610 series – 12.2(2)XT

Requires a 16 or 36 port
port 10/100 Etherswitch
Module with an available
GE port slot.

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

58

LAN and Mixed Media Network Modules

PPWR-PS-360W

360W power supply for for
EtherSwitch Modules

Provides up to 360W in­line power. Suitable for up
to 36 IP phones. Can be
can added internally into
the Cisco 3700 Series or in
a power supply chassis
PPWR-PS-CHASSIS for use
with 2600 or 3600 series
routers.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(2)XT

3640 – 12.2(2)XT

3620 – 12.2(2)XT

2691 – 12.2(8)T

2600XM series – 12.2(8)T1

2650 series – 12.2(2)XT

2620 series – 12.2(2)XT

2610 series – 12.2(2)XT

Requires a 16 or 36 port
port 10/100 Etherswitch
Module with appropriate
in-line power daughter
card.

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

PPWR-PS-CHASSIS

Power Supply Chassis for
PPWR-PS-360W

A separate power supply
chassis for Etherswitch
modules installed in 2600
and 3600 series routers.
The chassis
accommodates up to four
PPWR-PS-360W power
supplies.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(2)XT

3640 – 12.2(2)XT

3620 – 12.2(2)XT

2691 – 12.2(8)T

2600XM series – 12.2(8)T1

2650 series – 12.2(2)XT

2620 series – 12.2(2)XT

2610 series – 12.2(2)XT

Requires a 16 or 36 port
port 10/100 Etherswitch
Module with appropriate
in-line power daughter
card.

Requires at least one
PPWR-PS-360W power
supply

PWR-CHASSIS-360W

Power Supply Chassis
including one PPWR-PS­360W

A separate power supply
chassis for Etherswitch
modules installed in 2600
and 3600 series routers.
Configured with one
PPWR-PS-360W power
supply and can
accommodate up to three
additional power supplies.

Modular Router Solutions

LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony

3700 series – 12.2(8)T

3660 series – 12.2(2)XT

3640 – 12.2(2)XT

3620 – 12.2(2)XT

2691 – 12.2(8)T

2600XM series – 12.2(8)T1

2650 series – 12.2(2)XT

2620 series – 12.2(2)XT

2610 series – 12.2(2)XT

Requires a 16 or 36 port
port 10/100 Etherswitch
Module with appropriate
in-line power daughter
card.

This is a bundle consisting
of one PPWR-PS-CHASSIS
and one PPWR-PS-360W

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

59

LAN Network Modules

NM-1FE-FX

One-port Fast Ethernet,
FX Only Network Module

Provides a single auto­sensing 10/100BaseFX
connection via a fiber
connector.

Modular Router Solutions

Inter-VLAN Routing
LAN-to-LAN Routing
VPN & Firewall Solutions

3700 series - Future

3660 series – 12.0(5)T

3640 – 11.3(1)T

3620 – 11.3(1)T

2691 – 12.2(8)T

2600XM series – Future

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

VLAN support requires an
IOS “Plus” feature set.

NM-1FE-TX

One-port Fast Ethernet,
TX Only Network Module

Provides a single auto­sensing 10/100TX
connection via an RJ-45
connector.

Modular Router Solutions

Inter-VLAN Routing
LAN-to-LAN Routing
VPN & Firewall Solutions

3700 series – Not Available

3660 series – 12.0(5)T

3640 – 11.2(6)P

3620 – 11.2(6)P

2691 – Not Available

2600XM series –
Not Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

VLAN support requires an
IOS “Plus” feature set.

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-1E

One-port Ethernet Network
Module

Provides a single Ethernet
LAN connection via an
Ethernet AUI DB-15
connector or 10BaseT RJ­45 connector.

Modular Router Solutions

LAN-to-LAN Routing
VPN and Firewall

Solutions

3700 series – Not Available

3660 series – 12.0(5)T

3640 – 11.2(4)XA

3620 – 11.2(4)XA

2691 – Not Available

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(4)T

2610 series – 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-4E

Four-port Ethernet
Network Module

Provides connections to
four Ethernet LANs. One
connection is via an
Ethernet AUI DB-15
connector or 10BaseT RJ­45 connector. The other 3
connections are via
10BaseT RJ-45 connectors.

Modular Router Solutions

LAN-to-LAN Routing
VPN and Firewall

Solutions

3700 series - Not Available

3660 series – 12.0(5)T

3640 – 11.2(6)P

3620 – 11.2(6)P

2691 – Not Available

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(4)T

2610 series – 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

60

LAN and WIC Combo Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-1FE2W

One-port 10/100 Ethernet 2
WAN Interface Card Slot
Network Module

Provides one full/half
duplex, auto-sensing
10/100 Ethernet port and
two WAN Interface Card
(WIC) expansion slots. The
10/100 Ethernet connection
is via an RJ-45 connector.

Modular Router Solutions

Inter-VLAN Routing
LAN-to-LAN Routing
VPN & Firewall Solutions
Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 12.0(7)XK

3620 – 12.0(7)XK

2691 – 12.2(8)T

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Supports all current WICs
and VWICs.

NM-2FE2W

Two-port 10/100 Ethernet
2 WAN Interface Card Slot
Network Module

Provides two full/half
duplex, auto-sensing 10/100
Ethernet ports and two
WAN Interface Card (WIC)
expansion slots. The 10/100
Ethernet connections are
via RJ-45 connectors.

Modular Router Solutions

Inter-VLAN Routing
LAN-to-LAN Routing
VPN & Firewall Solutions
Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 12.0(7)XK

3620 – 12.0(7)XK

2691 – 12.2(8)T

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Supports all current WICs
and VWICs.

NM-1FE1R2W

One-port 10/100 Ethernet
One-port 4/16 Token Ring
2 WAN Interface Card Slot
Network Module

Provides one full/half
duplex, auto-sensing
10/100 Ethernet port, one
full/half duplex 4/16 token
ring port, and 2 WAN
Interface Card (WIC)
expansion slots. The
10/100 Ethernet
connection is via an RJ-45
connector. The Tok en Ring
connection is via an STP
or UTP connector.

Modular Router Solutions

Inter-VLAN Routing
LAN-to-LAN Routing
VPN & Firewall Solutions
Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 12.0(7)XK

3620 – 12.0(7)XK

2691 – 12.2(8)T

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Supports all current WICs
and VWICs.

NM-1E2W

1 Ethernet 2 WAN Interface
Card Slot Network Module

Provides one Ethernet port
and two WAN Interface
Card (WIC) expansion
slots. The Ethernet
connection is via an
Ethernet AUI DB-15
connector or 10BaseT RJ­45 connector.

Modular Router Solutions

LAN-to-LAN Routing
VPN & Firewall Solutions

3700 series – Not Available

3660 series – 12.0(5)T

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Supported WICs include
WIC-1T, WIC-1B-S/T, WIC­1B-U, WIC-1DSU-56K4 and
WIC-1DSU-T1.

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

61

LAN and WIC Combo Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-2E2W

2 Ethernet 2 WAN Interface
Card Slot Network Module

Provides two Ethernet
ports and two WAN
Interface Card (WIC)
expansion slots. The
Ethernet connection is via
an Ethernet AUI DB-15
connector or 10BaseT RJ­45 connector.

Modular Router Solutions

LAN-to-LAN Routing
VPN & Firewall Solutions

3700 series – Not Available

3660 series – 12.0(5)T

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Supported WICs include
WIC-1T, WIC-1B-S/T, WIC­1B-U, WIC-1DSU-56K4 and
WIC-1DSU-T1.

NM-1E1R2W

1 Ethernet 1 Token Ring
2 WAN Interface Card Slot
Network Module

Provides one Ethernet
port, one Token Ring and
two WAN Interface Card
(WIC) expansion slots. The
Ethernet connection is via
an Ethernet AUI DB-15
connector or 10BaseT RJ­45 connector. The Token
Ring connection is via an
STP or UTP connector.

Modular Router Solutions

LAN-to-LAN Routing
VPN & Firewall Solutions

3700 series – Not Available

3660 series – 12.0(5)T

3640 – 11.1(8)AA

3620 – 11.1(8)AA

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Supported WICs include
WIC-1T, WIC-1B-S/T, WIC­1B-U, WIC-1DSU-56K4 and
WIC-1DSU-T1.

NM-2W

Two WAN Interface Card
Slot Network Module

Provides 2 WAN Interface
Card (WIC) expansion
slots supporting all
current WICs and VWICs.

Modular Router Solutions

Serial & Legacy

Concentration

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 12.0(7)XK

3620 – 12.0(7)XK

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(7)XK

2610 series – 12.0(7)XK

Requires at least one WIC
or VWIC.

Supports all current WICs
and VWICs.

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

62

LAN and T1/E1 Combo Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-1FE2W

One-port 10/100 Ethernet
2 WAN Interface Card Slot
Network Module

Provides one full/half
duplex, auto-sensing
10/100 Ethernet port and
two WAN Interface Card
(WIC) expansion slots. The
10/100 Ethernet
connection is via an RJ-45
connector.

Modular Router Solutions

Inter-VLAN Routing
LAN-to-LAN Routing
VPN & Firewall Solutions
Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 12.0(7)XK

3620 – 12.0(7)XK

2691 – 12.2(8)T

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Supports all current WICs
and VWICs.

NM-1FE1CT1-CSU

One-port Fast Ethernet
1-Port Channelized
T1/ISDN-PRI with CSU
Network Module

Provides a single auto­sensing 10/100BaseTX
connection via an RJ-45
connector and a single
channelized T1/ISDN PRI
with integrated DSU/CSU
connection via an RJ-48
connector.

Modular Router Solutions

ISDN Concentration
Inter-VLAN Routing
LAN-to-LAN Routing

3700 series - Not Available

3660 series – 12.0(7)XK

3640 – 11.3(4)T1

3620 – 11.3(4)T1

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-1FE1CE1B

One-port Fast Ethernet
One-Port Channelized
E1/ISDN-PRI Balanced
Network Module

Provides a single auto­sensing 10/100BaseTX
connection via an RJ-45
connector and a single
channelized E1/ISDN PRI
balanced (120 ohm)
connection via a DB-15
connector.

Modular Router Solutions

ISDN Concentration
Inter-VLAN Routing
LAN-to-LAN Routing

3700 series - Not Available

3660 series – 12.0(7)XK

3640 – 11.3(4)T1

3620 – 11.3(4)T1

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

E1/ISDN-PRI

Unbalanced Network
Module

Provides a single auto­sensing 10/100BaseTX
connection via an RJ-45
connector and a single
channelized E1/ISDN PRI
unbalanced (75 ohm)
connection via a DB-15
connector.

Modular Router Solutions

ISDN Concentration
Inter-VLAN Routing
LAN-to-LAN Routing

3700 series - Not Available

3660 series – 12.0(7)XK

3640 – 11.3(4)T1

3620 – 11.3(4)T1

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

63

LAN and T1/E1 Combo Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-1FE2CT1

One-port Fast Ethernet
2-Port Channelized
T1/ISDN-PRI Network
Module

Provides a single auto­sensing 10/100BaseTX
connection via an RJ-45
connector and two
channelized T1/ISDN PRI
connections via DB-15
connectors.

Modular Router Solutions

ISDN Concentration
Inter-VLAN Routing
LAN-to-LAN Routing

3700 series - Not Available

3660 series – 12.0(7)XK

3640 – 11.3(4)T1

3620 – 11.3(4)T1

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-1FE2CT1-CSU

One-port Fast Ethernet
2-Port Channelized
T1/ISDN-PRI with CSU
Network Module

Provides a single auto­sensing 10/100BaseTX
connection via an RJ-45
connector and two
channelized T1/ISDN PRI
with integrated DSU/CSU
connections via RJ-48
connectors.

Modular Router Solutions

ISDN Concentration
Inter-VLAN Routing
LAN-to-LAN Routing

3700 series - Not Available

3660 series – 12.0(7)XK

3640 – 11.3(4)T1

3620 – 11.3(4)T1

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-1FE2CE1B

One-port Fast Ethernet
Two-port Channelized
E1/ISDN-PRI Balanced
Network Module

Provides a single auto­sensing 10/100BaseTX
connection via an RJ-45
connector and two
channelized E1/ISDN PRI
balanced (120 ohm)
connections via DB-15
connectors.

Modular Router Solutions

ISDN Concentration
Inter-VLAN Routing
LAN-to-LAN Routing

3700 series - Not Available

3660 series – 12.0(7)XK

3640 – 11.3(4)T1

3620 – 11.3(4)T1

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-1FE2CE1U

One-port Fast Ethernet
Two-Port Channelized
E1/ISDN-PRI Unbalanced
Network Module

Provides a single auto­sensing 10/100BaseTX
connection via an RJ-45
connector and two
channelized E1/ISDN PRI
unbalanced (75 ohm)
connections via DB-15
connectors.

Modular Router Solutions

ISDN Concentration
Inter-VLAN Routing
LAN-to-LAN Routing

3700 series - Not Available

3660 series – 12.0(7)XK

3640 – 11.3(4)T1

3620 – 11.3(4)T1

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

64

Serial Connectivity Network Modules

High Speed Serial Network Modules – up to 52 Mbps

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-1HSSI

Single Port HSSI Network
Module

Provides serial speeds up
to 52Mbps via a 50-pin
SCSI Type II connector. This
network module requires
an external T3/E3
DSU/CSU.

Modular Router Solutions

Serial & Legacy
Concentration

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 11.3(3)T

3620 – 11.3(3)T

2691 – 12.2(8)T

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Synchronous Serial Network Modules – up to 8 Mbps

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-4T

Four-port Serial Network
Module

Provides four synchronous
serial interfaces, and
supports a total full-duplex
throughput of 8 Mbps,
which can be realized over
one port (at 8Mb/s) or
across all four ports (at
2Mb/s on each port). Each
port supports full-duplex
and half-duplex operation
at T1 and E1 speeds. All
ports use identical DB-60
connectors that support
five interface types (RS­232, RS-449, RS-530, V.35,
X.21) in either DTE or DCE
mode.

Modular Router Solutions

Serial & Legacy

Concentration

3700 series – Not Available

3660 series – 12.0(5)T

3640 – 11.2(4)XA

3620 – 11.2(4)XA

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

65

Asynchronous/Synchronous Serial Network Modules – up to 128 Kbps

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-4A/S

Four-port Asynchronous /
Synchronous Serial
Network Module

Provides 4 low-speed
serial connections via DB­60 connectors that support
five interface types (RS­232, RS-449, RS-530, V.35,
X.21) in either DTE or DCE
mode. The low-speed
serial connections can be
configured for up to either
11 5.2 kbps asynchronous
or 128 kbps synchronous
serial traffic.

Modular Router Solutions

Serial & Legacy

Concentration

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(2)XA

2610 series – 11.3(2)XA

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Asynchronous Serial Network Modules – up to 134 Kbps

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-16A

Sixteen-port
Asynchronous Network
Module

Provides 16 asynchronous
serial interfaces at speeds
up to 134 kbps. The 16
ports are cabled with two
custom “octopus” cables,
each terminating in 8
ports, each with an option
of physical endpoints,
including RJ-45 and DB-25
connectors.

Modular Router Solutions

Dialup Remote Access

Serial & Legacy

Concentration

3700 series - Future

3660 series – 12.0(5)T

3640 – 11.2(7a)P

3620 – 11.2(7a)P

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(2)XA

2610 series – 11.3(2)XA

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-8A/S

Eight-port Asynchronous /
Synchronous Serial
Network Module

Provides 8 low-speed
serial connections via DB­60 connectors that support
five interface types (RS­232, RS-449, RS-530, V.35,
X.21) in either DTE or DCE
mode. The low-speed
serial connections can be
configured for up to either
11 5.2 kbps asynchronous
or 128 kbps synchronous
serial traffic.

Modular Router Solutions

Serial & Legacy

Concentration

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(2)XA

2610 series – 11.3(2)XA

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

66

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-32A

Thirty Two-port
Asynchronous Network
Module

Provides 32 asynchronous
serial interfaces at speeds
up to 134 kbps. The 32
ports are cabled with four
custom “octopus” cables,
each terminating in 8
ports, each with an option
of physical endpoints,
including RJ-45 and DB-25
connectors.

Modular Router Solutions

Dialup Remote Access

Serial & Legacy

Concentration

3700 series - Future

3660 series – 12.0(5)T

3640 – 11.2(7a)P

3620 – 11.2(7a)P

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(2)XA

2610 series – 11.3(2)XA

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-1CT1

One-port Channelized
T1/ISDN-PRI Network
Module

Provides a single
channelized T1/ISDN PRI
connection via a DB-15
connector.

Modular Router Solutions

Serial & Legacy

Concentration

ISDN Concentration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series - 11.3(4)T

2610 series - 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-1CT1-CSU

One-port Channelized
T1/ISDN-PRI with CSU
Network Module

Provides a single
channelized T1/ISDN PRI
with integrated DSU/CSU
connection via an RJ-48
connector.

Modular Router Solutions

Serial & Legacy

Concentration

ISDN Concentration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series - 11.3(4)T

2610 series - 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Channelized T1/E1 and
ISDN Network Modules

Channelized T1/E1 and ISDN Primary Rate Interface Network Modules

Asynchronous Serial Network Modules – up to 134 Kbps

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

67

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-1CE1B

One-port Channelized
E1/ISDN-PRI Balanced
Network Module

Provides a single
channelized E1/ISDN PRI
balanced (120 Ohm)
connection via a DB-15
connector.

Modular Router Solutions

Serial & Legacy

Concentration

ISDN Concentration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series - 11.3(4)T

2610 series - 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-1CE1U

One-port Channelized
E1/ISDN-PRI Unbalanced
Network Module

Provides a single
channelized E1/ISDN PRI
unbalanced (75 Ohm)
connection via a DB-15
connector

Modular Router Solutions

Serial & Legacy

Concentration

ISDN Concentration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series - 11.3(4)T

2610 series - 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-2CT1

Two-port Channelized
T1/ISDN-PRI Network
Module

Provides two channelized
T1/ISDN PRI connections
via DB-15 connectors.

Modular Router Solutions

Serial & Legacy

Concentration

ISDN Concentration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series - 11.3(4)T

2610 series - 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-2CT1-CSU

Two-port Channelized
T1/ISDN-PRI with CSU
Network Module

Provides two channelized
T1/ISDN PRI with
integrated DSU/CSU
connections via RJ-48
connectors.

Modular Router Solutions

Serial & Legacy

Concentration

ISDN Concentration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series - 11.3(4)T

2610 series - 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Channelized T1/E1 and ISDN Primary Rate Interface Network Modules

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

68

Channelized T1/E1 and ISDN Primary Rate Interface Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-2CE1B

Two-port Channelized
E1/ISDN-PRI Balanced
Network Module

Provides two channelized
E1/ISDN PRI balanced (120
Ohm) connections via DB­15 connectors.

Modular Router Solutions

Serial & Legacy

Concentration

ISDN Concentration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series - 11.3(4)T

2610 series - 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

IDSN Basic Rate Interface Network Module

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-4B-S/T

Four-port ISDN-BRI
Network Module

Provides four ISDN BRI
connections via RJ-45
connectors. This network
module requires an
external NT-1 device for
connection to the WAN.

Modular Router Solutions

ISDN Concentration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series - 11.3(4)T

2610 series - 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-2CE1U

Two-port Channelized
E1/ISDN-PRI Unbalanced
Network Module

Provides two channelized
E1/ISDN PRI unbalanced
(75 Ohm) connections via
DB-15 connectors.

Modular Router Solutions

Serial & Legacy

Concentration

ISDN Concentration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series - 11.3(4)T

2610 series - 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

69

IDSN Basic Rate Interface Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-4B-U

Four-port ISDN-BRI with
NT-1 Network Module

Provides four ISDN BRI
connections via RJ-45
connectors. This Network
Module has an integrated
NT-1 device.

Modular Router Solutions

ISDN Concentration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series - 11.3(4)T

2610 series - 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-8B-S/T

Eight-port ISDN-BRI
Network Module

Provides eight ISDN BRI
connections via RJ-45
connectors. This network
module requires an
external NT-1 device for
connection to the WAN.

Modular Router Solutions

ISDN Concentration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series - 11.3(4)T

2610 series - 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-8B-U

Eight-port ISDN-BRI with
NT-1 Network Module

Provides eight ISDN BRI
connections via RJ-45
connectors. This Network
Module has an integrated
NT-1 device.

Modular Router Solutions

ISDN Concentration

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.1(7)AA

3620 – 11.1(7)AA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series - 11.3(4)T

2610 series - 11.3(4)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

70

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-1A-OC3MM

Single Port OC-3 ATM
Multi-mode Fiber Network
Module

Provides UNI mode ATM
Adaptation Layer 5 (AAL5)
for UBR, VBR-rt, VBR-nrt,
UBR+ and ABR Classes of
Service. This module will
drive a signal to a
maximum distance of 2
kilometers.

Modular Router Solutions

ATM Edge Connectivity

3700 series – Not Available

3660 series – 12.0(5)T

3640 – 12.0(3)T

3620 – 12.0(3)T

2691 – 12.2(8)T

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires an IOS “PLUS”
feature set.

Maximum of one per 3620
or 3640.

NM-1A-OC3SMI

Single Port OC-3 ATM
Single-mode Intermediate
Reach Fiber Network
Module

Provides UNI mode ATM
Adaptation Layer 5 (AAL5)
for UBR, VBR-rt, VBR-nrt,
UBR+ and ABR Classes of
Service. This module will
drive a signal to a
maximum distance of 15
kilometers.

Modular Router Solutions

ATM Edge Connectivity

3700 series - Not Available

3660 series – 12.0(5)T

3640 – 12.0(3)T

3620 – 12.0(3)T

2691 – 12.2(8)T

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires an IOS “PLUS”
feature set.

Maximum of one per 3620
or 3640.

NM-1A-OC3SML

Single Port OC-3 ATM
Single-mode Long Reach
Fiber Network Module

Provides UNI mode ATM
Adaptation Layer 5 (AAL5)
for UBR, VBR-rt, VBR-nrt,
UBR+ and ABR Classes of
Service. This module will
drive a signal to a
maximum distance of 45
kilometers.

Modular Router Solutions

ATM Edge Connectivity

3700 series - Not Available

3660 series – 12.0(5)T

3640 – 12.0(3)T

3620 – 12.0(3)T

2691 – 12.2(8)T

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires an IOS “PLUS”
feature set.

Maximum of one per 3620
or 3640.

ATM Network Modules

ATM OC3 Network Modules

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

71

ATM OC3 with T1/E1 CES Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-1A-OC3MM-1V

One-port OC-3/STM-1 CES
multimode ATM Network
Module

Provides an OC-3 interface
with UNI mode AAL1 and
AAL5 for CBR, UBR, VBR­rt, VBR-nrt, UBR+ and ABR
Classes of Service and one
WAN Interface Card (WIC)
expansion slot for Circuit
Emulation Services. This
module will drive a signal
to a maximum distance of
2 kilometers.

Modular Router Solutions

ATM Edge Connectivity
Voice & Fax Integration

3700 series - Not Available

3660 series – 12.1(2)T

3640 – 12.1(2)T

3620 – 12.1(2)T

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires an IOS “PLUS”
feature set.

Maximum of one per 3620
or 3640.

Requires an E1 or T1 VWIC
for PBX connectivity.

NM-1A-OC3SMI-1V

One-port OC-3/STM-1 CES
Single Mode Intermediate
Reach ATM Network
Module

Provides an OC-3 interface
with UNI mode AAL1 and
AAL5 for CBR, UBR, VBR­rt, VBR-nrt, UBR+ and ABR
Classes of Service and one
WAN Interface Card (WIC)
expansion slot for Circuit
Emulation Services. This
module will drive a signal
to a maximum distance of
15 kilometers.

Modular Router Solutions

ATM Edge Connectivity
Voice & Fax Integration

3700 series - Not Available

3660 series – 12.1(2)T

3640 – 12.1(2)T

3620 – 12.1(2)T

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires an IOS “PLUS”
feature set.

Maximum of one per 3620
or 3640.

Requires an E1 or T1 VWIC
for PBX connectivity.

NM-1A-OC3SML-1V

One-port OC-3/STM-1 CES
Single Mode Long Reach
ATM Network Module

Provides an OC-3 interface
with UNI mode AAL1 and
AAL5 for CBR, UBR, VBR­rt, VBR-nrt, UBR+ and ABR
Classes of Service and one
WAN Interface Card (WIC)
expansion slot for Circuit
Emulation Services. This
module will drive a signal
to a maximum distance of
45 kilometers.

Modular Router Solutions

ATM Edge Connectivity
Voice & Fax Integration

3700 series - Not Available

3660 series – 12.1(2)T

3640 – 12.1(2)T

3620 – 12.1(2)T

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires an IOS “PLUS”
feature set.

Maximum of one per 3620
or 3640.

Requires an E1 or T1 VWIC
for PBX connectivity.

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

72

AT M T3/E3 Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-1A-T3

One-port DS3 ATM
Network Module

Provides a single ATM
connection of 45Mbps for
DS3 using 75 Ohm BNC
Connectors. The network
module supports ATM
Forum-compliant AAL5.

Modular Router Solutions

ATM Edge Connectivity

3700 series - 12.2(8)T

3660 series – 12.1(2)T

3640 – 12.1(2)T

3620 – 12.1(2)T

2691 – 12.2(8)T

2600XM series – 12.2(x)
mainline (future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.1(2)T

2610 series – 12.1(2)T

Requires an IOS “PLUS”
feature set.

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

ATM 25 Mbps Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-1ATM-25

Single Port ATM 25
Network Module

Provides 25Mbps ATM
connections to external
ADSL modems. The ATM
network module is
compatible with the ATM
Forum 25.6-Mbps physical
sublayer (PHY)
specification for
unshielded twisted-pair
(UTP), Category 3 (UTP-3),
or shielded twisted-pair
(STP) cable plants.

Modular Router Solutions

ATM Edge Connectivity
DSL Access
LAN-to-LAN Routing

3700 series – Not Available

3660 series – 12.0(7)XK

3640 – 11.3(3a)T

3620 – 11.3(3a)T

2691 – Not Available

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(3a)T

2610 series – 11.3(3a)T

Requires an IOS “PLUS”
feature set.

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-1A-E3

One-port E3 ATM Network
Module

Provides a single ATM
connection of 34Mbps for
E3 using 75 Ohm BNC
Connectors. The network
module supports ATM
Forum-compliant AAL5.

Modular Router Solutions

ATM Edge Connectivity

3700 series - 12.2(8)T

3660 series – 12.1(2)T

3640 – 12.1(2)T

3620 – 12.1(2)T

2691 – 12.2(8)T

2600XM series – 12.2(x)
mainline (future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.1(2)T

2610 series – 12.1(2)T

Requires an IOS “PLUS”
feature set.

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

73

ATM T1/E1 IMA Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-4T1-IMA

Four-port T1 ATM Network
Module with IMA

Provides four physical T1
ports with integrated
CSU/DSU and up to four
Inverse Multiplexing over
ATM (IMA) groups. Each
IMA group can aggregate
one to all physical ports,
providing up to 6 Mbps
bandwidth.

Modular Router Solutions

ATM Edge Connectivity

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 12.0(5)T

3620 – 12.0(5)T

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)T

2610 series – 12.0(5)T

Requires an IOS “PLUS”
feature set.

Maximum of one per
Cisco 3620. Maximum of
three per Cisco 3640.

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-4E1-IMA

Four-port E1 ATM Network
Module with IMA

Provides four physical E1
ports with integrated DSU
and up to four Inverse
Multiplexing over ATM
(IMA) groups. Each IMA
group can aggregate one
to all physical ports,
providing up to 8 Mbps
bandwidth.

Modular Router Solutions

ATM Edge Connectivity

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 12.0(5)T

3620 – 12.0(5)T

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)T

2610 series – 12.0(5)T

Requires an IOS “PLUS”
feature set.

Maximum of one per
Cisco 3620. Maximum of
three per Cisco 3640.

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-8T1-IMA

Eight-port T1 ATM Network
Module with IMA

Provides eight physical T1
ports with integrated
CSU/DSU and up to four
Inverse Multiplexing over
ATM (IMA) groups. Each
IMA group can aggregate
one to all physical ports,
providing up to 12 Mbps
bandwidth.

Modular Router Solutions

ATM Edge Connectivity

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 12.0(5)T

3620 – 12.0(5)T

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)T

2610 series – 12.0(5)T

Requires an IOS “PLUS”
feature set.

Maximum of one per
Cisco 3620. Maximum of
three per Cisco 3640.

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-8E1-IMA

Eight-port E1 ATM
Network Module with IMA

Provides eight physical E1
ports with integrated DSU
and up to four Inverse
Multiplexing over ATM
(IMA) groups. Each IMA
group can aggregate one
to all physical ports,
providing up to 16 Mbps
bandwidth.

Modular Router Solutions

ATM Edge Connectivity

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 12.0(5)T

3620 – 12.0(5)T

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)T

2610 series – 12.0(5)T

Requires an IOS “PLUS”
feature set.

Maximum of one per
Cisco 3620. Maximum of
three per Cisco 3640.

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

74

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-6DM

Six-port Digital Modem
Network Module

Contains six configurable
V.90 compliant digital
modems for use with the
ISDN PRI and BRI network
modules. This module is
field upgradeable to a
maximum of 30 digital
modems.

Modular Router Solutions

Dialup Remote Access

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.2(9)XA

3620 – 11.2(9)XA

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires a channelized or
ISDN WAN network
module: NM-1FE1CT1,
NM-1FE1CT1-CSU, NM­1FE1CE1B, NM-1FE1CE1U,
NM-1FE2CT1, NM­1FE2CT1-CSU,
NM-1FE2CE1B, NM­1FE2CE1U, NM-1CT1,
NM-1CT1-CSU, NM-2CT1,
NM-2CT1-CSU, NM­1CE1B, NM-1CE1U,
NM-2CE1B, NM-2CE1U,
NM-4B-S/T, NM-4B-U, NM­8B-S/T, or NM-8B-U.

NM-12DM

Twelve-port Digital
Modem Network Module

Contains twelve
configurable V.90
compliant digital modems
for use with the ISDN PRI
and BRI network modules.
This module is field
upgradeable to a
maximum of 30 digital
modems.

Modular Router Solutions

Dialup Remote Access

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.2(9)XA

3620 – 11.2(9)XA

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires a channelized or
ISDN WAN network
module: NM-1FE1CT1,
NM-1FE1CT1-CSU, NM­1FE1CE1B, NM-1FE1CE1U,
NM-1FE2CT1, NM­1FE2CT1-CSU,
NM-1FE2CE1B, NM­1FE2CE1U, NM-1CT1,
NM-1CT1-CSU, NM-2CT1,
NM-2CT1-CSU, NM­1CE1B, NM-1CE1U,
NM-2CE1B, NM-2CE1U,
NM-4B-S/T, NM-4B-U, NM­8B-S/T, or NM-8B-U.

NM-18DM

Eighteen-port Digital
Modem Network Module

Contains 18 configurable
V.90 compliant digital
modems for use with the
ISDN PRI and BRI network
modules. This module is
field upgradeable to a
maximum of 30 digital
modems.

Modular Router Solutions

Dialup Remote Access

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.2(9)XA

3620 – 11.2(9)XA

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires a channelized or
ISDN WAN network
module: NM-1FE1CT1,
NM-1FE1CT1-CSU, NM­1FE1CE1B, NM-1FE1CE1U,
NM-1FE2CT1, NM­1FE2CT1-CSU,
NM-1FE2CE1B, NM­1FE2CE1U, NM-1CT1,
NM-1CT1-CSU, NM-2CT1,
NM-2CT1-CSU, NM­1CE1B, NM-1CE1U,
NM-2CE1B, NM-2CE1U,
NM-4B-S/T, NM-4B-U, NM­8B-S/T, or NM-8B-U.

Dialup / Remote Access
Network Modules

Digital Modem Network Modules

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

75

Digital Modem Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-24DM

Twenty four-port Digital
Modem Network Module

Contains 24 configurable
V.90 compliant digital
modems for use with the
ISDN PRI and BRI network
modules. This module is
field upgradeable to a
maximum of 30 digital
modems.

Modular Router Solutions

Dialup Remote Access

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.2(9)XA

3620 – 11.2(9)XA

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires a channelized or
ISDN WAN network
module: NM-1FE1CT1,
NM-1FE1CT1-CSU, NM­1FE1CE1B, NM-1FE1CE1U,
NM-1FE2CT1, NM­1FE2CT1-CSU,
NM-1FE2CE1B, NM­1FE2CE1U, NM-1CT1,
NM-1CT1-CSU, NM-2CT1,
NM-2CT1-CSU, NM­1CE1B, NM-1CE1U,
NM-2CE1B, NM-2CE1U,
NM-4B-S/T, NM-4B-U, NM­8B-S/T, or NM-8B-U.

NM-30DM

Thirty-port Digital Modem
Network Module

Contains 30 configurable
V.90 compliant digital
modems for use with the
ISDN PRI and BRI network
modules.

Modular Router Solutions

Dialup Remote Access

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.2(9)XA

3620 – 11.2(9)XA

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires a channelized or
ISDN WAN network
module: NM-1FE1CT1,
NM-1FE1CT1-CSU, NM­1FE1CE1B, NM-1FE1CE1U,
NM-1FE2CT1, NM­1FE2CT1-CSU,
NM-1FE2CE1B, NM­1FE2CE1U, NM-1CT1,
NM-1CT1-CSU, NM-2CT1,
NM-2CT1-CSU, NM­1CE1B, NM-1CE1U,
NM-2CE1B, NM-2CE1U,
NM-4B-S/T, NM-4B-U, NM­8B-S/T, or NM-8B-U.

MICA-6MOD

6 Digital Modem Upgrade

This digital modem
upgrade increases a Cisco
digital modem network
modules capacity by 6
modems, up to a
maximum of 30 modems
per digital modem
network module.

Modular Router Solutions

Dialup Remote Access

3700 series - 12.2(8)T

3660 series – 12.0(7)XK

3640 – 11.2(9)XA

3620 – 11.2(9)XA

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

Requires a digital modem
network module: NM­6DM, NM-12DM,
NM-18DM, or NM-24DM.

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

76

Analog Modem Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-8AM

Eight-port Analog Modem
Network Module

Provides support for basic
dial service via RJ-11
connectors. It allows up to
8 remote analog modem
users to connect via
internal V.34 modems at
speeds of up to 33.6 Kbps

Modular Router Solutions

Dialup Remote Access

3700 series - Future

3660 series – 12.0(7)XK

3640 – 11.3(4)T

3620 – 11.3(4)T

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(3)T

2610 series – 11.3(3)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-8AM-J

Eight-port Analog Modem
Network Module for
Singapore, Japan,
Malaysia

Provides support for basic
dial service via RJ-11
connectors. It allows up to
8 remote analog modem
users to connect via
internal V.34 modems at
speeds of up to 33.6 Kbps

Modular Router Solutions

Dialup Remote Access

3700 series - Future

3660 series – 12.0(7)XK

3640 – 11.3(4)T

3620 – 11.3(4)T

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(3)T

2610 series – 11.3(3)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-16AM

Sixteen-port Analog
Modem Network Module

Provides support for basic
dial service via RJ-11
connectors. It allows up to
16 remote analog modem
users to connect via
internal V.34 modems at
speeds of up to 33.6 Kbps

Modular Router Solutions

Dialup Remote Access

3700 series - Future

3660 series – 12.0(7)XK

3640 – 11.3(4)T

3620 – 11.3(4)T

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(3)T

2610 series – 11.3(3)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-16AM-J

Sixteen-port Analog
Modem Network Module
for Singapore, Japan,
Malaysia

Provides support for basic
dial service via RJ-11
connectors. It allows up to
16 remote analog modem
users to connect via
internal V.34 modems at
speeds of up to 33.6 Kbps

Modular Router Solutions

Dialup Remote Access

3700 series - Future

3660 series – 12.0(7)XK

3640 – 11.3(4)T

3620 – 11.3(4)T

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(3)T

2610 series – 11.3(3)T

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

77

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-1V

One-Slot Voice/Fax
Network Module

Provides a one-slot voice /
fax network module with
an integrated digital signal
processor (DSP), enables
voice and fax traffic to be
routed over data networks.
The user-configurable
expansion slot accommo­dates the addition of a
Cisco Voice Interface card
which allow two analog
ports or one BRI port to
standard telephony
equipment such as PBXs,
key systems, phone, and
fax machines.

Modular Router Solutions

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 11.3(1)T

3620 – 11.3(1)T

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(1)T

2610 series – 11.3(1)T

Requires an IOS “PLUS”
feature set.

Requires a Voice Interface
Card (VIC).

NM-2V

Two-Slot Voice/Fax
Network Module

Provides a two-slot voice /
fax network module with
an integrated digital signal
processor (DSP), enables
voice and fax traffic to be
routed over data networks.
The user-configurable
expansion slot accommo­dates the addition of a
Cisco Voice Interface card
which allow up to four
analog ports or two BRI
ports to standard
telephony equipment such
as PBXs, key systems,
phone, and fax machines.

Modular Router Solutions

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 11.3(1)T

3620 – 11.3(1)T

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(1)T

2610 series – 11.3(1)T

Requires an IOS “PLUS”
feature set.

Requires a Voice Interface
Card (VIC).

Voice Network Modules

Analog and ISDN Basic Rate Voice Network Modules

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

78

Analog and ISDN Basic Rate Voice Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-HDA-4FXS

High density analog
voice/fax network module
with 4 FXS

This base board is always
required for any configu­ration of NM-HDA. It
comes with four built-in
FXS ports. On board DSP
resources can service
eight voice calls using
high-complexity codecs:
G.711 a/u; G.726 @ 32k,
24k and 16k; G.728; G.729,
A, B, AB; G.723.1 @5.3k
and 6.3k; clear channel
codec, fax relay. Also
supports 16 voice calls
using medium-complexity
codecs: G.711 a/u, G.726 @
32k, 24k, and 16k; G.729A
and AB; clear channel
codec, fax relay. Supports
two expansion modules
and one DSP module.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T
3660 series – 12.2(4)XT
3640 – 12.2(4)XT
3620 – 12.2(4)XT
2691 – 12.2(8)T1
2600XM series – 12.2(8)T1
2650 series – 12.2(4)XT
2620 series – 12.2(4)XT
2610 series – 12.2(4)XT

Requires an IOS “PLUS”
feature set.

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

EM-HDA-4FXO

4-port voice/fax expansion
module – FXO

Provides four off-premise
analog connections to the
central office. Country
settings are configurable.
Includes support for
battery polarity reversal
detection and Caller ID

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T
3660 series – 12.2(4)XT
3640 – 12.2(4)XT
3620 – 12.2(4)XT
2691 – 12.2(8)T1
2600XM series – 12.2(8)T1
2650 series – 12.2(4)XT
2620 series – 12.2(4)XT
2610 series – 12.2(4)XT

Requires an IOS “PLUS”
feature set.

Requires a High-Density
Analog Voice/Fax Network
Module (NM-HDA-4FXS).

EM-HDA-8FXS

8-port voice/fax expansion
module – FXS

Provides an additional
eight FXS ports for
connections directly to
analog phones, fax
machines, and key

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T
3660 series – 12.2(4)XT
3640 – 12.2(4)XT
3620 – 12.2(4)XT
2691 – 12.2(8)T1
2600XM series – 12.2(8)T1
2650 series – 12.2(4)XT
2620 series – 12.2(4)XT
2610 series – 12.2(4)XT

Requires an IOS “PLUS”
feature set.

Requires a High-Density
Analog Voice/Fax Network
Module (NM-HDA-4FXS).

DSP-HDA-16

16-channel DSP module
for NM-HDA

Enables an additional 8
high-complexity or 16
medium-complexity voice
calls on NM-HDA.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T
3660 series – 12.2(4)XT
3640 – 12.2(4)XT
3620 – 12.2(4)XT
2691 – 12.2(8)T1
2600XM series – 12.2(8)T1
2650 series – 12.2(4)XT
2620 series – 12.2(4)XT
2610 series – 12.2(4)XT

Requires an IOS “PLUS”
feature set.

Requires a High-Density
Analog Voice/Fax Network
Module (NM-HDA-4FXS).

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

79

T1/E1/J1 Digital Voice Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-HDV-1T1-12

Single-port 12 Channel
Digital T1 Packet Voice
Trunk Network Module

Provides a single T1
connection with support
for 12 channels of medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711 and fax
relay. This module can also
be configured to provide 6
channels of high and/or
medium complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

Requires an IOS “PLUS”
feature set.

The NM-HDV-1T1-12 is a
bundle of the following
components:

•One network module
(NM-HDV)

• One one-port T1
Voice/WAN Interface
Card (VWIC-1MFT-T1)

• One Digital Signal
Processor modules
(PVDM-12)

NM-HDV-1T1-24

Single-port 24 Channel
Digital T1 Packet Voice
Trunk Network Module

Provides a single T1
connection with support
for 24 channels of medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711 and fax
relay. This module can also
be configured to provide
12 channels of high and/or
medium complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

Requires an IOS “PLUS”
feature set.

The NM-HDV-1T1-24 is a
bundle of the following
components:

•One network module
(NM-HDV)

• One one-port T1
Voice/WAN Interface
Card (VWIC-1MFT-T1)

• One Digital Signal
Processor modules
(PVDM-12)

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

80

T1/E1/J1 Digital Voice Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-HDV-1T1-24E

Single-port 24 Channel
Enhanced Digital T1 Packet
Voice Trunk Network
Module

Provides a single T1
connection with support
for 24 channels of high
and/or medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

Requires an IOS “PLUS”
feature set.

The NM-HDV-1T1-24E is a
bundle of the following
components:

•One network module
(NM-HDV)

• One one-port T1
Voice/WAN Interface
Card (VWIC-1MFT-T1)

• One Digital Signal
Processor modules
(PVDM-12)\

NM-HDV-2T1-48

Two-port 30 Channel
Enhanced Digital T1 Packet
Voice Trunk Network
Module

Provides two T1 connections
with support for 48 channels
of medium complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711 and fax
relay. This module can also
be configured to provide 24
channels of high and/or
medium complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711, G.729,
G.729B, G.723.1 all versions,
G.728, GSM, GSMEFR, fax
relay.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

Requires an IOS “PLUS”
feature set.

The NM-HDV-2T1-48 is a
bundle of the following
components:

•One network module
(NM-HDV)

• One two-port T1
Voice/WAN Interface
Card (VWIC-2MFT-T1)

•Four Digital Signal
Processor modules
(PVDM-12)

NM-HDV-1E1-12

Single-port 12 Channel
Digital E1 Packet Voice
Trunk Network Module

Provides a single E1
connection with support
for 12 channels of medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711 and fax
relay. This module can also
be configured to provide 6
channels of high and/or
medium complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

Requires an IOS “PLUS”
feature set.

The NM-HDV-2T1-48 is a
bundle of the following
components:

•One network module
(NM-HDV)

• One two-port T1
Voice/WAN Interface
Card (VWIC-2MFT-T1)

•Four Digital Signal
Processor modules
(PVDM-12)

Series Features Overview

Network Modules for Cisco 3700, 3600 and 260 0XM series

81

T1/E1/J1 Digital Voice Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-HDV-1E1-30

Single-port 30 Channel
Digital E1 Packet Voice
Trunk Network Module

Provides a single E
connection with support
for 30 channels of medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711 and fax
relay. This module can also
be configured to provide
18 channels of high and/or
medium complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T

3660 series – 12.0(7)XK

3640 – 12.0(7)XK

3620 – 12.0(7)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(7)XK

2610 series – 12.0(7)XK

Requires an IOS “PLUS”
feature set.

The NM-HDV-1E1-30 is a
bundle of the following
components:

•One network module
(NM-HDV)

• One one-port E1
Voice/WAN Interface
Card (VWIC-1MFT-E1)

• Three Digital Signal
Processor modules
(PVDM-12)

NM-HDV-1E1-30E

Single-port 30 Channel
Enhanced Digital E1 Packet
Voice Trunk Network
Module

Provides a single E1
connection with support
for 30 channels of high
and/or medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T

3660 series – 12.0(7)XK

3640 – 12.0(7)XK

3620 – 12.0(7)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(7)XK

2610 series – 12.0(7)XK

Requires an IOS “PLUS”
feature set.

The NM-HDV-1E1-30E is a
bundle of the following
components:

•One network module
(NM-HDV)

• One one-port E1
Voice/WAN Interface
Card (VWIC-1MFT-E1)

• Three Digital Signal
Processor modules
(PVDM-12)

NM-HDV-2E1-60

Two-port 60 Channel
Digital E1 Packet Voice
Trunk Network Module

Provides two E1 connection
with support for 6 channels
of medium complexity
voice compression using
any of the following
codecs: G.729A, G.729AB,
G.726 all versions, G.711
and fax relay. This module
can also be configured to
provide 30 channels of high
and/or medium complexity
voice compression using
any of the following
codecs: G.729A, G.729AB,
G.726 all versions, G.711,
G.729, G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T

3660 series – 12.0(7)XK

3640 – 12.0(7)XK

3620 – 12.0(7)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(7)XK

2610 series – 12.0(7)XK

Requires an IOS “PLUS”
feature set.

The NM-HDV-2E1-60 is a
bundle of the following
components:

•One network module
(NM-HDV)

• One two-port E1
Voice/WAN Interface
Card (VWIC-2MFT-E1)

•Five Digital Signal
Processor modules
(PVDM-12)

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

82

T1/E1/J1 Digital Voice Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-HDV-1J1-30

Single-Port 30 Channel J1
Voice/Fax Network Module

Provides a single J1
connection with support
for 30 channels of medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711 and fax
relay. This module can also
be configured to provide
18 channels of high and/or
medium complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T

3660 series – 12.2(8)T

3640 – 12.2(8)T

3620 – 12.2(8)T

2691 – 12.2(8)T1

2600XM series – 12.2(8)T1

2650 series – 12.2(8)T

2620 series – 12.2(8)T

2610 series – 12.2(8)T

Requires an IOS “PLUS”
feature set.

The NM-HDV-1J1-30 is a
bundle of the following
components:

•One network module
(NM-HDV)

• One one-port E1
Voice/WAN Interface
Card (VWIC-1MFT-E1)

• Three Digital Signal
Processor modules
(PVDM-12)

NM-HDV-1J1-30E

Single-Port 30 Enhanced
Channel J1 Voice/Fax
Network Module

Provides a single J1
connection with support
for 30 channels of high
and/or medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T

3660 series – 12.2(8)T

3640 – 12.2(8)T

3620 – 12.2(8)T

2691 – 12.2(8)T1

2600XM series – 12.2(8)T1

2650 series – 12.2(8)T

2620 series – 12.2(8)T

2610 series – 12.2(8)T

Requires an IOS “PLUS”
feature set.

The NM-HDV-1J1-30 is a
bundle of the following
components:

• One network module
(NM-HDV)

• One one-port J1 Voice
Interface Card (VIC-1J1)

• Five Digital Signal
Processor modules
(PVDM-12)

NM-HDV

Digital T1/E1 Packet Voice
Trunk Network Module
Spare

This network module is
the carrier card for the
PVDM-12 and VWIC cards.
It is the basis for all six
NM-HDV voice bundles.
Up to 30 unique combina­tions of network module,
DSP modules, and VWICs
exist, allowing users to
increase voice channel
support from 6 up to 60
voice/fax channels.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

Requires an IOS “PLUS”
feature set.

Requires at least one
Voice/WAN Interface Card
(VWIC) or VIC-1J1 and a
12-channel DSP module
(PVDM-12).

T1/E1/J1 Digital Voice Network Modules

Network Modules for Cisco 3700, 3600 and 260 0XM series

83

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

PVDM-12

12-channel Packet Voice
DSP Module Upgrade ­Spare

Installable into an NM­HDV. It contains three TI
549 DSPs along with the
necessary DSP SRAM to
process six high or
medium complexity
compressed voice
channels or 12 medium
complexity compressed
voice channels.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

Requires an IOS “PLUS”
feature set.

Requires at least one High­Density Voice Network
Module (NM-HDV) and a
Voice/WAN Interface Card
(VWIC).

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-AIC-64

Alarm Monitoring and
Control Network Module

Provides ports for 64
discrete alarm points and
16 relay control points. Up
to 8 of the 64 alarm points
can be configured to
accept analog input.

Modular Router Solutions

Alarm monitoring and

Control

3700 series – Not
Available

3660 series – 12.2(2)XG

3640 – 12.2(2)XG

3620 – 12.2(2)XG

2691 – Not Available

2600XM series – 12.2(8)T1

2650 series – 12.2(2)XG

2620 series – 12.2(2)XG

2610 series – 12.2(2)XG

Requires a SCSI to Telco
patch Panel.

AIC-DBL-PNL

Patch Panel

SCSI to Telco Patch Panel
for terminating up to 128
alarm points (two NM-AIC-

64).

Modular Router Solutions

Alarm monitoring and

Control

3700 series – Not
Available
3660 series – 12.2(2)XG
3640 – 12.2(2)XG
3620 – 12.2(2)XG
2691 – Not Available
2600XM series – 12.2(8)T1
2650 series – 12.2(2)XG
2620 series – 12.2(2)XG
2610 series – 12.2(2)XG

Requires an Alarm
Monitoring and Control
Network Module.

Alarm Monitoring and Control
Network Modules and Accessories

Integrated Digital Modem Network Modules

Benefits & Advantages

continued

Network Modules for Cisco 3700, 3600 and 260 0XM series

84

Integrated Digital Modem Network Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

AIC-SGL-PNL

Patch Panel with voltage
monitoring

SCSI to Telco Patch Panel
for terminating up to 64
alarm points and
monitoring up to 8 power
lines.

Modular Router Solutions

Alarm monitoring and

Control

3700 series – Not
Available
3660 series – 12.2(2)XG
3640 – 12.2(2)XG
3620 – 12.2(2)XG
2691 – Not Available
2600XM series – 12.2(8)T1
2650 series – 12.2(2)XG
2620 series – 12.2(2)XG
2610 series – 12.2(2)XG

Requires an Alarm
Monitoring and Control
Network Module.

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

WIC-1T

One-port Serial WAN
Interface Card

Provides a single serial
connection at up to T1/E1
rates. The DB-60 connector
supports any of five
interface types (RS-232, RS­449, RS-530, V.35, X.21) in
either DTE or DCE mode.
This interface card inserts
into a Cisco mixed-media
network module or directly
into a Cisco WAN Interface
Card (WIC) expansion slot.

Modular Router Solutions

Serial & Legacy

Concentration

3700 series – Not Available
3660 series – 12.0(5)T
3640 – 11.1(7)AA
3620 – 11.1(7)AA
2691 – Not Available
2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1
2650 series – 12.1(3)T
2620 series – 11.3(2)XA
2610 series – 11.3(2)XA
1760 – 12.2(2)XK
1751 – 12.1(5)YB
1721 – 12.2(4)YA

When used in a Cisco 3600
series router, requires a
Mixed Media network
module: NM-2W, NM­1E2W, NM-2E2W,
NM-1E1R2W, NM-1FE2W,
NM-2FE2W or NM­1FE1R2W.

WIC-2T

Two-port Serial WAN
Interface Card

Provides a two serial
connections up to T1/E1
speeds. The DB-60
connector supports any of
five interface types (RS-232,
RS-449, RS-530, V.35, X.21)
in either DTE or DCE mode.
This interface card inserts
into a Cisco mixed-media
network module or directly
into a Cisco WAN Interface
Card (WIC) expansion slot.

Modular Router Solutions

Serial & Legacy

Concentration

3700 series - 12.2(8)T
3660 series – 12.0(7)XK
3640 – 12.1(1)T
3620 – 12.1(1)T
2691 – 12.2(8)T
2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1
2650 series – 12.1(3)T
2620 series – 11.3(2)XA
2610 series – 11.3(2)XA
1760 – 12.2(2)XK
1751 – 12.1(5)YB
1721 – 12.2(4)YA

When used in a Cisco 3600
series router, requires one
of the following Mixed
Media network modules:
NM-2W, NM-1FE2W, NM­2FE2W or NM-1FE1R2W.

1FE1R2W.

WAN Interface Cards

Serial WAN Interface Cards

Serial WAN Interface Cards

Network Modules for Cisco 3700, 3600 and 260 0XM series

85

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

WIC-1DSU-T1

One-port T1/Fractional T1
DSU/CSU WAN Interface
Card

Provides a single serial
connection at speeds up to
T1 rates. This interface
card inserts into a Cisco
mixed-media network
module or directly into a
Cisco WAN Interface Card
(WIC) expansion slot.

Modular Router Solutions

Serial & Legacy

Concentration

3700 series - Future
3660 series – 12.0(5)T
3640 – 11.2(12)P
3620 – 11.2(12)P
2691 – 12.2(8)T
2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1
2650 series – 12.1(3)T
2620 series – 11.3(4)T
2610 series – 11.3(4)T
1760 – 12.2(2)XK
1751 – 12.1(5)YB
1721 – 12.2(4)YA

When used in a Cisco 3600
series router, requires a
Mixed Media network
module: NM-2W, NM­1E2W, NM-2E2W,
NM-1E1R2W, NM-1FE2W,
NM-2FE2W or NM­1FE1R2W.

WIC-1DSU-56K4

One-port 4-Wire 56/64Kbps
DSU/CSU WAN Interface
Card

Provides a single serial
connection at speeds up to
64 Kbps. This interface
card inserts into a Cisco
mixed-media network
module or directly into a
Cisco WAN Interface Card
(WIC) expansion slot.

Modular Router Solutions

Serial & Legacy

Concentration

3700 series - 12.2(8)T
3660 series – 12.0(5)T
3640 – 11.2(4)XA
3620 – 11.2(4)XA
2691 – 12.2(8)T
2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1
2650 series – 12.1(3)T
2620 series – 11.3(2)XA
2610 series – 11.3(2)XA
1760 – 12.2(2)XK
1751 – 12.1(5)YB
1721 – 12.2(4)YA

When used in a Cisco 3600
series router, requires a
Mixed Media network
module: NM-2W, NM­1E2W, NM-2E2W,
NM-1E1R2W, NM-1FE2W,
NM-2FE2W or NM­1FE1R2W.

WIC-2A/S

Two-port Asynchronous /
Synchronous Serial WAN
Interface Card

Provides two low-speed
serial interfaces at speeds
up to 128kbps. This WAN
interface card supports
asynchronous and
synchronous traffic, and
plugs directly into a WAN
Interface Card (WIC)
expansion slot.

Modular Router Solutions

Serial & Legacy

Concentration

3700 series - 12.2(8)T
3660 series – 12.0(7)XK
3640 – 12.1(1)T
3620 – 12.1(1)T
2691 – 12.2(8)T
2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1
2650 series – 12.1(3)T
2620 series – 11.3(2)XA
2610 series – 11.3(2)XA
1760 – 12.2(2)XK
1751 – 12.1(5)YB
1721 – 12.2(4)YA

When used in a Cisco 3600
series router, requires one
of the following Mixed
Media network modules:
NM-2W, NM-1FE2W, NM­2FE2W or NM-1FE1R2W.

ISDN BRI WAN Interface Cards

Network Modules for Cisco 3700, 3600 and 260 0XM series

86

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

WIC-1B-S/T

One-port ISDN WAN
Interface Card

Provides a single ISDN BRI
connection via an RJ-45
connector. It requires an
external NT-1 device for
connection to the WAN
This interface card inserts
into a Cisco mixed-media
network module or
directly into a Cisco WAN
Interface Card (WIC)
expansion slot.

Modular Router Solutions

ISDN Concentration
Dialup Remote Access

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 11.2(4)XA

3620 – 11.2(4)XA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(2)XA

2610 series – 11.3(2)XA

1760 – 12.2(2)XK

1751 – 12.1(5)YB

1721 – 12.2(4)YA

When used in a Cisco 3600
series router, requires a
Mixed Media network
module: NM-2W, NM­1E2W, NM-2E2W,
NM-1E1R2W, NM-1FE2W,
NM-2FE2W or NM­1FE1R2W

DSL WAN Interface Cards

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

WIC-1ADSL

One-port Asymmetric
Digital Subscriber Line
WAN Interface Card

Provides a single ADSL
connection at uplink
speeds up to 1 Mbps and
downlink speeds up to 8
Mbps. This interface card
inserts into a Cisco mixed­media network module or
directly into a Cisco WAN
Interface Card (WIC)
expansion slot.

Modular Router Solutions

DSL Access

3700 series - 12.2(8)T

3660 series – 12.1.1(5)YB

3640 – 12.1.1(5)YB

3620 – 12.1.1(5)YB

2691 – 12.2(8)T

2600XM series – 12.2(x)
mainline (future), 12.2(8)T1

2650 series – 12.1.1(5)YB

2620 series – 12.1.1(5)YB

2610 series – 12.1.1(5)YB

1760 – 12.2(2)XK

1751 – 12.2(2)XQ1

1721 – 12.2(4)YA

When used in a Cisco 3600
series router, requires one
of the following Mixed
Media network modules:
NM-2W, NM-1FE2W, NM­2FE2W or NM-1FE1R2W.

When using the 1700
series, requires an IOS
IP/DSL module.

When using the 2600,
3600, and 3700 series,
requires an IOS “PLUS”
feature set.

WIC-1B-U

One-port ISDN with NT-1
WAN Interface Card

Provides a single ISDN BRI
connection via an RJ-45
connector. This interface
card inserts into a Cisco
mixed-media network
module or directly into a
Cisco WAN Interface Card
(WIC) expansion slot.

Modular Router Solutions

ISDN Concentration
Dialup Remote Access

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 11.2(4)XA

3620 – 11.2(4)XA

2691 – 12.2(8)T

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(2)XA

2610 series – 11.3(2)XA

1760 – 12.2(2)XK

1751 – 12.1(5)YB

1721 – 12.2(4)YA

When used in a Cisco 3600
series router, requires a
Mixed Media network
module: NM-2W, NM­1E2W, NM-2E2W,
NM-1E1R2W, NM-1FE2W,
NM-2FE2W or NM­1FE1R2W

DSL WAN Interface Cards

Network Modules for Cisco 3700, 3600 and 260 0XM series

87

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

WIC-1SHDSL

1-Port Symmetrical High­Speed Digital Subscriber
Line (G.SHDSL) WAN
Interface Card

Modular Router Solutions

DSL Access

3700 series – Future

3660 series – 12.2(4)XL2

3640 – 12.2(4)XL2

3620 – 12.2(4)XL2

2691 – 12.2(4)XL2

2600XM series – 12.2(8)T1

2650 series – 12.2(4)XL

2620 series – 12.2(4)XL

2610 series – 12.2(4)XL

1760 – 12.2(4)YB

1751 – 12.2(4)XL

1721 – 12.2(4)YA

When used in a Cisco 3600
series router, requires one
of the following Mixed
Media network modules:
NM-2W, NM-1FE2W, NM­2FE2W or NM-1FE1R2W.

When using the 1700
series, requires an IOS
IP/DSL module.

When using the 2600,
3600, and 3700 series,
requires an IOS “PLUS”
feature set.

Analog Modem WAN Interface Cards

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

WIC-1AM

One-port Analog Modem
WAN Interface Card

Modular Router Solutions

Dialup Remote Access

3700 series – 12.2(8)T

3660 series – 12.2(2)XB

3640 – 12.2(2)XB

3620 – 12.2(2)XB

2691 – 12.2(8)T1

2600XM series – 12.2(8)T1

2650 series – 12.2(2)XB

2620 series – 12.2(2)XB

2610 series – 12.2(2)XB

1760 – 12.2(4)YB

1751 – 12.2(4)YB

1721 – 12.2(4)YB

When used in a Cisco 3600
series router, requires one
of the following Mixed
Media network modules:
NM-2W, NM-1FE2W, NM­2FE2W or NM-1FE1R2W.

WIC-2AM

Two-port Analog Modem
WAN Interface Card

Modular Router Solutions

Dialup Remote Access

3700 series – 12.2(8)T

3660 series – 12.2(2)XB

3640 – 12.2(2)XB

3620 – 12.2(2)XB

2691 – 12.2(8)T1

2600XM series – 12.2(8)T1

2650 series – 12.2(2)XB

2620 series – 12.2(2)XB

2610 series – 12.2(2)XB

1760 – 12.2(4)YB

1751 – 12.2(4)YB

1721 – 12.2(4)YB

When used in a Cisco 3600
series router, requires one
of the following Mixed
Media network modules:
NM-2W, NM-1FE2W, NM­2FE2W or NM-1FE1R2W.

Ethernet WAN Interface Cards

Network Modules for Cisco 3700, 3600 and 260 0XM series

88

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

WIC-1ENET

Single-Port Ethernet WAN
Interface Card

Provides one standards­based 10BaseT Ethernet
network Interface.
Operates in half- and full­duplex modes. Supports
PPP over Ethernet (PPPoE)
to authenticate the router
on a service provider’s
network using PPP

Modular Router Solutions

DSL Access
VPN & Firewall Solutions

3700 series – Not Available

3660 series – Not Available

3640 – Not Available

3620 – Not Available

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

1760 – 12.2(2)XK

1751 – 12.1(5)YB

1721 – 12.2(4)YB

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

VWIC-1MFT-T1

Single-port RJ-48
Multiflex Trunk-T1
Voice/WAN Interface Card

This module supports
voice, data, and integrated
voice/data applications.
For data applications, the
VWIC provides a single­port WAN Interface Card
(WIC) for T1/FT1 with an
integrated DSU/CSU. For a
packet voice solution, the
VWIC provides a single­port Voice Interface Card
(VIC) with integrated
DSU/CSU, that combines
with the Digital T1/E1
Packet Voice Trunk
Modules

Modular Router Solutions

Serial & Legacy

Concentration

Voi ce & Fax

3700 series - 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

1760 – 12.2(4)YB

1751 – 12.2(4)YB

1721 – Future

When used in a Cisco 3600
series router, requires one
of the following network
modules: NM-2W, NM­1FE2W, NM-2FE2W,
NM-1FE1R2W, NM-1A­OC3MM-1V,
NM-1A-OC3SMI-1V, NM­1A-OC3SML-1V or
NM-HDV.

Minimum IOS version may
vary depending on
application.

Voice/WAN Interface Cards

T1, E1 and G.703 Multiflex Trunk Voice and WAN Interface Cards

T1, E1 and G.703 Multiflex Trunk Voice and WAN Interface Cards

Network Modules for Cisco 3700, 3600 and 260 0XM series

89

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

VWIC-2MFT-T1

Two-port RJ-48 Multiflex
Trunk-T1 Voice/WAN
Interface Card

This module supports
voice, data, and integrated
voice/data applications.
For data applications, the
VWIC provides a two-port
WAN Interface Card (WIC)
for T1/FT1 with an
integrated DSU/CSU. For a
packet voice solution, the
VWIC provides a two-port
Voice Interface Card (VIC)
with integrated DSU/CSU,
that combines with the
Digital T1/E1 Packet Voice
Trunk Modules

Modular Router Solutions

Serial & Legacy

Concentration

Voi ce & Fax

3700 series - 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

1760 – 12.2(4)YB

1751 – 12.2(4)YB

1721 – Future

When used in a Cisco 3600
series router, requires one
of the following network
modules: NM-2W, NM­1FE2W, NM-2FE2W,
NM-1FE1R2W, NM-1A­OC3MM-1V,
NM-1A-OC3SMI-1V, NM­1A-OC3SML-1V or
NM-HDV.

Minimum IOS version may
vary depending on
application.

VWIC-2MFT-T1-DI

Dual-port RJ-48 Multiflex
Trunk-T1 Voice/WAN
Interface Card with drop
and insert

This module supports
voice, data, and integrated
voice/data applications.
For data applications, the
VWIC provides a dual-port
WAN Interface Card (WIC)
for T1/FT1 with an
integrated DSU/CSU. For a
packet voice solution, the
VWIC provides a dual-port
Voice Interface Card (VIC)
with integrated DSU/CSU,
that combines with the
Digital T1/E1 Packet Voice
Trunk Modules. For
multiplexed voice and data
applications, this module
provides a dual-port VWIC
T1/FT1 with Drop and
Insert multiplexer.

Modular Router Solutions

Serial & Legacy

Concentration

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

1760 – 12.2(4)YB

1751 – 12.2(4)YB

1721 – Future

When used in a Cisco 3600
series router, requires one
of the following network
modules: NM-2W, NM­1FE2W, NM-2FE2W,
NM-1FE1R2W, NM-1A­OC3MM-1V,
NM-1A-OC3SMI-1V, NM­1A-OC3SML-1V or
NM-HDV.

Minimum IOS version may
vary depending on
application.

T1, E1 and G.703 Multiflex Trunk Voice and WAN Interface Cards

Network Modules for Cisco 3700, 3600 and 260 0XM series

90

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

VWIC-1MFT-E1

Single-port RJ-48 Multiflex
Trunk-E1 Voice/WAN
Interface Card

This module supports
voice, data, and integrated
voice/data applications.
For data applications, the
VWIC provides a single­port WAN Interface Card
(WIC) for E1/FE1 with an
integrated DSU. For a
packet voice solution, the
VWIC provides a single­port Voice Interface Card
(VIC) with integrated DSU,
that combines with the
Digital T1/E1 Packet Voice
Trunk Modules.

Modular Router Solutions

Serial & Legacy

Concentration

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

1760 – 12.2(4)YB

1751 – 12.2(4)YB

1721 – Future

When used in a Cisco 3600
series router, requires one
of the following network
modules: NM-2W, NM­1FE2W, NM-2FE2W,
NM-1FE1R2W, NM-1A­OC3MM-1V,
NM-1A-OC3SMI-1V, NM­1A-OC3SML-1V or
NM-HDV.

Minimum IOS version may
vary depending on
application.

VWIC-2MFT-E1

Two-port RJ-48 Multiflex
Trunk-E1 Voice/WAN
Interface Card

This module supports
voice, data, and integrated
voice/data applications.
For data applications, the
VWIC provides a Two-port
WAN Interface Card (WIC)
for E1/FE1 with an
integrated DSU. For a
packet voice solution, the
VWIC provides a Two-port
Voice Interface Card (VIC)
with integrated DSU, that
combines with the Digital
T1/E1 Packet Voice Trunk
Modules.

Modular Router Solutions

Serial & Legacy

Concentration

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

1760 – 12.2(4)YB

1751 – 12.2(4)YB

1721 – Future

When used in a Cisco 3600
series router, requires one
of the following network
modules: NM-2W, NM­1FE2W, NM-2FE2W,
NM-1FE1R2W, NM-1A­OC3MM-1V,
NM-1A-OC3SMI-1V, NM­1A-OC3SML-1V or
NM-HDV.

Minimum IOS version may
vary depending on
application.

T1, E1 and G.703 Multiflex Trunk Voice and WAN Interface Cards

Network Modules for Cisco 3700, 3600 and 260 0XM series

91

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

VWIC-2MFT-E1-DI

Dual-port RJ-48 Multiflex
Trunk-E1 Voice/WAN
Interface Card with drop
and insert

This module supports
voice, data, and integrated
voice/data applications.
For data applications, the
VWIC provides a dual-port
WAN Interface Card (WIC)
for E1/FE1 with an
integrated DSU. For a
packet voice solution, the
VWIC provides a dual-port
Voice Interface Card (VIC)
with integrated DSU, that
combines with the Digital
T1/E1 Packet Voice Trunk
Modules. For multiplexed
voice and data
applications, this module
provides a dual-port VWIC
E1/FE1 Drop and Insert
multiplexer.

Modular Router Solutions

Serial & Legacy

Concentration

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(5)XK

3640 – 12.0(5)XK

3620 – 12.0(5)XK

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.0(5)XK

2610 series – 12.0(5)XK

1760 – 12.2(4)YB

1751 – 12.2(4)YB

1721 – Future

When used in a Cisco 3600
series router, requires one
of the following network
modules: NM-2W, NM­1FE2W, NM-2FE2W,
NM-1FE1R2W, NM-1A­OC3MM-1V,
NM-1A-OC3SMI-1V, NM­1A-OC3SML-1V or
NM-HDV.

Minimum IOS version may
vary depending on
application.

VWIC-1MFT-G703

Single-port RJ-48 Multiflex
Trunk-E1
Framed/Unframed
Voice/WAN Interface Card

This module supports
voice, data, and integrated
voice/data applications.
For data applications, the
VWIC provides a single­port WAN Interface Card
(WIC) for E1/FE1 or
unframed G.703 with an
integrated DSU. For a
packet voice solution, the
VWIC provides a single­port Voice Interface Card
(VIC) with integrated DSU,
that combines with the
Digital T1/E1 Packet Voice
Trunk Modules.

Modular Router Solutions

Serial & Legacy

Concentration

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.1(1)T

3640 – 12.1(1)T

3620 – 12.1(1)T

2691 – 12.2(8)T1

2600XM series – 12.2(x)
mainline (future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.1(1)T

2610 series – 12.1(1)T

1760 – 12.2(4)YB

1751 – 12.2(4)YB

1721 – Future

When used in a Cisco 3600
series router, requires one
of the following network
modules: NM-2W, NM­1FE2W, NM-2FE2W,
NM-1FE1R2W or NM-HDV.

Minimum IOS version may
vary depending on
application.

T1, E1 and G.703 Multiflex Trunk Voice and WAN Interface Cards

Network Modules for Cisco 3700, 3600 and 260 0XM series

92

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

VWIC-2MFT-G703

Dual-port RJ-48 Multiflex
Trunk-E1
Framed/Unframed
Voice/WAN Interface Card
with drop and insert

This module supports
voice, data, and integrated
voice/data applications.
For data applications, the
VWIC provides a dual-port
WAN Interface Card (WIC)
for E1/FE1 or unframed
G.703with an integrated
DSU. For a packet voice
solution, the VWIC
provides a dual-port Voice
Interface Card (VIC) with
integrated DSU, that
combines with the Digital
T1/E1 Packet Voice Trunk
Modules. For multiplexed
voice and data
applications, this module
provides a dual-port VWIC
E1/FE1 Drop and Insert
multiplexer.

Modular Router Solutions

Serial & Legacy

Concentration

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.1(1)T

3640 – 12.1(1)T

3620 – 12.1(1)T

2691 – 12.2(8)T1

2600XM series – 12.2(x)
mainline (future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.1(1)T

2610 series – 12.1(1)T

1760 – 12.2(4)YB

1751 – 12.2(4)YB

1721 – Future

When used in a Cisco 3600
series router, requires one
of the following network
modules: NM-2W, NM­1FE2W, NM-2FE2W,
NM-1FE1R2W or NM-HDV.

Minimum IOS version may
vary depending on
application.

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

VIC-2FXS

Two-port - FXS Voice
Interface Card

The two-port FXS
voice/fax interface card for
Cisco voice/fax network
modules is used to
connect directly to phones
and fax machines. This
voice interface card works
with existing phone and
fax equipment to provide
voice and fax services over
IP, and is compatible with
H.323 standard for audio­and videoconferencing.

Modular Router Solutions

Voice & Fax Integration

3700 series - 12.2(8)T
3660 series – 12.0(5)T
3640 – 11.3(1)T
3620 – 11.3(1)T
2691 – 12.2(8)T1
2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1
2650 series – 12.1(3)T
2620 series – 11.3(1)T
2610 series – 11.3(1)T
1760 – 12.2(2)XK
1751 – 12.1(5)YB
1721 – Not Available

When used in a Cisco 2600
or 3600 series router,
requires a voice/fax
network module: NM-1V
or NM-2V.

When used in a 1751 or
1760 series router,
requires a DSP module.

Requires an IOS “PLUS”
feature set.

Voice Interface Cards

Analog Voice Interface Cards

Analog Voice Interface Cards

Network Modules for Cisco 3700, 3600 and 260 0XM series

93

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

VIC-2FXO

Two-port - FXO Voice
Interface Card

The two-port FXO
voice/fax interface card for
Cisco voice/fax network
modules is used to
connect to PBX or key
system, and to provide off­premise connections. This
voice interface card works
with existing phone and
fax equipment to provide
voice and fax services over
IP, and is compatible with
H.323 standard for audio­and videoconferencing

Modular Router Solutions

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 11.3(1)T

3620 – 11.3(1)T

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(2)XA

2610 series – 11.3(2)XA

1760 – 12.2(2)XK

1751 – 12.1(5)YB

1721 – Not Available

When used in a Cisco 2600
or 3600 series router,
requires a voice/fax
network module: NM-1V
or NM-2V.

When used in a 1751 or
1760 series router,
requires a DSP module.

Requires an IOS “PLUS”
feature set.

VIC-2FXO-EU

Two-port - FXO Voice
Interface Card- For Europe

The two-port FXO
voice/fax interface card for
Cisco voice/fax network
modules is used to
connect to PBX or key
system, and to provide off­premise connections for
Europe only. This voice
interface card works with
existing phone and fax
equipment to provide
voice and fax services over
IP, and is compatible with
H.323 standard for audio­and videoconferencing.

Modular Router Solutions

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.0(5)T

3640 – 11.3(6)T

3620 – 11.3(6)T

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 11.3(6)T

2610 series – 11.3(6)T

1760 – 12.2(2)XK

1751 – 12.1(5)YB

1721 – Not Available

When used in a Cisco 2600
or 3600 series router,
requires a voice/fax
network module: NM-1V
or NM-2V.

When used in a 1751 or
1760 series router,
requires a DSP module.

Requires an IOS “PLUS”
feature set.

VIC-2FXO-M1

Two-port – FXO Voice
Interface Card with Battery
Reversal and Caller ID
support

The two-port FXO
voice/fax interface card for
Cisco voice/fax network
modules is used to
connect to PBX or key
system, and to provide off­premise connections. This
voice interface card
supports all features of
VIC-2FXO and in addition
Battery Reversal, Power
Denial and Caller ID.

Modular Router Solutions

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.1(2)XH

3640 – 12.1(2)XH

3620 – 12.1(2)XH

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.1(2)XH

2610 series – 12.1(2)XH

1760 – 12.2(2)XK

1751 – 12.1(5)YB

1721 – Not Available

When used in a Cisco 2600
or 3600 series router,
requires a voice/fax
network module: NM-1V
or NM-2V.

When used in a 1751 or
1760 series router,
requires a DSP module.

Requires an IOS “PLUS”
feature set.

Analog Voice Interface Cards

Network Modules for Cisco 3700, 3600 and 260 0XM series

94

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

VIC-2FXO-M2

Two-port – FXO Voice
Interface Card with Battery
Reversal and Caller ID
support – for Europe

The two-port FXO
voice/fax interface card for
Cisco voice/fax network
modules is used to
connect to PBX or key
system, and to provide off­premise connections in
Europe only. This voice
interface card supports all
features of VIC-2FXO and
in addition Battery
Reversal, Power Denial
and Caller ID.

Modular Router Solutions

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.1(2)XH

3640 – 12.1(2)XH

3620 – 12.1(2)XH

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.1(2)XH

2610 series – 12.1(2)XH

1760 – 12.2(2)XK

1751 – 12.1(5)YB

1721 – Not Available

When used in a Cisco 2600
or 3600 series router,
requires a voice/fax
network module: NM-1V
or NM-2V.

When used in a 1751 or
1760 series router,
requires a DSP module.

Requires an IOS “PLUS”
feature set.

VIC-2FXO-M3

Two-port – FXO Voice
Interface Card- for
Australia

The two-port FXO
voice/fax interface card for
Cisco voice/fax network
modules is used to
connect to PBX or key
system, and to provide off­premise connections for
Australia only. This voice
interface card works with
existing phone and fax
equipment to provide
voice and fax services over
IP, and is compatible with
H.323 standard for audio­and videoconferencing.

Modular Router Solutions

Voice & Fax Integration

3700 series - 12.2(8)T

3660 series – 12.1(2)XH

3640 – 12.1(2)XH

3620 – 12.1(2)XH

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.1(2)XH

2610 series – 12.1(2)XH

1760 – 12.2(2)XK

1751 – 12.1(5)YB

1721 – Not Available

When used in a Cisco 2600
or 3600 series router,
requires a voice/fax
network module: NM-1V
or NM-2V.

When used in a 1751 or
1760 series router,
requires a DSP module.

Requires an IOS “PLUS”
feature set.

VIC-2DID

Two-port Direct Inward
Dial voice/fax interface
card

Modular Router Solutions

Voice & Fax Integration

33700 series – 12.2(8)T

3660 series – 12.1(5)XM1

3640 – 12.1(5)XM1

3620 – 12.1(5)XM1

2691 – 12.2(8)T1

2600XM series – 12.2(x)
mainline (future), 12.2(8)T1

2650 series – 12.1(5)XM1

2620 series – 12.1(5)XM1

2610 series –12.1(5)XM1

1760 – 12.2(2)XK

1751 – 12.2(2)XJ

1721 – Not Available

When used in a Cisco 2600
or 3600 series router,
requires a voice/fax
network module: NM-1V
or NM-2V.

When used in a 1751 or
1760 series router,
requires a DSP module.

Requires an IOS “PLUS”
feature set.

Analog Voice Interface Cards

Network Modules for Cisco 3700, 3600 and 260 0XM series

95

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

VIC-2E/M

Two-port - E&M Voice
Interface Card

The two-port E&M voice
interface card for Cisco
voice/fax network modules
is used to connect to PBX
or key system trunk lines.
This voice interface card
works with existing phone
and fax equipment to
provide voice and fax
services over IP, and is
compatible with H.323
standard for audio- and
videoconferencing.

Modular Router Solutions

Voice & Fax Integration

3700 series - 12.2(8)T
3660 series – 12.1(2)XH
3640 – 12.1(2)XH
3620 – 12.1(2)XH
2691 – 12.2(8)T1
2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1
2650 series – 12.1(3)T
2620 series – 12.1(2)XH
2610 series – 12.1(2)XH
1760 – 12.2(2)XK
1751 – 12.1(5)YB
1721 – Not Available

When used in a Cisco 2600
or 3600 series router,
requires a voice/fax
network module: NM-1V
or NM-2V.

When used in a 1751 or
1760 series router,
requires a DSP module.

Requires an IOS “PLUS”
feature set.

ISDN BRI Voice Interface Cards

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

VIC-2BRI-NT/TE

Two Port BRI ISDN Voice
Interface Card Terminal
Side or Network Side

This two port ISDN Terminal
Side or Network Side Basic
Rate Interface (BRI) Voice
Interface Card (VIC)
connects directly to PSTNs
and PBX/PABXs and
supports both on-premise
and off-premise
connections. The VIC-2BRI­NT/TE supports a total of
four voice channels in a
single interface card via two
RJ-45 physical ports, and
enables toll-bypass and
voice over packet features.

Modular Router Solutions

Voice & Fax Integration

3700 series - Future
3660 series – 12.1(3)XI
3640 – 12.1(3)XI
3620 – 12.1(3)XI
2691 – 12.2(8)T1
2600XM series – 12.2(x)
mainline (future), 12.2(8)T1
2650 series – 12.1(3)XI
2620 series – 12.1(3)XI
2610 series – 12.1(3)XI
1760 – 12.2(2)XK
1751 – 12.1(5)YB
1721 – Not Available

When used in a Cisco 2600
or 3600 series router,
requires a voice/fax
network module: NM-1V
or NM-2V.

When used in a 1751 or
1760 series router,
requires a DSP module.

Requires an IOS “PLUS”
feature set.

VIC-2BRI-S/T-TE

Two Port BRI ISDN Voice
Interface Card

This two port ISDN, S/T,
Terminal Side, Basic Rate
Interface (BRI) Voice
Interface Card (VIC)
connects directly to PSTNs
and supports both on­premise and off-premise
connections. The VIC-2BRI­S/T-TE supports a total of
four voice channels in a
single interface card via two
RJ-45 physical ports, and
enables toll-bypass and
voice over packet features.

Modular Router Solutions

Voice & Fax Integration

3700 series - 12.2(8)T
3660 series – 12.0(7)XK
3640 – 12.0(3)T
3620 – 12.0(3)T
2691 – 12.2(8)T1
2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1
2650 series – 12.1(3)T
2620 series – 12.0(3)T
2610 series – 12.0(3)T
1760 – Not Available
1751 – Not Available
1721 – Not Available

When used in a Cisco 2600
or 3600 series router,
requires a voice/fax
network module: NM-1V
or NM-2V.

Requires an IOS “PLUS”
feature set.

J1 Voice Interface Cards

Network Modules for Cisco 3700, 3600 and 260 0XM series

96

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

VIC-1J1

Single-Port J1 Voice
Interface Card

Provides a single port J1
line interface to Japanese
Private Branch Exchanges
(PBXs). It is specifically
designed to conform with
the TTC JJ-20.10-12
standards which define the
interface between a PBX
and a TDM switch. This
network module is
currently designed only for
voice and fax applications.

Modular Router Solutions

Voice & Fax Integration

3700 series – 12.2(8)T1

3660 series – 12.1(3)XI

3640 – 12.1(3)XI

3620 – 12.1(3)XI

2691 – 12.2(8)T1

2600XM series – 12.2(8)T1

2650 series – 12.1(3)XI

2620 series – 12.1(3)XI

2610 series – 12.1(3)XI

1760 – Not Available

1751 – Not Available

1721 – Not Available

Requires a high-density
digital voice/fax network
module NM-HDV.

Requires an IOS “PLUS”
feature set.

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

AIM-COMPR4

Cisco 3660 Data
Compression Advanced
Interface Module

The Data Compression
AIM plugs directly into
one or both of the Cisco
3660’s two internal
Advanced Integration
Module slots. This AIM
provides 8E1 full duplex (8
x 2.048 Mbps Full Duplex)
of compressed
input/output.

Modular Router Solutions

Bandwidth Management

3700 series - Future
3660 series – 12.0(5)T
3640 – Not Available
3620 – Not Available
2691 – 12.2(8)T1
2600XM series – Not
Available
2650 series – Not Available
2620 series – Not Available
2610 series – Not Available
1760 – Not Available
1751 – Not Available
1721 – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

NM-COMPR

Cisco 3640 and 3620
Compression Network
Module

Provides 2E1 full duplex (2 x

2.048 Mbps Full Duplex) of
compressed input/output.
This compression network
module supports all serial
and channelized/ISDN
network modules and WAN
interface cards. The
coprocessor design, with no
external LAN or WAN ports.

Modular Router Solutions

Bandwidth Management

3700 series – Not Available
3660 series – Not Available
3640 – 11.2(7)AP
3620 – 11.2(7)AP
2691 – Not Available
2600XM series – Not
Available
2650 series – Not Available
2620 series – Not Available
2610 series – Not Available
1760 – Not Available
1751 – Not Available
1721 – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Advanced Integration Modules

Compression Advanced Integration Modules

Compression Advanced Integration Modules

Network Modules for Cisco 3700, 3600 and 260 0XM series

97

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

AIM-COMPR2

Cisco 2600 Data
Compression Advanced
Interface Module

The Data Compression
AIM plugs directly into the
Cisco 2600’s internal
Advanced Integration
Module slot. This AIM
provides 2E1 full duplex (2
x 2.048 Mbps Full Duplex)
of compressed
input/output.

Modular Router Solutions

Bandwidth Management

3700 series - Not Available

3660 series – Not Available

3640 – Not Available

3620 – Not Available

2691 – Not Available

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2600 series – 12.0(1)T

2600 series – 12.0(1)T

1760 – Not Available

1751 – Not Available

1721 – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Encryption Advanced Integration Modules

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

AIM-VPN/HP

DES/3DES VPN Advanced
Integration Module for
3660 and 3745 - High
Performance

Provides up to 10 times
the performance over
software-only encryption
by offloading the
encryption processing
from the router central
processing unit. Plugs
directly into one of the
Cisco 3660’s two internal
Advanced Integration
Module slots.

Modular Router Solutions

VPN & Firewall Solutions

3700 series – 12.2(8)T

3660 series – 12.1(3)T

3640 – Not Available

3620 – Not Available

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

1760 – Not Available

1751 – Not Available

1721 – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Requires IOS IPSEC
feature set

AIM-VPN/EP

DES/3DES VPN Advanced
Integration Module for
2600 and 3725 - Enhanced
Performance

Provides up to 10 times
the performance over
software-only encryption
by offloading the
encryption processing
from the router central
processing unit. Plugs
directly into the Cisco
2600’s internal Advanced
Integration Module slot

Modular Router Solutions

VPN & Firewall Solutions

3700 series - 12.2(8)T

3660 series – Not Available

3640 – Not Available

3620 – Not Available

2691 – 12.2(8)T1

2600XM series – 12.1(14)
mainline, 12.2(x) mainline
(future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.1(3)T

2610 series – 12.1(3)T

1760 – Not Available

1751 – Not Available

1721 – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Requires IOS IPSEC
feature set

Encryption Advanced Integration Modules

Network Modules for Cisco 3700, 3600 and 260 0XM series

98

Product Description

Supported Platforms
and Minimum
IOS Versions Comments

NM-VPN/MP

DES/3DES VPN Network
Module for 3620 and 3640

- Mid Performance

Provides up to 10 times
the performance over
software-only encryption
by offloading the
encryption processing
from the router central
processing unit.

Modular Router Solutions

VPN & Firewall Solutions

3700 series – Not Available

3660 series – Not Available

3640 – 12.1(3)T

3620 – 12.1(3)T

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

1760 – Not Available

1751 – Not Available

1721 – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Requires IOS IPSEC
feature set

AIM-VPN/BP

DES/3DES VPN Advanced
Integration Module for
2600 - Base Performance

Provides up to 10 times
the performance over
software-only encryption
by offloading the
encryption processing
from the router central
processing unit. Plugs
directly into the Cisco
2600’s internal Advanced
Integration Module slot.

Modular Router Solutions

VPN & Firewall Solutions

3700 series - Not Available

3660 series – Not Available

3640 – Not Available

3620 – Not Available

2691 – Not Available

2600XM series – 12.2(x)
mainline (future), 12.2(8)T1

2650 series – 12.1(3)T

2620 series – 12.1(3)T

2610 series – 12.1(3)T

1760 – Not Available

1751 – Not Available

1721 – Not Available

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Requires IOS IPSEC
feature set

MOD1700-VPN

Cisco 1700 VPN Module

Provides up to 10 times
the performance over
software-only encryption
by offloading the
encryption processing
from the router central
processing unit. Plugs
directly into the
Cisco1700’s internal
Module slot.

Modular Router Solutions

VPN & Firewall Solutions

3700 series - Not Available

3660 series – Not Available

3640 – Not Available

3620 – Not Available

2691 – Not Available

2600XM series – Not
Available

2650 series – Not Available

2620 series – Not Available

2610 series – Not Available

1760 – 12.2(2)XK

1751 – 12.1(5)YB

1721 – 12.1(3)

No reliance on other
Network Modules, WAN
Interface Cards, Voice
Interface Cards, or
Advanced Integration
Modules.

Requires IOS IPSEC
feature set
