Cisco Systems 7100 User Manual
Quick Start Guide
CISCO 7100 SERIES VPN ROUTER
Cisco 7100
SERIES
1
PREPARE FOR INSTALLATION
18481
2
RACK-MOUNT THE ROUTER
3
CONNECT THE ROUTER TO THE NETWORK
4

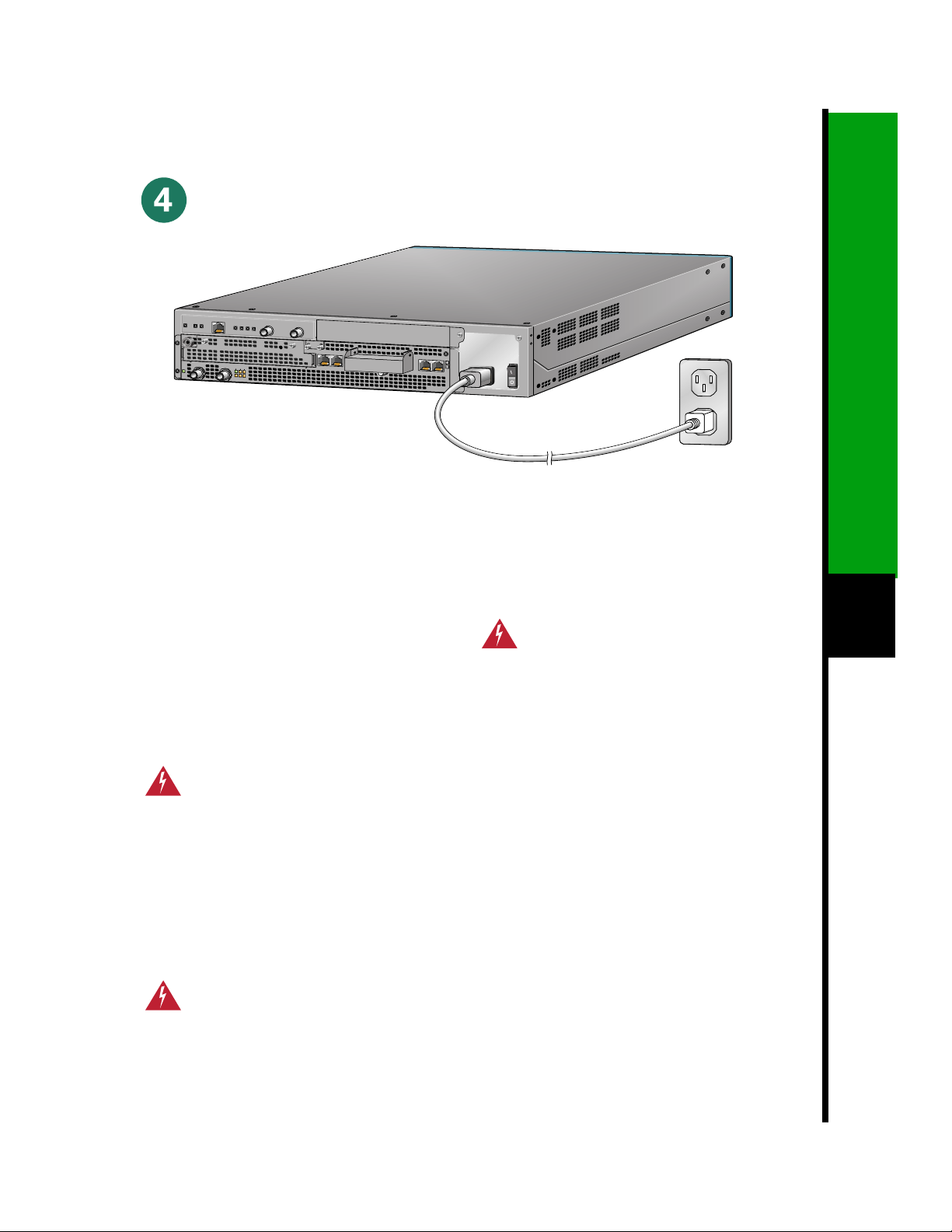

CONNECT THE POWER
5
START THE SYSTEM
Prepare for Installation
Note: For detailed hardware installation instructions and safety guidelines, refer to the
Cisco 7100 Series VPN Router Installation and Configuration Guide.
Warning Only trained and qualified personnelshould install, replace,or service this
equipment.
Warning Read the Installation instructions before you connect the system to its
power source.
Warning This unit is intended for installationin restrictedaccess areas.A restricted
access area is where access can only be gained by service personnel through the use of
a special tool, lock and key, or other means of security, and is controlled by the
authority responsible for the location.
Ensure the site is set up properly and ensure your safety when installing the router:
1
— Lift the router safely out of the packing container.
1
— Ensure the power service at the site is suitable for the router you are installing.
Check the packing slip to ensure that all the proper components are present.
2
Verify that you have the required tools and parts:
3
— 19- and 24-inch rack-mount brackets.
— Four screws for installing the router in the rack (not included).
— One double ground lug and two Phillips-head machine screws with locking washers.
— Number 2 Phillips screwdriver (not included).
— Appropriate cables to connect the router to the network and console terminal.
— Power cord (two power cords if dual power supply).
— ESD-preventive wrist strap.
Prepare for Installation (continued)
— One grounding wire—6-AWG, 0.162-inch (4.115-mm) diameter, with approximately
0.108 inch (2.743 mm) of insulation, for a total wire diameter of approximately
0.27 inch(6.858 mm). The wire’slength is dependenton your router location and site
environment. This wire is not available from Cisco Systems; it is available from any
commercial cable vendor.
— Crimping tool large enough to accommodate the diameter of the wire receptacle on
your grounding lug.
— Wire stripper.
2
Rack-Mount the Router
Cisco 7100
0
2
SERIES
22061
22062
3
Attach the Brackets to the
Router
Locate the brackets and screws.
1
Use a Phillips screwdriver to attach the
2
brackets on the side panelsofthe router
in one of the following ways:
— Front panel forward
— Rear panel forward
Note: Although these installations show
the 19-inch brackets, the procedure is the
same for the larger brackets.
Note: This procedure assumes you are
installing the router in a rack. For tabletop
installation, refer to the Cisco 7100 Series
VPN Router Installationand Configuration
Guide.
.
Rack-Mount the Router (continued)
22064
0
2
Note: The second bracket attaches to the other side of the chassis.
The brackets can also be installed with the front panel forward.
4
Attach the Router to theRack
Locate the screws to mount the chassis
1
in the rack.
Position one person to lift the chassis
2
into the equipment rack.
Align the bracket holes with the
3
mounting holes in the equipment rack.
Use a Phillips screwdriver to attach the
4
router to the equipment rack.
Warning Do not touch the power
supply when the power cord is
connected. For systems with a
power switch, line voltages are
present within the power supply
even when the power switch is off
and the power cord is connected.
For systems without a power
switch, line voltages are present
within the power supply when the
power cord is connected.
Rack-Mount the Router (continued)
Chassis grounding receptaces
Screws
Grounding lug
0
2
Grounding wire
22065
Attach the Grounding Lug
Note: Before you connectpower or power
onyour router, we strongly recommend that
you attach the grounding lug to the chassis
grounding receptacles.
Locate the grounding lug and screws.
1
Use the wirestripper to stripone end of
2
the 6-AWG wire approximately
0.75 inch (19.05 mm).
Insert the 6-AWG wire into the wire
3
receptacle on the grounding lug.
Use the crimping tool tocarefullycrimp
4
thewirereceptacle around the wire; this
step is required to ensure a proper
mechanical connection.
Insert the two screws through the holes
5
in the grounding lug. Ensure that the
grounding lug does not interfere with
other router hardware.
Use a Phillips screwdriver to carefully
6
tighten the screws until the grounding
lug is held firmly to the chassis. Do not
overtighten the screws.
Connect the opposite end of the
7
grounding wire to the appropriate
grounding point at your site to ensure
an adequate chassis ground.
5

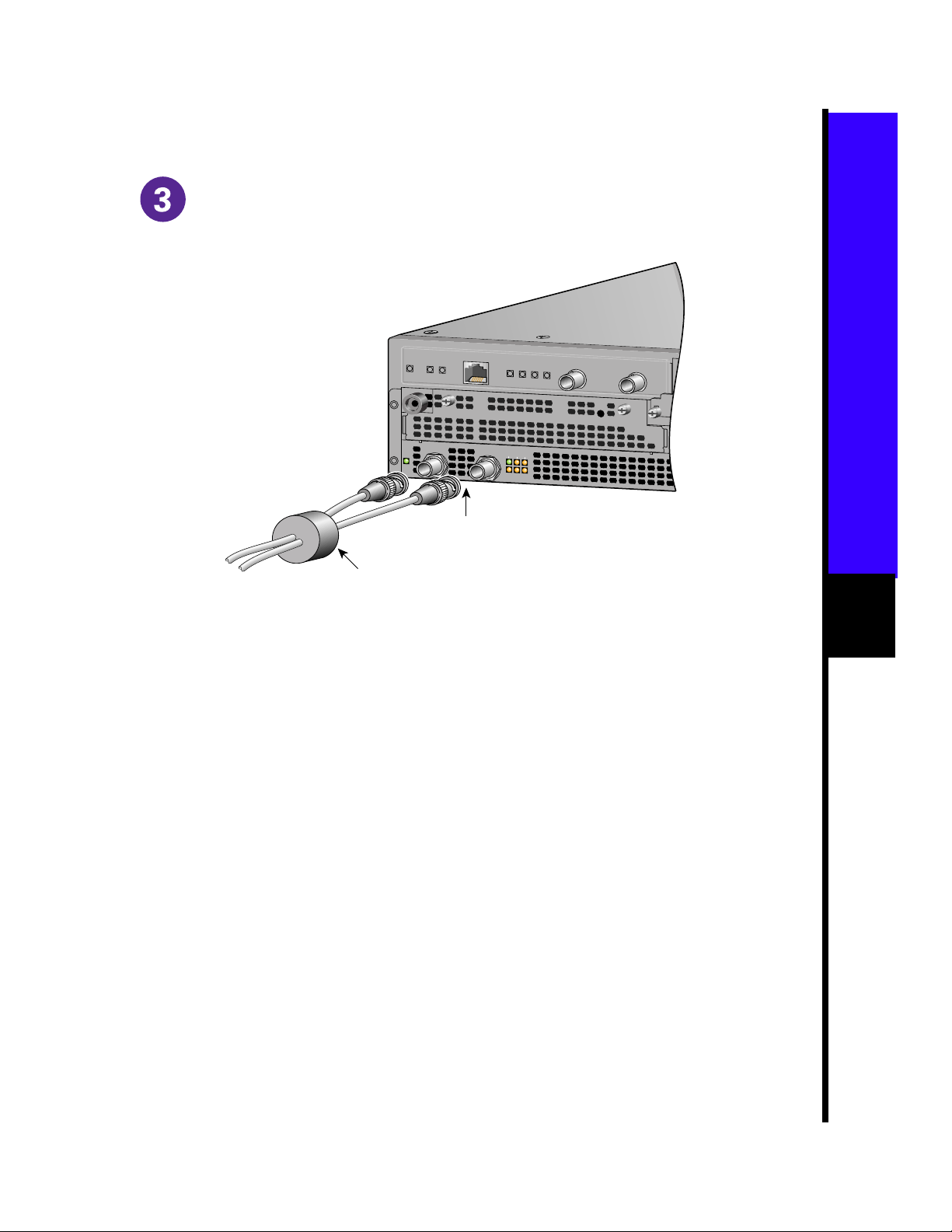

Connect the Router to the Network
AC OK
DC OK
CONS
PWR
SYS
RDY
AUX
7140 - 2AE3
OTF
0
AC OK
DC OK
OTF
2
100-240Vac 50/60Hz 5-2.5A 525W
Cisco 7100 series router
5
E3
TX
I
EN
CELCAR ALM
RX
RX
FE 0 / 0 FE
EN
CELCAR ALM
RX
SLOT 0 SLOT 1
ACT
ACT
LNK
LNK
0
1
0 / 1
E3
TX
RX
10BaseT/100BaseTX ports
Fast Ethernet 0/0
(RJ-45)
Ethernet hub
8
7
6
5
4
3
2
1
Crossover
Ethernet cable
6
22068
Connect the Fast Ethernet
Ports
The 10BaseT/100BaseTX Fast Ethernet
ports support IEEE 802.3 and IEEE 802.3u
specifications for 10-Mbps and 100-Mbps
transmission over unshielded twisted-pair
(UTP) cables. These ports support
autosensing and autonegotiation of the
proper transmission mode with anattached
device.
Note: Unless noted otherwise, all
procedures apply to any Cisco 7100 series
router.
Attach a standard straight-through or
1
crossover Category 3 or Category 5
UTP cable directly to the RJ-45
receptacle on the router.
Attach the network end of the cable to
2
an Ethernet hub or end station.
