Meraki MR32
Hardware Installation Guide
Trademarks
Meraki, Meraki MR32, Meraki Cloud Controller, and Meraki Mesh are trademarks of Cisco Systems, Inc. Other brand and product names are registered trademarks or trademarks of their respective holders.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, Cisco Systems reserves the right to make changes to the products described in this document without notice. Cisco Systems does not assume any liability that may occur due to the use or application of the product(s) or circult layout(s) described herein.
Warranty
Meraki, Inc. provides a lifetime warranty on this product. Warranty details may be found at www.meraki.com/legal.
Table of Contents
1 Scope of Document and Related Publications |
4 |
||
2 |
MR32 Overview |
5 |
|
|
2.1 Package Contents |
5 |
|
|
2.2 |
Understanding the MR32 |
5 |
|
2.3 |
Security Features |
7 |
|
2.4 |
Ethernet Ports |
7 |
|
2.5 |
Power Source Options |
7 |
|
2.6 Factory Reset Button |
7 |
|
|
2.7 LED Indicators and Run Dark Mode |
7 |
|
3 |
Pre-Install Preparation |
8 |
|
|
3.1 Configure Your Network in Dashboard |
8 |
|
|
3.2 |
Check and Upgrade Firmware |
8 |
|
3.3 |
Check and Configure Firewall Settings |
8 |
|
3.4 |
Assigning IP Addresses to MR32s |
9 |
|
|
3.4.1 Dynamic Assignment |
9 |
|
|
3.4.2 Static Assignment |
9 |
|
|
3.4.3Static IP Assignment via DHCP Reservations |
9 |
|
3.5 |
Collect Tools |
10 |
|
3.6 |
Collect Additional Hardware for Installation |
10 |
4 |
Installation Instructions |
11 |
|
|
4.1 Choose Your Mounting Location |
11 |
|
|
4.2 |
Install the MR32 |
11 |
|
|
4.2.1 Attach the Mount Plate |
11 |
|
|
4.2.1.1 Wall or Solid Ceiling Mount Using Mount Plate |
13 |
|
|
4.2.1.2 Drop Ceiling Mount Using Mount Plate |
14 |
|
|
4.2.1.3 Electrical Junction Box Mount Using Mount Plate |
18 |
|
|
4.2.2 Power the MR32 |
20 |
|
|
4.2.2.1 Powering the MR32 with Meraki AC Adapter |
21 |
|
|
4.2.2.2 Powering the MR32 with Meraki 802.3af Power over Ethernet Injector |
21 |
|
|
4.2.2.3 Powering the MR32 with an 802.3af Power over Ethernet Switch |
22 |
|
|
4.2.3 Mount the MR32 |
22 |
|
|
4.2.3.1 Assemble Security Hasp to the MR32 |
22 |
|
|
4.2.3.2 Assemble MR32 to the Mount Plate |
23 |
|
|
4.2.3.3 Desk or Shelf Mount |
25 |
|
4.3 |
Secure the MR32 |
26 |
|
|
4.3.1 Security Screw |
26 |
|
|
4.3.2 Kensington Lock |
26 |
|
4.4 |
Verify Device Functionality and Test Network Coverage |
27 |
5 |
Troubleshooting |
27 |
3
1 Scope of Document and Related Publications
The MR32 Hardware Installation Guide describes the installation procedure for the MR32 indoor access point.
Additional reference documents are available online at www.meraki.com/library/product.
4
2 |
MR32 Overview |
|
|
The Meraki MR32 is an enterprise-class, dual-concurrent 2x2 MIMO 802.11ac indoor access point designed for |
|
high- |
density deployments in offices, schools, hospitals and hotels. When connected to the Meraki Cloud |
|
Controller, |
the MR32 enables the creation of ultra-high speed, reliable indoor wireless networks |
|
quickly, easily and cost- |
effectively. |
2.1 Package Contents
The MR32 package contains the following:
MR32 access point
Mounting plate

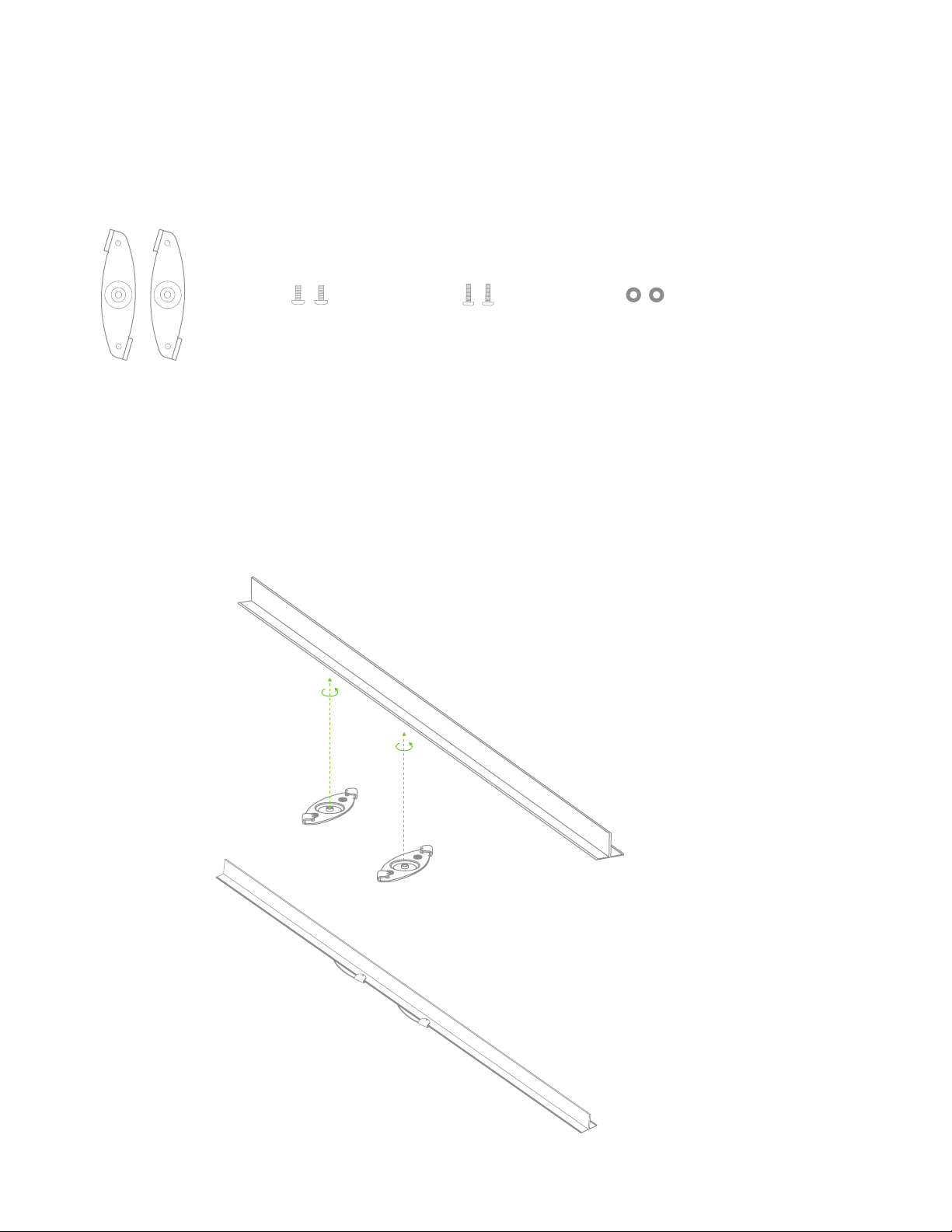

Drop ceiling mounting kit
Wall screws
Security screws
Mounting Template
2.2 Understanding the MR32
MR32 Operation Temperature:
32 ° F to 104 ° F (0 ° C to 40 ° C)
Your Meraki MR32 has the following features:
Kensington lock hard point
5
Mount plate attachment slots (2x)
Cable access bay
Desk mount feet (4x)
MR32 cable access bay
Factory Reset Button
Ethernet 0 port (10/100/1000)
Power supplied by PoE: 55 Vdc,
AC Adapter plug (sold separately) Power supplied by adapter: 12Vdc, 1.5A

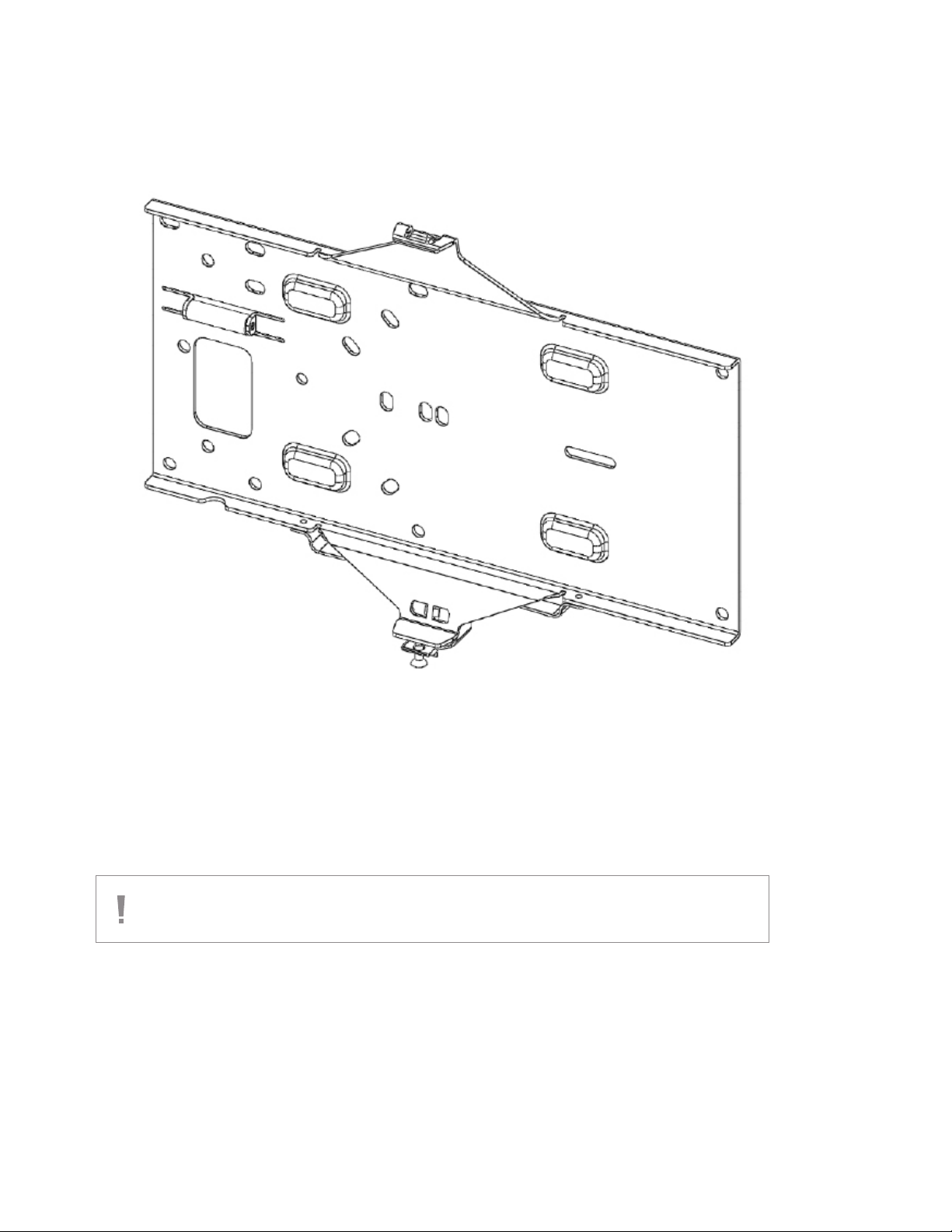

Your MR32 mount plate has the following features:
Access point mounting posts (2x)
Various mounting holes
6
2.3 Security Features
The MR32 features multiple options for physically securing the access point after installation:
1.Security screw – The accessory kit includes screws that can be used to secure the access point to the mount plate. Engaging the security screw prevents accidental dislodging and theft.
2.Kensington lock – The access point contains a hard point that allows it to be secured to any nearby permanent structure using a standard Kensington lock.
2.4Ethernet Ports
Both MR32 and MR32 feature a Gigabit Ethernet RJ45 port that accepts 802.3af power (labeled “Eth0, PoE”). This port should be used for uplink to your WAN connection.
2.5 Power Source Options
The MR32 access point can be powered using either the Meraki AC Adapter or 802.3at PoE Injector (both sold separately) or a third-party 802.3at PoE switch.
2.6 Factory Reset Button
If the button is pressed and held for at least five seconds and then released, the MR32 will reboot and be restored to its original factory settings by deleting all configuration information stored on the unit.
7
3 Pre-Install Preparation
You should complete the following steps before going on-site to perform an installation.
3.1 Configure Your Network in Dashboard
The following is a brief overview only of the steps required to add an MR32 to your network. For detailed instructions about creating, configuring and managing Meraki wireless networks, refer to the Meraki Cloud Controller Manual (meraki.com/library/product).
1.Login to http://dashboard.meraki.com. If this is your first time, create a new account.
2.Find the network to which you plan to add your APs or create a new network.
3.Add your APs to your network. You will need your Meraki order number (found on your invoice if you ordered directly from Meraki) or the serial number of each AP, which looks like Qxxx-xxxx-xxxx, and is
found on the bottom of the unit. You will also need your Enterprise Cloud Controller license key, which you should have received via email from shipping@meraki.com.
4.Go to the map / floor plan view and place each AP on the map by clicking and dragging it to the location where you plan to mount it.
3.2Check and Upgrade Firmware
To ensure your MR32 performs optimally immediately following installation, Meraki recommends that you facilitate a firmware upgrade prior to mounting your MR32.
1.Attach your MR32 to power and a wired Internet connection. See p. 19 of this Hardware Installation Guide for details.
2.The MR32 will turn on and the Power LED will glow solid orange. If the unit does not require a firmware upgrade, the Power LED will turn white within thirty seconds.
*If the unit requires an upgrade, the Power LED will begin blinking orange until the upgrade is complete, at which point the Power LED will turn solid white. You should allow about an hour for the firmware upgrade to complete, depending on the speed of your internet connection.
3.3Check and Configure Firewall Settings
If a firewall is in place, it must allow outgoing connections on particular ports to particular IP addresses. The most current list of outbound ports and IP addresses can be found here:
http://tinyurl.com/y79une3
8
