Cisco 5915 Embedded Services Router Hardware Technical Guide

Current Release: January 2018

This guide describes the Cisco 5915 Embedded Services Router (ESR) including product specifications, installation procedures, and hardware information.

About This Guide

This guide is organized into the following sections:

• About This Guide, page 1

–

Audience, page 2

–

Related Documentation

Use these publications to help you configure Cisco IOS software features:

• The most current Cisco IOS configuration guides and command references are located at the

following URL:

http://www.cisco.com/en/US/products/ps10148/products_installation_and_configuration_guides_l ist.html

Conventions

• For information about MIBs, refer to the following URL:

http://tools.cisco.com/ITDIT/MIBS/servlet/index

Additional documentation for the Cisco 5900 ESR Series can be found at: www.cisco.com/go/5900

This document uses the following typographical conventions:

Convention Description

boldface font Commands, command options, and keywords are in boldface.

italic font Command arguments for which you supply values are in italics.

[ ] Command elements in square brackets are optional.

{x | y | z} Alternative keywords in command lines are grouped in braces and separated by

vertical bars.

[x | y | z] Optional alternative keywords are grouped in brackets and separated by vertical

bars.

string A nonquoted set of characters. Do not use quotation marks around the string

because the string will include the quotation marks.

screen font System displays are in screen font.

boldface screen

font

italic screen font Arguments for which you supply values are in italic screen font.

Information you must enter verbatim is in boldface screen font.

This pointer highlights an important line of text in an example.

Cisco 5915 Embedded Services Router Hardware Technical Guide

OL-24796-01

Page 3

Introduction

Convention Description

^ Represents the key labeled Control—for example, the key combination ^D in a

screen display means hold down the Control key while you press the D key.

< > Nonprinting characters such as passwords are in angle brackets.

Notes use the following conventions:

Note Means reader take note. Notes contain helpful suggestions or references to material not covered in the

publication.

Cautions use the following conventions:

Caution Means reader be careful. In this situation, you might do something that could result in equipment

damage or loss of data.

Warnings use the following conventions:

Warning

Safety warnings appear throughout this publication in procedures that, if performed incorrectly, may cause harm to you or the equipment. A warning symbol precedes each warning statement.

Introduction

The Cisco 5900 Series Embedded Service Routers (ESR) are optimized for mobile and embedded networks that require IP routing and services. The flexible, compact form factors of the Cisco 5900 routers, complemented by Cisco IOS Software and Cisco Mobile Ready Net capabilities, provide highly secure data, voice, and video communications to stationary and mobile network nodes across wired and wireless links.

The Cisco 5915 ESR (Figure 1 and Figure 2) is a PCI-104 based, small form-factor router intended for mobile and vehicle networking applications. Like its predecessor Mobile Access Router Card, used in the Cisco 3200 Rugged Integrated Services Router (ISR), the Cisco 5915 ESR is targeted particularly at transportation customers (especially heavy, light, and metro rail) and global defense organizations.

The Cisco 5915 ESR is a high-performance router designed for harsh environments. Its highly durable construction provides reliable operation in extreme temperatures and in rugged terrain where mobile devices are often subject to greater degrees of shock and vibration. The inclusive and compact design simplifies integration and offers system integrators the ability to use the Cisco 5915 ESR in a wide variety of applications. The user interface for Cisco 5915 ESR is through edge fingers. Air-cooled and conduction-cooled models accommodate diverse operational environments. The Cisco 5915 ESR is based on industry standards, and provides Cisco customers with an extensive ecosystem of products and suppliers for designing and developing systems.

OL-24796-01

Cisco 5915 Embedded Services Router Hardware Technical Guide

Page 4

Cisco 5915 ESR Conduction-Cooled Card

Figure 1 Cisco 5915 Embedded Services Router - Top Side View

Figure 2 Cisco 5915 Embedded Services Router - Bottom Side View

Cisco 5915 ESR Conduction-Cooled Card

The Cisco 5915 ESR conduction-cooled card (Figure 3 and Figure 4) operates at a temperature range of

-40ºC to +85ºC (rail temperature). Thermal plates conduct the heat away from the components to the enclosure rails through the wedge locks. The conduction cooling removes the need for internal fans.

Cisco 5915 Embedded Services Router Hardware Technical Guide

OL-24796-01

Page 5

Cisco 5915 ESR Conduction-Cooled Card

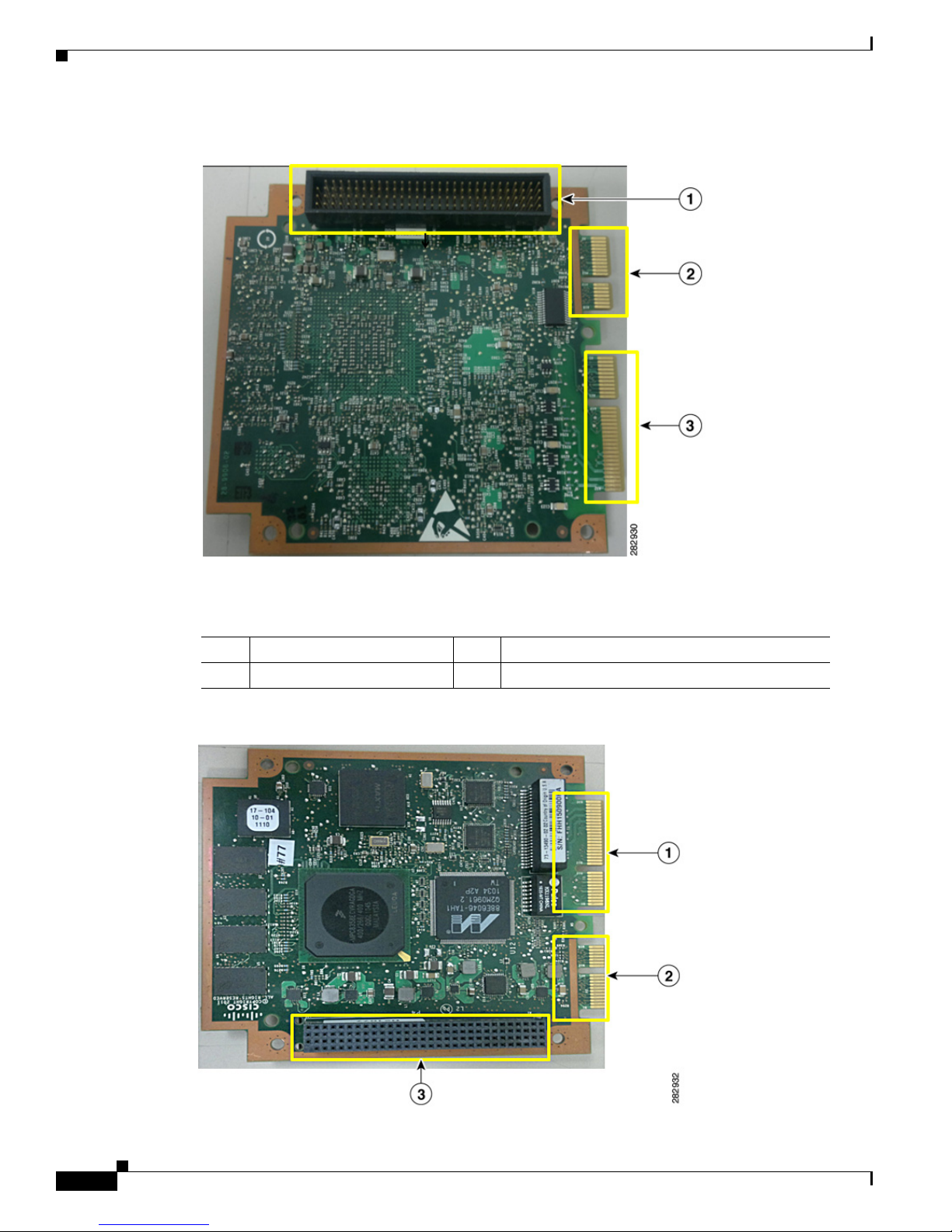

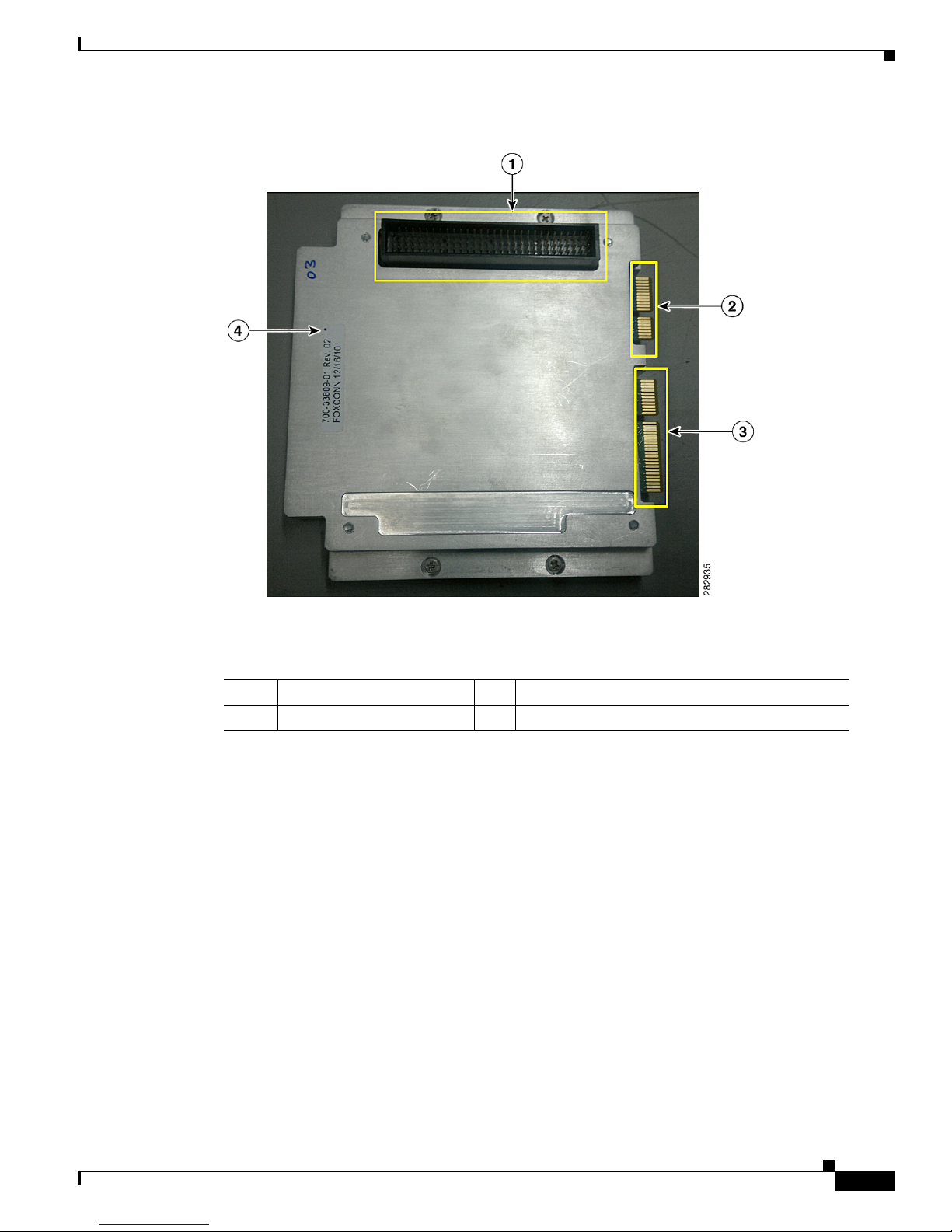

Figure 3 Cisco 5915 ESR Conduction-Cooled Card - Bottom View

Table 1 Cisco 5915 ESR Conduction-Cooled Card - Bottom View Markings

1 PCI Connector 3 Edge Finger (Main)

2 Edge Finger (Auxiliary) 4 Thermal Plate (Bottom)

OL-24796-01

Cisco 5915 Embedded Services Router Hardware Technical Guide

Page 6

Cisco 5915 ESR Conduction-Cooled Card

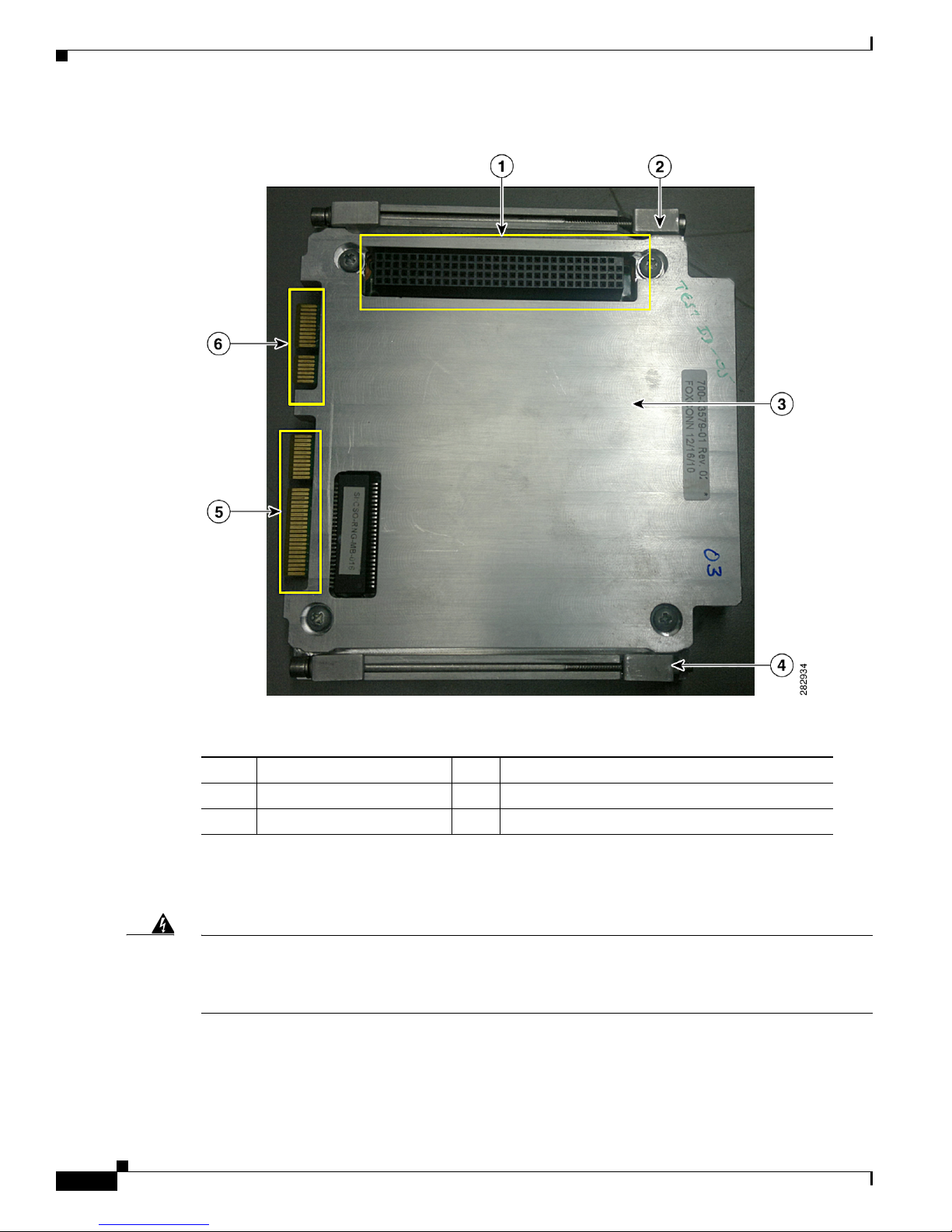

Figure 4 Cisco 5915 ESR Conduction-Cooled Card - Top View

Table 2 Cisco 5915 ESR Conduction-Cooled Card - Top View Markings

1 PCI Connector 4 Wedge Lock

2 Wedge Lock 5 Edge Finger (Main)

3 Thermal Plate (Top) 6 Edge Finger (Auxiliary)

Installing the Cisco 5915 ESR Conduction-Cooled Card

Warning

Cisco 5915 Embedded Services Router Hardware Technical Guide

When performing the following procedures, wear a grounding wrist strap to avoid ESD damage to the Cisco 5915 ESR conduction-cooled card. Some platforms have an ESD connector for attaching the wrist strap. Do not directly touch the edge finger or PCI connector pins with your hand or any metal tool to avoid component failure.

OL-24796-01

Page 7

To install the Cisco 5915 ESR conduction-cooled card, perform the following procedure:

Step 1 Carefully align the edges of the thermal plate between the upper and lower edges of the module slot.

Step 2 Verify that all the wedge locks are loose just enough to hold all the wedge lock pieces together.

Step 3 Slide the card into the module slot.

Step 4 Tighten the wedge locks using a hex torque screwdriver adjusted to 8.0 +/- 0.5 in-lb.

Removing the Cisco 5915 ESR Conduction-Cooled Card

Cisco 5915 ESR Air-Cooled Card

Warning

Step 1 Loosen the wedge locks using a hex screwdriver and complete seven (7) counter-clockwise turns.

Caution Do not loosen the wedge locks past seven (7) counter-clockwise turns for removal. Doing so could cause

Step 2 Carefully remove the Cisco 5915 ESR conduction-cooled card out of the conduction-cooled chassis.

To remove the Cisco 5915 ESR conduction-cooled card, use the following steps:

the wedge lock to fall off the card into the chassis.

Cisco 5915 ESR Air-Cooled Card

The Cisco 5915 ESR air-cooled card operates at a temperature range of -40ºC to +70ºC. Forced air is used to cool the card.

Note Cisco 5915 ESR air-cooled card installation depends on the system in which it will be used, hence the

installation information does not fall under the scope of this document.

The Cisco 5915 ESR air-cooled board (Figure 5 and Figure 6) is used without thermal plates in an air-cooled environment. The minimum air-flow required depends on the installation environment. System integrators must perform the necessary thermal simulation to calculate the system level air-flow requirement.

Note For more information about the Cisco 5915 ESR hot components and thermal limits refer to the Cisco

5915 ESR Thermal Data for Air-Cooled Cards Guide. To obtain the Cisco 5915 ESR Thermal Data for Air-Cooled Cards Guide, contact your Cisco account representative.

OL-24796-01

Cisco 5915 Embedded Services Router Hardware Technical Guide

Page 8

Cisco 5915 ESR Air-Cooled Card

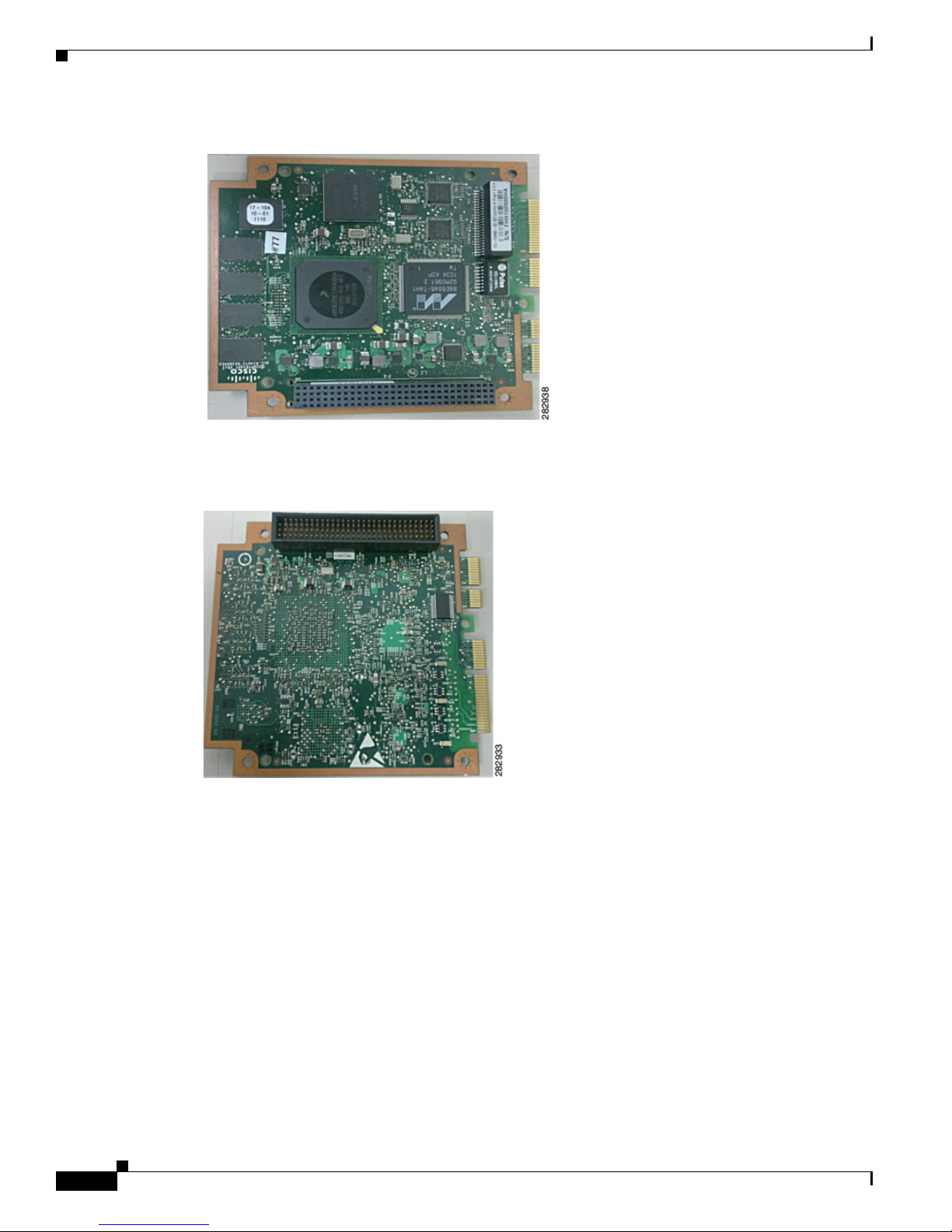

Figure 5 Cisco 5915 ESR Air-Cooled Card - Bottom View

Table 3 Cisco 5915 ESR Air-Cooled Card - Bottom View Markings

1 PCI Connector 3 Edge Finger (Main)

2 Edge Finger (Auxiliary)

Figure 6 Cisco 5915 ESR Air-Cooled Card - Top View

Cisco 5915 Embedded Services Router Hardware Technical Guide

OL-24796-01

Page 9

Table 4 Cisco 5915 ESR Air-Cooled Card - Top View Markings

1 Edge Finger (Main) 3 PCI Connector

2 Edge Finger (Auxiliary)

Cisco 5915 ESR LED Definitions

Cisco 5915 ESR supports the LED control signals described in Ta ble 5. These signals go to the edge fingers and connect to LEDs in the solution developed by a system integrator.

See Table 8 for pin location of LEDs on the edge finger interface.

Note All LED outputs can drive 12mA through a 2.2Vf LED. All LED outputs are active high signals.

Table 5 LED Definitions

LED names Activity

System LED

Temperature LED

• OFF—No power.

• BLINKING—Boot up phase or in ROMMON monitor

mode.

• SOLID—Steady state, IOS load completed and running.

• OFF—Thermal reading is within the range.

Cisco 5915 ESR LED Definitions

• BLINKING—Thermal reading is out-of-range.

Port link status

Port activity status

Factory default LED

• OFF—Link is down.

• SOLID—Link is up.

• OFF—No Activity.

• BLINKING—Link is transmitting or receiving.

• OFF—Not activated.

• BLINKING

—Signal assertion is detected. Factory

default procedure is initiated.

• ON—Unit restored to Factory default state.

1. Blinking state is not supported in IOS image 15.2(1)GC.

All Off-board LED signals are connected to the anode of the LED and the cathode of the LED is connected to ground (Figure 7).

OL-24796-01

Cisco 5915 Embedded Services Router Hardware Technical Guide

Page 10

Factory Default

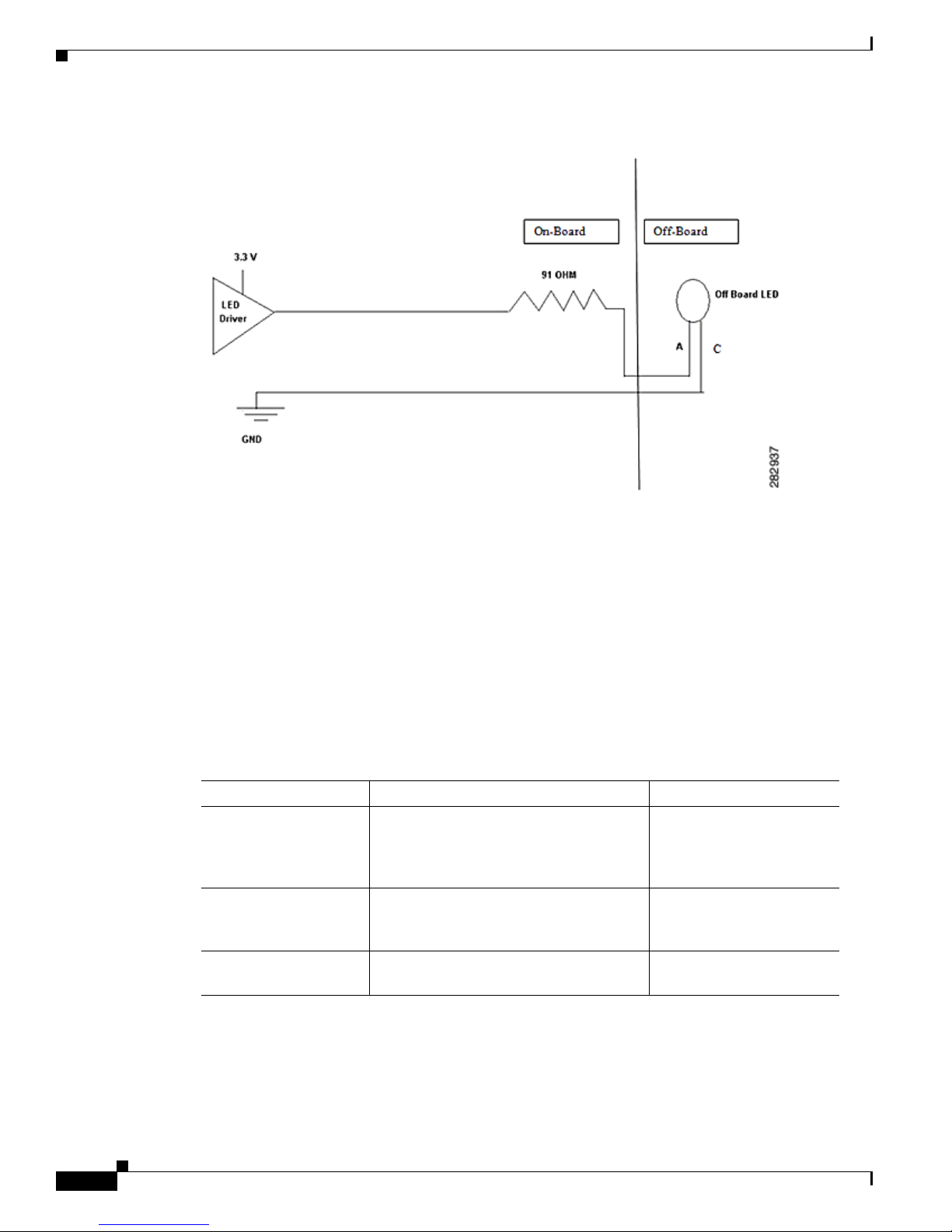

Figure 7 LED Connections

Factory Default

To enable the factory default capability, the service declassify command must be added to the IOS configuration file. Following are the options available for this command:

• erase-flash

• erase-nvram

• erase-all

Table 6 lists the settings and the completion time for these options.

Table 6 Settings and Completion Time for Factory Default Capability Options

Option Target Typical Completion Time

erase-flash This option erases the Flash file system

erase-nvram This option erases NVRAM and scrubs

erase-all This option is a superset of erase-flash

1. The erase time of the Flash file system depends on the utilization of the Flash device. It takes more time to delete a fully utilized file system.

that includes the IOS images and scrubs the main memory to ensure all code information is removed.

the main memory to ensure all code information is removed.

and erase-nvram options.

6–25 minutes

18 seconds

6–25 minutes

To start the Cisco 5915 ESR factory default process, pull the INPUT_CLEAR_L signal to GND (Figure 8). After the process is initiated, the LED_CLEAR signal toggles (blinks) for 0.5 seconds, then deasserts (turns off). After the process is completed, the LED_CLEAR signal asserts (turns on) and the

Cisco 5915 Embedded Services Router Hardware Technical Guide

OL-24796-01

Page 11

Temperature Out of Range Detection

router halts. Once the router is power-cycled, the router will boot normally. If you choose to use the erase-flash option, the boot process stops at ROMMON because the Flash file system that normally contains IOS is empty. If you choose to use the erase-all option, the Cisco 5915 ESR will have no user data or binary code in router memory after the factory default process is complete.

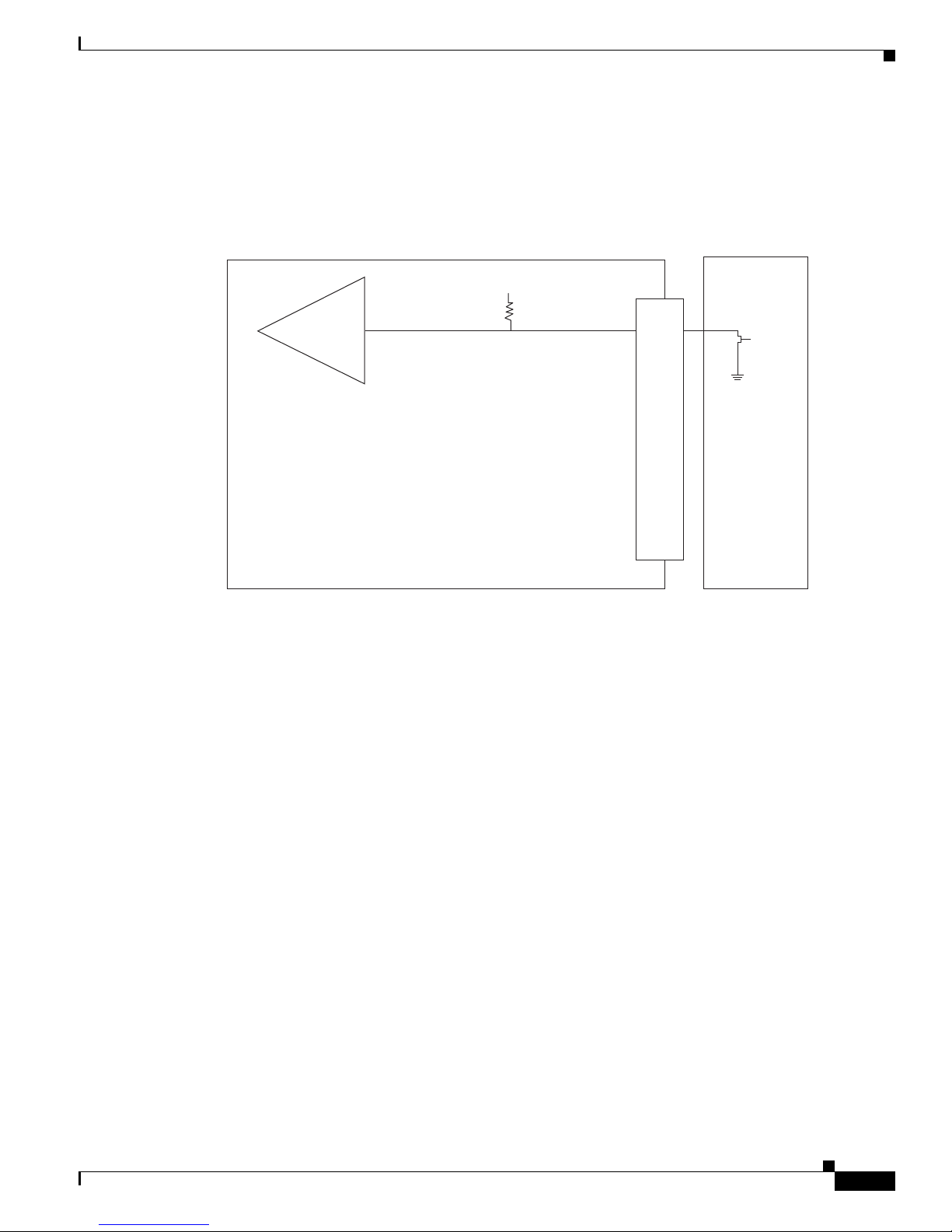

Figure 8 Factory Default Setting Trigger Implementation

3.3V

Receiver

vIL=0.8V;vIH=1.7V

C5915

Temperature Out of Range Detection

When the Cisco 5915 ESR detects that the temperature is out of range, that is the temperature is either too high or too low, the router toggles (blinks) the LED_OVER_TEMP signal for 50 seconds. Assuming the temperature remains out of range during this period of time, the router deasserts (turns off) the LED_OVER_TEMP signal and reboots to ROMMON.

Edge

Finger

Factory Default

Setting Trigger

Switch

External

283553

Using the Cisco 5915 ESR

The Cisco 5915 ESR can be deployed in a variety of applications and physical formats.

I/O signal access is provided via edge fingers. The edge fingers are intended to connect with standard, commercially available PCI-Express connectors.

Typically, integrators use a custom wiring board to access the I/O signals. For instance, one side of the wiring board is populated with the PCI-Express connectors, while the other side is populated with RJ-45s and/or circular shell connectors. This method works best when the enclosure is designed such that the end product I/O panel is very close to the edge finger side of the Cisco 5915 ESR.

Another I/O access option is to use a flex circuit assembly. A custom flex circuit assembly can be designed such that part of the assembly is rigid and part is more like a ribbon cable. The standard connectors (PCI-Express, RJ-45, circular shell, etc.) can be placed on the rigid parts of the assembly. This method provides a compact solution and is also useful when the end product I/O panel is not located close to the edge finger side of the Cisco 5915 ESR.

OL-24796-01

Cisco 5915 Embedded Services Router Hardware Technical Guide

Page 12

Product Specifications

For integrators planning to use the conduction-cooled Cisco 5915 ESR, mounting holes are in the thermal plate. These mounting holes are used to hold an I/O board or flex circuit to the Cisco 5915 ESR. The mounting hole size is 0.125 Inches (diameter). Four 4-40 pan head screws are required.

For integrators planning to use the air cooled Cisco 5915 ESR, mounting holes are provided in the Printed Circuit Board (PCB) which can be used, along with a custom "L bracket" to hold an I/O board or flex circuit to the Cisco 5915 ESR.

Note Mounting hole and screw sizes for air cooled Cisco 5915 ESR depend on the system or environment in

which the air-cooled cards are used.

Note When you connect routed ports of the Cisco 5915 ESR to routed ports on a neighboring device and

autonegotiation is disabled on both sides of the connection, a crossover cable may be necessary (depending on the capabilities of the neighboring device). If autonegotiation is enabled, any type of cable connection can be used.

Product Specifications

Table 7 lists the technical specifications for Cisco 5915 ESR.

Table 7 Cisco 5915 ESR Product Specifications

Cisco 5915 ESR Feature Feature Description

Hardware Encryption

• Onboard hardware encryption processor supporting IP Security

(IPsec)

• Secure Sockets Layer with transparent LAN services

(SSL/TLS)

• Triple Digital Encryption Standard (3DES)

• Advanced Encryption Standard (AES)

• Internet Key Exchange (IKE)

• Message Digest - MD5 & SHA along with HMAC

Memory

DRAM 512 MB

Flash Memory 256 MB

Interface Support

Fast Ethernet Two routed 10/100 copper ethernet ports

Three switched 10/100 copper ethernet ports

Router Console Port One RS-232 console port supporting modem flow control signaling.

Environmental

Industrial-grade components –40° F to +185° F (–40° C to +85°C) component local ambient

temperature ranges

Cisco 5915 Embedded Services Router Hardware Technical Guide

OL-24796-01

Page 13

Product Specifications

Table 7 Cisco 5915 ESR Product Specifications (continued)

Cisco 5915 ESR Feature Feature Description

Operating temperature • The conduction-cooled router can withstand extended

temperature ranges of -40ºF to +185ºF (–40ºC to +85ºC).

Note Temperatures are measured at card edge rail. Card edge rail

must be 85º Celsius or lower.

• The air-cooled router can withstand extended temperature

ranges of -40ºF to +158ºF (–40ºC to +70ºC).

• Temperature ranges for completed solutions depend on

hardware configuration variables, including enclosures and third-party components.

Non-Operating Temperature

Altitude (low-pressure operation)

EMI/EMC

• -40ºF to +185ºF (-40ºC to +85ºC) for both the air-cooled and

conduction cooled boards

• Up to 15,000 ft. (4500 m) for both the air-cooled and

conduction-cooled boards

• Conforms to CISPR 22, FCC Part15B Class A limits

Hardware Specifications

Power requirements/profile

• The system integrator is responsible for completing the

necessary Safety/EMC testing and labelling the final product sold to the customer.

• 5 VDC from PCI connector (5V)

Max (theoretical) Typical (rail temperature @ 25C): 3.00W Typical (rail temperature @ 85C): 3.10W

: 4.26W

InRush: 1.25A

3.3 VDC from PCI connector (3.3V)

•

Max (theoretical): Typical (rail temperature @ 25C): 2.64W Typical (rail temperature @ 85C): 3.06W

5.93W

InRush: 1.32A

Total

•

Max (theoretical): Typical (rail temperature @ 25C): 5.64W Typical (rail temperature @ 85C): 6.14W

Note There are no voltage rail sequencing requirements. Power

10.19W

supply voltage rails can power-up/power-down in any order. Both the 3.3V and 5V rails are required for the Cisco 5915 ESR.

OL-24796-01

Cisco 5915 Embedded Services Router Hardware Technical Guide

Page 14

Hardware Information

Table 7 Cisco 5915 ESR Product Specifications (continued)

Cisco 5915 ESR Feature Feature Description

Weight Conduction cooled—290 grams

Mean Time Before Failure (MTBF)2• Air cooled card and Conduction cooled card (Ground, Fixed,

1. Based on lab testing with traffic on all ports (CPU utilization +90%).

2. All values determined using 90% Upper Confidence Level (UCL) for the steady-state failure rate calculated per Telcordia SR-332, Issue 2, September 2006.

Hardware Information

This section shows layout of the Cisco 5915 ESR cards, pinout assignments, and other hardware specification information.

Air cooled—75 grams

Controlled): 844,000 hours

• Air cooled card and Conduction cooled card (Ground, Mobile):

140,000 hours

Cisco 5915 ESR Conduction-Cooled Card Layout and Dimensions

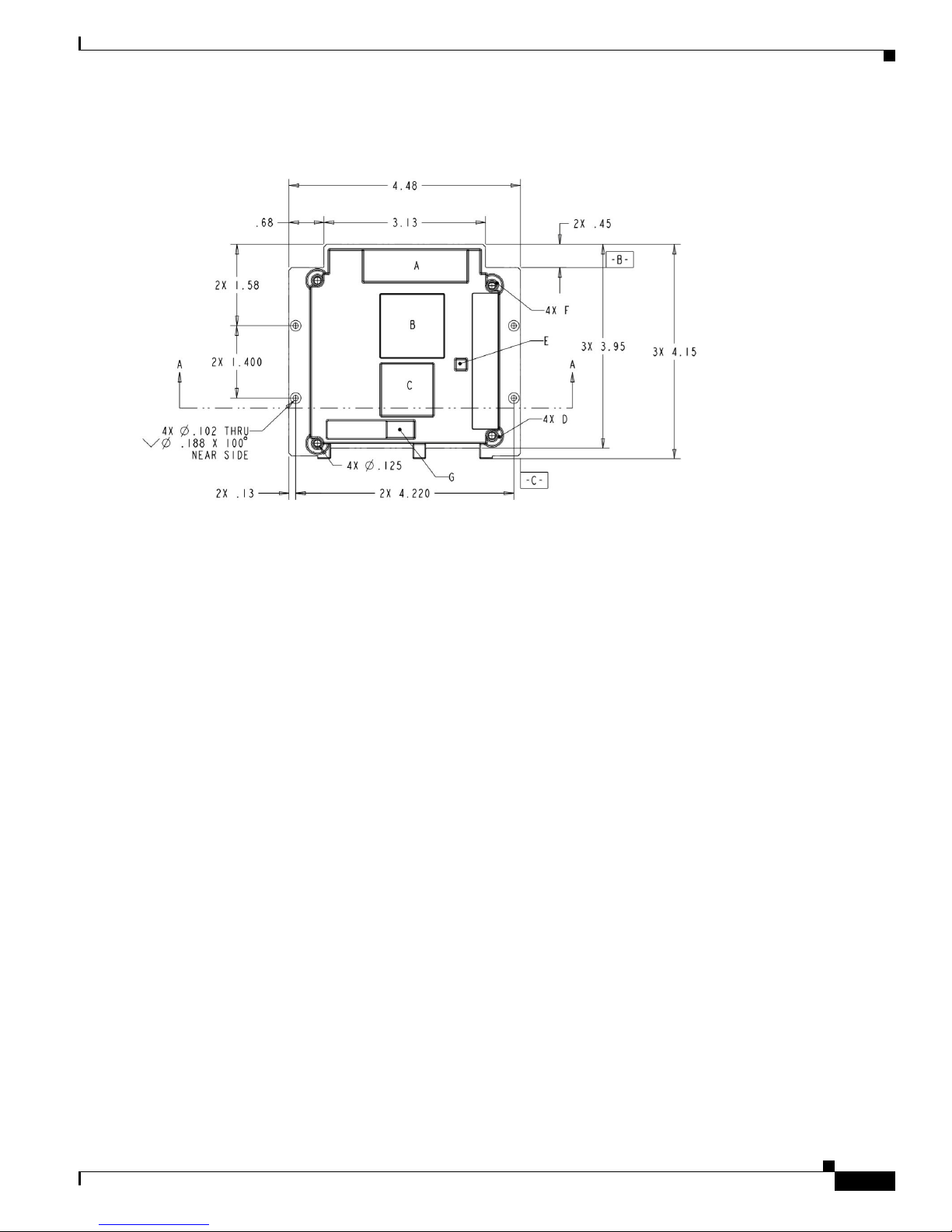

The following figures show the layout and dimensions of the Cisco 5915 ESR conduction-cooled card. The dimensions are in inches.

Note The information provided in these illustrations are in accordance with manufacturing specifications, and

are the most detailed information that can be disseminated.

Cisco 5915 Embedded Services Router Hardware Technical Guide

OL-24796-01

Page 15

Figure 9 Layout of the CIsco 5915 ESR Conduction-Cooled Card

Hardware Information

Cisco 5915 Air-Cooled Card Layout and Dimensions

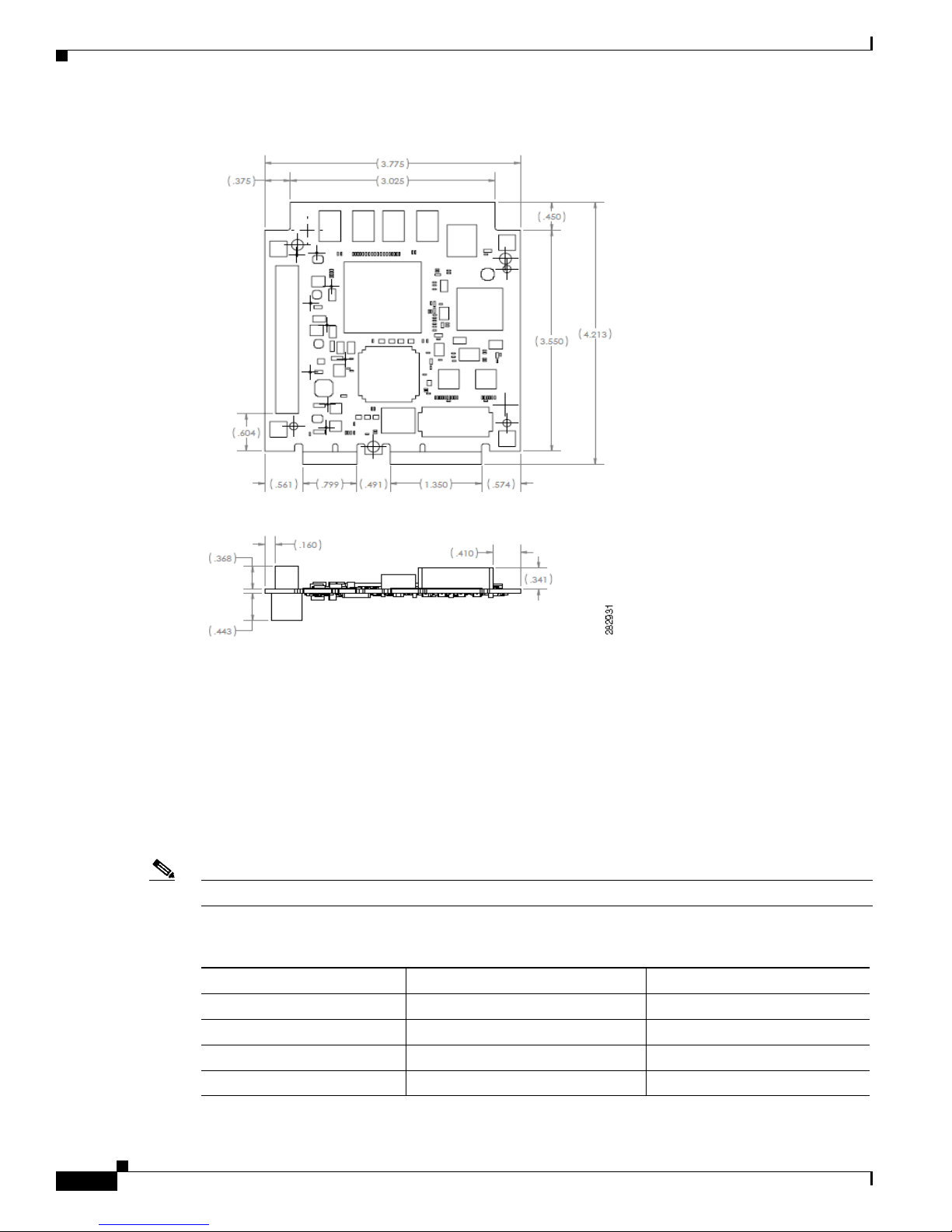

Figure 10 shows the layout and dimensions of the Cisco 5915 ESR air-cooled card. The dimensions are

in inches.

OL-24796-01

Cisco 5915 Embedded Services Router Hardware Technical Guide

Page 16

Hardware Information

Figure 10 Layout of the Air-Cooled Card

Edge Fingers Interfaces

The Cisco 5915 ESR edge fingers provide system interface signal connectivity, while maximizing the real estate available for component placement. The connector solution is borrowed from the PCIe standard. The edge fingers consist of 64 pins in the main connector (Tab le 8). The signal interfaces are routed through these pins. The following part numbers are the mating connectors (solderable):

• EDGE Connector Main - Molex 87715-9106

• EDGE Connector Aux - Molex 87715-9006

Note All signals on the Auxiliary edge fingers are reserved. Leave these signals unconnected.

Table 8 Edge Finger Main Connector Mapping (64 pins)

Row Column A (Top) Column B (Bottom)

1GND GND

2 CONS_TXD_RS232 CONS_DTR_RS232

3 CONS_RTS_RS232 CONS_RXD_RS232

4 CONS_DSR_RS232 CONS_CTS_RS232

Cisco 5915 Embedded Services Router Hardware Technical Guide

OL-24796-01

Page 17

Hardware Information

Table 8 Edge Finger Main Connector Mapping (64 pins) (continued)

Row Column A (Top) Column B (Bottom)

5 Reserved GND

6 Reserved LED_CLEAR

7 Reserved INPUT_CLEAR_L

8GND GND

9 SYSTEM_LED LED_OVER_TEMP

10 LED_FE0/2_LINK LED_FE0/3_LINK

11 GND GND

----------------------------------------------------notch------------------------------------------------------

12 GND GND

13 LED_FE0/4_LINK LED_FE0/3_ACT

14 LED_FE0/0_LINK LED_FE0/4_ACT

15 LED_FE0/1_LINK LED_FE0/0_ACT

16 LED_FE0/2_ACT LED_FE0/1_ACT

17 Reserved Reserved

18 No Contact—Physical spacing No Contact—Physical spacing

19 No Contact—Physical spacing No Contact—Physical spacing

20 No Contact—Physical spacing No Contact—Physical spacing

21 No Contact—Physical spacing No Contact—Physical spacing

22 No Contact—Physical spacing No Contact—Physical spacing

23 ETH_FE0/2_TX+ ETH_FE0/2_RX+

24 ETH_FE0/2_TX- ETH_FE0/2_RX-

25 ETH_FE0/3_TX- ETH_FE0/3_RX+

26 ETH_FE0/3_TX+ ETH_FE0/3_RX-

27 ETH_FE0/4_TX- ETH_FE0/4_RX+

28 ETH_FE0/4_TX+ ETH_FE0/4_RX-

29 ETH_FE0/0_TX- ETH_FE0/0_RX+

30 ETH_FE0/0_TX+ ETH_FE0/0_RX-

31 ETH_FE0/1_TX- ETH_FE0/1_RX+

32 ETH_FE0/1_TX+ ETH_FE0/1_RX-

Note The FE0/0, FE0/1 are routed ports. FE0/2, FE0/3, and FE0/4 are switched ports.

OL-24796-01

Cisco 5915 Embedded Services Router Hardware Technical Guide

Page 18

Hardware Information

PCI Connector

The Cisco 5915 ESR is PCI-104 compliant and supports the standard PCI connector. Table 9 lists the pinout assignments. However, the Cisco 5915 ESR does not connect to the PCI bus because it is not used. The only electrical connections to the PCI connector are +5V, +3.3V, and GND.

Note The Cisco 5915 ESR uses the variant of the PCI bus stacking connector, which is keyed on pin D30.

Table 9 PCI Bus Signal Assignments

Pin A B C D

1GND—+5V—

2——— +5V

3—GND— —

4——GND—

5 GND — — GND

6——— —

7——GND—

8 +3.3V — — +3.3V

9—GND— —

10 GND — +3.3V —

11 — +3.3V — GND

12 +3.3V — GND —

13 — GND — +3.3V

14 GND — +3.3V —

15 — +3.3V — GND

16 — — GND —

17 +3.3V — — +3.3V

18 — GND — —

19 — — — —

20 GND — — GND

21 — +5V — —

22 +5V — GND —

23 — GND — —

24 GND — +5V —

25 — — — GND

26 +5V — GND —

27 — +5V — GND

28 GND — +5V —

Cisco 5915 Embedded Services Router Hardware Technical Guide

OL-24796-01

Page 19

Obtaining Documentation and Submitting a Service Request

Table 9 PCI Bus Signal Assignments (continued)

Pin A B C D

29 — — — —

30 — — — KEY

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as an RSS feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service. Cisco currently supports RSS Version 2.0.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)

OL-24796-01

Cisco 5915 Embedded Services Router Hardware Technical Guide

Page 20

Obtaining Documentation and Submitting a Service Request

Cisco 5915 Embedded Services Router Hardware Technical Guide

OL-24796-01

Cisco 5915 Technical Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
