CS8900A
Product Data Sheet
FEATURES
■ Single-Chip IEEE 802.3 Ethernet Controller with
Direct ISA-Bus Interface
Maximum Current Consumpti on = 55mA (5V Supply
■
■ 3 V Operation
■ Industrial Temperature Range
■
Comprehensive Suite of Software Drivers Available
■ Efficient PacketPage™ Architecture Operates in
I/O and Memory Space, and as DMA Slave
■ Full Duplex Operation
■ On-Chip RAM Buffers T ransmit and R eceive Frames
■ 10BASE-T Port with Analog Filters, Provides:
— Automatic Polarity Detection and Correction
■ AUI Port for 10BASE2, 10BASE5 and 10BASE-F
■ Programmable Transmit Features:
— Automatic Re-transmission on Collision
— Automatic Padding and CRC Generation
■ Programmable Receive Features:
— Stream Transfer™ for Reduced CPU Overhead
— Auto-Switch Between DMA and On-Chip Memory
— Early Interrupts for Frame Pre-Processing
— Automatic Rejection of Erroneous Packets
■ EEPROM Support for Jumperless Configuration
■ Boot PROM Support for Diskless Systems
■ Boundary Scan and Loopback Test
■ LED Drivers for Link Status and LAN Activity
■ Standby and Suspend Sleep Modes
&U\VWDO/$1
™ ISA Ethernet
Controller
)
DESCRIPTION
The CS8900A is a low-cost Ethernet LAN Controller optimized for Industry Standard Architecture (ISA)
Personal Computers. Its highly-integrated design eliminates the need for costly external components required
by other Ethernet controllers. The CS8900A includes
on-chip RAM, 10BASE-T transmit and receive filters,
and a direct ISA-Bus interface with 24 mA Drivers.
In addition to high integration, the CS8900A offers a
broad range of performance features and configurationoptions. Its unique PacketPage architecture
automatically adapts to changing network traffic patterns and available system resources. The result is
increased system efficiency.
The CS8900A is available in a 100-pin TQFP packageideally suited for small form-factor, cost-sensitive
Ethernet applications. With the CS8900A, system engineers can design a complete Ethernet circuit that
occupies less than 1.5 square inches (10 sq. cm) of
board space.
ORDERING INFORMATION
CS8900A-CQ 0° to 70° C 5V TQFP-100
CS8900A-IQ -40° to 85° C 5V TQFP-100
CS8900A-CQ3 0° to 70° C 3.3V TQFP-100
CS8900A-IQ3 -40° to 85° C 3.3V TQFP-100
CRD8900A-1 Evaluation Kit
LED
Control
Scan
20 MHz
XTAL
Encoder/
Decoder
&
PLL
Manager
Clock
Power
10BASE-T
RX Filters &
Receiver
10BASE-T
TX Filters &
Transmitter
AUI
Transmitter
AUI
Collision
AUI
Receiver
RJ-45 10BASE-T
Attachment
Unit
Interface
(AUI)
EEPROM
CS8900A ISA Ethern et Contro ller
EEPROM
Control
I
S
A
ISA
Bus
Logic
Memory
Manager
RAM
802.3
MAC
Engine
Boundary
Test Log i c
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 MAR ‘99
Copyright Cirrus Logic, Inc. 1999
(All Rights Reserved)
CS8900A
Crystal LAN™ ISA Ethernet Controller
TABLE OF CONTENTS
1.0 INTRODUCTION .........................................................................................................................................8
1.1 General Description...............................................................................................................................8
1.1.1 Direct ISA-Bus Interface ..............................................................................................................8
1.1.2 Integrated Memory.......................................................................................................................8
1.1.3 802.3 Ethernet MAC Engine........................................................................................................ 8
1.1.4 EEPROM Interface ......................................................................................................................8
1.1.5 Complete Analog Front End ........................................................................................................ 8

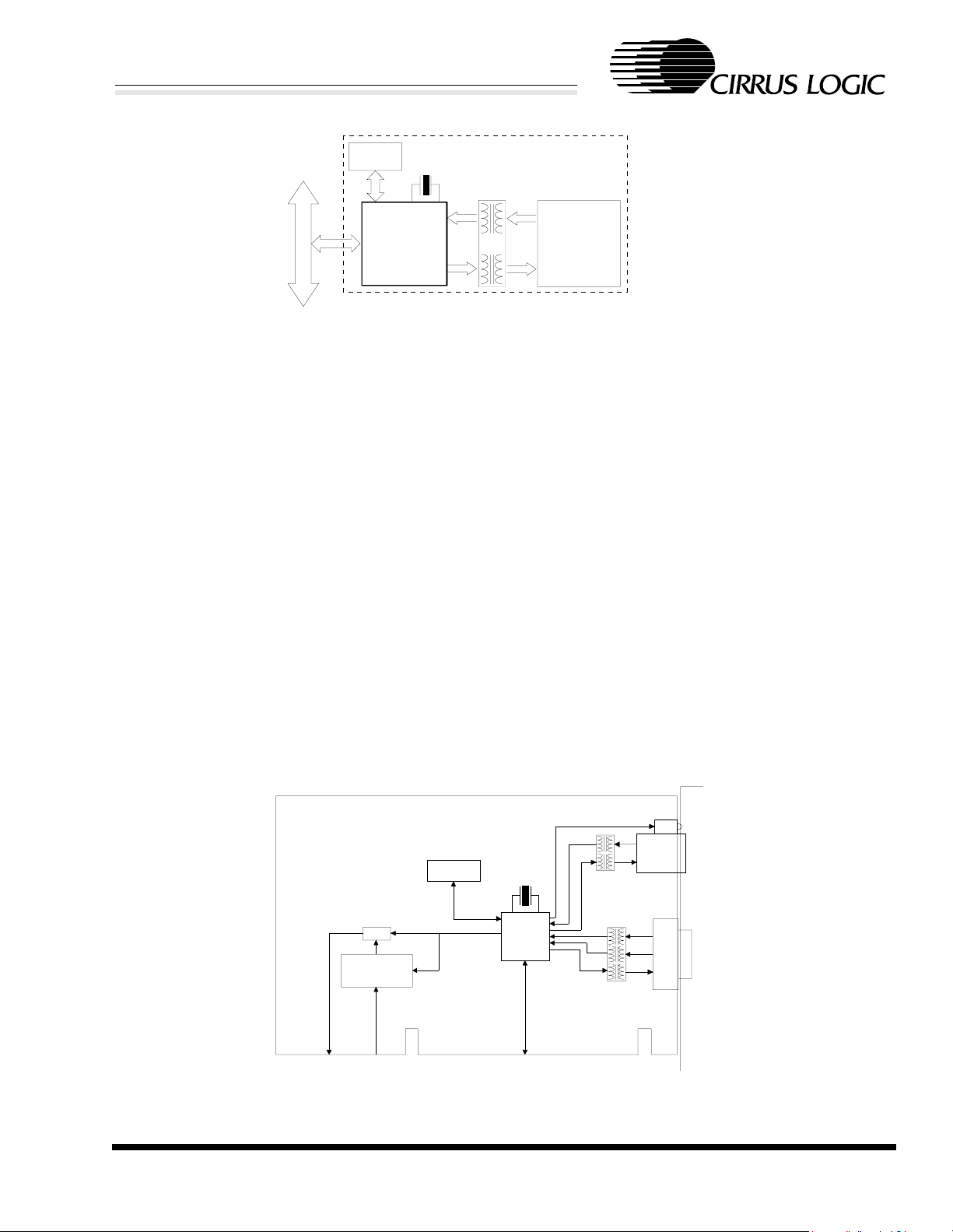

1.2 System Applications..............................................................................................................................8
1.2.1 Motherboard LANs.......................................................................................................................8
1.2.2 Ethernet Adapter Cards...............................................................................................................9
1.3 Key Features and Benefits..................................................................................................................10
1.3.1 Very Low Cost ...........................................................................................................................10
1.3.2 High Performance......................................................................................................................10
1.3.3 Low Power and Low Noise ........................................................................................................10
1.3.4 Complete Support......................................................................................................................10
2.0 PIN DESCRIPTION ................................................................................................................................12
3.0 FUNCTIONAL DESCRIPTION..................................................................................................................17
3.1 Overview .............................................................................................................................................17
3.1.1 Configuration .............................................................................................................................17
3.1.2 Packet Transmission.................................................................................................................. 17
3.1.3 Packet Reception.......................................................................................................................17
3.2 ISA Bus Interface ................................................................................................................................18
3.2.1 Memory Mode Operation...........................................................................................................18
3.2.2 I/O Mode Operation ...................................................................................................................18
3.2.3 Interrupt Request Signals ..........................................................................................................18
3.2.4 DMA Signals ..............................................................................................................................18
3.3 Reset and Initialization........................................................................................................................19
3.3.1 Reset ......................................................................................................................................... 19
3.3.1.1 External Reset, or ISA Reset ...........................................................................................19
3.3.1.2 Power-Up Reset...............................................................................................................19
3.3.1.3 Power-Down Reset ................................. ...... ....... ...... ...... ....... ....................................... .. 19
3.3.1.4 EEPROM Reset ...............................................................................................................19
3.3.1.5 Software Initiated Reset ............. ...................................... ....... ...... ....... ...... ....... ...... .... ... .. 19
3.3.1.6 Hardware (HW) Standby or Suspend............................................................................... 19
3.3.1.7 Sof tware (SW) Suspend.................................................................................................. 19
3.3.2 Allowing Time for Reset Operation............................................................................................19
3.3.3 Bus Reset Considerations .........................................................................................................19
3.3.4 Initialization ................................................................................................................................20
3.4 Configurations with EEPROM............................................................................................................. 21
3.4.1 EEPROM Interface ....................................................................................................................21
3.4.2 EEPROM Memory Organization................................................................................................21
3.4.3 Reset Configuration Block .........................................................................................................21
3.4.3.1 Reset Configuration Block Structure ................................................................................ 21
3.4.3.2 Reset Configuration Block Header...................................................................................21
3.4.3.3 Determining the EEPROM Type ......................................................................................21
3.4.3.4 Checking EEPROM for presence of Reset Configuration Block ...................................... 21
3.4.3.5 Determining Number of Bytes in the Reset Configuration Block......................................22
3.4.4 Groups of Configuration Data....................................................................................................22
3.4.4.1 Group Header...................................................................................................................23
3.4.5 Reset Configuration Block Checksum .......................................................................................23
3.4.6 EEPROM Example ....................................................................................................................23
3.4.7 EEPROM Read-out ...................................................................................................................23
CIRRUS LOGIC PRODUCT DATA SHEET
2 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
3.4.7.1 Determining EEPROM Size ............................................................................................. 23
3.4.7.2 Loading Configuration Data .............................................................................................24
3.4.8 EEPROM Read-out Completion................................................................................................ 24
3.5 Programming the EEPROM................................................................................................................ 24
3.5.1 EEPROM Commands................................................................................................................ 24
3.5.2 EEPROM Command Execution.................................................................................................24
3.5.3 Enabling Access to the EEPROM ............................................................................................. 25
3.5.4 Writing and Erasing the EEPROM............................................................................................. 25
3.6 Boot PROM Operation........................................................................................................................ 25
3.6.1 Accessing the Boot PROM........................................................................................................ 25
3.6.2 Configuring the CS8900A for Boot PROM Operation................................................................ 25
3.7 Low-Power Modes .............................................................................................................................. 26
3.7.1 Hardware Standby..................................................................................................................... 26
3.7.2 Hardware Suspend.................................................................................................................... 26
3.7.3 Software Suspend ..................................................................................................................... 27
3.8 LED Outputs........................................................................................................................................ 28
3.8.0.1 LANLED.................................... ...... ............................................. .................................... 28
3.8.0.2 LINKLED or HC0.............................................................................................................. 28
3.8.0.3 BSTATUS or HC1 ............................................................................................................ 28
3.8.1 LED Connection ........................................................................................................................ 28
3.9 Media Access Control......................................................................................................................... 28
3.9.1 Overview.................................................................................................................................... 28
3.9.2 Frame Encapsulation and Decapsulation.................................................................................. 29
3.9.2.1 Transmission...................... ....... ...... ....... ...... ...... ....... ...... ....................................... ....... ... 29
3.9.2.2 Reception..................................................... ...... ....... ............................................. ....... ... 29
3.9.2.3 Enforcing Minimum Frame Size....................................................................................... 29
3.9.3 Transmit Error Detection and Handling ..................................................................................... 30
3.9.3.1 Loss of Carrier.................................................................................................................. 30
3.9.3.2 SQE Error......................................................................................................................... 30
3.9.3.3 Out-of-Window (Late) Collision ........................................................................................ 30
3.9.3.4 Jabber Error.............................. ...... ....... ...... ...... ....... ............................................ . ....... ... 30
3.9.3.5 Transmit Collision............................................................................................................. 30
3.9.3.6 Transmit Underrun ........................................................................................................... 30
3.9.4 Receive Error Detection and Handling ...................................................................................... 31
3.9.4.1 CRC Error ........................................................................................................................ 31
3.9.4.2 Runt Frame ...................................................................................................................... 31
3.9.4.3 Extra Data ........................................................................................................................ 31
3.9.4.4 Dribble Bits and Alignment Error...................................................................................... 31
3.9.5 Media Access Management ...................................................................................................... 31
3.9.5.1 Collision Avoidance............ ....... ...... ....... ...... ...... ....... ...... ....... .......................................... 31
3.9.5.2 Two-Part Deferral............................................................................................................. 31
3.9.5.3 Simple Deferral ................................................................................................................ 32
3.9.5.4 Collision Resolution...... ...... ....... ...... ....... .......................................................................... 32
3.9.5.5 Normal Collisions............................................................................................................. 32
3.9.5.6 Late Collisions.................................................................................................................. 33
3.9.5.7 Backoff............................... ....... ...... ....... ...... ...... ....... ...... .............................................. ... 33
3.9.5.8 Standard Backoff.............................................................................................................. 33
3.9.5.9 Modified Backoff............................................................................................................... 33
3.9.5.10 SQE Test........................................................................................................................ 33
3.10 Encoder/Decoder (ENDEC).............................................................................................................. 34
3.10.1 Encoder ................................................................................................................................... 34
3.10.2 Carrier Detection ..................................................................................................................... 34
3.10.3 Clock and Data Recovery........................................................................................................ 34
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 3
CS8900A
Crystal LAN™ ISA Ethernet Controller
3.10.4 Interface Selection...................................................................................................................35
3.10.4.1 10BASE-T Only..............................................................................................................35
3.10.4.2 AUI Only.........................................................................................................................35
3.10.4.3 Auto-Select.....................................................................................................................35
3.11 10BASE-T Transceiver......................................................................................................................35
3.11.1 10BASE-T Filters .....................................................................................................................35
3.11.2 Transmitter...............................................................................................................................36
3.11.3 Receiver...................................................................................................................................36
3.11.3.1 Squelch Circuit...............................................................................................................36
3.11.3.2 Extended Range.............................................................................................................36
3.11.4 Link Pulse Detection................................ ....... ...... ....... ...... ......................................... .... ....... .. 36
3.11.5 Receive Polarity Detection and Correction ..............................................................................37
3.11.6 Collision Detection ...................................................................................................................37
3.12 Attachment Unit Interface (AUI) ........................................................................................................37
3.12.1 AUI Transmitter . ....... ...... ....... ...... ............................................. .............................................. .. 37
3.12.2 AUI Receiver ..... ....... ...... ....... ...... ....... ............................................. ......................................... 38
3.12.3 Collision Detection ...................................................................................................................38
3.13 External Clock Oscillator................................................................................................................... 38
4.0 PACKETPAGE ARCHITECTURE ............................................................................................................39
4.1 PacketPage Overview.........................................................................................................................39
4.1.1 Integrated Memory.....................................................................................................................39
4.1.2 Bus Interface Registers .............................................................................................................39
4.1.3 Status and Control Registers.....................................................................................................39
4.1.4 Initiate Transmit Registers.........................................................................................................39
4.1.5 Address Filter Registers............................................................................................................. 39
4.1.6 Receive and Transmit Frame Locations ....................................................................................39
4.2 PacketPage Memory Map................................................................................................................... 40
4.3 Bus Interface Registers.......................................................................................................................42
4.3.1 Product Identification Code .......................................................................................................42
4.3.2 I/O Base Address ......................................................................................................................42
4.3.3 Interrupt Number .......................................................................................................................43
4.3.4 DMA Channel Number ..............................................................................................................43
4.3.5 DMA Start of Frame ..................................................................................................................44
4.3.6 DMA Frame Count ................................................................................................................... 44
4.3.7 RxDMA Byte Count ..................................................................................................................44
4.3.8 Memory Base Address .............................................................................................................. 44
4.3.9 Boot PROM Base Address .......................................................................................................45
4.3.10 Boot PROM Address Mask .....................................................................................................45
4.3.11 EEPROM Command ...............................................................................................................46
4.3.12 EEPROM Data ........................................................................................................................46
4.3.13 Receive Frame Byte Counter ..................................................................................................46
4.4 Status and Control Registers ..............................................................................................................47
4.4.1 Configuration and Control Registers.......................................................................................... 47
4.4.2 Status and Event Registers .......................................................................................................47
4.4.3 Status and Control Bit Definitions ..............................................................................................47
4.4.3.1 Act-Once Bits ...................................................................................................................48
4.4.3.2 Temporal Bits ...................................................................................................................48
4.4.3.3 Interrupt Enable Bits and Events................................................................ ......................48
4.4.3.4 Accept Bits ....................................... ....... ...... ....... ...... ...... ....... ......................................... 48
4.4.4 Status and Control Register Summary ......................................................................................49
4.4.5 Register 0: Interrupt Status Queue ..........................................................................................52
4.4.6 Register 3: Receiver Configuration .......................................................................................... 53
4.4.7 Register 4: Receiver Event ......................................................................................................54
CIRRUS LOGIC PRODUCT DATA SHEET
4 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.8 Register 5: Receiver Control ................................................................................................... 55
4.4.9 Register 7: Transmit Configuration .......................................................................................... 56
4.4.10 Register 8: Transmitter Event ................................................................................................ 57
4.4.11 Register 9: Transmit Command Status ................................................................................. 58
4.4.12 Register B: Buffer Configuration ............................................................................................ 59
4.4.13 Register C: Buffer Event ........................................................................................................ 60
4.4.14 Register 10: Receiver Miss Counter ...................................................................................... 61
4.4.15 Register 10: Transmit Collision Counter ................................................................................ 62
4.4.16 Register 13: Line Control ....................................................................................................... 63
4.4.17 Register 14: Line Status ........................................................................................................ 64
4.4.18 Register 15: Self Control ....................................................................................................... 65
4.4.19 Register 16: Self Status ......................................................................................................... 66
4.4.20 Register 17: Bus Control ....................................................................................................... 67
4.4.21 Register 18: Bus Status ......................................................................................................... 68
4.4.22 Register 19: Test Control ....................................................................................................... 69
4.4.23 Register 1C: AUI Time Domain Reflectometer ...................................................................... 70
4.5 Initiate Transmit Registers .................................................................................................................. 71
4.5.1 Transmit Command Request - TxCMD .................................................................................... 71
4.5.2 Transmit Length ........................................................................................................................ 71
4.6 Address Filter Registers...................................................................................................................... 72
4.6.1 Logical Address Filter (hash table) ........................................................................................... 72
4.6.2 Individual Address (IEEE address) ........................................................................................... 72
4.7 Receive and Transmit Frame Locations ............................................................................................. 73
4.7.1 Receive PacketPage Locations................................................................................................. 73
4.7.2 Transmit Locations .................................................................................................................... 73
4.8 Eight and Sixteen Bit Transfers........................................................................................................... 73
4.8.1 Transferring Odd-Byte-Aligned Data ......................................................................................... 74
4.8.2 Random Access to CS8900A Memory...................................................................................... 74
4.9 Memory Mode Operation .................................................................................................................... 74
4.9.1 Accesses in Memory Mode ....................................................................................................... 74
4.9.2 Configuring the CS8900A for Memory Mode............................................................................. 74
4.9.3 Basic Memory Mode Transmit................................................................................................... 75
4.9.4 Basic Memory Mode Receive.................................................................................................... 75
4.9.5 Polling the CS8900A in Memory Mode...................................................................................... 76
4.10 I/O Space Operation ......................................................................................................................... 76
4.10.1 Receive/Transmit Data Ports 0 and 1...................................................................................... 76
4.10.2 TxCMD Port............................................................................................................................. 76
4.10.3 TxLength Port.......................................................................................................................... 76
4.10.4 Interrupt Status Queue Port..................................................................................................... 76
4.10.5 PacketPage Pointer Port ......................................................................................................... 76
4.10.6 PacketPage Data Ports 0 and 1 .............................................................................................. 77
4.10.7 I/O Mode Operation................................................................................................................. 77
4.10.8 Basic I/O Mode Transmit......................................................................................................... 77
4.10.9 Basic I/O Mode Receive.......................................................................................................... 77
4.10.10 Accessing Internal Registers................................................................................................. 78
4.10.11 Polling the CS8900A in I/O Mode.......................................................................................... 78
5.0 OPERATION ............................................................................................................................................. 79
5.1 Managing Interrupts and Servicing the Interrupt Status Queue.......................................................... 79
5.2 Basic Receive Operation..................................................................................................................... 79
5.2.0.1 Overview......................................................................... ....................................... ....... ... 79
5.2.1 Terminology: Packet, Frame, and Transfer............................................................................... 81
5.2.1.1 Packet................................ ....... ...... ....... ...... ...... ....... ......................................... .... ....... ... 81
5.2.1.2 Frame........................... ...... ....... ...... ....... ...... ............................................. ....................... 8 1
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 5
CS8900A
Crystal LAN™ ISA Ethernet Controller
5.2.1.3 Transfer......................................................... ....... ...... ...... ....... ...... ...................................81
5.2.2 Receive Configuration ...............................................................................................................81
5.2.2.1 Configuring the Physical Interface....................................................................................81
5.2.2.2 Choosing which Frame Types to Accept..........................................................................81
5.2.2.3 Selecting which Events Cause Interr upts.......................................................... ...............82
5.2.2.4 Choosing How to Transfer Frames ..................................................................................82
5.2.3 Receive Frame Pre-Processing.................................................................................................83
5.2.3.1 Destination Address Filtering ........................ ...................................................................83
5.2.3.2 Early Interrupt Generation................................................................................................84
5.2.3.3 Acceptance Filtering......................................................................................................... 84
5.2.3.4 Normal Interrupt Generation.............................................................................................84
5.2.4 Held vs. DMAed Receive Frames..............................................................................................84
5.2.5 Buffering Held Receive Frames.................................................................................................84
5.2.6 Transferring Held Receive Frames............................................................................................86
5.2.7 Receive Frame Visibility............................................................................................................. 86
5.2.8 Example of Memory Mode Receive Operation..........................................................................86
5.2.9 Receive Frame Byte Counter.....................................................................................................87
5.3 Receive Frame Address Filtering........................................................................................................ 87
5.3.0.1 Individual Address Frames............................................................................................... 88
5.3.0.2 Multicast Frames........................................... ....... ...... ...... ....... ...... ....... ...... ....... ...... ....... .. 88
5.3.0.3 Broadcast Frames............................................................................................................88
5.3.1 Configuring the Destination Address Filter ................................................................................88
5.3.2 Hash Filter ................................................................................................................................. 89
5.3.2.1 Hash Filter Operation.......................................................................................................89
5.3.3 Broadcast Frame Hashing Exception ........................................................................................89
5.4 Receive DMA ......................................................................................................................................90
5.4.1 Overview....................................................................................................................................90
5.4.2 Configuring the CS8900A for DMA Operation ...........................................................................90
5.4.3 DMA Receive Buffer Size ..........................................................................................................90
5.4.4 Receive-DMA-Only Operation ...................................................................................................91
5.4.5 Committing Buffer Space to a DMAed Frame............................................................................92
5.4.6 DMA Buffer Organization...........................................................................................................92
5.4.7 RxDMAFrame Bit.......................................................................................................................92
5.4.8 Receive DMA Example Without Wrap-Around ..........................................................................92
5.4.9 Receive DMA Operation for RxDMA-Only Mode.......................................................................92
5.5 Auto-Switch DMA ................................................................................................................................93
5.5.1 Overview.................................................................................................................................... 93
5.5.2 Configuring the CS8900A for Auto-Switch DMA........................................................................94
5.5.3 Auto-Switch DMA Operation......................................................................................................94
5.5.4 DMA Channel Speed vs. Missed Frames..................................................................................95
5.5.5 Exit From DMA...........................................................................................................................95
5.5.6 Auto-Switch DMA Example........................................................................................................96
5.6 StreamTransfer ...................................................................................................................................96
5.6.1 Overview.................................................................................................................................... 96
5.6.2 Configuring the CS8900A for StreamTransfer...........................................................................96
5.6.3 StreamTransfer Operation.........................................................................................................96
5.6.4 Keeping StreamTransfer Mode Active.......................................................................................96
5.6.5 Example of StreamTransfer.......................................................................................................98
5.6.6 Receive DMA Summary.............................................................................................................98
5.7 Transmit Operation..............................................................................................................................99
5.7.1 Overview....................................................................................................................................99
5.7.2 Transmit Configuration............................................................................................................... 99
5.7.2.1 Configuring the Physical Interface....................................................................................99
CIRRUS LOGIC PRODUCT DATA SHEET
6 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
5.7.2.2 Selecting which Events Cause Interr upts............................... ...... .................................... 99
5.7.3 Changing the Configuration....................................................................................................... 99
5.7.4 Enabling CRC Generation and Padding.................................................................................. 100
5.7.5 Individual Packet Transmission............................................................................................... 100
5.7.6 Transmit in Poll Mode.............................................................................................................. 101
5.7.7 Transmit in Interrupt Mode ...................................................................................................... 101
5.7.8 Completing Transmission........................................................................................................ 103
5.7.9 Rdy4TxNOW vs. Rdy4Tx ........................................................................................................ 103
5.7.10 Committing Buffer Space to a Transmit Frame ..................................................................... 103
5.7.11 Transmit Frame Length ......................................................................................................... 105
5.8 Full duplex Considerations................................................................................................................105
5.9 Auto-Negotiation Considerations ...................................................................................................... 105
6.0 TEST MODES ......................................................................................................................................... 106
6.0.1 Loopback & Collision Diagnostic Tests ................................................................................... 106
6.0.2 Internal Tests........................................................................................................................... 106
6.0.3 External Tests.......................................................................................................................... 106
6.0.4 Loopback Tests ....................................................................................................................... 106
6.0.5 10BASE-T Loopback and Collision Tests................................................................................ 106
6.0.6 AUI Loopback and Collision Tests........................................................................................... 106
6.1 Boundary Scan.................................................................................................................................. 107
6.1.1 Output Cycle............................................................................................................................ 107
6.1.2 Input Cycle............................................................................................................................... 107
6.1.3 Continuity Cycle....................................................................................................................... 108
7.0 CHARACTERISTICS/SPECIFICATIONS ............................................................................................... 111
7.1 ABSOLUTE MAXIMUM RATINGS.................................................................................................... 111
7.2 RECOMMENDED OPERATING CONDITIONS ............................................................................... 111
7.3 DC CHARACTERISTICS.................................................................................................................. 111
7.4 SWITCHING CHARACTERISTICS................................................................................................... 113
7.5 10BASE-T WIRING........................................................................................................................... 120
7.6 AUI WIRING ................................................................................................................................... 121
7.7 QUARTZ CRYSTAL REQUIREMENTS............................................................................................ 121
8.0 PHYSICAL DIMENSIONS....................................................................................................................... 122
9.0 GLOSSARY OF TERMS......................................................................................................................... 123
9.1 Acronyms .......................................................................................................................................... 123
9.2 Definitions ......................................................................................................................................... 124
9.3 Acronyms Specific to the CS8900A .................................................................................................. 125
9.4 Terms Specific to the CS8900A........................................................................................................ 125
9.5 Suffixes Specific to the CS8900A. .................................................................................................... 126
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 7
CS8900A
Crystal LAN™ ISA Ethernet Controller
1.0 INTRODUCTION
1.1 General Description
The CS8900A is a true single-chip, full-duplex,
Ethernet solution, incorporating all of the analog
and digital circuitry needed for a complete Ethernet
circuit. Major functional blocks include: a direct
ISA-bus interface; an 802.3 MAC engine; integrated buffer memory; a serial EEPROM interface; and
a complete analog front end with both 10BASE-T
and AUI.
1.1.1 Direct ISA-Bus Interface
Included in the CS8900A is a direct ISA-bus interface with full 24 mA drive capability. Its configuration options include a choice of four interrupts
and three DMA channels (one of each selected during initialization). In Memory Mode, it supports
Standard or Ready Bus cycles without introducing
additional wait states.
1.1.2 Integrated Memory
The CS8900A incorporates a 4-Kbyte page of onchip memory, eliminating the cost and board area
associated with external memory chips. Unlike
most other Ethernet controllers, the CS8900A buffers entire transmit and receive frames on chip,
eliminating the need for compl ex, ineffici ent memory management schemes. In addition, the
CS8900A operates in either Memory space, I/O
space, or with external DMA controllers, providing
maximum design flexibility.
1.1.3 802.3 Ethernet MAC Engine
The CS8900A’s Ethernet Media Access Control
(MAC) engine is fully compliant with the IEEE
802.3 Ethernet standard (ISO/IEC 8802-3, 1993),
and supports full-duplex operation. It handles all
aspects of Ethernet frame transmission and reception, including: collision detection, preamble generation and detection, and CRC generation and test.
Programmable MAC features include automatic re-
transmission on collision, and automatic padding
of transmitted frames.
1.1.4 EEPROM Interface
The CS8900A provides a simple and efficient serial EEPROM interface that allows configuration information to be stored in an optional EEPROM,
and then loaded automatically at power-up. This
eliminates the need for costly and cumbersome
switches and jumpers.
1.1.5 Complete Analog Front End
The CS8900A’s analog front end incorporates a
Manchester encoder/decoder, clock recovery circuit, 10BASE-T transceiver, and complete Attachment Unit Interface (AUI). It provides manual and
automatic selection of either 10BASE-T or AUI,
and offers three on-chip LED drivers for link status, bus status, and Ethernet line activity.
The 10BASE-T transceiver includes drivers, receivers, and analog filters, allowing direct connection to low-cost isolation transformers. It supports
100, 120, and 150 Ω shielded and unshielded cables, extended cable lengths, and automatic receive
polarity reversal detection and correction.
The AUI port provides a direct interface to
10BASE-2, 10BASE-5 and 10BASE-FL networks,
and is capable of driving a full 50-meter AUI cable.
1.2 System Applications
The CS8900A is designed to work well in either
motherboard or adapter applications.
1.2.1 Motherboard LANs
The CS8900A requires the minimum number of
external components needed for a full Ethernet
node. Its small-footprint package and high level of
integration allow System Engineers to design a
complete Ethernet circuit that occupies as little as
1.5 square inches of PCB area (Figure 1). In addition, the CS8900A’s power-saving features and
CMOS design make it a perfect fit for power-sensi-
CIRRUS LOGIC PRODUCT DATA SHEET
8 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
EEPROM
I
S
A
Figure 1. Complete Ethernet Motherboard Solution
20 MHz
XTAL
CS8900A
tive portable and desktop PCs. Motherboard design
options include:
• An EEPROM can be used to store node-specific information, such as the Ethernet Individual
Address and node configuration.
• The 20 MHz crystal oscillator may be replaced
by a 20 MHz clock signal.
1.2.2 Ethernet Adapter Cards
The CS8900A’s highly efficient PacketPage architecture, with StreamTransfer™ and Auto-Switch
DMA options, make it an excellent choice for highperformance, low-cost ISA adapter cards
(Figure 2). The CS8900A’s wide range of configuration options and performance features allow en-
(2.0 sq. in.)
RJ-45
10BASE-T
gineers to design Ethernet solutions that meet their
particular system requirements. Adapter card design options include:
• A Boot PROM can be added to support diskless
applications.
• The 10BASE-T transmitter and receiver impedance can be adjusted to support 100, 120, or
150 Ohm twisted pair cables.
• An external Latchable-Address-bus decode circuit can be added to operate the CS8900A in
Upper-Memory space.
• On-chip LED ports can be used for either optional LEDs, or as programmable outputs.
LED
EEPROM
’245
Boot PROM
Figure 2. Full-Featured ISA Adapter Solution
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 9
20 MHz
XTAL
CS8900A
RJ-45
Attachment
Unit
Interface
(AUI )
CS8900A
Crystal LAN™ ISA Ethernet Controller
1.3 Key Features and Benefits
1.3.1 Very Low Cost
The CS8900A is designed to provide the lowestcost Ethernet solution available for embedded applications, portable motherboards, non-ISA bus
systems and adapter cards. Cost-saving features include:
• Integrated RAM eliminates the need for expensive external memory chips.
• On-chip 10BASE-T filters allow designers to
use simple isolation transformers instead of
more costly filter/transformer packages.
• The serial EEPROM port, used for configuration and initialization, eliminates the need for
expensive switches and jumpers.
• The CS8900A is designed to be used on a 2layer circuit board instead of a more expensive
multilayer board.
• The 8900A-based solution offers the smallest
footprint available, saving valuable printed circuit board area.
• A set of certified software drive rs is available at
no charge, eliminating the need for costly software development.
older I/O-space designs, PacketPage is faster, simpler and more efficient.
To boost performance further, the CS8900A includes several key features that increase throughput
and lower CPU overhead, including:
• StreamTransfer cuts up to 87% of interrupts to
the host CPU during large block transfers.
• Auto-Switch DMA allows the CS8900A to
maximize throughput while minimizing missed
frames.
• Early interrupts allow the host to prep rocess incoming frames.
• On-chip buffering of full frames cuts the
amount of host bandwidth needed to manage
Ethernet traffic.
1.3.3 Low Power and Low Noise
For low power needs, the CS8900A offers three
power-down options: Hardware Standby, Hardware Suspend, and Software Suspend. In Standby
mode, the chip is powered down with the exception
of the 10BASE-T receiver, which is enabled to listen for link activity. In either Hardware or Software
Suspend mode, the receiver is disabled and power
consumption drops to the micro-ampere range.
1.3.2 High Performance
In addition, the CS8900A has been designed for
very low noise emission, thus shortening the time
The CS8900A is a full 16-bit Ethernet controller
required for EMI testing and qualification.
designed to provide optimal system performance
by minimizing time on the ISA bus and CPU overhead per frame. It offers equal or superior performance for less money when compared to other
Ethernet controllers. The CS8900A’s PacketPage
architecture allows software to select whichever
access method is best suited to each particular
CPU/ISA-bus configuration. When compared to
CIRRUS LOGIC PRODUCT DATA SHEET
10 DS271PP3
1.3.4 Complete Support
The CS8900A comes with a suite of software drivers for immediate use with most industry standard
network operating systems. In addition, complete
evaluation kits and manufacturing packages are
available, significantly reducing the cost and time
required to produce new Ethernet products.
CS8900A
Crystal LAN™ ISA Ethernet Controller
EEPROM
93C46
CS
DO
CLK
ISA
BUS
LA[20:23]
BALE
SA[0:19]
IRQ10
IRQ11
IRQ12
IRQ5
DRQ5
DACK5
DRQ6
DACK6
DRQ7
DACK7
SA[0:14]
SD[0:7]
20 MHz
97 98 93
20
XTAL1 XTAL2
3
EECS
6
EEDATAIN
5
EEDATAOUT
4
EESK
7
CHIPSEL
ELCS
SA[0:19]
28
MEMW
29
MEMR
62
IOW
61
IOR
49
REFRESH
36
SBHE
63
AEN
75
RESET
34
MEMCS16
33
IOCS16
64
IOCHRDY
SD[0:15]
32
INTRQ0
31
INTRQ1
30
INTRQ2
35
INTRQ3
15
DMARQ0
16
DMACK0
13
DMARQ1
14
DMACK1
11
DMARQ2
12
DMACK2
1
4
3
DI
2
Address
Decoder
4
PAL
16
15
8
5 V
Ω
4.7 k
77 76
SLEEP TEST RES
CS8900A
Ω
4.99 k
RXD-
RXD+
TXD-
TXD+
DO-
DO+
CI-
CI+
DI-
DI+
BSTATUS/HCI
LANLED
LINKLED
CSOUT
, 1%
92
91
88
87
84
83
82
81
80
79
39.2
78
100
99
17
Ω, 1%
24.3
24.3
Ω, 1%
Ω
, 1%
680
680
Boot-PROM
20
CE
22
OE
100
68 pF
Ω
Ω
27C256
PD[0:7]
Ω, 1%
39.2 Ω, 1%
39.2
µ
F
0.1
10 BASE T
Isolation
Transformer
1
1:1
3
6
1:
8
Ω
, 1%
5 V
19
1
2
39.2 Ω, 1%
0.1 µF
74LS245
OE
DIR
16
14
11
10
9
.1 µF
AUI Isolatio n
Transformer
1
1:1
2
4
1:1
5
7
1:1
8
12 V
16
15 3
13
12
10
9
4, 6
6
3
2
1
13
10
9
2
12
5
RJ45
15 pin D
Figure 3. Typical Connection Diagram
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 11
2.0 PIN DESCRIPTION
Y
CS8900A
Crystal LAN™ ISA Ethernet Controller
AVSS0
ELCS
EECS
EESK
EEDataOut
EEDataIn
CHIPSEL
DVSS1
DVDD1
DVSS1A
DMARQ2
DMACK2
DMARQ1
DMACK1
DMARQ0
DMACK0
CSOUT
SD15
SD14
SD13
SD12
DVDD2
DVSS2
SD11
SD10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
AVSS3
94
RES
93
92
RXD +
91
90
XTAL1
XTAL2
LINKLED or HC0
LANLED
98
99
100
1
2
3
4
5
6
7
8
9
AVDD3
AVSS4
95
96
97
CS8900A
89
88
87
AVSS2
86
AVDD2
85
DO-
84
DO+
83
CI-
82
TXD +
TXD -
AVSS1
AVDD1
RXD -
100-pin
TQFP
(Q)
Top View
CI+
81
80
BSTATUS or HC1
TEST
SLEEP
DI-
DI+
79
76
77
78
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
RESET
SD7
SD6
SD5
SD4
DVSS4
DVDD4
SD3
SD2
SD1
SD0
IOCHRD
AEN
IOW
IOR
SA19
SA18
SA17
DVSS3A
DVDD 3
DVSS3
SA16
SA15
SA14
SA13
262728293031333234
SD08
SD09
MEMR
MEMW
IOCS16
INTRQ2
INTRQ1
INTRQ0
MEMCS16
35
INTRQ3
SBHE
36
37
SA0
38
SA1
39
SA2
40
SA3
41
SA4
42
SA5
43
SA6
44
SA7
4647484950
45
SA9
SA8
SA11
SA10
SA12
REFRESH
CIRRUS LOGIC PRODUCT DATA SHEET
12 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
ISA Bus Interface
SA[0:19] - System Address Bus, Input PINS 37-48, 50-54, 58-60.
Lower 20 bits of the 24-bit System Address Bus used to decode accesses to CS8900A I/O and
Memory space, and attached Boot PROM. SA0-SA15 are used for I/O Read and Write
operations. SA0-SA19 are used in conjunction with external decode logic for Memory Read
and Write operations.
SD[0:15] - System Data Bus, Bi-Directional with 3-State Output PINS 65-68, 71-74, 27-24, 21-18.
Bi-directional 16-bit System Data Bus used to transfer data between the CS8900A and the host.
RESET - Reset, Input PIN 75.
Active-high asynchronous input used to reset the CS8900A. Must be stable for at least 400 ns
before the CS8900A recognizes the signal as a valid reset.
AEN - Address Enable, Input PIN 63.
When TEST is high, this active-high input indicates to the CS8900A that the system DMA
controller has control of the ISA bus. When AEN is high, the CS8900A will not perform slave
I/O space operations. When TEST is low, this pin becomes the shift clock input for the
Boundary Scan Test. AEN should be inactive when performing an IO or memory access and it
should be active during a DMA cycle.
MEMR - Memory Read, Input PIN 29.
Active-low input indicates that the host is executing a Memory Read operation.
MEMW - Memory Write, Input PIN 28.
Active-low input indicates that the host is executing a Memory Write operation.
MEMCS16 - Memory Chip Select 16-bit, Open Drain Output PIN 34.
Open-drain, active-low output generated by the CS8900A when it recognizes an address on the
ISA bus that corresponds to its assigned Memory space (CS8900A must be in Memory Mode
with the MemoryE bit (Register 17, BusCTL, Bit A) set for MEMCS16 to go active). 3-Stated
when not active.
REFRESH - Refresh, Input PIN 49.
Active-low input indicates to the CS8900A that a DRAM refresh cycle is in progress. When
REFRESH is low, MEMR, MEMW, IOR, IOW, DMACK0, DMACK1, and DMACK2 are
ignored.
IOR - I/O Read, Input PIN 61.
When IOR is low and a valid address is detected, the CS8900A outputs the contents of the
selected 16-bit I/O register onto the System Data Bus. IOR is ignored if REFRESH is low.
IOW - I/O Write, Input PIN 62.
When IOW is low and a valid address is detected, the CS8900A writes the data on the System
Data Bus into the selected 16-bit I/O register. IOW is ignored if REFRESH is low.
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 13
Crystal LAN™ ISA Ethernet Controller
IOCS16 - I/O Chip Select 16-bit, Open Drain Output PIN 33.
Open-drain, active-low output generated by the CS8900A when it recognizes an address on the
ISA bus that corresponds to its assigned I/O space. 3-Stated when not active.
IOCHRDY - I/O Channel Ready, Open Drain Output PIN 64.
When driven low, this open-drain, active-high output extends I/O Read and Memory Read
cycles to the CS8900A. This output is functional when the IOCHRDYE bit in the Bus Control
register (Register 17) is clear. This pin is always 3-Stated when the IOCHRDYE bit is set.
SBHE - System Bus High Enable, Input PIN 36.
Active-low input indicates a data transfer on the high byte of the System Data Bus (SD8SD15). After a hardware or a software reset, provide a HIGH to LOW and then LOW to HIGH
transition on SBHE signal before any IO or memory access is done to the CS8900A.
INTRQ[0:2] - Interrupt Request, 3-State PINS 30-32, 35.
Active-high output indicates the presence of an interrupt event. Interrupt Request goes low once
the Interrupt Status Queue (ISQ) is read as all 0’s. Only one Interrupt Request output is used
(one is selected during configuration). All non-selected Interrupt Request outputs are placed in
a high-impedance state. (Section 3.2 on page 18 and Section 5.1 on page 79.)
CS8900A
DMARQ[0:2] - DMA Request, 3-State PINS 11, 13, and 15.
Active-high, 3-Stateable output used by the CS8900A to request a DMA transfer. Only one
DMA Request output is used (one is selected during configuration). All non-selected DMA
Request outputs are placed in a high-impedanc e state.
DMACK[0:2] - DMA Acknowledge, Input PINS 12, 14, and 16.
Active-low input indicates acknowledgment by the host of the corresponding DMA Request
output.
CHIPSEL - Chip Select, Input PIN 7.
Active-low input generated by external Latchable Address bus decode logic when a valid
memory address is present on the ISA bus. If Memory Mode operation is not needed,
CHIPSEL should be tied low. The CHIPSEL is ignored for IO and DMA mode of the
CS8900A.
EEPROM and Boot PROM Interface
EESK - EEPROM Serial Clock, PIN 4.
Serial clock used to clock data into or out of the EEPROM.
EECS - EEPROM Chip Select, PIN 3.
Active-high output used to select the EEPROM.
CIRRUS LOGIC PRODUCT DATA SHEET
14 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
EEDataIn - EEPROM Data In, Input Internal Weak Pullup PIN 6.
Serial input used to receive data from the EEPROM. Connects to the DO pin on the EEPROM.
EEDataIn is also used to sense the pres ence of the EEPROM.
ELCS - External Logic Chip Select, Internal Weak Pullup PIN 2.
Bi-directional signal used to configure external Latchable Address (LA) decode logic. If
external LA decode logic is not needed, ELCS should be tied low.
EEDataOut - EEPROM Data Out,PIN 5.
Serial output used to send data to the EEPROM. Connects to the DI pin on the EEPROM.
When TEST is low, this pin becomes the output for the Boundary Scan Test.
CSOUT - Chip Select for External Boot PROM, PIN 17.
Active-low output used to select an external Boot PROM when the CS8900A decodes a valid
Boot PROM memory address.
10BASE-T Interface
TXD+/TXD- - 10BASE-T Transmit, Differential Output Pair PINS 87 and 88.
Differential output pair drives 10 Mb/s Manchester-encoded data to the 10BASE-T transmit
pair.
RXD+/RXD- - 10BASE-T Receive, Differential Input Pair PINS 91 and 92.
Differential input pair receives 10 Mb/s Manchester-encoded data from the 10BASE-T receive
pair.
Attachment Unit Interface (AUI)
DO+/DO- - AUI Data Out, Differential Output Pair PINS 83 and 84.
Differential output pair drives 10 Mb/s Manchester-encoded data to the AUI transmit pair.
DI+/DI- - AUI Data In, Differential Input Pair PINS 79 and 80.
Differential input pair receives 10 Mb/s Manchester-encoded data from the AUI receive pair.
CI+/CI- - AUI Collision In, Differential Input Pair PINS 81 and 82.
Differential input pair connects to the AUI collision pair. A collision is indicated by the
presence of a 10 MHz ± 15% signal with duty cycle no worse than 60/40.
General Pins
XTAL[1:2] - Crystal, Input/Output PINS 97 and 98.
A 20 MHz crystal should be connected across these pins. If a crystal is not used, a 20 MHz
signal should be connected to XTAL1 and XTAL2 should be left open. (See Section 7.3 on
page 111 and Section 7.7 on page 121.)
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 15
CS8900A
Crystal LAN™ ISA Ethernet Controller
SLEEP - Hardware Sleep, Input Internal Weak Pullup PIN 77.
Active-low input used to enable the two hardware sleep modes: Hardware Suspend and
Hardware Standby. (See Section 3.7 on page 26.)
LINKLED or HC0 - Link Good LED or Host Controlled Output 0, Open Drain Output PIN 99.
When the HCE0 bit of the Self Control register (Register 15) is clear, this active-low output is
low when the CS8900A detects the presence of valid link pulses. When the HC0E bit is set, the
host may drive this pin low by setting the HCBO in the Self Control register.
BSTATUS or HC1 - Bus Status or Host Controlled Output 1, Open Drain Output PIN 78.
When the HC1E bit of the Self Control register (Register 15) is clear, this active-low output is
low when receive activity causes an ISA bus access. When the HC1E bit is set, the host may
drive this pin low by setting the HCB1 in the Self Control register.
LANLED - LAN Activity LED, Open Drain Output PIN 100.
During normal operation, this active-low output goes low for 6 ms whenever there is a receive
packet, a transmit packet, or a collision. During Hardware Standby mode, this output is driven
low when the receiver detects network activity.
TEST - Test Enable, Input Internal Weak Pullup PIN 76.
Active-low input used to put the CS8900A in Boundary Scan Test mode. For normal operation,
this pin should be high.
RES - Reference Resistor, Input PIN 93.
This input should be connected to a 4.99KΩ ± 1% resistor needed for biasing of internal analog
circuits.
DVDD[1:4] - Digital Power, Power PINS 9, 22, 56, and 69.
Provides 5 V ± 5% power to the digital circuits of the CS8900A.
DVSS[1:4} and DVSS1A, DVSS3A - Digital Ground, Ground PINS 8, 10, 23, 55, 57, and 70.
Provides ground reference (0 V) to the digital circuits of the CS8900A.
AVDD[1:3] - Analog Power, Power PINS 90, 85, and 95.
Provides 5 V ± 5% power to the analog circuits of the CS8900A.
AVSS[0:4] - Analog Ground, Ground PINS 1, 89, 86, 94, 96.
Provide ground reference (0 V) to the analog circuits of the CS8900A.
CIRRUS LOGIC PRODUCT DATA SHEET
16 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
3.0 FUNCTIONAL DESCRIPTION
3.1 Overview
During normal operation, the CS8900A performs
two basic functions: Ethernet packet transmission
and reception. Before transmission or reception is
possible, the CS8900A must be configured.
3.1.1 Configuration
The CS8900A must be configured for packet transmission and reception at power-up or reset. Various
parameters must be written into its int ernal Configuration and Control registers such as Memory Base
Address; Ethernet Physical Address; what frame
types to receive; and which media interface to use.
Configuration data can either be written to the
CS8900A by the host (across the ISA bus), or loaded automatically from an external EEPROM. Ope ration can begin after configuration is complete.
Section 3.3 on page 19 and Section 3.4 on pa ge 21
describe the configuration process in detail.
Section 4.4 on page 47 provides a detailed description of the bits in the Configuration and Control
Registers.
3.1.2 Packet Transmission
Packet transmission occurs in two phases. In the
first phase, the host moves the Ethernet frame into
the CS8900A’s buffer memory. The first phase begins with the host issuing a Transmit Command.
This informs the CS8900A that a frame is to be
transmitted and tells the chip when to start transmission (i.e. after 5, 381, 1021 or all bytes have
been transferred) and how the frame should be sent
(i.e. with or without CRC, with or without pad bits,
etc.). The Host follows the Transmit Command
with the Transmit Length, indicating how much
buffer space is required. When buffer space is
available, the host writes the Ethernet frame into
the CS8900A’s internal memory, either as a Memory or I/O space operation.
In the second phase of transmission, the CS8900A
converts the frame into an Ethernet packet then
transmits it onto the network. The second phase begins with the CS8900A transmitting the preamble
and Start-of-Frame delimiter as soon as the proper
number of bytes has been transferred into its transmit buffer (5, 381, 1021 bytes or full frame, depending on configuration). The preamble and Startof-Frame delimiter are followed by the Destination
Address, Source Address, Length field and LLC
data (all supplied by the host). If the frame is less
than 64 bytes, including CRC, the CS8900A adds
pad bits if configured to do so. Finally, the
CS8900A appends the proper 32-bit CRC value.
The Section 5.7 on page 99 provides a detailed description of packet transmission.
3.1.3 Packet Reception
Like packet transmission, packet reception occurs
in two phases. In the first phase, the CS8900A receives an Ethernet packet and stores it in on-chip
memory. The first phase of packet reception begins
with the receive frame passing through the analog
front end and Manchester decoder where Manchester data is converted to NRZ data. Next, the preamble and Start-of-Frame delimiter are stripped off
and the receive frame is sent through the address
filter. If the frame’s Destination Address matches
the criteria programmed into the address filter, the
packet is stored in the CS8900A’s internal memory. The CS8900A then checks the CRC, and depending on the configuration, informs the
processor that a frame has been received.
In the second phase, the host transfers the receive
frame across the ISA bus and into host memory.
Receive frames can be transferred as Memory
space operations, I/O space operations, or as DMA
operations using host DMA. Also, the CS8900A
provides the capability to switch between Memory
or I/O operation and DMA operation by using
Auto-Switch DMA and StreamTransfer.
The Section 5.2 on page 79 through Section 5.6 on
page 96 provide a detailed description of packet reception.
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 17
CS8900A
Crystal LAN™ ISA Ethernet Controller
3.2 ISA Bus Interface
The CS8900A provides a direct interface to ISA
buses running at clock rates from 8 to 11 MHz. Its
on-chip bus drivers are capable of delivering
24 mA of drive current, allowing the CS8900A to
drive the ISA bus directly, without added external
"glue logic".
The CS8900A is optimized for 16-bit data transfers, operating in either Memory space, I/O space ,
or as a DMA slave.
Note that ISA-bus operation below 8 MHz should
use the CS8900A’s Receive DMA mode to minimize missed frames. See Section 5.4 on page 90 for
a description of Receive DMA operation.
3.2.1 Memory Mode Operation
When configured for Memory Mode operation, the
CS8900A’s internal registers and frame buffers are
mapped into a contiguous 4-Kbyte block of host
memory, providing the host with direct access to
the CS8900A’s internal registers and frame buffers. The host initiates Read operations by driving
the MEMR pin low and Write operations by driving the MEMW pin low.
For additional information about Memory Mode,
see Section 4.9 on page 74.
3.2.2 I/O Mode Operation
When configured for I/O Mode operation, the
CS8900A is accessed through eight, 16-bit I/O
ports that are mapped into sixteen contiguous I/O
locations in the host system’s I/O space. I/O Mode
is the default configuration for the CS8900A and is
always enabled.
For an I/O Read or Write operation, the AEN pin
must be low, and the 16-bit I/O address on the ISA
System Address bus (SA0 - SA15) must match the
address space of the CS8900A. For a Read, IOR
must be low, and for a Write, IOW must be low.
For additional information about I/O Mode, see
Section 4.10 on page 76.
3.2.3 Interrupt Request Signals
The CS8900A has four interrupt request output
pins that can be connected directly to any four of
the ISA bus Interrupt Request signals. Only one interrupt output is used at a time. It is selected during
initialization by writing the interrupt number (0 to
3) into PacketPage Memory base + 0022h. Unused
interrupt request pins are placed in a high-impedance state. The selected interrupt request pin goes
high when an enabled interrupt is triggered. The
pin goes low after the Interrupt Status Queue (ISQ)
is read as all 0’s (see Section 5.1 on page 79 for a
description of the ISQ).
Table 1 presents one possible way of connecting
the interrupt request pins to the ISA bus that utilizes commonly available interrupts and facilitates
board layout.
CS8900A Interrupt
Request Pin
INTRQ3 (Pin 35)
INTRQ0 (Pin 32)
INTRQ1 (Pin 31)
INTRQ2 (Pin 30)
Table 1. Interrupt Assignments
ISA Bus
Interrupt
IRQ5 0003h
IRQ10 0000h
IRQ11 0001h
IRQ12 0002h
PacketPage
base + 0022h
3.2.4 DMA Signals
The CS8900A interfaces directly to the host DMA
controller to provide DMA transfers of receive
frames from CS8900A memory to host memory.
The CS8900A has three pairs of DMA pins that can
be connected directly to the three 16-bit DMA
channels of the ISA bus. Only one DMA channel is
used at a time. It is selected during initiali zation by
writing the number of the desired channel (0, 1 or
2) into PacketPage Memory base + 0024h. Unused
DMA pins are placed in a high-impedance state.
The selected DMA request pin goes high when the
CS8900A has received frames to transfer to the
host memory via DMA. If the DMABurst bit (register 17, BusCTL, Bit B) is clear, the pin goes low
after the DMA operation is complete. If the
CIRRUS LOGIC PRODUCT DATA SHEET
18 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
DMABurst bit is set, the pin goes low 32 µs after
the start of a DMA transfer.
The DMA pin pairs are arranged on the CS8900A
to facilitate board layout. Crystal recommends the
configuration in Table 2 when connecting these
pins to the ISA bus.
CS8900A DMA
Signal (Pin #)
DMARQ0 (Pin 15) DRQ5 0000h
DMACK0
DMARQ1 (Pin 13) DRQ6 0001h
DMACK1
DMARQ2 (Pin 11) DRQ7 0002h
DMACK2
(Pin 16) DACK5
(Pin 14) DACK6
(Pin 12) DACK7
Table 2. DMA Assignments
ISA DMA
Signal
PacketPage
base + 0024h
For a description of DMA mode, see Section 5.4 on
page 90.
3.3 Reset and Initialization
3.3.1 Reset
Seven different conditions cause the CS8900A to
reset its internal registers and circuits.
3.3.1.4 EEPROM Reset
There is a chip-wide reset if an EEPROM chec ksum error is detected (see Section 3.4 on page 21).
3.3.1.5 Software Initiated Reset
There is a chip-wide reset whenever the RESET bit
(Register 15, SelfCTL, Bit 6) is set.
3.3.1.6 Hardware (HW) Standby or Suspend
The CS8900A goes though a chip-wide reset whenever it enters or exits either HW Standby mode or
HW Suspend mode (see Section 3.7 on page 26 for
more information about HW Standby and Suspend).
3.3.1.7 Sof tware (SW) Suspend
Whenever the CS8900A enters SW Suspend mode,
all registers and circuits are reset except for the ISA
I/O Base Address register (located at PacketPage
base + 0020h) and the SelfCTL register (Register
15). Upon exit, there is a chip-wide reset (see
Section 3.7 on page 26 for more information about
SW Suspend).
3.3.2 Allowing Time for Reset Operation
3.3.1.1 External Reset, or ISA Reset
There is a chip-wide reset whenever the RESET pin
is high for at least 400 ns. During a chip-wide reset,
all circuitry and registers in the CS8900A are reset.
3.3.1.2 Power-Up Reset
When power is applied, the CS8900A maintains reset until the voltage at the supply pins reaches approximately 2.5 V. The CS8900A comes out of
reset once Vcc is greater than approximately 2.5 V
and the crystal oscillator has stabilized.
3.3.1.3 Power-Down Reset
If the supply voltage drops below approximately
2.5 V, there is a chip-wide reset. The CS8900A
comes out of reset once the power supply returns to
a level greater than approximately 2.5 V and the
crystal oscillator has stabilized.
CIRRUS LOGIC PRODUCT DATA SHEET
After a reset, the CS8900A goes through a self configuration. This includes calibrating on-chip analog
circuitry, and reading EEPROM for validity and
configuration. Time required for the reset calibration is typically 10 ms. Software drivers should not
access registers internal to the CS8900A during
this time. When calibration is done, bit INITD in
the Self Status Register (register 16) is set indicating that initialization i s comple te, a nd the S I BUSY
bit in the same register is cleared indicating the EEPROM is no longer being read or programmed.
3.3.3 Bus Reset Considerations
The CS8900A reads 3000h from IObase+0Ah after
the reset, until the software writes a non-zero value
at IObase+0Ah. The 3000h value can be used as
part of the CS8900A signature when the system
scans for the CS8900A. See Section 4.10 on
page 76.
DS271PP3 19
CS8900A
Crystal LAN™ ISA Ethernet Controller
After a reset, the ISA bus outputs INTRx and
DMARQx are 3-Stated, thus avoiding any interrupt
or DMA channel conflicts on the ISA bus at powerup time.
3.3.4 Initialization
After each reset (except EEPROM Reset), the
CS8900A checks the sense of the EEDataIn pin to
see if an external EEPROM is present. If EEDI is
high, an EEPROM is present and the CS8900A automatically loads the configuration data stored in
the EEPROM into its internal registers (see next
section). If EEDI is low, an EEPROM is not
present and the CS8900A comes out of reset with
the default configuration shown in Table 3.
A low-cost serial EEPROM can be used to store
configuration information that is automatically
loaded into the CS8900A after each reset (except
EEPROM reset). The use of an EEPROM is optional.
The CS8900A operates with any of six standard
EEPROM’s shown in Table 4.
PacketPage
Address
0020h 0300h I/O Base Address*
0022h XXXX XXXX
0024h XXXX XXXX
0026h 0000h DMA Start of Frame
0028h X000h DMA Frame Count
002Ah 0000h DMA Byte Count
002Ch XXX0 0000h Memory Base Address
0030h XXX0 0000h Boot PROM Base
0034h XXX0 0000h Boot PROM Address
0102h 0003h Register 3 - RxCFG
0104h 0005h Register 5 - RxCTL
0106h 0007h Register 7 - TxCFG
0108h 0009h Register 9 - TxCMD
010Ah 000Bh Register B - BufCFG
010Ch Undefined Reserved
010Eh Undefined Reserved
0110h Undefined Reserved
0112h 00013h Register 13 - LineCTL
0114h 0015h Register 15 - SelfCTL
0116h 0017h Register 17 - BusCTL
0118h
* I/O base address is unaffected by Software Suspend mode.
Register
Contents
XXXX X100
XXXX XX11
0019h
Table 3. Default Configuration
Register Descriptions
Interrupt Number
DMA Channel
Offset
Address
Mask
Register 19 - TestCTL
EEPROM Type Size (16-bit words)
‘C46 (non -sequential) 64
‘CS46 (sequential) 64
‘C56 (non -sequential) 128
‘CS56 (sequential) 128
‘C66 (non -sequential) 256
‘CS66 (sequential) 256
Table 4. Supported EEPROM T ypes
CIRRUS LOGIC PRODUCT DATA SHEET
20 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
3.4 Configurations with EEPROM
3.4.1 EEPROM Interface
The interface t o the EEPR OM consist s of the four
signals shown in Table 5.
CS8900A Pin
(Pin #) CS8900A Function
EECS (Pin 3) EEPROM Chip Select Chip Select
EESK (PIN 4) 1 MHz EEPROM
Serial Cl ock output
EEDO (Pin 5) EEPROM Data Out
(data to EEPROM)
EEDI (Pin 6) EEPROM Data in
(data from EEPROM)
Table 5. EEPROM Interface
EEPROM
Pin
Clock
Data In
Data Out
3.4.2 EEPROM Memory Organization
If an EEPROM is used to store initial configuration
information for the CS8900A, the EEPROM is organized in one or more blocks of 16-bit words. The
first block in EEPROM, referred to as the Configuration Block, is used to configure the CS8900A after reset. An example of a typical Configuration
Block is shown in Table 6. Additional blocks containing user data may be stored in the EEPROM.
However, the Configuration Block must always
start at address 00h and be stored in contiguous
memory locations.
3.4.3 Reset Configuration Block
The first block in EEPROM, referred to a s the Re set Configuration Block, is used to automatically
program the CS8900A with an initial configuration
after a reset. Additional user data may also be
stored in the EEPROM if space is availabl e. The
additional data are stored as 16-bit words and can
occupy any EEPROM address space beginning immediately after the end of the Reset Configuration
Block up to address 7Fh, depending on EEPROM
size. This additional data can only be accessed
through software control (refer to Section 3.5 on
page 24 for more information on accessing the EEPROM). Address space 80h to AFh is reserved.
3.4.3.1 Reset Configuration Block Structure
The Reset Configuration Block is a block of contiguous 16-bit words starting at EEPROM address
00h. It can be divided into three logical sections: a
header, one or more groups of configuration data
words, and a checksum value. All of the words in
the Reset Configuration Block are read sequentially by the CS8900A after each reset, starting with
the header and ending with the checksum. Each
group of configuration data is used to program a
PacketPage register (or set of PacketPage registers
in some cases) with an initial non-default value.
3.4.3.2 Reset Configuration Block Header
The header (first word of the block located at EEPROM address 00h) specifies the type of EEPROM used, whether or not a Reset Configuration
block is present, and if so, how many bytes of configuration data are stored in the Reset Configuration Block.
3.4.3.3 Determining the EEPROM Type
The LSB of the high byte of the header indicates
the type of EEPROM attached: sequential or nonsequential. An LSB of 0 (XXXX-XXX0) indicates
a sequential EEPROM. An LSB of 1 (XXXXXXX1) indicates a non-sequential EEPROM. The
CS8900A works equally well with either type of
EEPROM. The CS8900A will automatically generate sequential addresses while reading the Reset
Configuration Block if a non-sequential EEPROM
is used.
3.4.3.4 Checking EEPROM for presence of Reset Configuration Block
The read-out of either a binary 101X-XXX0 or
101X-XXX1 (X = do not care) from the high byte
of the header indicates the presence of configuration data. Any other readout value terminates initialization from the EEPROM. If an EEPROM is
attached but not used for configuration, Crystal recommends that the high byte of the first word be
programmed with 00h in order to ensure that the
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 21
Crystal LAN™ ISA Ethernet Controller
Word Address Value Description
FIRST WORD in DATA BLOCK
00h A120h Configuration Block Header.
The high byte, A1h, indicates a ‘C46 EEPROM is attached. The Link Byte,
20h, indicates the number of bytes to be used in this block of configuration
data.
FIRST GROUP of WORDS
01h 2020h Group Header for first group of words.
Three words to be loaded, beginning at 0020h in PacketPage memory.
02h 0300h I/O Base Address
03h 0003h Interrupt Number
04h 0001h DMA Channel Number
SECOND GROUP of WORDS
05h 502Ch Group Header for second group of words.
Six words to be loaded, beginning at 002Ch in PacketPage memory.
06h E000h Memory Base Address - low word
07 000Fh Memory Base Address - high word
08h 0000h Boot PROM Base Address - low word
09h 000Dh Boot PROM Base Address - high w ord
0Ah C000h Boot PROM Address Mask - low word
0Bh 000Fh Boot PROM Address Mask - high word
THIRD GROUP of WORDS
0Ch 2158h Group Header for third group of words.
Three words to be loaded, beginning at 0158 in PacketPage memory .
0Dh 0010h Individual Address - Octet 0 and 1
0Eh 0000h Individual Address - Octet 2 and 3
0Fh 0000h Individual Address - Octet 4 and 5
CHECKSUM Value
10h 2800h The high byte, 28h, is the Checksum Value. In this example, the check-
sum includes word addresses 00h through 0Fh. The hexadecimal sum of
the bytes is D8h, resulting in a 2’s complement of 28h. The low byte, 00h,
provides a pad to the word boundary.
* FFFFh is a special code indicating that there are no more words in the EEPROM.
Table 6. EEPROM Configuration Block Exam pl e
CS8900A will not attempt to read configuration
data from the EEPROM.
3.4.3.5 Determining Number of Bytes in the Reset Configuration Block
For example, a Reset Configuration Block header
of A104h indicates a non-sequential EEPROM programmed with a Reset Configuration Block containing 4 bytes of configuration data. This Reset
Configuration Block occupies 6 bytes (3 words) of
The low byte of the Reset Configuration Block
header is known as the link byte. The value of the
EEPROM space (2 bytes for the header and 4 bytes
of configuration data).
Link Byte represents the number of bytes of configuration data in the Reset Configuration Block. The
two bytes used for the header are excluded when
calculating the Link Byte value.
3.4.4 Groups of Configuration Data
Configuration data are arranged as groups of
words. Each group contains one or more words of
data that are to be loaded into PacketPage registers.
CS8900A
CIRRUS LOGIC PRODUCT DATA SHEET
22 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
The first word of each group is referred to as the
Group Header. The Group Header indicates the
number of words in the group and the address of the
PacketPage register into which the first data word
in the group is to be loaded. Any remaining words
in the group are stored in successive PacketPage
registers.
3.4.4.1 Group Header
Bits F through C of the Group Header specify the
number of words in each group that are to be transferred to PacketPage registers (see Figure 4). This
value is two less than the total number of words in
the group, including the Group Header. For example, if bits F through C contain 0001, there are three
words in the group (a Group Header and two words
of configuration data).
First Word of a Group of Words
F
E
BADC
98
76
4
10
3
25
3.4.5 Reset Configuration Block Checksum
A checksum is stored in the high byte position of
the word immediately following the last group of
data in the Reset Configuration Block. (The EEPROM address of the checksum value can be determined by dividing the value stored in the Link Byte
by two). The checksum value is the 2’s complement of the 8-bit sum (any carry out of eighth bit is
ignored) of all the bytes in the Reset Configuration
Block, excluding the checksum byte. This sum includes the Reset Configuration Block header at address 00h. Since the checksum is calculated as the
2’s complement of the sum of all preceding bytes in
the Reset Configuration Block, a total of 0 should
result when the checksum value is added t o the sum
of the previous bytes.
3.4.6 EEPROM Example
Table 6 shows an example of a Reset Configuration
Block stored in a C46 EEPROM. Note that littleendian word ordering is used, i.e., the least significant word of a multiword datum is located at the
lowest address.
0
0
0
Number of Words
in Group
Figure 4. Group Header
9-bit PacketPage Address
Bits 8 through 0 of the Group Header specify a 9bit PacketPage Address. This address defines the
PacketPage register that will be loaded with the
first word of configuration data from the group.
Bits B though 9 of the Group Header are forced to
0, restricting the destination address range to the
first 512 bytes of PacketPage memory. Figure 4
shows the format of the Group header.
3.4.7 EEPROM Read-out
If the EEDI pin is asserted high at the end of reset,
the CS8900A reads the first word of EEPROM data
by:
1) Asserting EECS
2) Clocking out a Read-Register-00h command
on EEDO (EESK provides a 1MHz serial clock
signal)
3) Clocking the data in on EEDI.
If the EEDI pin is low at the end of the reset signal,
the CS8900A does not perform an EEPROM readout (uses its default configuration).
3.4.7.1 Determining EEPROM Size
The CS8900A determines the size of the EEPROM
by checking the sense of EEDI on the tenth rising
edge of EESK. If EEDI is low, the EEPROM is a
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 23
CS8900A
Crystal LAN™ ISA Ethernet Controller
’C46 or ’CS46. If EEDI is high, the EEPROM is a
’C56, ’CS56, ’C66, or ’CS66.
3.4.7.2 Loading Configuration Data
The CS8900A reads in the first word from the EEPROM to determine if configuration data is contained in the EEPROM. If configuration data is not
stored in the EEPROM, the CS8900A terminates
initialization from EEPROM and operates using its
default configuration (See Table 3). If configuration data is stored in EEPROM, the CS8900A automatically loads all configuration data stored in the
Reset Configuration Block into its internal PacketPage registers.
3.4.8 EEPROM Read-out Completion
Once all the configuration data are transferred to
the appropriate PacketPage registers, the CS8900A
performs a checksum calculation to verify the Reset Configuration Blocks data are valid. If the resulting total is 0, the read-out is considered valid.
Otherwise, the CS8900A initiates a partial reset to
restore the default configuration.
If the read-out is valid, the EEPROMOK bit (Register 16, SelfST, bit A) is set. EEPROMOK is
cleared if a checksum error is detected. In this case,
the CS8900A performs a partial reset and is re-
stored to its default. Once initia lization is c omplete
(configuration loaded from EEPROM or reset to
default configuration) the INITD bit is set (Register
16, SelfST, bit 7).
3.5 Programming the EEPROM
After initialization, the host can access the EEPROM through the CS8900A by writing one of
seven commands to the EEPROM Command register (PacketPage base + 0040h). Figure 5 shows the
format of the EEPROM Command register.
3.5.1 EEPROM Commands
The seven commands used to access the EEPROM
are: Read, Write, Erase, Erase/Write Enable,
Erase/Write Disable, Erase-All, and Write-All.
They are described in Table 7.
3.5.2 EEPROM Command Execution
During the execution of a command, the two Opcode bits, followed by the six bits of address (for a
’C46 or ’CS46) or eight bits of address (for a ’C56,
’CS56, ’C66 or ’CS66), are shifted out of the
CS8900A, into the EEPROM. If the command is a
Write, the data in the EEPROM Data register
(PacketPage base + 0042h) follows. If the command is a Read, the data in the specified EEPROM
AD7 - AD0 used with ’C56,
’CS56, ’C66 and ’CS66
FXEXDXCXB
Bit Name Description
[F:B] Reserved
[A] ELSEL External Logic Select: When clear, the EECS pin is used to select the EEPROM.
When set, the ELCS pin is used to select the external LA decode circuit.
[9:8] OP1, OP0 Opcode: Indicates what command is being executed (see next section).
[7:0] AD7 to AD0 EEPROM Address: Address of EEPROM word being accessed.
CIRRUS LOGIC PRODUCT DATA SHEET
24 DS271PP3
A98
X ELSEL OP1 OP0
Figure 5. EEPROM Command Register Format
AD7 AD6
5476
AD5 AD4
AD5 - AD0 used with
’C46 and ’CS46
1032
AD1 AD0AD3 AD2
CS8900A
Crystal LAN™ ISA Ethernet Controller
Command Opcode
(bits 9,8)
Read Register 1,0 word address yes all 25 µs
Write Register 0,1 word address yes all 10 ms
Erase Register 1.1 word address no all 10 ms
Erase/Write Enable 0,0 XX11-XXXX no ‘CS46, ‘C46 9 µs
Erase/Write Disable 0,0
0,0
Erase-All Registers 0,0
0,0
Write-All Register 0,0
0,0
location is written into the EEPROM Da ta register.
If the command is an Erase or Era se-All, no data is
transferred to or from the EEPROM Da ta register.
Before issuing any command, the host must wait
for the SIBUSY bit (Register 16, SelfST, bit 8) to
EEPROM Address
(bits 7 to 0)
11XX-XXXX no ‘CS56, ‘C56, ‘CS66, ‘C66 9 µs
XX00-XXXX no ‘CS46, ‘C46 9 µs
00XX-XXXX no ‘CS56, ‘C56, ‘CS66, ‘C66 9 µs
XX10-XXXX no ‘CS46, ‘C46 10 ms
10XX-XXXX no ‘CS56, ‘C56, ‘CS66, ‘C66 9 µs
XX01-XXXX yes ‘CS46, ‘C46 10 ms
01XX-XXXX yes ‘CS56, ‘C56, ‘CS66, ‘C66 10 ms
Table 7. EEPROM Commands
Data EEPROM Type Execution
During the Erase command, the CS8900A writes
FFh to the specified EEPROM location. During the
Erase-All command, the CS8900A writes FFh to
all locations.
3.6 Boot PROM Operation
clear. After each command has been issued, the
host must wait again for SIBUSY to clear.
The CS8900A supports an optional Boot PROM
used to store code for remote booting from a net-
3.5.3 Enabling Access to the EEPROM
The Erase/Write Enable command provides protec-
work server.
3.6.1 Accessing the Boot PROM
tion from accidental writes to the EEPROM. The
host must write an Erase/Write Enable command
before it attempts to write to or erase any EEPROM
memory location. Once the host has finished altering the contents of the EEPROM, it must write an
Erase/Write Disable command to prevent unwanted modification of the EEPROM.
To retrieve the data stored in the Boot PROM, the
host issues a Read command to the Boot PROM as
a Memory space access. The CS8900A decodes the
command and drives the CSOUT pin low, causing
the data stored in the Boot PROM to be shifted into
the bus transceiver. The bus transceiver then drives
the data out onto the ISA bus.
3.5.4 Writing and Erasing the EEPROM
3.6.2 Configuring the CS8900A for Boot PROM
To write data to the EEPROM, the host must exe-
Operation
cute the following series of commands:
Figure 6 shows how the CS8900A should be con-
1) Issue an Erase/Write Enable command.
2) Load the data into the EEPROM Data register.
3) Issue a Write command.
nected to the Boot PROM and ’245 driver. To configure the CS8900A’s internal registers for Boot
PROM operation, the Boot PROM Base Address
must be loaded into the Boot PROM Base Address
4) Issue an Erase/Write Disable command.
register (PacketPage base + 0030h) and the Boot
PROM Address Mask must be loaded into the
Time
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 25
CS8900A
OE
DIR
B1
.
.
.
B8
A1
.
.
.
A8
74LS245
SD(0:7)
ISA
BUS
SA(0:14)
27C256
CE
OE
20
22
19
CS8900A
CSOUT
(Pin 17)
Crystal LAN™ ISA Ethernet Controller
BootPROM Address Mask register (PacketPage
base + 0034h). The Boot PROM Base Address provides the starting location in host memory where
the Boot PROM is mapped. The Boot PROM Address Mask indicates the size of the attached Boot
PROM and is limited to 4-Kbyte increments. The
dicating that the EEPROM is no longer being read
or programmed. Time required for the reset calibration is typically 10 ms. Software drivers should not
access registers internal to CS8900A during this
time.
3.7.1 Hardware Standby
lower 12 bits of the Address Mask are ignored and
should be 000h.
Hardware (HW) Standby is designed for use in sys-
tems, such as portable PC’s, that may be temporarily disconnected from the 10BASE-T cable. It
allows the system to conserve power while the
LAN is not in use, and then automatically restore
Ethernet operation once the cable is reconnected.
In HW Standby mode, all analog and digital circuitry in the CS8900A is turned off, except for the
10BASE-T receiver which remains active to listen
for link activity. If link activity is detected, the
LANLED pin is driven low, providing an indication to the host that the network connection is ac-
Figure 6. Boot PROM Connection Diagram
tive. The host can then activate the CS8900A by
deasserting the SLEEP pin. During this mode, all
In the EEPROM example shown in Table 6, the
Boot PROM starting address is D0000h and the
Address Mask is FC000h. This configuration describes a 16-Kbyte (128 Kbit) PROM mapped into
host memory from D0000h to D3FFFh.
3.7 Low-Power Modes
For power-sensitive applications, the CS8900A
supports three low-power modes: Hardware Standby, Hardware Suspend, and Software Suspend. All
three low-power modes are controlled through the
SelfCTL register (Register 15). See also
Section 4.4.4 on page 49.
An internal reset occurs when the CS8900A comes
out of any suspend or standby mode. After a reset
(internal or external), the CS8900A goes through a
self configuration. This includes calibrating onchip analog circuitry, and reading EEPROM for validity and configuration. When the calibration is
done, bit InitD in Register 16 (Self Status register)
is set indicating that initialization is complete, and
the SIBUSY bit in the same register is cleared (in-
26 DS271PP3
CIRRUS LOGIC PRODUCT DATA SHEET
ISA bus accesses are ignored.
To enter HW Standby mode, the SLEEP pin must
be low and the HWSleepE bit (Register 15, Self-
CTL, Bit 9) and the HWStandbyE bit (Register 15,
SelfCTL, Bit A) must be set. When the CS8900A
enters HW Standby, all registers and circuits are reset except for the SelfCTL register. Upon exit from
HW Standby, the CS8900A performs a complete
reset, and then goes through normal initialization.
3.7.2 Hardware Suspend
During Hardware Suspend mode, the CS8900A
uses the least amount of current of the three lowpower modes. All internal circuits are turned off
and the CS8900A’s core is electronically isolated
from the rest of the system. Accesses from the ISA
bus and Ethernet activity are both ignored.
HW Suspend mode is entered by driving the
SLEEP pin low and setting the HWSleepE bit
(Register 15, SelfCTL, bit 9) while the HWStandbyE bit (Register 15, SelfCTL, bit A) is clear. To
CS8900A
Crystal LAN™ ISA Ethernet Controller
exit from this mode, the SLEEP pin must be driven
high. Upon exit, the CS8900A performs a complete
reset, and then goes through a normal initialization
procedure.
3.7.3 Software Suspend
To enter SW Suspend mode, the host must set the
SWSuspend bit (Register 15, SelfCTL, bit 8). To
exit SW Suspend, the host must write to the
CS8900A’s assigned I/O space (the Write is only
used to wake the CS8900A, the Write itself is ignored). Upon exit, the CS8900A performs a com-
Software (SW) Suspend mode can be used to conserve power in applications, like adapter cards, that
plete reset, and then goes through a normal
initialization procedure.
do not have power management circuitry available.
During this mode, all internal circuits are shut off
except the I/O Base Address register (PacketPa ge
base + 0020h) and the SelfCTL register (Register
15).
CS8900A Configuration CS8900A Operation
SLEEP
(Pin 77)
Low to
HWStandbyE
(SelfCTL, Bit A)
Low 1 1 N/A Not Present HW Standby mode: 10BASE-T
Low 1 1 N/A Present HW Standby mode: LANLED
Low 0 1 N/A N/A HW Suspend mode
N/A 1 0 N/A CS8900A resets and goes through
High
High N/A N/A 0 N/A Not in low-power mode
High N/A N/A N/A SW Suspend mode
Low N/A 0 1 N/A SW Suspend mode
Low N/A 0 0 N/A Not in low-power mode
HWSleepE
(SelfCTL, Bit 9)
SWSuspend
(SelfCTL, Bit 8) Link Activity
Any hardware reset takes the chip out of any sleep
mode.
Table 8 summarizes the operation of the three lowpower modes.
receiver listens for link activity
initialization
low
Notes: 1. Both HW and HW Suspend take precedence over SW Suspend.
Table 8. Low-Power Mode Operation
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 27
CS8900A
Crystal LAN™ ISA Ethernet Controller
3.8 LED Outputs
The CS8900A provides three output pins that can
be used to control LEDs or external logic.
3.8.0.1 LANLED
LANLED goes low whenever the CS8900A transmits or receives a frame, or when it detects a collision. LANLED remains low until there has b een no
activity for 6 ms (i.e. each transmission, reception,
or collision produces a pulse lasting a minimum of
6 ms).
3.8.0.2 LINKLED or HC0
LINKLED or HC0 can be controlled by either the
CS8900A or the host. When controlled by the
CS8900A, LINKLED is low whenever the
CS8900A receives valid 10BASE-T link pulses. To
configure this pin for CS8900A control, the HC0E
bit (Register 15, SelfCTL, Bit C) must be clear.
When controlled by the host, LINKLED is low
whenever the HCB0 bit (Register 15, SelfCTL, Bit
E) is set. To configure it for host control, the HC0E
bit must be set. Table 9 summarizes this operation.
host, BSTATUS is low whenever the HCB1 bit
(Register 15, SelfCTL, Bit F) is set. To configure it
for host control, HC1E must be set. Table 10 summarizes this operation.
HC1E
(Bit D)
HCB1
(Bit F)
0N/A
10
11
Table 10. BSTATUS
Pin configured as BST A TUS
low when a receive frame begins transfer across the ISA bus. Output is high
otherwise
Pin configured as HC1
Output is high
Pin configured as HC1
Output is low
Pin Function
: Output is
:
:
/HCI Pin Operation
3.8.1 LED Connection
Each LED output is capable of sinking 10 mA to
drive an LED directly through a series resistor. The
output voltage of each pin is less than 0.4 V when
the pin is low. Figure 7 shows a typical LED circuit.
+5V
HC0E
(Bit C)
HCB0
(Bit E)
0N/A
10
11
Table 9. LINKLED
Pin configured as LINKLED
low when valid 10BASE-T link pulses
are detected. Output is high if valid link
pulses are not detected
Pin configured as HC0
Output is high
Pin configured as HC0
Output is low
Pin Function
: Output is
:
:
/HC0 Pin Operation
3.8.0.3 BSTATUS or HC1
BSTATUS or HC1 can be controlled by either the
CS8900A or the host. When controlled by the
CS8900A, BSTATUS is low whenever the host
reads the RxEvent register (PacketPage base +
0124h), signaling the transfer of a receive frame
across the ISA bus. To configure this pin for
CS8900A control, the HC1E bit (Register 15, SelfCTL, Bit D) must be clear. When controlled by the
LANLED
LINKLED
Figure 7. LED Connection Diagram
3.9 Media Access Control
3.9.1 Overview
The CS8900A’s Ethernet Media Access Control
(MAC) engine is fully compliant with the IEEE
802.3 Ethernet standard (ISO/IEC 8802-3, 1993). It
handles all aspects of Ethernet frame transmission
and reception, including: collision detection, preamble generation and detection, and CRC genera-
CIRRUS LOGIC PRODUCT DATA SHEET
28 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
tion and test. Programmable MAC features include
automatic retransmission on collision, and padding
of transmitted frames.
Figure 8 shows how the MAC engine interfaces to
other CS8900A functions. On the host side, it inter-
faces to the CS8900A’s internal data/address/control bus. On the network side, it interfaces to the
internal Manchester encoder/decoder (ENDEC).
The primary functions of the MAC are: frame encapsulation and decapsulation; error detection and
handling; and, media access management.
LED
Logic
Encoder/
Decoder
&
PLL
10BASE-T
& AUI
CS8900A
Internal Bus
802.3
MAC
Engine
Figure 8. MAC Interface
3.9.2 Frame Encapsulation and Decapsulation
The CS8900A’s MAC engine automatically assembles transmit packets and disassembles receive
packets. It also determines if transmit and receive
frames are of legal minimum size.
3.9.2.1 Transmission
Once the proper number of bytes ha ve been transferred to the CS8900A’s memory (either 5, 381,
Packet
1 byteup to 7 bytes 6 bytes 6 bytes 2 bytes
1021 bytes, or full frame), and providing that access to the network is permitted, the MAC automatically transmits the 7-byte preamble (1010101b...),
followed by the Start-of-Frame Delimiter (SFD,
10101011b), and then the serialized frame data. It
then transmits the Frame Check Sequence (FCS).
The data after the SFD and before the FCS (Destination Address, Source Address, Length, and data
field) is supplied by the host. FCS generation by the
CS8900A may be disabled by setting the InhibitCRC bit (Register 9, TxCMD, bit C).
Figure 9 shows the Ethernet frame format.
3.9.2.2 Reception
The MAC receives the in coming pac k et as a se rial
stream of NRZ data from the Manchester encoder/decoder. It begins by checking for the SFD.
Once the SFD is detected, the MAC assumes all
subsequent bits are frame data. It reads the DA and
compares it to the criteria progra mmed into the address filter (see Section 5.3 on page 87 for a description of Address Filtering). If the DA passes the
address filter, the frame is loaded into the
CS8900A’s memory. If the BufferCRC bit (Register 3, RxCFG, bit B) is set, the received FCS is also
loaded into memory. Once the entire packet has
been received, the MAC validates the FCS. If an error is detected, the CRCerror bit (Register 4, RxEvent, Bit C) is set.
3.9.2.3 Enforcing Minimum Frame Size
The MAC provides minimum frame size enforce-
Frame
4 bytes
alternating 1s / 0s
preamble
Direction of Transmission
SFD = Start of Fram e Delimiter
DA = Destination Address
SA = Source Address
DS271PP3 29
SFD
CIRRUS LOGIC PRODUCT DATA SHEET
DA
Figure 9. Ethernet Frame Format
SA
Length Field
frame l ength
min 64 bytes
max 1518 b ytes
LLC = Logical Link Control
FCS = Frame Chec k S equence (also
called Cyclic Redundancy Check, or CRC)
LLC data Pad
FCS
CS8900A
Crystal LAN™ ISA Ethernet Controller
ment of both transmit and receive packets. When
the TxPadDis bit (Register 9, TxCMD, Bit D) is
clear, transmit frames will be padded with additional bits to ensure that the receiving station receives a
legal frame (64 bytes, including CRC). When TxPadDis is set, the CS8900A will not add pad bits
and will transmit frames less that 64 bytes. If a
frame is received that is less than 64 bytes (including CRC), the Runt bit (Register 4, RxEvent, Bit D)
will be set indicating the arrival of an ille gal frame.
3.9.3 Transmit Error Detection and Handling
The MAC engine monitors Ethernet activity and
reports and recovers from a number of error conditions. For transmission, the MAC reports the following errors in the TxEvent register (Register 8)
and BufEvent register (Register C):
3.9.3.1 Loss of Carrier
Whenever the CS8900A is transmitting on the AUI
port, it expects to see its own transmission "looped
back" to its receiver. If it is unable to monitor its
transmission after the end of the preamble, the
MAC reports a loss-of-carrier error by setting the
Loss-of-CRS bit (Register 8, TxEvent, Bit 6). If the
Loss-of-CRSiE bit (Register 7, TxCFG, Bit 6) is
set, the host will be interrupted.
3.9.3.2 SQE Error
After the end of transmission on the AUI port, the
MAC expects to see a collision within 64 bit times.
If no collision is detected, the SQEerror bit (Register 8, TxEvent, Bit 7) is set. If the S QEerroriE bit is
set (Register 7, TxCFG, Bit 7), the host is interrupted. An SQE error may indicate a fault on the AUI
cable or a faulty transceiver (it is assumed that the
attached transceiver supports this function).
3.9.3.3 Out-of-Window (Late) Collision
If a collision is detected after the first 512 bits have
been transmitted, the MAC reports a late collision
by setting the Out-of-window bit (Register 8, TxEvent, Bit 9). The MAC then forces a bad CRC and
terminates the transmission. If the Out-of-window-
iE bit (Register 7, TxCFG, Bit 9) is set, the host is
interrupted. A late collision may indicate an illegal
network configuration.
3.9.3.4 Jabber Error
If a transmission continues longer than about
26 ms, the MAC disables the transmitter and sets
the Jabber bit (Register 8, TxEvent, Bit A). The
output of the transmitter returns to idle and remains
there until the host issues a new Transmit Command. If the JabberiE bit (Register 7, TxCFG, Bit
A) is set, the host is interrupted. A Jabber condition
indicates that there may be something wrong with
the CS8900A transmit function. To prevent possible network faults, the host should clear the transmit buffer. Possible options include:
Reset the chip with either software or hardware reset (see Section 3.3 on page 19).
Issue a Force Transmit Command by setting the
Force bit (Register 9, TxCMD, bit 8).
Issue a Transmit Command with the TxLength
field set to zero.
3.9.3.5 Transmit Collision
The MAC counts the number of times an individual
packet must be retransmitted due to network collisions. The collision count is stored in bits B
through E of the TxEvent register (Register 8). If
the packet collides 16 times, transmission of that
packet is terminated and the 16coll bit (Register 8,
TxEvent, Bit F) is set. If the 16colliE bit (Register
7, TxCFG, Bit F) is set, the host will be interrupted
on the 16th collision. A running count of transmit
collisions is recorded in the TxCOL register.
3.9.3.6 Transmit Underrun
If the CS8900A starts transmission of a packet but
runs out of data before reaching the end of frame,
the TxUnderrun bit (Register C, BufEvent, Bit 9) is
set. The MAC then forces a bad CRC and terminates the transmission. If the TxUnderruniE bit
CIRRUS LOGIC PRODUCT DATA SHEET
30 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
(Register B, BufCFG, Bit 9) is set, the host is interrupted.
3.9.4 Receive Error Detection and Handling
The following receive errors are reported in the RxEvent register (Register 4):
3.9.4.1 CRC Error
If a frame is received with a bad CRC, the CRCerror bit (Register 4, RxEvent, Bit C) is set. If the
CRCerrorA bit (Register 5, RxCTL, Bit C) is set,
the frame will be buffered by CS8900A. If the
CRCerroriE bit (Register 3, RxCFG. Bit C) is set,
the host is interrupted.
3.9.4.2 Runt Frame
If a frame is received that is shorter tha n 64 bytes,
the Runt bit (Register 4, RxEvent, Bit D) is set. If
the RuntA bit (Register 5, RxCTL, Bit D) is set, the
frame will still be buffered by CS8900A. If the
RuntiE bit (Register 3, RxCFG. Bit D) is set, the
host is interrupted.
3.9.4.3 Extra Data
If a frame is received that is longer than 1518 bytes,
the Extradata bit (Register 4, RxEvent, Bit E) is set.
If the ExtradataA bit (Register 5, RxCTL, Bit E) is
set, the first 1518 bytes of the frame will still be
buffered by CS8900A. If the ExtradataiE bit (Register 3, RxCFG. Bit E) is set, the hos t is interrupted.
3.9.4.4 Dribble Bits and Alignment Error
Under normal operating conditions, the MAC may
detect up to 7 additional bits after the last full byte
of a receive packet. These bits, known as dribble
bits, are ignored. If dribble bits are detected, the
Dribblebit bit (Register 4, RxEvent, Bit 7) is set. If
both the Dribblebits bit and CRCerror bit
(Register 4, RxEvent, Bit C) are set at the same
time, an alignment error has occurred.
3.9.5 Media Access Management
The Ethernet network topology is a single shared
medium with several attached stations. The Ether-
net protocol is designed to allow each station equal
access to the network at any given time. Any node
can attempt to gain access to the network by first
completing a deferral process (described below) after the last network activity, a nd then transmitting a
packet that will be received by all other stations. If
two nodes transmit simultaneously, a collision occurs and the colliding packets are corrupted. Two
primary tasks of the MAC are to avoid network collisions, and then recover from them when they occur. In addition, when the CS8900A is using the
AUI, the MAC must support the SQE Test function
described in section 7.2.4.6 of the Ethernet standard.
3.9.5.1 Collision Avoidance
The MAC continually monitors network traffic by
checking for the presence of carrier activity (carrier
activity is indicated by the assertion of the internal
Carrier Sense signal generated by the ENDEC). If
carrier activity is detected, the network is assumed
busy and the MAC must wait until the current
packet is finished before attempting transmission.
The CS8900A supports two schemes for determining when to initiate transmission: Two-Part Deferral, and Simple Deferral. Selection of the deferral
scheme is determined by the 2-partDefDis bit
(Register 13, LineCTL, Bit D). If the 2-partDefDis
bit is clear, the MAC uses a two-part defer ral process defined in section 4.2.3.2.1 of the Ethernet
standard (ISO/IEC 8802-3, 1993). If the 2-partDefDis bit is se t, the MAC uses a simplified deferr al
scheme. Both schemes are described below:
3.9.5.2 Two-Part Deferral
In the two-part deferral process, the 9.6 µs Inter
Packet Gap (IPG) timer is started whenever the internal Carrier Sense signal is deasserted. If activity
is detected during the first 6.4 µs of the IPG timer,
the timer is reset and then resta rted once the a ctivity has stopped. If there is no activity during the first
6.4 µs of the IPG timer, the IPG timer is allowed to
time out (even if network activity is de tected during
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 31
CS8900A
Crystal LAN™ ISA Ethernet Controller
the final 3.2 µs). The MAC then begins transmission if a transmit packet is ready and if it is not in
Backoff (Backoff is described later in this section).
If no transmit packet is pending, the MAC continues to monitor the network. If activity is detected
before a transmit frame is ready, the MAC defers to
the transmitting station and resumes mon itoring the
network.
The two-part deferral scheme was developed to
prevent the possibility of the IPG being shortened
due to a temporary loss of carrier. Figure 10 diagrams the two-part deferral process.
3.9.5.3 Simple Deferral
In the simple deferral scheme, the IPG timer is
started whenever Carrier Sense is deasserted. Once
the IPG timer is finished (after 9.6 µs), if a transmit
frame is pending and if the MAC is not in Backoff,
transmission begins the 9.6 µs IPG). If no transmit
packet is pending, the MAC continues to monitor
the network. If activity is detected before a transmit
frame is ready, the MAC defers to the transmitting
station and resumes monitoring the network. Figure 11 diagrams the simple deferral process.
3.9.5.4 Collision Resolution
If a collision is detected while the CS8900A is
transmitting, the MAC responds in one of three
ways depending on whether it is a normal collision
(within the first 512 bits of transmission) or a late
collision (after the first 512 bits of transmission):
3.9.5.5 Normal Collisions
mit a packet a total of 16 times (the initial attempt
plus 15 retransmissions) due to normal collisions.
On the 16th collision, it sets the 16coll bit
(Register 8, TxEvent, Bit F) and discards the packet. If the Onecoll bit is set, the MAC discards the
packet without attempting any retransmission.
Start Monitoring
Network Activity
Yes
Network
Active?
No
Start IPG
Timer
IPG
Timer =
6.4
µ
No
Network
Active?
Yes
s?
No
Wait
3.2
Yes
µ
s
If a collision is detected before the end of the preamble and SFD, the MAC finishes the preamble
and SFD, transmits the jam sequence (32-bit pattern of all 0’s), and then initiates Backoff. If a collision is detected after the transmission of the
Tx
Frame
and
Ready
in Backoff?
No
Not
No
Network
Active?
Yes
preamble and SFD but before 512 bit times, the
MAC immediately terminates transmission, transmits the jam sequence, and then initiates Backoff.
Yes
Transmit
Frame
In either case, if the Onecoll bit (Register 9, TxCMD, Bit 9) is clear, the MAC will attempt to trans-
CIRRUS LOGIC PRODUCT DATA SHEET
32 DS271PP3
Figure 10. Two-Part Deferral
CS8900A
Crystal LAN™ ISA Ethernet Controller
3.9.5.6 Late Collisions
If a collision is detected after the first 512 bits have
been transmitted, the M AC immediately terminate s
transmission, transmits the jam sequence, discards
the packet, and sets the Out-of-window bit (Register 8, TxEvent, Bit 9). The CS8900A does not initiate backoff or attempt to retransmit the frame. For
additional information about Late Collisions, see
Out-of-Window Error in this section.
3.9.5.7 Backoff
After the MAC has completed transmitting the jam
sequence, it must wait, or "Back off", before attempting to transmit again. The amount of time it
must wait is determined by one of two Backoff al-
Start Monitoring
Network Activity
gorithms: the Standard Backoff algorithm
(ISO/IEC 4.2.3.2.5) or the Modified Backoff algorithm. The host selects which algorithm through
the ModBackoffE bit (Register 13, LineCTL,
Bit B).
3.9.5.8 Standard Backoff
The Standard Backoff algorithm, also called the
"Truncated Binary Exponential Backoff", is described by the equation:
0 ≤ r ≤ 2
k
where r (a random integer) is the number of slot
times the MAC must wait (1 slot time = 512 bit
times), and k is the smaller of n or 10, where n is the
number of retransmission attempts.
3.9.5.9 Modified Backoff
The Modified Backoff is described by the equation:
0 ≤ r ≤ 2
k
Frame
Ready
in Back
Yes
Yes
T
x
and
off?
Figure 11. Simple Deferral
Not
Network
Active?
No
Wait
9.6
µ
No
s
No
Network
Active?
Transmit
Frame
Yes
where r (a random integer) is the number of slot
times the MAC must wait, and k is 3 for n < 3 and
k is the smaller of n or 10 for n ≥ 3, where n is the
number of retransmission attempts.
The advantage of the Modified Backoff algorithm
over the Standard Backoff algorithm is that it reduces the possibility of multiple collisions on the
first three retries. The disadvantage is that it extends the maximum time needed to gain access to
the network for the first three retries.
The host may choose to disable the Backoff algorithm altogether by setting the DisableBackoff bit
(Register 19, TestCTL, Bit B). When disabled, the
CS8900A only waits the 9.6 µs IPG time before
starting transmission.
3.9.5.10 SQE Test
If the CS8900A is transmitting on the AUI, the external transceiver should generate an SQE Test signal on the CI+/CI- pair following each
transmission. The SQE Test is a 10 MHz signal
lasting 5 to 15 bit times and starting within 0.6 to
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 33
CS8900A
Crystal LAN™ ISA Ethernet Controller
1.6 µs after the end of transmission. During this period, the CS8900A ignores receive carrier ac tivity
(see SQE Error in this section for more information).
3.10 Encoder/Decoder (ENDEC)
The CS8900A’s integrated encoder/decoder (ENDEC) circuit is compliant with the relevant portions of section 7 of the Ethernet standard (ISO/IEC
8802-3, 1993). Its primary functions include:
Manchester encoding of transmit data; informing
the MAC when valid receive data is present (Carrier Detection); and, recovering the clock and NRZ
data from incoming Manchester-encoded data.
Figure 12 provides a block diagram of the ENDEC
and how it interfaces to the MAC, AUI and
10BASE-T transceiver.
3.10.1 Encoder
The encoder converts NRZ data from the MAC and
a 20 MHz Transmit Clock signal into a serial
stream of Manchester data. The Transmit Clock is
produced by an on-chip oscillator circuit that is
driven by either an external 20 MHz quartz crystal
or a TTL-level CMOS clock input. If a CMOS input is used, the clock should be 20 MHz ±0.01%
with a duty cycle between 40% and 60%. The specifications for the crystal are described in
Section 7.7 on page 121. The encoded signal is
routed to either the 10BASE-T transceiver or AUI,
depending on configuration.
3.10.2 Carrier Detection
The internal Carrier Detection circuit informs the
MAC that valid receive data is present by asserting
the internal Carrier Sense signal as soon it detects a
valid bit pattern (1010b or 0101b for 10BASE-T,
and 1b or 0b for AUI). During normal packet reception, Carrier Sense remains asserted while the
frame is being received, and is deasserted 1.3 to 2.3
bit times after the last low-to-high transition of the
End-of-Frame (EOF) sequence. Whenever the receiver is idle (no receive activity), Carrier Sense is
deasserted. The CRS bit (Register 14, LineST,
Bit E) reports the state of the Carrier Sense signal.
3.10.3 Clock and Data Recovery
When the receiver is idle, the phase-lock loop
(PLL) is locked to the internal cl ock signal. The assertion of the Carrier Sense signal interrupts the
PLL. When it restarts, it locks on the incoming data. The receive clock is then compared to the incoming data at the bit cell center and any phase
difference is corrected. The PLL remains locked as
long as the receiver input signal is valid. Once the
PLL has locked on the incoming data, the ENDEC
converts the Manchester data to NRZ and passes
the decoded data and the recovered clock to the
MAC for further processing.
ENDEC
Carrier Sense
RX CLK
MAC
34 DS271PP3
RX NRZ
TXCLK
TX NRZ
TEN
Port Select
Collision
CIRRUS LOGIC PRODUCT DATA SHEET
Carrier
Detector
Decoder
& PLL
Encoder
Clock
Figure 12. ENDEC
RX
MUX
TX
MUX
RXSQL
RX
TX
AUISQL
AUIRX
AUITX
AUICol
10BASE-T
Transceiver
AUI
CS8900A
+
Crystal LAN™ ISA Ethernet Controller
LinkOK
(to MAC)
Link Pulse
Detector
RXSQL
RX
ENDEC
TX
3.10.4 Interface Selection
Physical interface selection is determined by AUIonly bit (Bit 8) and the AutoAUI/10BT (Bit 9) in
the LineCTL register (Register 13). Table 11 describes the possible configurations.
AUIonly
(Bit 8)
0010BASE-T Only
1 N/A AUI Only
01Auto-Select
AutoAUI/10BT
(Bit 9)
Table 11. Interface Selection
3.10.4.1 10BASE-T Only
When configured for 10BASE-T only operation,
the 10BASE-T transceiver and its interface to the
ENDEC are active, and the AUI is powered down.
TX Pre-
Distortion
Figure 13. 10BASE-T Transceiver
Physical
Interface
10BA S E-T T r ansceiver
RX Squelch
RX
Comparator
TX Filters
Filter Tuning
RX Filters
TX Drive rs
the AUI. Whenever the AUI is selected, the
10BASE-T receiver remains active to listen for link
pulses or packets. If 10BASE-T activity is detected, the CS8900A switches back to 10BASE-T.
3.11 10BASE-T Transceiver
The CS8900A includes an integrated 10BASE-T
transceiver that is compliant with the relevant portions of section 14 of the Ethernet standard
(ISO/IEC 8802-3, 1993). It includes all analog and
digital circuitry needed to interface the CS8900A
directly to a simple isolation transformer (see
Section 7.5 on page 120 for a connection diagram).
Figure 13 provides a block diagram of the
10BASE-T transceiver.
3.11.1 10BASE-T Filters
RXDRXD
TXDTXD+
3.10.4.2 AUI Only
When configured for AUI-only operation, the AUI
and its interface to the ENDEC are active, and the
10BASE-T transceiver is powered down.
The CS8900A’s 10BASE-T transceiver includes
integrated low-pass transmit and receive filters,
eliminating the need for external filters or a filter/transformer hybrid. On-chip filters are gm/c implementations of fifth-order Butterworth low-pass
3.10.4.3 Auto-Select
In Auto-Select mode, the CS8900A automatically
selects the 10BASE-T interface and powers down
the AUI if valid packets or link pulses are detected
by the 10BASE-T receiver. If valid packets and
link pulses are not detected, the CS8900A selects
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 35
filters. Internal tuning circuits keep the gm/c ratio
tightly controlled, even when large temperature,
supply, and IC process variations occur. The nominal 3 dB cutoff frequency of the filters is 16 MHz,
and the nominal attenuation at 30 MHz (3rd harmonic) is -27 dB.
CS8900A
Crystal LAN™ ISA Ethernet Controller
3.11.2 Transmitter
When configured for 10BASE-T operation,
Manchester encoded data from the ENDEC is fed
into the transmitter’s predistortion circuit where
initial wave shaping and preequalization is performed. The output of the predistortion circuit is
fed into the transmit filter where final wave shaping
occurs and unwanted noise is removed. The signal
then passes to the different ial dr iver wher e it is amplified and driven out of the TXD+/TXD- pins.
In the absence of transmit packets, the transmitter
generates link pulses in accordance with section
14.2.1.1. of the Ethernet standard. Transmitted link
pulses are positive pulses, one bit time wide, typically generated at a rate of one every 16 ms. The
16 ms timer starts whenever the transmitter completes an End-of-Frame (EOF) sequence. Thus,
there is a link pulse 16 ms after an EOF unless there
is another transmitted packet. Figure 14 diagrams
the operation of the Link Pulse Generator.
If no link pulses are being received on the receiver,
the 10BASE-T transmitter is internally forced to an
inactive state unless bit DisableLT in register 19
(Test Control register) is set to one.
3.11.3 Receiver
The 10BASE-T receive section consists of the receive filter, squelch circuit, polarity detection and
correction circuit, and link pulse detector.
3.11.3.1 Squelch Circuit
The 10BASE-T squelch circuit determines when
valid data is present on the RXD+/RXD- pair. Incoming signals passing through the receive filter
are tested by the squelch circuit. Any signal with
amplitude less than the squelch threshold (either
positive or negative, depending on polarity) is rejected.
3.11.3.2 Extended Range
The CS8900A supports an Extended Range feature
that reduces the 10BASE-T receive squelch threshold by approximately 6 dB. This allows the
CS8900A to operate with 10BASE-T cables that
are longer than 100 meters (100 meters is the maximum length specified by the Ethernet standard).
The exact additional distance depends on the quality of the cable and the amount of electromagnetic
noise in the surrounding environment. To activate
this feature, the host must set the LoRxSquelch bit
(Register 13, LineCTL, Bit E).
3.11.4 Link Pulse Detection
To prevent disruption of network operation due to
a faulty link segment, the CS8900A continually
monitors the 10BASE-T receive pair (RXD+/
RXD-) for packets and link pulses. After each
packet or link pulse is received, an internal LinkLoss timer is started. As long as a packet or link
pulse is received before the Link-Loss timer finishes (between 25 and 150 ms), the CS8900A maintains normal operation. If no receive activity is
detected, the CS8900A disables packet transmission to prevent "blind" transmissions onto the network (link pulses are still sent while packet
transmission is disabled). To reactivate transmission, the receiver must detect a single packet (the
packet itself is ignored), or two link pulses separat-
Time Link
Pulse
Link
Pulse
Packet Packet
Less Than
16ms
Figure 14. Link Pulse Transmission
CIRRUS LOGIC PRODUCT DATA SHEET
36 DS271PP3
16ms16ms
CS8900A
Crystal LAN™ ISA Ethernet Controller
ed by more than 2 to 7 ms and no more than 25 to
150 ms (see Section 7.4 on page 113 for 10BASET timing).
The state of the link segment is reported in the
LinkOK bit (Register 14, LineST, Bit 7). If the
HC0E bit (Register 15, SelfCTL, Bit D) is clear, it
is also indicated by the output of the LINKLED
pin. If the link is "good", the LinkOK bit is set and
the LINKLED pin is driven low. If the link is "bad"
the LinkOK bit is clear and the LINKLED pin is
high. To disable this feature, the host must set the
DisableLT bit (Register 19, TestCTL, Bit 7). If
DisableLT is set, the CS8900A will transmit and
receive packets independent of the link segment.
3.11.5 Receive Polarity Detection and Correction
The CS8900A automatically checks the polarity of
the receive half of the twisted pair cable. If the polarity is correct, the PolarityOK bit (Register 14,
LineST, bit C) is set. If the polarity is reversed, the
PolarityOK bit is clear. If the PolarityDis bit (Register 13, LineCTL, Bit C) is clear, the CS8900A automatically corrects a reversal. If the PolarityDis
bit is set, the CS8900A does not correct a reversal.
The PolarityOK bit and the PolarityDis bit are independent.
To detect a reversed pair, the receiver examines received link pulses and the End-of-Frame (EOF) sequence of incoming packets. If it detects at least
one reversed link pulse and at least four frames in a
row with negative polarity after the EOF, the receive pair is considered reversed. Any data received before the correction of the reversal is
ignored.
3.11.6 Collision Detection
If half-duplex operation is selected (Register 19,
Bit E, FDX), the CS8900A detects a 10BASE-T
collision whenever the receiver and transmitter are
active simultaneously. When a collision is present,
the Collision Detection circuit informs the MAC by
asserting the internal Collision signal (see
Section 3.9 on page 28 for collision handling).
3.12 Attachment Unit Interface (AUI)
The CS8900A Attachment Unit Interface (AUI)
provides a direct interface to external 10BASE2,
10BASE5, and 10BASE-FL Ethernet transceivers.
It is fully compliant with Section 7 of the Ethernet
standard (ISO/IEC 8802-3), and as such, is capable
of driving a full 50-meter AUI cable.
The AUI consists of three pairs of signals: Data Out
(DO+/DO-), Data In (DI+/DI-), and Collision In
(CI+/CI-). To select the AUI, the host should set
the AUI bit (Register 13, LineCTL, Bit 8). The AUI
can also be selected automatically as described in
the previous section (Section 3.10.4 on page 35).
Figure 15 provides a block diagram of the AUI.
(For a connection diagram, see Section 7.6 on
page 121).
AUI
CL+
CL-
DI+
DI-
DO+
DO-
-
+
-
+
Collision
Detect
Figure 15. AUI
AUICol (to MA C)
AUIRX
AUISQL
AUITX
ENDEC
3.12.1 AUI Transmitter
The AUI transmitter is a differential driver designed to drive a 78 Ω cable. It accepts data from
the ENDEC and transmits it directly on the
DO+/DO- pins. After transmission has started, the
CS8900A expects to see the packet "looped-back"
(or echoed) to the receiver, causing the Carrier
Sense signal to be asserted. This Carrier Sense
presence indicates that the transmit si gnal is getting
through to the transceiver. If the Carrier Sense signal remains deasserted throughout the transmis-
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 37
CS8900A
Crystal LAN™ ISA Ethernet Controller
sion, or if the Carrier Sense signal is deasserted
before the end of the transmission, there is a Lossof-Carrier error and the Loss-of-CRS bit ( Register
8, TxEvent, Bit 6) is set.
3.12.2 AUI Receiver
The AUI receiver is a differential pair circuit t hat
connects directly to the DI+/DI- pins. It is designed
to distinguish between transient noise pulses and
incoming Ethernet packets. Incoming packets with
proper amplitude and pulse width are passed on to
the ENDEC section, while unwanted noise is rejected.
3.12.3 Collision Detection
The AUI collision circuit is a differential pair receiver that detects the presence of collision signals
on the CI+/CI- pins. The collision sig nal is generat-
ed by an external Ethernet transceiver whenever a
collision is detected on the Ethernet segme nt. (Section 7.3.1.2 of ISO/IEC 8802-3, 1993, defines the
collision signal as a 10 MHz ± 15% signal with a
duty cycle no worse than 60/40). When a collision
is present, the AUI Collision circuit informs the
MAC by asserting the internal Collision signal.
3.13 External Clock Oscillator
A 20-MHz quartz crystal or CMOS clock input is
required by the CS8900A. If a CMOS clock input
is used, it should be connected the to XTAL1 pin,
with the XTAL2 pin left open. The clock signal
should be 20 MHz ±0.01% with a duty cycle between 40% and 60%. The specifications for the
crystal are described in Section 7.7 on page 121.
CIRRUS LOGIC PRODUCT DATA SHEET
38 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.0 PACKETPAGE ARCHITECTURE
4.1 PacketPage Overview
The CS8900A architecture is based on a unique,
highly-efficient method of accessing internal registers and buffer memory known as PacketPage.
PacketPage provides a unified way of controlling
the CS8900A in Memory or I/O space that minimizes CPU overhead and simplifies software. It
provides a flexible set of performance features and
configuration options, allowing designers to develop Ethernet circuits that meet their particular system requirements.
4.1.1 Integrated Memory
Central to the CS8900A architecture is a 4-Kbyte
page of integrated RAM known as PacketPage
memory. PacketPage memory is used for temporary storage of transmit and receive frames, and for
internal registers. Access to this memory is done
directly, through Memory space operations
(Section 4.9 on page 74), or indirectly, through I/O
space operations (Section 4.10 on page 76). In
most cases, Memory Mode will provide the best
overall performance, because ISA Memory operations require fewer cycles than I/O operations. I/O
Mode is the CS8900A’s default configuration and
is used when memory space is not available or
when special operations are required (e.g. waking
the CS8900A from the Software Suspend State requires the host to write to the CS8900A’s assigned
I/O space).
4.1.2 Bus Interface Registers
The Bus Interface registers are used to configure
the CS8900A’s ISA-bus interface and to map the
CS8900A into the host system’s I/O and Memory
space. Most of these registers are written only during initialization, remaining unchanged while the
CS8900A is in normal operating mode. The exceptions to this are the DMA registers which are modified continually whenever the CS8900A is using
DMA. These registers are described in more detail
in Section 4.3 on page 42.
4.1.3 Status and Control Registers
The Status and Control registers are the primary
means of controlling and getting status of the
CS8900A. They are described in more detail in
Section 4.4 on page 47.
4.1.4 Initiate Transmit Registers
The TxCMD/TxLength registers are used to initiate
Ethernet frame transmission. These registers are
described in more detail in Section 4.5 on page 71.
(See Section 5.7 on page 99 for a description of
frame transmission.)
4.1.5 Address Filter Registers
The Filter registers store the Individual Address filter and Logical Address filter used by the Destination Address (DA) filter. These registers are
described in more detail in Section 4.6 on page 72.
For a description of the DA filter, see Section 5.3
on page 87.
The user-accessible portion of PacketPage memory
is organized into the following six sections:
PacketPage
Address
0000h - 0045h Bus Interface Registers
0100h - 013Fh Status and Control Registers
0140h - 014Fh Initiate Transmit Registers
0150h - 015Dh Address Filter Registers
0400h Receive Frame Location
0A00h Transmit Frame Location
Contents
4.1.6 Receive and Transmit Frame Locations
The Receive and Transmit Frame PacketPage locations are used to transfer Ethernet frames to and
from the host. The host simply writes to and reads
from these locations and internal buffer memory is
dynamically allocated between transmit and receive as needed. This provides more efficient use
of buffer memory and better overall network performance. As a result of this dynamic allocation,
only one receive frame (starting at PacketPage base
+ 0400h) and one transmit frame (starting at Pack-
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 39
CS8900A
Crystal LAN™ ISA Ethernet Controller
etPage base + 0A00h) are directly accessible. See
Section 4.7 on page 73.
4.2 PacketPage Memory Map
Table 12 shows the CS8900A PacketPage memory
address map: s
PacketPage
Address
Bus Interface Registers
0000h 4 Read-only Product Identification Code Section 4.3 on page 42
0004h 28 - Reserve d Note 2
0020h 2 Read/Write I/O Base Address Section 4.3 on page 42,
0022h 2 Read/Write Interrupt Number (0,1,2,or 3) Section 3.2 on page 18,
0024h 2 Read/Write DMA Channel Number (0, 1, or 2) Section 3.2 on page 18,
0026h 2 Read-only DMA Start of Frame Section 4.3 on page 42,
0028h 2 Read-only DMA Frame Count (12 Bits) Sections Section 4.3 on page 42,
002Ah 2 Read-only RxDMA Byte Count Section 4.3 on page 42,
002Ch 4 Read/Write Memory Base Address Register
0030h 4 Read/Write Boot PROM Base Address Section 3.6 on page 25,
0034h 4 Read/Write Boot PROM Address Mask Section 3.6 on page 25,
0038h 8 - Reserved Note 2
0040h 2 Read/Write EEPROM Command Section 3.5 on page 24,
0042h 2 Read/Write EEPROM Data Section 3.5 on page 24,
0044h 12 - Reserve d Note 2
0050h 2 Read only Received Frame Byte Counter Section 4.3 on page 42,
0052h 174 - Reserved Note 2
Status and Control Registers
0100h 32 Read/Write Configuration & Control Registers
0120h 32 Read-only Status & Event Registers
0140h 4 - Reserved Note 2
Initiate Transmit Registers
Notes: 1. All registers are accessed as words only.
2. Read operation from the reserved location provides undefined data. Writing to a reserved location or
# of
Bytes
undefined bits may result in unpredictable operation of the CS8900A.
Type Description Cross Reference
Section 4.7 on page 73
Section 4.3 on page 42
Section 4.3 on page 42
Section 5.4 on page 90
”Receive DMA”
Section 5.4 on page 90
Section 4.3 on page 42,
(20 Bit)
(2 bytes per regiseter)
(2 bytes per register)
Table 12. PacketPage Memory Address Map
Section 4.9 on page 74
Section 4.3 on page 42
Section 4.3 on page 42
Section 4.3 on page 42
Section 4.3 on page 42
Section 5.2.9 on page 87
Section 4.4 on page 47
Section 4.4 on page 47
CIRRUS LOGIC PRODUCT DATA SHEET
40 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
PacketPage
Address
0144h 2 Write-only TxCMD (transmit command) Section 4.5 on page 71,
0146h 2 Write-only TxLength (transmit length) Section 4.5 on page 71,
0148h 8 - Reserved Note 2
# of
Bytes
Type Description Cross Reference
Section 5.7 on page 99
Section 5.7 on page 99
Address Filter Registers
0150h 8 Read/Write Logical Address Filter (hash table) Section 4.6 on page 72,
Section 5.3 on page 87
0158h 6 Read/Write Individual Address Section 4.6 on page 72,
Section 5.3 on page 87
015Eh 674 - Reserved Note 2
Frame Location
0400h 2 Read-only RXStatus (receive status) Section 4.7 on page 73,
Section 5.2 on page 79
0402h 2 Read-only RxLength (receive length, in bytes) Section 4.7 on page 73,
Section 5.2 on page 79
0404h - Read-only Receive Frame Location Section 4.7 on page 73,
Section 5.2 on page 79
0A00 - Write-only Transmit Frame Location Section 4.7 on page 73,
Section 5.7 on page 99
Notes: 1. All registers are accessed as words only.
2. Read operation from the reserved location provides undefined data. Writing to a reserved location or
undefined bits may result in unpredictable operation of the CS8900A.
Table 12. PacketPage Memory Address Map
(continued)
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 41
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.3 Bus Interface Registers
4.3.1 Product Identification Code
(Read only, Address: PacketPage base + 0000h)
Address 0000h Adress 0001h Address 0002h Address 00003h
First byte of EISA registration
number for
Crystal Semiconductor
The Product Identification Code Register is located in the first four bytes of the PacketPage (0000h to 0003h). The
register contains a unique 32-bit product ID code that identifies the chip as a CS8900A. The host can use this number to determine which software driver to load and to check which features are available.
Reset value is: 0000 1110 0110 0011 0000 0000 000X XXXX
The X XXXX codes for the CS8900A are:
Rev B: 0 0111
4.3.2 I/O Base Address
(Read/Write, Address: PacketPage base + 0020h)
Second byte of EISA
registration number for Crys-
tal Semiconductor
First 8 bits of
Product ID number
Last 3 bits of the Product ID
number (5 “X” bits are the revi-
sion number)
Address 0021h Address 0020h
Most significant byte of I/O Base Address Least significant byte of I/O Base Address
The I/O Base Address Register describes the base address for the sixteen contiguous locations in the host system’s
I/O space, which are used to access the PacketPage registers. See Section 4.10 on page 76. The default location
is 0300h.
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state. If an EEPROM
is found, then the register’s initial value may be set by the EEPROM. See Section 3.3 on page 19.
Reset value is: 0000 0011 0000 0000
CIRRUS LOGIC PRODUCT DATA SHEET
42 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.3.3 Interrupt Number
(Read/Write, Address: PacketPage base + 0022h)
Address 0023h Address 0022h
Interrupt number assignment:
0000 0000b= pin INTRQ0
00h
0000 01XXb= All INTRQ pins high-impedence
The Interrupt Number Register defines the interrupt pin selected by the CS8900A. In a typical application the following bus signals are tied to the following pins:
Bus signal Typical pin connection
IRQ5 INTRQ3
IRQ10 INTRQ0
IRQ11 INTRQ1
IRQ12 INTRQ2
See Section 3.2 on page 18.
0000 0001b= pin INTRQ1
0000 0010b= pin INTRQ2
0000 0011b= pin INTRQ3
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state, which corresponds to placing all the INTRQ pins in a high-impedance state. If an EEPROM is found, then the register’s initial
value may be set by the EEPROM. See Section 3.3 on page 19.
Reset value is: XXXX XXXX XXXX X100
4.3.4 DMA Channel Number
(Read/Write, Address: PacketPage base + 0024h)
Address 0025h Address 0024h
DMA channel assignment:
0000 0000b= pin DMRQ0 and DMACK0
00h
The DMA Channel register defines the DMA pins selected by the CS8900A. In the typical application, the following
bus signals are tied to the following pins:
Bus signal Typical pin connection
DRQ5
DACK5
DRQ6
DACK6
DRQ7
DACK7
DMRQ0
DMACK0
DMRQ1
DMACK1
DMRQ2
DMACK2
0000 0001b= pin DMRQ1 and DMACK1
0000 0010b= pin DMRQ2 and DMACK2
0000 0011b= All DMRQ pins high-impedence
See Section 3.2 on page 18 and Section 5.4 on page 90.
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state which corre-
sponds to setting all DMRQ pins to high-impedance. If a EEPROM is found, then the register’s initial value may be
set by the EEPROM. See Section 3.3 on page 19.
Reset value is: XXXX XXXX XXXX XX11
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 43
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.3.5 DMA Start of Frame
(Read only, Address: PacketPage base + 0026h)
Address 0027h Address 0026h
Most significant byte of offset value Least significant byte of offset value
The DMA Start of Frame Register contains a 16-bit value which defines the offset from the DMA base address to
the start of the most recently transferred received frame. See Section 5.4 on page 90.
Reset value is: 0000 0000 0000 0000
4.3.6 DMA Frame Count
(Read only, Address: PacketPage base + 0028h)
Address 0029h Address 0028h
Most significant byte of frame count
(most-significnant nibble always 0h)
The lower 12 bits of the DMA Frame Count register define the number of valid frames transferred via DMA since the
last readout of this register. The upper 4 bits are reserved. See Section 5.4 on page 90.
Reset value is: XXXX 0000 0000 0000
Least significant byte of frame count
4.3.7 RxDMA Byte Count
(Read only, Address: PacketPage base + 002Ah)
Address 002Bh Address 002Ah
Most significant byte of byte count Least significant byte of byte count
The RxDMA Byte Count register describes the valid number of bytes DMAed since the last readout. See Section 5.4
on page 90.
Reset value is: 0000 0000 0000 0000
4.3.8 Memory Base Address
(Read/Write, Address: PacketPage base + 002Ch)
Address 002Fh Address 002Eh Address 002Dh Address 002Ch
The most significan t ni bbl e of
Reserved
memory base address. The
high-order nibble is reserved.
Memory Base Address: The lower three bytes (002Ch, 002Dh, and 002Eh) are used for the 20-bit memory base
address. The upper three nibbles are reserved.
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state. If an EEPROM
is found, then the register’s initial value may be set by the EEPROM. See Section 3.3 on page 19.
Reset value is: XXXX XXXX XXXX 0000 0000 0000 0000 0000
Contains portion of memory
base address.
The least significant byte of
the memory base address.
CIRRUS LOGIC PRODUCT DATA SHEET
44 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.3.9 Boot PROM Base Address
(Read/Write, Address: PacketPage base + 0030h)
Address 0033h Address 0032h Address 0031h Address 0030h
The most significan t ni bbl e of
Reserved
Boot PROM base address.
The high-order nibble is
reserved.
Contains portion of Boot PROM
base address.
The lower three bytes (0030h, 0031h, and 0032h) of the Boot PROM Base Address register are used for the 20-bit
Boot PROM base address. The upper three nibbles are reserved. See Section 3.6 on page 25.
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state. If an EEPROM
is found, then the register’s initial value may be set by the EEPROM. See Section 3.3 on page 19.
Reset value is: XXXX XXXX XXXX 0000 0000 0000 0000 0000
4.3.10 Boot PROM Address Mask
(Read/Write, Address: PacketPage base + 0034h)
Address 0037h Address 0036h Address 0035h Address 0034h
Reserved
The most significan t ni bbl e of
Boot PROM mask address.
The high-order nibble is
reserved.
Contains portion of Boot PROM
mask address. The lower-orde r
nibble must be written as 0h.
The least significant byte of
the Boot PROM base
address.
The least significant byte of
the Boot PROM mask
address. Must be written as
00h.
The Boot PROM address mask register indicates the size of the attached Boot PROM and is limited to 4K bit increments. The lower 12 bits of the Address Mask are ignored, and should be 000h. The next lowest-order bits describe
the size of the PROM. The upper three nibbles are reserved.
For example:
Size of Boot PROM Register value
4k bits XXXX XXXX XXXX 1111 1111 0000 0000 0000
8k bits XXXX XXXX XXXX 1111 1110 0000 0000 0000
16k bits XXXX XXXX XXXX 1111 1100 0000 0000 0000
See Section 3.6 on page 25.
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state. If an EEPROM
is found, then the register’s initial value may be set by the EEPROM. See Section 3.3 on page 19.
Reset value is: XXXX XXXX XXXX 0000 0000 0000 0000 0000
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 45
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.3.11 EEPROM Command
(Read/Write, Address: PacketPage base + 0040h)
76543210
ADD7 to ADD0
FEDCBA98
Reserved ELSEL OB1 OB0
This register is used to control the reading, writing and erasing of the EEPROM. See Section 3.5.
ADD7-ADD0 Address of the EEPROM word being accessed.
OB1,OB0 Indicates the Opcode of the command being executed. See Table 7.
ELSEL External logi c sele ct: Wh en cl ear, t he EE CS pin is us ed to se lec t the E EPRO M. When set, t he
pin is used to select the external LA decode circuit.
ELCS
Reserved Reserved and must be written as 0.
Reset value is : XXXX XXXX XXXX XXXX
4.3.12 EEPROM Data
(Read/Write, Address: PacketPage base + 0042h)
Address 0043h Address 0042h
Most significant byte of the EEPROM data. Least significant byte of the EEPROM data.
This register contains the word being written to, or read from, the EEPROM. See Section 3.5 on page 24.
Reset value is: XXXX XXXX XXXX XXXX
4.3.13 Receive Frame Byte Counter
(Read only, Address: PacketPage base + 0050h)
Address 0051h Address 0050h
Most significant byte of the byte count. Least significant byte of the byte count.
This register contains the count of the total number bytes received in the the current received frame. This count continuously increments as more bytes in this frame are received. See Section 5.2.9 on page 87.
Reset value is: XXXX XXXX XXXX XXXX
CIRRUS LOGIC PRODUCT DATA SHEET
46 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4 Status and Control Registers
The Status and Control registers are the primary
registers used to control and check the status of the
CS8900A. They are organized into two groups:
Configuration/Control Registers and Status/Event
Registers. All Status and Control Registers are 16bit words as shown in Figure 16. Bit 0 indicates
whether it is a Configuration/Control Register
(Bit 0 = 1) or a Status/Event Register (Bit 0 = 0).
Bits 0 through 5 provide an internal address code
that describes the exact function of the register.
Bits 6 through F are the actual Configuration/Control and Status/Event bits.
4.4.1 Configuration and Control Registers
Configuration and Control registers are used to setup the following:
• how frames will be transmitted and received;
• which frames will be transmitted and received;
• which events will cause interrupts to the host
processor; and,
• how the Ethernet physical interface will be
configured.
These registers are read/write and are designated
by odd numbers (e.g. Register 1, Register 3, etc.).
The Transmit Command Register (TxCMD) is a
special type of register. It appears in two separate
locations in the PacketPage memory map. The first
location, PacketPage base + 0108h, is within the
block of Configuration/Control Registers and is
16-bit Register Word
read-only. The second location, PacketPage base +
0144h, is where the actual transmit commands are
issued and is write-only. See Section 4.4.4 on
page 49 (Register 9) and Section 5.7 on page 99 for
a more detailed description of the TxCMD register.
4.4.2 Status and Event Registers
Status and Event registers report the status of transmitted and received frames, as well as information
about the configuration of the CS8900A. They are
read-only and are designated by even numbers (e.g.
Register 2, Register 4, etc.).
The Interrupt Status Queue (ISQ) is a special type
of Status/Event register. It is located at PacketPage
base + 0120h and is the first register the host reads
when responding to an Interrupt.
A more detailed description of the ISQ can be
found in Section 5.1 on page 79.
Three 10-bit counters are included with the Status
and Event registers. RxMISS counts missed receive frames, TxCOL counts transmit collisions,
and TDR is a time domain reflectometer useful in
locating cable faults. The following sections contain more information about these counters.
Table 13 provides a summary of PacketPage Register types.
4.4.3 Status and Control Bit Definitions
This section provides a description of the special
bit types used in the Status and Control registers.
Bit Number
DS271PP3 47
E
F
BADC
98
10 Register Bits
Figure 16. Status and Control Register Format
CIRRUS LOGIC PRODUCT DATA SHEET
1
0325476
Internal Address
(bits 0 - 5)
1 = Control/Configuration
0 = Status/Event
Crystal LAN™ ISA Ethernet Controller
Suffix Typ e Description Comments
CMD Read/Write Command: Written once per frame to initiate transmit.
CFG Read/Write Configuration: Written at setup and used to determine
what frames will be transmitted and received and what
events will cause interrupts.
CTL Read/Write Control: Written at setup and used to determine what
frames will be transmitted and received and how the physical interfac e will be configured.
Event Read-only Event: Reports the status of transmitted and received
frames.
ST Read-only Status: Reports information about the configuration of the
CS8900A.
Read-only Counters: Counts missed receive frames and collisions.
Provides time domain for locating coax cable faults.
Table 13. PacketPage Register Types
Section 4.4.4 on page 49 provides a detailed description of the bits in each register.
4.4.3.1 Act-Once Bits
(Register B). Each Interrupt Enable bit corresponds
to a specific event. If an Interrupt Enable bit is set
and its corresponding event occurs, the CS8900A
generates an interrupt to the host processor.
cleared when read
cleared when read
There are four bits that cause the CS8900A to take
a certain action only once when set. The se "ActOnce" bits are: Skip_1 (Register 3, RxCFG, Bit 6),
RESET (Register 15, SelfCTL, Bit 6), ResetRxDMA (Register 17, BusCTL, Bit 6), and SWint-X
(Register B, BufCFG, Bit 6). To cause the action
again, the host must set the bit again. Act-Once bits
are always read as clear.
4.4.3.2 Temporal Bits
The bits that report when various events occur are
located in three Event registers and two counters.
The Event registers are RxEvent (Regis ter 4), TxEvent (Register 8), and BufEvent (Register C). The
counters are RxMISS (Register 10) and TxCOL
(Register 12). Each Interrupt Enable bit and its associated Event are identified in Table 14.
An Event bit will be set whenever the specified
event happens, whether or not the associated Inter-
Temporal bits are bits that are set and cleared by the
CS8900A without intervention of the host proces-
rupt Enable bit is set. All Event registers are cleared
upon read-out by the host.
sor. This includes all status bits in the three status
registers (Register 14, LineST; Register 16,
SelfST; and, Register 18, BusST), the RxDest bit
(Register C, BufEvent, Bit F), and the Rx128 bit
(Register C, BufEvent, Bit B). Like all Event bits,
RxDest and Rx128 are cleared when read by the
host.
4.4.3.3 Interrupt Enable Bits and Events
4.4.3.4 Accept Bits
There are nine Accept bits located in the RxCTL
register (Register 5), each of which is followed by
the suffix A. Accept bits indicate which types of
frames will be accepted by the CS8900A. (A frame
is said to be "accepted" by the CS8900A when the
frame data are placed in either on-chip memory, or
in host memory by DMA.) Four of these bits have
Interrupt Enable bits end with the suffix iE and are
located in three Configuration registers: RxCFG
corresponding Interrupt Enable (iE) bits. An Accept bit and an Interrupt Enable bit are independent
(Register 3), TxCFG (Register 7), and BufCFG
CS8900A
CIRRUS LOGIC PRODUCT DATA SHEET
48 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
Interrupt Enable Bit
(register name)
ExtradataiE (RxCFG) Extradata (RxEvent)
RuntiE (RxCFG) Runt (RxEvent)
CRCerroriE (RxCFG) CRCerror (RxEvent)
RxOKiE (RxCFG) RxOK (RxEvent)
16colliE (TxCFG) 16coll (TxEvent)
AnycolliE (TxCFG) “Number-of Tx-collisions”
JabberiE (TxCFG) Jabber (TxEvent)
Out-of-windowiE (TxCFG) Out-of-window (TxEvent)
TxOKiE (TxCFG) TxOK (TXEvent)
SQEerroriE (TxCFG) SQEerror (TxEvent)
Loss-of-CRSiE (TxCFG) Loss-of-CRS (TxEvent)
MissOvfloiE (BufCFG) RxMISS counter over-
TxColOvfloiE (BufCFG) TxCOL counter overflows
RxDestiE (BufCFG) RxDest (BufEvent)
Rx128iE (BufCFG) Rx128 (BufEvent)
RxMissiE (BufCFG) RxMISS (BufEvent)
TxUnderruniE (BufCFG) TxUnderrun (BufEvent)
Rdy4TxiE (BufCFG) Rdy4Tx (BufEvent)
RxDMAiE (BufCFG) RxDMAFrame (BufEvent)
Table 14. Interrupt Enable Bits and Events
Event Bit or Counter
(register name)
counter is incremente d
(TxEvent)
flows past 1FFh
past 1FFh
operations. It is possible to set either, neither, or
both bits. The four corresponding pairs of bits are:
event occurs, but then does not accept the receive
frame (the length of the rece ive frame is set to zero).
The other five Accept bits in RxCTL ar e used for
destination address filtering (see Section 5.3 on
page 87). The Accept mechanism is explained in
more detail in Section 5.2 on page 79.
4.4.4 Status and Control Register Summary
The table on the following page (Table 15) provides a summary of the Status and Control registers. Section 4.4.4 on page 49 gives a detailed
description of each Status and Control register.
IE Bit in RxCFG A Bit in RxCTL
ExtradataiE ExtradataA
RuntiE RuntA
CRCerroriE CRCerrorA
RxOKiE RxOKA
If one of the above Interrupt Enable bits is set and
the corresponding Accept bit is clear, the CS8900A
generates an interrupt when the associated r eceive
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 49
CS8900A
Crystal LAN™ ISA Ethernet Controller
Control and Configuration Bits Register
FEDCBA9876Number
(Offset)
Reserved (register contents undefined) 1
Extra
dataiE
Extra
dataA
16colli
E
RxDestiE
LoRx
Squelch
HCB1 HCB0 HC1E HC0E HWStan
Enabl
e IRQ
FDX Disable
RuntiE CRC
erroriE
RuntA CRC
errorA
TxPad-
Dis
Miss
OvfloiE
2-part
DefDis
RxDMA
size
Inhibit-
CRC
TxCol
OvfloiE
Reserved (register contents undefined) D-11
Polarity
Dis
IOCH
RDYE
Reserved (register contents undefined) 1B -1F
Buffer
CRC
Broad
castA
AnycolliE Jab
Rx128iE Rxmis-
Mod
BackoffE
DMA
Burst
Backoff
Table 15. Status and Control Register Descriptions
AutoRx
DMAE
Individ
ualA
beriE
siE
dbyE
Memo-
ryE
AUIloop ENDEC
RxDMA
only
Multi
castA
Out-of-
windowiE
Onecoll Force TxStart 9
TxUnder-
runiE
AutoAUI/
10BT
HW
SleepE
UseSA DMAex-
loop
RxOKiE StreamE Skip_1 3
RxOKA Promis
cuousA
TxOKiE SQErro-
riE
Rdy4TxiERxD-
MAiE
AUIonly Ser
TxON
SW Sus-
pend
tend
Disable
LT
(0102h)
IAHash
A
Loss-of-
CRSiE7 (0106h)
SWint-X B
Ser
RxON
RESET 1 5
Reset
RxDMA
5
(0104h)
(0108h)
(010Ah)
13
(0112h)
(0114h)
17
(0116)
19
(0118)
BufCFG
SelfCTL
BusCTL
TestCTL
Name
RxCFG
RxCTL
TxCFG
TxCMD
Line
CTL
CIRRUS LOGIC PRODUCT DATA SHEET
50 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
Status and Event Bits Register
FEDCBA9876Number
(Offset)
Interrupt Status Queue 0
(0120h)
Reserved (register contents undefined) 2
Extra
data
Hash Table Index (alternate RxEvent meaning if
16coll Number-of-Tx-collisions Jabber Out-of-
Rx
Dest
CRS Polarity
10-bit AUI Time Domain Reflectometer (TDR) counter, cleared when read 1C
Runt CRC
error
Hashed = 1 and RxOK = 1)
Reserved (register contents undefined) 6
Reserved (register contents undefined) A
Reserved (register contents undefined) E
10-bit Receive Miss (RxMISS) counter, cleared when read 10
10-bit Transmit Collision (TxCOL) counter, cleared when read 12
OK
EESize EL
Reserved (register contents undefined) 1A
Reserved (register contents undefined) 1E
Broad-
cast
Rx128 RxMiss TxUnder-
present
Individ-
ual Adr
EEPRO
M OK
Hashed RxOK Dribble
Hashed RxOK Dribble
Window
run
10BT AUI LinkOK 14
EEPRO
Mpresent
IAHash 4
bits
IAHash 4
bits
TxOK SQE
error
Rdy4Tx RxDMA
Frame
SIBUSY INITD 3.3 V
Rdy4Tx
NOW
TxBid
Err
Loss-of-
CRS8 (0128h)
SWint C
Active
(0124h)
(0124h)RxEventalt
TxEvent
(012Ch)
RxMISS
(0130h)
TxCOL
(0132h)
LineST
(0134h)
16
(0136h)
18
(0138h)
(013Ch)
SelfST
BusST
Name
ISQ
Rx
Event
Buf
Event
TDR
Table 15. Status and Control Register Descriptions
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 51
(continued)
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.5 Register 0: Interrupt Status Queue
(ISQ, Read-only, Address: PacketPage base + 0120h)
76543210
RegContent RegNum
FEDCBA98
RegContent
The Interrupt Status Queue Register is used in both Memory Mode and I/O Mode to provide the host with interrupt
information. Whenever an event occurs that triggers an enabled interrupt, the CS8900A sets the appropriate bit(s)
in one of five registers, maps the contents of that register to the ISQ register, and drives an IRQ pin high. Three of
the registers mapped to ISQ are event registers: RxEvent (Register 4), TxEvent (Register 8), and BufEvent (Register
C). The other two registers are counter-overflow reports: RxMISS (Register 10) and TxCOL (Register 12). In Memory Mode, ISQ is located at PacketPage base + 120h. In I/O Mode, ISQ is located at I/O Base + 0008h. See
Section 5.1 on page 79.
RegNum The lower six bits describe which register (4, 8, C, 10 or 12) is contained in the ISQ.
RegContent The upper ten bits contain the register data contents.
Reset value is: 0000 0000 0000 0000
CIRRUS LOGIC PRODUCT DATA SHEET
52 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.6 Register 3: Receiver Configuration
(RxCFG, Read/Write, Address: PacketPage base + 0102h)
76543210
StreamE Skip_1 000011
FEDCBA98
ExtradataiE RuntiE CRCerroriE BufferCRC AutoRx DMAE RxDMA only RxOKiE
RxCFG determines how frames will be transferred to the host and what frame types will cause interrupts.
000011 These bits provide an internal address used by the CS8900A to identify this as the Reveiver
Configuration Register.
Skip_1 When set, this bit causes the last committed received frame to be deleted from the receive buff-
er. To skip another frame, the host must rewrite a “1” to this bit. This bit is not to be used if
RxDMAonly (Bit 9) is set. Skip_1 is an Act-Once bit. See Section 5.2.5 on page 84.
StreamE When set, StreamTransfer mode is used to transfer receive frames that are back-to-back
that pass the Destination Address filter (see Section 5.3 on page 87). When StreamE is clear,
StreamTransfer mode is not used. This bit must not be set unless either bit AutoRxDMA or bit
RXDMAonly is set.
and
RxOKiE When set, there is an RxOK Interrupt if a frame is received without errors. RxOK interrupt is
not generated when DMA mode is used for frame reception.
RxDMAonly The Receive-DMA mode is used for all receive frames when this bit is set.
AutoRxDMAE When set, the CS8900A will automatically switch to Receive-DMA mode if the conditions spec-
ified in Section 5.5 on page 93 are met. RxDMAonly (Bit 9) has precedence over AutoRxD-
MAE.
BufferCRC When set, the received CRC is included with the data stored in the receive-frame buffer, and
the four CRC bytes are included in the receive-frame length (PacketPage base + 0402h). When
clear, neither the receive buffer nor the receive length include the CRC.
CRCerroriE When set, there is a CRCerror Interrupt if a frame is received with a bad CRC.
RuntiE When set, ther is a Runt Interrupt if a frame is received that is shorter than 64 bytes. The
CS8900A always discards any frame that is shorter than 8 bytes.
ExtradataiE When set, there is an Extradata Interrupt if a frame is received that is longer than 1518 bytes.
The operation of this bit is independent of the received packet integrity (good or bad CRC).
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state. If an EEPROM
is found, then the register’s initial value may be set by the EEPROM. See Section 3.3 on page 19.
Reset value is: 0000 0000 0000 0011
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 53
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.7 Register 4: Receiver Event
(RxEvent, Read-only, Address: PacketPage base + 0124h)
76543210
Dribblebits IAHash 000100
FEDCBA98
Extradata Runt CRCerror Broadcast Individual Adr Hashed RxOK
Alternate meaning if bits 8 and 9 are both set (see Section 5.3 on page 87 for exception regarding Broadcast
frames).
76543210
Dribblebits IAHash 000100
FEDCBA98
Hash Table Index (see Section 5.3 on page 87) Hashed = 1 RxOK = 1
RxEvent reports the status of the current received frame.
000100 These bits identify this as the Receiver Event Register. When reading this register, these bits
will be 000100, where the LSB corresponds to Bit 0.
IAHash If the received frame’s Destination Address is accepted by the hash filter, then this bit is set if,
and only if IAHashA (Register 5, RxCTL, Bit 6) is set, and Hashed (Bit 9) is set. See Section 5.3
on page 87.
Dribblebits If set, the received frame had from one to seven bits after the last received full byte. An "Align-
ment Error" occurs when Dribblebits and CRCerror (Bit C) are both set.
RxOK If set, the received frame had a good CRC and valid length (i.e., there is not a CRC error, Runt
error, or Extradata error). When RxOK is set, then the length of the received frame is contained
at PacketPage base + 0402h. If RxOKiE (Register 3, RxCFG, Bit 8) is set, there is an interrupt.
Hashed If set, the received frame had a Destination Address that was accepted by the hash filter. If
Hashed and RxOK (Bit 8) are set, Bits F through A of RxEvent become the Hash Table Index
for this frame [See Section 5.3 on page 87 for an exception regarding broadcast frames!].If
Hashed and RxOK are not both set, then Bits F through A are individual event bits as defined
below.
IndividualAdr If the received frame had a Destination Address which matched the Individual Address found
at PacketPage base + 0158h, then this bit is set if, and only if, RxOK (Bit 8) is set and IndividualA (Register 5, RxCTL, Bit A) is set.
Broadcast If the received frame had a Broadcast Address (FFFF FFFF FFFFh) as the Destinati on Ad-
dress, then this bit is set if, and only if, RxOK is set and BroadcastA (Register 5, RxCTL, Bit B)
is set.
CRCerror If set, the received frame had a bad CRC. If CRCerroriE (Register 3, RxCFG, Bit C) is set, there
is an interrupt
Runt If set, the received frame was shorter than 64 bytes. If RuntiE (Register 3, RxCFG, Bit D) is set,
there is an interrupt.
Extradata If set, the received frame was longer than 1518 bytes. All bytes beyond 1518 are discarded. If
ExtradataiE (Register 3, RxCFG, Bit E) is set, there is an interrupt.
Reset value is: 0000 0000 0000 0100
Notes: 3. All RxEvent bits are cleared upon readout. The host is responsible for processing all event bits.
4. RxStatus register (PacketPage base + 0400h) is the same as the RxEvent register except RxStatus is
not cleared when RxEvent is read. See Section 5.2 on page 79. The value in the RxEvent register is
undefined when RxDMAOnly bit (Bit 9, Register 3, RxCFG) is set.
CIRRUS LOGIC PRODUCT DATA SHEET
54 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.8 Register 5: Receiver Control
(RxCTL, Read/Write, Address: PacketPage base +0104h)
76543210
PromiscuousA IAHashA 000101
FEDCBA98
ExtradataA RuntA CRCerrorA BroadcastA IndividualA MulticastA RxOKA
RxCTL has two functions: Bits 8, C, D, and E define what types of frames to accept. Bits 6, 7, 9, A, and B configure
the Destination Address filter. See Section 5.3 on page 87.
000101 These bits provide an internal address used by the CS8900A to identify this as the Receiver
Control Register. For a received frame to be accepted, the Destination Address of that frame
must pass the filter criteria found in Bits 6, 7, 9, A, and B (see Section 5.3 on page 87).
IAHashA When set, receive frames are accepted when the Destination Address is an Individual Address
that passes the hash filter.
PromiscuousA Frames with any address are accepted when this bit is set.
RxOKA When set, the CS8900A accepts frames with correct CRC and valid length (valid length is: 64
bytes <= length <= 1518 bytes).
MulticastA When set, receive frames are accepted if the Destination Address is an Multicast Address that
passes the hash filter.
IndividualA When set, receive frames are accepted if the Destination Address matches the Individual Ad-
dress found at PacketPage base + 0158h to PacketPage base + 015Dh.
BroadcastA When set, receive frames are accepted if the Destination Address is FFFF FFFF FFFFh.
CRCerrorA When set, receive frames that pass the Destination Address filter, but have a bad CRC, are ac-
cepted. When clear, frames with bad CRC are discarded. See Note 5.
RuntA When set, receive frames that are smaller than 64 bytes, and that pass the Destination Address
filter are accepted. When clear, received frames less that 64 bytes in length are discarded. The
CS8900A discards any frame that is less than 8 bytes. See Note 5.
ExtradataA When set, receive frames longer than 1518 bytes and that pass the Destination Address filter
are accepted. The CS8900A accepts only the first 1518 bytes and ignores the rest. When clear,
frames longer than 1518 bytes are discarded. See Note 5.
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state. If an EEPROM
is found, then the register’s initial value may be set by the EEPROM. See Section 5.3 on page 87.
Reset value is: 0000 0000 0000 0101
Notes: 5. Typically, when bits CRCerrorA, RuntA and ExtradataA are cleared (meaning bad frames are being
discarded), then the corresponding bits CRCerroriE, RuntiE and ExtradataiE should be set in register 3
(Receiver Configuration register) to allow the device driver to keep track of discarded frames.
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 55
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.9 Register 7: Transmit Configuration
(TxCFG, Read/Write, Address: PacketPage base + 0106h)
76543210
SQE erroriE Loss-of-CRSiE 000111
FEDCBA98
16colliE AnycolliE JabberiE Out-of-window TxOKiE
Each bit in TxCFG is an interrupt enable. When set, the interrupt is enabled as described below. When clear, there
is no interrupt.
000111 These bits provide an internal address used by the CS8900A to identify this as the Transmit
Configuration Register.
Loss-of-CRSiE If the CS8900A starts transmitting on the AUI and does not see the Carrier Sense signal at the
end of the preamble, an interrupt is generated if this bit is set. Carrier Sense activity is reported
by the CRS bit (Register 14, LineST, Bit E).
SQErroriE When set, an interrupt is generated if there is an SQE error. (At the end of a transmission on
the AUI, the CS8900A expects to see a collision within 64 bit times. If this does not happen,
there is an SQE error.)
TxOKiE When set, an interrupt is generated if a packet is completely transmitted.
Out-of-windowiE When set, an interrupt is generated if a late collision occurs (a late collision is a collision which
occurs after the first 512 bit times). When this occurs, the CS8900A forces a bad CRC and ter-
minates the transmission.
JabberiE When set, an interrupt is generated if a transmission is longer than approximately 26 ms.
AnycolliE When set, if one or more collisions occur during the transmission of a packet, an interrupt oc-
curs at the end of the transmission
16colliE If the CS8900A encounters 16 normal collisions while attempting to transmit a particular packet,
the CS8900A stops attempting to transmit that packet. When this bit is set, there is an interrupt
upon detecting the 16th collision.
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state. If an EEPROM
is found, then the register’s initial value may be set by the EEPROM. See Section 3.3 on page 19.
Reset value is: 0000 0000 0000 0111
Notes: Bit 8 (TxOKiE) and Bit B (AnycolliE) are interrupts for normal transmit operation. Bits 6, 7, 9, A, and FNotes:
are interrupts for abnormal transmit operation.
CIRRUS LOGIC PRODUCT DATA SHEET
56 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.10 Register 8: Transmitter Event
(TxEvent, Read-only, Address: PacketPage base + 0218h)
76543210
SQEerror Loss-of-CRS 001000
FEDCBA98
16coll Number-of-Tx-collisions Jabber Out-of-window TxOK
TxEvent gives the event status of the last packet transmitted.
001000 These bits provide an internal address used by the CS8900A to identify this as the Transmitter
Event Register.
Loss-of-CRS If the CS8900A is transmitting on the AUI and doesn’t see Carrier Sense (CRS) at the end of
the preamble, there is a Loss-of-Carrier error and this bit is set. If Loss-of-CRSiE (Register 7,
TxCFG, Bit 6) is set, there is an interrupt.
SQEerror At the end of a transmission on the AUI, the CS8900A expects to see a collision within 64 bit
times. If this does not happen, there is an SQE error and this bit is set. If SQEerroriE (Register
7, TxCFG, Bit 7) is set, there is an interrupt.
TxOK This bit is set if the last packet was completely transmitted (Jabber (Bit A), out-of-window-colli-
sion (Bit 9), and 16Coll (Bit F) must all be clear). If TxOKiE (Register 7, TxCFG, Bit 8) is set,
there is an interrupt.
Out-of-Window This bit is set if a collision occurs more than 512 bit times after the first bit of the preamble. When
this occurs, the CS8900A forces a bad CRC and terminates the transmission. If Out-of-windowiE (Register 7, TxCFG, Bit 9) is set, there is an interrupt
Jabber If the last transmission is longer than 26 msec, then the packet output is terminated by the jab-
ber logic and this bit is set. If JabberiE (Register 7, TxCFG, Bit A) is set, there is an interrupt.
#-of-TX-collisions These bits give the number of transmit collisions that occurred on the last transmitted packet.
Bit B is the LSB. If AnycolliE (Register 7, TxCFG, Bit B) is set, there is an interrupt when any
collision occurs.
16coll This bit is set if the CS8900A encounters 16 normal collisions while attempting to transmit a
particular packet. When this happens, the CS8900A stops further attempts to send that packet.
If 16colliE (Register 7, TxCFG, Bit F) is set, there is an interrupt.
Reset value is:
Notes: 1.In any event register, like TxEvent, all bits are cleared upon readout. The host is responsible for
0000 0000 0000 1000
processing all event bits.
2.TxOK (Bit 8) and the Number-of-Tx-Collisions (Bits E-B) are used in normal packet transmission.All
other bits (6, 7, 9, A, and F) give the status of abnormal transmit operation.
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 57
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.11 Register 9: Transmit Command Status
(TxCMD, Read-only, Address: PacketPage base + 0108h)
76543210
TxStart 001001
FEDCBA98
TxPadDis InhibitCRC Onecoll Force
This register contains the latest transmit command which tells the CS8900A how the next packet should be sent.
The command must be written to PacketPage base + 0144h in order to initiate a transmission. The host can read
the command from register 9 (PacketPage base + 0108h). See Section 5.7 on page 99.
001001 These bits provide an internal address used by the CS8900A to identify this as the Transmit
Command Register. When reading this register, these bits will be 001001, where the LSB corresponds to Bit 0.
TxStart This pair of bits determines how many bytes are transferred to the CS8900A before the MAC
starts the packet transmit process.
Bit 7 Bit 6
0 0 Start transmission after 5 bytes are in the CS8900A
0 1 Start transmission after 381 bytes are in the CS8900A
1 0 Start transmission after 1021 bytes are in the CS8900A
1 1 Start transmission after the entire frame is in the CS8900A
Force When set in conjunction with a new transmit command, any transmit frames waiting in the trans-
mit buffer are deleted. If a previous packet has started transmission, that packet is terminated
within 64 bit times with a bad CRC.
Onecoll When this bit is set, any transmission will be terminated after only one collision. When clear, the
CS8900A allows up to 16 normal collisions before terminating the transmission.
InhibitCRC When set, the CRC is not appended to the transmission.
TxPadDis When TxPadDis is clear, if the host gives a transmit length less than 60 bytes and InhibitCRC
is set, then the CS8900A pads to 60 bytes. If the host gives a transmit length less than 60 bytes
and InhibitCRC is clear, then the CS8900A pads to 60 bytes and appends the CRC.
When TxPadDis is set, the CS8900A allows the transmission of runt frames (a frame less than
64 bytes). If InhibitCRC is clear, the CS8900A appends the CRC. If InhibitCRC is set, the
CS8900A does not append the CRC
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state. If an EEPROM
is found, then the register’s initial value may be set by the EEPROM. See Section 3.3 on page 19.
Regster value is: 0000 0000 0000 1001
Notes: The CS8900A does not transmit a frame if TxLength < 3
CIRRUS LOGIC PRODUCT DATA SHEET
58 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.12 Register B: Buffer Configuration
(BufCFG, Read/Write, Address: PacketPage base + 010Ah)
76543210
RxDMAiE SWint-X 001011
FEDCBA98
RxDestiE Miss OvfloiE TxCol OvfloiE Rx128iE RxMissiE TxUnder runtiE Rdy4TxiE
Each bit in BufCFG is an interrupt enable. When set, the interrupt described below is enabled. When clear, there is
no interrupt.
001011 These bits provide an internal address used by the CS8900A to identify this as the Buffer Con-
figuration Register.
SWint-X When set, there is an interrupt requested by the host software. The CS8900A provides the in-
terrupt, and sets the SWint (Register C, BufEvent, Bit 6) bit. The CS8900A acts upon this command at once. SWint-X is an Act-Once bit. To generate another interrupt, rewrite a "1" to this bit.
RxDMAiE When set, there is an interrupt when a frame has been received and DMA is complete. With
this interrupt, the RxDMAFrame bit (Register C, BufEvent, Bit 7) is set.
Rdy4TxiE When set, there is an interrupt when the CS8900A is ready to accept a frame from the host for
transmission. (See Section 5.7 on page 99 for a description of the transmit bid process.)
TxUnderruniE When set, there is an interrupt if the CS8900A runs out of data before it reaches the end of the
frame (called a transmit underrun). When this happens, event bit TXUnderrun (Register C,
BufEvent, Bit 9) is set and the CS8900A makes no further attempts to transmit that frame. If the
host still wants to transmit that particular frame, the host must go through the transmit request
process again.
RxMissiE When set, there is an interrupt if one or more received frames is lost due to slow movement of
receive data out of the receive buffer (called a receive miss). When this happens, the RxMiss
bit (Register C, BufEvent, Bit A) is set.
Rx128iE When set, there is an interrupt after the first 128 bytes of a frame have been received. This al-
lows a host processor to examine the Destination Address, Source Address, Length, Sequence
Number, and other information before the entire frame is received. This interrupt should not be
used with DMA. Thus, if either AutoRxDMA (Register 3, RxCFG, Bit A) or RxDMAonly (Register
3, RxCFG, Bit 9) is set, the Rx128iE bit must be clear.
TxColOvfiE If set, there is an interrupt when the TxCOL counter increments from 1FFh to 200h. (The TxCOL
counter (Register 18) is incremented whenever the CS8900A sees that the RXD+/RXD- pins
(10BASE-T) or the CI+/CI- pins (AUI) go active while a packet is being transmitted.)
MissOvfloiE If MissOvfloiE is set, there is an interrupt when the RxMISS counter increments from 1FFh to
200h. (A receive miss is said to have occurred if packets are lost due to slow movement of receive data out of the receive buffers. When this happens, the RxMiss bit (Register C, BufEvent,
Bit A) is set, and the RxMISS counter (Register 10) is incremented.)
RxDestiE When set, there is an interrupt when a receive frame passes the Destination Address filter cri-
teria defined in the RxCTL register (Register 5). This bit provides an early indication of an incoming frame. It is earlier than Rx128 (Register C, BufEvent, Bit B). If RxDestiE is set, the
BufEvent could be RxDest or Rx128. After 128 bytes are received, the BufEvent changes from
RxDest to Rx128.
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state after reset. If an
EEPROM is found, then the register’s initial value may be set by the EEPROM. See Section 3.3 on page 19.
Reset value is: 0000 0000 0000 1011
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 59
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.13 Register C: Buffer Event
(BufEvent, Read-only, Address: PacketPage base + 012Ch)
76543210
RxDMA frame SWint 001100
FEDCBA98
RxDest Rx128 RxMiss TxUnder run Rdy4Tx
BufEvent gives the status of the transmit and receive buffers.
001100 These bits provide an internal address used by the CS8900A to identify this as the Buffer Event
Register. When reading this register, these bits will be 001100, where the LSB corresponds to
Bit 0.
SWint If set, there has been a software initiated interrupt. This bit is used in conjunction with the SWint-
X bit (Register B, BufCFG, Bit 6).
RxDMAFrame If set, one or more received frames have been transferred by slave DMA. If RxDMAiE (Register
B, BufCFG, Bit 7) is set, there is an interrupt.
Rdy4Tx If set, the CS8900A is ready to accept a frame from the host for transmission. If Rdy4TxiE (Reg-
ister B, BufCFG, Bit 8) is set, there is an interrupt. (See Section 5.7 on page 99 for a description
of the transmit bid process.)
TxUnderrun This bit is set if CS8900A runs out of data before it reaches the end of the frame (called a trans-
mit underrun). If TxUnderruniE (Register B, BufCFG, Bit 9) is set, there is an interrupt.
RxMiss If set, one or more receive frames have been lost due to slow movement of data out of the re-
ceive buffers. If RxMissiE (Register B, BufCFG, Bit A) is set, there is an interrupt.
Rx128 This bit is set after the first 128 bytes of an incoming frame have been received. This bit will
allow the host the option of preprocessing frame data before the entire frame is received. If
Rx128iE (Register B, BufCFG, Bit B) is set, there is an interrupt.
RxDest When set, this bit shows that a receive frame has passed the Destination Address Filter criteria
as defined in the RxCTL register (Register 5). This bit is useful as an early indication of an in-
coming frame. It will be earlier than Rx128 (Register C, BufEvent, Bit B). If RxDestiE (Register
B, BufCFG, Bit F) is set, there is an interrupt.
Reset value is:
Notes: With any event register, like BufEvent, all bits are cleared upon readout. The host is responsible for
0000 0000 0000 1100
processing all event bits.
CIRRUS LOGIC PRODUCT DATA SHEET
60 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.14 Register 10: Receiver Miss Counter
(RxMISS, Read-only, Address: PacketPage base + 0130h)
76543210
MissCount 010000
FEDCBA98
MissCount
The RxMISS counter (Bits 6 through F) records the number of receive frames that are lost (missed) due to the lack
of available buffer space. If the MissOvfloiE bit (Register B, BufCFG, Bit D) is set, there is an interrupt when RxMISS
increments from 1FFh to 200h. This interrupt provides the host with an early warning that the RxMISS counter should
be read before it reaches 3FFh and starts over (by interrupting at 200h, the host has an additional 512 counts before
RxMISS actually overflows). The RxMISS counter is cleared when read.
010000 These bits provide an internal address used by the CS8900A to identify this as the Receiver
Miss Counter. When reading this register, these bits will be 010000, where the LSB corresponds to Bit 0.
MissCount The upper ten bits contain the number of missed frames.
Register’s value is: 0000 0000 0001 0000
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 61
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.15 Register 10: Transmit Collision Counter
(TxCOL, Read-only, Address: PacketPage base + 0132h)
76543210
ColCount 010010
FEDCBA98
ColCount
The TxCOL counter (Bits 6 through F) is incremented whenever the 10BASE-T Receive Pair (RXD+ / RXD-) or AUI
Collision Pair (CI+ / CI-) becomes active while a packet is being transmitted. If the TxColOvfiE bit (Register B,
BufCFG, Bit C) is set, there is an interrupt when TxCOL increments from 1FFh to 200h. This interrupt provides the
host with an early warning that the TxCOL counter should be read before it reaches 3FFh and starts over (by interrupting at 200h, the host has an additional 512 counts before TxCOL actually overflows). The TxCOL counter is
cleared when read.
010010 These bits provide an internal address used by the CS8900A to identify this as the Transmit
Collision Counter. When reading this register, these bits will be 010010, where the LSB corre-
sponds to Bit 0.
ColCount The upper ten bits contain the number of collisions.
Reset value is: 0000 0000 0001 0010
CIRRUS LOGIC PRODUCT DATA SHEET
62 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.16 Register 13: Line Control
(LineCTL, Read/Write, Address: PacketPage base + 0112h)
76543210
SerTxOn SerRxON 010011
FEDCBA98
LoRx Squelch 2-part DefDis PolarityDis Mod BackoffE Auto AUI/10BT AUIonly
LineCTL determines the configuration of the MAC engine and physical interface.
010011 These bits provide an internal address used by the CS8900A to identify this as the Line Control
Register.
SerRxON When set, the receiver is enabled. When clear, no incoming packets pass through the receiver.
If SerRxON is cleared while a packet is being received, reception is completed and no subsequent receive packets are allowed until SerRxON is set again.
SerTxON When set, the transmitter is enabled. When clear, no transmissions are allowed. If SerTxON is
cleared while a packet is being transmitted, transmission is completed and no subsequent
packets are transmitted until SerTxON is set again.
AUIonly Bits 8 and 9 are used to select either the AUI or the 10BASE-T interface according to the fol-
lowing: [Note: 10BASE-T transmitter will be inactive even when selected unless link pulses are
detected or bit DisableLT (register 19) is set.
AUIonly (Bit 8) AutoAUI/10BT (Bit 9) Physical Interface
1 N/A AUI
0> 0 10BASE-T
0 1 Auto-Select
AutoAUI/10BT See AUIonly (Bit 8) description above.
ModBackoffE When clear, the ISO/IEC standard backoff algorithm is used (see Section 3.9 on page 28).
When set, the Modified Backoff algorithm is used. (The Modified Backoff algorithm extends the
backoff delay after each of the first three Tx collisions.)
PolarityDis The 10BASE-T receiver automatically determines the polarity of the received signal at the
RXD+/RXD- input (see Section 3.11 on page 35). When this bit is clear, the polarity is correct-
ed, if necessary. When set, no effort is made to correct the polarity. This bit is independent of
the PolarityOK bit (Register 14, LineST, Bit C), which reports whether the polarity is normal or
reversed.
2-partDefDis Before a transmission can begin, the CS8900A follows a deferral procedure. With the 2-part-
DefDis bit clear, the CS8900A uses the standard two-part deferral as defined in ISO/IEC 8802-
3 paragraph 4.2.3.2.1. With the 2-partDefDis bit set, the two-part deferral is disabled.
LoRxSquelch When clear, the 10BASE-T receiver squelch thresholds are set to levels defined by the ISO/IEC
8802-3 specification. When set, the thresholds are reduced by approximately 6dB. This is use-
ful for operating with "quiet" cables that are longer than 100 meters.
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state. If an EEPROM
is found, then the register’s initial value may be set by the EEPROM. See Section 3.3 on page 19.
Reset value is: 0000 0000 0001 0011
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 63
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.17 Register 14: Line Status
(LineST, Read-only, Address: PacketPage base + 0134h)
76543210
LinkOK 010100
FEDCBA98
CRS PolarityOK 10BT AUI
LineST reports the status of the Ethernet physical interface.
010100 These bits provide an internal address used by the CS8900A to identify this as the Line Status
Register. When reading this register, these bits will be 010100, where the LSB corresponds to
Bit 0.
LinkOK If set, the 10BASE-T link has not failed. When clear, the link has failed, either because the
CS8900A has just come out of reset, or because the receiver has not detected any activity (link
pulses or received packets) for at least 50 ms.
AUI If set, the CS8900A is using the AUI.
10BT If set, the CS8900A is using the 10BASE-T interface.
PolarityOK If set, the polarity of the 10BASE-T receive signal (at the RXD+ / RXD- inputs) is correct. If clear,
the polarity is reversed. If PolarityDis (Register 13, LineCTL, Bit C) is clear, the polarity is auto-
matically corrected, if needed. The PolarityOK status bit shows the true state of the incoming
polarity independent of the PolarityDis control bit. Thus, if PolarityDis is clear and PolarityOK is
clear, then the receive polarity is inverted, and corrected.
CRS This bit tells the host the status of an incoming frame. If CRS is set, a frame is currently being
received. CRS remains asserted until the end of frame (EOF). At EOF, CRS goes inactive in
about 1.3 to 2.3 bit times after the last low-to-high transition of the recovered data.
Reset value is:
0000 0000 0001 0100
CIRRUS LOGIC PRODUCT DATA SHEET
64 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.18 Register 15: Self Control
(SelfCTL, Read/Write, Address: PacketPage base + 0114h)
76543210
RESET 010101
FEDCBA98
HCB1 HCB0 HC1E HC0E HW Standby HWSleepE SW Suspend
SelfCTL controls the operation of the LED outputs and the lower-power modes.
010101 These bits provide an internal address used by the CS8900A to identify this as the Chip Self
Control Register.
RESET When set, a chip-wide reset is initiated immediately. RESET is an Act-Once bit. This bit is
cleared as a result of the reset.
SWSuspend When set, the CS8900A enters the software initiated Suspend mode. Upon entering this mode,
there is a partial reset. All registers and circuits are reset except for the ISA I/O Base Address
Register and the SelfCTL Register. There is no transmit nor receive activity in this mode. To
come out of software Suspend, the host issues an I/O Write within the CS8900A’s assigned I/O
space (see Section 3.7 on page 26 for a complete description of the CS8900A’s low-power
modes).
HWSleepE When set, the SLEEP
ative (unless in SWSuspend mode, as shown above). If SLEEP
ther the Hardware Standby or Hardware Suspend mode. When clear, the CS8900A ignores the
SLEEP
power modes).
HWStandbyE If HWSleepE is set and the SLEEP
CS8900A enters the Hardware Standby mode. When clear, the CS8900A enters the Hardware
Suspend mode (see Section 3.7 on page 26 for a complete description of the CS8900A’s lowpower modes).
HC0E The LINKLED
pin is LINKLED
pin.
HC1E The BSTATUS
put pin is BSTATUS
is HC1
HCB0 When HC0E (Bit C) is set, this bit controls the HC0
clear, HC0
trol bit is ignored.
HCB1 When HC1E (Bit D) is set, this bit controls the HC1
clear, HC1
trol bit is ignored.
input pin (see Section 3.7 on page 26 for a complete description of the CS8900A’s low-
or HC0 output pin is selected with this control bit. When HC0E is clear, the output
or HC1 output pin is selected with this control bit. When HC1E is clear, the out-
and the HCB1 bit (Bit F) controls the pin.
is high. HC0 may drive an LED or a logic gate. When HC0E (Bit C) is clear, this con-
is high. HC1 may drive an LED or a logic gate. When HC1E (Bit D) is clear, this con-
input pin is en abl ed. If S LEEP is high, the CS8900A is "awake", or oper-
input pin is low, then when HWStandbyE is set, the
. When HC0E is set, the output pin is HC0 and the HCB0 bit (Bit E) controls the
and indicates receiver ISA Bus activity. When HC1E is set, the output pin
is low, the CS8900A enters ei-
pin. If HCB0 is set, HC0 is low. If HCB0 is
pin. If HCB1 is set, HC1 is low. If HCB1 is
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state. If an EEPROM
is found, then the register’s initial value may be set by the EEPROM. See Section 3.3 on page 19.
Reset value is: 0000 0000 0001 0101
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 65
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.19 Register 16: Self Status
(SelfST, Read-only, Address: PacketPage base + 0136h)
76543210
INITD 3.3V Active 010110
FEDCBA98
EEsize ELPresent EEPROM OK
SelfST reports the status of the EEPROM interface and the initialization process.
010110 These bits provide an internal address used by the CS8900A to identify this as the Chip Self
Status Register. When reading this register, these bits will be 010110, where the LSB corre-
sponds to Bit 0.
3,3VActive If the CS8900A is operating on a 3.3V supply, this bit is set. If the CS8900A is operating on a
5V supply, this bit is clear.
INITD If set, the CS8900A initialization, including read-in of the EEPROM, is complete.
SIBUSY If set, the EECS output pin is high indicating that the EEPROM is currently being read or pro-
grammed. The host must not write to PacketPage base + 0040h nor 0042h until SIBUSY is
clear.
EEPROM
present
SIBUSY
EEPROMpresent If the EEDataIn pin is low after reset, there is no EEPROM present, and the EEPROMpresent
bit is clear. If the EEDataIn pin is high after reset, the CS8900A "assumes" that an EEPROM
is present, and this bit is set.
EEPROMOK If set, the checksum of the EEPROM readout was OK.
ELpresent If set, external logic for Latchable Address bus decode is present.
EEsize This bit shows the size of the attached EEPROM and is valid only if the EEPROMpresent bit
(Bit 9) and EEPROMOK bit (Bit A) are both set. If clear, the EEPROM size is either 128 words
(’C56 or ’CS56) or 256 words (C66 or ’CS66). If set, the EEPROM size is 64 words (’C46 or
’CS46).
Reset value is: 0000 0000 0001 0110
CIRRUS LOGIC PRODUCT DATA SHEET
66 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.20 Register 17: Bus Control
(BusCTL, Read/Write, Address: PacketPage base + 0116h)
76543210
Reset RxDMA 010111
FEDCBA98
EnableIRQ RxDMA size IOCH RDYE DMABurst MemoryE UseSA DMAextend
BusCTL controls the operation of the ISA-bus interface.
010111 These bits provide an internal address used by the CS8900A to identify this as the Bus Control
Register.
ResetRxDMA When set, the RxDMA offset pointer at PacketPage base + 0026h is reset to zero. When the
host sets this bit, the CS8900A does the following:
1.Terminates the current receive DMA activity, if any.
2.Clears all internal receive buffers.
3.Zeroes the RxDMA offset pointer.
DMAextend When set, DMARQx goes inactive on the falling edge of IOR
IOR
. See Switch ing Char acteristi cs, DMA Re ad, t
N-1
DMAR5
instead of the rising edge of
N
. Setting this bit also enables single
transfer mode DMA. Normal operation is demand mode DMA in which DMACKx cannot deassert until after DMARQx deasserts, i.e. until a full ethernet frame is transferred. Single transfer
mode allows DMACKx to deassert between each DMA read.
UseSA When set, the MEMCS16
CS8900A’s assigned Memory base address and the CHIPSEL
pin goes low whenever the address on SA bus [12..19] match the
pin is low (internal address decode).
When clear, ME MCS16
is driven low whenever CHIPSEL goes low. (external address decode).
see Section 4.9 on page 74.
For MEMCS16
pin to be enabled, the CS8900A must be in Memory Mode with the MemoryE
bit (Register 17, BusCTL, Bit A) set.
MemoryE When set, the CS8900A may operate in Memory Mode. When clear, Memory Mode is disabled.
I/O Mode is always enabled.
DMABurst When clear, the CS8900A performs continuous DMA until the receive frame is completely
transferred from the CS8900A to host memory. When set, each DMA access is limited to 28us,
after which time the CS8900A gives up the bus for 1.3us before making a new DMA request.
IOCHRDYE When set, the CS8900A does not use the IOCHRDY output pin, and the pin is always high-im-
pedance. This allows external pull-up to force the output high. When clear, the CS8900A drives
IOCHRDY low to request additional time during I/O Read and Memory Read cycles. IOCHRDY
does not affect I/O Write, Memory Write, nor DMA Read.
RxDMAsize This bit determines the size of the receive DMA buffer (located in host memory). When set, the
DMA buffer size is 64 Kbytes. When clear, it is 16 Kbytes.
EnableRQ When set, the CS8900A will generate an interrupt in response to an interrupt event
(Section 5.1). When cleared, the CS8900A will not generate any interrupts.
After reset, if no EEPROM is found by the CS8900A, then the register has the following initial state. If an EEPROM
is found, then the register’s initial value may be set by the EEPROM. See Section 3.3 on page 19.
Reset value is: 0000 0000 0001 0111
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 67
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.21 Register 18: Bus Status
(BusST, Read-only, Address : Pack etPage base + 0138h)
76543210
TxBidErr 011000
FEDCBA98
Rdy4Tx NOW
BusST describes the status of the current transmit operation.
011000 These bits provide an internal address used by the CS8900A to identify this as the Bus Status
Register. When reading this register, these bits will be 011000, where the LSB corresponds to
Bit 0.
TxBidErr If set, the host has commanded the CS8900A to transmit a frame that the CS8900A will not
send. Frames that the CS8900A will not send are:
1) Any frame greater than 1514 bytes, provided that InhibitCRC
(Register 9, TxCMD, Bit C) is clear.
2) Any frame greater than 1518 bytes.
Note that this bit is not set when transmit frames are too short.
Rdy4TxNOW Rdy4TxNOW signals the host that the CS8900A is ready to accept a frame from the host for
transmission. This bit is similar to Rdy4Tx (Register C, BufEvent, Bit 8) except that there is no
interrupt associated with Rdy4TxNOW. The host can poll the CS8900A and check
Rdy4TxNOW to determine if the CS8900A is ready for transmit. (See Section 5.7 on page 99
for a description of the transmit bid process.)
Reset value is: 0000 0000 0001 1000
CIRRUS LOGIC PRODUCT DATA SHEET
68 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.22 Register 19: Test Control
(TestCTL, Read/Write, Address: PacketPage base + 0118h)
76543210
DisableLT 011001
FEDCBA98
FDX
TestCTL controls the diagnostic test modes of the CS8900A.
011001 These bits provide an internal address used by the CS8900A to identify this as the Test Control
Register.
DisableLT When set, the 10BASE-T interface allows packet transmission and reception regardless of the
link status. DisableLT is used in conjunction with the LinkOK (Register 14, LineST, Bit 7) as follows:
LinkOK DisableLT
0 0 No packet transmission for reception
allowed. Transmitter sends link impulses.
Disable Back-
off
AUIloop ENDEC loop
0 1 DisableLT overrides LinkOK to allow packet
transmission and reception. Transmitter
does not send link pulses.
1 N/A Disable has no meaning if LinkOK = 1.
ENDECloop When set, the CS8900A enters internal loopback mode where the internal Manchester encoder
output is connected to the decoder input. The 10BASE-T and AUI transmitters and receivers
are disabled. When clear, the CS8900A is configured for normal operation.
AUIloop When set, the CS8900A allows reception while transmitting. This facilitates loopback tests for
the AUI. When clear, the CS8900A is configured for normal AUI operation.
Disable Backoff When set, the backoff algorithm is disabled. The CS8900A transmitter looks only for completion
of the inter packet gap before starting transmission. When clear, the backoff algorithm is used.
FDX When set, 10BASE-T full duplex mode is enabled and CRS (Register 14, LineST, Bit E) is ig-
nored. This bit must be set when performing loopback tests on the 10BASE-T port. When clear,
the CS8900A is configured for standard half-duplex 10BASE-T operation.
At reset, if no EEPROM is found by the CS8900A, then the register has the following initial state. If an EEPROM is
found, then the register’s initial value may be set by the EEPROM. See Section 3.3 on page 19.
Reset value is: 0000 0000 0001 1001
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 69
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.4.23 Register 1C: AUI Time Domain Reflectometer
(Read-only, Address: PacketPage base + 013Ch)
76543210
A UI Delay 011100
FEDCBA98
AUI Delay
The TDR counter (Bits 6 through F) is a time domain reflectometer useful in locating cable faults in 10BASE-2 and
10BASE-5 coax networks. It counts at a 10 MHz rate from the beginning of transmission on the AUI to when a collision or Loss-of-Carrier error occurs. The TDR counter is cleared when read.
011100 These bits provide an internal address used by the CS8900A to identify this as the Bus Status
Register. When reading this register, these bits will be 011100, where the LSB corresponds to
Bit 0.
AUI-Delay The upper ten bits contains the number of 10 MHz clock periods between the beginning of
transmission on the AUI to when a collision or Loss-of-Carrier error occurs.
Reset value is: 0000 0000 0001 1100
CIRRUS LOGIC PRODUCT DATA SHEET
70 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.5 Initiate Transmit Registers
4.5.1 Transmit Command Request - TxCMD
(Write-only, Address : PacketP age base + 0144 h)
76543210
TxStart 001001
FEDCBA98
TxPadDis InhibitCRC Onecoll Force
The word written to PacketPage base + 0144h tells the CS8900A how the next packet should be transmitted. This
PacketPage location is write-only, and the written word can be read from Register 9, at PacketPage base + 0108h.
The CS8900A does not transmit a frame if TxLength (at PacketPage location base + 0146h) is less than 3. See
Section 5.7 on page 99.
001001 These bits provide an internal address used by the CS8900A to identify this as the Transmit
Command Register. When reading this register, these bits will be 001001, where the LSB corresponds to Bit 0.
TxStart This pair of bits determines how many bytes are transferred to the CS8900A before the MAC
starts the packet transmit process.
Bit 7 Bit 6
0 0 Start transmission after 5 bytes are in the CS8900A
0 1 Start transmission after 381 bytes are in the CS8900A
1 0 Start transmission after 1021 bytes are in the CS8900A
1 1 Start transmission after the entire frame is in the CS8900A
Force When set in conjunction with a new transmit command, any transmit frames waiting in the trans-
mit buffer are deleted. If a previous packet has started transmission, that packet is terminated
within 64 bit times with a bad CRC.
Onecoll When this bit is set, any transmission will be terminated after only one collision. When clear, the
CS8900A allows up to 16 normal collisions before terminating the transmission.
InhibitCRC When set, the CRC is not appended to the transmission.
TxPadDis When TxPadDis is clear, if the host gives a transmit length less than 60 bytes and InhibitCRC
is set, then the CS8900A pads to 60 bytes. If the host gives a transmit length less than 60 bytes
and InhibitCRC is clear, then the CS8900A pads to 60 bytes and appends the CRC.
When TxPadDis is set, the CS8900A allows the transmission of runt frames (a frame less than
64 bytes). If InhibitCRC is clear, the CS8900A appends the CRC. If InhibitCRC is set, the
CS8900A does not append the CRC.
Since this register is write-only, it’s initial state after reset is undefined.
4.5.2 Transmit Length
(Write-only, Address: PacketPage base + 0146h)
Address 0147h Address 0146h
Most-significant byte of Transmit Frame Length Least-significant byte of Transmit Frame Length
This register is used in conjunction with register 9, TxCMD. When a transmission is initiated via a command in TxCMD, the the length of the transmitted frame is written into this register. The length of the transmitted frame may be
modified by the configuration of the TxPadDis and InhibitCRC bits in the TxCMD register. See Table 35, and
Section 5.7 on page 99. TxLength must be >3 and < 1519.
Since this register is write-only, it’s initial state after reset is undefined.
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 71
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.6 Address Filter Registers
4.6.1 Logical Address Filter (hash table)
(Read/Write, Address: PacketPage base + 0150h)
Address 0157h Address 0156h Address 0155h Address 0154hAddress 0153hAddress 0152h Address 0151h Address 0150h
Most-signifi-
cant byte of
hash filter.
The CS8900A hashing decoder circuitry compares its output with one bit of the Logical Address Filter Register. If
the decoder output and the Logical Address Filter bit match, the frame passes the hash filter and the Hashed bit
(Register 4, RxEvent, Bit 9) is set. See Section 5.3 on page 87.
Reset value is: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
4.6.2 Individual Address (IEEE address)
(Read/Write, Address: PacketPage base + 0158h)
Address 0015Dh Address 0015Ch Address 0015Bh Address 0015Ah Address 0159h Address 00158h
Octet 5 of IA Octet 0 of IA
Least-signifi-
cant byte of
hash filter.
The unique, IEEE 48-bit Individual Address (IA) begins at 0158h. The first bit of the IA (Bit IA[00]) must be "0". See
Section 5.3 on page 87.
The value of this register must be loaded from external storage, for example, from the EEPROM. See Section 3.3
on page 19. If the CS8900A is not able to load the IA from the EEPROM, then after a reset this register is undefined,
and the driver must write an address to this register.
CIRRUS LOGIC PRODUCT DATA SHEET
72 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
4.7 Receive and Transmit Frame Locations
The Receive and Transmit Frame PacketPage locations are used to transfer Ethernet frames to and
from the host. The host sequentially writes to and
reads from these locations, and internal buffer
memory is dynamically allocated between transmit
and receive as needed. One r eceive f rame and one
transmit frame are accessible at a time.
4.7.1 Receive PacketPage Locations
In IO mode, the receive status/le ngth/frame locations are read through repetitive reads from one IO
port at the IO base address. See Section 4.10 on
page 76.
In memory mode, the receive status/length/frame
locations are read using memory reads of a block of
memory starting at memory base address + 0400h.
Typically the memory locations are read sequentially using repetitive Move instructions (REP
MOVS). See Section 4.9 on page 74.
Random access is not needed. However, the first
118 bytes of the receive frame can be accessed randomly if word reads, on even word boundaries, are
used. Beyond 118 bytes, the memory reads must be
sequential. Byte reads, or reads on odd-word
boundaries, can be performed only in sequential
read mode. See Section 4.8 on page 73.
The RxStatus word reports the status of the current
received frame. RxEvent register 4 (PacketPage
base + 0124h) has the same contents as the RxStatus register, except RxEvent is cleared when RxEvent is read.
The RxLength (receive length) word is the length,
in bytes, of the data to be transferred to the host
across the ISA bus. The register describes the
length from the start of Destination Address to the
end of CRC, assuming that CRC has been selected
(via Register 3 RxCFG, bit BufferCRC). If CRC
has not been selected, then the length does not include the CRC, and the CRC is not present in the
receive buffer.
After the RxLength has been read, the receive
frame can be read. When some portion of the frame
is read, the entire frame should be read before reading the RxEvent register either directly or through
the ISQ register. Reading the RxEvent register signals to the CS8900A that the host is finished with
the current frame, and wants to start processing the
next frame. In this case, the cu rrent frame will no
longer be accessible to the host. The current frame
will also become inaccessible if a Skip command is
issued, or if the entire frame has been read. See
Section 5.2 on page 79.
4.7.2 Transmit Locations
The host can write frames into the CS8900A buffer
using Memory writes using REP MOVS to the TxFrame location. See Section 5.7 on page 99.
4.8 Eight and Sixteen Bit Transfers
A data transfer to or from the CS8900A can be
done in either I/O or Memory space, and can be either 16 bits wide (word transfers) or 8 bits wide
(byte transfers). Because the CS8900A’s internal
architecture is based on a 16-bit data bus, word
transfers are the most efficient.
To transfer transmit frames to the CS8900A and receive frames from the CS8900A, the host may mix
word and byte transfers, provided it follows three
rules:
1) The primary method used to access CS8900A
memory is word access.
2) Word accesses to the CS8900A’s internal
memory are kept on even-byte boundaries.
3) When switching from byte accesses to word accesses, a byte access to an even byte address
must be followed by a byte access to an oddbyte address before the host may execute a
word access (this will realign the word transfers
to even-byte boundaries). On the other hand, a
byte access to an odd-byte address may be followed by a word access.
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 73
CS8900A
a
Figure 17. Odd-Byte Aligned Data
Crystal LAN™ ISA Ethernet Controller
Failure to observe these three rules may cause data
corruption.
4.8.1 Transferring Odd-Byte-Aligned Data
Some applications gather transmit data from more
than one section of host memory. The boundary between the various memory locations may be either
even- or odd-byte aligned. When such a boundary
is odd-byte aligned, the host should transfer the last
byte of the first block to an even address, followed
by the first byte of the second block to the following odd address. It can then resume word transfers.
An example of this is shown in Figure 17.
Word Tr an sf e r
Word Tr an sf e r
Word Tr an sf er
Byte Transfer
Byte Transfer
Word Tr an sf e r
Word Tr an sf e r
Word Tr an sf e r
First Block of Data
Second Block of Dat
all of the CS8900A’s registers can be accessed directly.
In Memory Mode, the CS8900A supports Standard
or Ready Bus cycles without introducing additional
wait states.
Memory moves can use MOVD (double-word
transfers) as long as the CS8900A’s memory base
address is on a double word boundary. Since 286
processors don’t support the MOVD instruction,
word and byte transfers must be used with a 286.
Description Mnemonic Read/Write Location:
PocketPage
base +
Receive
Status
Receive
Length
Receive
Frame
Transmit
Frame
Table 16. Receive/Transmit Memory Locations
RxStatus Read-only 0400h-0401h
RxLength Read-only 0402h-0403h
RxFrame Read-only starts at 0404h
TxFrame Write-only starts at 0A00h
4.9.1 Accesses in Memory Mode
4.8.2 Random Access to CS8900A Memory
The first 118 bytes of a receive frame held in the
CS8900A’s on-chip memory may be randomly accessed in Memory mode. After the first 118 bytes,
only sequential access of received data is allowed.
Either byte or word access is permitted, as long as
all word accesses are executed to even-byte boundaries.
4.9 Memory Mode Operation
To configure the CS8900A for Memory Mode, the
PacketPage memory must be mapped into a contiguous 4-kbyte block of host memory. The block
must start at an X000h boundary, with the PacketPage base address mapped to X000h. When the
CS8900A comes out of reset, its default configuration is I/O Mode. Once Memory Mode is selected,
The CS8900A allows Read/Write access to the internal PacketPage memory, and Read access of the
optional Boot PROM. (See Section 3.7 on page 26
for a description of the optional Boot PROM.)
A memory access occurs when all of the following
are true:
• The address on the ISA System Address bus
(SA0 - SA19) is within the Memory space
range of the CS8900A or Boot PROM.
• The CHIPSEL input pin is low.
• Either the MEMR pin or the MEMW pin is low.
4.9.2 Configuring the CS8900A for Memory
Mode
There are two different methods of configuring the
CS8900A for Memory Mode operation. One method allows the CS8900A's internal memory to be
mapped anywhere within the host system's 24-bit
CIRRUS LOGIC PRODUCT DATA SHEET
74 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
memory space. The other method limits memory
mapping to the first 1 Mbyte of host memory space.
General Memory Mode Operation: Configuring the
CS8900A so that its internal memory can be
mapped anywhere within host Memory space requires the following:
• a simple circuit must be added to decode the
Latchable Address bus (LA20 - LA23) and the
BALE signal.
• the host must configure the external logic with
the correct address range as follows:
1) Check to see if the INITD bit (Register 16,
SelfST, bit 7) is set, indicating that initialization is complete.
2) Check to see if the ELpresent bit (Register
16, SelfST, bit B) is set. This bit indicates
that external logic for the LA bus decode is
present.
3) Set the ELSEL bit of the EEPROM Command Register to activate the ELCS pin for
use with the external decode circuit.
4) Configure the external logic serially.
• the host must write the memory base address
into the Memory Base Address register (PacketPage base + 002Ch);
• the host must set the MemoryE bit (Register 17,
BusCTL, Bit A); and
• the host must set the UseSA bit (Register 17,
BusCTL, Bit 9).
Limiting Memory Mode to the First 1 Mbyte of
Host Memory Space: Configuring the CS8900A so
that its internal memory can be mapped only within
the first 1 Mbyte of host memory space requires the
following:
• the CHIPSEL pin must be tied low;
• the ISA-bus SMEMR signal must be connected
to the MEMR pin;
• the ISA-bus SMEMW signal must be connected to the MEMW pin;
• the host must write the memory base address
into the Memory Base Address register (PacketPage base + 002Ch);
• the host must set the MemoryE bit (Register 17,
BusCTL, Bit A); and
• the host must clear the UseSA bit (Register 17,
BusCTL, Bit 9).
4.9.3 Basic Memory Mode Transmit
Memory Mode transmit operations occur in the following order (using interrupts):
1) The host bids for storage of the fra me by writing the Transmit Command to the TxC MD register (memory base + 0144h) and the transmit
frame length to the TxLength register (memory
base + 0146h). If the transmit length is erroneous, the command is discarded and the TxBidErr bit (Register 18, BusST, Bit 7) is set.
2) The host reads the BusST register (Register 18,
memory base + 0138h). If the Rdy4TxNOW bit
(Bit 8) is set, the frame can be written. If clear,
the host must wait for CS8900A buffer memory
to become available. If Rdy4TxiE (Register B,
BufCFG, Bit 8) is set, the host will be interrupted when Rdy4Tx (Register C, BufEvent, Bit 8)
becomes set.
3) Once the CS8900A is ready to accept the
frame, the host executes repetitive memory-tomemory move instructions (REP MOVS) to
memory base + 0A00h to transfer the entire
frame from host memory to CS8900A memory.
For a more detailed description of transmit, see
Section 5.7 on page 99.
4.9.4 Basic Memory Mode Receive
Memory Mode receive operations occur in the following order (interrupts used to signal the presence
of a valid receive frame):
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 75
CS8900A
Crystal LAN™ ISA Ethernet Controller
1) A frame is received by the CS8900A, triggering
an enabled interrupt.
2) The host reads the Interrupt Status Queue
(memory base + 0120h) and is informed of the
receive frame.
3) The host reads RxStatus (memory base +
0400h) to learn the status of the receive frame.
4) The host reads RxLength (memory base +
0402h) to learn the frame’s length.
5) The host reads the fra me data by executing repetitive memory-to-memory move instructions
(REP MOVS) from memory base + 0404h to
transfer the entire frame from CS8900A memory to host memory.
For a more detailed description of receive, see
Section 5.2 on page 79.
4.9.5 Polling the CS8900A in Memory Mode
If interrupts are not used, the host can poll the
CS8900A to check if receive frames are present
and if memory space is available for transmit.
However, this is beyond the scope of this data
sheet.
Offset Type Description
0004h Write-only TxCMD (Transmit Command)
0006h Write-only TxLength (Transmit Length)
0008h Read-only Interrupt Status Queue
000Ah Read/Write PacketPage Pointer
000Ch Read/Write PacketPage Data (Port 0)
000Eh Read/Write PacketPage Data (Port 1)
Table 17. I/O Mode Mapping
4.10.1 Receive/Transmit Data Ports 0 and 1
These two ports are used when transferring transmit data to the CS8900A and receive data from the
CS8900A. Port 0 is used for 16-bit operations and
Ports 0 and 1 are used for 32-bit operations (lowerorder word in Port 0).
4.10.2 TxCMD Port
The host writes the Transmit Command (TxCMD)
to this port at the start of each transmit operation.
The Transmit Command tells the CS8900A that the
host has a frame to be transmitted, as well as how
that frame should be transmitted. This port is
mapped into PacketPage base + 0144h. See Register 9 in Section 4.4 on page 47 for more information.
4.10 I/O Space Operation
In I/O Mode, PacketPage memory is accessed
through eight 16-bit I/O ports that are mapped into
16 contiguous I/O locations in the host system’s I/O
space. I/O Mode is the default configuration for the
CS8900A and is always enabled. On power up, the
default value of the I/O base address is set at 300h.
(Note that 300h is typically assigned to LAN peripherals). The I/O base address may be changed to
any available XXX0h location, either by loading
configuration data from the EEPROM, or during
system setup. Table 17 shows the CS8900A I/O
Mode mapping.
Offset Type Description
0000h Read/Write Receive/Transmit Data (Port 0)
0002h Read/Write Receive/Transmit Data (Port 1)
Table 17. I/O Mode Mapping
CIRRUS LOGIC PRODUCT DATA SHEET
4.10.3 TxLength Port
The length of the frame to be trans mitte d is written
here immediately after the Transmit Command is
written. This port is mapped into PacketPage base
+ 0146h.
4.10.4 Interrupt Status Queue Port
This port contains the current value of the Interrupt
Status Queue (ISQ). The ISQ is located at PacketPage base + 0120h. For a more detailed description of the ISQ, see Section 5.1 on page 79.
4.10.5 PacketPage Pointer Port
The PacketPage Pointer Port is written whenever
the host wishes to access any of the CS8900A’s internal registers. The first 12 bits (bits 0 through B)
provide the internal address of the target register to
be accessed during the current operation. The next
76 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
three bits (C, D, and E) are read-only and will always read as 011b. Any convenient value may be
written to these bits when writing to the PacketP age
Pointer Port. The last bit (Bit F) indicates whether
or not the PacketPage Pointer should be auto-incremented to the next word location. Figure 18 shows
the structure of the PacketPage Pointer.
I/O base + 000Bh I/O base + 000Ah
F
E
BADC
PacketPage Register Address
Bit F: 0 = Pointer remains fixed
1 = Auto-Increments to next word location
Figure 18. PacketPage Pointer
76
98
4
10325
4.10.6 PacketPage Data Ports 0 and 1
The PacketPage Data Ports are used to transfer data
to and from any of the CS8900A’s internal r egisters. Port 0 is used for 16-bit operations and Port 0
and 1 are used for 32-bit operations (lower-order
word in Port 0).
1) The host bids for storage of the fra me by writing the Transmit Command to the TxCMD Port
(I/O base + 0004h) and the transmit frame
length to the TxLength Port (I/O base + 0006h).
2) The host reads the BusST register (Register 18)
to see if the Rdy4TxNOW bit (Bit 8) is set. To
read the BusST register, the host must first set
the PacketPage Pointer at the correct location
by writing 0138h to the PacketPage Pointer
Port (I/O base + 000Ah). It can then read the
BusST register from the P acketPage Data Port
(I/O base + 000Ch). If Rdy4TxNOW is set, the
frame can be written. If clear, the host must
wait for CS8900A buffer memory to become
available. If Rdy4TxiE (Register B, BufCFG,
Bit 8) is set, the host will be interrupted when
Rdy4Tx (Register C, BufEvent, Bit 8) becomes
set. If the TxBidErr bit (Register 18, BusST, Bit
7) is set, the transmit length is not valid.
3) Once the CS8900A is ready to accept the
frame, the host executes repetitive write instructions (REP OUT) to the Receive/Transmit
Data Port (I/O base + 0000h) to transfer the entire frame from host memory to CS8900A
memory.
For a more detailed description of transmit, see
Section 5.7 on page 99.
4.10.7 I/O Mode Operation
For an I/O Read or Write operation, the AEN pin
must be low, and the 16-bit I/O address on the ISA
System Address bus (SA0 - SA15) must match the
4.10.9 Basic I/O Mode Receive
I/O Mode receive operations occur in the following
order (In this example, interrupts are enabled to
signal the presence of a valid receive frame):
address space of the CS8900A. For a Read, the IOR
pin must be low, and for a Write, the IOW pin must
be low.
Note: The ISA Latchable Address Bus (LA17 LA23) is not needed for applications that use only
I/O Mode and Receive DMA operation.
1) A frame is received by the CS8900A, triggering
an enabled interrupt.
2) The host reads the Inter rupt Status Queue Port
(I/O base + 0008h) and is informed of the receive frame.
3) The host reads the fra me data by executing re-
4.10.8 Basic I/O Mode Transmit
I/O Mode transmit operations occur in the following order (using interrupts):
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 77
petitive read instructions (REP IN) from the
Receive/Transmit Data Port (I/O base + 0000h)
to transfer the frame from CS8900A memory to
CS8900A
Crystal LAN™ ISA Ethernet Controller
host memory. Preceding the frame data are the
contents of the RxStatus register (PacketPage
base + 0400h) and the RxLength register (PacketPage base + 0402h).
For a more detailed description of receive, see
Section 5.2 on page 79.
4.10.10 Accessing Internal Registers
To access any of the CS8900A’s internal registers
in I/O Mode, the host must first setup the PacketPage Pointer. It does this by writing the PacketPage address of the target register to the
PacketPage Pointer Port (I/O base + 000Ah). The
contents of the target register is then mapped into
the PacketPage Data Port (I/O base + 000Ch).
If the host needs to access a sequential block of registers, the MSB of the PacketPage address of the
first word to be accessed should be set to "1". The
PacketPage Pointer will then m ove to the next word
location automatically, eliminating the need to setup the PacketPage Pointer between successive accesses (see Figure 18).
4.10.11 Polling the CS8900A in I/O Mode
If interrupts are not used, the host can poll the
CS8900A to check if receive frames are present
and if memory space is available for transmit.
CIRRUS LOGIC PRODUCT DATA SHEET
78 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
5.0 OPERATION
5.1 Managing Interrupts and Servicing the Interrupt Status Queue
The Interrupt Status Queue (ISQ) is used by the
CS8900A to communicate Event reports to the host
processor. Whenever an event occurs that triggers
an enabled interrupt, the CS8900A sets the appropriate bit(s) in one of five registers, maps the contents of that register to the ISQ, and drives the
selected interrupt request pin high (if an ea rlier interrupt is waiting in the queue, the interrupt request
pin will already be high). When the host services
the interrupt, it must first read the ISQ to learn the
nature of the interrupt. It ca n then proce ss the interrupt (the first read to the ISQ causes the interrupt
request pin to go low.)
Three of the registers mapped to t he IS Q a re event
registers: RxEvent (Register 4), TxEvent (Register
8), and BufEvent (Register C). The other two registers are counter-overflow reports: RxMISS (Register 10) and TxCOL (Register 12). There may be
more than one RxEvent report and/or more than
one TxEvent report in the ISQ at a time. However,
there may be only one BufEvent report, one RxMISS report and one TxCOL report in the ISQ at a
time.
Event reports stored in the ISQ ar e read out in the
order of priority, with RxEvent first, followed by
TxEvent, BufEvent, RxMiss, and then TxCOL.
The host only needs to read from one location to get
the interrupt currently at the front of the queue. In
Memory Mode, the ISQ is located at PacketPage
base + 0120h. In I/O Mode, it is located at I/O base
+ 0008h. Each time the host reads the ISQ, the bits
in the corresponding register are cleared and the
next report in the queue moves to the front.
When the host starts reading the ISQ, it must read
and process all Event reports in the queue. A readout of a null word (0000h) indicates that all interrupts have been read.
The ISQ is read as a 16-bit word. The lower six bits
(0 through 5) contain the register number (4, 8, C,
10, or 12). The upper ten bits (6 through F) contain
the register contents. The host must always read the
entire 16-bit word.
The active interrupt pin (INTRQx) is selected via
the Interrupt Number register (PacketPage base +
22h). As an additional option, all of the interrupt
pins can be 3-Stated using the same register. see
Section 4.3 on page 42.
An event triggers an interrupt only when the EnableIRQ bit of the Bus Control register (bit F of
register 17) is set. After the CS8900A has generated an interrupt, the first read of the ISQ makes the
INTRQ output pin go low (inactive). INTRQ remains low until the null word (0000h) is read from
the ISQ, or for 1.6us, whichever is longer.
5.2 Basic Receive Operation
5.2.0.1 Overview
Once an incoming packet has passed through the
analog front end and Manchester decoder, it goes
through the following three-step receive process:
1) Pre-Processing
2) Temporary Buffering
3) Transfer to Host
Figure 20 shows the steps in frame reception.
As shown in the figure, all receive frames go
through the same pre-processing and temporary
buffering phases, regardless of transfer method
Once a frame has been pre-processed and buffered,
it can be accessed by the host in either Memory or
I/O space. In addition, the CS8900A can transfer
receive frames to host memory via host DMA. This
section describes receive frame pre-processing and
Memory and I/O space receive operation.
Section 5.4 on page 90 through Section 5.5 on
page 93 describe DMA operation.
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 79
An enabled interrupt occurs.
The selected interrupt
request pin is driven high
(active) if not already high.
The host reads the ISQ.
The selected interrupt
request pin is driven low.
CS8900A
Crystal LAN™ ISA Ethernet Controller
EXIT.
Interrupts
re-enabled.
(In terrupts
will be
disabled
for at least
1.6 us.)
Yes
ISQ = 0000h?
No
Which
Event
report
type?
RxEvent
TxEvent
BufEvent
RxMISS
TxCOL
Process applicable
RxEvent bits: Extradata,
Runt, CRCerror, RxOK.
Process applicable
TxEvent bits: 16coll, Jabber,
Out-of-window, TxOK.
Process applicable BufEvent
bits: RxDest, Rx128, RxMiss,
TxUnderrun, Rdy4Tx ,
RxDMAFrame, SWint.
Process RxMISS counter.
Process TxCOL counter.
None of the above
Figure 19. Interrupt Status Queue
CIRRUS LOGIC PRODUCT DATA SHEET
80 DS271PP3
Service
Default
CS8900A
Crystal LAN™ ISA Ethernet Controller
Packet Received
Preamble and
Start-of-F rame
Delimiter Removed
Frame Held
On Chip
Host Reads
Frame from
CS8900A Memory
Figure 20. Frame Reception
Frame Pre-
Processed
Frame
Temporarily
Buffered
Use
DMA?
YesNo
Frame DMAed
to Host Memory
Host Reads
Frame from
Host Memory
tion Address (DA), Source Address (SA), Length
field, Data field, pad bits (if necessary), and Frame
Check Sequence (FCS, also called CRC). Figure 9
shows the format of a frame. The term "frame data"
refers to all the data from the DA to the FCS that is
to be transmitted, or that has been received.
5.2.1.3 Transfer
The term "transfer" refers to moving data across the
ISA bus, to and from the CS8900A. During receive
operations, only frame data are transferred from the
CS8900A to the host (the preamble and SFD are
stripped off by the CS8900A’s MAC engine). The
FCS may or may not be transferred, depending on
the configuration. All transfers to and from the
CS8900A are counted in bytes, but may be padded
for double word alignment.
5.2.2 Receive Configuration
After each reset, the CS8900A must be configured
for receive operation. This can be done automatically using an attached EEPROM or by writing
configuration commands to the CS8900A’s internal
registers (see Section 3.4 on page 21). The items
that must be configured include:
5.2.1 Terminology: Packet, Frame, and Transfer
The terms Packet, Frame, and Transfer are used extensively in the following sections. They are defined below for clarity:
5.2.1.1 Packet
The term "packet" refers to the entire serial string
of bits transmitted over an Ethernet network. This
includes the preamble, Start-of-Frame Delimiter
(SFD), Destination Address (DA), Source Address
(SA), Length field, Data field, pad bits (if necessary), and Frame Check Sequence (FCS, also
called CRC). Figure 9 shows the format of a packet.
5.2.1.2 Frame
The term "frame" refers to the portion of a packet
from the DA to the FCS. This includes the Destina-
CIRRUS LOGIC PRODUCT DATA SHEET
• which physical interface to use;
• which types of frames to accept;
• which receive events cause interrupts; and,
• how received frames are transferred.
5.2.2.1 Configuring the Physical Interface
Configuring the physical interface consists of determining which Ethernet interface should be active, and enabling the receive logic for serial
reception. This is done via the LineCTL register
(Register 13) and is described in Table18.
5.2.2.2 Choosing which Frame Types to Accept
The RxCTL register (Register 5) is used to determine which frame types will be accepted by the
CS8900A (a receive frame is said to be "accepted"
when the frame is buffered, either on chip or in host
DS271PP3 81
CS8900A
Crystal LAN™ ISA Ethernet Controller
Register 13, LineCTL
Bit Bit Name Operation
6 SerRxON When set, reception enabled.
8 AUIonly When set, AUI selected (takes
precedence over AutoAUI/10BT).
9 AutoAUI/10BT When set, automatic interface
selection enabled. When both bits
8 and 9 are clear, 10BASE-T
selected.
E LoRx Squelch When set, receiver squelch level
reduced by approximately 6 dB.
Table 18. Physical Interface Configuration
memory via DMA). Table 19 describes the configuration bits in this register. Refer to Section 5.3 on
page 87 for a detailed description of Destination
Address filtering.
Register 5, LRxCTL
Bit Bit Name Operation
6 IAHashA When set, Individual Address frames
that pass the hash filter are
accepted*.
7Promis
cuousA
8 RxOKA When set, frames with valid length
9 MulticastA When set, Multicast frames that pass
A IndividualA When set, frames with DA that
BBroad-
castA
C CRCerrorA When set, frames with bad CRC that
D RuntA When set, frames shorter than 64
E ExtradataA When set, frames longer than 1518
* Must also meet the criteria programmed into bits 8, C, D,
and E.
Table 19. Frame Acceptance Criteria
When set, all frames are accepted*.
and CRC and that pass the DA filter
are accepted.
the hash filter are accepted*.
matches the IA at PacketPage base
+ 0158h are accepted*.
When set, all broadcast frames are
accepted*.
pass the DA filter are accepted.
bytes that pass the DA filter are
accepted.
bytes that pass the DA filter are
accepted (only the first 1518 bytes
are buffered).
5.2.2.3 Selecting which Events Cause Interrupts
The RxCFG register (Register 3) and the BufCFG
register (Register B) are used to determine which
receive events will cause i nterrupts to the host processor. Table 21 describes the interrupt enable (iE)
bits in these registers.
Register 3, RxCFG
Bit Bit Name Operation
8 RxOKiE When set, there is an interrupt if a
frame is received with valid length
and CRC*.
C CRCerroriE When set, there is an interrupt if a
frame is received with bad CRC*.
D RuntiE When set, there is an interrupt if a
frame is received that is shorter than
64 bytes*.
E ExtradataiE When set, there is an interrupt if a
frame is received that is longer than
1518 bytes*.
* Must also pass the DA filter before there is an interrupt.
Table 20.
Register B, BufCFG
Bit Bit Name Operation
7 RxDMAiE When set, there is an interrupt if
one or more frames are transferred via DMA.
A RxMissiE When set, there is an interrupt if a
frame is missed due to insufficient
receive buffer space.
B Rx128iE When set, there is an interrupt
after the first 128 bytes of receive
data have been buffered.
D MissOvfloiE When set, there is an interrupt if
the RxMISS counter overflows.
F RxDestiE When set, there is an interrupt
after the DA of an incoming frame
has been buffered.
Table 21. Registers 3 and B Interrupt Configuration
5.2.2.4 Choosing How to Transfer Frames
The RxCFG register (Register 3) and the BusCTL
register (Register 17) are used to determine how
frames will be transferred to host memory, as described in Table 22.
CIRRUS LOGIC PRODUCT DATA SHEET
82 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
Register 3, RxCFG
Bit Bit Name Operation
7 StreamE When set, Stream Transfer
enabled.
9 RxDMAonly When set, DMA slave opera-
tion used for all receive
frames.
A AutoRX DMAE When set, Auto-Switch DMA
enabled.
B BufferCRC When set, the received CRC
is buffered.
Register 17, BusCTL
Bit Bit Name Operation
B DMABurst When set, DMA operations
hold the bus for up to approx-
imately 28 µs. When clear,
DMA operations are continuous.
D RxDMAsize When set, DMA buffer size is
64 Kbytes. When clear, DMA
buffer size is 16 Kbytes.
Table 22. Receive Frame Pre-Processing
5.2.3 Receive Frame Pre-Processing
The CS8900A pre-processes all receive frames using a four step process:
Receive Frame
Destination
Address Filter
Check:
- Promisc uousA?
- IAHashA?
- MulticastA ?
- Individu a l A?
- Broadca s t A?
Pass
DA Filter?
Generate Early
Interrupts if Enab led
(see next figure)
Acceptance Filter
Check:
- RxOKA?
- ExtradataA?
- RuntA?
- CRCerrorA?
No
Yes
Discard Frame
1) Destination Address filtering;
2) Early Interrupt Generation;
3) Acceptance filtering; and,
4) Normal Interrupt Generation.
Figure 21 provides a diagram of frame pre-process-
ing.
5.2.3.1 Destination Address Filtering
All incoming frames are passed through the Destination Address filter (DA filter). If the frame’s DA
passes the DA filter, the frame is passed on for further pre-processing. If it fails the DA filter, the
frame is discarded. See Section 5.3 on page 87 for
a more detailed description of DA filtering.
Yes
Status of r eceive
frame reported in
RxEvent register,
frame accepted
into on-chip RAM
Pass
Accept.
Filter?
Generate Interrupts
Check:
- RxOKiE?
- ExtradataiE?
- CRCerroriE?
- RuntiE?
- RxDMAiE?
Pre-Processing
Complete
No
Status of receive
frame reported in
RxEvent register,
frame discarded.
Figure 21. Receive Frame Pre-Processing
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 83
CS8900A
Crystal LAN™ ISA Ethernet Controller
5.2.3.2 Early Interrupt Generation
The CS8900A support the following two early interrupts that can be used to inform the host that a
frame is being received:
• RxDest: The RxDest bit (Register C , BufEvent,
Bit F) is set as soon as the Destination Address
(DA) of the incoming frame passes the DA filter. If the RxDestiE bit (Register B, BufCF G,
bit F) is set, the CS8900A generates a corresponding interrupt. Once RxDest is set, the host
is allowed to read the incoming frame's DA (the
first 6 bytes of the frame).
• Rx128: The Rx128 bit (Register C, BufEvent,
Bit B) is set as soon as the first 128 bytes of the
incoming frame have been received. If the
Rx128iE bit (Register B, BufCFG, bit B) is set,
the CS8900A generates a corresponding interrupt. Once the Rx128 bit is set, the RxDest bit
is cleared and the host is allowed to read the
first 128 bytes of the incoming frame. The
Rx128 bit is cleared by the host reading the
BufEvent register (either directly or through the
Interrupt Status Queue) or by the CS8900A detecting the incoming frame's End-of-Frame
(EOF) sequence.
CTL register (Register 5). If the receive frame
passes the Acceptance filter, the frame is buffered,
either on chip or in host memory via DMA. If the
frame fails the Acceptance filter, it is discarded.
The results of the Acceptance filter are reported in
the RxEvent register (Register 4).
5.2.3.4 Normal Interrupt Generation
The final step of pre-processing is to generate any
enabled interrupts that are triggered by the incoming frame. Interrupt generation occurs when the entire frame has been buffered (up to the first 1518
bytes). For more information about interrupt generation, see Section 5.1 on page 79.
5.2.4 Held vs. DMAed Receive Frames
All accepted frames are either held in on-chip
RAM until processed by the host, or stored in host
memory via DMA. A receive frame that is held in
on-chip RAM is referred to as a held receive frame.
A frame that is stored in host memory via DMA is
a DMAed receive frame. This section describes
buffering and transferring held receive frames.
Section 5.4 on page 90 through Section 5.6 on
page 96 describe DMAed receive frames.
5.2.5 Buffering Held Receive Frames
Like all Event bits, RxDest and Rx128 are set by
the CS8900A whenever the appropriate event occurs. Unlike other Event bits, RxDest and Rx128
may be cleared by the CS8900A without host intervention. All other event bits are cleared only by the
host reading the appropriate event register, either
directly or through the Interrupt Status Queue
(ISQ). (RxDest and Rx128 can also be cleared by
the host reading the BufEvent register, either directly or through the Interrupt Status Queue). Figure 22 provides a diagram of the Early Interrupt
If space is available, an incoming frame will be
temporarily stored in on-chip RAM, where it
awaits processing by the host. Although this receive frame now occupies on-chip memory, the
CS8900A does not commit the memory space to it
until one of the following two conditions is true:
1) The entire frame has been received and the host
has learned about the frame by reading the RxEvent register (Register 4), either directly or
through the ISQ.
Or:
process.
2) The frame has been partially received, causing
5.2.3.3 Acceptance Filtering
The third step of pre-processing is to determine
whether or not to accept the frame by comparing
either the RxDest bit (Register C, BufEvent, Bit
F) or the Rx128 bit (Register C, BufEvent, Bit
B) to become set, and the host has learned about
the frame with the criteria program med into the Rx-
CIRRUS LOGIC PRODUCT DATA SHEET
84 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
Receive Frame
Yes No
DA Filter
Passed?
RxDest set .
Host may read the DA
(first 6 received bytes).
Yes
64 bytes
Received?
Discard Frame
No
Rx128 set and
RxDest cleared.
Host may read first
128 received bytes.
Yes
EOF
Received?
Yes
128 bytes
Received?
No
EOF
Received?
Yes
No
RxDes t clear ed
and Runt s et.
If RuntA is set,
frame accepted and
Host may read frame.
No
RxDest cle ared and
RxOK or CRCerror
set, as appropr iate.
If RxOKA or CRCerrorA
is set, fram e accepted and
Host may read frame.
EOF
Received?
Yes
No
Rx128 cleared and
RxOK, CRCerror or
Extradata set, as
appropriate. If ExtradataA,
RxOKA or CRCerrorA is
set, frame is accepted and
Host may read frame.
Figure 22. Early Interrupt Generation
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 85
CS8900A
Crystal LAN™ ISA Ethernet Controller
the receive frame by reading the BufEvent register (Register C), either directly or through the
ISQ.
When the CS8900A commits buffer space to a particular held receive frame (termed a committed received frame), no data from subsequent frames can
be written to that buffer space until the frame is
freed from commitment. (The committed received
frame may or may not have been received error
free.)
A received frame is freed from commitment by any
one of the following conditions:
1) The host reads the ent ire frame sequentially in
the order that it was received (first byte in, first
byte out).
Or:
2) The host reads part or none of the frame, and
then issues a Skip command by setting the
Skip_1 bit (Register 3, RxCFG, bit 6).
Or:
3) The host reads part of the frame and then reads
the RxEvent register (Register 5), either directly or through the ISQ, and learns of another receive frame. This condition is called an
"implied Skip". Ensure that the host does not do
“implied skips.”
Both early interrupts are disabled whenever there is
a committed receive frame waiti ng to be proc ess ed
by the host.
5.2.6 Transferring Held Receive Frames
There are three possible ways that the host can
learn the status of a particular frame. It can:
1) Read the Interrupt Status Queue;
2) Read the RxEvent register directly (Regis ter4);
or
3) Read the RxStatus register (PacketPage base +
0400h).
5.2.7 Receive Frame Visibility
Only one receive frame is visible to the host at a
time. The receive frame's status can be read from
the RxStatus register (PacketPage base + 0400h),
and its length can be read from the RxLength register (PacketPage base + 0402h). For more information about Memory space operation, see
Section 4.9 on page 74. For more information
about I/O space operation, see Section 4.10 on
page 76.
5.2.8 Example of Memory Mode Receive Opera-
tion
A common length for short frames is 64 bytes, including the 4-byte CRC. Suppose that such a frame
has been received with the CS8900A configured as
follows:
• The BufferCRC bit (Register 3, RxCFG, Bit B)
is set causing the 4-byte CRC to be buffered
with the rest of the receive data.
• The RxOKA bit (Register 5, RxCTL, Bit 8) is
set, causing the CS8900A to accept good
frames (a good frame is one with legal length
and valid CRC).
The host can read-out held receive frames in Memory or I/O space. To transfer frames in Memory
space, the host executes repetitive Move instructions (REP MOVS) from PacketPage base +
0404h. To transfer frames in I/O space, the host ex-
• The RxOKiE bit (Register 3, RxCFG, Bit 8) is
set, causing an interrupt to be generated whenever a good frame is received.
Then the transfer to the host would proceed as follows:
ecutes repetitive In instructions (REP IN) from I/O
base + 0000h, with status and length preceding the
frame.
1) The CS8900A generates an RxOK interrupt to
the host to signal the arrival of a good frame.
2) The host reads the ISQ (PacketPage base +
CIRRUS LOGIC PRODUCT DATA SHEET
86 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
0120h) to assess the status of the receive frame
and sees the contents of the RxEvent register
(Register 4) with the RxOK bit (Bit 8) set.
3) The host reads the receive frame’s length from
the RxLength register (PacketPage base +
0402h).
4) The host reads the frame data by executing 32
consecutive MOV instructions starting with
PacketPage base + 0404h.
The memory map of the 64-byte frame is give n in
Table 23.
Memory Space
Word Offset
0400h RxStatus Register (the host may
0402h RxLength Register (In this example,
0404h to 0409h 6-byte Source Address.
040Ah to 040Fh 6-byte Destination Address.
0410h to 011h 2-byte Length or Type Field.
0412h to 043Fh 46 bytes of data.
0440h CRC, bytes 1 and 2
0442h CRC, bytes 3 and 4
Table 23. Example Memory Map
Description of Data Stored in On-
chip RAM
skip reading 0400h since RxEvent
was read from the ISQ.)
the length is 40h bytes. The frame
starts at 0404h, and runs through
0443h.)
The byte count register resides at PacketPage base
+ 50h.
Following an RxDest or Rx128 interrupt the register contains the number of bytes which are available to be read by the CPU. When the end of frame
is reached, the count contains the final count value
for the frame, including the allowance for the BufferCRC option. When this final count is read by the
CPU the count register is set to zero. Therefore to
read a complete frame using the byte count register,
the register can be read and the data moved until a
count of zero is detected. Then the RxEvent register can be read to determine the final frame status.
The sequence is as follows:
1) At the start of a frame, the byte counter matches
the incoming character counter. The byte
counter will have an even value prior to the end
of the frame.
2) At the end of the frame, the final count, including the allowance for the CRC (if the BufferCRC option is enabled), is held until the byte
counter is read.
3) When a read of the byte counter returns a count
of zero, the previous count was the final count.
The count may now have an odd value.
5.2.9 Receive Frame Byte Counter
The receive frame byte counter describes the number of bytes received for the current frame. The
counter is incremented in real time as bytes are received from the Ethernet. The byte counter can be
used by the driver to determine how many bytes are
available for reading out of the CS8900A. Maximum Ethernet throughput can be achieved by using
I/O or memory modes, and by dedicating the CPU
to reading this counter, and using the count to read
the frame out of the CS8900A at the same time it is
being received by the CS8900A from the Ethernet
(parallel frame-reception and frame-read-out
tasks).
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 87
4) RxEvent should be r ead to obtain a final status
of the frame, followed by a Skip command to
complete the operation.
Note that all RxEvent’s should be processed before
using the byte counter. The byte counter should be
used following a BufEvent when RxDest or Rx128
interrupts are enabled.
5.3 Receive Frame Address Filtering
The CS8900A is equipped with a Destination Address (DA) filter used to determine which receive
frames will be accepted. (A receive frame is said to
be "accepted" by the CS8900A when the frame
data are placed in either on-chip memory, or in host
CS8900A
Crystal LAN™ ISA Ethernet Controller
memory by DMA). The DA filter can be configured to accept the following frame types:
5.3.0.1 Individual Address Frames
For all Individual Address frames, the first bit of
the DA is a "0" (DA[0] = 0), indicating that the address is a Physical Address. The address filt er accepts Individual Address frames whose DA
matches the Individual Address (IA) stored at
PacketPage base + 0158h, or whose hash-filtered
DA matches one of the bits programmed into the
Logical Address Filter (the hash filter is described
later in this section).
5.3.0.2 Multicast Frames
For Multicast Frames, the first bit of the DA is a "1"
(DA[0] = 1), indicating that the frame is a Logical
Address. The address filter accepts Multicast
frames whose hash-filtered DA matches one of the
bits programmed into the Logical Address Filter
(the hash filter is described later is this se ction). As
shown in Table 25, Broadcast Frames can be accepted as Multicast frames under a very s pecific set
of conditions.
5.3.0.3 Broadcast Frames
Frames with DA equ al to FFFF FFFF FFFFh are
broadcast frames. In addition, the CS8900A can be
configured for Promiscuous Mode, in which case it
will accept all receive frames, irrespective of DA.
5.3.1 Configuring the Destination Address Filter
The DA filter is configured by programming five
DA filter bits in the RxCTL register (Register 5):
IAHashA, PromiscuousA, MulticastA, IndividualA, and BroadcastA. Four of these bits are associated with four status bits in the RxEvent register
(Register 4): IAHash, Hashed, IndividualAdr, and
Broadcast. The RxEvent register reports the resu lts
of the DA filter for a given receive frame. The bits
associated with DA filtering are summarized below:
Bit # RxCTL
Register 5
6 IAHashA IAHash
(used only if IAHashA = 1)
7 PromiscuousA
9 MulticastA Hashed
A IndividualA IndividualAdr
(used only if IndividualA = 1)
B BroadcastA Broadcast
(used only if BroadcastA = 1)
RxEvent
Register 4
The IAHashA, MulticastA, IndividualA, and
BroadcastA bits are used independently. As a result, many DA filter combinations are pos sible. For
example, if MulticastA and IndividualA are set,
then all frames that are either Multicast or Individual Address frames are accepted. The PromiscuousA bit, when set, overrides the other four DA
bits, and allows all valid frames to be accepted. Table 24 summarizes the configuration options available for DA filtering.
IAHashA PromiscuousA MulticastA IndividualA BroadcastA Frames Accepted
0 0 0 1 0 Individual Address frames with
DA matching the IA at PacketPage base + 0158h
1 0 0 0 0 Individual Address frames with
DA that pass the hash filter
(DA[0] must be “0”)
0 0 1 0 0 Multicast frames with DA that
pass the hash filter (DA[0] must
be “1”)
0 0 0 0 1 Broadcast frames
X 1 X X X All frames
Table 24. DA Filtering Options
CIRRUS LOGIC PRODUCT DATA SHEET
88 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
It may become necessary for the host to change the
Destination Address (DA) filter criteria without resetting the CS8900A. This can be done as follows:
1) Clear SerRxON (Register 13, LineCTL, Bit 6)
to prevent any additional receive frames while
the filter is being changed.
2) Modify the DA filter bits (B, A, 9, 7, and 6) in
the RxCTL register. Modify the Logical Address Filter at PacketPage base + 0150h, if necessary.
Modify the Individual Address at PacketPage
base + 0158h, if necessary.
3) Set SerRxON to re-enable the receiver.
Because the receiver has been disabled, the
CS8900A will ignore frames while the host is
changing the DA filter.
5.3.2 Hash Filter
The hash filter is used to help determine which
Multicast frames and which Individual Address
frames should be accepted by the CS8900A.
5.3.2.1 Hash Filter Operation
See Figure 23. The DA of the incoming frame is
passed through the CRC logic, generating a 32-bit
CRC value. The six most-significant bits of the
CRC are latched into the 6-bit hash register (HR).
The contents of the HR are passed through a 6-to64-bit decoder, asserting one of the decoder’s outputs. The asserted output is compared with a corre-
sponding bit in the 64-bit Logical Address Filter,
located at PacketPage base + 0150h. If the decoder
output and the Logical Address Filter bit match, the
frame passes the hash filter and the Hashed bit
(Register 4, RxEvent, Bit 9) is set. If the two do not
match, the frame fails the filter and the Hashed bit
is clear.
Whenever the hash filter is passed by a "good"
frame, the RxOK bit (Register 4, RxEvent, Bit 8) is
set and the bits in the HR are mapped to the Hash
Table Index bits (Register 4, RxEvent, Bits A
through F).
5.3.3 Broadcast Frame Hashing Exception
Table 25 describes in detail the content of the RxEvent register for each output of the hash and address filters, and describes an exception to normal
processing. That exception can occur when when
the hash-filter Broadcast address matches a bit in
the Logical Address Filter. To properly account for
this exception, the software driver should use the
following test to determine if the RxEvent register
contains a normal RxEvent (meaning bits E-A are
used for Extra data, Runt, CRC Error, Broadcast
and IndividualAdr) or a hash-table RxEvent (meaning bits F-A contain the Hash Table Index).
If bit Hashed =0, or bit RxOK=0, or (bits F-A = 02h
and the destination address is all ones) then RxEvent contains a normal RxEvent, else RxEvent
contained a hash RxEvent.
Destination Address (DA)
from incoming frame
to
Hashed
bit
64-input
OR gate
DS271PP3 89
1
Figure 23. Hash Filter Operation
CIRRUS LOGIC PRODUCT DATA SHEET
CS8900A
CRC
Logic
6-to-64 decoder
64-bit Logical Address Filter (LAF)
Written into PacketPage base + 150h
(MSB)
32-bit CRC value
6-bit Hash Register (HR)
[Hash Table Index]
(LSB)
64
CS8900A
Crystal LAN™ ISA Ethernet Controller
Address
Type of
Received
Frame
Individual
Address
Multicast
Address
Broad-
cast
Address
Notes: 6. Broadcast frames are accepted as Multicast frames if and only if all the following conditions are met
Erred
Frame?
no yes Hash Table Index 1 1 1
no no ExtraData Runt CRC Error Broadcast Individual Adr 0 1 0
yes don’t care ExtraData Runt CRC Error Broadcast Individual Adr 0 0 0
no yes Hash table index 1 1 0
no no ExtraData Runt CRC Error Broadcast Individual Adr 0 1 0
yes don’t care E xt ra Data Runt CRC Error Broadcast Individu al Adr 0 0 0
no yes
no yes
no no ExtraData Runt CRC Error Broadcast Individual Adr 0 1 0
yes don’t care E xt ra Data Runt CRC Error Broadcast Individu al Adr 0 0 0
simultaneously:
a) the Logical Address Filter is programmed as: (MSB) 0000 8000 0000 0000h (LSB). Note that this
LAF value corresponds to a Multicast Addresses of both all 1s and 03-00-00-00-00-01.
b) the Rx Control Register (register 5) is programmed to accept IndividualA, MulticastA, RxOK-only,
and the following address filters were enabled: IAHashA and BroadcastA.
7. NOT (Note 1).
Passes
Hash
Filter?
(Note 6)
(Note 7)
Contents of RxEvent
Bits F-A Bit 9
Hashed
ExtraData Runt CRC Error Br oad ca st Individual Adr 1 1 0
(actual value X00010)
ExtraData Runt CRC Error Br oad ca st Individual Adr 0 1 0
Table 25. Contents of RxEvent Upon Various Conditions
Bit 8
RxOK
Bit 6
IAHash
5.4 Receive DMA
5.4.1 Overview
The CS8900A supports a direct interface to the host
DMA controller allowing it to transfer receive
frames to host memory via slave DMA. The DMA
option applies only to receive frames, and not
transmit operation. The CS8900A offers three possible Receive DMA modes:
1) Receive-DMA-only mode: All re ceive frames
are transferred via DMA.
2) Auto-Switch DMA: DMA is used only when
needed to help prevent missed frames.
3) StreamTransfer: DMA is used to minimize the
number of interrupts to the host.
This section provides a description of ReceiveDMA-only mode. Section 5.5 on page 93 describes
Auto-Switch DMA and Section 5.6 on page 96 describes StreamTransfer.
5.4.2 Configuring the CS8900A for DMA Operation
The CS8900A interfaces to the host DMA controller through one pair of the DMA request/acknowledge pins (see Section 3.2 on page 18 for a
description of the CS8900A’s DMA interface).
Four 16-bit registers are used for DMA operation.
These are described in Table 26.
Receive-DMA-only mode is enabled by setting the
RxDMAonly bit (Register 3, RxCFG, Bit 9).
Note: If the RxDMAonly bit and the AutoRxDMAE bit (Register 3, RxCFG, Bit A) are both set,
then RxDMAonly takes precedence, and the
CS8900A is in DMA mode for all receive frames.
5.4.3 DMA Receive Buffer Size
In receive DMA mode, the CS8900A stores received frames (along with their status and length)
in a circular buf fer located in host memory space.
CIRRUS LOGIC PRODUCT DATA SHEET
90 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
PacketPage
Address
0024h DMA Channel Number: DMA chan-
nel number (0, 1, or 2) that defines the
DMARQ/DMACK pin pair used.
0026h DMA Start of Frame: 16 -bit v alue that
defines the offset from the DMA base
address to the start of the most
recently transferred received frame.
0028h DMA Frame Count: The lower 12 bits
define the number of valid frames
transferred via DMA since the last
read-out of this register. The upper 4
bits are reserved and not applicable.
002Ah DMA Byte Count: Defines the num-
ber of bytes that have been transferred
via DMA since the last read-out of this
register.
Table 26. Receive DMA Registers
Register Description
The size of the circular buffer is determined by the
RxDMAsize bit (Register 17, BusCTL, Bit D).
When RxDMAsize is clear, the buffer size is 16
Kbytes. When RxDMAsize is set, the buffer is 64
Kbytes. It is the host’s task to locate and ke e p track
of the DMA receive buffer’s base address. The
DMA Start-of-Frame register is the only circuit affected by this bit.
APPLICATION NOTE: As a result of the PC architecture, DMA cannot occur across a 128K
boundary in memory. Thus, the DMA buffer reserved for the CS8900A must not cross a 128K
boundary in host memory if DMA operation is desired. Requesting a 64K, rather than a 16K buffer,
increases the probability of crossing a 128K boundary. After the driver requests a DMA buffer, the
driver must check for a boundary crossing. If the
boundary is crossed, then the driver must disable
DMA functionality.
5.4.4 Receive-DMA-Only Operation
If space is available, an incomi ng frame is temporarily stored in on-chip RAM. When the entire
frame has been received, pre-processed, and accepted, the CS8900A signals the DMA controller
that a frame is to be transferred to host memory by
driving the selected DMA Request pin high. The
DMA controller acknowledges the request by driving the DMA Acknowledge pin low. The CS8900A
then transfers the cont ents of the Rx Status regi ster
(PacketPage base + 0400h) and the RxLength register (PacketPage base + 0402h) to host memory,
followed by the frame data. If the DMABurst bit
(Register 17, BusCTL, Bit B) is clear, the DMA
Request pin remains high until the entire frame is
transferred. If the DMABurst bit is set, the DMA
Request pin (DMARQ) remains high for approximately 28 ms then goes low for approximately 1.3
ms to give the CPU and other peripherals access to
the bus.
When the transfer is complete, the CS8900A does
the following:
• updates the DMA Start-of-Frame register
(PacketPage base + 0026h);
• updates the DMA Frame Count register (PacketPage base + 0028h);
• updates DMA Byte Count register (PacketPage
base + 002Ah);
• sets the RxDMAFrame bit (Register C, BufEvent, Bit 7); and,
• deallocates the buffer spa ce used by the transferred frame.
In addition, if the RxDMAiE bit (Register B,
BufCFG, Bit 7) is set, a corresponding interrupt occurs.
When the host processes DMAed frames, it must
read the DMA Frame Count register.
Whenever a receive fram e is missed (lost) due to
insufficient receive buffer space, the RxMISS
counter (Register 10) is incremented. A missed receive frame causes the counter to increment in either DMA or non-DMA modes.
Note that when in DMA mode, reading the contents
of the RxEvent register will return 0000h. Status
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 91
CS8900A
Crystal LAN™ ISA Ethernet Controller
information should be obtained from the DMA
buffer.
5.4.5 Committing Buffer Space to a DMAed Frame
Although a receive frame may occupy space in the
host memory’s circular DMA buffer, the
CS8900A’s Memory Manager does not commit the
buffer space to the receive frame until the entire
frame has been transferred and the host learns of
the frame’s existence by reading the Frame Count
register (PacketPage base + 0028h).
When the CS8900A commits DMA buffer space to
a particular DMAed receive f rame (t ermed a c ommitted received frame), no data from subsequent
frames can be written to that buffer space until the
committed received frame is freed from commitment. (The committed received frame may or may
not have been received error free.)
A committed DMAed receive frame is freed from
commitment by any one of the following conditions:
1) The host rereads the DMA Frame Count register (PacketPage base + 0028h).
2) New frames have been transferred via DMA,
and the host reads the BufEvent register (either
directly or from the ISQ) and sees that the RxDMAFrame bit is set (this condition is termed an
"implied Skip").
3) The host issues a Reset-DMA command by setting the ResetRxDMA bit (Register 17, BusCTL, Bit 6).
5.4.6 DMA Buffer Organization
When DMA is used to transfer rece ive frame s, the
DMA Start-of-Frame register (PacketPage Base +
0026h) defines the offset from the DMA base to the
start of the most recently transferred received
frame. Frames stored in the DMA buffer are transferred as words and maintain double-word (32-bit)
alignment. Unfilled memory space between suc-
cessive fra mes stored in the DMA buffer may result
from double-word alignment. These "holes" may
be 1, 2, or 3 bytes, depending on the length of the
frame preceding the hole.
5.4.7 RxDMAFrame Bit
The RxDMAFrame bit (Register C, BufEvent, bit
7) is controlled by the CS8900A and is set whenever the value in the DMA Frame Count register is
non-zero. The host cannot clear RxDMAFrame by
reading the BufEvent register (Register C).
Table 27 summarizes the criteria used to set and
clear RxDMAFrame.
To set RxDMAFrame
To Cl ear
RxDMAFrame
Non-Stream
Transfer Mode
The RxDMAFrame
bit is set whenever
the DMA Frame
Count register
(PacketPage base +
0028h) transitions to
non-zero.
The DMA Frame
Count is zero.
Table 27. RxDMAFrame Bit
Stream Transfer
Mode (see
Section 5.6)
The RxDMAFrame
bit is set at the end
of a Stream T ransfer
cycle.
The DMA Frame
Count is zero.
5.4.8 Receive DMA Example Without WrapAround
Figure 24 shows three frames stored in host memory by DMA without wrap-around.
5.4.9 Receive DMA Operation for RxDMA-Only Mode
In an RxDMAOnly mode, a system DMA moves
all the received frames from the on-chip memory to
an external 16- or 64-Kbyte buffer memory. The
received frame must have passed the destination
address filter, and must be completely received.
Usually, the DMA receive frame interrupt (RxDMAiE, bit 7, Register B, BufCFG) is set so that the
CS8900A generates an interrupt when a frame is
transferred by DMA. Figure 25 shows how a DMA
Receive Frame interrupt is processed.
CIRRUS LOGIC PRODUCT DATA SHEET
92 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
In the interrupt service routine, the BufEvent register (register C), bit RxDMA Frame (bit 7) indicates
that one or more receive frames were transferred
using DMA. The software driver should maintain a
pointer (e.g. PDMA_START) that will point to the
beginning of a new frame. After the CS8900A is
initialized and before any frame is received, pointer
PDMA_START points to the beginning of the
DMA buffer memory area. The first read of the
DMA Frame Count, CDMA, commits the memory
covered by the CDMA count, and the DMA cannot
overwrite this committed space until the space is
freed. The driver then processes the frames described by the CDMA count and makes a second
read of the DMA frame count. This second read
frees the buffer memory space described by the
CDMA counter.
DMA Buffer
Base Address
RxStat us - Frame 1
RxLength - Frame 1
During the frame processing, the software should
advance the PDMA_START pointer. At the end of
processing a frame, pointer PDMA_START
should be made to align with a double-word boundary. The software remains in the loop until the
DMA frame count read is zero.
5.5 Auto-Switch DMA
5.5.1 Overview
The CS8900A supports a unique feature, AutoSwitch DMA, that allows it to switch between
Memory or I/O mode and Receive DMA automatically. Auto-Switch DMA allows the CS8900A to
realize the performan ce advantages of Memory or
I/O mode while minimizing the number of missed
frames that could result due to slow processing by
the host.
"Holes" due to
double-word
alignment
Frame 1
RxStat us - Frame 2
RxLength - Frame 2
Frame 2
DMA Start of Frame
register (PacketPage
RxStat us - Frame 3
RxLength - Frame 3
Frame 3
Figure 24. Example of Frames Stored in DMA Buffer
base + 0126H)
points he r e.
DMA Byte Count
(PacketPage base + 012Ah)
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 93
Host Enters Interrupt Routine
CS8900A
Crystal LAN™ ISA Ethernet Controller
RxDMA
Frame
bit set?
Yes
Read the DMA frame Co unt (C
(PacketPage base + 0028h)
C
DMA
= 0 ?
No
Process the
C
Frames
DMA
Figure 25. RxDMA Only Operation
No
Yes
Process other events
that caused interrupt
DMA
)
Process other events
that caused interrupt
5.5.2 Configuring the CS8900A for Auto-Switch
DMA
Auto-Switch DMA mode requires the same configuration as Receive-DMA-only mode, with one exception: the AutoRxDMAE bit (Register 3,
RxCFG, Bit A) must be set, and the RxDMAonly
bit (Register 3, RxCFG, Bit 9) must be clear (see
Section 5.4 on page 90, Configuring the CS8900A
for DMA Operation). In Auto-Switch DMA mode,
the CS8900A operates in non-DMA mode if possible, only switching to slave DMA if necessary.
Note that if the AutoRxDMAE bit and the RxDMAonly bit (Register 3, RxCFG, bit 9) are both set,
the CS8900A uses DMA for all receive frames.
5.5.3 Auto-Switch DMA Operation
Whenever a frame begins to be received in AutoSwitch DMA mode, the CS8900A checks to see if
there is enough on-chip buffer space to store a maximum length frame. If there is, the incoming frame
is pre-processed and buffered as normal. If there
isn’t, the CS8900A’s MAC engine compares the
frame’s Destination Address (DA) to the criteria
programmed into the DA filter. If the incoming DA
fails the DA filter, the frame is discarded. If the DA
passes the DA filter, the CS8900A automatically
switches to DMA mode and starts transferring the
frame(s) currently being held in the on-chip buffe r
into host memory. This frees up buffer space for the
incoming frame.
CIRRUS LOGIC PRODUCT DATA SHEET
94 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
Figure 26 shows the steps the CS8900A goes
through in determining when to automatically
switch to DMA.
Packet Received
Frame
Passed the
DA filter?
Yes
RxDMA only
Bit=1
No
More
Buffer Space
Available?
No
Yes
Yes
Frame
Discarded
All Frames
use DMA
Frame Buff er ed
in On-chip RAM
frame to be transferred. Instead, the oldest noncommitted frame in the on-chip buffer is the first frame
to use DMA. When DMA begins, any pending RxEvent reports in the Interrupt Status Queue are discarded because the host cannot process those
events until the corresponding frames have been
completely DMAed.
Auto-Switch DMA works only on entire received
frames. The CS8900A does not use Auto-Switch
DMA to transfer partial frames. Also, when a frame
has been committed (see Section 5.2.5 on page 84),
the CS8900A will not switch to DMA mode until
the committed frame has been transferred completely or skipped.
After a complete frame has been moved to host
memory, the CS8900A updates the DMA Start-ofFrame register (PacketPage base + 0126h), the
DMA Frame Count register (PacketPage base +
0128h), and the DMA Byte Count register, then
sets the RxDMAFrame bit (Register C, BufEvent,
bit 7). If RxDMAiE (Register B, BufCFG, bit 7) is
set, a corresponding interrupt occurs.
No
AutoRxDMA
Bit=1?
Yes
Auto-Switch to DMA
Figure 26. Conditions for Switching to DMA
No
Auto-Switch
DMA Disabled
Whenever the CS8900A automatically enters
DMA, at least one complete frame is already stored
in the on-chip buffer. Because frames are transferred to the host in the same order as received (first
in, first out), the beginning of the received frame
that triggered the switch to DMA is not the first
5.5.4 DMA Channel Speed vs. Missed Frames
When the CS8900A starts DMA, the entire oldest,
noncommitted frame must be placed in host memory before on-chip buffer space will be freed for the
next incoming frame. If the oldest frame is relatively large, and the next incoming frame also large,
the incoming frame may be missed, depending on
the speed of the DMA channel. If this happens, the
CS8900A will increment the RxMiss counter (Register 10) and clear any event reports (RxEvent and
BufEvent) associated with the missed frame.
5.5.5 Exit From DMA
When the CS8900A has activated receive DMA, it
remains in DMA mode until all of the following are
true:
• The host processes all RxEvent and BufEvent
reports pending in the ISQ.
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 95
CS8900A
Crystal LAN™ ISA Ethernet Controller
• The host reads a zero value from the DMA
Frame Count register (PacketPage base +
0028h).
• The CS8900A is not in the process of transfer ring a frame via DMA.
5.5.6 Auto-Switch DMA Example
Figure 27 shows how the CS8900A enters and exits
Auto-Switch DMA mode.
5.6 StreamTransfer
5.6.1 Overview
The CS8900A supports an optional feature,
StreamTransfer, that can reduce the amount of
CPU overhead associated with frame reception.
StreamTransfer works during periods of high receive activity by grouping multiple receive events
into a single interrupt, thereby reducing the number
of receive interrupts to the host processor. During
periods of peak loading, StreamTransfer will eliminate 7 out of every 8 interrupts, cutting interrupt
overhead by up to 87%.
Register Name Bit Bit Name Va lue
Register 3, RxCFG 7 StreamE 1
8RxOKiE1
9
or
A
Register 5, RxCTL 8 RxOKA 1
Register B, Bu fCFG 7 RxDMAiE 1
FRxDestiE0
B Rx128iE 0
Table 28. Stream Transfer Configuration
RxDMAonly
or
AutoRxDMA
1
or
1
or more frames with the following characteristics
are received:
1) pass the Destination Address filter;
2) are of legal length with valid CRC; and,
3) are spaced "back-to-back" (between 9.6 and 52
µs apart).
During a StreamTransfer cycle the CS8900A does
the following:
• delays the normal RxOK interrupt associated
with the first receive frame;
5.6.2 Configuring the CS8900A for StreamTransfer
StreamTransfer is enabled by set ting the StreamE
bit along with either the AutoRxDMAE bit or the
RxDMAonly bit in register Receiver Configuration
(register 3). (StreamTransfer must not be selected
unless either one of AutoRxDMAE or RxDMAonly is selected.)StreamTransfer only applies to
"good" frames (frames of legal length with valid
CRC). Therefore, the RxOKA bit and the RxOKiE
bit must both be set. Finally, StreamTransfer works
on whole packets and is not compatible with early
interrupts. This requires that the RxDestiE bit and
the Rx128iE bit both be clear.
Table 28 summarizes how to configure the
CS8900A for StreamTransfer.
5.6.3 StreamTransfer Operation
When StreamTransfer is enabled, the CS8900A
will initiate a StreamTr ansfer cycle whenever tw o
• switches to receive DMA mode;
• transfers up to eight receive frames into host
memory via DMA;
• updates the DMA Start-of-Frame register
(PacketPage base + 0026h);
• updates the DMA Frame Count register (PacketPage base + 0028h);
• updates DMA Byte Count register (PacketPage
base + 002Ah);
• sets the RxDMAFrame bit (Register C, BufEvent, Bit 7); and,
• generates an RxDMAFrame interrupt.
5.6.4 Keeping StreamTransfer Mode Active
When the CS8900A initiates a StreamTransfer cycle, it will continue to execute cycles as long as the
following conditions hold true:
CIRRUS LOGIC PRODUCT DATA SHEET
96 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
Enter Example Here
F
r
a
m
e
1
F
r
a
m
e
2
F
r
a
m
e
3
Entering t his example, the receive buffer is empty and the
DMA Frame Count (PacketPage base + 0028h) is zero.
Frame 1 received and completely stored in on-chip RAM.
Frame 2 received and compl etely store d in on-chip RAM.
At this point, the CS8900A does not have sufficient buffer
space for another complete large frame (1518 bytes).
Frame 3 starts to be received and passes the DA filter.
This activates Auto-Switch DMA.
Frame 1 is placed in host memory via DMA freeing
space for the incoming Frame 3. The CS8900A updates
the DMA Frame Count, DMA Start of Frame and DMA
Byte Count registers. It then sets the RxDMA DMAFrame
bit and ge ne rates an interrupt.
Time
Receive DMA used
during this time.
Frame 2 is placed in host memory via DMA and the
CS8900A updates the DMA registers.
The host res ponds to the RxDMAF rame int e rr upt , an d
reads the Frame Count r eg ist e r, which is cleared when
read. Since there are no receive interrupts pending, the
CS8900A exits DMA (assumes Frame 3 is still coming in).
Frame 3 is completely buffered in on-chip RAM, and
awaits processing by the host.
Exit Example
Figure 27. Example of Auto-Switch DMA
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 97
CS8900A
Crystal LAN™ ISA Ethernet Controller
• all packets received are of legal length with valid CRC;
• each packet follows its p redecessor by less than
52 ms; and,
• the DA of each packet passes the DA filter.
5.6.5 Example of StreamTransfer
Figure 28 shows how four back-to-back frames,
followed by five back-to-back frames, would be received without StreamTransfer. Figure 29 shows
how the same sequence of frames would be received with StreamTransfer.
If any of these conditions are not met, the CS8900A
exits StreamTransfer by generating RxOK and
RxDMA interrupts. The CS8900A then returns to
either Memory, I/O, or DMA mode, depending on
5.6.6 Receive DMA Summary
Table 29 summarize the Receive DMA configuration options supported by the CS8900A.
configuration.
RxDMAonly
(Register 3,
RxCFG,Bit 9)
1 NA 0 NA Receive DMA used for all receive frames, without
1 NA 1 NA Receive DMA used for all receive frames, with
0 1 0 0 Auto-Switch DMA used if necessary, without inter-
0 1 1 1 Auto-Switch DMA used if necessary, with RxEvent
0 0 NA NA Memory or I/O Mode only.
AutoRxDMAiE
(Register 3,
RxCFG, Bit A)
RxDMAiE
(Register B,
BufCFG, Bit 7)
RxOKiE
(Register 3,
RxCFG, Bit 8)
CS8900A Configuration
interrupts.
BufEvent interrupts.
rupts.
and BufEvent interrupts possible.
Interrupt
Request
Interrupt
Request
Table 29. Receive DMA Configuration Options
4 Back-to-Back Frames 5 Back-to-Back Frames
9 Interrupts for 9 "Good" Packets
Figure 28. Receive Example Without Stream Transfer
4 Back-to-Back Frames 5 Back-to-Back Frames
2 Inter rupts for 9 " Go od" Pa c k e t s
Figure 29. Receive DMA Configuration Options
T > 52 us
Time
T > 52 us
Time
CIRRUS LOGIC PRODUCT DATA SHEET
98 DS271PP3
CS8900A
Crystal LAN™ ISA Ethernet Controller
5.7 Transmit Operation
5.7.1 Overview
Packet transmission occurs in two phases. In the
first phase, the host moves the Ethernet frame into
the CS8900A’s buffer memory. The first phase begins with the host issuing a Transmit Command.
This informs the CS8900A that a frame is to be
transmitted and tells the chip when (i.e. after 5,
381, or 1021 bytes have been transferred or after
the full frame has been transferred to the CS8900A)
and how the frame should be sent (i.e. with or without CRC, with or without pad bits, etc.). The host
follows the Transmit Command with the Transmit
Length, indicating how much buffer space is required. When buffer space is available, the host
writes the Ethernet frame into the CS8900A’s internal memory, using either Memory or I/O space.
In the second phase of transmission, the CS8900A
converts the frame into an Ethernet packet then
transmits it onto the network. The second phase begins with the CS8900A transmitting the preamble
and Start-of-Frame delimiter as soon as the proper
number of bytes has been transferred into its transmit buffer (5, 381, 1021 bytes or full frame, depending on configuration). The preamble and Startof-Frame delimiter are followed by the data transferred into the on-chip buffer by the host (Destination Address, Source Address, Length field and
LLC data). If the frame is less than 64 bytes, including CRC, the CS8900A adds pad bits if configured to do so. Finally, the CS8900A appends the
proper 32-bit CRC value.
5.7.2.1 Configuring the Physical Interface
Configuring the physical interface consists of determining which Ethernet interface should be active (10BASE-T or AUI), and enabling the transmit
logic for serial transmission. Configuring the Physical Interface is accomplished via the LineCTL register (Register 13) and is described in Table 30.
Register 13, LineCTL
Bit Bit Name Operation
7 SerTxON When set, transmission enabled.
8 AUIonly When set, AUI selected (takes
precedence over AutoAUI/10BT).
When clear, 10BASE-T selected.
9 AutoAUI/10BT When set, automatic interface
selection enabled.
BMod
BackoffE
D2-part
DefDis
Table 30. Physical Interface Configuration
When set, the modified backoff
algorithm is used. When clear,
the standard backoff algorithm is
used.
When set, two-part deferral is
disabled.
Note that the CS8900A transmits in 10BASE-T
mode when no link pulses are being received only
if bit DisableLT is set in register Test Control (Register 19).
5.7.2.2 Selecting which Events Cause Interrupts
The TxCFG register (Register 7) and the BufCFG
register (Register B) are used to determine which
transmit events will cause interrupt s to the host processor. Tables 31 and 32 describe the interrupt enable (iE) bits in these registers.
5.7.3 Changing the Configuration
5.7.2 Transmit Configuration
After each reset, the CS8900A must be configured
for transmit operation. This can be done automatically using an attached EEPROM, or by writing
configuration commands to the CS8900A’s internal
registers (see Section 3.4 on page 21). The items
that must be configured include which physical interface to use and whic h transmit events ca use in-
When the host configures these registers it does not
need to change them for subsequent packet transmissions. If the host does choose to change the TxCFG or BufCFG registers, it may do so at any time.
The effects of the change are noticed immediately.
That is, any changes in the Interrupt Enable (iE)
bits may affect the packet currently being transmitted.
terrupts.
CIRRUS LOGIC PRODUCT DATA SHEET
DS271PP3 99
CS8900A
Crystal LAN™ ISA Ethernet Controller
Register 7, TxCFG
Bit Bit Name Operation
6 Loss-of-
CRSiE
7 SQErroriE When set, there is an interrupt
8 TxOKiE When set, there is an interrupt
9Out-of-
windowiE
A JabberiE When set, there is an interrupt
B AnycolliE When set, there is an interrupt
F 16colliE When set, there is an interrupt
Table 31. Transmitting Interrupt Configuration
Bit Bit Name Operation
8 Rdy4TxiE When set, there is an interrupt
9 TxUnder
runiE
CTxCol
OvfloiE
Table 32. Transmit Interrupt Configuration
When set, there is an interrupt
whenever the CS8900A fails to
detect Carrier Sense after transmitting the preamble (applies to
the AUI only).
whenever there is an SQE error.
whenever a frame is transmitted
successfully..
When set, there is an interrupt
whenever a late collision is
detected.
whenever there is a jabber condition.
whenever there is a collision.
whenever the CS8900A attempts
to transmit a single frame 16
times.
Register B, BufCFG
whenever buffer space becomes
available for a transmit frame
(used with a Transmit Request).
When set, there is an interrupt
whenever ther CS8900A runs out
of data after transmit has started.
When set, there is an interrupt
whenever the TxCol counter
overflows.
If the host chooses to change bits in the LineCTL
register after initialization, the ModBackoffE bit
and any receive related bit (LoRxSquelch, SerRxON) may be changed at any time. However, the
Auto AUI/10BT and AUIonly bits should not be
changed while the SerTxON bit is set. If any of
these three bits are to be changed, the host should
first clear the SerTxON bit (Register 13, LineCTL,
Bit 7), and then set it when the changes are complete.
5.7.4 Enabling CRC Generation and Padding
Whenever the host issues a Transmit Request c ommand, it must indicate whether or not the Cyclic
Redundancy Check (CRC) value should be appended to the transmit frame, and whether or not
pad bits should be added (if needed). Table 33 describes how to configure the CS8900A for CRC
generating and padding.
Register 9, TxCMD
Inhibit
CRC
(Bit C)
TxPad
Dis
(Bit D)
0 0 Pad to 64 bytes if necessary
(including CRC).
1 0 Send a runt frame if specified
length less than 60 bytes.
0 1 Pad to 60 bytes if necessary (with-
out CRC).
1 1 Send runt if specified length less
than 64. The CS8900A will not
transmit a frame that is less than 3
bytes.
Table 33. CRC and Paddling Configuration
Operation
5.7.5 Individual Packet Transmission
Whenever the host has a packet to transmit, it must
issue a Transmit Request to the CS8900A consisting of the following three operations in the exact
order shown:
1) The host must write a Transmit Command to
the TxCMD register (PacketPage base +
0144h). The contents of the TxCMD register
may be read back from the TxCMD register
(Register 9).
2) The host must write the frame’s length to the
TxLength register (PacketPage base + 0146h).
3) The host must read the BusST register (Register 18)
The information written to the TxCMD register
tells the CS8900A how to transmit the next frame.
CIRRUS LOGIC PRODUCT DATA SHEET
100 DS271PP3
Loading...
