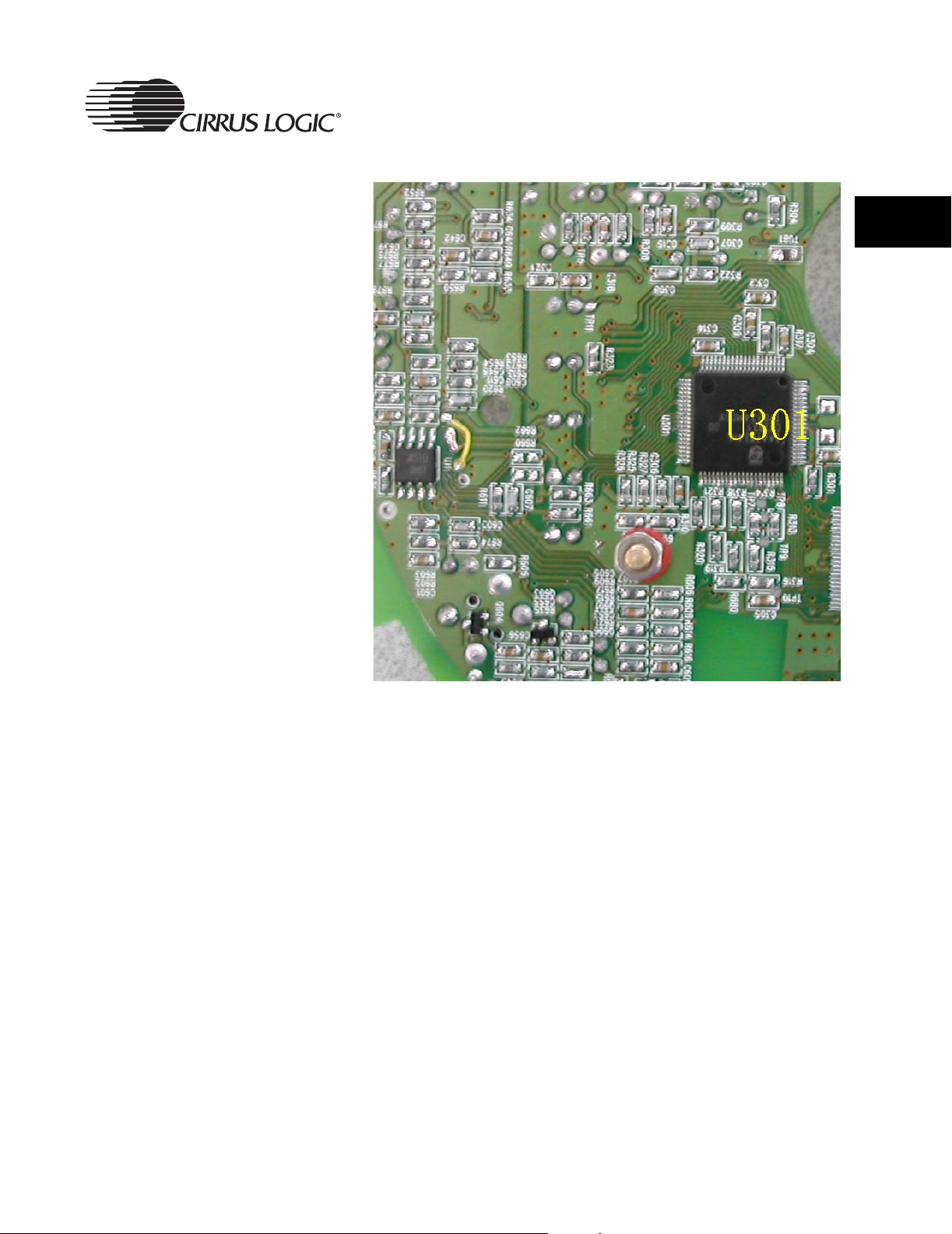

Figure 1-8. Detail View of the CD Loader Subsystem, Back of Board ................................ 15

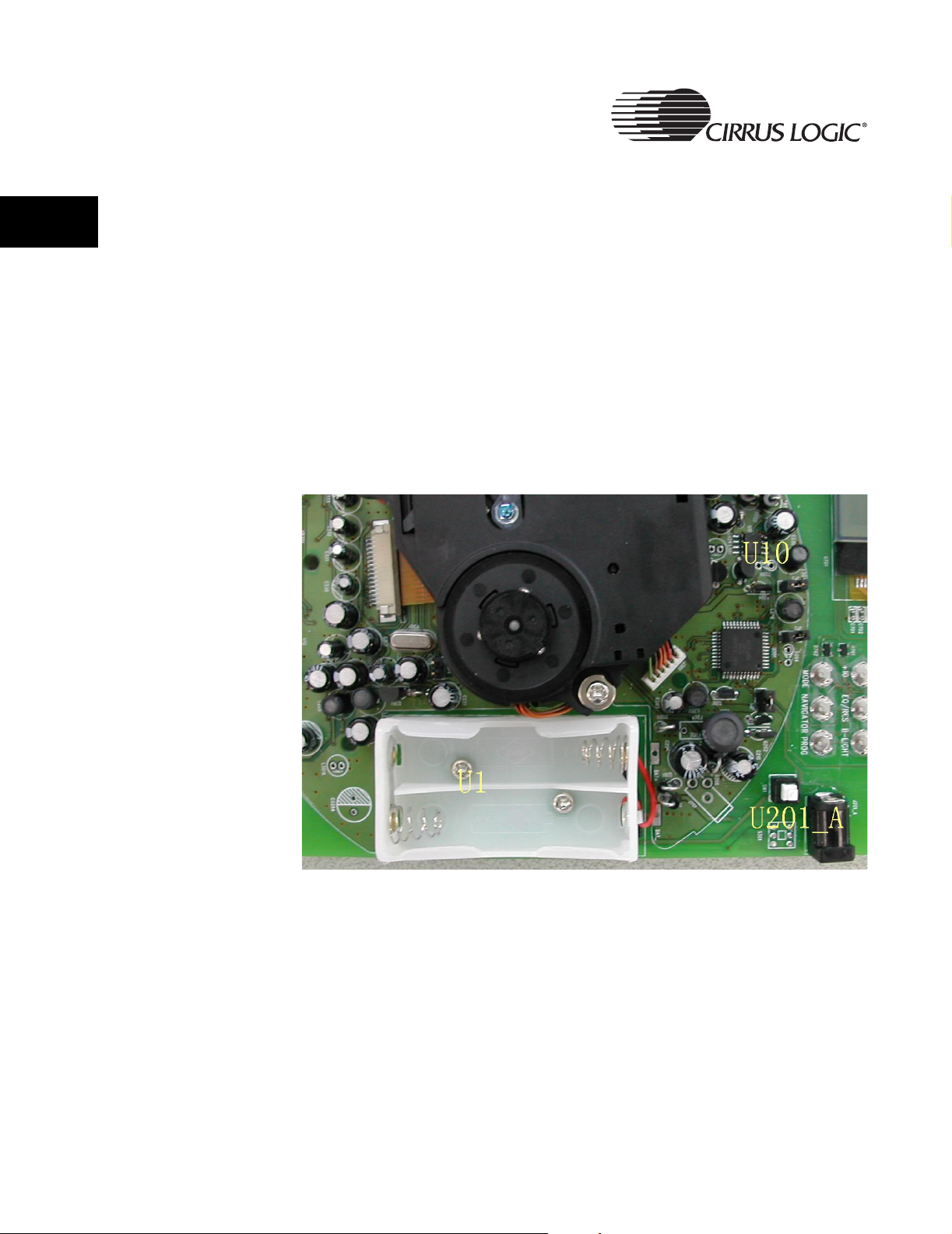

Figure 1-9. Detail View of Part of the Power Subsystem .................................................... 16

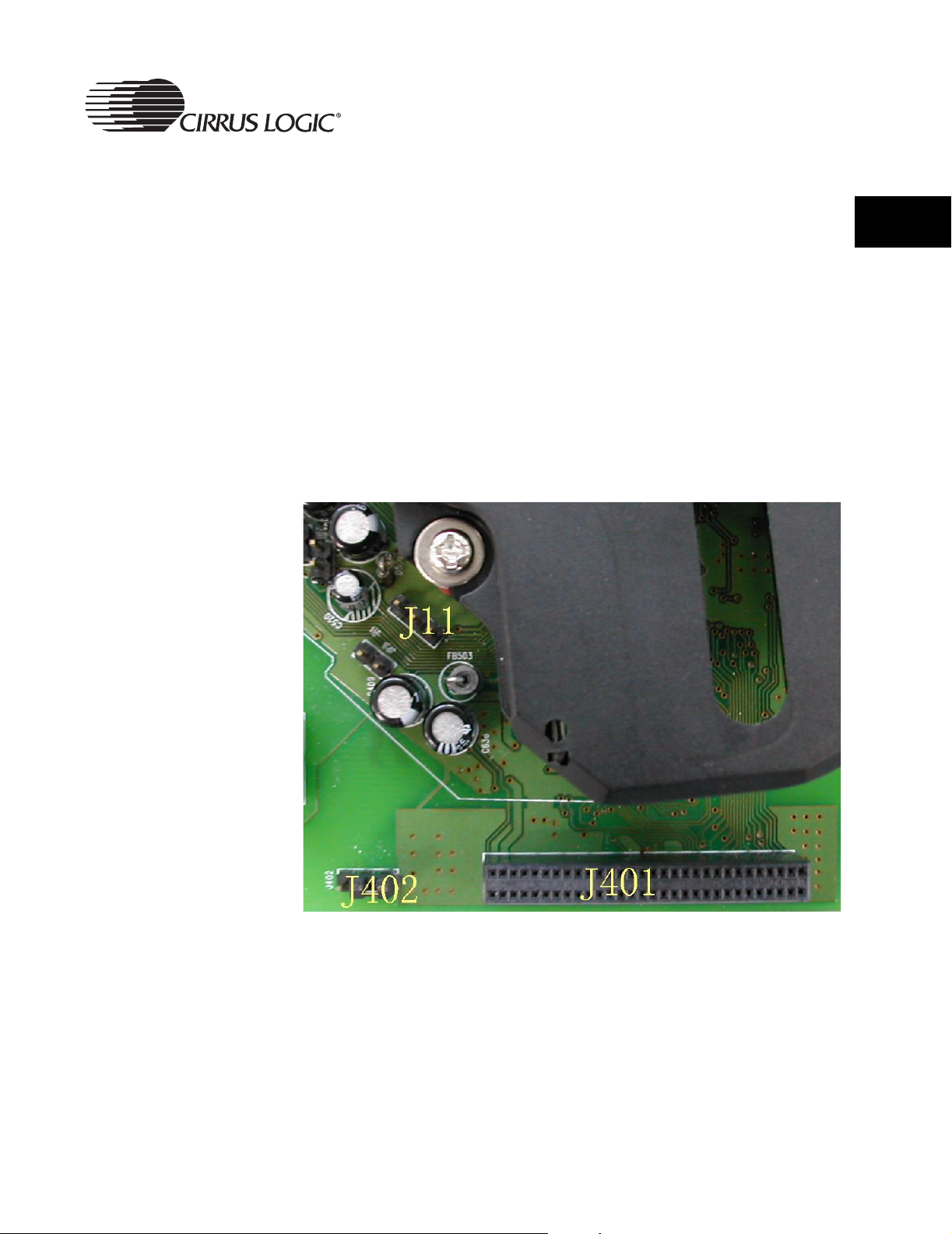

Figure 1-10. Detail View of the Debug Interface ................................................................. 17

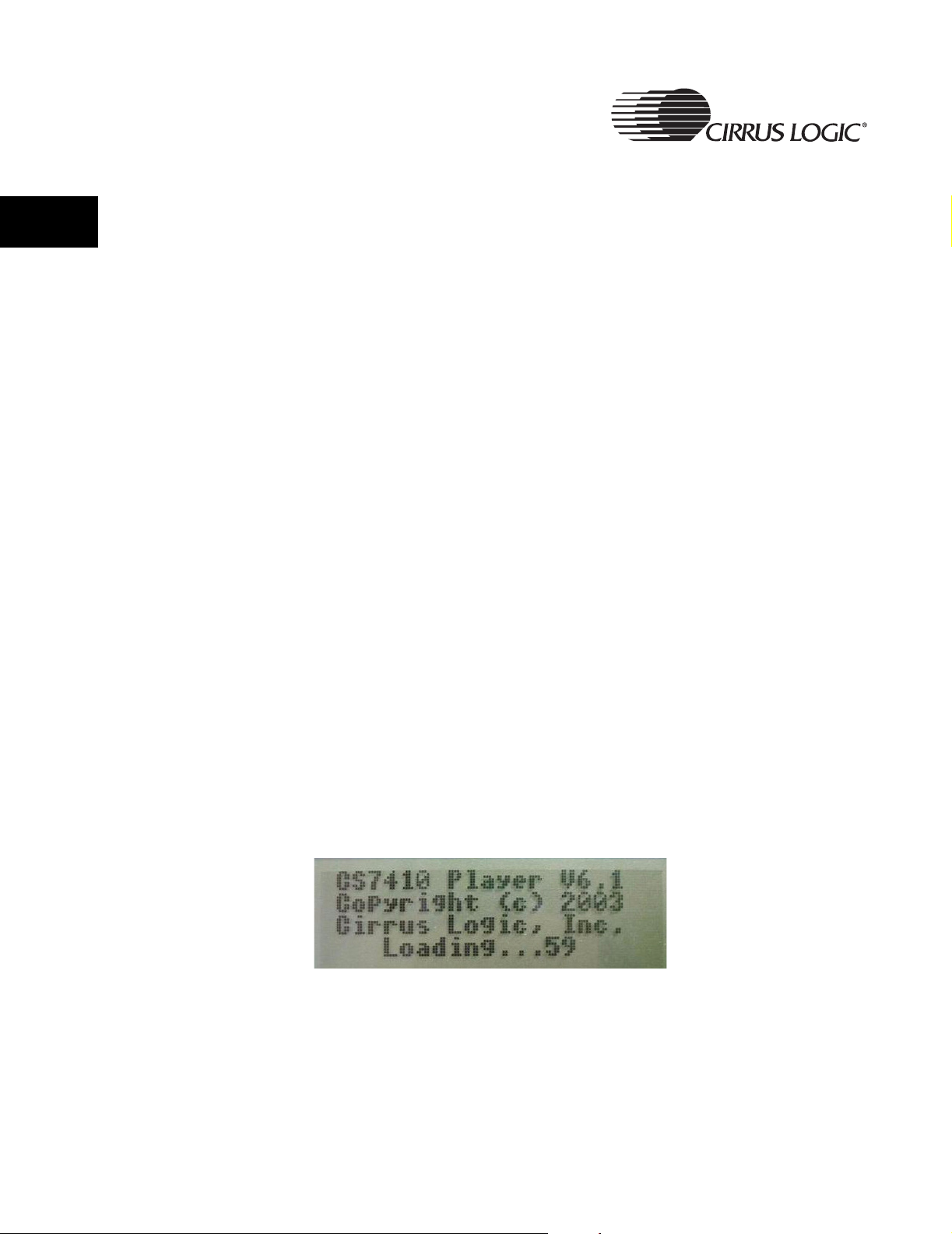

Figure 2-1. Power-on Screen .............................................................................................. 20

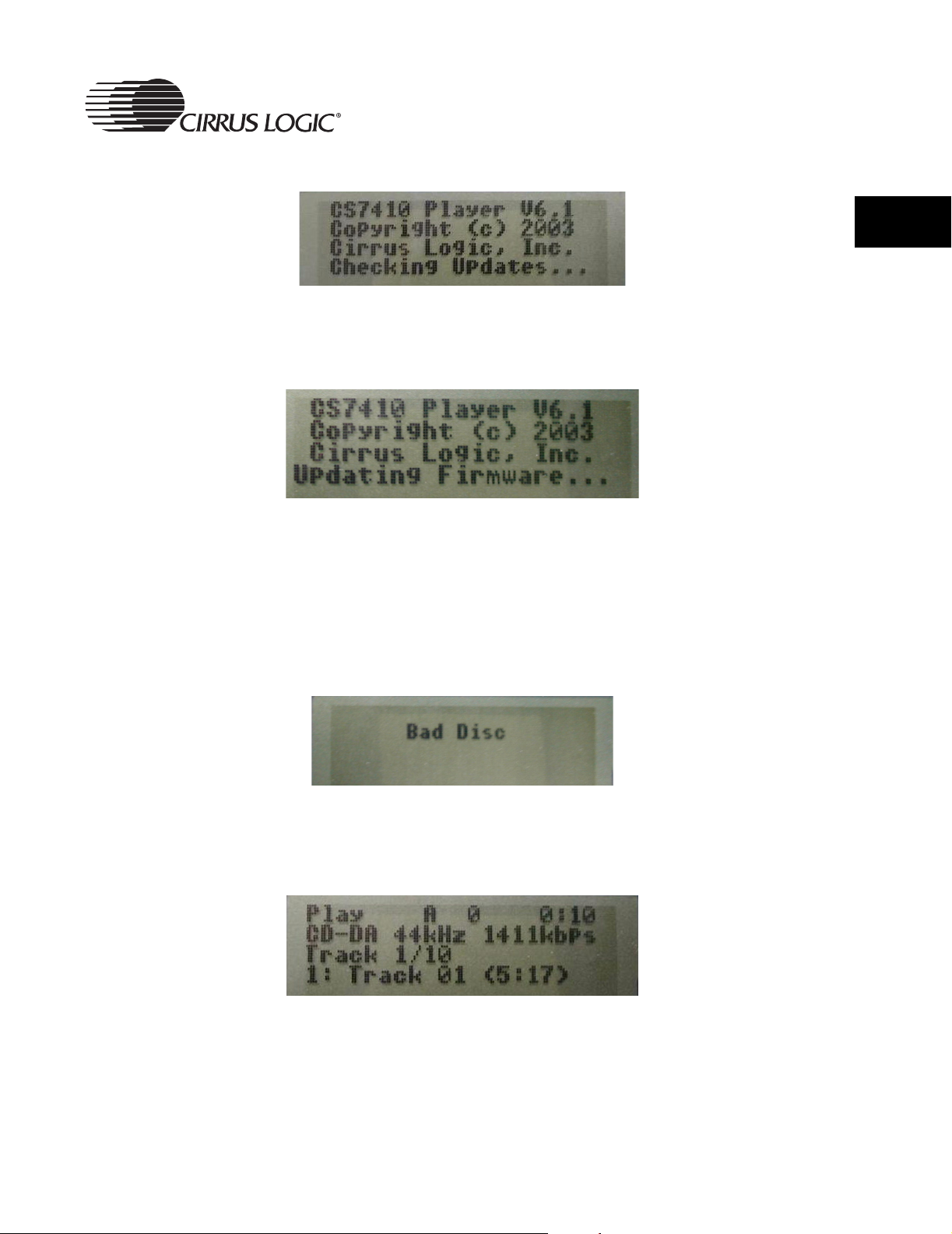

Figure 2-2. Checking for Update Files Screen .................................................................... 21

Figure 2-3. Loading Updated Firmware Screen .................................................................. 21

Figure 2-4. Bad Disc Screen ............................................................................................... 21

Figure 2-5. Normal Operation Screen ................................................................................. 21

Figure 2-6. Display Screen Format - Default Mode ............................................................ 22

Figure 2-7. Display Screen Format - Default Mode ............................................................ 24

Figure 2-8. Play/Pause Screen ............................................................................................ 24

Figure 2-9. Volume Changing Screen ................................................................................. 25

Figure 2-10. Equalizer Setting Screen ................................................................................ 25

Figure 2-11. Navigator Mode Screen .................................................................................. 26

Figure 2-12. Playlist Selection Mode Screen ...................................................................... 26

Figure 2-13. Playlist Loading Screen ................................................................................... 26

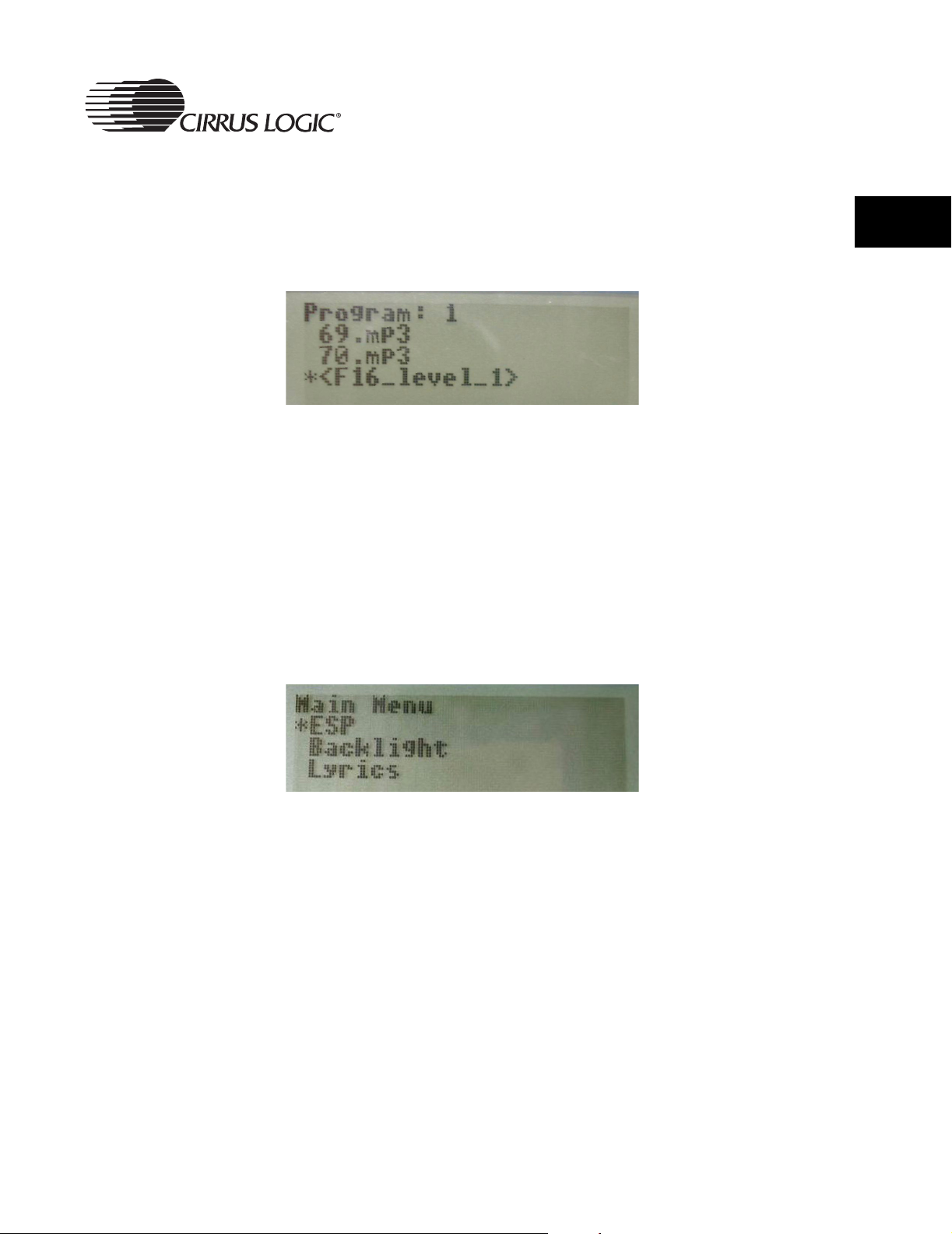

Figure 2-14. Playlist Creation Mode Screen ....................................................................... 27

Figure 2-15. Main Menu Screen .......................................................................................... 27

Figure 2-16. Electronic Shock Protection (ESP) Submenu Screen .................................... 28

Figure 2-17. Backlight Submenu Screen ............................................................................. 28

Figure 2-18. Lyrics Submenu Screen .................................................................................. 29

Figure 2-19. Resume Submenu Screen .............................................................................. 29

Figure 2-20. Scrolling Submenu Screen .............................................................................. 29

Figure 2-21. Power Off Time Submenu Screen................................................................... 30

Figure 2-22. Sleep Timer Submenu Screen ........................................................................ 30

Figure 2-23. 3D Enhancement Submenu Screen ................................................................ 30

Figure 2-24. User EQ 60 Hz Submenu Screen ................................................................... 30

Figure 2-25. User EQ 150 Hz Submenu Screen ................................................................. 31

Figure 2-26. User EQ 400 Hz Submenu Screen.................................................................. 31

Figure 2-27. User EQ 1 kHz Submenu Screen.................................................................... 31

Figure 2-28. User EQ 2 kHz Submenu Screen.................................................................... 31

Figure 2-29. User EQ 6 kHz Submenu Screen.................................................................... 31

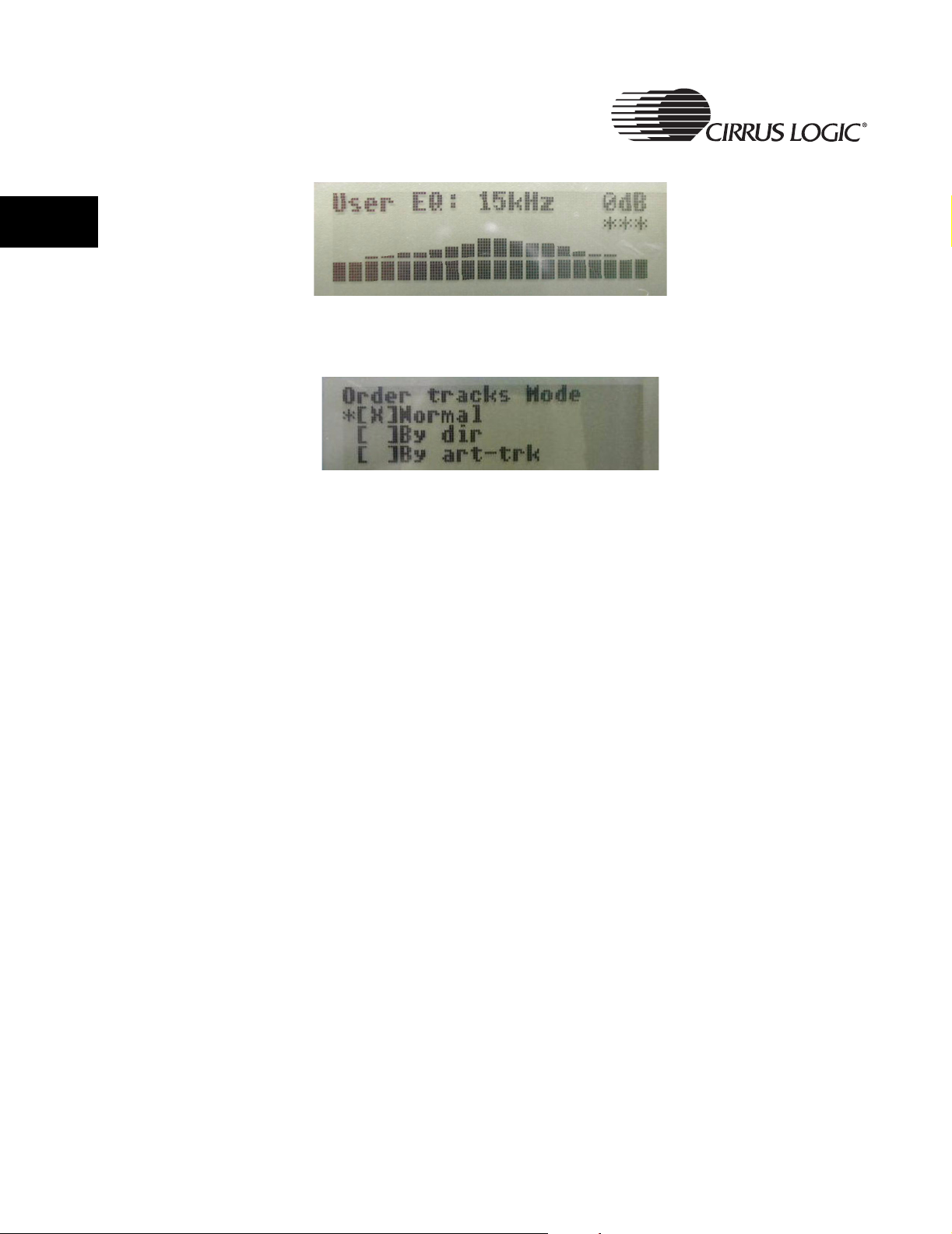

Figure 2-30. User EQ 15 kHz Submenu Screen.................................................................. 32

Figure 2-31. Order Tracks Submenu Screen....................................................................... 32

List of Tables

Table 1-1: Button and Switch Matrix .................................................................................... 13

This page intentionally blank.

6 CRD7410-CD18 User’s Guide - DS620UMC2

Chapter 1

1.1 Overview

1CRD7410-CD18 Board Architecture

This document describes a reference design platform for the Cirrus Logic CS7410, known as the CRD7410-CD18. It is an evaluation platform for a basic portable CD player. The CRD7410-CD18 platform provides a low-cost yet complete solution for today’s popular digital music formats (CDDA, MP3, WMA, VCD, AVCD, and SVCD). The platform also supports poprular music playlist formats such as MP3, M4U, PLS, B4S, and RMP. The system’s small size, light weight, and low power consumption allow designers to integrate powerful features into a very inexpensive portable device. The design is also easily adapted to small bookshelf systems.

All components necessary for a portable CDDA/MP3/WMA/VCD/AVCD/SVCD application, including a 4-line LCD display, are incorporated into a single PCB. Debug capability is provided adjacent to the main circuitry. In a final design, the I2C debug and Romulator ports could easily be eliminated, leaving only the circuitry required for the application. Refer to Figure 1-1.

Cirrus Logic provides the system as a complete solution. Schematics and Gerber data files for the PCB are available.

1.1.1 Main Subsystems

The CRD7410-CD18 has seven main subsystems. They are:

• Decoder

• Audio

• User Interface Subsystem

• CD Loader

• Power

• Debug Interface

• Jumpers and Switches

CRD7410-CD18 Board Architecture

Figure 1-1. Board, Top View

8 CRD7410-CD18 User’s Guide - DS620UMC2

Figure 1-2. Board, Bottom View

CRD7410-CD18 Board Architecture

1.2 Main Subsystems

1.2.1 Decoder Subsystem

This system uses the Cirrus Logic CS7410 for main control and audio decode. (See U6 in Figure 1-3, below.)

A Flash/ROM is used for application code. (See U7 in Figure 1-3, below.)

An SDRAM is provided for Electronic Shock Protection (ESP). (See U8 in Figure 1-3, below.)

Figure 1-3. Detail View of the Decoder Subsytem

10 CRD7410-CD18 User’s Guide - DS620UMC2

1.2.2 Audio Subsystem

CRD7410-CD18 Board Architecture

1.2.2.1 Internal DAC

An integrated Sigma-Delta based DAC (Digital-to-Analog-Converter) allows the designer to build a low cost DAC with a simple RC integration circuit. In such a design, proper layout permits greater than 80 dB SNR.

1.2.2.2 Subsystem Design Details

Figure 1-4 shows the details of the implementation of this subsystem design. This list below defines the semiconductor devices and connectors used in this subsystem, and the function of each.

• U11 - Op Amp - LMV358

• U12 - Headphone Amp - LM4911

• J9 - 1/8 in. Headphone Jacks

• J8 - Line Out Jack

Figure 1-4. Detail View of the Audio Subsystem

Bottom View

Top View

CRD7410-CD18 Board Architecture

1.2.3 User Interface Subsystem

The User Interface Subsystem has two sections: the LCD (Liquid Crystal Display) and the Button and Switch Matrix. (See Figure 1-5 and Figure 1-6, below for details.)

1.2.3.1 LCD Display

Figure 1-5 shows a close-up view of the LCD, which is part of the User Interface Subsystem.

The LCD display (reference designator - DSP1) is a 64 x 128 pixel display. For a dot matrix character size of 8 x 6, this gives 21 characters per line, by 8 lines per display.

Figure 1-5. Detail View of the LCD, from the Processor Board

12 CRD7410-CD18 User’s Guide - DS620UMC2

CRD7410-CD18 Board Architecture

1.2.3.2 Button and Switch Matrix

Figure 1-6 shows a close-up view of the Button and Switch Matrix, which is part of the User Interface Subsystem.

User inputs are implemented with 12 push buttons. There is one switch for power On/Off (when power is supplied by the battery).

Table 1-1 shows the functions of the pushbuttons and switch shown in Figure 1-6.

Figure 1-6. Detail View of the Button and Switch Matrix, from the Processor Board

Note: When the power is on, pushbutton S1 must be pressed to activate the system.

Table 1-1: Button and Switch Matrix

S1:

Play/Pause/Up

S5:

Select

S9: 10+

Power On/Off (when power is supplied by the battery).

S2:

Stop/Down

S6:

Navigator/Menu

S10:

SW1:

S3:

Previous/Left

S7:

Mode

S11: Vol+

S4:

Next/Right

S8:

A->B/Program

S12:

Vol -
