This equipment may be operated in:
AT BE BG CH CY CZ DE DK
EE ES FI FR GB GR HU IE
IT IS LI LT LU LV MT NL
NO PL PT RO SE SI SK TR
Products with 2.4–GHz Wireless LAN Devices France
L'utilisation de c et equipement (2.4GHz wireless LAN) est soumise à certaines restrictions: cet
equipement peut être utilisé à l'interieur d'un batiment en utilisant toutes les frequences de 2400 a
2483.5MHz (Chaine 1–13). Pour une utilisation en environement exterieur, les frequences
comprises entre 2400-2454 MHz peuvent être utilisé. Pour les dernières restrictions, voir
http://www.art-telecom.fr.
For 2.4–GHz wireless LAN operati o n of this p roduct, certain restrictions appl y. This equipment
may use the entire–2400–MHz to 2483.5–MHz frequency band (channels 1 through 13) for
indoor applications. For outdoor use, only 2400-2454 MHz frequency band may be used. For
the latest requirements, see http://www.art-telecom.fr.
.
Certificate Information (SAR)
This device meets the EU requirements (1 999/519/EC) on the limitation of exposure of the
general public to elec tromagnetic fields by way o f health protection.
The limits are part of extensive recommendat ions for the protection of the general public. These
recommendations have been deve lope d and che cke d by indepen den t scie ntif ic organizations
through regular and thorough evaluations of scientific studies. The unit of measurement for the
European Council's recommended limit for mobile devices is the "Specific Absorption Rate"
(SAR), and the SAR limit is 2.0 W/ kg averaged over 10 gram of body tissue. It meets the
requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).
For body worn operation, this de v i ce has been tested and meets the ICNIRP exposure guidelines
and the European Standa rd EN 62311 and EN 62209-2, for use with dedicated accessories. Use
of other accessories which contain metals may not ensure compliance with ICNIRP exposure
guidelines.
SAR is measured with the device at a separation of 0 cm to the body, while transmitting at the
highest certified output power level in all frequency bands of the mobile device.
The maximum SAR value for each frequency band is listed below:
Band Position
SAR
(W/kg)
10g
GSM900 Body (0 cm Gap) 0.995
GSM1800 Body (0 cm Gap) 0.536
WCDMA Band I Body (0 cm Gap) 1.24
802.11 b/g Body (0 cm Gap) 0.038
Bluetooth Body (0 cm Gap) N/A
CIPHERLAB Co. Ltd.
Date: February 23, 2012
Declaration of Conformity
We, CIPHERLAB Co. Ltd.,
Address: 12F, 333 Dunhua S. Rd., Sec. 2, Taipei, Taiwan 106
Declare under our own responsibility that the product:
Model: 8790/8770/8700
Intended use: Mobile Computer
complies with the essential requirements of Article 3 of the R&TTE 1999/5/EC Directive, if used
for its intended use and that the fol l o wing standards has been applied:
1. Health (Article 3.1(a) of the R&TTE Directive)
Applied Standard(s):
EN62311: 2008/ EN 62209-2:2010/ EN 62479:2010/ EN 50364: 2010
2. Safety (Article 3.1(a) of the R&TTE Directive)
Applied Standard(s):
EN 60950-1:2006/A11:2009
3. Electromagnetic compatibility (Article 3.1 (b) of the R&TTE Directive)
Applied Standard(s):
EN 301 489-1 V1.8.1/-3 V1.4.1/-7 V1.3.1/-17 V2.1.1/-24 V1.5.1
4. Radio frequency spectrum usage (Article 3.2 of the R&TTE Dir ective)
Applied Standard(s):
EN 301 511 V9.0.2
EN 301 908-1 V4.2.1
EN 300 328 V1.7.1
EN 300 440-1V1.6.1/ -2 V1.4.1
5. EMC Directive (2004/108 /EC)
Applied Standard(s):
EN 55022:2006/A1:2007 Class B ; EN55024: :1998/A1:2001/A2:2003
All the reports of the applied standards have the Positive Opinion of Notified Body:
SIEMIC ,2206 Ringwood Avenue,San Jose,C,USA

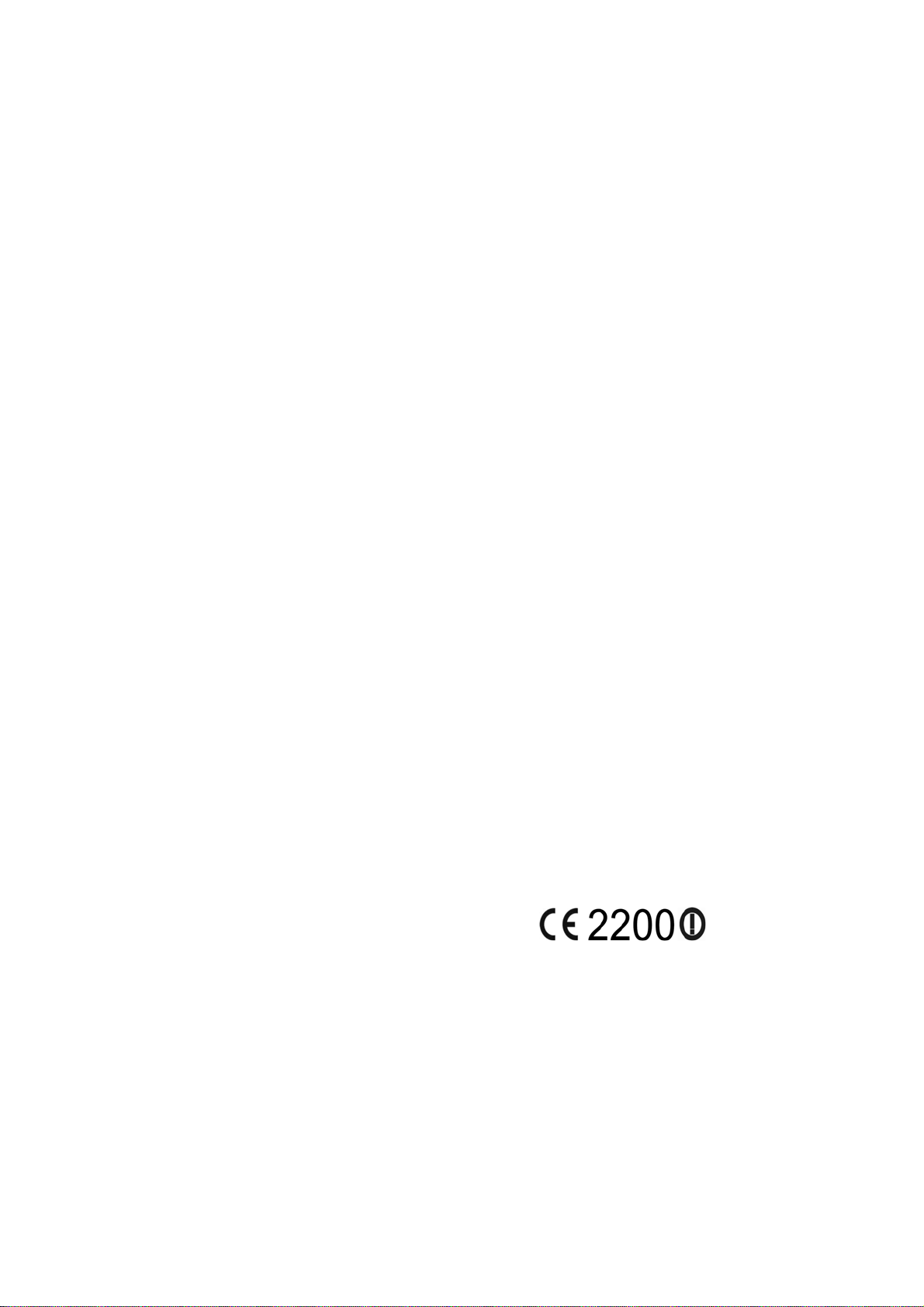

Identification mark: 2200 (Notified Body) CE(!)
The technical documentation relevant to the above equipment will be held at:
CIPHERLAB Co. Ltd.
12F, 333 Dunhua S. Rd., Sec. 2, Taipei, Taiwan 106
Authorized Person:
_________________
Herbie Jiang
RF Exposure Information (SAR)
This device meets the government’s requirements for expos ure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set b y the Federal Communications Commission of the U.S. Go vernment.
The exposure standard for wireless devices employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
are conducted using standard operating positions accepted by the FCC with the device
transmitting at its highest certified power level in all tested frequency bands. Although the
SAR is determined at the highest certified power level, the actual SAR level of the device while
operating can be well below the maximum value. This is because the device is designed to
operate at multiple power levels so as to use on ly the poser required to reach the network. In
general, the closer you ar e t o a wire le ss ba se station antenna, the lower the power ou tput.
The highest SAR value for the device as reported to the FCC wh en tested for worn on the body,
as described in this user guide is as following.
FCC ID PCS Body SAR (W/kg) WLAN Body SAR (W /kg)
Q3N-8790 0.231 0.062
Q3N-8770 N/A 0.062
Q3N-8700 N/A N/A
(Body-worn measurements differ among device models, depending upon available accessories
and FCC requirements.)
While there may be differences between the SAR levels of various devices and at various
positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this
device is on file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
FCC ID
Q3N-8790
Q3N-8770
Q3N-8700
This device is compliance with SAR for general population/ uncontrolled exposure limits in
ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and
procedures specified in OET Bulletin 65 Supplement C.
For body worn operation, this device has b een tested and meets th e FCC RF exposure guide lines
for use with an accessory that contains no metal and the positions the handset a minimum of 1.5
cm from the body. Use o f other accesso ries may not en sure complian ce with FCC RF exposu re
guidelines.
*
Tests for SAR
