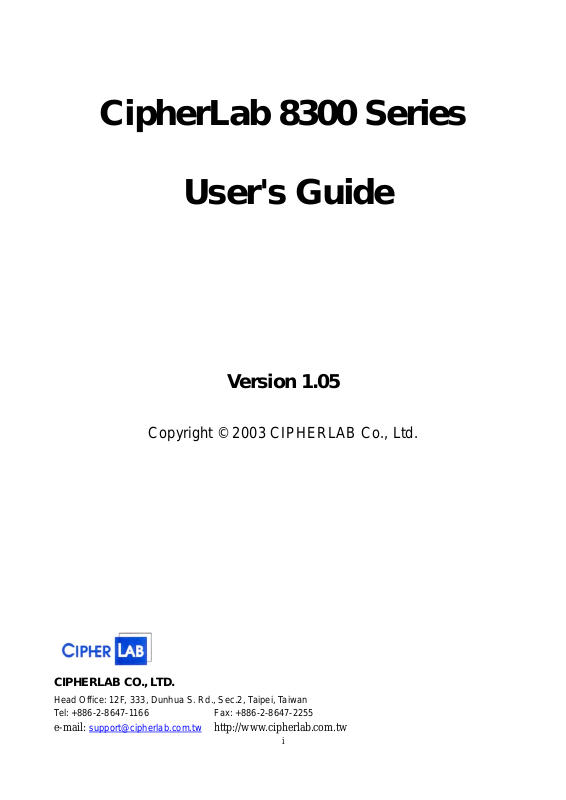

CipherLab 8300 Series
User's Guide
Version 1.05
Copyright © 2003 CIPHERLAB Co., Ltd.
CIPHERLAB CO., LTD.
Head Office: 12F, 333, Dunhua S. Rd., Sec.2, Taipei, Taiwan
Tel: +886-2-8647-1166 Fax: +886-2-8647-2255
e-mail: support@cipherlab.com.tw http://www.cipherlab.com.tw
i
Table of Contents
Table of Contents........................................................................................................................ii
1. Preface..............................................................................................................................1
2. General Features and Characteristics...............................................................2
2.1 Electrical....................................................................................................................2
2.2 Environmental..........................................................................................................2
2.3 Physical......................................................................................................................2
2.4 CPU.............................................................................................................................2
2.5 Memory......................................................................................................................2
2.6 Reader ........................................................................................................................2
2.7 Display.......................................................................................................................3
2.8 Keypad.......................................................................................................................3
2.9 Indicator.....................................................................................................................3
2.10 Communication........................................................................................................3
2.11 RF Specification......................................................................................................3
2.12 Software.....................................................................................................................4
2.13 Accessories...............................................................................................................4
3. Software Architecture...............................................................................................6
3.1 Kernel & Application Manager ...........................................................................6
3.2 System........................................................................................................................7
3.3 Application................................................................................................................9
3.4 Programming the terminal ....................................................................................9
3.5 Programming the communication cradle................................................................9
4. Operations....................................................................................................................10
4.1 Keypad operations ................................................................................................10
4.2 Application mode..................................................................................................10
4.3 System mode..........................................................................................................11
4.4 Kernel mode ...........................................................................................................11
4.5 Application Manager............................................................................................11
5. Troubleshooting.........................................................................................................12
ii
1. Preface
The 8300 Terminals are rugged, versatile, high performance data terminals designed
for all-day, everyday use. They are powered by a Li-ion rechargeable battery with
working hour longer than 100 hours. They are supported by a rich set of development
tools, including a Windows-based application generator, “C” and “Basic” compilers.
With their integrated Laser/CCD barcode scanning unit and optional RF module, the
8300 Terminals are ideal for both batch and real time applications such as inventory
control, shop floor management, warehousing and distribution operations.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However , there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
Bluetooth and WLAN transmitters are simultaneously transmitted.
The collocated effects are verified and there is no significant collocated effect.
IMPORTANT NOTE: FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits,
human proximity to the antenna shall not be less than 20cm (8 inches) during normal.
This device can not be worn on the body and at least keep it 20 cm away from body parts other than
hand, wrists, feet and ankles.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a comm ercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
1
2. General Features and Characteristics
Basic characteristics of the 8300 Terminal are listed below,
2.1 Electrical
Operation battery: 3.7V Li-ion rechargeable battery, 1800mAH.
Backup battery: 3.0V, 7mAH rechargeable Lithium battery for SRAM & calendar
Working time: over 36 hours for 8300.
2.2 Environmental
Operating Humidity: non-condensed 10% to 90%
Storage Humidity: non-condensed 5% to 95%
Operating Temperature: -20 to 50 °C
Storage Temperature: -30 to 70 °C
EMC regulation: FCC, CE and C-tick
Shock resistance: 1.2m drop onto concrete
IP rating: IP65
2.3 Physical
Dimensions – Batch model: 169mm (L) x 77mm (W) x 36mm (H)
Dimensions – RF model: 194mm (L) x 77mm (W) x 44mm (H)
Weight – Batch model: 230g (including battery)
Weight – RF model: 250g (including battery)
Housing color: Black
Housing material: ABS
2.4 CPU
Toshiba 16-bit CMOS type CPU
Tunable clock, up to 22MHz
2.5 Memory
Program memory
1 M Bytes flash memory is used to store the program code, font, constant data, and so on.
Data memory
2M / 4M Bytes SRAM
2.6 Reader
The 8300 Series Terminal can be equipped with either Laser or Long Range CCD scanner. The angle
of the scanning beam can be straight (0°) or 45° to the LCD plane. Detailed specifications are as
follows:
Laser
Light source: visible Laser diode operating at 670±15nm
Scan rate: 36±3 scans per second
Scan angle: 42°nominal
Minimum print contrast: 20% absolute dark/light reflectance at 670nm
Depth of field: 5 ~ 95 cm, depends on barcode resolution
2
CCD
Resolution: 0.125mm ~ 1.00mm
Depth of field: 2 ~ 20cm
Width of field: 45mm ~ 124mm
Scan rate: 100 scans/sec
Ambient Light Rejection:
1200 lux (Direct Sun-light)
2500 lux (Fluorescent Light)
2.7 Display
128x64 graphic dots FSTN LCD display with LED back-light
2.8 Keypad
24 numeric or 39 alphanumeric rubber keys.
2.9 Indicator
Buzzer
Software programmable audio indicator, 1KHz to 4KHz, low power transducer type.
LED
Programmable, dual-color (green and red) LED for status indication.
2.10 Communication
RS-232: baud rate up to 115200 bps
Serial IR: baud rate up to 115200 bps
Standard IrDA: baud rate up to 115200 bps
Bluetooth Class 2: data rate up to 433 Kbps
IEEE-802.11b: data rate up to 11 Mbps
2.11 RF Specification
Bluetooth - Class 2
Frequency Range: 2.4000 ~ 2.4835 GHz
Modulation: GFSK
Profiles: BNEP, SPP
Data Rate: 433 Kbps
Coverage: 10M line-of-sight
Maximum Output Power: 10mW
Standard: Bluetooth spec. V1.1
IEEE-802.11b (8370)
Frequency Range: 2.4 ~ 2.4835 GHz
Modulation: DSSS with DBPSK(1Mbps), DQPSK(2Mbps), CCK
Data Rate: 11, 5.5, 2, 1 Mbps auto-fallback
Coverage: 50M line-of-sight
Maximum Output Power: 100mW
3
