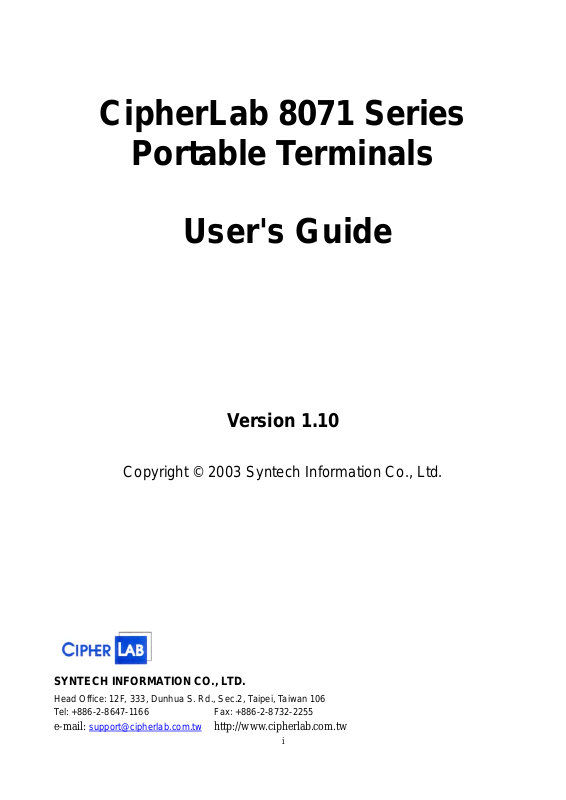

CipherLab 80711 User Manual

CipherLab 8071 Series

Portable Terminals

User's Guide

Version 1.10

Copyright © 2003 Syntech Information Co., Ltd.

SYNTECH INFORMATION CO., LTD.

Head Office: 12F, 333, Dunhua S. Rd., Sec.2, Taipei, Taiwan 106
Tel: [phone] Fax: [phone]

e-mail: [e-mail] http://www.cipherlab.com.tw

i

Table of Contents

Table of Contents........................................................................................................................ii

1. Introduction...................................................................................................................1

2. General Features and Characteristics...............................................................2

2.1 Electrical....................................................................................................................2

2.2 Environmental..........................................................................................................2

2.3 Physical......................................................................................................................2

2.4 CPU.............................................................................................................................2

2.5 Memory......................................................................................................................2

2.6 Reader ........................................................................................................................2

2.7 Display.......................................................................................................................2

2.8 Keypad.......................................................................................................................3

2.9 Indicator.....................................................................................................................3

2.10 Communication........................................................................................................3

2.11 Software.....................................................................................................................3

3. Software Architecture...............................................................................................4

3.1 Kernel & Application Manager ...........................................................................4

3.2 System........................................................................................................................5

3.3 Application................................................................................................................6

3.4 Programming the terminal ....................................................................................7

3.5 Programming the communication cradle..........................................................7

4. Operations......................................................................................................................8

4.1 Keyboard Operations..............................................................................................8

4.2 Application mode....................................................................................................8

4.3 System mode............................................................................................................9

4.4 Kernel mode .............................................................................................................9

4.5 Application Manager..............................................................................................9

5. Troubleshooting..................................................................................................................10

ii

1. Introduction

The 8071 Series Portable Terminals are compact, high performan ce data terminals
designed for all-day , everyday use. They are powered by a rechar geable Li-ion battery
pack. They are supported by a rich set of development tools, including a
Windows-based application generator, “C” and “Basic” compilers. With their
integrated barcode scanning units, the 8071 Series Portable Terminals are ideal for
applications such as inventory control, access control and shop floor management, etc.

FCC Regulations:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation If this equipment does cause harmf ul interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

-Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void
the user‘s authority to operate the equipment.

This device complies with FCC radiation exposure limits set forth f or an uncontrolled environment.
In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human
proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.

1

2. General Features and Characteristics

Basic characteristics of the 8071 Series Portable Terminals are listed below,

2.1 Electrical

 Operation battery (8071 Series): Li-ion rechargeable battery
 Backup battery: 3.7V, 700mAH rechargeable Lithium battery for SRAM & calendar
 Working hour: over 8 hours

2.2 Environmental

 Operating Humidity: non-condensed 10% to 90%
 Storage Humidity: non-condensed 5% to 95%
 Operating Temperature: 0 to 60 °C
 Storage Temperature: -20 to 70 °C

2.3 Physical

 Dimensions : 126.5mm (L) x 60mm (W) x 39.5mm (H)
 Weight: 154g (including battery)

2.4 CPU

 Toshiba 16-bit CMOS type CPU
 Tunable clock, up to 22MHz

2.5 Memory

 Program memory: 1 M Bytes flash
 Data memory: 1M Bytes SRAM

2.6 Reader

The 8071 Series Portable Terminal can be equipped with a CCD scanner or a Laser scanner.
Detailed specifications are as follows:

CCD Scanner

 Resolution: 0.125mm ~ 0.5mm
 Depth of field: 3 ~ 29cm
 Scan rate: 100 scans/sec

Laser Scanner

 Light source: visible Laser diode operating at 650±15nm
 Scan rate: 100±3 scans per second
 Scan angle: 60°nominal

 Depth of field: 1 ~ 45 cm, depends on barcode resolution

2.7 Display

 100x64 graphic dots FSTN LCD display with LED backlight

2
