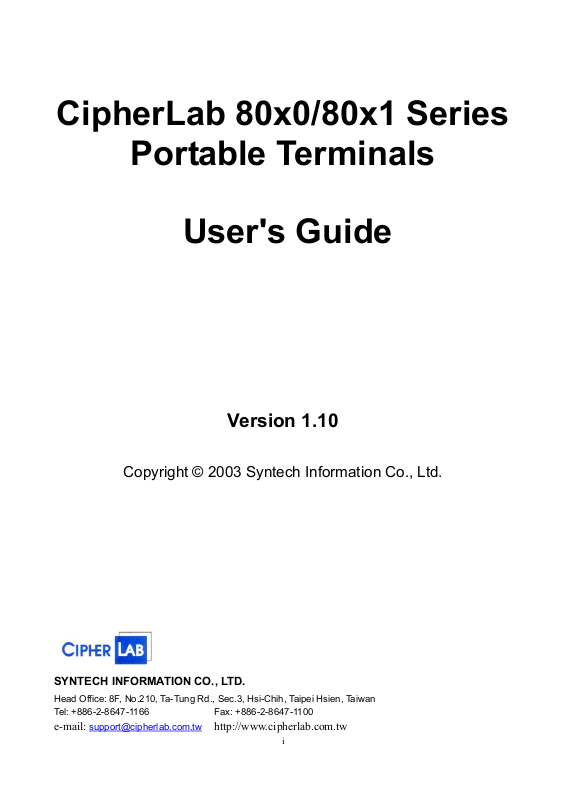

CipherLab 8061BL User Manual

CipherLab 80x0/80x1 Series

Portable Terminals

User's Guide

Version 1.10

Copyright © 2003 Syntech Information Co., Ltd.

SYNTECH INFORMATION CO., LTD.

Head Office: 8F, No.210, Ta-Tung Rd., Sec.3, Hsi-Chih, Taipei Hsien, Taiwan
Tel: [phone] Fax: [phone]

e-mail: [e-mail] http://www.cipherlab.com.tw

i

Table of Contents

Table of Contents........................................................................................................................ii

1. Introduction ...................................................................................................................1

2. General Features and Characteristics ...............................................................2

2.1 Electrical....................................................................................................................2

2.2 Environmental..........................................................................................................2

2.3 Physical......................................................................................................................2

2.4 CPU.............................................................................................................................2

2.5 Memory......................................................................................................................2

2.6 Reader ........................................................................................................................ 2

2.7 Display .......................................................................................................................3

2.8 Keypad .......................................................................................................................3

2.9 Indicator.....................................................................................................................3

2.10 Communication........................................................................................................ 3

2.11 Software.....................................................................................................................3

2.12 Accessories ............................................................................................................... 3

3. Software Architecture............................................................................................... 4

3.1 Kernel & Application Manager ...........................................................................4

3.2 System........................................................................................................................ 5

3.3 Application................................................................................................................7

3.4 Programming the terminal .................................................................................... 7

3.5 Programming the communication cradle .......................................................... 7

4. Operations ......................................................................................................................8

4.1 Keyboard Operations..............................................................................................8

4.2 Application mode.................................................................................................... 8

4.3 System mode ............................................................................................................9

4.4 Kernel mode ............................................................................................................. 9

4.5 Application Manager..............................................................................................9

5. Troubleshooting.................................................................................................................. 10

ii

1. Introduction

The 80x0/80x1 Series Portable Terminals are compact, high performance data
terminals designed for all-day, everyday use. They are powered by either two
AAA-size batteries or a rechargeable Li-ion battery pack. They are supported by a rich
set of development tools, including a Windows-based application generator, “C” and
“Basic” compilers. With their integrated barcode scanning units, the 80x0/80x1 Series
Portable Terminals are ideal for applications such as inventory control, access control
and shop floor management, etc.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.

Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.

1

2. General Features and Characteristics

Basic characteristics of the 80x0/80x1 Series Portable Terminals are listed below,

2.1 Electrical

 Operation battery (80x0 Series): two AAA-size batteries
 Operation battery (80x1 Series): Li-ion rechargeable battery
 Backup battery: 3.0V, 7mAH rechargeable Lithium battery for SRAM & calendar
 Working hour: over 100 hours

2.2 Environmental

 Operating Humidity: non-condensed 10% to 90%
 Storage Humidity: non-condensed 5% to 95%
 Operating Temperature: -20 to 60 °C
 Storage Temperature: -30 to 70 °C
 EMC regulation: FCC, CE and C-tick
 Shock resistance: 1.2m drop onto concrete

2.3 Physical

 Dimensions (80x0 Series): 122mm (L) x 56mm (W) x 25mm (H)
 Dimensions (80x1 Series): 122mm (L) x 56mm (W) x 30mm (H)
 Weight (80x0 Series): 130g (including battery)
 Weight (80x1 Series): 135g (including battery)
 Housing color: Black
 Housing material: ABS

2.4 CPU

 Toshiba 16-bit CMOS type CPU
 Tunable clock, up to 22MHz

2.5 Memory

 Program memory: 1 M Bytes flash
 Data memory: 1M / 2M Bytes SRAM

2.6 Reader

The 80x0/80x1 Series Portable Terminal can be equipped with a CCD scanner or a Laser scanner.
Detailed specifications are as follows:

CCD Scanner

 Resolution: 0.125mm ~ 1.00mm
 Depth of field: 2 ~ 20cm
 Width of field: 45mm ~ 124mm
 Scan rate: 100 scans/sec
 Ambient Light Rejection:

1200 lux (Direct Sun-light)
2500 lux (Fluorescent Light)

2
