CipherLab 3610 User Manual

1660/3610
Setup labels included.
Version 1.06
Copyright © 2008 ~ 2009 CIPHERLAB CO., LTD. All rights reserved
The software contains proprietary information of CIPHERLAB CO., LTD.; it is provided under a license agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.
Due to continued product development this information may change without notice. The information and intellectual property cont ained herein is confiden tial between CIPHE RLAB and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find any problems in the documentation, please report them to us in writing. CIPHERLAB does not warrant that this document is error-free.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of CIPHERLAB CO., LTD.
For product consultancy and technical support, please contact your local sales representative. Also, you may visit our web site for more information.
The CipherLab logo is a registered trademark of CIPHERLAB CO., LTD. All brand, product and service, and trademark names are the property of their registered
owners. The editorial use of these names is for identification as well as to the benefit of the
owners, with no intention of infringement.
CIPHERLAB CO., LTD.
Website: http://www.cipherlab.com
IMPORTANT NOTICES
FOR USA
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate t he receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to t he following two conditions: (1) This device may not cause harmful interf erence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FOR CANADA
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of Industry Canada.
This device complies with Part 15 of the FCC Rules. Operation is subject to t he following two conditions: (1) This device may not cause harmful interf erence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils numeriques de Classe B prescrites dans la norme sur le material brouilleur: "Appareils Numeriques," NMB-003 edictee par l'Industrie.
FOR HAND-HELD PRODUCT WITH RF FUNCTIONS
This 3610 (FCC ID: Q3N-3610) complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in
Supplement C to OET65. The 1660 has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR).
The 1660 (FCC ID: Q3N-1660) complies with FCC radiation exposure limits set forth for an uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. The 1660 has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR).
l.
FOR PRODUCT WITH LASER
Per FDA and IEC standards, the scan engines described in this manual are not given a laser classification. However, the following precautions should be observed:
CAUTION
This laser component emits FDA / IEC Class 2 laser light at the exit port. Do not stare into beam.
SAFETY PRECAUTIONS
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
The use of any batteries or charging devi ces, which are not originally sold or manufactured by
CipherLab, will void your warranty and may cause damage to human body or the product itself.
DO NOT disassemble, i ncinerate or short circuit the battery. DO NOT expose the scanner or the battery to any flammable sources. For green-environment issue, it's important that batteries should be recycled in a proper way. Under no circumstances, internal components are self-serviceable. The charging and communication cradle uses an AC power adaptor. A socket outlet shall be
installed near the equipment and shall be easily accessible. Make sure ther e is stable power supply for the mobile computer or its peripherals to operate properly.
CARE & MAINTENANCE
Use a clean cl oth to wipe dust off the scanning window and the body of the scanner as well as
the cradle. DO NOT use/mix any bleach or cleaner.
If you want to put away the scanner for a period of time, download the collected data to a host
computer when in the memory mode, and then take out the battery. Store the scanner and battery separately.
When the scanner resumes i ts work, make sure the battery is fully charged before use. If you shall find the scanner malfuncti oning, write down the specific scenario and consult your
local sales representative.
RELEASE NOTES
Version Date Notes
1.06 Feb. 26, 2009
1.05 Jan. 10, 2009
1.04 Dec. 11, 2008
1.03 Nov. 14, 2008
1.02 Sep. 17, 2008
1.01 July 23, 2008
New: BT Transponder (3610) Modified: 2.1 BT HID — change setup label (100006) New: 2.3 USB HID via 3610 — add setup label (100005) New: 2.4 USB Vi rtual COM via 3610 — add setup label (100004) Modified: Removal of Special Character   Modified: 1.1.3 Auto Power Off Modified: 1. 2.2 Memory Mode — 256 KB flash memory Modified: 1.3 LED Indicator Modified: 1.6 Scan Modes — add Alternate Mode to table New: 1.6.8 Alternate Mode — add setup label (100203) Modified: 1.8 Delay between Re-read — add Alternate Mode Modified: 2.1 BT HID — change setup label (100006) Modified: 3.2.2 Configure Related Settings — add setup label
Modified: 4.10 GS1-128 (EAN-128) Modified: 4.16 GS1 DataBar (RSS Family) Modified: 4.16.2 GS1 DataBar Omnidirectional (RSS-14) Modified: 4.16.3 GS1 DataBar Expanded (RSS Expanded) Modified: 4.16.4 GS1 DataBar Limited (RSS Limited) Modified: 1. 2.2 Memory Mode — Send Data behavior
Modified: 1. 3.2 Good Read LED Duration — Step 2 should be 150 Modified: 5.6 Multi-Barcode Editor — 4-digit length excludesModified: 6. 2.3 Define Data Criteri a — Data length includes prefix, New: Quick Start — Flowchart
New: 1.3.2 G ood Read LED Duration Modified: 2.1.2 Reset Con nection — Restore System Defaults will
Modified: 5. 6 Multi-Barcode Editor — Reset scan mode to “Laser” Modified: Host Serial Commands — adds D, E commands Modified: Product Highlights — Transmit buffer should be 1 KB Modified: Specifications — updated Modified: 1. 2.1 Transmit Buffer Modified: Specifications — BT coverage (line-of-sight) up to 10
(109973) for Clear PIN Code
milliseconds
prefix, suffix, length code, etc.
suffix, length code, etc.
clear the connection record as well
meters
1.00 May 26, 2008 Initial release
CONTENTS
IMPORTANT NOTICES ...................................................................................................................... - 2 -
For USA .......................................................................................................................................... - 3 -
For Canada .................................................................................................................................... - 3 -
For Hand-held Product with RF Functions ................................................................................... - 4 -
For Product with Laser .................................................................................................................. - 4 -
Safety Precautions ........................................................................................................................ - 4 -
Care & Maintenance ..................................................................................................................... - 4 -
RELEASE NOTES .............................................................................................................................. - 5 -
INTRODUCTION .................................................................................................................................... 1
Getting Familiarized with 1660 and 3610 ...................................................................................... 2
Installing Batteries to 1660......................................................................................................... 2
Using 3610 ................................................................................................................................... 3
Inside the Package ............................................................................................................................ 4
Product Highlights ............................................................................................................................. 4
QUICK START ....................................................................................................................................... 5
Enter Configuration Mode ................................................................................................................. 7
Exit Configuration Mode .................................................................................................................... 7
Default Settings ................................................................................................................................. 8
Save User Settings as Defaults ................................................................................................... 8
Restore User Defaults .................................................................................................................. 8
Restore System Defaults ............................................................................................................. 8
Read a Setup Label ........................................................................................................................... 9
Configure Parameters .................................................................................................................. 9
List the Current Settings ............................................................................................................ 13
UNDERSTANDING THE BARCODE SCANNER .................................................................................... 15
1.1 Battery ....................................................................................................................................... 15
1.1.1 How to Operate the Scanner ........................................................................................... 15
1.1.2 Auto Power Off .................................................................................................................. 16
1.2 Memory ..................................................................................................................................... 18
1.2.1 Transmit Buffer ................................................................................................................ 18
1.2.2 Memory Mode .................................................................................................................. 18
1.3 LED Indicator ............................................................................................................................ 21
1.3.1 Good Read LED ................................................................................................................ 22
1.3.2 Good Read LED Duration ................................................................................................. 22
1.4 Beeper ....................................................................................................................................... 23
1.4.1 Beeper Volume ................................................................................................................. 24
1.4.2 Good Read Beep .............................................................................................................. 25
1.4.3 Low Battery Alarm ............................................................................................................ 26
1.5 Send “NR” to Host .................................................................................................................... 27
1660 Barcode Scanner User Guide
1.6 Scan Modes .............................................................................................................................. 28
1.6.1 Continuous Mode ............................................................................................................. 29
1.6.2 Test Mode ......................................................................................................................... 30
1.6.3 Laser Mode ....................................................................................................................... 30
1.6.4 Auto Off Mode................................................................................................................... 30
1.6.5 Auto Power Off Mode ....................................................................................................... 31
1.6.6 Aiming Mode ..................................................................................................................... 31
1.6.7 Multi-Barcode Mode ......................................................................................................... 32
1.6.8 Alternate Mode ................................................................................................................. 32
1.7 Scanning Timeout ..................................................................................................................... 33
1.8 Delay between Re-read ............................................................................................................ 34
1.9 Effective Decoding Area ........................................................................................................... 35
1.9.1 Positioning Window .......................................................................................................... 35
1.9.2 Adjusting Window ............................................................................................................. 35
1.10 Negative Barcodes ................................................................................................................. 37
1.11 Symbologies Supported ......................................................................................................... 38
1.11.1 Read Redundancy for All Symblogies ........................................................................... 39
1.11.2 Addon Security for UPC/EAN Barcodes ........................................................................ 40
SELECTING OUTPUT INTERFACE ....................................................................................................... 41
2.1 BT HID ........................................................................................................................................ 42
2.1.1 Activate BT HID & Select Keyboard Type ........................................................................ 42
2.1.2 Reset Connection ............................................................................................................. 43
2.1.3 Keyboard Settings ............................................................................................................ 44
2.1.4 Inter-Function Delay ......................................................................................................... 48
2.2 BT SPP ....................................................................................................................................... 49
2.2.1 Activate BT SPP ................................................................................................................ 49
2.2.2 Inter-Function Delay ......................................................................................................... 49
2.2.3 ACK/NAK Timeout ............................................................................................................ 50
2.3 USB HID via 3610 ..................................................................................................................... 51
2.3.1 Activate USB HID & Select Keyboard Type ..................................................................... 51
2.3.2 Reset Connection ............................................................................................................. 52
2.3.3 Keyboard Settings ............................................................................................................ 53
2.3.4 Inter-Function Delay ......................................................................................................... 57
2.4 USB Virtual COM via 3610 ....................................................................................................... 58
2.4.1 Activate USB Virtual COM ................................................................................................ 58
2.4.2 Inter-Function Delay ......................................................................................................... 58
2.4.3 ACK/NAK Timeout ............................................................................................................ 59
SETTING UP A WPAN CONNECTION .................................................................................................. 61
3.1 Connecting via 3610 ................................................................................................................ 62
3.1.1 Connect to 3610 .............................................................................................................. 62
3.1.2 Change Interface .............................................................................................................. 63
3.2 Connecting via Bluetooth
®
Dongle .......................................................................................... 64
3.2.1 Change Interface .............................................................................................................. 64
3.2.2 Configure Related Settings .............................................................................................. 65
3.2.3 Connect to Dongle ............................................................................................................ 67
CHANGING SYMBOLOGY SETTINGS .................................................................................................. 75
4.1 Codabar ..................................................................................................................................... 76
1660 Barcode Scanner User Guide
4.1.1 Start/Stop Characters Selection ..................................................................................... 76
4.1.2 Start/Stop Transmission.................................................................................................. 77
4.1.3 CLSI Conversion ............................................................................................................... 77
4.2 Code 25 – Industrial 25 ........................................................................................................... 78
4.2.1 Start/Stop Pattern Selection ........................................................................................... 78
4.2.2 Checksum Verification ..................................................................................................... 79
4.2.3 Checksum Transmission .................................................................................................. 79
4.2.4 Code Length Qualification ............................................................................................... 80
4.3 Code 25 – Interleaved 25 ........................................................................................................ 81
4.3.1 Start/Stop Pattern Selection ........................................................................................... 81
4.3.2 Checksum Verification ..................................................................................................... 82
4.3.3 Checksum Transmission .................................................................................................. 82
4.3.4 Code Length Qualification ............................................................................................... 83
4.4 Code 25 – Matrix 25 ................................................................................................................ 84
4.4.1 Start/Stop Pattern Selection ........................................................................................... 84
4.4.2 Checksum Verification ..................................................................................................... 85
4.4.3 Checksum Transmission .................................................................................................. 85
4.4.4 Code Length Qualification ............................................................................................... 86
4.5 Code 39 ..................................................................................................................................... 87
4.5.1 Start/Stop Transmission.................................................................................................. 87
4.5.2 Checksum Verification ..................................................................................................... 87
4.5.3 Checksum Transmission .................................................................................................. 88
4.5.4 Standard/Full ASCII Code 39 .......................................................................................... 88
4.6 Code 93 ..................................................................................................................................... 89
4.7 Code 128 .................................................................................................................................. 89
4.8 EAN-8 ......................................................................................................................................... 90
4.8.1 Convert to EAN-13 ............................................................................................................ 91
4.8.2 Checksum Transmission .................................................................................................. 91
4.9 EAN-13 ...................................................................................................................................... 92
4.9.1 ISBN Conversion ............................................................................................................... 93
4.9.2 ISSN Conversion ............................................................................................................... 93
4.9.3 Checksum Transmission .................................................................................................. 93
4.10 GS1-128 (EAN-128) ............................................................................................................... 94
4.10.1 Code ID Transmission .................................................................................................... 94
4.10.2 Field Separator (GS Character) ..................................................................................... 94
4.11 ISBT 128 ................................................................................................................................. 95
4.12 MSI .......................................................................................................................................... 96
4.12.1 Checksum Verification ................................................................................................... 96
4.12.2 Checksum Transmission ............................................................................................... 97
4.12.3 Code Length Qualification ............................................................................................. 98
4.13 French Pharmacode ............................................................................................................... 99
4.13.1 Checksum Transmission ............................................................................................... 99
4.14 Italian Pharmacode .............................................................................................................. 100
4.14.1 Checksum Transmission ............................................................................................. 100
4.15 Plessey .................................................................................................................................. 101
4.15.1 Convert to UK Plessey ................................................................................................. 101
4.15.2 Checksum Transmission ............................................................................................. 101
4.16 GS1 DataBar (RSS Family) .................................................................................................. 102
4.16.1 Code ID Selection ........................................................................................................ 102
1660 Barcode Scanner User Guide
4.16.2 GS1 DataBar Omnidirectional (RSS-14) ..................................................................... 102
4.16.3 GS1 DataBar Expanded (RSS Expanded) ................................................................... 103
4.16.4 GS1 DataBar Limited (RSS Limited) ........................................................................... 104
4.17 Telepen ................................................................................................................................. 106
4.17.1 Telepen Output – Full ASCII/Numeric ........................................................................ 106
4.18 UPC-A ..................................................................................................................................... 107
4.18.1 Convert to EAN-13 ....................................................................................................... 108
4.18.2 System Number Transmission .................................................................................... 108
4.18.3 Checksum Transmission ............................................................................................. 108
4.19 UPC-E ..................................................................................................................................... 109
4.19.1 System Number Selection ........................................................................................... 110
4.19.2 Convert to UPC-A .......................................................................................................... 110
4.19.3 System Number Transmission .................................................................................... 111
4.19.4 Checksum Transmission ............................................................................................. 111
DEFINING OUTPUT FORMAT ............................................................................................................ 113
5.1 Letter Case .............................................................................................................................. 113
5.2 Character Substitution ........................................................................................................... 114
5.2.1 Select a Set for Character Substituion ......................................................................... 114
5.2.2 Symbologies for Character Substitution (All 3 Sets) .................................................... 115
5.3 Prefix/Suffix Code ................................................................................................................... 120
5.4 Code ID .................................................................................................................................... 121
5.4.1 Select Pre-defined Code ID ............................................................................................ 121
5.4.2 Change Code ID .............................................................................................................. 122
5.4.3 Clear Code ID Settings ................................................................................................... 124
5.5 Length Code ............................................................................................................................ 125
5.6 Multi-Barcode Editor ............................................................................................................... 128
5.6.1 Edit a Concatenation of Barcodes ................................................................................ 129
5.6.2 Activate the Concatenation of Barcodes ...................................................................... 130
APPLYING FORMATS FOR DATA EDITING ........................................................................................ 131
6.1 Format Selection .................................................................................................................... 132
6.1.1 Activate Editing Formats ................................................................................................ 132
6.1.2 Exclusive Data Editing .................................................................................................... 133
6.2 Editing Format......................................................................................................................... 134
6.2.1 Select Format to Configure ............................................................................................ 135
6.2.2 Restore Default Format ................................................................................................. 136
6.2.3 Define Data Criteria ....................................................................................................... 137
6.2.4 Divide Data into Fields ................................................................................................... 140
6.2.5 Field Settings .................................................................................................................. 142
6.2.6 Field Transmission Sequence ....................................................................................... 148
6.3 Programming Examples ......................................................................................................... 150
6.3.1 Example I ........................................................................................................................ 150
5.3.2 Example II ....................................................................................................................... 151
SPECIFICATIONS .............................................................................................................................. 153
UPGRADING FIRMWARE .................................................................................................................. 155
How to Upgrade 1660 Firmware .................................................................................................. 155
Using 3610 ............................................................................................................................... 155
1660 Barcode Scanner User Guide
Using a Generic Dongle ........................................................................................................... 157
How to Upgrade 3610 Firmware .................................................................................................. 158
HOST SERIAL COMMANDS .............................................................................................................. 161
1660 Serial Commands ................................................................................................................ 161
Example .................................................................................................................................... 162
3610 Serial Commands ................................................................................................................ 163
Example .................................................................................................................................... 166
KEYBOARD WEDGE TABLE .............................................................................................................. 167
Key Type ......................................................................................................................................... 167
Key Status ...................................................................................................................................... 168
User-defined Scan Code ............................................................................................................... 168
NUMERAL SYSTEMS ........................................................................................................................ 169
Decimal System ............................................................................................................................. 169
Hexadecimal System ..................................................................................................................... 170
ASCII Table ..................................................................................................................................... 171
Entering PIN Code for a WPAN Connection ................................................................................. 172
INTRODUCTION
CipherLab’s new small-form-factor 1660 Barcode Scanners are specifically designed to answer your mobile demands. The palm-sized 1660 scanners are designed to help accelerate productivity while lowering the total cost of ownership. Intensive data collection jobs are made easier with fast, accurate barcode scanning in various working environments, especially in small businesses. Integrating short-distance wireless technology to small-form-factor scanners, the 1660 scanners are ideal for carrying in your pocket, and thus give workers tether-free mobility anytime anywhere and get job done more efficiently. This line of scanners deliver data ov er a wireless personal network at a range of up to 10 meters and a prolonged battery life that provides up to 30 hours uptime to keep business running.
Owing to the compact design, extremely low power consumption, and powerful decoding capability, the 1660 Barcode Scanners are the best choice for the following applications –
Receiving in Retail Product labeling & Tracking Shelf Product Replenishment Mobile Point of Sale (POS) Mobile Inventory Management Order Picking & Staging Work-In-Process Tracking Material Flow Control Transportation & Distribution Warehousing Asset Management
This manual contains information on operating the scanner and using its features. We recommend you to keep one copy of the manual at hand for quick reference or maintenance purposes. To avoid any improper disposal or operation, please read the manual thoroughly before use.
Thank you for choosing CipherLab products!
1
Update
1660 Barcode Scanner
User Guide
GETTING FAMILIARIZED WITH 1660 AND 3610
INSTALLING BATTERIES TO 1660
1) Hold the scanner face down in one hand.
2) Press the battery lid release and slide the battery lid.
3) Remove the battery lid by the other hand.
4) Install two AAA Alkaline batteries into the battery compartment, each in the right
direction.
5) Replace the battery lid and lock it firmly.
6) Press the [Power/Delete] key for 3 seconds to turn on 1660.
The scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly.
Note: To turn off the scanner, press the [Power/Delete] key for 2 seconds. The scanner
will respond with two short beeps (high tone) and the LED will finally become solid red. Release the key then. Otherwise, let the scanner turn off automatically in specific circumstances. Refer to settings of “Auto Power Off For shipping and storage purposes, save the scanner and the batteries separately. This will keep the batteries in good condition for future use.
”.
2
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
USING 3610
The BT Transponder is specifically designed for the scanner to communicate with a host computer wirelessly. The connection between the scanners and 3610 is made easy and reliable. Refer to 3.1.1 Connect to 3610
There is one LED indicator provided for communications status.
.
Communication LED
--- Blue, solid
Red, solid
Red, solid
Red, flashing
--- Blue,
--- Blue,
Red, solid
Red, flashing
--- Failed to establish a USB connection
Blue, solid
Blue, solid
flashing
flashing Blue,
flashing
--- Enter Download Mode
Meaning
Initialize
Serial command mode with USB Virtual COM: wait 3 seconds for starting a serial command
Serial command mode with USB HID: wait 3 seconds for pressing [NumLock] or [CapsLock] 5 times via keyboard
Wait for connection request from 1660 (Slow flash at 0.5 Hz)
Connected with 1660 (Fast flash at 1 Hz)
Failed to send data to host via USB Virtual COM (Fast flash at 1 Hz)
3
Update
1660 Barcode Scanner
User Guide
INSIDE THE PACKAGE
The items included in the package may be different, depending on your order. Save the box and packaging material for future use in case you need to store or ship the scanner.
1660 Barcode Scanner Product CD
Note: The CD-ROM includes this manual and Windows-based ScanMaster software for
configuration.
PRODUCT HIGHLIGHTS
Small-form-factor and built tough to survive drop test Extremely low power consumption Firmware upgradeable Supports most popular barcode symbologies, including GS1-128 (EAN-128), GS1
DataBar (RSS), etc.
Supports negative barcodes Supports different scan modes, including Aiming Mode and Multi-Barcode Mode User feedback via LED indicator and beeper Beeping tone and duration programmable for Good Read 256 KB flash memory for Memory Mode operation, storing up to 16,384 scans Provides up to 1 KB SRAM for reserve buffer, storing up to 64 scans while getting out
of range over a wireless personal area network (WPAN)
Capable of transmitting scanned data, emulating a serial cable (BT SPP) or as
keyboard input (BT HID), to a notebook computer or PDA with Bluetooth technology
®
wireless
Programmable parameters include data output format, editing format, symbologies,
etc.
4
Enter Setup
QUICK START
The configuration of the scanner can be done by reading the setup labels contained in this manual or via the ScanMaster software. This section describes the procedure of configuring the scanner by reading the setup barcodes and provides some examples for demonstration.
Configuration Mode
1. Press the [Power/Delete] key for 3 seconds to turn on the scanner. It will respond with a long
beep and its LED will come on and off shortly.
2. Have the scanner read the “Enter Setup” label. It will respond with six beeps and its LED
indicator will become flashing red after reading the label.
3. Have the scanner read more setup barcodes… Most of the setup barcodes are normal labels.
The scanner will respond with two beeps (low-high tone). For special labels, it requires reading more than one setup barcode to complete the setting.
4. Have the scanner read the “Update” or “Abort” label. It will respond with six beeps and its LED
indicator will become flashing red after reading the label.
5. The scanner will restart automatically upon reading the “Update” or “Abort” label. It will
respond with a long beep and its LED will come on and off shortly.
Note: Refer to Appendix II Host Serial Commands for how to configure the 3610 dongle
by having the scanner read 3610-related setup labels or using serial commands.
5
Update
1660 Barcode Scanner
User Guide
Working Mode
Upon powering up, the 1660 scanner will try to establish a connection with 3610 or a computer with Bluetooth details. The connection between the scanners and 3610 is made easy and reliable.
®
wireless technology. Refer to Chapter 3 – Setting up a WPAN Connection for
Note: If USB Virtual COM or BT SPP is selected for output interface, the host can direct ly
send serial commands to configure the scanner. For example, run HyperTerminal.exe and type the 6-digit command located under each setup label. Refer to Appendix II Host Serial Commands
.
6
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
E
ENTER CONFIGURATION MODE
For the scanner to enter the configuration mode, you must have it read the "Enter Setup" label, which can be located at the bottom of almost every even page of this manual.
The scann er will respond with six beeps and its LE D indicator will be come flashing red
after reading the label.
nter Setup
For configuring scanner parameters, see “Read a Setup Label” below.
EXIT CONFIGURATION MODE
For the scanner to exit the configuration mode, you must have it read t he “U pdate” label, which can be located at the bottom of almost every odd page of this manual. If you want to exit the configuration mode without saving any changes, have the scanner read the “Abort” label instead.
Just lik e reading the “Enter Setup” label, the scan ner will respond with six beeps and
its LED indicator will become flashing red after reading the label. Wait for a few seconds for the scanner to restart itself.
Update
Abort
7
Update
1660 Barcode Scanner
s
User Guide
DEFAULT SETTINGS
SAVE USER SETTINGS AS DEFAULTS
For the scanner to keep the customized settings as user defaults, you must have it read the “Save as User Defaults” label. This is a normal label, and the scanner will respond with two beeps (low-high tone).
After reading t he “Update” label, the current settings will be saved as user defaults.
Save as User Default
RESTORE USER DEFAULTS
For the scanner to restore the user defaults, which you have saved earlier, you must have it read the “Restore User Defaults” label. This is a n ormal label, and t he scan n er will respond with two beeps (low-high tone).
After reading the “Update” label, all the parameters of the scanner will return to their
customized values.
Restore User Defaults
RESTORE SYSTEM DEFAULTS
For the scanner to restore the factory defaults, you must have it read the “Restore System Defaults” label. This is a normal label, and the scanner will respond with two beeps (low-high tone).
After reading the “Update” label, all the parameters of the scanner will return to their
default values. The current connection record will be cleared as well.
Restore System Defaults
Note: The system default value (if there is) for each setting is indicated by an asterisk
“*”.
8
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
READ A SETUP LABEL
CONFIGURE PARAMETERS
For most of the scanner parameters, only one read is required to set them to new values. The scanner will respond with two beeps when each parameter is set successfully.
But for a number of special parameters, multiple reads are required to complete the setting. In this case, the scanner will respond with a short beep to in dicate it needs to read more setup labels. These special parameters may require reading one or more setup labels, such as
Numeric labels, say, for keyboard type, inter-character delay, length qualificat ion Hexadecimal labels, say, for character strings as prefix, suffix, etc. When “BT HID” or “USB HID” is configured for interface, Key Type and Key Status will
then become applicable. You may decide whether or not to change key status when “Normal Key” is selected for Key Type.
To complete the configuration of these special parameters, it requires reading the “Validate” label, and the scanner will respond with two beeps ( low-high tone) to indicate the input values are validated.
9
Update
1660 Barcode Scanner
T
T
T
T
User Guide
The example below shows how to save your settings as “User Default” so that you may restore user defaults at a later time:
Steps
1 Power on the scanner…
2 Enter the Configuration Mode…
3 Read a Setup label…
4 Exit the Configuration Mode…
Action User Feedback if Successful
For example,
he scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly.
he scanner will respond with six beeps (high-low tone repeats three times), and its LED indicator will be flashing red.
he scanner will respond with two beeps (low-high tone) if reading a normal label.
Same as for Enter the Configuration Mode.
5 The scanner will automatically restart itself… Same as for Power on the scanner. * When any configuration error occurs...
OR
he scanner will respond with one long beep (low tone).
10
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
T
T
T
T
The example below shows how to set numeric parameters:
Steps
1 Power on the scanner...
2 Enter the Configuration Mode…
3 Read a Setup label...
Action User Feedback if Successful
For example,
Normal label
Normal label
Special label
Decimal label
or labels
4 Exit the Configuration Mode…
he scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly.
he scanner will respond with six beeps (high-low tone repeats three times), and its LED indicator will become flashing red.
he scanner will respond with two beeps (low-high tone) if reading a normal label.
The scanner will respond with one short beep if reading a special label such as
Max. Length”, indicating the setup
requires reading more labels.
Read the “Decimal Value” label(s).
Refer to Appendix IV
System”
he scanner will respond with two beeps (low-high tone) when the input values are validated.
Same as for Enter the Configuration Mode.
Decimal
OR
5 The scanner will automatically restart itself… Same as for Power on the scanner.
11
Update
1660 Barcode Scanner
T
T
T
User Guide
The example below shows how to set string parameters:
Steps
1 Power on the scanner...
2 Enter the Configuration Mode…
3 Read a Setup label...
Action User Feedback if Successful
For example,
Special label
he scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly.
The scanner will respond with six beeps (high-low tone repeats three times), and its LED indicator will become flashing red.
he scanner will respond with one short beep if reading a special label such as
Prefix Code”, indicating the setup
requires reading more labels.
When “BT HID” or “USB HID” is configured for interface, Key Type and Key Status will then become applicable. You may decide whether or not to change key status when “Normal Key” is selected for Key Type.
Refer to Appendix III
Read the “Hexadecimal Value” labels for
Hexadecimal
labels
the desired character string. For example, read “2” and “B” for the scanner to prefix the character “+”.
Refer to Appendix IV
System”
4 Exit the Configuration Mode…
OR
5 The scanner will automatically restart itself… Same as for Power on the scanner.
he scanner will respond with two beeps (low-high tone) when the input values are validated.
Same as for Enter the Configuration Mode.
Hexadecimal
12
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
LIST THE CURRENT SETTINGS
The current settings of all scanner parameters can be sent to the host computer for user inspection. The listing includes ten pages as shown below. You can select the page of interest by having the scanner read the “List Page x” label. The scanner will res pond with two beeps (low-high tone) and send the selected page to the host immediately.
List Page 1
List Page 2
List Page 3
List Page 4
List Page 5
List settings regarding Interface, Buzzer, and Other Scanner Parameters
List settings regarding Prefix, Postfix, and Length Code Setting
List settings regarding Code ID
List settings regarding: Readable Symbologies
List settings regarding Symbology Parameters (1/3)
List Page 6
List settings regarding Symbology Parameters (2/3)
List Page 7
List settings regarding Symbology Parameters (3/3)
13
Update
1660 Barcode Scanner
User Guide
List Page 8
List Page 9
List Page 10
List Page 11
List Page 12
List settings regarding Editing Format 1
List settings regarding Editing Format 2
List settings regarding Editing Format 3
List settings regarding Editing Format 4
List settings regarding Editing Format 5
14
Enter Setup
UNDERSTANDING THE BARCODE SCANNER
This chapter explains the features and usage of the barcode scanner.
IN THIS CHAPTER
1.1 Battery ..................................................................... 15
1.2 Memory .................................................................... 18
1.3 LED Indicator ............................................................ 21
1.4 Beeper ..................................................................... 23
1.5 Send "NR" to Host ..................................................... 27
1.6 Scan Modes .............................................................. 28
1.7 Scanner Time-out ...................................................... 33
1.8 Delay between Re-read............................................... 34
1.9 Effective Decoding Area .............................................. 35
1.10 Negative Barcodes ................................................... 37
1.11 Symbologies Supported ............................................ 38
Chapter 1
1.1 BATTERY
The scanner is powered by two AAA Alkaline batteries. During normal operation, the scanner can work for over 30 hours or 28,000 scans (based on UPC-E barcodes, 1 scan per 5 seconds). For intensive data collection, you may prepare spare batteries for non-stop operation.
Note: The 1660 scanner can be configured to save battery power. Refer to settings of
Auto Power Off”, “Sniff Mode”, as well as “Low Battery Alarm”.
1.1.1 HOW TO OPERATE THE SCANNER
Turn on the scanner…
Press the [Power/Delete] key for 3 seconds. The scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly.
Turn off the scanner…
Press the [Power/Delete] key for 2 seconds. The scanner will respond with two short beeps (high tone) and the LED will finally become solid red. Release the key then. Otherwise, let the scanner turn off automatically in specific circumstances.
Delete the last collected data when in memory mode …
Press the [Power/Delete] key. The scanner will respond with two short beeps (high tone) and the LED will become solid red. Before the LED goes off (within 1 second), press the [ Power/Delete] key again to confirm the deletion.
15
Update
1660 Barcode Scanner
User Guide
1.1.2 AUTO POWER OFF
Specify the time interval (1~254 min.; 0= Disable) for the scanner to automatically turn off in the following circumstances. By default, it is set t o 10 minutes. If this feature is n ot desired, set it to 0.
Auto Power Off before establishing a WPAN connection successfully...
1. The 1660 scanner will stay active for 2 minutes waiting for a connection request from the host (SPP) or trying to connect to the host (HID). Its CPU is running at full speed, and the LED is flashing blue (On/Off ratio 0.5 s: 0.5 s).
2. If it fails to connect within 2 minutes, the scanner will become inactive to save power for the remaining period of time (the specified value minus 2 minutes). Its CPU is running at low speed, and the LED is flashing red (On/Off ratio 0.5 s: 2 s).
Press the [Trigger] key to wake up the scanner when it becomes inactive, and the scanner will stay active for 2 minutes again.
3. If it fails to connect again and again, and finally stays inactive until the specified time interval has elapsed, the scanner will automatically turn off in order to conserve battery power.
Hold down the [Power/Delete] key for 3 seconds to turn it on. On your computer, you will have to search for the scanner again.
Auto Power Off after establishing a WPAN connection successfully...
Once a WPAN connection is established successfully, the LED is flashing blue (On/Off ratio 0.02 s: 3 s). If the scanner is idle during the specified time interval for Auto Power Off, it will automatically turn off when the time is up. You will hear three short beeps, tone descending from high to low. For BT HID or SPP, there is no transition from full CPU speed to low CPU speed. However, when connecting with 3610, the scanner will go through the transition in order to save power.
For BT HID, the scanner will resume connection with the host upon poweri ng on again, as long
as the host application is running. You will hear three short beeps, tone ascending from low to high. If the scanner fails to resume connection, it will try every five second to re-connect to the host unless you have the scanner read the Reset Connection label.
For BT SPP, the scanner must wait for the host to re-connect. With the use of 361 0, the scanner will try every five second to re-connect to 3610 unl ess you
have the scanner read the Reset Connection label.
16
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Auto Off after 0~254 minutes (*10)
1) Read the label above to specify the time interval before the scanner automatically
turns off.
2) Read the “Decimal Value
” label on page 169. For example, read “1” and “5” for the
scanner to automatically turn off after being idle for 15 minutes.
3) Read the “Validate” label on the same page to complete this setting.
17
Update
1660 Barcode Scanner
User Guide
1.2 MEMORY
The collected data can be sent back to a host computer one by one via the transmit buffer (SRAM) or stored in flash memory when the scanner is set to Memory mode.
1.2.1 TRANSMIT BUFFER
The scanner is designed to send any collected data to a host computer one by one via the transmit buffer (SRAM). Upon reading a barcode successfully, the scanner responds with one short beep (high tone) and its LED indicator becomes solid green and goes off quickly. However, the host computer may not receive the data immediately if getting out of range. With the 1 KB transmit buffer, the scanner can ignore the transmission status and keep on reading barcodes until the buffer is full.
A warning is given when the transmit buffer is full — the scanner will respond with
one long beep (low tone) and its LED indicator will become solid red and go off quickly. You are advised to get back to range.
Note: The 1 KB transmit buffer on the scanner can hold as many as 64 scans based on
EAN-13 barcodes. Data will be cleared out once the scanner is turned off or running out of battery power!
1.2.2 MEMORY MODE
The scanner keeps 256 KB flash memory for memory mode operation. When the 1660 scanner is in memory mode, it means a WPAN connection is disabled.
Enable Memory Mode
*Disable Memory Mode
Warning: No WPAN connection is allowed unless the memory mode is disabled.
18
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Memory Data Delay
You may set a delay between each data record while transmitting data back to the server.
*None
500 ms
2 sec
250 ms
1 sec
3 sec
5 sec
8 sec
19
Update
1660 Barcode Scanner
S
User Guide
Send Data
The 256 KB flash memory on the scanner can store up to 16,384 scans based on EAN-13 barcodes. When it is used up, the scanner will respond with two short beeps (high-low tone) as a warning. You are advised to send data to the server immediately by having the scanner read the label below.
end Data
Clear Data & Confirm
Even though data has been sent back to the server, the flash memory is still occupied unless you erase the memory by having the scanner read two labels – “Clear Data” and “Confirm”.
1. Read the “Clear Data” label to clear the flash memory.
2. Read the “Confirm” label to confirm the action.
Clear Data
Confirm
20
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.3 LED INDICATOR
The triple-color LED on top of the scanner is used to provide user feedback. For example, the LED becomes solid red and goes off quickly upon powering on or running out of transmit buffer. You may tell the diff erence by the beeps – you will hear a long beep of high tone when powering on the scanner, and a long beep of low tone when the transmit buffer becomes full.
Scanner LED
Red, flashing
Red, solid
Red, on-off
Green,
Blue,
Red, flashing
Blue,
Charging (On/Off ratio 0.5 s: 0.5 s)
Charging error
on-off First, flashing blue (On/Off ratio 0.5 s: 0.5 s) for two minutes
flashing
Flashing red (On/Off ratio 0.5 s: 2 s) indicates the scanner is
Flashing blue (On/Off ratio 0.1 s: 0.1 s) indicates the scanner
flashing
Meaning
Power on, with one long beep (hi gh tone, LED on for 1 s) Transmit buffer full, with one long beep (low tone) Memory full, with two short beeps (high-low tone)
Good Read, with one short beep (high tone) and beeper pitch and duration programmable
indicates the scanner is waiting for connection, and goes off if no connection is established, then flashing red (On/Off ratio 0.5 s: 2 s) indicates the scanner is inactive.
It is ready for connection only while the LED is flashing blue —
SPP: waiting host to connect HID: trying to connect to host Using 3610: trying to connect to 3610
inactive and its CPU running at low speed to save power —
No WPAN connection is established after waiting for two
minutes
receives a PIN code request from host (flashing more quickly than waiting connection).
Blue,
flashing
Red, flashing
Red, flashing
Blue, flashing
Configuration Mode (On/Off ratio 1 s: 1 s)
Flashing blue (On/Off ratio 0.02 s: 3 s) indicates the scanner has
established a WPAN connection successfully.
Flashing red and blue indicates an error occurs while entering the
PIN code. Press the [Trigger] key to get ready for re-connecting.
21
Update
1660 Barcode Scanner
User Guide
1.3.1 GOOD READ LED
*Enable Good Read LED
Disable Good Read LED
1.3.2 GOOD READ LED DURATION
By default, the Good Read LED stays on for 40 milliseconds. Specify a value, ranging from 1 to 254 in units of 10 milliseconds.
Good Read LED Time-Out after
0.01~2.54 seconds (*40 ms)
1) Read the label above to specify the time interval before the Good Read LED goes off.
2) Read the “Decimal Value
Good Read LED to go off after 150 milliseconds.
3) Read the “Validate” label on the same page to complete this setting.
” label on page 169. For example, read “1” and “5” for the
22
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.4 BEEPER
The scanner has a buzzer to provide user feedback in various operating conditions.
Beeping
One long beep, high tone Power on, with red LED on (1 s) and off quickly two short beeps, high tone Power off, with green LED on and off quickly, and finally
One short beep, high tone (programmable, default to 4 KHz)
Six short beeps, high-low tone repeats three times
Two short beeps, low-high tone Setup label read successfully One short beep, high tone More setup label required One long beep, low tone
Meaning
red LED on Good Read, with green LED on and off quickly
Enter Configuration Mode, with red LED flashing Exit Configuration Mode
Transmit Buffer Full, with red LED on and off quickly Configuration Error (Wrong label…)
Two short beeps, high-low tone
Data saved to Transmit Buffer (out of range) Memory Mode – Memory Full, with red LED on and off
quickly Two long beeps, high-low tone Multi-Barcode Mode – Buffer Full Three short beeps, tone ascending
from low to high Three short beeps, tone ascending
from high to low
WPAN connection establi shed, with blue LED flashing WPAN connection resumed, with blue LED flashing
WPAN connection out of range or suspended
23
Update
1660 Barcode Scanner
M
1.4.1 BEEPER VOLUME
Mute
User Guide
inimum Volume
Medium Volume
*Maximum Volume
24
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.4.2 GOOD READ BEEP
Frequency
8 kHz
* 4 kHz
2 kHz
1 kHz
Duration
*Shortest
Shorter
Longer
Longest
25
Update
1660 Barcode Scanner
User Guide
1.4.3 LOW BATTERY ALARM
By default, “2.6 V (Alkaline)” is selected for low battery level. When the battery level inside the 1660 scanner reaches 2.6 V, it will activate the beeper to give a warning. If you are using Ni-MH batteries, select “2.1 V (Ni-MH)”.
No Alarm
* 2.6 V (Alkaline)
2.1 V (Ni-MH)
26
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.5 SEND “NR” TO HOST
The scanner can send the “NR” string to the host to notify the No Read event.
Enable
*Disable
27
Update
1660 Barcode Scanner
User Guide
1.6 SCAN MODES
Different scan modes are supported – select the scan mode that best suits the requirements of a specific application. Refer to the comparison table below.
Scan Mode Start to Scan Stop Scanning
Always Press
trigger once
Continuous mode Test mode Laser mode Auto Off mode Auto Power Off
mode Aiming mode Multi-Barcode
mode Alternate mode
 
 
Hold trigger
Press trigger twice
Release trigger

Press trigger once
Barcode being read
 
Timeout
Note: By default, the scan mode is set to Laser mode.
28
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.6.1 CONTINUOUS MODE
The scanner is always scanning.
After a successf ul decoding, the removal of barcode is required. It is not allowed to
proceed to decode until the decoding delay time has passed.
To decode the same barcode repeatedly, move away the barcode and put it back
again and again for scanning.
Note: Refer to “Delay between Re-read”.
Continuous Mode
Decoding Delay
Set the time interval between each decoding.
*Disable
1 sec
0.5 sec
2 sec
29
Update
1660 Barcode Scanner
*
A
User Guide
1.6.2 TEST MODE
The scanner is always scanning.
Capable of decoding the same barcode repeatedly without removing it, for testing
purpose.
Test Mode
1.6.3 LASER MODE
The scanner will start scanning once the trigger is hold down.
The scanning won't stop until (1) a barcode is decoded, (2) the pre-set timeout
expires, or (3) you release the trigger.
Note: Refer to “Scanning Timeout”.
Laser Mode
1.6.4 AUTO OFF MODE
The scanner will start scanning once the trigger is pressed.
The scanning won't stop until (1) a barcode is decoded, and (2) the pre-set timeout
expires.
Note: Refer to “Scanning Timeout”.
30
uto Off Mode
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.6.5 AUTO POWER OFF MODE
The scanner will start scanning once the trigger is pressed.
The scanning won't stop until the pre-set timeout expires, and, the pre-set timeout
period re-counts after each successful decoding.
Note: Refer to “Delay between Re-read” and “Scanning Timeout”.
Auto Power Off Mode
1.6.6 AIMING MODE
The scanner will aim at a barcode once the trigger is pressed, and start scanning when the trigger is pressed again within one second.
The scanning won't stop until (1) a barcode is decoded, and (2) the pre-set timeout
expires.
Aiming Mode
Aiming Timeout
You can limit the aiming time interval (1~15). By default, the scanner time-out is set to 1 second.
Aiming Time-Out after 1~15 seconds (*1)
1. Read the label above to specify the time interval before aiming ends. (It is set to 1 by default.)
2. Read the “Decimal Value automatically shut down after being idle for 10 seconds.
3. Read the “Validate” label on the same page to complete this setting.
” label on page 169. For example, read “1” and “0” for the scanner to
31
Update
1660 Barcode Scanner
User Guide
1.6.7 MULTI-BARCODE MODE
The scanner will be scanning as long as the trigger is held down, capable of decoding n ot only one single barcode but a concatenation of unique barcodes.
The scanning won't stop until you release the trigger.
Multi-Barcode Mode
Note: (1) A barcode is considered unique when its Code Type or data is different from
others. (2) Multi-Barcode Mode has nothing to do with the Multi-Barcode Editor
.
1.6.8 ALTERNATE MODE
The scanner will start scanning once the trigger is pressed
The scanning won't stop until you press the trigger again.
Alternate Mode
32
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.7 SCANNING TIMEOUT
Specify the scanning time interval (1~254 sec.; 0= Disable) when the scan mode is set to any of the following –
Laser mode Auto Off mode Auto Power Off mode Aiming mode
Scanner Time-Out after 0~254 seconds (*10)
1) Read the label above to specify the time interval before the scan engine times out.
2) Read the “Decimal Value
scanner to automatically shut down after being idle for 15 seconds.
3) Read the “Validate” label on the same page to complete this setting.
” label on page 169. For example, read “1” and “5” for the
33
Update
1660 Barcode Scanner
User Guide
1.8 DELAY BETWEEN RE-READ
This is also referred to as the “Blocking Time”, which is u sed to prevent the scann er from accidentally reading the same barcode twice when the scan mode is set to any of the following –
Continuous mode Auto Power Off mode Alternate mode
100 ms
200 ms
* 400 ms
1 sec
3 sec
800 ms
2 sec
5 sec
34
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.9 EFFECTIVE DECODING AREA
By default, the effective decoding area is 100% covered by the scanned area. However, you may narrow down the decoding area to prevent reading the wrong barcode when a number of barcodes are printed closely. The scanner will only read barcodes that appear in the effective decoding area.
Read the label “Centering On” and specify the percentage to narrow down the decoding area. For example, read “Left 10%” and then “Right 30%” for the scanner to decode barcode “A” only.
1.9.1 POSITIONING WINDOW
Centering On
1.9.2 ADJUSTING WINDOW
Percentage for Left Half
*Left 50%
*Centering Off
35
Update
1660 Barcode Scanner
Left 30%
User Guide
Left 40%
Left 10%
Percentage for Right Half
Right 10%
Left 20%
Right 20%
36
Right 30%
Right 40%
*Right 50%
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.10 NEGATIVE BARCODES
Normally, barcodes are printed with the color of the bars darker than that of the spaces. But for negative barcodes, they are printed in the opposite sense just like negative films. The spaces of negative barcodes are printed with a color darker than that of the bars. You can configure the scanner to be able to read negative barcodes.
Enable
*Disable
37
Update
1660 Barcode Scanner
User Guide
1.11 SYMBOLOGIES SUPPORTED
Most of the popular barcode symbologies are supported, as listed below. Each can be individually enabled or disabled. The scanner will automatically discriminate and recognize all the symbologies that are enabled. Refer to Chapter 4 Changing Symbology
Settings for details of each symbology.
Symbologies Supported: Enable/Disable
Codabar Enabled Code 93 Enabled MSI Disabled
Plessey Disabled Telepen Disabled Code 128 Code 128 Enabled
GS1-128 (EAN-128) Disabled ISBT-128 Disabled
Code 2 of 5 Industrial 25 Enabled
Interleaved 25 Enabled Matrix 25 Disabled
Code 3 of 9 Code 39 Enabled
Italian Pharmacode Disabled French Pharmacode Disabled
EAN/UPC EAN-8 Enabled
EAN-8 Addon 2 Disabled
CCD Scan Engine
GS1 DataBar (RSS)
38
EAN-8 Addon 5 Disabled EAN-13 Enabled EAN-13 & UPC-A Addon 2 Disabled EAN-13 & UPC-A Addon 5 Disabled ISBN Disabled UPC-E0 Enabled UPC-E1 Disabled UPC-E Addon 2 Disabled UPC-E Addon 5 Disabled UPC-A Enabled GS1 DataBar Omnidirectional (RSS-14) Disabled GS1 DataBar Limited (RSS Limited) Disabled GS1 DataBar Expanded (RSS Expanded) Disabled
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.11.1 READ REDUNDANCY FOR ALL SYMBLOGIES
Select the level of reading security. For example,
If "No Redundan cy" is selected, one successful decoding will make the reading valid
and induce the "READER Event".
If "Three Times" is selected, it will take a total of four consecutive successful
decodings of the same barcode to make the reading valid. The higher the reading security is (that is, the more redundancy the user selects), the slower the reading speed gets.
It is obvious that the more redundancy you select, the higher the reading security is, and thus, the slower the reading speed becomes. You will have to compromise between reading security and decoding speed.
*No Redundancy
One Time
Two Times
Three Times
39
Update
1660 Barcode Scanner
User Guide
1.11.2 ADDON SECURITY FOR UPC/EAN BARCODES
You may like to enforce read redundancy (0~30 times) on UPC/EAN barcodes with addons only.
Note: UPC/EAN Addon 2 and Addon 5 must be enabled individually for this setting to
take effect.
Addon Security Level (*0 ~ 30)
1) Read the label above to specify the read redundancy when missing add-ons while
scanning UPC/EAN barcodes. (It is set to 0 by default.)
2) Read the “Decimal Value
scanner to re-read the barcode for 12 times.
3) Read the “Validate” label on the same page to complete this setting.
” label on page 169. For example, read “1” and “2” for the
40
Enter Setup
Chapter 2
SELECTING OUTPUT INTERFACE
In order to establish a proper connection between your computer and the scanner, we suggest that you follow these instructions –
1) Install batteries and press the [Power/Delete] key for 3 seconds to turn on the
scanner.
2) Have the scanner read the “Enter Setup” label to enter the configuration mode.
3) Have the scanner read the associated label to activate the desired interface.
See the following sections for output interfaces supported.
4) Have the scanner read the labels for related settings.
5) Have the scanner read the “Update” label to exit the configuration mode.
6) Turn on your computer or laptop and establish a WPAN connection with the scanner.
Refer to Chapter 3 – Setting up a WPAN Connection
Note: By default, the output interface is set to “BT HID”.
.
IN THIS CHAPTER
2.1 BT HID ..................................................................... 42
2.2 BT SPP ..................................................................... 49
2.3 USB HID via 3610 ...................................................... 51
2.4 USB Virtual COM via 3610 ........................................... 58
41
Update
1660 Barcode Scanner
User Guide
2.1 BT HID
For BT HID, refer to Chapter 3 – Setting up a WPAN Connection for related connection settings. Run any text editor on your computer, and the scan ned data will be t ransmitted to the computer.
HID Settings
Keyboard Type PCAT (US) Digits Layout Normal Capital Lock Type Normal Capital Lock State Off Alphabets Transmission Case-sensitive Digits Transmission Alphanumeric keypad Inter-Function Delay 0 (ms) Send “NR” to Host Disable
Defaults
2.1.1 ACTIVATE BT HID & SELECT KEYBOARD TYPE
When BT HID interface is activated, you will have to select a keyboard t ype to complete this setting. By default, BT HID is activated on the 1660 scanner, and the keyboard type is set to PCAT (US).
Activate BT HID & Select Keyboard Type …
1) Read the label above to activate BT HID and select a keyboard type.
2) Read the “Decimal Value
” label on page 169. Refer to the table below for the number
of desired keyboard type.
3) Read the “Validate” label on the same page to complete this setting.
42
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

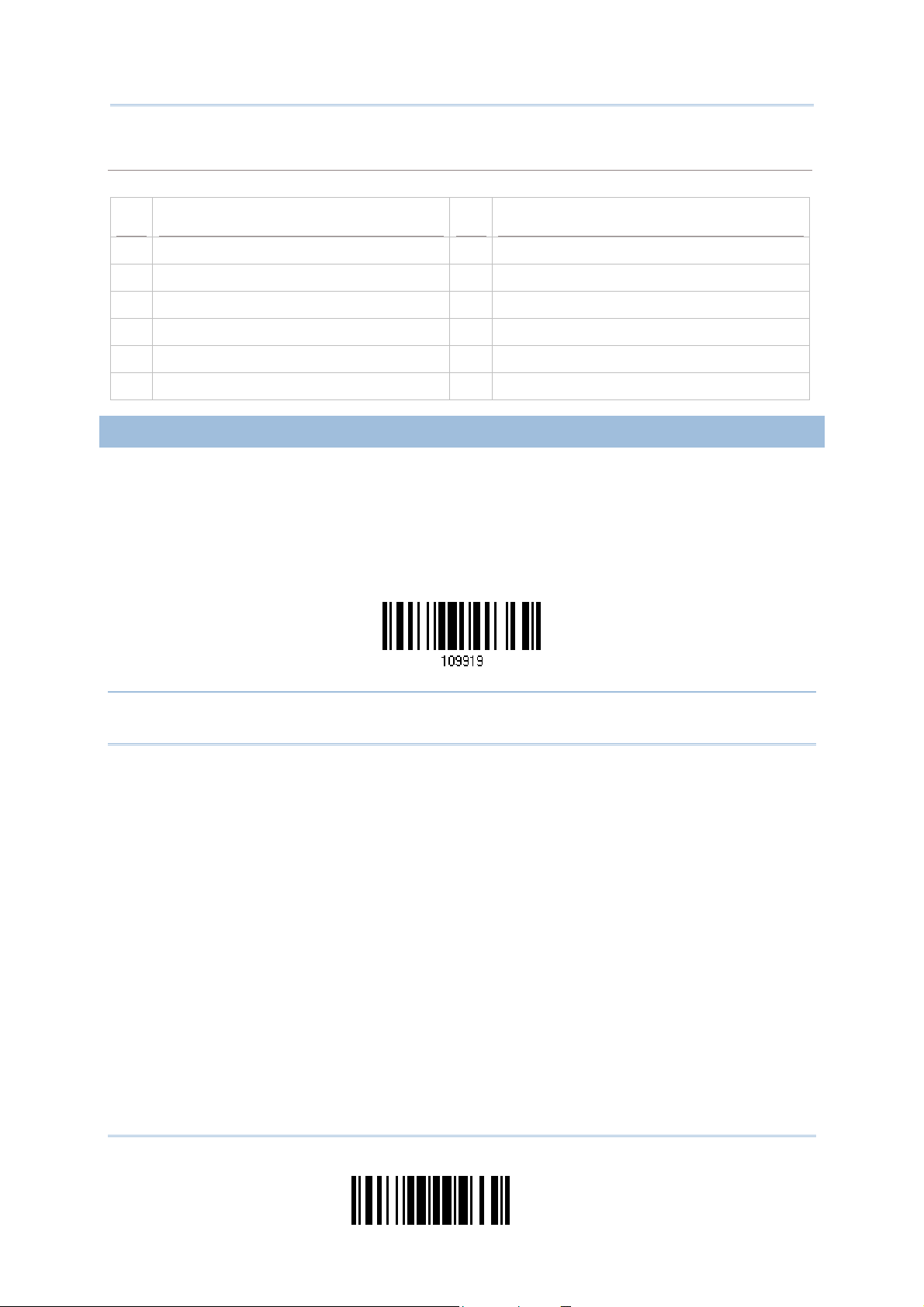

BT HID
By default, the keyboard type is set to PCAT (US). The following keyboard types are supported –
No. Keyboard Type No. Keyboard Type
64 PCAT (US) 70 PCAT (UK) 65 PCAT (French) 71 PCAT (Belgium) 66 PCAT (German) 72 PCAT (Spanish) 67 PCAT (Italy) 73 PCAT (Portuguese) 68 PCAT (Swedish) 74 PS55 A01-2 (Japanese) 69 PCAT (Norwegian) 75 User-defined table
2.1.2 RESET CONNECTION
For BT HID, you can only have the scanner connected to one computer at a time. If you want to connect the scanner to another computer, you must have it read the “Reset Connection” label so that the current connection record will be cleared. Then, the scanner will restart itself automatically. Go through the whole process to establish a new connection.
Reset Connection
Note: The “Restore System Defaults” label will have the current connection record
cleared as well.
43
Update
1660 Barcode Scanner
User Guide
2.1.3 KEYBOARD SETTINGS
Digits Layout Capital Lock Type Capital Lock Setting Alphabets Transmission Digits Transmission
Note: BT HID does not support these functions on PDAs – (1) Capital Lock Setting: Auto
Detection (2) Digits Transmission: Numeric Key
Digits Layout
Select a proper layout that matches the alphabets layout. The scanner will make adjustments according to this setting.
Options Description
Normal Depends on the [Shift] key or [Shift Lock] setting Lower Row For QWERTY or QWERTZ keyboard Upper Row For AZERTY keyboard
*Normal
Lower Row
Upper Row
Note: This setting is to be used with the Character Substitution setting when support to
certain keyboard types (languages) is unavailable but required.
Capital Lock Type & Setting
In order to send the alphabets with correct case, the scanner needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.
44
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
T
Cap Lock Type Description
Normal Normal type Capital Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. However, this does not affect the number or punctuation keys.
Shift Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. In addition, this affects the number or punctuation keys.
*Normal
Capital Lock
Shift Lock
Capital Lock State Description
Capital Lock OFF Assuming that the status of Caps Lock on the keyboard is OFF,
transmitted characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
Capital Lock ON Assuming that the status of Caps Lock on the keyboard is ON,
transmitted characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
Refer to the Capital Lock Type above.
Auto Detection
he scanner will automatically detect the status of Caps Lock on the keyboard before data is transmitted; transmitted characters ar e exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
This setting is not supported on PDAs.
*Capital Lock OFF
45
Update
1660 Barcode Scanner
User Guide
Capital Lock ON
Auto Detection
Alphabets Transmission
By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of Caps Lock on the keyboard only.
*Case-sensitive
46
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Ignore Case
Digits Transmission
By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you wish to use the keys on the numeric keypad.
*Alphanumeric Key
Numeric Key
Note: If you select “Numeric Keypad”, the Num Lock status of the physical keyboard
should be "ON". This setting is not supported on PDAs.
47
Update
1660 Barcode Scanner
4
)
User Guide
2.1.4 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower the transmission speed will be.
Value
0 Disable 195 ~ 204 200 millisecond 1 ~ 14 10 millisecond 205 ~ 214 210 millisecond 15 ~ 24 20 millisecond 215 ~ 224 220 millisecond 25 ~ 34 30 millisecond 225 ~ 234 230 millisecond 35 ~ 44 40 millisecond 235 ~ 244 240 millisecond 45 ~ 54 50 millisecond 245 ~ 254 250 millisecond … …
Delay Time Value Delay Time
Inter-Function Delay … (*0 ~ 25
1) Read the label above to specify the inter-function delay.
2) Read the “Decimal Value
(millisecond).
3) Read the “Validate” label on the same page to complete this setting.
” label on page 169 for the desired inter-function delay
48
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4
)
2.2 BT SPP
For BT SPP, refer to Chapter 3 – Setting up a WPAN Connection for related connection settings.
2.2.1 ACTIVATE BT SPP
Activate Bluetooth SPP
2.2.2 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower the transmission speed will be.
Value
0 Disable 195 ~ 204 200 millisecond 1 ~ 14 10 millisecond 205 ~ 214 210 millisecond 15 ~ 24 20 millisecond 215 ~ 224 220 millisecond 25 ~ 34 30 millisecond 225 ~ 234 230 millisecond 35 ~ 44 40 millisecond 235 ~ 244 240 millisecond 45 ~ 54 50 millisecond 245 ~ 254 250 millisecond … …
Delay Time Value Delay Time
Inter-Function Delay … (*0 ~ 25
1) Read the label above to specify the inter-function delay.
2) Read the “Decimal Value
(millisecond).
3) Read the “Validate” label on the same page to complete this setting.
” label on page 169 for the desired inter-function delay
49
Update
1660 Barcode Scanner
User Guide
2.2.3 ACK/NAK TIMEOUT
By default, the scanner sends data to the host without waiting for an ACK/NAK response before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 secon d. If no response within the specified period of time, the scanner will attempt to send the same data three more times. If all the attempts fail without any notification, data loss will occur.
ACK/NAK Time-Out after … (*0 ~ 99)
1) Read the label above to specify the time interval for the scanner to send data and
wait for a response from the host.
2) Read the “Decimal Value
” label on page 169. For example, read “1” and “0” for the
scanner to automatically shut down after being idle for 1 second.
3) Read the “Validate” label on the same page to complete this setting.
ACK/NAK Error Beep
Enable Error Beep
*Disable Error Beep
Note: We suggest you to enable the error beep so that you will be notified of such data
loss and have the scanner re-read data.
50
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.3 USB HID VIA 3610
For USB HID, connect 3610 to the USB port of PC, and then connect the scanner to 3610. Run any text editor on your computer, and the scanned data will be t ransmitted to the computer.
HID Settings
Keyboard Type PCAT (US) Digits Layout Normal Capital Lock Type Normal Capital Lock State Off Alphabets Transmission Case-sensitive Digits Transmission Alphanumeric keypad Inter-Function Delay 0 (ms) Send “NR” to Host Disable
Defaults
2.3.1 ACTIVATE USB HID & SELECT KEYBOARD TYPE
When USB HID interface is activated, you will have to select a keyboard t ype to complete this setting. By default, BT HID is activated on the 1660 scanner, and the keyboard type is set to PCAT (US).
Activate USB HID & Select Keyboard Type …
1) Read the label above to activate USB HID and select a keyboard type.
2) Read the “Decimal Value
of desired keyboard type.
3) Read the “Validate” label on the same page to complete this setting.
51
” label on page 169. Refer to the table below for the number
Update
1660 Barcode Scanner
User Guide
USB HID via 3610
By default, the keyboard type is set to PCAT (US). The following keyboard types are supported –
No. Keyboard Type No. Keyboard Type
64 PCAT (US) 70 PCAT (UK) 65 PCAT (French) 71 PCAT (Belgium) 66 PCAT (German) 72 PCAT (Spanish) 67 PCAT (Italy) 73 PCAT (Portuguese) 68 PCAT (Swedish) 74 PS55 A01-2 (Japanese) 69 PCAT (Norwegian) 75 User-defined table
2.3.2 RESET CONNECTION
For USB HID, you can only have the scanner connected to one computer at a time. If you want to connect the scanner to another computer, you must have it read the “Reset Connection” label so that the current connection record will be cleared. Then, the scanner will restart itself automatically. Go through the whole process to establish a new connection.
Reset Connection
Note: The “Restore System Defaults” label will have the current connection record
cleared as well.
52
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.3.3 KEYBOARD SETTINGS
Digits Layout Capital Lock Type Capital Lock Setting Alphabets Transmission Digits Transmission
Note: USB HID does not support these functions on PDAs – (1) Capital Lock Setting:
Auto Detection (2) Digits Transmission: Numeric Key
Digits Layout
Select a proper layout that matches the alphabets layout. The scanner will make adjustments according to this setting.
Options Description
Normal Depends on the [Shift] key or [Shift Lock] setting Lower Row For QWERTY or QWERTZ keyboard Upper Row For AZERTY keyboard
*Normal
Lower Row
Upper Row
Note: This setting is to be used with the Character Substitution setting when support to
certain keyboard types (languages) is unavailable but required.
Capital Lock Type & Setting
In order to send the alphabets with correct case, the scanner needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.
53
Update
1660 Barcode Scanner
T
User Guide
Cap Lock Type Description
Normal Normal type Capital Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. However, this does not affect the number or punctuation keys.
Shift Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. In addition, this affects the number or punctuation keys.
*Normal
Capital Lock
Shift Lock
Capital Lock State Description
Capital Lock OFF Assuming that the status of Caps Lock on the keyboard is OFF,
transmitted characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
Capital Lock ON Assuming that the status of Caps Lock on the keyboard is ON,
transmitted characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
Refer to the Capital Lock Type above.
Auto Detection
he scanner will automatically detect the status of Caps Lock on the keyboard before data is transmitted; transmitted characters ar e exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
This setting is not supported on PDAs.
*Capital Lock OFF
54
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Capital Lock ON
Auto Detection
Alphabets Transmission
By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of Caps Lock on the keyboard only.
*Case-sensitive
55
Update
1660 Barcode Scanner
User Guide
Ignore Case
Digits Transmission
By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you wish to use the keys on the numeric keypad.
*Alphanumeric Key
Numeric Key
Note: If you select “Numeric Keypad”, the Num Lock status of the physical keyboard
should be "ON". This setting is not supported on PDAs.
56
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4
)
2.3.4 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower the transmission speed will be.
Value
0 Disable 195 ~ 204 200 millisecond 1 ~ 14 10 millisecond 205 ~ 214 210 millisecond 15 ~ 24 20 millisecond 215 ~ 224 220 millisecond 25 ~ 34 30 millisecond 225 ~ 234 230 millisecond 35 ~ 44 40 millisecond 235 ~ 244 240 millisecond 45 ~ 54 50 millisecond 245 ~ 254 250 millisecond … …
Delay Time Value Delay Time
Inter-Function Delay … (*0 ~ 25
1) Read the label above to specify the inter-function delay.
2) Read the “Decimal Value
(millisecond).
3) Read the “Validate” label on the same page to complete this setting.
” label on page 169 for the desired inter-function delay
57
Update
1660 Barcode Scanner
4
)
User Guide
2.4 USB VIRTUAL COM VIA 3610
Connect 3610 to the USB port of PC, and then connect the scanner to 3610. You may run HyperTerminal.exe on your computer, and the scanned data will be transmitted to the computer.
Note: If you are using USB Virtual COM for the first time, y ou must install it s driver from
the CD-ROM.
2.4.1 ACTIVATE USB VIRTUAL COM
Activate USB Virtual COM
2.4.2 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower the transmission speed will be.
Value
0 Disable 195 ~ 204 200 millisecond 1 ~ 14 10 millisecond 205 ~ 214 210 millisecond 15 ~ 24 20 millisecond 215 ~ 224 220 millisecond 25 ~ 34 30 millisecond 225 ~ 234 230 millisecond 35 ~ 44 40 millisecond 235 ~ 244 240 millisecond 45 ~ 54 50 millisecond 245 ~ 254 250 millisecond … …
Delay Time Value Delay Time
Inter-Function Delay … (*0 ~ 25
1) Read the label above to specify the inter-function delay.
2) Read the “Decimal Value
(millisecond).
3) Read the “Validate” label on the same page to complete this setting.
” label on page 169 for the desired inter-function delay
58
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.4.3 ACK/NAK TIMEOUT
By default, the scanner sends data to the host without waiting for an ACK/NAK response before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 secon d. If no response within the specified period of time, the scanner will attempt to send the same data three more times. If all the attempts fail without any notification, data loss will occur.
ACK/NAK Time-Out after … (*0 ~ 99)
1) Read the label above to specify the time interval for the scanner to send data and
wait for a response from the host.
2) Read the “Decimal Value
” label on page 169. For example, read “1” and “0” for the
scanner to automatically shut down after being idle for 1 second.
3) Read the “Validate” label on the same page to complete this setting.
ACK/NAK Error Beep
Enable Error Beep
*Disable Error Beep
Note: We suggest you to enable the error beep so that you will be notified of such data
loss and have the scanner re-read data.
59
Update
1660 Barcode Scanner
User Guide
60
Enter Setup
SETTING UP A WPAN CONNECTION
Chapter 3
The 1660 scanner can be configured to send data to a host computer wirelessly via the 3610 dongle, or to a notebook computer or PDA with Bluetooth Upon powering up, the 1660 scanner will be ready for establishing a WPAN connection.
To establish a connection via 3610 after reading “Set Connection” and “Serial No.” labels …
®
wireless technology.
Interface Option Reference
USB HID Section 2.3 USB Virtual COM Section 2.4
To establish a connection via a generic Bluetooth® dongle after pairing …
Interface Option Reference
BT HID Section 2.1 BT SPP Section 2.2
IN THIS CHAPTER
3.1 Connecting via 3610 .................................................. 62
3.2 Connecting via Bluetooth
61
®
Dongle ................................ 74
Update
1660 Barcode Scanner
User Guide
3.1 CONNECTING VIA 3610
Connect 3610 to the USB port of PC, and then connect the scanner to 3610. You can have up to seven scanners connected to one computer at the same time.
Note: If you are using USB Virtual COM for the first time, y ou must install it s driver from
the CD-ROM.
3.1.1 CONNECT TO 3610
By default, the interface of 3610 is set to “USB HID”. You can connect any scanner to 3610 by having the scanner read the two labels at the back of 3610.
“Set Connection” label “Serial Nu mber” label
The scanner will respond with one beep when reading the “Set Connection” label, and two beeps (low-high tone) when reading the “Serial Number” label.
After reading these labels, the scanner will stay active for 2 minutes trying to conn ect to the 3610 dongle while its LED is flashing blue (On/Off ratio 0.5 s: 0.5 s). Once connected, the scanner will respond with three beeps (tone ascending from low to high), and the LED becomes flashing blue (On/Off ratio 0.02 s: 3 s). When getting out of range, the scanner will respond with three short beeps (tone descending from high to low).
Read the “Set Connection” label first, and then the “Serial Number” label within 5 seconds. If the “Set Connection” label on 3610 is illegible, try this one —
Set Connection
Note: The 3610 settings will overwrite the interface-related settings on the scanners that
are currently connected to 3610.
62
Enter Setup
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
3.1.2 CHANGE INTERFACE
If you want to change the interface 3610, use one of the connected scanners to configure the interface-related settings and it will pass the new settings to 3610, which will then initialize and pass the settings to any other connected scanners.
1) Have the scanners read the “Set Connection” and “Serial Number” labels at th e back
of 3610.
2) Within two minutes, connect 3610 to the USB port of PC. For USB Virtual COM, you
may need to install its driver first!
3) The scanners will connect to your computer via 3610.
4) Have one scanner read the “Enter Setup” label to enter the configuration mode.
5) Have the scanner read the desired interface label and configure its related settings –
“Activate USB HID & Select Keyboard Type” “Activate USB Virtual COM”
6) Have the scanner read the “Update” label to exit the configuration mode.
7) After the scanner resumes connection with 3610, it will pass the interface-related
settings to 3610.
8) Upon receipt of the new settings, 3610 will initialize itself.
9) Updated with new settings, 3610 will pass the settings to other connected scanners.
63
Update
1660 Barcode Scanner
User Guide
3.2 CONNECTING VIA BLUETOOTH® DONGLE
3.2.1 CHANGE INTERFACE
Below is the procedure to configure the 1660 scanner before establishing a WPAN connection via a generic Bluetooth
®
dongle.
1) Have the scanner read the “Enter Setup” label to enter the configuration mode.
2) Have the scanner read the desired interface label –
“Activate BT HID & Select Keyboard Type” “Activate BT SPP”
3) Have the scanner read the labels related to WPAN settings, such as Device Name
Broadcasting, Authentication & PIN Code, etc.
4) Have the scanner read the “Update” label to exit the configuration mode.
5) The scanner will stay active for 2 minutes waiting for a con nection request from the
host (SPP) or trying to connect to the host (HID). Its CPU is running at full speed, and the LED is flashing blue (On/Off ratio 0.5 s: 0.5 s).
Once connected, when getting out of range, the scanner will respond with three short beeps (tone descending from high to low).
64
Enter Setup
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
3.2.2 CONFIGURE RELATED SETTINGS
Sniff Mode (Power-saving)
By default, this feature is enabled, meaning the scanner will listen to the wireless network at a reduced rate.
*Enable
Disable
Note: When connecting more than two 1660 scanners to a notebook computer or PDA
with Bluetooth® wireless technology, we suggest you to disable the power-saving setting for a more reliable connection.
Device Name Broadcasting
The scanner can be configured to hide itself from other devices equipped with Bluetooth® wireless technology. Simply disable the device name broadcasting setting so that it won’t be discovered by any other computer or PDA. However, broadcasting must be enabled for establishing an initial connection with the scanner. For example, you can disable device name broadcasting after successfully connecting the scanner to WorkStation1. Such connection will be maintained automatically unless the scanner is removed from the paired device list (called unpairing) by WorkStation1 or any changes made to authentication and the PIN code. If you want WorkStation2 to connect to the scanner, you will have to enable device name broadcasting first.
*Enable
Disable
Note: By default, device name broadcasting is enabled (which is required for initial
connection).
65
Update
1660 Barcode Scanner
User Guide
Authentication
For security concerns, it is suggested that you enable authentication and specify a unique PIN code, also known as the passkey used to pair two devices before establishing a WPA connection. The scanner itself allows up to 16 characters for a PIN code. This means you will have to enter exactly the same string for your computer or PDA to connect to the scanner. If the passkey is incorrect, any connection attempt will be turned down by the scanner. When any changes are made to authentication and PIN code on the scanner side, you will have to remove the scanner from the paired device list (called unpairing) and go through the whole process to re-establi sh the connection.
Yes
Entering PIN code…
By default, the BT PIN code is set to “0000”. Maximum 16 characters are allowed.
Enter PIN Code in Hexadecimal …
Enter PIN Code in Decimal …
Clear PIN Code
*No
1. Read one of the labels above to specify the PIN code, in decimal or hexadecimal.
2. Read the “Decimal Value” label on page 169 or the “Hexadecimal Value” label on page 170 for the desired digits or character string.
3. Read the “Validate” label to complete this setting.
Note: Wh en using BT HID, some device driver may not support pre-defined PIN code for
authentication. In this case, make sure you disable authentication before pairing. The host PIN code will be displayed on the computer screen. Have the scanner read the setup barcode “Enter PIN Code in Decimal” or “Enter PIN Code in Hexadecimal” to input the matching PIN code quickly.
66
Enter Setup
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
3.2.3 CONNECT TO DONGLE
The procedure goes through associating devices for establishing a WPAN connection, which is pretty much the same except for the software you are using. If your computer is running Microsoft the generic software support that Windows device manufacturer provides. Now, let’s try using the generic software support that Windows
®
XP Service Pack 2 includes.
BT HID Procedure
By default, BT HID is activated on the 1660 scanner, and the keyboard type is set to PCAT (US). When BT HID is re-activated, you will have to select a keyboard type to complete this setting.
The procedure is the same as for BT SPP. Refer to steps 1~11 below.
BT SPP Procedure
1. Turn on the Bluetooth® function on your computer, running Windows XP SP2.
2. Double-click the Bluetooth® icon fro the lower right of the taskbar.
Alternatively, you may go to Control Panel > Bluetooth Devices.
3. Click [Add] to search devices nearby.
®
Windows® XP Service Pack 2 (SP2) or Windows Vista®, you can use
®
includes, or you can use the driver that the
67
Update
1660 Barcode Scanner
User Guide
4. Turn on the scanner with correct WPAN settings, such as select BT SPP or BT HID, broadcasting enabled, authentication enabled, and PIN code specified, etc. Select the check box of [My device is set up and ready to be found] on your computer.
5. Click [Next].
68
Enter Setup
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
6. Wait for a few seconds for the Wizard to search available devices nearby. The scanner will appear with its “serial number” as the device name. You may double-check the
“Serial Number” label on the scanner to ensure connecting with the correct scanner. Select the target scanner. If the target scanner does not appear on the list, click [Search Again] to refresh the list. The scanner might enter Suspend Mode now, and you can press the [Trigger] key to have it active again (=discoverable). It will then stay active for 2 minutes and wait for PC to establish a connection.
7. Click [Next].
69
Update
1660 Barcode Scanner
User Guide
8. Enter the passkey for authentication, which must be exactly the same as configured for the scanner.
9. Click [Next]. Wait for a few seconds for Windows to exchange passkeys.
70
Enter Setup
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
B
10. Click [Finish].
luetooth SPP Only
71
Update
1660 Barcode Scanner
Select and Remove
User Guide
11. Now the target scanner will be listed as shown below.
You can have up to seven scanners connected to one computer at the same time.
Note: When any changes are made to authentication and PIN code on the scanner side,
or you want to change to use BT HID, it is suggested that you remove the scanner from the paired device list (called unpairing) and go through the whole process to re-establish the connection.
72
Enter Setup
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
BT S
ected
BT S
sconnected
12. Run the desired application on your computer, such as HyperTerminal.exe if using BT SPP or
Notepad.exe if using BT HID. The status of the scanner listed on the device list will be updated to “Connected”, indicati ng
the WPAN connection is established successfully via the outgoing COM port if using BT SPP.
PP Conn
PP Di
73
Update
1660 Barcode Scanner
User Guide
74
Enter Setup
Chapter 4
CHANGING SYMBOLOGY SETTINGS
In this chapter, a brief on the symbology settings is provided for your reference.
IN THIS CHAPTER
4.1 Codabar ................................................................... 76
4.2 Code 25 - Industrial 25 ............................................... 78
4.3 Code 25 - Interleaved 25 ............................................ 81
4.4 Code 25 - Matrix 25 ................................................... 84
4.5 Code 39 ................................................................... 87
4.6 Code 93 ................................................................... 89
4.7 Code 128 .................................................................. 89
4.8 EAN-8 ...................................................................... 90
4.9 EAN-13 .................................................................... 92
4.10 GS1-128 (EAN-128) ................................................. 94
4.11 ISBT 128 ................................................................ 95
4.12 MSI ........................................................................ 96
4.13 French Pharmacode .................................................. 99
4.14 Italian Pharmacode ................................................. 100
4.15 Plessey .................................................................. 101
4.16 GS1 DataBar (RSS Family) ....................................... 102
4.17 Telepen ................................................................. 106
4.18 UPC-A ................................................................... 107
4.19 UPC-E ................................................................... 109
75
Update
1660 Barcode Scanner
User Guide

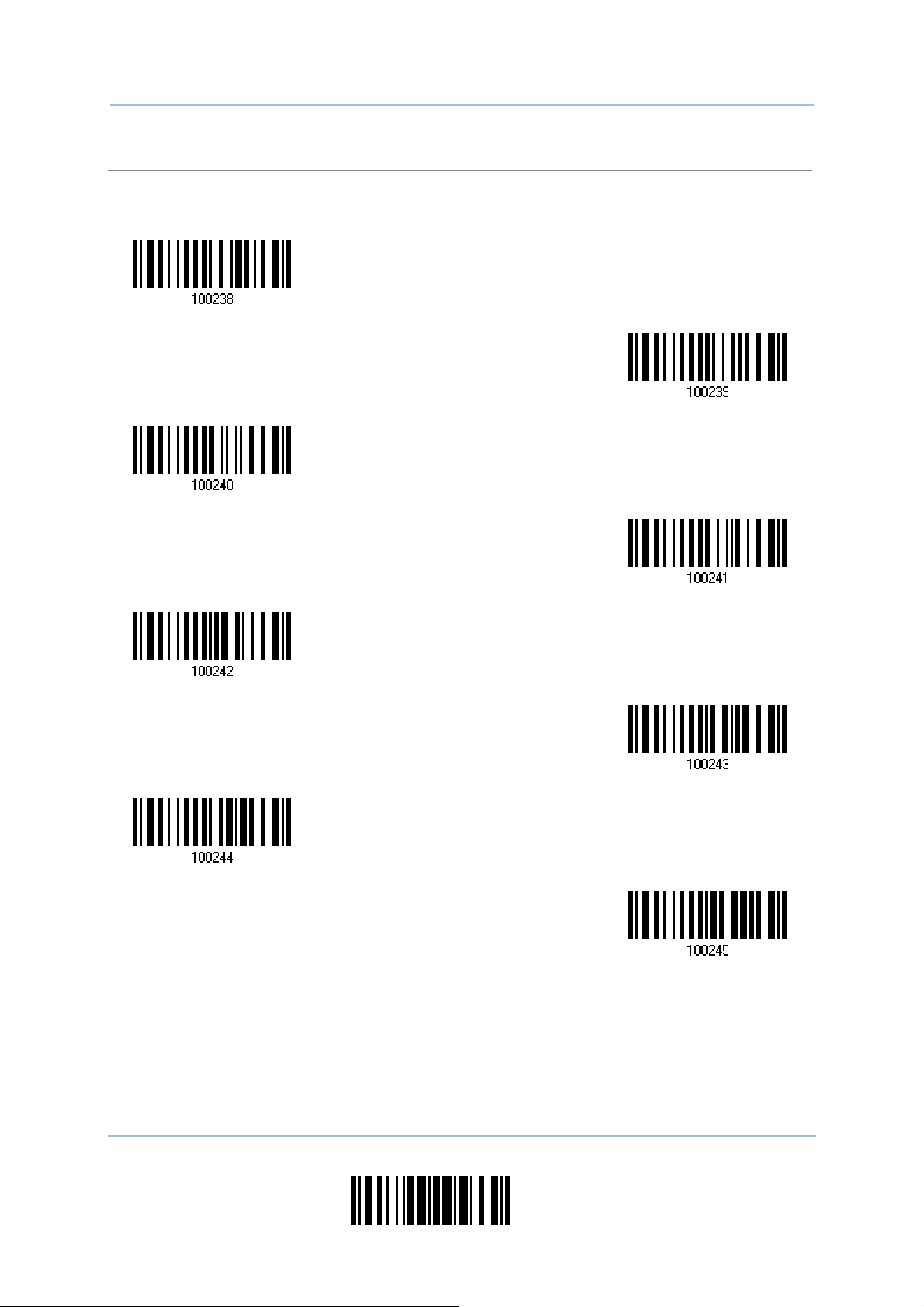

4.1 CODABAR
*Enable Codabar
4.1.1 START/STOP CHARACTERS SELECTION
Select one of the four different start/stop character pairs –
* abcd/abcd
Disable Codabar
ABCD/ABCD
abcd/tn*e
ABCD/TN*E
76
Enter Setup
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
*
*
4.1.2 START/STOP TRANSMISSION
Decide whether or not to include the start/stop characters in the data being transmitted.
Transmit Codabar
Start/Stop Characters
Do Not Transmit
4.1.3 CLSI CONVERSION
When enabled, the CLSI editing strips the start/stop characters and inserts a space after the first, fifth, and tenth characters of a 14-character Codabar barcode.
Apply CLSI Editing
Do Not Apply
Note: The 14-character barcode length does not include start/stop characters.
77
Update
1660 Barcode Scanner
User Guide
4.2 CODE 25 – INDUSTRIAL 25
*Enable Industrial 25
Disable Industrial 25
4.2.1 START/STOP PATTERN SELECTION
This decides the readability of all 2 of 5 symbology variants. For example, flight tickets actually use an Industrial 2 of 5 barcode but with Interleaved 2 of 5 start/stop pattern. In order to read this barcode, the start/stop pattern selection parameter of Industrial 2 of 5 should set to "Interleaved 25".
*Industrial 25
Start/Stop Pattern
Matrix 25
Start/Stop Pattern
Interleaved 25
Start/Stop Pattern
78
Enter Setup
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
D
*

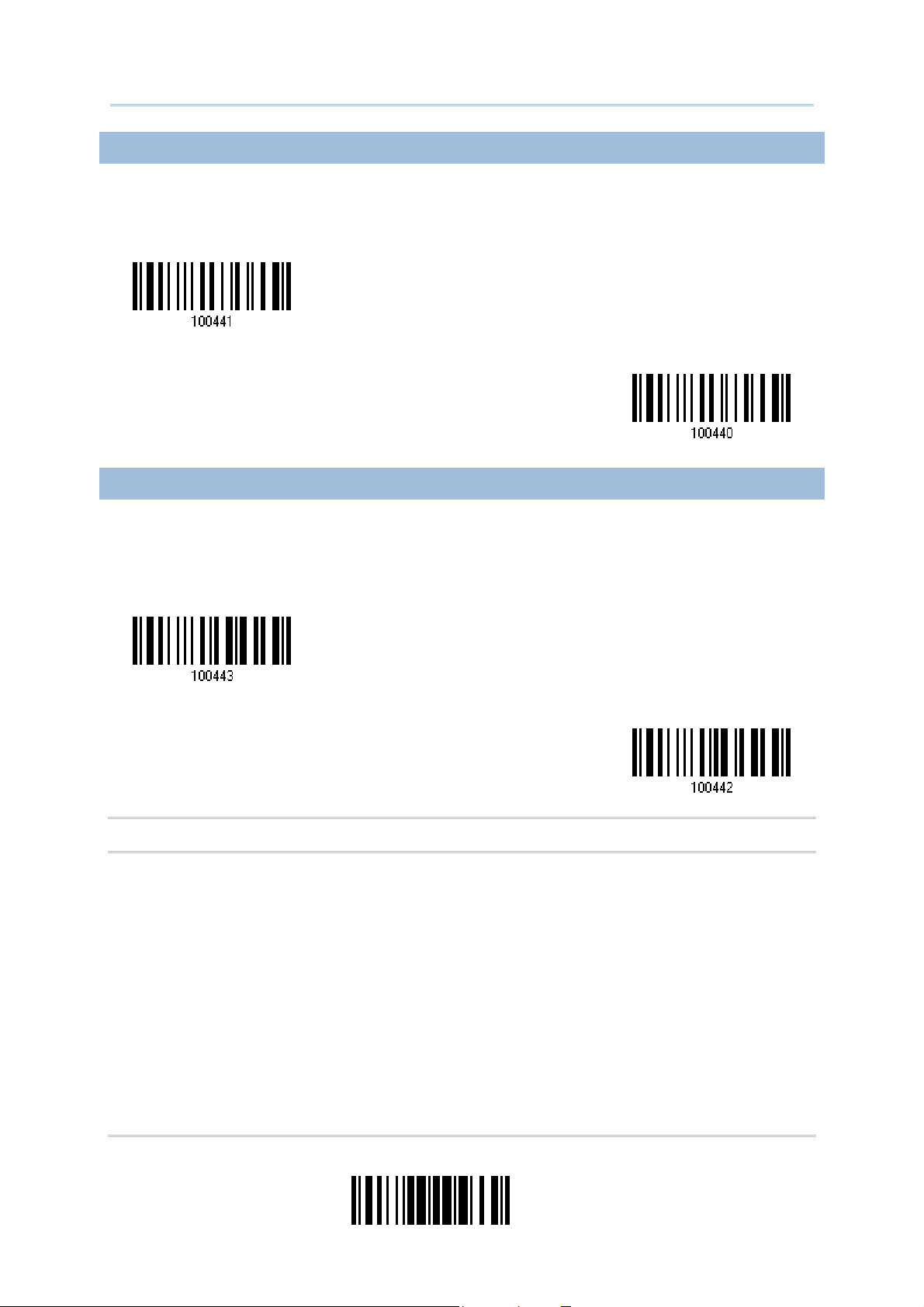

4.2.2 CHECKSUM VERIFICATION
Decide whether to verify the checksum. If the checksum is incorrect, the barcode will not be accepted.
Verify Industrial 25
Checksum
Do Not Verify
4.2.3 CHECKSUM TRANSMISSION
Decide whether to include the checksum in the data being transmitted.
*Transmit Industrial
25 Checksum
o Not Transmit
79
Update
1660 Barcode Scanner
User Guide

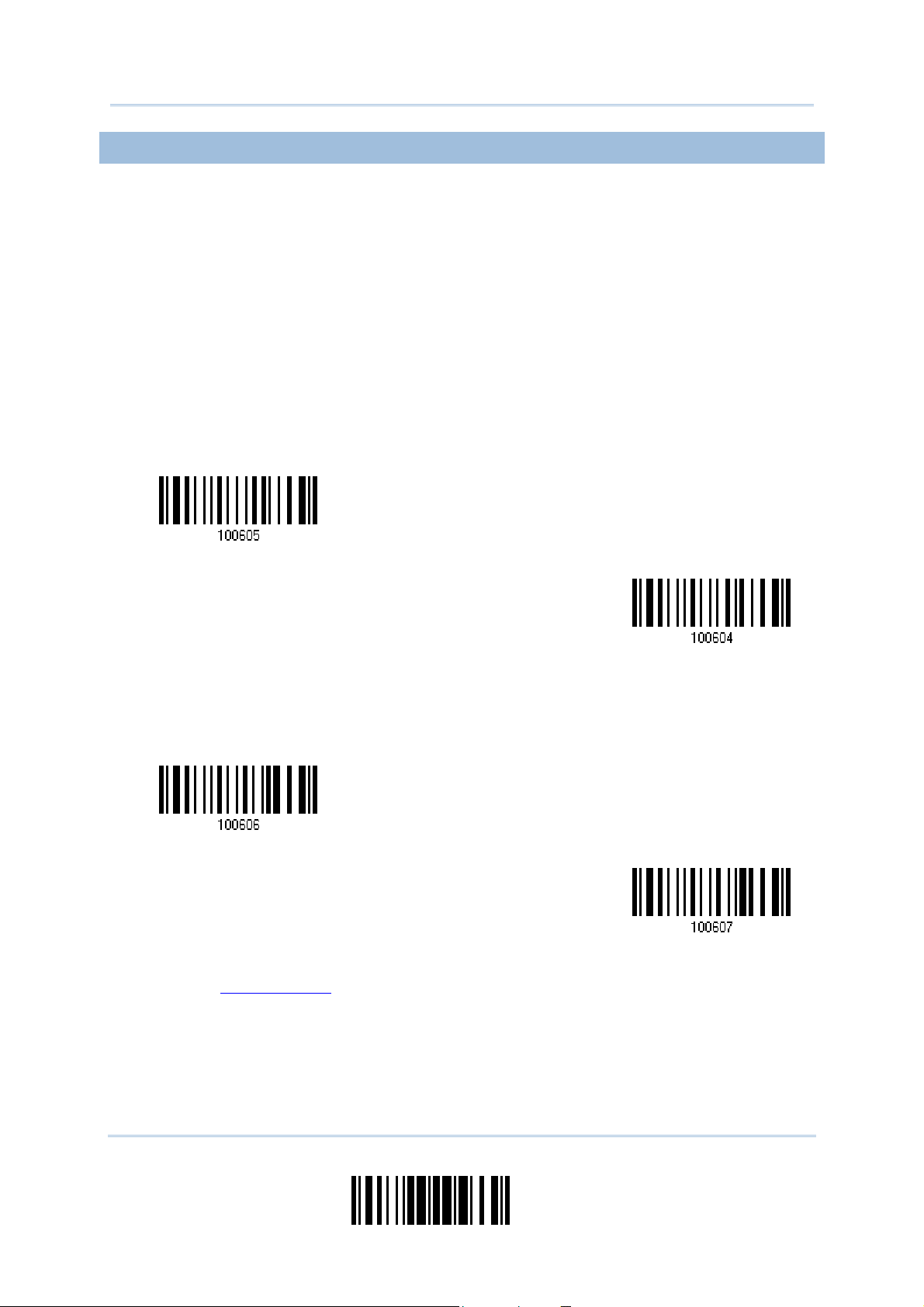

4.2.4 CODE LENGTH QUALIFICATION
Because of the weak structure of the 2 of 5 symbologies, it is possible to make a "short scan" error. To prevent the "short scan" error, define the "Length Qualification" settings to ensure that the correct barcode is read by qualifying the allowable code length.
If "Max/M in Length" is selected, the maximum length and the minimum length must
be specified. It only accepts those barcodes with lengths that fall between max/min lengths specified.
If “Fix ed L ength” is selected, up to 2 fixed lengths can be specified.
1) Read the label to enable either Max. /Min. Length qualification or Fixed Length(s)
qualification.
*Enable Max./Min.
Length (0 ~ 127) …
Enable Fixed Length(s) …
2) Read the label for Max. Length or Fixed Length 1, and follow steps 3~4.
Repeat steps 2~4 for Min. Length or Fixed Length 2.
Max. Length (*127)
Or Fixed Length 1
Min. Length (*4)
Or Fixed Length 2
3) Read the “Decimal Value
4) Read the “Validate” label on the same page to complete this setting.
” label on page 169 for the desired length.
80
Enter Setup
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.3 CODE 25 – INTERLEAVED 25
*Enable Interleaved 25
Disable Interleaved 25
4.3.1 START/STOP PATTERN SELECTION
This decides the readability of all 2 of 5 symbology variants. For example, flight tickets actually use an Industrial 2 of 5 barcode but with Interleaved 2 of 5 start/stop pattern. In order to read this barcode, the start/stop pattern selection parameter of Industrial 2 of 5 should set to "Interleaved 25".
Industrial 25
Start/Stop Pattern
Matrix 25
Start/Stop Pattern
*Interleaved 25
Start/Stop Pattern
81
Update
1660 Barcode Scanner
D
*
User Guide
4.3.2 CHECKSUM VERIFICATION
Decide whether to verify the checksum. If the checksum is incorrect, the barcode will not be accepted.
Verify Interleaved 25
Checksum
Do Not Verify
4.3.3 CHECKSUM TRANSMISSION
Decide whether to include the checksum in the data being transmitted.
*Transmit Interleaved
25 Checksum
o Not Transmit
82
Enter Setup
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
E
4.3.4 CODE LENGTH QUALIFICATION
Because of the weak structure of the 2 of 5 symbologies, it is possible to make a "short scan" error. To prevent the "short scan" error, define the "Length Qualification" settings to ensure that the correct barcode is read by qualifying the allowable code length.
If "Max/M in Length" is selected, the maximum length and the minimum length must
be specified. It only accepts those barcodes with lengths that fall between max/min lengths specified.
If “Fix ed L ength” is selected, up to 2 fixed lengths can be specified.
1) Read the label to enable either Max. /Min. Length qualification or Fixed Length(s)
qualification.
*Enable Max./Min.
Length (0 ~ 127) …
nable Fixed Length(s) …
2) Read the label for Max. Length or Fixed Length 1, and follow steps 3~4.
Repeat steps 2~4 for Min. Length or Fixed Length 2.
Max. Length (*126)
Or Fixed Length 1
Min. Length (*4)
Or Fixed Length 2
3) Read the “Decimal Value
” label on page 169 for the desired length.
4) Read the “Validate” label on the same page to complete this setting.
83
Update
1660 Barcode Scanner
User Guide
4.4 CODE 25 – MATRIX 25
Enable Matrix 25
*Disable Matrix 25
4.4.1 START/STOP PATTERN SELECTION
This decides the readability of all 2 of 5 symbology variants. For example, flight tickets actually use an Industrial 2 of 5 barcode but with Interleaved 2 of 5 start/stop pattern. In order to read this barcode, the start/stop pattern selection parameter of Industrial 2 of 5 should set to "Interleaved 25".
Industrial 25
Start/Stop Pattern
*Matrix 25
Start/Stop Pattern
Interleaved 25
Start/Stop Pattern
84
Enter Setup
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
D
*
4.4.2 CHECKSUM VERIFICATION
Decide whether to verify the checksum. If the checksum is incorrect, the barcode will not be accepted.
Verify Matrix 25
Checksum
Do Not Verify
4.4.3 CHECKSUM TRANSMISSION
Decide whether to include the checksum in the data being transmitted.
*Transmit Matrix 25
Checksum
o Not Transmit
85
Update
1660 Barcode Scanner
User Guide
4.4.4 CODE LENGTH QUALIFICATION
Because of the weak structure of the 2 of 5 symbologies, it is possible to make a "short scan" error. To prevent the "short scan" error, define the "Length Qualification" settings to ensure that the correct barcode is read by qualifying the allowable code length.
If "Max/M in Length" is selected, the maximum length and the minimum length must
be specified. It only accepts those barcodes with lengths that fall between max/min lengths specified.
If “Fix ed L ength” is selected, up to 2 fixed lengths can be specified.
1) Read the label to enable either Max. /Min. Length qualification or Fixed Length(s)
qualification.
*Enable Max./Min.
Length (0 ~ 127) …
Enable Fixed Length(s) …
2) Read the label for Max. Length or Fixed Length 1, and follow steps 3~4.
Repeat steps 2~4 for Min. Length or Fixed Length 2.
Max. Length (*127)
Or Fixed Length 1
Min. Length (*4)
Or Fixed Length 2
3) Read the “Decimal Value
4) Read the “Validate” label on the same page to complete this setting.
” label on page 169 for the desired length.
86
Enter Setup
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
D
*
4.5 CODE 39
*Enable Code 39
isable Code 39
4.5.1 START/STOP TRANSMISSION
Decide whether or not to include the start/stop characters in the data being transmitted.
Transmit Code 39
Start/Stop Characters
*Do Not Transmit
4.5.2 CHECKSUM VERIFICATION
Decide whether or not to perform checksum verification when decoding barcodes.
If enabled and the checksum found incorrect, the barcode will not be accepted.
Verify Code 39 Checksum
Do Not Verify
87
Update
1660 Barcode Scanner
User Guide
4.5.3 CHECKSUM TRANSMISSION
Decide whether or not to include the checksum character in the data being transmitted.
*Transmit Code 39
Checksum
Do Not Transmit
4.5.4 STANDARD/FULL ASCII CODE 39
Decide whether or not to support Code 39 Full ASCII that includes all the alphanumeric and special characters.
Code 39 Full ASCII
*Standard Code 39
88
Enter Setup
