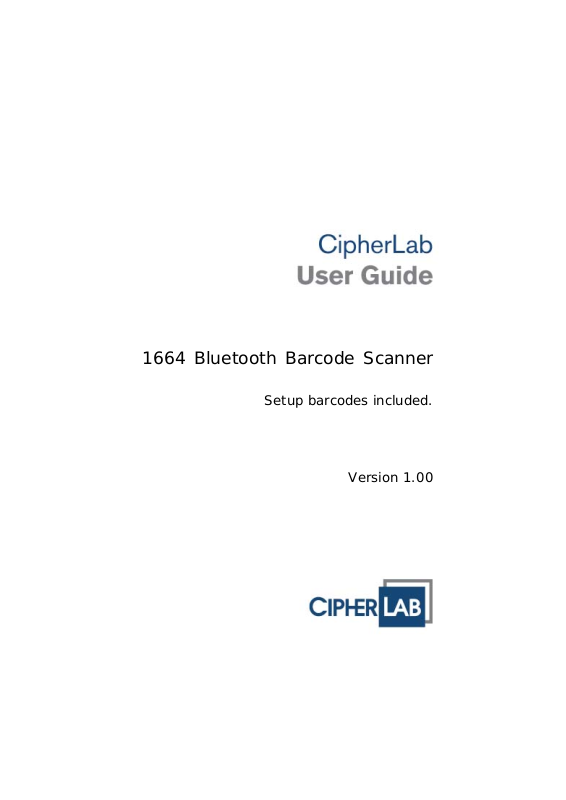

CipherLab 1664 User Manual

1664 Bluetooth Barcode Scanner
Setup barcodes included.
Version 1.00
Copyright © 2011 CIPHERLAB CO., LTD. All rights reserved
The software contains proprietary information of CIPHERLAB CO., LTD.; it is provided under a license agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.
Due to continued product development this information may change without notice. The information and intellectual property cont ained herein is confiden tial between CIPHE RLAB and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find any problems in the documentation, please report them to us in writing. CIPHERLAB does not warrant that this document is error-free.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of CIPHERLAB CO., LTD.
For product consultancy and technical support, please contact your local sales representative. Also, you may visit our web site for more information.
The CipherLab logo is a registered trademark of CIPHERLAB CO., LTD. All brand, product and service, and trademark names are the property of their registered
owners. The editorial use of these names is for identification as well as to the benefit of the
owners, with no intention of infringement.
CIPHERLAB CO., LTD.
Website: http://www.cipherlab.com
IMPORTANT NOTICES
FOR USA
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate t he receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to t he following two conditions: (1) This device may not cause harmful interf erence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FOR CANADA
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of Industry Canada. Th is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils numeriques de Classe B prescrites dans la norme sur le material brouilleur: "Appareils Numeriques," NMB-003 edictee par l'Industrie.
FOR HAND-HELD PRODUCT WITH RF FUNCTIONS
The 1664 unit (FCC ID: Q3N-1664) complies with FCC radiation exposure limits set forth for uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. The unit has v ery low level of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR).
The 3610 unit (FCC ID: Q3N-3610) complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shou ld be installed and operated with minimum distance 20 cm between the radiator & body. It only operated in hand-held used. If only transfer data to the host cordless, please keep the minimum distance 20 cm between machine & body.
SAFETY PRECAUTIONS
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
The use of any batteries or charging devices, which are not originally sold or
manufactured by CipherLab, will void your warranty and may cause damage to human body or the product itself.
DO NOT disassemble, incinerate or short circuit the battery. DO NOT expose the scanner or the battery to any flammable sources. For green-environment issue, it's important that batteries should be recycled in a
proper way.
Under no circumstances, internal components are self-serviceable.
CARE & MAINTENANCE
Use a clean cloth to wipe dust off the scanning window and the body of the scanner
as well as the charging device. DO NOT use/mix any bleach or cleaner.
If you want to put away the scanner for a period of time, download the collected data
to a host computer when in the memory mode, and then take out the battery. Store the scanner and battery separately.
When the scanner resumes its work, make sure the battery is fully charged before
use.
If you shall find the scanner malfunctioning, write down the specific scenario and
consult your local sales representative.
RELEASE NOTES
Version Date Notes
1.00 Nov. 30, 2011 Initial release
CONTENTS
IMPORTANT NOTICES ........................................................................................................................... - 2 -
For USA ................................................................................................................................................. - 3 -
For Canada ........................................................................................................................................... - 3 -
For Hand-held Product with RF Functions ....................................................................................... - 4 -
Safety Precautions .............................................................................................................................. - 4 -
Care & Maintenance ........................................................................................................................... - 4 -
RELEASE NOTES ................................................................................................................................... - 5 -
INTRODUCTION ......................................................................................................................................... 1
Getting Familiarized with 1664 and 3610 ......................................................................................... 2
Installing the Battery to 1664 ......................................................................................................... 2
Charging the Battery ......................................................................................................................... 3
Charging the Battery via Charger .................................................................................................... 4
Using 3610 ......................................................................................................................................... 5
Inside the Package ................................................................................................................................. 6
Product Highlights ................................................................................................................................... 6
Symbologies Supported ......................................................................................................................... 7
QUICK START ............................................................................................................................................. 9
Enter Configuration Mode ................................................................................................................... 11
Exit Configuration Mode ...................................................................................................................... 11
Default Settings .................................................................................................................................... 12
Save User Settings as Defaults .................................................................................................... 12
Restore User Defaults .................................................................................................................... 12
Restore System Defaults ............................................................................................................... 12
Read a Setup Barcode ........................................................................................................................ 13
Configure Parameters .................................................................................................................... 13
List the Current Settings ................................................................................................................ 17
Create One-Scan Setup Barcodes ..................................................................................................... 19
UNDERSTANDING THE BARCODE SCANNER ....................................................................................... 21
1.1 Battery ............................................................................................................................................ 21
1.1.1 How to Operate the Scanner .............................................................................................. 22
1.1.2 Auto Power Off & Power-Saving ........................................................................................ 23
1.2 Memory ........................................................................................................................................... 26
1.2.1 Transmit Buffer ..................................................................................................................... 26
1.2.2 Memory Mode ....................................................................................................................... 27
1.3 LED Indicator ................................................................................................................................. 29
1.3.1 Good Read LED ..................................................................................................................... 30
1.3.2 Good Read LED Duration .................................................................................................... 30
1.4 Beeper ............................................................................................................................................. 31
1.4.1 Beeper Volume ..................................................................................................................... 32
1664 Barcode Scanner User Guide
1.4.2 Good Read Beep ................................................................................................................... 33
1.4.3 Low Battery Alarm ................................................................................................................ 34
1.5 Vibrator ........................................................................................................................................... 34
1.5.1 Good Read Vibrator .............................................................................................................. 34
1.5.2 Good Read Vibrator Duration ............................................................................................. 34
1.6 Send “NR” to Host ......................................................................................................................... 35
1.7 Scan Modes .................................................................................................................................... 36
1.7.1 Laser Mode ............................................................................................................................ 36
1.7.2 Auto Off Mode ....................................................................................................................... 37
1.7.3 Auto Power Off Mode ........................................................................................................... 37
1.7.4 Aiming Mode ......................................................................................................................... 38
1.7.5 Multi-Barcode Mode ............................................................................................................. 38
1.8 Scanning Timeout ......................................................................................................................... 39
1.9 Delay between Re-read ................................................................................................................ 40
1.10 Read Redundancy for All Symblogies ..................................................................................... 41
1.11 Addon Security for UPC/EAN Barcodes ................................................................................... 42
1.12 Negative Barcodes...................................................................................................................... 42
1.13 Using Direct USB Cable .............................................................................................................. 43
1.13.1 Direct USB Interface .......................................................................................................... 43
1.13.2 Disable Direct USB Interface ............................................................................................ 43
1.14 Picklist Mode ............................................................................................................................... 44
1.15 Pager Beep Duration .................................................................................................................. 44
1.16 Time Stamp ................................................................................................................................. 45
1.16.1 DATE AND TIME SETTINGS ............................................................................................... 45
1.16.2 SEPARATOR FOR DATE AND TIME .................................................................................. 47
1.16.3 DATE FORMAT .................................................................................................................... 48
1.17 2D Decode Setting ..................................................................................................................... 49
1.17.1 Aiming Pattern ................................................................................................................... 49
1.17.2 Decoding Illumination ....................................................................................................... 49
1.18 Hardware Reset .......................................................................................................................... 50
1.18.1 Restore System Defaults .................................................................................................. 50
1.18.2 Reset Connection ............................................................................................................... 50
SELECTING OUTPUT INTERFACE ........................................................................................................... 51
2.1 Bluetooth
2.1.1 Activate Bluetooth
®
HID .............................................................................................................................. 52
®
HID & Select Keyboard Type ........................................................... 53
2.1.2 Reset Connection ................................................................................................................. 54
2.1.3 Keyboard Settings ................................................................................................................ 55
2.1.4 Inter-Character Delay ........................................................................................................... 62
2.1.5 Inter-Function Delay ............................................................................................................. 62
2.1.6 HID Character Transmit Mode ............................................................................................ 63
2.1.7 Keypad Support for iPhone/iPad ....................................................................................... 63
2.2 Bluetooth
2.2.1 Activate Bluetooth
®
SPP Slave ................................................................................................................... 64
®
SPP Slave Mode ............................................................................... 64
2.2.2 Inter-Function Delay ............................................................................................................. 64
2.2.3 ACK/NAK Timeout ................................................................................................................ 65
2.3 Bluetooth
2.3.1 Activate Bluetooth
®
SPP Master ................................................................................................................ 66
®
SPP Master Mode ............................................................................. 66
1664 Barcode Scanner User Guide
2.3.2 Inter-Function Delay ............................................................................................................. 68
2.3.3 ACK/NAK Timeout ................................................................................................................ 69
2.3.4 Switch between Master/Slave Mode ................................................................................ 69
2.4 USB HID via 3610 ......................................................................................................................... 70
2.4.1 Activate USB HID & Select Keyboard Type ....................................................................... 71
2.4.2 Keyboard Settings ................................................................................................................ 72
2.4.3 Inter-Character Delay ........................................................................................................... 79
2.4.4 Inter-Function Delay ............................................................................................................. 79
2.4.5 HID Character Transmit Mode ............................................................................................ 80
2.5 USB Virtual COM via 3610 ........................................................................................................... 81
2.5.1 Activate USB Virtual COM .................................................................................................... 81
2.5.2 Inter-Function Delay ............................................................................................................. 81
2.5.3 ACK/NAK Timeout ................................................................................................................ 82
2.6 Direct USB HID ............................................................................................................................... 83
2.6.1 Activate USB HID & Select Keyboard Type ....................................................................... 84
2.6.2 Keyboard Settings ................................................................................................................ 85
2.6.3 Inter-Character Delay ........................................................................................................... 92
2.6.4 Inter-Function Delay ............................................................................................................. 92
2.6.5 HID Character Transmit Mode ............................................................................................ 93
2.7 Direct USB Virtual COM ................................................................................................................ 94
2.7.1 Activate USB Virtual COM .................................................................................................... 94
2.7.2 Inter-Function Delay ............................................................................................................. 94
2.7.3 ACK/NAK Timeout ................................................................................................................ 95
SETTING UP A WPAN CONNECTION ...................................................................................................... 97
3.1 Connecting via 3610 .................................................................................................................... 98
3.1.1 Connect to 3610 ................................................................................................................... 98
3.1.2 Change Interface .................................................................................................................. 99
3.1.3 Configure Related Settings ............................................................................................... 100
3.2 Connecting via Bluetooth
®
Dongle ........................................................................................... 101
3.2.1 Change Interface ................................................................................................................ 101
3.2.2 Configure Related Settings ............................................................................................... 102
3.2.3 Connect to Dongle .............................................................................................................. 105
CHANGING SYMBOLOGY SETTINGS .................................................................................................... 113
4.1 Codabar ........................................................................................................................................ 114
4.1.1 Start/Stop Transmission ................................................................................................... 114
4.1.2 CLSI Conversion .................................................................................................................. 114
4.1.3 Code Length Qualification................................................................................................. 115
4.2 Code 25 – Industrial 25 ............................................................................................................. 116
4.2.1 Code Length Qualification................................................................................................. 117
4.3 Code 25 – Interleaved 25 .......................................................................................................... 118
4.3.1 Verify Check Digit ............................................................................................................... 118
4.3.2 Transmit Check Digit ......................................................................................................... 118
4.3.3 Convert to EAN-13 .............................................................................................................. 119
4.3.4 Code Length Qualification................................................................................................. 120
4.4 Code 25 – Matrix 25 ................................................................................................................... 121
4.4.1 Verify Check Digit ............................................................................................................... 121
4.4.2 Transmit Check Digit ......................................................................................................... 121
4.4.3 Code Length Qualification................................................................................................. 122
4.5 Code 25 – Chinese 25 ................................................................................................................ 123
1664 Barcode Scanner User Guide
4.6 Italian Pharmacode (Code 32) .................................................................................................. 124
4.7 Code 39 ........................................................................................................................................ 125
4.7.1 Verify Check Digit ............................................................................................................... 125
4.7.2 Transmit Check Digit ......................................................................................................... 125
4.7.3 Standard/Full ASCII Code 39 ........................................................................................... 126
4.7.4 Code Length Qualification................................................................................................. 127
4.8 Trioptic Code 39 .......................................................................................................................... 128
4.9 Code 93 ........................................................................................................................................ 129
4.9.1 Code Length Qualification................................................................................................. 130
4.10 Code 128 ................................................................................................................................... 131
4.11 GS1-128 (EAN-128) .................................................................................................................. 132
4.11.1 Transmit Code ID ............................................................................................................. 132
4.11.2 Field Separator (GS Character) ...................................................................................... 132
4.12 ISBT 128 .................................................................................................................................... 133
4.12.1 ISBT Concatenation ......................................................................................................... 133
4.12.2 ISBT Concatenation Redundancy .................................................................................. 134
4.13 GS1 DataBar (RSS Family) ...................................................................................................... 135
4.13.1 Select Code ID .................................................................................................................. 135
4.13.2 GS1 DataBar Omnidirectional (RSS-14) ...................................................................... 136
4.13.3 GS1 DataBar Expanded (RSS Expanded) ..................................................................... 137
4.13.4 GS1 DataBar Limited (RSS Limited) ............................................................................. 138
4.13.5 Convert to UPC/EAN ........................................................................................................ 139
4.14 MSI .............................................................................................................................................. 140
4.14.1 Verify Check Digit ............................................................................................................. 140
4.14.2 Transmit Check Digit ....................................................................................................... 140
4.14.3 Code Length Qualification .............................................................................................. 141
4.15 EAN-8 .......................................................................................................................................... 142
4.16 EAN-13 ........................................................................................................................................ 143
4.16.1 Convert to ISBN ................................................................................................................ 144
4.16.2 Convert to ISSN ................................................................................................................ 144
4.17 UCC Coupon Extended Code ................................................................................................... 145
4.18 UPC-A .......................................................................................................................................... 146
4.18.1 Transmit System Number ............................................................................................... 147
4.18.2 Transmit Check Digit ....................................................................................................... 147
4.19 UPC-E .......................................................................................................................................... 148
4.19.1 Select System Number ................................................................................................... 149
4.19.2 Convert to UPC-A .............................................................................................................. 149
4.19.3 Transmit System Number ............................................................................................... 150
4.19.4 Transmit Check Digit ....................................................................................................... 150
4.20 Code 11 ...................................................................................................................................... 151
4.20.1 Verify Check Digit ............................................................................................................. 151
4.20.2 Transmit Check Digit ....................................................................................................... 151
4.20.3 Code Length Qualification .............................................................................................. 152
4.21 Composite Code ........................................................................................................................ 153
4.21.1 Composite CC-A/B ........................................................................................................... 153
4.21.2 Composite CC-C ................................................................................................................ 153
4.21.3 Composite TLC-39............................................................................................................ 153
4.21.4 UPC Composite Mode...................................................................................................... 154
1664 Barcode Scanner User Guide
4.21.5 GS1-128 Emulation Mode for UCC/EAN Composite Codes ...................................... 154
4.22 US Postal Code .......................................................................................................................... 155
4.22.1 US Postnet ........................................................................................................................ 155
4.22.2 US Planet ........................................................................................................................... 155
4.22.3 Transmit Check Digit ....................................................................................................... 155
4.23 UK Postal Code.......................................................................................................................... 156
4.23.1 UK Postal ........................................................................................................................... 156
4.23.2 Transmit Check Digit ....................................................................................................... 156
4.24 More Postal Code ..................................................................................................................... 157
4.24.1 Japan Postal ..................................................................................................................... 157
4.24.2 Australian Postal .............................................................................................................. 157
4.24.3 Dutch Postal ..................................................................................................................... 157
4.24.4 USPS 4CB/One Code/Intelligent Mail .......................................................................... 157
4.24.5 UPU FICS Postal ............................................................................................................... 158
4.25 2D Symbologies ........................................................................................................................ 159
4.25.1 PDF417 ............................................................................................................................. 159
4.25.2 MicroPDF417 .................................................................................................................... 159
4.25.3 Data Matrix ....................................................................................................................... 160
4.25.4 Maxicode ........................................................................................................................... 161
4.25.5 QR Code ............................................................................................................................. 161
4.25.6 MicroQR ............................................................................................................................. 161
4.25.7 Aztec .................................................................................................................................. 161
4.26 Macro PDF ................................................................................................................................. 162
4.26.1 Transmit/Decode Mode .................................................................................................. 162
4.26.2 Escape Characters ........................................................................................................... 163
4.26.3 Transmit Control Header ................................................................................................ 163
DEFINING OUTPUT FORMAT ................................................................................................................ 165
5.1 Letter Case ................................................................................................................................... 165
5.2 Character Substitution ............................................................................................................... 166
5.2.1 Select a Set for Character Substituion ............................................................................ 167
5.2.2 Symbologies for Character Substitution (All 3 Sets) .................................................... 168
5.3 Prefix/Suffix Code ....................................................................................................................... 178
5.4 Code ID ......................................................................................................................................... 179
5.4.1 Select Pre-defined Code ID ............................................................................................... 179
5.4.2 Change Code ID .................................................................................................................. 182
5.4.3 Clear Code ID Settings ....................................................................................................... 185
5.5 Length Code ................................................................................................................................. 186
5.6 Multi-Barcode Editor ................................................................................................................... 194
5.6.1 Edit a Concatenation of Barcodes ................................................................................... 195
5.6.2 Activate the Concatenation of Barcodes ........................................................................ 197
5.7 Removal of Special Character .................................................................................................. 198
APPLYING FORMATS FOR DATA EDITING .......................................................................................... 199
6.1 Activating Editing Formats ........................................................................................................ 200
6.1.1 Activate Editing Formats ................................................................................................... 200
6.1.2 Exclusive Data Editing ....................................................................................................... 201
6.2 How to Configure Editing Formats ............................................................................................ 202
6.2.1 Select Format to Configure ............................................................................................... 203
1664 Barcode Scanner User Guide
6.2.2 Restore Default Format ..................................................................................................... 204
6.3 Configuring Format — Define Data Criteria ............................................................................. 205
6.3.1 Applicable Code Type ........................................................................................................ 205
6.3.2 Data Length ......................................................................................................................... 215
6.3.3 Matching String & Location .............................................................................................. 216
6.4 Configuring Format — Define Data Field ................................................................................. 217
6.4.1 Start Position ...................................................................................................................... 217
6.4.2 Field Adjustment ................................................................................................................ 217
6.4.3 Total Number of Fields ...................................................................................................... 218
6.4.4 Field Settings ...................................................................................................................... 219
6.4.5 Pause Field Setting ............................................................................................................ 225
6.5 Configuring Format — Define Transmission Sequence ......................................................... 226
6.6 Programming Examples ............................................................................................................ 228
6.6.1 Example I ............................................................................................................................. 228
6.6.2 Example II ............................................................................................................................ 229
SPECIFICATIONS ................................................................................................................................... 231
FIRMWARE UPGRADE .......................................................................................................................... 233
How to Upgrade Firmware ................................................................................................................ 233
Using 3610 .................................................................................................................................... 233
Using Direct USB Virtual COM ..................................................................................................... 235
Using Bluetooth
®
Dongle ............................................................................................................. 236
How to Upgrade 3610 Firmware ..................................................................................................... 238
Upgrading 3610 CPU Firmware .................................................................................................. 238
Upgrading 3610 USB Bridge Firmware ..................................................................................... 239
HOST SERIAL COMMANDS .................................................................................................................. 241
Serial Commands .............................................................................................................................. 241
Example ......................................................................................................................................... 242
3610 Setup Barcodes & Serial Commands .................................................................................. 243
3610 Serial Command Table ..................................................................................................... 244
Example ......................................................................................................................................... 246
KEYBOARD WEDGE TABLE .................................................................................................................. 247
Key Type & Status .............................................................................................................................. 248
Key Type ......................................................................................................................................... 248
Key Status ...................................................................................................................................... 248
Example ............................................................................................................................................... 249
NUMERAL SYSTEMS ............................................................................................................................. 251
Decimal System ................................................................................................................................. 251
Hexadecimal System ......................................................................................................................... 252
ASCII Table .......................................................................................................................................... 253
Entering PIN Code for Authentication ............................................................................................. 254
Use Preset PIN .............................................................................................................................. 254
Disable Authentication or Use Random PIN ............................................................................ 255
INTRODUCTION
CipherLab’s small-form-factor 1600 Series Barcode Scanners are specifically designed to answer the mobile demands. The palm-sized scanners are designed to help accelerate productivity while lowering the total cost of ownership. Intensive data collection jobs are made easier with fast, accurate barcode scanning in various working environments, especially in small businesses. Integrating short-distance cordless technology to small-form-factor scanners, the scanners are ideal for carrying as in pocket, and thus give workers tether-free mobility anytime anywhere and get job done more efficiently. This line of scanners deliver data over a cordless personal network at a range of up to 10 meters and a prolonged battery life to keep business running. 1664 is a new ordering option provided for adapting a 2D scan engine to read both 1D and 2D barcodes.
Owing to the compact design, extremely low power consumption, and powerful decoding capability, the 1600 Series Barcode Scanners are the best choice for the following applications –
Receiving in Retail Product labeling & Tracking Shelf Product Replenishment Mobile Point of Sale (POS) Mobile Inventory Management Order Picking & Staging Work-In-Process Tracking Material Flow Control Transportation & Distribution Warehousing Asset Management
This manual contains information on operating the scanner and using its features. We recommend you to keep one copy of the manual at hand for quick reference or maintenance purposes. To avoid any improper disposal or operation, please read the manual thoroughly before use.
Thank you for choosing CipherLab products!
1
Update
1664 Barcode Scanner User Guide
GETTING FAMILIARIZED WITH 1664 AND 3610
INSTALLING THE BATTERY TO 1664
1) Hold the scanner face down in one hand, press the battery cover, and slide the battery cover.
2) Remove the battery cover to the other hand.
3) Push battery lock to unlocked position.
4) Hold the scanner still and insert the battery into the battery compartment.
For 1664, install a rechargeable 3.7V/850mAh Li-ion battery into the battery
compartment.
5) Push battery lock to lock the battery firmly.
6) Replace the battery cover.
7) Hold down the [Power/Delete] key for about 2 seconds to turn on the scanner.
The scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly.
2
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Note: (1) To turn off the scanner, press the [Power/Delete] key for 2 seconds. The
scanner will respond with two short beeps (high tone) and the LED will finally become solid red. Release the key then. Otherwise, let the scanner turn off automatically in specific circumstances. Refer to settings of “Auto Power Off
”. (2) For shipping and storage purposes, save the scanner and the batteries separately. This will keep the batteries in good condition for future use.
CHARGING THE BATTERY
The battery may not be charged to full for shipment. For first receive the package, it is better to charge the battery to full before using the scanner. For 1664, use the Direct USB cable to connect the scanner to PC for charging. It takes approximately 4 hours to charge the battery to full. Refer to 1.13 Using Direct USB Cable
.
Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It
is recommended to charge the battery at room temperature (18°C to 25°C) for optimal performance.
1) Install the battery to 1664.
2) Connect 1664 to host computer or notebook via the USB cable.
3) The scanner LED will be flashing red during charging.
When the charging is done, the LED will turn off. When charging error occurs, the LED will turn solid red. For example, a bad or
missing battery issue occurs.
3
Update
1664 Barcode Scanner User Guide
CHARGING THE BATTERY VIA CHARGER
The battery charger is provided for charging the battery only. You may purchase the charger separately. It takes approximately 3 hours to charge the battery to full.
Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It
is recommended to charge the battery at room temperature (18°C to 25°C) for optimal performance.
1) Insert the battery.
2) Connect the power supply cord to the charger.
3) Connect the other end of the power cord to a suitable power outlet.
Status LED
Red, solid
Red, solid
--- Green,
--- --- Power or battery not ready
--- Charger power ON (LED on for 0.5 second)
--- Charging battery
solid
Meaning
Charging done
4
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
USING 3610
The CipherLab Dongle(3610) is specifically designed for the scanner to communicate with a host computer cordless. The connection between the scanners and 3610 is made easy and reliable. Refer to 3.1.1 Connect to 3610
There is one LED indicator provided for communications status.
.
Communication LED
--- Blue, solid
Red, solid
Red, solid
Red, flashing
--- Blue,
--- Blue,
Red, solid
Red, flashing
--- Failed to establish a USB connection
Blue, flashing
Blue, flashing
flashing
flashing Blue,
flashing
--- Enter Download Mode
Meaning
Initialize
Serial command mode with USB Virtual COM: wait 3 seconds for starting a serial command
Serial command mode with USB HID: wait 3 seconds for pressing [Num Lock] or [Caps Lock] 5 times via keyboard
Wait for connection request from the scanner (Slow flash at 0.5 Hz)
Connected with the scanner (Fast flash at 1 Hz)
Failed to send data to host via USB Virtual COM (Fast flash at 1 Hz)
5
Update
1664 Barcode Scanner User Guide
INSIDE THE PACKAGE
The items included in the package may be different, depending on your order. Save the box and packaging material for future use in case you need to store or ship the scanner.
1664 Scanner CipherLab Dongle (3610) Optional Rechargeable Li-ion Battery Pack Direct USB Cable Wristband Setup Cards Quick Start Guide Product CD
Note: The CD-ROM includes this manual and Windows-based ScanMaster software for
configuration, as well as the USB Virtual COM driver.
PRODUCT HIGHLIGHTS
Small-form-factor and built tough to survive drop test Extremely low power consumption Firmware upgradeable Supports most popular barcode symbologies, including GS1-128 (EAN-128), GS1
DataBar (RSS), etc.
Supports negative barcodes Supports a variety of 2D symbologies, Time Stamp and Paging function Supports different scan modes, including Aiming Mode and Multi-Barcode Mode
Note
User feedback via LED indicator, beeper and vibrator Beeping tone and duration programmable for Good Read 4MB flash memory for Memory Mode operation, storing over 240,000 scans based on
EAN-13 barcodes
Provides up to 10 KB SRAM for reserve buffer while getting out of range over a
wireless personal area network (WPAN), storing up to 640 scans based on EAN-13 barcodes
Capable of transmitting scanned data, emulating a serial cable (Bluetooth
keyboard input (Bluetooth wireless technology
®
HID), to a notebook computer or PDA with Bluetooth®
®
SPP) or as
Programmable parameters include data output format, editing format, symbologies,
etc.
Easy configuration through ScanMaster Easy connection through CipherConnect, available via online marketplace for mobile
devices running on Android 2.x, BlackBerry 5.x, or Windows Mobile 6.x
6
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
SYMBOLOGIES SUPPORTED
Most of the popular barcode symbologies are supported, as listed below. Each can be individually enabled or disabled. The scanner will automatically discriminate and recognize all the symbologies that are enabled. Refer to Chapter 4 Changing Symbology
Settings for details of each symbology.
Symbologies Supported: Enable/Disable
Codabar Enabled Code 93 Enabled MSI Disabled Code 128 Code 128 Enabled
GS1-128 (EAN-128) Enabled ISBT 128 Enabled
Code 2 of 5 Industrial 25 Enabled
Interleaved 25 Enabled Matrix 25 Disabled Chinese 25 Disabled
Code 3 of 9 Code 39 Enabled
Italian Pharmacode Disabled Trioptic Code 39 Disabled
EAN/UPC EAN-8 Enabled
EAN-8 Addon 2 Disabled EAN-8 Addon 5 Disabled
Default
EAN-13 Enabled EAN-13 & UPC-A Addon 2 Disabled EAN-13 & UPC-A Addon 5 Disabled ISBN Disabled UPC-E0 Enabled UPC-E1 Disabled UPC-E Addon 2 Disabled UPC-E Addon 5 Disabled UPC-A Enabled
GS1 DataBar (RSS)
GS1 DataBar Omnidirectional (RSS-14) Disabled GS1 DataBar Truncated Disabled GS1 DataBar Stacked Disabled GS1 DataBar Stacked Omnidirectional Disabled
7
Update
1664 Barcode Scanner User Guide
GS1 DataBar Limited (RSS Limited) Disabled GS1 DataBar Expanded (RSS Expanded) Disabled GS1 DataBar Expanded Stacked Disabled
Code 11 Disabled Composite
Code
Postal Code US Postnet Enabled
2D Symbologies
Composite CC-A/B Disabled Composite CC-C Disabled Composite TLC-39 Disabled
US Planet Enabled UK Postal Enabled Japan Postal Enabled Australian Postal Enabled Dutch Postal Enabled USPS 4CB/One Code/Intelligent Mail Disabled UPU FICS Postal Disabled PDF417 Enabled MicroPDF417 Disabled Data Matrix Enabled Maxicode Enabled QR Code Enabled MicroQR Enabled
8
Aztec Enabled
Enter Setup
QUICK START
The configuration of the scanner can be done by reading the setup barcodes contained in this manual or via the ScanMaster software.
This section describes the procedure of configuring the scanner by reading the setup barcodes and provides some examples for demonstration.
Configuration Mode
1. Hol d down the [Power/Delete] key for about 2 seconds to turn on the scanner. It will respond
with a long beep and its LED will come on-off shortly.
2. Have the scanner read the “Enter Setup” barcode. It will respond with six beeps and its LED
indicator will become flashing red after reading the barcode.
3. Have the scanner read more setup barcodes… Most of the setup barcodes are normal, and the
scanner will respond with two beeps (low-high tone). For special setup barcodes, it requires reading more than one setup barcode to complete the setting.
4. Have the scanner read the “Update” o r “Abort” barcode. It will respond with six beeps and its
LED indicator will become flashing red after reading the barcode.
5. The scanner will restart automatically upon reading the “Update” or “Abort” barcode. It will
respond with a long beep and its LED will come on-off shortly.
Note: Refer to Appendix II Host Serial Commands for how to configure the 3610 dongle
by having the scanner read 3610-related setup barcodes or using serial commands.
9
Update
1664 Barcode Scanner User Guide
Working Mode
Upon powering up, the scanner will try to establish a connection with 3610 or a computer with
Bluetooth
connection between the scanners and 3610 is made easy and reliable. Now, it also supports Bluetooth
®
wireless technology. Refer to Chapter 3 - Setting up a WPAN Connection for details. The
®
SPP Master Mode as an alternative. Refer to 2.3 Bluetooth® SPP Master.
Note: If USB Virtual COM or Bluetooth® SPP is selected for output interface, the host can
directly send serial commands to configure the scanner. For example, run HyperTerminal.exe and type the 6-digit command located under each setup barcode. Refer to Appendix II Host Serial Commands
.
10
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
ENTER CONFIGURATION MODE
For the scanner to enter the configuration mode, you must have it read the "Enter Setup" barcode, which can be located at the bottom of almost every even page of this manual.
The scann er will respond with six beeps and its LE D indicator will be come flashing red
after reading the barcode.
Enter Setup
For configuring scanner parameters, see “Read a Setup Barcode” below.
EXIT CONFIGURATION MODE
For the scanner to save settings and exit the configuration mode, read the “Update” barcode, which can be located at the bottom of almost every odd page of this manual. Exit the configuration mode without saving any changes; have the scanner read the “Abort” barcode instead.
Just lik e reading the “Enter Setup” barcode, the scanner will respond with six beeps
and its LED indicator will become flashing red after reading the barcode. Wait for a few seconds for the scanner to restart itself.
Update
Abort
11
Update
1664 Barcode Scanner User Guide
S
DEFAULT SETTINGS
SAVE USER SETTINGS AS DEFAULTS
For the scanner to keep the customized settings as user defaults, you must have it read the “Save as User Defaults” barcode. This is a normal setup barcode, and the scanner will respond with two beeps (low-high tone).
After reading the “Update” barcode, the current settings will be saved as user
defaults.
ave as User
Defaults
RESTORE USER DEFAULTS
For the scanner to restore the user defaults, which you have saved earlier, you must have it read the “Restore User Defaults” barcode. This is a normal setup barcode, and the scanner will respond with two beeps (low-high tone).
After reading t he “Update” barcode, all the parameters of the scanner will return to
their customized values.
Restore User
Defaults
RESTORE SYSTEM DEFAULTS
For the scanner to restore the factory defaults, have it read the “Restore System Defaults” barcode. This is a normal setup barcode, and the scann er will respond with two beeps (low-high tone). After reading the “Update” barcode, all the parameters of the scanner will return to their default values. The current connection record will be cleared as well. Refer to 1.18.1 Restore System Defaults defaults during operation.
For 3610 to restore factory defaults, refer to 3610 Setup Barcodes
for the key combination used to restore
& Serial Commands.
Restore System
Defaults
Note: The system default value (if there is) for each setting is indicated by an asterisk
“*”.
12
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
READ A SETUP BARCODE
CONFIGURE PARAMETERS
For most of the scanner parameters, only one read is required to set them to new values. The scanner will respond with two beeps (low-high tone) when each parameter is set successfully. Refer to Create One-Scan Setup Barcodes
But for a number of special parameters, multiple reads are required to complete the setting. In this case, the scanner will respond with a short beep to in dicate it needs to read more setup barcodes. These special parameters may require reading one or more setup barcodes, such as
.
Numeric barcodes, say , f or keyboard type, inter-character delay, length qualification Hexadecimal barcodes, say, for character strings as prefix, suffix, etc. When “Bluetooth
Status will then become applicable. Decide whether to change key status when “Normal Key” is selected for Key Type.
To complete the configuration of these special parameters, it requires reading the “Validate” barcode, and the scanner will respond with two beeps (low-high tone) to indicate the input values are validated.
®
HID” or “USB HID” is configured for interface, Key Type and Key
13
Update
1664 Barcode Scanner User Guide
T
T
T
T
The example below shows how to save your settings as “User Default” so that you may restore user defaults at a later time:
Steps
Action User Feedback if Successful
1 Power on the scanner…
2 Enter the Configuration Mode…
3 Read a Setup barcode…
For example,
4 Exit the Configuration Mode…
he scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly.
he scanner will respond with six beeps (high-low tone repeats three times), and its LED indicator will be flashing red.
he scanner will respond with two beeps (low-high tone) if reading a normal setup barcode.
Same as for Enter the Configuration Mode.
OR 5 The scanner will automatically restart itself… Same as for Power on the scanner. * When any configuration error occurs...
he scanner will respond with one long
beep (low tone).
14
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
T
T
T
T
N
N
The example below shows how to set numeric parameters:
Steps
1 Power on the scanner... The scanner will respond with a long beep
2 Enter the Configuration Mode…
3 Read a Setup barcode...
ormal setup
barcode
ormal setup
barcode
Special setup
barcode
Decimal barcodes
Action User Feedback if Successful
(high tone) and its LED indicator will become solid red and go off quickly.
he scanner will respond with six beeps (high-low tone repeats three times), and its LED indicator will become flashing red.
he scanner will respond with two beeps
For example,
(low-high tone) if reading a normal setup barcode.
he scanner will respond with one short beep if reading a special setup barcode such as “Max. Length”, indicating the setup requires reading more barcodes.
Read the “Decimal Value” barcode(s).
Refer to Appendix IV
4 Exit the Configuration Mode…
System”
he scanner will respond with two beeps (low-high tone) when the input values are validated.
Same as for Enter the Configuration Mode.
Decimal
5 The scanner will automatically restart itself… Same as for Power on the scanner.
OR
15
Update
1664 Barcode Scanner User Guide
T
T
T
The example below shows how to set string parameters:
Steps
1 Power on the scanner...
2 Enter the Configuration Mode…
3 Read a Setup barcode...
Special setup
barcodes
Hexadecimal
barcodes
4 Exit the Configuration Mode…
Action User Feedback if Successful
For example,
he scanner will respond with a long beep (high tone) and its LED indicator will become solid red and go off quickly.
he scanner will respond with six beeps (high-low tone repeats three times), and its LED indicator will become flashing red.
he scanner will respond with one short beep if reading a special setup barcode such as “Prefix Code”, indicating the setup requires reading more barcodes.
When “Bluetooth configured for interface, Key Type and Key Status will then become applicable. You may decide whether or not to change key status when “Normal Key” is selected for Key Type.
®
HID” or “USB HID” is
Refer to Appendix III
Read the “Hexadecimal Value” barcodes for the desired character string. For example, read “2” and “B” for the scanner to prefix the character “+”.
Refer to Appendix IV “Hexadecimal
System”
The scanner will respond with two beeps (low-high tone) when the input values are validated.
Same as for Enter the Configuration Mode.
5 The scanner will automatically restart itself… Same as for Power on the scanner.
OR
16
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
LIST THE CURRENT SETTINGS
The current settings of all scanner parameters can be sent to the host computer for user inspection. The listing includes pages as shown below. You can select the page of interest by having the scanner read the “List Page x” barcode. The scanner will respond with two beeps (low-high tone) and send the selected page to the host immediately.
List settings regarding Firmware Version, Serial Number, Interface, Buzzer, and Other Scanner Parameters
List settings regarding Prefix, Suffix, and Length Code Setting (1/2)
List settings regarding Prefix, Suffix, and Length Code Setting (2/2)
List Page 1
List Page 2
List Page 3
List settings regarding Code ID
List settings regarding: Readable Symbologies (1/2)
List settings regarding: Readable Symbologies (2/2)
List settings regarding Symbology Parameters (1/3)
List settings regarding Symbology Parameters (2/3)
List settings regarding Symbology Parameters (3/3)
List Page 4
List Page 5
List Page 6
List Page 7
List Page 8
List Page 9
Reserved
List Page 10
17
Update
1664 Barcode Scanner User Guide
List settings regarding Editing Format 1 (1/2)
List settings regarding Editing Format 1 (2/2)
List settings regarding Editing Format 2 (1/2)
List settings regarding Editing Format 2 (2/2)
List settings regarding Editing Format 3 (1/2)
List Page 11
List Page 12
List Page 13
List Page 14
List Page 15
List settings regarding Editing Format 3 (2/2)
List settings regarding Editing Format 4 (1/2)
List settings regarding Editing Format 4 (2/2)
List settings regarding Editing Format 5 (1/2)
List settings regarding Editing Format 5 (2/2)
List settings presently
List Page 16
List Page 17
List Page 18
List Page 19
List Page 20
List Page 21
18
Enter Setup
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
CREATE ONE-SCAN SETUP BARCODES
The fact is most of the scanner parameters require only one read for setting new values. To facilitate configuring the scann er, you may create One-Scan setup barcodes for use.
The requirements of a One-Scan setup barcode are:
a prefix of the “#@” characters the six digits of command parameters a suffix of the “#”character
For example, the scanner needs reading three setup barcodes for the command parameter “109952” to take effect:
Enter Setup
List Page 3
Update
Now, it requires only one read:
One-Scan Setup Barcode
for 109952
Note: The scanner will restart automatically upon reading the One-Scan setup barcode
for (1) changing the interface or (2) setting memory mode, enable or disable. It will respond with a long beep and its LED will come on-off shortly.
19
Update
1664 Barcode Scanner User Guide
20
Enter Setup
Chapter 1
UNDERSTANDING THE BARCODE SCANNER
This chapter explains the features and usage of the barcode scanner.
IN THIS CHAPTER
1.1 Battery ..................................................................... 21
1.2 Memory .................................................................... 26
1.3 LED Indicator ............................................................ 29
1.4 Beeper ..................................................................... 31
1.5 Vibrator .................................................................... 34
1.6 Send “NR” to Host ..................................................... 35
1.7 Scan Modes .............................................................. 36
1.8 Scanning Timeout ...................................................... 39
1.9 Delay between Re-read............................................... 40
1.10 Read Redundancy for All Symblogies ........................... 41
1.11 Addon Security for UPC/EAN Barcodes ........................ 42
1.12 Negative Barcodes ................................................... 42
1.13 Using Direct USB Cable ............................................. 43
1.14 Picklist Mode ........................................................... 44
1.15 Pager Beep Duration ................................................. 44
1.16 Time Stamp ............................................................ 45
1.17 2D Decode Setting ................................................... 49
1.18 Hardware Reset ....................................................... 50
1.1 BATTERY
The scanner is battery-powered: Use a rechargeable 3.7 V/850 mAh Li-ion battery. For intensive data collection, please prepare spare battery or batteries for non-stop operation.
Note: (1) The rechargeable battery for 1664 may not be charged to full for shipment. We
suggest charging it to full before use. (2) The scanner can be configured to save battery power. Refer to settings of “Auto
Power Off & Power-Saving”, “Sniff Mode”, as well as “Low Battery Alarm”.
21
Update
1664 Barcode Scanner User Guide
1.1.1 HOW TO OPERATE THE SCANNER
Turn on the scanner…
Press the [Power/Delete] key for about 2 seconds. The scanner will respond with a long beep (high tone), and its LED indicator will become solid red and go off quickly.
Turn off the scanner…
Press the [Power/Delete] key for about 2 seconds. The scanner will respond with two short beeps (high tone) and the LED will finally become solid red. Release the key then. Otherwise, let the scanner turn off automatically in specific circumstances.
Delete the last collected data when in memory mode …
Press the [Power/Delete] key. The scanner will respond with two short beeps (high tone) and the LED will become solid red. Before the LED goes off (within 1 second), press the [Power/Delete] key again to confirm the deletion.
22
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.1.2 AUTO POWER OFF & POWER-SAVING
The scanner will stay active at power-on, which may be followed by a transition from full CPU speed to low CPU speed (Power-Saving) to auto shutdown (Auto Power Off).
Power-Saving (1~254 min.; 0= Disable): By default, it is set to stand by at full-speed
for 2 minutes before it enters low-speed mode. If this feature is not desired, set it to
0.
Auto Power Off (1~254 min.; 0= Disable): By default, it is set to automatically shut
down after 10 minutes. If this feature is not desired, set it to 0.
Note: The Power-Saving setting will still take effect once a connection has been
established successfully, via Bluetooth® HID or SPP.
Before establishing a WPAN connection successfully…
1. The scanner will stay active for a specified period of time (2 minutes by default) for the following scenarios. Its CPU is running at full speed, and the LED is flashing blue (On/Off ratio
0.5 s: 0.5 s). (a) waiting for a connection request from the host (Bluetooth (b) trying to connect to the host (Bluetooth® HID or Bluetooth® SPP Master Mode) (c) trying to connect to 3610
2. If it fails to connect within 2 minutes, the scanner will become inactive to save power for the remaining period of time (the specified value minus 2 minutes). Its CPU is running at low speed, and the LED is flashing red (On/Off ratio 0.3 s: 2.5 s).
Press the [Trigger] key to wake up the scanner when it becomes inactive, and the scanner will stay active again.
3. If i t fails to connect again and again, and finally stays inactive until the specifi ed time interval for Auto Power Off has elapsed, the scanner will automatically turn off in order to conserve battery power.
Hold down the [Power/Delete] key for about 2 seconds to turn it on.
®
SPP Slave Mode)
Note: For scenarios (a) and (b) in step 1, on your computer you may need to search for
the scanner again.
23
Update
1664 Barcode Scanner User Guide
After establishing a WPAN connection successfully…
1. Once a WPAN connection is established successfully, the scanner will stay acti ve for a specified period of time (2 minutes by default) for data transmission. Its CPU is running at full speed, and the LED is flashing blue (On/Off ratio 0.02 s: 3 s).
2. If it is idle within 2 minutes, the scanner will become inactive to save power for the remaining period of time (the specified value minus 2 minutes). Its CPU is running at low speed, and the LED is flashing red (On/Off ratio 0.3 s: 2.5 s).
Press the [Trigger] key to wake up the scanner when it becomes inactive, and the scanner will stay active again.
3. If it is idle and finally stays inacti ve until the specified time interval for Auto Power Off has elapsed, the scanner will automatically turn off in order to conserve battery power. The three short beeps will ring out, tone descending from high to low.
Hold down the [Power/Delete] key for about 2 seconds to turn it on.
For Bluetooth
again, as long as the host application is running. The three short beeps will ring out, tone ascending from low to high. If the scanner fails to resume connection, it will try every 5 seconds to re-connect to the host unless the scanner read the “Reset Connection” barcode.
For BluetoothFor Bluetooth
powering on again, as long as the host application is running. The three short beeps will ring out, tone ascending from low to high. If the scanner fails to resume connection, it will try every 5 seconds to re-connect to the host unless the scanner read the “Reset Connection” or “Restore System Defaults” barcode.
®
HID, the scanner will resume connection with the host upon powering on
®
SPP Slave Mode, the scanner must wait for the host to re-connect.
®
SPP Master Mode, the scanner will resume connection with the host upon
With the use of 3610, the scanner will try re-connecting to 3610 unless to turn off the
scanner.
24
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
S
Auto Off after
0~254 min. (*10)
1) Read the barcode above to specify the time interval before the scanner automatically
turns off.
2) Read the “Decimal Value
” barcode on page 251. For example, read “1” and “5” for the
scanner to automatically turn off after being idle for 15 minutes.
3) Read the “Validate” barcode on the same page to complete this setting.
Note: Auto Power Off will not take effect when the scanner is in the configuration mode.
Power-
aving after
0~254 min. (*2)
1) Read the barcode above to specify the time interval before the scanner enters
low-speed mode.
2) Read the “Decimal Value
” barcode on page 251. For example, read “5” for the
scanner to enter low-speed mode after being idle for 5 minutes.
3) Read the “Validate” barcode on the same page to complete this setting.
Note: Power-Saving will not t a ke effect when one of the following condit ions is met:
(1) The scanner is in the configuration mode. (2) The Power-Saving value is set to 0. (3) The setting value of Power-Saving is greater than that of Auto Power Off.
25
Update
1664 Barcode Scanner User Guide
1.2 MEMORY
The collected data can be sent back to a host computer one by one via the WPAN connection or stored in flash memory when the scanner is set to Memory mode.
1.2.1 TRANSMIT BUFFER
By default, transmit buffer is enabled and for use when the scanner is out of range. Upon reading a barcode successfully within range, the scanner responds with one short beep (high tone) and its LED indicator becomes solid green and goes off quickly. How ever, the host computer may not receive the data immediately if getting out of range. With the 10 KB transmit buffer, the scanner can ignore the transmission status and keep on reading barcodes until the buffer is full.
When transmit buffer is enabled…
If the scanner is out of range, it will respond with two short beeps, high-low tone, upon reading a barcode successfully.
When transmit buffer is full, the scanner will respond with one long beep (low tone) and its LED indicator will become solid red and go off quickly. You are advised to get back to range.
When transmit buffer is disabled…
If the scanner is out of range, it will respond with one long beep (low tone) and its LED indicator will become solid red and go off quickly. You are advised to get back to range.
*Enable
Disable
Note: The 10 KB transmit buffer on the scanner can hold as many as 640 scans based on
EAN-13 barcodes. Data will be cleared out once the scanner is turned off or running out of battery power!
26
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.2.2 MEMORY MODE
When the scanner is in memory mode, it means any real-time connection established with the host is disabled. 1664 scanner keeps 4MB flash memory for memory mode operation, which can store over 240,000 scans based on EAN-13 barcodes.
Enable
*Disable
Warning: No real-time connection is allowed unless the memory mode is disabled.
Memory Data Delay
You may set a delay between each data record while transmitting data back to the host.
*None
250 ms
500 ms
1 sec
2 sec
3 sec
5 sec
27
Update
1664 Barcode Scanner User Guide
a
8 sec
Send Data
When the memory is used up, the scanner will respond with two short beeps (high-low tone) as a warning. It is advised to send data to the host immediately by having the scanner read the “Send Data” barcode below.
1664 can send data via “Direct USB” interface once the computer has found the USB connection. Refer to 1.13 Using Direct USB Cable the cable before having the scanner read the “Send Data” barcode. Otherwise, the scanner will try to temporarily resume the previous WPAN connection with the host, if there is any.
During data transmission upon memory mode, if the data is transmitted fail, the scanner will flash red (On/Off ratio 0.2 s: 0.2 s) after responding two short beeps (high-low tone) and go back to previous working mode. Press trigger or power key to stop flashing.
. Because the time-out value is set to 0 by default, connect
Send Data
Send Data Time-out
if a time-out value other than zero is given, it will first try to send data via “Direct USB” interface within the specified period of time. Connect the cable before it times out. When the attempt fails, it will try to temporarily resume the previous WPAN connection with the host, if there is any.
If 1664 has never been connected to the host cordless, it will not be able to send data until to connect the Direct USB cable!
Send Data Time-Out
fter 0~15 sec.
(*0)
Clear Data & Confirm
Even though data has been sent back to the host, the flash memory is still occupied unless you erase the memory by having the scanner read two barcodes – “Clear Data” and “Confirm”.
1. Read the “Clear Data” barcode to clear the flash memory.
2. Read the “Confirm” barcode to confirm the action.
Clear Data
Confirm
28
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.3 LED INDICATOR
The triple-color LED on top of the scanner is used to provide user feedback. For example, the LED becomes solid red and goes off quickly upon powering on or running out of transmit buffer. You may tell the diff erence by the beeps – you will hear a long beep of high tone when powering on the scanner, and a long beep of low tone when the transmit buffer becomes full.
Scanner LED
Red, on-off
--- ---
Meaning
Power on, with one long beep (high tone, LED on for 1 Data saved to buffer when transmi t buffer is enabled and the Transmit buffer full, with one long beep (low tone)
Transmit buffer disabled, with one long beep (low tone) Delete the last collected data in memory mode, with two
Memory full in memory mode, with two short beeps (high-low
Red, flashing
--- ---
Flashing red (On/Off ratio 0.3 s: 2.5 s) indicates the scanne r
Configuration Mode (On/Off ratio 0.5 s: 0.5 s)
--- --- Green,
on-off
--- Blue,
flashing
--- First, flashing blue (On/Off ratio 0.5 s: 0.5 s) for two minutes
Good Read, with one short beep (high tone) and beeper pitch and duration programmable
indicates the scanner is waiting for connection, and goes off if no connection is established, then flashing red (On/Off ratio 0.3 s:
2.5 s) indicates the scanner is inactive. It is ready for connection only while the LED is flashing blue —
SPP Slave: waiting host to connect HID or SPP Master: trying to connect to host Using 3610: trying to connect to 3610
--- Blue,
flashing
--- Flashing blue (On/Off ratio 0.1 s: 0.1 s) indicates the scanner receives a PIN code request from host (flashing more quickly than waiting connection).
second)
scanner is out of range, with two short beeps (high-low tone)
short beeps (high tone, LED on for 1 second)
tone)
is inactive and its CPU running at low speed to save power (because no WPAN connection is established after waiting for two minutes)
--- Blue, flashing
--- Blue, flashing
Red, flashing
--- --- Flashing red (On/Off ratio 0.2 s: 0.2 s) indicates the scanner has
--- Flashing blue (On/Off ratio 0.02 s: 3 s) indicates the scanner has established a WPAN connection successfully.
Green, flashing
Flashing blue and green (On/Off ratio 0.1 s: 0.1 s) indicates an error occurs while entering the PIN code. Press the [Trigger] key to get ready for re-connecting.
transmit fail upon memory mode. Press any key to stop flashing.
29
Update
1664 Barcode Scanner User Guide
*
D
0
1.3.1 GOOD READ LED
Enable
Good Read LED
isable
Good Read LED
1.3.2 GOOD READ LED DURATION
By default, the Good Read LED stays on for 40 milliseconds. Specify a value, ranging from 1 to 254 in units of 10 milliseconds.
Good Read LED
Time-out after
.01~2.54 sec.
(*40 ms)
1) Read the barcode above to specify the time interval before the Good Read LED goes off.
2) Read the “Decimal Value
” barcode on page 251. For example, read “1” and “5” for the
LED to go off after 150 milliseconds.
3) Read the “Validate” barcode on the same page to complete this setting.
30
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.4 BEEPER
The scanner has a buzzer to provide user feedback in various operating conditions.
Beeping
One long beep, high tone Power on, with red LED on (1 second) and off quickly One long beep, low tone
Meaning
Transmit buffer full, with red LED on-off quickly Transmit buffer disabled, with red LED on-off quickly Configuration error (Wrong barcode…) PIN code input error Reject random PIN requ est Fail to send data in memory mode
One short beep, high tone
Good Read, with green LED on-off quickly
Programmable, default to 4 KHz
One short beep, high tone
More setup barcode required Input PIN code Clear PIN code
One short beep, low tone More barcodes required to complete the “output sequence”
requirements of Multi-Barcode Editor, with green LED on-off quickly (Upon completion, same as Good Read.)
Six short beeps
High-low tone repeats three
times
Two short beeps, low-high tone Setup barcode read successfully
Enter Configuration Mode, with red LED flashing Exit Configuration Mode
Two short beeps, high tone
Low Battery Alarm Power off, with red LED on (until the key is released) Delete the last collected data in memory mode, with red
LED on (1 second) and off quickly
Wake up the scanner depends on the paging setting
value until pressing the power key or reaching the sleeping time out.
Two short beeps, high-low tone
Data saved to buffer when transmit buffer is enabled
and the scanner is out of range, with red LED on-off quickly
Memory Mode – Memory full, with red LED on-off quicklyMemory Mode – Transmitting fail, with red LED flashing
Two long beeps, high-low tone Multi-Barcode Mode – Buffer full Three short beeps, tone ascending
from high to low Three short beeps, tone ascending
from low to high
31
WPAN connection out of range or suspended
WPAN connection establi shed, with blue LED flashing WPAN connection resumed, with blue LED flashing
Update
1664 Barcode Scanner User Guide
1.4.1 BEEPER VOLUME
Mute
Minimum Volume
Medium Volume
*Maximum Volume
32
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.4.2 GOOD READ BEEP
Frequency
8 kHz
*4 kHz
2 kHz
1 kHz
Duration
*Shortest
Shorter
Longer
Longest
33
Update
1664 Barcode Scanner User Guide
E
*
0
1.4.3 LOW BATTERY ALARM
By default, it will activate the beeper to give a warning when the battery charge gets low. In order to prevent data loss, it is advised to replace the battery immediately when hearing two short beeps (high tone).
Disable
*Enable
1.5 VIBRATOR
1.5.1 GOOD READ VIBRATOR
nable
Good Read Vibrator
Disable
Good Read Vibrator
1.5.2 GOOD READ VIBRATOR DURATION
By default, the Good Read Vibration stays on for 1 second. Specify a value, ranging from 1 to 254 in units of 100 milliseconds.
Good Read Vibrator
Time-out after
.1~25.4 sec.
(*1 s)
1) Read the barcode above to specify the time interval before the Good Read Vibrator goes off.
2) Read the “Decimal Value
” barcode on page 251. For example, read “1” and “5” for the
vibrator to vibrate after 1.5 seconds good read.
3) Read the “Validate” barcode on the same page to complete this setting.
34
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.6 SEND “NR” TO HOST
The scanner can send the “NR” string to the host to notify the No Read event.
Enable
*Disable
35
Update
1664 Barcode Scanner User Guide
1.7 SCAN MODES
Different scan modes are supported – select the scan mode that best suits the requirements of a specific application. Refer to the comparison table below.
Scan Mode
Always Press
Laser mode
Auto Off mode
Auto Power Off mode
Aiming mode
Multi-Barcode mode
Start to Scan Stop Scanning
trigger once
Hold trigger
Press trigger twice
Release trigger
Note: By default, the scan mode is set to Laser mode.
1.7.1 LASER MODE
Press trigger once
Barcode being read
Timeout
The scanner will start scanning once the trigger is held down.
The scanning won't stop until (1) a barcode is decoded, (2) the pre-set timeout
expires, or (3) you release the trigger.
Note: Refer to “Scanning Timeout”.
*Laser Mode
36
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.7.2 AUTO OFF MODE
The scanner will start scanning once the trigger is pressed.
The scanning won't stop until (1) a barcode is decoded, and (2) the pre-set timeout
expires.
Note: Refer to “Scanning Timeout”.
Auto Off Mode
1.7.3 AUTO POWER OFF MODE
The scanner will start scanning once the trigger is pressed.
The scanning won't stop until the pre-set timeout expires, and, the pre-set timeout
period re-counts after each successful decoding.
Note: Refer to “Delay between Re-read” and “Scanning Timeout”.
Auto Power Off Mode
37
Update
1664 Barcode Scanner User Guide
a
1.7.4 AIMING MODE
The scanner will aim at a barcode once the trigger is pressed, and start scanning when the trigger is pressed again within one second.
The scanning won't stop until (1) a barcode is decoded, and (2) the pre-set timeout
expires.
Aiming Mode
Aiming Timeout
You can limit the aiming time interval (1~15). By default, the scanner time-out is set to 1 second.
Aiming Time-out
fter 1~15 sec.
(*1)
1. Read the barcode above to specify the time interval before aiming ends. (It is set to 1 by
default.)
2. Read the “Decimal Value
to automatically shut down after being idle for 10 seconds.
3. Read the “Validate” barcode on the same page to complete this setting.
” barcode on page 251. For example, read “1” and “0” for the scan ner
1.7.5 MULTI-BARCODE MODE
The scanner will be scanning as long as the trigger is held down, capable of decoding on e single barcode, as well as multiple unique barcodes one at a time. While decoding a bunch of unique barcodes, if a barcode is decoded twice, its subsequent decoding will be ignored and the scanner is expecting another unique barcode.
The scanning won't stop until you release the trigger.
Multi-Barcode Mode
Note: (1) A barcode is considered unique when its Code Type or data is different from
others. (2) Multi-Barcode Mode has nothing to do with the Multi-Barcode Editor
.
38
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
a
1.8 SCANNING TIMEOUT
Specify the scanning time interval (1~254 sec.; 0= Disable) when the scan mode is set to any of the following –
Laser mode Auto Off mode Auto Power Off mode Aiming mode
Scanner Time-out
fter 0~254 sec.
(*10)
1) Read the barcode above to specify the time interval before the scan engine times out.
2) Read the “Decimal Value
” barcode on page 251. For example, read “1” and “5” for the
scanner to shut down automatically after being idle for 15 seconds.
3) Read the “Validate” barcode on the same page to complete this setting.
39
Update
1664 Barcode Scanner User Guide
1.9 DELAY BETWEEN RE-READ
This is also referred to as the “Blocking Time”, which is u sed to prevent the scann er from accidentally reading the same barcode twice when the scan mode is set to any of the following –
Auto Power Off mode
100 ms
200 ms
*400 ms
800 ms
1 sec
2 sec
3 sec
5 sec
40
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.10 READ REDUNDANCY FOR ALL SYMBLOGIES
Select the level of reading security. For example,
If "No Redundan cy" is selected, one successful decoding will make the reading valid
and induce the "READER Event".
If "Three Times" is selected, it will take a total of four consecutive successful
decoding of the same barcode to make the reading valid. The higher the reading security is (that is, the more redundancy the user selects), the slower the reading speed gets.
It is obvious that the more redundancy selected, the higher the reading security is, and thus, the slower the reading speed becomes. It has to compromise between reading security and decoding speed.
*No Redundancy
One Time
Two Times
Three Times
41
Update
1664 Barcode Scanner User Guide
1.11 ADDON SECURITY FOR UPC/EAN BARCODES
The scanner is capable of decoding a mix of UPC/EAN barcodes with and without addons. The read redundancy (0~30 times) allows changing the number of times to decode a UPC/EAN barcode before transmission. The more redundancy selected, the higher the reading security is, and thus, the slower the reading speed becomes. It has to compromise between reading security and decoding speed.
Note: UPC/EAN Addon 2 and Addon 5 must be enabled individually for this setting to
take effect.
Addon Security Level
(*0~30)
1) Read the barcode above to specify the read redundancy for UPC/EAN barcodes. (It is set to 0 by default.)
2) Read the “Decimal Value
” barcode on page 251. For example, read “1” and “2” for the
scanner to re-read the barcode for 12 times.
3) Read the “Validate” barcode on the same page to complete this setting.
1.12 NEGATIVE BARCODES
Normally, barcodes are printed with the color of the bars darker than that of the spaces. But for negative barcodes, they are printed in the opposite sense just like negative films. The spaces of negative barcodes are printed with a color darker than that of the bars. Configure the scanner to be able to read negative barcodes.
Enable
*Disable
42
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.13 USING DIRECT USB CABLE
1664 supports Direct USB interface for charging the battery and/or sending data to the host in memory mode. Refer to 1.2.2 Memory Mode
Note: The scanner is not allowed to function when it is solely on USB power and without
a battery loaded.
.
1.13.1 DIRECT USB INTERFACE
When it is set to Memory Mode and connected to computer via the Direct USB cable, the default output interface becomes “Direct USB Virtual COM”. Change it to “Direct USB HID”.
For details on configuring the interface settings, ref er to the following sections:
2.6 Direct USB HID 2.7 Direct USB Virtual COM
*Activate Direct
USB Virtual COM
Activate Direct
USB HID
1.13.2 DISABLE DIRECT USB INTERFACE
When connecting the Direct USB cable, have the scanner to read the “Disable Direct USB” barcode in advance to avoid sending data to the host in memory mode via the cable. It will then allow charging the battery only .
Disable Direct USB
43
Update
1664 Barcode Scanner User Guide
0
1.14 PICKLIST MODE
Picklist mode enables the decoder to decode only the barcodes aligned under the center of the laser aiming pattern.
Enable
*Disable
1.15 PAGER BEEP DURATION
Paging function is only activated when 1664 is in Power-Saving mode. 1664 can be waked up via receiving any Bluetooth signal or press any specific key upon Bluetooth connection. The buzzer will make two short beeps with high tone when the pager beep duration setting time is up for each time, then stop to beep until next Power-Saving time out is reached or power key is pressed.
By default, the pager beep duration is 5 seconds. Specify a value, ranging from 0 to 15. (0~15 sec.; 0= Disable)
Bluetooth HID profile: Press any key among “Scroll Lock”, “Number Lock” or “Caps
Lock” on the host computer to trigger the waking up of 1664.
Bluetooth SPP Profile: Any signal sent from serial port will trigger the waking up of
1664.
Pager Beep Duration
~15 sec.
(*5 s)
1) Read the barcode above to specify the activated reminding time interval.
2) Read the “Decimal Value
pager beep function to be activated each 15 seconds after entering Power-Saving mode.
3) Read the “Validate” barcode on the same page to complete this setting.
” barcode on page 251. For example, read “1” and “5” for the
44
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.16 TIME STAMP
Specify time stamp format added to the prefix or suffix of a data. Up to three settings can be configured:
No Time Stamp Add Time Stamp in front of data Add Time Stamp to the end of data
If added in front of data, it means front of prefix field. Alternatively, to the end of data means added it after additional field.
No Time Stamp
*Disable
Add Time Stamp
in front of Data
Add Time Stamp
to the end of Data
1.16.1 DATE AND TIME SETTINGS
Read the barcode below to disable/enable Date and Time function.
Year Output
*Enable
Year Output
Disable
Month Output
*Enable
Month Output
Disable
45
Update
1664 Barcode Scanner User Guide
Date Output
*Enable
Date Output
Disable
Hour Output
*Enable
Hour Output
Diable
Minute Output
*Enable
Minute Output
Disalbe
Second Output
*Enable
Second Output
Diable
46
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Decoding Data and Time
Year Setup
Date Setup
Time Setup
1) Read the barcode above to apply time or date code separately, and follow steps 2~3.
2) Read the “Decimal Value
” barcode on page 251 for the desired character string. For
example: Year: Read “2”, “0”, “1”, “1” for the year setting as year=2011. Date: Read “1”, “1”, ”2”, “0” for the date setting as date=Nov.20. Time: Read “1”, “8”, “5”, “9” for the time setting as time=18:59.
3) Read the “Validate” barcode for each setting on the same page.
1.16.2 SEPARATOR FOR DATE AND TIME
The Date and Time can be split with a pre-selected separator, for example, “/” as YYYY/MM/DD or “:” as HH:MM:SS
Separator for
Date/Time
*“-”
Separator for
Month/Date
*“/”
Separator for
Hour/Minute
*“:”
1) Read the barcode above to apply separator to date or time separately, and follow steps 2~3.
2) Read the “
Hexadecimal Value” barcode on page 252 for the desired character string.
For example, read “3” and “A” for the separator to split the data with character [:].
3) Read the “Validate” barcode on the same page to complete this setting.
47
Update
1664 Barcode Scanner User Guide
1.16.3 DATE FORMAT
The date format includes year, month and day. There are three kinds of combinations can be configured to specify Year, Month and Day:
Year/Month/Day (YYYY/MM/DD) or (YY/MM/DD) Month/Day/Year (MM/DD/YYYY) or (MM/DD/YY) Day/Month/Year (DD/MM/YYYY) or (DD/MM/YY)
*Year/Month/Day
Month/Day/Year
Day/Month/Year
About Year Format:
Year format can be pre-selected as 2-digit or 4-digit. For example, if year format is YYYY, the output year is 2011 for 4-digit, alternatively is 11 for 2-digit.
*Year for 4-digit
Year for 2-digit
48
Enter Setup
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.17 2D DECODE SETTING
1.17.1 AIMING PATTERN
Decide whether to allow the decoder to project the aiming pattern during a barcode capture.
*Enable
Disable
1.17.2 DECODING ILLUMINATION
Decide whether to cause the decoder to flash illumination on every image capture to aid decoding.
Enabling illumination usually results in superior images. The effectiveness of the
illumination decreases as the distance to the target increases.
*Enable
Disable
49
Update
1664 Barcode Scanner User Guide
1.18 HARDWARE RESET
1.18.1 RESTORE SYSTEM DEFAULTS
Instead of having the scanner read “Restore System Defaults” barcode, use key combination, as described below, to restore system defaults during operation.
1) Hold down the [Power/Delete] key.
2) When the scanner responds with two short beeps (high tone), press the [Trigger] key
for about 5 seconds. The scanner LED indicator becomes solid red for a while and then goes off.
3) When the scanner responds with a long beep (high tone), release the keys. Its LED indicator becomes solid red and goes off quickly.
Note: The scanner will restart itself automatically.
1.18.2 RESET CONNECTION
When the output interface is Bluetooth® HID or Bluetooth® SPP Master, the scanner will attempt to maintain an established connection. T o stop such re-connection, it may need to have the scanner read “Reset Connection” or “Restore System Defaults” barcode to clear the current connection record. Alternatively, use key combination as described below to reset connection during operation.
1) Hold down the [Trigger] key, and then press the [Power/Delete] key for at least 5 seconds.
2) The scanner will respond with two short beeps (high t one). Wait for a while until the scanner responds with a long beep (high tone), release the keys.
Note: After reset connection by hardware, the scanner will not restart itself au tomat ically.
It will resume to its previous operation except no connection.
50
Enter Setup
Chapter 2
SELECTING OUTPUT INTERFACE
In order to establish a proper connection between host computer and the scanner, we suggest following these instructions –
1) Install batteries and hold down the [Power/Delete] key for about 2 seconds to turn on the scanner.
2) Have the scanner read the “Enter Setup” barcode to enter the configuration mode.
3) Have the scanner read the associated barcodes to activate the desired interface.
See the following sections for output interfaces supported.
4) Have the scanner read the barcodes for related settings.
5) Have the scanner read the “Update” barcode to exit the configuration mode.
6) Turn on host computer or laptop and establish a WPAN connection with the scanner.
Refer to Chapter 3 – Setting up a WPAN Connection
Note: (1) By default, the output interface is set to “Bluetooth
(2) When set to Memory Mode and connected to computer via the Direct USB cable, the default output interface becomes “Direct USB Virtual COM”.
.
®
HID”.
IN THIS CHAPTER
2.1 Bluetooth® HID ......................................................... 52
2.2 Bluetooth
2.3 Bluetooth
2.4 USB HID via 3610 ...................................................... 70
2.5 USB Virtual COM via 3610 ........................................... 81
2.6 Direct USB HID .......................................................... 83
2.7 Direct USB Virtual COM ............................................... 94
®
SPP Slave ................................................. 64
®
SPP Master ............................................... 66
51
Update
1664 Barcode Scanner User Guide
2.1 BLUETOOTH® HID
For Bluetooth® HID, refer to Chapter 3 – Setting up a WPAN Connection for related connection settings. Run any text editor on your computer, and th e scanned data will be transmitted to the computer.
HID Settings
Keyboard Type PCAT (US) Alphabets Layout Normal Digits Layout Normal Capital Lock Type Normal Capital Lock State Off Alphabets Transmission Case-sensitive Digits Transmission Alphanumeric keypad Kanji Transmission Disable Inter-Character Delay 0 (ms) Inter-Function Delay 0 (ms)
Defaults
52
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.1.1 ACTIVATE BLUETOOTH® HID & SELECT KEYBOARD TYPE
When Bluetooth® HID interface is activated, you will have to select a keyboard type to complete this setting. By default, Bluetooth
®
HID is activated on the scanner, and the
keyboard type is set to PCAT (US).
Activate Bluetooth
HID & Select Keyboard
Type…
®
1) Read the barcode above to activate Bluetooth® HID and select a keyboard type.
2) Read the “Decimal Value
” barcode on page 251. Refer to the table below for the
number of desired keyboard type.
3) Read the “Validate” barcode on the same page to complete this setting.
®
Bluetooth
HID
By default, the keyboard type is set to PCAT (US). The following keyboard types are supported —
No. Keyboard Type No. Keyboard Type
64 PCAT (US) 71 PCAT (Belgium) 65 PCAT (French) 72 PCAT (Spanish) 66 PCAT (German) 73 PCAT (Portuguese) 67 PCAT (Italy) 74 PS55 A01-2 (Japanese) 68 PCAT (Swedish) 75 User-defined table 69 PCAT (Norwegian) 76 PCAT (Turkish) 70 PCAT (UK) 77 PCAT (Hungarian)
53
Update
1664 Barcode Scanner User Guide
2.1.2 RESET CONNECTION
For Bluetooth® HID, you can only have the scanner connected to one computer at a time. If you want to connect the scanner to another host, you must have it read the “Reset Connection” barcode so that the current connection record will be cleared. Then, the scanner will restart itself automatically. Go through the whole process in 3.2.3 Connect to
Dongle to establish a new connection.
Refer to 1.18 Hardware Reset
.
Reset Connection
Note: The “Restore System Defaults” barcode will have the current connection record
cleared as well.
54
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.1.3 KEYBOARD SETTINGS
Alphabets Layout Digits Layout Capital Lock Type Capital Lock Setting Alphabets Transmission Digits Transmission Kanji Transmission
®
Note: Bluetooth
Setting: Auto Detection (2) Digits Transmission: Numeric Key
Alphabets Layout
By default, the alphabets layout is set to normal mode, also known as the standard English layout. Select French or German keyboard layout if necessary. The scanner will make adjustments when sending the "A", "Q", "W", "Z", "Y", and "M" characters according to this setting.
HID does not support these functions on PDAs – (1) Capital Lock
*Normal
AZERTY
QWERTZ
Note: This setting only works when th e keyboard type selected is US keyboard, such as
PCAT (US). The Alphabets Layout and Digits Layout setting must match your keyboard.
55
Update
1664 Barcode Scanner User Guide
US Keyboard Style – Normal
QWERTY layout, which is normally used in western countries.
Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.
French Keyboard Style – AZERTY
French layout; see below for French Keyboard Style.
Select “Upper Row” for the “Digits Layout” setting for the lower row is for special characters.
German Keyboard Layout – QWERTZ
German layout; see below for German Keyboard Style.
Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.
56
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Digits Layout
Select a proper layout that matches the alphabets layout. The scanner will make adjustments according to this setting.
Options Description
Normal Depends on the [Shift] key or [Shift Lock] setting Lower Row For QWERTY or QWERTZ keyboard Upper Row For AZERTY keyboard
*Normal
Upper Row
Lower Row
Note: This setting is to be used with the Character Substitution setting when support to
certain keyboard types (languages) is unavailable but required.
57
Update
1664 Barcode Scanner User Guide
T
Capital Lock Type & Setting
In order to send the alphabets with correct case, the scanner needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.
Cap Lock Type Description
Normal Normal type Capital Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. However, this does not affect the number or punctuation keys.
Shift Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. In addition, this affects the number or punctuation keys.
*Normal
Shift Lock
Capital Lock
Capital Lock State Description
Capital Lock OFF Assuming that the status of Caps Lock on the keyboard is OFF,
transmitted characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
Capital Lock ON Assuming that the status of Caps Lock on the keyboard is ON, transmitted
characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
Refer to the Capital Lock Type above.
Auto Detection
he scanner will automatically detect the status of Caps Lock on the keyboard before data is transmitted; transmitted characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
This setting is not supported on PDAs.
Auto Detect
Capital Lock ON
58
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
*Capital Lock OFF
59
Update
1664 Barcode Scanner User Guide
R
Alphabets Transmission
By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of Caps Lock on the keyboard only.
Ignore Case
*Case-sensitive
efer to 5.1 Letter Case.
60
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Digits Transmission
By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you wish to use the keys on the numeric keypad.
Numeric Key
*Alphanumeric Key
Note: If you select “Numeric Keypad”, the Num Lock status of the physical keyboard
should be “ON”. This setting is not supported on PDAs.
Kanji Transmission
Kanji Transmission is supported by the scanner when either Bluetooth® HID or USB HID is selected for the output interface. By Kanji Transmission, when the host computer is running on Japanese Windows O.S., the scanner is able to transmit Japanese characters including the Chinese characters used in modern Japanese writing system.
Kanji Transmission is disabled by default. Enable/disable scanner’s Kanji Transmission by reading the following barcodes:
Enable
*Disable
61
Update
1664 Barcode Scanner User Guide
2.1.4 INTER-CHARACTER DELAY
By default, the inter-character delay is set to zero. Specify a value, ranging from 0 to 254 in units of millisecond, to match the computer response time of the keyboard interface. Such delay time is inserted between every character being transmitted. The longer the delay time is, the slower the transmission speed will be.
Inter-Character Delay… (*0~254)
1) Read the barcode above to specify the inter-character delay.
2) Read the “Decimal Value
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
” barcode on page 251 for the desired inter-character delay
2.1.5 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, rangin g from 0 to 254 in units of millisecond, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower th e transmission speed will be.
Inter-Function
Delay… (*0~254)
1) Read the barcode above to specify the inter-function delay.
2) Read the “Decimal Value
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
” barcode on page 251 for the desired inter-function delay
62
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.1.6 HID CHARACTER TRANSMIT MODE
By default, HID interface sends data to the host in batch. You may have the scanner read the “By Character” barcode to process data one character at a time.
*Batch Processing
By Character
Note: “By Character” transmit mode is required wh en working with iPhone or iPad.
2.1.7 KEYPAD SUPPORT FOR IPHONE/IPAD
When the scanner has been successfully connected to iPhone or iPad for data collection, the onscreen keypad of iPhone or iPad will disappear. Have the scanner read the “Use POWER Key to Show or Hide Keypad” barcode in advance. Then, it will allow pressing the [Power/Delete] key to show or hide the onscreen keypad.
*Normal
Use POWER Key to
Show or Hide Keypad
Instead of using the [Power/Delete] key, also may have the scanner read the following barcode to show or hide the keypad.
Show or Hide Keypad
Note: This function only works for
(1) iPhone 4 and 3GS version 4.1 or later, and (2) iPad version 4.2 or later.
63
Update
1664 Barcode Scanner User Guide
2.2 BLUETOOTH® SPP SLAVE
For Bluetooth® SPP Slave, refer to Chapter 3 – Setting up a WPAN Connection for related connection settings.
2.2.1 ACTIVATE BLUETOOTH® SPP SLAVE MODE
This is SPP Slave Mode.
Activate Bluetooth
SPP, Slave Mode
®
2.2.2 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, rangin g from 0 to 254 in units of millisecond, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower th e transmission speed will be.
Inter-Function
Delay… (*0~254)
1) Read the barcode above to specify the inter-function delay.
2) Read the “Decimal Value
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
” barcode on page 251 for the desired inter-function delay
64
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.2.3 ACK/NAK TIMEOUT
By default, the scanner sends data to the host without waiting for an ACK/NAK response before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 secon d. If no response within the specified period of time, the scanner will attempt to send the same data two more times. If all three attempts fail without any notification, data loss will occur.
ACK/NAK Time-out
after … (*0~99)
1) Read the barcode above to specify the time interval for the scanner to send data and wait for a response from the host.
2) Read the “Decimal Value
” barcode on page 251. For example, read “1” and “0” for the
scanner to automatically shut down after being idle for 1 second.
3) Read the “Validate” barcode on the same page to complete this setting.
ACK/NAK Error Beep
Enable Error Beep
*Disable Error Beep
Note: We suggest enabling the error beep so that you will be notified of such data loss
and have the scanner re-read data.
65
Update
1664 Barcode Scanner User Guide
P
2.3 BLUETOOTH® SPP MASTER
As a SPP master device, the scanner will be able to resume connection with the host upon powering on again, as long as the host application is running. If the scanner fails to resume connection, it will try every 5 seconds to re-connect to the host unless you have the scanner read the “Reset Connection” or “Restore System Defaults” barcode.
®
For Bluetooth
SPP Master, refer 3.2.2 Configure Related Settings for related connection
settings.
Note: In SPP Master M ode, scanner has to connect within the specified period of time (2
minutes by default). During the connection, the scanner will into idle mode for saving power. It will automatically turn off when the time is up. Refer to 1.1.2
Auto Power Off & Power-Saving.
2.3.1 ACTIVATE BLUETOOTH® SPP MASTER MODE
This is SPP Master Mode.
Activate Bluetooth
SPP, Master Mode
®
How to connect with the target device?
Produce two setup barcodes for the target SPP slave device, just like what we do for 3610.
“Set Connection” “MAC ID”
Note: The “MAC ID” barcode must have a prefix of two characters, either “0x” or “0X”,
followed by the real MAC address of the target device.
Usage:
1. Read the “Ac tivate Bluetooth
settings, such as authentication and preset PIN. Skip this step if no connection settings are desired.
2. Read the “Set Connection” and “MAC ID” barcodes. The scanner will respond with one beep
upon reading each of the barcodes.
®
SPP, Master Mode” barcode above and barcodes for connection
Set Connection
refix “0X” to target MAC address
66
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Note: Read the “Set Connection” barcode first, and then the “MAC ID” barcode within 10
seconds.
Instead of producing the “MAC ID” barcode, you may have the scanner read the setup barcodes for entering the MAC address.
Have the scanner read th e “Abort” barcode to cancel the operation at any time while reading
setup barcodes for the MAC address. If the MAC address has not be en completed yet, having the scanner read the “Validate” barcode can cancel the operation as well.
Enter MAC ID in
Hexadecimal…
Usage:
1. Read the barcode above.
2. Read the “Hexadecimal Value” barcode on page 252 for the desired MAC address.
3. Read the “Validate” barcode on the same page to complete this setting.
Exit SPP Master Mode
To stop such re-connection, have the scanner read “Reset Connection” or “Restore System Defaults” barcode so that the current connection record (= MAC ID) will be cleared. Then, the scanner will restart itself automatically. Go through the whole process in 3.2.3 Connect to Dongle to establish a new WPAN connection.
Reset Connection
67
Update
1664 Barcode Scanner User Guide
2.3.2 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, rangin g from 0 to 254 in units of millisecond, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower th e transmission speed will be.
Inter-Function
Delay… (*0~254)
1) Read the barcode above to specify the inter-function delay.
2) Read the “Decimal Value
” barcode on page 251 for the desired inter-function delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
68
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.3.3 ACK/NAK TIMEOUT
By default, the scanner sends data to the host without waiting for an ACK/NAK response before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 secon d. If no response within the specified period of time, the scanner will attempt to send the same data two more times. If all three attempts fail without any notification, data loss will occur.
ACK/NAK Time-out
after … (*0~99)
1) Read the barcode above to specify the time interval for the scanner to send data and wait for a response from the host.
2) Read the “Decimal Value
” barcode on page 251. For example, read “1” and “0” for the
scanner to automatically shut down after being idle for 1 second.
3) Read the “Validate” barcode on the same page to complete this setting.
ACK/NAK Error Beep
Enable Error Beep
*Disable Error Beep
Note: We suggest enabling the error beep so that you will be notified of such data loss
and have the scanner re-read data.
2.3.4 SWITCH BETWEEN MASTER/SLAVE MODE
After the scanner has established a connection as a SPP slave device, you may have it read the “Activate Bluetooth Mode. This will result in easy and reliable re-connection, just like connecting with 3610.
®
SPP, Master Mode” setup barcode to switch to SPP Master
69
Update
1664 Barcode Scanner User Guide
2.4 USB HID VIA 3610
For USB HID, connect 3610 to the USB port of PC, and then connect the scanner to 3610. Run any text editor on a computer, and the scanned data will be transmitted to the computer.
HID Settings
Keyboard Type PCAT (US) Digits Layout Normal Capital Lock Type Normal Capital Lock State Off Alphabets Transmission Case-sensitive Digits Transmission Alphanumeric keypad Kanji Transmission Disable Inter-Character Delay 0 (ms) Inter-Function Delay 0 (ms)
Defaults
70
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.4.1 ACTIVATE USB HID & SELECT KEYBOARD TYPE
When USB HID interface is activated, you will have to select a keyboard t ype to complete this setting.
Activate
3610 USB HID & Select
Keyboard Type…
1) Read the barcode above to activate USB HID and select a keyboard type.
2) Read the “Decimal Value
” barcode on page 251. Refer to the table below for the
number of desired keyboard type.
3) Read the “Validate” barcode on the same page to complete this setting.
USB HID
By default, the keyboard type is set to PCAT (US). The following keyboard types are supported —
No. Keyboard Type No. Keyboard Type
64 PCAT (US) 71 PCAT (Belgium) 65 PCAT (French) 72 PCAT (Spanish) 66 PCAT (German) 73 PCAT (Portuguese) 67 PCAT (Italy) 74 PS55 A01-2 (Japanese) 68 PCAT (Swedish) 75 User-defined table 69 PCAT (Norwegian) 76 PCAT (Turkish) 70 PCAT (UK) 77 PCAT (Hungarian)
71
Update
1664 Barcode Scanner User Guide
2.4.2 KEYBOARD SETTINGS
Alphabets Layout Digits Layout Capital Lock Type Capital Lock Setting Alphabets Transmission Digits Transmission Kanji Transmission
Alphabets Layout
By default, the alphabets layout is set to normal mode, also known as the standard English layout. Select French or German keyboard layout if necessary. The scanner will make adjustments when sending the "A", "Q", "W", "Z", "Y", and "M" characters according to this setting.
*Normal
AZERTY
QWERTZ
Note: This setting only works when th e keyboard type selected is US keyboard, such as
PCAT (US). The Alphabets Layout and Digits Layout setting must match your keyboard.
72
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
US Keyboard Style – Normal
QWERTY layout, which is normally used in western countries.
Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.
French Keyboard Style – AZERTY
French layout; see below for French Keyboard Style.
Select “Upper Row” for the “Digits Layout” setting for the lower row is for special characters.
German Keyboard Layout – QWERTZ
German layout; see below for German Keyboard Style.
Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.
73
Update
1664 Barcode Scanner User Guide
Digits Layout
Select a proper layout that matches the alphabets layout. The scanner will make adjustments according to this setting.
Options Description
Normal Depends on the [Shift] key or [Shift Lock] setting Lower Row For QWERTY or QWERTZ keyboard Upper Row For AZERTY keyboard
*Normal
Upper Row
Lower Row
Note: This setting is to be used with the Character Substitution setting when support to
certain keyboard types (languages) is unavailable but required.
74
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
T
Capital Lock Type & Setting
In order to send the alphabets with correct case, the scanner needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.
Cap Lock Type Description
Normal Normal type Capital Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. However, this does not affect the number or punctuation keys.
Shift Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. In addition, this affects the number or punctuation keys.
*Normal
Shift Lock
Capital Lock
Capital Lock State Description
Capital Lock OFF Assuming that the status of Caps Lock on the keyboard is OFF,
transmitted characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
Capital Lock ON Assuming that the status of Caps Lock on the keyboard is ON, transmitted
characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
Refer to the Capital Lock Type above.
Auto Detection
he scanner will automatically detect the status of Caps Lock on the keyboard before data is transmitted; transmitted characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
Auto Detect
Capital Lock ON
75
Update
1664 Barcode Scanner User Guide
*Capital Lock OFF
76
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
R
Alphabets Transmission
By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of Caps Lock on the keyboard only.
Ignore Case
*Case-sensitive
efer to 5.1 Letter Case.
77
Update
1664 Barcode Scanner User Guide
Digits Transmission
By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you wish to use the keys on the numeric keypad.
Numeric Key
*Alphanumeric Key
Note: If you select “Numeric Keypad”, the Num Lock status of the physical keyboard
should be "ON".
Kanji Transmission
Kanji Transmission is supported by the scanner when either Bluetooth® HID or USB HID is selected for the output interface. By Kanji Transmission, when the host computer is running on Japanese Windows O.S., the scanner is able to transmit Japanese characters including the Chinese characters used in modern Japanese writing system.
Kanji Transmission is disabled by default. Enable/disable scanner’s Kanji Transmission by reading the following barcodes:
Enable
*Disable
78
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.4.3 INTER-CHARACTER DELAY
By default, the inter-character delay is set to zero. Specify a value, ranging from 0 to 254 in units of millisecond, to match the computer response time of the keyboard interface. Such delay time is inserted between every character being transmitted. The longer the delay time is, the slower the transmission speed will be.
Inter-Character Delay… (*0~254)
1) Read the barcode above to specify the inter-character delay.
2) Read the “Decimal Value
” barcode on page 251 for the desired inter-character delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
2.4.4 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, rangin g from 0 to 254 in units of millisecond, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower th e transmission speed will be.
Inter-Function
Delay… (*0~254)
1) Read the barcode above to specify the inter-function delay.
2) Read the “Decimal Value
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
” barcode on page 251 for the desired inter-function delay
79
Update
1664 Barcode Scanner User Guide
2.4.5 HID CHARACTER TRANSMIT MODE
By default, HID interface sends data to the host in batch. You may have the scanner read the “By Character” barcode to process data one character at a time.
*Batch Processing
By Character
80
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.5 USB VIRTUAL COM VIA 3610
Connect 3610 to the USB port of PC, and then connect the scanner to 3610. May run HyperTerminal.exe on a computer, and the scanned data will be transmitted to the computer.
Note: If you are using USB Virtual COM for the first time, y ou must install it s driver from
the CD-ROM. Driver version 5.3 or later is required. Please remove older versions !
2.5.1 ACTIVATE USB VIRTUAL COM
Activate 3610
USB Virtual COM
2.5.2 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, rangin g from 0 to 254 in units of millisecond, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower th e transmission speed will be.
Inter-Function
Delay… (*0~254)
1) Read the barcode above to specify the inter-function delay.
2) Read the “Decimal Value
” barcode on page 251 for the desired inter-function delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
81
Update
1664 Barcode Scanner User Guide
2.5.3 ACK/NAK TIMEOUT
By default, the scanner sends data to the host without waiting for an ACK/NAK response before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 secon d. If no response within the specified period of time, the scanner will attempt to send the same data two more times. If all three attempts fail without any notification, data loss will occur.
ACK/NAK Time-out
after … (*0~99)
1) Read the barcode above to specify the time interval for the scanner to send data and wait for a response from the host.
2) Read the “Decimal Value
” barcode on page 251. For example, read “1” and “0” for the
scanner to automatically shut down after being idle for 1 second.
3) Read the “Validate” barcode on the same page to complete this setting.
ACK/NAK Error Beep
Enable Error Beep
*Disable Error Beep
Note: We suggest enabling the error beep so that you will be notified of such data loss
and have the scanner re-read data.
82
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.6 DIRECT USB HID
1664 supports “Direct” USB HID interface for memory mode. Use the provided USB cable to connect 1664 to the USB port of PC. Run any text editor on a computer, and the scanned data will be transmitted to the computer. Refer to 1.2.2 Memory Mode
.
HID Settings
Keyboard Type HID PCAT (US) Digits Layout Normal Capital Lock Type Normal Capital Lock State OFF Alphabets Transmission Case Sensitive Digits Transmission Alphanumeric Keypad Kanji Transmission Disable Alphabets Layout Normal Inter-Character Delay 0 (ms) Inter-Function Delay 0 (ms)
Defaults
83
Update
1664 Barcode Scanner User Guide
2.6.1 ACTIVATE USB HID & SELECT KEYBOARD TYPE
When USB HID interface is activated, please select a keyboard type to complete this setting.
Activate
Direct USB HID &
Select Keyboard
Type…
1) Read the barcode above to activate USB HID and select a keyboard type.
2) Read the “Decimal Value
” barcode page 251 . Refer to the table below for the number
of desired keyboard type.
3) Read the “Validate” barcode on the same page to complete this setting.
USB HID
By default, the keyboard type is set to PCAT (US). The following keyboard types are supported —
No. Keyboard Type No. Keyboard Type
64 HID PCAT (US) 71 HID PCAT (Belgium) 65 HID PCAT (French) 72 HID PCAT (Spanish) 66 HID PCAT (German) 73 HID PCAT (Portuguese) 67 HID PCAT (Italy) 74 HID A01-2 (Japanese) 68 HID PCAT (Swedish) 75 User-Defined Table 69 HID PCAT (Norwegian) 76 HID PCAT (Turkish) 70 HID PCAT (UK) 77 HID PCAT (Hungarian)
84
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.6.2 KEYBOARD SETTINGS
Alphabets Layout Digits Layout Capital Lock Type Capital Lock Setting Alphabets Transmission Digits Transmission Kanji Transmission
Alphabets Layout
By default, the alphabets layout is set to normal mode, also known as the standard English layout. Select French or German keyboard layout if necessary. The scanner will make adjustments when sending the "A", "Q", "W", "Z", "Y", and "M" characters according to this setting.
*Normal
AZERTY
QWERTZ
Note: This setting only works when th e keyboard type selected is US keyboard, such as
PCAT (US). The Alphabets Layout and Digits Layout setting must match using keyboard.
85
Update
1664 Barcode Scanner User Guide
US Keyboard Style – Normal
QWERTY layout, which is normally used in western countries.
Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.
French Keyboard Style – AZERTY
French layout; see below for French Keyboard Style.
Select “Upper Row” for the “Digits Layout” setting for the lower row is for special characters.
German Keyboard Layout – QWERTZ
German layout; see below for German Keyboard Style.
Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.
86
Enter Setup
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Digits Layout
Select a proper layout that matches the alphabets layout. The scanner will make adjustments according to this setting.
Options Description
Normal Depends on the [Shift] key or [Shift Lock] setting Lower Row For QWERTY or QWERTZ keyboard Upper Row For AZERTY keyboard
*Normal
Upper Row
Lower Row
Note: This setting is to be used with the Character Substitution setting when support to
certain keyboard types (languages) is unavailable but required.
87
Update
1664 Barcode Scanner User Guide
T
Capital Lock Type & Setting
In order to send the alphabets with correct case, the scanner needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.
Cap Lock Type Description
Normal Normal type Capital Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. However, this does not affect the number or punctuation keys.
Shift Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. In addition, this affects the number or punctuation keys.
*Normal
Shift Lock
Capital Lock
Capital Lock State Description
Capital Lock OFF Assuming that the status of Caps Lock on the keyboard is OFF,
transmitted characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
Capital Lock ON Assuming that the status of Caps Lock on the keyboard is ON, transmitted
characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
Refer to the Capital Lock Type above.
Auto Detection
he scanner will automatically detect the status of Caps Lock on the keyboard before data is transmitted; transmitted characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).
Auto Detect
Capital Lock ON
88
Enter Setup
