CipherLab 1560P Users Manual

1560P Bluetooth Barcode Scanner

Setup barcodes included.

Version 1.12

The software contains proprietary information of CIPHERLAB CO., LTD.; it is provided under a license agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.

Due to continued product development this information may change without notice. The information and intellectual property contained herein is confidential between CIPHERLAB and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find any problems in the documentation, please report them to us in writing. CIPHERLAB does not warrant that this document is error-free.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of CIPHERLAB CO., LTD.

For product consultancy and technical support, please contact your local sales representative. Also, you may visit our web site for more information.

The CipherLab logo is a registered trademark of CIPHERLAB CO., LTD.

All brand, product and service, and trademark names are the property of their registered owners.

The editorial use of these names is for identification as well as to the benefit of the owners, with no intention of infringement.

CIPHERLAB CO., LTD.

Website: http://www.cipherlab.com

IMPORTANT NOTICES

FOR USA

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:



Reorient or relocate the receiving antenna.



Increase the separation between the equipment and receiver.



Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.



Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FOR CANADA

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.

Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf.

FOR HAND-HELD PRODUCT WITH RF FUNCTIONS

The 1560P unit (FCC ID: Q3N-1560P) complies with FCC radiation exposure limits set forth for uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. The unit has very low level of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR).

The 3656 unit (FCC ID: Q3N-3656) complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. It only operated in hand-held used. If you only transfer data to the host wirelessly, please keep the minimum distance 20 cm between machine & your body.

SAFETY PRECAUTIONS

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

 The use of any batteries or charging devices, which are not originally sold or

manufactured by CipherLab, will void your warranty and may cause damage to human body or the product itself.

 DO NOT disassemble, incinerate or short circuit the battery.  DO NOT expose the scanner or the battery to any flammable sources.  For green-environment issue, it's important that batteries should be recycled in a

oper way.

 Under no circumstances, internal components are self-serviceable.  The charging device uses an AC power adaptor. A socket outlet shall be installed near

the equipment and shall be easily accessible. Make sure there is stable power supply for the scanner or its peripherals to operate properly.

CARE & MAINTENANCE

 Use a clean cloth to wipe dust off the scanning window and the body of the scanner

as well as the charging device. DO NOT use/mix any bleach or cleaner.

 If you want to put away the scanner for a period of time, download the collected data

to a host computer when in the memory mode, and then take out the battery. Store the scanner and battery separately.

 When the scanner resumes its work, make sure the battery is fully charged before

use.

 If you shall find the scanner malfunctioning, write down the specific scenario and

nsult your local sales representative.

128

is added. Sections

conomy vs. WPAN

”

Cannot read when disabled

equence

RELEASE NOTES

Version Date Notes

1.12 Oct. 09, 2013

1.11 Jan. 02, 2013

1.10 Aug 31, 2011

 New: 2.1.8 Transmit Speed – setting barcodes (for BT HID) added  New: 3.2.4 Secure Simple Pairing (SSP) setting barcodes added  New: 4.11.1 ISBT Concatenation – setting barcodes added  Modified: Symbologies Supported – Code 128 - GS1-

 New: 1.2.3 Free Memory barcode  Modified: 2.1/2.4/2.6 Add Keyboard Type: PCAT (Hungarian), PCAT

 Modified: 2.7/3.1 Note for Driver version 5.4 or later required  New: 4.1.4 Security Level (Codabar) setup barcodes  New: 4.5.5 Security Level (Code 39) setup barcodes  New: 4.7.1 Security Level (Code 128) setup barcodes  Modified: 4.10 GS1-128 (EAN-128) - GS1-128 default to Enable  Modified: Appendix II - #@RDSN command added  New: “Auto Power Off Ignoring Scan Mode”

(EAN-128): default value to Enabled

(Swiss German), PCAT (Danish)

involved are:

1.09 May 25, 2011

1.08 Mar. 11, 2011

1.07 Jan. 10, 2011

- Renamed section 1.1.1 “Turn on/off the Scanner”

- Modified section: 1.1.2 “Power Economy”.

- Adjusted new section: 1.1.3 “Power E

Connection”

 Modified: 3656+USB+Adaptor issue  Modified: 2.1 BT HID — add Inter-Character Delay  Modified: 2.6 USB HID via 3656 — add Inter-Character Delay

 New: Quick Start — Create One-Scan Setup Barcodes (e.g. ”109950

 ”#@109950#”)

Modified: 1.11 Auto-Sense Mode (1560P Only) — add High



Sensitivity behavior

 Modified: Specifications — Power Adaptor  Modified: Introduction, Product Highlights — add CipherConnect  Modified: 4.10 GS1-128 (EAN-128) —

since firmware v1.01

 Modified: 5.6.1 Edit a Concatenation of Barcodes — Code type for

ISBT 128

 New: 6.4.5 Pause Field Setting  Modified: 6.5 Configuring Format — Define Transmission S

(add Pause Field, Null Character Field )

1.06 Nov. 30, 2010

add support of

describe random PIN in Step

add table for Scan

add

for 4800 bps

change default baud rate to 115200

add

Alphabets

remove settings for

suggest connecting

1.05 Apr. 09, 2010

1.04 Mar. 02, 2010



Modified: Introduction, Symbologies Supported — more RSS symbologies



New: Introduction — Charging the Battery via Charger



Modified: 1.1.2 Auto Power Off & Power-Saving



Modified: 1.4 Beeper — describe “Low Battery Alarm”



New: 2.1.6 Keypad Support for iPhone/iPad



Modified: 3.2.3 Connect to Dongle — 12



Modified: 4.16 GS1 DataBar (RSS Family)



Modified: 4.16.2 GS1 DataBar Omnidirectional (RSS-14)



Modified: 4.16.3 GS1 DataBar Expanded (RSS Expanded)



Modified: 5.2 Character Substitution — Code/Normal Key



Modified: 1.1.2 Auto Power Off & Power-Saving



Modified: 2.1.1 Activate BT HID & Select Keyboard Type — Turkish



Modified: 2.1.3 Keyboard Settings — BT HID supports “Alphabets Layout”



Modified: 2.1.5 HID Character Transmit Mode



Modified: 2.2 BT SPP Slave



Modified: 2.3 BT SPP Master



Modified: 2.4.1 Activate Keyboard Wedge & Select Keyboard Type — add Turkish



Modified: 2.5.2 Baud Rate — add setup barcode (100100)



Modified: 2.5.2 Baud Rate — bps



Modified: 2.6.1 Activate USB HID & Select Keyboard Type — Turkish



Modified: 2.6.2 Keyboard Settings — USB HID supports “ Layout”



Modified: 2.6.4 HID Character Transmit Mode



New: 3.1.3 Configure Related Settings — Sniff Mode



Modified: 4.9.4 Security Level



Modified: Appendix III Keyboard Wedge Table — user-defined scan code



Modified: Appendix III Keyboard Wedge Table — provide examples



Modified: Charging the Battery via 3656 — power cord for USB

Modified: 1.10 Auto-Sense Mode (1560P Only) — Continuous mode

ISBT 128 enabled by

Symbologies for Character Substitution (All 3

add

charging time changed

add setup barcode

1.03 Oct. 30, 2009



as an alternative

 Modified: 1.13 Symbologies Supported —

default

 Modified: 5.2.2

Sets) — add ISBT 128

 Modified: 5.4.1 Select Pre-defined Code ID — add ISBT 128  Modified: 5.4.2 Change Code ID — add ISBT 128  Modified: 5.5 Length Code — add ISBT 128  Modified: 6.3.1 Applicable Code Type (for Editing Format) —

ISBT 128

1.02 July 07, 2009

 Modified: Charging the Battery via 3656 —

from 3 to 5 (hr)

 Modified: 1.1 Battery — charging time changed from 3 to 5 (hr)  Modified: 1.1.2 Auto Power Off & Power-Saving —

for Power-Saving setting (101021)

 Modified: 3.2.2 Configure Related Settings — Authentication

1.01 June 3, 2009

 Modified: 1.10 Auto-Sense Mode — Power supply cord is required.  Modified: Appendix II Host Serial Commands

1.00 Apr. 29, 2009 Initial release

CONTENTS

IMPORTANT NOTICES .................................................................................................................... - 2 -

For USA .......................................................................................................................................... - 3 -

For Canada .................................................................................................................................... - 3 -

For Hand-held Product with RF Functions ................................................................................... - 4 -

For Product with Laser ..................................................................................................................

Safety Precautions ........................................................................................................................ - 4 -

Care & Maintenance ..................................................................................................................... - 4 -

RELEASE NOTES ............................................................................................................................ - 5 -

INTRODUCTION ................................................................................................................................. 1

Getting Familiarized with 1560P and 3656 ........................................................................... 2

Installing the Battery to 1560P .......................................................................................... 2

Setting up 3656 ........................................................................................................................... 3

Charging the Battery via 3656 .................................................................................................... 5

Charging the Battery via Charger ................................................................................................ 6

Inside the Package ............................................................................................................................ 7

Product Highlights ............................................................................................................................. 7

Symbologies Supported .................................................................................................................... 8

- 4 -

QUICK START .................................................................................................................................. 11

Enter Configuration Mode ............................................................................................................... 13

Exit Configuration Mode ..................................................................................................................

Default Settings ............................................................................................................................... 14

Save User Settings as Defaults ................................................................................................. 14

Restore User Defaults ................................................................................................................ 14

Restore System Defaults ........................................................................................................... 14

Read a Setup Barcode .................................................................................................................... 15

Configure Parameters ................................................................................................................ 15

List the Current Settings ............................................................................................................ 19

Create One-Scan Setup Barcodes .................................................................................................. 21

UNDERSTANDING THE BARCODE SCANNER .................................................................................. 23

1.1 Battery ....................................................................................................................................... 23

1.1.1 Turn on/off the Scanner .................................................................................................. 23

1.1.2 Power Economy ................................................................................................................ 24

1.1.3 Power Economy vs. WPAN Connection ........................................................................... 27

1.2 Memory ..................................................................................................................................... 29

1.2.1 Transmit Buffer ................................................................................................................ 29

1.2.2 Memory Mode .................................................................................................................. 30

1.2.3 Free Memory .................................................................................................................... 31

1.3 LED Indicator.............................................................................................................................

1.3.1 Good Read LED ................................................................................................................ 33

1560P Series Barcode Scanner User Guide

1.3.2 Good Read LED Duration ................................................................................................. 33

1.4 Beeper ....................................................................................................................................... 34

1.4.1 Beeper Volume ................................................................................................................. 35

1.4.2 Good Read Beep .............................................................................................................. 36

1.4.3 Low Battery Alarm ............................................................................................................ 37

1.5 Send “NR” to Host .................................................................................................................... 38

1.6 Scan Modes .............................................................................................................................. 39

1.6.1 Continuous Mode ............................................................................................................. 40

1.6.2 Test Mode ......................................................................................................................... 40

1.6.3 Laser Mode ....................................................................................................................... 41

1.6.4 Auto Off Mode ................................................................................................................... 41

1.6.5 Auto Power Off Mode ....................................................................................................... 41

1.6.6 Alternate Mode ................................................................................................................. 42

1.6.7 Aiming Mode ..................................................................................................................... 42

1.6.8 Multi-Barcode Mode ......................................................................................................... 43

1.7 Scanning Timeout ..................................................................................................................... 44

1.8 Delay between Re-read ............................................................................................................ 45

1.9 Read Redundancy for All Symblogies ...................................................................................... 46

1.10 Addon Security for UPC/EAN Barcodes ................................................................................ 47

1.11 Auto-Sense Mode (1560P Only) .............................................................................................. 48

1.12 CCD Sensor Always Active (1560P Only)................................................................................. 50

1.13 Negative Barcodes ................................................................................................................. 50

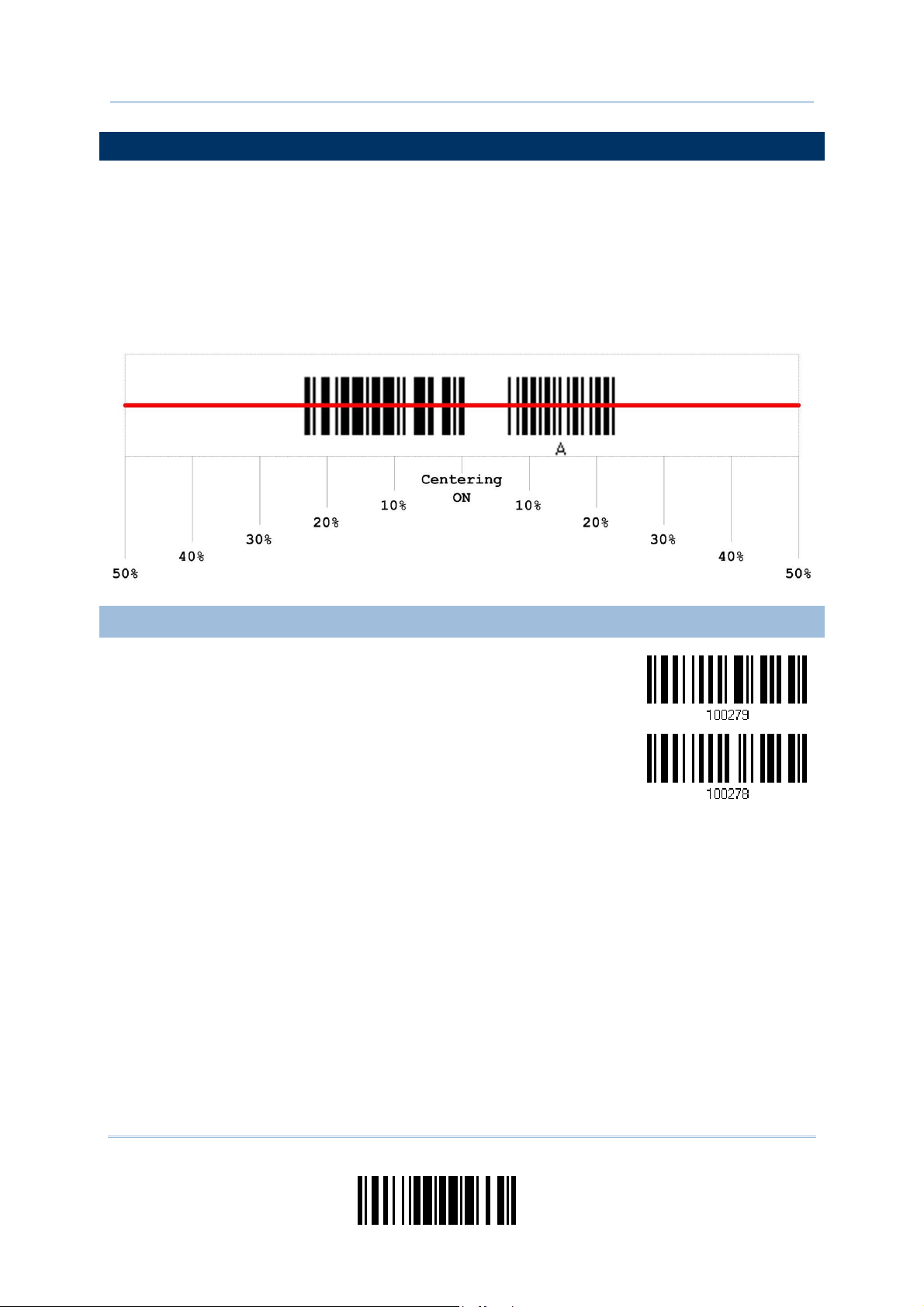

1.14 Effective Decoding Area ......................................................................................................... 51

1.14.1 Positioning Window ........................................................................................................ 51

1.14.2 Adjusting Window ........................................................................................................... 52

SELECTING OUTPUT INTERFACE ..................................................................................................... 53

2.1 BT HID ........................................................................................................................................

2.1.1 Activate BT HID & Select Keyboard Type ........................................................................ 56

2.1.2 Reset Connection ............................................................................................................. 57

2.1.3 Keyboard Settings ............................................................................................................ 58

2.1.4 Inter-Character Delay ....................................................................................................... 65

2.1.5 Inter-Function Delay ......................................................................................................... 65

2.1.6 HID Character Transmit Mode ......................................................................................... 66

2.1.7 Keypad Support for iPhone/iPad .................................................................................... 66

2.1.8 Transmit Speed ................................................................................................................ 66

2.2 BT SPP Slave ............................................................................................................................. 67

2.2.1 Activate BT SPP Slave Mode ........................................................................................... 67

2.2.2 Inter-Function Delay ......................................................................................................... 67

2.2.3 ACK/NAK Timeout ............................................................................................................ 68

2.3 BT SPP Master .......................................................................................................................... 69

2.3.1 Activate BT SPP Master Mode ......................................................................................... 69

2.3.2 Inter-Function Delay ......................................................................................................... 71

2.3.3 ACK/NAK Timeout ............................................................................................................ 72

2.3.4 Switch between Master/Slave Mode .............................................................................. 72

2.4 Keyboard Wedge via 3656 ...................................................................................................... 73

2.4.1 Activate Keyboard Wedge & Select Keyboard Type

....................................................... 74

2.4.2 Keyboard Settings ............................................................................................................ 75

2.4.3 Inter-Character Delay .......................................................................................................

1560P Series Barcode Scanner User Guide

2.4.4 Inter-Function Delay ......................................................................................................... 83

2.5 RS-232 via 3656 ...................................................................................................................... 84

2.5.1 Activate RS-232 Interface................................................................................................ 84

2.5.2 Baud Rate ......................................................................................................................... 84

2.5.3 Data Bits ........................................................................................................................... 85

2.5.4 Parity ................................................................................................................................. 85

2.5.5 Stop Bit ............................................................................................................................. 86

2.5.6 Flow Control ...................................................................................................................... 86

2.5.7 Inter-Character Delay ....................................................................................................... 87

2.5.8 Inter-Function Delay ......................................................................................................... 87

2.5.9 ACK/NAK Timeout ..............................

.............................................................................. 88

2.6 USB HID via 3656 ..................................................................................................................... 89

2.6.1 Activate USB HID & Select Keyboard Type ..................................................................... 90

2.6.2 Keyboard Settings ............................................................................................................ 91

2.6.3 Inter-Character Delay ....................................................................................................... 98

2.6.4 Inter-Function Delay ......................................................................................................... 98

2.6.5 HID Character Transmit Mode ......................................................................................... 99

2.7 USB Virtual COM via 3656 ..................................................................................................... 100

2.7.1 Activate USB Virtual COM .............................................................................................. 100

2.7.2 Inter-Function Delay ....................................................................................................... 100

2.7.3 ACK/NAK Timeout .......................................................................................................... 101

SETTING UP A WPAN CONNECTION .............................................................................................. 103

3.1 Connecting via 3656 .............................................................................................................. 105

3.1.1 Connect to 3656 ............................................................................................................ 105

3.1.2 Change Interface ............................................................................................................ 106

3.1.3 Configure Related Settings ............................................................................................ 107

3.2 Connecting via Bluetooth® Dongle ........................................................................................ 108

3.2.1 Change Interface ............................................................................................................ 108

3.2.2 Configure Related Settings ...................

......................................................................... 109

3.2.3 Connect to Dongle .......................................................................................................... 112

3.2.4 Secure Simple Pairing (SSP) .......................................................................................... 119

CHANGING SYMBOLOGY SETTINGS .............................................................................................. 121

4.1 Codabar ................................................................................................................................... 122

4.1.1 Start/Stop Characters Selection ................................................................................... 122

4.1.2 Start/Stop Transmission ................................................................................................ 123

4.1.3 CLSI Conversion ............................................................................................................. 123

4.1.4 Security Level ................................................................................................................. 123

4.2 Code 25 – Industrial 25 ......................................................................................................... 124

4.2.1 Start/Stop Pattern Selection ......................................................................................... 124

4.2.2 Verify Check Digit ........................................................................................................... 125

4.2.3 Transmit Check Digit ...................................................................................................... 125

4.2.4 Code Length Qualification ............................................................................................. 126

4.3 Code 25 – Interleaved 25 ...................................................................................................... 127

4.3.1 Start/Stop Pattern Selection ......................................................................................... 127

4.3.2 Verify Check Digit ........................................................................................................... 128

4.3.3 Transmit Check Digit ...................................................................................................... 128

4.3.4 Code Length Qualification ....................

......................................................................... 129

4.4 Code 25 – Matrix 25 .............................................................................................................. 130

4.4.1 Start/Stop Pattern Selection .................

........................................................................ 130

1560P Series Barcode Scanner User Guide

4.4.2 Verify Check Digit ........................................................................................................... 131

4.4.3 Transmit Check Digit ...................................................................................................... 131

4.4.4 Code Length Qualification ............................................................................................. 132

4.5 Code 39 ................................................................................................................................... 133

4.5.1 Start/Stop Transmission ................................................................................................ 133

4.5.2 Verify Check Digit ........................................................................................................... 133

4.5.3 Transmit Check Digit ...................................................................................................... 134

4.5.4 Standard/Full ASCII Code 39 ........................................................................................ 134

4.5.5 Security Level ................................................................................................................. 134

4.6 Code 93 ................................................................................................................................... 135

4.7 Code 128 .......................................

......................................................................................... 135

4.7.1 Security Level ................................................................................................................. 135

4.8 EAN-8 ....................................................................................................................................... 136

4.8.1 Convert to EAN-13 .......................................................................................................... 137

4.8.2 Transmit Check Digit ...................................................................................................... 137

4.9 EAN-13 .................................................................................................................................... 138

4.9.1 ISBN Conversion ............................................................................................................. 139

4.9.2 ISSN Conversion ............................................................................................................. 139

4.9.3 Transmit Check Digit ...................................................................................................... 139

4.9.4 Security Level ................................................................................................................. 140

4.10 GS1-128 (EAN-128) ............................................................................................................. 141

4.10.1 Code ID Transmission .................................................................................................. 141

4.10.2 Field Separator (GS Character) ................................................................................... 141

4.11 ISBT 128 ............................................................................................................................... 142

4.11.1 ISBT Concatenation ..................................................................................................... 142

4.12 MSI ........................................................................................................................................ 143

4.12.1 Verify Check Digit ......................................................................................................... 143

4.12.2 Transmit Check Digit.................................................................................................... 143

4.12.3 Code Length Qualification ...................

........................................................................ 144

4.13 French Pharmacode ............................................................................................................. 145

4.13.1 Transmit Check Digit.................................................................................................... 145

4.14 Italian Pharmacode .............................................................................................................. 146

4.14.1 Transmit Check Digit.................................................................................................... 146

4.15 Plessey .................................................................................................................................. 147

4.15.1 Convert to UK Plessey ................................................................................................. 147

4.15.2 Transmit Check Digit.................................................................................................... 147

4.16 GS1 DataBar (RSS Family) .................................................................................................. 148

4.16.1 Code ID Selection ........................................................................................................ 148

4.16.2 GS1 DataBar Omnidirectional (RSS-14) ..................................................................... 149

4.16.3 GS1 DataBar Expanded (RSS Expanded) ................................................................... 151

4.16.4 GS1 DataBar Limited (RSS Limited) ........................................................................... 152

4.17 Telepen ................................................................................................................................. 153

4.17.1 Telepen Output – Full ASCII/Numeric ........................................................................ 153

4.18 UPC-A ..................................................................................................................................... 154

4.18.1 Convert to EAN-13 ....................................................................................................... 155

4.18.2 System Number Transmission .................................................................................... 155

4.18.3 Transmit Check Digit.........................

........................................................................... 155

4.19 UPC-E ..................................................................................................................................... 156

4.19.1 System Number Selection .....................

...................................................................... 157

1560P Series Barcode Scanner User Guide

4.19.2 Convert to UPC-A .......................................................................................................... 157

4.19.3 System Number Transmission .................................................................................... 158

4.19.4 Transmit Check Digit.................................................................................................... 158

DEFINING OUTPUT FORMAT ......................................................................................................... 159

5.1 Letter Case .............................................................................................................................. 159

5.2 Character Substitution ........................................................................................................... 160

5.2.1 Select a Set for Character Substitution ........................................................................ 161

5.2.2 Symbologies for Character Substitution (All 3 Sets) .................................................... 162

5.3 Prefix/Suffix Code ................................................................................................................... 168

5.4 Code ID ....................................................................................................................................

169

5.4.1 Select Pre-defined Code ID ............................................................................................ 169

5.4.2 Change Code ID .............................................................................................................. 171

5.4.3 Clear Code ID Settings ................................................................................................... 172

5.5 Length Code ............................................................................................................................ 173

5.6 Multi-Barcode Editor ............................................................................................................... 177

5.6.1 Edit a Concatenation of Barcodes ................................................................................ 178

5.6.2 Activate the Concatenation of Barcodes ...................................................................... 179

5.7 Removal of Special Character ............................................................................................... 180

APPLYING FORMATS FOR DATA EDITING ...................................................................................... 181

6.1 Activating Editing Formats ..................................................................................................... 182

6.1.1 Activate Editing Formats ................................................................................................ 182

6.1.2 Exclusive Data Editing .................................................................................................... 183

6.2 How to Configure Editing Formats ......................................................................................... 184

6.2.1 Select Format to Configure ............................................................................................ 185

6.2.2 Restore Default Format ................................................................................................. 186

6.3 Configuring Format — Define Data Criteria ........................................................................... 187

6.3.1 Applicable Code Type .....................................................................................................

187

6.3.2 Data Length .................................................................................................................... 194

6.3.3 Matching String & Location ........................................................................................... 195

6.4 Configuring Format — Define Data Field ............................................................................... 196

6.4.1 Start Position .................................................................................................................. 196

6.4.2 Field Adjustment ............................................................................................................ 196

6.4.3 Total Number of Fields ................................................................................................... 197

6.4.4 Field Settings .................................................................................................................. 198

6.4.5 Pause Field Setting ........................................................................................................ 204

6.5 Configuring Format — Define Transmission Sequence ........................................................ 205

6.6 Programming Examples ......................................................................................................... 207

6.6.1 Example I ........................................................................................................................ 207

6.6.2 Example II ....................................................................................................................... 208

SPECIFICATIONS ........................................................................................................................... 209

FIRMWARE UPGRADE ................................................................................................................... 211

How to Upgrade 1560P Firmware ....................................................................................... 211

Using 3656 ............................................................................................................................... 211

Using Bluetooth® Dongle ......................................................................................................... 214

How to Upgrade 3656 Firmware .................................................................................................. 216

Upgrading 3656 CPU Firmware ............................................................................................... 216

1560P Series Barcode Scanner User Guide

Upgrading 3656 USB Bridge Firmware ................................................................................... 218

HOST SERIAL COMMANDS............................................................................................................ 221

1560P Serial Commands .................................................................................................... 221

Example .................................................................................................................................... 222

3656 Setup Barcodes & Serial Commands ................................................................................ 223

3656 Serial Command Table .................................................................................................. 224

Example .................................................................................................................................... 226

KEYBOARD WEDGE TABLE ........................................................................................................... 227

Key Type & Status .........................................................................................................................

Key Type.................................................................................................................................... 228

Key Status ................................................................................................................................ 228

Example ......................................................................................................................................... 229

NUMERAL SYSTEMS ..................................................................................................................... 231

Decimal System ............................................................................................................................. 231

Hexadecimal System ..................................................................................................................... 232

ASCII Table ..................................................................................................................................... 233

Entering PIN Code for Authentication .......................................................................................... 234

Use Preset PIN .......................................................................................................................... 234

Disable Authentication or Use Random PIN ........................................................................... 235

228

INTRODUCTION

CipherLab’s 1560P Series Barcode Scanners are specifically designed to answer your mobile demands. The versatile scanners are designed to help accelerate productivity while lowering the total cost of ownership. Intensive data collection jobs are made easier with fast, accurate barcode scanning in various working environments, especially in small businesses. Integrating short-distance wireless technology to small-form-factor scanners, the 1560P scanners are ideal for carrying around, and thus give workers tether-free mobility anytime anywhere and get job done more efficiently. This line of scanners deliver data over a wireless personal network at a range of up to 90 meters and a prolonged battery life to keep business running.

Owing to the slim, ergonomic design, extremely low power consumption, and powerful decoding capability, the 1560P Series Barcode Scanners are the best choice for the following applications –

 Receiving in Retail  Product labeling & Tracking  Shelf Product Replenishment  Mobile Point of Sale (POS)  Mobile Inventory Management  Order Picking & Staging  Work-In-Process Tracking  Material Flow Control  Transportation & Distribution  Warehousing  Asset Management

This manual contains information on operating the scanner and using its features. We recommend you to keep one copy of the manual at hand for quick reference or maintenance purposes. To avoid any improper disposal or operation, please read the manual thoroughly before use.

Thank you for choosing CipherLab products!

Update

1560P Series Barcode Scanner User Guide

GETTING FAMILIARIZED WITH 1560PAND 3656

INSTALLING THE BATTERY TO 1560P

When you first receive the package, the rechargeable battery is stored separately from the scanner. Insert the battery into the scanner first so that it can be charged when sitting in the Auto-Sense stand.

Note: Any improper handling may reduce the battery life.

1) Hold the scanner still and insert the battery into the battery compartment at the bottom of the scanner.

2) Slide the battery latch to lock the battery in the compartment.

3) Hold down the trigger about 2 seconds to turn on the scanner.

4) The scanner will respond with a long beep and its LED will come on-off shortly.

Note: (1) To turn off the scanner, remove the battery. Refer to settings of “Auto Power

Off”.

(2) For shipping and storage purposes, save the scanner and the battery separately. This will keep the battery in good condition for future use. (3) When the battery charge becomes low, you will find the scanner cannot emit scan beam and its power-on beep sounds differently.

Enter Setup

Introduction

SETTING UP 3656

Capable of charging 1560P, the 3656 stand is specifically designed for the scanner to communicate with a host computer wirelessly. The connection between the scanners and 3656 is made easy and reliable. Refer to 3.1.1 Connect to 3656. The 3656 stand is also an Auto-Sense stand when used with the scanner set to Auto-Sense mode.

Two LED indicators are provided for power and communications status.

Power LED

Red, solid

--- --- Power OFF

--- Power ON

Meaning

Communication LED Meaning

--- Blue,

solid

Red, solid

Red, flashing

--- Blue,

--- Failed to establish a USB connection

Blue, flashing

flashing

Initialize

Serial command mode with USB Virtual COM or RS-232: wait 3 seconds for starting a serial command

Serial command mode with USB HID: wait 3 seconds for pressing [Num Lock] or [Caps Lock] 5 times via keyboard

Wait for connection request from the scanner (Slow flash at 0.5 Hz)

Update

1560P Series Barcode Scanner User Guide

--- Blue,

flashing

Red, solid

Red, flashing

Blue, flashing

--- Enter Download Mode

Connected with the scanner (Fast flash at 1 Hz)

Failed to send data to host via USB Virtual COM (Fast flash at 1 Hz)

Enter Setup

Introduction

or charg

ing error may occur.

CHARGING THE BATTERY VIA 3656

The battery may not be charged to full for shipment. When you first receive the package, you will need to charge the battery to full before using the scanner. When using the RS-232 cable, it takes approximately 5 hours to charge the battery to full (from the power adaptor).

Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It

is recommended to charge the battery at room temperature (18°C to 25°C) for optimal performance.

1) Install the battery to the scanner.

2) Seat the scanner in the 3656 stand.

3) Connect the 3656 stand to your computer or notebook via the USB or RS-232 cable.

4) Connect the power supply cord from 3656 to a proper power outlet.

Warning: RS-232/USB interface both require connecting the power supply cord.

When the stand is solely on USB power, the current may be insufficient for it to function normally. You must connect the power supply cord.

5) The LED for power indication on 3656 will become solid red.

6) The scanner LED will be flashing red during charging.

When the charging is done, the LED will turn off.

When charging error occurs, the LED will turn solid red.

7) The LED for communications on 3656 will first become solid blue while initializing.

Refer to the table above for details on different stage of communications.

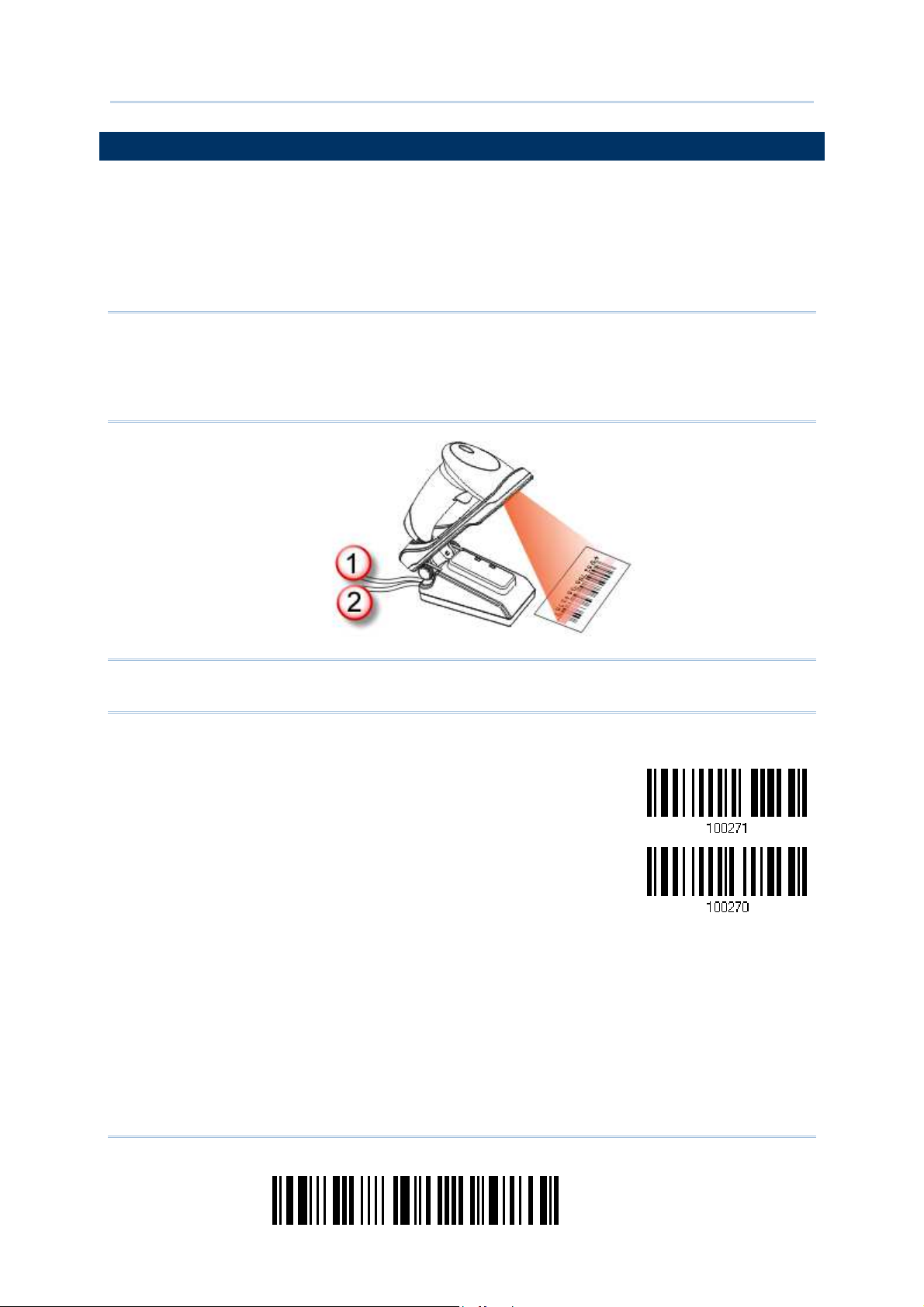

The two pivot bolts need to be tightened,

Warning: If the two pivot bolts are not tightened properly, charging error may occur.

Update

1560P Series Barcode Scanner User Guide

CHARGING THE BATTERY VIA CHARGER

The battery charger is provided for charging the battery only. You may purchase the charger separately. It takes approximately 3 hours to charge the battery to full.

Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It

is recommended to charge the battery at room temperature (18°C to 25°C) for optimal performance.

1) Insert the battery.

2) Lock the battery.

3) Connect the power supply cord to the charger.

4) Connect the other end of the power cord to a suitable power outlet.

Status LED Meaning

Red, solid

--- Green,

Red, solid

--- --- Power or battery not ready

--- Charger power ON (LED on for 0.5 second)

--- Charging battery

Charging done

solid

Green, solid

Pre-charging when battery voltage under 3V (Typical)

Enter Setup

Introduction

INSIDE THE PACKAGE

The items included in the package may be different, depending on your order. Save the box and packaging material for future use in case you need to store or ship the scanner.

Barcode Scanner (1560P)

  BT Base (3656)  Rechargeable Li-ion battery  Product CD

Note: The CD-ROM includes this manual and Windows-based ScanMaster software for

configuration, as well as the USB Virtual COM driver.

PRODUCT HIGHLIGHTS

 Small-form-factor and built tough to survive drop test  Extremely low power consumption  Firmware upgradeable  Supports most popular barcode symbologies, including GS1-128 (EAN-128), GS1

DataBar (RSS), etc.

 Supports negative barcodes  Supports different scan modes, including Aiming Mode and Multi-Barcode Mode  User feedback via LED indicator and beeper  Beeping tone and duration programmable for Good Read  512 KB flash memory for Memory Mode operation, storing up to 32,768 scans based

on EAN-13 barcodes

 Provides up to 4 KB SRAM for reserve buffer while getting out of range over a

ireless personal area network (WPAN), storing up to 256 scans based on EAN-13

w barcodes

 Capable of transmitting scanned data, emulating a serial cable (BT SPP) or as

keyboard input (BT HID), to a notebook computer or PDA with Bluetooth® wireless technology

 Programmable parameters include data output format, editing format, symbologies,

etc.

 Easy configuration through ScanMaster  Easy connection through CipherConnect, available via online marketplace for mobile

devices running on Android 2.x, BlackBerry 5.x, or Windows Mobile 6.x

Update

1560P Series Barcode Scanner User Guide

SYMBOLOGIES SUPPORTED

Most of the popular barcode symbologies are supported, as listed below. Each can be individually enabled or disabled. The scanner will automatically discriminate and recognize all the symbologies that are enabled. Refer to Chapter 4 Changing Symbology

Settings for details of each symbology.

Symbologies Supported: Enable/Disable Default

Codabar Enabled

Code 93 Enabled

MSI Disabled

Plessey Disabled

Telepen Disabled

Code 128 Code 128 Enabled

GS1-128 (EAN-128) Enabled

ISBT 128 Enabled

Note: Starting from firmware version 1.01, ISBT 128 is enabled by default.

Code 2 of 5 Industrial 25 Enabled

Interleaved 25 Enabled

Matrix 25 Disabled

Code 3 of 9 Code 39 Enabled

Italian Pharmacode Disabled

French Pharmacode Disabled

EAN/UPC EAN-8 Enabled

EAN-8 Addon 2 Disabled

EAN-8 Addon 5 Disabled

EAN-13 Enabled

EAN-13 & UPC-A Addon 2 Disabled

EAN-13 & UPC-A Addon 5 Disabled

ISBN Disabled

UPC-E0 Enabled

UPC-E1 Disabled

UPC-E Addon 2 Disabled

UPC-E Addon 5 Disabled

UPC-A Enabled

Enter Setup

Introduction

GS1 DataBar (RSS)

GS1 DataBar Omnidirectional (RSS-14) Disabled

GS1 DataBar Truncated Disabled

GS1 DataBar Stacked Disabled

GS1 DataBar Stacked Omnidirectional Disabled

GS1 DataBar Limited (RSS Limited) Disabled

GS1 DataBar Expanded (RSS Expanded) Disabled

GS1 DataBar Expanded Stacked Disabled

Update

1560P Series Barcode Scanner User Guide

Enter Setup

QUICK START

The configuration of the scanner can be done by reading the setup barcodes contained in this manual or via the ScanMaster software.

This section describes the procedure of configuring the scanner by reading the setup barcodes and provides some examples for demonstration.

Configuration Mode

1. Hold down the trigger about 2 seconds to turn on the scanner. It will respond with a long beep

and its LED will come on-off shortly.

2. Have the scanner read the “Enter Setup” barcode. It will respond with six beeps and its LED

indicator will become flashing red after reading the barcode.

3. Have the scanner read more setup barcodes… Most of the setup barcodes are normal. The

scanner will respond with two beeps (low-high tone). For special setup barcodes, it requires reading more than one setup barcode to complete the setting.

4. Have the scanner read the “Update” or “Abort” barcode. It will respond with six beeps and its

LED indicator will become flashing red after reading the barcode.

5. The scanner will restart automatically upon reading the “Update” or “Abort” barcode. It will

respond with a long beep and its LED will come on-off shortly.

Note: Refer to Appendix II Host Serial Commands for how to configure the 3656 stand

by having the scanner read 3656-related setup barcodes or using serial commands.

Update

1560P Series Barcode Scanner User Guide

Working Mode

Upon powering up, the 1560P scanner will try to establish a connection with 3656 or a computer with Bluetooth® wireless technology. Refer to Chapter 3 – Setting up a WPAN Connection for details. The connection between the scanners and 3656 is made easy and reliable.

Note: If RS-232, USB Virtual COM or BT SPP is selected for output interface, the host can

directly send serial commands to configure the scanner. For example, run HyperTerminal.exe and type the 6-digit command located under each setup barcode. Refer to Appendix II Host Serial Commands.

Enter Setup

Quick Start

ENTER CONFIGURATION MODE

For the scanner to enter the configuration mode, you must have it read the “Enter Setup” barcode, which can be located at the bottom of almost every even page of this manual.



The scanner will respond with six beeps and its LED indicator will become flashing red after reading the barcode.

Enter Setup

For configuring scanner parameters, see “Read a Setup Barcode” below.

EXIT CONFIGURATION MODE

For the scanner to save settings and exit the configuration mode, you must have it read the “Update” barcode, which can be located at the bottom of almost every odd page of this manual. If you want to exit the configuration mode without saving any changes, have the scanner read the “Abort” barcode instead.



Just like reading the “Enter Setup” barcode, the scanner will respond with six beeps and its LED indicator will become flashing red after reading the barcode. Wait for a few seconds for the scanner to restart itself.

Update

Abort

Update

1560P Series Barcode Scanner User Guide

Save as User

DEFAULT SETTINGS

SAVE USER SETTINGS AS DEFAULTS

For the scanner to keep the customized settings as user defaults, you must have it read the “Save as User Defaults” barcode. This is a normal setup barcode, and the scanner will respond with two beeps (low-high tone).

 After reading the “Update” barcode, the current settings will be saved as user

defaults.

Defaults

RESTORE USER DEFAULTS

For the scanner to restore the user defaults, which you have saved earlier, you must have it read the “Restore User Defaults” barcode. This is a normal setup barcode, and the scanner will respond with two beeps (low-high tone).

 After reading the “Update” barcode, all the parameters of the scanner will return to

their customized values.

Restore User

Defaults

RESTORE SYSTEM DEFAULTS

For the scanner to restore the factory defaults, you must have it read the “Restore System Defaults” barcode. This is a normal setup barcode, and the scanner will respond with two beeps (low-high tone). For 3656 to restore factory defaults, refer to 3656 Setup

Barcodes & Serial Commands.

 After reading the “Update” barcode, all the parameters of the scanner will return to

their default values. The current connection record will be cleared as well.

Restore System

Defaults

Note: The system default value (if there is) for each setting is indicated by an asterisk

“*”.

Enter Setup

Quick Start

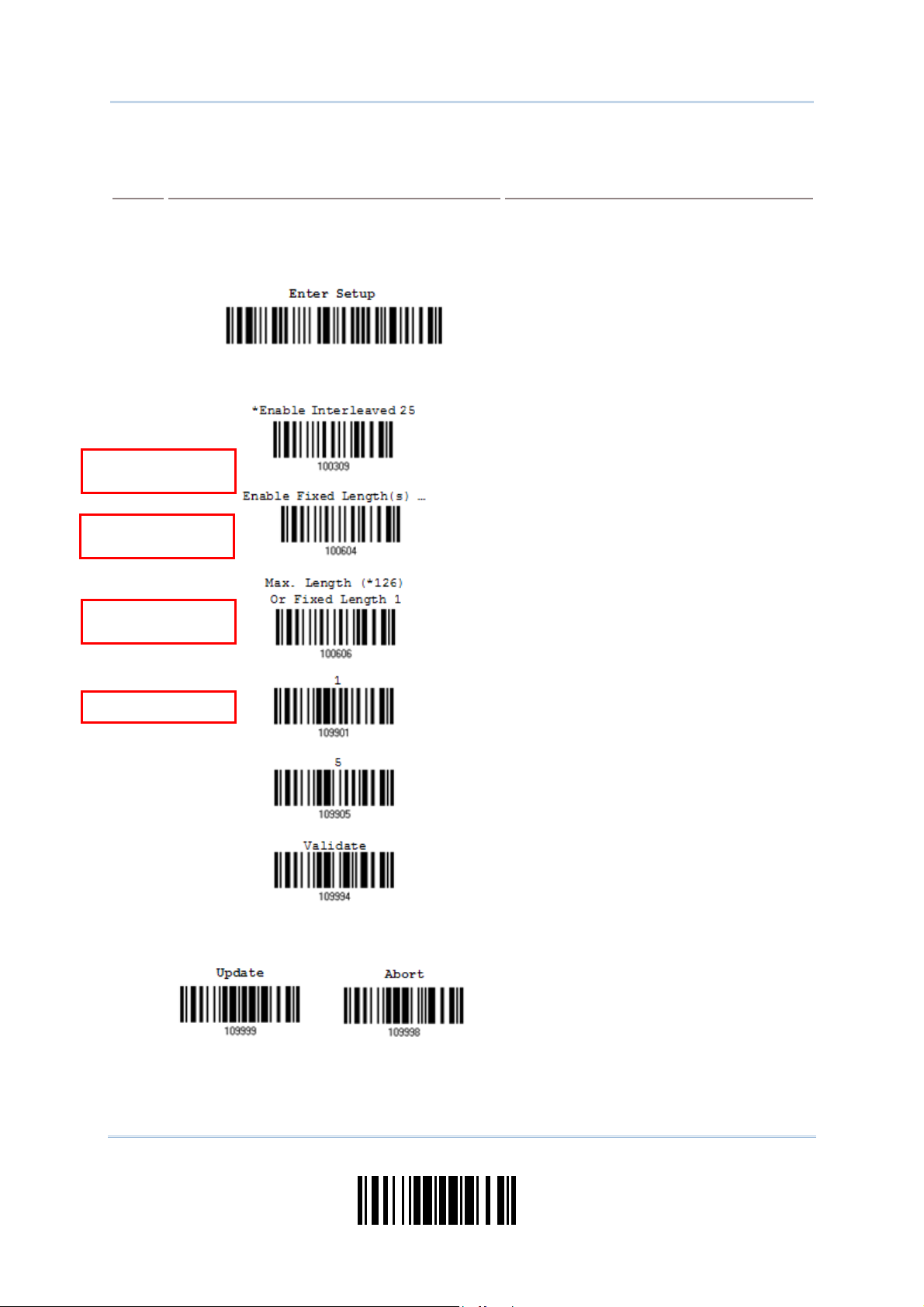

READ A SETUP BARCODE

CONFIGURE PARAMETERS

For most of the scanner parameters, only one read is required to set them to new values. The scanner will respond with two beeps (low-high tone) when each parameter is set successfully.

But for a number of special parameters, multiple reads are required to complete the setting. In this case, the scanner will respond with a short beep to indicate it needs to read more setup barcodes. These special parameters may require reading one or more setup barcodes, such as



Numeric barcodes, say, for keyboard type, inter-character delay, length qualification



Hexadecimal barcodes, say, for character strings as prefix, suffix, etc.



When “BT HID”, “USB HID” or “Keyboard Wedge” is configured for interface, Key Type and Key Status will then become applicable. You may decide whether or not to change key status when “Normal Key” is selected for Key Type.

To complete the configuration of these special parameters, it requires reading the “Validate” barcode, and the scanner will respond with two beeps (low-high tone) to indicate the input values are validated.

Update

1560P Series Barcode Scanner User Guide

The scanner will respond with six beeps

low tone repeats three times), and

normal setup

The scanner will respond with one long

The example below shows how to save your settings as “User Default” so that you may restore user defaults at a later time:

Steps Action User Feedback if Successful

1 Power on the scanner… The scanner will respond with a long beep

(high tone) and its LED indicator will become solid red and go off quickly.

2 Enter the Configuration Mode…

(highits LED indicator will be flashing red.

3 Read a Setup barcode…

For example,

4 Exit the Configuration Mode…

5 The scanner will automatically restart itself… Same as for Power on the scanner.

* When any configuration error occurs...

The scanner will respond with two beeps (low-high tone) if reading a barcode.

Same as for Enter the Configuration Mode.

beep (low tone).

Enter Setup

Quick Start

The scanner will respond with six beeps

low tone repeats three times), and

normal setup

The scanner will respond with one short

such as “Max. Length”, indicating the

“Decimal

tone) when the input values are

Normal setup

barcode

Special setup

barcode

Decimal barcodes

Normal setup

barcode

The example below shows how to set numeric parameters:

Steps Action User Feedback if Successful

1 Power on the scanner... The scanner will respond with a long beep

(high tone) and its LED indicator will become solid red and go off quickly.

2 Enter the Configuration Mode…

(highits LED indicator will become flashing red.

3 Read a Setup barcode...

For example,

4 Exit the Configuration Mode…

The scanner will respond with two beeps (low-high tone) if reading a barcode.

beep if reading a special setup barcode

setup requires reading more barcodes.

Read the “Decimal Value” barcode(s).



Refer to Appendix IV System”

The scanner will respond with two beeps (low-high validated.

Same as for Enter the Configuration Mode.

5 The scanner will automatically restart itself… Same as for Power on the scanner.

Update

1560P Series Barcode Scanner User Guide

The scanner will respond with six beeps

ts three times), and

The scanner will respond with one short

, “USB HID” or “Keyboard

is configured for interface, Key

applicable. You may decide whether or not

when “Normal Key”

for the desired character string. For

example, read “2” and “B” for the scanner

“Hexadecimal

tone) when the input values are

Hexadecimal

barcodes

Special setup

barcodes

The example below shows how to set string parameters:

Steps Action User Feedback if Successful

1 Power on the scanner... The scanner will respond with a long beep

(high tone) and its LED indicator will become solid red and go off quickly.

2 Enter the Configuration Mode…

(high-low tone repea its LED indicator will become flashing red.

3 Read a Setup barcode...

For example,

beep if reading a special setup barcode such as “Prefix Code”, indicating the setup requires reading more barcodes.

When “BT HID” Wedge” Type and Key Status will then become

4 Exit the Configuration Mode…

to change key status is selected for Key Type.

 Refer to Appendix III

Read the “Hexadecimal Value” barcodes

to prefix the character “+”.

 Refer to Appendix IV

System”

The scanner will respond with two beeps (low-high validated.

Same as for Enter the Configuration Mode.

5 The scanner will automatically restart itself… Same as for Power on the scanner.

Enter Setup

Quick Start

LIST THE CURRENT SETTINGS

The current settings of all scanner parameters can be sent to the host computer for user inspection. The listing includes pages as shown below. You can select the page of interest by having the scanner read the “List Page x” barcode. The scanner will respond with two beeps (low-high tone) and send the selected page to the host immediately.

List settings regarding Firmware Version, Serial Number, Interface, Buzzer, and Other Scanner Parameters

List settings regarding Prefix, Suffix, and Length Code Setting

List settings regarding Code ID

List settings regarding: Readable Symbologies

List Page 1

List Page 2

List Page 3

List Page 4

List settings regarding Symbology Parameters (1/3)

List settings regarding Symbology Parameters (2/3)

List settings regarding Symbology Parameters (3/3)

List settings regarding Editing Format 1

List settings regarding Editing Format 2

List settings regarding Editing Format 3

List Page 5

List Page 6

List Page 7

List Page 8

List Page 9

List Page 10

Update

1560P Series Barcode Scanner User Guide

List settings regarding Editing Format 4

List settings regarding Editing Format 5

List Page 11

List Page 12

Enter Setup

Quick Start

CREATE ONE-SCAN SETUP BARCODES

The fact is most of the scanner parameters require only one read for setting new values. To facilitate configuring the scanner, you may create One-Scan setup barcodes for use.

The requirements of a One-Scan setup barcode are:



a prefix of the “#@” characters



the six digits of command parameters



a suffix of the “#”character

For example, the scanner needs reading three setup barcodes for the command parameter “109952” to take effect:

Enter Setup

List Page 3

Update

Now, it requires only one read:

One-Scan Setup Barcode

for 109952

Note: The scanner will restart automatically upon reading the One-Scan setup barcode

for (1) changing the interface or (2) setting memory mode, enable or disable. It will respond with a long beep and its LED will come on-off shortly.

Update

1560P Series Barcode Scanner User Guide

Enter Setup

Chapter

UNDERSTANDING THE BARCODE SCANNER

This chapter will guide you through the features of the barcode scanner and how it can function for you.

IN THIS CHAPTER

1.1 Battery ...................................................................... 23

1.2 Memory ..................................................................... 29

1.3 LED Indicator ............................................................. 32

1.4 Beeper....................................................................... 34

1.5 Send “NR” to Host ....................................................... 38

1.6 Scan Modes ................................................................ 39

1.7 Scanning Timeout ....................................................... 44

1.8 Delay between Re-read ................................................ 45

1.9 Read Redundancy for All Symblogies ............................. 46

1.10 Addon Security for UPC/EAN Barcodes ......................... 47

1.11 Auto-Sense Mode (1560P Only) .................................... 48

1.12 CCD Sensor Always Active (1560P Only) ........................ 50

1.13 Negative Barcodes..................................................... 50

1.14 Effective Decoding Area ............................................. 51

1.1 BATTERY

The scanner is powered by a rechargeable 3.7 V/800 mAh Li-ion battery, and it takes approximately 5 hours to charge the battery to full (via 3656 from the power adaptor). However, the charging time may vary by working condition. For intensive data collection, you may need to purchase a spare battery for non-stop operation.

Note: See also “Power Economy”, “CCD Sensor Always Active”, “Sniff Mode”, as well as

“Low Battery Alarm”.

1.1.1 TURN ON/OFF THE SCANNER

Turn on the scanner…

After installing the battery, pull down the trigger for about 2 seconds. The scanner will respond with a long beep (high tone), then the LED will become solid red and go off quickly.

Turn off the scanner…

Remove the battery directly or let it turn off automatically in specific circumstances.

Update

1560P Series Barcode Scanner User Guide

Saving after

1.1.2 POWER ECONOMY

The scanner features “Power-Saving”, “Auto Power Off” and “Auto Power Off Ignoring Scan Mode” giving consideration to the power issue that is generally critical for Bluetooth-enabled devices. By the scanner’s support of power economy, its power consumption may progress by the following transition:

1) running at full CPU speed at power-on

2) shifting to low CPU speed (Power-Saving)

3) finally shutting down automatically (Auto Power Off)

In the following content of this section, you will be guided through the configurations for the scanner’s power economy.

1.1.2.1 POWER-SAVING

For the scanner to save power, you need to appoint the timing for the scanner to shift to power-saving mode. Make the configuration that best suits your application while noting the following points:

 Power-Saving: 1~254 minutes configurable. 0= Disable.

By default, the scanner stands by at full-speed for 2 minutes after power-on and before entering low-speed mode. If Power-Saving isn’t desired, set it to 0 to disable it. Read the setup barcode in the following to achieve the setup.

Note: Power-Saving setting won’t take effect when the WPAN connection is established

successfully whether via BT HID or SPP.

Power-

0~254 min. (*2)

1) Read the barcode above to enable the scanner to enter low-speed “Power-Saving”.

2) Assign the time for the scanner to enter low-speed mode by reading the “Decimal

Value” barcode on page 231. For example, read “5” for the scanner to enter

low-speed mode after idleness of 5 minutes.

3) Read the “Validate” barcode on the same page to complete this setting.

Enter Setup

Chapter 1

Understanding the Barcode Scanner

Note: Power-Saving won’t take effect when one of the following conditions is met:

Off after

(1) the scanner has already established a BT HID/SPP connection, (2) the scanner is in the configuration mode, (3) the scan mode is set to Test, Continuous or Alternate Mode, (4) 1560P is in Auto-Sense mode and seated in the 3656 stand, or (5) the setting value of Power-Saving is greater than that of Auto Power Off.

1.1.2.2 AUTO POWER OFF

For the scanner to save power, further to setting up “Power-Saving” mode, you may also need to enable “Auto Power Off”, which deals with a time for the scanner to automatically power off after power-on. Make the configuration that best suits your application while noting the following points:

 Auto Power Off: 1~254 minutes configurable. 0= Disable.

1. By default, the scanner automatically shuts down 10 minutes after power-on.

2. If Auto Power Off isn’t desired, set the parameter to 0 to disable it.

3. When the scan mode is set to any of Continuous Mode, Test Mode, and Alternate

Mode, you need to enable “Auto Power Off Ignoring Scan Mode” in addition to enabling “Auto Power Off”. See the following section 1.1.2.3 Auto Power Off

Ignoring Scan Mode to achieve auto power off.

Note: When the scanner is set to any scan mode other than Continuous Mode, Test Mode

and Alternate Mode, you can skip “Auto Power Off Ignoring Scan Mode”.

Auto Power

0~254 min. (*10)

1) Read the barcode above to enable the scanner to automatically turn off at a specified time after power-on.

2) Assign the auto power off time by reading the “Decimal Value” barcode on page 231. For example, read “1” and “5” for the scanner to automatically turn off after idleness of 15 minutes.

3) Read the “Validate” barcode on the same page to complete this setting.

Update

1560P Series Barcode Scanner User Guide

Note: “Auto Power Off” will not take effect when one of the following conditions is met:

(1) the scanner is in the configuration mode, or (2) 1560P is in Auto-Sense mode and seated in the 3656 stand.

1.1.2.3 AUTO POWER OFF IGNORING SCAN MODE

This mode is intended only for Continuous Mode, Test Mode, and Alternate Mode. To force a scanner that is set to one of these three modes to automatically power off to save power, you need the following settings:

1. Enable “Auto Power Off” as detailed in the foregoing section 1.1.2.2 Auto Power

Off. And set a time for the scanner to automatically power off after power-on.

2. Enable “Auto Power Off Ignoring Scan Mode” by reading the barcode below:

Enable

*Disable

Read the barcode above to enable/disable automatic power-off for Continuous Mode, Test Mode, and Alternate Mode.

Note: “Auto Power Off Ignoring Scan Mode” only features enabling and disabling. It

doesn’t feature the setting of auto power-off time. Such setting should be configured in the preceding setup of “Auto Power Off”.

Enter Setup

Chapter 1

Understanding the Barcode Scanner

1.1.3 POWER ECONOMY VS. WPAN CONNECTION

Before the scanner can communicate with the host computer, Bluetooth connection (or WPAN connection) needs to be established. The scanner’s power economy always accommodates itself to the establishment of the WPAN connection.

The following describes how the scanner carries out power economy before and after the establishment of the WPAN connection:

Before establishing a WPAN connection successfully…

1. The scanner stays active for a specified period of time (2 minutes by default) for the following

scenarios. The CPU runs at full speed, and the LED blinks blue (On/Off ratio 0.5 s: 0.5 s).

(a) waiting for a connection request from the host (BT SPP Slave Mode)

(b) trying to connect to the host (BT HID or BT SPP Master Mode)

2. If the scanner fails to connect within 2 minutes, it becomes inactive to save power for the

remaining period of time (the specified “Auto Power Off” value minus 2 minutes). The CPU starts to run at low speed, and the LED begins to blink red (On/Off ratio 0.3 s: 2.5 s).

Pull the trigger to wake up the scanner when it becomes inactive, and the scanner will become active again.

3. If it fails to connect again and again, and finally stays inactive until the specified Auto Power

Off time elapses, the scanner will automatically turn off in order to conserve battery power.

Pull down the trigger for about 2 seconds to turn it on again.

Note: For scenarios (a) and (b) in step 1, you may need to search for the scanner again

on your computer.

After establishing a WPAN connection successfully…

1. Once a WPAN connection is established successfully, the scanner will stay active for a specified

period of time (2 minutes by default) for data transmission. The CPU runs at full speed, and the LED blinks blue (On/Off ratio 0.02 s: 3 s).

2. If the scanner stays idle for 2 minutes (default), it will then turn inactive to save power for the

remaining period of time (the specified “Auto Power Off” value minus 2 minutes). The CPU runs at low speed, and the LED is blinking red (On/Off ratio 0.3 s: 2.5 s).

Pull the trigger to wake up the scanner when it becomes inactive, then the scanner will stay active again.



For BT HID or SPP, the scanner automatically shuts down after the configured “Auto Power Off” time without the transition from full CPU speed to low CPU speed. However, when connecting with 3656, the scanner will go through the transition in order to save power.

3. If the scanner first becomes idle and finally stays inactive until the specified Auto Power Off

time is up, the scanner will automatically turn off in order to conserve battery power. You will hear three short beeps, tone descending from high to low.

Pull down the trigger for about 2 seconds to turn it on again.



For BT HID, the scanner resumes the connection with the host upon powering on again, as long as the host application is running. You will hear three short beeps, tone ascending from low to high upon the resumption. If the scanner fails to resume the connection, it will

Update

1560P Series Barcode Scanner User Guide

try every 5 seconds to re-connect to the host unless you have the scanner read the “Reset Connection” barcode.

 For BT SPP Slave Mode, the scanner waits for the host to re-connect.  For BT SPP Master Mode, the scanner resumes the connection with the host upon

powering on again as long as the host application is running. You will hear three short beeps, tone ascending from low to high upon resumption. If the scanner fails to resume the connection, it will try every 5 seconds to re-connect to the host unless you have the scanner read the “Reset Connection” or “Restore System Defaults” barcode.

 With the use of 3656, the scanner tries to re-connect 3656 unless you turn off the

scanner.

Enter Setup

Chapter 1

Understanding the Barcode Scanner

1.2 MEMORY

The collected data can be sent back to a host computer one by one via the WPAN connection or stored in flash memory when the scanner is set to Memory mode.

1.2.1 TRANSMIT BUFFER

By default, transmit buffer is enabled and for use when the scanner is out of range. Upon reading a barcode successfully within range, the scanner responds with one short beep (high tone) and its LED indicator becomes solid green and goes off quickly. However, the host computer may not receive the data immediately if getting out of range. With the 4 KB transmit buffer, the scanner can ignore the transmission status and keep on reading barcodes until the buffer is full.

When transmit buffer is enabled…

If the scanner is out of range, it will respond with two short beeps, high-low tone, upon reading a barcode successfully.

When transmit buffer is full, the scanner will respond with one long beep (low tone) and its LED indicator will become solid red and go off quickly. You are advised to get back to range.

When transmit buffer is disabled…

If the scanner is out of range, it will respond with one long beep (low tone) and its LED indicator will become solid red and go off quickly. You are advised to get back to range.

*Enable

Disable

Note: The 4 KB transmit buffer on the scanner can hold as many as 256 scans based on

EAN-13 barcodes. Data will be cleared out once the scanner is turned off or running out of battery power!

Update

1560P Series Barcode Scanner User Guide

1.2.2 MEMORY MODE

The scanner keeps 512 KB flash memory for memory mode operation. When the scanner is in memory mode, it means any real-time connection established with the host is disabled.

Enable

*Disable

Warning: No real-time connection is allowed unless the memory mode is disabled.

Memory Data Delay

You may set a delay between each data record while transmitting data back to the host.

*None

250 ms

500 ms

1 sec

2 sec

3 sec

5 sec

Enter Setup

Chapter 1

Understanding the Barcode Scanner

8 sec

Send Data

The 512 KB flash memory on the scanner can store up to 32,768 scans based on EAN-13 barcodes. When it is used up, the scanner will respond with two short beeps (high-low tone) as a warning.

You are advised to send data to the host immediately by having the scanner read the “Send Data” barcode below. It will resume the previous WPAN connection with the host temporarily.

Send Data

Clear Data & Confirm

Even though data has been sent back to the host, the flash memory is still occupied unless you erase the memory by having the scanner read two barcodes – “Clear Data” and “Confirm”.

1. Read the “Clear Data” barcode to clear the flash memory.

2. Read the “Confirm” barcode to confirm the action.

Clear Data

Confirm

1.2.3 FREE MEMORY

In memory mode, you can scan the barcode below to show the available capacity of the flash memory in percentage terms.

Spare memory

Update

1560P Series Barcode Scanner User Guide

1.3 LED INDICATOR

The triple-color LED on top of the scanner is used to provide user feedback. For example, the LED becomes solid red and goes off quickly upon powering on or running out of transmit buffer. You may tell the difference by the beeps – you will hear a long beep of high tone when powering on the scanner, and a long beep of low tone when the transmit buffer becomes full.

Scanner LED Meaning

Red, flashing

Red, solid

Red, flashing

Red, on-off

--- --- Green,

--- Blue,

--- ---

--- --- Charging error

--- --- Flashing red (On/Off ratio 0.3 s: 2.5 s) indicates the scanner is

--- ---

on-off

--- First, flashing blue (On/Off ratio 0.5 s: 0.5 s) for two minutes

flashing

--- Flashing blue (On/Off ratio 0.1 s: 0.1 s) indicates the scanner

flashing

 Charging (On/Off ratio 0.5 s: 0.5 s)  Configuration Mode (On/Off ratio 0.5 s: 0.5 s)

inactive and its CPU running at low speed to save power —

 No WPAN connection is established after waiting for two

minutes

 Power on, with one long beep (high tone, LED on for 1

second)

 Data saved to buffer when transmit buffer is enabled and the

scanner is out of range, with two short beeps (high-low tone)

 Transmit buffer full, with one long beep (low tone)  Transmit buffer disabled, with one long beep (low tone)  Memory full in memory mode, with two short beeps (high-low

tone)

Good Read, with one short beep (high tone) and beeper pitch and duration programmable

indicates the scanner is waiting for connection, and goes off if no connection is established, then flashing red (On/Off ratio 0.3 s:

2.5 s) indicates the scanner is inactive.

It is ready for connection only while the LED is flashing blue —

 SPP Slave: waiting host to connect  HID or SPP Master: trying to connect to host  Using 3656: trying to connect to 3656

receives a PIN code request from host (flashing more quickly than waiting connection).

--- Blue,

flashing

--- Blue,

flashing

--- Flashing blue (On/Off ratio 0.02 s: 3 s) indicates the scanner has established a WPAN connection successfully.

Green, flashing

Flashing blue and green (On/Off ratio 0.1 s: 0.1 s) indicates an error occurs while entering the PIN code. Press the trigger to get ready for re-connecting.

Enter Setup

Chapter 1

Understanding the Barcode Scanner

*Enable

Disable

0.01~2.54 sec.

1.3.1 GOOD READ LED

Good Read LED

1.3.2 GOOD READ LED DURATION

By default, the Good Read LED stays on for 40 milliseconds. Specify a value, ranging from 1 to 254 in units of 10 milliseconds.

Good Read LED

Time-out after

(*40 ms)

1) Read the barcode above to specify the time interval before the Good Read LED goes

off.

2) Read the “Decimal Value” barcode on page 231. For example, read “1” and “5” for the

Good Read LED to go off after 150 milliseconds.

3) Read the “Validate” barcode on the same page to complete this setting.

Update

1560P Series Barcode Scanner User Guide

1.4 BEEPER

The scanner has a buzzer to provide user feedback in various operating conditions.

Beeping Meaning

One long beep, high tone Power on, with red LED on (1 second) and off quickly

One short beep, high tone

Good Read, with green LED on-off quickly

 Programmable, default to 4 KHz

Six short beeps

 High-low tone repeats three

times

Two short beeps, low-high tone Setup barcode read successfully

One short beep, high tone

 Enter Configuration Mode, with red LED flashing  Exit Configuration Mode

 More setup barcode required  Input PIN code  Clear PIN code

One short beep, low tone More barcodes required to complete the “output sequence”

requirements of Multi-Barcode Editor, with green LED on-off quickly (Upon completion, same as Good Read.)

One long beep, low tone

 Transmit buffer full, with red LED on-off quickly  Transmit buffer disabled, with red LED on-off quickly  Configuration error (Wrong barcode…)  PIN code input error  Reject random PIN request  Fail to send data in memory mode

Two short beeps, high-low tone

 Data saved to buffer when transmit buffer is enabled

and the scanner is out of range, with red LED on-off quickly

 Memory Mode – Memory full, with red LED on-off quickly

Two short beeps, high tone Low Battery Alarm

Two long beeps, high-low tone Multi-Barcode Mode – Buffer full

Three short beeps, tone ascending from low to high

Three short beeps, tone ascending from high to low

 WPAN connection established, with blue LED flashing  WPAN connection resumed, with blue LED flashing

WPAN connection out of range or suspended

Enter Setup

Chapter 1

Understanding the Barcode Scan

ner

1.4.1 BEEPER VOLUME

Mute

Minimum Volume

Medium Volume

*Maximum Volume

Update

1560P Series Barcode Scanner User Guide

1.4.2 GOOD READ BEEP

Frequency

8 kHz

*4 kHz

2 kHz

1 kHz

Duration

*Shortest

Shorter

Longer

Longest

Enter Setup

Chapter 1

Understanding the Barcode Scanner

1.4.3 LOW BATTERY ALARM

By default, it will activate the beeper to give a warning when the battery charge gets low. In order to prevent data loss, you are advised to replace the battery immediately when you hear two short beeps (high tone).

No Alarm

*Low Battery Alarm

Update

1560P Series Barcode Scanner User Guide

1.5 SEND “NR” TO HOST

The scanner can send the “NR” string to the host to notify the No Read event.

Enable

*Disable

Enter Setup

Chapter 1

Understand

ing the Barcode Scanner

1.6 SCAN MODES

Different scan modes are supported – select the scan mode that best suits the requirements of a specific application. Refer to the comparison table below.

Scan Mode Start to Scan Stop Scanning

Continuous mode

Test mode

Laser mode

Auto Off mode

Auto Power Off mode

Alternate mode

Aiming mode

Multi-Barcode mode

Always Press

trigger once



  

 

Hold trigger

   

 

Press trigger twice

  

Release trigger

Press trigger once

Barcode being read

Timeout

Note: By default, the scan mode is set to Laser mode.

Update

1560P Series Barcode Scanner User Guide

1.6.1 CONTINUOUS MODE

The scanner is always scanning.

 After a successful decoding, the removal of barcode is required. It is not allowed to

proceed to decode until the decoding delay time has passed.

 To decode the same barcode repeatedly, move away the barcode and put it back

again and again for scanning.

Note: Refer to “Delay between Re-read”.

Continuous Mode

Decoding Delay

Set the time interval between each decoding.

*Disable

0.5 sec

1 sec

2 sec

1.6.2 TEST MODE

The scanner is always scanning.

 Capable of decoding the same barcode repeatedly without removing it, for testing

purpose.

Test Mode

Enter Setup

Chapter 1

Understanding the Barcode Scanner

1.6.3 LASER MODE

The scanner will start scanning once the trigger is held down.



The scanning won’t stop until (1) a barcode is decoded, (2) the pre-set timeout expires, or (3) you release the trigger.

Note: Refer to “Scanning Timeout”.

*Laser Mode

1.6.4 AUTO OFF MODE

The scanner will start scanning once the trigger is pressed.



The scanning won’t stop until (1) a barcode is decoded, and (2) the pre-set timeout expires.

Note: Refer to “Scanning Timeout”.

Auto Off Mode

1.6.5 AUTO POWER OFF MODE

The scanner will start scanning once the trigger is pressed.



The scanning won’t stop until the pre-set timeout expires, and, the pre-set timeout period re-counts after each successful decoding.

Note: Refer to “Delay between Re-read” and “Scanning Timeout”.

Auto Power Off Mode

Update

1560P Series Barcode Scanner User Guide

after 1~15 sec.

1.6.6 ALTERNATE MODE

The scanner will start scanning once the trigger is pressed

 The scanning won't stop until you press the trigger again.

Alternate Mode

1.6.7 AIMING MODE

The scanner will aim at a barcode once the trigger is pressed, and start scanning when the trigger is pressed again within one second.

 The scanning won't stop until (1) a barcode is decoded, and (2) the pre-set timeout

expires.

Aiming Mode

Aiming Timeout

You can limit the aiming time interval (1~15). By default, the scanner time-out is set to 1 second.

Aiming Time-out

(*1)

1. Read the barcode above to specify the time interval before aiming ends. (It is set to 1 by default.)

2. Read the “Decimal Value” barcode on page 231. For example, read “1” and “0” for the scanner to automatically shut down after idleness for 10 seconds.

3. Read the “Validate” barcode on the same page to complete this setting.

Enter Setup

Chapter 1

Understanding the Barcode Scanner

1.6.8 MULTI-BARCODE MODE

The scanner will be scanning as long as the trigger is held down, capable of decoding one single barcode, as well as multiple unique barcodes one at a time. While decoding a bunch of unique barcodes, if a barcode is decoded twice, its subsequent decoding will be ignored and the scanner is expecting another unique barcode.



The scanning won't stop until you release the trigger.

Multi-Barcode Mode

Note: (1) A barcode is considered unique when its Code Type or data is different from

others. (2) Multi-Barcode Mode has nothing to do with the Multi-Barcode Editor.

Update

1560P Series Barcode Scanner User Guide

after 0~254 sec.

1.7 SCANNING TIMEOUT

Specify the scanning time interval (1~254 sec.; 0= Disable) when the scan mode is set to any of the following –

 Laser mode  Auto Off mode  Auto Power Off mode  Aiming mode

Scanner Time-out

(*10)

1) Read the barcode above to specify the time interval before the scan engine times out.

2) Read the “Decimal Value” barcode on page 231. For example, read “1” and “5” for the

scanner to automatically shut down after idleness of 15 seconds.

3) Read the “Validate” barcode on the same page to complete this setting.

Enter Setup

Chapter 1

Understanding the Barcode Scanner

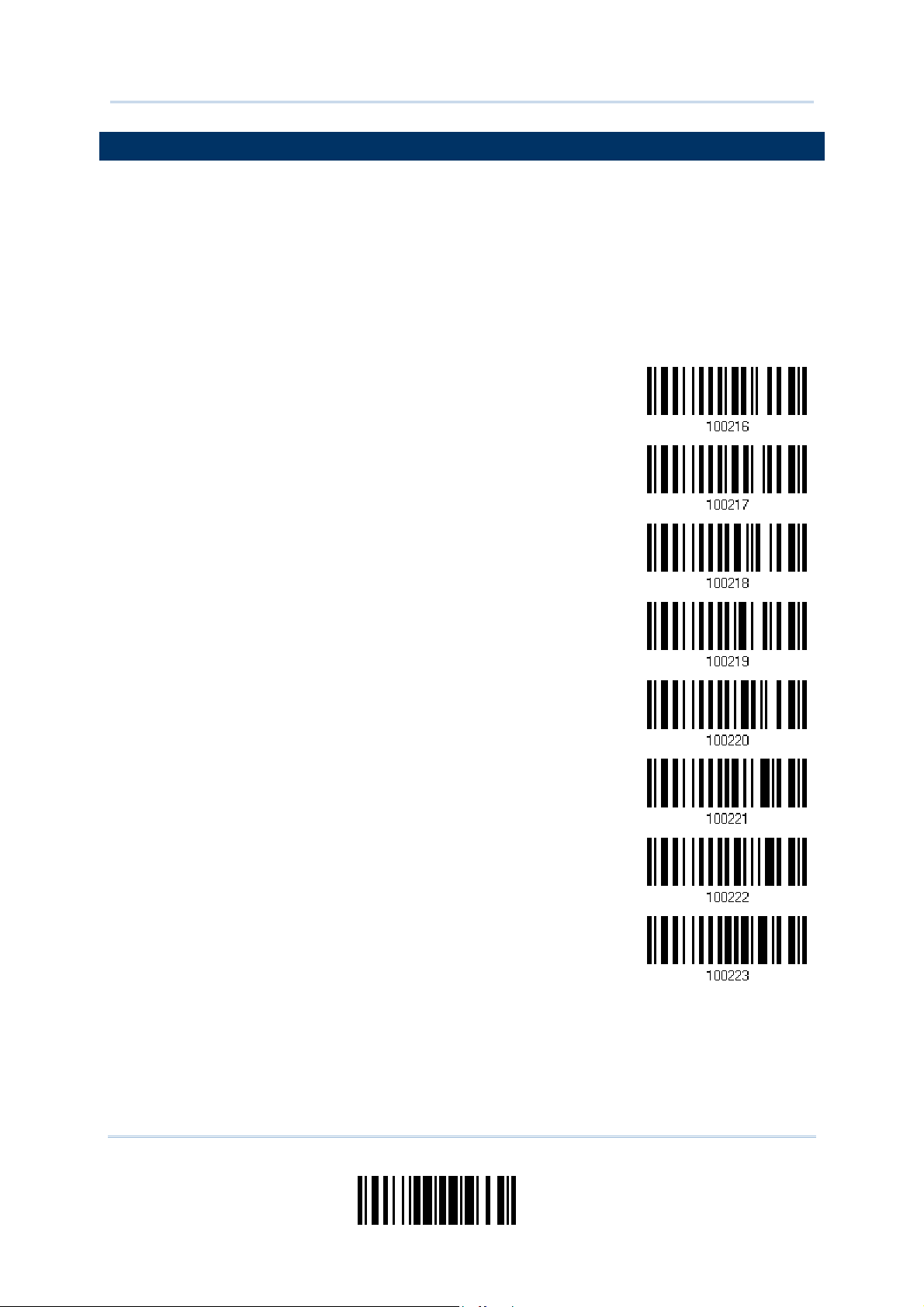

1.8 DELAY BETWEEN RE-READ

This is also referred to as the “Blocking Time”, which is used to prevent the scanner from accidentally reading the same barcode twice when the scan mode is set to any of the following –



Continuous mode



Auto Power Off mode



Alternate mode

100 ms

200 ms

*400 ms

800 ms

1 sec

2 sec

3 sec

5 sec

Update

1560P Series Barcode Scanner User Guide

1.9 READ REDUNDANCY FOR ALL SYMBLOGIES

Select the level of reading security. For example,

 If “No Redundancy” is selected, one successful decoding will make the reading valid

and induce the “READER Event”.

 If “Three Times” is selected, it will take a total of four consecutive successful

decoding of the same barcode to make the reading valid. The higher the reading security is (that is, the more redundancy the user selects), the slower the reading speed gets.

It is obvious that the more redundancy you select, the higher the reading security is, and thus, the slower the reading speed becomes. You will have to compromise between reading security and decoding speed.

*No Redundancy

One Time

Two Times

Three Times

Enter Setup

Chapter 1

Understanding the Barcode Scanner

1.10 ADDON SECURITY FOR UPC/EAN BARCODES

The scanner is capable of decoding a mix of UPC/EAN barcodes with and without addons. The read redundancy (0~30 times) allows changing the number of times to decode a UPC/EAN barcode before transmission. The more redundancy you select, the higher the reading security is, and thus, the slower the reading speed becomes. You will have to compromise between reading security and decoding speed.

Note: UPC/EAN Addon 2 and Addon 5 must be enabled individually for this setting to

take effect.

Addon Security Level

(*0~30)

1) Read the barcode above to specify the read redundancy for UPC/EAN barcodes. (It is

set to 0 by default.)

2) Read the “Decimal Value” barcode on page 231. For example, read “1” and “2” for the

scanner to re-read the barcode for 12 times.

3) Read the “Validate” barcode on the same page to complete this setting.

Update

1560P Series Barcode Scanner User Guide

1.11 AUTO-SENSE MODE (1560P ONLY)

This mode is only available when you want to seat the scanner in the Auto-Sense stand. When you enable this mode, it will force the scanner to apply Laser mode as the scan mode. However, it works slightly differently from the original Laser mode. Now the scanner will be expecting barcodes as long as it is seated in the Auto-Sense stand, as shown below. Whenever a barcode is brought within range, the scanner will be able to decode it.

Note: Auto-sense can only be enabled for CCD scanner and will force it to Laser mode.

To stop this mode, you may remove the scanner from the stand or have the scanner read the “Disable (Auto-Sense)” barcode below. It will return to Laser mode. If Laser mode is not desired, proceed to select a scan mode best suits your application.

Note: For Auto-Sense mode to work, you must connect both the power supply cord and

the interface cable to the Auto-Sense stand. USB power is insufficient.

Enable

*Disable

Enter Setup

Chapter 1

Understanding the Barcode Scanner

When the ambient light is too dim to activate the sensor, you may have the scanner read the “High Sensitivity” barcode to improve performance. Starting from firmware version

1.23, it will emit scan beam every 300 milliseconds when “High Sensitivity” is enabled.

High Sensitivity

*Normal

Note: If the ambient light is under 100 lux, we suggest that you either add lighting or

use Continuous mode instead.

Update

1560P Series Barcode Scanner User Guide

1.12 CCD SENSOR ALWAYS ACTIVE (1560PONLY)

This feature is used to keep the CCD sensor always active so that the scanner can decode more efficiently. However, you may disable it in order to save battery power.

*Enable

Disable

1.13 NEGATIVE BARCODES

Normally, barcodes are printed with the color of the bars darker than that of the spaces. But for negative barcodes, they are printed in the opposite sense just like negative films. The spaces of negative barcodes are printed with a color darker than that of the bars. You can configure the scanner to be able to read negative barcodes.

Enable

*Disable

Enter Setup

Chapter 1

Understanding the Barcode Scanner

1.14 EFFECTIVE DECODING AREA

By default, the effective decoding area is 100% covered by the scanned area. However, you may narrow down the decoding area to prevent reading the wrong barcode when a number of barcodes are printed closely. The scanner will only read barcodes that appear in the effective decoding area.

Read the barcode “Centering On” and specify the percentage to narrow down the decoding area. For example, read “Left 10%” and then “Right 30%” for the scanner to decode barcode “A” only.

1.14.1 POSITIONING WINDOW

Centering On

*Centering Off

Update

1560P Series Barcode Scanner User Guide

1.14.2 ADJUSTING WINDOW

Percentage for Left Half

*Left 50%

Left 40%

Left 30%

Left 20%

Percentage for Right Half

Left 10%

Right 10%

Right 20%

Right 30%

Right 40%

*Right 50%

Enter Setup

Chapter

SELECTING OUTPUT INTERFACE

In order to establish a proper connection between your computer and the scanner, we suggest that you follow these instructions –

1) Install the battery and hold down the trigger for about 2 seconds to turn on the

scanner.

2) Have the scanner read the “Enter Setup” barcode to enter the configuration mode.

3) Have the scanner read the associated barcodes to activate the desired interface.

See the following sections for output interfaces supported.

4) Have the scanner read the barcodes for related settings.

5) Have the scanner read the “Update” barcode to exit the configuration mode.

6) Turn on your computer or laptop and establish a WPAN connection with the scanner.

Refer to Chapter 3 – Setting up a WPAN Connection.

Update

1560P Series Barcode Scanner User Guide

the BT HID transmit speed is set to normal. Users can

have the scanner work in quicker transmit speed by reading the

Note: By default, the output interface is set to “BT HID”.

IN THIS CHAPTER

2.1 BT HID ...................................................................... 55

2.1.8 TRANSMIT SPEED

By default,

Fast barcode.

*Normal

Fast

2.2 BT SPP Slave .............................................................. 66

2.3 BT SPP Master ............................................................ 69

2.4 Keyboard Wedge via 3656 ........................................... 73

2.5 RS-232 via 3656 ......................................................... 84

2.6 USB HID via 3656 ....................................................... 89

2.7 USB Virtual COM via 3656 .......................................... 100

Enter Setup

Chapter 2

Selecting Output Interface

2.1 BT HID

For BT HID, refer to Chapter 3 – Setting up a WPAN Connection for related connection settings. Run any text editor on your computer, and the scanned data will be transmitted to the computer.

HID Settings Defaults

Keyboard Type PCAT (US)

Alphabets Layout Normal

Digits Layout Normal

Capital Lock Type Normal

Capital Lock State Off

Alphabets Transmission Case-sensitive

Digits Transmission Alphanumeric keypad

Inter-Character Delay 0 (ms)

Inter-Function Delay 0 (ms)

Update

1560P Series Barcode Scanner User Guide

2.1.1 ACTIVATE BT HID & SELECT KEYBOARD TYPE

When BT HID interface is activated, you will have to select a keyboard type to complete this setting. By default, BT HID is activated on the scanner, and the keyboard type is set to PCAT (US).

Activate BT HID &

Select Keyboard

Type…

1) Read the barcode above to activate BT HID and select a keyboard type.

2) Read the “Decimal Value” barcode on page 231. Refer to the table below for the

number of desired keyboard type.

3) Read the “Validate” barcode on the same page to complete this setting.

BT HID

By default, the keyboard type is set to PCAT (US). The following keyboard types are supported —

No. Keyboard Type No. Keyboard Type

64 PCAT (US) 72 PCAT (Spanish)

65 PCAT (French) 73 PCAT (Portuguese)

66 PCAT (German) 74 PS55 A01-2 (Japanese)

67 PCAT (Italy) 75 User-defined table

68 PCAT (Swedish) 76 PCAT (Turkish)

69 PCAT (Norwegian) 77 PCAT (Hungarian)

70 PCAT (UK) 78 PCAT (Swiss German)

71 PCAT (Belgium) 79 PCAT (Danish)

Enter Setup

Chapter 2

Selecting Output Interface

2.1.2 RESET CONNECTION

For BT HID, you can only have the scanner connected to one computer at a time. If you want to connect the scanner to another host, you must have it read the “Reset Connection” barcode so that the current connection record will be cleared. Then, the scanner will restart itself automatically. Go through the whole process in 3.2.3 Connect to

Dongle to establish a new connection.

Reset Connection

Note: The “Restore System Defaults” barcode will have the current connection record

cleared as well.

Update

1560P Series Barcode Scanner User Guide

2.1.3 KEYBOARD SETTINGS

 Alphabets Layout  Digits Layout  Capital Lock Type  Capital Lock Setting  Alphabets Transmission  Digits Transmission

Note: BT HID does not support these functions on PDAs – (1) Capital Lock Setting: Auto

Detection (2) Digits Transmission: Numeric Key

Alphabets Layout

By default, the alphabets layout is set to normal mode, also known as the standard English layout. Select French or German keyboard layout if necessary. The scanner will make adjustments when sending the "A", "Q", "W", "Z", "Y", and "M" characters according to this setting.

*Normal

AZERTY

QWERTZ

Note: This setting only works when the keyboard type selected is US keyboard, such as

PCAT (US). The Alphabets Layout and Digits Layout setting must match your keyboard.

Enter Setup

Chapter 2

Selecting Output Interface

US Keyboard Style – Normal

QWERTY layout, which is normally used in western countries.



Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.

French Keyboard Style – AZERTY

French layout; see below for French Keyboard Style.



Select “Upper Row” for the “Digits Layout” setting for the lower row is for special characters.

German Keyboard Layout – QWERTZ

German layout; see below for German Keyboard Style.



Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.

Update

1560P Series Barcode Scanner User Guide

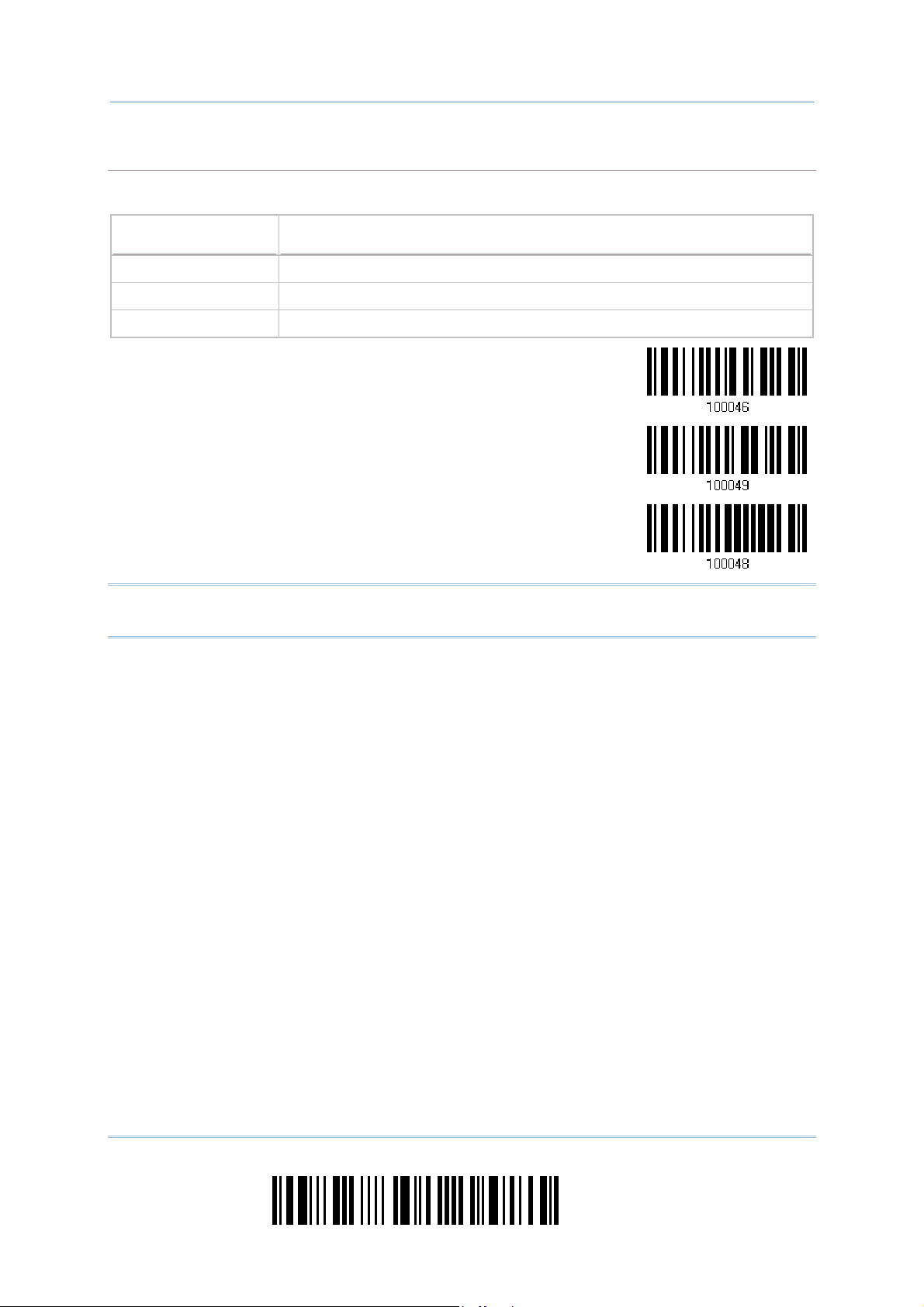

Digits Layout

Select a proper layout that matches the alphabets layout. The scanner will make adjustments according to this setting.

Options Description

Normal Depends on the [Shift] key or [Shift Lock] setting

Lower Row For QWERTY or QWERTZ keyboard

Upper Row For AZERTY keyboard

*Normal

Upper Row

Lower Row

Note: This setting is to be used with the Character Substitution setting when support to

certain keyboard types (languages) is unavailable but required.

Enter Setup

Chapter 2

Selecting Output Interface

lphabetic characters will be interpreted as

capital letters. However, this does not affect the number or punctuation

When enabled, the keys of alphabetic characters will be interpreted as

Assuming that the status of Caps Lock on the keyboard is OFF,

Assuming that the status of Caps Lock on the keyboard is ON, transmitted

sensitive"

The scanner will automatically detect the status of Caps Lock on the

keyboard before data is transmitted; transmitted characters are exactly

elected for

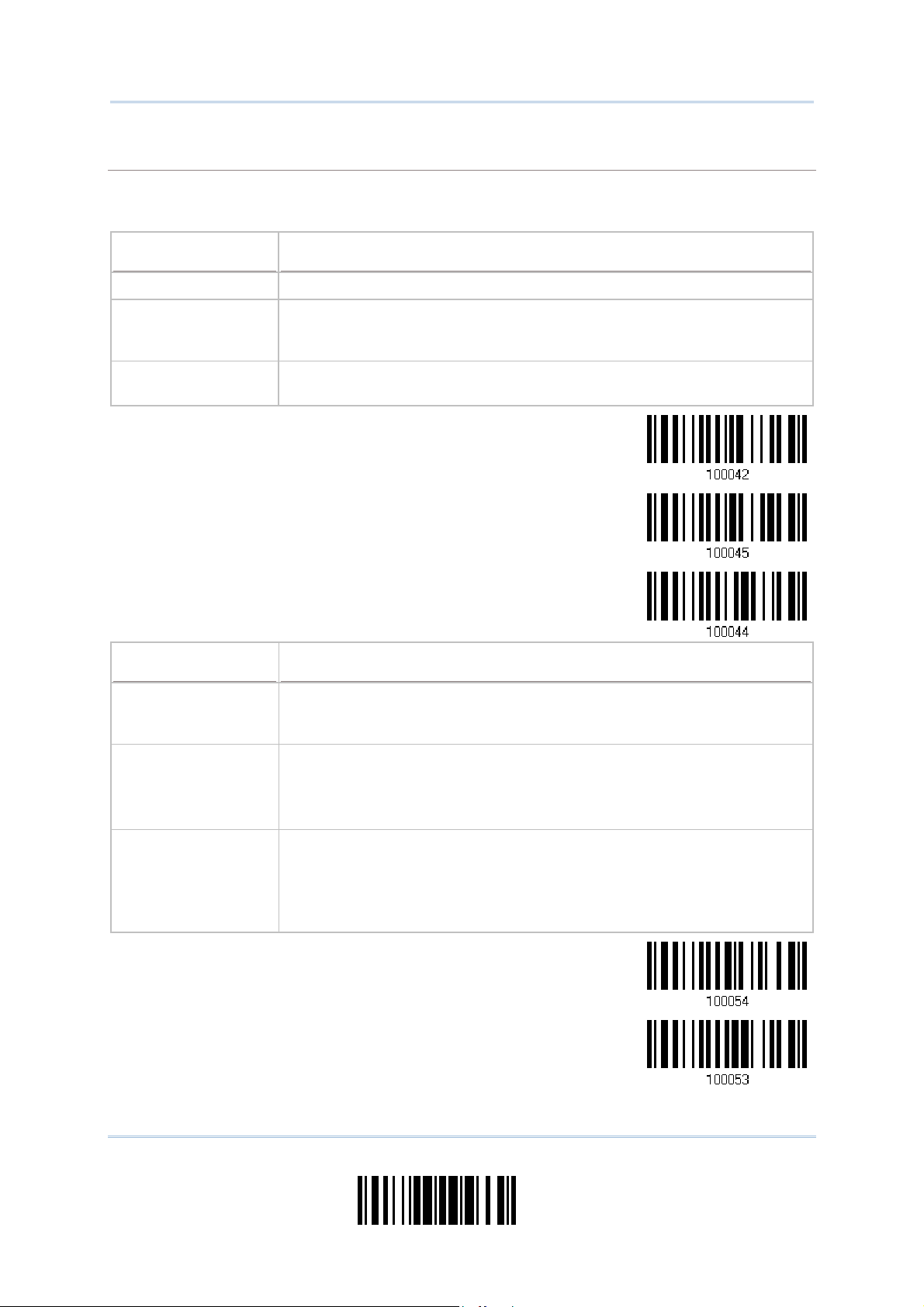

Capital Lock Type & Setting

In order to send the alphabets with correct case, the scanner needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.

Cap Lock Type Description

Normal Normal type

Capital Lock When enabled, the keys of a

keys.

Shift Lock

capital letters. In addition, this affects the number or punctuation keys.

*Normal

Shift Lock

Capital Lock State Description

Capital Lock OFF

transmitted characters are exactly the same as in the barcode (when "case-sensitive" is selected for Alphabets Transmission).

Capital Lock ON

characters are exactly the same as in the barcode (when "caseis selected for Alphabets Transmission).



Refer to the Capital Lock Type above.

Auto Detection

the same as in the barcode (when "case-sensitive" is s Alphabets Transmission).



This setting is not supported on PDAs.

Capital Lock

Auto Detect

Capital Lock ON

Update

1560P Series Barcode Scanner User Guide

*Capital Lock OFF

Enter Setup

Chapter 2

Selecting Output Interface

Alphabets Transmission

By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of Caps Lock on the keyboard only.

Ignore Case

*Case-sensitive

Refer to 5.1 Letter Case.

Update

1560P Series Barcode Scanner User Guide

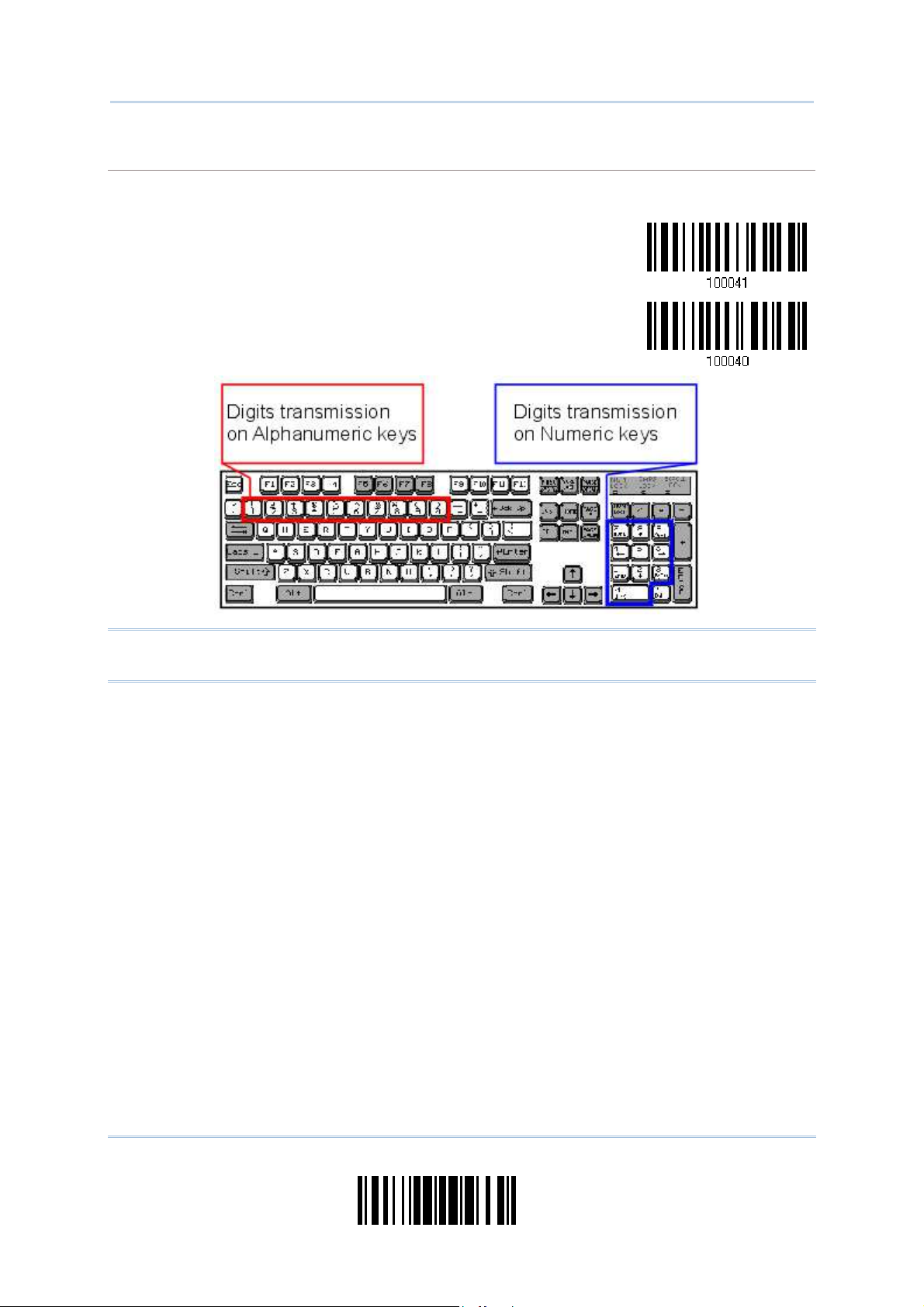

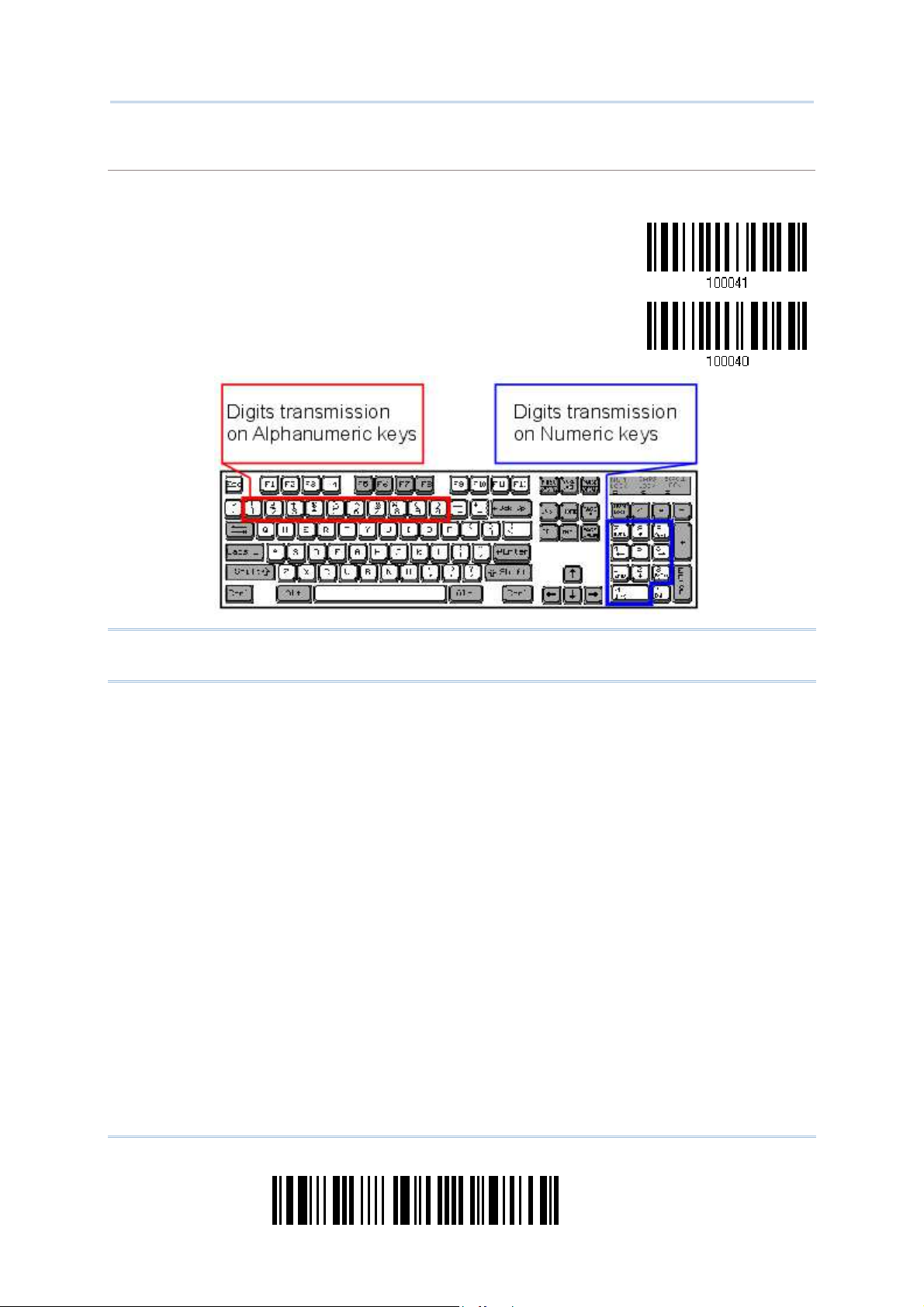

Digits Transmission

By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you wish to use the keys on the numeric keypad.

Numeric Key

*Alphanumeric Key

Note: If you select “Numeric Keypad”, the Num Lock status of the physical keyboard

should be “ON”. This setting is not supported on PDAs.

Enter Setup

Chapt

er 2

Selecting Output Interface

2.1.4 INTER-CHARACTER DELAY

By default, the inter-character delay is set to zero. Specify a value, ranging from 0 to 254 in units of millisecond, to match the computer response time of the keyboard interface. Such delay time is inserted between every character being transmitted. The longer the delay time is, the slower the transmission speed will be.

Inter-Character Delay… (*0~254)

1) Read the barcode above to specify the inter-character delay.

2) Read the “Decimal Value” barcode on page 231 for the desired inter-character delay

(millisecond).

3) Read the “Validate” barcode on the same page to complete this setting.

2.1.5 INTER-FUNCTION DELAY

By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254 in units of millisecond, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower the transmission speed will be.

Inter-Function

Delay… (*0~254)

1) Read the barcode above to specify the inter-function delay.

2) Read the “Decimal Value” barcode on page 231 for the desired inter-function delay

(millisecond).

3) Read the “Validate” barcode on the same page to complete this setting.

Update

1560P Series Barcode Scanner User Guide

2.1.6 HID CHARACTER TRANSMIT MODE

By default, HID interface sends data to the host in batch. You may have the scanner read the “By Character” barcode to process data one character at a time.

*Batch Processing

By Character

Note: “By Character” transmit mode is required when working with iPhone or iPad.

2.1.7 KEYPAD SUPPORT FOR IPHONE/IPAD

When the scanner has been successfully connected to iPhone or iPad for data collection, the onscreen keypad of iPhone or iPad will disappear.

Have the scanner read the following barcode to show or hide the keypad if necessary.

Show or Hide Keypad

Note: This function only works for

(1) iPhone 4 and 3GS version 4.1 or later, and (2) iPad version 4.2 or later.

2.1.8 TRANSMIT SPEED

By default, the BT HID transmit speed is set to normal. Users can have the scanner work in quicker transmit speed by reading the Fast barcode.

*Normal

Fast

Enter Setup

Chapter 2

Selecting Output Interface

2.2 BT SPP SLAVE

For BT SPP Slave, refer to Chapter 3 – Setting up a WPAN Connection for related connection settings.

2.2.1 ACTIVATE BT SPP SLAVE MODE

This is SPP Slave Mode.

Activate BT SPP,

Slave Mode

2.2.2 INTER-FUNCTION DELAY

Inter-Function

Delay… (*0~254)

1) Read the barcode above to specify the inter-function delay.

2) Read the “Decimal Value” barcode on page 231 for the desired inter-function delay

(millisecond).

3) Read the “Validate” barcode on the same page to complete this setting.

Update

1560P Series Barcode Scanner User Guide

2.2.3 ACK/NAK TIMEOUT

By default, the scanner sends data to the host without waiting for an ACK/NAK response before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 second. If no response within the specified period of time, the scanner will attempt to send the same data two more times. If all three attempts fail without any notification, data loss will occur.

ACK/NAK Time-out

after … (*0~99)

1) Read the barcode above to specify the time interval for the scanner to send data and

wait for a response from the host.

2) Read the “Decimal Value” barcode on page 231. For example, read “1” and “0” for the

scanner to automatically shut down after idleness of 1 second.

3) Read the “Validate” barcode on the same page to complete this setting.

ACK/NAK Error Beep

Enable Error Beep

*Disable Error Beep

Note: We suggest enabling the error beep so that you will be notified of such data loss

and have the scanner re-read data.

Enter Setup

Chapter 2

Selecting Output I

nterface

2.3 BT SPP MASTER

As a SPP master device, the scanner will be able to resume connection with the host upon powering on again, as long as the host application is running. If the scanner fails to resume connection, it will try every 5 seconds to re-connect to the host unless you have the scanner read the “Reset Connection” or “Restore System Defaults” barcode.

For BT SPP Master, refer 3.2.2 Configure Related Settings for related connection settings.

Note: In SPP Master Mode, if the scanner fails to re-connect within the specified period

of time (2 minutes by default), the scanner will become inactive to save power. Once the re-connection is established successfully, the scanner will not go through transition from full CPU speed to low CPU speed even though it is idle during the specified time interval for Auto Power Off. It will automatically turn off when the time is up. Refer to

1.1.3 Power Economy vs. WPAN Connection.

2.3.1 ACTIVATE BT SPP MASTER MODE

This is SPP Master Mode.

Activate BT SPP,

Master Mode

How to connect with the target device?

Produce two setup barcodes for the target SPP slave device, just like what we do for 3656.



“Set Connection”



“MAC ID”

Note: The “MAC ID” barcode must have a prefix of two characters, either “0x” or “0X”,

followed by the real MAC address of the target device.

Usage:

1. Read the “Activate BT SPP, Master Mode” barcode above and barcodes for connection settings, such as authentication and preset PIN. Skip this step if no connection settings are desired.

2. Read the “Set Connection” and “MAC ID” barcodes. The scanner will respond with one beep upon reading each of the barcodes.

Set Connection

Prefix “0X” to target MAC address

Update

1560P Series Barcode Scanner User Guide

Note: Read the “Set Connection” barcode first, and then the “MAC ID” barcode within 10

seconds.

Instead of producing the “MAC ID” barcode, you may have the scanner read the setup barcodes for entering the MAC address.

 Have the scanner read the “Abort” barcode to cancel the operation at any time while reading

setup barcodes for the MAC address. If the MAC address has not been completed yet, having the scanner read the “Validate” barcode can cancel the operation as well.

Enter MAC ID in

Hexadecimal…

Usage:

1. Read the barcode above.

2. Read the “Hexadecimal Value” barcode on page 232 for the desired MAC address.

3. Read the “Validate” barcode on the same page to complete this setting.

Exit SPP Master Mode

To stop such re-connection, have the scanner read “Reset Connection” or “Restore System Defaults” barcode so that the current connection record (= MAC ID) will be cleared. Then, the scanner will restart itself automatically. Go through the whole process in 3.2.3 Connect to Dongle to establish a new WPAN connection.

Reset Connection

Enter Setup

Chapter 2

Selecting Output Interface

2.3.2 INTER-FUNCTION DELAY

Inter-Function

Delay… (*0~254)

1) Read the barcode above to specify the inter-function delay.

2) Read the “Decimal Value” barcode on page 231 for the desired inter-function delay

(millisecond).

3) Read the “Validate” barcode on the same page to complete this setting.

Update

1560P Series Barcode Scanner User Guide

2.3.3 ACK/NAK TIMEOUT

ACK/NAK Time-out

after … (*0~99)

1) Read the barcode above to specify the time interval for the scanner to send data and

wait for a response from the host.

2) Read the “Decimal Value” barcode on page 231. For example, read “1” and “0” for the

scanner to automatically shut down after idleness of 1 second.

3) Read the “Validate” barcode on the same page to complete this setting.

ACK/NAK Error Beep

Enable Error Beep

*Disable Error Beep

Note: We suggest enabling the error beep so that you will be notified of such data loss

and have the scanner re-read data.

2.3.4 SWITCH BETWEEN MASTER/SLAVE MODE

After the scanner has established a connection as a SPP slave device, you may have it read the “Activate BT SPP, Master Mode” setup barcode to switch to SPP Master Mode. This will result in easy and reliable re-connection, just like connecting with 3656.

Enter Setup

Chapter 2

Selecting Output Interface

2.4 KEYBOARD WEDGE VIA 3656

The Y cable allows you to connect the scanner via 3656 to the keyboard input port of PC and you may join the keyboard as well. The scanned data will be transmitted to the host keyboard port as if it is manually entered via the keyboard. For example, run a text editor on your computer to receive the data.

Keyboard Wedge Settings Defaults

Keyboard Type PCAT (US)

Alphabets Layout Normal

Digits Layout Normal

Capital Lock Type Normal

Capital Lock State Off

Alphabets Transmission Case-sensitive

Digits Transmission Alphanumeric keypad

Alternate Composing No

Laptop Support Disable

Inter-Character Delay 0 (ms)

Inter-Function Delay 0 (ms)

Update

1560P Series Barcode Scanner User Guide

2.4.1 ACTIVATE KEYBOARD WEDGE & SELECT KEYBOARD TYPE

When Keyboard Wedge interface is activated, you will have to select a keyboard type to complete this setting.

Activate 3656

Keyboard Wedge &

Select Keyboard

Type…

1) Read this barcode above to activate Keyboard Wedge and select a keyboard type.

2) Read the “Decimal Value” barcode on page 231. Refer to the table below for the

number of desired keyboard type.

3) Read the “Validate” barcode on the same page to complete this setting.

Keyboard Wedge via 3656

By default, the keyboard type is set to PCAT (US). The following keyboard types are supported when using 3656 with the keyboard wedge cable provided —

No. Keyboard Type No. Keyboard Type

1 PCAT (US) 18 PS55 001-3

2 PCAT (French) 19 PS55 001-8A

3 PCAT (German) 20 PS55 002-1, 003-1

4 PCAT (Italian) 21 PS55 002-81, 003-81

5 PCAT (Swedish) 22 PS55 002-2, 003-2

6 PCAT (Norwegian) 23 PS55 002-82, 003-82

7 PCAT (UK) 24 PS55 002-3, 003-3

8 PCAT (Belgium) 25 PS55 002-8A, 003-8A

9 PCAT (Spanish) 26 IBM 3477 Type 4 (Japanese)

10 PCAT (Portuguese) 27 PS2-30

11 PS55 A01-1 28 IBM 34XX/319X, Memorex Telex 122 Keys

12 PS55 A01-2 (Japanese) 29 User-defined table

13 PS55 A01-3 30 PCAT (Turkish)

14 PS55 001-1 31 PCAT (Hungarian)

15 PS55 001-81 32 PCAT (Swiss German)

16 PS55 001-2 33 PCAT (Danish)

17 PS55 001-82

Enter Setup

Chapter 2

Selecting Output Interface

2.4.2 KEYBOARD SETTINGS



Alphabets Layout



Digits Layout



Capital Lock Type



Capital Lock Setting



Alphabets Transmission



Digits Transmission



Alternate Composing



Laptop Support

Alphabets Layout

*Normal

AZERTY

QWERTZ

Note: This setting only works when the keyboard type selected is US keyboard, such as

PCAT (US). The Alphabets Layout and Digits Layout setting must match your keyboard.

Update

Series Barcode Scanner User Guide

US Keyboard Style – Normal

QWERTY layout, which is normally used in western countries.

 Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.

French Keyboard Style – AZERTY

French layout; see below for French Keyboard Style.

 Select “Upper Row” for the “Digits Layout” setting for the lower row is for special characters.

German Keyboard Layout – QWERTZ

German layout; see below for German Keyboard Style.

 Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.

Enter Setup

Chapter 2

Selecting Output Interface

Digits Layout

Select a proper layout that matches the alphabets layout. The scanner will make adjustments according to this setting.

Options Description

Normal Depends on the [Shift] key or [Shift Lock] setting

Lower Row For QWERTY or QWERTZ keyboard

Upper Row For AZERTY keyboard

*Normal

Upper Row

Lower Row

Note: This setting is meant to be used with the Alphabets Layout; and perhaps with the

Character Substitution setting when support to certain keyboard types (languages) is unavailable but required.

Update

Series Barcode Scanner User Guide

When enabled, the keys of alphabetic characters will be interpreted as

l letters. However, this does not affect the number or punctuation

When enabled, the keys of alphabetic characters will be interpreted as

Assuming that the status of Caps Lock on the keyboard is OFF,

transmitted characters are exactly the same as in the barcode (when

Assuming that the status of Caps Lock on the keyboard is ON, transmitted

sensitive"

The scanner will automatically detect the status of Caps Lock on the

keyboard before data is transmitted; transmitted characters are exactly

sensitive" is selected for

Capital Lock Type & Setting

In order to send the alphabets with correct case, the scanner needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.

Cap Lock Type Description

Normal Normal type

Capital Lock

capita keys.

Shift Lock

capital letters. In addition, this affects the number or punctuation keys.

*Normal

Shift Lock

Capital Lock State Description

Capital Lock OFF

"case-sensitive" is selected for Alphabets Transmission).

Capital Lock ON

characters are exactly the same as in the barcode (when "caseis selected for Alphabets Transmission).

 Refer to the Capital Lock Type above.

Auto Detection

the same as in the barcode (when "caseAlphabets Transmission).

Capital Lock

Auto Detect

Capital Lock ON

Enter Setup

Chapter 2

Selecting Output Interface

*Capital Lock OFF

Update

1560P Series Barcode Scanner User Guide

Alphabets Transmission

Ignore Case

*Case-sensitive

Refer to 5.1 Letter Case.

Enter Setup

Chapter 2

Selecting Output Interface

Digits Transmission

By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you wish to use the keys on the numeric keypad.

Numeric Key

*Alphanumeric Key

Note: If you select “Numeric Keypad”, the Num Lock status of the physical keyboard

should be “ON”.

Update

1560P Series Barcode Scanner User Guide

ALT Composing

By default, Alternate key composing is disabled. Select [Yes] to allow emulating Alternate key code of a specific keyboard character. For example, [Alt] + [065] will be sent to host for the character “A” regardless the keyboard type you are using.

Yes

*No

Laptop Support

By default, laptop support is disabled. It is suggested to enable this feature if you connect the wedge cable to a laptop without an external keyboard being inter-connected.

Enable

*Disable

Enter Setup

Chapter 2

Selecting Output Interface

2.4.3 INTER-CHARACTER DELAY

Inter-Character Delay… (*0~254)

1) Read the barcode above to specify the inter-character delay.

2) Read the “Decimal Value” barcode on page 231 for the desired inter-character delay

(millisecond).

3) Read the “Validate” barcode on the same page to complete this setting.

2.4.4 INTER-FUNCTION DELAY

Inter-Function

Delay… (*0~254)

1) Read the barcode above to specify the inter-function delay.

2) Read the “Decimal Value” barcode on page 231 for the desired inter-function delay

(millisecond).

3) Read the “Validate” barcode on the same page to complete this setting.

Update

1560P Series Barcode Scanner User Guide

2.5 RS-232 VIA 3656

Use the RS-232 cable to connect the scanner via 3656 to the serial port of PC, and connect the power supply cord. The associated RS-232 parameters must match those configured on the computer. You may run HyperTerminal.exe on your computer, and the scanned data will be transmitted to the computer.

RS-232 Settings Defaults

Baud Rate, Data Bit, Parity, Stop Bit 115200 bps, 8 bits, No parity, 1 stop bit

Flow Control None

Inter-Character Delay 0 (ms)

Inter-Function Delay 0 (ms)

ACK/NAK Timeout 0

ACK/NAK Beep Disable

2.5.1 ACTIVATE RS-232 INTERFACE

2.5.2 BAUD RATE

Activate 3656

RS-232 Interface

*115200 bps

57600 bps

38400 bps

19200 bps

9600 bps

Enter Setup

Chapter 2

Selecting Output Interface

2.5.3 DATA BITS

4800 bps

2400 bps

1200 bps

600 bps

*8 bits

2.5.4 PARITY

7 bits

*No parity

Even

Odd

Update

1560P Series Barcode Scanner User Guide

2.5.5 STOP BIT

2 stop bits

*1 stop bit

2.5.6 FLOW CONTROL

By default, there is no flow control in use. Select the flow control (handshake) method.

Options Description

No No flow control

Scanner Ready The scanner will activate the RTS signal upon powering on. After each good

read, the scanner will then wait for the CTS signal to become active. Data will not be sent until the CTS signal becomes active.

Data Ready The RTS signal will be activated after each good read. The scanner will then

wait for the CTS signal to become active. Data will not be sent until the CTS signal becomes active.

Inverted Data Ready It works the same as the Data Ready flow control except that the RTS signal

level is inverted.

*None

Scanner Ready

Data Ready

Invert Data

Ready

Enter Setup
