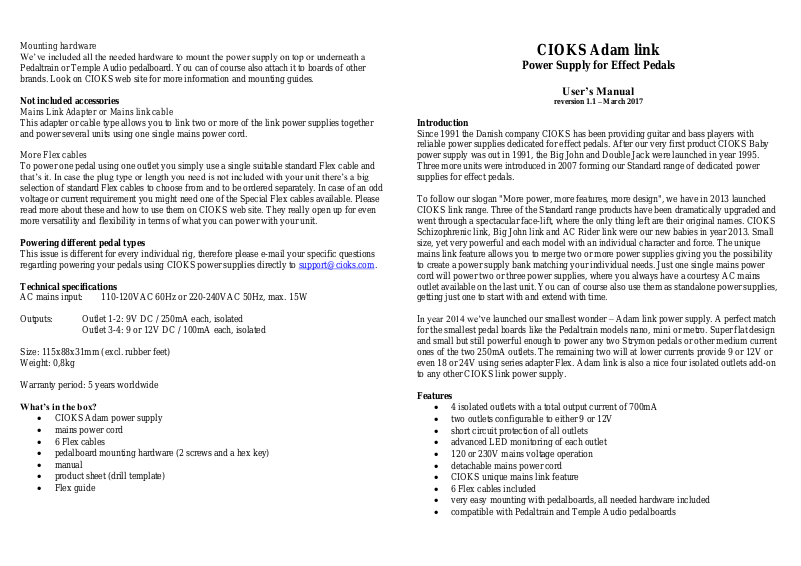

Mounting hardware
We’ve included all the needed hardware to mount the power supply on top or underneath a
Pedaltrain or Temple Audio pedalboard. You can of course also attach it to boards of other
brands. Look on CIOKS web site for more information and mounting guides.
Not included accessories
Mains Link Adapter or Mains link cable
This adapter or cable type allows you to link two or more of the link power supplies together
and power several units using one single mains power cord.
More Flex cables
To power one pedal using one outlet you simply use a single suitable standard Flex cable and
that’s it. In case the plug type or length you need is not included with your unit there’s a big
selection of standard Flex cables to choose from and to be ordered separately. In case of an odd
voltage or current requirement you might need one of the Special Flex cables available. Please
read more about these and how to use them on CIOKS web site. They really open up for even
more versatility and flexibility in terms of what you can power with your unit.
Powering different pedal types
This issue is different for every individual rig, therefore please e-mail your specific questions
regarding powering your pedals using CIOKS power supplies directly to [email protected].
Technical specifications
AC mains input: 110-120VAC 60Hz or 220-240VAC 50Hz, max. 15W
Outputs: Outlet 1-2: 9V DC / 250mA each, isolated
Outlet 3-4: 9 or 12V DC / 100mA each, isolated
Size: 115x88x31mm (excl. rubber feet)
Weight: 0,8kg
Warranty period: 5 years worldwide
What’s in the box?
• CIOKS Adam power supply
• mains power cord
• 6 Flex cables
• pedalboard mounting hardware (2 screws and a hex key)
• manual
• product sheet (drill template)
• Flex guide
CIOKS Adam link
Power Supply for Effect Pedals
User’s Manual
reversion 1.1 – March 2017
Introduction
Since 1991 the Danish company CIOKS has been providing guitar and bass players with
reliable power supplies dedicated for effect pedals. After our very first product CIOKS Baby
power supply was out in 1991, the Big John and Double Jack were launched in year 1995.
Three more units were introduced in 2007 forming our Standard range of dedicated power
supplies for effect pedals.
To follow our slogan "More power, more features, more design", we have in 2013 launched
CIOKS link range. Three of the Standard range products have been dramatically upgraded and
went through a spectacular face-lift, where the only thing left are their original names. CIOKS
Schizophrenic link, Big John link and AC Rider link were our new babies in year 2013. Small
size, yet very powerful and each model with an individual character and force. The unique
mains link feature allows you to merge two or more power supplies giving you the possibility
to create a power supply bank matching your individual needs. Just one single mains power
cord will power two or three power supplies, where you always have a courtesy AC mains
outlet available on the last unit. You can of course also use them as standalone power supplies,
getting just one to start with and extend with time.
In year 2014 we’ve launched our smallest wonder – Adam link power supply. A perfect match
for the smallest pedal boards like the Pedaltrain models nano, mini or metro. Super flat design
and small but still powerful enough to power any two Strymon pedals or other medium current
ones of the two 250mA outlets. The remaining two will at lower currents provide 9 or 12V or
even 18 or 24V using series adapter Flex. Adam link is also a nice four isolated outlets add-on
to any other CIOKS link power supply.
Features
• 4 isolated outlets with a total output current of 700mA
• two outlets configurable to either 9 or 12V
• short circuit protection of all outlets
• advanced LED monitoring of each outlet
• 120 or 230V mains voltage operation
• detachable mains power cord
• CIOKS unique mains link feature
• 6 Flex cables included
• very easy mounting with pedalboards, all needed hardware included
• compatible with Pedaltrain and Temple Audio pedalboards
Page 2
Overview
Right side
On the right side of the enclosure you’ll find the 4 outlets of the power supply as RCA sockets
which all are centre positive. Correct polarity for the pedal is achieved by using the right Flex
cable.
The red settings switch with two white knobs placed just to the right of the outlets should be
used to set the output voltage of outlets 3 and 4. The left knob is for setting of outlet 3, the
right one is for outlet 4.
Knob no. *
Function
Knob down
Knob up
1
Outlet 3
9V DC
12V DC
2
Outlet 4
9V DC
12V DC
* counting from left, opposite order of the white digits on the red switch (if you can see them)
Top
CIOKS logo has a red LED placed in the middle of the letter ‘O’. When this LED is lit the
power supply is connected to mains and operates.
On top of the enclosure you see the output voltage and max. current rating of each outlet
printed just above the outlet sockets. The top figure is the voltage and the DC in the middle
line tells you it’s a direct current outlet. Outlets with two possible voltage settings have both
values stated as 9/12. The bottom figures states the maximum current capability of each outlet
in mA.
The status of each isolated output is shown by a LED indicator also situated on top of the
enclosure just above the voltage figure. The function of this advanced and unique monitoring
feature is described in detail later on.
Left side
On the left side of the enclosure you’ll find the AC power input connector, which is a C6 type
according to the IEC 60320 standard also used in many laptop adapters. On the same side as
the AC mains input you’ll find the mains voltage selector switch and the fuse.
Mains voltage selector switch should be used for setting the correct mains voltage 115 or
230V. The Japanese version is made only for a 100V nominal mains voltage and has no mains
voltage selector switch.
The fuse is the only part which may be replaced by the user. In case it’s blown, replace with a
5x20mm, T 200mA (slow blow/time lag) type.
Bottom
The four detachable rubber feet are situated on the bottom of the enclosure. On this same
surface you’ll find 4 holes with metric M4 threads, which should be used for easy mounting of
the power supply to a pedalboard. Do not use screws, which would go further than 5mm inside
the unit. Have a look at the mounting guide on CIOKS web site.
Getting started
First make sure that the voltage value chosen on the voltage selector switch matches the mains
voltage in your wall socket. Connect the mains power cord to the power supply and mains.
Using the right Flex cable types connect your pedals to the outlets of power supply making
sure that the voltage and current is correct for every pedal.
Advanced LED Monitoring feature
Each isolated outlet has its individual LED status indicator. The indicator is fully lit in normal
operation of a particular outlet. Its light gets dim when you operate just on the edge of the
current limit. If you overload or short circuit an outlet, the respective LED indicator turns off.
The LED indicators of outlets 1, 2, 5 and 6 with selectable output voltages also show you the
voltage set by the settings switch. In case a higher voltage than the default 9V setting is
selected for a given outlet, its respective LED indicator will be lit with higher intensity than the
other indicators.
All indicators take into account the actual level of mains voltage when monitoring a possible
overload. The current limits for each outlet or section of the power supply are specified at
nominal level of the mains voltage. In Europe it’s 230V, 120V in e.g. United States and 100V
in Japan. If the mains voltage is higher than nominal, you can draw more current from the
power supply than stated in the specifications. This would never be a problem. A more
common situation though, is when the mains voltage is lower than nominal. In such a case
maximum current ratings for each outlet or section might be diminished.
The advanced LED monitoring of each isolated outlet will alert you in case of an overload or
short circuit. If such a situation happens you know where to look to solve the problem.
A glance at the LED status indicators and you have proof of 100% clean power to your pedals.
Included accessories
Flex cables
CIOKS offers a great selection of different Flex cable types for connection your pedals to the
power supply. Below you see a list of the included Flex cables with your unit:
• Type 1 – black with 5,5/2,1mm centre negative DC-plug x4
• Type 5 – black with 3,5mm tip positive jack-plug x1
• Type 1 – Split Flex (to power two pedals of one outlet) x1
