Java User’s Guide
Version: 19
DocId: wm_java_usersguide_v19
Products: TC65i, TC65i-X, EGS5, EGS5-X
User’s Guide
Java User’s Guide
2
Document Name:
Version:
Date:
DocId:
Status
Supported Products:
Java User’s Guide
19
2012-01-27
wm_java_usersguide_v19
Confidential / Released
TC65i, TC65i-X, EGS5, EGS5-X
GENERAL NOTE
THE USE OF THE PRODUCT INCLUDING THE SOFTWARE AND DOCUMENTATION (THE "PRODUCT") IS SUBJECT TO THE RELEASE NOTE PROVIDED TOGETHER WITH PRODUCT. IN ANY
EVENT THE PROVISIONS OF THE RELEASE NOTE SHALL PREVAIL. THIS DOCUMENT CONTAINS INFORMATION ON CINTERION PRODUCTS. THE SPECIFICATIONS IN THIS DOCUMENT
ARE SUBJECT TO CHANGE AT CINTERION'S DISCRETION. CINTERION WIRELESS MODULES
GMBH GRANTS A NON-EXCLUSIVE RIGHT TO USE THE PRODUCT. THE RECIPIENT SHALL NOT
TRANSFER, COPY, MODIFY, TRANSLATE, REVERSE ENGINEER, CREATE DERIVATIVE WORKS;
DISASSEMBLE OR DECOMPILE THE PRODUCT OR OTHERWISE USE THE PRODUCT EXCEPT
AS SPECIFICALLY AUTHORIZED. THE PRODUCT AND THIS DOCUMENT ARE PROVIDED ON AN
"AS IS" BASIS ONLY AND MAY CONTAIN DEFICIENCIES OR INADEQUACIES. TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW, CINTERION WIRELESS MODULES GMBH DISCLAIMS ALL WARRANTIES AND LIABILITIES. THE RECIPIENT UNDERTAKES FOR AN UNLIMITED
PERIOD OF TIME TO OBSERVE SECRECY REGARDING ANY INFORMATION AND DATA PROVIDED TO HIM IN THE CONTEXT OF THE DELIVERY OF THE PRODUCT. THIS GENERAL NOTE
SHALL BE GOVERNED AND CONSTRUED ACCORDING TO GERMAN LAW.
Copyright
Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited. Offenders will
be held liable for payment of damages. All rights created by patent grant or registration of a utility model
or design patent are reserved.
Copyright © 2012, Cinterion Wireless Modules GmbH
Trademark Notice
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other coun tries. All other registered trademarks or trademarks mentioned in this
document are property of their respective owners.
wm_java_usersguide_v19 Page 2 of 109 2012-01-27
Confidential / Released
Java User’s Guide
Content
109
Content
1 Preface.......................................................................................................................10
2 Overview....................................................................................................................11
2.1 Related Documents .........................................................................................11
2.2 Terms and Abbreviations.................................................................................12
3 Installation.................................................................................................................13
3.1 System Requirements......................................................................................13
3.2 Installation CD Content....................................................................................13
3.3 Cinterion Mobility Toolkit Installation................................................................14
3.3.1 Installation Prerequisites.....................................................................14
3.3.2 Installing CMTK...................................................................................15
3.4 CMTK Uninstall................................................................................................19
3.5 Upgrades .........................................................................................................19
4 Software Platform.....................................................................................................20
4.1 Software Architecture.......................................................................................20
4.2 Interfaces.........................................................................................................21
4.2.1 ASC0 - Serial Device..........................................................................21
4.2.2 General Purpose I/O........................................................................... 21
4.2.3 DAC/ADC............................................................................................21
4.2.4 ASC1...................................................................................................21
4.2.5 Digital Audio Interface (DAI) ...............................................................21
4.2.6 I2C/SPI................................................................................................21
4.2.7 JVM Interfaces....................................................................................22
4.2.7.1 IP Networking......................................................................22
4.2.7.2 Media ..................................................................................22
4.2.7.3 Other Interfaces ..................................................................22
4.3 Data Flow of a Java Application Running on the Module ................................23
4.4 Handling Interfaces and Data Service Resources...........................................24
4.4.1 Module States.....................................................................................24
4.4.1.1 State 1: Default – No Java Running....................................24
4.4.1.2 State 2: No Java Running, General Purpose I/O and
I2C/SPI................................................................................25
4.4.1.3 State 4: Default – Java Application Active........................... 25
4.4.1.4 State 5: Java Application Active, General Purpose I/O and
I2C/SPI................................................................................25
4.4.2 Module State Transitions....................................................................26
5 Maintenance ..............................................................................................................27
5.1 IP Service.........................................................................................................27
5.2 Remote SIM Access ........................................................................................28
5.3 Power Saving...................................................................................................28
5.3.1 Power Saving While GPRS is Active..................................................28
5.4 Charging ..........................................................................................................29
wm_java_usersguide_v19 Page 3 of 109 2012-01-27
Confidential / Released
Java User’s Guide
Content
109
5.5 Airplane Mode..................................................................................................29
5.6 Alarm................................................................................................................29
5.7 Shutdown.........................................................................................................30
5.7.1 Automatic Shutdown........................................................................... 30
5.7.2 Manual Shutdown...............................................................................30
5.7.3 Restart after Switch Off.......................................................................30
5.7.4 Watchdog............................................................................................30
5.8 Special AT Command Set for Java Applications .............................................31
5.8.1 Switching from Data Mode to Command Mode..................................31
5.8.2 Mode Indication after MIDlet Startup ..................................................31
5.8.3 Long Responses.................................................................................31
5.8.4 Configuration of Serial Interface .........................................................31
5.8.5 Java Commands.................................................................................32
5.8.6 AutoExec Function..............................................................................32
5.9 System Out......................................................................................................32
5.9.1 Serial interfaces..................................................................................32
5.9.2 File......................................................................................................32
5.9.3 UDP ....................................................................................................33
5.10 GPIO................................................................................................................33
5.11 Restrictions......................................................................................................33
5.11.1 Flash File System ...............................................................................33
5.11.2 Memory...............................................................................................33
5.11.3 JAD File Size ......................................................................................33
5.12 Performance ....................................................................................................34
5.12.1 Java ....................................................................................................34
5.12.2 Pin I/O.................................................................................................35
5.12.3 Data Rates on RS-232 API................................................................. 35
5.13 System Time....................................................................................................39
5.12.3.1 Plain Serial Interface...........................................................36
5.12.3.2 Voice Call in Parallel ...........................................................36
5.12.3.3 Scenarios with GPRS/EGDE Connection........................... 36
5.12.3.4 Upload.................................................................................37
5.12.3.5 Download............................................................................38
6 MIDlets.......................................................................................................................40
6.1 MIDlet Documentation .....................................................................................40
6.2 MIDlet Life Cycle..............................................................................................40
6.3 Hello World MIDlet...........................................................................................42
7 File Transfer to Module.............................................................................................43
7.1 Module Exchange Suite...................................................................................43
7.1.1 Windows Based..................................................................................43
7.1.2 Command Line Based ........................................................................43
7.2 Over the Air Provisioning.................................................................................43
wm_java_usersguide_v19 Page 4 of 109 2012-01-27
Confidential / Released
Java User’s Guide
Content
109
7.3 Security Issues.................................................................................................44
7.3.1 Module Exchange Suite...................................................................... 44
7.3.2 OTAP..................................................................................................44
8 Over The Air Provisioning (OTAP) ..........................................................................45
8.1 Introduction to OTAP .......................................................................................45
8.2 OTAP Overview...............................................................................................45
8.3 OTAP Parameters............................................................................................46
8.4 Short Message Format ....................................................................................47
8.5 Java File Format..............................................................................................48
8.6 Procedures.......................................................................................................49
8.6.1 Install/Update......................................................................................49

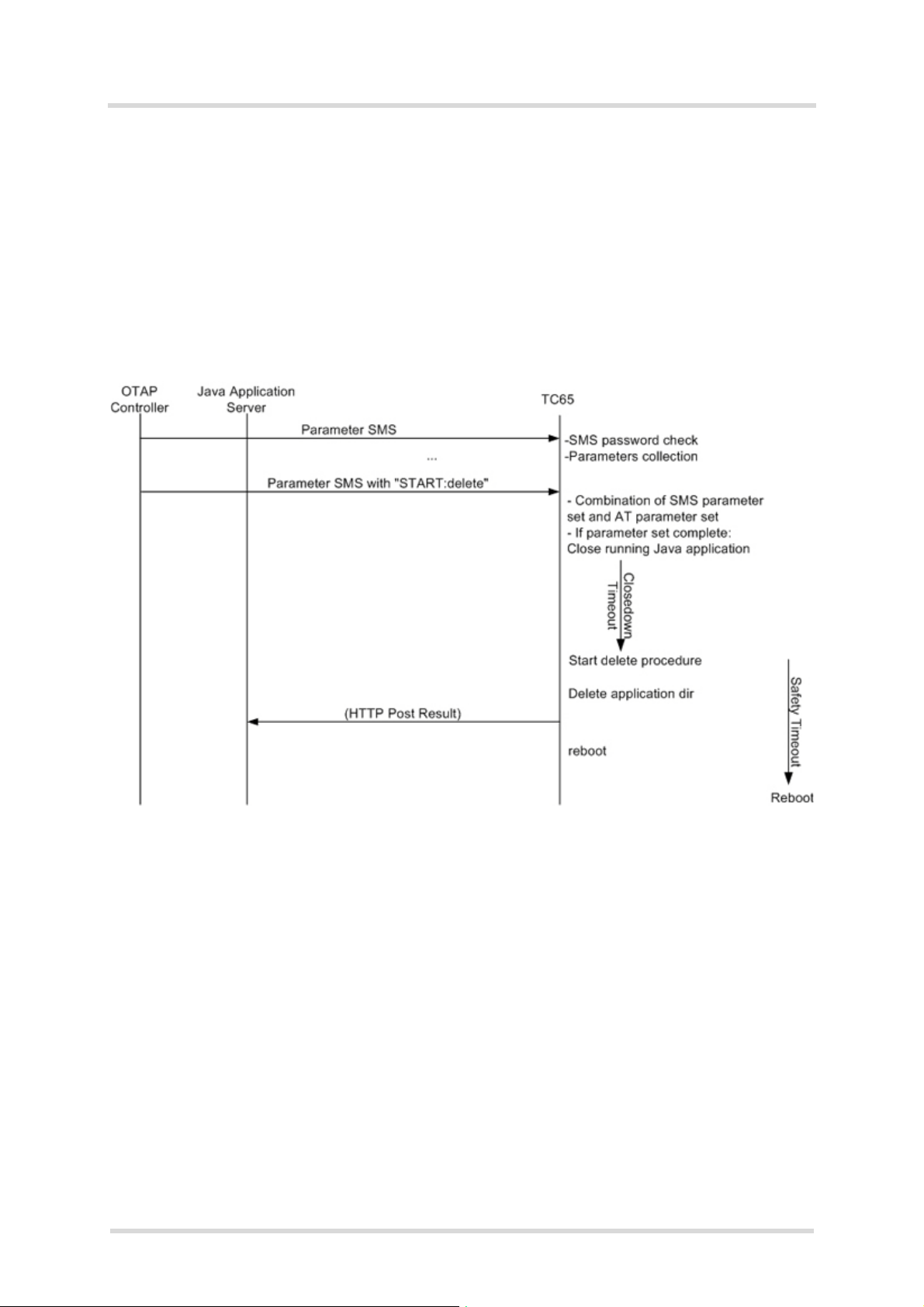

8.6.2 Delete..................................................................................................50
8.7 Time Out Values and Result Codes.................................................................51
8.8 Tips and Tricks for OTAP.................................................................................51
8.9 OTAP Tracer....................................................................................................52
8.10 Security............................................................................................................52
8.11 How To.............................................................................................................52
8.12 Incremental OTAP ...........................................................................................53
9 Compile and Run a Program without a Java IDE................................................... 55
9.1 Build Results....................................................................................................55
9.2 Compile............................................................................................................56
9.3 Run on the Module with Manual Start..............................................................56
9.4 Run on the Module with Autostart....................................................................57
9.4.1 Switch on Autostart.............................................................................57
9.4.2 Switch off Autostart.............................................................................57
10 Compile and Run a Program with a Java IDE.........................................................58
10.1 Debug Environment.........................................................................................58
10.1.1 Data Flow of a Java Application in the Debug Environment...............58
10.1.2 Emulator..............................................................................................59
10.1.3 Change Baud Rate .............................................................................60
10.2 Using Eclipse for Java Development...............................................................62
10.2.1 Installing the "Mobile Tools for Java" Plugin.......................................62
10.2.2 Integrating Cinterion WTK Manually...................................................63
10.2.3 Import the provided WTK Samples.....................................................66
10.2.4 Creating a new MIDlet ........................................................................68
10.2.5 Using Eclipse Workspaces .................................................................75
10.3 Using NetBeans for Java Development........................................................... 76
10.3.1 Installing the "Mobility" Plugin.............................................................76
10.3.2 Integrating Cinterion WTK Manually...................................................77
10.3.3 Opening the Provided WTK Samples.................................................79
10.3.4 Creating a New MIDlet........................................................................79
10.4 Switching Java "System.out" to IDE Debug Window.......................................83
wm_java_usersguide_v19 Page 5 of 109 2012-01-27
Confidential / Released
Java User’s Guide
Content
109
11 Java Security.............................................................................................................85

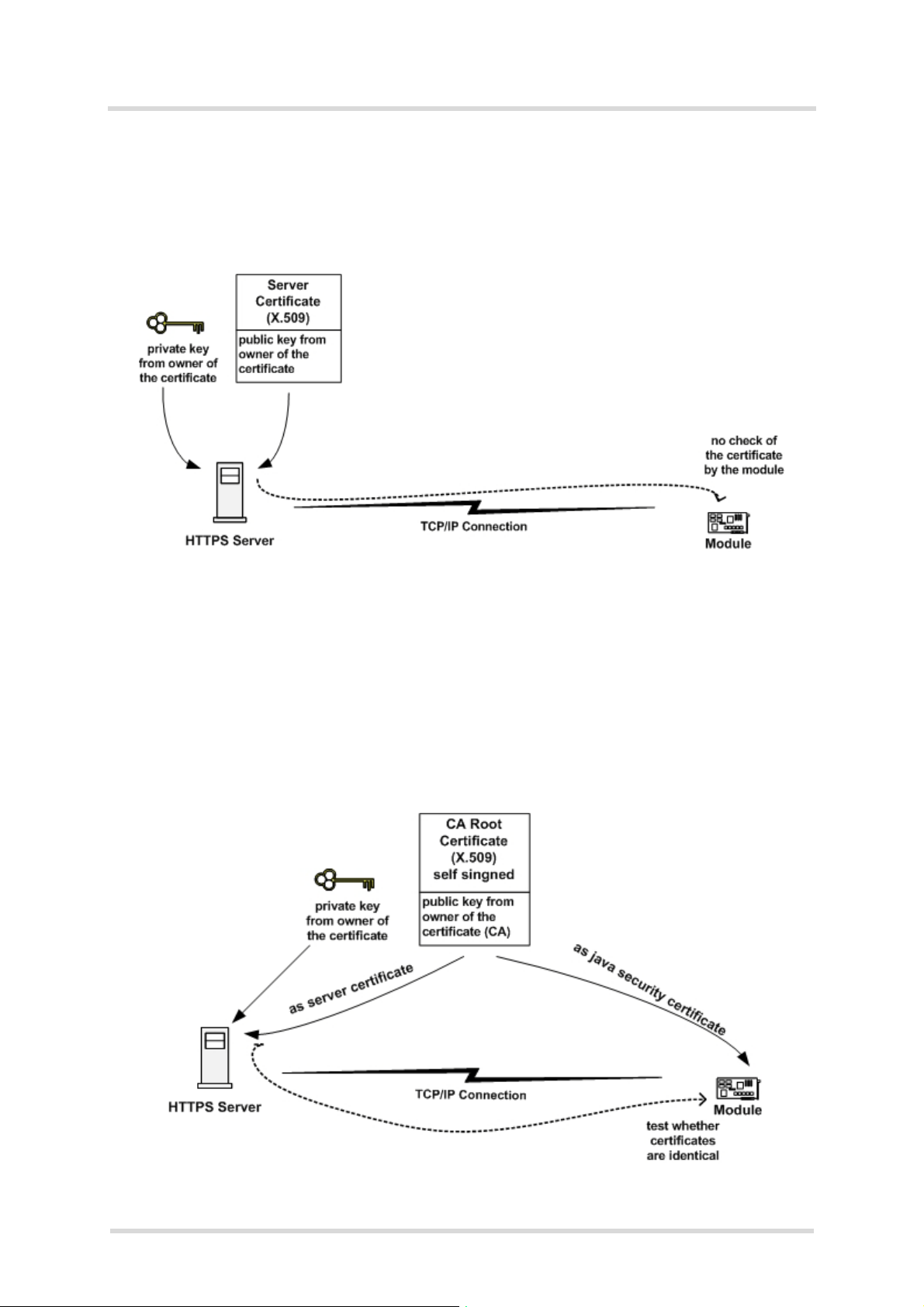

11.1 Secure Data Transfer.......................................................................................85
11.1.1 Create a Secure Data Transfer Environment Step by Step................ 87
11.2 Execution Control.............................................................................................90
11.2.1 Change to Secured Mode Concept.....................................................91
11.2.2 Concept for the Signing the Java MIDlet ............................................92
11.3 Application and Data Protection.......................................................................93
11.4 Structure and Description of the Java Security Commands ............................93
11.4.1 Structure of the Java Security Commands .........................................94
11.4.2 Build Java Security Command............................................................95
11.4.3 Send Java Security Command to the Module.....................................96
11.5 Create a Java Security Environment Step by Step..........................................97
11.5.1 Create Key Store ................................................................................97
11.5.2 Export X.509 Root Certificate .............................................................97
11.5.3 Create Java Security Commands.......................................................97
11.5.4 Sign a MIDlet ......................................................................................99
11.6 Attention...........................................................................................................99
12 Java Tutorial............................................................................................................100
12.1 Using the AT Command API..........................................................................100
12.1.1 Class ATCommand...........................................................................100
12.1.1.1 Instantiation with or without CSD Support.........................100
12.1.1.2 Sending an AT Command to the Device,
the send() Method.............................................................101
12.1.1.3 Data Connections..............................................................102
12.1.1.4 Synchronization.................................................................104
12.1.2 ATCommandResponseListener Interface.........................................104
12.1.2.1 Non-Blocking ATCommand.send() Method....................... 104
12.1.3 ATCommandListener Interface......................................................... 105
12.1.3.1 ATEvents...........................................................................105
12.1.3.2 Implementation..................................................................106
12.1.3.3 Registering a Listener with an ATCommand Instance...... 107
12.2 Programming the MIDlet................................................................................108
12.2.1 Threads.............................................................................................108
12.2.2 Example............................................................................................108
wm_java_usersguide_v19 Page 6 of 109 2012-01-27
Confidential / Released
Java User’s Guide
Tables
7
Tables
Table 1: GPRS upload data rate with different number of timeslots, CS2................... 37
Table 2: GPRS upload data rate with different number of timeslots, CS4................... 37
Table 3: EDGE upload data rate with two timeslots, CS5............................................ 37
Table 4: EDGE upload data rate with two timeslots, CS9............................................ 37
Table 5: GPRS Download data rate with different number of timeslots, CS2.............. 38
Table 6: GPRS Download data rate with different number of timeslots, CS4.............. 39
Table 7: EDGE Download data rate with different number of timeslots, CS5.............. 39
Table 8: EDGE Download data rate with different number of timeslots, CS9.............. 39
Table 9: A typical sequence of MIDlet execution......................................................... 41
Table 10: Parameters and keywords ............................................................................. 46
wm_java_usersguide_v19 Page 7 of 109 2012-01-27
Confidential / Released
Java User’s Guide
Figures
9
Figures
Figure 1: Overview........................................................................................................ 11
Figure 2: CMTK - InstallShield Wizard.......................................................................... 15
Figure 3: Module Exchange Suite - InstallShield Wizard.............................................. 16
Figure 4: IMP Debug Connection - InstallShield Wizard............................................... 17
Figure 5: Scan COM ports for available JAVA module ................................................. 17
Figure 6: Scan for supported JAVA IDEs...................................................................... 18
Figure 7: Query to install Eclipse IDE as part of CMTK installation .............................. 18
Figure 8: Interface Configuration................................................................................... 22
Figure 9: Data flow of a Java application running on the module.................................. 23
Figure 10: Module State 1............................................................................................... 24
Figure 11: Module State 2............................................................................................... 25
Figure 12: Module State 4............................................................................................... 25
Figure 13: Module State 5............................................................................................... 25
Figure 14: Module State Transition Diagram................................................................... 26
Figure 15: Test case for measuring Java command execution throughput..................... 34
Figure 16: Test case for measuring Java MIDlet performance and handling pin-IO....... 35
Figure 17: Scenario for testing data rates on ASC1........................................................ 36
Figure 18: Scenario for testing data rates on ASC1 with a voice call in parallel............. 36
Figure 19: Scenario for testing data rates on ASC1 with GPRS data upload ................. 38
Figure 20: Scenario for testing data rates on ASC1 with GPRS data download............. 38
Figure 21: OTAP Overview............................................................................................. 45
Figure 22: OTAP: Install/Update Information Flow (messages in brackets are optional) 49
Figure 23: OTAP: Delete Information Flow (messages in brackets are optional) ........... 50
Figure 24: Data flow of a Java application in the debug environment............................. 58
Figure 25: Specify maximum port speed for modem device........................................... 60
Figure 26: Configure debug connection.......................................................................... 61
Figure 27: Specify baud rate for debug connection......................................................... 61
Figure 28: Installing the "Mobile Tools for Java" plugin................................................... 62
Figure 29: Integrating Cinterion WTK manually - Select preference............................... 63
Figure 30: Integrating Cinterion WTK manually - Browse............................................... 64
Figure 31: Integrating Cinterion WTK manually - Edit..................................................... 64
Figure 32: Integrating Cinterion WTK manually - Library................................................ 65
Figure 33: Integrating Cinterion WTK manually - Add WTK documentation................... 65
Figure 34: Import the provided WTK Samples - Select................................................... 66
Figure 35: Import the provided WTK Samples - Copy..................................................... 67
Figure 36: Creating a new MIDlet - Select wizard........................................................... 68
Figure 37: Creating a new MIDlet - Create project.......................................................... 69
Figure 38: Creating a new MIDlet - Configure project..................................................... 70
Figure 39: Creating a new MIDlet - Project overview...................................................... 71
Figure 40: Creating a new MIDlet - Configure compliance level..................................... 72
Figure 41: Creating a new MIDlet - Program name......................................................... 73
Figure 42: Creating a new MIDlet - HelloWorld.java....................................................... 74
Figure 43: Using Eclipse workspaces............................................................................. 75
Figure 44: Installing "Mobility" plugin............................................................................... 76
Figure 45: Integrating Cinterion WTK manually - Select platform................................... 77
Figure 46: Integrating Cinterion WTK manually - Select type ......................................... 78
Figure 47: Integrating Cinterion WTK manually - Platform folder.................................... 78
Figure 48: Integrating Cinterion WTK manually - Finish.................................................. 79
Figure 49: Creating a new MIDlet - Choose project........................................................ 80
wm_java_usersguide_v19 Page 8 of 109 2012-01-27
Confidential / Released
Java User’s Guide
Figures
9
Figure 50: Creating a new MIDlet - Enter name and location......................................... 80
Figure 51: Creating a new MIDlet - Configure platform................................................... 81
Figure 52: Creating a new MIDlet - Program name......................................................... 81
Figure 53: Creating a new MIDlet - HelloWorld.java....................................................... 82
Figure 54: Mode 1 – Customer Root Certificate does not exist....................................... 86
Figure 55: Mode 2 - Server Certificate and Certificate into module are identical............ 86
Figure 56: Mode 2 - Server Certificate and self signed root Certificate in module form
a chain ........................................................................................................... 87
Figure 57: Insert Customer Root Certificate.................................................................... 91
Figure 58: Prepare MIDlet for Secured Mode................................................................. 92
Figure 59: Build Java Security Command....................................................................... 95
wm_java_usersguide_v19 Page 9 of 109 2012-01-27
Confidential / Released
Java User’s Guide
1 Preface
10
1Preface
This document covers the full range of IMP-NG Java products from Cinterion Wireless Modules, currently including:
1. TC65i Module
2. TC65i-X Module
3. EGS5 Module
4. EGS5-X Module
Differences between the products are noted in the particular chapters. Throughout the docu-
ment, all supported products are referred to as ME (Mobile Equipment). For use in file, directory
or path names, the string “<productname>” represents the actual name of a product, for example TC65i. Screenshots are provided as examples and, unless otherwise stated, apply to all
supported products.
wm_java_usersguide_v19 Page 10 of 109 2012-01-27
Confidential / Released
Java User’s Guide
2 Overview
12
2Overview
The ME features an ultra-low profile and low-power consumption for data (CSD and GPRS),
voice, SMS and fax. Java technology and several peripheral interfaces on the module allow you
to easily integrate your application.
This document explains how to work with the ME, the installation CD an d the tools provided on
the installation CD.
Figure 1: Overview
2.1 Related Documents
List of documents referenced throughout this manual:
[1] AT Command Set of your Cinterion Wireless Modules product
[2] Hardware Interface Description of your Cinterion Wireless Modules product
[3] Java doc \wtk\doc\html\index.html
[4] IMP-NG, JSR228, Standard
wm_java_usersguide_v19 Page 11 of 109 2012-01-27
Confidential / Released
Java User’s Guide
2.2 Terms and Abbreviations
12
2.2 Terms and Abbreviations
Abbreviation Description
API Application Program Interface
ASC Asynchronous Serial Controller
CLDC Connected Limited Device Configuration
CMTK Cinterion Mobility Toolkit
CSD Circuit-Switched Data
DAI Digital Audio Interface
DCD Data Carrier Detect
DSR Data Set Ready
GPIO General Purpose I/O
GPRS General Packet Radio Service
HTTP Hypertext Transfer Protocol
I/O Input/Output
IDE Integrated Development Environment
IP Internet Protocol
Java ME
Java SE
JAD Java Application Description
JAR Java Archive
JDK Java Development Kit
JVM Java Virtual Machine
LED Light Emitting Diode
ME Mobile Equipment
MES Module Exchange Suite
MIDP Mobile Information Device Protocol
OTA Over The Air
OTAP Over The Air Provisioning of Java Applications
PDP Packet Data Protocol
PDU Protocol Data Unit
™
™
Java Micro Edition (also known as J2ME)
Java Standard Edition
SDK Standard Development Kit
SMS Short Message Service
TCP Transfer Control Protocol
URC Unsolicited Result Code
URL Universal Resource Locator
VBS Visual Basic Script
WTK Wireless Toolkit
wm_java_usersguide_v19 Page 12 of 109 2012-01-27
Confidential / Released
Java User’s Guide
3 Installation
19
3Installation
3.1 System Requirements
The Cinterion Mobility Toolkit (CMTK) requires that you have:
• Windows XP, Windows Vista or Windows 7 installed
• 110 Mbytes free disk space for the CMTK (without JDK and IDE)
• Administration privileges
• Java SE Development Kit 6 Update 25. To install the JDK version 1.6.0_25 provided on CD,
follow the instructions in Section 3.3.1.
If a Java IDE such as NetBeans (as of 6.5 - 6.9.1) or Eclipse (as of 3.6.0 - Helios SR2) is installed, the CMTK environment can be integrated into it during installation of the CMTK. To install one of the IDEs, follow the installation instructions in Section 3.3.1.
If you wish to access the module via USB ensure that the USB cable is plugged between the
module’s USB interface and the PC.
3.2 Insta llation CD Content
The Cinterion Mobility Toolkit Installation CD includes:
• Wireless Toolkit. The WTK is the directory where all the necessary components for product
specific Java application creation and debugging are stored. The WTK version is stored in
a text file under "Program Files\Cinterion\CMTK\<product name>\WTK\VersionWTK.txt".
The WTK is distributed on the CD under "program files\Cinterion\CMTK\ABC2\WTK" with
-bin
various tools
- doc
html
- lib
classes.zip
• WTK samples are distributed on the CD under "All Users\Cinterion ABC2 WTK Examples"
• Module Exchange Suite. The MES setup is distributed on CD under "Installer\MESSetup.exe". The MES provides tools to access the Flash file system on the module from the
development environment over a serial interface. The MES may be installed separately, but
can also be installed as part of CMTK - see Section 3.3.
• IMP Debug Connection. The setup is found under "Installer\IMPDbgConnectionSetup.exe".
The setup installs an IDE debug modem for on device debugging (see Chapter 10). The
IMP Debug Connection may be installed separately, but can also be installed as part of
CMTK - see Section 3.3.
• Java SDK
- jdk-6u25-windows-i586.exe
• NetBeans IDE 6.9.1
- netbeans-6.9.1-ml-javase-windows.exe
• Eclipse Helios SR2 (v3.6.1)
- eclipse-pulsar-helios-SR2-win32.zip
• Eclipse Helios SR2 (64-bit) (v3.6.1)
- eclipse-pulsar-helios-SR2-win32-x86_64.zip
• Documentation is distributed on the CD under "program files\Cinterion\CMTK\ABC2\<product name> Documentation" and includes AT Command Set, Hardware Interface Description as well as this Java Users Guide.
wm_java_usersguide_v19 Page 13 of 109 2012-01-27
Confidential / Released
Java User’s Guide
3.3 Cinterion Mobility Toolkit Installation
19
3.3 Cinterion Mobility Toolkit Installation
The CMTK is distributed on CD. The installation program automatically installs the necessary
components and IDE integrations. The software can be uninstalled and updated with the install
program.
This section covers the installation and removal of the CMTK including the installation of the
prerequisite JDK and supported IDEs.
3.3.1 Installation Prerequisites
Before the CMTK is installed from CD a standard Java Development Kit (JDK) should be installed
• The Java SE Development Kit 6 Update 25 is distributed as part of the installation CD under
"Contribution\jdk-6u25-windows-i586.exe". To install the JDK please call the contribution
file and follow the instructions on the screen. If there is no appropriate JDK installed, the
installation of the provided JDK will be offered automatically during the CMTK installation
process. Once the JDK has been installed, the environment variable “path” can be altered
to comfortably use the JDK tools without IDE (this is not necessary for using the Cinterion
CMTK):
- Open the Control Panel:
Open System.
Click on Advanced.
Click on the Environment Variables button.
Choose path from the list of system variables.
Append the path for the bin directory of the newly installed SDK to the list of directories
for the path variable.
Apart from the JDK installation it is recommended to install a Java Development Environment
(IDE):
• The Eclipse IDE as well as the NetBeans IDE are distributed as part of the installation CD
under "Contribution\eclipse-pulsar-helios-SR2-win32.zip" resp. "Contribution\eclipse-pulsar-helios-SR2-win32-x86_64.zip" (for 64-bit systems) or "Contibution\netbeans-6.9.1-mljavase-windows.exe". To install any of these IDEs please call the contribution setup file
(resp. unzip the contribution archive and call the setup file). An Eclipse IDE may also be
installed as part of the CMTK installation described in Section 3.3.2.
Note that the Eclipse IDE provided on the installation CD is a special Eclipse Mobile T ools
Platform called Pulsar. Pulsar already includes "Mobile Tools for Java" required for developing Java applications for Cinterion Java modules. If employing any other Eclipse IDE variant or the NetBeans IDE also provided on the installation CD, it is necessary to install
additional plugins containing mobile resp. mobility tools. Please refer to Chapter 10 for more
information on how to install these plugins for Eclipse and NetBeans.
wm_java_usersguide_v19 Page 14 of 109 2012-01-27
Confidential / Released
Java User’s Guide
3.3 Cinterion Mobility Toolkit Installation
19
3.3.2 Installing CMTK
Before you start the installation please make sure all applications - especially possible IDEs are closed:
1. Insert the installation CD and start Setup.exe. When the dialog box appears press the Next
button to start the CMTK installation.
Figure 2: CMTK - InstallShield Wizard
2. Read the CMTK license agreement. If you accept the agreement, press Yes to continue
with the installation.
3. Read the information about the installation and the use of the CMTK. Press Next to continue.
wm_java_usersguide_v19 Page 15 of 109 2012-01-27
Confidential / Released
Java User’s Guide
3.3 Cinterion Mobility Toolkit Installation
19
4. Install the Module Exchange Suite (MES) as part of the CMTK installation. The MES provides tools to access the Flash file system on the module from the development environment over a serial interface. File transfers between PC and module are greatly facilitated
by this suite. The MES is installed to "Program Files\Cinterion\Module Exchange Suite".
Figure 3: Module Exchange Suite - InstallShield Wizard
5. Read the MES license agreement. If you accept the agreement, press Yes to continue with
the installation.
6. Click Finish to complete the MES installation.
wm_java_usersguide_v19 Page 16 of 109 2012-01-27
Confidential / Released
Java User’s Guide
3.3 Cinterion Mobility Toolkit Installation
19
7. Install the IMP debug connection as part of the CMTK installation.
Figure 4: IMP Debug Connection - InstallShield Wizard
8. Continue with installation even if software did not pass the Windows logo test.
9. Scan COM ports for available Java module. The scan may be skipped and can be repeated
later as part of a repair installation. This is done by selecting the Cinterion IMP Debug Connection from Control Panel --> Add or Remove Programs and clicking Change.
Figure 5: Scan COM ports for available JAVA module
10.Click Finish to complete the IMP Debug Connection installation.
wm_java_usersguide_v19 Page 17 of 109 2012-01-27
Confidential / Released
Java User’s Guide
3.3 Cinterion Mobility Toolkit Installation
19
11. Scan system for supported Java IDEs to automatically integrate the WTK into. Please
ensure that none of the possibly installed Java IDEs is running before the scan is started.
The scan may be skipped and can be repeated later as part of a repair installation. This is
done by selecting the Cinterion ABC2 Software Development Kit from Control Panel -->
Add or Remove Programs and clicking Change.
Figure 6: Scan for supported JAVA IDEs
12.If the above scan did not deliver any supported Java IDE, it is possible to install the Eclipse
IDE ("Pulsar") provided on the installation CD.
Figure 7: Query to install Eclipse IDE as part of CMTK installation
13.Click Finish to complete the CMTK installation.
wm_java_usersguide_v19 Page 18 of 109 2012-01-27
Confidential / Released
Java User’s Guide
3.4 CMTK Uninstall
19
3.4 CMTK Uninstall
The CMTK install package comes with an uninstall facility. The entire CMTK or parts of the
package can be removed. To start the uninstall facility, open the Control Panel, select Add /Remove Programs, select the desired CMTK, e.g. Cinterion ABC2 Software Development Kit and
follow the instructions. The standard modem and Dial-Up Network connection (DUN) are uninstalled automatically.
The Module Exchange Suite (MES) is not uninstalled automatically with the CMTK. To uninstall
the MES as well, please run the MES uninstall facility. To run the uninstall program, open the
Control Panel, select Add/Remove Programs, select Cinterion Module Exchange Suite (MES)
and follow the instructions. The MES might still be used by other CMTK versions and should in
this case not be uninstalled.
Please keep in mind, that standard modem (or USB modem) and Dial-Up Network connection
are required for a proper working of the CMTK on-device debugging.
3.5 Upgrades
The CMTK can be modified, repaired or removed by running the setup program on the Installation CD.
wm_java_usersguide_v19 Page 19 of 109 2012-01-27
Confidential / Released
Java User’s Guide
4 Software Platform
26
4 Software Platform
In this chapter, we discuss the software architecture of the CMTK and the interfaces to it.
4.1 Software Architecture
The CMTK enables a customer to develop a Java application on a PC and have it be executable on the Java enabled module. The application is then loaded onto the module. The platform
comprises:
•Java
• Additional Java virtual machine interfaces:
• Memory space for Java programs:
• Additional accessible periphery for Java applications
TM
Micro Edition (Java METM), which forms the base of the architecture.
The Java ME
ically designed for embedded systems and has a small memory footprint. The ME uses:
CLDC 1.1 HI, the connected limited device configuration hot spot implementation.
IMP-NG, the information module profile 2
MIDP 2.0 but without the lcdui package.
AT Command API
File I/O API
The data flow through these interfaces is shown in Figure 9 and Figure 24.
Flash File System: around 1.7 MB (8 MB for TC65i-X and EGS5-X partitioned into 4 MB on
A:\ drive and 4 MB on C:\ drive. The C:\ drive is intended as a temporary storage when
updating the EGS5-X firmware over the air (FOTA)).
RAM: around 400kB (1.7 MB for TC65i-X and EGS5-X)
Application code and data share the space in the flash file system and in RAM.
- A maximum of ten digital I/O pins usable, for example, as:
Output: status LEDs
- Input: Emergency Button
- One I2C/SPI Interface.
- One Digital Analog Converter and two Analog Digital Converters.
- Serial interface (RS-232 API): This standard serial interface could be used, for example,
with an external current meter.
For detailed information see Section 4.2.
TM
is provided by SUN Microsystems, http://java.sun.com/javame/. It is specif-
nd
generation, this is for the most part identical to
wm_java_usersguide_v19 Page 20 of 109 2012-01-27
Confidential / Released
Java User’s Guide
4.2 Interfaces
26
4.2 Interfaces
4.2.1 ASC0 - Serial Device
ASC0, an Asynchronous Serial Controller, is a 9-wire serial interface. It is described in [2]. Without a running Java application the module can be controlled by sending AT commands over
ASC0. Furthermore, ASC0 is designed for transferring files from the development PC to the
module. When a Java application is started, ASC0 can be used as an RS-232 port or/and System.out. Refer to [3] for details.
4.2.2 General Purpose I/O
There are ten I/O pins that can be configured for general purpose I/O. One pin can be configured as a pulse counter. All lines can be accessed under Java by AT commands or a Java API.
See [1] and [2] for information about usage and startup behavior.
4.2.3 DAC/ADC
There are two analogue input lines and one analogue output line. They are accessed by AT
commands or via a Java API. See [1] and [2] for details.
4.2.4 ASC1
ASC1 is the second serial interface on the module. This is a 4-pin interface (RX, TX, RTS,
CTS). It can be used as a second AT interface when a Java application is not running or by a
running Java application as RS-232 port or/and System.out.
4.2.5 Digital Audio Interface (DAI)
The ME has a seven-line serial interface with one input data clock line and input/output data
and frame lines to support the DAI. Refer to [1] and [2] for more information.
4.2.6 I2C/SPI
There is a 4 line serial interface which can be used as I2C or SPI interface. It is described in
[2]. The AT^SSPI AT command configures and drives this interface. For details see [1]. I2C
and SPI are also accessible from a Java API.
wm_java_usersguide_v19 Page 21 of 109 2012-01-27
Confidential / Released
Java User’s Guide
4.2 Interfaces
26
4.2.7 JVM Interfaces
Figure 8: Interface Configuration
Java ME, CLDC and MIDP were implemented by SUN. IMP-NG is a stripped down version of
MIDP 2.0 and does not include the graphical interface LCDUI. There are also additional APIs
like the File I/O and the AT command API. Documentation for Java ME a nd CLDC can be found
at http://java.sun.com/javame/. Documentation for the other APIs is found in [3].
4.2.7.1 IP Networking
IMP-NG provides access to TCP/IP similarly to MIDP 2.0.
Because the used network connection, CSD or GPRS, is fully transparent to the Java interface,
the CSD and GPRS parameters must be defined separately either by the AT command
AT^SJNET [1] or by parameters given to the connector open method, see [3].
4.2.7.2 Media
The playTone method and the tone sequence player are supported. For optimum performance
use notes in the range of 48 to 105. Tones outside this range are affected by audio hardware
filtering (see [2]).
4.2.7.3 Other Interfaces
Neither the PushRegistry interfaces and mechanisms nor any URL schemes for the PlatformRequest method are supported. See [3].
wm_java_usersguide_v19 Page 22 of 109 2012-01-27
Confidential / Released
Java User’s Guide
4.3 Data Flow of a Java Application Running on the Module
26
4.3 Data Flow of a Java Application Running on the Module
Figure 9: Data flow of a Java application runn i n g on th e module.
The diagram shows the data flow of a Java application running on the module. The data flow
of a Java application running in the debug environment can be found in Figure 24.
The compiled Java applications are stored as JAR files in the Flash File System of module.
When the application is started, the JVM interprets the JAR file and calls the interfaces to the
module environment.
The module environment consists of the:
• Flash File System: available memory for Java applications
• TCP/IP: module internal TCP/IP stack
• GPIO: general purpose I/O
• ASC0: Asynchronous serial interface 0
• ASC1: Asynchronous serial interface 1
• I2C: I2C Bus interface
• SPI: Serial Peripheral Interface
• DAC: digital analog converter
• ADC: analog digital converter
• AT parser: accessible AT parser
The Java environment on the module consists of the:
• JVM: Java Virtual Machine
• AT command API: Java API to AT parser
• File API: Java API to Flash File System
• IMP-NG: Java API to TCP/IP and ASC0/1
• GPIO API: Java API to GPIO pins and pulse counter
• I2C/SPI API: Java API to access I2C/SPI Bus
• ADC/DAC API: Java API to access ADC and DAC
• Watchdog API: Java API to HW watchdog
• Bearer Control API: Java API for bearer state information and hang-up.
wm_java_usersguide_v19 Page 23 of 109 2012-01-27
Confidential / Released
Java User’s Guide
4.4 Handling Interfaces and Data Service Resources
26
4.4 Handling Interfaces and Data Service Resources
To develop Java applications the developer must know which resources, data services and
hardware access are available.
• There are multiple AT parsers available
• There is hardware access over
- two serial interfaces: ASC1 and ASC0 (both fully accessible).
- general purpose I/O. To configure the hardware access, please refer to [1] and [2].
- I2C/SPI
- All restrictions of combinations are described in Section 4.4.1
• A Java application has:
- instances of the AT command class, one with CSD and the others without, each of which
would, in turn, be attached to one of the AT parsers.
- two instances of access to a serial interface, ASC0 and ASC1, through the CommCon-
nection API. Access to the control lines of these interfaces through CommConnectionControlLines.
- System.out over any serial interface or into the file system
4.4.1 Module States
The module can exist in the following six states in relation to a Java application, the serial interfaces, GPIO and I2C/SPI. See [1] for information about the AT commands referenced. A
state transition diagram is shown in Figure 13.
This section shows how Java applications must share AT parsers, GPIO pins and I2C/SPI resources. DAC, ADC and DAI are not discussed here.
Color legend for the following figures:
4.4.1.1 Sta te 1: Default – No Java Running
This is the default state. The Java application is inactive and there is an AT interface with CSD
on ASC0 as well as ASC1. The initial state of the pins is according to [4].
Figure 10: Module State 1
wm_java_usersguide_v19 Page 24 of 109 2012-01-27
Confidential / Released
Java User’s Guide
4.4 Handling Interfaces and Data Service Resources
26
4.4.1.2 Sta te 2: No Java Running, General Purpose I/O and I2C/ SPI
The Java application is inactive. There is an AT parser with CSD on ASC0 as well as ASC1.
Up to ten I/O pins are used as general purpose I/O plus a I2C/SPI interface. The pins are configured by AT^SCPIN and AT^SSPI (refer [1]).
Figure 11: Module State 2
4.4.1.3 State 4: Default – Java Application Active
The Java application is active and ASC0 and ASC1 are used as System.out and/or CommConnection. Java instances of AT commands are connected to the availa ble AT parsers. The Java
application is activated with AT^SJRA (refer to [1]) or autostart.
Figure 12: Module State 4
4.4.1.4 State 5: Java Application Active, General Purpose I/O and I2C/SPI
The Java application is active and ASC0 and ASC1 are used as System.out and/or CommConnection. The Java application is activated with AT^SJRA. The I/O pins are configured with
AT^SCPIN, the I2C/SPI interface with AT^SSPI. Refer to [1] for AT command details.
Figure 13: Module State 5
wm_java_usersguide_v19 Page 25 of 109 2012-01-27
Confidential / Released
Java User’s Guide
4.4 Handling Interfaces and Data Service Resources
26
4.4.2 Module State Transitions
Figure 14: Module State Transition Diagram
Note: No AT parser is available over serial interface ASC0 or ASC1 while a Java application is
running on the module.
wm_java_usersguide_v19 Page 26 of 109 2012-01-27
Confidential / Released
Java User’s Guide
5 Maintenance
39
5 Maintenance
The basic maintenance features of the ME are described below. Explicit details of these functions and modes can be found in [1] and [2].
5.1 IP Service
Apart from the standard Java IP networking interfaces (UDPDatagramConnection, SocketConnection, ...) the ME also supports a set of Internet Services controlled b y AT co mmand. There
are some correlations between the Java and the AT IP Services.
• The connection profile 0 is also used by Java: when Java starts up a networking connection
it tries to set and activate connection profile 0 with the parameters configured by AT^SJNET
or in the connector.open method.
• Java tries to (re-)use an active Internet Service profile: if using connection profile 0 fails,
because e.g. this (or another) connection profile is already used by the Internet Services,
Java networking also uses this, already active, profile.
• Deactivation of the connection profile happens when all applications are finished: Java has
its networking idle time. For the Internet Services an inactivity timeout referred to as parameter <inactTO> is available (configurable by AT^SICS and AT^SCFG).
So that means that Java networking and AT Internet Services can be used in parallel but care
has to be taken about configuring and activation of the connection profile. It is recommended
to use connection profile 0 for the Internet Services and set the parameters to the same values
as the Java networking parameters. This way it makes no difference whether the connection is
activated by the Internet Services or Java.
There are some aspects which have to be kept in mind for all IP Services (Java and AT command):
• When an open TCP connection is cut (e.g. the other side dies/is switched off) it takes
around 10 minutes during which retransmissions are send, until the situation is detected as
an error (in Java an exception is thrown).
• The number of IP services used in parallel should be kept small. An active IP service uses
up resources and may deteriorate the overall performance.
• If a user rapidly closes and opens TCP/IP connections (e.g. SocketConnection, HTTPCon-
nection), a ConnectionNotFoundException reading "No buffer space available" may be
thrown, explaining that all TCP/IP socket resources are exhausted. In the worst case, opening further TCP/IP connections is locked for up to 60 seconds.
• If a service is re-opened on the same port shortly after having closed the ServerSocketCon-
nection, the ServerSocketConnection may not work properly. To ensure that the service
works correctly the host is required to wait at least two minutes before reopening a server.
• For information about the bearer state, use the specific IP service command AT^SICI and,
in addition, the general network commands AT+COPS and/or AT+CREG.
• When trying to start the bearer when it is still in the process of shutting down, e.g. right after
a "network idle timeout" an IOException is thrown. Either use a delay or wait for bearer state
to actually say "down".
Some Java products feature the BearerControl class. This class provides bearer state information and a method to hang-up.
wm_java_usersguide_v19 Page 27 of 109 2012-01-27
Confidential / Released
Java User’s Guide
5.2 Remote SIM Access
39
5.2 Remote SIM Access
While Remote SIM Access (RSA) is normally closely coupled with the GSM 07.10 multiplexer
there are some things to keep in mind when using it with Java.
• Java must not be started when RSA and/or the GSM 07.10 multiplexer is activated.
• When activating the RSA mode (AT^SRSA) via a Java AT Command channel while Java
is running the parameter <muxChan> of the AT^SRSA command is ignored and RSA is
activated on the channel where the command was issued. The Input- and Outputstream
can then be used to transfer RSA protocol data.
5.3 Power Saving
The module supports several power saving modes which can be configured by the AT command AT+CFUN [1]. Power saving affects the Java application in two ways. First, it limits ac-
cess to the serial interface (RS-232-API) and the GPIO pins. Second, power saving efficiency
is directly influenced by the way a Java application is programmed.
Java hardware access limitations:
• In NON-CYCLIC SLEEP mode (cfun=0) the serial interface cannot be accessed. Toggling
RTS does end NON-CYCLIC SLEEP mode. In CYCLIC SLEEP mode (CFUN=7 or 9) the
serial interface can be used with hardware flow control (CTS/RTS).
• In all SLEEP modes the GPIO polling frequency is reduced so that only signal changes
which are less than 0.2Hz can be detected properly. Furthermore, the signal must be constant for at least 2.7s to detect any changes. For further details see AT^SCPOL in [1] or
refer to [2].
Java power saving efficiency:
• As long as any Java thread is active, power consumption cannot be reduced, regardless
whether any SLEEP mode has been activated or not. A Java application designed to be
power efficient should not have any unnecessarily active threads (e.g. no busy loops).
Threads waiting in a blocking method (e.g. read) do not hinder power saving.
• When using networking functionality close all connectors and hang-up the bearer manually
(using ATH for circuit switched connections) every time you intend to reduce power consumption. Disable the network idle timeout (=0).
When going to low power mode there always might be a transition time of around 10s till low
power consumption state is reached.
5.3.1 Power Saving While GPRS is Active
It is also possible that the module saves power while the GPRS PDP context is activated but
without ongoing data traffic. To save power in GPRS mode it is required to enable a power saving mode (e.g. AT+CFUN=9) and put all threads into a sleep state. Also, data connections shall
be in a blocking read (serial interface and/or GPRS connections).
wm_java_usersguide_v19 Page 28 of 109 2012-01-27
Confidential / Released
Java User’s Guide
5.4 Charging
39
5.4 Charging
Please refer to [1] and [2] for general information about charging. Charging can be monitored
by the running Java application. The JVM is active in Charge mode and in Charge-Only mode
if autostart is activated. Only a limited number of AT commands are available when the module
is in Charge-Only mode. A Java application must be able to handle the Charge-Only mode and
reset the module to reinstate the normal mode. See [2] for information about the Ch arge-Only
mode. The Charge-Only mode is indicated by URC “^SYSSTART CHARGE-ONLY MODE”.
Note: When a Java application is started in Charge-Only mode only AT Command APIs without
CSD are available. The mode-indicating URC is created after issuing the very first AT command on any opened channel. To read the URC it is necessary to register a listener (see [3])
on this AT command API instance before passing the first AT command.
5.5 Airplane Mode
The main characteristic of this mode is that the RF is switched off and therefore only a limited
set of AT commands is available. The mode can be entered or left using the appropriate
AT^SCFG command. This AT command can also be used to configure the airplane mode as
the standard startup mode, see [2]. The JVM is started when autostart is enabled. A Java ap-
plication must be able to handle this mode. The airplane mode is indicated by URC “SYSSTART AIRPLANE MODE”. Since the radio is off all classes related to networking connections,
e.g. SocketConnection, UDPDatagramConnection, SocketServerConnection, HTTPConnection, will throw an exception when accessed.
5.6 Alarm
The ALARM can be set with the AT+CALA command. Please refer to the AT Command Set [1]
and Hardware Interface Description [2] for more information. One can set an alarm, switch off
the module with AT^SMSO, and have the module restart at the time set with AT+CALA. When
the alarm triggers the module restarts in a limited functionality mode, the “airplan e mode”. Only
a limited number of AT commands are available in this mode, although the JVM is started when
autostart is enabled. A Java application must be able to handle this mode and reset the module
to reinstate the normal mode. The mode of a module started by an alarm is indicated by the
URC “^SYSSTART AIRPLANE MODE”.
Note: For detailed information which functionality is available in this mode see [1] and [2]. The
mode indicating URC is created after issuing the very first AT command on any opened channel.
wm_java_usersguide_v19 Page 29 of 109 2012-01-27
Confidential / Released
Java User’s Guide
5.7 Shutdown
39
5.7 Shutdown
If an unexpected shutdown occurs, data scheduled to be written will get lost due to a buffered
write access to the flash file system. The best and safest approach to powering down the module is to issue the AT^SMSO command. This procedure lets the module log off from the network
and allows the software to enter a secure state and save all data. Fu rther details can be found
in [2].
5.7.1 Automatic Shutdown
The ME is switched off automatically in different situations:
• under- or overtemperature
• under- or overvoltage
Appropriate warning messages transmitted by the ME to the host application are implemented
as URCs. To activate the URCs for temperature conditions use the AT^SCTM command. Undervoltage and overvoltage URCs are generated automatically when fault conditions occur.
For further detail refer to the commands AT^SCTM and AT^SBC described in the AT Command Set [1]. In addition, a description of the shutdown procedures can be found in [2].
5.7.2 Manual Shutdown
The module can be switched off manually with the AT command, AT^SMSO. In this case the
midlets destroyApp method is called and the application has 5s time to clean up and call the
notifydestroy method. After the 5s the VM is shut down.
5.7.3 Restart after Switch Off
When the module is switched off without setting an alarm time (see the AT Command Set [1]),
e.g. after a power failure, external hardware must restart the module with th e Ignition line (IGT).
The Hardware Interface Description [2] explains how to handle a switched off situation.
5.7.4 Watchdog
The Watchdog class allows to access the HW watchdog of the system from application level.
Depending on the setting (at^scfg) the userware watchdog can do nothing, swit ch-off or reboot
the system.
wm_java_usersguide_v19 Page 30 of 109 2012-01-27
Confidential / Released
Java User’s Guide
5.8 Special AT Command Set for Java Applications
39
5.8 Special AT Command Set for Java Applications
For the full AT command set refer to [1]. There are differences in the behaviour AT commands
issued from a Java application in comparison to AT commands issued over a serial interface.
5.8.1 Switching from Data Mode to Command Mode
Cancellation of the data flow with “+++” is not available in Java applications, see [1] for details.
To break the data flow use breakConnection(). For details refer to [3].
5.8.2 Mode Indication after MIDlet Startup
After starting a module without autobauding on, the startup state is indicated over the serial interface. Similarly, after MIDlet startup the module sends its startup state (^SYSSTART, ^SYSSTART AIRPLANE MODE etc.) to the MIDlet. This is done via a URC to the AT Command API
instance which executes the very first AT Command from within Java. To read this URC it is
necessary to register a listener (see [3]) on this AT Command API instance before passin g the
first AT Command.
5.8.3 Long Responses
The AT Command API can handle responses of AT commands up to a length of 1024 bytes.
Some AT commands have responses longer than 1024 bytes, for these responses the Java
application will receive an Exception.
Existing workarounds:
• Instead of listing the whole phone book, read the entries one by one
• Instead of listing the entire short message memory, again list message after message
• Similarly, read the provider list piecewise
• Periods of monitoring commands have to be handled by Java, e.g. AT^MONI, AT^SMONG.
These AT commands have to be used without parameters, e.g. for AT^MONI the periods
must be implemented in Java.
5.8.4 Configuration of Serial Interface
While a Java application is running on the module, only the AT Command API is able to handle
AT commands. All AT commands referring to a serial interface are ignored. This includes the
commands:
• AT+IPR (sets a fixed local bit rate)
• AT\Q1, AT\Q2 and AT\Q3 (sets type of flow control)
If Java is running, the firmware will ignore any settings from these commands. Responses to
the read, write or test commands will be invalid or deliver „ERROR“.
Note: When a Java application is running, all settings of the serial interface are done with the
class CommConnection. This is fully independent of any AT commands relating to a serial interface. However, the following restrictions apply in configuring the serial interface: Baudrate:
Only 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200, 230400
and 460800 are supported; Stopbits: Only "1" is supported; Parity: "7N1" is not supported.
wm_java_usersguide_v19 Page 31 of 109 2012-01-27
Confidential / Released
Java User’s Guide
5.9 System Out
39
5.8.5 Java Commands
There is a small set of special Java AT commands:
• AT^SJRA, start a Java application
• AT^SJNET, configuration of Java networking connections
• AT^SJOTAP, start and configuration of over the air provisioning
• AT^SJSEC, security configuration
Refer to the AT command Set [1].
5.8.6 AutoExec Function
Under Java, the AutoExec function’s AT command execution has some restrictions (see [1] for
details on the AutoExec function). If an AT command is executed, neither URC nor command
response are indicated to the Java application. Therefore, it is recommended to use the AutoExec function under Java only with commands that shut down the module, e.g., with
AT+CFUN=0,1, as a watch dog. Any other AT command execution should be implemented with
Java means and the ATCommand class.
5.9 System Out
Any output printed to the System.out stream by a Java application can be redirected to one of
the serial interfaces, a file, a "NULL" device (i.e. the output will be discarded) or a UDP socket
for using the debugger from an IDE. The configuration can be done at any time using the AT
command AT^SCFG (see [1] for details) and is non-volatile.
5.9.1 Serial interfaces
System.out can be written to any of the serial interfaces ASC0, ASC1 or USB. If System.out is
redirected to one of the interfaces used for the Java CommConnection, the interface will be
shared between System.out and the CommConnection. This will result in mixed output, if data
is written to the CommConnections OutputStream and something is printed via System.out at
the same time.
Using System.out and CommConnection on the same serial interface may be done if a device
connected to the serial port is only transmitting data to the module. It is recommended to ensure already in the HW design that output from the module cannot be transferred to a connected device.
5.9.2 File
The System.out print can be redirected into log files within the module’s flash file system. The
output will be written alternatingly into two files which can be concatenated afterwards to have
a single log file.
Writing the output to a file will slow down the virtual machine. To reduce the impact of logging
the output may be written first to a buffer before it is written to the file (buffered mode). The buffered output is written either if the buffer is filled or after 200 ms. If the buffer is not used (secure
mode) the output is written directly to the file. Because excessive writing to th e module’s flash
file system decreases the life time of the flash memory, we recommend using the System.out
to file redirection only during development phases.
wm_java_usersguide_v19 Page 32 of 109 2012-01-27
Confidential / Released
Java User’s Guide
5.10 GPIO
39
5.9.3 UDP
Redirection to a UDP socket is used in conjunction with the debugger. UDP is used by default
when using on-device-debugging (Chapter 10). This can be changed by editing the emulator’s
ini file or by using the appropriate command line parameter (Section 10.4).
If the output is redirected to an UDP socket, any changes of the System.out configuration are
ignored while the Virtual Machine is running. The UDP Socket settings will not b e stored in the
module.
5.10 GPIO
The GPIO Java API (classes: InPort, OutPort, InPortListener, StartStopPulseCounter, LimitPulseCounter and LimitPulseCounterListener) is a replacement for the GPIO AT commands
(AT^SPIO, AT^SCPIN, ...). Using these classes frees up AT command resources and improves
performance. Both APIs can only be used alternatively. Of course the basic system characteristics of a poll interval of 4.6ms (in SLEEP mode up to 2.7s) for pin state change detection does
also apply here.
5.11 Restrictions
5.11.1 Flash File System
The maximum length of a complete path name, including the path an d th e filename, is limited
by the Flash file system on the module to 124 characters. It is recommended that names of
classes and files be distinguished by more than case sensitivity.
Avoid using any blank in the names of JAR or JAD files. Otherwise the file explorer might not
recognize the names. If the OTAP server adds a blank into the filenames, problems with OTAP
will occur.
5.11.2 Memory
The CLDC 1.1 HI features a just-in-time compiler. This means that parts of the Java byte code
which are frequently executed are translated into machine code to improve efficiency. This feature uses up RAM space. There is always a trade off between code translation to speed up execution and RAM space available for the application.
5.11.3 JAD File Size
The Java Application Descriptor (JAD) File can be used to pass configuration data to the midlet.
JAD file sizes of up to 30 KByte are allowed.
wm_java_usersguide_v19 Page 33 of 109 2012-01-27
Confidential / Released
Java User’s Guide
5.12 Performance
39
5.12 Performance
The performance study was focused on comparable performance values under various circumstances.
5.12.1 Java
This section gives information about the Java command execution throughput (“jPS”= Java
statements per second). The scope of this measurement is only the statement execution time ,
not the execution delay (Java command on AT interface
tion on GPIO).
Java instruction execution reac-
Figure 15: Test case for measuring Java command execution throughput
The following Java instruction was used for calculation of the typical jPS:
value = ( 2 x number of calculation statements ) /
( (1 / frequencyB ) - ( 1 / frequencyA ) );
Measurement and calculation were done using:
• duration of each loop = 600 s
• number of calculation statements = 50 “result=(CONSTANT_VALUE/variable_value);”-
Instructions (executed twice per pin cycle)
• frequencyA as measured with a universal counter
• frequencyB as measured with a universal counter
The reference loop has the same structure as the measurement loop except that the measurement sequence is moved.
State jPS-Value (mean)
ME in IDLE mode / Not connected ~49000
CSD connection ~46000
Since only a small amount of Java code is executed in this test, it is easily optimized by the
CLDC’s HI just-in-time compiler. More complex applications might not reach that execution
speed.
wm_java_usersguide_v19 Page 34 of 109 2012-01-27
Confidential / Released
Java User’s Guide
5.12 Performance
39
5.12.2 Pin I/O
The pin I/O test was designed to find out how fast a Java MIDle t can process URCs caused by
Pin I/O and react to these URCs. The URCs are generated by feeding an input pin with an
external frequency. As soon as the Java MIDlet is informed about the URC, it tries to regenerate the feeding frequency by toggling another output pin.
Figure 16: Test case for measuring Java MIDlet performance and handling pin-IO
The results of this test show that the delay from changing the state on the input pin to a state
change on the output pin is at least around 60 ms, but that time strongly depends on the amount
of garbage to collect and number of threads to be served by the virtual machine.
When doing this scenario using the Java GPIO API instead of ATCommand the delay goes
down to around half this value.
But still pin I/O is not really suitable for generating or detecting frequencies.
5.12.3 Data Rates on RS-232 API
For details about the software platform and interfaces refer to Chapter 4, "Software Platform".
This section summarises limitations and preconditions for performance when using the interface CommConnection from package com.cinterion.io
The data rate on RS232 depends on the size of the buffer used for reading from and writing to
the serial interface. It is recommended that method read (byte[ ] b) be used for reading from
the serial interface. The recommended buffer size is 2kbyte. To achieve error free data transmission the flow control on CommConnection must be switched on: <autorts> and <autocts>,
the same for the connected device.
1
(refer to [3]).
Different use cases are listed to give an idea of the attainable data rates. All applications for
measurement use only one thread and no additional activities other than those described were
carried out in parallel.
1.
Up to TC65i v01.100 this package is named: com.siemens.icm.io.
wm_java_usersguide_v19 Page 35 of 109 2012-01-27
Confidential / Released
Java User’s Guide
5.12 Performance
39
5.12.3.1 Plain Serial Interface
Scenario: A device is connected to ASC0 (refer to Section 4.2.4). The Java application must
handle data input and output streams. A simple Java application (with only one thread) which
loops incoming data directly to output, reaches data rates up to 180kbit/s. Test conditions:
hardware flow control enabled (<autorts> and <autocts>), 8N1, and baud rate on ASC0 set t o
230kbaud (
theoretical maximum: 184kbit/s net data rate).
Figure 17: Scenario for testing data rates on ASC1
5.12.3.2 Voice Call in Parallel
Same scenario as in Section 5.12.3.1, but with a voice call added. The application reflects incoming data directly to output and, additionally, handles an incoming voice call. The data rates
are also up to 180kbit/s. Test conditions: same as in Section 5.12.3.1.
Figure 18: Scenario for testing data rates on ASC1 with a voice call in parallel
5.12.3.3 Scenarios with GPRS/EGDE Connection
The biggest challenges to the module performance are setting u p a GPRS/EDGE connection,
receiving data on javax.microedition.io interfaces and sending or receiving the data on the
RS232 API with the help of a Java application.
wm_java_usersguide_v19 Page 36 of 109 2012-01-27
Confidential / Released
Java User’s Guide
5.12 Performance
39
5.12.3.4 Upload
The ME supports up to four uplink time slots for GPRS and up to two for EGDE. The Java application receives data over RS232 API and sends them over GPRS to a server.
Table 1: GPRS upload data rate with different number of timeslots, CS2
Upload data rate with x timeslots
Coding scheme 2
[kbit/s]
1
timeslot
theor.
Value
1
%
from
theor.
Value
2
timeslots
theor.
Value
1
%
from
theor.
Value
3
timeslots
theor.
Value
1
%
from
theor.
Value
4
timeslots
theor.
Value
1
%
from
theor.
Value
9 12 75% 15 24 63% 20 36 55% 16 48 33%
1.
net transmission rates for LLC layer
Table 2: GPRS upload data rate with different number of timeslots, CS4
Upload data rate with x timeslots
Coding scheme 4
[kbit/s]
1
timeslot
theor.
Value
1
%
from
theor.
Value
2
timeslots
theor.
Value
1
%
from
theor.
value
3
timeslots
theor.
Value
1
%
from
theor.
value
4
timeslots
theor.
Value
1
%
from
theor.
value
13 20 65% 22 40 55% 20 60 33% 13 80 16%
1.
net transmission rates for LLC layer
Table 3: EDGE upload data rate with two timeslots, CS5
Upload data rate with x timeslots
Coding scheme 5
[kbit/s]
2 timeslots theor.
Value
% from theor.
1
Value
33 44 73%
1.
net transmission rates for LLC layer
Table 4: EDGE upload data rate with two timeslots, CS9
Upload data rate with x timeslots
Coding scheme 9
[kbit/s]
2 timeslots
theor.
Value
1
% from theor.
Value
72 118 61%
1.
net transmission rates for LLC layer
wm_java_usersguide_v19 Page 37 of 109 2012-01-27
Confidential / Released
Java User’s Guide
5.12 Performance
39
Figure 19: Scenario for testing data rates on ASC1 with GPRS data upload
5.12.3.5 Download
The data rate for downloading data over GPRS/EDGE depends on the number of assigned
timeslots and the coding schemes given by the net. The ME supports up t o four downlink time
slots. For the measurements, the Java application receives data from the server over GPRS
and sends them over RS232 to an external device.
Figure 20: Scenario for testing data rates on ASC1 with GPRS data download
The tables below show the download data rates that can be achieved if hardware flow control
is enabled on the CommConnection interface and the port speed is set to 460800.
Table 5: GPRS Download data rate with different number of timeslots, CS2
Download data rate with x timeslots
Coding scheme 2
[kbit/s]
1
timeslot
11 12 91% 21 24 87% 29 36 81% 35 48 73%
wm_java_usersguide_v19 Page 38 of 109 2012-01-27
Confidential / Released
theor.
Value
1
1.
net transmission rates for LLC layer
%
from
theor.
Value
2
timeslots
theor.
Value
1
%
from
theor.
Value
3
timeslots
theor.
Value
1
%
from
theor.
Value
4
timeslots
theor.
Value
1
%
from
theor.
Value
Java User’s Guide
5.13 System Time
39
Table 6: GPRS Download data rate with different number of timeslots, CS4
Download data rate with x timeslots
Coding scheme 4
[kbit/s]
1
timeslot
theor.
Value
1
%
from
theor.
Value
2
timeslots
theor.
Value
1
%
from
theor.
value
3
timeslots
theor.
Value
1
%
from
theor.
value
4
timeslots
theor.
Value
1
%
from
theor.
value
17 20 85% 31 40 78% 35 60 58% 38 80 48%
1.
net transmission rates for LLC layer
Table 7: EDGE Download data rate with different number of timeslots, CS5
Download data rate with x timeslots
Coding scheme 5
[kbit/s]
1
timeslot
theor.
Value
1
%
from
theor.
Value
4
timeslots
theor.
Value
1
%
from
theor.
Value
20 22 91% 78 89 87%
1.
net transmission rates for LLC layer
Table 8: EDGE Download data rate with different number of timeslots, CS9
Download data rate with x timeslots
Coding scheme 9
[kbit/s]
1
timeslot
theor.
Value
1
%
from
theor.
Value
4
timeslots
theor.
Value
1
%
from
theor.
value
50 59 85% 184 236 77%
1.
net transmission rates for LLC layer
5.13 System Time
When Java starts up, it initializes its time base from the system’s real time clock. If the RTC is
changed by AT command (AT+CCLK) later on, the Java time does not adjust. So, the time you
get with (AT+CCLK) and the time you get with System.currentTimeMilis() may not necessarily
be identical.
wm_java_usersguide_v19 Page 39 of 109 2012-01-27
Confidential / Released
Java User’s Guide
6 MIDlets
42
6 MIDlets
The Java ME
ing wireless applications. The MIDP runs on top of the Connected Limited Device Configuration
(CLDC), which in turn, runs on top of the Java ME
lets. MIDlets are controlled by the mobile device implementation that supports the CLDC and
MIDP. Since IMP-NG is a subset of MIDP 2.0, IMP includes MIDlets. The MIDlet code structure
is very similar to applet code. There is no main method and MIDlets always extend from the
MIDlet class. The MIDlet class in the MIDlet package provides methods to manage a MIDlet’s
life cycle.
TM
Mobile Information Device Profile (MIDP) provides a targeted Java API for writ-
TM
. MIDP applications are referred to as MID-
6.1 MIDlet Documentation
MIDP and MIDlet documentation can be found at http://wireless.java.sun.com/midp/ and in the
html document directory of the wtk,
…\Cinterion\CMTK\<productname>\wtk\doc\index.html
6.2 MIDlet Life Cycle
The MIDlet life cycle defines the protocol between a MIDlet and its environment through a simple well-defined state machine, a concise definition of the MIDlet’s states and APIs to signal
changes between the states. A MIDlet has three valid states:
• Paused – The MIDlet is initialised and is quiescent. It should not be holding or using any
shared resources.
• Active – The MIDlet is functioning normally.
• Destroyed – The MIDlet has released all of its resources and terminated. This state is only
entered once.
State changes are controlled by the MIDlet interface, which supports the following methods:
• pauseApp() – the MIDlet should release any temporary resources and become passive.
• startApp() – the MIDlet starts its execution, needed resources can be acquired here or in
the MIDlet constructor.
Note: Take care that the startApp() method is always properly terminated before calling the
destroyApp() method. For example, avoid that threads launched by startApp() enter a
closed loop, and be sure that all code was entirely executed. This is especially important
for OTAP, which needs to call destroyApp().
• destroyApp() – the MIDlet should save any state and release all resources
Note: To destroy only the Java application without switching off the module, the destroyApp() method can be called explicitly. To destroy the Java application and switch off the
module at the same time, it is sufficient to send the AT^SMSO command from somewhere
in your code, because this procedure implies calling the destroyApp() method. Likewise,
resetting the module with AT+CFUN=x,1 also implies calling the destroyApp() method.
Note that AT+CFUN=x,1 will restart the module – to restart Java afterwards either use the
autostart mode configured with AT^SCFG or restart Java with AT^SJRA.
From this you can see that the commands AT^SMSO and AT+CFUN=x,1 should never be
sent within the destroyApp() method. It is good practice to always call the notifyDestroyed()
method at the end of your destroyApp method. And use the destroyApp method as single
exit point of your midlet.
wm_java_usersguide_v19 Page 40 of 109 2012-01-27
Confidential / Released
Java User’s Guide
6.2 MIDlet Life Cycle
42
• notifyDestroyed() – the MIDlet notifies the application management software that it has
cleaned up and is done.
Note: the only way to terminate a MIDlet is to call notifyDestroyed(), but destroyApp() is not
automatically called by notifyDestroyed(). You must not terminate your midlet (i.e. having
no threads left) and not calling notifyDestroyed() before.
• notifyPaused() – the MIDlet notifies the application management software that it has
paused
• resumeRequest() – the MIDlet asks application management software to be started again.
Table 9: A typical sequence of MIDlet execution
Application Management Software MIDlet
The application management software creates a new instance of a
MIDlet.
The application management software has decided that it is an
appropriate time for the MIDlet to run, so it calls the MIDlet.startApp
method for it to enter the Active state.
The application management software no longer needs the application be active, so it signals it to stop performing its service by calling
the MIDlet.pauseApp method.
The application management software has determined that the
MIDlet is no longer needed, or perhaps needs to make room for a
higher priority application in memory, so it signals the
is a candidate to be destroyed by calling the MIDlet.destroyApp
method.
MIDlet that it
The default (no argument) constructor for the MIDlet is called; it
is in the Paused state.
The MIDlet acquires any
resources it needs and begins to
perform its service.
The MIDlet stops performing its
service and might choose to
release some resources it currently holds.
If it has been designed to do so,
the MIDlet saves state or user
preferences and performs clea n
up.
wm_java_usersguide_v19 Page 41 of 109 2012-01-27
Confidential / Released
Java User’s Guide
6.3 Hello World MIDlet
42
6.3 Hello World MIDlet
Here is a sample HelloWorld program.
/**
* HelloWorld.java
*/
package example.helloworld;
import javax.microedition.midlet.*;
import java.io.*;
public class HelloWorld extends MIDlet {
/**
* HelloWorld - default constructor
*/
public HelloWorld() {
System.out.println("HelloWorld: Constructor");
}
/**
* startApp()
*/
public void startApp() throws MIDletStateChangeException {
System.out.println("HelloWorld: startApp");
System.out.println("\nHello World!\n");
destroyApp();
}
/**
* pauseApp()
*/
public void pauseApp() {
System.out.println("HelloWorld: pauseApp()");
}
/**
* destroyApp()
*/
public void destroyApp(boolean cond) {
System.out.println("HelloWorld: destroyApp(" + cond + ")");
notifyDestroyed();
}
}
wm_java_usersguide_v19 Page 42 of 109 2012-01-27
Confidential / Released
Java User’s Guide
7 File Transfer to Module
44
7 File Transfer to Module
7.1 Module Exchange Suite
The Module Exchange Suite allows you to view t he Flash file system on the module as a directory from Windows Explorer. Make sure that the module is turned on and that one of the module’s serial interfaces (ASC0, ASC1 or USB) is connected to the COM port that the Module
Exchange Suite is configured to. The configured COM port can be checked or changed under
Properties of the Module directory. Please note that the Module Exchange Suite can be used
only if the module is in normal mode and the baud rate is configured to a fixed value of 921600,
460800, 230400, 115200, 57600, 38400 or 19200. Please also note that the use of the Module
Exchange Suite resets the module’s AT command settings to their factory defaults (just as the
command AT&F would). Possible user defined profiles stored non-volatile with AT&W will have
to be restored with ATZ after usage.
While running the module with the Module Exchange Suite, subdirectories and files can be added to the flash file system of module. Keep in mind that a maximum of 200 flash objects (files
and subdirectories) per directory in the flash file system of the module is recommended.
7.1.1 Windows Based
The directory is called “Module” and can be found at the top level of workspace “MyComputer”.
To transfer a file to the module, simply copy the file from the source directory to the target directory in the “Module
Module Disk (A:)”.
7.1.2 Command Line Based
A suite of command line tools is available for accessing the module’s Flash file system. They
are installed under Module Exchange Suite installation directory so that the tools are available
from any directory. The module’s file system is accessed with mod:. The tools included in this
suite are MESdel, MEScopy, MESxcopy, MESdir, MESmkdir, MESrmdir, MESport, MESclose
and MESformat. Entering one of these commands without arguments will describe the command’s usage. The tools mimic the standard directory and file commands. A path inside the
module’s file system is identified by using “mod:” followed by the module disk which is always
“A:” (e.g. “MESdir mod:a:” lists the contents of the module’s root directory).
7.2 Over the Air Provisioning
See Chapter 8 for OTA provisioning.
wm_java_usersguide_v19 Page 43 of 109 2012-01-27
Confidential / Released
Java User’s Guide
7.3 Security Issues
44
7.3 Security Issues
The developer should be aware of the following security issues. Security aspects in general are
discussed in Chapter 11.
7.3.1 Module Exchange Suite
The serial interface should be mechanically protected.
The copy protection rules for Java applications prevent opening, reading, copying, moving or
renaming of JAR files. It is not recommended that the name of a Java application (for example
<name>.jar) be used for a directory, since the copy protection will refuse access to open, copy
or rename such directories.
7.3.2 OTAP
• A password should be used to update with OTA (SMS Authentication)
• Parameters should be set to fixed values (AT^SJOTAP) whenever possible so that they
cannot be changed over the air.
• The HTTP server should be secure (e.g. access control via basic authentication).
• Ensure that the OTAP server does not add a blank to the names of JAR and JAD files,
because this will cause problems with OTAP.
wm_java_usersguide_v19 Page 44 of 109 2012-01-27
Confidential / Released
Java User’s Guide
8 Over The Air Provisioning (OTAP)
54
8 Over The Air Provisioning (OTAP)
8.1 Introduction to OTAP
OTA (Over The Air) Provisioning of Java Applications is a common practice in the Java world.
OTAP describes mechanisms to install, update and delete Java applications over the air. The
ME implements the Over The Air Application Provisioning as specified in the IMP-NG standard
(JSR228).
The OTAP mechanism described in this document does not require any physical user interaction with the device; it can be fully controlled over the air interface. Therefore it is suitable for
Java devices that are designed not to require any manual interaction such as vending machines or electricity meters.
8.2 OTAP Overview
To use OTAP, the developer needs, apart from the device fitted with the Java enabled module,
an http server, which is accessible over a TCP/IP connection either over GPRS or CSD, and
an SMS sender, which can send Class1, PID $7d short messages. T his is the PID reserved for
a module’s data download.
Figure 21: OTAP Overview
The Java Application Server (http Server) contains the .jar and the .jad file to be loaded on the
device. Access to these files can be protected by http basic authentication.
The OTAP Controller (SMS Sender) controls the OTAP operations. It sends SMs, with or without additional parameters, to the devices that are to be operated. The se devices then try to contact the http server and download new application data from it. The OTAP Controller will not
get any response about the result of the operation. Optionally the server might get a result response over http.
There are two types of OTAP operations:
• Install/Update: A new JAR and JAD file are downloaded and installed.
• Delete: A complete application (.jar, .jad, all application data, its directory and up to 5 sub
directory levels with all their files) is deleted.
wm_java_usersguide_v19 Page 45 of 109 2012-01-27
Confidential / Released
Java User’s Guide
8.3 OTAP Parameters
54
8.3 OTAP Parameters
There is a set of parameters that control the OTAP procedures. These parameters can either
be set by AT command (AT^SJOTAP, refer to [1] during the production of the device, o r by SM
(see Section 8.4) during operatio n of the device in the field. None of the parameters, which are
set by AT command, can be overwritten by SM.
• JAD File URL: the location of the JAD file is used to install or update procedures. The JAD
file needs to be located on the net (e.g. http://someserver.net/somefile.jad or http://
192.168.1.2/somefile.jad ).
• Application Directory: this is the directory where a new application (JAD and JAR file) is
installed. The delete operation deletes this directory completely. When entering the application directory with AT^SJOTAP or a short message ensure that the path name is not terminated with a slash. For example, type "a:" or "a:/otap" rather than "a:/" or "a:/otap/". See
examples provided in Chapter 6.
• http User: a username used for authentication with the http server.
• http Password: a password used for authentication with the http server.
• Bearer:
• APN or Number: depending on the selected network bearer this is either an access point
name for GPRS or a telephone number for CSD.
• Net User: a username used for authentication with the network.
• Net Password: a password used for authentication with the network.
• DNS: a Domain Name Server’s IP address used to query hostnames.
• NotifyURL: the URL to which results are posted. This parameter is only used when the MID-
let-Install-Notify attribute or MIDlet-Delete-Notify attribute is not present in descriptor.
the network bearer used to open the HTTP/TCP/IP connection, either GPRS or CSD.
There are parameters that can only be set by AT command:
• SM Password: it is used to authenticate incoming OTAP SMs. Setting this password gives
an extra level of security.
Note: If a password set by AT command, all SMs must include this password.
• Ignore SM PID: when setting this the PID in received SMs is ignored.
• Hide HTTP authentication parameters: this allows to hide the http authentication parame-
ters in the at^sjotap read command and the otap tracer.
Table 10: Parameters and keywords
Parameters Max. Length AT Keyword SM Install/update delete
JAD File URL 100 JADURL mandatory unused
Application Directory 50 APPDIR mandatory mandatory
HTTP User 32 HTTPUSER optional unused
HTTP Password 32 HTTPPWD optional unused
Bearer -- BEARER mandatory optional/P
APN or Number 65 APNORNUM mandatory for CSD optional/P
Net User 32 NETUSER optional optional/P
Net Password 32 NETPWD optional optional/P
DNS -- DNS optional optional/P
Notify URL 100 NOTIFYURL optional optional/P
SM Password 32 PWD optional optional
wm_java_usersguide_v19 Page 46 of 109 2012-01-27
Confidential / Released
Java User’s Guide
8.4 Short Message Format
54
Table 10: Parameters and keywords
Parameters Max. Length AT Keyword SM Install/update delete
Ignore SM PID -- -- -- --
Hide HTTP authentication parameters
The length of the string parameters in the AT command is limited (see Table 10), the length in
the SM is only limited by the maximum SM length.
The minimum set of required parameters depends on the intended operation (see Table 10).
“optional/P” indicates that this parameter is only necessary when a POST result is desired.
-- -- -- --
8.4 Short Message Format
An OTAP control SM must use a Submit PDU with Class1, PID $7d and 8 bit encoding. As a
fallback for unusual network infrastructures the SM can also be of Class0 and/or PID $00. The
content of the SM consists of a set of keywords and parameter values all encoded in ASCII
format. These parameters can be distributed over several SMs. There is one single keyword to
start the OTAP procedure. For parameters that are repeated in several SMs only the last value
sent is valid. For example, an SM could look like this:
Install operation:
First SM:
OTAP_IMPNG
PWD:secret
JADURL:http://www.greatcompany.com/coolapps/mega.jad
APPDIR:a:/work/appdir
HTTPUSER:user
HTTPPWD:anothersecret
Second SM:
OTAP_IMPNG
PWD:secret
BEARER:gprs
APNORNUM:access.to-thenet.net
NETUSER:nobody
NETPWD:nothing
DNS:192.168.1.2
START:install
Delete operation:
OTAP_IMPNG
PWD:secret
APPDIR:a:/work/appdir
START:delete
The first line is required: it is used to identify an OTAP SM. All other lines are optional and their
order is insignificant, each line is terminated with an LF: '\n' including the last one. The keywords, in capital letters, are case sensitive. A colon separates the keywords from their values.
wm_java_usersguide_v19 Page 47 of 109 2012-01-27
Confidential / Released
Java User’s Guide
8.5 Java File Format
54
The values of APPDIR, BEARER and START are used internally and must be lower case. The
password (PWD) is case sensitive. The case sensitivity of the other parameter values depends
on the server application or the network. It is likely that not all parameters can be sent in one
SM. They can be distributed over several SMs. Every SM needs to contain the identifying first
line (OTAP_IMPNG) and the PWD parameter if a mandatory password has been enabled.
OTAP is started when the keyword START, possibly with a parameter, is contained in the SM
and the parameter set is valid for the requested operation. It always ends with a reboot, either
when the operation is completed, an error occurred, or the safety timer expired. This also
means that all parameters previously set by SM are gone.
Apart from the first and the last line in this example, these are the pa rameters described in the
previous section. Possible parameters for the START keyword are: “install”, “delete” or noth ing.
In the last case, an install operation is done by default.
The network does not guarantee the order of SMs. So when using multiple SMs to start an
OTAP operation their order on the receiving side might be different from the order in which they
were sent. This could lead to trouble because the OTAP operation might start before all parameters are received. If you discover such problems, try waiting a few seconds between each SM.
8.5 Java File Format
In general, all Java files have to comply with the IMP-NG and ME specifications. There are certain components of the JAD file that the developer must pay attention to when using OTAP:
• MIDlet-Jar-URL: make sure that this parameter points to a location on the network where
your latest JAR files will be located, e.g. http://192.168.1.3/datafiles/mytest.jar, not in the
filesystem like file://a:/java/mytest/mytest.jar. Otherwise this JAD file is useless for OTAP.
• MIDlet-Install-Notify: this is an optional entry specifying a URL to which the result of an
update/install operation is posted. That is the only way to get any feedback about the outcome of an install/update operation. The format of the posted URL complies with the IMPNG OTA Provisioning specification. In contrast to the jar and jad file this URL must not be
protected by basic authentication.
• MIDlet-Delete-Notify: this is an optional entry specifying a URL to which the result of a
delete operation is posted. That is the only way to get any feedback about the outcome of
a delete operation. The format of the posted URL complies with the IMP-NG OTA Provisioning specification. In contrast to the jar and jad file this URL must not be protected by basic
authentication.
• MIDlet-Name, MIDlet-Version, MIDlet-Vendor: are mandatory entries in the JAD and Man-
ifest file. Both files must contain equal values, otherwise result 905 (see Section 8.7) is
returned.
• MIDlet-Jar-Size must contain the correct size of the jar file, otherwise result 904 (see Sec-
tion 8.7) is returned.
Example:
MIDlet-Name: MyTest
MIDlet-Version: 1.0.1
MIDlet-Vendor: TLR Inc.
MIDlet-Jar-URL: http://192.168.1.3/datafiles/MyTest.jar
MIDlet-Description: My very important test
MIDlet-1: MyTest, , example.mytest.MyTest
MIDlet-Jar-Size: 1442
MicroEdition-Profile: IMP-NG
MicroEdition-Configuration: CLDC-1. 1
wm_java_usersguide_v19 Page 48 of 109 2012-01-27
Confidential / Released
Java User’s Guide
8.6 Procedures
54
A suitable Manifest file for the JAD file above might look like:
Manifest-Version: 1.0
MIDlet-Name: MyTest
MIDlet-Version: 1.0.1
MIDlet-Vendor: TLR Inc.
MIDlet-1: MyTest, , example.mytest.MyTest
MicroEdition-Profile: IMP-NG
MicroEdition-Configuration: CLDC-1. 1
8.6 Procedures
8.6.1 Install/Update
Figure 22: OTAP: Install/Update Information Flow (messages in brackets are optional)
wm_java_usersguide_v19 Page 49 of 109 2012-01-27
Confidential / Released
Java User’s Guide
8.6 Procedures
54
When an SM with keyword START:install is received and there is a valid parameter set for the
operation, the module always reboots either when the operation co mpleted, an error occurred
or the safety timer expired. If there is any error during an update operation the old application
is kept untouched, with one exception. If there is not enough space in the file system to keep
the old and the new application at the same time, the old application is deleted before the d ownload of the new one, therefore it is lost when an error occurs. If install/update was successful,
autostart is set to the new application.
8.6.2 Delete
Figure 23: OTAP: Delete Information Flow (messages in brackets are optional)
When an SM with keyword START: delete is received and there is a valid parameter set for this
operation, the module reboots either when the operation completed, an error occurred or the
safety timer expired. If there is any error the application is kept untouched. Autostart is not
changed.
wm_java_usersguide_v19 Page 50 of 109 2012-01-27
Confidential / Released
Java User’s Guide
8.7 Time Out Values and Result Codes
54
8.7 Time Out Values and Result Codes
Timeouts:
• Closedown Timeout: 10 seconds
• Safety Timeout: 20 minutes
Result Codes: Supported status codes in body of the http POST request:
• 900 Success
• 901 Insufficient memory in filesystem
• 902 - not supported-
• 903 - not supported-
• 904 JAR size mismatch, given size in JAD file does not match real size of jar file
• 905 Attribute mismatch, one of the mandatory attributes MIDlet-name, MIDlet-version, MID-
let-Vendor in the JAD file does not match those given in the JAR manifest
• 906 Invalid descriptor, something is wrong with the format of the .jad file
• 907 invalid JAR, the JAR file was not available under MIDlet-Jar-URL, files could not be
extracted from JAR archive, or something else is wrong with the format of the file.
• 908 incompatible configuration or profile
• 909 application authentication failure, signature did not match certificate
• 910 application authorization failure, tried to replace signed with unsigned version
• 911 -not supported-
• 912 Delete Notification
All HTTP packets (GET, POST) sent by the module contain the IMEI number in the User-Agent
field, e.g.
User-Agent: <productname>/000012345678903 Profile/IMP-NG Configuration/CLDC-1.1
This eases device identification at the HTTP server.
8.8 Tips and Tricks for OTAP
• For security reasons it is recommended that an SMS password be used. Otherwise the
’delete’ operation can remove entire directories without any authentication.
• For extra security, set up a private CSD/PPP Server and set its phone number as a fixed
parameter. This way, applications can only be downloaded from one specific server.
• As a side effect, OTAP can be used to simply reboot the module. Simply start an OTAP pro-
cedure with a parameter set which will not really do anything, such as a de lete operation on
a nonexistent directory.
• If you do not want to start OTAP by SMS let your Java application do it by issuing the
AT^SJOTAP command. This triggers an install/update operation as described in Section
8.6.1 but without the SMS part.
Note: If a malfunctioning Java application is loaded the SM method will still be needed for
another update.
• The OTAP procedure cannot be tested in the debug environment.
• Be aware that the module needs to be logged into the network to do OTAP. That means
that either the Java application must enter the PIN or the PIN needs to be disabled.
wm_java_usersguide_v19 Page 51 of 109 2012-01-27
Confidential / Released
Java User’s Guide
8.9 OTAP Tracer
54
• In some networking infrastructures there may be an interference between OTAP started on
a circuit-switched bearer (CS) and an existing CS call. As a result, an OTAP failure may
occur.
If such a scenario is likely to happen in your application environment we recommend that a
delay of around 15s be set between hanging up the CS call and starting OTAP over CSD.
This means that you cannot use the standard SM trigger for OTAP because there are no
15s time when shutting down the running Java application. Instead, trigger OTAP from your
application (e.g. receive trigger SM from application, hang up CS call, wait 15s, start OTAP
by AT command).
In emergency cases (when your Java application is malfunctioning) you can still use the SM
trigger for OTAP but you probably need to try several times to make sure that there is no
CS call at the time OTAP starts over CSD.
8.9 OTAP Tracer
For easy debugging of the OTAP scenario, the OTAP procedure can be traced over the serial
interface. The trace output shows details of the OTAP procedure and the used parameters. To
enable the OTAP trace output use the AT command AT^SCFG, e.g.
AT^SCFG=Trace/Syslog/OTAP,1
The serial interface on which you issue this command is then exclusively used for the OTAP
tracer. All other functionality which is normally present (AT commands or CommConnection
and System.out in Java) is not available when the tracer is on.
This feature is intended to be used during development phase and not in deployed devices.
8.10 Security
Java Security as described in Chapter 11 also has consequences for OTAP. If the mo dule is in
secured mode the MIDlet signature is also relevant to the OTAP procedure. This means:
• If the application is an unsigned version of an installed signed version of the same applica-
tion then status code 910 is returned.
• If the applications signature does not match the module’s certificate then status code 909
is returned.
8.11 How To
This chapter is a step-by-step guide for using OTAP.
1. Do you need OTAP? Is there any chance that it might be necessary to update the Java
application, install a new one or delete it? It could be that device is in the field and you cannot or do not want to update it over the serial line. If the answer is “yes” then read through
the following steps, if the answer is “no” then consider simply setting the OTAP SMS password to protect your system. Then you are finished with OTAP.
2. Take a look at the parameters (Section 8.3), which control OTAP. You need to decide which
of them you want to allow to be changed over the air (by SMS) and which you do not. This
is mainly a question of security and what can fit into a short message. Then set the
“unchangeable” parameters with the AT command (AT^SJOTAP).
wm_java_usersguide_v19 Page 52 of 109 2012-01-27
Confidential / Released
Java User’s Guide
8.12 Incremental OTAP
54
3. Prepare the http server. The server must be accessible from your device over TCP/IP. That
means there is a route from your device over the air interface to the http server and back.
When in doubt, write a small Java application using the httpConnection Interface to test it.
4. Prepare the JAR and JAD files which are to be loaded over the air. Make sure that these
files conform to the requirements listed in Section 8.5 and that they represent a valid application which can be started by AT^SJRA.
5. Put the files (JAR and JAD) on the http Server. The files can either be publicly available or
protected through basic authentication. When in doubt try to download the files from the
server by using a common Web browser on a PC, which can reach your http server over
TCP/IP.
6. Prepare the SM sender. The sender must be able to send SMs, which conform to Section
8.4, to your device. When in doubt try to send “normal” SMs to your device which can than
be read out from the AT command interface.
7. Test with a local device. Send a suitable short message to your device, which completes
the necessary parameter, sets and starts the operation. The operation is finished when the
device reboots. You can now check the content of the file system and if the correct jar and
jad files were loaded into the correct location.
8. Analyze errors. If the above test failed, looking at your device’s behavior and your http serv-
ers access log can give you a hint as to what went wrong:
- f the device did not terminate the running Java application and did not reboot, not even
after the safety timeout, either your SM was not understood (probably in the wrong format) or it did not properly authenticate (probably used the wrong password) or your
parameter set is incomplete for the requested operation.
- If the device terminated the running Java application, but did not access your http serve r,
and rebooted after the safety timeout, there were most likely some problems when opening the network connection. Check your network parameters.
- If the device downloaded the jad and possibly even the jar file but then rebooted withou t
saving them in the file system, most likely one of the errors outlined in Section 8.5
occurred. These are also the only errors which will return a response. They are posted to
the http server if the jad file contains the required URL.
9. Start update of remote devices. If you were able to successfully update your local device,
which is hopefully a mirror of all your remote devices, you can start the update of all other
devices.
8.12 Incremental OTAP
As an extension of the standard OTAP procedure the Java Application can be provisioned in
an incremental way to save some bandwidth when downloading a new version to a large number of deployed devices.
In order to make use of this feature the application has to be developed in a modular way. That
means that the classes have to be split up into multiple jar files with corresponding jad files.
There can be only one jar file containing the "midlet" class which is called the midlet, all the
others are called liblets.
A liblets jar and jad file have to fullfil the same requirements as a midlets:
• The attributes name, version and vendor have to exist in both files with the same value
• The jar size needs to be present in the jad file and has to correspond with the jars file size
• The jar URL has to be present in the jad file and point to a valid location
The attribute names are slightly different.
wm_java_usersguide_v19 Page 53 of 109 2012-01-27
Confidential / Released
Java User’s Guide
8.12 Incremental OTAP
54
Jad file example:
LIBlet-Name: network
LIBlet-Version: 2.0.0
LIBlet-Vendor: Customer Inc.
LIBlet-Jar-Size: 1259
LIBlet-Jar-URL: http://customer.server.com/otap/network.jar
Corresponding manifest file example:
LIBlet-Name: network
LIBlet-Version: 2.0.0
LIBlet-Vendor: Customer Inc.
If the liblet is signed the attributes
• MicroEdition-Configuration
• MicroEdition-Profile
also need to be corresponding in both files if they exist.
The jad file of the midlet needs to be extended to specify the liblets needed, e.g.
Dependency-1: at; Customer Inc. ; 1.1.2; liblet
LIBlet-Dependency-JAD-URL-1: http://customer.server.com/otap/at.jad
Dependency-2: network; Customer Inc. ; 2.0.0; liblet
LIBlet-Dependency-JAD-URL-2: http://customer.server.com/otap/network.jad
The numbering starts with 1 and has to be continuous. The "Dependency" attribute consists of
name, vendor, version and "liblet"-keyword, all separated by semicolons.
The name is used to identify a liblet. It has to correspond with the name attribute of the liblet.
Vendor and "liblet" entries are currently unused.
The OTAP install/update process still always starts with the download of the midlets jad file.
After that only the parts which are necessary (i.e. version number in descriptor differ from installed version number) are downloaded and installed into the Application Directory.
PRE-deletion (i.e. remove an old jar file before download of the new one in order to make room
in the ffs) of installed files is not supported for incremental OTAP.
There is only one result posted at the end of the whole OTAP process. The URL for that can
(as usual) be specified by the otap at command or be included in a jad file. When multiple jad
files involved in the process contain a NotifyURL the one from the file which was processed last
is used. So you could e.g. put a different NotifyURL into each jad file, that will give you an extra
hint at what point the OTAP process went wrong.
The name of the attribute is the same in all jad files: MIDlet-Install-Notify or MIDlet-Delete-Notify
wm_java_usersguide_v19 Page 54 of 109 2012-01-27
Confidential / Released
Java User’s Guide
9 Compile and Run a Program without a Java IDE
57
9 Compile and Run a Program without a Java IDE
This chapter explains how to compile and run a Java application without a Java IDE.
9.1 Build Results
A JAR file must be created by compiling an CMTK project. A JAR file will contain the class files
and auxiliary resources associated with an application. A JAD file contains information (file
name, size, version, etc.) on the actual content of the associated JAR file. It must be written by
the user. The JAR file has the “.jar” extension and the JAD file has the “.jad” extension. A JAD
file is always required no matter whether the module is provisioned with the Module Exchange
Suite, as described in Section 7.1, or with OTA provisioning. OTA provisioning is described in
Chapter 7.
In addition to class and resource files, a JAR file contains a manifest file, which describes the
contents of the JAR. The manifest has the name manifest.mf and is automatically stored in the
JAR file itself. An IMP manifest file for:
package example.mytest;
public class MyTest extends MIDlet
includes at least:
Manifest-Version: 1.0
MIDlet-Name: MyTest
MIDlet-Version: 1.0.1
MIDlet-Vendor: Test Inc.
MIDlet-1: MyTest, example.mytest.MyTest
MicroEdition-Profile: IMP-NG
MicroEdition-Configuration: CLDC-1. 1
A JAD file must be written by the developer and must include at least:
MIDlet-Name: MyTest
MIDlet-Version: 1.0.1
MIDlet-Vendor: Test Inc.
MIDlet-1: MyTest, example.mytest.MyTest
MIDlet-Jar-URL: http://192.168.1.3/datafiles/MyTest.jar
MIDlet-Jar-Size: 1408
MicroEdition-Profile: IMP-NG
MicroEdition-Configuration: CLDC-1. 1
A detailed description of these attributes can be found in [4].
wm_java_usersguide_v19 Page 55 of 109 2012-01-27
Confidential / Released
Java User’s Guide
9.2 Compile
57
9.2 Compile
• Launch a Command Prompt. This can be done from the Programs menu or by typing "cmd"
at the Run... prompt in the Start menu.
• Change to the directory where the code to be compiled is kept.
Compile the program with the SDK. Examples of build batch files can be found in each sample program found in the samples directory "Documents and Settings\All Users\Cinterion
ABC2 WTK Examples\WTKSamples" under Windows XP or "Users\Public\ Cinterion ABC2
WTK Examples\WTKSamples" under Windows Vista and above. The samples directory
can be opened directly via the WTK start menu entry.
• If the compile was successful the program can be transferred to the module and executed
as described in the following chapters.
The batch files for compiling the samples are using the system environment variables
JAVA_HOME_ABC2 and WTK_HOME_ABC2. The first one points to the root directory of the
installed JDK and the second one to the root directory of the Cinterion-CMTK-<productname >IMPNG installation. The installation process sets these environment variables. A modification
is usually not necessary.
9.3 Run on the Module with Manual Start
• Compile the application at the prompt as discussed in Section 9.2 or in an IDE.
• Transfer the .jar and .jad file from the development platform to the desired directory on the
module using the Module Exchange Suite or OTA provisioning. Chapter 7 explains how to
download your application to the module.
• Start a terminal program and connect to ASC0.
• The command AT^SJRA is used to start the application and is sent to the module via your
terminal program. Either the application can be started by .jar or by .jad file.
Example:
In your terminal program enter: AT^SJRA=a:/java/jam/example/helloworld/helloworld.jar
If you prefer to start with .jad file: AT^SJRA=a:/java/jam/example/helloworld/helloworld.jad
The Flash file system on the module is referenced by “a:”.
Depending on which file you specify the java application manager trie s to fin d t he corresponding file in the same directory. This search is not done by name, but by comparing the contained
attributes. The first file which contains the same values for MIDlet-Name, MIDlet-Version and
MIDlet-Vendor is used.
wm_java_usersguide_v19 Page 56 of 109 2012-01-27
Confidential / Released
Java User’s Guide
9.4 Run on the Module with Autostart
57
9.4 Run on the Module with Autostart
• Compile the application at the prompt as discussed in Section 9.2 or in an CMTK integrated
IDE.
• Transfer the .jar and .jad file from the development platform to the desired directory on the
module using the Module Exchange Suite or OTA provisioning. See Chapter 7.
9.4.1 Switch on Autostart
• There is an AT command, AT^SCFG, for configuring the autostart functionality. Please ref er
to [1].
• Restart the module.
9.4.2 Switch off Autostart
There are three methods for switching off the autostart feature:
• the AT^SCFG command, or
• the graphical “autoexec_off.exe“ tool (included in the Installation CD software under wtk/
bin), or
• the command line “cmd_autoexec_off.exe“ tool (included in the Installation CD software
under wtk/bin).
To disable the automatic start of a user application in a module these steps must be carried out:
Using the graphical “autoexec_off.exe” tool:
1. Connect the module to the PC
2. Make sure, that the module is switched off
3. Start the “Autoexec_Off” program
4. Select the COM-Port
5. Press the “AutoExec Off” button
Using the command line tool “cmd_autoexec_off.exe”:
1. Connect the module to the PC
2. Make sure, that the module is switched off
3. Start the command line tool “cmd_autoexec_off” with option <com-port> (com1 up to
com99 for com port selection)
wm_java_usersguide_v19 Page 57 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10 Compile and Run a Program with a Java IDE
84
10 Compile and Run a Program with a Java IDE
10.1 Debug Environment
10.1.1 Data Flow of a Java Application in the Debug Environment
Figure 24: Data flow of a Java application in the debug environment
In the debug environment the module is connected to a PC via a serial interface. This can be
a USB or RS232 line. The application can then be edited, built, debugg ed or run within an IDE
on the PC. When running or debugging the MIDlet under IDE control it is executed on the module (on-device execution) and not on the PC. This can be either debugging mode, where the
MIDlet execution can still be controlled from the IDE (on-device debugging) or normal mode,
where the MIDlet is copied to the module and started normally. This ensures that all interfaces
behave the same whether debugging mode is used or not.
wm_java_usersguide_v19 Page 58 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.1 Debug Environment
84
10.1.2 Emulator
The ME emulator is part of the CMTK and is used as the controlling entity for on-device debugging. Some values can be configured in the file "wtk/bin/WM_Debug_config.ini". The emulator
runs fine without changes in WM_Debug_config.ini file, because the settings for the serial interface (COM port and baudrate) are configured during installation of CMTK.
Debugging information between the Debugger (IDE) and the JVM is transferred over an IP connection. In order to establish this IP connection between the PC and the module t he e mulator
needs a special Dial-Up-Network (DUN):
• ISP name: "IP connection for remote debugging of ABC2"
• Modems: "Cinterion ABC2 Java Debug Modem USB" for USB serial modem and "Cinterion
ABC2 Java Debug Modem Ser" for standard serial modem
• Phone number: *88#
• Disable the Redial if line dropped option.
• Enable Connect automatically
This Dial-Up Network (DUN) connection is installed automatically together with the required
modem device during installation of the CMTK. The emulator uses always the serial port configured for this Dial-Up Network connection.
You can use any of the three serial interfaces (ASC0, ASC1, USB) to connect with module, but
you will lose the functionality which is normally present on the interface. Please also note that
the Dial-Up Network under Windows needs the DCD line of the serial interface. The DCD line
is not served on the ASC1 interface for the current Java modules. So you have to electrically
set the DCD line to high for debugging over ASC1. This cannot be done by AT comand. In addition, the missing DTR input on ASC1 may prevent the module from detecting the termination
of the Dial-Up Network, so in some cases the module has to be reset manually after the debug
session was terminated. Because of the above mentioned issues and for performance reasons
it is recommended to use the USB interface (see also Section 10.1.3).
There are some points to notice in case of using the USB interface in a debugging session. If
you are starting a debugging session very quickly once again after end of a previous debugging
session, the emulator is not able to select the USB interface and is selectin g a standard modem
connection. Please wait some seconds to avoid this operation system de pendent problem, because the Windows operation system needs some seconds to enable the USB port once again
after the "IP connection for remote debugging of ABC2" is closed.
If necessary, the IP addresses used for the debug connection can also be changed. This is
done in the file "WM_Debug_config.ini". For details, see also the AT^SCFG command and its
"Userware/DebugInterface" parameters described in [1]. Please keep in mind that the IP ad-
dress range 10.x.x.x is not supported for in device debugging!
During installation of CMTK some new programs are installed for handling the debugging session in conjunction with the IDE. The installation routine of the CMTK doesn't change any configuration of an existing firewall on your PC. In the case, that a firewall is installed on your PC
and the local configured and used IP connection (Dial-Up Network connection for debugging)
is blocked or disturbed by this firewall, please configure the firewall o r the Dial-Up Network connection manually to accept the new installed programs and the port or to use another port or
contact your local PC administrator for help.
wm_java_usersguide_v19 Page 59 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.1 Debug Environment
84
10.1.3 Change Baud Rate
By default, the Cinterion CMTK installation process implements the connection necessary for
on device debugging with the maximum possible baud rate supported by both the target computer and the connected module. For optimized performance Cinterion recommends to use the
USB interface for debug connections, because then the baud rate used on that virtual USB
COM port is irrelevant.
If a serial COM port is employed however, the configured baud rate might not work reliably, depending on the quality of the used serial cable and COM port hardware. In these cases it might
become necessary to change the baud rate of the debug connection manually. Th is has to be
done as follows:
• First, the baud rate of the modem device "Cinterion ABC2 Java Debug Modem Ser" has to
be set to the required maximum port speed. The modem properties are available via the
Windows device manager or the phone and modem options (see Figure 25).
Figure 25: Specify maximum port speed for modem device
• Then the baud rate used by the debug connection "IP connection for remote debugging of
ABC2" must be set to exactly the same value. The properties of the debug connection are
available via the Windows network connection settings (see Figure 26 and Figure 27).
Please note that on device debugging does not work, if the maximum baud rates specified for
modem device and debug connection are not identical. In such a case the emulator aborts debugging with an appropriate error message.
wm_java_usersguide_v19 Page 60 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.1 Debug Environment
84
Figure 26: Configure debug connection
Figure 27: Specify baud rate for debug connection
wm_java_usersguide_v19 Page 61 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
10.2 Using Eclipse for Java Development
The Cinterion WTK is integrated automatically into the Eclipse IDE as of version 3.6.0 named
"Helios" by the setup process if an appropriate Eclipse installation is found on the target computer. For usage of the Cinterion WTK inside Eclipse the "Mobile Tools for Java" (MTJ) plugin
must be installed. Refer to Section 10.2.1 for information how to install this plug in.
In case there is no usable IDE found on the target computer the setup process offers the automatic installation of the Eclipse Helios Pulsar platform. This platform is preconfigured for mobile
development and contains already the required MTJ plug in so that there are no further steps
required. Please note that the Eclipse installation is not done via the Windows installer and
therefore the installed files must be removed manually for a deinstallation. The setup process
offers the possibility to enter the target path for the eclipse installation which is by default the
all users profile.
10.2.1 Installing the "Mobile Tools for Java" Plugin
If there is already an appropriate Eclipse installation on the target computer the required MTJ
plugin can be installed manually for usage of the Cinterion WTK via the menu item Help-->"Install New Software…". In the opened window select the download source "Helios - http://download.eclipse.org/releases/helios". After the list with available software has been obtained from
the web site expand the list item "Mobile and Device Development" by clicking the small arrow
on its left side and select the sub list item "Mobile Tools for Java". To install the se lected plugin
click Next and follow the offered steps.
Figure 28: Installing the "Mobile Tools for Java" plugin
wm_java_usersguide_v19 Page 62 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
10.2.2 Integrating Cinterion WTK Manually
The integration of the Cinterion WTK into an appropriate Eclipse installation with added MTJ
plugin can be done by the setup program automatically during first installation or afterwards in
maintenance mode. Nevertheless, it can be done although manually which is described in this
chapter. To add the WTK open the Eclipse menu item Window-->Preferences. In the opened
window expand the preference list item "Java ME" and select the sub list item "Device Management". Then a list with the already installed Java ME devices is shown which is empty in
the following example. For a manual installation select the button "Manual Install…"
Figure 29: Integrating Cinterion WTK manually - Select preference
wm_java_usersguide_v19 Page 63 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
In the following window select the Browse…button, browse to the root folder of the Cinterion
ABC2 WTK directory or enter its path "Program Files\Cinterion\CMTK\ABC2\WTK" directly. After the path has been entered it is scanned for usable CLDC device configurations and the
found Cinterion WTK is added to the list. By clicking the Finish button it is added to the Eclipse
IDE.
Figure 30: Integrating Cinterion WTK manually - Browse
Now the Cinterion WTK is available in the list of installed Java ME SDKs. To have the Cinterion
WTK Java documentation directly available in your MIDlet projects the following additional
steps are necessary. Select the new installed IMP_NG2_ABC2 device and click the Edit… button.
Figure 31: Integrating Cinterion WTK manually - Edit
wm_java_usersguide_v19 Page 64 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
In the following window select the Libraries pane and click into th e Javadoc column. Once the
table field is activated a small button with ellipsis appears which provides the possibility to
browse to the WTK documentation folder.
Figure 32: Integrating Cinterion WTK manually - Library
In the following window select "Javadoc URL" and navigate to the documentation folder which
is "Program Files\Cinterion\CMTK\ABC2\WTK\doc\html" after clicking the Browse… button.
The OK button then adds the Cinterion WTK documentation to the new Java ME device.
Figure 33: Integrating Cinterion WTK manually - Add WTK documentation
wm_java_usersguide_v19 Page 65 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
10.2.3 Import the provided WTK Samples
The Cinterion WTK provides the existing samples in an Eclipse project format as well. To import them into an Eclipse workspace select the Eclipse menu item File-->Import… In the following window expand the list item General and select the sub list item "Existing Projects into
Workspace". After clicking the Next button it is possible to navigate to the folder containing the
Cinterion WTK Eclipse samples called "Documents and Settings\All Users\Cinterion ABC2
WTK Examples\EclipseSamples" under Windows XP or "Users\Public\ Cinterion ABC2 WTK
Examples\EclipseSamples" under Windows Vista and above.
Figure 34: Import the provided WTK Samples - Select
wm_java_usersguide_v19 Page 66 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
Once the root directory of the samples has been entered the existing projects are added to the
list and can be separately selected for import. Checking or unchecking the checkbox "Copy
projects into workspace" controls whether the samples are copied into the current Eclipse
workspace or kept where they are. After clicking the Finish button the selected samples are
available for editing and debugging.
Figure 35: Import the provided WTK Samples - Copy
wm_java_usersguide_v19 Page 67 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
10.2.4 Creating a new MIDlet
To create a new MIDlet select the menu item File-->New-->Project…. In the following windo w
expand the list item "Java ME" and select the sub list item "MIDlet Project".
Figure 36: Creating a new MIDlet - Select wizard
wm_java_usersguide_v19 Page 68 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
After clicking the Next button a wizard for MIDlet creation appears. Specify the appropriate options as required for the new project. Ensure that only the "IMP_NG_ABC2" configuration is selected in the configuration list as active.
Figure 37: Creating a new MIDlet - Create project
wm_java_usersguide_v19 Page 69 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
After clicking the Next button a window for configuring the MIDlet project content opens. Ensure
that the "Microedition Configuration" is set to "Connected Limited Device Configuration (1.1)"
and the "Microedition Profile" is set to "Information Module Profile (NG)". After all necessary
modifications have been done the project can be created by clicking the Finish button.
Figure 38: Creating a new MIDlet - Configure project
Now a newly created MIDlet project is available in the workspace.
wm_java_usersguide_v19 Page 70 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
Figure 39: Creating a new MIDlet - Project overview
wm_java_usersguide_v19 Page 71 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
To ensure the correct Java compiler setting right click on the newly created project in the package tree explorer on the left side of the Eclipse window and select "Properties". In the opened
project properties window select the item "Java Compiler" in the list on the left side. Ensure that
the check box "Enable project specific settings" is selected and the "Compiler compliance level"
is set to 1.3 or 1.4.
Figure 40: Creating a new MIDlet - Configure compliance level
wm_java_usersguide_v19 Page 72 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
To create the frame for a MIDlet program right click into the project tree and select New-->"Java
ME MIDlet". In the following wizard enter the name for the MIDlet and click the Finish button.
Figure 41: Creating a new MIDlet - Program name
wm_java_usersguide_v19 Page 73 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
Now, a corresponding Java file with the source of the basic MIDlet interface is created inside
the source tree of the project. The only thing that remains to be done is to add a call of "notifyDestroyed()" to the "destroyApp()" method.
Figure 42: Creating a new MIDlet - HelloWorld.java
Finally, the actual functionality can be implemented and the project can be started and debugged inside the module as with other Eclipse projects. Please note that you must allow
Eclipse and the debug agent to pass the firewall and configure the debug IP connection as a
home network to be able to execute and debug MIDlets inside the device.
wm_java_usersguide_v19 Page 74 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.2 Using Eclipse for Java Development
84
10.2.5 Using Eclipse Workspaces
Eclipse follows the concept of different "workspaces". Basically, these are folders on the hard
disk used by Eclipse to store settings and new projects - just as an operating system might
store documents and settings of different users in different directory structures. Eclipse can
manage different workspaces allowing for an easy switching between different development
environments requiring different IDE setups. If not disabled, Eclipse asks before each start for
the workspace to be used.
Figure 43: Using Eclipse workspaces
If Eclipse is installed via the Cinterion WTK setup a default workspace is created automatically
with all required settings. But because Eclipse stores all settings inside the workspaces a new
workspace which has been created via Eclipse it doesn't contain the necessary settings for using the Cinterion WTK. In this case the require d settings can be added manually as described
in the Section 10.2.2. Alternatively the Cinterion WTK setup can be executed in maintenance
mode. After scanning for supported IDEs the required settings will be added to all available
workspaces of a found Eclipse installation automatically.
wm_java_usersguide_v19 Page 75 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.3 Using NetBeans for Java Development
84
10.3 Using NetBeans for Java Development
If an appropriate NetBeans installation (as of version 6.5 - 6.9.1) is found on the targ et computer, the Cinterion WTK is integrated automatically into the NetBeans IDE by the setup process.
NetBeans 6.9.1 is distributed as part of the Cinterion installation CD and may be in stalled from
there, if required. The package is located under the "Contribution" directory
For usage of the Cinterion WTK inside NetBeans the "Mobility" plugin must be installed. Refer
to Section 10.3.1 for information on how to install this plugin.
2
.
10.3.1 Installing the "Mobility" Plugin
The required "Mobility" plugin can be easily installed via the NetBeans plugin manager. This
can be called via the menu item Tools-->Plugins. Inside the plugin man ager activate the pane
"Available Plugins" and inside the plugin list select the item "Mobility" in the category "Java
ME". To install the selected plugin click the Install button and follow the offered steps.
Figure 44: Installing "Mobility" plugin
2.
Please note that with the latest NetBeans versions (7.0 and above) on-device debugging might not work
correctly.
wm_java_usersguide_v19 Page 76 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.3 Using NetBeans for Java Development
84
10.3.2 Integrating Cinterion WTK Manually
The integration of the Cinterion WTK into an appropriate NetBeans installation with added Mobility plugin can be done by the setup program automatically during first installation or afterwards in maintenance mode. Nevertheless it can be done although manually which is
described in this chapter. To add the WTK open the NetBeans me nu item "Tools" - "Java Pla tforms" and click the button "Add Platform…" in the following window.
Figure 45: Integrating Cinterion WTK manually - Select platform
wm_java_usersguide_v19 Page 77 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.3 Using NetBeans for Java Development
84
In the following dialog choose the platform type "Java ME MIDP Platform Emulator" and click
the Next button.
Figure 46: Integrating Cinterion WTK manually - Select type
In the file dialog browse to the root folder of the Cinterion WTK directory which is "Program
Files\Cinterion\CMTK\ABC2\WTK". Now the Cinterion WTK is listed in the platform dialog.
Figure 47: Integrating Cinterion WTK manually - Platform folder
After clicking the Next button the WTK interface is queried, the available emulator data displayed and the integration can be finished with the Finish button.
wm_java_usersguide_v19 Page 78 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.3 Using NetBeans for Java Development
84
Figure 48: Integrating Cinterion WTK manually - Finish
10.3.3 Opening the Provided WTK Samples
The Cinterion WTK provides the existing samples in a NetBeans project format as well. They
can simply be opened inside NetBeans via the menu item File-->"Open Project…" and navigating inside the open dialog to the sample location of either "Documents and Settings\All Users\Cinterion ABC2 WTK Examples\NetBeansSamples" under Windows XP or "Users\Public\
Cinterion ABC2 WTK Examples\NetBeansSamples" under Windows Vista and above.
10.3.4 Creating a New MIDlet
To create a new MIDlet select the menu item File-->"New Project…". In the following window
select the category "Java ME" and the project type "Mobile Application".
wm_java_usersguide_v19 Page 79 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.3 Using NetBeans for Java Development
84
Figure 49: Creating a new MIDlet - Choose project
After clicking the Next button the project name and location can be entered. Please unselect
the option "Create Hello MIDlet" because the provided MIDlet template does not fit the IMP profile very well.
Figure 50: Creating a new MIDlet - Enter name and location
wm_java_usersguide_v19 Page 80 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.3 Using NetBeans for Java Development
84
In the next dialog it must be ensured that the correct emulator platform "Cinterion IMP-NG
ABC2 Wireless Toolkit", the correct device "IMP_NG_ABC2", the correct device configuration
"CLDC-1.1" and the correct device profile "IMP-NG" are selected.
Figure 51: Creating a new MIDlet - Configure platform
After clicking the Finish button a newly created MIDlet project is available under the NetBeans
project tree. To create the frame of a MIDlet program right click into the project tree and select
New-->MIDlet… In the following wizard enter the name for the MIDlet and the MIDlet class and
click the Finish button.
Figure 52: Creating a new MIDlet - Program name
wm_java_usersguide_v19 Page 81 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.3 Using NetBeans for Java Development
84
Now, a corresponding Java file with the source of the basic MIDlet interface is created inside
the source tree of the project. The only things that remains to be done is to add a call of "notifyDestroyed()" to the "destroyApp()" method and if required a class constructor.
Figure 53: Creating a new MIDlet - HelloWorld.java
Finally, the actual functionality can be implemented and the project can be started and debugged inside the module as other NetBeans projects. Please note that you must allow NetBeans and the debug agent to pass the firewall and configure the debug IP connection as a
home network to be able to execute and debug MIDlets inside the device.
wm_java_usersguide_v19 Page 82 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.4 Switching Java "System.out" to IDE Debug Window
84
10.4 Switching Java "System.out" to IDE Debug Window
The Java "System.out" can be redirected during a debugging session using a UDP socket connection as described in Section 5.9 and Section 5.9.3. Switching between Java "System.out"
using serial port and Java "System.out" using UDP socket is done by a setting inside of the
emulator configuration file "WM_Debug_config.ini" located in the WTK binary directory "Program Files\Cinterion\CMTK\ABC2\WTK\bin". Switching Java "System.out" to serial port is used
as default setting.
This is the default "WM_Debug_config.ini" file as installed by the WTK setup:
#
# This ini file is used to configure emulator.exe
#
[General]
# Define the used module type
ModuleType=ABC2
ConnectionName=IP connection for remote debugging of ABC2
[AT command]
# These AT commands are used for initialising the module for debugging!
# Hints:
# -----# The IP address range 10.x.x.x is not supported for configuration of debugging!
AT-Cmd1=S:ATE1
AT-Cmd2=R:OK
AT-Cmd3=S:at+cpin?
AT-Cmd4=R:+CPIN: READY
AT-Cmd5=R:OK
AT-Cmd6=S:at^scfg=userware/debuginterface,"192.168.0.2","192.168.0.1","0"
AT-CMd7=R:^SCFG: "Userware/DebugInterface","192.168.0.2","192.168.0.1","0"
AT-Cmd8=R:OK
AT-Cmd9=S:at^scfg=userware/mode,"debug","a:/","2000"
AT-Cmd10=R:^SCFG: "Userware/Mode","debug","a:/","2000"
AT-Cmd11=R:OK
AT-Cmd12=S:at^scfg=userware/stdout,UDP,
AT-Cmd13=R:^SCFG: "Userware/Stdout","UDP","
AT-Cmd14=R:OK
[Debug]
# used UDP port number range: 1024 ... 65535
# comment out the following line for switching off Java "System.out" displaying in the IDE window
#UDPport=12345
# settings for Debug Agent delay timer in ms
#DATimer=2000
The <UDPport> parameter of the "WM_Debug_config.ini" file is used for switching the Java
"System.out" direction. To switch the Java "System.out" direction to the UDP socket and display it on a IDE window please remove "#" in front of the parameter. To switch the Java "System.out" direction to serial port output please add "#" (default setting).
Alternatively to modifying the "WM_Debug_config.ini" file it is possible to configure the UDP
port via the emulator's command line parameter "-udpport:<port>". Additional emulator parameters for debugging can be configured through the Java IDEs. Please note that configuration
via command line parameter overwrites a possible UDP port configuration of the ini file.
wm_java_usersguide_v19 Page 83 of 109 2012-01-27
Confidential / Released
Java User’s Guide
10.4 Switching Java "System.out" to IDE Debug Window
84
Please note that the handling of Java "System.out" is done asynchronously. It is p ossible that
not all Java "System.out" data is written into the IDE window. To avoid this problem please set
a breakpoint in front of the Java function call "notifyDestroyed()" inside your Java source. Also
note that Java "System.out" using IDE window is only supported during debugging session.
wm_java_usersguide_v19 Page 84 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11 Java Security
99
11 Java Security
The Java Security Model follows the specification of MIDP 2.0 and is IMP-NG conforming. It
integrates only a simple protection domain concept since protection domains are not needed
for module use cases.
Java Security is divided into two main areas:
• Secure MIDlet data links (HTTPS, Secure Connection) (see Section 11.1)
• Execution of signed/unsigned MIDlets (see Section 11.2)
The interface of Java Security offers the following functionality.
• Insert/delete X.509 certificate (default is no certificate, see Section 11.2.1)
• Switch between trusted and untrusted mode for the execution of MIDlet
(default is trusted after inserting the certificate, see Section 11.2.1)
• Enable/disable untrusted domain in trusted mode (default is disabled)
• Switch MES (default is ON see Section 11.3)
• Switch https certificate verification (default is OFF, see Section 11.1)
Restrictions:
• The module does not supply users independent date/time base. Therefore no examination
of the validity of the expiration date/time of the certificate takes place.
11.1 Secure Data Transfer
This feature makes it possible for MIDlets to use safe data links to external communications
partners. The specification IMP-NG defines two java classes with this characteristic - HTTPSConnection and SecureConnection
.
The Cinterion implementation follows the recommendations in IMP-NG:
HTTPSConnection
• HTTP over TLS as documented in RFC 2818
RFC 2246
SecureConnection
• TLS Protocol Version 1.0 as specified in RFC 2246
.
and TLS Protocol Version 1.0 as specified in
wm_java_usersguide_v19 Page 85 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.1 Secure Data Transfer
99
Two modes exist for safe data links.
Mode 1:
• No examination of the server certificate takes place when setting up the connection. The
authenticity of the server certificate is not verified. See Figure 54.
Figure 54: Mode 1 – Customer Root Certificate does not exist
Mode 2 (see Section 11.2.1, 1. Step):
• Customer Root Certificate is inside of the module.
• Command: Switch on Certificate Verification for HTTPS Connections was sent.
• The server certificate is examined when setting up a connection. Two configurations are
valid. The server certificate is identical to the certificate in the module (both certificates are
self signed root certificates) or the server certificate forms a chain with the certificate of the
module. Thus the authenticity of the server certificate can be examined with the help of the
certificate of the module. See Figure 55 and Figure 56.
Figure 55: Mode 2 - Server Certificate and Certificate into module are identical
wm_java_usersguide_v19 Page 86 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.1 Secure Data Transfer
99
Figure 56: Mode 2 - Server Certificate and self signed root Certificate in module form a chain
11.1.1 Create a Secure Data Transfer Environment Step by Step
The following steps describe the configuration:
• The certificate exists within the module (see Section 11.2.1, Step 1).
• Certificate verification is activated for a data connection (HTTPS or SecureConnection).
The steps described below use the cygwin + openssl environment (for installation see http://
www.cygwin.com/. The openssl documentation can be found here http://www.openssl.org/
docs/apps/openssl.html)
A CA Root certificate is generated. This certificate can be placed on the HTTPS-Server. Another possibility is to use the private key of the certificate in order to sign thereby a server certificate. Both certificates form then a chain, which can be examined by the ME. A step-by-step
description for the latter scenario can be found below.
wm_java_usersguide_v19 Page 87 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.1 Secure Data Transfer
99
1. Create CA and generate CA Root Certificate
- We need certificates with sha1 signature. Java Security supports a sha1 signature of the
certificate only.
Add the parameter "-sha1" to the command "Making CA certificate ..." in the section of
file CA.pl (cygwin location \cygwin\usr\ssl\misc”)
- Create a shell (use location \cygwin\usr\ssl\misc)
- Execute commands
>perl CA.pl –newca
- Convert file format from PEM to DER
CA certificate cacert.pem
>openssl x509 -in ./demoCA/cacert.pem -inform PEM
-out ./demoCA/cacert.der -outform DER
CA private key file cakey.pem
>openssl pkcs8 -in ./demoCA/private/cakey.pem
-inform PEM -out ./demoCA/private/cakey.der
-outform DER -nocrypt -topk8
2. Create server certificate and java keystore
- Execute command
>keytool -genkey -alias server
-keypass keypass -keystore customer.ks -storepass keystorepass
-sigalg SHA1withRSA -keyalg RSA
The field “name” of the certificate is the domain name or the IP address of the server.
3. Create certificate request for server certificate
- Execute command
>keytool -certreq -alias server -file server.csr
-keypass keypass -keystore customer.ks
-storepass keystorepass
4. Sign certificate request by CA
- Execute command
>openssl ca -in server.csr -out server.pem
- Convert file format from PEM to DER
>openssl x509 -in server.pem -inform PEM
-out server.der -outform DER
wm_java_usersguide_v19 Page 88 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.1 Secure Data Transfer
99
5. Import CA root certificate and CA private key into java keystore
- Use the CA Root Certificate for the creation of Java Security Command. See Section
11.5.3.
- Execute command
>java -jar setprivatekey.jar -alias dummyca
-storepass keystorepass -keystore customer.ks
-keypass cakeypass
-keyfile ./democa/private/cakey.der -certfile ./democa/cacert.der
6. Export private key from server certificate
- The private key is needed for the (HTTPS or Secure Connection)server configuration.
- Execute command
java -jar getprivatekey.jar -alias server
-keystore customer.ks -storepass keystorepass
-keypass keypass -keyfile server_privkey.der
- Convert format
>openssl pkcs8 -in server_privkey.der
-inform DER -out server_privkey.pem
-outform PEM -nocrypt
7. Send CA Root Certificate to the module
- Create Java Security Command “SetRootCert”. See Section 11.5.3.
- Send this command with AT^SJSEC to the module. See Section 11.4.3.
8. Send Java Security Command “Switch on Certificate Verification for HTTPS Connections”
to the module. See Section 11.5.3.
Result:
- You have a keystore for the configuration of the Java Security of the module.
- You have a signed server certificate (files “server.pem” or “server.der”).
- You have a private key file for your server configuration (files "server_privkey.pem" or
"server_privkey.der.
- The module contains the CA Root Certificat.
- HTTPS certificate verification is activate.
Consult the documentation of your web server on how to set.up the certificate on it.
wm_java_usersguide_v19 Page 89 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.2 Execution Control
99
11.2 Execution Control
The Java environment of the ME supports two modes.
Unsecured mode:
• The device starts all Java applications (MIDlets).
Secured mode:
• A condition for the secured mode of the device is the existence of a certificate inside of the
module.
• The customer can activate the secured mode of the device. To do so, the customer sends
a root certificate (x.509 certificate) and the command Switch ON Security Mode to the
device (over an AT Interface). The device changes from unsecured mode to the secured
mode. From this time the module will only start Java applications with a valid signature. In
addition, the device will only accept special commands from the customer if they are
marked with a signature. The device examines each command with the public key of the
customer root certificate.
• The secured mode supports a simple protection domain concept, providing a domain for
unsigned MIDlets. If this domain (domain for untrusted MIDlets) is active, then an unsigned
MIDlet is assigned to this domain and has only limited access to the Java-API. The
untrusted domain is activated by use of Java Security Command Switch ON Untrusted
Domain (see Section 11.5.3).
untrusted domain:
- HTTP-Connection is permitted
- TCP/IP-Socket Connection is permitted
Standard behavior of the module:
Cinterion supplies modules with unsecured mode as the default configuration.
Insert the certificate:
- The module changes into the mode “trusted” for MIDlet executio n. “Untrusted Domain” is
OFF.
- HTTPS certificate verification is OFF.
- MES is ON.
Remove the certificate:
- The module changes into the mode “untrusted” for MIDlet execution.
- HTTPS certificate verification is OFF
- MES is ON.
wm_java_usersguide_v19 Page 90 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.2 Execution Control
99
11.2.1 Change to Secured Mode Concept
Create and insert a customer root certificate:
A condition for the change to the secured mode is the existence of a customer root certificate
inside of the module.
Figure 57: Insert Customer Root Certificate
After this action the module is in the following conditions:
- The module changes into the mode “trusted” for MIDlet executio n. “Untrusted Domain” is
OFF.
- HTTPS certificate verification is OFF.
- MES is ON.
wm_java_usersguide_v19 Page 91 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.2 Execution Control
99
11.2.2 Concept for the Signing the Java MIDlet
Figure 58: Prepare MIDlet for Secured Mode
wm_java_usersguide_v19 Page 92 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.3 Application and Data Protection
99
11.3 Application and Data Protection
In addition to the Java secured mode it is possible to prevent the activation of the Module Exchange Suite. When Module Exchange Suite access is deactivated with AT^SJSEC, it is no
longer possible to access to the Flash file system on the module. A condition for the deactivation of the access to the Flash file system is the existence of a customer root certificate inside
of the module (see Section 11.2.1).
The default state of MES is ON.
11.4 Structure and Description of the Java Security Commands
Special commands are used in the Java security environment. These commands are transferred to the module with the help of the special AT command AT^SJSEC. This command
makes it possible to send binary data to the module. After AT^SJSEC is issued, the module
changes into a block transfer mode. Now binary data in a fixed format can be sent. These binary data contain the actual Java security commands.
wm_java_usersguide_v19 Page 93 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.4 Structure and Description of the Java Security Commands
99
11.4.1 Structure of the Java Security Commands
wm_java_usersguide_v19 Page 94 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.4 Structure and Description of the Java Security Commands
99
11.4.2 Build Java Security Command
Figure 59: Build Java Security Command
wm_java_usersguide_v19 Page 95 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.4 Structure and Description of the Java Security Commands
99
11.4.3 Send Java Security Command to the Module
Use a terminal program. Enter:
AT^SJSEC
Wait for the answer:
CONNECT
JSEC READY: SEND COMMAND ...
Now you can send the binary data of the command (for example: from a file with the binary data
of the command). To abort send: 0x03 0x00 0x00 (three bytes) in one packet.
The module’s answer depends on the result of the operation.
The read command, AT^SJSEC?, can be used to request the current Java security status. The
responses are listed below:
Read command
AT^SJSEC?
Response:
^SJSEC:<state>,<HTTPS state>,<OBEX state>,<untrusted domain>
[<certificate content>]
<state> Java security mode
0 Unsecured mode, i.e. security mode not active (default)
1 Secured mode, i.e. security mode active
<HTTPS state>
0 The HTTPS connection or Secure Connection is possible if the
server certificate (or certificate chain) is valid (default)
1 The HTTPS Connection or Secure Connection is possible only
if the server certificate is signed by the customer (owner of root
certificate in device)
<OBEX state>
0 Start of Module Exchange Suite is not permitted
1 Start of Module Exchange Suite is permitted (default)
<untrusted domain>
0 Untrusted domain does not exist, MIDlets must be signed
(default)
1 Untrusted domain does exist, unsigned MIDlets have limited
rights of access to the Java-API
Certificate Information: (default no certificate)
Issuer:
SerialNumber:
Subject:
Signature algorithm:
Thumbprint algoritm:
Thumbprint:
wm_java_usersguide_v19 Page 96 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.5 Create a Java Security Environment Step by Step
99
11.5 Create a Java Security Environment Step by Step
11.5.1 Create Key Store
The key store contains the key pairs for signing data. For producing the key store with keys the
tool “keytool.exe” can be used. The program is in the Java SDK. (for a description see http://
java.sun.com/j2se/1.3/docs/tooldocs/solaris/keytool.html).
Example:
keytool -genkey -alias keyname -keypass keypassword -keystore customer.ks
-storepass keystorepassword -sigalg SHA1withRSA -keyalg RSA
If you want to re-use the key store created in Section 11.1.1 you have to use the alias and passwords used there.
11.5.2 Export X.509 Root Certificate
For exporting the x.509 root certificate use “keytool.exe”. The program is in the Java SDK. (for
description see http://java.sun.com/j2se/1.3/docs/tooldocs/solaris/keytool.html)
keytool -export -v -keystore customer.ks -storepass keystorepassword
-alias keyname > certificate.der
11.5.3 Create Java Security Commands
For producing the java security commands the tool “jseccmd.jar” can be used. This program is
in the folder “wkt\bin”.
Command for inserting the Customer Root Certificate
- In consequence of the command
Java security mode: ON (untrusted domain OFF)
HTTPS certificate verification: OFF
MES state: ON
java -jar jseccmd.jar -cmd SetRootCert
-certfile certificate.der
-imei 012345678901234 -alias keyname
-storepass keystorepassword -keypass keypassword
-keystore customer.ks > SetR ootC ert.bin
Command for removing the Customer Root Certificate
- In consequence of the command all switches are reset
Java security mode: OFF (untrusted domain OFF)
HTTPS certificate verification: OFF
MES state: ON
java -jar jseccmd.jar -cmd DelRootCert
-imei 012345678901234 -alias keyname
-storepass keystorepassword -keypass keypassword
-keystore customer.ks > DelRootCert.bin
wm_java_usersguide_v19 Page 97 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.5 Create a Java Security Environment Step by Step
99
Command: switch on Java Security Mode
java -jar jseccmd.jar -cmd TrustedModeOn
-imei 012345678901234 -alias keyname
-storepass keystorepassword -keypass keypassword
-keystore customer.ks > TrustedModeOn.bin
Command: switch off Java Security Mode
java -jar jseccmd.jar -cmd TrustedModeOff
-imei 012345678901234 -alias keyname
-storepass keystorepassword -keypass keypassword
-keystore customer.ks > TrustedModeOff.bin
Command: switch on Untrusted Domain (it is possible only inside of the Java Security Mode)
java -jar jseccmd.jar -cmd UntrustedDomainOn
-imei 012345678901234 -alias keyname
-storepass keystorepassword -keypass keypassword
-keystore customer.ks > UntrustedDomainOn.bin
Command: switch off Untrusted Domain
java -jar jseccmd.jar -cmd UntrustedDomainOff
-imei 012345678901234 -alias keyname
-storepass keystorepassword -keypass keypassword
-keystore customer.ks > UntrustedDomainOff.bin
Command: switch on Certificate Verification for HTTPS Connections
java -jar jseccmd.jar -cmd HttpsVerifyOn
-imei 012345678901234 -alias keyname
-storepass keystorepassword -keypass keypassword
-keystore customer.ks > HttpsVerifyOn.bin
Command: switch off Certificate Verification for HTTPS Connections
java -jar jseccmd.jar -cmd HttpsVerifyOff
-imei 012345678901234 -alias keyname
-storepass keystorepassword -keypass keypassword
-keystore customer.ks > HttpsVerifyOff.bin
Command: switch on module exchange functionality
java -jar jseccmd.jar -cmd ObexActivationOn
-imei 012345678901234 -alias keyname
-storepass keystorepassword -keypass keypassword
-keystore customer.ks > ObexActivationOn.bin
Command: switch off module exchange functionality
java -jar jseccmd.jar -cmd ObexActivationOff
-imei 012345678901234 -alias keyname
-storepass keystorepassword -keypass keypassword
-keystore customer.ks > ObexActivationOff.bin
wm_java_usersguide_v19 Page 98 of 109 2012-01-27
Confidential / Released
Java User’s Guide
11.6 Attention
99
11.5.4 Sign a MIDlet
Use the tool “jadtool.jar” to sign a Java MIDlet. This program is in the folder “wkt\bin”.
java -jar jadtool.jar -addjarsig -jarfile helloworld.jar
-inputjad helloworld.jad
-outputjad helloworld.jad
-alias keyname -storepass keystorepassword
-keypass keypassword -keystore cu sto m er .ks
-encoding UTF-8
11.6 Attention
The central element of Java Security is the private key. If Java Security is activated and you
lose the private key, then the module is destroyed. You have no chance of deactivating Java
Security, downloading of a new Midlet or starting any other operation concerning Java Security.
To prevent problems you are strongly advised to secure the private key.
wm_java_usersguide_v19 Page 99 of 109 2012-01-27
Confidential / Released
Java User’s Guide
12 Java Tutorial
109
12 Java Tutorial
This small tutorial includes explanations on how to use the AT Command API and suggestions
for programming MIDlets. The developer should read about MIDlets, Threads and AT commands as a complement to this tutorial.
12.1 Using the AT Command API
Perhaps the most important API for the developer is the AT command API. This is the API that
lets the developer issue commands to control the module. This API consists of the ATCom-
mand class and the ATCommandListener and ATCommandResponseListener interfaces.
Their javadocs can be found in …\wtk\doc\html\index.html, [3].
12.1.1 Class ATCommand
The ATCommand class supports the execution of AT commands in much the same way as
they would be executed over a serial interface. It provides a simple way to send strings directly
to the device’s AT parsers.
12.1.1.1 Instantiation with or without CSD Support
There can be only exactly as many ATCommand instances as there are parsers on the device.
If there are no more parsers available, the ATCommand constructor will throw ATCommand-
FailedException. All AT parser instances support CSD. However from a Java application po int
of view it may make sense to have one dedicated instance for CSD call handling. Therefore,
and also for historical reasons, only one parser with CSD support may be requested through
the constructor. If more then one parser with CSD support is requested, the constructor will
throw ATCommandFailedException.
try {
ATCommand atc = new ATCommand(false);
/* An instance of ATCommand is created. CSD is not explicitly
* requested. */
}catch (ATCommandFailedException e) {
System.out.println(e);
}
The csdSupported() method returns the CSD capability of the connected instance of the device's AT parser. The method checks as well, if the current mode of the module supports CSD.
Please notice that this check has not been done when opening the ATCommand instance.
boolean csd_support = atc.csdSupported();
release() releases the resources held by the instance of the ATCommand class. After calling
this function the class instance cannot be used any more but the resources are free to be used
by a new instance
