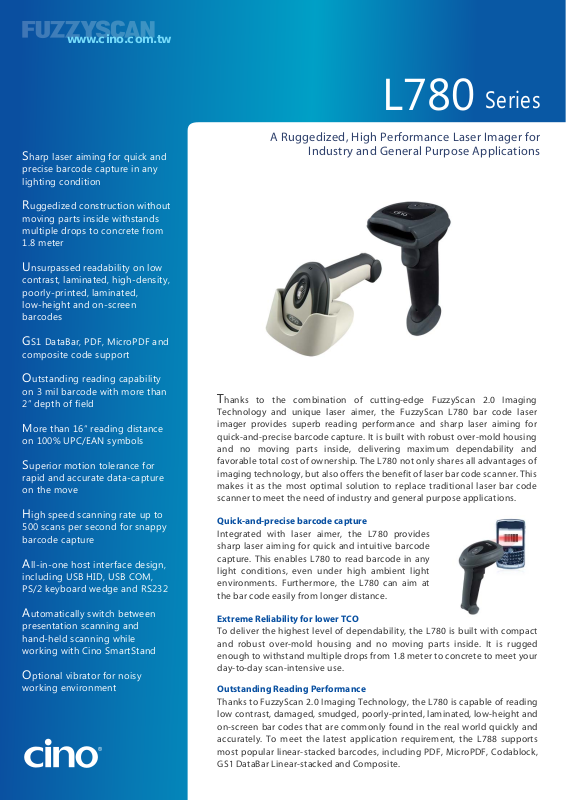

Cino L780 DATASHEET

www.cino.com.tw

S

harp laser aiming for quick and
precise barcode capture in any
lighting condition

Ruggedized construction without

moving parts inside withstands
multiple drops to concrete from

1.8 meter

Unsurpassed readability on low

contrast, laminated, high-density,
poorly-printed, laminated,
low-height and on-screen
barcodes

GS1 DataBar, PDF, MicroPDF and

composite code support

Outstanding reading capability

on 3 mil barcode with more than
2” depth of field

More than 16“ reading distance

on 100% UPC/EAN symbols

Superior motion tolerance for

rapid and accurate data-capture
on the move

L780

Series

A Ruggedized, High Performance Laser Imager for

Industry and General Purpose Applications

Thanks to the combination of cutting-edge FuzzyScan 2.0 Imaging

Technology and unique laser aimer, the FuzzyScan L780 bar code laser
imager provides superb reading performance and sharp laser aiming for
quick-and-precise barcode capture. It is built with robust over-mold housing
and no moving parts inside, delivering maximum dependability and
favorable total cost of ownership. The L780 not only shares all advantages of
imaging technology, but also offers the benefit of laser bar code scanner. This
makes it as the most optimal solution to replace traditional laser bar code
scanner to meet the need of industry and general purpose applications.

High speed scanning rate up to

500 scans per second for snappy
barcode capture

All-in-one host interface design,

including USB HID, USB COM,
PS/2 keyboard wedge and RS232

Automatically switch between

presentation scanning and
hand-held scanning while
working with Cino SmartStand

Optional vibrator for noisy

working environment

Quick-and-precise barcode capture

Integrated with laser aimer, the L780 provides
sharp laser aiming for quick and intuitive barcode
capture. This enables L780 to read barcode in any
light conditions, even under high ambient light
environments. Furthermore, the L780 can aim at
the bar code easily from longer distance.

Extreme Reliability for lower TCO

To deliver the highest level of dependability, the L780 is built with compact
and robust over-mold housing and no moving parts inside. It is rugged
enough to withstand multiple drops from 1.8 meter to concrete to meet your
day-to-day scan-intensive use.

Outstanding Reading Performance

Thanks to FuzzyScan 2.0 Imaging Technology, the L780 is capable of reading
low contrast, damaged, smudged, poorly-printed, laminated, low-height and
on-screen bar codes that are commonly found in the real world quickly and
accurately. To meet the latest application requirement, the L788 supports
most popular linear-stacked barcodes, including PDF, MicroPDF, Codablock,
GS1 DataBar Linear-stacked and Composite.

Specifications

www.cino.com.tw

Performance Characteristics

Optical System

Print Contrast

Minimum Resolution

Working Distance

Light Source

Scan Rate

Reading Direction

Pitch/Skew/Tilt

Operating Modes

Host Interfaces

Configuration Setup

Data Editing

User Interfaces

High performance Linear Imaging Engine

20% minimun reflective difference

Typical 3 mil (Code 39, PCS 0.9)

1

More than 16 inches on 100% UPC/EAN symbols
More than 24 inches on 20 m il Code 39

630nm visible red LED

Dynamic scanning rate up to 500 scans per second

Bi-directional (forward and backward)

± 65˚/ ± 65˚/± 55˚

Trigger, Level, Alternative , Low power, Presentation

PC/AT, PS/2 (DOS V) keyboar d wedge
PC/AT, PS/2 (DOS V) keyboar d direct link
TTL RS232 serial
USB HID (USB Keyboard)
USB COM port emulation
Laser emulation and Wand emulation

Bar code command
Windows utility - FuzzyScan PowerTool

Condensed DataWizard via bar code command
Full-feature DataWizard via FuzzyScan PowerTool

3 LEDs for power, good read and status indications
Programmable beeper
Optional vibrator

Physical Characteristics

Dimension

Weight

Color

Input Voltage

Current

97.8 mm (L) x 70.5 mm (W) x 156.2 mm (D)

3.85 in. (L) x 2.77 in. (W) x 6.15 in. (D)

157g (cable excluded)

Light Gray or Black

5VDC ± 10%

Operating : Typical 190 mA @5VDC
Standby : Typical 90 mA @5V DC

Safety & Regulatory

EMI/RFI

2

Safety

Environmental

FCC Part 15 Class B, ICES-0 03 Class B
European Union EMC Directive (CE)
Taiwan EMC (BSMI)

LED Eye Safety IEC60825-1, EN60825-1

Compliant with RoHS directive

Accessories

Cables

Others

PS/2 (DOS V) Keyboard Wedge Cable
RS232 Serial Cable
USB Cable
USB Power Steal Cable

Hand-free SmartStand
Universal Holder

Supported Symbologies

1D Linear
(L780)

Linear-stacked
(L788)

Code 39, Code 39 Full ASCII , Code 32, Code 39 Trioptic
Code 128, UCC/EAN-128, Codabar, Code 11, Code 93
Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5
German Postal Code, China Postal Code, IATA
UPC/EAN/JAN, UPC/EAN/JAN with Addendum
Telepen, MSI/Plessey & UK/Plessey
GS1 DataBar (formly RSS) Linear, Linear-stacked

PDF417, Micro PDF417, Codab lock, Composite

User Environment

Drop Specifications

Environmental Sealing

Operating Temperature

Storage Temperature

Humidity

Ambient Light Immunity

ESD Protection

Withstand multiple 1.8m/6ft. drops to concrete

IP41

-10˚C to 50˚C (14˚F to 122˚F)

-40˚C to 70˚C (-40˚F to 158˚F)

5% to 95% related humidity, non-condensing

0 ~ 100,000 lux

Functional after 15kV discharge
