Cino L700BT DATASHEET

www.cino.com.tw

Sharp laser aiming for quick and

precise barcode capture in any
lighting condition

Ruggedized construction without

moving parts inside withstands
multiple drops to concrete from

1.8 meter

Unsurpassed readability on

high-density, low contrast,
poorly-printed, laminated,
low-height and on-screen
barcodes

Bluetooth 2.1 EDR wireless

technology with more than 80m
communication coverage

Plug-and-play cordless migration

by working with smart cradle

Support multiple connections up

to 7 scanners in PICO mode

Support both HID and SPP

profiles to connect with most
Bluetooth-enabled hosts

Memory storage up to 20,000

EAN-13 scans for batch scanning

Batch scanning function is ideal

for inventory application

Support out-of-range scanning

and auto-reconnection features

Outstanding reading capability

on 3 mil barcode with more than
2” depth of field

GS1 DataBar Linear-stacked, PDF,

MicroPDF and composite code are
supported

L780BT

Series

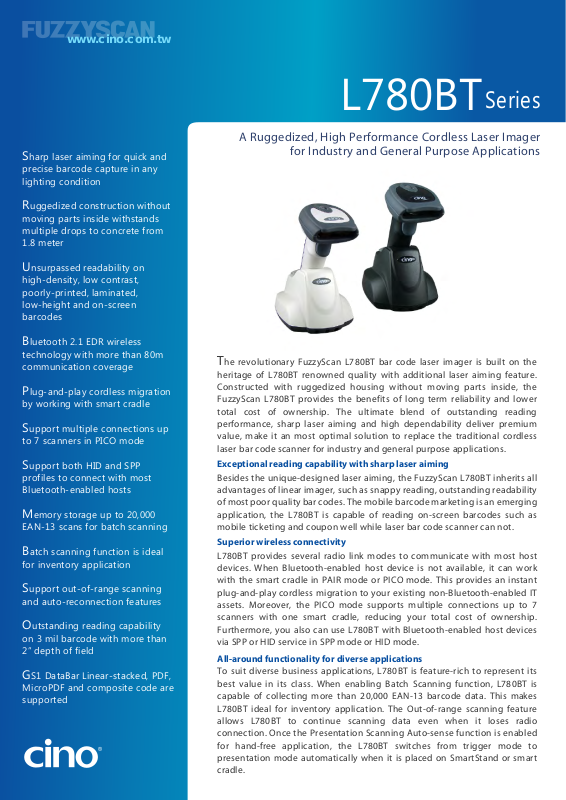

A Ruggedized, High Performance Cordless Laser Imager

for Industry and General Purpose Applications

The revolutionary FuzzyScan L780BT bar code laser imager is built on the

heritage of L780BT renowned quality with additional laser aiming feature.
Constructed with ruggedized housing without moving parts inside, the
FuzzyScan L780BT provides the benefits of long term reliability and lower
total cost of ownership. The ultimate blend of outstanding reading
performance, sharp laser aiming and high dependability deliver premium
value, make it an most optimal solution to replace the traditional cordless
laser bar code scanner for industry and general purpose applications.

Exceptional reading capability with sharp laser aiming

Besides the unique-designed laser aiming, the FuzzyScan L780BT inherits all
advantages of linear imager, such as snappy reading, outstanding readability
of most poor quality bar codes. The mobile barcode marketing is an emerging
application, the L780BT is capable of reading on-screen barcodes such as
mobile ticketing and coupon well while laser bar code scanner can not.

Superior wireless connectivity

L780BT provides several radio link modes to communicate with most host
devices. When Bluetooth-enabled host device is not available, it can work
with the smart cradle in PAIR mode or PICO mode. This provides an instant
plug-and-play cordless migration to your existing non-Bluetooth-enabled IT
assets. Moreover, the PICO mode supports multiple connections up to 7
scanners with one smart cradle, reducing your total cost of ownership.
Furthermore, you also can use L780BT with Bluetooth-enabled host devices
via SPP or HID service in SPP mode or HID mode.

All-around functionality for diverse applications

To suit diverse business applications, L780BT is feature-rich to represent its
best value in its class. When enabling Batch Scanning function, L780BT is
capable of collecting more than 20,000 EAN-13 barcode data. This makes
L780BT ideal for inventory application. The Out-of-range scanning feature
allows L780BT to continue scanning data even when it loses radio
connection. Once the Presentation Scanning Auto-sense function is enabled
for hand-free application, the L780BT switches from trigger mode to
presentation mode automatically when it is placed on SmartStand or smart
cradle.

Specifications

www.cino.com.tw

Performance Characteristics

Optical System

Print Contrast

Minimum Resolution

Working Distance

Light Source

Scan Rate

Reading Direction

Pitch/Skew/Tilt

Operating Modes

Configuration Setup

Data Editing

User Interfaces

High performance Linear Imaging Engine

20% minimun reflective difference

Typical 3 mil (Code 39, PCS 0.9)

1

More than 16 inches on 100% UPC/EAN symbols
More than 24 inches on 20 m il Code 39

630nm visible red LED

Dynamic scanning rate up to 500 scans per second

Bi-directional (forward and backward)

± 65˚/± 65˚/± 55˚

Trigger, Presentation

Bar code command
Windows utility - FuzzyScan PowerTool

Condensed DataWizard via bar code command
Full-feature DataWizard via FuzzyScan PowerTool

Blue link indicator and 2-color status indicator
Programmable beeper
Optional vibrator

Electrical Characteristics

Battery

Battery Charge Time

Scans per full Charge

3.7V, 2200mAH Li-ion rechar geable battery

Approx. 4-5 hours per full charge

2

More than 45,000 scans and transmissions

User Environment

Drop Specifications

Environmental Sealing

Operating Temperature

Storage Temperature

Humidity

Ambient Light Immunity

ESD Protection

Withstand multiple 1.8m/6ft. drops to concrete

IP41

-10˚C to 50˚C (14˚F to 122˚F)

-40˚C to 70˚C (-40˚F to 158˚F)

5% to 95% related humidity, non-condensing

0 ~ 100,000 lux

Functional after 15kV discharge

Physical Characteristics

Dimension

Weight

Color

97.8 mm (L) x 70.5 mm (W) x 156.2 mm (D)

3.85 in. (L) x 2.77 in. (W) x 6.15 in. (D)

230g (battery included)

Light Gray or Black

Safety & Regulatory

EMI/RFI

Radio

3

Safety

Environmental

FCC Part 15 Class B, Taiwan EMC (BSMI)
European Union EMC Directive (CE)

FCC Part 15 Subpart C, Japan MIC T401
CE EN300 328, Taiwan LP0002 (NCC)

LED Eye Safety IEC60825-1, EN60825-1

Compliant with RoHS directive

Communication Characteristics

RF Standard

RF Frequency

Radio Link Modes

Communication Range

Supported Profiles

Bluetooth v2.1 EDR

Band 2.402~2.4830 GHz unlicensed ISM band

PAIR mode, PICO mode, SPP m ode, HID mode

More than 80 meters in open space when working
with smart cradle, line of sight

SPP, HID

Supported Symbologies

1D Linear
(L780BT)

Linear-stacked
(L788BT)

Code 39, Code 39 Full ASCII , Code 32, Code 39 Trioptic
Code 128, UCC/EAN-128, Codabar, Code 11, Code 93
Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5
German Postal Code, China Postal Code, IATA
UPC/EAN/JAN, UPC/EAN/JAN with Addendum
Telepen, MSI/Plessey & UK/Plessey
GS1 DataBar (formly RSS) Linear & Linear Stacked

PDF417, Micro PDF417, Codab lock, Composite
(available for F788BT only)

Accessories

Smart Cradle

Charging Cradle

Interface Cables

Others

1. The wor king distances are measured in 400lux office environment using Grade A bar c odes.

2. The num ber of scans per fu ll charge is measure d under factory pre set test condition .

3. Don’t s tare into the LED b eam.

RF Standard
Battery charging
User Interfaces

Host Interface

Battery charging
User Interface

PS/2 (DOS V) Keyboard Wedge Cable
RS232 Serial Cable
USB Cable

5VDC Power Supply Unit
Hand-Free SmartStand
Universal Holder

: Bluetooth v2.1 EDR
: Fast charge
: 1 blue link indicator
2-color status indicator
Beeper, Paging/Reset button
: PS/2 (DOS V) Keyboard Wedge,
TTL RS232 Serial, USB HID, USB COM

: Fast charge
: 1 blue power indicator

Part number :YMAUG30040000R0. ©Copyright PC Worth Int' l Co., Ltd. - Cino Group, all rights reserved. Due to Cino’s continuing product improvement program, specifications and
features herein are subject to change without notice. Cino is a registered trademark of PC Worth Int’l Co., Ltd. Any reproduction, duplication or other use of the contents of this catalog,
in part or in full, without the prior permission of PC Worth Int’l Co., Ltd. is strictly forbidden.
