Page 1

FIXED MOUNT SCANNER

Programming Manual

International Edition, Rev. A5

Page 2

FuzzyScan Fixed Mount

Scan

Programming Manual

Revision History

Rev. No. Released Date Description

Rev. A May 26, 2010 First Release

Rev. A1 Jun. 18, 2010

 Page 16 Add “UPC/EAN Security Level”  Page 38 Add “Immediate” parameter (option 5) to "Time Delay to Low Power Mode"

and change the default value from 5 seconds to immediate.

Rev. A2 Sep. 16, 2010

 Page 19,20 Add “Supplement Scan Voting” in Symbology Reading Control  Page 21 Add “EAN Supplement Control”  Page 32 Keyboard Layout – Add “Czech (QWERTY)”, remove “Universal”, and rename

Spain (QWERTY) to Spain (Spanish

QWERTY), Latin America (QWERTY) to

Spain (Latin America, QWERTY)

 Page 36 Cancel” Power On Indicator” and add “Good Read Indicator”.  Page 41 “Scan Rate Control ”  Page 45 Add “NG Message Output”

Rev. A3 Nov 11, 2010

 Page 38 Baud Rate – Cancel Baud Rate 300/600 BPS.

Rev. A4 Mar 04, 2011

 Page 38 Baud Rate – Revise 57.6K BPS and 115.2K BPS option code from 6.7. to 8.9.

Rev. A5 Mar 22, 2011

 Page 17 Add ”Code 39 Security Level”  Page 39 Add “NAK Retry Count”

Add “ACK/NAK Transmission Indication”

Page 3

FuzzyScan Fixed Mount

Scan

Programming Manual

Cino makes no warranty of any kind with regard to this publication, including, but not limited to, the implied warranty of merchantability and fitness for any particular purpose. Cino shall not be liable for errors contained herein or for incidental consequential damages in connection with the furnishing, performance, or use of this publication. This publication contains proprietary information that is protected by copyright. All rights are reserved. No part of this publication may be photocopied, reproduced or translated into any language, in any forms, in an electronic retrieval system or otherwise, without prior written permission of Cino. All product information and specifications shown in this document may be changed without prior notice.

Warranty

Cino warrants its products against defects in workmanship and materials from the date of shipment, provided that the product is operated under normal and proper conditions. The warranty provisions and durations are furnished by different warranty programs. The above warranty does not apply to any product which has been (i) misused; (ii) damaged by accident or negligence; (iii) modified or altered by the purchaser or other party; (iv) repaired or tampered by unauthorized representatives; (v) operated or stored beyond the specified operational and environmental parameters; (vi) applied software, accessories or parts are not supplied by Cino; (vii) damaged by circumstances out of Cino’s control, such as, but not limited to, lightning or fluctuation in electrical power. Any defective product must follow the warranty program and RMA procedures to return Cino for inspection.

Regulatory

FCC part 15B

EN55022, EN55024, EN61000-3-2, EN61000-3-3

CNS13438

Industry Canada ICES-003

LED Eye Safety IEC60825-1, EN60825-1

Page 4

FuzzyScan Fixed Mount

Scan

Programming Manual

Table of Contents

Getting Started

Getting Familiar with Your FuzzyScan 1 Connect to Your Host 2 Install Your FuzzyScan 3 Use the Test Mode 4 Use Your FuzzyScan 5

Configure Your FuzzyScan

Bar Code Programming Manual 7 Programming Procedures 8 Host Interface Selection 12 Symbology Reading Control 13 Keyboard Interface Control 32 Serial Interface Control 36 Operation Control 39 Condensed DataWizard 46

Appendix

Symbology ID Table 53 Keyboard Function Code Table 54 ASCII Input Shortcut 55 Host Interface Quick Set 56 Operation Mode Quick Set 56 Option Codes 57 System Commands 58 Indications 59

Page 5

FuzzyScan Fixed Mount

Scan

Programming Manual

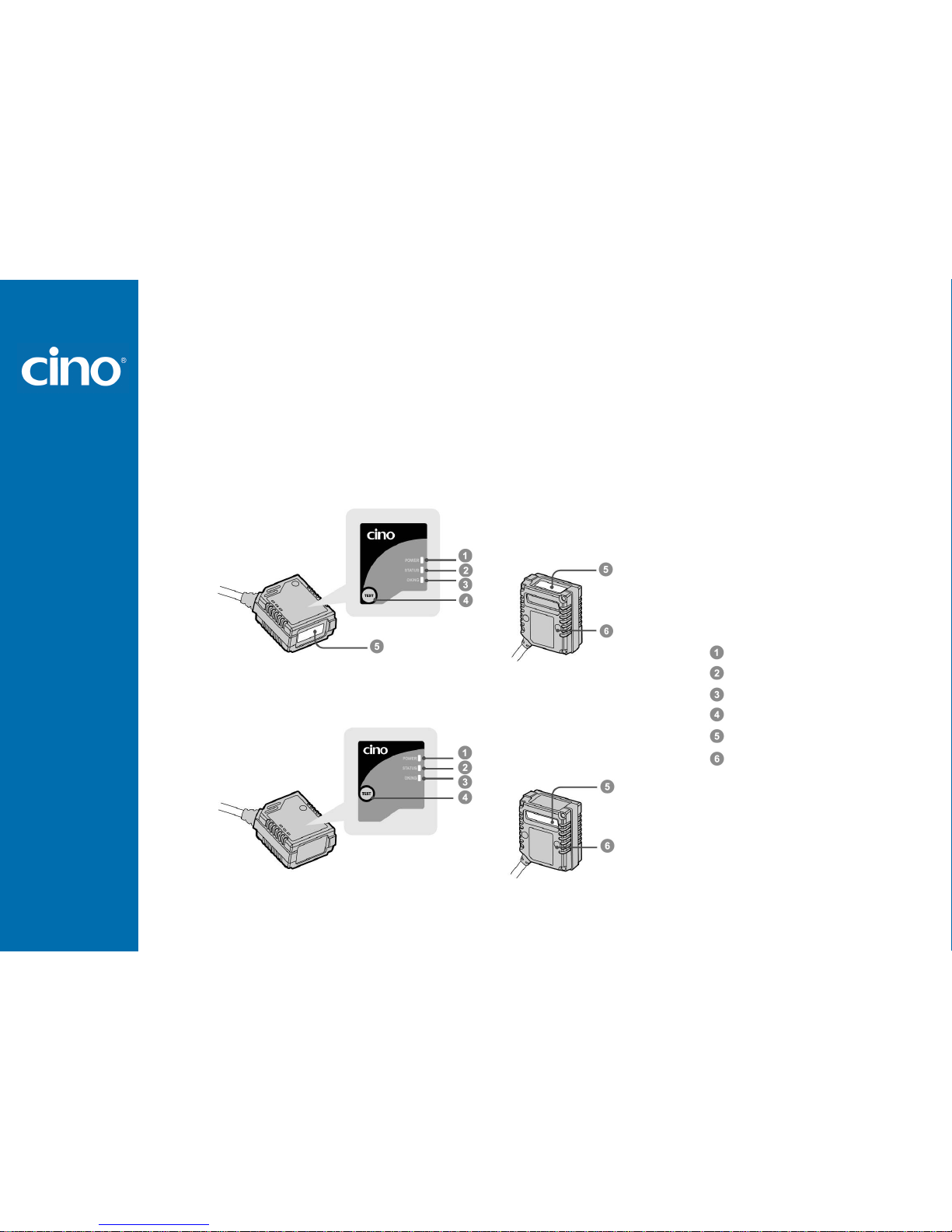

Getting Familiar with Your FuzzyScan

Thank you for choosing Cino FuzzyScan FM400 Series Fixed Mount Scanner. Integrated with the innovative FuzzyScan 2.0 Imaging Technology and durable ultra-compact design, FM400 series not only provides outstanding reading performance, but also meets various demands for both industrial and general purpose applications. This document provides a quick reference for installation and operation purpose. The complete documentation is available at www.cino.com.tw.

FM400 Series (Front-view Model)

FM400 Series (Side-view Model)

Power Indicator

Status Indicator

OK/NG Indicator

Test Button

Scan Window

M3 Mounting Hole

Page 6

FuzzyScan Fixed Mount

Scan

Programming Manual

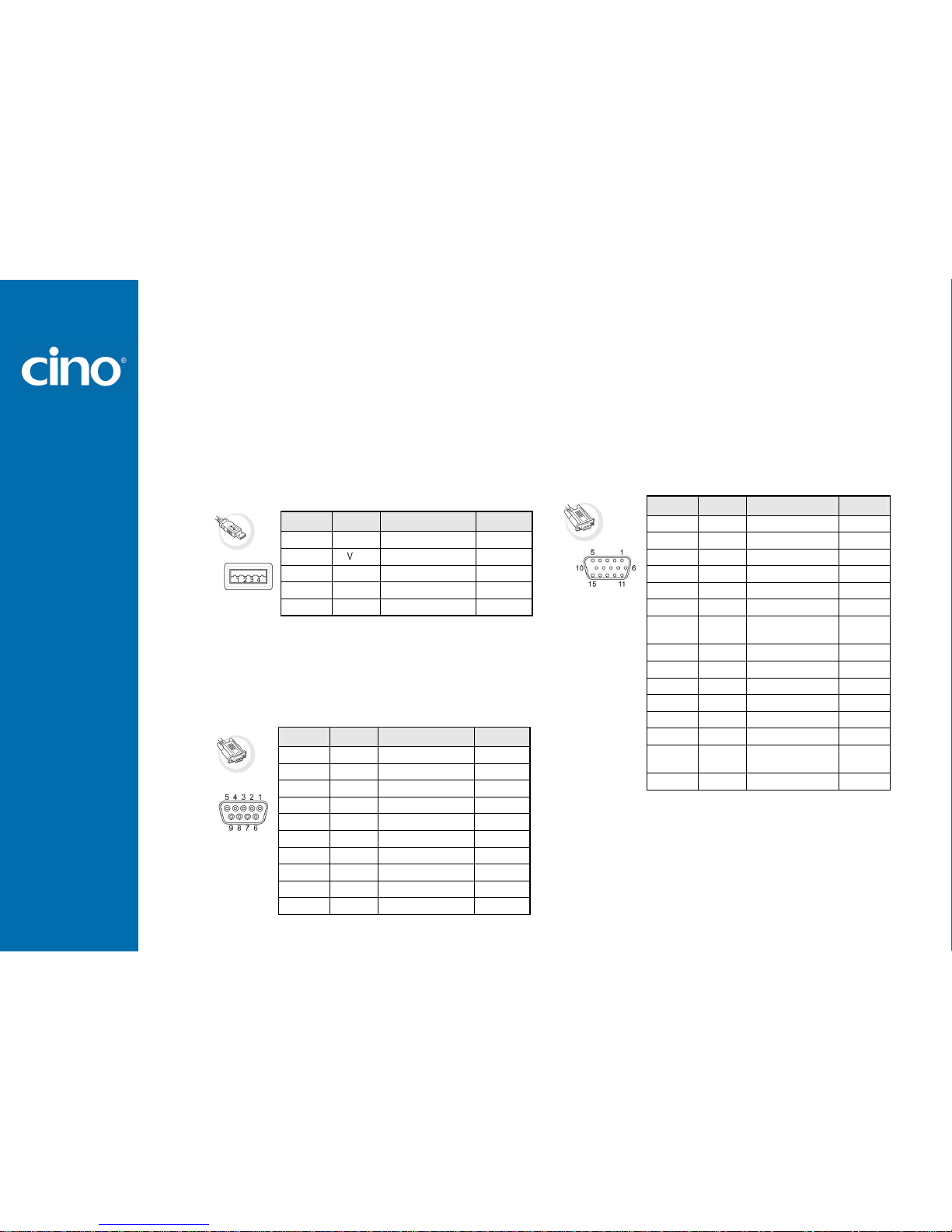

Connect to Your Host

Both RS232 and USB interfaces are available in different models of FM400 series. Each model is equipped with corresponding connector to meet various application demands.

USB Models (FM4xx-11x)

The USB models provide a plug-and-play solution. Both USB HID and USB COM Port Emulation interfaces are available for user’s choice.

RS232 Models (FM4xx-00x)

The RS232 models support the standard RS232 interface equipped a 9-pin D-sub connector with power jack for external 5Vdc power inlet.

Universal Models (FM4xx-98x)

The universal models support RS232 and USB interfaces with OK/NG signal outputs and external trigger input.

Pin No. Signal Description I/O Type

Case FG Frame Ground ---

VCC --- I

2 Data - USB Data - I/O

3 Data + USB Data + I/O

4 GND --- ---

Pin No. Signal Description I/O Type

Case FG Frame Ground ---

1 --- --- ---

2 TXD Transmit Data I

3 RXD Receive Data O

4 --- --- ---

5 GND Signal Ground ---

6 --- --- ---

7 CTS Clear to Send I

8 RTS Request to Send O

9 VCC 5Vdc Power Supply I

Pin No. Signal Description I/O Type

1 VCC 5Vdc Power Supply I

2 TXD Transmit Data O

3 RXD Receive Data I

4 GND Signal Ground ---

5 --- --- ---

6 RTS Request to Send O

7 OK

OK Signal Output (3-24Vdc)

8 Data + USB Data + I/O

9 Trigger External Trigger Input I

10 CTS Clear to Send I

11 --- --- ---

12 Data - USB Data - I/O

13 Shield Frame Ground ---

14 NG

NG Signal Output (3-24Vdc)

15 Reserved --- ---

4-pin Type A

Connector

9-pin D-sub

Female Connector

15-pin D-sub HD

Female Connector

Page 7

FuzzyScan Fixed Mount

Scan

Programming Manual

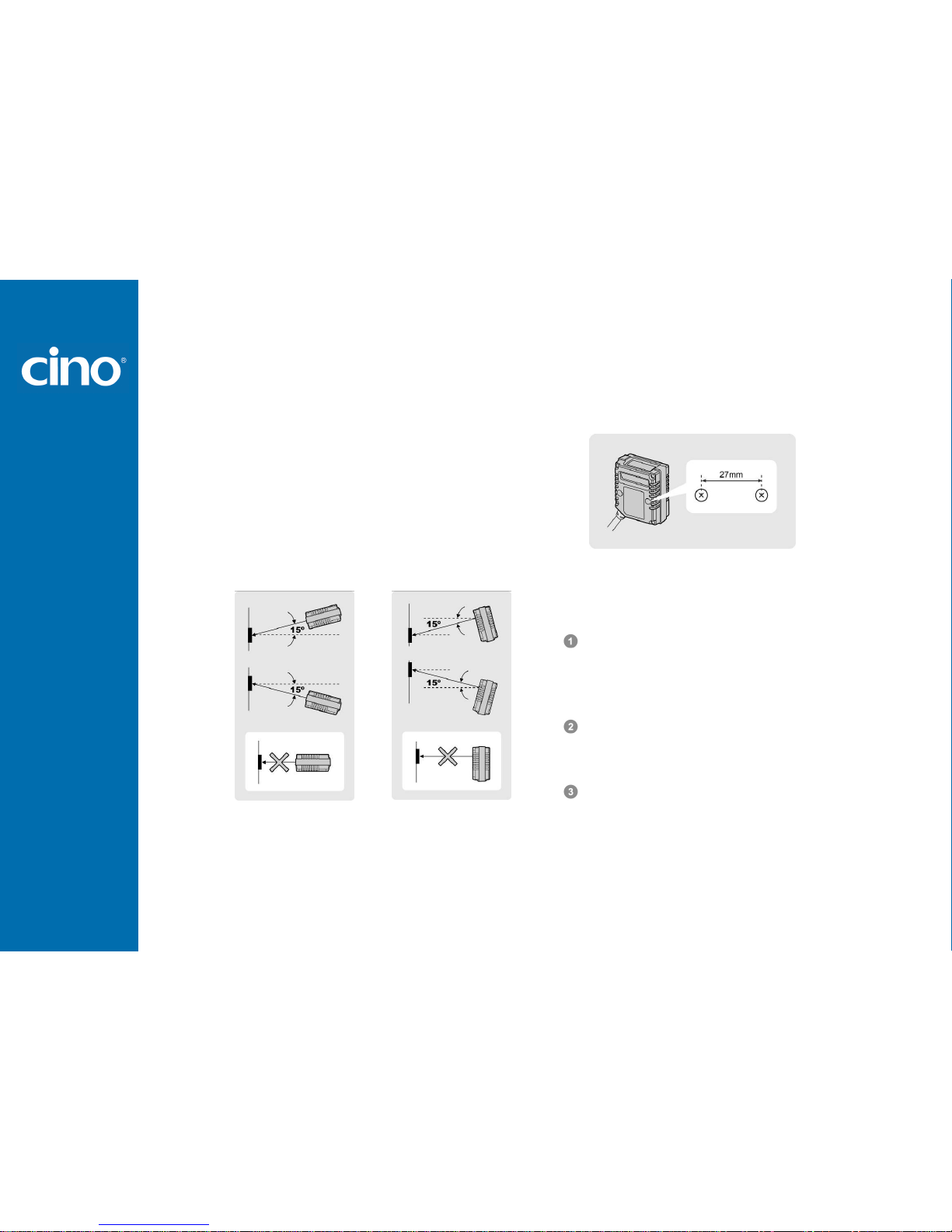

Install Your FuzzyScan

Adjust Reading Angle

The readability may be impacted by the specular reflection caused by the perpendicular reading angle. To get the most optimal reading performance, you are suggested to install the FM400 at an approximate 15° angle to the perpendicular line of the target barcode. However, the reading angle and distance may vary depending on the size and printing quality of barcodes.

Mount Your FuzzyScan

There are two M3 mounting holes on the bottom of the chassis. Please follow below procedures to mount your scanner.

Prepare two appropriate M3 screws (minimal 4mm in depth) and decide your desired mounting location. Then adjust the two screws to accommodate 27mm center width.

Optimize the mounting position by adjusting the reading angle and distance. Ensure the illumination envelop is not blocked by any external object.

Use the test mode to verify the actual reading rate. If the reading rate is not good enough, please adjust the reading angle and distance to get the optimum readability.

Front-view Side-view

Page 8

FuzzyScan Fixed Mount

Scan

Programming Manual

Use the Test Mode

The FuzzyScan FM400 provides an useful test mode which is helpful for you to quickly identify the best mounting position. Please refer to the descriptions listed below for details.

Test Button

Under normal operation, the Test Button of FM400 just acts as a normal trigger switch of hand-held scanner. You can press the Test Button to scan the corresponding barcode commands to configure your scanner with ease.

Please note that if you press the Test button for more than 5 seconds, the FM400 will enter the test mode automatically.

Test Mode

Once determine your desired location to install the scanner, you may use the test mode to optimize the mounting position with ease. Please follow below procedures to use the test mode.

Hold the Test Button over 5 seconds until the status indicator gives one green blink, then release the button to activate test mode. The scanner will give 2 short beeps and the power indicator will flash blue blink per 1 second. The scanner will turn on the light source to scan barcodes continuously before exit the test mode.

Keep scanner to read the same test barcode. The scanner will count the Good Read numbers, then output the information of reading rate and refresh LED indications every 100 scans. The format of output message is listed below.

At the same time, both Status and OK/NG indicators will provide the visible reading rate information as well. You may refer to the table listed below for details.

Reading rate STATUS Indicator OK/NG Indicator

100% Steady Green Steady Green

80 to 99% Steady Red Steady Green

50 to 79% Steady Green Steady Red

20 to 49% Steady Orange Steady Orange

0 to 19% Steady Red Steady Red

If the reading rate is not good enough, please adjust the reading angle and distance to get the optimum readability. If you would like to exit the test mode, please press the Test Button once again.

If the scanner is unable to read any barcode during preset scan input time-out (default is 900ms), the scanner will count it as a NG reading.

Under test mode, the OK/NG output signals will not be performed.

< Readout data > : < Reading rate (0 to 100) >

Page 9

FuzzyScan Fixed Mount

Scan

Programming Manual

Use Your FuzzScan

Both FuzzyScan Barcode commands and Serial commands are available to configure your FM400. The

FuzzyScan barcode commands are a series of proprietary barcodes which allow you to easily configure the scanner for most applications. Moreover, the FuzzyScan serial commands are ideal for precise and complicated reading control in machine-controllable environments. Please refer to the relevant documentations for details.

External Trigger and Serial Trigger

The FM400 provides both external trigger and serial trigger to activate the scanning processes. Please note that the external trigger is available for universal models only. The serial trigger is one of serial commands available for all models including RS232 serial and USB COM Port Emulation interfaces.

Scan Input Time-out

The scan input time-out is a preset light source on time available for presentation, alternative and level modes. The scanner keeps the light source on and continues to scan until the preset scan input time-out is up. You can adjust the time-out duration from 100 milliseconds to 99 seconds to meet various application demands.

OK/NG Signals

The universal models provide additional OK and NG outputs for more precise reading control. If the scanner got a good read, a signal will be outputted through scanner OK pin. However, if the scanner failed to read the barcode during a reading cycle or preset scan input time-out, a signal will be outputted through scanner NG pin.

The OK and NG outputs are designed as NPN signal outputs and have been preset to active low. If necessary, you are able to change the active state of OK and NG outputs to meet your applications.

Operation Modes

The FuzzyScan FM400 series provides five different operation modes, including trigger, alternative, level, presentation and force modes to meet various application demands.

Both the presentation and force modes support triggerless operation, you don’t need to use either external trigger or serial trigger to activate the scanning. But the trigger, alternative and level modes have to work with external trigger or serial trigger to scan barcode.

Page 10

FuzzyScan Fixed Mount

Scan

Programming Manual

Under trigger mode, the scanner will turn on the light source to read barcode when it receives an external trigger or a serial trigger ON command. Once the external trigger has been released, or the scanner gets a good read or a serial trigger OFF command, the scanner will stop reading and wait for the next trigger to activate scanning again.

When the scanner receives an external trigger or a serial trigger ON command under alternative mode, the scanner will turn on the light source to read barcodes until the preset scan input time-out is up. The scan input time-out will be reset after each good read. Once the light source goes off, the scanner is waiting for the next trigger to activate scanning again.

When the scanner receives an external trigger or a serial trigger ON command under level mode, the scanner will turn on the light source to read barcodes until a good read

is performed or the preset scan input time-out is up. Once the light source goes off, the scanner is waiting for the next trigger to activate scanning again.

Under presentation mode, the scanner will automatically detect the object movement in the scanner field of view. Once the scanner detects a similar barcode image, the scanner will turn on the light source to read barcodes until the preset scan input time-out is up. For dark environments, you may adjust the setting of “Presentation Sensitivity” to increase the detection sensitivity.

Under force mode, the scanner continues to read barcodes without using external trigger or serial trigger. Please note that the scanner will not stop reading until you switch into another operation mode.

Trigger mode

Alternative mode

Level mode

Presentation mode

Force mode

Page 11

FuzzyScan Fixed Mount

Scan

Programming Manual

Bar Code Programming Menu

The FuzzyScan bar code commands are specially designed Proprietary bar code labels which allow you to set the FuzzyScan internal programming parameters. There are System Command, Family Code and Option Code for programming purpose.

Each programmable family and bar code command label is listed on the same page with major system commands. The detailed explanations and special programming flowchart are printed on facing or following pages. You can read the explanation and set the FuzzyScan concurrently.

A supplemental bar code command menu incorporates the bar code command labels of System Command and Option Code. As you set the FuzzyScan, open the bar code command menu to find the option code page. You may scan the desired family code and option code to set FuzzyScan. If you want to change the programming family for multiple settings, you need only turn over the programming page to find next desired programming family.

System Command

System CommandSystem Command

System Command

The System Command is the highest level bar code command which directs FuzzyScan to perform immediate operations, such as entering programming mode (PROGRAM), exiting programming mode (EXIT), listing system information (SYSLIST), recovering to factory preset configurations (M_DEFAULT), and so on. Please note that all system commands will take a few seconds to complete the operations. User must wait for the completion beeps before scanning another bar code.

Family Code

Family CodeFamily Code

Family Code

The Family Code is scanned to select the user desired programming family. FuzzyScan has already provided more than one hundred programming families to meet any specific requirements.

Option Code

Option CodeOption Code

Option Code

The Option Codes is a set of bar code commands represented by “0–9”, “A–F” and finishing selection (FIN). For most setting, you must select at least one option code following the family code selection to set the desired parameter for the selected programming family.

Page 12

FuzzyScan Fixed Mount

Scan

Programming Manual

Programming Procedures

Programming ProceduresProgramming Procedures

Programming Procedures

As you scan the bar code command to select the desired parameters, information about the final selected parameters represented by the bar code commands are stored in the FuzzyScan’s internal Flash Memory ASIC or non-volatile memory. If you turn off the unit, the Flash Memory ASIC or non-volatile memory retains all programming options. You need not re-program the FuzzyScan if you want to keep the existing configurations in the next power on.

The programming procedures of FuzzyScan are designed as simple as possible for ease of setting. Most programming families take the Single Scan Selection programming procedure. But several programming families have more complex and flexible programmable options, and you must take Multiple Scans Selection, Cycling Scan Selection or Dual Level Selection to complete their programming procedures. Each kind of programming procedure is listed in the following pages for your reference. Please give careful attention to become familiar with each programming procedure.

If the programming family must take multiple scans selection, cycling scan selection, or dual level selection procedures, the family of the programming menu will be marked with the matched representing symbol of Programming Category (P.C.) in bold font listed in the following table. You can easily find the bold mark in the programming menu, and refer to their flowcharts for details. Before setting the FuzzyScan, please also refer to the “Beeping Indications” listed in Appendix to understand the details of programming beeping indications. It will be very helpful for you to know the existing status while you are programming the FuzzyScan.

Conventions of Programm

Conventions of ProgrammConventions of Programm

Conventions of Programming Menu

ing Menuing Menu

ing Menu

Conventions Descriptions



Factory Default Value

P.C. Programming Category

: Signle scan selection MS : Multiple scans selection CS : Cycling scan selection DS : Dual level scan selection

( ) Necessary Option Code

[ ] Selectable Option Code

Page 13

FuzzyScan Fixed Mount

Scan

Programming Manual

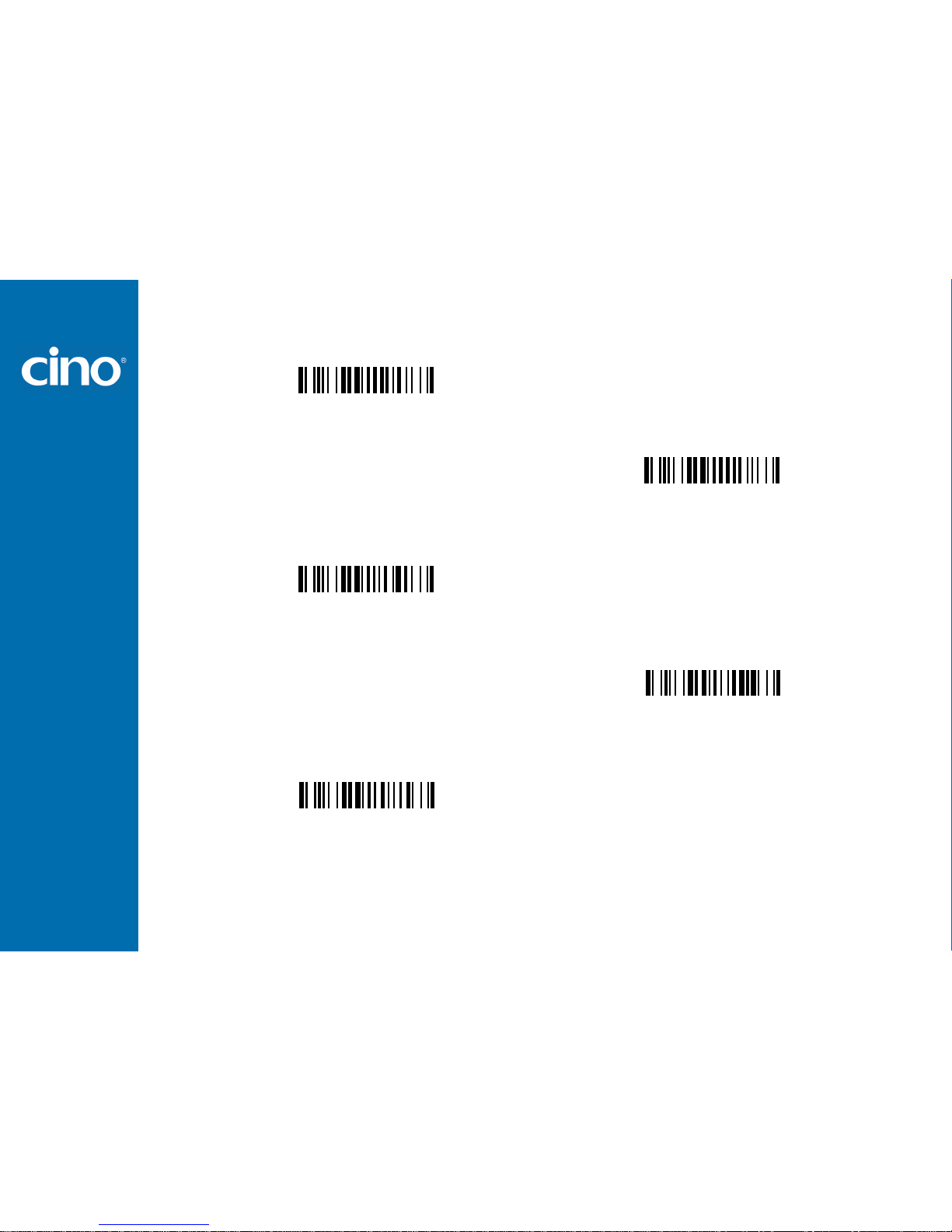

Scan

“

END

”

FuzzyScan will exit programming mode, and store all

parameters in Flash Memory ASIC or non-volatile memory,

then issue the completion beeping.

Scan

“

PROGRAM”

FuzzyScan will enter programming mode,

and inhibit all non-programming functions.

Scan

“

SYSLIST”

FuzzyScan will list the product information and

revision number to host via selected host interface,

then issue the completion beeping.

Scan

“

M_DEFAULT

”

FuzzyScan will recover all programmable

parameters into factory preset configurations,

then issue the completion beeping.

Program & End

Program & EndProgram & End

Program & End

Please note that the FuzzyScan will take 3-4 seconds to store parameters in internal Flash Memory ASIC or non-volatile memory after you scan the “END”. Please don’t turn off the power before the completion beeping. It may destroy all configured parameters.

System List, Group & Master Default

System List, Group & Master DefaultSystem List, Group & Master Default

System List, Group & Master Default

Page 14

FuzzyScan Fixed Mount

Scan

Programming Manual

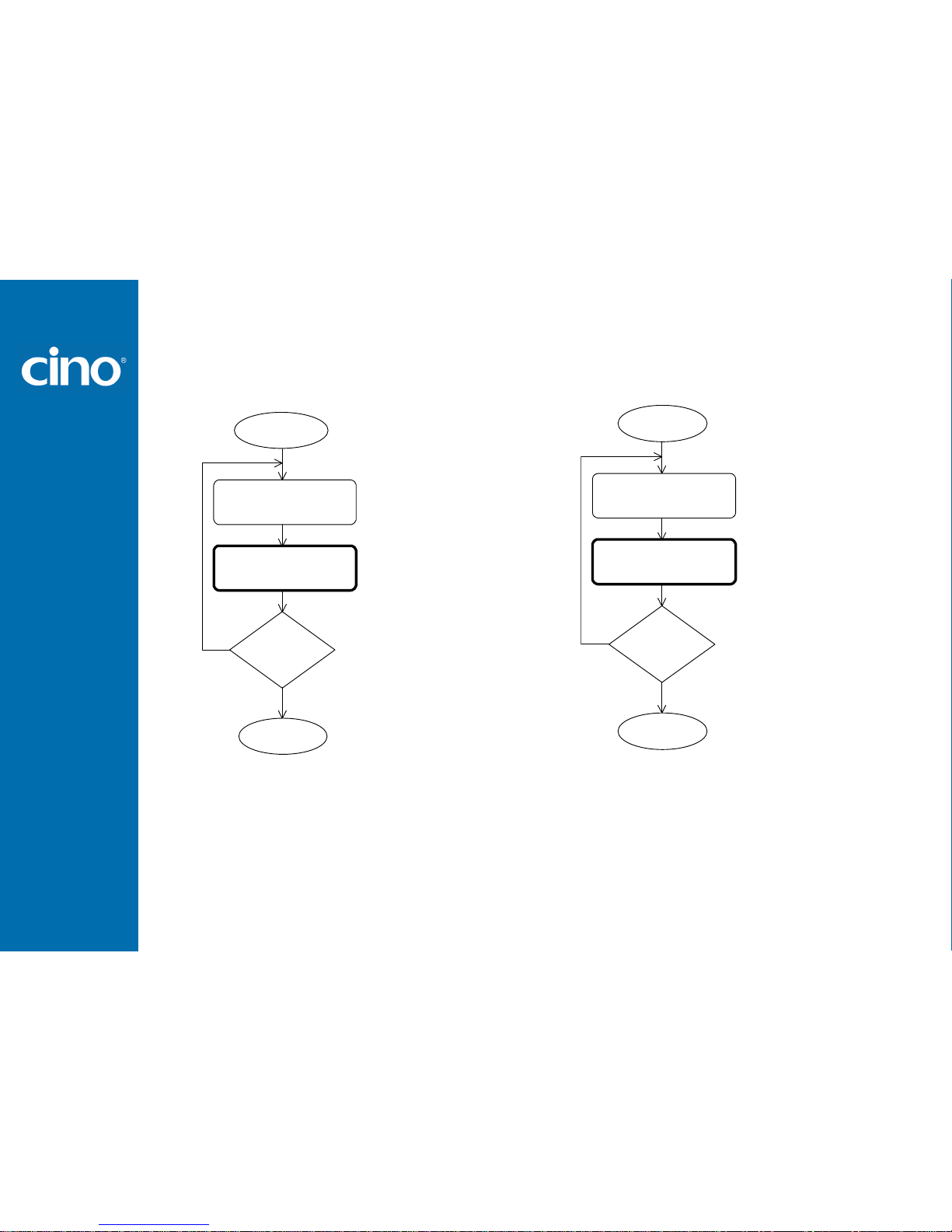

Single scan selection

Single scan selectionSingle scan selection

Single scan selection

Multiple scans selection

Multiple scans selectionMultiple scans selection

Multiple scans selection

Scan

“

PROGRAM

”

Scan

One of

Family

Codes

Scan

One of

Option

Codes

Repeat

Selection

Scan

“

END

”

Yes

Enter programming mode.

Select one of desired

programming families.

Select one option code of

desired parameter.

Want to select another

programming family?

Exit programming mode.

Enter programming mode.

Select one of desired

programming families.

1. Select one or several

option codes to select

desired parameters.

2. If it’s necessary, scan

“FIN” to terminate

option code selection.

Want to select another

programming family?

Exit programming mode.

Scan

“

PROGRAM”

Scan

One of

Family

Codes

Scan One or

Several

Option

Codes

Repeat

Selection

Scan

“

END

”

Yes

Page 15

FuzzyScan Fixed Mount

Scan

Programming Manual

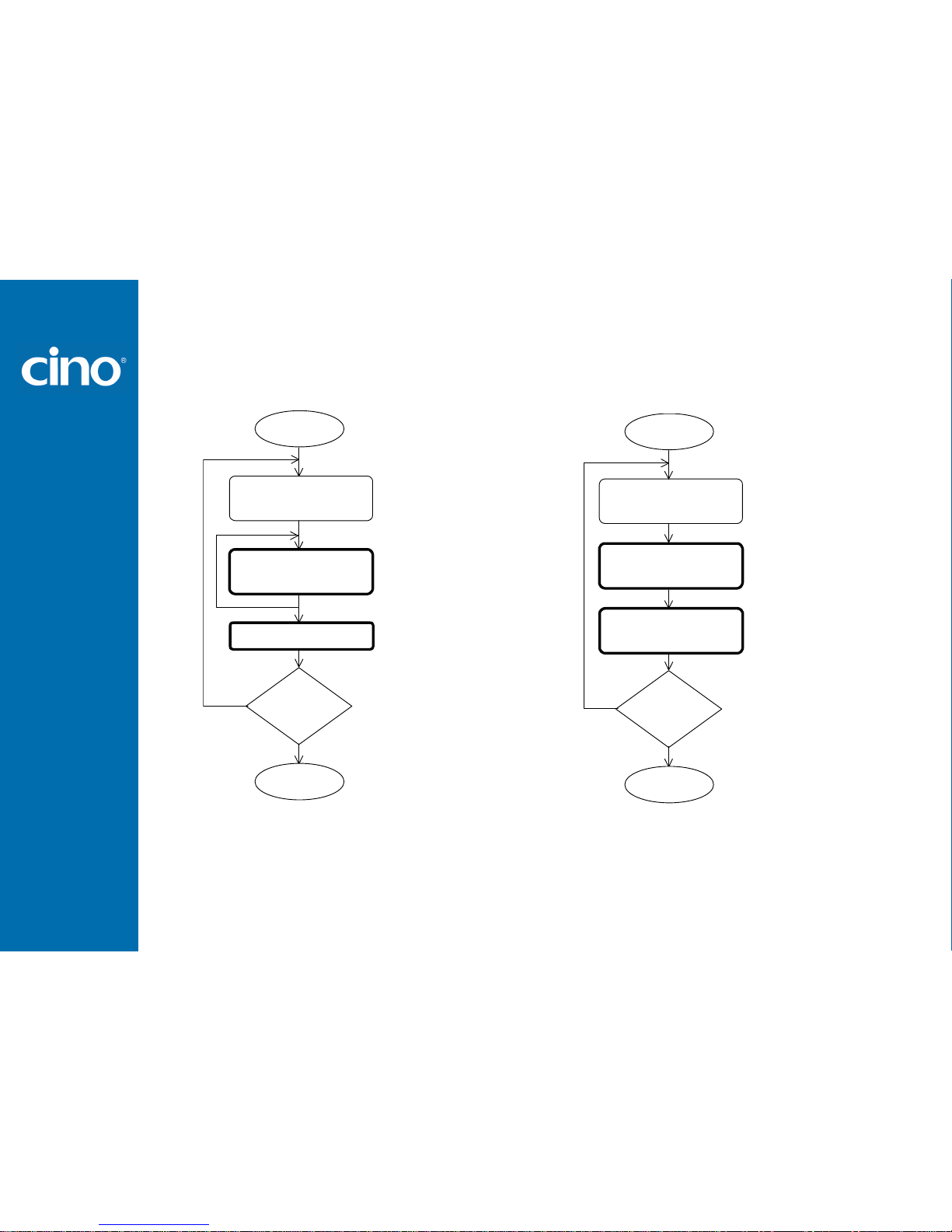

Cycling scan selection

Cycling scan selectionCycling scan selection

Cycling scan selection

Dual level selection

Dual level selectionDual level selection

Dual level selection

Enter programming mode.

Select one of desired

programming famili es.

Cycling select one or

several option codes of

desired parameters as

“Single” or “Multiple”

scans selection.

Finish cycling selection.

(If necessary)

Want to select another

programming family?

Exit programming mode.

Scan

“PROGRAM”

Scan

One of

Family

Codes

Scan

One of

Option

Codes

Repeat

Selection

Scan

“

END

”

Yes

Scan “

FIN

”

Enter programming mode.

Select one of desired

programming families.

Select several option codes

of desired parameters.

1. Select one or several

option codes of desired

parameters.

2. If it’s necessary, scan

“FIN” to terminate

option code selection.

Want to select another

programming family?

Exit programming mode.

Scan

One of

Family

Codes

(

1st

) Scan

Several

Option

Codes

Yes

Scan

“

PROGRAM”

Repeat

Selection

Scan

“

END”

(

2nd

) Scan One or

Several

Option

Codes

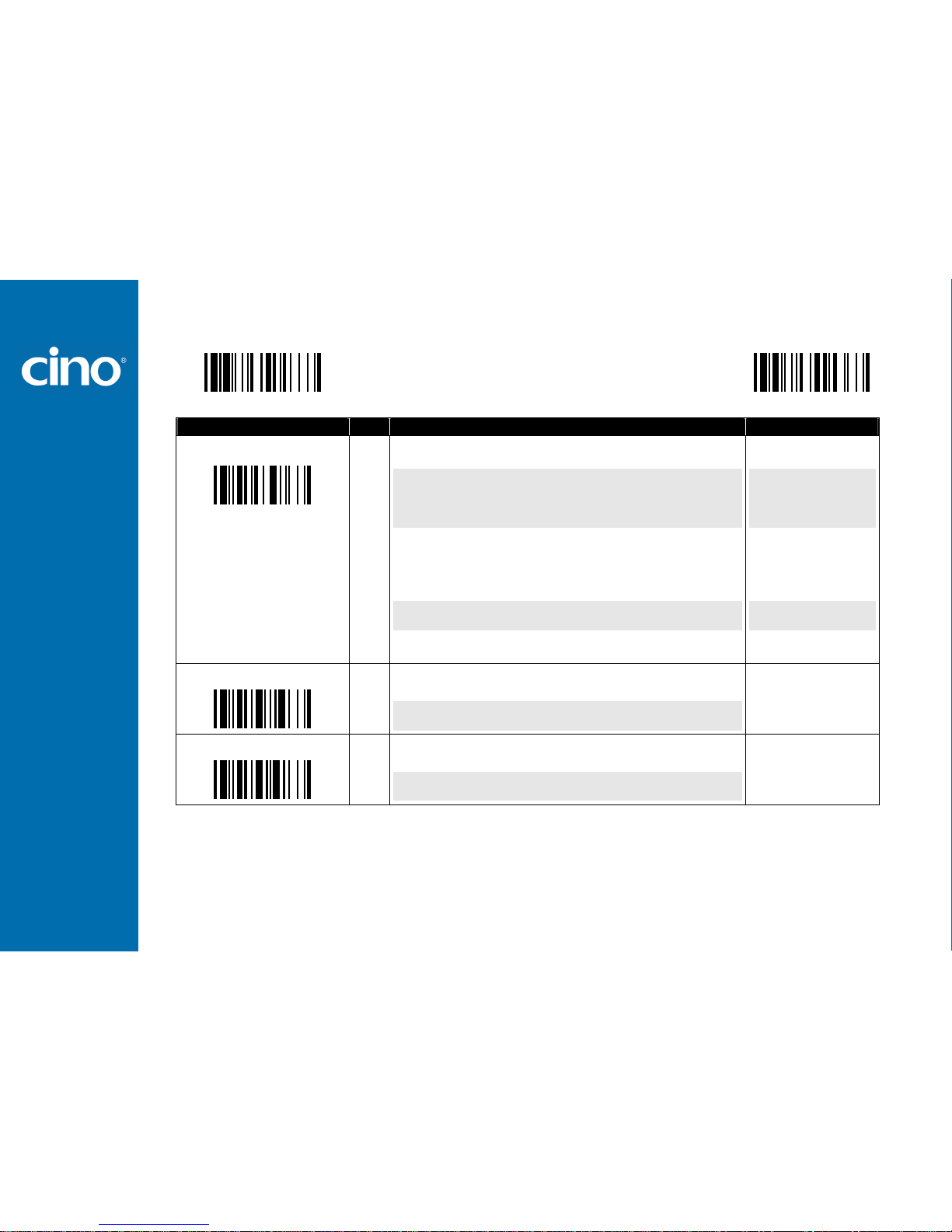

Page 16

FuzzyScan Fixed Mount

Scan

Programming Manual

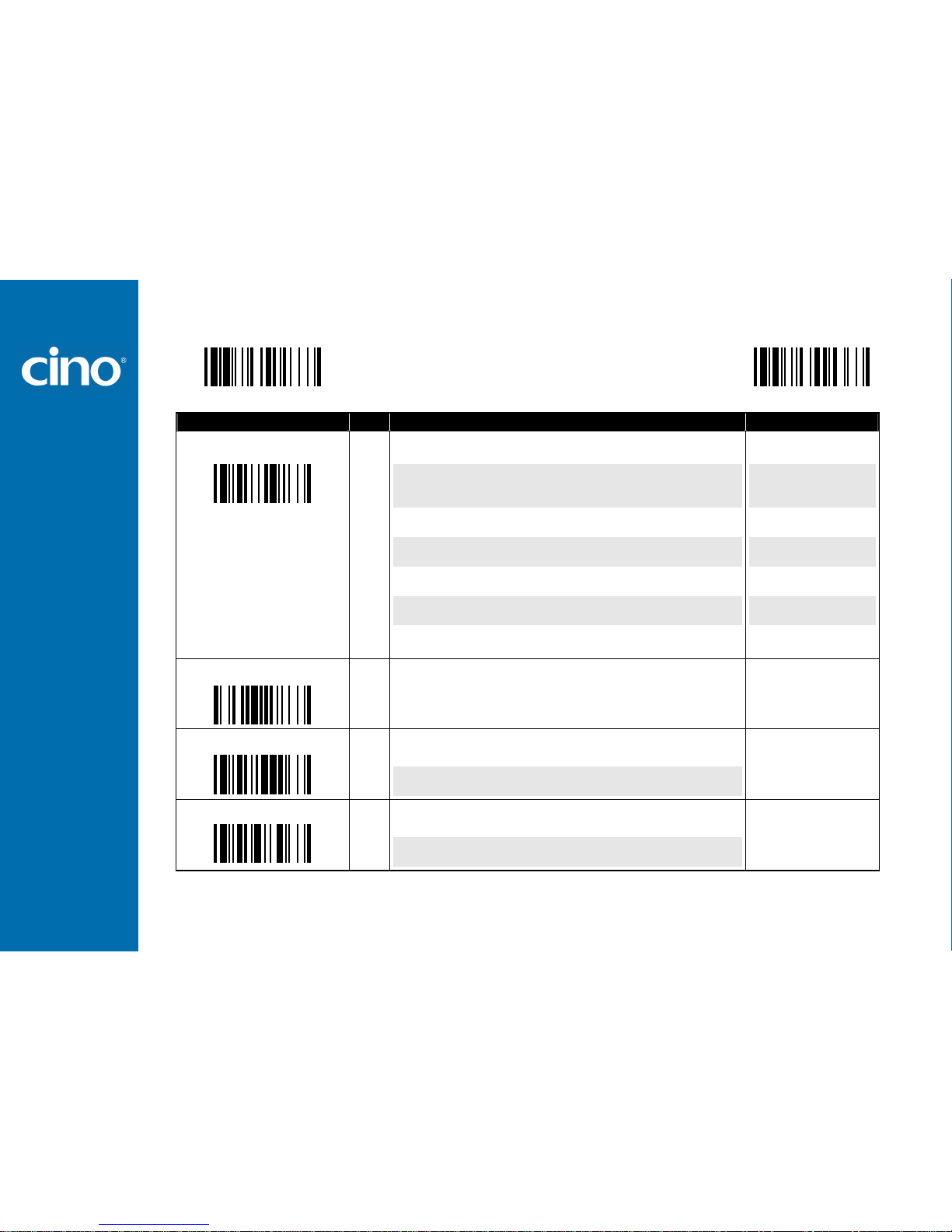

PROGRAM

Host Interface Selection

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Host Interface Selection

MS MS MS MS

Standard/TTL RS-232 peer-to-peer serial USB Com Port Emulation USB HID standard mode USB HID turbo mode

06 09 18 19

Page 17

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ User Defined Symbol ID ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code 2nd Option Code

Symbol ID : 1 character

DS Code 128 (default=B)

UCC/EAN-128 (default=C) UPC-A (default=A) EAN-13 (default=F) Codabar/NW-7 (default=D) Code 39/Code 32 (default=G) Code 93 (default=H) Standard/Industrial 2 of 5 (default=I) Interleaved 2 of 5 (default=J) Matrix 2 of 5 (default=K) China Postal Code (default=L) German Postal Code (default=M) IATA (default=O) Code 11 (default=P) MSI/Plessey (default=R) UK/Plessey (default=S) Telepen (default=T) GS1 DataBar (default=X) UPC-E (default=E) EAN-8 (default=N) Trioptic Code 39 (Default=W) UCC Coupon Extended Code (Default=Z) PDF417/Micro PDF417 (default=V) Codablock F (default=Y) Korea Post Code (default =a)

(1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character) (1 character)

Page 18

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ Symbology ID Transmission ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Symbology ID Transmission

SS SS SS SS SS SS SS

Disable symbology ID transmission



Enable prefix CINO symbology ID transmission Enable suffix CINO symbology ID transmission Enable both prefix and suffix CINO symbology ID transmission Enable prefix AIM symbology ID transmission Enable suffix AIM symbology ID transmission Enable both prefix and suffix AIM symbology ID transmission

0 1 2 3 4 5 6

Page 19

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ Readable Bar Code Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Readable Symbology Setting

CS CS CS CS CS CS CS CS CS CS CS CS CS CS CS CS CS CS CS CS CS CS CS

Auto



Code 128 * UPC-A * UPC-E * EAN-13 * EAN-8 * Codabar/NW-7 * Code 39 * Trioptic Code 39 Standard/Industrial 2 of 5 Matrix 2 of 5 Interleaved 2 of 5 * China Postal Code German Postal Code Code 93 * Code 11 MSI/Plessey UK/Plessey Telepen GS1 DataBar (RSS-14) * IATA PDF417/Micro PDF417 Codablock F Korea Post Code

00 01 02 03 04 05 06 07 47 08 38 48 58 68 09 10 11 12 13 14 15 17 18 21



If your application is known, you may select those known symbologies only to increase the reading speed and decrease the possibility of reading error. Furthermore, to add the “Symbology ID” into the transmitted data is also helpful to identify the specific symbology.



Above symbologies marketed with * are enable as default. When you select “Auto”, the imager only read those symbologies marked with *.



When you set the minimum and maximum length of each symbology, please note the data length of scanned bar code doesn’t include star/stop characters.

Remember to scan “FIN” to terminate

this selection. But if you select the

“ Auto ”, FuzzyScan will terminate this

selection automatically.

Page 20

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ Code 39/Code 32 Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Code 39 Family Setting

SS SS SS SS SS SS SS SS SS SS SS SS SS SS SS

Disable Code 39 Enable Code 39 Select Standard Code 39 as primary format  Select Full ASCII Code 39 as primary format Select Code 32 (PARAF, Italian Pharmaceutical) as primary format Disable start/stop symbol transmission  Enable start/stop symbol transmission Disable Code 32 leading A transmission  Enable Code 32 leading A transmission Disable MOD 43 check digit verification  Enable MOD 43 check digit verification Disable check digit transmission  Enable check digit transmission Disable Code 39 buffering  Enable Code 39 buffering

0 1 2 3 4 5 6 7 8 9 A B C D E

Trioptic Code 39 Setting

SS SS

Disable Trioptic Code 39



Enable Trioptic Code 39

0 1

Code 39 Min. Length

Default (01)



01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Code 39 Max. Length

Default (98)



98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)



Trioptic Code 39 and Code 39 Full ASCII cannot be enabled simultaneously.

Page 21

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ Code 39 Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Code 39 Security Level

SS SS SS SS

Level 0 Level 1 Level 2  Level 3

0 1 2 3



Code 39 Security Level

The scanner offers four levels of decode security for Code39 bar codes: Level 0: If you are experiencing misread of poorly-printed or serious out-of-spec. bar codes in level 1, please select level 0. Level 1: If you are experiencing misread of poorly-printed or out-of-spec. bar codes in level 2, please select level 1.

Level 2: This is the default setting which allows the scanner to operate fastest, while providing sufficient security in decoding “in-spec” Code39 bar codes. Level 3: If you failed to read poorly-printed or out-of-spec. bar codes in level 2, please select level 3. This is the most aggressive setting and may increase the misread.

Page 22

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ Codabar/NW-7 Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Codabar Setting

SS SS SS SS SS SS SS SS SS SS SS SS SS SS SS

Disable Codabar Enable Codabar  Select Codabar standard format  Select Codabar ABC format Select Codabar CLSI format Select Codabar CX format Disable start/stop symbol transmission  Enable ABCD/ABCD start/stop symbol transmission Enable abcd/abcd start/stop symbol transmission Enable ABCD/TN*E start/stop symbol transmission Enable abcd/tn*e start/stop symbol transmission Disable check digit verification  Enable check digit verification Disable check digit transmission  Enable check digit transmission

0 1 2 3 4 5 6 7 8 9 A B C D E

Codabar Min. Length

Default (04)



01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Codabar Max. Length

Default (98)



98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Page 23

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

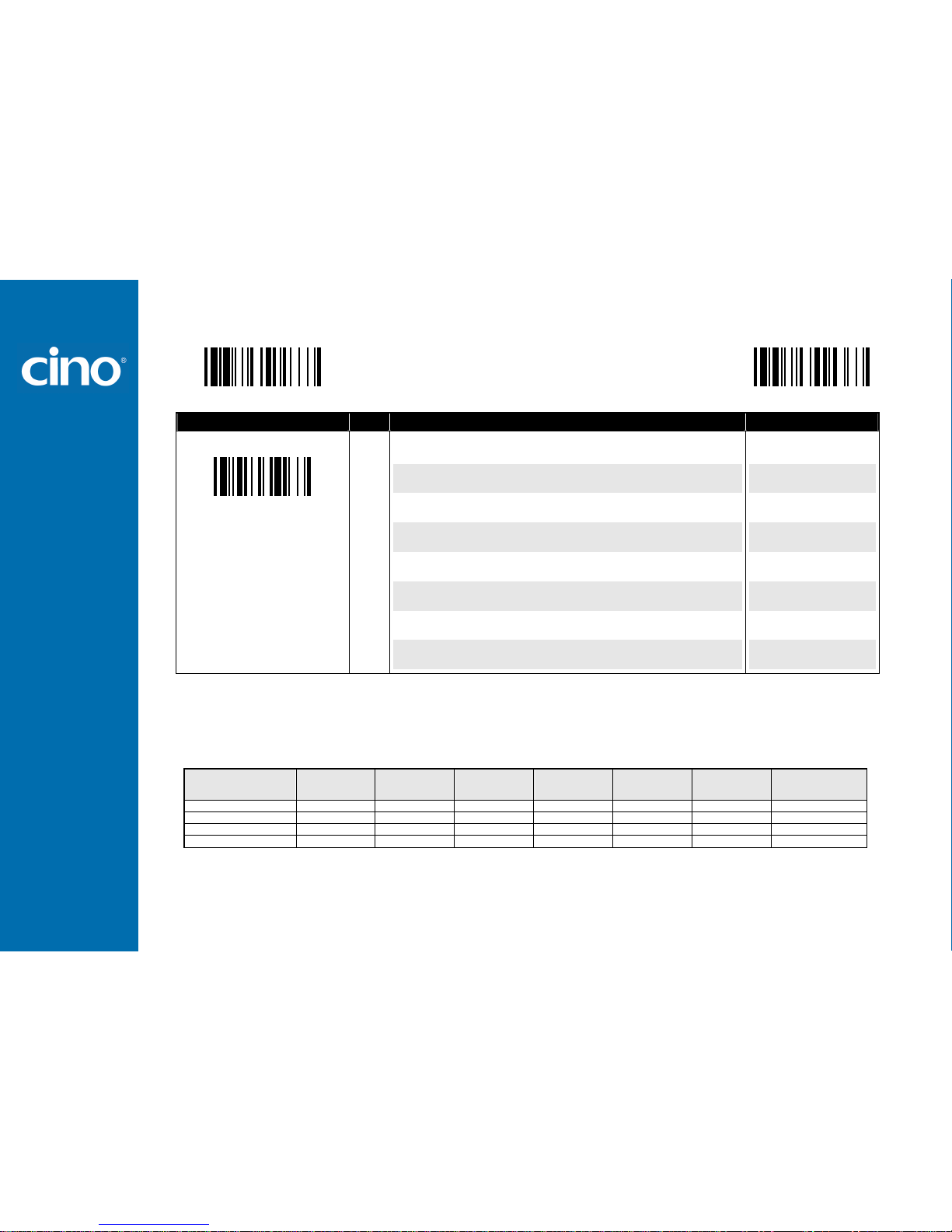

♦♦♦♦ UPC-A & UPC-E Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

UPC Family Setting

SS SS SS SS SS SS SS SS SS SS SS SS SS SS SS SS

Disable UPC-A Enable UPC-A  Disable UPC-E Enable UPC-E  Disable UPC-E expansion



Enable UPC-E expansion Disable UPC standardization



Enable UPC standardization Disable UPC numeric system Enable UPC numeric system



Disable UPC-A check digit transmission Enable UPC-A check digit transmission



Disable UPC-E check digit transmission Enable UPC-E check digit transmission



Disable UPC “leading 1” portion



Enable UPC “leading 1” portion

0 1 2 3 4 5 6 7 8 9 A B C D E F



When enable UPC-E expansion, the UPC-E decoded data will be converted to UPC-A format and affected by related setting, such as UPC standardization, UPC numeric system, UPC-A check digit transmission.



UPC-E & EAN-8 Expansion : Expand the 8-digit UPC-E and 8-digit ENA-8 to 12-digit UPC-A and 13-digit EAN-13.



UPC-A Standardization : Expand the 12-digit UPC-A to 13-digit EAN-13 with 1 zero insertion.



UPC Lead 1 Numeric System : Enable to read UPC leading with the 1 numeric system, you must enable this option.

WPC Selection

(UPC/EAN/CAN)

Basic Length

Disable

Check Digit

Disable

Numeric System

With 2-digit

Addendum

With 5-digit

Addendum

Enable

Standardization

Enable

Expansion

UPC-A 12 - 1 - 1 + 2 + 5 + 1 0

UPC-E 8 - 1 - 1 + 2 + 5 + 1 + 4

EAN-13 13 - 1 NC + 2 + 5 NC 0

EAN-8 8 - 1 NC + 2 + 5 NC + 5

Page 24

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ UPC-A & UPC-E Setting , Supplement Scan Voting♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

UPC Supplement Setting

SS SS SS SS SS SS SS SS

Select UPC without supplement digits



Select UPC with only 2 supplement digits Select UPC with only 5 supplement digits Select UPC with 2/5 supplement digits Disable force supplement digits output



Enable force supplement digits output UPC Family Addenda Separator Off



UPC Family Addenda Separator On

0 1 2 3 4 5 6 7

UPC/EAN Security Level

SS SS

Level 0 Level 1  Level 2

Only available for UPC-A & EAN-13

0 1

Supplement Scan Voting

SS SS SS SS SS SS SS

None Level 1 Level 2 Level 3





Level 4 Level 5 Level 6

Level 7 Level 8 Level 9 Level 10 Level 11 Level 12 Level 13

0 1 2 3 4 5 6

7 8 9 A B C D



UPC/EAN Security Level

The scanner offers three levels of decode security for UPC/EAN bar codes: Level 0: If you are experiencing misread of poorly-printed or out-of-spec. bar codes, especially in characters 1, 2, 7, and 8 in level 1, please select level 0. Selection of this

security level may significantly impair the decoding ability of the scanner. Level 1: This is the default setting which allows the scanner to operate fastest, while providing sufficient security in decoding “in-spec” UPC/EAN bar codes. Level 2: If you are experiencing misread of poorly-printed, soiled or damage bar codes in level 1, please select level 2. This is the most aggressive setting and may

increase the misread.



The Supplement Scan Voting is the number of times the same UPC/EAN with 2/5 supplement digits has to be decoded before it is transmitted. It is helpful when decoding

a mix of UPC/EAN symbols with and without supplement digits. This function is effective when you select UPC/EAN with only 2 supplement digits, UPC/EAN with only 5 supplement digits or UPC/EAN with 2/5 supplement digits. The default value is Level 3. When you select higher level, it may impact the reading speed on poorly-printed, low contrast or damage barcode labels.

Page 25

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ EAN Setting , Supplement , Supplement Scan Voting♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

EAN Setting

SS SS SS SS SS SS SS SS SS SS SS SS

Disable EAN-13 Enable EAN-13  Disable EAN-8 Enable EAN-8  Disable EAN-8 expansion



Enable EAN-8 expansion Disable EAN-13 check digit transmission Enable EAN-13 check digit transmission



Disable EAN-8 check digit transmission Enable EAN-8 check digit transmission



Disable ISBN/ISSN Conversion reading check



Enable ISBN/ISSN Conversion reading check

0 1 2 3 4 5 6 7 8 9 A B

EAN Supplement Setting

SS SS SS SS SS SS SS SS

Select EAN without supplement digits



Select EAN with only 2 supplement digits Select EAN with only 5 supplement digits Select EAN with 2/5 supplement digits Disable force supplement digits output



Enable force supplement digits output EAN Addenda Separator Off



EAN Addenda Separator On

0 1 2 3 4 5 6 7

Supplement Scan Voting

SS SS SS SS SS SS SS

None Level 1 Level 2 Level 3





Level 4 Level 5 Level 6

Level 7 Level 8 Level 9 Level 10 Level 11 Level 12 Level 13

0 1 2 3 4 5 6

7 8 9 A B C D



The Supplement Scan Voting is the number of times the same UPC/EAN with 2/5 supplement digits has to be decoded before it is transmitted. It is helpful when decoding

Page 26

FuzzyScan Fixed Mount

Scan

Programming Manual



UPC/EAN Security Level The scanner offers three levels of decode security for UPC/EAN bar codes:

Level 0: If you are experiencing misread of poorly-printed or out-of-spec. bar codes, especially in characters 1, 2, 7, and 8 in level 1, please select level 0. Selection of this

increase the misread.



EAN Supplement Control

If you select EAN with only 2, or 5 or 2/5 supplement digits and enable 491 prefix supplement digit output, the scanner will transmit EAN with 2, or 5 or 2/5 supplement

digits bar codes starting with 491 prefix. The EAN without supplement digit will not be transmitted. If you select EAN with only 2, or 5 or 2/5 supplement digits and enable the other except 491 prefix supplement digit output, the scanner will transmit EAN with 2, or 5, or 2/5 supplement digits bar codes starting with specific prefix. The EAN without supplement digit will be transmitted.

PROGRAM

Symbology Reading Control

♦♦♦♦ UPC/EAN Security Level Setting ,

EAN Supplement Control♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

UPC/EAN Security Level

SS SS

Level 0 Level 1  Level 2

Only available for UPC-A & EAN-13

0 1

EAN Supplement Control

SS SS SS SS SS SS SS SS

Disable all specific prefix supplement digital output  Enable all specific prefix supplement digital output Enable 491 Supplement Digit Output Enable 978/979 Supplement Digit Output Enable 977 Supplement Digit Output Enable 378/379 Supplement Digit Output Enable 414/419 Supplement Digit Output Enable 434/439 Supplement Digit Output

0 1 2 3 4 5 6 7

Page 27

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ UCC Coupon Extended Code Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

UCC Coupon Extended Code

SS SS

Disable UCC Coupon Extended Code  Enable UCC Coupon Extended Code

0 1



UCC Coupon Extended Code When UCC coupon extended code function is enabled, scanner decodes UPC-A barcodes starting with digit “5”, EAN-13 barcodes starting with digit “99” and UCC/EAN-128 Coupon Codes. UPC-A, EAN-13 and EAN-128 must be enabled to scan all types of Coupon Codes.

Page 28

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ IATA & Interleaved 2 of 5 Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

IATA Setting

SS SS SS SS SS SS SS SS SS SS SS SS SS

Disable IATA  Enable IATA Select 15-digit fixed length IATA checking  Select variable length IATA Disable check digit verification  Enable check digit automatic verification Enable S/N checking digit verification only Enable CPN checking digit verification only Enable CPN, Airline and S/N check digit verification Disable check digit transmission  Enable check digit transmission Disable start/stop symbol transmission



Enable start/stop symbol transmission

0 1 2 3 4 5 6 7 8 9 A B C

Interleaved 2 of 5 Setting

SS SS SS SS SS SS SS SS SS

Disable Interleaved 2 of 5 Enable Interleaved 2 of 5  Select Interleaved 2 of 5 as primary format  Select German Postal Code as primary format No check character  Validate USS check digit Validate OPCC check digit Disable check digit transmission  Enable check digit transmission

0 1 2 3 4 5 6 7 8

Page 29

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ Code 25 Family Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Code 25 Setting

SS SS SS SS SS SS SS SS SS SS

Disable Standard/Industrial 2 of 5  Enable Standard/Industrial 2 of 5 Disable Matrix 2 of 5  Enable Matrix 2 of 5 Disable China Postal Code  Enable China Postal Code Disable check digit verification



Enable check digit verification Disable check digit transmission  Enable check digit transmission

0 1 2 3 4 5 6 7 8 9

Code 25 Family Min. Length

Default (04)



01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Code 25 Family Max. Length

Default (98)



98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)



For Code25 setting, we recommend you to select only one type of Code 25 or set the maximum/minimum bar code length. To decode all types of Code 25 or to variable length of Code 25 will increase the possibility of reading error.

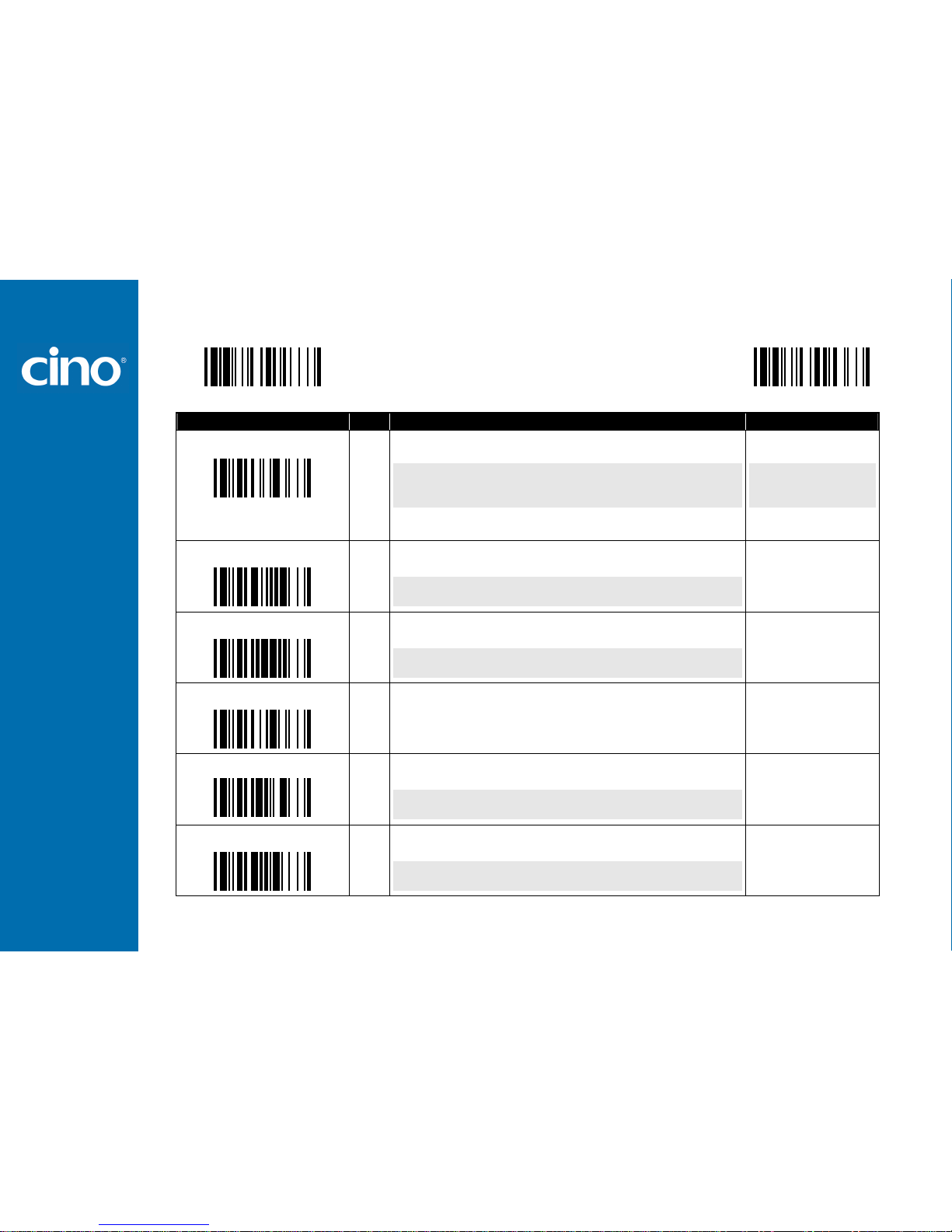

Page 30

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ Code 11 & Code 93 Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Code 11 Setting

SS SS SS SS SS SS SS

Disable Code 11  Enable Code 11 Disable check digit verification  Select 1-check digit verification Select 2-check digit verification Disable check digit transmission



Enable check digit transmission

0 1 2 3 4 5 6

Code 11 Min. Length

Default (04)



01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Code 11 Max. Length

Default (98)



98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Code 93 Setting

SS SS SS SS

Disable Code 93 Enable Code 93  Disable check digit transmission  Enable check digit transmission

0 1 2 3

Code 93 Min. Length

Default (01)



01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Code 93 Max. Length

Default (98)



98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Page 31

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ MSI/Plessey Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

MSI/Plessey Setting

SS SS SS SS SS SS SS

Disable MSI/Plessy  Enable MSI/Plessy Select MOD 10 check digit



Select MOD 10-10 check digit Select MOD 11-10 check digit Disable check digit transmission  Enable check digit transmission

0 1 2 3 4 5 6

MSI/Plessey Min. Length

Default (04)



01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

MSI/Plessey Max. Length

Default (98)



98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Page 32

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ Code 128 & UCC/EAN 128 Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Code 128/EAN-128 Setting

SS SS SS SS SS SS

Disable Code 128 and UCC/EAN-128 Enable Code 128 and UCC/EAN-128  Disable function code conversion



Enable function code conversion ISBT Concatenation Off  ISBT Concatenation On

0 1 2 3 4 5

Code 128/EAN-128 Min. Length

Default (01)



01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Code 128/EAN-128 Max. Length

Default (98)



98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Page 33

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ UK/Plessey Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

UK/Plessey Setting

SS SS SS SS SS SS SS SS

Disable UK/Plessey  Enable UK/Plessey Select UK/Plessey Standard Format



Select UK/Plessey CLSI Format Disable Convert X to A-F



Enable Convert X to A-F Disable check digit transmission



Enable check digit transmission

0 1 2 3 4 5 6 7

UK/Plessey Min. Length

Default (04)



01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

UK/Plessey Max. Length

Default (98)



98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Page 34

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ Telepen Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Telepen Setting

SS SS SS SS SS SS

Disable Telepen  Enable Telepen Select Telepen Numeric mode



Select Telepen Full ASCII mode Disable check digit transmission



Enable check digit transmission

0 1 2 3 4 5

Telepen Min. Length

Default (04)



01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Telepen Max. Length

Default (98)



98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Page 35

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ GS1 DataBar Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

GS1 DataBar Setting

SS SS SS SS SS SS

Disable GS1 DataBar (RSS-14) Enable GS1 DataBar (RSS-14)  Disable GS1 DataBar Limited Enable GS1 DataBar Limited  Disable GS1 DataBar Expanded Enable GS1 DataBar Expanded 

0 1 2 3 4 5

GS1 DataBar Min. Length

Default (04)



01-Maximum

Only available for Expanded GS1 Databar.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

GS1 DataBar Max. Length

Default (74)



74-Minimum

Only available for Expanded GS1 Databar.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Page 36

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Symbology Reading Control

♦♦♦♦ Linear-stacked & Korea Post Code Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Composite Codes Setting

SS SS SS SS

Disable composite codes  Enable composite codes UPC Composite Mode: UPC never linked  UPC Composite Mode: UPC always linked

0 1 2 3

PDF417/MicroPDF417 Setting

SS SS SS SS

Disable PDF417 Enable PDF417  Disable MicroPDF417  Enable MicroPDF417

0 1 2 3

Codablock F Setting

SS SS

Disable  Enable

0 1

Korea Post Code Setting

SS SS

Disable  Enable

Length fixed in 6 characters.

0 1



Composite Codes Setting If UPC Composite Mode: UPC never linked is selected, UPC barcodes are transmitted regardless of whether a MicroPDF417 symbol is detected. If UPC Composite Mode: UPC always linked is selected, UPC barcodes are only transmitted when the MicroPDF417 is detected.

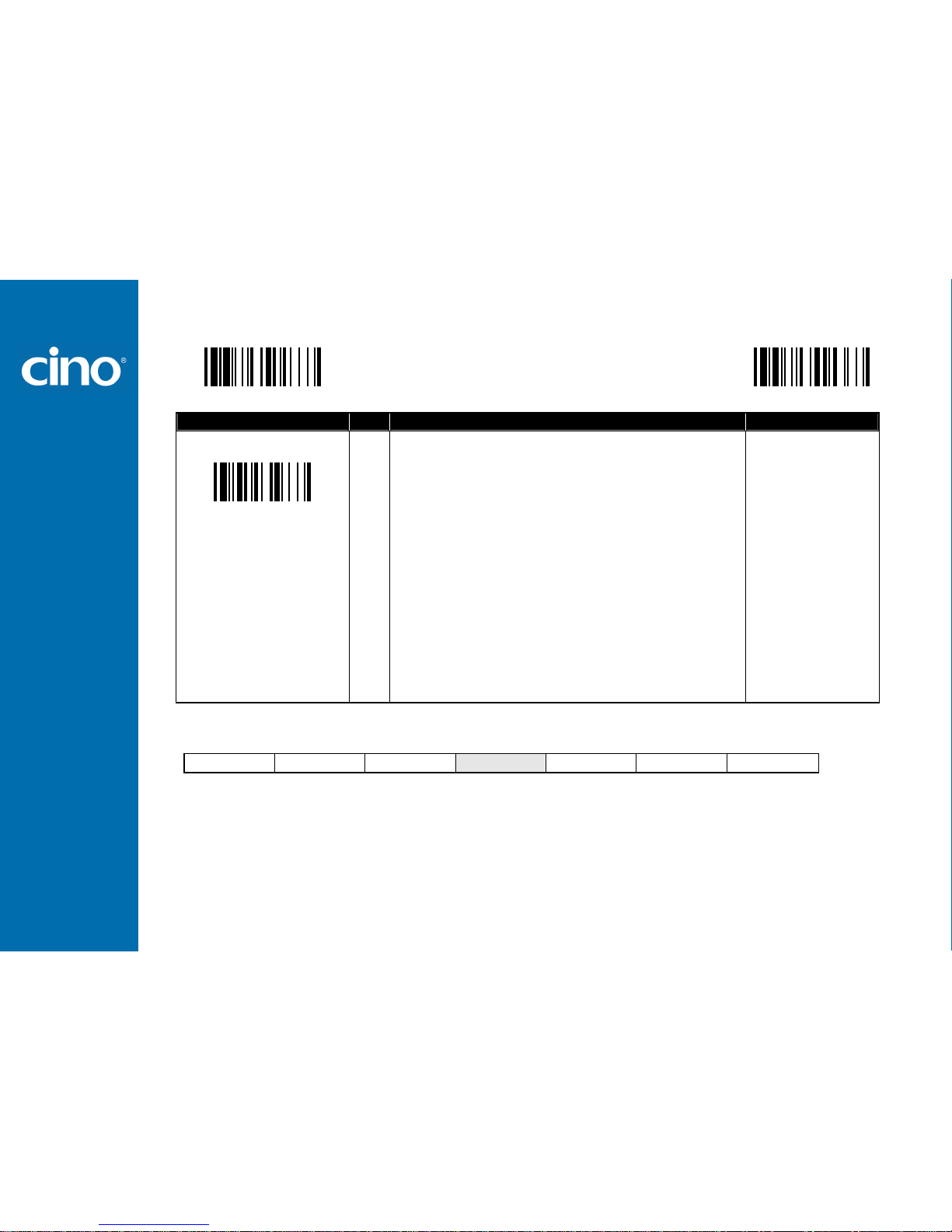

Page 37

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Keyboard Interface Control

♦♦♦♦ Keyboard Layout (Language) Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Keyboard Layout

SS SS SS SS SS SS SS SS SS SS SS SS SS SS SS SS SS SS

USA (QWERTY)



France (AZERTY) Germany (QWERTZ) United Kingdom - UK (QWERTY) Canadian French (QWERTY) Spain (Spanish, QWERTY) Sweden/Finland (QWERTY) Portugal (QWERTY) Norway (QWERTY) Spain (Latin America, QWERTY) Italy (QWERTY) Netherlands (QWERTY) Denmark (QWERTY) Belgium (AZERTY) Switzerland-Germany (QWERTY) Iceland (QWERTY) Japan (DOS/V) Czech (QWERTY)

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17



Please refer to the ASCII/HEX Table listed in the Appendix to determine HEX codes for characters, symbols, and functions to be used as preamble or postamble.



To set preamble or postamble as function key output, you must enable the “Function Key Emulation” feature as listed in page 3-25 first.



Keyboard Interface Message String :

Preamble Data Length Prefix Symbol ID Scanned Data Suffix Symbol ID Postamble Record Suffix

1-15 characters 2-3 digits 1 or 2 characters Variable length 1 or 2 characters 1-15 characters 1 character

Page 38

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Keyboard Interface Control

♦♦♦♦ Record Suffix, Preamble, Postamble & Caps Lock ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Record Suffix

SS SS SS SS SS SS

None RETURN



TAB SPACE ENTER (Numeric Key Pad) User defined character (1 character)

0 1 2 3 4

5, (00-7F)

Preamble

None



1-15 characters

Maximum 15-character input; scan “FIN” to terminate this selection.

FIN

[00-7F], [FIN]

Postamble

None



1-15 characters

Maximum 15-character input; scan “FIN” to terminate this selection.

FIN

[00-7F], [FIN]

Caps Lock Control

SS SS SS

“Caps Lock Off” State



“Caps Lock On” State Auto Detect (PC/AT, PS/2, Keyboard Replacement and DOS/V Machines only)

0 1 2

Caps Lock Release Control

SS SS

“Caps Lock On, Caps Off”  “Caps Lock On, Shift Off”

0 1



The function of “Caps Lock Control” and “Key Pad Emulation” are only available for IBM PC/AT, PS/VP, PS/2 series personal computers and compatible machines. While selecting the other host interfaces, these selections don’t perform the above functions for you.



Please check the actual Caps Lock state in use while software application is running. If the Caps Lock state is off, select “Caps Lock Off” state, then FuzzyScan will perform normal data transmission. If the Caps Lock state is on, select “Caps Lock On” state. Select “Auto Detect”, FuzzyScan will perform special transmission handshaking without changing the status of Caps Lock switch.

Page 39

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Keyboard Interface Control

♦♦♦♦ Delay Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Intermessage Delay

None



1-99 (x5) msec.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Intercharacter Delay

None



1-99 (x5) msec.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Interfunction Delay

None



1-99 (x5) msec.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)



Intermessage Delay is a time delay between messages output by FuzzyScan. Increasing this delay will help host applications process the incoming data on time.



Intercharacter Delay is a time delay between data characters output by FuzzyScan. These two parameters are used to synchronize data communication when : 1) the data

transmission speed is too fast, characters may be skipped; 2) multitasking operation system or host computers in a network may slow down the keyboard handling; 3) various notebook or desktop PC systems require different timing parameter settings. Please always add one extra unit as safety margin when adjusting these two parameters.



Interfunction Delay is a time delay between the transmission of each segment of the message string.

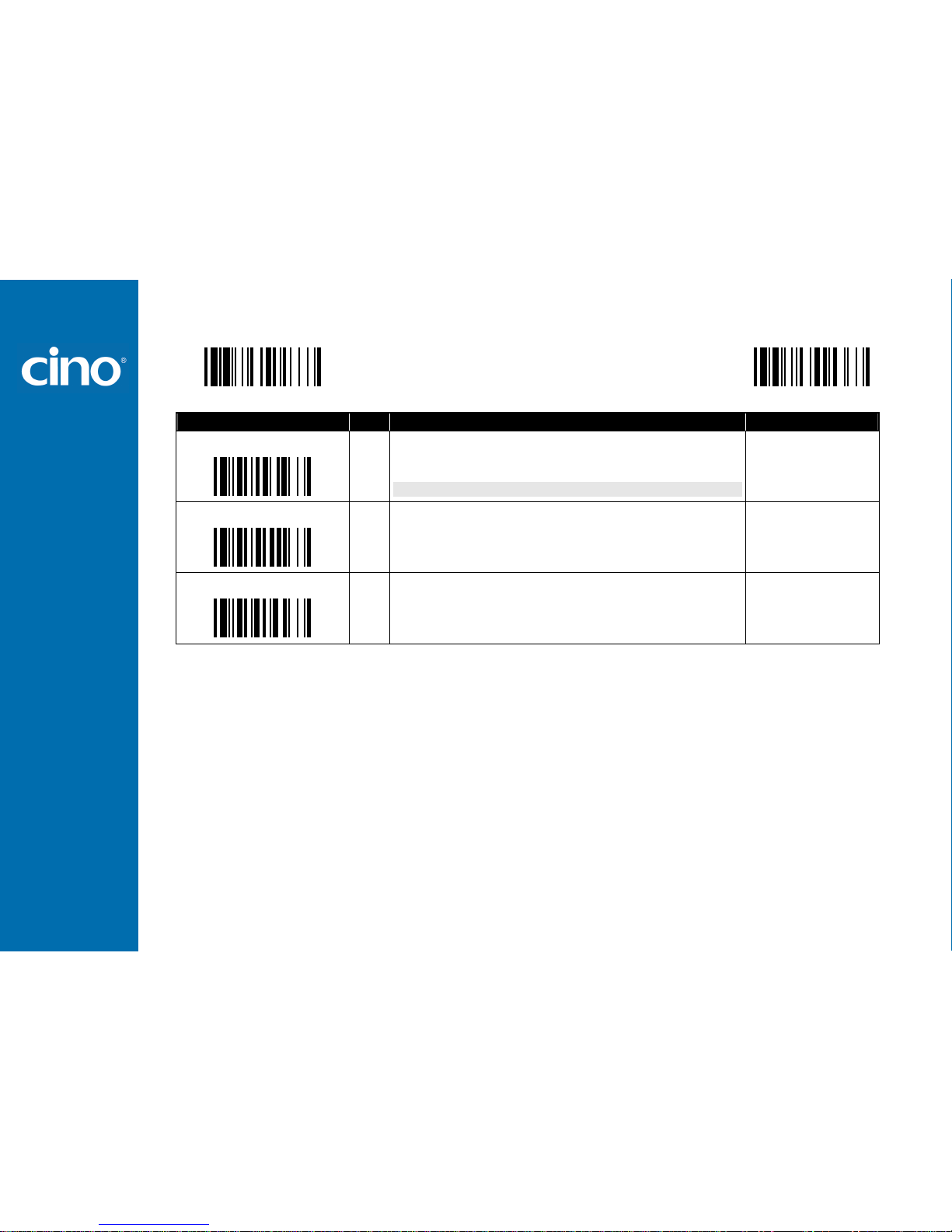

Page 40

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Keyboard Interface Control

♦♦♦♦ Emulation Setting & Upper/Lower Case Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Function Key Emulation

SS SS

Enable ASCII 00-31 code as keyboard function code output



Ctrl-Output

Refer to Appendix – Keyboard Function Code Table for details.

0 1

Key Pad Emulation

SS SS

Disable key pad emulation



Enable numeric output as key pad (Num Lock On) output

0 1

Upper/Lower Case

SS SS SS SS

Normal case (neglect the upper/lower case control)



Inverse case (change all characters output to inverse case) Upper case (force all characters output as upper case) Lower case (force all characters output as lower case)

0 1 2 3

Page 41

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Serial Interface Control

♦♦♦♦ Record Suffix, Preamble, Postamble Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

STX/ETX Control

SS SS

Disable STX/ETX transmission



Enable STX/ETX transmission

STX/ETX are two characters used to indicate the starting and ending of the total data frame transmitted via serial interface.

0 1

Record Suffix

SS SS SS SS SS SS

None CR (0DH)



LF (0AH) CRLF (0D0AH) TAB (09H) SPACE (20H) User defined character (1 character)

0 1 2 3 4 5

6, (00-7F)

Preamble

None



1-15 characters

Maximum 15-character input; scan “FIN” to terminate this selection.

FIN

[00-7F], [FIN]

Postamble

None



1-15 characters

Maximum 15-character input; scan “FIN” to terminate this selection.

FIN

[00-7F], [FIN]



Serial Interface Message String (RS232, USB COM) :

STX Preamble Data Length Prefix Symbol ID Scanned Data Suffix Symbol ID Postamble ETX Record Suffix

1 character

1-15 characters 2-3 digits 1 or 2 characters Variable length 1 or 2 characters 1-15 characters 1 character 1 character

Page 42

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Serial Interface Control

♦♦♦♦ Delay Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Intermessage Delay

None



1-99 (x5) msec.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Intercharacter Delay

None



1-99 (x5) msec.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)

Interfunction Delay

None



1-99 (x5) msec.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

FIN

(2 digits)



Intermessage Delay is a time delay between messages output by FuzzyScan. Increasing this delay will help host applications process the incoming data on time.



Intercharacter Delay is a time delay between data characters output by FuzzyScan. These two parameters are used to synchronize data communication when : 1) the data



Interfunction Delay is a time delay between the transmission of each segment of the message string.

Page 43

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Serial Interface Control

♦♦♦♦ Protocol, ACK/NAK Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Handshaking Protocol

SS SS SS SS

None (free running mode)



RTS/CTS (hardware handshaking) ACK/NAK (software handshaking) Xon/Xoff (software handshaking)

0 1 2 3

NAK Retry Count

SS SS

3 times  0~255 times

FIN

(3 digits)

ACK/NAK Transmission Indication

SS SS

Disable Enable 

0 1



USB COM doesn’t support RTS/CTS handshaking protocol.



When the ACK/NAK Software Handshaking option is selected, the FuzzyScan waits for an ACK (acknowledge) or NAK (not acknowledge) from the host computer after each data transmission. If the NAK is received, FuzzyScan will re-send the data until receiving ACK.



NAK Retry Count

After transmitting data, the scanner expects a NAK response from the host up to the preset “Serial Response Time-out”. If the scanner doesn’t get a response, the scanner will issue an error indication and discard the data. When a NAK is received, the scanner transmits the same data again and waits for either an ACK or NAK. The scanner issues an error indication and discards the data under following two conditions:

1) After preset NAK retry counts is received within the preset serial response time-out.

2) If the preset time-out is up but the preset NAK retry counts haven’t come to the end. The default retry counts are three times. If you program “0 time”, the scanner won’t resend the data to the host when the scanner receives a NAK. The scanner will discard

the data. If you program “255 times”, the scanner can receive unlimited NAKs from the host within the pre-set serial response time-out. This function is not available for batch mode. When you enable this function in on-line mode, the out-of-range function will be disable automatically.



ACK/NAK Transmission Indication: Disable: There’s neither LED nor beeping indication for this setting. Enable: There’s a specific LED and beeping indication for this setting.

Page 44

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Serial Interface Control

♦♦♦♦Time Out Setting, Baud Rate, Data Frame♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Serial Response Time-out

SS SS SS

None 200 mseconds 500 mseconds



1 second 2 seconds 5 seconds User defined value (seconds)

0 1 2

3 4 5

6, (2 digits)

Baud Rate (BPS)

SS SS SS SS

38.4K BPS

19.2K BPS 9600 BPS



4800 BPS

2400 BPS 1200 BPS

57.6K BPS

115.2K BPS

0 1 2 3

4 5 8 9

Data Frame

SS SS SS SS SS SS SS SS

8, None, 1



8, Odd, 1 8, Even, 1 8, Space, 1 8, Mark, 1 8, None, 2 7, Odd, 1 7, Even, 1

7, Space, 1 7, Mark, 1 7, None, 2 7, Odd, 2 7, Even, 2 7, Space, 2 7, Mark, 2

0 1 2 3 4 5 6 7

8 9 A B C D E



When the RTS/CTS Hardware Handshaking option is selected, the RTS (request to send) and CTS (clear to send) signals will be issued before normal data communication. This option is very helpful to ensure the reliability of data communication.



The Serial Response Time-out is a pre-defined delay time for FuzzyScan to wait for handshaking, acknowledgment or non-acknowledgment from the host computer.

Page 45

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Operation Control

♦♦♦♦ Operation Mode Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Operation Mode

SS SS SS SS SS

Trigger mode



Presentation mode Alternative mode Force mode Level mode

1 2 3 5 8



Trigger Mode (External Triggering) When the scanner receives an external trigger or a serial trigger ON command under trigger mode, the scanner will turn on the light

source to read barcode until gets a good read, a serial trigger OFF command or a release of external trigger. Once the light source goes off, the scanner is waiting for the next trigger to activate scanning again.



Presentation Mode (Auto Detection) Under presentation mode, the scanner will automatically detect the object movement in the scanner field of view. Once the scanner

detected a similar barcode image, the scanner will turn on the light source to read barcodes until the preset scan input time-out is up. For dark environments, you may adjust the setting of “Presentation Sensitivity” to increase the detection sensitivity



Alternative Mode (Periodic Power Off) When the scanner receives an external trigger or a serial trigger ON command under alternative mode, the scanner will turn on the

light source to read barcodes until the preset scan input time-out is up. The scan input time-out will be reset after each good read. Once the light source goes off, the scanner is waiting for the next trigger to activate scanning again.



Force Mode (Continued Power On) Under force mode, the scanner continues to read barcodes without using external trigger or serial trigger. Please note that the scanner

will not stop reading until you switch into another operation mode.



Level Mode (Auto Power Off) When the scanner receives an external trigger or a serial trigger ON command under level mode, the scanner will turn on the light source to

read barcodes until a good read is performed or the preset scan input time-out is up. Once the light source goes off, the scanner is waiting for the next trigger to activate scanning again.

Page 46

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Operation Control

♦♦♦♦ Buzzer, Indicator, Inverse Reading♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Buzzer Tone Adjust

SS SS SS SS SS SS SS

Buzzer tone – mute Buzzer tone – low Buzzer tone – medium



Buzzer tone – high Buzzer tone - extremely high Power-on beep  No power-on beep

0 1 2 3 4 5 6

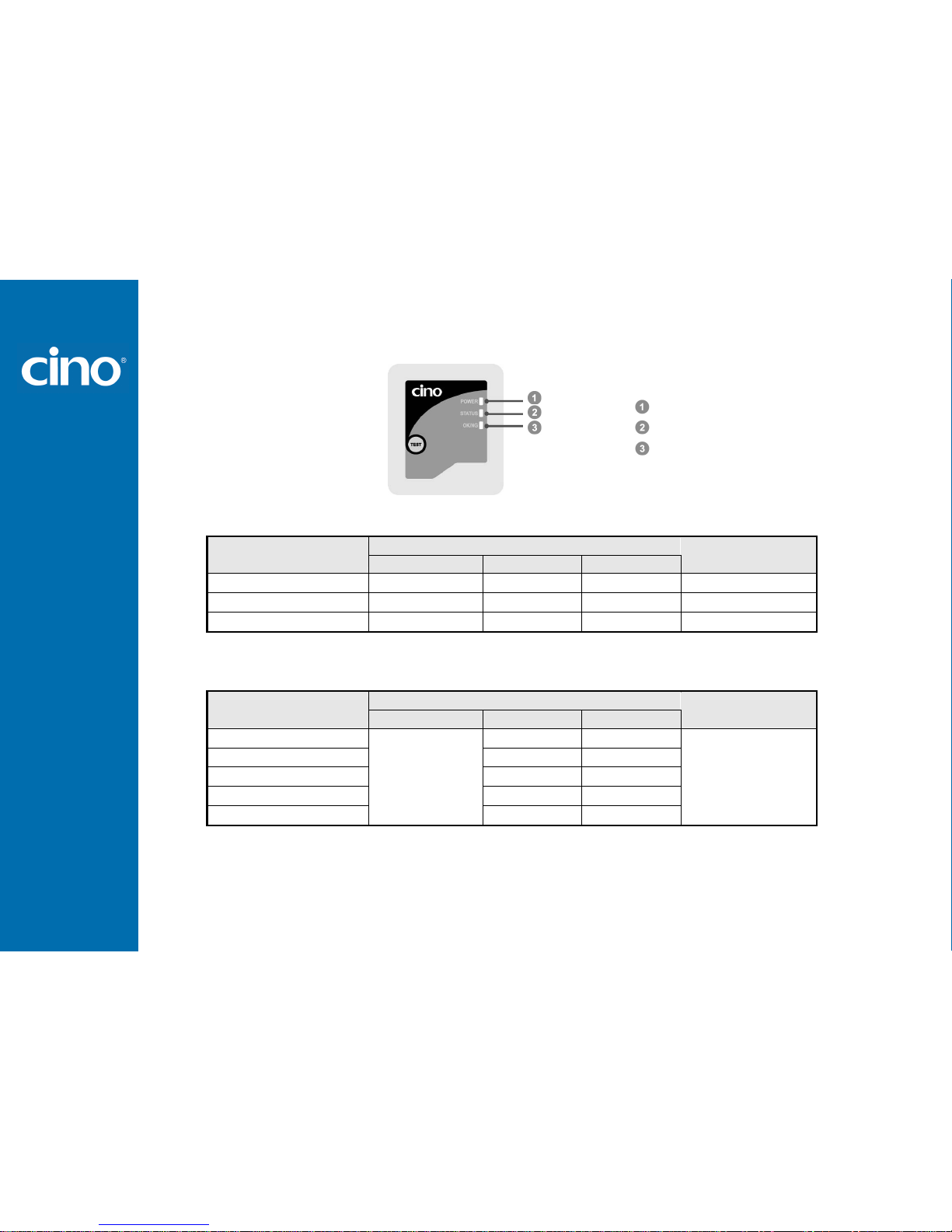

Power On Indicator

SS SS

Disable (LED off) LED steady on



LED flash

0 1 2

Good Read Indicator

SS SS

Disable Enable 

Inverse Reading

SS SS

Disable  Enable

0 1

Page 47

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Operation Control

♦♦♦♦Dollar Sign, Redundancy, Scan Rate Control ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Dollar Sign Control

SS SS SS SS SS

Dollar sign output as “ $ “  Dollar sign output as “￥“ Dollar sign output as “ € “ Dollar sign output as “ £ “ Dollar sign output as “ ¢ “

0 1 2 3 4

Redundancy

SS SS SS SS SS SS

None Level 1  Level 2 Level 3 Level 4 Level 5 To prevent potential miss reading.

0 1 2 3 4 5

Scan Rate Control

SS SS

Dynamic  Fixed

0 1



The Redundancy is the number of times the same bar code label has to be decoded before it is transmitted.



Scan Rate Control: The scanner will have better motion tolerance when you select “Fixed” scan rate. It’s suitable for application which needs higher motion tolerance on

the move. But this may impact to the reading distance.

Page 48

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Operation Control

♦♦♦♦ Delay Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Reread Delay

(Double San Verification)

SS SS SS SS SS SS

Disable Immediate time out  Short time out Medium time out Long time out Force verification

0 1 2 3 4 5

Good Read Delay

SS SS SS SS SS SS SS

None  200 msec. 500 msec. 1 sec.

1.5 sec. 2 sec. 3 sec.

0 1 2 3 4 5 6



The Reread Delay (Double Scan Verification) is designed to inhibit FuzzyScan from reading the same bar code label twice in pre-defined short duration. Force Verification will not allow reading of the same bar code twice.



This Good Read Delay is the minimum amount of time before the imager can read another bar code.

 

Page 49

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Operation Control

♦♦♦♦ Time-out and Duration Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Scan Input Time-out

SS SS SS SS SS

100 msec. 200 msec. 300 msec. 400 msec. 500 msec.

600 msec. 700 msec. 800 msec. 900 msec. 

User define: 1-99 sec.

0 1 2 3 4

5 6 7 8

9, (2digits)

Hands Free Time-out

SS SS SS SS SS

Short  Medium Long Extremely long Disable

0 1 2 3 4

Good Read Duration

SS SS SS SS SS

Short Medium  Long Extremely long Extremely short

0 1 2 3 4



The Scan Input Time-out is a preset light source time out counter for Alternative Mode, Presentation Mode and Level Mode. The scanner keeps the light source on till the preset light source on time is up. You can adjust this parameter to meet your own application requirement.



The presentation mode and force mode will be automatically changed to manual trigger mode when you activate the trigger. You can remain the scanner in manual trigger mode by setting the Hands Free Time-Out. Once the time-out duration is up (if there’s no any trigger operation), the imager will revert to the original presentation or force mode.

Page 50

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Operation Control

♦♦♦♦ Presentation Scanning Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Presentation Sensitivity

SS SS SS SS SS

Level 1 Level 2 Level 3 Level 4 Level 5 

Level 6 Level 7

0 1 2 3 4

5 6



The presentation sensitivity is used to configure the sensitivity level when the scanner is set as presentation mode. The higher lever means higher sensitivity for detecting

the barcode.

Page 51

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Operation Control

♦♦♦♦ OK/NG Signal and Beeping Control ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

OK/NG Signal Active State

SS SS SS SS

OK low/NG low  OK low/NG high OK high/NG low OK high/NG high

0 1 2 3

OK/NG Signal Output Control

SS SS SS SS

Disable OK and NG output Enable NG output Enable OK output Enable OK and NG output 

0 1 2 3

NG Message Output

SS SS SS

None Message “NG” User defined message (1~15 characters)

Maximum 15-character input ; scan “FIN” to terminate this section.

0 1

2,［00- 7F］

OK/NG Signal Duration

SS SS SS SS SS

10 msec. 20 msec. 30 msec. 40 msec. 50 msec.

60 msec. 70 msec. 80 msec. 90 msec. 100 msec.  User define: 1-99 (x50) msec.

0 1 2 3 4

5 6 7 8 9

A, (2 digits)

OK/NG Beeping Control

SS SS SS SS

Disable OK and NG beep Enable OK and NG beep  Enable OK beep and disable NG beep Enable NG beep and disable OK beep

0 1 2 3

Page 52

FuzzyScan Fixed Mount

Scan

Programming Manual



The OK/NG Signal Active State can control the logic level in digit circuits design, you can adjust the active-high or active-low state for OK and NG signal outputs. The OK and NG signals are NPN outputs.



The OK/NG Signal Output Control can control the OK/NG signal outputs and OK/NG indications of the scanner. If you disable OK or NG signal output, the scanner OK or NG indication will be disabled.



The OK/NG Signal Duration can control the OK/NG signal duration and OK/NG indication duration of the scanner.

Page 53

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Condensed DataWizard

♦♦♦♦ Preamble, Postamble, Data Length & Symbol ID Trans. ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Preamble

None



1-15 characters

Maximum 15-character input; scan “FIN” to terminate this selection.

FIN

[00-7F], [FIN]

Postamble

None



1-15 characters

Maximum 15-character input; scan “FIN” to terminate this selection.

FIN

[00-7F], [FIN]

Data Length Transmission

SS SS

Disable



Enable 2 digits data length transmission

If data length exceeds 99, 3-digit data length will be transmitted.

0 1

Symbology ID Transmission

SS SS SS SS SS SS SS

Disable symbology ID transmission



Enable prefix symbology ID transmission Enable suffix symbology ID transmission Enable both prefix and suffix symbology ID transmission Enable prefix AIM symbology ID transmission Enable suffix AIM symbology ID transmission Enable both prefix and suffix AIM symbology ID transmission

0 1 2 3 4 5 6



DataWizard is the most powerful, Artificial-Intelligence based data editing expert system provided specially for the FuzzyScan family bar code readers. Through DataWizard, you can process the scanned data prior the transmissions in many ways as: Insert, Delete, Match, Verify, Replace, Reorganize, and Repeat Transmission. It will help you to arrange the transmission of scanned data to any specific format without software modification.



Due to the resources used by this system, Full-feature DataWizard is only supported by PowerTool. Through the PowerTool, all settings and configurations can be done on-screen, under Windows 95/98/NT/2000/XP environment.



A Condensed Version DataWizard is provided by each FuzzyScan series. Through this menu, the condensed DataWizard can be utilized via bar code menu readings with ease.



Please note that all “Character” input should be referred to the ASCII/HEX Table listed in Appendix to find matched HEX value.



If you have any problem to use DataWizard, please refer to following pages for details and consult your local FuzzyScan vendor or our web site for any assistance.

Page 54

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Condensed DataWizard

♦♦♦♦ Data Formatter Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code 2nd Option Code

Formatter Control

MS MS

Disable



Select one bar code symbology Select all bar code symbologies

FIN

(2 digits)

automatic termination automatic termination

1st Insertion

Disable



Enable

2-digits identified position; max. 3 insertion characters

FIN

(2 digits)

position

[1-3 characters], [FIN]

2nd Insertion

Disable



Enable

2-digits identified position; max. 3 insertion characters

FIN

(2 digits)

position

[1-3 characters], [FIN]

3rd Insertion

Disable



Enable

2-digits identified position; max. 3 insertion characters

FIN

(2 digits)

position

[1-3 characters], [FIN]

4th Insertion

Disable



Enable

2-digits identified position; max. 3 insertion characters

FIN

(2 digits)

position

[1-3 characters], [FIN]



The Data Formatter is used to edit the scanned raw data prior to transmitting the data to the host computers or terminals. It allows you to select desired bar code symbologies for formatter control, and provides Multiple Position Insertion and Multiple Character Insertion (max three characters) in the identified position.



While the Data Formatter is enabled, it arranges only scanned data without Preamble, Postamble, STX, ETX, Data Length, Prefix/Suffix Symbology ID or Record Suffix. All of the above programmable parameters perform the same function depending on your setting.



Regarding the “Bar Code Selection” and “Position Calculation” of data formatter, please refer to page 49 for details.



Please note that all “Character” input should be referred to the ASCII/HEX Table listed in Appendix to find matched HEX value.

Page 55

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Condensed DataWizard

♦♦♦♦ Data Verifier Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code 2nd Option Code

Verifier Control

MS MS

Disable



Select one bar code symbology Select all bar code symbologies

FIN

(2 digits)

automatic termination automatic termination

Identified Data Length

Disable



Enable

Determine the identified data length for verification.

FIN

(2 digits)

1st Identified Character

Disable



Enable

2-digits checking position; 1 identified character

FIN

(2 digits)

position

[00-7F]

2nd Identified Character

Disable



Enable

2-digits checking position; 1 identified character

FIN

(2 digits)

position

[00-7F]

3rd Identified Character

Disable



Enable

2-digits checking position; 1 identified character

FIN

(2 digits)

position

[00-7F]



The Data Verifier is used to provide advanced verification for error-free scanning and to work as an Embedded Data Transmitting Filter.



All data must conform to the Identified Bar Code Symbologies, Identified Data Length, and one to three Identified Characters in the checking position. Otherwise, the FuzzyScan will not transmit the data to the host computers or terminals, but will instead issue 3 long beeps for verification error and skip the scanned data.



The Data Verifier checks only scanned data without Preamble, Postamble, STX, ETX, Data Length, Prefix/Suffix Symbology ID or Record Suffix.



Regarding the “Bar Code Selection” and “Position Calculation” of Data Verifier, please refer to page 49 for details.



Please note that all “Character” input should be referred to the ASCII/HEX Table listed in Appendix to find matched HEX value.

Page 56

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Condensed DataWizard

♦♦♦♦ Data Replacer Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code 2nd Option Code

Replacer Control

MS MS

Disable



Select one bar code symbology Select all bar code symbologies

FIN

(2 digits)

automatic termination automatic termination

1st Replacement

Disable



Enable

2-digits identified position; 1 replacement character

FIN

(2 digits)

position

[00-7F]

2nd Replacement

Disable



Enable

2-digits identified position; 1 replacement character

FIN

(2 digits)

position

[00-7F]

3rd Replacement

Disable



Enable

2-digits identified position; 1 replacement character

FIN

(2 digits)

position

[00-7F]



The Data Replacer is used to edit the scanned raw data prior to transmitting the data to the host computers or terminals. It allows you to select desired bar code symbologies for replacer control, and provides Multiple Position Replacement in the identified position.



All data must conform to the Identified Bar Code Symbologies, and one to three Identified Characters in the identified position While the Data Replacer is enabled, it arranges only scanned data without Preamble, Postamble, STX, ETX, Data Length, Prefix/Suffix Symbology ID or Record Suffix.



Regarding the “Bar Code Selection” and “Position Calculation” of Data Replacer, please refer to page 49 for details.



Please note that all “Character” input should be referred to the ASCII/HEX Table listed in Appendix to find matched HEX value.

Page 57

FuzzyScan Fixed Mount

Scan

Programming Manual

PROGRAM

Condensed DataWizard

♦♦♦♦ Data Organizer Setting ♦♦♦♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code 2nd Option Code

Organizer Control

MS MS

Disable



Select one bar code symbology Select all bar code symbologies

FIN

(2 digits)

automatic termination automatic termination

1st Organization

Disable



Enable

2-digits identified position; Forward/backward data transmission setting

FIN

(2 digits)

position

direction

0 (Forward)



1 (Backward)

2nd Organization

Disable



Enable

2-digits identified position; Forward/backward data transmission setting

FIN

(2 digits)

position

direction

0 (Forward)



1 (Backward)

Include/Exclude Control

Transmitted data excluded the data of identified position



Transmitted data included the data of identified position

0 1



The Data Organizer is used to edit the scanned raw data prior to transmitting the data to the host computers or terminals. It allows you to select desired bar code symbologies for organizer control, and provides maximum two identified positions to send the data forward or backward. It also allows you to control the transmitted data including or excluding the data of identification position. Please refer to the application example listed in page 37 for details.



While the Data Organizer is enabled, it arranges only scanned data without Preamble, Postamble, STX, ETX, Data Length, Prefix/Suffix Symbology ID or Record Suffix.



Regarding the “Bar Code Selection” and “Position Calculation” of Data Organizer, please refer to page 49 for details.



Please note that all “Character” input should be referred to the ASCII/HEX Table.

Page 58

FuzzyScan Fixed Mount

Scan

Programming Manual

Select a Bar Code Symbology

Select a Bar Code SymbologySelect a Bar Code Symbology

Select a Bar Code Symbology

You can select one or all types of bar code symbologies to use Condensed DataWizard for advanced transmission arrangement. If you scan “00” to select all types, the FuzzyScan will arrange all incoming data to meet your pre-defined format. If you want to select only one type bar code, please select one of the option code listed below.

Code 128 : 01 UCC/EAN 128 : 31 UPC-A : 02 UPC-A with 2 supple.: 32 UPC-A with 5 supple.: 42 UPC-E : 03 UPC-E with 2 supple.: 33 UPC-E with 5 supple.: 43 EAN-13 : 04 EAN-13 with 2 supple. : 34 EAN-13 with 5 supple. : 44

EAN-8 : 05 EAN-8 with 2 supple : 35 EAN-8 with 5 supple.: 45 Codabar/NW-7 : 06 Code 39 : 07 Code 32 : 37 Trioptic Code 39: 47 Matrix 2 of 5 : 38 Interleaved 2 of 5 : 48 China Postal Code : 58 German Postal Code : 68

Code 93 : 09 Code 11 : 10 MSI/Plessey : 11 UK/Plessey : 12 Telepen : 13 GS1 Data Bar : 14 IATA : 15 Coupon Code : 16 PDF417/MicroPDF417: 22 Codablock: 23 Korea Post Code: 26

Position Calculation

Position CalculationPosition Calculation

Position Calculation

[Data Formatter]

If there is a 5-character input data string, refer to the following to calculate the actual position for insertion:

X X X X X

00 01 02 03 04 05

[Data Verifier, Data Replacer, Data Organizer]

If there is a 11-character data string, please refer to the following to calculate the actual position for identification.

X X X X X X X X X X X

00 01 02 03 04 05 06 07 08 09 10

Application Example

Application ExampleApplication Example

Application Example

If your bar code label is a 16-digit Interleaved 2 of 5 which includes the information of 6-digit date code, 6-digit serial number and 4-digit unit price, you want the FuzzyScan do the following for you without software modification:

 Apply only Interleaved 2 of 5 to the condensed

DataWizard.

 Check bar code is actually with 16-digit length.

 Allow bar code output whose date code is leading with

“9”.

 Three outputs with “TAB” suffix.

 The date code output should skip “9” and replaced it by

“A”.

 The serial number output should be led with “SN”.

 The unit price output should be skipped the first 2

digits.

 Test Bar Code : 9 8 1 0 2 5 1 2 3 4 5 6 9 8 7 6

 Actual Output : A81025[TAB]SN123456[TAB]76[TAB]

Page 59

FuzzyScan Fixed Mount

Scan

Programming Manual

Programming Procedure

Programming ProcedureProgramming Procedure

Programming Procedure

[Data Verifier]

 Scan “Program” to enter the programming mode.

 Scan “Verifier Control” and set bar code symbology to “48”

(Interleaved 2 of 5).

 Scan “Identified Data Length” and set the length to “16”.

 Scan “1st Identified Character” and set the identified

position to “00”, then set the identified character to “39”

(Hex Code of 9).

[Data Formatter]

 Scan “Formatter Control” and set bar code symbology to

“48”.

 Scan 1st Insertion” and set the identified position to “06”,

then inserted characters to “09” (Hex Code of TAB), “53”

(Hex Code of S), “4E” (Hex Code of N).

 Scan “2nd Insertion” and set the identified position to “12”,

then inserted character to “09”. In the final, you must scan

“FIN” (Finish) code to terminate this selection.



Scan “3rd Insertion” and set the identified position to “16”,

then inserted character to “09”. In the final, you must scan

“FIN” (Finish) code to terminate this selection.

[Data Replacer]

 Scan “Replacer Control” and set bar code symbology

to “48”.



Scan “1st Replacement” and set the identified position to “00”, then replaced character to “41” (Hex Code of A).

[Data Organizer]

 Scan “Organizer Control” and set bar code symbology

to “48”.

 Scan “1st Organization” and set the identified position

to “16”, then set the data transmission to “0” (forward).

 Scan “2nd Organization” and set the identified position

to “17”, then set the data transmission to “1” (backward).



Scan “END” (Exit) to terminate the programming.

[Important Notice]

Please note that Condensed DataWizard will follow the preset working flow as below:

Verifier  Formatter  Replacer  Organizer

So when you set the identified position in Data Organizer, you must consider the inserted data which you already set via Data Formatter.

Page 60

FuzzyScan Fixed Mount

Scan

Programming Manual

Symbology ID Table

Each AIM Code Identifier contains the three-character string ]cm where:

] = Flag Character c = Code Character m = Modifier Character

Cino ID AIM ID Cino ID AIM ID

Code Family Primary Format

Code

Character

Code

Character

Modified

Character

Code Family

Primary Format

Code

Character

Code

Character

Modified

Character

UPC-A m EAN/JAN-8 4

UPC-A with 2 supple. 1 EAN/JAN-8 with 2 supple. 1

UPC-A with 5 supple.

2 EAN/JAN-8 with 5 supple.

N E

UPC-E m EAN/JAN-13 m

UPC-E with 2 supple. 1 EAN/JAN-13 with 2 supple. 1

UPC-E with 5 supple.

2 EAN/JAN-13 with 5 supple.

F E

UPC

Example: A UPC-A bar code 012345678950 with 2 supplement 12 is transmitted as ]E0012345678950]E112

EAN/JAN

Example: A EAN/JAN-8 bar code 49123562 with 5 supplement 12345 is transmitted as ]E449123562]E212345

Code 128 B m Code 93 Code 93 H G m

Code 128

UCC/EAN-128 C

1 Code 11 Code 11 P H m

Codabar Codabar/NW-7 D F m MSI/Plessey MSI/Plessey R M m

Standard/Industrial 2 of 5 I S 0 UK/Plessey UK/Plessey S P 0

Matrix 2 of 5 K X 0 Telepen Telepen T B m

Interleaved 2 of 5 J I m GS1 DataBar GS1 Databar

Composite Composite Code

X e 0

China Postal Code L X 0

Code 39 G A m

Code 25

German Postal Code M I 3 Code 39 Trioptic W X 0

IATA IATA O R m

Code 39

Code 32 G A 0

UCC Coupon Code Z PDF417 PDF417/Micro PDF417 V L 0

Codablock Codablock F Y O 0

Korea Post Korea Post Code a X 0

UCC Coupon

Example : A UPC-A 512345678900 + UCC/EAN-128 81010123451297 bar code is transmitted as]E0512345678900]C181010123451297

Example: A EAN-13 9923456789019 + UCC/EAN-128 81010123451297 bar code is transmitted as ]E09923456789019]C181010123451297

Remark: Above examples are given for the transmission of AIM ID.

Page 61

FuzzyScan Fixed Mount

Scan

Programming Manual

Keyboard Function Code Table

No. ANSI ASCII

Key Function No. ANSI ASCII

Key Function

00 NUL 00H RESERVED 16 DLE 10H F7

01 SOH 01H CTRL (Left) 17 DC1 11H F8

02 STX 02H ALT (Left) 18 DC2 12H F9

03 ETX 03H SHIFT 19 DC3 13H F10

04 EOT 04H CAPS LOCK 20 DC4 14H F11

05 ENQ 05H NUM LOCK 21 NAK 15H F12

06 ACK 06H ESC 22 SYN 16H INS (Insert) (Edit)

07 BEL 07H F1 23 ETB 17H DEL (Delete) (Edit)

08 BS 08H BACK SPACE 24 CAN 18H HOME (Edit)

09 HT 09H TAB 25 EM 19H END (Edit)

10 LF 0AH F2 26 SUB 1AH PAGE UP (Edit)

11 VT 0BH F3 27 ESC 1BH PAGE DOWN (Edit)

12 FF 0CH F4 28 FS 1CH UP (Edit)

13 CR 0DH ENTER (CR) 29 GS 1DH DOWN (Edit)

14 SO 0EH F5 30 RS 1EH LEFT (Edit)

15 SI 0FH F6 31 US 1FH RIGHT (Edit)

To emulate the keyboard function key input for user definable parameters, user must configure actual content using the Reserved ASCII 0 – 31 characters, and also Enable the “Function Key Emulation”. Otherwise, the Ctrl output will be done by the scanner. Please refer to the above Keyboard Function Code Table which is for IBM PC/XT/AT, PS/2, PS/VP, COMPAQ PC, HP Vectra PC, Notebook PC, APPLE and PowerMac, and WYSE PC Enhanced or fully compatible machines.

Page 62

FuzzyScan Fixed Mount

Scan

Programming Manual

ASCII Input Shortcut

To configure the user definable parameters of FuzzyScan via programming menu, FuzzyScan will ask you to scan your desired ASCII value in HEX form. You have to refer to the “HEX/ASCII Table” for details.

Example:

If you want the scanned data output leading with a Dollar Sign, you have to set the “Preamble” to “$”. The configuration procedure is listed below for reference.

 Scan the system command – PROGRAM listed on page

3-24 to enter programming mode.

 Scan family code – PREAMBLE to select this family.

 Refer to the Hex/ASCII Table, you will find the HEX value

of “$” is 24.

 Scan the option code – 2 listed on the fold out back cover.

 Scan the option code – 4 listed on the fold out back cover.

 Scan the system command – FIN (Finish) to terminate

Preamble setting.

 Scan the system command – End to exit the programming

mode for normal operation.

HEX/ASCII Reference Table

0 1 2 3 4 5 6 7

NUL DLE SPACE 0 @ P ` p

SOH DC1 ! 1 A Q a q

STX DC2 " 2 B R b r

ETX DC3 # 3 C S c s

EOT DC4 $ 4 D T d t

ENQ NAK % 5 E U e u

ACK SYN & 6 F V f v

BEL ETB ' 7 G W g w

BS CAN ( 8 H X h x

HT EM ) 9 I Y i y

LF SUB * : J Z j z

VT ESC + ; K [ k {

FF FS , < L \ l |

CR GS - = M ] m }

SO RS . > N ^ n ~

SI US / ? O _ o DEL

Example : ASCII “A” → HEX “41”; ASCII “a” → “61”

: High Byte of HEX Value

: Low Byte of HEX Value

Page 63

FuzzyScan Fixed Mount

Scan

Programming Manual

Host Interface Quick Set

RS232 Serial

USB Com Port Emulation

USB HID Standard Mode

USB HID Turbo Mode

Operation Mode Quick Set

Trigger Mode

Force Mode (Continued power on)

Alternative Mode (Periodic power off)

Presentation Mode (Auto sensing)

Level Mode (Auto power off)

Page 64

FuzzyScan Fixed Mount

Scan

Programming Manual

Option Codes

7 F

FIN (Finish)

END (Exit)

Page 65

FuzzyScan Fixed Mount

Scan

Programming Manual

System Commands

PROGRAM

(Enter Programming Mode)

System Information List

(SYSLIST)

Save User Default

FIN (Finish) PowerTool Host Link

User Default

END

(Exit Programming Mode)

Factory Default

Master Default



Factory Default: After scanning” Factory Default” command, all parameters will be returned to factory default value.



Master Default: After scanning “Master Default” command, the scanner will remain the pre-set parameters of Host Interface Selection, Keyboard Interface

Control (except Record Suffix; Preamble; Postamble), Serial Interface Control (except Record Suffix; Preamble; Postamble), and Wand/Laser Emulation

Control, the rest of parameters will be returned to default value.



User Default: After scanning” Save User Default” command, all current parameters will be stored to the flash memory. Once you change the parameter and

would like to return to previous setting, please scan “User Default”.

Page 66

FuzzyScan Fixed Mount

Scan

Programming Manual

Indications

Normal Operation

Indicators

Descriptions

Power Status OK/NG

Beeper

Power on Steady blue Off Off Power on beep Good read (OK reading) Off Off 1 green blink 1 good read beep No read (NG reading) Off Off 1 red blink 1 no read beep

Test Mode Reading Rate Information

Indicators

Reading Rate

Power Status OK/NG

Beeper

100% Steady Green Steady Green 80 to 99% Steady Red Steady Green 50 to 79% Steady Green Steady Red 20 to 49% Steady Orange Steady Orange 0 to 19%

1 blue blink per 1 sec.

Steady Red Steady Red

One short beep

Power Indicator

Status Indicator

OK/NG Indicator

Page 67

Fixed Mount Scanner Programming Manual

CINO GROUP

PC WORTH INT’L CO., LTD.

www.cino.com.tw
