Cino FM480 DATASHEET

www.cino.com.tw

D

urable overmold construction

and IP54 design

Ultra-compact and easy

mounting design for flexible
integration

Choice of front-view or side-view

model for diverse application
demands

Rich indication and user interface

for intuitive operation

Support both external trigger and

serial trigger

Additional OK and NG output

signals for precise reading control

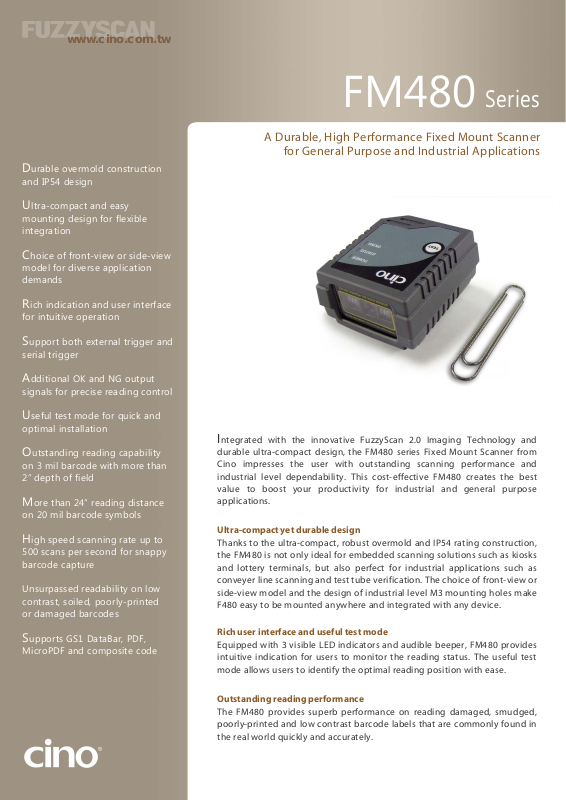

FM480

Series

A Durable, High Performance Fixed Mount Scanner

for General Purpose and Industrial Applications

Useful test mode for quick and

optimal installation

Outstanding reading capability

on 3 mil barcode with more than
2” depth of field

More than 24” reading distance

on 20 mil barcode symbols

High speed scanning rate up to

500 scans per second for snappy
barcode capture

Unsurpassed readability on low
contrast, soiled, poorly-printed
or damaged barcodes

Supports GS1 DataBar, PDF,

MicroPDF and composite code

Integrated with the innovative FuzzyScan 2.0 Imaging Technology and

durable ultra-compact design, the FM480 series Fixed Mount Scanner from
Cino impresses the user with outstanding scanning performance and
industrial level dependability. This cost-effective FM480 creates the best
value to boost your productivity for industrial and general purpose
applications.

Ultra-compact yet durable design

Thanks to the ultra-compact, robust overmold and IP54 rating construction,
the FM480 is not only ideal for embedded scanning solutions such as kiosks
and lottery terminals, but also perfect for industrial applications such as
conveyer line scanning and test tube verification. The choice of front-view or
side-view model and the design of industrial level M3 mounting holes make
F480 easy to be mounted anywhere and integrated with any device.

Rich user interface and useful test mode

Equipped with 3 visible LED indicators and audible beeper, FM480 provides
intuitive indication for users to monitor the reading status. The useful test
mode allows users to identify the optimal reading position with ease.

Outstanding reading performance

The FM480 provides superb performance on reading damaged, smudged,
poorly-printed and low contrast barcode labels that are commonly found in
the real world quickly and accurately.

Specifications

www.cino.com.tw

Performance Characteristics

Optical System

Print Contrast

Minimum Resolution

Working Distance

Light Source

Scan Rate

Reading Direction

Pitch/Skew/Tilt

Operating Modes

Host Interfaces

User Interfaces

Configuration Setup

Data Editing

High performance Linear Imaging Engine

20% minimum reflective difference

Typical 3 mil (Code 39, PCS 0.9)

1

More than 16 inches on 100% UPC/E AN symbols
More than 24 inches on 20 mil Cod e 39

630nm visible red LED

Dynamic scanning rate up to 500 scans per second

Bi-directional (forward and backward)

± 65˚/65˚/55˚

Trigger, Alternative, Level, Forc e, Presentation

RS232 serial
USB HID (USB Keyboard)
USB COM port emulation

3 LEDs for power, Status, OK/NG indications
Test button
Programmable beeper

Bar code command, Serial command
Windows utility - FuzzyScan PowerTool

Condensed DataWizard via bar code command
Full-feature DataWizard via FuzzyScan PowerTool

Physical & Electrical Characteristics

Dimension

Weight

Scan Window

Connector

Mounting

Input Voltage

Current

23.1 mm (L) x 40.6 mm (W) x 47.6 mm (D)

0.91 in. (L) x 1.60 in. (W) x 1.87 in. (D)

120g (RS232 and Universal version)
95g (USB version)

Choice of front-view or side-view model

9-pin D-sub female (RS232 version)
USB 4-pin Type A (USB version)
15-pin D-sub HD female (Universal version)

2 screw holes (M3 x 4mm in depth)

5VDC ± 10%

Operating : Typical 165 mA @5VDC
Standby : Typical 70 mA @5VDC

Safety & Regulatory

EMI/RFI

2

Safety

Environmental

FCC Part 15 Class B, ICES-003 Cla ss B
European Union EMC Directive (CE)
Taiwan EMC (BSMI)

LED Eye Safety IEC60825-1, EN6082 5-1

Compliant with RoHS directive

Supported Symbologies

1D Linear
(FM480)

Linear-stacked
(FM488)

Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic
Code 128, UCC/EAN-128, Codabar, Code 11, Code 93
Standard & Industrial 2 of 5, Int erleaved & Matrix 2 of 5
German Postal Code, China Postal Code, IATA
UPC/EAN/JAN, UPC/EAN/JAN with Addendum
Telepen, MSI/Plessey & UK/Plessey
GS1 DataBar (formly RSS) Linear

PDF417, Micro PDF417, Codablock
GS1 Data Bar Linear-stacked and C omposite

User Environment

Drop Specifications

Environmental Sealing

Operating Temperature

Storage Temperature

Humidity

Ambient Light Immunity

ESD Protection

Withstand 1.2m/4ft. drop to concrete

IP54

-10˚C to 50˚C (14˚F to 122˚F)

-40˚C to 70˚C (-40˚F to 158˚F)

5% to 95% related humidity, non-c ondensing

0 ~ 100,000 lux

Functional after 15kV discharge

Accessories

Cables

Others

USB Power Steal Cable

5VDC Power Suply Unit

Accessories

USB Power Steal Cable 5VDC Power Suply Unit

1. The wor king distances are measured in 400lux office environment using Grade A bar c odes.

2. Class 1 M LED product. Do n ot view directly wi th optical instrume nts.
