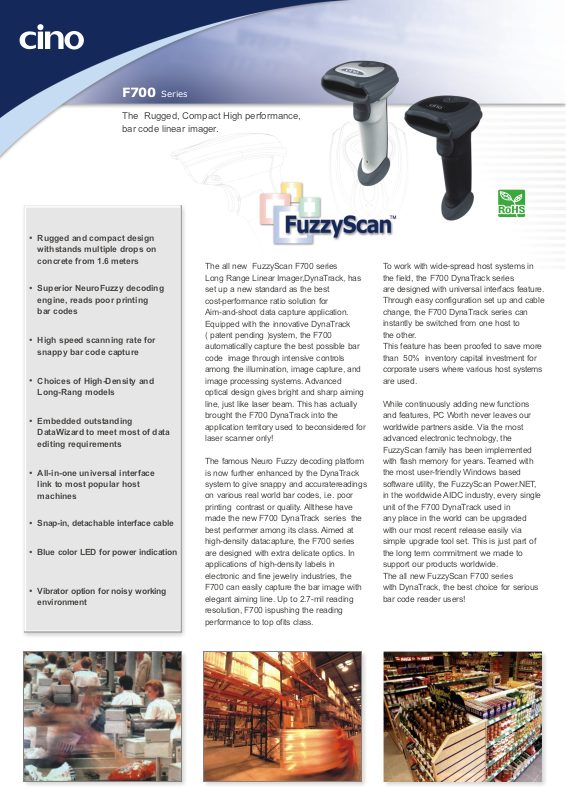

F700

Series

The Rugged, Compact High performance,
bar code linear imager.

Rugged and compact design
withstands multiple drops on
concrete from 1.6 meters

Superior NeuroFuzzy decoding
engine, reads poor printing
bar codes

High speed scanning rate for
snappy bar code capture

Choices of High-Density and
Long-Rang models

Embedded outstanding
DataWizard to meet most of data
editing requirements

All-in-one universal interface
link to most popular host
machines

Snap-in, detachable interface cable

Blue color LED for power indication

Vibrator option for noisy working
environment

The all new FuzzyScan F700 series
Long Range Linear Imager,DynaTrack, has
set up a new standard as the best
cost-performance ratio solution for
Aim-and-shoot data capture application.
Equipped with the innovative DynaTrack
( patent pending )system, the F700
automatically capture the best possible bar
code image through intensive controls
among the illumination, image capture, and
image processing systems. Advanced
optical design gives bright and sharp aiming
line, just like laser beam. This has actually
brought the F700 DynaTrack into the
application territory used to beconsidered for
laser scanner only!

The famous Neuro Fuzzy decoding platform
is now further enhanced by the DynaTrack
system to give snappy and accuratereadings
on various real world bar codes, i.e. poor
printing contrast or quality. Allthese have
made the new F700 DynaTrack series the
best performer among its class. Aimed at
high-density datacapture, the F700 series
are designed with extra delicate optics. In
applications of high-density labels in
electronic and fine jewelry industries, the
F700 can easily capture the bar image with
elegant aiming line. Up to 2.7-mil reading
resolution, F700 ispushing the reading
performance to top ofits class.

To work with wide-spread host systems in
the field, the F700 DynaTrack series
are designed with universal interfacs feature.
Through easy configuration set up and cable
change, the F700 DynaTrack series can
instantly be switched from one host to
the other.
This feature has been proofed to save more
than 50% inventory capital investment for
corporate users where various host systems
are used.

While continuously adding new functions
and features, PC Worth never leaves our
worldwide partners aside. Via the most
advanced electronic technology, the
FuzzyScan family has been implemented
with flash memory for years. Teamed with
the most user-friendly Windows based
software utility, the FuzzyScan Power.NET,
in the worldwide AIDC industry, every single
unit of the F700 DynaTrack used in
any place in the world can be upgraded
with our most recent release easily via
simple upgrade tool set. This is just part of
the long term commitment we made to
support our products worldwide.
The all new FuzzyScan F700 series
with DynaTrack, the best choice for serious
bar code reader users!

F700 Series Specification Highlights

Superb bright aiming line for user visibility

Opti ca l

Optical System

PCS

Resolution

Depth of Field
( Code 39, PCS=0.9 )

Light Source

Scan Engine

Reading Direction

Tilt Angle
(ENA13, PCS=0.9, 13 mi)

Readable Bar Code
Symbologies

Improved Linear Imaging Engine

Typical 0.3 (0.26mm Resolution)

F765

High-density Model : Maximum 3 mil (PCS > 0.8)

F765 High-density Model

3 mil ( 0.076mm )Resolution: up to 3-4 inches
4 mil ( 0.1mm )Resolution: up to 4-5 inches
5 mil ( 0.127mm )Resolution: up to 5-6 inches
10 mil ( 0.25mm )Resolution: up to 7-8 inches
20 mil ( 0.50mm )Resolution: up to 9-10 inches

630nm visible red LED

Dynamic scanning rate up to 300 scans/sec
for High-density Model

Bi-directional (forward and backward)

Forward and backward : Typical 2 - 20
Left and right : Typical 0 - 15 ; Rotation : 15 ; Curvature : R=25mm

Codabar & NW-7
Code 39 & Full ASCII Code 39
Code 32 & IATA
UPC/EAN/JAN/CAN w/Addendum
Standard & Industrial 2 of 5
Interleaved & Matrix 2 of 5
GS1 DataBar (RSS) - Limited/Expanded

F760

Long-range Model : Maximum 4 mil (PCS > 0.8)

F760 Long-range Model

4 mil ( 0.1mm )Resolution: up to 4-5 inches
5 mil ( 0.127mm )Resolution: up to 5-6 inches
10 mil ( 0.25mm )Resolution: up to 8-9 inches
13 mil ( 0.33mm )Resolution: up to 10-12 inches
20 mil ( 0.50mm )Resolution: up to 12-14 inches

Dynamic scanning rate up to 500 scans/sec
for Long-range Model

Code 128 & UCC/EAN-128
Code 11 & Code 93
German ITF Postal Code
Mainland China Postal Code
Telepen (Numeric & Full ASCII)
MSI/Plessey & UK/Plessey

www.cino.com.tw

Durable design withstands multiple
drops from 1.6 meters.

Snap-in, detachable interface cables
design link to most popular hosts

Oper at ional

Operating Modes

Host Interfaces

Configuration Setup

Data Editing

Special Features

Cable Structure

Available interface cables

Good read vibrator
(Optional)

Mech an ical

Length

Width

Depth

Toggle mode
Trigger mode

Generic, PC/AT, PS/2 keyboard wedge
Generic PC/AT and PS/2 keyboard direct-link
Generic Notebook PC keyboard direct-link
Standard/TTL RS-232 peer-to-peer serial interface
Standard/TTL RS-232 serial wedge
Pseudo (Inverted) RS-232 serial interface
Laser emulation & Wand emulation
USB Serieal

Bar code programming manual
Windows utility - FuzzyScan PowerTool.NET

Condensed DataWizard via bar code programming manual
Full-feature DataWizard via FuzzyScan PowerTool.NET

Field Upgrade via FuzzyScan PowerTool.NET

Snap-in Detachable Interface cable

USB HID keyboard
USB Serial
PS/2 keyboard wedge
RS-232 Serial (9- pin D-sub)

For noisy environment usage
Support good read vibvational indication

97.8 mm

70.5 mm

156.2 mm

Force mode
Diagnostic mode

Flash mode
Level mode

Alternative mode
Low power mode

Compatible with most popular hosts by
“all-in-one” universal interface

Copyright 2002-2008 PC Worth Int' l Co., Ltd. - Cino Group, all rights reserved.

PC WORTH INT'L CO., LTD.

18F, NO.100, HSIN-TAI-WU RD., SEC.1, HSI-CHIH,
TAIPEI, TAIWAN, 22147, R.O.C.
TEL: [phone] FAX: [phone]

PC Worth Int'l is an ISO 9001 UKAS, registered company, as scope definitions apply.

Specifications are subject to change without notice. All product and company names are trademarks, service marks or registered trademarks of their respective owners.

Par t No. Y MA UF0 001 00 000 0
