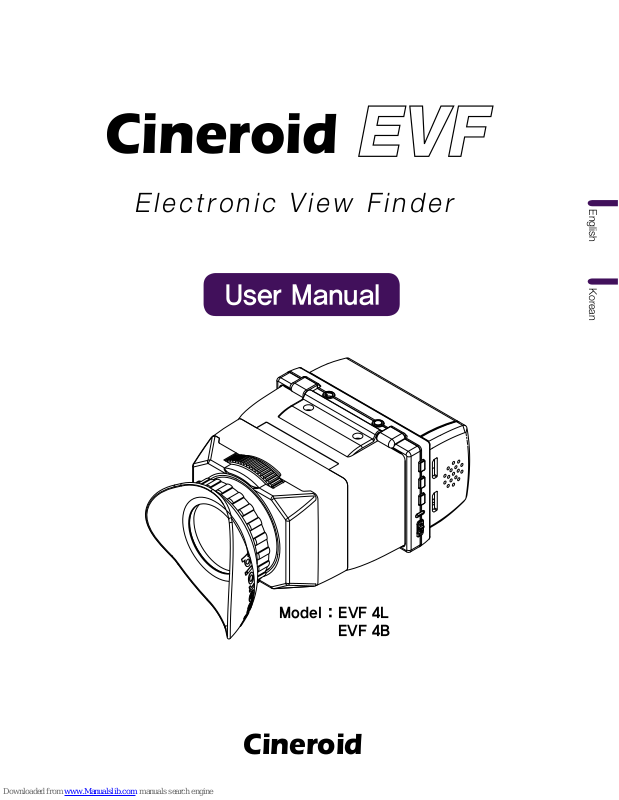

Cineroid
User Manual
E l e c t r o n i c V i e w F i n d e r
Cineroid
Model : EVF 4L
EVF 4B
English Korean
EVF4
SECULINE Co., Ltd
02 03
Thank you for purchasing the Cineroid EVF.
The Cineroid EVF (hereafter referred to as“EVF”) is a view finder that can be mounted
on any video camera with a HDMI output signal. Please thoroughly read the user
manual for best operation and understanding of all of the functions of the EVF.
Test Before Operating
It is recommended to test the EVF before operating. Check if the EVF can be turned on
once powered, and check if the information/menu is being properly displayed on the
LCD.
Copyrights and Prohibitions
The use of images of people, property, and places can without permission can be
prohibited by law. Please refer to your region’s laws regarding copyrights.
○ Canon and EOS are registered trademarks of Canon.
○ Nikon is a registered trademark of Nikon.
○ Sony is a registered trademark of Sony.
SECULINE Co., Ltd
EVF4
English
Safety Precautions
◎ Do not use any batteries, power cord, or accessories that are not specified in this
document.
◎ When using a power cord, be sure to plug it in completely. Do not handle power plugs
when your hands are wet. When unplugging the power cord, grasp the plug body
or adapter instead of the cord.
◎ Power cords that are scratched, heavily bent or twisted can potentially be hazardous and
a source of electric shock and/or fire.
◎ Do not insert foreign objects into the product’s electric or cable components.
◎ Do not place the power cord near sources of heat as this may melt or cause damage to
the cord potentially causing fire or electric shock.
◎ Do not disassemble or modify the product. This may damage the product and cause
danger due to a malfunction.
◎ Please keep the product out of reach of young children. Injuries may occur due to damage
to the product.
◎ When using the product in an airplane or hospital setting, it is recommended to acquire
authorization first as signals or electro-magnetic waves from the product may cause other
equipment to malfunction.
◎ Do not store the product in a dusty or humid environment as damage may occur.
◎ When the product is mounted on a camera, do not lift or move the camera by grabbing
the product. This may cause damage to the product or the camera mount.
◎ Do not clean the product with paint thinner, benzene, or other volatile solvents. This may
cause damage to the product and become a fire hazard.
◎ This product is not waterproof. If the product is dropped in water, contact the service
center immediately.
Please observe the following safety precautions as they are meant for the
safe and proper use of the product to reduce the risk of accidents. Upon
reading the user manual, keep it in a safe and available place.
Do not face the eyecup directly into the sun as it may damage the LCD.
!
WARNING
EVF4
SECULINE Co., Ltd
04 05
Table of Contents
Safety Precautions
Table of Contents
Configuration
Parts
Before Using the EVF
Detachable Optical Viewfinder
Installing the Battery
Connecting External Power
Powering On/Off
Adjusting the Diopter
Connecting a HDMI Cable
Connecting a Composite Cable
Connection a Monitor
Basic Features
Operating the Menu
Input Selection
Adjusting Color
Adjusting the Screen
Adjusting the Volume
03
04
06
07
08
08
09
09
10
10
11
11
12
13
13
14
14
SECULINE Co., Ltd
EVF4
English
Shooting Features
Peaking
Saturation (Exposure)
Underscan
Pixel to Pixel
Monochrome B/W
4:3 Guide bar
Screen Flip
Setting User Controls
Custom Button Functions
Custom Display Setting
OSD Color Setting
Factory reset
Product Specifications
Optional Products
15
16
16
17
17
18
19
20
20
21
18
20
22
EVF4
SECULINE Co., Ltd
06 07
Components
Please ensure all parts are present after opening the box.
B. Battery Cover
C. Battery
D. Battery Charger
F. Mini Shoe Mount Adapter
G. User Manual
H. Cineroid EVF Carrying Case
E. Mini HDMI Cable
A. LCD VF + Optical Loupe
SECULINE Co., Ltd
EVF4
English
Parts
HDMI In
HDMI Out
(EVF4L only)
Power Switch
1/4”Screw Mount
Battery Cover
Diopter Adjuster
Menu Button
3.2 inch LCD screen
Analog A/V input
Eye Cup
3.5φHeadphone Jack
Feature Buttons
External Speaker
EVF4
SECULINE Co., Ltd
08 09
Before Using the EVF
Detachable Optical Loupe
1. The optical loupe attached to the EVF body can be flipped open 180 degrees or
detached completely.
2. To open the optical loupe, firmly grasp the loupe and flip upwards. When it is fully open,
the loupe will stay fixed on top of the body.
3. To completely detach the loupe from the body, simply slide the small latch to the left and lift
up the loupe. To replace the loupe, slide the small latch to the left and place the loupe
back into place.
Installing the Battery
1. The Cineroid EVF can be used with small, medium or large sized batteries. The battery
cover can only be used with the small sized batteries.
2. Remove the battery cover.
3. Push the battery in towards the direction of the arrow making sure the battery is properly
aligned in place.
4. The battery or the connectors may be damaged if not aligned properly.
5. The Canon LP-E6 battery can only be used in conjunction with the proper adapter.
2
3
3
2
180
