Page 1
User instructions
Model X46
Escalator and Travelator cleaner
http://www.truvox.com/Products/Escalators_and_Sweepers/Cimex_X46
CAUTION - READ THESE INSTRUCTIONS BEFORE USING THE MACHINE
03-7845-0000 Iss.1 07/04http://www.truvox.com/Products/Escalators_and_Sweepers/Cimex_X46
Page 2

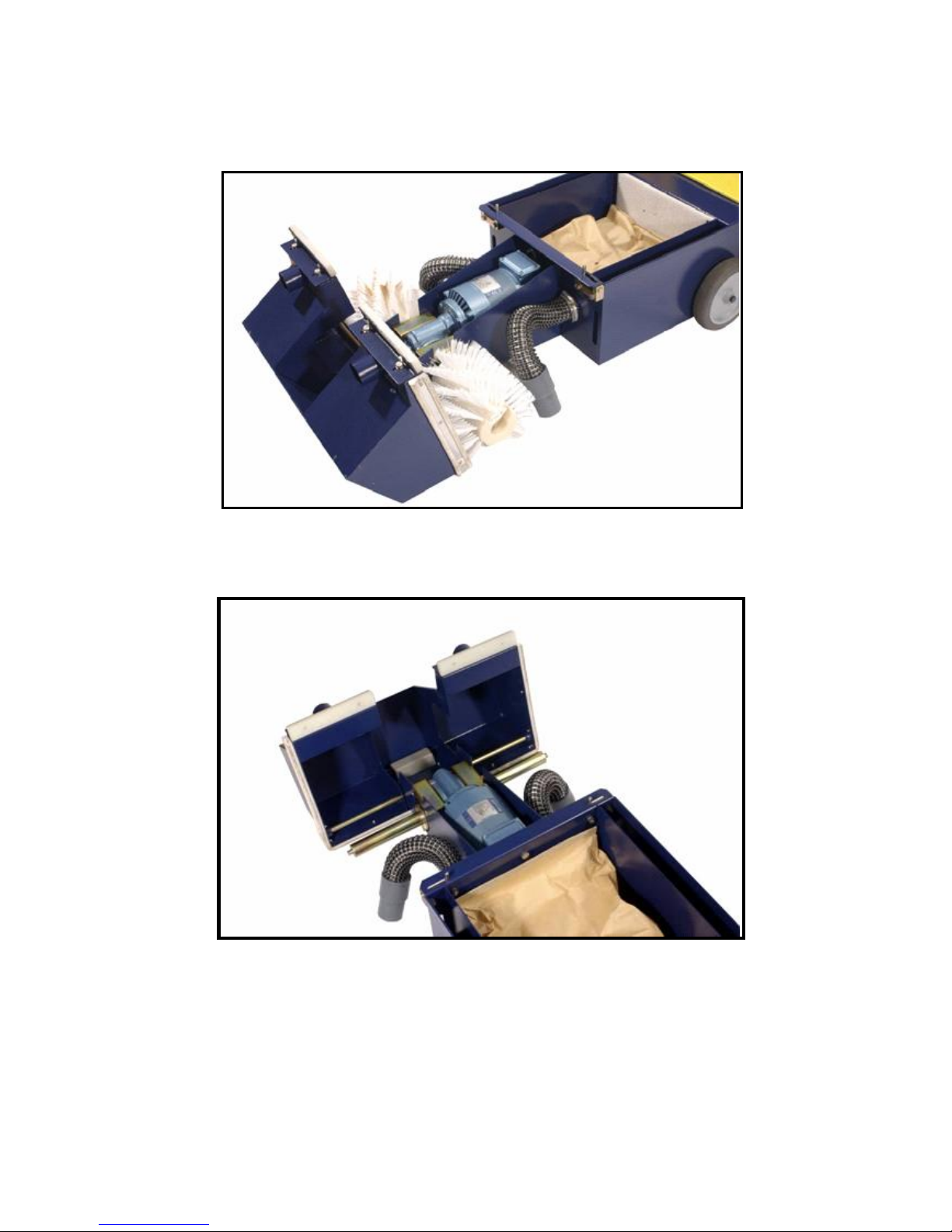

Fig 1
Fig 2
2
Page 3
Contents
Page
1 Product information .................................................................. 4
1.1 Important safety advice ............................................................... 4
1.2 Guidelines for the operator .......................................................... 4
1.3 Transporting the machine ............................................................ 4
2 Preparing for use ........................................................................ 4
2.1 Fitting the brushes ....................................................................... 4
2.2 Electrical connection .................................................................... 4
3 Controls ......................................................................................... 5
4 Operation ....................................................................................... 5
4.1 Cleaning the escalator ................................................................. 56
4.2 Stain and spot removal ................................................................ 5
4.3 Dust bag replacement .................................................................. 5
5 Storage ........................................................................................... 5
6 Maintenance ................................................................................. 5
7 After sales service ...................................................................... 5
8 Technical specification ............................................................ 6
9 Accessories .................................................................................. 6
10 Fault diagnosis ........................................................................... 7
11 Guarantee ...................................................................................... 7
12 Declaration of conformity ....................................................... 8
3
Page 4
IMPORTANT
READ THESE INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE
1 Product information
This commercial escalator cleaning machine is
designed to clean all types of escalator and travelator
treads, and is ideally suited for use in airports,
shopping centres, retail stores, hotels and
Underground railway stations.
The machine is intended for indoor use only in dry
conditions.
The following instructions contain important
information about the machine and safety advice for
the operator.
Equipment must be operated, serviced and
maintained in accordance with the manufacturer’s
instructions.
If in doubt contact the supplier of your machine.
1.1 Important Safety Advice
When using electrical equipment basic safety
precautions should be followed including the
following.
• Read all instructions carefully before use.
• Keep children and unauthorised persons away from
the machine when in use.
• Do not leave the machine connected to the
electricity supply when not in use, always remove
the plug from the socket-outlet.
• Switch off the machine before removing the plug.
• When unplugging pull the plug, not the supply cord.
• Keep the power supply cord clear of moving parts.
During operation hazard may occur when running
the machine over the power supply cord.
• Do not operate the machine with a damaged
supply cord or plug, or after the machine
malfunctions or is damaged in any way. Contact an
authorised Service Agent for repair or adjustment.
• The plug of the power supply cord must be
removed from the socket-outlet before
commencing cleaning of the machine or
undertaking maintenance operations.
• The power supply cord is to be regularly inspected
for signs of damage. If the power supply cord is
damaged, it has to be replaced.
• Do not use where hazardous dust is present.
• Do not use in an explosive atmosphere.
1.2 Guidelines for the operator
• Operators must be fully trained in the use of the
machine in accordance with these instructions, able
to perform user maintenance and the correct
selection of brushes.
• Operators should be physically capable to
manoeuvre, transport and operate the machine.
• Operators should be able to recognise unusual
operation of the machine and report any problems.
• Keep hands and feet well clear of rotating brushes.
• Wear suitable footwear to avoid slipping.
• Wear suitable clothing to keep dry and warm.
• Do not smoke when using the machine.
• CAUTION - This machine is for dry use only and
should not be used or stored outdoors in wet
conditions.
1.3 Transporting the machine
CAUTION - THIS MACHINE IS HEAVY
Do not attempt to lift the machine without
assistance. Incorrect lifting techniques may result in
personal injury.
To move the machine around, pull the handle
backwards to bring the wheels into contact with the
floor enabling the machine to be moved easily.
2 Preparing for use
1. Carefully remove the machine and brushes from
their respective packaging.
2. Check machine for transit damage. Do not use
machine if damaged.
3. Raise handle to working position.
2.1 Fitting the brushes
WARNING - This appliance has been designed for
use with the brushes specified by the
manufacturer. The use of other brushes may
impair safety.
Always ensure machine is unplugged before fitting or
removing parts.
• Release the two locking pins securing the top cover
and raise the cover to rest against the handle.
• Disconnect the two hoses from the brush cowl.
• Tip the cowl forward to reveal the brush spindles
(Fig.1).
• Remove the brush retaining clips from the spindle
ends, and slide the brush on to the spindle engaging
the narrow slot with the drive nib and refit the
retaining clips.
• Close the brush cowl and reconnect the two hoses.
• Close the top cover and re-engage the locking pins.
2.2 Electrical connection
Before connecting the machine to the power supply,
check that your supply voltage corresponds with that
marked on the rating label on the machine.
UK only
The supply cord is fitted with a non rewireable plug
containing a 13 amp fuse. Should the fuse require
replacement it must only be replaced by a 13 amp
fuse conforming to BS1362, and the fuse cover must
be refitted. If the fuse cover is lost the plug must not
be used until the correct replacement cover is fitted.
IMPORTANT - If the supply cord is damaged, it must
only be replaced by a special cord available from the
manufacturer or an authorised service agent.
WARNING -THIS APPLIANCE MUST BE EARTHED
We recommend the use of an RCD (Residual Current
Device) or an ELCB (Earth Leakage Circuit Breaker)
between the mains socket and the supply cord plug to
protect against electric shock.
4
Page 5
3 Controls
5 Storage
The operating switches are located on the top of the
machine.
1 - Switch, vacuum motor
Used to switch vacuum motor ON and OFF.
2 - Switch, brush motor
Used to switch brush motor ON and OFF.
NOTE - Both switches contain current overload cutouts. If tripped they will reset automatically after a few
moments. If tripping repeatedly, refer to Fault
diagnosis section.
4 Operation
The Cimex X46 machine is designed to clean varying
widths of escalator and will therefore only clean part
of the width at a time. After each complete pass,
move the machine across the escalator to overlap
previosly cleaned area until the full width has been
cleaned.
4.1 Cleaning the escalator
• Wheel the machine to the bottom of the escalator.
WARNING - Never attempt to use the machine at
the top of an escalator.
• Fully unwind the supply cord and plug in to a
convenient socket outlet.
• Ensure that the escalator is moving away from the
machine, reverse the direction of the escalator if
necessary.
• Position the machine on the escalator such that the
rest bar situated just in front of the wheels sits on
the non-moving comb of the escalator.
• Switch on the vacuum motor, followed by the brush
motor.
• WARNING - Never start the machine without the
brushes fitted.
4.2 Stain and spot removal
For degreasing and stain removal the escalator may be
lightly hand sprayed with ‘Escaclean’ chemical.
IMPORTANT - DO NOT SOAK THE ESCALATOR
4.3 Dust bag replacement
• Release the two locking pins and raise the top
cover.
• Push the top edge of the cardboard collar of the
bag towards the rear of the machine until the bag is
released from the vacuum tubes, and carefully
remove the bag for disposal.
• Insert new bag pushing the rubber seals firmly over
the tube ends until the cardboard collar is flat
against the machine wall (Fig.2).
• Close the top cover and locking pins.
The dust bag should be regularly replaced, and the
hoses checked for blockages. If a bag bursts ensure
that the filter is removed and cleaned before fitting a
new bag. IMPORTANT - The filter must be dry
before refitting.
After use always wipe down and dry the machine.
Remove the brushes and clean them under running
water and allow to dry. IMPORTANT - Never store
the machine with the brushes fitted as this will
damage the brushes. Check dust bag condition and
clean filter as required.
Wrap supply cord around the handle ensuring that the
plug is not trailing on the floor. Store the machine in a
dry indoor area only.
6 Maintenance
WARNING - Before undertaking maintenance
operations or adjustments switch off machine
and unplug from the electricity supply.
The machine requires minimum maintenance apart
from the following checks by a trained operator.
• Supply cord - Regularly inspect sheath, plug and
cord anchorage for damage or loose connection.
Only replace the supply cord with the type
specified in these instructions.
• Dust filter - Check filter condition when changing
a bag and clean or replace as necessary.
7 After sales service
Should you require after sales service please contact
the supplier from whom you purchased the machine,
who will arrange service. Repairs and servicing of
Truvox products should only be performed by trained
staff. Improper repairs can cause considerable
dangers to the user.
Enquire about the Truvox low cost and efficient
Maintenance Contract.
5
Page 6
8 Technical specification
Machine is of Class I construction. Enclosure to IP30.
Model - 230 V ~ 50 Hz., fitted with supply cord type H05VV-F, 3 x 1.0mm² (10A), and plug.
Model - 110 V ~ 50 Hz., fitted with supply cord type H05VV-F, 3 x 2.5mm² (25A), and plug.
Model X46
Brush motor W 190
Vacuum motor W 2 x 750
Brush speed rpm 290
Brush diameter cm 15
Working width cm 46
Length cm 89
Height cm 23
Weight kg 44
Sound pressure level (see note 1) dB(A) 79
Handle vibration (see note 2) m/s²
Supply cord length m 15
1 - Sound pressure level measured at a distance of 1 metre from machine and 1,6 metres above floor.
Measurements recorded using a hand held meter. For prolonged operation the wearing of ear defenders is
recommended.
2 - Handle vibration does not exceed 2,5 m/s², when operating on any surface.
Measurements recorded by an independent test laboratory.
< 2.5
9 Accessories
Item Qty Part No. Application
Nylon brush set 2 05-4096-0000 Regular daily maintenance
Tynex brush set 2 05-4097-0000 Periodic deep cleaning (see note1)
Disposable paper bags (10 pack) 1 02-4372-0000 Regular dust collection
‘Escaclean’ degreasant (4 x 5litre) 1 02-4404-0000 Degreasing and stain removal
1 - CAUTION - Tynex brushes are very aggressive, and only suitable for occasional use on aluminium escalators
only. Do not use on escalators with a coated surface as damage may result.
IMPORTANT : Genuine accessories are only available from authorised Service Agents or Truvox Customer
Service Dept.
6
Page 7
10 Fault diagnosis
The following simple checks may be performed by the operator.
Fault Reason Remedy
Motors not working. Lack of voltage/electrical supply.
Current overload cut-out operated in
switch.
Machine stalls during operation. Damaged brushes.
Loose plug connection.
Machine vibrates. Worn brushes.
Brushes incorrectly fitted.
Brush cowl glide bars incorrectly set.
(Fig.1 / 1).
Vacuum motor labouring. Dust bag full.
Filter restricted.
Check fuse *, supply cord, plug,
socket outlet and circuit breaker.
Cut-out will reset automatically
after a few minutes. If cut-out
operates repeatedly check
points below.
Replace brushes.
Check plug is fully inserted into
mains socket.
Replace brushes.
Refer to fitting instructions.
Check height adjustment.
Replace bag.
Remove and clean.
* If the fuse blows several times, the machine should be checked by an authorised Service Agent.
11 Guarantee
Your product is guaranteed for one year from the date
of original purchase, or hire purchase, against defects
in materials or workmanship during manufacture.
Within the guarantee period we undertake at our
discretion, to repair or replace free of charge to the
purchaser, any part found to be defective, subject to
the following conditions.
CONDITIONS
1. Claims made under the terms of the guarantee
must be supported by the original invoice/bill of sale
issued at the time of sale, or the machine Serial No.
2. For claims under this guarantee contact the
supplier from whom you purchased the product who
will arrange the appropriate action. Do not initially
return the product as this could result in transit
damage.
3. Neither Truvox nor its distibutor shall be liable for
any incidental or consequential loss.
4. This guarantee is governed by the laws of England.
5. This guarantee does not cover any of the following:
- Periodic maintenance, and repair or replacement
of parts due to normal wear and tear.
- Damage caused by accident, misuse or neglect,
or the fitting of other than genuine Truvox parts.
- Defects in other than genuine Truvox parts, or
repairs, modifications or adjustments performed
by other than a Truvox service engineer or
authorised service agent.
- Costs and risks of transport relating directly or
indirectly to the guarantee of this product.
- Consumable items such as, brushes, dust bags
and filters.
This guarantee does not affect your statutory rights,
nor your rights against the supplier arising from their
sales or purchase contract.
Truvox International Limited has a policy of continual
product development and we reserve the right to alter
specifications without prior notice.
7
Page 8
12 Declaration of conformity
EC Declaration of conformity
We, Truvox International Ltd.
of Third Avenue
Millbrook Trading Estate
Southampton SO15 0LE
England
declare that the machinery
Make : Escalator and Travelator cleaner
Type : Cimex
Model : X46
Serial Number :
Year of Construction : 2004
has been manufactured using the following transposed harmonized European Standards and
technical specifications.
BS EN 60335-1 and BS EN 60335-2-67
and is in conformity with EC Directives, 98/37/EC, 73/23/EEC and 89/336/EEC and all
amendments.
Signed in : SOUTHAMPTON, England
on the 30th day of July 2004
Signature :
Name : M R Eneas
Position : New Product Development Manager
8
Page 9
9
Page 10
10
Page 11
Page 12
Truvox International Limited, Third Avenue, Millbrook, Southampton, Hampshire SO15 0LE England
Tel: +44 (0) 23 8070 2200 Fax: +44 (0) 23 8070 5001
e-mail: [email protected] Web: www.truvox.com
Loading...
