CIG WF1801 User Manual

WF-180 Wireless Access Point

Thank you for buying this product. The following information aims to give you general

No.

Name

Function

LEDs

See LED Definition

LAN Port

10/100/1000M Base-T Ethernet ports (RJ-45), used as a
WAN port and used for being powered by PoE function.

information about product introduction, product overview and installation procedure and
so on.

1. Introduction

WF-180 is a dual-band 2x2streams and chains indoor Wi-Fi AP, which is complied with the
IEEE802.11n standard and designed for high-density deployments in offices, schools,
hospitals and hotels that require premium performance.
Having together MIMO (Multiple-in&Multiple-out) technology with high-throughput mode
techniques, WF-180 works with most wireless terminals to builds a high capacity Wi-Fi
network.

2. Package List

• AP x1

• Wall bracket x1

• Ceiling bracket x 1

• Screw x1

• Cable tie x1

3. Product Overview

Console port

Also names as RJ-11, used to manage WF-180 software.

Reset button

Pressing the button longer than 5s to restore the device to
factory defaults and reset the device.

DC power connector

used for connecting the power adapter

USB port

supports a USB 2.0 connector(Support up to 0.5A)

Kensington Lock Slot

For additional security

To avoid risk of injury from electrical shock or energy hazard, installation and service

of this product must be performed by qualified service personnel.

Make sure the AP fits securely on the ceiling rail when hanging the device in the

ceiling, because poor installation could cause it to fall and make body injury and
equipment damage.

4. Installation

To reduce the risk of bodily injury, electrical shock, fire, and equipment
Damage, read all warnings and precautions in this guide before
Installing or maintaining product.

Caution

Safety Statement

• To avoid the abnormal work, do not install the device near the power line,
electric lamp, power grid, or in any forceful power grid place

• Ensure the power adapter is grounded well if install the device indoor.

• Install other lightning protection equipment near the device if necessary,

because the lightning protection module inside the device is basic.

• Use the steady power grid to provide the power to the device, which is to avoid
the abnormal work.

• Use a less than 50m network cable to connect the PoE port, which is to acquire
the steady power. The network cable complies with the DC resistance
definition in the YD/926.2 protocol.

Installation Environment

• Operating ambient temperature: 0℃ ~ 45℃

• Operating ambient humidity: 5% ~ 95% non-condensing

Installation mode:

• Wall mounting and Cliling mounting.

Installation tool:

• Screws and screw-driver

Installation site:

Please ensure the visibility of product and no tall buildings and woods block
between them.

Installation procedure

Wall mounting

1. Drive two screws fist in the wall. The distantbetween two screws mounted on the
wall is 40mm.

2. Align bracket with the screw, and then pull down the bracket with up to down

direction until it has been fixed tightly.

3. Align the securing hookof AP with bracket, and push AP from up to down until it
has been locked fully.

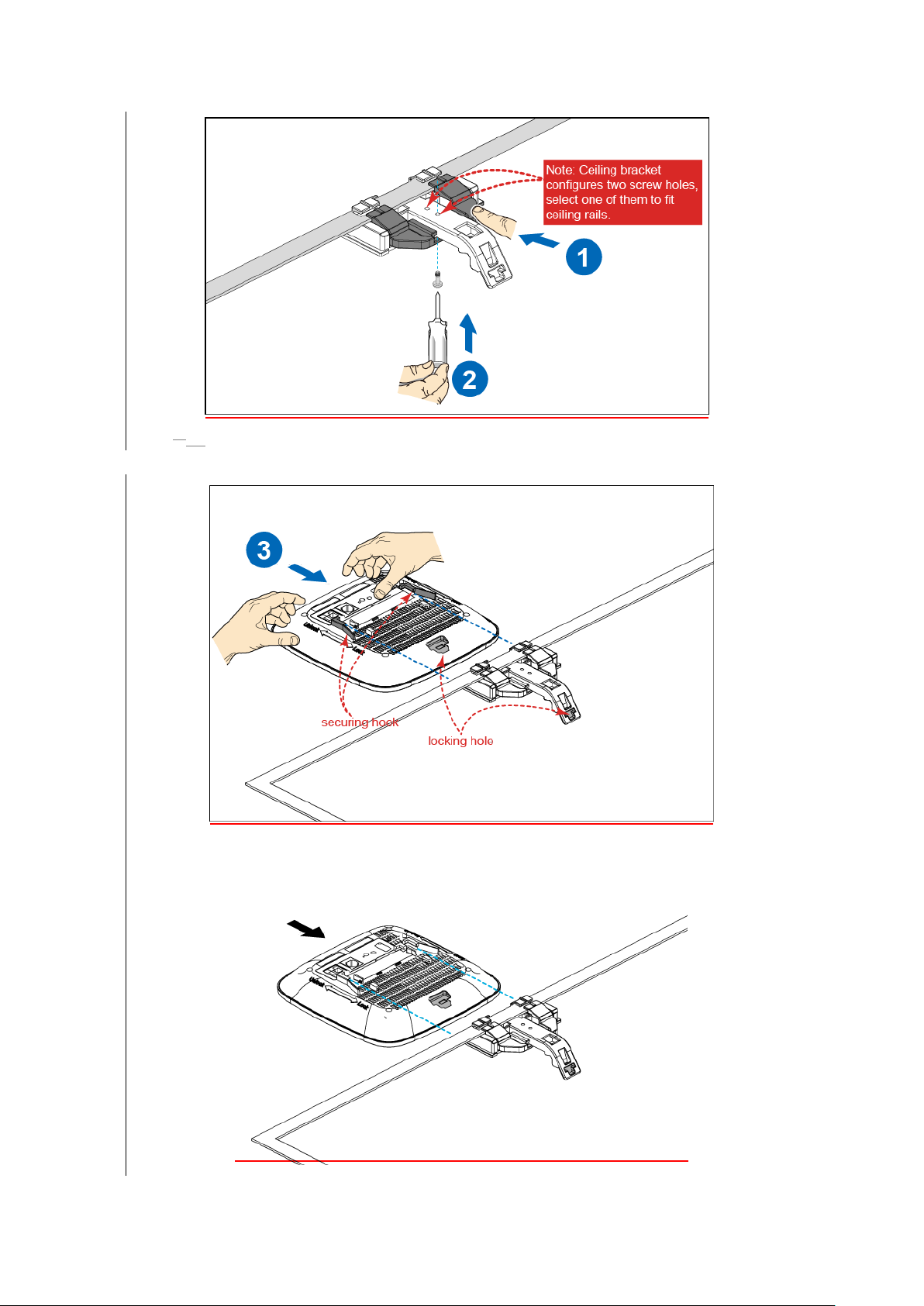

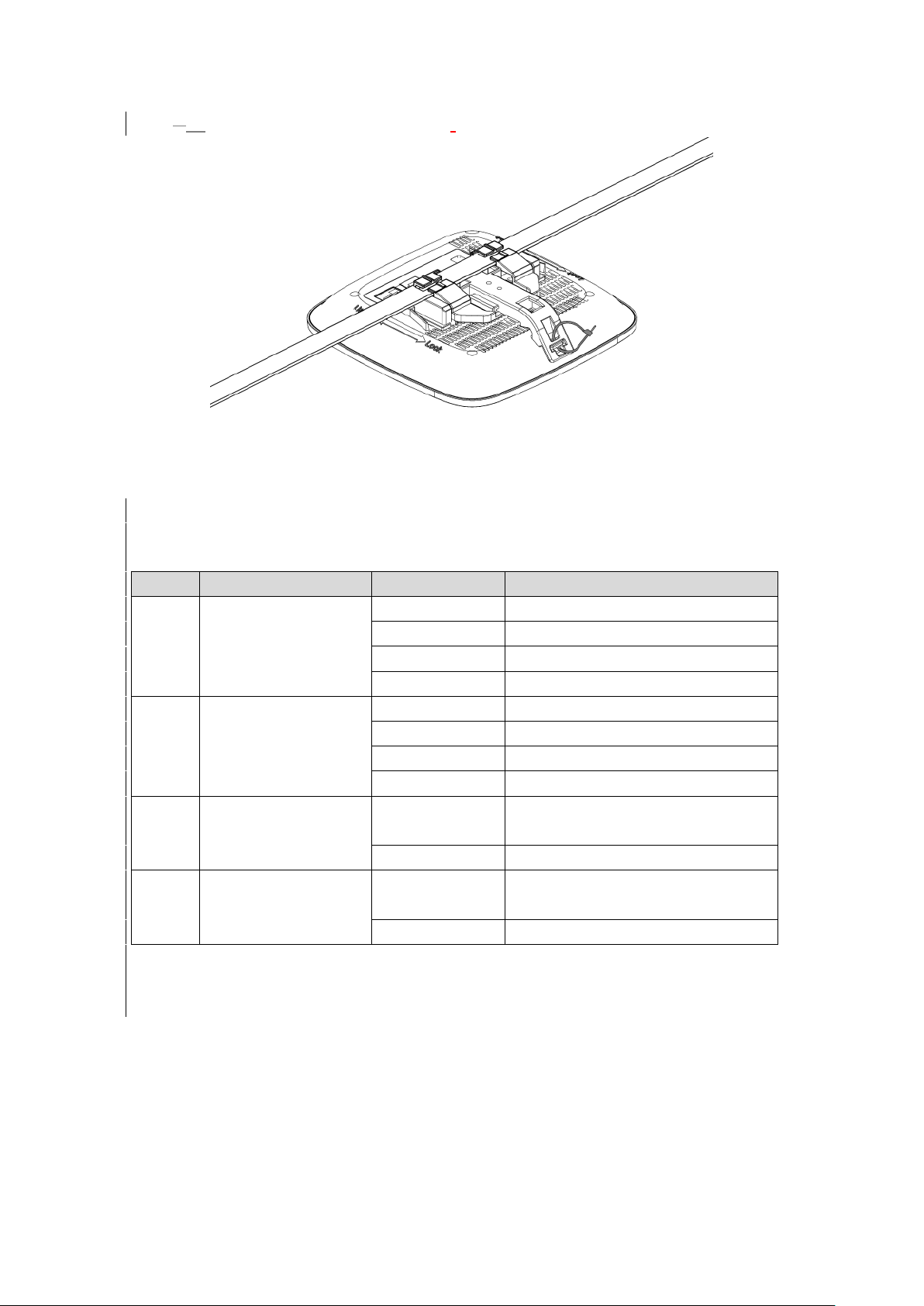

Ceiling mounting:

1. Fasten ceiling rails by pushing bracket as the indicated direction

2. Secure the screw to fasten bracket assembly.
