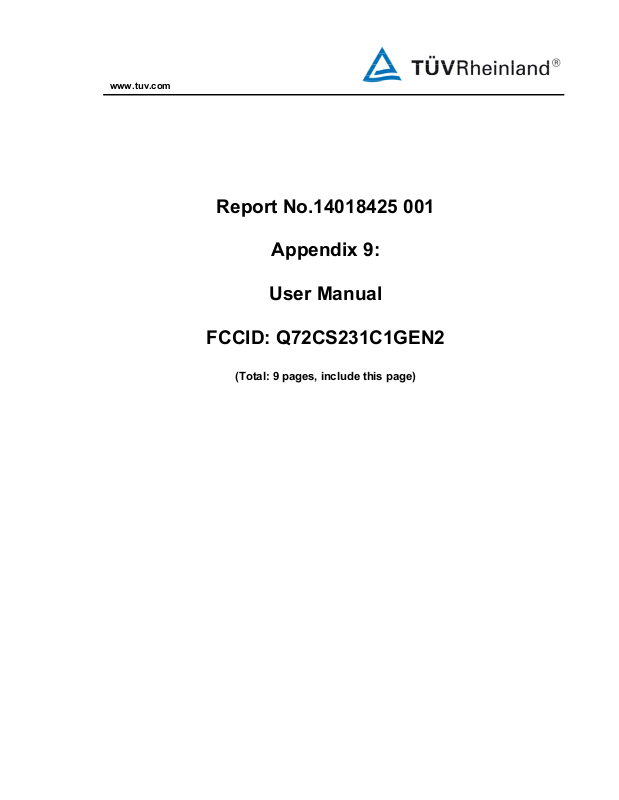

www.tuv.com
Report No.14018425 001
Appendix 9:
User Manual
FCCID: Q72CS231C1GEN2
(Total: 9 pages, include this page)

CNE CS231-2 RFID Module
User’s Manual
Version 1.0
Warning: This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
CNE: The Value-added RF Module Manufacturer

The CNE CS231-2 RFID module is an embedded RFID module for application inside
all kinds of systems, such as handheld devices, security entrance devices, smart
furniture, etc.
Figure 1 CS231-2 RFID Module
Setup Instructions:
1. Connect the RFID module to antenna via the RF terminal.
2. Connect the RFID module to 3.3 to 4.2 volt DC supply.
3. Connect the RFID module via USB or UART port to the host processor board.
4. The Host processor should have the driver program and application program to
control the module.
5. Warning: To comply with RF Exposure requirement, in the application and
design-in of CS231-2 RFID module, the module is to be used in such a way that
a separation distance of at least 20 centimeters is normally maintained between
the antenna's radiating structures and the body of the user or nearby persons.
6. Warning: This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Copyright © Chung Nam Electronics. All Rights Reserved.
2

Software:
1. Use the Standard RFID Library and API calls via USB or UART. Developer
needs to compile the library again for the specific host processor platform.
2. Use the Simplified UART command set, either ASCII based version or Binary
based version. Developer does not have to recompile library, just send out
appropriate UART based commands and receive data back via UART terminals.
3. Please refer to CS231-2 Programmer’s Manual for the above 2 groups of APIs
and library.
Copyright © Chung Nam Electronics. All Rights Reserved.
3

Environmental Concerns:
The environmental condition of the module must be evaluated to see if the heat
dissipation is enough to allow the RFID module to operate according to the product
specification requirements. If the product specification requirements mandate the
duty cycle of operation is such that the RFID module generates a lot of heat, then
effective heat dissipation means must be provided. The heat sink now on the module
contains mounting holes for fan. The developer can indeed consider the use of fan.
Copyright © Chung Nam Electronics. All Rights Reserved.
4

Federal Communication Commissions Compliance
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
y Reorient or relocate the receiving antenna
y Increase the separation between the equipment and receiver
y Consult the dealer or an qualified radio/TV technician for assistance
FCC NOTICE: To comply with FCC part 15 rules in the United States, it is the
responsibility of the operator and module embedding manufacturer to ensure that only
certified systems are deployed in the United States. The use of the system in any other
combination (such as co-located antennas transmitting the same information) is
expressly forbidden.
Note:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Radio Frequency Radiation Exposure Evaluation
Three different categories of transmitters are defined by the FCC in OET Bulletin 65.
These categories are fixed installation, mobile, and portable and are defined as
follows:
• Fixed Installations: fixed location means that the device, including its
antenna, is physically secured at a permanent location and is not able to be
easily moved to another location. Additionally, distance to humans from the
antenna is maintained to at least 2 meters.
Copyright © Chung Nam Electronics. All Rights Reserved.
5

• Mobile Devices: a mobile device is defined as a transmitting device designed
to be used in other than fixed locations and to be generally used in such a way
that a separation distance of at least 20 centimeters is normally maintained
between the transmitter's radiating structures and the body of the user or
nearby persons. Transmitters designed to be used by consumers or workers
that can be easily re-located, such as a wireless modem operating in a laptop
computer, are considered mobile devices if they meet the 20 centimeter
separation requirement. The FCC rules for evaluating mobile devices for RF
compliance are found in 47 CFR §2.1091.
• Portable Devices: a portable device is defined as a transmitting device
designed to be used so that the radiating structure(s) of the device is/are within
20 centimeters of the body of the user. Portable device requirements are found
in Section 2.1093 of the FCC's Rules (47 CFR§2.1093).
The CS231-2 RFID module with 4.5dBi antenna is considered a fixed installation as it
is used for the purpose of reading tags.
The FCC also categorizes the use of the device as based upon the user’s awareness
and ability to exercise control over his or her exposure. The two categories defined are
Occupational/ Controlled Exposure and General Population/Uncontrolled Exposure.
These two categories are defined as follows:
• Occupational/Controlled Exposure: In general, occupational/controlled
exposure limits are applicable to situations in which persons are exposed as a
consequence of their employment, who have been made fully aware of the
potential for exposure and can exercise control over their exposure. This
exposure category is also applicable when the exposure is of a transient nature
due to incidental passage through a location where the exposure levels may be
higher than the general population/uncontrolled limits, but the exposed person
is fully aware of the potential for exposure and can exercise control over his or
her exposure by leaving the area or by some other appropriate means.
Awareness of the potential for RF exposure in a workplace or similar
environment can be provided through specific training as part of a RF safety
program. If appropriate, warning signs and labels can also be used to establish
such awareness by providing prominent information on the risk of potential
exposure and instructions on methods to minimize such exposure risks.
Copyright © Chung Nam Electronics. All Rights Reserved.
6

• General Population/Uncontrolled Exposure: The general population /
uncontrolled exposure limits are applicable to situations in which the general
public may be exposed or in which persons who are exposed as a consequence
of their employment may not be made fully aware of the potential for
exposure or cannot exercise control over their exposure. Members of the
general public would come under this category when exposure is not
employment-related; for example, in the case of a wireless transmitter that
exposes persons in its vicinity. Warning labels placed on low-power consumer
devices such as cellular telephones are not considered sufficient to allow the
device to be considered under the occupational/controlled category, and the
general population/uncontrolled exposure limits apply to these devices.
Copyright © Chung Nam Electronics. All Rights Reserved.
7

Radio Frequency Radiation Exposure Evaluation:
The highest RF output power of the EUT was measured at 27.0dBm at 902.75MHz
and 927.25MHz. According to §1.1310 of the FCC rules, the power density limit for
General Population/Uncontrolled Exposure at 902.75MHz (worst case) is f
2
= 0.6018mW/cm
. The maximum permissible exposure (MPE) is calculated to show
(MHz)
/1500
the required separation distance that must be maintained during installation to
maintain compliance with the power density limit.
The following formula was used to calculate the Power Density:
PG
S
=
2
4 R
where:
S = Power Density
P = Power input to the antenna
(Output power from the EUT antenna port
(dBm)
)
G = Gain of Transmit Antenna (linear gain)
R = Distance from Transmitting Antenna
For the EUT, the calculation is as follows:
P = 27.0dBm = 500mW (Output power from the EUT antenna port)
G = Antenna Gain = 4.5dBi = anti-log(4.5/10) = 2.818
At 20cm separation,
818.2500
×
=S
π
=0.2803mW/cm
2
)20(4
2
Based on the above calculation for 20cm separation, the power density does not
2
exceed FCC limit of 0.6018mW/cm
.
Copyright © Chung Nam Electronics. All Rights Reserved.
8
