Chungear Co 9304 Users Manual

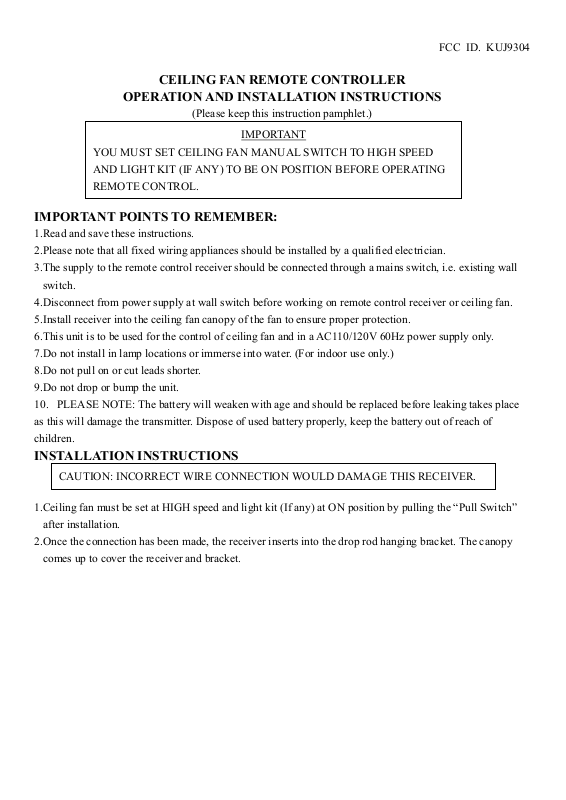

CEILING FAN REMOTE CONTROLLER

FCC ID. KUJ9304

OPERATION AND INSTALLATION INSTRUCTIONS

(Please keep this instruction pamphlet.)

YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED

AND LIGHT KIT (IF ANY) TO BE ON POSITION BEFORE OPERATING

REMOTE CONTROL.

IMPORTANT

IMPORTANT POINTS TO REMEMBER:

1.Read and save these instructions.

2.Please note that all fixed wiring appliances should be installed by a qualified electrician.

3.The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall

switch.

4.Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.

5.Install receiver into the ceiling fan canopy of the fan to ensure proper protection.

6.This unit is to be used for the control of ceiling fan and in a AC110/120V 60Hz power supply only.

7.Do not install in lamp locations or immerse into water. (For indoor use only.)

8.Do not pull on or cut leads shorter.

9.Do not drop or bump the unit.

10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place

as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of

children.

INSTALLATION INSTRUCTIONS

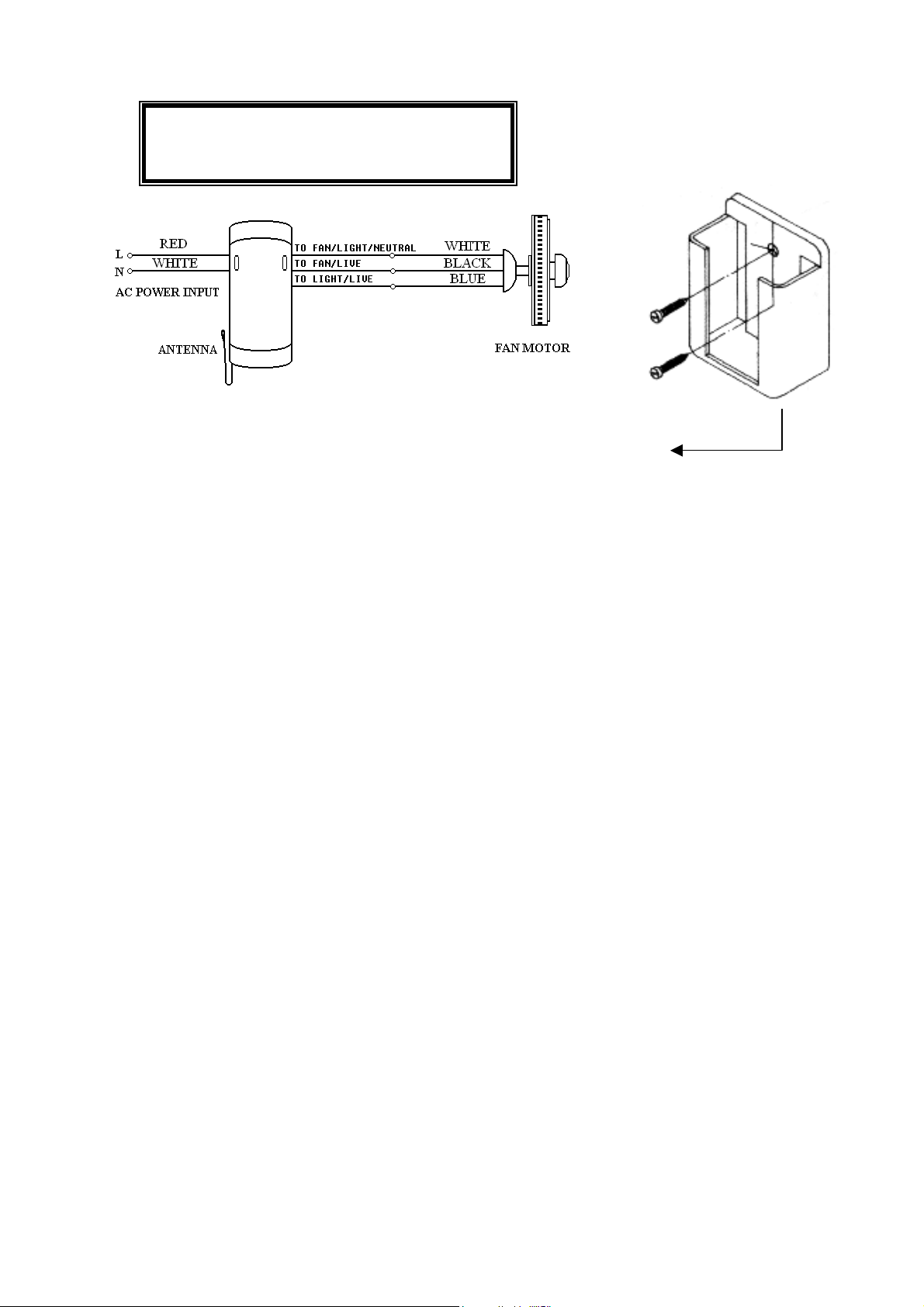

CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.

1.Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pulling the “Pull Switch”

after installation.

2.Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy

comes up to cover the receiver and bracket.

CODE SWITCH

FCC ID. KUJ9304

1.CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the code used

for both transmitter and receiver is exactly the same; otherwise remote controller will not work. Please

note the code switch will enable you to operate a second remote controller independently. For example, if

you have two ceiling fans with 2 remote control units, set 2 different codes for each set of

transmitter/receivers. This means you can operate each ceiling fan independently.

2.Your remote control is ready for use after battery installation.

FUNCTIONS OF TRANSMITTER

TRANSMITTER

LIGHT ON/OFF: Press and release immediately to turn on or off the light.

DIMMER :Press and hold to dim or brighten lights to the desired level and

release. (Only for the tungsten bulb.)

OFF : Turn off the ceiling fan.

HI :Turn on the fan at high speed

MED :Turn on the fan at medium speed

LOW : Turn on the fan at low speed
