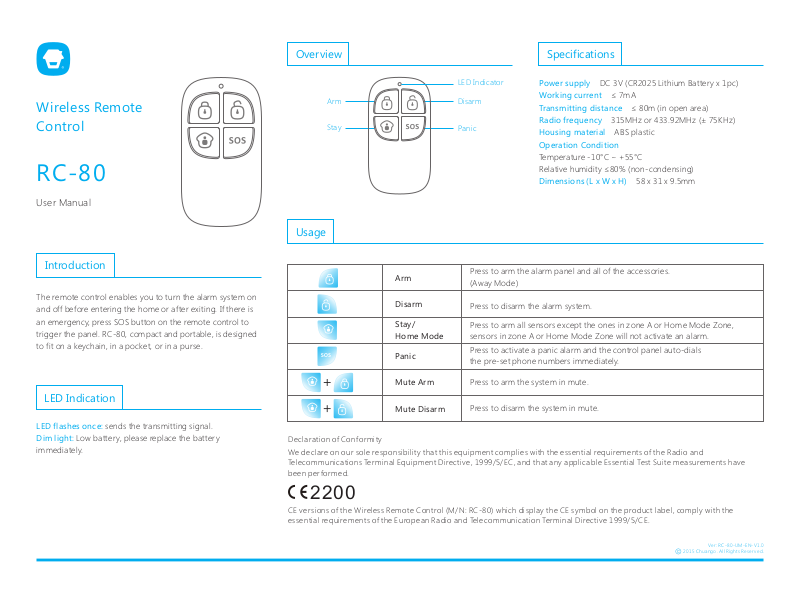

Chuango RC-80 User Manual

Overview

Specifications

Wireless Remote
Control

RC-80

User Manual

Introduction

The remote control enables you to turn the alarm system on
and off before entering the home or after exiting. If there is
an emergency, press SOS button on the remote control to
trigger the panel. RC-80, compact and por table, is designed
to fit on a keychain, in a pocket, or in a purse.

Usage

Arm

Stay

Arm

Disarm

Stay/
Home Mode

Panic

LED Indicator

Disarm

Panic

Press to arm the alarm panel and all of the accessories.
(Away Mode)

Press to disarm the alarm system.

Press to arm all sensors except the ones in zone A or Home Mode Zone,
sensors in zone A or Home Mode Zone will not activate an alarm.

Press to activate a panic alarm and the control panel auto-dials
the pre-set phone numbers immediately.

Power supply DC 3V (CR2025 Lithium Battery x 1pc)

≤ 7mAWorking current

≤ 80m (in open area)Transmitting distance

315MHz or 433.92MHz (± 75KHz) Radio frequency

ABS plasticHousing material

Operation Condition
Temperature -10°C ~ +55°C
Relative humidity ≤80% (non-condensing)

58 x 31 x 9.5mmDimensions (L x W x H)

LED Indication

LED flashes once: sends the transmitting signal.

Low batter y, please replace the battery Dim light:

immediately.

Mute Arm

Mute Disarm

Declarati on of Con formity

We de clare o n ou r sole re sponsibil it y that this equ ipment comp lies with the e ssential require ments of the Radio and
Telec ommunicat ions Terminal Equi pment Directive, 199 9/5/EC, and t hat any applica ble Essenti al Test S uite measurement s ha ve
been performed.

Press to arm the system in mute.

Press to disarm the system in mute.

2200

CE versions of the ntrol ( M/N: ) which displ ay the CE symbo l on the prod uct label, co mply with the Wirel ess Remote Co RC-80
essential requirements of the European Radi o and Telec ommunicat ion Termi nal Directive 1999 /5 /CE.

Ver: R C-80- UM-EN -V1.0

201 5 Chuan go. All R ights R eser ved.
