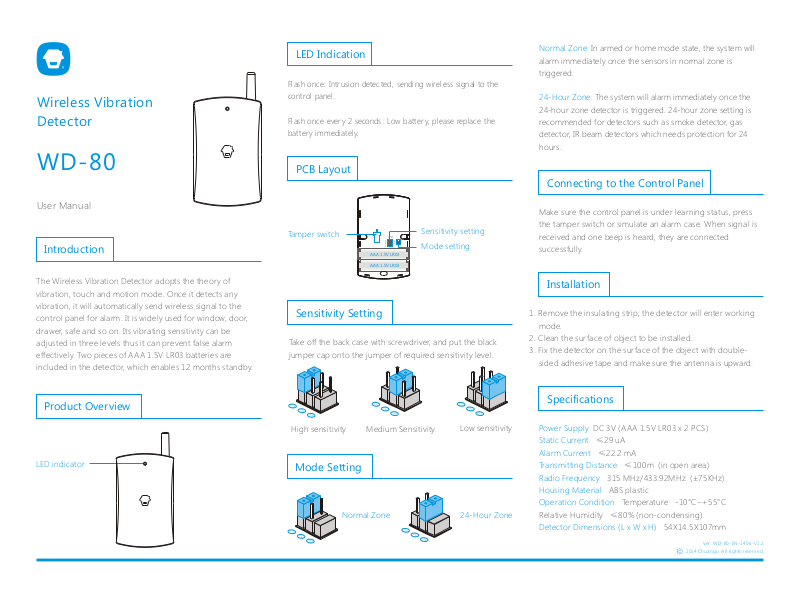

Wireless Vibration
Detector
LED Indication
Flash once: Intrusion detec ted, sending wireless signal to the
control panel .
Flash once ever y 2 seconds : Low batter y, please replace the
batter y immediately.
Normal Zone:
alarm im mediat ely once the senso rs in normal zone is
triggered.
24-Hour Zone:
24-hour zone detector is triggered. 24-hour zone se tting is
recommended for detectors such as smoke detector, gas
detector, IR beam detectors which needs protection for 24
hours.
In armed or home mod e state, the syste m will
The system will alarm immediately once the
WD-80
User Manual
Introduction
The Wireless Vibration Detector adop ts the theory of
vibration, tou ch and motion mode. Once it detects any
vibration, it wi ll automatically send wireless signal to the
control panel for alarm. It is widely used for window, door,
drawer, safe and so on. Its vibrating sensitivity can be
adjusted in three levels thus it can prevent false alarm
effect ively. Two piece s of AAA 1.5V LR03 batteries are
included in the detector, which enables 12 months standby.

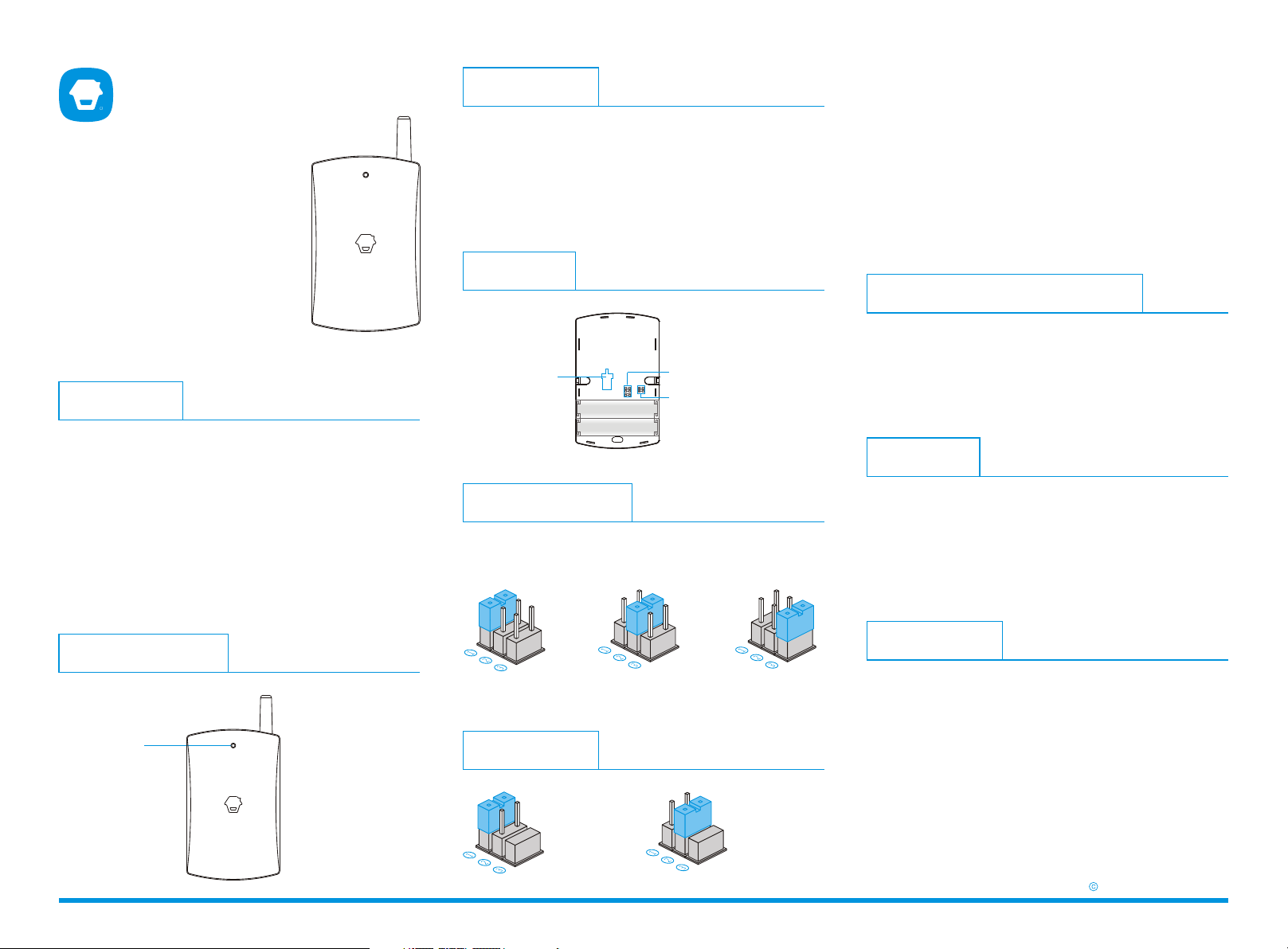

Product Overview
LED indicat or
PCB Layout
Tamper switch
JP4
1
2
3
AAA 1.5V LR03
AAA 1.5V LR03
Sensitivity se tting
1
2
Mode set ting
Sensitivity Setting
Take off the back case with screwdriver, and put the black
jumper cap onto th e jumper of required sensitivity level.
High sensitivi ty Medium Sensitivity
Low sensiti vity
Mode Setting
Normal Zone
24-Hour Zone
Connecting to the Control Panel
Make sure the control panel is under learning status, press
the tamper switch or simulate an alarm case. When signal is
received and one beep is heard, they are connected
successfully.
Installation
1. Remove the insulating stri p; the detector will enter working
mode.
2. Clean the surface of object to be installed.
3. Fix the dete ctor on the surface of the object with double sided adhesive tape and ma ke sure the antenna is upward.
Specifications
Power Supply
Static Current
Alarm Current
Transmitting Distance
Radio Frequency
Housing Materi al
Operation Cond ition
Relative Humid ity ≤80% (non-condensing)
Detect or Dimensions (L x W x H)
DC 3V (AAA 1.5V LR03 x 2 PCS)
≤29 uA
≤22.2 mA
≤100m (in open area)
315 MHz/433.92MHz (±75KHz)
ABS plastic
Temperat ure -10°C~+55°C
54X14.5X107mm
201 4 Ch u an go. A ll righ ts re se rv ed .
Ver: W D-80- EN -14 06 -V1 .2
