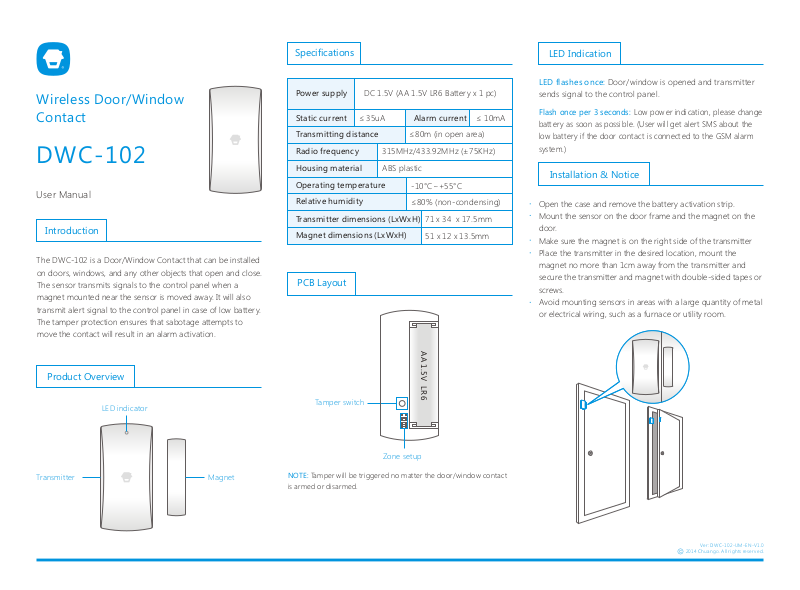

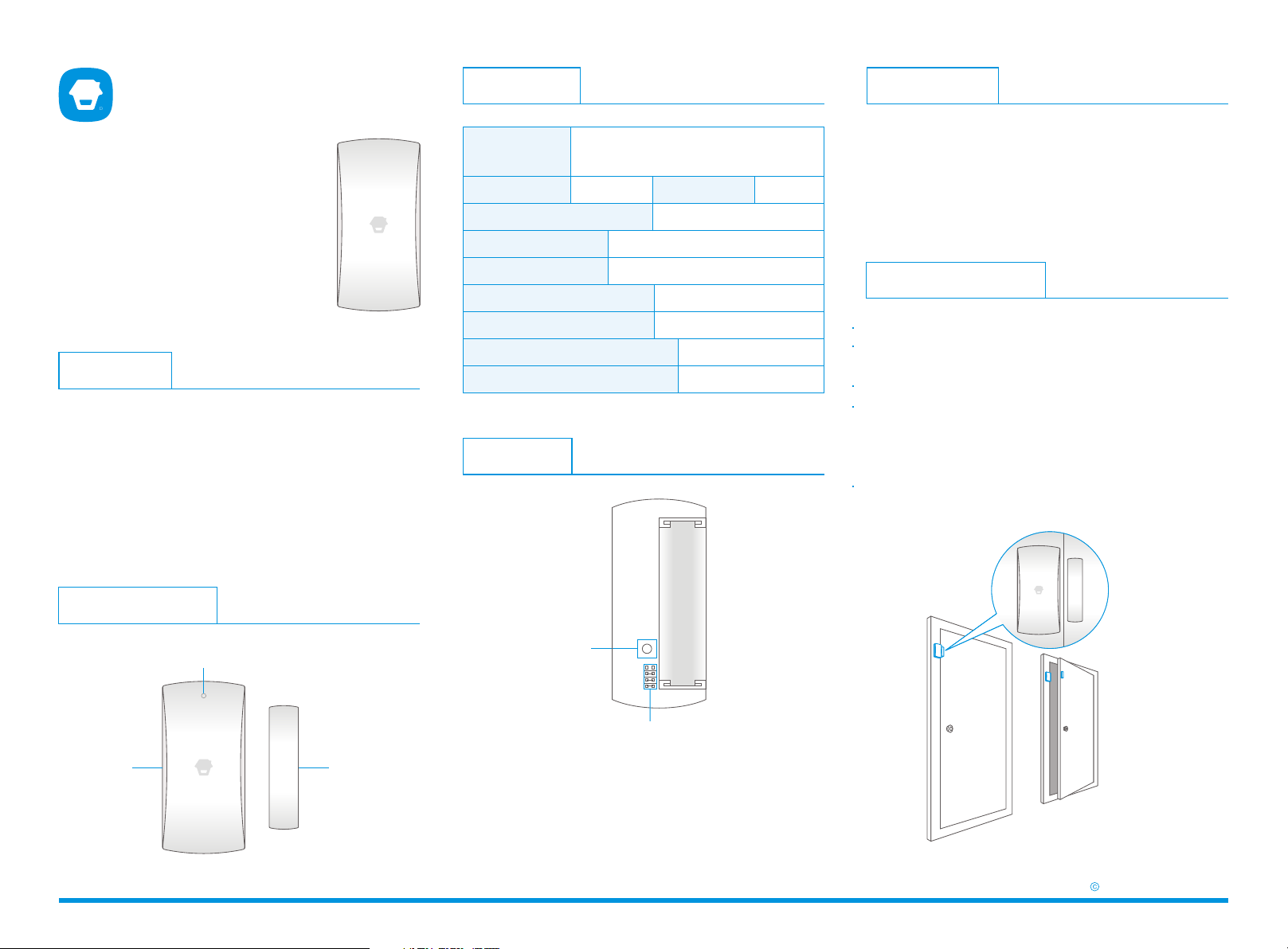

Wireless Door/Window
Contact
DWC-102
User Manual
Introduction
The DWC-102 is a Door/Window Contact tha t can be installed
on doors, windows, and any other objects that open and close.
The sensor transmits signals to the control panel when a
magnet mounted near the sensor is moved away. It will also
transmit alert signal to the control panel in case of low battery.
The tamper protection ensures that sabota ge attempts to
move the contact will result in an alarm activation.
Specifications
Power supply
Static current
Transmitting distance
Radio frequency
Housing material
Operating temperature
Relative humidity
Transmitter di mensions (LxWxH)
Magnet dimensions (LxWxH )
DC 1.5V (AA 1.5V LR6 Batter y x 1 pc)
≤ 35uA
≤80m (in open area)
315MHz/433.92MHz (±75KHz)
ABS plastic
PCB Layout
Alarm current
-10°C~+55°C
≤80% (non-condensing)
71 x 34 x 17.5mm
51 x 12 x 13.5mm
AA 1.5V LR6
≤ 10mA
LED Indication
LED flashes once: Door/window is opened and transmitter
sends signal to the control panel.
Flash once per 3 seconds: Low pow er indi cation, please change
battery as soon as possi ble. (User will get aler t SMS about the
low battery if the door cont act is connect ed to the GSM alarm
system.)
Installation & Notice
Open the case and remove the battery activation strip.
Mount the sensor on the door frame and the magnet on the
door.
Make sure the magnet is on the right side of the transmitter
Place the transmitter in the desired location, mount the
magnet no more than 1cm away from the transmitter and
secure the transmitter and magnet with double-sided tapes or
screws.
Avoid mounting sensors in areas with a large quantity of metal
or electrical wiring, such as a furnace or utility room.
Product Overview
LED indicator
Transmitter Magnet
Tamper switch
Zone setup
NOTE: Tamper will be triggered no matter the door/window contact
is armed or disarmed.
Ver: D WC-10 2-UM -EN-V 1.0
201 4 Chuan go. All r ights r eser ved.
