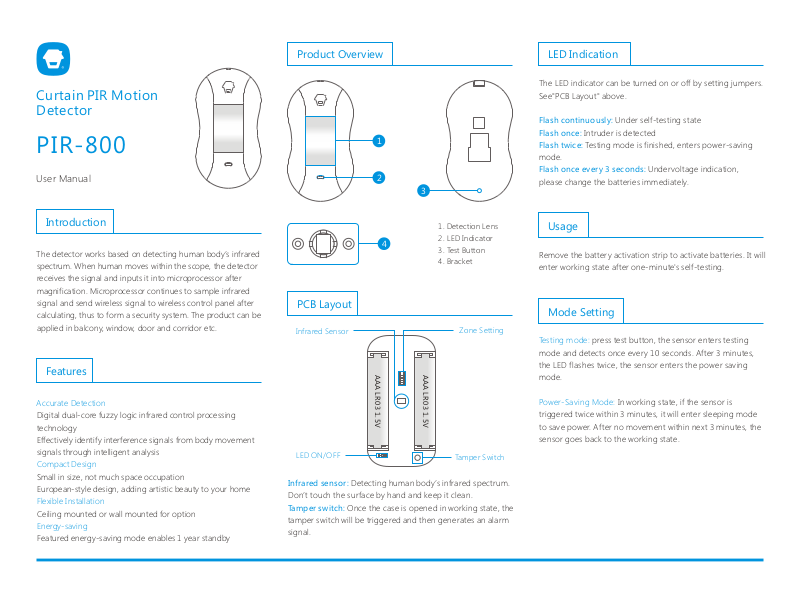

Page 1
Curtain PIR Motion
Detector
PIR-800
User Manual

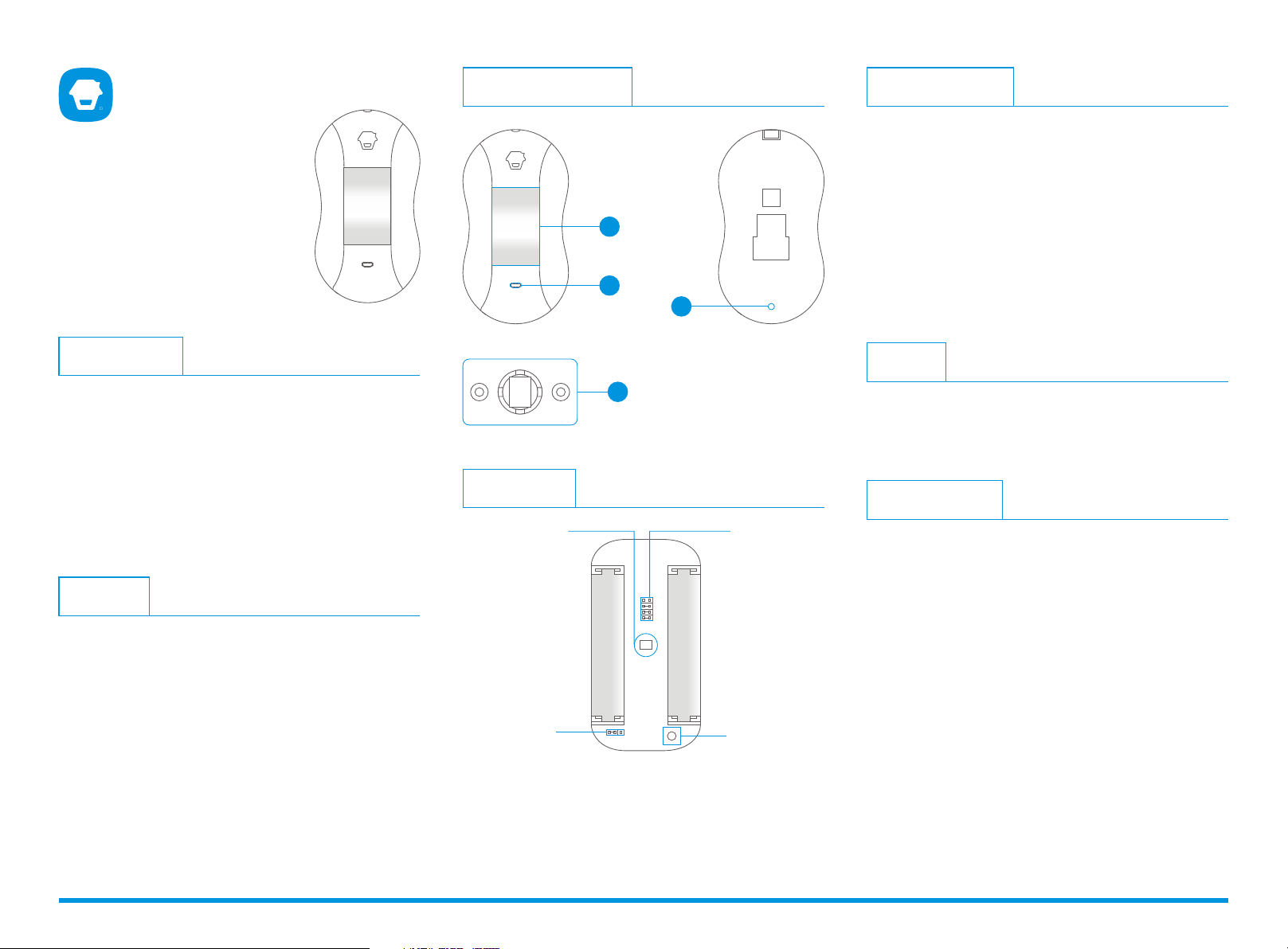

Product Overview
LED Indication
The LED indicator can be turne d on or off by setting jumpers.
See"PCB Layout" above.
Flash continuously:
1
2
3
Flash once:
Flash twice:
mode.
Flash once every 3 se conds:
please change the batteries immediately.
Intruder is detected
Testing mode is finished, enters power-saving
Under self-testing state
Undervoltage indication,
Introduction
The detector works based on detecting human body’s infrared
spectrum. When human moves within the scope, the detector
receives the signal and inputs it into microp rocessor after
magnification. Microprocessor continues to sample infrared
signal and send wireless signal to wireless control panel after
calculating, thus to form a security system. The product ca n be
applied in balcony, window, door and corridor etc.
Features
Accurate Detection
Digital dual-core fuzzy logic infrared control processing
technology
Effectively identify interference signals from body movement
signals through intelligent analysis
Compact Design
Small in size, not much space occupation
European-style design, adding artistic beauty to your home
Flexible Installation
Ceiling mounted or wall mounted for option
Energy-saving
Featured energy-saving mode enables 1 yea r standby
1. Detection Lens
4
2. LED Indicator
3. Test Button
4. Bracket
PCB Layout
Infrared Sensor
AAA LR03 1.5V
LED ON/OFF
Infrared sensor:
Don’t touch the surface by hand and keep it clean.
Tamper switch:
tamper switch will be triggered and then generates an alarm
signal.
Detecting human body’s infrared spectrum.
Once the case is opened in working state, the
AAA LR03 1.5V
Zone Setting
Tamper Switch
Usage
Remove the battery activation strip to activate batteries. It will
enter working state after one-minute's self-testing.
Mode Setting
Testing mode:
mode and detects once every 10 seconds. After 3 minutes,
the LED flashes twice, the sensor enters the power saving
mode.
Power -Saving Mode:
triggered twice within 3 minutes, it will enter sleeping mode
to save power. After no movement within next 3 minutes, the
sensor goes back to the working state.
press test button, the sensor enters testing
In working state, if the sensor is
Page 2

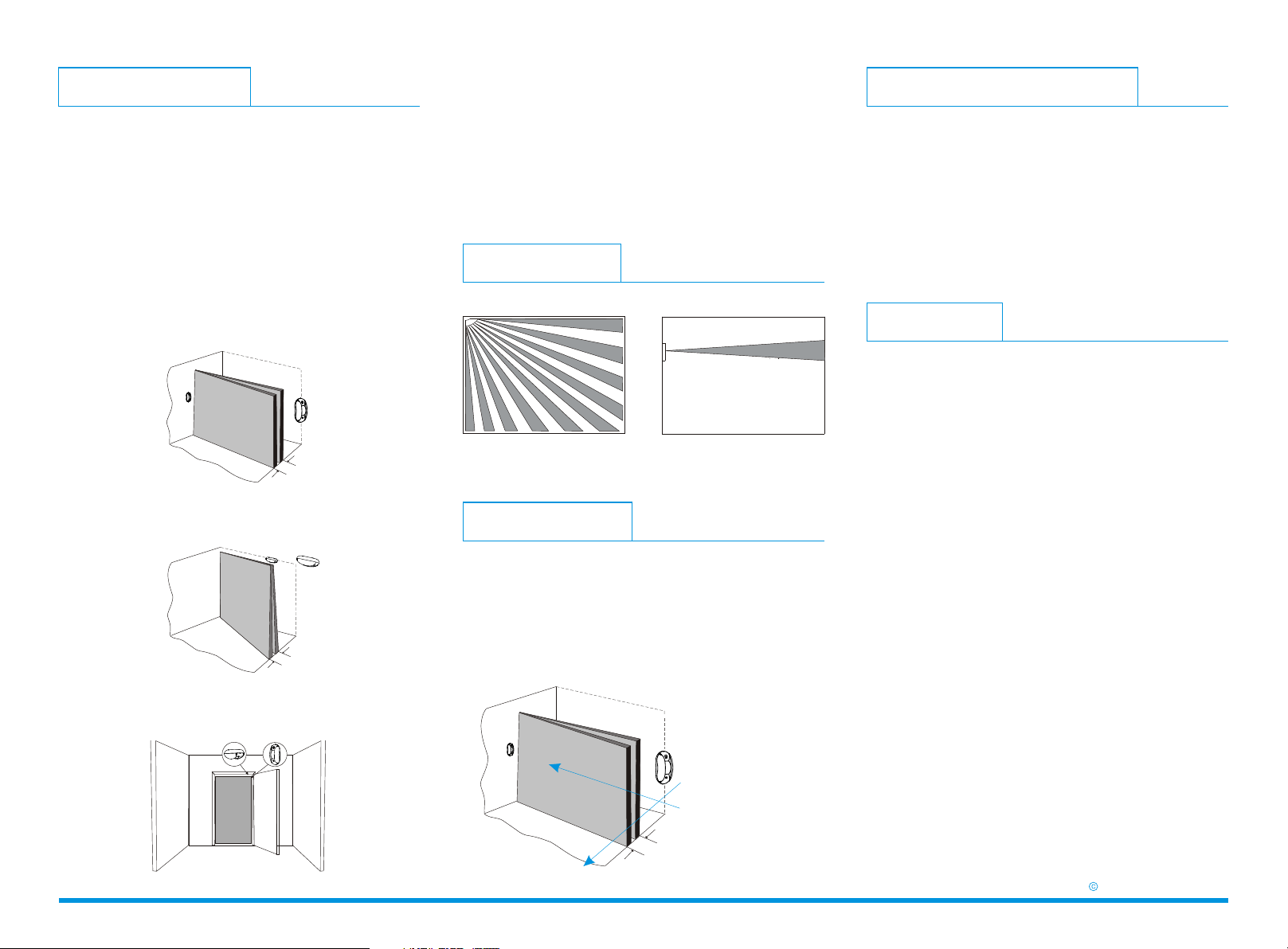

Installation & Notice
Wall-mounting:
Fix the bracket longitudin ally on the wall, and put the
detector on the bracket. Choose to mount it at the entry and
exit where intruder possibly breaks into. It is suggested to
mount it at the height of 2m from the ground.
Ceiling-mounting:
Fix the bracket laterally on the ceiling upper the door or
window, and put the detector on the bracket.
Mount on wall
Note:
make sure the detection direction towards interior both
installed on wall and at ceiling. Adjust th e bracket angle to op timize
the detecting effect.
Avoid mounting the detector close to air conditioner, electronic fan,
refr igerato
temperature changing, and avoid mounting it in direct sunlight.
Avoid any objects blocking the lens, so as not to influence the
detection effect.
r, oven, heate r and objects which will cause fast
Detection Range
Connect with the Control Panel
When the control panel is in connecting state, press the test
button twice to send wireless signal. One beep is heard after
panel receives signal, which means successful connection.
Arm the system, trigger the detector again. The panel will
alarm immediately. This indicates the detector has
successfully connected with the panel.
Specifications
Max. Height 3.6m
M x. Le ngt 5ma h
Mount at ceiling
Max. Height 3.6m
Max. Lengt 5mh
Mount at door
Max. Width .3m 1
Max. Width .3m1
0m
5m
0m
5m
Testing (Walk Test)
After installation, power on the detector. After self-testing for
1minute, press the test button, walk in the scope by crossing
the infrared spectr um (see below diagram), and watch the
LED indicator to make sure it is working. The LED indicator
will flash once when body movement is detected.
Max. Height 3.6m
High detection sensitivity
Low detection sensitivity
Power Supply:
DC 3V (AAA LR03 1.5V Battery x 2pcs)
Static Current:
≤
50uA
Alarm Current:
≤
9.5mA
Detection Distance:
5m
Curtain Detection Angle:
15°
Transmitting Distance:
≤
80m (in open area)
Radio Frequency:
315MHz or 433.92MHz (±75KHz)
Housing Material:
ABS Plastic
Operation Condition
Temperature: -10
Relative Humidity: 80% (non-condensing)
°C ~+55°C
≤
Detector Dimensions (L x W x H):
48 x 33 x 88mm
Mounting Plate Dimensions (L x W x H):
52 x 30 x 11.6mm
M . t 5ax Le ng h m
M x 1.3 ma . Width
Ver: P IR-80 0-UM -EN-V 1.0
