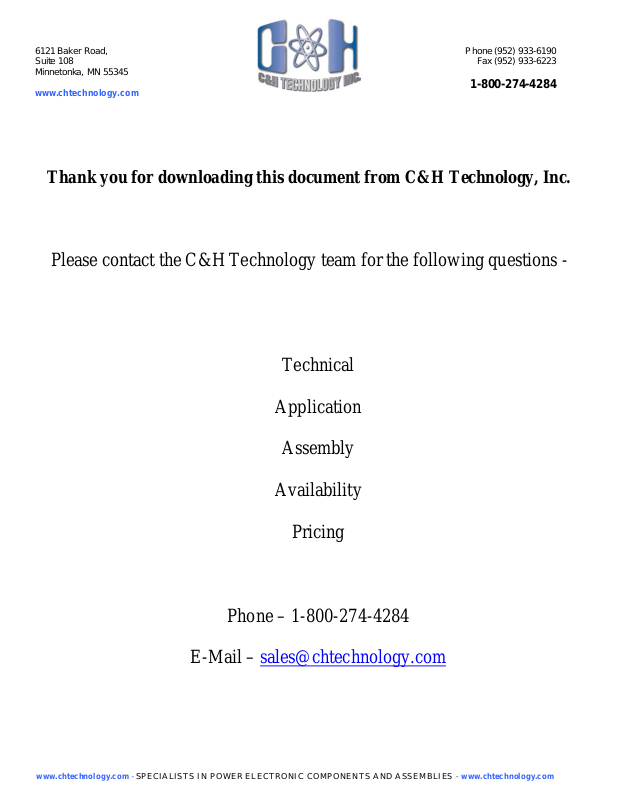

Thank you for downloading this document from C&H Technology, Inc.
Please contact the C&H Technology team for the following questions -
Technical
Application
Assembly
Availability
Pricing
Phone – 1-800-274-4284
E-Mail – sales@chtechnology.com
www.chtechnology.com - SPECIALISTS IN POWER ELECTRONIC COMPONENTS AND ASSEMBLIES - www.chtechnology.com
Medium Frequency Capacitors, Water Cooled
ESTAfi lm®, SINGLE OUTPUTS NOT SUBDIVIDED, 150 - 5000Hz
DESIGN
• All-fi lm winding in brass sheet welded casing;
• Casing conductive, or grounded;
• Casing varnish RAL 7033;
• IP00, indoor;
• Ambient temperature 1°C .... 50°C;
• Outfl owing water temperature 40° C maximum;
• 2 water-cooled current connections M20;
• Water tubing conductive;
• Mounting in the upright or horizontal position;
• Upon request, temperature or pressure monitoring;
x) thermostat
α)
158
α) water connection
44
369
Phawo...k..
Vishay ESTA
rating plate
α)
165
70
44
2 x ø 9.8
H1
H
5
TYPE DESIGNATION
Ph a w o s 750 / 1875 / 1k - . . .
frequency (kHz)
total output (kVAr)
voltage (V or kV)
live casing (grounded casing: no entry Phawo 750/...
NON-PCB
water-cooled
all fi lm dielectric
power capacitor
50
82.5
11 x 15
407
429
x) upon request
monitoring device *)
*) – ST = thermostat
– DR = pressure switch
Document Number: 13056
Revision 28-Mar-02
} Not all types available.
www.vishay.com
Phawo...k..
Vishay ESTA
Medium Frequency Capacitors, Water Cooled
150 - 5000Hz (not subdivided)
F
N
(Hz) (V) (kVAr) (µF) (A) CONDUCTIVE GROUNDED (mm)
150 600 800 2358 1333 X X 1000
1000 1400 1485 1400 X X 1000
1500 1800 849 1200 X X 1000
2000 1720 456 860 X X 1000
2500 1350 229 540 X X 1000
3000 2000 236 667 X X 1000
250 600 1120 1981 1867 X X 1000
1000 2000 1273 2000 X X 1000
1500 2750 778 1833 X X 1000
2000 2600 414 1300 X X 1000
2500 2000 204 800 X X 1000
3000 3333 236 1111 X X 1000
U
N
Q
N
C
N
IN CASING H
300 600 1375 2026 2292 X X 1000
1000 2400 1273 2400 X X 1000
1500 3000 707 2000 X X 1000
2000 3150 418 1575 X X 1000
2500 2350 200 940 X X 1000
3000 4000 236 1333 X X 1000
500 250 460 2343 1840 X X 1000
600 1500 1326 2500 X X 800
1000 2500 796 2500 X X 700
1500 3750 531 2500 X X 800
2000 4900 390 2450 X X 1000
2500 3700 188 1480 X X 1000
3000 6666 236 2222 X X 1000
600 250 560 2377 2240 X X 1000
600 1500 1105 2500 X X 700
1000 2500 663 2500 X X 600
1500 3750 442 2500 X X 700
2000 5000 332 2500 X X 900
2500 4200 178 1680 X X 1000
3000 8000 236 2667 X X 1000
www.vishay.com
14
Document Number: 13056
Revision 28-Mar-02
Phawo...k..
Medium Frequency Capacitors, Water Cooled
Vishay ESTA
150 - 5000Hz (not subdivided)
F
N
(Hz) (V) (kVAr) (µF) (A) CONDUCTIVE GROUNDED (mm)
1000 250 625 1592 2500 X X 700
600 1500 663 2500 X X 500
750 1875 531 2500 X X 450
1000 2500 398 2500 X X 450
1500 3750 265 2500 X X 600
2000 5000 199 2500 X X 750
2500 6250 159 2500 X X 950
2000 250 625 796 2500 X X 500
600 1500 332 2500 X X 500
750 1875 265 2500 X X 500
1000 2500 199 2500 X X 450
1500 3750 133 2500 X X 450
U
N
Q
N
C
N
IN CASING H
2000 5000 99 2500 X X 500
2400 6000 83 2500 X X 600
3000 250 625 531 2500 X X 500
600 1500 221 2500 X X 500
750 1875 177 2500 X X 500
1000 2500 133 2500 X X 500
1500 3750 88 2500 X X 550
2000 5000 66 2500 X X 500
4000 250 625 398 2500 X X 550
600 1500 166 2500 X X 550
750 1875 133 2500 X X 500
1000 2500 99 2500 X X 500
1500 3750 66 2500 X X 550
2000 5000 50 2500 X X 600
5000 250 600 306 2400 X X 550
600 1440 127 2400 X X 550
750 1800 102 2400 X X 500
1000 2400 76 2400 X X 550
1500 3600 51 2400 X X 500
2000 4800 38 2400 X X 550
Shown are the maximum power ratings, other power ratings, voltages, and frequencies on request.
