PD41__11

Ordering Information:

Select the complete eight-digit
module part number from the table
below.
Example: PD412411 is a 2400 Volt,
1100A Average Dual Diode
Isolated POW-R-BLOKTM Module

Type

Voltage

Volts (x100)

Current

Amperes

(x100)

PD41

18
20
22
24

11

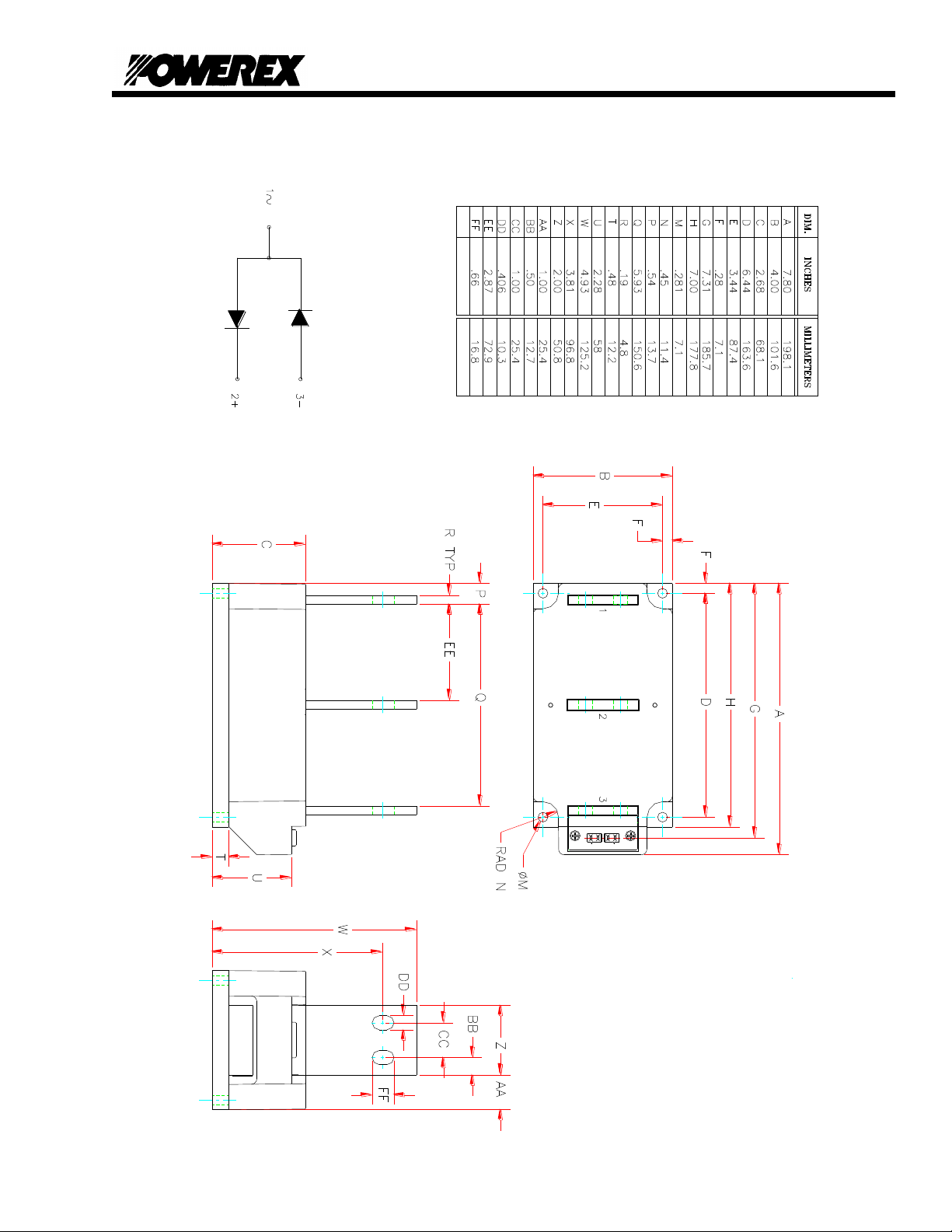

Description:

Powerex Dual Diode Modules are designed
for use in applications requiring rectification
and isolated packaging. The modules are
isolated for easy mounting with other
components on a common heatsink.

Features:

 Electrically Isolated Heatsinking
 Compression Bonded Elements
 Metal Baseplate
 Low Thermal Impedance

for Improved Current Capability
 UL Recognized (E78240)

Benefits:

 No Additional Insulation
Components Required

 Easy Installation
 No Clamping Components

Required
 Reduce Engineering Time

Applications:

 Bridge Circuits
 AC & DC Motor Drives
 Battery Supplies
 Power Supplies
 Large IGBT Circuit Front Ends

Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 [phone] POW-R-BLOK
www.pwrx.com Dual Diode Isolated Module

1100 Amperes / Up to 2400 Volts

TM

Revision Date: 09/28/2011
