www.vishay.com

PhMKP..., PhMKPg..., Cylindrical, LVAC

LVAC Power Capacitors

FEATURES

• Self-healing technology

• Over pressure tear-off fuse

• Aluminum case

• Excellent heat dissipation

• Various design options: Slim diameter or low height,
screw terminal IP00 or terminal block IP20

• Two versions available: Oil-filled and dry, gas filled

• UL and cUL approved

APPLICATIONS

• For applications 1-phase or 3-phase  1000 VAC

• Free standing, fixed individual-PFC (e.g. motors, lighting,
transformers)

• Automatic central-PFC (e.g. group of loads)

• Harmonic trap (e.g. UPS, frequency drives, converter)

Vishay ESTA

RMS

QUICK REFERENCE DATA

Series PhMKP…, cylindrical PhMKPg…, cylindrical

Description LVAC Power Capacitors - Oil - INDOOR, IP00 - IP20 LVAC Power Capacitors - Dry - INDOOR, IP00 - IP20

Type Capacitors, fixed, low voltage Capacitors, fixed, low voltage

Technology MKP, metallized polypropylene film MKP, metallized polypropylene film

Voltage max. (V) 1000 1000

Capacitance min. (μF) 3-phase D: 3 x 11.5, 3-phase Y: 83.6, 1-phase: 49.7 3-phase D: 3 x 11.5, 3-phase Y: 3 x 83.6

Capacitance max. (μF) 3-phase D: 3 x 335.0, 3-phase Y: 219.3, 1-phase: 332.2 3-phase D: 3 x 335.0, 3-phase Y: 3 x 219.3

Output min. (kvar) 2 2

Output max. (kvar) 37.1 37.1

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

1

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

CAPACITORS IN CYLINDRICAL CASING

APPLICATION

The Vishay ESTA PhMKP/PhMKPg series of power factor
correction capacitors in cylindrical aluminum casing now
provide higher kvar/voltage combinations for use in
low-voltage systems.
The newly available 116 mm and 136 mm diameter
capacitors complete the successful range of compact and
slim cylindrical capacitors of 64 mm and 84.4 mm diameter
design up to the lowest outputs of the triangular can design
of the PhMKDg model.
The 116 mm and 136 mm start where the output of the
84 mm design ends. At the point of change, the customer
has two options: the lower height profile of the 116 mm and
136 mm or the slimmer diameter of the 84.4 mm design.
The Vishay ESTA LVAC capacitors are suitable for use in
both standard PFC applications and in heavy-duty
applications such as wind turbines:

• automatic PFC-equipment

• individual fixed PFC (e.g. motors, transformers, lighting)

• group fixed PFC

• tuned and detuned capacitor banks

• harmonic filters (e.g. UPS, frequency drives, converter)

DESIGN

The Vishay ESTA LVAC MKP capacitors are metallized
polypropylene film capacitors with self-healing properties.
The current carrying metal layer of an MKP capacitor is
vaporised onto one side of the polypropylene film. The front
surface of tubular winding elements are joined by means of
the metal spray method (schooping). Three winding
elements are encapsulated in one aluminum casing and and
connected to form a true 3-phase capacitor. The
overpressure tear-off fuse prevents the capacitor from
bursting at the end of service life, or due to inadmissible
electrical or thermal overloads.
The capacitor is housed in a tubular aluminum container
with a aluminum lid press-rolled onto it (64 mm and

84.4 mm) or welded (116 mm and 136 mm). The current is
supplied via IP00 screw-on (M5) or IP20 block type safety
terminal. A threaded stud (M12) at the bottom of the
container serves for both grounding and mounting.
The Vishay ESTAprop and ESTAdry capacitors will be
delivered together with discharge resistors and hardware for
mounting and connection.
Vishay ESTA standard capacitors of 64 mm, 84.4 mm,
116 mm and 136 mm diameter will be delivered together
with a thickfilm discharge resistor unit and fixing material for
easy mounting and connection. In 84.4 mm diameter IP00
design there is also an option for feed-through (IN-LINE)
connection of the capacitors to the supply.
The entire range of Vishay ESTA LVAC products are offered
in both natural oil-filled ESTAprop PhMKP and gas-filled
ESTAdry PhMKPg versions.

Vishay ESTA

1-/3-PHASE CAPACITOR, IP00 SCREW-TYPE
TERMINALS 84.4 mm DIAMETER

1-/3-PHASE CAPACITOR, IP20 TERMINAL
BLOCK 64 mm/84.4 mm DIAMETER

3-PHASE CAPACITOR, IP20 TERMINAL BLOCK
116 mm DIAMETER

3-PHASE CAPACITOR, IP20 TERMINAL BLOCK
136 mm DIAMETER

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

2

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

CAPACITORS IN CYLINDRICAL CASING

TECHNICAL DATA

STANDARDS

Overvoltages
(in accordance with the above standards)

Overcurrent
(in accordance with the above standards)

Tolerance on capacitance

Test voltage, terminal/terminal 2.15 x U

Test voltage, terminal/casing 4800 VAC, 2 s (routine test)

Inrush current 300 times rated current I

Losses  0.25 W/kvar to 0.45 W/kvar (without discharge resistors)

Statistical life expectancy

Degree of protection

Ambient temperature category - 25/D (max. 55 °C) ESTAprop , - 40/D (max. 55 °C) ESTAdry

Permitted casing temperature Max. 65 °C (measured on top of the can)

Cooling Naturally air-cooled

Permissible relative humidity Maximum 95 %

Maximum allowed altitude 2000 m above sea level

Mounting position Vertical and horizontal

Mounting and grounding Threaded M12 stud at the bottom of the container

Safety features All-phase overpressure tear-off fuse, self-healing

Casing Aluminum can

Dielectric Polypropylene film, self-healing

Filling agent Natural oil, non-PCB, biodegradable (ESTAprop) or dry/gas - filled (ESTAdry)

Terminals per casing Ø
(cross-head screws)

IEC 60831-1 + 2, EN 60831- 1 + 2, UL810 LATEST EDITIONS,
UL/ULC - FILE E97723

U

+ 10 % (up to 8 h daily)

cn

Ucn + 15 % (up to 30 min daily)
Ucn + 20 % (up to 5 min, only 200 times in the life of the capacitor)
U

+ 30 % (up to 1 min, only 200 times in the life of the capacitor)

cn

Please also refer to “Terms and Definitions”.

1.3 x In,

1.5 x In with 10 % overvoltages, 15 % over capacitance and harmonics included,
continuous operation

Please also refer to “Terms and Definitions”.

- 5 %/+ 10 % in accordance with the standards
± 5 % as Vishay ESTA standard

, VAC , 2 s (routine test)

cn

n

> 150 000 operating h (ESTAprop)
> 130 000 operating h (ESTAdry)

IP20 clamp terminal with mounted discharge resistor unit or IP00 (terminal cover
for higher protection class upon request), indoor

Ø 64 mm
IP20 M4 terminal block A (D-351), 3.0 Nm, max. 16 mm

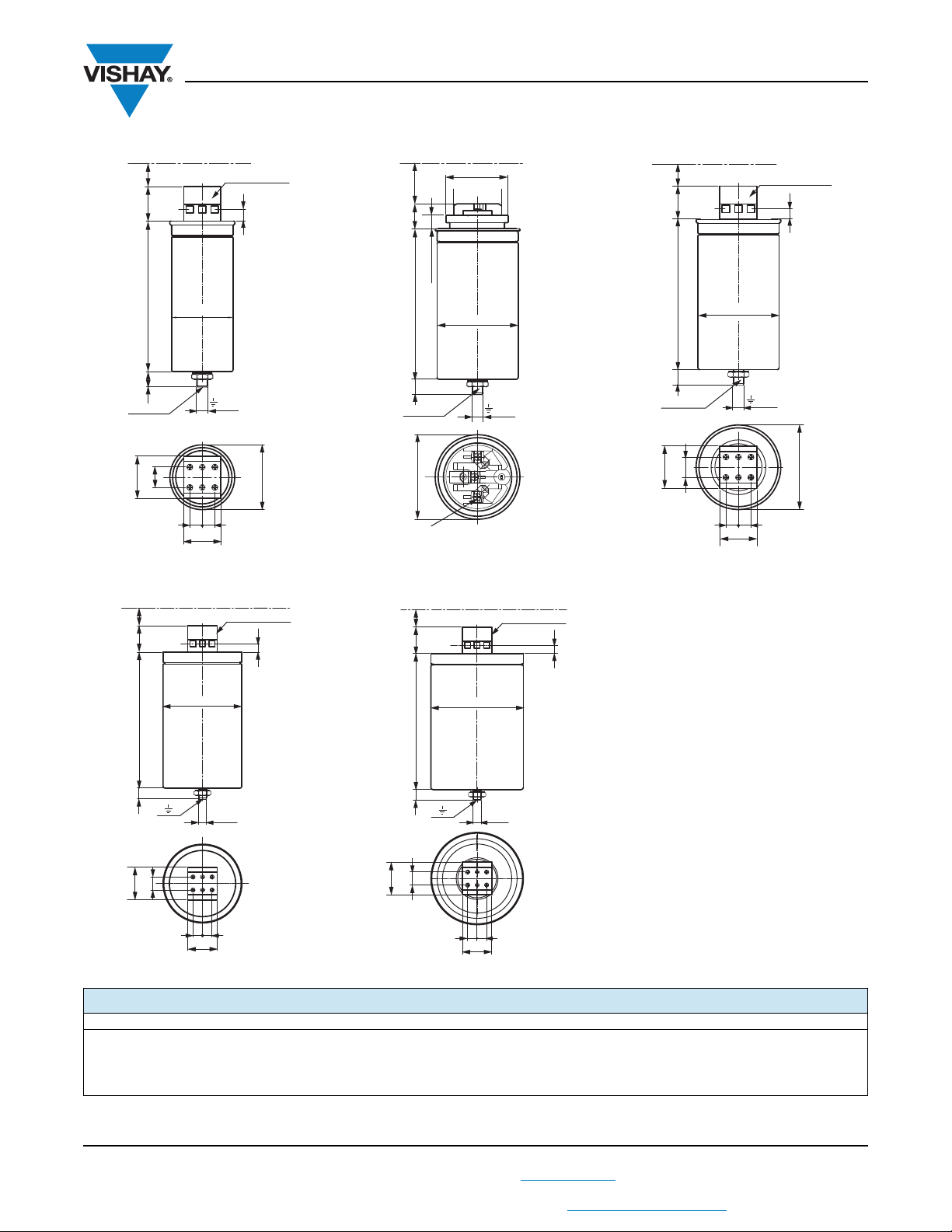

drawing 1
max. current, depending on ambient conditions:
34 A (1-phase)/25 A (3-phase)

Ø 84 mm
IP00 M5 screw terminals (D-203), 2.0 Nm, max. 25 mm

drawing 2, feed through
max. current, depending on ambient conditions:
57 A (1-phase)/52 A (3-phase)

IP20 M4 terminal block A (D-351), 3.0 Nm, max. 16 mm
drawing 3
max. current, depending on ambient conditions:
57 A (1-phase)/52 A (3-phase)

Ø 116 mm
IP20 M5 terminal block B (D-352), 3.0 Nm, max. 25 mm

drawing 4
max. current, depending on ambient conditions: 60 A (3-phase)

Ø 136 mm
IP20 M5 terminal block B (D-352), 3.0 Nm, max. 25 mm

drawing 5
max. current, depending on ambient conditions: 60 A (3-phase)

Vishay ESTA

2

2

2

2

2

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

3

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

3-PHASE CAPACITORS IP00, OIL

RATED VOLTAGE 230 V, 50 Hz, DELTA CONNECTION, UL/ULC

OUTPUT

TYPE ARTICLE NO.

PhMKP230.3.10,00-84 5341-44400-xx 10 3 x 200.6 25.1 84.4 x 265 1.7 2

PhMKP230.3.12,50-84 5341-44401-xx 12.5 3 x 250.7 31.4 84.4 x 340 2.0 2

PhMKP230.3.15,00-84 5341-44402-xx 15 3 x 300.9 37.7 84.4 x 340 2.1 2

(1)

kvar

CAP.

μF

CURRENT

A

DIMENSIONS

Ø x H

mm

RATED VOLTAGE 400 V, 50 Hz, DELTA CONNECTION, UL/ULC

CAN BE USED ALSO FOR 415 V, FULL OVER VOLTAGE RANGE

OUTPUT

(1)

TYPE ARTICLE NO.

PhMKP400.3.10,00-84 5341-44403-xx 10 10.8 3 x 66.3 14.4/15.0 84.4 x 190 1.3 2

PhMKP400.3.12,50-84 5341-44404-xx 12.5 13.5 3 x 82.9 18.0/18.7 84.4 x 190 1.3 2

PhMKP400.3.15,00-84 5341-44405-xx 15 16.1 3 x 99.5 21.6/22.4 84.4 x 190 1.3 2

PhMKP400.3.16,70-84 5341-44406-xx 16.7 18.0 3 x 110.7 24.1/25.0 84.4 x 265 1.7 2

PhMKP400.3.20,00-84 5341-44407-xx 20 21.5 3 x 132.6 28.8/30.0 84.4 x 265 1.7 2

PhMKP400.3.25,00-84 5341-44408-xx 25 26.9 3 x 165.8 36.1/37.4 84.4 x 265 1.7 2

kvar

400 V

OUTPUT

kvar

415 V

CAP.

μF

CURRENT

A

400 V/415 V

DIMENSIONS

Ø x H

mm

Vishay ESTA

WEIGHTkgDRAWING

WEIGHT

kg

NO.

DRAWING

NO.

RATED VOLTAGE 440 V, 50 Hz, DELTA CONNECTION, UL/ULC

CAN BE USED ALSO FOR 415 V

OUTPUT

TYPE ARTICLE NO.

PhMKP440.3.12,50-84 5341-44409-xx 12.5 11.1 3 x 68.5 16.4/15.5 84.4 x 190 1.3 2

PhMKP440.3.14,10-84 5341-44410-xx 14.1 12.5 3 x 77.0 18.5/17.5 84.4 x 190 1.3 2

PhMKP440.3.15,00-84 5341-44411-xx 15 13.3 3 x 82.2 19.7/18.6 84.4 x 190 1.3 2

PhMKP440.3.16,90-84 5341-44412-xx 16.9 15 3 x 92.6 22.2/20.9 84.4 x 190 1.3 2

PhMKP440.3.18.80-84 5341-44413-xx 18.8 16.7 3 x 103.0 24.7/23.3 84.4 x 265 1.7 2

PhMKP440.3.20,00-84 5341-44414-xx 20 17.8 3 x 109.6 26.2/24.8 84.4 x 265 1.7 2

PhMKP440.3.22,50-84 5341-44415-xx 22.5 20 3 x 123.3 29.5/27.8 84.4 x 265 1.7 2

PhMKP440.3.25,00-84 5341-44416-xx 25 22.2 3 x 137.0 32.8/30.9 84.4 x 265 1.7 2

PhMKP440.3.28,10-84 5341-44417-xx 28.1 25 3 x 154.0 36.9/34.8 84.4 x 265 1.7 2

PhMKP440.3.30,00-84 5341-44418-xx 30 26.7 3 x 164.4 39.4/37.1 84.4 x 340 2.1 2

(1)

kvar

440 V

OUTPUT

kvar

415 V

CAP.

μF

CURRENT

A

440 V/415 V

DIMENSIONS

Ø x H

mm

WEIGHTkgDRAWING

NO.

RATED VOLTAGE 525 V, 50 Hz, DELTA CONNECTION, UL/ULC

CAN BE USED ALSO FOR 480 V

OUTPUT

TYPE ARTICLE NO.

PhMKP525.3.10,00-84 5341-44419-xx 10 8.33 3 x 38.5 11.0/10.1 84.4 x 190 1.3 2

PhMKP525.3.12,50-84 5341-44420-xx 12.5 10.4 3 x 48.1 13.7/12.6 84.4 x 190 1.3 2

PhMKP525.3.13.80-84 5341-44421-xx 13.8 11.5 3 x 53.1 15.2/13.8 84.4 x 190 1.3 2

PhMKP525.3.15,00-84 5341-44422-xx 15 12.5 3 x 57.7 16.5/15.0 84.4 x 190 1.3 2

PhMKP525.3.20,00-84 5341-44423-xx 20 16.7 3 x 77.0 22.0/20.1 84.4 x 265 1.7 2

PhMKP525.3.25,00-84 5341-44424-xx 25 20 3 x 96.2 27.5/24.6 84.4 x 265 1.7 2

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

(1)

kvar

525 V

OUTPUT

kvar

480 V

CAP.

μF

CURRENT

A

525 V/480 V

DIMENSIONS

Ø x H

mm

WEIGHTkgDRAWING

NO.

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

4

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

3-PHASE CAPACITORS IP00, OIL

RATED VOLTAGE 660 V, 50 Hz, DELTA CONNECTION, UL/ULC UP TO 660 V

CAN BE USED ALSO FOR 690 V, FULL OVER VOLTAGE RANGE

OUTPUT

TYPE ARTICLE NO.

PhMKP660.3.08,33-84 5341-44425-xx 8.33 9.1 3 x 20.3 7.3/7.6 84.4 x 190 1.4 2

PhMKP660.3.10,00-84 5341-44426-xx 10 10.9 3 x 24.4 8.7/9.1 84.4 x 190 1.9 2

PhMKP660.3.12,50-84 5341-44427-xx 12.5 13.7 3 x 30.4 10.9/11.5 84.4 x 265 1.9 2

PhMKP660.3.15,00-84 5341-44428-xx 15 16.4 3 x 36.5 13.1/13.7 84.4 x 265 2.0 2

PhMKP660.3.16,70-84 5341-44429-xx 16.7 18.3 3 x 40.7 14.6/15.3 84.4 x 265 2.0 2

PhMKP660.3.20,00-84 5341-44430-xx 20 21.9 3 x 48.7 17.5/18.3 84.4 x 340 2.4 2

PhMKP660.3.22,90-84 5341-44431-xx 22.9 25.0 3 x 55.8 20.0/20.9 84.4 x 340 2.4 2

(1)

kvar

660 V

OUTPUT

kvar

690 V

CAP.

μF

CURRENT

A

660 V/690 V

DIMENSIONS

Ø x H

mm

RATED VOLTAGE 690 V, 50 Hz, DELTA CONNECTION

CAN BE USED ALSO FOR 660 V

OUTPUT

TYPE ARTICLE NO.

PhMKP690.3.12,50-84 5341-44432-xx 11.4 12.5 3 x 27.9 10.5/10.0 84.4 x 265 1.9 2

PhMKP690.3.15,00-84 5341-44433-xx 13.7 15 3 x 33.4 12.6/12.0 84.4 x 265 1.9 2

PhMKP690.3.20,00-84 5341-44434-xx 18.3 20 3 x 44.6 16.7/16.0 84.4 x 340 2.4 2

PhMKP690.3.25,00-84 5341-44435-xx 22.9 25 3 x 55.8 20.9/20.0 84.4 x 340 2.4 2

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

(1)

kvar

660 V

OUTPUT

kvar

690 V

CAP.

μF

CURRENT

A

690 V/660 V

DIMENSIONS

Ø x H

mm

Vishay ESTA

WEIGHT

WEIGHTkgDRAWING

kg

DRAWING

NO.

NO.

Terminal cover (IP20), available for 84.4 mm diameter tubular can type capacitors.
(Cable gland not available for use with these covers)

TYPE ARTICLE NO. CAPACITOR Ø IN mm

CAP84-88-IN-LINE 5341-COV-84-88-IP20-7 84.4

Type CAP84-88-IN-LINE

• Protection class IP20

• Protective cover prevents unintentional touching of live terminals

• Proper ventilation is provided by use of additional holes in the protective cover’s top

• Six slots located on the cover, three on each side, allow easy IN-LINE connection between two

TERMINAL COVER IP20: CAP84-IN-LINE IN-LINE CONNECTION BETWEEN TWO CAPACITORS, IP20

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

5

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

3-PHASE CAPACITORS IP20, OIL

RATED VOLTAGE 230 V, 50 Hz, DELTA CONNECTION, UL/ULC

OUTPUT

TYPE ARTICLE NO.

PhMKP230.3.02,50-A64 5341-48300-xx 2.5 3 x 50.1 6.3 64 x 190 0.8 1

PhMKP230.3.05,00-A64 5341-48301-xx 5 3 x 100.3 12.6 64 x 265 1.0 1

PhMKP230.3.10,00-A84 5341-48600-xx 10 3 x 200.6 25.1 84.4 x 265 1.7 3

PhMKP230.3.12,50-A84 5341-48601-xx 12.5 3 x 250.7 31.4 84.4 x 340 2.0 3

PhMKP230.3.15,00-A84 5341-48602-xx 15 3 x 300.9 37.7 84.4 x 340 2.1 3

PhMKP230.3.10,00-B116 5341-47003-xx 10 3 x 200.6 25.1 116 x 160 2.1 4

PhMKP230.3.12,50-B116 5341-47004-xx 12.5 3 x 250.7 31.4 116 x 190 2.5 4

PhMKP230.3.15,00-B116 5341-47005-xx 15 3 x 300.9 37.7 116 x 190 2.5 4

PhMKP230.3.16,70-B116 5341-47006-xx 16.7 3 x 335.0 41.9 116 x 230 3.1 4

(1)

kvar

CAP.

μF

CURRENT

A

DIMENSIONS

Ø x H

mm

Vishay ESTA

WEIGHT

kg

DRAWING

NO.

RATED VOLTAGE 400 V, 50 Hz, DELTA CONNECTION, UL/ULC

CAN BE USED ALSO FOR 415 V, FULL OVER VOLTAGE RANGE

OUTPUT

TYPE ARTICLE NO.

PhMKP400.3.02,50-A64 5341-48302-xx 2.5 2.7 3 x 16.6 3.6/3.7 64 x 190 0.8 1

PhMKP400.3.05,00-A64 5341-48303-xx 5 5.4 3 x 33.2 7.2/7.5 64 x 190 0.8 1

PhMKP400.3.06,67-A64 5341-48304-xx 6.67 7.2 3 x 44.2 9.6/10.0 64 x 190 0.8 1

PhMKP400.3.07,50-A64 5341-48305-xx 7.5 8.1 3 x 49.7 10.8/11.2 64 x 190 0.8 1

PhMKP400.3.08,33-A64 5341-48306-xx 8.33 9.0 3 x 55.2 12/12.5 64 x 190 0.8 1

PhMKP400.3.10,00-A64 5341-48307-xx 10 10.8 3 x 66.3 14.4/14.9 64 x 265 1.0 1

PhMKP400.3.12,50-A64 5341-48308-xx 12.5 13.5 3 x 82.9 18/18.7 64 x 265 1.0 1

PhMKP400.3.10,00-A84 5341-48603-xx 10 10.8 3 x 66.3 14.4/14.9 84.4 x 190 1.3 3

PhMKP400.3.12,50-A84 5341-48604-xx 12.5 13.5 3 x 82.9 18/18.7 84.4 x 190 1.3 3

PhMKP400.3.15,00-A84 5341-48605-xx 15 16.1 3 x 99.5 21.6/22.4 84.4 x 190 1.3 3

PhMKP400.3.16,70-A84 5341-48606-xx 16.7 18.0 3 x 110.7 24.1/25.0 84.4 x 265 1.7 3

PhMKP400.3.20,00-A84 5341-48607-xx 20 21.5 3 x 132.6 28.8/30.0 84.4 x 265 1.7 3

PhMKP400.3.25,00-A84 5341-48608-xx 25 26.9 3 x 165.8 36.1/37.4 84.4 x 265 1.7 3

PhMKP400.3.16,70-B116 5341-47010-xx 16.7 18.0 3 x 110.7 24.1/25.0 116 x 160 2.1 4

PhMKP400.3.20,00-B116 5341-47011-xx 20 21.5 3 x 132.6 28.8/29.9 116 x 160 2.1 4

PhMKP400.3.25,00-B116 5341-47012-xx 25 26.9 3 x 165.8 36.1/37.4 116 x 190 2.5 4

PhMKP400.3.30,00-B136 5341-47601-xx 30 32.3 3 x 198.9 43.3/44.9 136 x 190 2.6 5

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

(1)

kvar

400 V

OUTPUT

kvar

415 V

CAP.

μF

CURRENT

A

400 V/415 V

DIMENSIONS

Ø x H

mm

WEIGHT

kg

DRAWING

NO.

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

6

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

3-PHASE CAPACITORS IP20, OIL

RATED VOLTAGE 440 V, 50 Hz, DELTA CONNECTION, UL/ULC

CAN BE USED ALSO FOR 415 V

OUTPUT

(1)

TYPE ARTICLE NO.

PhMKP440.3.02,50-A64 5341-48322-xx 2.5 2.2 3 x 13.7 3.3/3.1 64 x 190 0.7 1

PhMKP440.3.05,00-A64 5341-48309-xx 5 4.4 3 x 27.4 6.6/6.1 64 x 190 0.8 1

PhMKP440.3.08,33-A64 5341-48310-xx 8.33 7.4 3 x 45.7 10.9/10.3 64 x 190 0.8 1

PhMKP440.3.10,00-A64 5341-48311-xx 10 8.9 3 x 54.8 13.1/12.4 64 x 265 1.0 1

PhMKP440.3.11,20-A64 5341-48312-xx 11.2 10 3 x 61.4 14.7/13.9 64 x 265 1.0 1

PhMKP440.3.12,50-A64 5341-48313-xx 12.5 11.1 3 x 68.5 16.4/15.4 64 x 265 1.0 1

PhMKP440.3.14,00-A64 5341-48314-xx 14 12.5 3 x 76.7 18.4/17.4 64 x 265 1.0 1

kvar

440 V

OUTPUT

kvar

415 V

CAP.

μF

CURRENT

A

440 V/415 V

DIMENSIONS

Ø x H

mm

Vishay ESTA

WEIGHTkgDRAWING

NO.

PhMKP440.3.12,50-A84 5341-48609-xx 12.5 11.1 3 x 68.5 16.4/15.5 84.4 x 190 1.3 3

PhMKP440.3.14,10-A84 5341-48610-xx 14.1 12.5 3 x 77.0 18.5/17.5 84.4 x 190 1.3 3

PhMKP440.3.15,00-A84 5341-48611-xx 15 13.3 3 x 82.2 19.7/18.6 84.4 x 190 1.3 3

PhMKP440.3.16,90-A84 5341-48612-xx 16.9 15 3 x 92.6 22.2/20.9 84.4 x 190 1.3 3

PhMKP440.3.18.80-A84 5341-48613-xx 18.8 16.67 3 x 103.0 24.7/23.3 84.4 x 265 1.7 3

PhMKP440.3.20,00-A84 5341-48614-xx 20 17.8 3 x 109.6 26.2/24.8 84.4 x 265 1.7 3

PhMKP440.3.22,50-A84 5341-48615-xx 22.5 20 3 x 123.3 29.5/27.8 84.4 x 265 1.7 3

PhMKP440.3.25,00-A84 5341-48616-xx 25 22.2 3 x 137.0 32.8/30.9 84.4 x 265 1.7 3

PhMKP440.3.28,10-A84 5341-48617-xx 28.1 25 3 x 154.0 36.9/34.8 84.4 x 265 1.7 3

PhMKP440.3.30,00-A84 5341-48618-xx 30 26.7 3 x 164.4 39.4/37.1 84.4 x 340 2.1 3

PhMKP440.3.14,10-B116 5341-47068-xx 14.1 12.5 3 x 77.0 18.5/17.5 116 x 160 1.5 4

PhMKP440.3.18,80-B116 5341-47015-xx 18.8 16.67 3 x 103.0 24.7/23.3 116 x 160 1.8 4

PhMKP440.3.20,00-B116 5341-47016-xx 20 17.8 3 x 109.6 26.2/24.8 116 x 160 1.8 4

PhMKP440.3.22,50-B116 5341-47017-xx 22.5 20 3 x 123.3 29.5/27.8 116 x 160 1.9 4

PhMKP440.3.25,00-B116 5341-47018-xx 25 22.2 3 x 137.0 32.8/30.9 116 x 190 2.0 4

PhMKP440.3.28,10-B116 5341-47020-xx 28.1 25 3 x 154.0 36.9/34.8 116 x 190 2.0 4

PhMKP440.3.30,00-B116 5341-47022-xx 30 26.7 3 x 164.4 39.4/37.1 116 x 190 2.2 4

PhMKP440.3.33,00-B136 5341-47602-xx 33 29.4 3 x 180.9 43.3/40.9 136 x 190 2.3 5

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

7

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

3-PHASE CAPACITORS IP20, OIL

RATED VOLTAGE 525 V, 50 Hz, DELTA CONNECTION, UL/ULC

CAN BE USED ALSO FOR 480 V

OUTPUT

(1)

TYPE ARTICLE NO.

PhMKP525.3.03,00-A64 5341-48315-xx 3 2.5 3 x 11.5 3.3/3.0 64 x 190 0.8 1

PhMKP525.3.05,00-A64 5341-48316-xx 5 4.2 3 x 19.2 5.5/5.0 64 x 190 0.8 1

PhMKP525.3.08,33-A64 5341-48317-xx 8.33 7 3 x 32.1 9.2/8.4 64 x 190 0.8 1

PhMKP525.3.10,00-A64 5341-48318-xx 10 8.33 3 x 38.5 11.0/10.1 64 x 265 1.0 1

PhMKP525.3.10,00-A84 5341-48619-xx 10 8.33 3 x 38.5 11.0/10.1 84.4 x 190 1.3 3

PhMKP525.3.12,50-A84 5341-48620-xx 12.5 10.4 3 x 48.1 13.7/12.6 84.4 x 190 1.3 3

PhMKP525.3.13.80-A84 5341-48621-xx 13.8 11.5 3 x 53.1 15.2/13.8 84.4 x 190 1.3 3

PhMKP525.3.15,00-A84 5341-48622-xx 15 12.5 3 x 57.7 16.5/15.0 84.4 x 190 1.3 3

PhMKP525.3.20,00-A84 5341-48623-xx 20 16.7 3 x 77.0 22.0/20.1 84.4 x 265 1.7 3

PhMKP525.3.25,00-A84 5341-48624-xx 25 20.9 3 x 96.2 27.5/24.6 84.4 x 265 1.7 3

kvar

525 V

OUTPUT

kvar

480 V

CAP.

μF

CURRENT

A

525 V/480 V

DIMENSIONS

Ø x H

mm

Vishay ESTA

WEIGHTkgDRAWING

NO.

PhMKP525.3.20,00-B116 5341-47024-xx 20 16.7 3 x 77.0 22.0/20.1 116 x 160 1.8 4

PhMKP525.3.25,00-B116 5341-47025-xx 25 20.9 3 x 96.2 27.5/25.1 116 x 190 2.5 4

PhMKP525.3.30,00-B116 5341-47069-xx 30 25.1 3 x 115.4 33.0/30.2 116 x 230 2.6 4

PhMKP525.3.30,00-B136 5341-47603-xx 30 25.1 3 x 115.4 33.0/30.2 136 x 190 2.6 5

PhMKP525.3.35,90-B116 5341-47070-xx 35.9 30 3 x 138.2 39.5/36.1 116 x 265 2.8 4

PhMKP525.3.35,90-B136 5341-47600-xx 35.9 30 3 x 138.2 39.5/36.1 136 x 230 3.5 5

PhMKP525.3.37,10-B116 5341-47065-xx 37.1 31 3 x 142.8 40.8/37.3 116 x 265 2.8 4

PhMKP525.3.37,10-B136 5341-47604-xx 37.1 31 3 x 142.8 40.8/37.3 136 x 230 3.5 5

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

8

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

3-PHASE CAPACITORS IP20, OIL

RATED VOLTAGE 660 V, 50 Hz, 64/84: DELTA CONNECTION, 116/136: STAR CONNECTION,
UL/ULC UP TO 660 V

CAN BE USED ALSO FOR 690 V

OUTPUT

TYPE ARTICLE NO.

PhMKP660.3.05,00-A64 5341-48319-xx 5 5.5 3 x 12.2 4.4/4.6 64 x 190 0.8 1

PhMKP660.3.08,33-A64 5341-48320-xx 8.33 9.1 3 x 20.3 7.3/7.6 64 x 265 1.0 1

PhMKP660.3.08,33-A84 5341-48625-xx 8.33 9.1 3 x 20.3 7.3/7.6 84.4 x 190 1.3 3

PhMKP660.3.10,00-A84 5341-48626-xx 10 10.9 3 x 24.4 8.7/9.1 84.4 x 190 1.3 3

PhMKP660.3.12,50-A84 5341-48627-xx 12.5 13.7 3 x 30.4 10.9/11.4 84.4 x 265 1.7 3

PhMKP660.3.15,00-A84 5341-48628-xx 15 16.4 3 x 36.5 13.1/13.7 84.4 x 265 1.7 3

PhMKP660.3.16,70-A84 5341-48629-xx 16.7 18.3 3 x 40.7 14.6/15.3 84.4 x 265 1.7 3

PhMKP660.3.20,00-A84 5341-48630-xx 20 21.9 3 x 48.7 17.5/18.3 84.4 x 340 2.1 3

PhMKP660.3.22,90-A84 5341-48631-xx 22.9 25 3 x 55.8 20/20.9 84.4 x 340 2.1 3

(1)

kvar

660 V

OUTPUT

kvar

690 V

CAP.

μF

CURRENT

A

660 V/690 V

DIMENSIONS

Ø x H

mm

Vishay ESTA

WEIGHTkgDRAWING

NO.

PhMKP660.2.12,50-B116 5341-47057-xx 12.5 13.7 3 x 91.4 10.9/11.4 116 x 160 2.1 4

PhMKP660.2.15,00-B116 5341-47058-xx 15 16.4 3 x 109.6 13.1/13.7 116 x 160 2.1 4

PhMKP660.2.16,70-B116 5341-47059-xx 16.7 18.3 3 x 122.1 14.6/15.3 116 x 160 2.1 4

PhMKP660.2.20,00-B116 5341-47061-xx 20 21.9 3 x 146.2 17.5/18.3 116 x 190 2.3 4

PhMKP660.2.22,90-B116 5341-47062-xx 22.9 25 3 x 167.3 20/20.9 116 x 190 2.5 4

PhMKP660.2.25,00-B136 5341-47605-xx 25 27.3 3 x 182.6 21.9/22.9 136 x 190 2.6 5

PhMKP660.2.30,00-B136 5341-47606-xx 30 32.8 3 x 219.3 26.2/27.4 136 x 230 3.0 5

RATED VOLTAGE 690 V, 50 Hz, 64/84: DELTA CONNECTION, 116/136: STAR CONNECTION

CAN BE USED ALSO FOR 660 V

OUTPUT

TYPE ARTICLE NO.

PhMKP690.3.10,00-A64 5341-48321-xx 10 9.1 3 x 22.3 8.4/8.0 64 x 265 1.1 1

PhMKP690.3.12,50-A84 5341-48632-xx 12.5 11.4 3 x 27.9 10.5/10.0 84.4 x 265 1.9 3

PhMKP690.3.15,00-A84 5341-48633-xx 15 13.7 3 x 33.4 12.5/12.0 84.4 x 265 1.9 3

PhMKP690.3.20,00-A84 5341-48634-xx 20 18.3 3 x 44.6 16.7/16.0 84.4 x 340 2.4 3

PhMKP690.3.25,00-A84 5341-48635-xx 25 22.9 3 x 55.7 20.9/20.0 84.4 x 340 2.4 3

PhMKP690.2.12,50-B116 5341-47071-xx 12.5 11.4 3 x 83.6 10.5/10.0 116 x 160 2.0 4

PhMKP690.2.15,00-B116 5341-47072-xx 15 13.7 3 x 100.3 12.5/12.0 116 x 160 2.2 4

PhMKP690.2.20,00-B116 5341-47073-xx 20 18.3 3 x 133.7 16.7/16.0 116 x 190 2.2 4

PhMKP690.2.25,00-B116 5341-47074-xx 25 22.9 3 x 167.3 20.9/20.0 116 x 190 2.5 4

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

(1)

kvar

690 V

OUTPUT

kvar

660 V

CAP.

μF

CURRENT

A

690 V/660 V

DIMENSIONS

Ø x H

mm

WEIGHTkgDRAWING

NO.

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

9

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

3-PHASE CAPACITORS IP00, DRY

RATED VOLTAGE 230 V, 50 Hz, DELTA CONNECTION, UL/ULC

OUTPUT

TYPE ARTICLE NO.

PhMKPg230.3.10,00-84 5343-44001-xx 10 3 x 200.6 25.1 84.4 x 265 1.4 2
PhMKPg230.3.12,50-84 5343-44002-xx 12.5 3 x 250.7 31.4 84.4 x 340 1.5 2
PhMKPg230.3.15,00-84 5343-44003-xx 15 3 x 300.9 37.7 84.4 x 340 1.7 2

(1)

kvar

CAP.

μF

CURRENT

A

DIMENSIONS

Ø x H

mm

RATED VOLTAGE 400 V, 50 Hz, DELTA CONNECTION, UL/ULC

CAN BE USED ALSO FOR 415 V, FULL OVER VOLTAGE RANGE

OUTPUT

(1)

TYPE ARTICLE NO.

PhMKPg400.3.10,00-84 5343-44004-xx 10 10.8 3 x 66.3 14.4/15.0 84.4 x 190 0.9 2
PhMKPg400.3.12,50-84 5343-44005-xx 12.5 13.5 3 x 82.9 18.0/18.7 84.4 x 190 1.0 2
PhMKPg400.3.15,00-84 5343-44006-xx 15 16.1 3 x 99.5 21.6/22.4 84.4 x 190 1.1 2
PhMKPg400.3.16,70-84 5343-44007-xx 16.7 18.0 3 x 110.7 24.1/25.0 84.4 x 265 1.4 2
PhMKPg400.3.20,00-84 5343-44008-xx 20 21.5 3 x 132.6 28.8/30.0 84.4 x 265 1.4 2
PhMKPg400.3.25,00-84 5343-44009-xx 25 26.9 3 x 165.8 36.1/37.4 84.4 x 265 1.5 2

kvar

400 V

OUTPUT

kvar

415 V

CAP.

μF

CURRENT

A

400 V/415 V

DIMENSIONS

Ø x H

mm

Vishay ESTA

WEIGHTkgDRAWING

NO.

WEIGHTkgDRAWING

NO.

RATED VOLTAGE 440 V, 50 Hz, DELTA CONNECTION, UL/ULC

CAN BE USED ALSO FOR 415 V

OUTPUT

TYPE ARTICLE NO.

PhMKPg440.3.12,50-84 5343-44010-xx 12.5 11.1 3 x 68.5 16.4/15.5 84.4 x 190 1.0 2
PhMKPg440.3.14,10-84 5343-44011-xx 14.1 12.5 3 x 77.0 18.5/17.5 84.4 x 190 1.1 2
PhMKPg440.3.15,00-84 5343-44012-xx 15 13.3 3 x 82.2 19.7/18.6 84.4 x 190 1.1 2
PhMKPg440.3.16,90-84 5343-44013-xx 16.9 15 3 x 92.6 22.2/20.9 84.4 x 190 1.2 2
PhMKPg440.3.18.80-84 5343-44014-xx 18.8 16.7 3 x 103.0 24.7/23.3 84.4 x 265 1.3 2
PhMKPg440.3.20,00-84 5343-44015-xx 20 17.8 3 x 109.6 26.2/24.8 84.4 x 265 1.4 2
PhMKPg440.3.22,50-84 5343-44016-xx 22.5 20 3 x 123.3 29.5/27.8 84.4 x 265 1.4 2
PhMKPg440.3.25,00-84 5343-44017-xx 25 22.2 3 x 137.0 32.8/30.9 84.4 x 265 1.5 2
PhMKPg440.3.28,10-84 5343-44018-xx 28.1 25 3 x 154.0 36.9/34.8 84.4 x 265 1.5 2
PhMKPg440.3.30,00-84 5343-44019-xx 30 26.7 3 x 164.4 39.4/37.1 84.4 x 340 1.8 2

(1)

kvar

440 V

OUTPUT

kvar

415 V

CAP. μF

CURRENT

A

440 V/415 V

DIMENSIONS

Ø x H

mm

WEIGHTkgDRAWING

NO.

RATED VOLTAGE 525 V, 50 Hz, DELTA CONNECTION, UL/ULC

CAN BE USED ALSO FOR 480 V

OUTPUT

TYPE ARTICLE NO.

PhMKPg525.3.10,00-84 5343-44020-xx 10 8.33 3 x 38.5 11.0/10.1 84.4 x 190 0.8 2
PhMKPg525.3.12,50-84 5343-44021-xx 12.5 10.4 3 x 48.1 13.7/12.6 84.4 x 190 1.0 2
PhMKPg525.3.13.80-84 5343-44022-xx 13.8 11.5 3 x 53.1 15.2/13.8 84.4 x 190 1.0 2
PhMKPg525.3.15,00-84 5343-44023-xx 15 12.5 3 x 57.7 16.5/15.0 84.4 x 190 1.1 2
PhMKPg525.3.20,00-84 5343-44024-xx 20 16.7 3 x 77.0 22.0/20.1 84.4 x 265 1.3 2
PhMKPg525.3.25,00-84 5343-44025-xx 25 20 3 x 96.2 27.5/24.6 84.4 x 265 1.5 2

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

(1)

kvar

525 V

OUTPUT

kvar

480 V

CAP.

μF

CURRENT

A

525 V/480 V

DIMENSIONS

Ø x H

mm

WEIGHTkgDRAWING

NO.

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

10

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

3-PHASE CAPACITORS IP00, DRY

RATED VOLTAGE 660 V, 50 Hz, DELTA CONNECTION, UL/ULC UP TO 660 V

CAN BE USED ALSO FOR 690 V, FULL OVER VOLTAGE RANGE

OUTPUT

TYPE ARTICLE NO.

PhMKPg660.3.08,33-84 5343-44026-xx 8.33 9.1 3 x 20.3 7.3/7.6 84.4 x 190 0.9 2

PhMKPg660.3.10,00-84 5343-44027-xx 10 10.9 3 x 24.4 8.7/9.1 84.4 x 190 1.1 2

PhMKPg660.3.12,50-84 5343-44028-xx 12.5 13.7 3 x 30.4 10.9/11.5 84.4 x 265 1.2 2

PhMKPg660.3.15,00-84 5343-44029-xx 15 16.4 3 x 36.5 13.1/13.7 84.4 x 265 1.4 2

PhMKPg660.3.16,70-84 5343-44030-xx 16.7 18.3 3 x 40.7 14.6/15.3 84.4 x 265 1.5 2

PhMKPg660.3.20,00-84 5343-44031-xx 20 21.9 3 x 48.7 17.5/18.3 84.4 x 340 1.7 2

PhMKPg660.3.22,90-84 5343-44032-xx 22.9 25.0 3 x 55.8 20.0/20.9 84.4 x 340 1.9 2

(1)

kvar

660 V

OUTPUT

kvar

690 V

CAP.

μF

CURRENT

A

660 V/690 V

DIMENSIONS

Ø x H

mm

RATED VOLTAGE 690 V, 50 Hz, DELTA CONNECTION

CAN BE USED ALSO FOR 660 V

OUTPUT

TYPE ARTICLE NO.

PhMKPg690.3.12,50-84 5343-44033-xx 11.4 12.5 3 x 27.9 10.5/10.0 84.4 x 265 1.1 2

PhMKPg690.3.15,00-84 5343-44034-xx 13.7 15 3 x 33.4 12.6/12.0 84.4 x 265 1.3 2

PhMKPg690.3.20,00-84 5343-44035-xx 18.3 20 3 x 44.6 16.7/16.0 84.4 x 340 1.6 2

PhMKPg690.3.25,00-84 5343-44036-xx 22.9 25 3 x 55.8 20.9/20.0 84.4 x 340 1.9 2

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

(1)

kvar

660 V

OUTPUT

kvar

690 V

CAP.

μF

CURRENT

A

690 V/660 V

DIMENSIONS

Ø x H

mm

Vishay ESTA

WEIGHT

WEIGHT

kg

kg

DRAWING

NO.

DRAWING

NO.

Terminal cover (IP20), available for 84.4 mm diameter tubular can type capacitors.
(Cable gland not available for use with these covers)

TYPE ARTICLE NO. CAPACITOR Ø IN mm

CAP84-88-IN-LINE 5341-COV-84-88-IP20-7 84.4

Type CAP84-88-IN-LINE

• Protection class IP20

• Protective cover prevents unintentional touching of live terminals

• Proper ventilation is provided by use of additional holes in the protective cover’s top

• Six slots located on the cover, three on each side, allow easy IN-LINE connection between two

TERMINAL COVER IP20: CAP84-IN-LINE IN-LINE CONNECTION BETWEEN TWO CAPACITORS, IP20

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

11

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

3-PHASE CAPACITORS IP20, DRY

RATED VOLTAGE 230 V, 50 Hz, DELTA CONNECTION, UL/ULC

OUTPUT

TYPE ARTICLE NO.

PhMKPg230.3.02,50-A64 5343-48200-xx 2.5 3 x 50.1 6.3 64 x 190 0.6 1

PhMKPg230.3.05,00-A64 5343-48201-xx 5 3 x 100.3 12.6 64 x 265 0.8 1

PhMKPg230.3.10,00-A84 5343-48500-xx 10 3 x 200.6 25.1 84.4 x 265 1.4 3

PhMKPg230.3.12,50-A84 5343-48501-xx 12.5 3 x 250.7 31.4 84.4 x 340 1.5 3

PhMKPg230.3.15,00-A84 5343-48502-xx 15 3 x 300.9 37.7 84.4 x 340 1.7 3

PhMKPg230.3.10,00-B116 5343-47206-xx 10 3 x 200.6 25.1 116 x 160 1.5 4

PhMKPg230.3.12,50-B116 5343-47207-xx 12.5 3 x 250.7 31.4 116 x 190 1.7 4

PhMKPg230.3.15,00-B116 5343-47208-xx 15 3 x 300.9 37.7 116 x 190 1.9 4

PhMKPg230.3.16,70-B116 5343-47209-xx 16.7 3 x 335.0 41.9 116 x 230 2.2 4

(1)

kvar

CAP.

μF

CURRENT

A

DIMENSIONS

Ø x H

mm

Vishay ESTA

WEIGHT

kg

DRAWING

NO.

RATED VOLTAGE 400 V, 50 Hz, DELTA CONNECTION, UL/ULC

CAN BE USED ALSO FOR 415 V, FULL OVER VOLTAGE RANGE

OUTPUT

TYPE ARTICLE NO.

PhMKPg400.3.02,50-A64 5343-48202-xx 2.5 2.7 3 x 16.6 3.6/3.7 64 x 190 0.6 1

PhMKPg400.3.05,00-A64 5343-48203-xx 5 5.4 3 x 33.2 7.2/7.5 64 x 190 0.6 1

PhMKPg400.3.06,67-A64 5343-48204-xx 6.67 7.2 3 x 44.2 9.6/10.0 64 x 190 0.6 1

PhMKPg400.3.07,50-A64 5343-48205-xx 7.5 8.1 3 x 49.7 10.8/11.2 64 x 190 0.6 1

PhMKPg400.3.08,33-A64 5343-48206-xx 8.33 9.0 3 x 55.2 12/12.5 64 x 190 0.7 1

PhMKPg400.3.10,00-A64 5343-48207-xx 10 10.8 3 x 66.3 14.4/14.9 64 x 265 0.7 1

PhMKPg400.3.12,50-A64 5343-48208-xx 12.5 13.5 3 x 82.9 18/18.7 64 x 265 0.8 1

PhMKPg400.3.10,00-A84 5343-48503-xx 10 10.8 3 x 66.3 14.4/14.9 84.4 x 190 1.0 3

PhMKPg400.3.12,50-A84 5343-48504-xx 12.5 13.5 3 x 82.9 18/18.7 84.4 x 190 1.4 3

PhMKPg400.3.15,00-A84 5343-48505-xx 15 16.1 3 x 99.5 21.6/22.4 84.4 x 190 1.4 3

PhMKPg400.3.16,70-A84 5343-48506-xx 16.7 18.0 3 x 110.7 24.1/25.0 84.4 x 265 1.4 3

PhMKPg400.3.20,00-A84 5343-48507-xx 20 21.5 3 x 132.6 28.8/30.0 84.4 x 265 1.4 3

PhMKPg400.3.25,00-A84 5343-48508-xx 25 26.9 3 x 165.8 36.1/37.4 84.4 x 265 1.5 3

PhMKPg400.3.16,70-B116 5343-47212-xx 16.7 18.0 3 x 110.7 24.1/25.0 116 x 160 1.5 4

PhMKPg400.3.20,00-B116 5343-47213-xx 20 21.5 3 x 132.6 28.8/29.9 116 x 160 1.6 4

PhMKPg400.3.25,00-B116 5343-47215-xx 25 26.9 3 x 165.8 36.1/37.4 116 x 190 1.9 4

PhMKPg400.3.30,00-B136 5343-47500-xx 30 32.3 3 x 198.9 43.3/44.9 136 x 190 2.0 5

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

(1)

kvar

400 V

OUTPUT

kvar

415 V

CAP.

μF

CURRENT

A

400 V/415 V

DIMENSIONS

Ø x H

mm

WEIGHT

kg

DRAWING

NO.

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

12

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

3-PHASE CAPACITORS IP20, DRY

RATED VOLTAGE 440 V, 50 Hz, DELTA CONNECTION, UL/ULC

CAN BE USED ALSO FOR 415 V

OUTPUT

(1)

TYPE ARTICLE NO.

PhMKPg440.3.02,50-A64 5341-48222-xx 2.5 2.2 3 x 13.7 3.3/3.1 64 x 190 0.6 1

PhMKPg440.3.05,00-A64 5343-48209-xx 5 4.4 3 x 27.4 6.6/6.1 64 x 190 0.6 1

PhMKPg440.3.08,33-A64 5343-48210-xx 8.33 7.4 3 x 45.7 10.9/10.3 64 x 190 0.6 1

PhMKPg440.3.10,00-A64 5343-48211-xx 10 8.9 3 x 54.8 13.1/12.4 64 x 265 0.8 1

PhMKPg440.3.11,20-A64 5343-48212-xx 11.2 10 3 x 61.4 14.7/13.9 64 x 265 0.8 1

PhMKPg440.3.12,50-A64 5343-48213-xx 12.5 11.1 3 x 68.5 16.4/15.4 64 x 265 0.8 1

PhMKPg440.3.14,00-A64 5343-48214-xx 14 12.5 3 x 76.7 18.4/17.4 64 x 265 1.0 1

kvar

440 V

OUTPUT

kvar

415 V

CAP. μF

CURRENT

A

440 V/415 V

DIMENSIONS

Ø x H

mm

Vishay ESTA

WEIGHTkgDRAWING

NO.

PhMKPg440.3.12,50-A84 5343-48509-xx 12.5 11.1 3 x 68.5 16.4/15.5 84.4 x 190 1.0 3

PhMKPg440.3.14,10-A84 5343-48510-xx 14.1 12.5 3 x 77.0 18.5/17.5 84.4 x 190 1.1 3

PhMKPg440.3.15,00-A84 5343-48511-xx 15 13.3 3 x 82.2 19.7/18.6 84.4 x 190 1.1 3

PhMKPg440.3.16,90-A84 5343-48512-xx 16.9 15 3 x 92.6 22.2/20.9 84.4 x 190 1.2 3

PhMKPg440.3.18.80-A84 5343-48513-xx 18.8 16.67 3 x 103.0 24.7/23.3 84.4 x 265 1.3 3

PhMKPg440.3.20,00-A84 5343-48514-xx 20 17.8 3 x 109.6 26.2/24.8 84.4 x 265 1.4 3

PhMKPg440.3.22,50-A84 5343-48515-xx 22.5 20 3 x 123.3 29.5/27.8 84.4 x 265 1.4 3

PhMKPg440.3.25,00-A84 5343-48516-xx 25 22.2 3 x 137.0 32.8/30.9 84.4 x 265 1.5 3

PhMKPg440.3.28,10-A84 5343-48517-xx 28.1 25 3 x 154.0 36.9/34.8 84.4 x 265 1.5 3

PhMKPg440.3.30,00-A84 5343-48518-xx 30 26.7 3 x 164.4 39.4/37.1 84.4 x 340 1.8 3

PhMKPg440.3.14,10-B116 5343-47269-xx 14.1 12.5 3 x 77.0 18.5/17.5 116 x 160 1.0 4

PhMKPg440.3.18,80-B116 5343-47217-xx 18.8 16.67 3 x 103.0 24.7/23.3 116 x 160 1.5 4

PhMKPg440.3.20,00-B116 5343-47218-xx 20 17.8 3 x 109.6 26.2/24.8 116 x 160 1.6 4

PhMKPg440.3.22,50-B116 5343-47219-xx 22.5 20 3 x 123.3 29.5/27.8 116 x 160 1.6 4

PhMKPg440.3.25,00-B116 5343-47220-xx 25 22.2 3 x 137.0 32.8/30.9 116 x 190 1.7 4

PhMKPg440.3.28,10-B116 5343-47205-xx 28.1 25 3 x 154.0 36.9/34.8 116 x 190 1.6 4

PhMKPg440.3.30,00-B136 5343-47501-xx 30 26.7 3 x 164.4 39.4/37.1 136 x 190 1.9 5

PhMKPg440.3.33,00-B136 5343-47502-xx 33 29.4 3 x 180.9 43.3/40.9 136 x 190 2.0 5

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

13

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

3-PHASE CAPACITORS IP20, DRY

RATED VOLTAGE 525 V, 50 Hz, DELTA CONNECTION, UL/ULC

CAN BE USED ALSO FOR 480 V

OUTPUT

(1)

TYPE ARTICLE NO.

PhMKPg525.3.03,00-A64 5343-48215-xx 3 2.5 3 x 11.5 3.3/3.0 64 x 190 0.6 1

PhMKPg525.3.05,00-A64 5343-48216-xx 5 4.2 3 x 19.2 5.5/5.0 64 x 190 0.6 1

PhMKPg525.3.08,33-A64 5343-48217-xx 8.33 7 3 x 32.1 9.2/8.4 64 x 190 0.6 1

PhMKPg525.3.10,00-A64 5343-48218-xx 10 8.33 3 x 38.5 11.0/10.1 64 x 265 0.7 1

PhMKPg525.3.10,00-A84 5343-48519-xx 10 8.33 3 x 38.5 11.0/10.1 84.4 x 190 0.8 3

PhMKPg525.3.12,50-A84 5343-48520-xx 12.5 10.4 3 x 48.1 13.7/12.6 84.4 x 190 1.0 3

PhMKPg525.3.13.80-A84 5343-48521-xx 13.8 11.5 3 x 53.1 15.2/13.8 84.4 x 190 1.0 3

PhMKPg525.3.15,00-A84 5343-48522-xx 15 12.5 3 x 57.7 16.5/15.0 84.4 x 190 1.2 3

PhMKPg525.3.20,00-A84 5343-48523-xx 20 16.7 3 x 77.0 22.0/20.1 84.4 x 265 1.3 3

PhMKPg525.3.25,00-A84 5343-48524-xx 25 20.9 3 x 96.2 27.5/24.6 84.4 x 265 1.5 3

kvar

525 V

OUTPUT

kvar

480 V

CAP.

μF

CURRENT

A

525 V/480 V

DIMENSIONS

Ø x H

mm

Vishay ESTA

WEIGHTkgDRAWING

NO.

PhMKPg525.3.20,00-B116 5343-47266-xx 20 16.7 3 x 77.0 22.0/20.1 116 x 160 1.4 4

PhMKPg525.3.25,00-B116 5343-47227-xx 25 20.9 3 x 96.2 27.5/25.1 116 x 190 1.5 4

PhMKPg525.3.30,00-B116 5343-47267-xx 30 25.1 3 x 115.4 33.0/30.2 116 x 230 2.0 4

PhMKPg525.3.30,00-B136 5343-47503-xx 30 25.1 3 x 115.4 33.0/30.2 136 x 190 1.8 5

PhMKPg525.3.35,90-B116 5343-47271-xx 35.9 30 3 x 138.2 39.5/36.1 116 x 265 2.1 4

PhMKPg525.3.35,90-B136 5343-47504-xx 35.9 30 3 x 138.2 39.5/36.1 136 x 230 2.1 5

PhMKPg525.3.37,10-B116 5343-47272-xx 37.1 31 3 x 142.8 40.8/37.3 116 x 265 2.2 4

PhMKPg525.3.37,10-B136 5343-47505-xx 37.1 31 3 x 142.8 40.8/37.3 136 x 230 2.2 5

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

14

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

3-PHASE CAPACITORS IP20, DRY

RATED VOLTAGE 660 V, 50 Hz, 64/84: DELTA CONNECTION, 116/136: STAR CONNECTION,
UL/ULC UP TO 660 V

CAN BE USED ALSO FOR 690 V, FULL OVER VOLTAGE RANGE

CURRENT

A

660 V/690 V

kvar

OUTPUT

kvar

690 V

CAP.

μF

OUTPUT

TYPE ARTICLE NO.

PhMKPg660.3.05,00-A64 5343-48219-xx 5 5.5 3 x 12.2 4.4/4.6 64 x 190 0.6 1

PhMKPg660.3.08,33-A64 5343-48220-xx 8.33 9.1 3 x 20.3 7.3/7.6 64 x 265 0.8 1

PhMKPg660.3.08,33-A84 5343-48525-xx 8.33 9.1 3 x 20.3 7.3/7.6 84.4 x 190 0.9 3

PhMKPg660.3.10,00-A84 5343-48526-xx 10 10.9 3 x 24.4 8.7/9.1 84.4 x 190 1.1 3

PhMKPg660.3.12,50-A84 5343-48527-xx 12.5 13.7 3 x 30.4 10.9/11.4 84.4 x 265 1.2 3

PhMKPg660.3.15,00-A84 5343-48528-xx 15 16.4 3 x 36.5 13.1/13.7 84.4 x 265 1.4 3

PhMKPg660.3.16,70-A84 5343-48529-xx 16.7 18.3 3 x 40.7 14.6/15.3 84.4 x 265 1.5 3

PhMKPg660.3.20,00-A84 5343-48530-xx 20 21.9 3 x 48.7 17.5/18.3 84.4 x 340 1.7 3

PhMKPg660.3.22,90-A84 5343-48531-xx 22.9 25 3 x 55.8 20/20.9 84.4 x 340 1.9 3

(1)

660 V

DIMENSIONS

Ø x H

mm

Vishay ESTA

WEIGHT

kg

DRAWING

NO.

PhMKPg660.2.12,50-B116 5343-47255-xx 12.5 13.7 3 x 91.4 10.9/11.4 116 x 160 1.6 4

PhMKPg660.2.15,00-B116 5343-47256-xx 15 16.4 3 x 109.6 13.1/13.7 116 x 160 1.6 4

PhMKPg660.2.16,70-B116 5343-47257-xx 16.7 18.3 3 x 122.1 14.6/15.3 116 x 160 1.7 4

PhMKPg660.2.20,00-B116 5343-47259-xx 20 21.9 3 x 146.2 17.5/18.3 116 x 190 1.8 4

PhMKPg660.2.22,90-B116 5343-47273-xx 22.9 25 3 x 167.3 20/20.9 116 x 190 1.7 4

PhMKPg660.2.25,00-B136 5343-47506-xx 25 27.3 3 x 182.6 21.9/22.9 136 x 190 1.6 5

PhMKPg660.2.30,00-B136 5343-47507-xx 30 32.8 3 x 219.3 26.2/27.4 136 x 230 2.2 5

RATED VOLTAGE 690 V, 50 Hz, 64/84: DELTA CONNECTION, 116/136: STAR CONNECTION

CAN BE USED ALSO FOR 660 V

OUTPUT

TYPE ARTICLE NO.

PhMKPg690.3.10,00-A64 5343-48221-xx 10 9.1 3 x 22.3 8.4/8.0 64 x 265 0.9 1

PhMKPg690.3.12,50-A84 5343-48532-xx 12.5 11.4 3 x 27.9 10.5/10.0 84.4 x 265 1.1 3

PhMKPg690.3.15,00-A84 5343-48533-xx 15 13.7 3 x 33.4 12.5/12.0 84.4 x 265 1.3 3

PhMKPg690.3.20,00-A84 5343-48534-xx 20 18.3 3 x 44.6 16.7/16.0 84.4 x 340 1.6 3

PhMKPg690.3.25,00-A84 5343-48535-xx 25 22.9 3 x 55.7 20.9/20.0 84.4 x 340 1.9 3

PhMKPg690.2.12,50-B116 5343-47274-xx 12.5 11.4 3 x 83.6 10.5/10.0 116 x 160 1.2 4

PhMKPg690.2.15,00-B116 5343-47275-xx 15 13.7 3 x 100.3 12.5/12.0 116 x 160 1.3 4

PhMKPg690.2.20,00-B116 5343-47276-xx 20 18.3 3 x 133.7 16.7/16.0 116 x 190 1.5 4

PhMKPg690.2.25,00-B116 5343-47277-xx 25 22.9 3 x 167.3 20.9/20.0 116 x 190 1.6 4

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKPg-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

(1)

kvar

690 V

OUTPUT

kvar

660 V

CAP.

μF

CURRENT

A

690 V/660 V

DIMENSIONS

Ø x H

mm

WEIGHT

kg

DRAWING

NO.

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

15

Document Number: 13004

PhMKP..., PhMKPg..., Cylindrical, LVAC

www.vishay.com

1-PHASE CAPACITORS OIL

RATED VOLTAGE 230 V, 50 Hz, UL/ULC

OUTPUT

TYPE ARTICLE NO.

IP20

PhMKP230.1.02,50-A64 5341-48322-xx 2.5 150.0 10.9 64 x 140 0.6 1 IP20
PhMKP230.1.03,33-A64 5341-48323-xx 3.33 200.4 14.5 64 x 190 0.7 1 IP20
PhMKP230.1.04,17-A64 5341-48324-xx 4.17 251.0 18.1 64 x 190 0.8 1 IP20

PhMKP230.1.05,00-A84 5341-48636-xx 5 300.0 21.7 84.4 x 140 0.9 3 IP20

IP00

PhMKP230.1.05,00-84 5341-44436-xx 5 300.0 21.7 84.4 x 140 0.9 2 IP00

(1)

kvar

CAP.

μF

CURRENT

A

DIMENSIONS

Ø x H
(mm)

WEIGHTkgDRAWING

RATED VOLTAGE 400 V, 50 Hz, UL/ULC

CAN BE USED ALSO FOR 415 V, FULL OVER VOLTAGE RANGE

OUTPUT

TYPE ARTICLE NO.

IP20

PhMKP400.1.02,50-A64 5341-48325-xx 2.5 2.7 49.7 6.3/6.5 64 x 82 0.3 1 IP20
PhMKP400.1.03,33-A64 5341-48326-xx 3.33 3.6 66.2 8.3/8.6 64 x 109 0.4 1 IP20
PhMKP400.1.05,00-A64 5341-48327-xx 5 5.4 99.5 12.5/13.0 64 x 140 0.5 1 IP20
PhMKP400.1.06,67-A64 5341-48328-xx 6.67 7.2 132.7 16.7/17.3 64 x 190 0.7 1 IP20
PhMKP400.1.08,33-A64 5341-48329-xx 8.33 9 165.7 20.8/21.6 64 x 190 0.8 1 IP20
PhMKP400.1.10,00-A64 5341-48330-xx 10 10.8 198.9 25.0/25.9 64 x 240 0.9 1 IP20

(1)

kvar

400 V

OUTPUT

kvar

415 V

CAP.

μF

CURRENT

A

400 V/415 V

DIMENSIONS

Ø x H

mm

WEIGHTkgDRAWING

Vishay ESTA

NO.

PROTECTIVE

CLASS

PROTECTIVE

CLASS

NO.

PhMKP400.1.08,33-A84 5341-48637-xx 8.33 9 165.7 20.8/21.6 84.4 x 140 0.9 3 IP20
PhMKP400.1.10,00-A84 5341-48638-xx 10 10.8 198.9 25.0/25.9 84.4 x 140 1.0 3 IP20
PhMKP400.1.16,70-A84 5341-48639-xx 16.7 18 332.2 41.7/43.3 84.4 x 240 1.3 3 IP20

IP00

PhMKP400.1.08,33-84 5341-44437-xx 8.33 9 165.7 20.8/21.6 84.4 x 140 0.9 2 IP00
PhMKP400.1.10,00-84 5341-44438-xx 10 10.8 198.9 25.0/25.9 84.4 x 140 1.0 2 IP00
PhMKP400.1.16,70-84 5341-44439-xx 16.7 18 332.2 41.7/43.3 84.4 x 240 1.3 2 IP00

RATED VOLTAGE 525 V, 50 Hz, UL/ULC

CAN BE USED ALSO FOR 480 V

OUTPUT

TYPE ARTICLE NO.

IP20

PhMKP525.1.05,00-A64 5341-48331-xx 5 4.2 57.7 9.5/8.8 64 x 140 0.5 1 IP20
PhMKP525.1.08,33-A64 5341-48332-xx 8.33 7.0 96.2 15.9/14.6 64 x 190 0.7 1 IP20
PhMKP525.1.10,00-A64 5341-48333-xx 10 8.4 115.5 19.0/17.5 64 x 240 0.9 1 IP20

PhMKP525.1.16,70-A84 5341-48640-xx 16.7 14.0 192.9 31.6/29.2 84.4 x 240 1.3 3 IP20
PhMKP525.1.20,00-A84 5341-48641-xx 20 16.7 231.0 38.0/34.8 84.4 x 240 1.3 3 IP20

IP00

PhMKP525.1.16,70-84 5341-44440-xx 16.7 14.0 192.9 31.6/29.2 84.4 x 240 1.3 2 IP00
PhMKP525.1.20,00-84 5341-44441-xx 20 16.7 231.0 38.0/34.8 84.4 x 240 1.3 2 IP00

Notes

• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)

(1)

Version no. xx may differ as it respects small changes, e.g. on the label

(1)

kvar

525 V

OUTPUT

kvar

480 V

CAP.

μF

CURRENT

A

525 V/480 V

DIMENSIONS

Ø x H

mm

WEIGHTkgDRAWING

NO.

PROTECTIVE

CLASS

Revision: 09-Dec-11

For technical questions, contact: [e-mail]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

16

Document Number: 13004

DIMENSIONS

Required space tear-off way

Terminal D-351

12 ± 1

H ± 1.5

35.5 ± 1

25

Ø 64

M12

Torque
10 Nm

Torque
10 Nm

Torque
10 Nm

67.6 ± 0.5

44.8

21.2

13

38.7

13

Required space tear-off way

H ± 1.5

25.5

± 0.5

25

Ø 84.4

M12

88.2 ± 0.2

16

-

0

1

16

-

0

1

16

-

0

1

Clamp-combi -screw
M5 x 11 (7L 9926 B&J)

13.5 ± 0.5

Ø 66 ± 0.8

50 ± 0.5

Terminal D-351

10.7 ± 1

H ± 1.5

34 ± 1

25

Ø 84.4

88.2 ± 0.5

48

21.2

13

38.7

13

M12

Required space tear-off way

Terminal D-352

12.4 ± 1

Required space tear-off way

H ± 1.5

39 ± 1

25

Ø 116

48

19.2

16

-

0

1

14

43.3

14

M12

Terminal D-352

12 ± 1

Required space tear-off way

H ± 1.5

39 ± 1 25

Ø 136

48

19.2

16

-

0

1

14

43.3

14

M12

Drawing 1

Drawing 4

Drawing 5

Drawing 3Drawing 2

www.vishay.com

PhMKP..., PhMKPg..., Cylindrical, LVAC

Vishay ESTA

ORDERING INFORMATION

TECHNICAL UNITS

Full cardboard boxes: Ø 64 mm - 9 pcs per carton

Ø 84.4 mm - 4 pcs per carton
Ø 116 mm - 4 pcs per carton
Ø 136 mm - 2 pcs per carton

Revision: 09-Dec-11

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

17

For technical questions, contact: [e-mail]

Document Number: 13004

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.

Revision: 02-Oct-12

1

Document Number: 91000
