Dimension Inches Millimeters

A 2.362 Max. 60 Max.
B 1.874 47.6
C 1.417 36
D 1.260 Max. 32 Max.
E 1.181 Max. 30 Max.
F 0.964 24.5
G 0.709 18
H 0.650 16.5
J 0.591 15
K 0.512 13

L 0.433 11
M 0.335 8.5
N 0.216 Dia. Dia. 5.5

P M4 Metric M4
Q 0.079 2

Description:

Powerex Split SCR/Diode
POW-R-BLOK™ Modules are
designed for use in applications
requiring control and rectification.
The modules are isolated for easy
mounting with other components
on common heatsinks.

Features:

M Isolated Mounting
M Glass Passivated Chips
M Metal Baseplate
M Low Thermal Impedance
M Four Terminal Flexibility

Applications:

M Battery Supplies
M Contactless Switches
M Furnace Control
M Light Dimmers

Ordering Information:

Select the complete eight digit
module part number you desire
from the table below.
Example: CT220802 is an
800 Volt, 20 Ampere Split
SCR/Diode POW-R-BLOK™
Module.

Voltage Current Rating

Type Volts (x100) Amperes (x10)

CT22 08 02

SD-33

Powerex,Inc., 200 Hillis Street,Youngwood,Pennsylvania 15697-1800 [phone]

Split SCR/Diode
POW-R-BLOK™ Modules

20 Amperes/800 Volts

CT220802

Outline Drawing

CT220802
Split SCR/Diode
POW-R-BLOK™ Modules

20 Amperes/800 Volts

A
B

M (TYP.)

N - DIA.

(2 TYP.)

P - M4 THD.
(4 TYP.)

L

H

1

2

G1

J

C

.110 TAB

3
4

D

GK

E

F

Q

1

3

G1

2

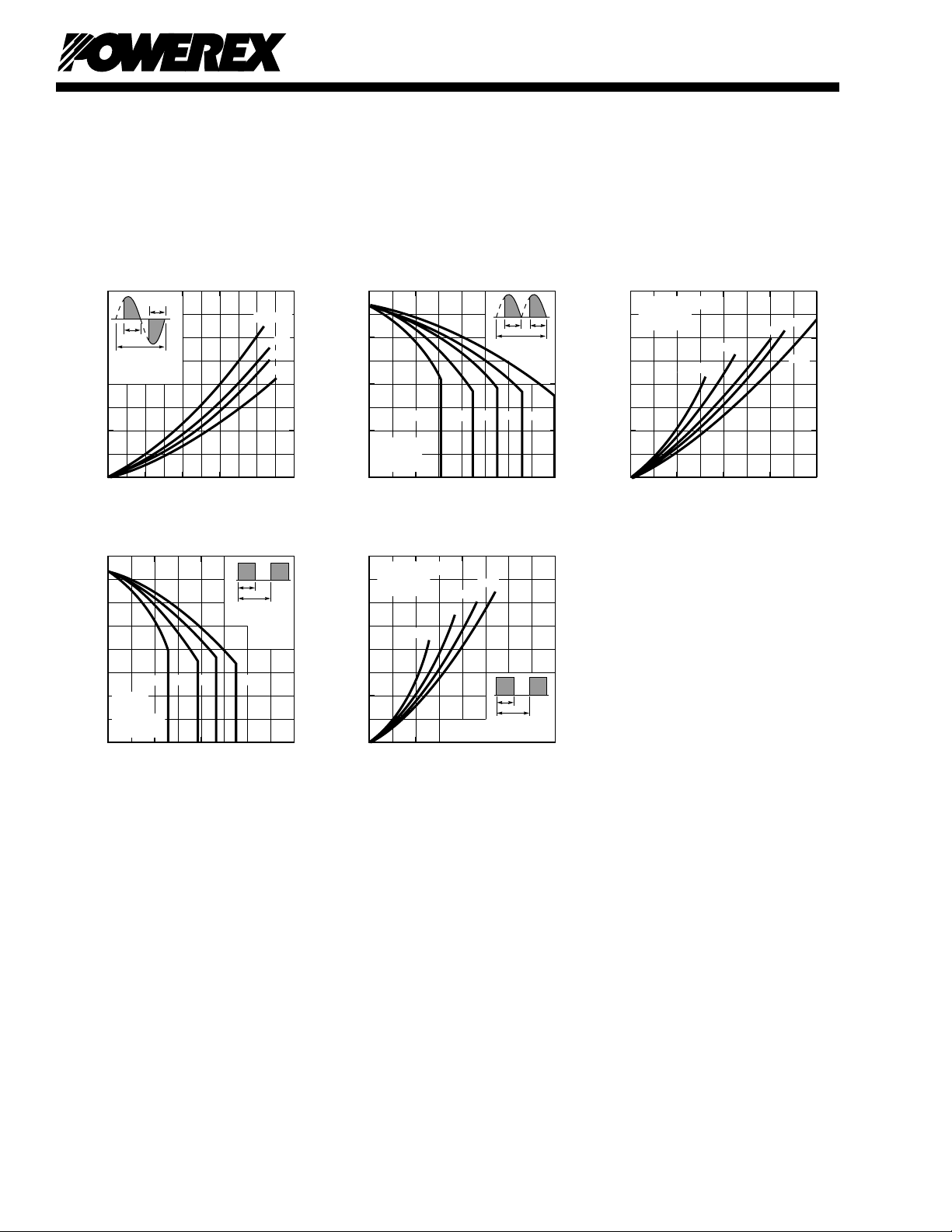

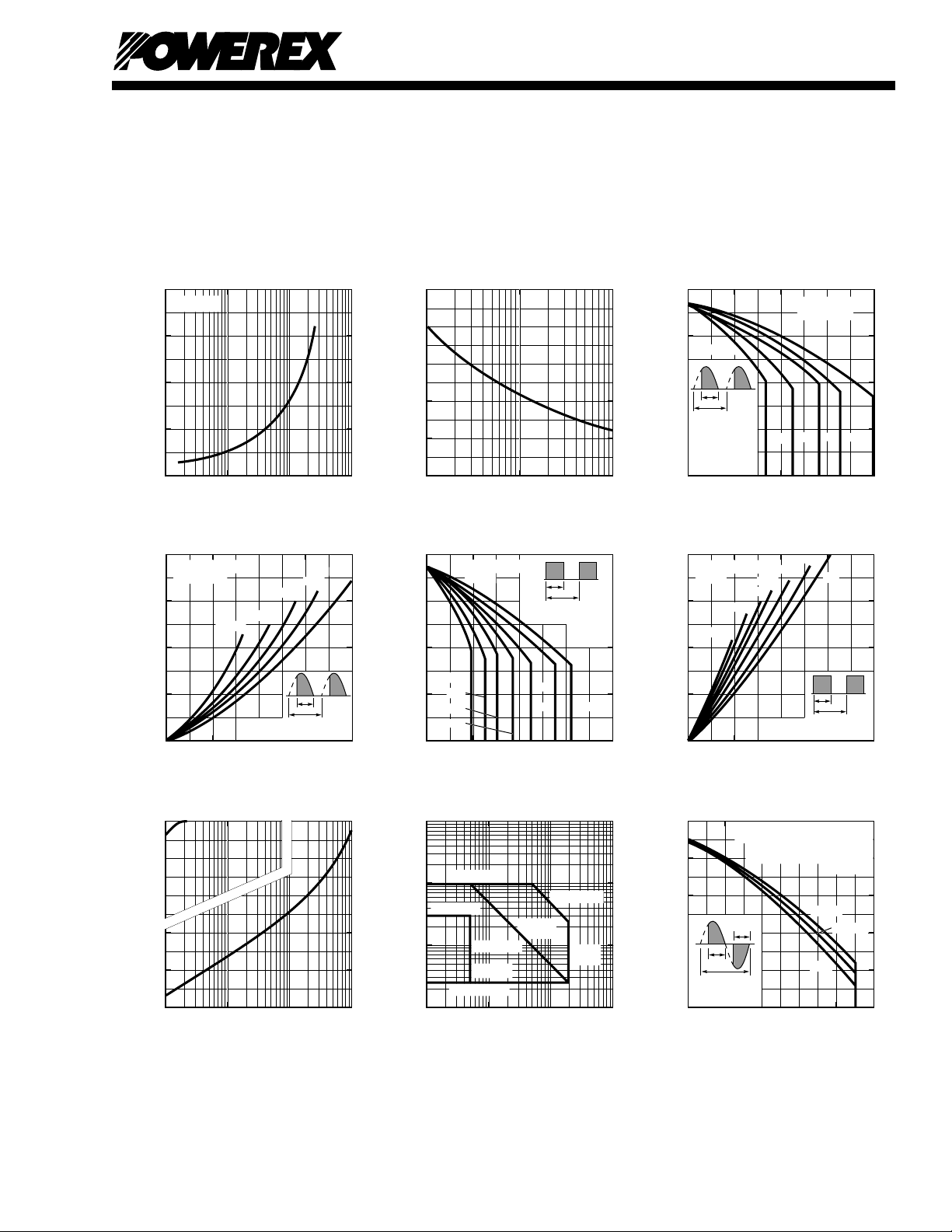

4
