Dimension Inches Millimeters

A 2.087 53
B 1.705±0.008 43.3±0.2
C 1.417 36
D 1.299 33
E 0.866 22
F 0.551 14
G 0.354 9
H 0.315 8
J 0.276 7
K 0.217 5.5

L 0.217 Dia. Dia. 5.5
M 0.138 3.5
N 0.118 3

P M4 Metric M4

Description:

Powerex Fast Recovery Single
Diode Modules are designed for
use in applications requiring fast
switching.The modules are isolat­ed for easy mounting with other
components on common
heatsinks. POW-R-BLOK™ has
been tested and recognized by
Underwriters Laboratories
(QQQX2 Power Switching
Semiconductors).

Features:

M Isolated Mounting
M Planar Chips
M UL Recognized A

Applications:

M Inverters
M Choppers
M Switching Power Supplies
M Free Wheeling

Ordering Information:

Select the complete eight digit
module part number you desire
from the table below.
Example: CS241250 is a
1200 Volt, 50 Ampere Fast
Recovery Single Diode Module.

Voltage Current Rating

Type Volts (x100) Amperes (50)

CS24 06 50

12

D-9

Powerex,Inc., 200 Hillis Street,Youngwood,Pennsylvania 15697-1800 [phone]

Fast Recovery Single
Diode Modules

50 Amperes/600-1200 Volts

CS240650
CS241250

Outline Drawing

CS240650, CS241250
Fast Recovery
Single Diode Modules

50 Amperes/600-1200 Volts

A

J

E

G

G

F

C

A
B

K

H

N

M M

D

AK

P - M4 THD (2 TYP.)

L - DIA.

A

K

D-10

Powerex,Inc., 200 Hillis Street,Youngwood,Pennsylvania 15697-1800 [phone]

CS240650, CS241250
Fast Recovery Single Diode Modules

50 Amperes/600-1200 Volts

Absolute Maximum Ratings

Characteristics Symbol CS240650 CS241250 Units

Peak Reverse Blocking Voltage V

RRM

600 1200 Volts

Transient Peak Reverse Blocking Voltage (Non-Repetitive), t < 5ms V

RSM

720 1350 Volts

DC Reverse Blocking Voltage V

R(DC)

480 960 Volts

DC Current, TC= 105°C I

F(DC)

50 50 Amperes

Peak One-Cycle Surge (Non-Repetitive) On-State Current (60Hz) I

FSM

1000 1000 Amperes

Peak One-Cycle Surge (Non-Repetitive) On-State Current (50Hz) I

FSM

910 910 Amperes
I2t (for Fusing), 8.3 milliseconds I2t 4165 4165 A2sec
Storage Temperature T

STG

-40 to 125 -40 to 125 °C

Operating Temperature T

j

-40 to 150 -40 to 150 °C
Maximum Mounting Torque M5 Mounting Screw — 17 17 in.-lb.
Maximum Mounting Torque M4 Ter minal Screw — 12 12 in.-lb.
Module Weight (Typical) — 90 90 Grams
V Isolation V

RMS

2500 2500 Volts

D-11

Powerex,Inc., 200 Hillis Street,Youngwood,Pennsylvania 15697-1800 [phone]

CS240650, CS241250
Fast Recovery Single Diode Modules

50 Amperes/600-1200 Volts

Electrical and Thermal Characteristics, Tj= 25°C unless otherwise specified

Characteristics Symbol Test Conditions CS240650/CS241250 Units

Blocking State Maximums

Reverse Leakage Current, Peak I

RRM

Tj= 150°C, V

RRM

= Rated 10 mA

Conducting State Maximums

Peak On-State Voltage V

FM

IFM= 50A 1.5 Volts

Switching Minimums

Reverse Recovery Time t

rr

IFM= 50A, Tj= 150°C 0.8 ms

di/dt =-200A/ms, VR= 1/2 V

RRM

Reverse Recovery Charge Q

rr

IFM= 50A, Tj= 150°C 30 mC

di/dt =-200A/ms, VR= 1/2 V

RRM

Thermal Maximums

Thermal Resistance, Junction-to-Case R

u(J-C)

Per Module 0.6 °C/Watt

Thermal Resistance, Case-to-Sink (Lubricated) R

u(C-S)

Per Module 0.4 °C/Watt

D-12

Powerex,Inc., 200 Hillis Street,Youngwood,Pennsylvania 15697-1800 [phone]

CS240650, CS241250
Fast Recovery Single Diode Modules

50 Amperes/600-1200 Volts

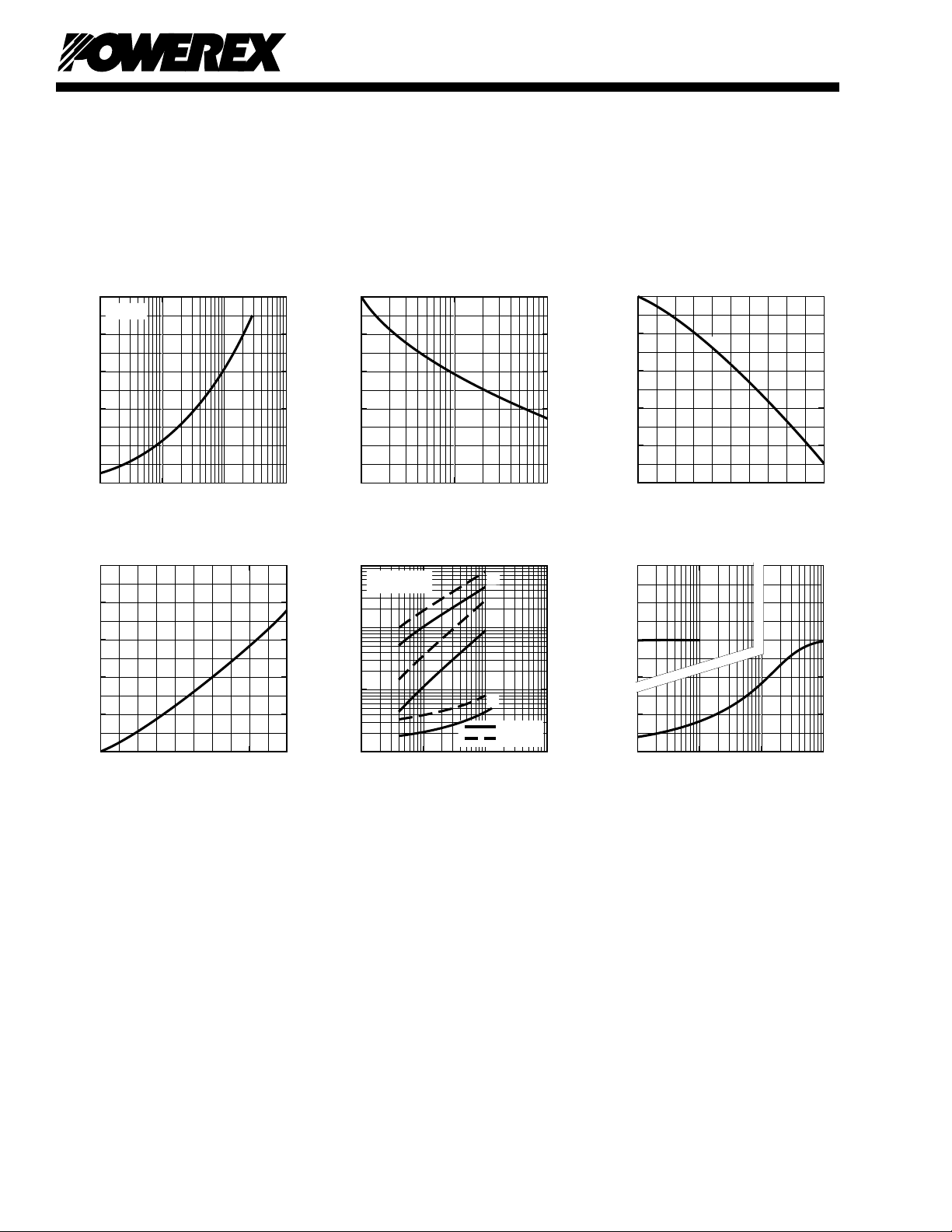

INSTANTANEOUS ON-STATE CURRENT, IFM,

(AMPERES)

MAXIMUM

ON-STATE CHARACTERISTICS

10

0

10

1

10

2

10

3

INSTANTANEOUS ON-STATE VOLTAGE, V

FM

, (VOLTS)

0.6

1.0

1.4

1.8

2.2

2.6

Tj = 25oC

CYCLES AT 60 HZ

MAXIMUM PEAK SURGE (NON-REPETITIVE)

CURRENT, I

FSM

, (AMPERES)

MAXIMUM ALLOWABLE PEAK SURGE

(NON-REPETITIVE) CURRENT

0

200

400

600

800

1000

10

0

10

1

10

2

MAXIMUM

ALLOWABLE CASE TEMPERATURE

AVERAGE ON-STATE CURRENT, I

F(AV)

,

(AMPERES)

MAXIMUM ALLOWABLE CASE TEMPERATURE, T

C

, (

o

C)

05010DC20 30 40

100

110

120

130

140

150

MAXIMUM

ON-STATE POWER DISSIPATION

AVERAGE ON-STATE CURRENT, I

F(AV)

,

(AMPERES)

MAXIMUM POWER DISSIPATION, P

AV(MAX)

, (WATTS)

0503010 20 40

0

20

40

60

80

100

INSTANTANEOUS ON-STATE CURRENT, IFM,

(AMPERES)

REVERSE RECOVERY

CHARACTERISTICS

I

rr

, (AMPERES), Q

rr

, (µC)

10

1

10

2

I

rr

10

0

10

1

10

3

10

-1

10

2

10

0

10

-1

t

rr

, (µs)

VR = 600V
di/dt = -100A/µs

Q

rr

t

rr

10

0

10

1

10

2

Tj = 25oC
T

j

= 150oC

TIME, t, (SECONDS)

TRANSIENT THERMAL IMPEDANCE

CHARACTERISTICS (JUNCTION-TO-CASE)

0

0.2

0.4

0.6

0.8

1.0

TRANSIENT THERMAL IMPEDANCE, Z

u(J-C)

(t), (

o

C/WATT)

10

0

10

1

10

-3

10

-2

10

-1

10

0
