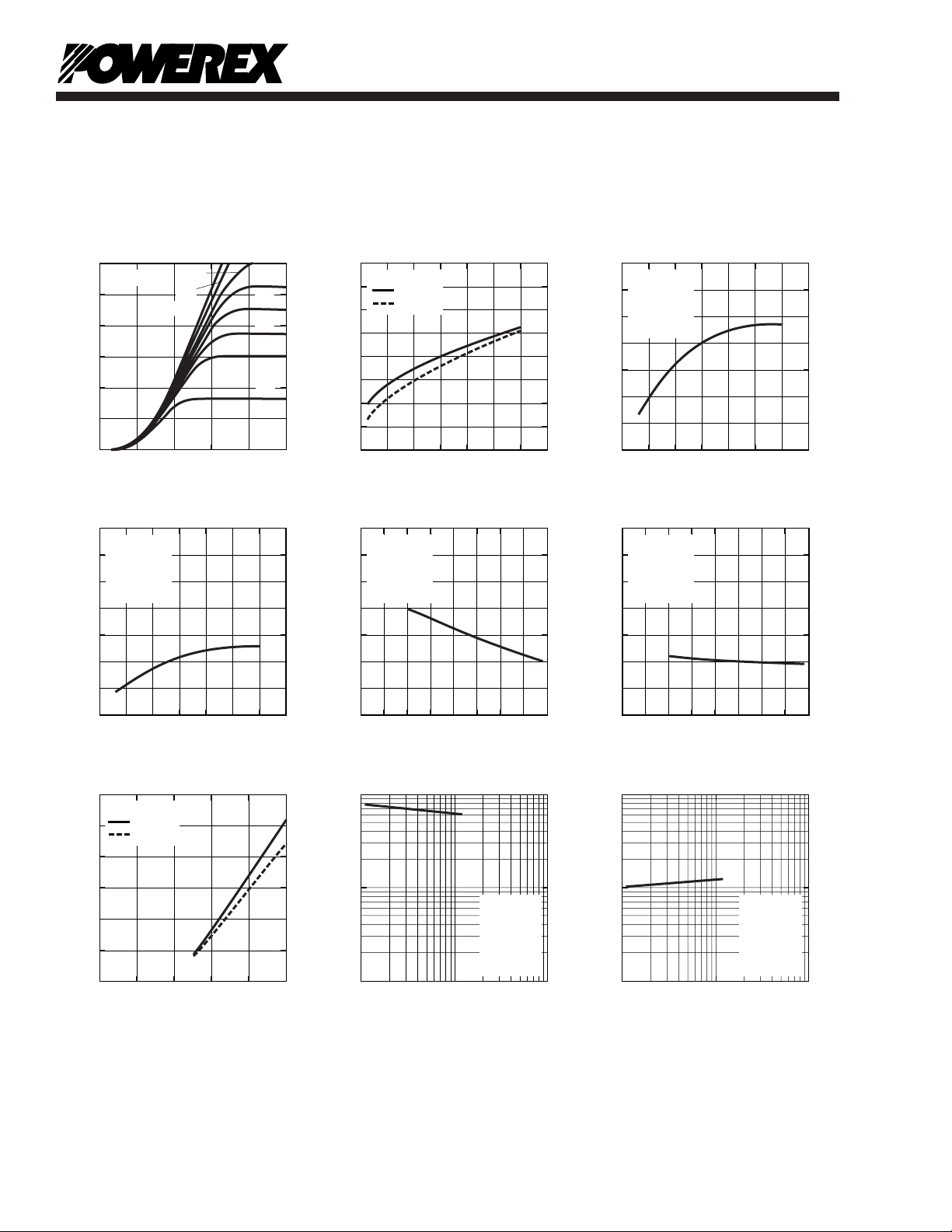

CM600HG-130H
H
G
F
M8 NUTS
(6 TYP.)
Q(8 TYP.)
M4 NUTS
(3 TYP.)
L
M
C
N
P
C C C
E
C
G
E
E E
F
D D
A
E
B
D
C C C
E E E
E
G
C
J
K K
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
A 7.48 190.0
B 5.51 140.0
C 1.89 48.0
D 2.24 57.0
E 4.88 124.0
F 0.87 22.0
G 0.47 12.0
H 0.55 14.0
Single IGBTMOD™
HVIGBT Module
600 Amperes/6500 Volts
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of one IGBT Transistor in a
reverse-connected super-fast
recovery free-wheel diode.
All components and interconnects
are isolated from the heat sinking
Dimensions Inches Millimeters
J 2.33 59.2
K 2.41 61.2
L 1.61 41.0
M 0.71 18.0
N 1.50 38.0
P 0.20 5.0
Q 0.28 Dia. 7.0 Dia.
baseplate, offering simplified
system assembly and thermal
management.
Features:
£ Low Drive Power
£ Low V
CE(sat)
£ Super-Fast Recovery
Free-Wheel Diode
£ Isolated Baseplate for Easy
Heat Sinking
Applications:
£ Traction
£ Medium Voltage Drives
£ High Voltage Power Supplies
Ordering Information:
Example: Select the complete
part module number you desire
from the table below -i.e.
CM600HG-130H is a 6500V
(V
), 600 Ampere Single
CES
IGBTMOD™ Power Module.
Type Current Rating
Amperes Volts (x 50)
CM 600 130
V
CES
15/08
