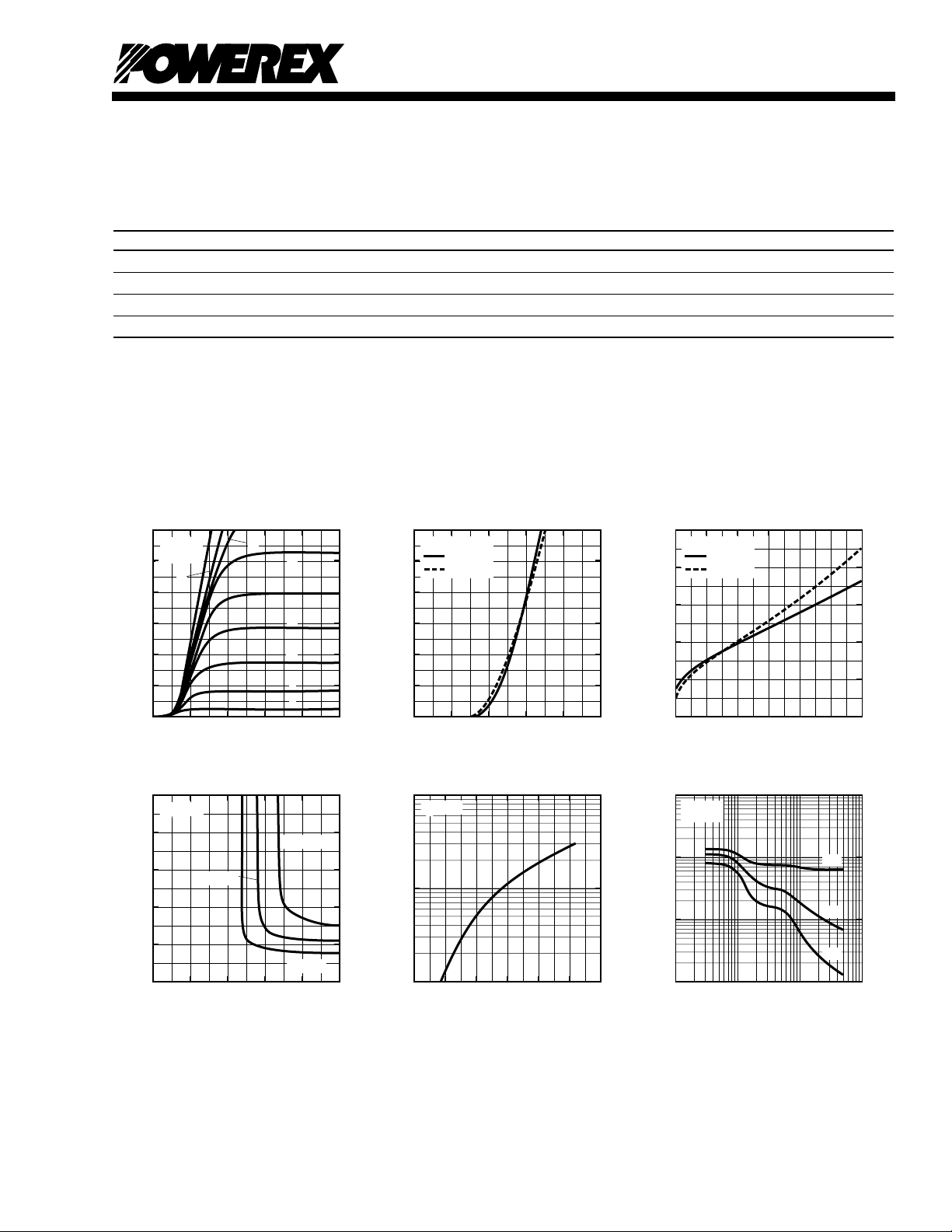

CM150E3U-12H
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
A
K KM
D
Q -
(2 PLACES)
U T
J
E2 G2
#110
TAB
E
H
F
R
S
L
N
B
G
C
P - NUTS
(3 PLACES)
.47 [12mm] DEEP
CM
C2E1 E2 C1
T
Chopper IGBTMOD™
U-Series Module
150 Amperes/ 600 Volts
Description:
Powerex Chopper IGBTMOD™
Modules are designed for use in
switching applications. Each module
consists of one IGBT Transistor
having a reverse-connected superfast recovery free-wheel diode and
an anode-collector connected superfast recovery free-wheel diode. All
components and interconnects are
isolated from the heat sinking baseplate, offering simplified system
assembly and thermal management.
C2E1
E2
Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
A 3.70 94.0
B 1.89 48.0
C 1.18 +0.04/-0.02 30.0 +1.0/-0.5
D 3.15±0.01 80.0±0.25
E 0.43 11.0
F 0.16 4.0
G 0.51 13.0
H 0.02 0.5
J 0.53 13.5
K 0.91 23.0
G2
E2
C1
Dimensions Inches Millimeters
L 0.84 21.2
M 0.67 17.0
N 0.28 7.0
PM5 M5
Q0.26 Dia. 6.5 Dia.
R 0.02 4.0
S 0.30 7.5
T 0.63 16.0
U 0.98 25.0
Features:
□ Low Drive Power
□ Low V
CE(sat)
□ Discrete Super-Fast Recovery
Free-Wheel Diode
□ High Frequency Operation
(15-20kHz)
□ Isolated Baseplate for Easy
Heat Sinking
Applications:
□ DC Motor Control
□ Boost Regulator
Ordering Information:
Example: Select the complete
module number you desire from the
table - i.e. CM150E3U-12H is a
600V (V
), 150 Ampere Chopper
CES
IGBTMOD™ Power Module.
Current Rating V
Type Amperes Volts (x 50)
CM 150 12
CES
115
115
