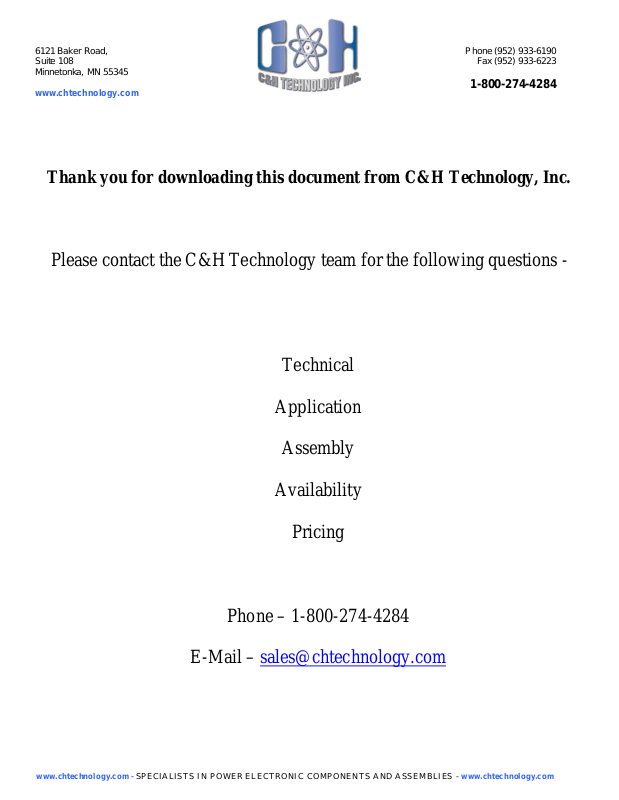

Thank you for downloading this document from C&H Technology, Inc.

Please contact the C&H Technology team for the following questions -

Technical

Application

Assembly

Availability

Pricing

Phone – 1-800-274-4284

E-Mail – [e-mail]

www.chtechnology.com - SPECIALISTS IN POWER ELECTRONIC COMPONENTS AND ASSEMBLIES - www.chtechnology.com

STANDARD SIZE BONDED FIN HEAT SINKS

C&H TECHNOLOGY, INC. • Phone: [phone] • Fax: [phone] • Toll Free: 1-800-274-4284

www.chtechnology.com

NATURAL CONVECTION MODELS

Ideal for applications where forced air-cooling isn’t an option. Heat sink size can
be reduced up to 50% over comparable extruded type heat sinks while
maintaining the same semiconductor temperature. Custom designs available.

NATURAL CONVECTION SPECIFICATIONS

MODEL # CH5111 CH5112 CH5113 CH5114

Dimension “A”
Dimension “B”

Flanges None None

Thermal Resistance

Information printed in this section has been developed by dimensioning for general
applications. C & H Technology is prepared to give assistance on all Engineered Heat Sinks
by utilizing computer software designed specifically for this type of Heat Sink.

7.0" 11.81" 7.0" 11.81"

2.5" 5.0" 2.5" 5.0"
1" Wide 1" Wide

0.30

C/W 0.22 C/W 0.30 C/W 0.22 C/W
