Description:

Powerex Dual Diode
POW-R-BLOK™ Modules are
designed for use in applications
requiring AC to DC rectification in
isolated packaging.The modules
are isolated for easy mounting
with other components on com­mon heatsinks. POW-R-BLOK™
has been tested and recognized
by Underwriters Laboratories
(QQQX2 Power Switching
Semiconductors).

Features:

M Isolated Mounting
M Glass Passivated Chips
M Metal Baseplate
M Low Thermal Impedance
M UL Recognized A

Applications:

M Battery Supplies
M AC and DC Motor Power

Supplies

Ordering Information:

Select the complete eight digit
module part number you desire
from the table below.
Example: CDD11210 is a
1200 Volt, 100 Ampere Dual Diode
POW-R-BLOK™ Module.

Voltage Current Rating

Type Volts (x100) Amperes (x10)

CDD1 12 10

16

D-115

Powerex,Inc., 200 Hillis Street,Youngwood,Pennsylvania 15697-1800 [phone]

Dual Diode
POW-R-BLOK™ Modules

100 Amperes/1200-1600 Volts

CDD11210
CDD11610

Outline Drawing

CDD11210, CDD11610
Dual Diode
POW-R-BLOK™ Modules

100 Amperes/1200-1600 Volts

A

F

C

J

E

E

G

D

H

A
B

(2 TYP.)

K - DIA.

(3 TYP.)

L - M5 THD

1

2

3

2

1

3

D-116

Powerex,Inc., 200 Hillis Street,Youngwood,Pennsylvania 15697-1800 [phone]

CDD11210, CDD11610
Dual Diode POW-R-BLOK™ Modules

100 Amperes/1200-1600 Volts

Absolute Maximum Ratings

Characteristics Symbol CDD11210 CDD11610 Units

Peak Reverse Blocking Voltage V

RRM

1200 1600 Volts

Transient Peak Reverse Blocking Voltage (Non-Repetitive), t < 5ms V

RSM

1350 1700 Volts

DC Reverse Blocking Voltage V

R(DC)

960 1280 Volts

RMS On-State Current I

F(RMS)

155 155 Amperes

Average On-State Current, TC= 87°C I

F(AV)

100 100 Amperes

Peak One-Cycle Surge (Non-Repetitive) On-State Current (60Hz) I

FSM

2000 2000 Amperes

Peak One-Cycle Surge (Non-Repetitive) On-State Current (50Hz) I

FSM

1800 1800 Amperes
I2t (for Fusing), 8.3 milliseconds I2t 16500 16500 A2sec
Storage Temperature T

STG

-40 to 125 -40 to 125 °C

Operating Temperature T

j

-40 to 125 -40 to 125 °C
Maximum Mounting Torque M6 Mounting Screw — 26 26 in.-lb.
Maximum Mounting Torque M5 Terminal Screw — 17 17 in.-lb.
Module Weight (Typical) — 160 160 Grams
V Isolation V

RMS

2500 2500 Volts

D-117

Powerex,Inc., 200 Hillis Street,Youngwood,Pennsylvania 15697-1800 [phone]

CDD11210, CDD11610
Dual Diode POW-R-BLOK™ Modules

100 Amperes/1200-1600 Volts

Electrical and Thermal Characteristics, Tj= 25°C unless otherwise specified

Characteristics Symbol Test Conditions CDD11210/CDD11610 Units

Blocking State Maximums

Reverse Leakage Current, Peak I

RRM

Tj= 125°C, V

RRM

= Rated 15 mA

Conducting State Maximums

Peak On-State Voltage V

FM

IFM= 320A 1.35 Volts

Thermal Maximums

Thermal Resistance, Junction-to-Case R

u(J-C)

Per Module 0.3 °C/Watt

Thermal Resistance, Case-to-Sink (Lubricated) R

u(C-S)

Per Module 0.2 °C/Watt

D-118

Powerex,Inc., 200 Hillis Street,Youngwood,Pennsylvania 15697-1800 [phone]

CDD11210, CDD11610
Dual Diode POW-R-BLOK™ Modules

100 Amperes/1200-1600 Volts

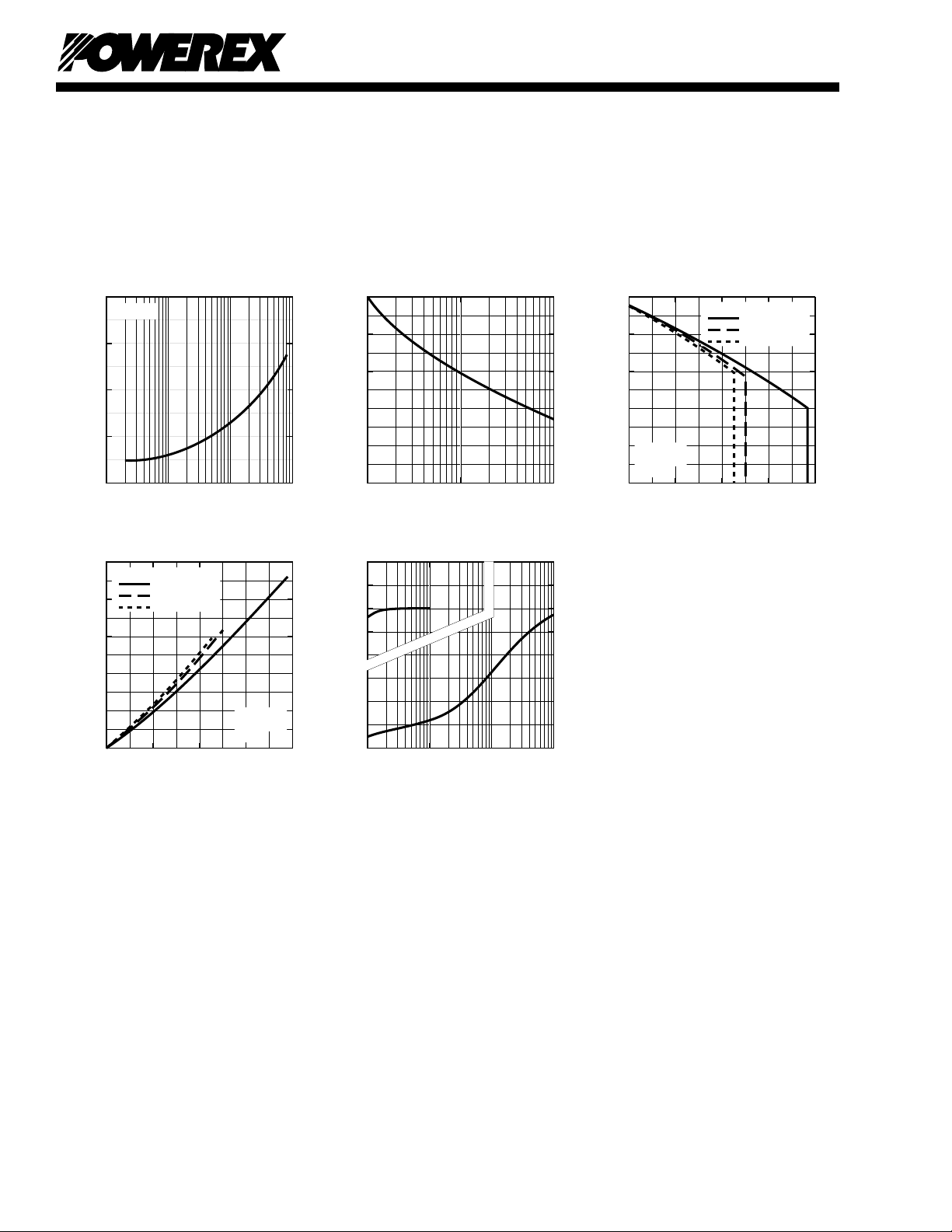

INSTANTANEOUS ON-STATE CURRENT, IFM,

(AMPERES)

MAXIMUM

ON-STATE CHARACTERISTICS

10

0

10

1

10

2

10

3

INSTANTANEOUS ON-STATE VOLTAGE, V

FM

, (VOLTS)

Tj = 25oC

0.6

1.0

1.4

1.8

2.2

CYCLES AT 60 HZ

MAXIMUM PEAK SURGE (NON-REPETITIVE)

CURRENT, I

FSM

, (AMPERES)

MAXIMUM ALLOWABLE PEAK SURGE

(NON-REPETITIVE) CURRENT

10

0

10

1

10

2

0

400

800

1200

1600

2000

MAXIMUM

ALLOWABLE CASE TEMPERATURE

AVERAGE ON-STATE CURRENT, I

F(AV)

,

(AMPERES)

MAXIMUM ALLOWABLE CASE TEMPERATURE, T

C

, (

o

C)

0 16040 80 120

30

50

70

90

110

130

RESISTIVE
INDUCTIVE
LOAD

DC
SINGLE-PHASE
THREE-PHASE

OPERATION

MAXIMUM

ON-STATE POWER DISSIPATION

AVERAGE ON-STATE CURRENT, I

F(AV)

,

(AMPERES)

0 16040 120

MAXIMUM POWER DISSIPATION, P

AV(MAX)

, (WATTS)

0

40

80

120

160

200

80

RESISTIVE
INDUCTIVE
LOAD

DC
SINGLE-PHASE
THREE-PHASE

OPERATION

TIME, t, (SECONDS)

TRANSIENT THERMAL IMPEDANCE

CHARACTERISTICS (JUNCTION-TO-CASE)

TRANSIENT THERMAL IMPEDANCE, Z

u(J-C)

(t), (

o

C/WATT)

10

0

10

1

10

-3

10

-2

10

-1

10

0

0

0.05

0.10

0.15

0.20

0.25

0.30

0.35

0.40
