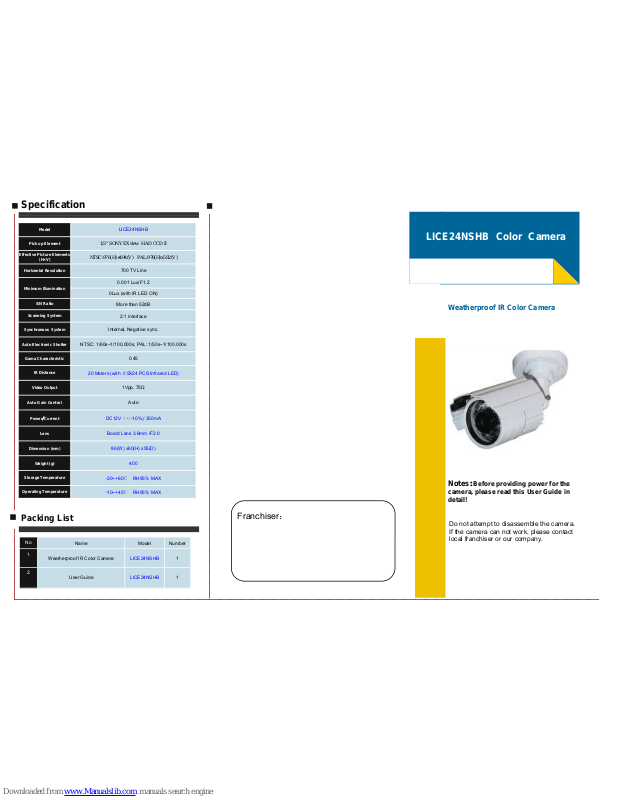

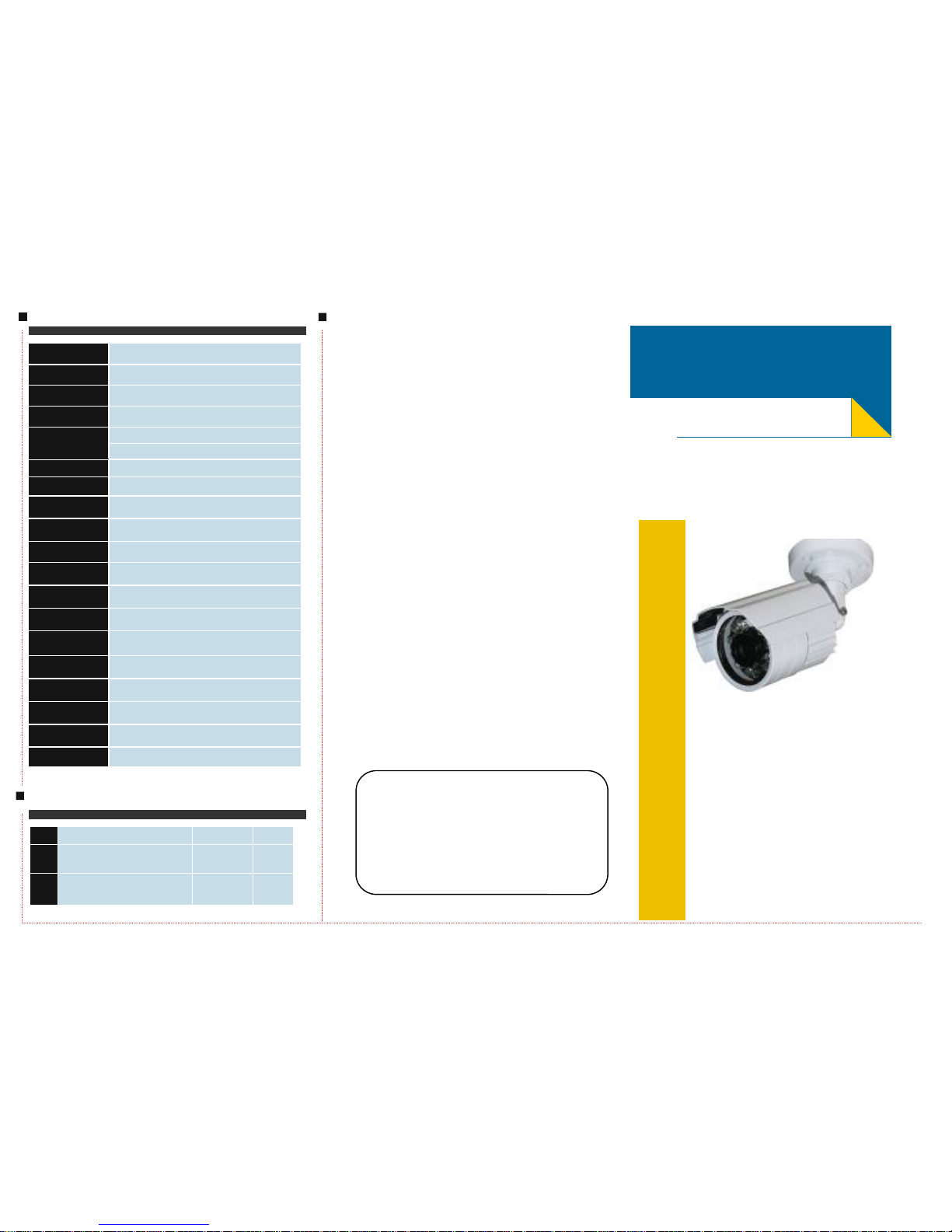

Page 1
LICE24NSHB Color Camera
Weatherproof IR Color Camera
Specification
Packing List
No
Name Model Number
2.
User Guide LICE24NSHB 1
1.
Weatherproof IR Color Camera LICE24NSHB 1
Franchiser：
Notes:Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
Model
LICE24NSHB
Pick up Element
1/3" SONY EXview HAD CCD II
Effective Picture Elements
(H×V)
NTSC:976(H)×494(V) PAL:976(H)x582(V)
Horizontal Resolution
700 TV Line
0.001 Lux/F1.2
0Lux (with IR LED ON)
S/N Ratio
More than 52dB
Scanning System
2:1 interface
Synchronous System
Internal, Negative sync.
Auto Electronic Shutter
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Gama Characteristic
0.45
Video Output
1Vpp, 75Ω
Auto Gain Control
Auto
Power/Current
DC12V（+/-10%)/350mA
Lens
Board Lens 3.6mm /F2.0
Dimension (mm)
86(W) x60(H) x55(D)
Weight (g)
400
Storage Temperature
-30~+60℃ RH95% MAX
Operating Temperature
-10~+45℃ RH95% MAX
Minimum Illumination
IR Distance
20 Meters (with ￠5X24 PCS Infrared LED)
Page 2
INTRODUCTION
Congratulations on your purchase of this product.
This User Guide suits LICE24NSHB product. We adopt
the latest SONY technical of sensor and driver. The most
attractive characteristics are small and easy hidden, suits
the elevator and corridor. In addition, it owns the
characters of high definition and stability, strong antijamming, rich and real color. Fixing and using this model
are convenient too. It is very good for you to apply to your
CCTV system.
Please read this instruction manual carefully to
ensure proper use of the product.
CONNECTING
BRIEF OF PRODUCT
* Sensor (CCD)
Adopt SONY 1/3" CCD Sensor.
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.
* Scanning Mode
NTSC or PAL mode.
* Water Resistance
IP66
* OSD SETTING
DC12V Power Supply
Monitor
LICE24NSHB
TROUBLE AND SOLUTION
Link wire rule：
Power
Video
Note:
● Please note the camera’s operating temperature and its using
environment
requirement. Avoid using the camera at too high or
too low temperatures. The operating temperature is -30~+60℃.
(Recommendatory operating temperature is -10~+45℃.)
● Never make the camera face the sun or bright object. Otherwise,
it will damage the CCD.
● Do not mount the camera near by the radiator or heater.
1. No Picture after providing power
. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors whether be connected
correctly or not.
2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
. Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
. The fluorescent lamp’s electromagnetic field cause color roll. This is proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.
4. The picture smear too mass
. The power supply’s voltage unstable.
. Connecting cables not connect corr ectly or have high impedance.
The symbol is intended to alert the user to the presence of
The symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
uninsulated ‘dangerous volta ge’ within the product’s
enclosure that may be of sufficient Magnitude to constitute
a risk of electric shock to persons.
Video
DC12V
CAUTION:
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER OR BACK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO OUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF
FIRE HAZARDS, DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.
Notes：
●The power supply must through safe attestation. Its output voltage,
current, voltage polarity and operating temperature must match the
camera’s requirement.
●When using the camera in the thunderbolt condition,please note to
mount Anti-thunder device or put off the power supply plug and cable.
●In order to capture high quality pictures, the power supply’s cable and
video output cable should not be too long.
MENU
UP
DOWN
RIGHT
LEFT
PRESS
KEY BOARD
OSD SET
EXPOSURE
LENS ELC/DC
HBLC/D-WDR BLC/HLI/D-WDR
AGC OFF/LOW/MIDDLE/HIGH
2D DNR OFF/ON
EXIT
COLOR
WB MODE ATW/MANUAL/AWC>PUSH/AWC
R-Y-GAIN 0~256
B-Y-GAIN 0~256
EXIT
DAY&NIGHT
D&N MODE AUTO/COLOR/B&W/EX-CDS
FUNCTION
MIRROR ON/OFF
SHARPNESS 0~30
MONITOR MODE1/MODE2
GAMA 0.45/0.60/1.0/USER
LSC ON(0~30)/OFF
MOTION
MOTION ON/OFF
AREA SEL
AREA1/AREA2/AREA3/AREA4
SENSITI 0~30
DISPLAY OFF/ICON/TRACE
HOLD TIME 0~15 Unit: sec
ALARM ON/OFF
EXIT
PRIVACY
MASK1~MASK8 ON/OFF
SETUP
TITLE OFF/ON: 64charaters
DPC
OFF/MANUAL:WHITE THR 0~255/BLACK
THR 0~255/DPC LEVEL:0~255
OLPF 650/850
OSD COLOR
BLUE/MAGENTA/GRAY/WHITE/BLACK/
RED/GREEN
EXIT
SYSTEM
CAMERA ID 0~255
COMMUNI
PROTOCOL:PELCO-D
BAUDRATE:2400/4800/9600/19200 bps
RETURN
LANGUAGE
CHINESE/ENGLISH/KOREAN/JAPANESS/
DEUTSCH/ITALIANO/PYCCKNN/
ESPANOL/PROTUGUES/FRANCAISE
EXIT
EXIT
FACTORY SET
SAVE&EXIT
EXIT
