Chrysler 2010 Sebring User Manual

Sebring

User Guide

2010

IMPORTANT: This User Guide is intended to familiarize you with the important
features of your vehicle. The DVD enclosed contains your Owner’s Manual,
Navigation Radio or Multimedia Radio Manual, Warranty Booklets, Tire Warranty
and 24-Hour Towing Assistance (new vehicles purchased in the U.S.) or Roadside
Assistance (new vehicles purchased in Canada) in electronic format. We hope you
find it useful. If you are the first registered owner of your vehicle, you may obtain a
printed copy of the Owner’s Manual, Navigation Radio or Multimedia Radio Manual
or Warranty Booklet by calling 1-800-992-1997 (U.S.) or 1-800-387-1143 (Canada) or
by contacting your dealer. Replacement manuals may be purchased by visiting
www.techauthority.com. Copyright © 2009 Chrysler Group LLC.

TABLE OF CONTENTS

INTRODUCTION/WELCOME

WELCOME FROM

CHRYSLER GROUP LLC .........2

CONTROLS AT A GLANCE

DRIVER COCKPIT .............4

INSTRUMENT CLUSTER .........6

GETTING STARTED

KEYFOB..................8

THEFT ALARM ..............9

SEATBELT ................9

FRONTSEATS...............9

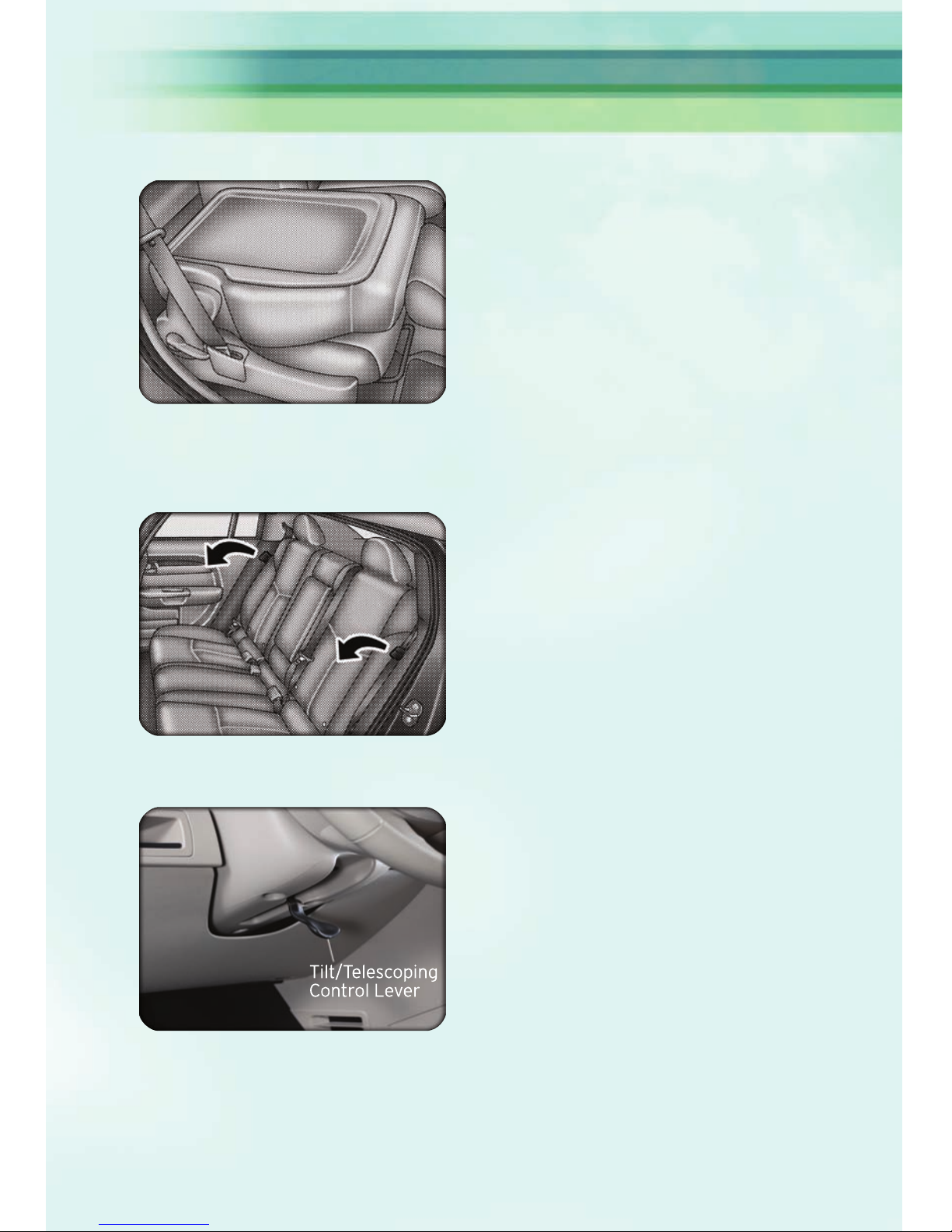

REARSEATS ...............13

TILT/TELESCOPING STEERING

COLUMN ..................13

PROGRAMMABLE FEATURES ......14

OPERATING YOUR VEHICLE

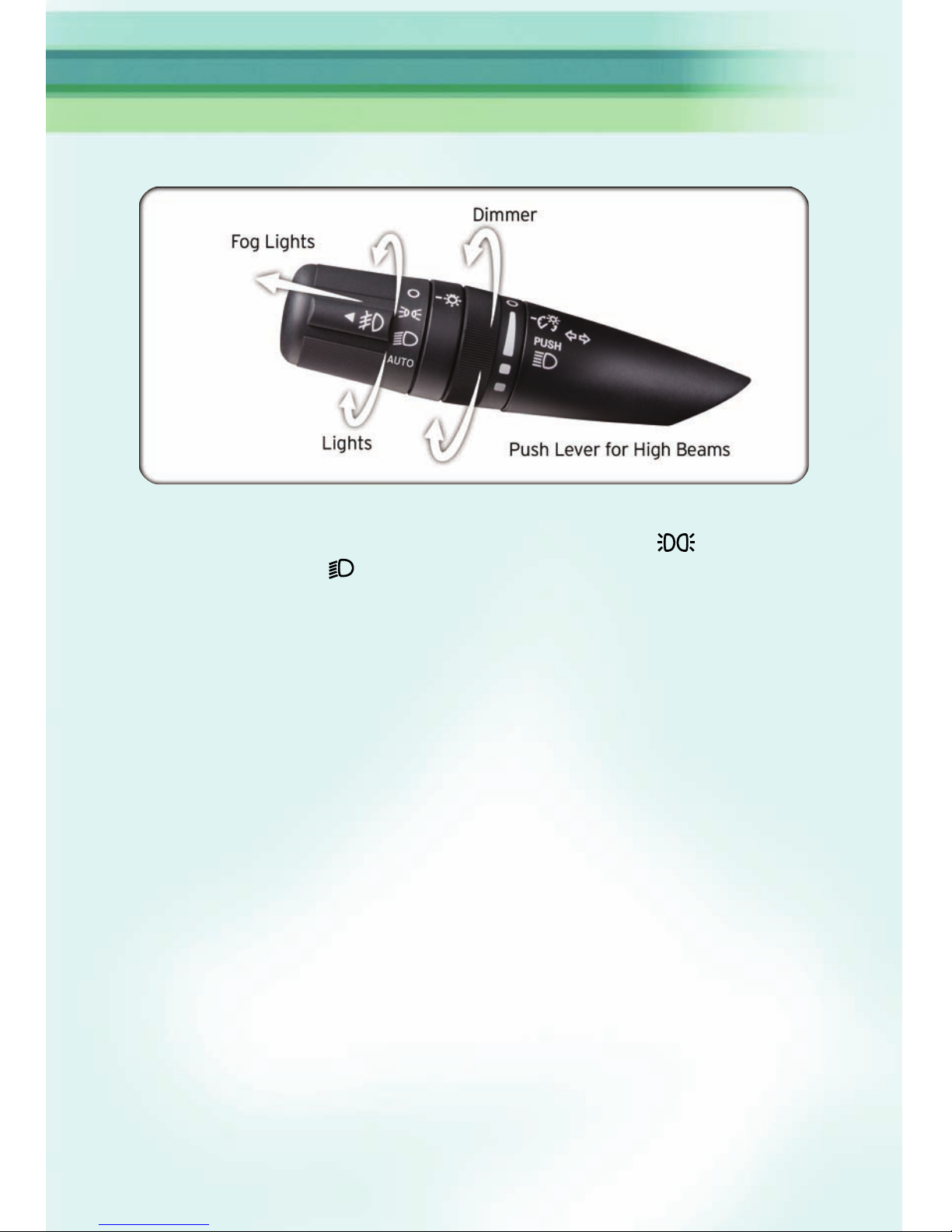

TURN SIGNAL/LIGHTS LEVER .....16

WIPER/WASHER LEVER .........17

SPEED CONTROL LEVER ........18

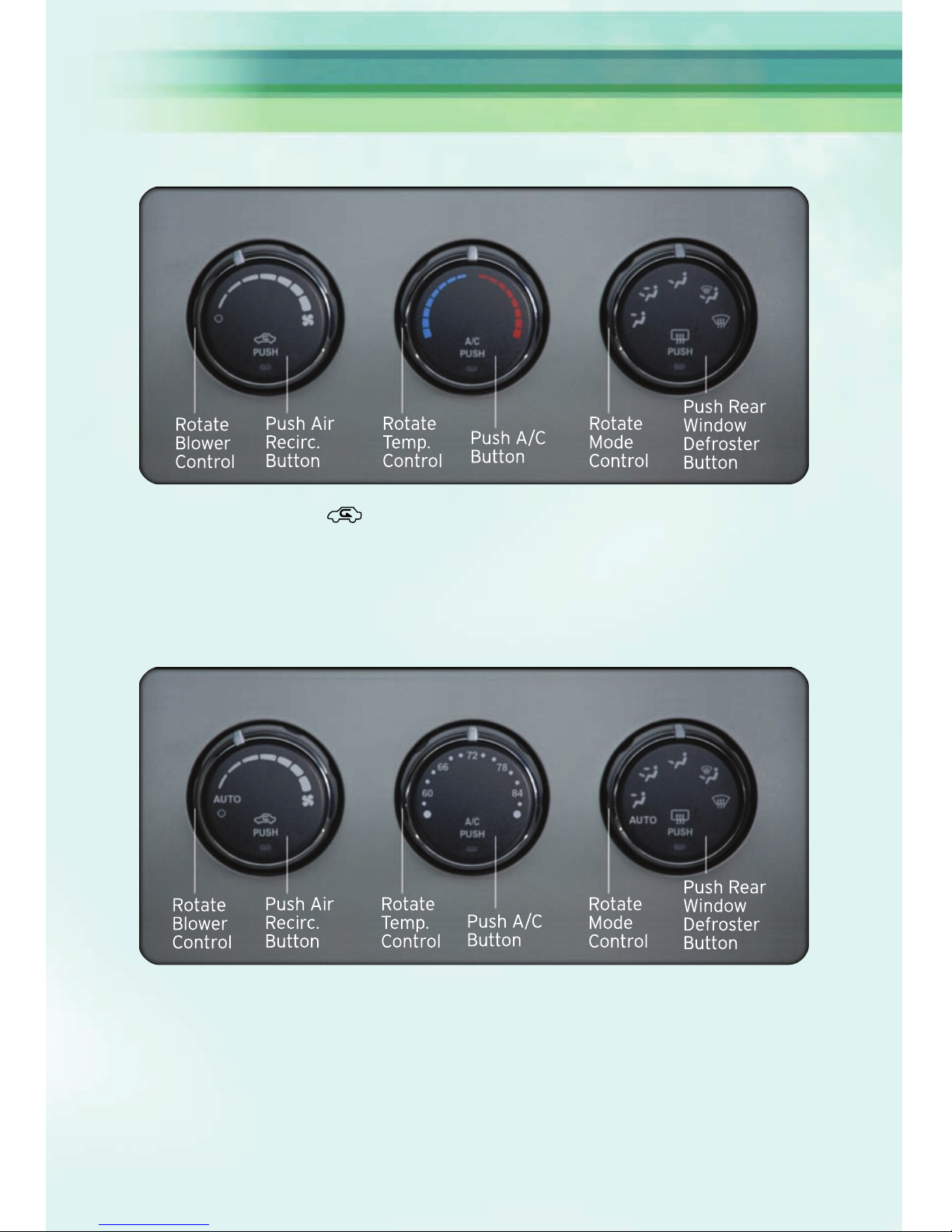

MANUAL CLIMATE CONTROLS .....19

AUTOMATIC TEMPERATURE

CONTROLS(ATC).............19

POWERSUNROOF ........... 20

WIND BUFFETING .............21

ELECTRONICS

NON-TOUCH-SCREEN RADIOS .....22

TOUCH-SCREEN RADIOS ........ 25

REMOTE AUDIO CONTROLS ...... 29

ELECTRONIC VEHICLE INFORMATION

CENTER (EVIC) ............. 29

UNIVERSAL GARAGE DOOR

OPENER ................. 30

POWER OUTLET .............31

uconnect™ phone .............31

VOICE RECOGNITION ...........33

UTILITY

TRAILER TOWING WEIGHTS (MAXIMUM

TRAILER WEIGHT RATINGS) ...... 35

RECREATIONAL TOWING (BEHIND

MOTORHOME, ETC.) .......... 36

BRAKE/TRANSAXLE INTERLOCK

MANUAL OVERRIDE .......... 36

WHAT TO DO IN EMERGENCIES

24 HOUR TOWING ASSISTANCE ....37

INSTRUMENT CLUSTER WARNING

LIGHTS ...................37

IF YOUR ENGINE OVERHEATS ....40

JACKING AND TIRE CHANGING .....41

JUMP-STARTING ............ 46

TOWING A DISABLED VEHICLE .... 49

FREEING A STUCK VEHICLE ...... 50

EVENT DATA RECORDER (EDR) ....51

MAINTAINING YOUR VEHICLE

OPENING THE HOOD .......... 52

ENGINE COMPARTMENT ....... 53

FLUIDS AND CAPACITIES ....... 56

MAINTENANCE CHART ........ 58

FUSES .................. 60

TIREPRESSURES............ 62

WHEEL AND WHEEL TRIM CARE . . . 62

EXTERIOR BULBS ............ 63

CONSUMER ASSISTANCE

CHRYSLER GROUP LLC CUSTOMER

CENTER ................. 64

CHRYSLER CANADA INC. CUSTOMER

CENTER ................. 64

ASSISTANCE FOR THE HEARING

IMPAIRED ................ 64

PUBLICATIONS ORDERING ...... 64

REPORTING SAFETY DEFECTS IN
THE 50 UNITED STATES AND

WASHINGTON, D.C. ........... 65

TIREWARRANTY............ 65

MOPAR ACCESSORIES

MOPAR®ACCESSORIES ........ 68

INTRODUCTION/WELCOME

WELCOME FROM CHRYSLER GROUP LLC

Congratulations on selecting your new Chrysler Group LLC vehicle. Be assured that it
represents precision workmanship, distinctive styling, and high quality - all essentials
that are traditional to our vehicles.

IMPORTANT: This User Guide is intended to familiarize you with the important
features of your vehicle. The DVD enclosed contains your Owner’s Manual, Warranty
Booklets, Tire Warranty, and 24 Hour Towing Assistance (new vehicles purchased in
the U.S.) or Roadside Assistance (new vehicles purchased in Canada) in electronic
format. We hope you find it useful. Retail customers may obtain a printed copy of any
of these booklets, call 1-800-890-4038 (U.S.) or 1-800-387-1143 (Canada) or ask your
dealer.

For complete owner information, refer to the DVD in the owner’s kit provided at the
time of new vehicle purchase. For your convenience, the information contained on
the DVD may also be printed and saved for future reference.

Not all features shown in this guide may apply to your vehicle.

Chrysler Group LLC is committed to protecting our environment and natural
resources. By converting from paper to electronic delivery for the majority of the
user information for your vehicle, together we greatly reduce the demand for
tree-based products and lessen the stress on our environment.

Vehicles Sold In Canada

With respect to any Vehicles Sold in Canada, the name Chrysler Group LLC shall be
deemed to be deleted and the name Chrysler Canada Inc. used in substitution
therefore.

Driving And Alcohol

Drunken driving is one of the most frequent causes of accidents.

Your driving ability can be seriously impaired with blood alcohol levels far below the
legal minimum. If you are drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab, a friend, or use public transportation.

WARNING!

Driving after drinking can lead to an accident. Your perceptions are less sharp,
your reflexes are slower, and your judgment is impaired when you have been
drinking. Never drink and then drive.

This guide illustrates and describes the operation of features and equipment that are
either standard or optional on this vehicle. This guide may also include a description
of features and equipment that are no longer available or were not ordered on this
vehicle. Please disregard any features and equipment described in this guide that are
not available on this vehicle. Chrysler Group LLC reserves the right to make changes
in design and specifications and/or make additions to or improvements to its
products without imposing any obligation upon itself to install them on products
previously manufactured.

2

INTRODUCTION/WELCOME

CAUTION!

Never park your vehicle over dry grass or other combustible materials. The heat
from your vehicle exhaust system could cause a fire.

CHRYSLER, DODGE, JEEP, ATF+4, MOPAR and uconnect are registered trademarks of
Chrysler Group LLC.

COPYRIGHT ©2009 CHRYSLER GROUP LLC

3

CONTROLS AT A GLANCE

DRIVER COCKPIT

4

CONTROLS AT A GLANCE

5

CONTROLS AT A GLANCE

INSTRUMENT CLUSTER

Warning Lights

- Low Fuel Warning Light

- Charging System Light**

- Oil Pressure Warning Light**

- Anti-Lock Brake (ABS) Light**

- Airbag Warning Light**

- Electronic Throttle Control (ETC) Light

- Tire Pressure Monitoring System (TPMS) Light

- Engine Temperature Warning Light

- Transmission Temperature Warning Light

- Seat Belt Reminder Light

BRAKE

- Brake Warning Light**

- Malfunction Indicator Light (MIL)**

- Electronic Stability Control (ESC) Malfunction Indicator Light**

6

CONTROLS AT A GLANCE

Indicators

- Turn Signal Indicators

- High Beam Indicator

- Front Fog Light Indicator

- Vehicle Security Indicator*

- Cruise Indicator

- Electronic Stability Control (ESC) Off Indicator

- Position Light Indicator

Odometer Messages

door - Door Ajar CHAngE OIL* - Change Engine Oil
deck - Trunk Ajar gASCAP - Fuel Cap Fault
HOTOIL* - Transaxle Oil Temperature

Exceeds Safe Threshold

* If equipped
** Bulb Check with Key On

LoW tirE* - Low Tire Pressure

7

GETTING STARTED

KEY FOB

Locking And Unlocking The Doors

• Press the LOCK button once to lock all the
doors. Press the UNLOCK button once to
unlock the driver’s door only and twice
within five seconds to unlock all the doors.

• All doors can be programmed to unlock on
the first press of the UNLOCK button.

WARNING!

Leaving unattended children in a vehicle is dangerous for a number of reasons. A
child or others could be injured. Children should be warned not to touch the
parking brake, brake pedal, or the shift lever. Do not leave the key in the ignition. A
child could operate power windows, other controls, or move the vehicle.

Opening The Trunk

• Press the TRUNK button on the transmitter two times within five seconds to open
the trunk.

Remote Start

x

• Press the REMOTE START button
REMOTE START button a third time shuts the engine off.

• To drive the vehicle, press the UNLOCK button, insert the key in the ignition and
turn to the ON/RUN position.

• With remote start, the engine will only run for 15 minutes (timeout) unless the
ignition key is placed in the ON/RUN position.

• The vehicle must be started with the key after two consecutive timeouts.

2

twice within five seconds. Pressing the

WARNING!

• Do not start or run an engine in a closed garage or confined area. Exhaust gas
contains Carbon Monoxide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury or death when inhaled.

• Keep Remote Keyless Entry (RKE) transmitters away from children. Operation of
the Remote Start System, windows, door locks or other controls could cause
serious injury or death.

8

GETTING STARTED

Panic Alarm

• Press the PANIC button once to turn the panic alarm on.

• Wait approximately three seconds and press the button a second time to turn the
panic alarm off.

THEFT ALARM

To Arm

• Press the Key Fob LOCK button or the power door lock switch while the door is
open.

To Disarm

• Press the Key Fob UNLOCK button or turn the ignition to the ON position.

SEAT BELT

• Be sure everyone in your vehicle is in a seat using a seat belt properly.

WARNING!

In a collision, you and your passengers can suffer much greater injuries if you are
not properly buckled up. You can strike the interior of your vehicle or other
passengers, or you can be thrown out of the vehicle. Always be sure you and
others in your vehicle are buckled up properly.

FRONT SEATS

WARNING!

Adjusting a seat while the vehicle is moving is dangerous. The sudden movement
of the seat could cause you to lose control. The seat belt might not be properly
adjusted and you could be injured. Only adjust a seat while the vehicle is parked.

9

GETTING STARTED

Manual Seat Adjustment

Forward/Rearward

• Lift up on the adjusting bar located at the
front of the seat near the floor and release
at the desired position.

Recliner

• Lift the recliner lever located on the
outboard side of the seat, lean back and
release at the desired position.

Do not ride with the seatback reclined so that the seat belt is no longer resting
against your chest. In a collision, you could slide under the seat belt and be
seriously or even fatally injured. Use the recliner only when the vehicle is parked.

WARNING!

10

Lumbar Support

Driver’s Seat Height Adjustment

GETTING STARTED

• The lumbar adjust lever is on the outboard
side of the seatback. Rotate the lumbar
adjust lever downward to increase the
lumbar support or upward to decrease the
lumbar support as desired.

• The height adjustment control lever is
located on the outboard side of the seat.
Raise the lever to raise the seat. Lower the
lever to lower the seat.

11

GETTING STARTED

Power Seat

• The power seat switch, located on the
outboard side of the seat near the floor,
controls forward/back, up/down, and tilt
adjustment.

• The recline switch controls the seatback
recliner.

CAUTION!

Do not place any article under a power seat as it may cause damage to the seat controls.

Heated Seats

• The controls for the front heated seats are
located in the center console below the
climate controls.

• Press the switch once to select High-level
heating. Press the switch a second time to
select Low-level heating. Press the switch a
third time to shut the heating elements
Off.

WARNING!

•

Persons who are unable to feel pain to the skin because of advanced age, chronic
illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other
physical condition must exercise care when using the seat heater. It may cause
burns even at low temperatures, especially if used for long periods of time.

• Do not place anything on the seat that insulates against heat, such as a blanket
or cushion. This may cause the seat heater to overheat. Sitting in a seat that has
been overheated could cause serious burns due to the increased surface
temperature of the seat.

Repeated overheating of the seat could damage the heating element and/or
degrade the material of the seat.

CAUTION!

12

GETTING STARTED

Fold-Flat Front Passenger Seat

REAR SEATS

Folding Rear Seat

• The front passenger seat can be folded
flat. Pull up on the recliner lever to fold
down the seat back.

• To fold the rear seatback forward, pull on
the loops to fold down either or both
seatbacks. When returning the rear seat
back to the upright position, be sure the
seatback is latched.

TILT/TELESCOPING STEERING COLUMN

• Pull upward on the lever to lock the column firmly in place.

• The tilt/telescoping control lever is located
below the steering wheel at the end of the
steering column.

• Push down on the lever to unlock the
steering column.

• To tilt the steering column, move the
steering wheel upward or downward as
desired. To lengthen or shorten the
steering column, pull the steering wheel
outward or push it inward as desired.

13

GETTING STARTED

WARNING!

Do not adjust the steering wheel while driving. The tilt/telescoping adjustment
must be locked while driving. Adjusting the steering wheel while driving or driving
without the tilt/telescoping adjustment locked could cause the driver to lose
control of the vehicle. Failure to follow this warning may result in serious injury or
death.

PROGRAMMABLE FEATURES

Electronic Vehicle Information Center (EVIC) – If Equipped

• The EVIC can be used to program the following Personal Settings. Press and
release the MENU button

STEP button
button

• Language • Headlights With Wipers

• Auto Unlock On Exit • Headlamp Off Delay

• Remote Key Unlock • Key Off Power Delay

• Sound Horn With LOCK • ILLUMIN. Approach

• Flash Lights With LOCK • Display Units Of Measure In

to scroll through the settings. Press the RESET

until ON or OFF appears.

until Personal Settings displays, then press the

Key Fob Programmable Features

NOTE: Pressing the LOCK button while you are inside the vehicle will activate the

Vehicle Security Alarm. Opening a door with the Vehicle Security Alarm activated will
cause the alarm to sound. Press the UNLOCK button to deactivate the Vehicle
Security Alarm.

Unlock On First Press

• To unlock either the driver’s side, or all doors, on the first press of the UNLOCK
button:

• Press and hold the LOCK button for at least 4 seconds, but no longer than
10 seconds. Then, press and hold the UNLOCK button while still holding the
LOCK button.

• Release both buttons at the same time.

Auto Unlock Doors On Exit

• To have all of the vehicle doors unlock when any door is opened:

• Close all doors and place the key in the ignition.

• Within 15 seconds, cycle the ignition switch between LOCK and ON and then back
to LOCK four times ending up in the LOCK position (do not start the engine).

• Within 30 seconds, press the power door UNLOCK switch to unlock the doors.

14

GETTING STARTED

Auto Door Lock

• To have the doors lock automatically when the vehicle’s speed exceeds 15 mph
(24 km/h):

• The auto door lock feature can be enabled or disabled by your authorized dealer.
See your authorized dealer for programming.

Sound Horn With Lock

• To turn the horn chirp on or off when the doors are locked:

• Press the LOCK button for at least 4 seconds, but no longer than 10 seconds.
Then, press the PANIC button while still holding the LOCK button.

• Release both buttons at the same time.

Flashing Lights With Lock

• The turn signal lights flashing, when the doors are locked or unlocked, feature can
be turned on or off. To turn this feature on or off:

• Press and hold the UNLOCK button for at least 4 seconds, but no longer than
10 seconds. Then, press and hold the LOCK button while still holding the
UNLOCK button.

• Release both buttons at the same time.

15

OPERATING YOUR VEHICLE

TURN SIGNAL/LIGHTS LEVER

Headlights/Parking Lights/Automatic Headlights

• Rotate the end of the lever to the first detent for parking lights , the second
detent for headlights

• When set to AUTO, the system automatically turns the headlights on or off based
on ambient light levels.

and the third detent for AUTO.

Instrument Panel Dimmer

• Rotate the center portion of the lever to the extreme bottom position to fully dim
the instrument panel lights and prevent the interior lights from illuminating when a
door is opened.

• Rotate the center portion of the lever up to increase the brightness of the
instrument panel lights when the parking lights or headlights are on.

• Rotate the center portion of the lever upward to the next detent position to
brighten the odometer and radio displays when the parking lights or headlights are
on.

• Rotate the center portion of the lever upward to the last detent to turn on the
interior lighting.

High Beams Operation

• Push the lever forward to activate the high beams.

NOTE: For safe driving, turn off high beams when oncoming traffic is present to
prevent headlight glare and as a courtesy to other motorists.

Fog Lights

• Pull out the end of the lever.

• Fog lights only operate with parking lights or low beam headlights.

16

OPERATING YOUR VEHICLE

Turn Signals/Lane Change Assist

• Tap the lever up or down once and the turn signal (right or left) will flash three
times then automatically turn off.

WIPER/WASHER LEVER

Front Wipers

Intermittent, Low And High Operation

• Rotate the end of the lever to the first detent position for one of five intermittent
settings, the second for low wiper operation and the third detent for high wiper
operation.

Mist

• Pull down on the lever and release when a single wipe is desired.

Washer Operation

• Pull the lever toward you and hold for as long as spray is desired.

17

OPERATING YOUR VEHICLE

SPEED CONTROL LEVER

Cruise ON/OFF

• Push the ON/OFF button to activate the
Speed Control.

• CRUISE will appear on the instrument
cluster to indicate the Speed Control is on.

• Push the ON/OFF button a second time to
turn the system off.

WARNING!

Leaving the Electronic Speed Control system on when not in use is dangerous. You
could accidentally set the system or cause it to go faster than you want. You could
lose control and have an accident. Always leave the Electronic Speed Control
system off when you are not using it.

Set

• With Speed Control on, push down and release the lever to set a desired speed.

WARNING!

Electronic Speed Control can be dangerous where the system cannot maintain a
constant speed. Your vehicle could go too fast for the conditions, and you could
lose control. An accident could be the result. Do not use Electronic Speed Control
in heavy traffic or on roads that are winding, icy, snow-covered or slippery.

Accel/Decel

• Push and hold the lever up to accelerate or down to decelerate the vehicle; release
the lever to save the new set speed.

• Once a speed is set, tapping the lever up or down will increase or decrease the set
speed approximately 1 mph (2 km/h).

Cancel

• Pull the lever toward you or apply the brakes to cancel the set speed and maintain
the set speed in memory.

• Push the ON/OFF button to turn the system off and erase the set speed memory.

Resume

• To resume a previously selected speed in memory, push the lever up and release.

18

OPERATING YOUR VEHICLE

MANUAL CLIMATE CONTROLS

Air Recirculation

• Use recirculation for maximum A/C operation.

• For window defogging, turn the recirculation button off.

• Recirculation is not allowed in defrost, floor, defrost/floor (mix) modes.

AUTOMATIC TEMPERATURE CONTROLS (ATC)

Automatic Operation

• Turn the Mode and Blower Controls to the AUTO position.

• Select the desired temperature by rotating the Temperature Control.

• The system will maintain the set temperature automatically.

19

OPERATING YOUR VEHICLE

Air Conditioning

• If the air conditioning button is pressed while in the AUTO mode, the indicator light
may flash three times to indicate the cabin air is being controlled automatically.

Air Recirculation

• Use recirculation for maximum A/C operation.

• For window defogging, turn the air recirculation button off.

• If the recirculation button is pressed while in the AUTO mode, the indicator light
may flash three times to indicate the cabin air is being controlled automatically.

POWER SUNROOF

• The power sunroof switch is located on the overhead console.

WARNING!

• Never leave children in a vehicle with the key in the ignition switch. Occupants,
particularly unattended children, can become entrapped by the power sunroof
while operating the power sunroof switch. Such entrapment may result in
serious injury or death.

• In an accident, there is a greater risk of being thrown from a vehicle with an
open sunroof. You could also be seriously injured or killed. Always fasten your
seat belt properly and make sure all passengers are properly secured too.

• Do not allow small children to operate the sunroof. Never allow your fingers,
other body parts, or any object to project through the sunroof opening. Injury
may result.

Opening Sunroof

Express

• Press the switch rearward and release. The sunroof will fully open and stop
automatically.

Closing Sunroof

Express

• Press the switch forward and release. The sunroof will close automatically from any
position.

Manual Open/Close

• Press and hold the switch rearward to open or forward to close the sunroof. Any
release of the switch will stop the movement, and the sunroof will remain in a
partially open or closed position until the switch is pressed again.

20

OPERATING YOUR VEHICLE

Venting Sunroof

• Press and release the “VENT“ button, and the sunroof will open to the vent
position. This is called “Express Vent” and will occur regardless of sunroof position.
During Express Vent operation, any movement of the switch will stop the sunroof.

Pinch Protection Feature

• This feature will detect an obstruction in the opening of the sunroof during Express
Close operation. If an obstruction in the path of the sunroof is detected, the
sunroof will automatically return to the open position.

NOTE: Pinch protection is disabled while the switch is pressed and held during
manual opening and closing of the sunroof.

WIND BUFFETING

• Wind buffeting can be described as a helicopter-type percussion sound. If buffeting
occurs with the rear windows open, adjust the front and rear windows together.

• If buffeting occurs with the sunroof open, adjust the sunroof opening, or adjust any
window. This will minimize buffeting.

21

ELECTRONICS

NON-TOUCH-SCREEN RADIOS

RES Radio

RES/RSC Radio

22

REQ Radio

ELECTRONICS

NOTE: uconnect™ phone and Voice Recognition are vehicle options which must be
ordered separately. The buttons on the radio will only be active if the vehicle has
been equipped with the option.

• The radio sales code is located on the lower right side of the radio faceplate.

• Unless otherwise noted, the information provided on the operation and
functionality of the radios in this section is common to all non-touch-screen radios.

Seek Up/Down Buttons

• Press and release to search for and stop at the next listenable station in AM/FM
mode.

• Holding either button will bypass stations without stopping.

Audio Settings

• Press the TUNE/SCROLL control knob and BASS, MID, TREBLE, BALANCE and FADE
will display. Rotate the TUNE/SCROLL control knob to select the desired setting.

Auxiliary Mode

• The auxiliary (AUX) jack allows a portable device, such as an MP3 player or a
cassette player, to be plugged into the radio and utilize the vehicle’s audio system
and play through the vehicle speakers.

23

ELECTRONICS

Clock Setting

• Press and hold the TIME button until the hours blink; turn the TUNE/SCROLL
control knob to set the hours.

• Press the TUNE/SCROLL control knob until the minutes begin to blink; turn the
TUNE/SCROLL control knob to set the minutes.

• Press the TUNE/SCROLL control knob to save the time change.

• To exit, press any button/knob or wait five seconds.

Station Presets

• Press the SET/RND button once and SET 1 will show in the display. Then select the
button (1–6).

• A second station may be added to each push button. Press the SET/RND button
twice and SET 2 will show in the display, then select button (1–6).

How To Load Multiple CD’s / DVD’s

REQ Radio Only

• Press the LOAD button and then push the button with the corresponding number
(1–6) where the CD is being loaded. The radio will display PLEASE WAIT and prompt
when to INSERT DISC.

• After the radio displays INSERT DISC, insert the CD into the player. The radio
display will show LOADING DISC when the disc is loading and “READING DISC”
when the radio is reading the disc.

• Press the eject button and then the corresponding number (1–6) to eject the
desired disc.

24

TOUCH-SCREEN RADIOS

Navigation Radio – RER

ELECTRONICS

Multimedia Radio – REN

25

ELECTRONICS

NOTE: uconnect™ phone and Voice Recognition are vehicle options which must be
ordered separately. The buttons on the radio will only be active if the vehicle has
been equipped with the option.

• The radio sales code is located on the lower right side of the radio faceplate.

• Unless otherwise noted, the information provided on the operation and
functionality of the radios in this section is common to all touch-screen radios.

Seek Up/Down

• Press to seek through radio stations in AM, FM, or SAT bands. Seek through tracks
in CD or iPod

®

modes or through songs in the HDD playlist.

Radio Mode

• Press the RADIO/MEDIA hard-key to display the different radio modes, then press
the desired soft-key to select AM, FM, SAT, HDD, Disk or Aux modes.

Auxiliary Mode

• The auxiliary (AUX) jack allows a portable device, such as an MP3 player or a
cassette player, to be plugged into the radio and utilize the vehicle’s audio system
and play through the vehicle speakers.

Clock Setting

• Turn the radio on, then touch the screen where the time is displayed.

• Touch the USER CLOCK soft-key (Navigation radio only).

• To adjust the hours, touch either the HOUR FORWARD or HOUR BACKWARD
soft-key.

• To adjust the minutes, touch either the MINUTE FORWARD or MINUTE BACKWARD
soft-key.

• To save the new time setting, touch the screen where the word “Save” is displayed.

Store Radio Presets

• Press the RADIO/MEDIA hard-key repeatedly until AM FM SAT is displayed in the
upper left corner of the screen.

• Select the radio band by touching either the AM, FM, or SAT soft-key.

• Find the station to store by either pressing the SEEK UP/DOWN hard-key, or
touching the SCAN soft-key, DIRECT TUNE soft-key or the left and right arrows.

• Once the station is found, touch and hold one of the PRESET soft-keys in the list to
the right, until you hear a confirmation beep.

Hard Disc Drive Operation

Copy Complete Audio Disc To Hard-Drive

• Press the OPEN/CLOSE hard-key and insert a disc, then press the MENU hard-key.

• Touch the MY FILES soft-key, then select MY MUSIC.

26

ELECTRONICS

• Touch the IMPORT MUSIC soft-key, then touch the FROM DISC soft-key in the next
screen to start the process.

Copying From USB

• Insert a USB device, then select MY MUSIC.

• Touch the IMPORT MUSIC FILES soft-key, then touch the FROM USB soft-key in the
next screen.

• Select the folders or titles you would like to copy, then touch the DONE soft-key to
start the copy process.

Copy Pictures To The Hard-Drive

• Insert either a CD or a USB device containing your pictures.

• Touch the MY FILES soft-key, then go to the MANAGE MY FILES screen.

• Touch the MY PICTURES soft-key to get an overview of the currently stored images.

• Touch one of the ADD PICTURES soft-keys, then select the type of media inserted.

• Use the PAGE soft-keys to page through a list of pictures and press the picture you
would like to import.

• Confirm your selection by touching the YES soft-key. The imported picture is now
available in the MANAGE MY PICTURES screen.

• In order to display the imported picture in the radio screen, touch the desired
pictures soft-key.

• Select this picture by pressing the PICTURE VIEW soft-key. A check mark indicates
the currently used picture.

Cleaning Your Touch-Screen Radio

• Do not spray any liquid or caustic chemicals directly on the screen. Use a clean and
dry micro fiber lens cleaning cloth in order to clean the touch-screen.

• If necessary, use a lint-free cloth dampened with a cleaning solution such as
isopropyl alcohol or an isopropyl alcohol and water solution ratio of 50:50. Be sure
to follow the solvent manufacture’s precautions and directions.

Navigation

Navigation Radio – RER Only

• Navigation radios require digital data from a navigation database. The data in the
navigation database is licensed from Navigation Technologies
digitized.

• For software updates, visit http://www.chrysler.com/en/owners/mygig/ website, visit
http://www.navteq.com website, or contact your authorized dealer for the latest
available software.

®

. Not all roads are

NOTE: Many features of this radio are speed dependent. For your own safety, it is
not possible to use the touch-screen keyboard to enter a name (e.g., street name)
while the vehicle is in motion. Pull over at a safe location to complete your task.

27

ELECTRONICS

• The Navigation system receives GPS signals from satellites to display the position
of your vehicle.

New Destination

• Press the NAV hard-key to access the Navigation Main Menu.

• Touch the NEW DESTINATION soft-key to program a destination, then select the
destination soft-key of your choice.

Program/Storing Home Address

• Press the NAV hard-key to access the Navigation Main Menu.

• Touch the GUIDE ME HOME soft-key, then touch the STREET ADDRESS soft-key.

• Touch the STATE soft-key, then enter your state name into the speller; select your
state from the list and press the CHANGE soft-key.

• Touch the INPUT STREET NAME soft-key and enter your street name into the
speller.

• Touch the CONTINUE soft-key and enter your address into the speller; then touch
the CONTINUE soft-key again.

• Touch the city name and touch the SAVE soft-key to complete programming.

Change Stored Home Address

• Press the MENU hard-key, then touch the MY FILES soft-key.

• Touch the MY ADDRESS BOOK soft-key, then touch the HOME soft-key.

• In the Home Address Information screen, touch the EDIT CONTACT soft-key, then
touch the CHANGE ADDRESS soft-key in the next screen.

• Touch the INPUT STREET NAME soft-key and enter your street name into the
speller.

• Touch the CONTINUE soft-key and enter your address into the speller; touch the
CONTINUE soft-key again.

• Touch the city name and touch the SAVE soft-key to complete programming.

Guide Me Home

• Press the NAV hard-key to access the Navigation Main Menu.

• Touch the GUIDE ME HOME soft-key to route you back to your home destination
from your current location. Touch the GO soft-key to start your trip.

Map

• Press the NAV hard-key to access the Navigation Main Menu.

• Touch the MAP soft-key to display a map of your current position.

28

REMOTE AUDIO CONTROLS

• The switches are located on the rear

Right Switch

• Press the switch up or down to increase

• Press the button in the center to change

Left Switch

• Press the switch up or down to search for

• Press the button in the center to select the

ELECTRONICS

surface of the steering wheel.

and decrease the volume.

modes AM/FM/CD/SAT.

the next listenable station or select the
next or previous CD track.

next preset station (Radio) or to change
CDs if equipped with a CD Changer.

ELECTRONIC VEHICLE INFORMATION CENTER (EVIC)

• The EVIC features a driver interactive
display that is located in the instrument
cluster. The system allows the driver to
select information by pressing the buttons
on the instrument panel switch bank
located below the climate controls. For
additional information refer to
Programmable Features in this guide.

button

• Press and release the STEP
various Trip Functions or Personal settings.

• Press and release the COMPASS
the outside temperature.

• Press and release the RESET
button also resets various Trip Functions.

button to advance the display through the

button to display the compass heading and

• Press and release the MENU
to advance the display to Trip Functions or

Personal settings or to return to the
default System status display.

button to accept a selection. The RESET

29

ELECTRONICS

UNIVERSAL GARAGE DOOR OPENER

Programming HomeLink

®

Begin Programming

• The HomeLink®buttons are located in the
sun visor.

• Erase all channels before you begin
training by holding the two outside buttons
for up to 20 seconds until the red indicator
flashes.

• Park your vehicle outside of the garage and turn the ignition switch to the ON/RUN
position.

®

• Place the hand-held transmitter 1 to 3 in (3 to 8 cm) from the HomeLink

buttons

while keeping the indicator light in view.

®

• Simultaneously, press and hold both the chosen HomeLink

®

hand-held transmitter button until the HomeLink

indicator flash rate changes

from a slow to a rapidly blinking light, then release both the HomeLink

button and the

®

and the
hand held transmitter buttons. This may take up to 30 seconds, or longer, in rare
cases.

®

• Press and hold the just-trained HomeLink

button; if the indicator light stays on

constantly, programming is complete and the garage door should open.

WARNING!

• Your motorized door or gate will open and close while you are training the
universal transceiver. Do not train the transceiver if people or pets are in the
path of the door or gate. Only use this transceiver with a garage door opener
that has a “stop and reverse” feature as required by Federal safety standards.
This includes most garage door opener models manufactured after 1982. Do not
use a garage door opener without these safety features. Call toll-free
1–800–355–3515 or, on the Internet, at www.HomeLink.com for safety
information or assistance.

• Vehicle exhaust contains carbon monoxide, a dangerous gas. Do not run your
vehicle in the garage while training the transceiver. Exhaust gas can cause
serious injury or death.

®

NOTE: If you are having difficulty training your HomeLink
opener was manufactured after 1995, you may have a rolling code. Follow the steps
for Programming A Rolling Code System.

30

and your garage door

ELECTRONICS

Programming A Rolling Code System

• At the garage door opener motor (in the garage), locate the “learn” or “training”
button. This can usually be found where the hanging antenna wire is attached to
the garage door opener motor (it is NOT the button normally used to open and
close the door).

• Firmly press and release the “learn” or “training” button. The name and color of
the button may vary by manufacturer. Within 30 seconds, return to the vehicle and
press the programmed HomeLink
seconds each time). If the device is plugged in and activates, programming is
complete.

• If the device does not activate, press the button a third time (for two seconds) to
complete the training.

®

button twice (holding the button for two

Using HomeLink

• To operate, simply press and release the programmed HomeLink®button and the
trained device will operate.

• Refer to your Owner’s Manual on the DVD for further details. If you have any
problems programming HomeLink
1–800–355–3515 or, on the Internet, at www.HomeLink.com.

®

®

, or require assistance, please call toll-free

POWER OUTLET

• There are two 12-volt electrical outlets on this vehicle.

• The outlet on the front console has power available only when the ignition is in the
ON position. If desired, this outlet can be converted by your authorized dealer to
provide power with the ignition switch in the LOCK position.

• The second outlet in the center console is powered directly from the battery
(power available at all times). Items plugged into this outlet may discharge the
battery and/or prevent engine starting.

NOTE: Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the
160 Watt (13 Amp) power rating is exceeded the fuse protecting the system will need
to be replaced.

uconnect™ phone

• The uconnect™ phone is a voice-activated, hands-free, in-vehicle communications
system.

• The uconnect™ phone allows you to dial a phone number with your cellular phone
using simple voice commands.

• Please refer to uconnect™ phone in the uconnect™ User’s Manual on the DVD for
further details.

31

ELECTRONICS

WARNING!

• Any voice commanded system should be used only in safe driving conditions
following local laws and phone use. All attention should be kept on the roadway
ahead. Failure to do so may result in an accident causing serious injury or death.

• Your phone must be turned on and paired to the uconnect™ phone to allow use
of this vehicle feature in emergency situations, when the cellular phone has
network coverage and stays paired to the uconnect™ phone.

NOTE: The uconnect™ phone requires a cellular phone equipped with the
Bluetooth
support, call 1–877–855–8400.

®

Hands-Free Profile, Version 0.96 or higher. For uconnect™ customer

Phone Pairing

NOTE: Pairing is a one-time initial setup before using the phone. You will also need

to follow the Bluetooth instructions in your cell phone user guide to complete the
phone pairing setup.

• Press the Phone button

• Wait for the “ready” prompt and beep.

• (After the BEEP), say “uconnect setup”.

• (After the BEEP), say “phone pairing”.

• (After the BEEP) say, “pair a phone”.

• Follow the audible prompts.

• You will be asked to create a four-digit PIN which you will later need to enter into
your phone (typically..settings, bluetooth, device, list, new).

• You will then be prompted to give the phone pairing a name (each phone paired
should have a unique name).

to begin.

• Next you will be asked to give this new pairing a priority of 1 thru 7 (up to seven
phones may be paired).

Making A Phone Call

• Press the Phone button .

• (After the BEEP), say “dial” (or “call” to a name).

• (After the BEEP), say number (or name).

Phonebook (uconnect™ local) Edit

• Press the Phone button

• (After the BEEP), say “phonebook”.

• (After the BEEP), say “new entry” or “list names” or “delete”.

• Follow the prompts.

.

32

ELECTRONICS

Receiving A Call – Accept (And End)

• When an incoming call rings / is announced on uconnect™, press the Phone
button

.

• To end a call, press the Phone button

.

Mute (Or Unmute) Microphone During Call

• During a call, press the Voice button .

• (After the BEEP), say “mute on” (or “mute off ”).

Transfer Ongoing Call Between Handset And Vehicle

• During a call, press the Voice button

• (After the BEEP), say “transfer call”.

.

Changing The Volume

• Start a dialogue by pressing the Phone button
a normal call.

• Use the radio ON/OFF VOLUME rotary knob to adjust the volume to a comfortable
level while the uconnect™ system is speaking. Please note the volume setting for
uconnect™ is different than the audio system.

NOTE: To access the tutorial, press the uconnect™ hard-key. After the BEEP, say
“tutorial”. Press any hard-key or touch the display to cancel the tutorial.

, then adjust the volume during

VOICE RECOGNITION

• The Voice Recognition (VR) system allows you to control your AM, FM radio,
satellite radio, disc player, and a memo recorder. When you press the VR
button

do not say a command within a few seconds, the system will present you with a list
of options. If you ever wish to interrupt the system while it lists options, press the

VR button

• Please refer to uconnect™ tunes in the uconnect™ User’s Manual on the DVD for
further details.

Changing The Volume

• Start a dialogue by pressing the VR button , then say a command (e.g.,
“tutorial”).

• Use the radio ON/OFF VOLUME rotary knob to adjust the volume to a comfortable
level while the Voice Recognition system is speaking. Please note the volume
setting for Voice Recognition is different than the audio system.

, you will hear a beep. The beep is your signal to give a command. If you

, listen for the BEEP, and say your command.

33

ELECTRONICS

WARNING!

Any voice commanded system should be used only in safe driving conditions and
all attention should be kept on the roadway ahead. Failure to do so may result in
an accident causing serious injury or death.

NOTE: To access the tutorial, press the VR button
“tutorial”. Press any hard-key or touch the display to cancel the tutorial.

. After the BEEP, say

34

UTILITY

1

1,000 lbs (450 kg) 100 lbs (45 kg)

1,500 lbs (680 kg) 150 lbs (68 kg)

CAUTION!

Maximum Trailer Weight Ratings

2

2

exceed the weight referenced on the Tire and Loading Information placard.

Enclosed trailers or open utility trailers with front shields/guards are not recommended for use with all four-cylinder and

2

2.7L engines with automatic transaxle. Please see your authorized dealer for additional information.

3.5L/Auto 22 sq.ft. (2.0 sq.m) 2,000 lbs (900 kg) 200 lbs (90 kg)

Refer to local laws for maximum trailer towing speeds.

1

TRAILER TOWING WEIGHTS (MAXIMUM TRAILER WEIGHT RATINGS)

The following chart provides the maximum trailer weight ratings towable for your given drivetrain.

Engine/Transaxle Max. Frontal Area Max. GTW (Gross Trailer Wt.) Max. Trailer Tongue Wt.

2.7L/Auto See Note

2.4L/Auto See Note

The trailer tongue weight must be considered as part of the combined weight of occupants and cargo, and it should never

Towing a trailer with a larger than recommended frontal area could cause the engine to overheat or cause severe engine

damage under extreme conditions.

35

UTILITY

RECREATIONAL TOWING
(BEHIND MOTORHOME,
ETC.)

Towing This Vehicle Behind
Another Vehicle (Flat Towing
With All Four Wheels On The
Ground)

CAUTION!

DO NOT flat tow this vehicle.
Damage to the drivetrain will result.

NOTE: If the vehicle requires towing,
make sure all four wheels are off the
ground.

BRAKE/TRANSAXLE
INTERLOCK MANUAL
OVERRIDE

• The manual override may be used in
the event that the shift lever should
fail to move from PARK with the Key
Fob in the ON position and the brake
pedal pressed.

• To operate the shift lock manual
override, perform the following
steps:

• Firmly apply the parking brake,
insert the ignition Key Fob and
rotate it to the ON position (do not
start engine).

• Remove the cup-holder liner.

• Insert a key, screwdriver, or finger
into the front hole, then push and
hold the manual override release
lever forward.

• While holding the release lever
forward, move the shift lever from
PARK to NEUTRAL. Release the
override.

• Have your vehicle inspected by your
local authorized dealer if the shift
lock manual override has been used.

36

WHAT TO DO IN EMERGENCIES

24 HOUR TOWING ASSISTANCE

• Dial toll-free 1-800-521-2779.

• Provide your name, vehicle identification number and license plate number.

• Provide your location, including telephone number, from which you are calling.

• Briefly describe the nature of the problem and answer a few simple questions.

• You will be given the name of the service provider and an estimated time of arrival.
If you feel you are in an “unsafe situation”, please let us know. With your consent,
we will contact local police or safety authorities.

INSTRUMENT CLUSTER WARNING LIGHTS

- Electronic Stability Control (ESC) Malfunction Indicator

Light

• If the “ESC Malfunction Indicator Light” comes on continuously with the engine
running, a malfunction has been detected in the ESC system. If this light remains
on after several ignition cycles, and the vehicle has been driven several miles
(kilometers) at speeds greater than 30 mph (48 km/h), we recommend you drive to
the nearest Service Center as soon as possible to have the problem diagnosed and
corrected.

• The “ESC Malfunction Indicator Light” starts to flash as soon as the tires lose
traction and the ESC system becomes active. If the light begins to flash during
acceleration, ease up on the accelerator and apply as little throttle as possible. Be
sure to adapt your speed and driving to the prevailing road conditions. The light
also flashes when TCS is active. To improve the vehicles traction when starting off
in deep snow, sand or gravel, it may be desirable to switch the ESC system to
Partial Off mode by momentarily pressing the ESC Off

switch.

- Tire Pressure Monitoring System (TPMS) Light

• A Tire Pressure Monitoring Light and a “low tire” message will display in your
instrument cluster along with an audible chime if one or more of your vehicle’s four
road tires are significantly under-inflated.

• Check the inflation pressure of each tire and inflate to the recommended pressure
for your vehicle. The tire pressures recommended for your vehicle are found on the
“Tire and Loading Information” label located on the driver’s side door opening. The
TPMS light should not be used as a tire pressure gauge when adjusting your tire
pressure.

• It is recommended that you check the tire pressure in the morning when tires are
cool; inflate each tire to the recommended pressure for your vehicle. The light will
turn off after your vehicle’s tire pressures are properly inflated and the pressure
has been recognized. The vehicle may need to be driven for up to 20 minutes
above 15 mph (25 km/h) before the light will turn off.

37

WHAT TO DO IN EMERGENCIES

• Temperature changes can affect tire pressure, causing the TPMS light to turn on.
Tire pressures will also increase as the vehicle is driven – this is normal and you
should not adjust for this increased pressure.

• Driving on under-inflated tires reduces your vehicle’s fuel efficiency and tire tread
life. If a spare tire is in use on the vehicle, the TPMS light may turn on.

- Engine Temperature Warning Light

• This light warns of an overheated engine condition.

• If the light turns on or flashes continuously while driving, safely pull over and stop
the vehicle. If the A/C system is on, turn it off. Also, shift the transmission into
NEUTRAL and idle the vehicle. If the temperature reading does not return to
normal, turn the engine off immediately.

• We recommend that you do not operate the vehicle or engine damage will occur.
Have the vehicle serviced immediately.

WARNING!

A hot engine cooling system is dangerous. You or others could be badly burned by
steam or boiling coolant. You may want to call an authorized dealership for service
if your vehicle overheats.

BRAKE

• The Brake Warning light illuminates when there is either a system malfunction or
the parking brake is applied. If the light is on and the parking brake is not applied, it
indicates a possible brake hydraulic malfunction, brake booster problem or an
Anti-Lock Brake System problem.

• We recommend you drive to the nearest Service Center and have the vehicle
serviced immediately.

- Brake Warning Light

WARNING!

Driving a vehicle with the red brake light on is dangerous. Part of the brake system
may have failed. It will take longer to stop the vehicle. You could have an accident.
Have the vehicle checked immediately.

- Malfunction Indicator Light (MIL)

• Certain conditions, such as a loose or missing gas cap, poor fuel quality, etc., may
illuminate the MIL after engine start. The vehicle should be serviced if the light
stays on through several typical driving cycles. In most situations, the vehicle will
drive normally and not require towing.

• If the MIL flashes when the engine is running, serious conditions may exist that
could lead to immediate loss of power or severe catalytic converter damage. We
recommend you do not operate the vehicle. Have the vehicle serviced as soon as
possible if this occurs.

38

WHAT TO DO IN EMERGENCIES

- Charging System Light

• This light shows the status of the electrical charging system. If the charging system
light remains on, it means that the vehicle is experiencing a problem with the
charging system.

• We recommend you do not continue driving if the charging system light is on. Have
the vehicle serviced immediately.

- Oil Pressure Warning Light

• This light indicates low engine oil pressure. If the light turns on while driving, stop
the vehicle and shut off the engine as soon as possible. A chime will sound for four
minutes when this light turns on.

• We recommend you do not operate the vehicle or engine damage will occur. Have
the vehicle serviced immediately.

- Anti-Lock Brake (ABS) Light

• This light monitors the Anti-Lock Brake System (ABS).

• If the light is not on during starting, stays on, or turns on while driving, we
recommend you drive to the nearest Service Center and have the system serviced
as soon as possible.

- Electronic Throttle Control (ETC) Light

• This light informs you of a problem with the Electronic Throttle Control (ETC)
system.

• If a problem is detected, the light will come on while the engine is running. Cycle
the ignition key when the vehicle has completely stopped and the shift lever is
placed in the PARK position; the light should turn off.

• If the light remains lit with the engine running, your vehicle will usually be drivable;
however, see an authorized dealer for service as soon as possible. If the light is
flashing when the engine is running, immediate service is required and you may
experience reduced performance, an elevated/rough idle or engine stall and your
vehicle may require towing.

- Transmission Temperature Warning Light

• This light indicates that there is excessive transmission fluid temperature that
might occur with severe usage such as trailer towing. If this light comes on, stop
the vehicle and run the engine at idle, with the transmission in NEUTRAL, until the
light turns off. Once the light turns off you may continue to drive normally.

- Airbag Warning Light

• If the light is not on during starting, stays on, or turns on while driving, we
recommend you drive to the nearest Service Center and have the system serviced
as soon as possible.

39

WHAT TO DO IN EMERGENCIES

Fuel Cap/Loose Gas Cap Message

• If a “gas cap” message (shown as gASCAP) appears, tighten the gas cap until a
“clicking” sound is heard.

• Press the odometer reset button to turn the message off.

• If the message continues to appear for more than three days after tightening the
gas cap, see your dealer.

Oil Change Indicator

Message

• If an “oil change” message (shown as CHAngE OIL) appears and a single chime
sounds, it is time for your next required oil change.

Resetting The Light After Servicing

• Turn the ignition switch to the ON/RUN position (do not start engine).

• Fully depress the accelerator pedal three times within 10 seconds.

• Turn the ignition switch to the OFF/LOCK position.

IF YOUR ENGINE OVERHEATS

• In any of the following situations, you can reduce the potential for overheating by
taking the appropriate action.

• On the highways — slow down.

• In city traffic — while stopped, shift transmission into NEUTRAL, but do not
increase engine idle speed.

NOTE: There are steps that you can take to slow down an impending overheat
condition:

• If your air conditioner (A/C) is on, turn it off. The A/C system adds heat to the
engine cooling system and turning the A/C off can help remove this heat.

• You can also turn the Temperature Control to maximum heat, the Mode Control to
floor and the Fan Control to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat from the engine cooling
system.

• If the temperature reading does not return to normal, turn the engine off
immediately.

• We recommend that you do not operate the vehicle or engine damage will occur.
Have the vehicle serviced immediately.

CAUTION!

Driving with a hot cooling system could damage your vehicle. If the temperature
gauge reads HOT (H), pull over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back into the normal range. If the
pointer remains on HOT (H), and you hear continuous chimes, turn the engine off
immediately, and call for service.

40

WHAT TO DO IN EMERGENCIES

WARNING!

You or others can be badly burned by hot engine coolant (antifreeze) or steam
from your radiator. If you see or hear steam coming from under the hood, do not
open the hood until the radiator has had time to cool. Never try to open a cooling
system pressure cap when the radiator or coolant bottle is hot.

Engine Oil Overheating — 2.4L Gas

• On hot days the engine oil temperature may become too hot during sustained
high-speed driving or if towing a trailer up long grades. If this happens, a HOTOIL
message will flash in the odometer and the vehicle speed will be reduced to
48 mph (77 km/h) maximum until the engine oil temperature is reduced.

NOTE: Although the maximum vehicle speed is reduced to 48 mph (77 km/h), you
may reduce vehicle speed further as needed. Once the engine oil temperature is
reduced, you may continue to drive normally.

JACKING AND TIRE CHANGING

WARNING!

• Do not attempt to change a tire on the side of the vehicle close to moving traffic.
Pull far enough off the road to avoid the danger of being hit when operating the
jack or changing the wheel.

• Getting under a jacked-up vehicle is dangerous. The vehicle could slip off the
jack and fall on you. You could be crushed. Never get any part of your body
under a vehicle that is on a jack. If you need to get under a raised vehicle, take it
to a service center where it can be raised on a lift.

• The jack is designed to use as a tool for changing tires only. The jack should not
be used to lift the vehicle for service purposes. The vehicle should be jacked on a
firm, level surface only. Avoid ice or slippery areas.

41

WHAT TO DO IN EMERGENCIES

Jack Location

• The jack and jack-handle are stowed under the load floor in the trunk.

Spare Tire Stowage

• The compact spare tire is stowed under the rear load floor in the trunk.

• To remove the spare tire, lift up the load floor cover and remove the hold down.

Preparations For Jacking

• Park on a firm, level surface. Avoid ice or slippery areas.

WARNING!

Do not attempt to change a tire on the side of the vehicle close to moving traffic.
Pull far enough off the road to avoid being hit when operating the jack or
changing the wheel.

• Set the parking brake and shift the automatic transmission into PARK.

• Turn the ignition to LOCK and turn on the Hazard Warning flasher.

• Block both the front and rear of the wheel diagonally opposite of the jacking
position. For example, if changing the right front tire, block the left rear wheel.

42

WHAT TO DO IN EMERGENCIES

NOTE: Passengers should not remain in the
vehicle when the vehicle is being jacked.

Jacking And Tire Changing Instructions

WARNING!

Carefully follow these tire changing procedures to help prevent personal injury or
damage to your vehicle: Always park on a firm, level surface as far from the edge
of the roadway as possible before raising the vehicle.

• Remove the scissors jack and lug wrench from the spare wheel as an assembly.
Turn the jack screw to the left to loosen the lug wrench, and remove the wrench
from the jack assembly.

NOTE: The jack handle attaches to the side of the jack with two attachment points.
When the jack is partially expanded, the tension between the two attachment points
holds the jack handle in place.

• Loosen (but do not remove) the wheel lug nuts by turning them to the left one turn
while the wheel is still on the ground.

• Assemble the jack and jacking tools. Connect the jack handle driver to the
extension, then to the lug wrench.

43

WHAT TO DO IN EMERGENCIES

• Place the jack underneath the lift area that is closest to the flat tire. Turn the jack
screw clockwise to firmly engage the jack saddle with the lift area of the sill flange.

• Raise the vehicle by turning the jack screw clockwise. Raise the vehicle only until
the tire just clears the surface and enough clearance is obtained to install the spare
tire.

WARNING!

Raising the vehicle higher than necessary can make the vehicle less stable and
cause an accident. It could slip off the jack and hurt someone near it. Raise the
vehicle only enough to remove the tire.

• Remove the lug nuts, wheel cover (if equipped) and wheel.

• Position the spare wheel/tire on the vehicle and install the lug nuts with the
cone-shaped end toward the wheel. Do NOT attempt to install a center cap or wheel
cover on the compact spare. Lightly tighten the lug nuts clockwise. To avoid the
risk of forcing the vehicle off the jack, do not tighten the nuts fully until the vehicle
has been lowered.

• Lower the vehicle by turning the jack screw to the left, and remove the jack and
wheel blocks.

44

WHAT TO DO IN EMERGENCIES

• Finish tightening the lug nuts. Push down on the wrench while tightening for
increased leverage. Alternate nuts until each one has been tightened twice. The
correct wheel nut tightness is 100 ft lbs (135 N•m). If in doubt about the correct
tightness, have them checked with a torque wrench by your authorized dealer or at
a service station.

WARNING!

A loose tire or jack, thrown forward in a collision or hard stop, could endanger the
occupants of the vehicle. Always stow the jack par ts and the spare tire in the
places provided.

• Secure the tire, jack and tools in their proper locations.

45

WHAT TO DO IN EMERGENCIES

JUMP-STARTING

WARNING!

Any procedure other than the following could result in:

• Personal injury caused by electrolyte squirting out the battery vent,

• Personal injury or property damage due to battery explosion,

• Damage to the charging system of the booster vehicle or of the immobilized
vehicle.

WARNING!

• Take care to avoid the radiator cooling fan whenever the hood is raised. It can
start anytime the ignition switch is ON. You can be hurt by the fan.

• Remove any metal jewelry, such as watch bands or bracelets, that might make an
inadvertent electrical contact. You could be seriously injured.

• Battery fluid is a corrosive acid solution; do not allow battery fluid to contact
eyes, skin or clothing. Do not lean over a battery when attaching clamps or allow
the clamps to touch each other. If acid splashes in your eyes or on skin, flush the
contaminated area immediately with large quantities of water.

(Continued)

46

WHAT TO DO IN EMERGENCIES

WARNING! (Continued)

• A battery generates hydrogen gas which is flammable and explosive. Keep
flames or sparks away from the battery vent holes. Don’t lean over the battery
when attaching clamps or allow the clamps to touch each other.

• Do not use a booster battery or any other booster source with an output that
exceeds 12-volts (i.e., do not use a 24-volt power source).

• The battery is stored between the left front headlight assembly and the left front
wheel splash shield. Access is through the splash shield.

• Jump-starting remote battery terminals are located under the hood.

• Check the battery test indicator (if equipped). If a light or bright colored dot is
visible in the indicator, DO NOT jump-start the battery. If the indicator is dark or
shows a green dot, proceed as follows:

• Remove all metal jewelry, such as watch bands or bracelets, which might make an
unintended electrical contact.

WARNING!

Do not permit vehicles to touch each other as this could establish a ground
connection and personal injury could result.

• Park the booster vehicle within cable reach but without letting the vehicles touch.
Set the parking brake on both vehicles, shift the automatic transmission into PARK,
and turn the ignition to LOCK.

• Turn off the heater, radio, and all unnecessary electrical loads.

• Remove the protective cover over the remote jump start positive battery post (+) in
the engine compartment. Connect one end of a jumper cable to the positive
terminal of the booster battery. Connect the other end of the same cable to the
positive terminal of the discharged battery.

• Connect the other cable, first to the negative terminal of the booster battery and
then to the engine ground (-) of the vehicle with the discharged battery. Make sure
you have a good contact on the engine ground.

• Start the engine in the vehicle which has the booster battery; let the engine idle a
few minutes.

47

WHAT TO DO IN EMERGENCIES

NOTE: If the vehicle with the discharged battery is equipped with Sentry Key
Immobilizer, turn the ignition switch to the ON position for three seconds before
moving the ignition switch to the START position.

• Start the engine in the vehicle with the discharged battery.

• When removing the jumper cables, reverse the above sequence exactly. Be careful
of the moving belts and fan.

• Reinstall the protective cover over the remote jump-start positive battery post.

WARNING!

During cold weather when temperatures are below the freezing point, electrolyte
in a discharged battery may freeze. Do not attempt jump-starting because the
battery could rupture or explode. The battery temperature must be brought up
above the freezing point before attempting a jump-start.

48

WHAT TO DO IN EMERGENCIES

Rear Wheels Raised,

Front Wheels on the

Ground

a front end dolly

a front end dolly

Front Wheels Raised,

Rear Wheels on the

Flatbed Towing (all

four wheels

Flat Towing (all four

wheels on the ground)

Ground

suspended OFF the

ground)

Recommended Method May Be Used NOT Permitted without

NOT Permitted Recommended Method May Be Used NOT Permitted without

Shift lever must be in

*NEUTRAL. The

distance to be traveled

must not exceed 15 mi

(25 km), and the

towing speed must not

exceed 25 mph

(40 km/h).

Model

TOWING A DISABLED VEHICLE

FWD Without a Key

FWD With a Key

*To shift to NEUTRAL without battery power, firmly apply the parking brake. Turn the key to ON. Remove the cupholder liner.

49

Insert a key, screwdriver or similar object into the front hole, then push and hold the manual override release lever forward.

While holding the release lever forward, move the shift lever from PARK to NEUTRAL. Release the override.

WHAT TO DO IN EMERGENCIES

FREEING A STUCK VEHICLE

• If your vehicle becomes stuck in mud, sand or snow, it can often be moved by a
rocking motion. Turn your steering wheel right and left to clear the area around the
front wheels. Then move the shift lever back and forth between REVERSE and
DRIVE. Using minimal accelerator pedal pressure to maintain the rocking motion,
without spinning the wheels, is most effective.

NOTE: To improve the vehicle’s traction when starting off in deep snow, sand or
gravel, it may be desirable to switch the Electronic Stability Control (ESC) to “Partial
Off” mode by momentarily pressing the ESC Off

on ESC, refer to the Owner’s Manual on the DVD.

WARNING!

Fast spinning tires can be dangerous. Forces generated by excessive wheel speeds
may cause tire damage or failure. A tire could explode and injure someone. Do not
spin your vehicle’s wheels faster than 30 mph (48 km/h) when you are stuck. Do
not let anyone near a spinning wheel, no matter what the speed.

switch. For further information

CAUTION!

• When “rocking” a stuck vehicle by moving between 1st and REVERSE, do not spin
the wheels faster than 15 mph (24 km/h), or drivetrain damage may result.

• Revving the engine or spinning the wheels too fast may lead to transmission
overheating and failure. It can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h).

50

WHAT TO DO IN EMERGENCIES

EVENT DATA RECORDER (EDR)

• This vehicle is equipped with an Event Data Recorder (EDR). The main purpose of
an EDR is to record, in certain crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or
less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or brake pedal;
and,

• How fast the vehicle was traveling.

• This data can help provide a better understanding of the circumstances in which a
crash and injuries occur. NOTE: EDR data is recorded by your vehicle only if a
non-trivial crash situation occurs; no data is recorded by the EDR under normal
driving conditions and no personal data (e.g., name, gender, age, and crash
location) is recorded. However, other parties, such as law enforcement, could
combine the EDR data with the type of personally identifying data routinely
acquired during a crash investigation.

• To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties,
such as law enforcement, that have the special equipment, can read the
information if they have access to the vehicle or the EDR.

51

MAINTAINING YOUR VEHICLE

OPENING THE HOOD

• Pull the release lever located below the instrument panel and in front of the
driver’s door.

• Raise the hood and locate the safety latch, in the middle of the hood opening.

• Move the safety latch while lifting the hood at the same time.

• Insert the support rod into the slot on the hood.

• To close the hood, remove the support rod and place it in the retaining clip, then
lower the hood slowly.

WARNING!

Be sure the hood is fully latched before driving your vehicle. If the hood is not fully
latched, it could open when the vehicle is in motion and block your vision. Failure
to follow this warning could result in serious injury or death.

52

MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT

2.4L Engine

53

MAINTAINING YOUR VEHICLE

2.7L Engine

54

MAINTAINING YOUR VEHICLE

3.5L Engine

55

MAINTAINING YOUR VEHICLE

FLUIDS AND CAPACITIES

Component

Engine Coolant - 2.4L MOPAR

Engine Coolant - 2.7L MOPAR

Engine Coolant - 3.5L MOPAR

Engine Oil with Filter

2.4L

Engine Oil with Filter

2.7L

Engine Oil with Filter

3.5L

Fuel Selection 2.4L (non
PZEV), 2.7L,3.5L

Fuel Selection 2.4L
PZEV (Partial Zero
Emissions Vehicle)

Engine Oil Filter 2.4L,

2.7L, 3.5L
Spark Plugs (2.4L

Engine except PZEV)
Spark Plugs (2.4L

Engine with PZEV)

Fluid, Lubricant, or Genuine
Part

Five Year /100,000 Mile
Formula HOAT (Hybrid Organic
Additive Technology) or
equivalent.

Five Year /100,000 Mile
Formula HOAT (Hybrid Organic
Additive Technology) or
equivalent.

Five Year /100,000 Mile
Formula HOAT (Hybrid Organic
Additive Technology) or
equivalent.

API Certified SAE 5W-20
engine oil, meeting the
requirements of Chrysler
Material Standard MS-6395.
Refer to the engine oil filler cap
for correct SAE grade.

API Certified SAE 5W-20
engine oil, meeting the
requirements of Chrysler
Material Standard MS-6395.
Refer to the engine oil filler cap
for correct SAE grade.

API Certified SAE 10W-30
engine oil, meeting Chrysler
Material Standard MS-6395.
Refer to your engine oil filler
cap for correct SAE grade.

2.4L and 2.7L,87 Octane. 3.5L,
87 Octane acceptable
89 Octane recommended.

87 Octane 18.5 Gallons (70 Liters)

MOPAR
equivalent.

ZFR5F-11 (Gap 0.043 in
[1.11 mm])

ZFR5AP (Gap 0.031 in
[0.8 mm])

®

Antifreeze/Coolant

®

Antifreeze/Coolant

®

Antifreeze/Coolant

®

Engine Oil Filter or

Capacities

7.7 Quarts (7.3 Liters)
Includes heater and
coolant recovery bottle
filled to MAX level.

9.8 Quarts (9.3 Liters)
Includes heater and
coolant recovery bottle
filled to MAX level.

11.6 Quarts (11 Liters)
Includes heater and
coolant recovery bottle
filled to MAX level.

4.5 Quarts (4.4 Liters)

5.5 Quarts (5.2 Liters)

5.5 Quarts (5.2 Liters)

16.9 Gallons ( 64 Liters)

—

—

—

56

MAINTAINING YOUR VEHICLE

Component

Fluid, Lubricant, or Genuine
Part

Spark Plugs (2.7L
Engine)

Spark Plugs (3.5L
Engine)

TE10PMC5 (Gap 0.050 in
[1.27 mm])

ZFR5LP-13G (Gap 0.050 in
[1.27 mm])

Automatic Transaxle MOPAR

Transmission Fluid or
equivalent licensed ATF+4
product.

Brake Master Cylinder MOPAR

should be used or equivalent. If
DOT 3 is not available, then
DOT 4 is acceptable. Use only
recommended brake fluids.

Power Steering
Reservoir

This system requires the use of
MOPAR
Power Steering Fluid or
equivalent, (which meets
Chrysler Material Standard
MS–10838).

®

ATF+4®Automatic

®

DOT 3 and SAE J1703

®

Hydraulic System

Capacities

—

—

®

—

—

—

57

MAINTAINING YOUR VEHICLE

6,000 12,000 18,000 24,000 30,000 36,000 42,000 48,000 54,000 60,000 66,000 72,000 78,000

Miles:

XX

XXXX X

10,000 20,000 30,000 40,000 50,000 60,000 70,000 80,000 90,000 100,000 110,000 120,000 130,000

Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78

Or Kilometers:

XXXX

XXXX

XXXXXX

Change the engine oil and filter. XXXXXXXXXXXXX

Rotatethetires. XXXXXXXXXXXXX

If using your vehicle for any of the following: Dusty

MAINTENANCE CHART

or off-road conditions. Inspect the engine air

cleaner filter, replace if necessary.

Replace the air conditioning filter (if equipped. X X X X X X

Inspect the brake linings, replace if necessary. X X X X X X

Inspect the CV joints. Perform the first inspection at

12,000 miles (20,000 km) or 12 months.

Inspect the exhaust system. Perform the first

inspection at 12,000 miles (20,000 km) or

12 months.

Replace the engine air cleaner filter. X X

Adjust the parking brake on vehicles equipped with

four wheel disc brakes.

Change the automatic transmission fluid and filter if

using your vehicle for any of the following: police,

taxi, fleet of frequent trailer towing.XInspect the front suspension, tie rod ends and boot

seals for cracks or leaks and all parts for damage,

wear, improper looseness or end play; replace if

necessary.

Replace the spark plugs ( 2.4L engine except PZEV). X X

• Refer to the Owner’s Manual on the DVD for the complete maintenance schedule.

58

MAINTAINING YOUR VEHICLE

Maintenance Record

Odometer Date Signature, Authorized Service Center

6,000 Miles
(10,000 km) or
6 Months

12,000 Miles
(20,000 km)
or 12 Months

18,000 Miles
(30,000 km)
or 18 Months

24,000 Miles
(40,000 km)
or 24 Months

30,000 Miles
(50,000 km)
or 30 Months

36,000 Miles
(60,000 km)
or 36 Months

42,000 Miles
(70,000 km)
or 42 Months

48,000 Miles
(80,000 km)
or 48 Months

54,000 Miles
(90,000 km)
or 54 Months

60,000 Miles
(100,000 km)
or 60 Months

66,000 Miles
(110,000 km)
or 66 Months

72,000 Miles
(120,000 km)
or 72 Months

78,000 Miles
(130,000 km)
or 78 Months

59

MAINTAINING YOUR VEHICLE

FUSES

Totally Integrated Power Module (TIPM)

• The Totally Integrated Power Module (TIPM) is located in the engine compartment
near the air cleaner assembly. This center contains cartridge fuses and mini fuses.

Cavity

1 40 Amp Green Power Top Module (If Equipped)

2 20 Amp Yellow AWD Module

3 10 Amp Red

4 10 Amp Red Battery Feed — Ignition Switch
5 20 Amp Yellow Trailer Tow — If Equipped

6 10 Amp Red

7 30 Amp Green Ignition Off Draw (IOD) Sense 1
8 30 Amp Green Ignition Off Draw (IOD) Sense 2

9 40 Amp Green

10 20 Amp Yellow

11 15 Amp Lt Blue Selectable Power Outlet
12 20 Amp Yellow —
13 20 Amp Yellow —

14 10 Amp Red

15 40 Amp Green Battery Feed — Radiator Fan Relay

16 15 Amp Lt. Blue

Cartridge

Fuse

Mini Fuse Description

Battery Feed — Center High Mounted
Stop Light (CHMSL)/Brake Switch

Ignition Off Draw (IOD) — Power
Mirror Switch/Climate Controls

BatteryFeed—PowerSeats-if
equipped/PZEV Air Pump - if
equipped

Battery Feed — Cabin Compartment
Node (CCN)

Ignition Off Draw (IOD) — Cabin
Compartment Node (CCN)/ Interior
Lighting

IGN Run/ACC — Cigar Lighter/PWR
Sunroof Mod

60

MAINTAINING YOUR VEHICLE

Cavity

17 10 Amp Red

18 40 Amp Green

19 20 Amp Yellow

20 15 Amp Lt. Blue Ignition Off Draw (IOD) — Radio

21 10 Amp Red —

22 10 Amp Red

23 15 Amp Lt. Blue Auto Shutdown (ASD) Relay Feed 3
24 25 Amp Natural Battery Feed — PWR Sunroof Feed

25 10 Amp Red

26 15 Amp Lt. Blue Auto Shutdown (ASD) Relay Feed 2

27 10 Amp Red

28 10 Amp Red

29 — — Hot Car (No Fuse Required)

30 20 Amp Yellow

31 10 Amp Red —

32 30 Amp Pink Auto Shutdown (ASD) Relay Feed 1

33 10 Amp Red

34 30 Amp Pink

35 40 Amp Green

36 30 Amp Pink

37 25 Amp Natural Power Top Module (If Equipped)

Cartridge

Fuse

Mini Fuse Description

Ignition Off Draw (IOD) — Wireless
Control Module (WCM)/Clock/
Steering Control Module (SCM)

Battery Feed — Auto Shutdown (ASD)
Relay

Ignition Off Draw (IOD) — Power Amp
Feed2-ifequipped

Ignition Run — Climate Controls/Hot
Cupholder - if equipped

Ignition Run — Heated Mirrors - If
Equipped

Ignition Run — Occupant
Classification Module (OCM)/
Occupant Restraint Controller (ORC)

Ignition Run — Occupant
Classification Module (OCM)/
Occupant Restraint Controller (ORC)

Ignition Run — Heated Seats - If
Equipped

Battery Feed — Switch Bank/
Diagnostic Link Connector/
Powertrain Control Module (PCM)

Battery Feed — Anti-Lock Brakes
(ABS) Module - if equipped/
Electronic Stability Program (ESC)
Module - If Equipped

Battery Feed — Anti-Lock Brakes
(ABS) Module - If Equipped/
Electronic Stability Program (ESC)
Module - If Equipped

Battery Feed — Passenger Door
Module (PDM)/Driver Door Module
(DDM)

61

MAINTAINING YOUR VEHICLE

TIRE PRESSURES

• Check the inflation pressure of each tire, including the spare tire, at least monthly
and inflate to the recommended pressure for your vehicle.

• The tire pressures recommended for your vehicle are found on the “Tire and
Loading Information” label located on the driver’s side door opening.

NOTE: Refer to the Owner’s Manual on the DVD for more information on the life of
tires.

WARNING!

Overloading of your tires is dangerous. Overloading can cause tire failure, affect
vehicle handling, and increase your stopping distance. Use tires of the
recommended load capacity for your vehicle. Never overload them.

WARNING!

Improperly inflated tires are dangerous and can cause accidents. Under-inflation is
the leading cause of tire failure and may result in severe cracking, component
separation, or “blow out”. Over-inflation reduces a tire’s ability to cushion shock.
Objects on the road and chuck holes can cause damage that results in tire failure.
Unequal tire pressures can cause steering problems. You could lose control of your
vehicle. Over-inflated or under-inflated tires can affect vehicle handling and can
fail suddenly, resulting in loss of vehicle control.

WHEEL AND WHEEL TRIM CARE

• All wheels and wheel trim, especially aluminum and chrome plated wheels should
be cleaned regularly with a mild soap and water to prevent corrosion.

®

• To remove heavy soil and/or excessive brake dust, use MOPAR
equivalent or select a nonabrasive, non-acidic cleaner.

CAUTION!

Do not use scouring pads, steel wool, a bristle brush, or metal polishes. Do not use
oven cleaner. These products may damage the wheels protective finish. Avoid
automatic car washes that use acidic solutions or harsh brushes that may damage
the wheels protective finish. Only MOPAR
recommended.

®

Wheel Cleaner or equivalent is

Wheel Cleaner or

62

MAINTAINING YOUR VEHICLE

EXTERIOR BULBS

LIGHT BULBS – Exterior Bulb Number

Backup, Tail, Stop, Turn Lamp 3157
Center High-Mounted Stop Lamp

(CHMSL)
Fog Lamp - If Equipped PSX24W
Front Park/Turn Signal 3757A
Front Side Marker 3757A
Front Position Lamp W5W
Headlamp - Low Beam H11
Headlamp – High Beam 9005
License Lamp W5W

W16W ( 921)

63

CONSUMER ASSISTANCE

CHRYSLER GROUP LLC
CUSTOMER CENTER

P.O. Box 21–8004

Auburn Hills, MI 48321–8004

Phone: [phone]

CHRYSLER CANADA INC.
CUSTOMER CENTER

P.O. Box 1621

Windsor, Ontario N9A 4H6

Phone: [phone]

ASSISTANCE FOR THE
HEARING IMPAIRED

• To assist customers who have
hearing difficulties, the
manufacturer has installed special
TDD (Telecommunication Devices for
the Deaf ) equipment at its customer
center. Any hearing or speech
impaired customer, who has access
to a TDD or a conventional
teletypewriter (TTY) in the United
States, can communicate with the
manufacturer by dialing
1–800–380–CHRY. Canadian
residents with hearing difficulties
that require assistance can use the
special needs relay service offered
by Bell Canada. For TTY
teletypewriter users, dial 711 and for
Voice callers, dial 1–800–855–0511 to
connect with a Bell Relay Service
operator.

WARNING!

Engine exhaust, some of its
constituents, and certain vehicle
components contain, or emit,
chemicals known to the State of
California to cause cancer and birth
defects, or other reproductive harm.
In addition, certain fluids contained
in vehicles and certain products of
component wear contain, or emit,
chemicals known to the State of
California to cause cancer and birth
defects, or other reproductive harm.

PUBLICATIONS
ORDERING

• If you are the first registered retail
owner of your vehicle, you may
obtain a free printed copy of the
Owner’s Manual, Warranty Booklet or
Radio Manuals on your DVD by
calling 1–800–992–1997 (U.S.) or
1–800–387–1143 (Canada) or by
contacting your dealer.

• Replacement User Guides or DVDs
or, if you prefer, a printed copy of the
Owner’s Manual, Warranty Booklet or
Radio Manuals may be purchased by
visiting www.techauthority.com or by
calling 1–800–890–4038 (U.S.) or
1–800–387–1143 (Canada). Visa,
Master Card, American Express and
Discover orders are accepted. If you
prefer mailing your order, please call
the above numbers for an order
form.

NOTE: A street address is required
when ordering manuals (no P.O.
Boxes).

64

CONSUMER ASSISTANCE

REPORTING SAFETY
DEFECTS IN THE 50
UNITED STATES AND
WASHINGTON, D.C.

• If you believe that your vehicle has a
defect that could cause a crash or
cause injury or death, you should
immediately inform the National
Highway Traffic Safety
Administration (NHTSA) in addition
to notifying the manufacturer.

• If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a
recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your authorized dealer,
and the manufacturer.

• To contact NHTSA, you may either
call the Auto Safety Hotline toll free
at 1–888–327–4236 (TTY: 1–800–424–

9153), or go to http://
www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New
Jersey Avenue, SE., West Building,
Washington, D.C. 20590. You can
also obtain other information about
motor vehicle safety from
http://www.safercar.gov.

In Canada

• If you believe that your vehicle has a
safety defect, you should contact the
Customer Service Department
immediately. Canadian customers
who wish to report a safety defect to
the Canadian government should
write to: Transport Canada, Motor
Vehicle Defect Investigations and
Recalls, 2780 Sheffield Road, Ottawa,
Ontario K1B 3V9.

TIRE WARRANTY

Tire Limited Warranty And
Adjustment Policy

• When a tire is removed from service
due to a covered warranty condition
under a tire manufacturer’s “Limited
Warranty Program”, you may be
eligible for a free tire replacement or
a comparable new tire on a “prorated
basis”.

• Certain conditions, such as irregular
wear or tire damage due to road
hazards, collision, improper inflation,
intentional alteration, and misuse,
are excluded from the Limited
Warranty Program. The Limited
Warranty Program expires when your
tires either wear to a specified tread
depth, and/or after a period of time
from the date of purchase, as stated
in the Tire Warranty on the DVD.

NOTE: Refer to the Tire Warranty
on the DVD for specific information
relating to the manufacturer’s
limited warranty for the tires
installed on your vehicle. The DVD
can play on any computer or DVD
player. If you have any questions
regarding the limited tire warranty
coverage, contact your local
Chrysler dealer or your local
authorized tire dealer. If you cannot
access the DVD and would like a
paper copy of the limited warranty
for the tires installed on your
vehicle, call 1-800-922-1997 (U.S.)
or 1-800-387-1143 (Canada) or ask
your Chrysler dealer.

65

CONSUMER ASSISTANCE

Disclaimer:

• THE TIRE MANUFACTURER’S
LIMITED WARRANTY PROGRAM,
THE DETAILS OF WHICH CAN BE
FOUND, ON THE OWNERS MANUAL
DVD, THE TIRE MANUFACTURER’S
WEBSITE OR AT ANY AUTHORIZED
SERVICE CENTER ARE IN LIEU OF
ALL OTHER REMEDIES OR
WARRANTIES, EXPRESS OR
IMPLIED, ARISING BY LAW OR
OTHERWISE, INCLUDING FITNESS
FOR A PARTICULAR PURPOSE OR
MERCHANTABILITY. THE TIRE
MANUFACTURER EXPRESSLY
DISCLAIMS LIABILITY FOR INDIRECT,
SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, LOST
PROFIT, LOSS OF BUSINESS, LOSS
OF GOODWILL, LOSS OF
REPUTATION, PUNITIVE OR ANY
OTHER DAMAGE, COST OR LOSS OF
ANY KIND. SOME STATES AND
PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY
NOT APPLY TO YOU.

WARNING!

NOTE: Refer to the Owner’s Manual
on the DVD for complete warning
information that could prevent
accidents, injuries and even deaths.

WARNING!

Death, serious injury and/or
property damage may result from:

• Tire failure due to impact damage
and/or improper maintenance.

WARNING! (Continued)

• Tires should be inspected
regularly by a qualified technician
for signs of damage, such as
punctures, impacts, underinflation
or overloading.

• Progressive air loss may result
from punctures, cuts, curbing,
impacts or par tial bead unseating.

Some fitment causes for air loss
are:

• Incomplete bead seating.

• Bead tearing caused by a machine
tool due to insufficient lubrication
or improper adjustment.

• Leaking valve core or rubber valve
components (these should be
replaced when problems are
detected and whenever tires are
replaced).

• Tire failure due to improper
repairs.

• See Rubber Manufacturer’s
Association (RMA) established
repair procedures at www.rma.org
for information on proper repair
procedures. Never perform a
temporary repair or use an inner
tube as a substitute for a proper
repair. Only qualified persons
should repair tires.

• Explosion of tire/rim assembly due
to improper mounting.

• Only specially trained persons
should mount tires.

• Failure to mount tires on approved
rims.

• Failure to deflate single or dual
assemblies completely before
demounting.

(Continued)

66

CONSUMER ASSISTANCE

Using Lift Kits

• Use of lift kits with some vehicle/tire
combinations can cause instability or
loss of control. When changing tire
sizes, always consult an installer for
optimum rim width and carefully
check vehicle/tire clearances.

Check Your Tires For Damage

• Frequent (at least monthly)
inspection of your tires for signs of
damage, uneven tread wear and
their general condition is important
for safety. Impacts, penetrations,
cracks, knots, bulges or air loss
always require tire removal and
expert inspection.

Tire Service Life

• The service life of a tire is dependent
upon varying factors including, but
not limited to, your driving style, tire
pressure and distance driven.

WARNING!

Tires and the spare tire should be
replaced after six years, regardless
of the remaining tread. Failure to
follow this warning can result in
sudden tire failure. You could lose
control and have an accident
resulting in serious injury or death.

• Keep dismounted tires in a cool, dry
place with as little exposure to the
light as possible.

• Protect tires from contact with oil,
grease, and gasoline.

NOTE: All tire warranties are made by
the tire manufacturer. Tires are not
covered under your Chrysler New
Vehicle Limited Warranty.

67

MOPAR ACCESSORIES

MOPAR®ACCESSORIES

• The following highlights just some of the authentic Chrysler Accessories by

®

MOPAR

that have been engineered to customize your Chrysler Sebring.

• To see the full line of accessories stop by your Chrysler dealer or visit MOPAR.com.

CHROME:

• Exhaust Tips

EXTERIOR:

• Side Window Air

• Sunroof Air Deflector • Front Air Deflector

Deflectors

• Hitch Receiver • Front End Cover • Molded Splash Guards

INTERIOR:

• Premium Carpet Floor

• Door Sill Guards • Molded Cargo Tray

Mats

• Slush Mats • Ambient Light Kit • Heated Seats

ELECTRONICS:

• Portable Navigation

• uconnect™ web (WiFi) • uconnect™ phone

Systems

®

•iPod

Adapter • uconnect™ tunes (REN

• DVD Rear Seat Video™

Radio)

• Kicker

Sound System • uconnect™ gps (RER

• Remote Start

®

Radio)

CARRIERS:

• Hitch-mount Bike Carrier • Roof Mount Bike Carrier • Roof Box Cargo Carrier

• Roof Mount Ski and
Snowboard Carrier

•iPod

• Kicker

®

is a registered trademark of Apple Inc.

®

is a registered trademark of Stillwater Designs and Audio, Inc.

• Roof Mount Water
Sports Carrier

68

• Roof Mount Canoe
Carrier

10C41-926-AA

Sebring

First Printing

User Guide

CHRYSLER.COM

This guide has been prepared to help you get
quickly acquainted with your new Chrysler and
to provide a convenient reference source for
common questions. However, it is not a substitute
for your Owner’s Manual.

For complete operational instructions,
maintenance procedures and important safety
messages, please consult your Owner’s Manual,
Navigation Radio User Manual, Multimedia User
Manual and other Warning Labels in your vehicle.

Not all features shown in this guide may apply
to your vehicle. For additional information on
accessories to help personalize your vehicle, visit
www.mopar.com or your local Chrysler dealer.
