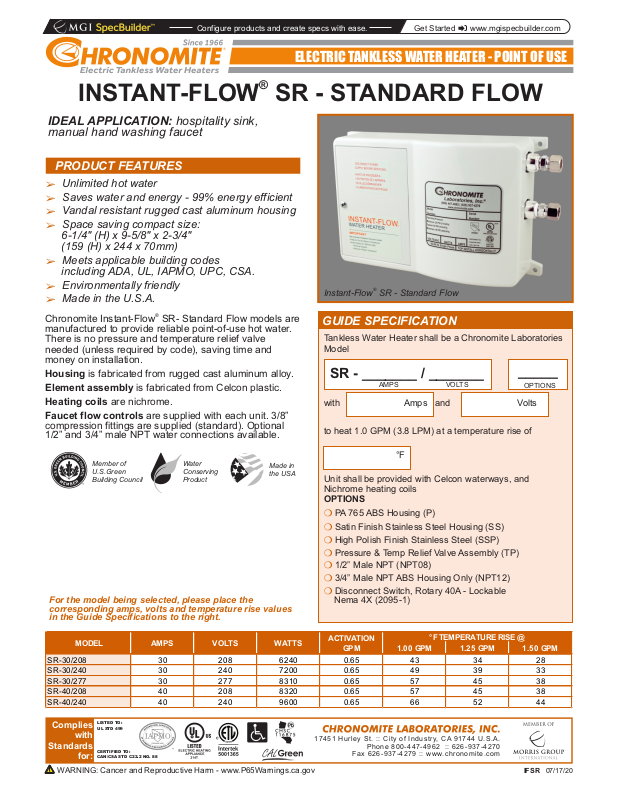

Chronomite SR 9600W, SR 7200W User Manual
®
INSTANT-FLOW SR - STANDARD FLOW
IDEAL APPLICATION: hospitality sink,
manual hand washing faucet
PRODUCT FEATURES
â Unlimited hot water
â Saves water and energy - 99% energy efficient
â Vandal resistant rugged cast aluminum housing
â Space saving compact size:
6-1/4" (H) x 9-5/8" x 2-3/4"
(159 (H) x 244 x 70mm)
â Meets applicable building codes
including ADA, UL, IAPMO, UPC, CSA.
â Environmentally friendly
â Made in the U.S.A.
Chronomite Instant-Flow SR- Standard Flow models are
manufactured to provide reliable point-of-use hot water.
There is no pressure and temperature relief valve
needed (unless required by code), saving time and
money on installation.
Housing is fabricated from rugged cast aluminum alloy.
Element assembly is fabricated from Celcon plastic.
Heating coils are nichrome.
Faucet flow controls are supplied with each unit. 3/8”
compression fittings are supplied (standard). Optional
1/2” and 3/4” male NPT water connections available.
®
Get Started www.mgispecbuilder.comConfigure products and create specs with ease.
ELECTRIC TANKLESS WATER HEATER - POINT OF USE
Instant-Flow SR - Standard Flow
GUIDE SPECIFICATION
Tankless Water Heater shall be a Chronomite Laboratories
Model
SR - _______ / _______
with Amps and Volts
to heat 1.0 GPM (3.8 LPM) at a temperature rise of
®
AMPS VOLTS
_____
OPTIONS
Member of
U.S.Green
Building Council
Water
Conserving
Product
Made in
the USA
°F
Unit shall be provided with Celcon waterways, and
Nichrome heating coils
OPTIONS
m PA 765 ABS Housing (P)
m Satin Finish Stainless Steel Housing (SS)
m High Polish Finish Stainless Steel (SSP)
m Pressure & Temp Relief Valve Assembly (TP)
m 1/2” Male NPT (NPT08)
m 3/4” Male NPT ABS Housing Only (NPT12)
m Disconnect Switch, Rotary 40A - Lockable
For the model being selected, please place the
Nema 4X (2095-1)
corresponding amps, volts and temperature rise values
in the Guide Specifications to the right.
MODEL AMPS VOLTS WATTS
SR-30/208 30 208 6240 0.65 43 34 28
SR-30/240 30 240 7200 0.65 49 39 33
SR-30/277 30 277 8310 0.65 57 45 38
SR-40/208 40 208 8320 0.65 57 45 38
SR-40/240 40 240 9600 0.65 66 52 44
Complies
LISTED TO:
UL STD 499
with
Standards
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
CERTIFIED TO:
CAN/CSA STD C22.2 NO. 88
for:
ACTIVATION
GPM
17 45 1 Hu rl ey St. :: Ci ty of In du st ry, CA 9 17 44 U.S .A .
Fa x 62 6- 93 7- 42 79 :: ww w.c hr on om it e. co m
1.00 GPM 1.25 GPM 1.50 GPM
Ph on e 80 0- 44 7- 49 62 :: 62 6- 93 7- 42 70
°F TEMPERATURE RISE @
IFSR 07/17/20
Get Started www.mgispecbuilder.comConfigure products and create specs with ease.
ELECTRIC TANKLESS WATER HEATER - POINT OF USE
®
INSTANT-FLOW SR - STANDARD FLOW
INSTANT-FLOW SR - STANDARD FLOW METRIC CHART
®
MODEL AMPS/PHASE 1 Æ VOLTAGE WATTS
SR-30/208 30 208 6240 2.5 22 18 15
SR-30/240 30 240 7200 2.5 26 21 17
SR-30/277 30 277 8310 2.5 30 24 20
SR-40/208 40 208 8320 2.5 30 24 20
SR-40/240 40 240 9600 2.5 34 28 23
ACTIVATION
LPM
4.00 LPM 5.00 LPM 6.00 LPM
°C TEMPERATURE RISE @
TECHNICAL DIMENSIONS
INSTANT-FLOW SR - STANDARD FLOW
Dimensions: 159 (H) x 244 x 70mm
Weight: 2.27 Kg
Materials: Rugged cast aluminum housing
Celcon plastic element assembly
with nichrome coils
Housing Color: White
Minimum Operating Flow Rate: 2.5 LPM
Minimum Operating Pressure: 172 kPa
Maximum Operating Pressure: 552 kPa
Maximum Pressure: 1034 kPa
Maximum Water Temperature: 71°C
Maximum Ambient Operating Temperature: 60°C
Listing: UL, IAPMO, UPC, ADA, ETL
®
6
6
244
4x Ø5
70
51
146
159
84
Rear Electrical Knock-Out
Front Service Panel
33
Ø28 Access Hole
159
GENERAL NOTES:
— 240V models when operated at 220V will have approximately a 15%
temperature decrease.
— 120V models when operated 110V will have approximately a 15%
temperature decrease.
Chronomite Laboratories assumes no responsibility for use of void or suspended data. © Copyright Chronomite Laboratories, Inc.
Member of Morris Group International, City of Industry, CA Please visit www.chronomite.com for most current specifications.
Company_______________________________________________________________________________________________________
Model Number & Options_____________________________________________________________________Quantity_______________
Contact_________________________________________________Title____________________________________________________
Signature
& APPROVAL FOR
MANUFACTURING
(Approval for
Manufacturing)__________________________________________________________________Date ____________________________
SELECTION SUMMARY
29
257
70
29
PH. 800-447-4962
626-937-4270
FAX 626-937-4279
www.chronomite.com
IFSR 07/17/20
