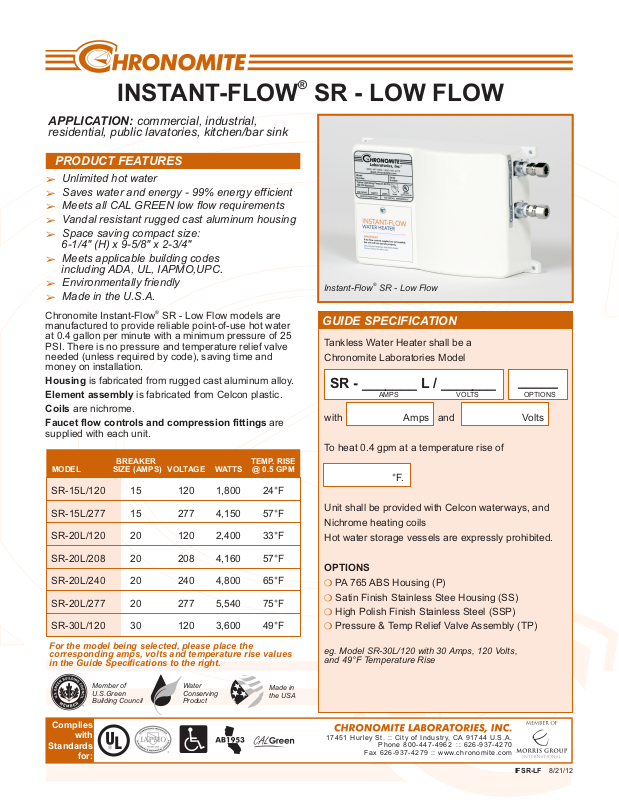

Chronomite SR 4800W User Manual
INSTANT-FLOW SR - LOW FLOW
APPLICATION: commercial, industrial,
residential, public lavatories, kitchen/bar sink
PRODUCT FEATURES
Unlimited hot water
â
Saves water and energy - 99% energy efficient
â
Meets all CAL GREEN low flow requirements
â
Vandal resistant rugged cast aluminum housing
â
Space saving compact size:
â
6-1/4" (H) x 9-5/8" x 2-3/4"
Meets applicable building codes
â
including ADA, UL, IAPMO,UPC.
Environmentally friendly
â
Made in the U.S.A.
â
Chronomite Instant-Flow SR - Low Flow models are
manufactured to provide reliable point-of-use hot water
at 0.4 gallon per minute with a minimum pressure of 25
PSI. There is no pressure and temperature relief valve
needed (unless required by code), saving time and
money on installation.
Housing is fabricated from
Element assembly is fabricated from Celcon plastic.
Coils are nichrome.
Faucet flow controls and compression fittings are
supplied with each unit.
BREAKER TEMP. RISE
MODEL SIZE (AMPS) VOLTAGE WATTS @ 0.5 GPM
SR-15L/120 15 120 1,800 24
®
rugged cast aluminum alloy.
°F
®
Instant-Flow SR - Low Flow
®
GUIDE SPECIFICATION
Tankless Water Heater shall be a
Chronomite Laboratories Model
SR - _______ L / _______
AMPS VOLTS
with Amps and Volts
To heat 0.4 gpm at a temperature rise of
°F.
_____
OPTIONS
SR-15L/277 15 277 4,150 57°F
SR-20L/120 20 120 2,400 33°F
SR-20L/208 20 208 4,160 57°F
SR-20L/240 20 240 4,800 65°F
SR-20L/277 20 277 5,540 75°F
SR-30L/120 30 120 3,600 49°F
For the model being selected, please place the
corresponding amps, volts and temperature rise values
in the Guide Specifications to the right.
Complies
with
Standards
for:
Member of
U.S.Green
Building Council
Water
Conserving
Product
Made in
the USA
Unit shall be provided with Celcon waterways, and
Nichrome heating coils
Hot water storage vessels are expressly prohibited.
OPTIONS
m
PA 765 ABS Housing (P)
m
Satin Finish Stainless Stee Housing (SS)
m
High Polish Finish Stainless Steel (SSP)
m
Pressure & Temp Relief Valve Assembly (TP)
eg. Model SR-30L/120 with 30 Amps, 120 Volts,
and 49°F Temperature Rise
17 45 1 Hu rl ey St. :: Ci ty of In du st ry, CA 9 17 44 U.S .A .
Ph on e 80 0- 44 7- 49 62 :: 62 6- 93 7- 42 70
Fa x 62 6- 93 7- 42 79 :: ww w.c hr on om it e. co m
IFSR-LF 8/21/12
INSTANT-FLOW SR - LOW FLOW
TECHNICAL DIMENSIONS
INSTANT-FLOW SR - LOW FLOW
Dimensions: 6-1/4" (H) x 9-5/8" x 2-3/4"
Weight: 5 lbs.
Materials: Rugged cast aluminum housing
Housing Color: White
Minimum Operating Flow Rate: 0.4 GPM
Minimum Operating Pressure: 25 PSI
Maximum Operating Pressure 150 PSI
Maximum Operating Temperature: 140°F
Listing: UL, IAPMO, UPC, ADA
GENERAL NOTES:
¥ 240V models when operated at 220V will have approximately a 16%
temperature decrease.
¥ 120V models when operated 110V will have approximately a 16%
temperature decrease.
¥ Per UL/IAPMO unit may not exceed maximum operating
temperature of 140°F
®
Celcon plastic element assembly
with nichrome coils
®
1/4"
1/4"
5-3/4"
Front Service Panel
1-5/16"
1-1/8"
Chronomite Laboratories, Inc.
City of Industry, CA 91744 U.S.A.
9-5/8"
3-5/16"
Rear Electrical Knock-Out
ø 1" Access Hole
1-1/8"
10-1/8"
ø 3/16", 4 Mounting Holes
2-3/4"
2"
HOT
COLD
6-1/4"
2-3/4"
INSTALLATION DIAGRAM
WIRING CONNECTION
Note: Heater to be
installed below the level
of all hot water outlets
serviced by the heater
3/8"
Cold Water
Faucet Feed
3/8" Hot Water Outlet
Compression
Instant-Flow
Heater
J-Box
Fittings (2)
HOT
COLD
5/8" x 3/8" x 3/8"
Three Way Angle
Stop Valve
3/8" Cold Water Inlet
Mounting Flanges (4)
Chronomite Laboratories assumes no responsibility for use of void or suspended data. © Copyright Chronomite Laboratories, Inc.
Member of Morris Group International, City of Industry, CA Please visit www.chronomite.com for most current specifications.
Company_______________________________________________________________________________________________________
Hot or
Neutral
Conduit
Refer to local
code for wire size
ATTENTION:
Unit must be hard wired.
NOTE: Heaters are single phase.
All tests are measured at
the output of the heater.
Hot or
Neutral
"GRD" is
earth
ground.
Model Number & Options_____________________________________________________________________Quantity_______________
Contact_________________________________________________Title____________________________________________________
Signature
& APPROVAL FOR
MANUFACTURING
(Approval for
Manufacturing)__________________________________________________________________Date ____________________________
SELECTION SUMMARY
PH. 800-447-4962
626-937-4270
FAX 626-937-4279
www.chronomite.com
IFSR-LF 8/21/12
