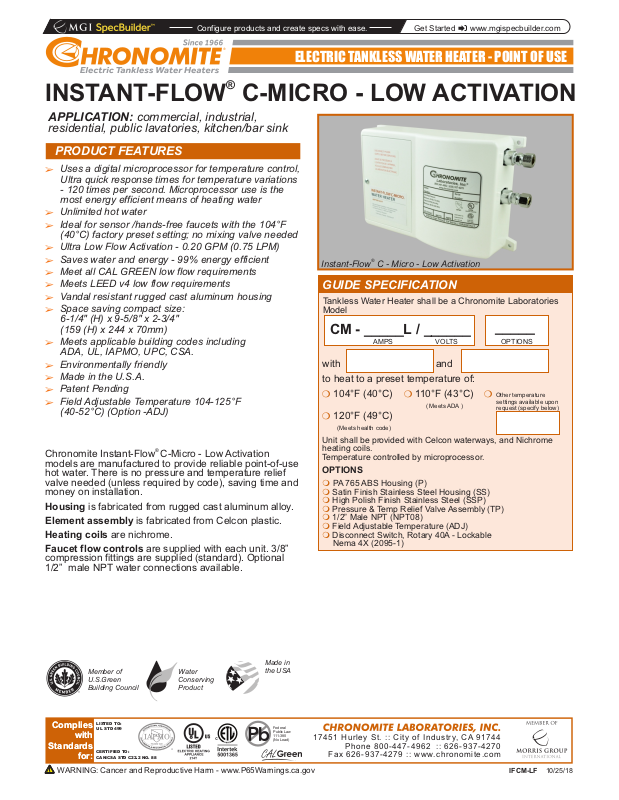

ELECTRIC TANKLESS WATER HEATER - POINT OF USE
®
INSTANT-FLOW C-MICRO - LOW ACTIVATION
APPLICATION: commercial, industrial,
residential, public lavatories, kitchen/bar sink
PRODUCT FEATURES
â Uses a digital microprocessor for temperature control,
Ultra quick response times for temperature variations
- 120 times per second. Microprocessor use is the
most energy efficient means of heating water
â Unlimited hot water
â Ideal for sensor /hands-free faucets with the 104°F
(40°C) factory preset setting; no mixing valve needed
â Ultra Low Flow Activation - 0.20 GPM (0.75 LPM)
â Saves water and energy - 99% energy efficient
â Meet all CAL GREEN low flow requirements
â Meets LEED v4 low flow requirements
â Vandal resistant rugged cast aluminum housing
â Space saving compact size:
6-1/4" (H) x 9-5/8" x 2-3/4"
(159 (H) x 244 x 70mm)
â Meets applicable building codes including
ADA, UL, IAPMO, UPC, CSA.
â Environmentally friendly
â Made in the U.S.A.
â Patent Pending
â Field Adjustable Temperature 104-125°F
(40-52°C) (Option -ADJ)
Chronomite Instant-Flow C-Micro - Low Activation
®
models are manufactured to provide reliable point-of-use
hot water. There is no pressure and temperature relief
valve needed (unless required by code), saving time and
money on installation.
Housing is fabricated from rugged cast aluminum alloy.
Element assembly is fabricated from Celcon plastic.
Heating coils are nichrome.
Faucet flow controls are supplied with each unit. 3/8”
compression fittings are supplied (standard). Optional
1/2” male NPT water connections available.
Instant-Flow C - Micro - Low Activation
GUIDE SPECIFICATION
Tankless Water Heater shall be a Chronomite Laboratories
Model
CM - _____L / ______
with Amps and Volts
to heat to a preset temperature of:
m m m 104°F (40°C) 110°F (43°C) Other temperature
settings available upon
request (specify below)
120°F (49°C)m
(Meets health code)
Unit shall be provided with Celcon waterways, and Nichrome
heating coils.
Temperature controlled by microprocessor.
OPTIONS
m PA 765 ABS Housing (P)
Satin Finish Stainless Steel Housing (SS)m
High Polish Finish Stainless Steel (SSP)m
Pressure & Temp Relief Valve Assembly (TP)m
1/2” Male NPT (NPT08)m
Field Adjustable Temperature (ADJ)m
Disconnect Switch, Rotary 40A - Lockablem
Nema 4X (2095-1)
®
AMPS VOLTS
( Meets ADA )
_____
OPTIONS
Made in
Member of
U.S.Green
Building Council
Complies
Complies
Standards
Standards
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
LISTED TO:
UL STD 499
with
with
CERTIFIED TO:
for:
for:
CAN/CSA STD C22.2 NO. 88
Water
Conserving
Product
the USA
Federal
Public Law
111-380
(No Lead)
17 45 1 Hu rl ey St. :: Ci ty of In du st ry, CA 9 17 44
Ph on e 80 0- 44 7- 49 62 :: 62 6- 93 7- 42 70
Fa x 62 6- 93 7- 42 79 :: ww w.c hr on om it e. co m
IFCM-LF 10/25/18
Get Started www.mgispecbuilder.comConfigure products and create specs with ease.
ELECTRIC TANKLESS WATER HEATER - POINT OF USE
®
INSTANT-FLOW C-MICRO - LOW ACTIVATION
For the model being selected, please place the corresponding
amps and volts values in the Guide Specifications on the first page.
MODEL AMPS VOLTS WATTS
CM-12L/12 0 12 120 14 AWG 1440 0.20 28 20 --- --- --CM-12L/20 8 12 208 14 AWG 2500 0.20 49 34 --- --- --CM-12L/24 0 12 240 14 AWG 2880 0.20 56 39 20 --- --CM-12L/27 7 12 277 14 AWG 3320 0.20 65 45 23 --- --CM-15L/12 0 15 120 14 AWG 1800 0.20 35 25 --- --- --CM-15L/20 8 15 208 14 AWG 3120 0.20 61 43 21 --- --CM-15L/24 0 15 240 14 AWG 3600 0.20 70 49 25 --- --CM-15L/27 7 15 277 14 AWG 4150 0.20 81 57 28 --- --CM-20L/12 0 20 120 12 AWG 2400 0.20 47 33 --- --- --CM-20L/20 8 20 208 12 AWG 4160 0.20 81 57 28 --- --CM-20L/24 0 20 240 12 AWG 4800 0.20 9 0+ 66 33 22 --CM-20L/27 7 20 277 12 AWG 5540 0.20 9 0+ 76 38 25 --CM-30L/12 0 30 120 10 AWG 3600 0.20 70 49 25 16 --CM-30L/20 8 30 208 10 AWG 6240 0.20 9 0+ 85 43 28 21
CM-30L/24 0 30 240 10 AWG 7200 0.20 9 0+ 90+ 49 33 25
CM-30L/27 7 30 277 10 AWG 8310 0.20 9 0+ 90+ 57 38 28
CM-40L/20 8 40 208 8 AWG 8320 0.20 90+ 90+ 57 38 28
CM-40L/24 0 40 240 8 AWG 9600 0.20 90+ 90+ 66 44 33
90°C
WIRE 0.35 GPM 0.50 GPM 1.00 GPM 1.50 GPM 2.00 GPM
ACTIVATION
GPM
°F TEMPERATURE RISE @
Note 1: Maximum temperature rise may be governed by preset outlet temperature.
Note 2: Local plumbing and electrical codes must be followed for installation of water heater and the accessories.
INSTANT-FLOW C-MICRO - LOW ACTIVATION METRIC CHART
MODEL AMPS VOLTS WATTS
CM-12L/120 12 120 14 AWG 1440 0.75 16 10 --- --- --CM-12L/208 12 208 14 AWG 2500 0.75 28 18 --- --- --CM-12L/240 12 240 14 AWG 2880 0.75 32 21 10 --- --CM-12L/277 12 277 14 AWG 3320 0.75 37 24 12 --- --CM-15L/120 15 120 14 AWG 1800 0.75 20 13 --- --- --CM-15L/208 15 208 14 AWG 3120 0.75 34 22 11 --- --CM-15L/240 15 240 14 AWG 3600 0.75 40 26 13 --- --CM-15L/277 15 277 14 AWG 4150 0.75 46 30 15 1 0 --CM-20L/120 20 120 12 AWG 2400 0.75 27 17 --- --- --CM-20L/208 20 208 12 AWG 4160 0.75 46 30 15 1 0 --CM-20L/240 20 240 12 AWG 4800 0.75 50+ 34 17 11 --CM-20L/277 20 277 12 AWG 5540 0.75 50+ 40 20 13 10
CM-30L/120 30 120 10 AWG 3600 0.75 40 26 13 --- --CM-30L/208 30 208 10 AWG 6240 0.75 50+ 45 22 15 11
CM-30L/240 30 240 10 AWG 7200 0.75 50+ 50+ 26 17 13
CM-30L/277 30 277 10 AWG 8310 0.75 50+ 50+ 30 20 15
CM-40L/208 40 208 8 AWG 8320 0.75 50+ 50+ 30 20 15
CM-40L/240 40 240 8 AWG 9600 0.75 50+ 50+ 34 23 17
®
90°C
WIRE 1.30 LPM 2.00 LPM 4.00 LPM 6.00 GPM 8.00 LPM
ACTIVATION
LPM
°C TEMPERATURE RISE @
Note 1: Maximum temperature rise may be governed by preset outlet temperature.
Note 2: Local plumbing and electrical codes must be followed for installation of water heater and the accessories.
Chronomite Laboratories assumes no responsibility for use of void or suspended data. © Copyright Chronomite Laboratories, Inc.
Member of Morris Group International, City of Industry, CA Please visit www.chronomite.com for most current specifications.
Company_______________________________________________________________________________________________________
Model Number & Options_____________________________________________________________________Quantity_______________
Contact_________________________________________________Title____________________________________________________
Signature
& APPROVAL FOR
MANUFACTURING
(Approval for
Manufacturing)__________________________________________________________________Date ____________________________
SELECTION SUMMARY
PH. 800-447-4962
626-937-4270
FAX 626-937-4279
www.chronomite.com
IFCM-LF 10/25/18
Get Started www.mgispecbuilder.comConfigure products and create specs with ease.
ELECTRIC TANKLESS WATER HEATER - POINT OF USE
®
INSTANT-FLOW C-MICRO - LOW ACTIVATION
TECHNICAL DIMENSIONS
INSTANT-FLOW C-MICRO - LOW ACTIVATION
Dimensions: 159 (H) x 244 x 70mm
Weight: 2.27 Kg
Materials: Rugged cast aluminum housing
Celcon plastic element assembly
with nichrome coils
Housing Color: White
Minimum Operating Flow Rate: 0.75 LPM
Minimum Operating Pressure: 172 kPa
Maximum Operating Pressure: 552 kPa
Maximum Pressure: 1034 kPa
Maximum Water Temperature: 71°C
Maximum Ambient Operating Temperature: 60°C
Listing: UL, IAPMO, UPC, ADA, ETL
GENERAL NOTES:
¥
The microprocessor adjusts the heater's power for variations in flow
rates, inlet water temperature and pressure to assure the selected
factory preset water temperature.
¥
240V models when operated at 220V will have approximately a 15%
wattage decrease.
¥
120V models when operated 110V will have approximately a 15%
wattage decrease.
¥
Instant-Flow C-Micro is ideal for sensor/hands-free faucets with the
104°F (40°C factory preset setting temperature ; no mixing valve
needed
¥
Factory setting of 110°F or above require cold water mixing at the
hand wash faucet.
¥
Microprocessor limits temperature increase according to the preselected temperature.
®
Temperature Adjust
Knob (ADJ) Option
Rear Electrical
Knock-Out
6
70
51
146
159
159
84
4x Ø5
29
70
29
6
33
244
Ø28 Access Hole
257
Chronomite Laboratories assumes no responsibility for use of void or suspended data. © Copyright Chronomite Laboratories, Inc.
Member of Morris Group International, City of Industry, CA Please visit www.chronomite.com for most current specifications.
Company_______________________________________________________________________________________________________
Model Number & Options_____________________________________________________________________Quantity_______________
Contact_________________________________________________Title____________________________________________________
Signature
& APPROVAL FOR
MANUFACTURING
(Approval for
Manufacturing)__________________________________________________________________Date ____________________________
SELECTION SUMMARY
PH. 800-447-4962
626-937-4270
FAX 626-937-4279
www.chronomite.com
IFCM-LF 10/25/18
Get Started www.mgispecbuilder.comConfigure products and create specs with ease.
ELECTRIC TANKLESS WATER HEATER - POINT OF USE
®
INSTANT-FLOW C-MICRO - LOW ACTIVATION
TECHNICAL DIMENSIONS
INSTANT-FLOW C-MICRO - LOW ACTIVATION
Dimensions: 6-1/4" (H) x 9-5/8" x 2-3/4"
Weight: 5 lbs.
Materials: Rugged cast aluminum housing
Celcon plastic element assembly
with nichrome coils
Housing Color: White
Minimum Operating Flow Rate: 0.2 GPM
Minimum Operating Pressure: 25 PSI
Maximum Operating Pressure: 80 PSI
Maximum Pressure: 150 PSI
Maximum Water Temperature: 160°F
Maximum Ambient Operating Temperature: 140°F
Listing: UL, IAPMO, UPC, ADA, ETL
GENERAL NOTES:
¥
The microprocessor adjusts the heater's power for variations in flow
rates, inlet water temperature and pressure to assure the selected
factory preset water temperature.
¥
240V models when operated at 220V will have approximately a 15%
wattage decrease.
¥
120V models when operated 110V will have approximately a 15%
wattage decrease.
¥
Instant-Flow C-Micro is ideal for sensor/hands-free faucets with the
104°F (40°C factory preset setting temperature ; no mixing valve
INSTALLATION DIAGRAM
needed
¥
Factory setting of 110°F or above require cold water mixing at the
hand wash faucet.
¥
Microprocessor limits temperature increase according to the pre-
selected temperature.
®
Temperature Adjust
Knob (ADJ) Option
Rear Electrical
Knock-Out
3
2
1
"
4
3
4x Ø
1
1
8
2"
16
2
"
1
6
"
4
5
"
3
"
16
3
"
4
3
5
"
4
10
5
9
"
8
Ø1
1
"
8
3
" Access Hole
32
1
"
4
5
1
"
16
1
1
"
8
"
4
1
6
"
4
Notes:
1. Heater to be installed below the level of all hot water outlets serviced by the Heater.
2. Diagram shown with standard 3/8” Compression Fitting. Optional 1/2” NPT Male water
connections available.
Instant-Flow Micro Heater
1
Electrical Junction Supply Box (Optional)
2
2095-1 Disconnect Switch (Optional)
2A
Electrical Supply Conduit
3
OR
7
6
8
2A
5
Electrical Supply Wire
4
Dual Outlet Stop, 3/8” Comp. Outlet
5
Connections
3/8” Comp. x 1/4” NPT Fittings (supplied)
6
3/8” Hot Water Outlet
7
3/8” Cold Water Inlet
8
Chronomite Laboratories assumes no responsibility for use of void or suspended data. © Copyright Chronomite Laboratories, Inc.
Member of Morris Group International, City of Industry, CA Please visit www.chronomite.com for most current specifications.
Company_______________________________________________________________________________________________________
Model Number & Options_____________________________________________________________________Quantity_______________
Contact_________________________________________________Title____________________________________________________
Signature
& APPROVAL FOR
MANUFACTURING
(Approval for
Manufacturing)__________________________________________________________________Date ____________________________
SELECTION SUMMARY
1
3
2
4
Neutral
ATTENTION:
Unit must be hard wired.
NOTE: Heaters are single phase. All tests
are measured at the output of the heater.
WIRING CONNECTION
Hot or
Conduit
Refer to Local Code
for Wire size
PH. 800-447-4962
626-937-4270
FAX 626-937-4279
www.chronomite.com
Hot
"GND" is
Earth Ground
IFCM-LF 10/25/18
