Chromlech elidy User Manual

User Manual

V3.0 / Software V2.0

Elidy

2

Issue Change First issue: 12.11.20

V2.0 Base 12.11.22
V2.1 Lightened base 12.11.23
V2.2 Base for translation 12.11.25
V3.0 Firmware V2.0_EN 13.06.21

Chromlech

19, avenue Gabriel Fauré

35235 THORIGNE-FOUILLARD

FRANCE

Tel: [phone]

Fax: [phone]

E-mail: [email protected]

Website: www.chromlech.com

Elidy

3

Hello,

Thank you for using our equipment and for your condence in us.

We endeavour to provide you with high quality equipment which is reliable and
easy to use and strive to meet your expectations.

If, however, you nd defects or malfunctions, we will be very happy to resolve

any problems for you as quickly as possible.
This user manual relates to all products in the Elidy range.
For your safety, please read this manual carefully before using the equipment

for the rst time.

If you have any questions or require additional information:
[email protected]

Elidy

4

Elidy

5

Table of contents

Safety guidelines and precautions for use ..........................10

Elidy-S .....................................................................................14

Rigging system.............................................................14

Connections ..................................................................15

Elidy-T ......................................................................................16

Rigging system.............................................................16

Connections ..................................................................17

Elidy-BIG .................................................................................18

Rigging system.............................................................18

Connections ..................................................................19

Elidy-WALL ..............................................................................20

Rigging system.............................................................20

Connections ..................................................................24

PSX9 Power unit .....................................................................26

Detail of buttons and menu .........................................26

Control ...........................................................................28

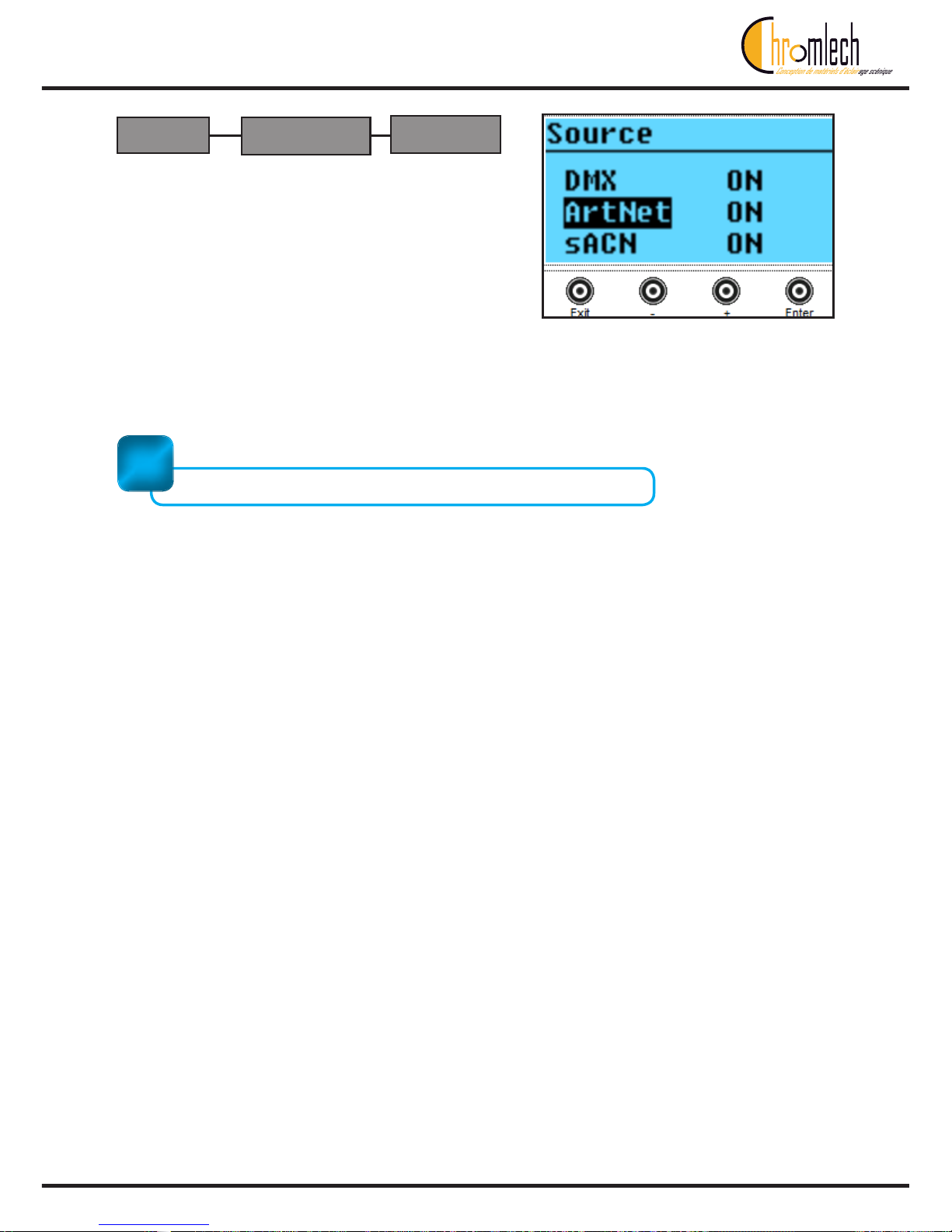

Sources and Controllers..............................................32

Menu detail....................................................................34

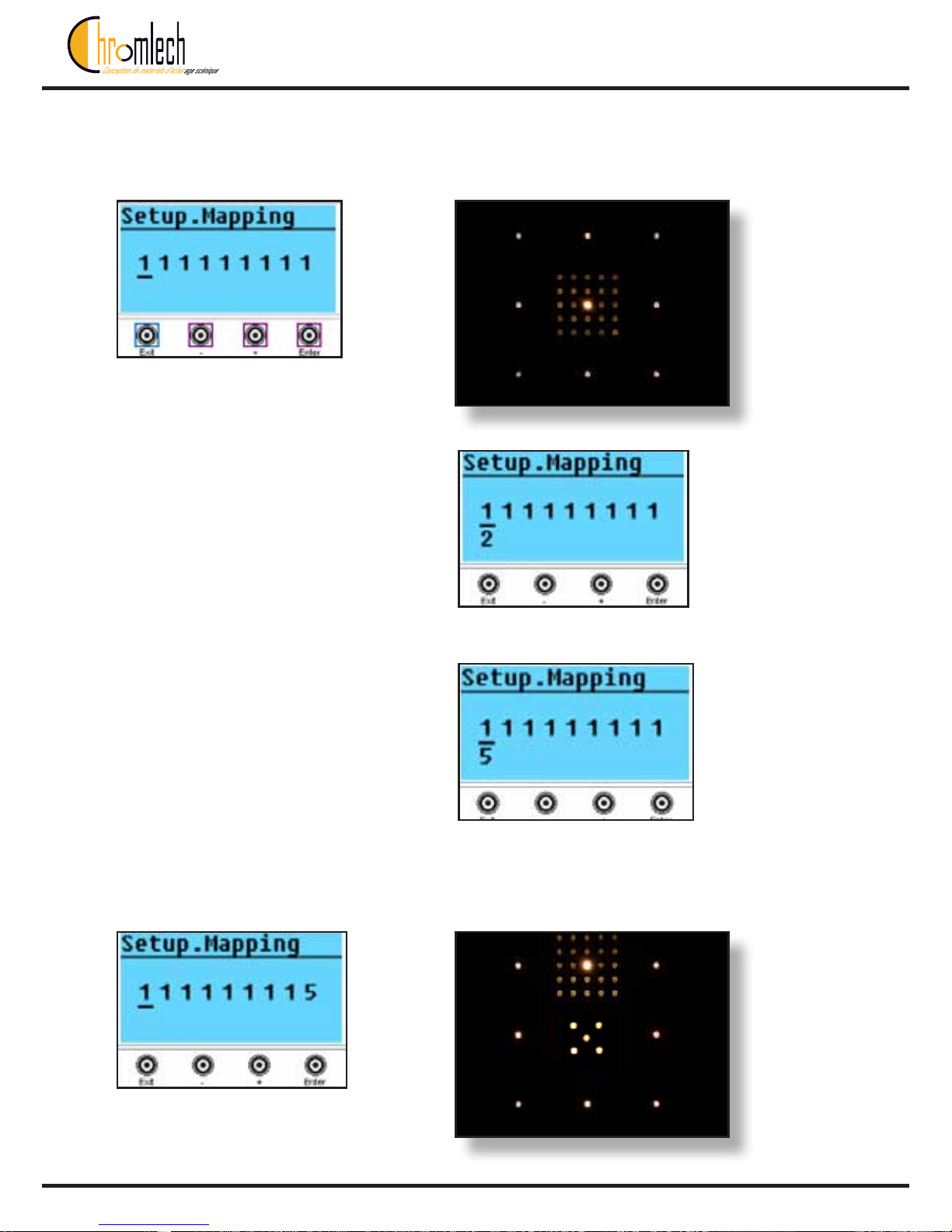

Patch Mode ...................................................................36

Rotation .........................................................................38

Tile Mapping .................................................................40

Pixel Engine ..................................................................44

Animation Maker ..........................................................48

Network Menu ...............................................................52

Test Menu ......................................................................53

Utility menu ...................................................................54

Expert Menu ..................................................................56

Remotely installed power unit menu controls .....................58

Technical specications ........................................................60

Parts numbers and names ..........................................61

Products dimensions and weights .............................62

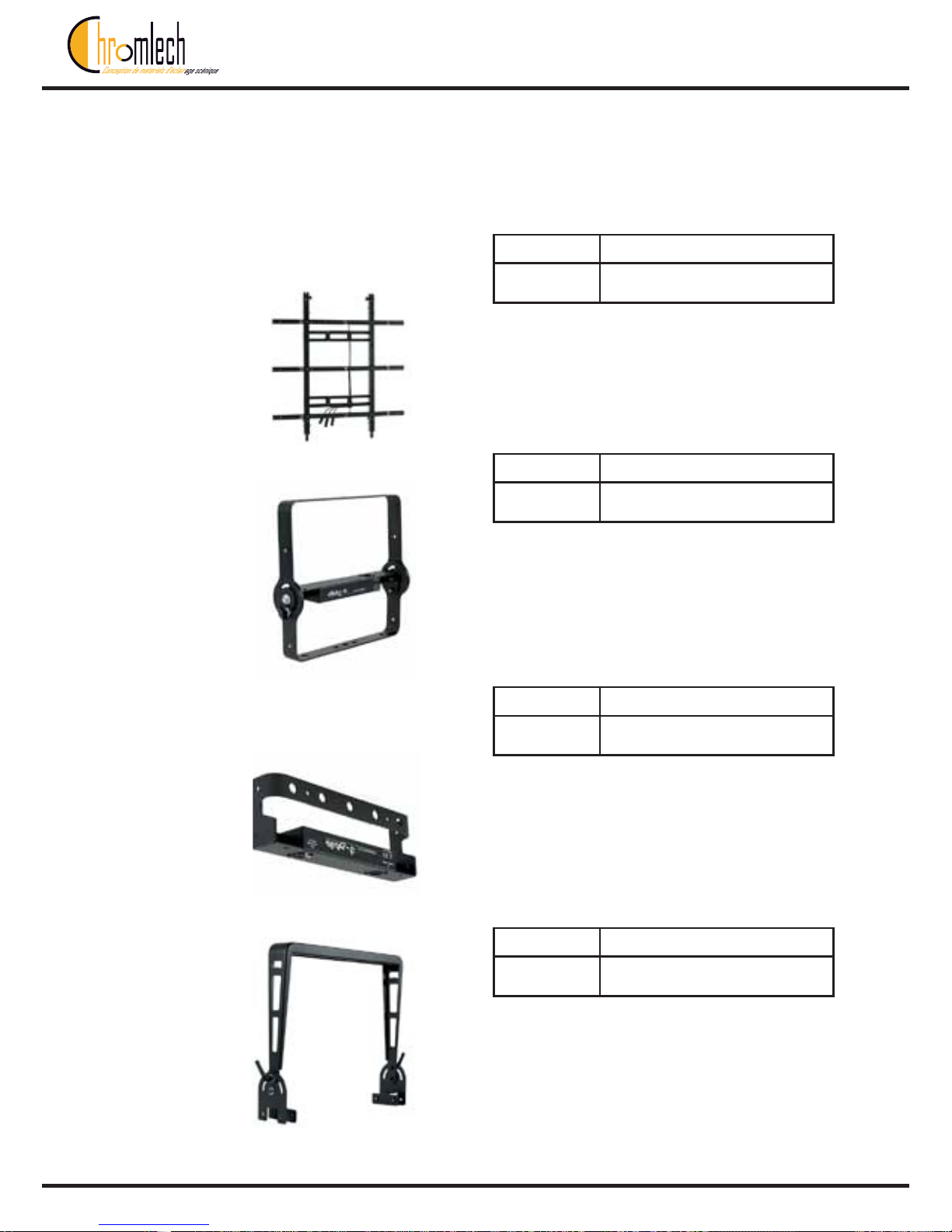

Accessories ..................................................................66

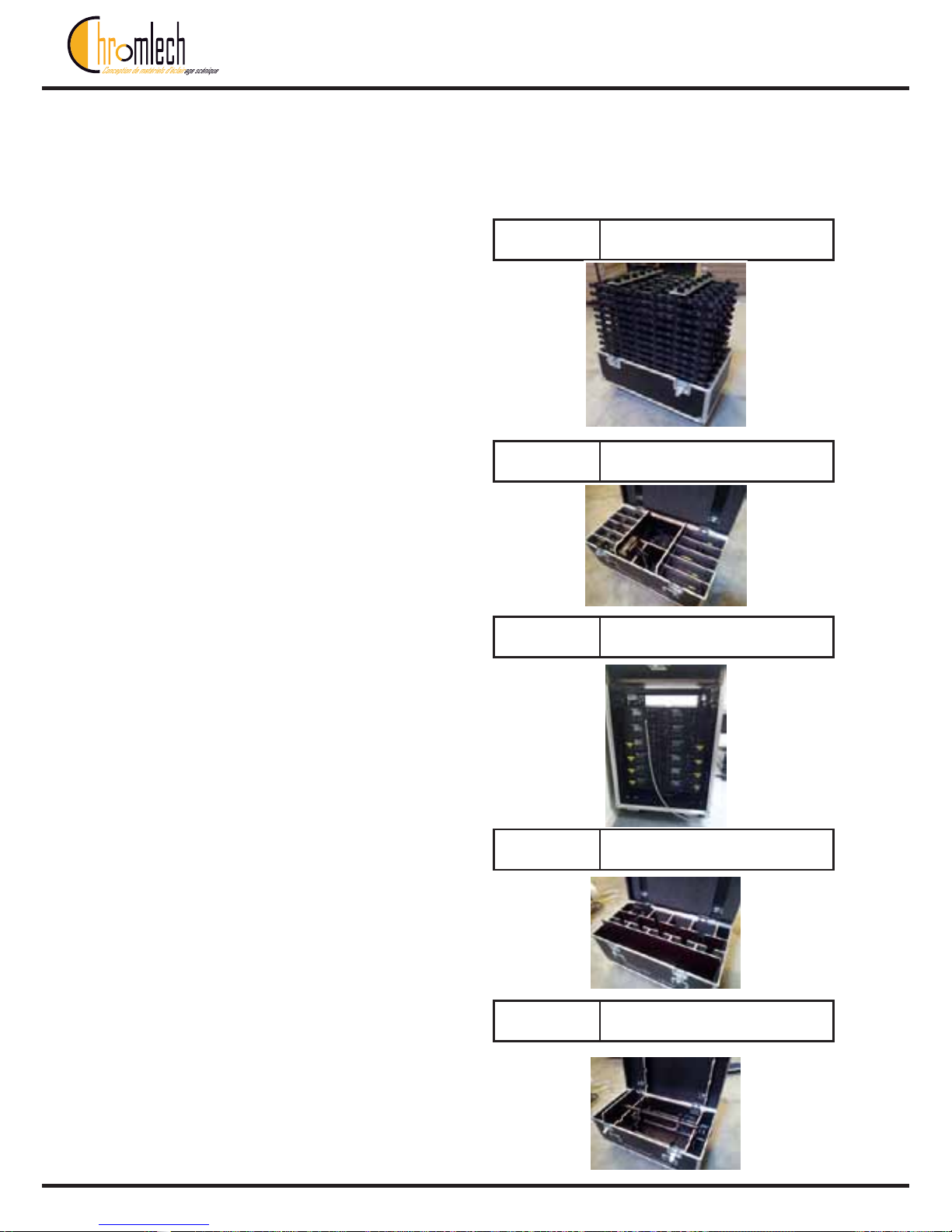

Flight cases...................................................................68

Covers ...........................................................................69

Spare parts....................................................................70

TUTORIALS .............................................................................72

WARRANTY .............................................................................90

Elidy

6

ELIDY-S

Elidy

7

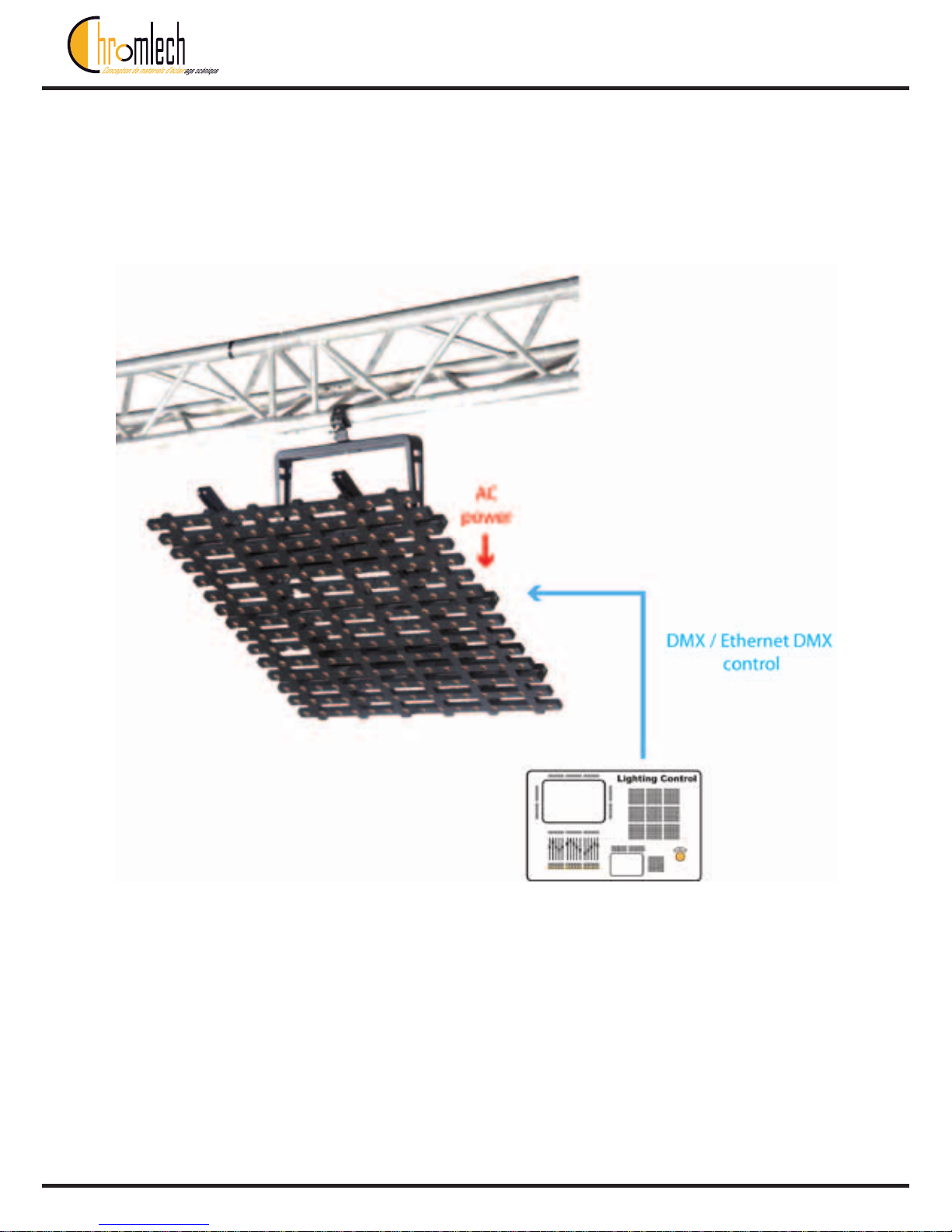

ELIDY-T

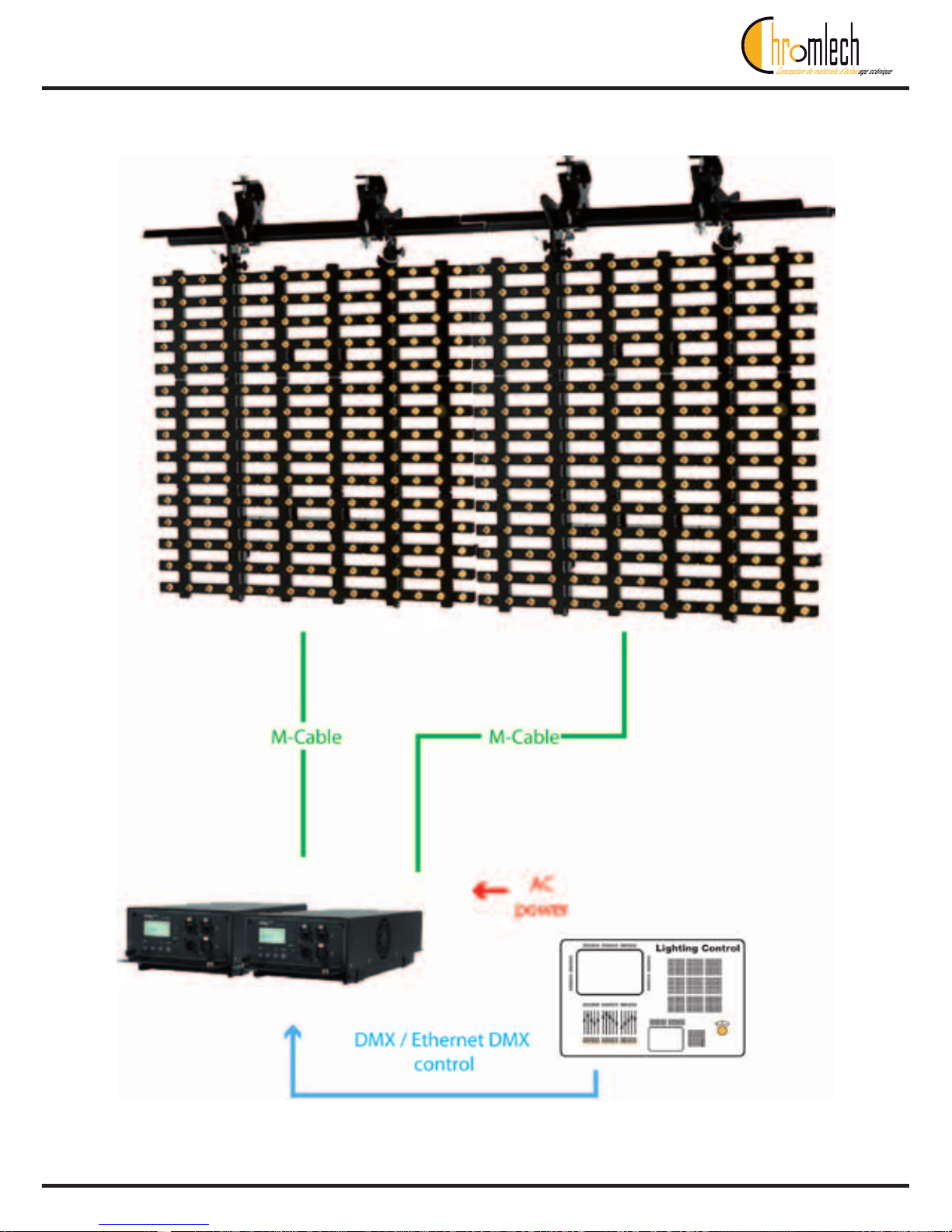

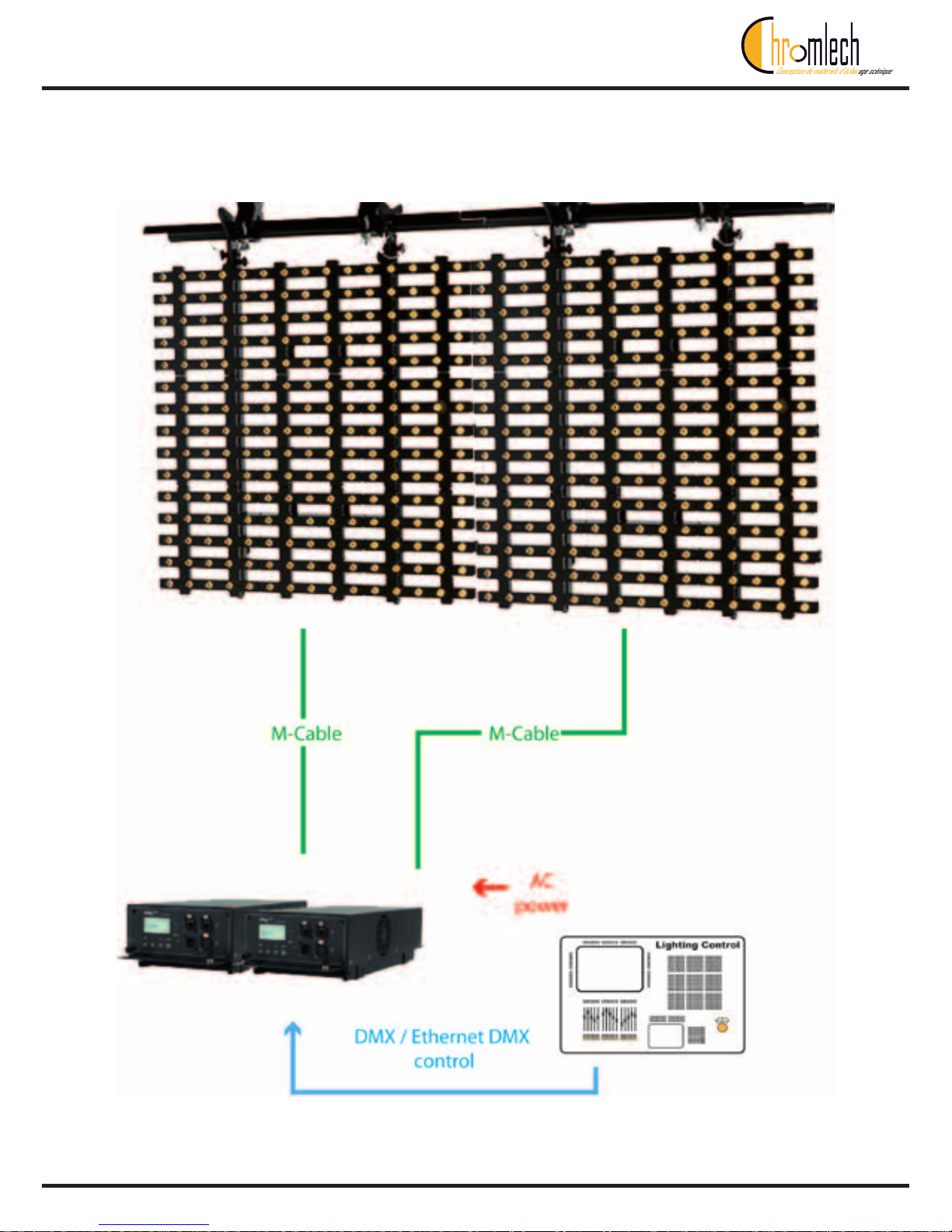

DMX / Ethernet DMX

control

PSX9

elidy

PSX9

Lighting Control

AC

power

S-Cable

S-Cable

S-Cable

S-Cable

S-Cable

S-Cable

S-Cable

Elidy

8

ELIDY-BIG

Elidy

9

ELIDY-WALL

Elidy

10

Safety guidelines and

precautions for use

• • •

Before using the equipment for the rst time, ensure it has not suffered any

damage during transit. If so, DO NOT USE the equipment and contact your

CHROMLECH dealer.

• • •

In all cases, always inspect the mechanical and electrical parts of ELIDY

equipment before tting to check they are not damaged.

In particular, check the lifting points, locking pins and connectors.

If there is any doubt that one of these parts may be damaged or faulty, DO NOT

USE THE PARTS CONCERNED and contact your dealer.

• • •

The manufacturer can not be held liable for damages caused by non-compliance

with safety, installation and tting instructions contained in this manual or by

any modications made to products in the ELIDY range.

Non-compliance with safety, installation and tting instructions or any

modications made to products in the ELIDY range will nullify the warranty.

• • •

Products in CHROMLECH's ELIDY range comply with the EC standard.

For your safety and that of others, it is essential you read this manual

carefully and follow the instructions closely.

!

This equipment is reserved for professional use.

It is not intended for domestic use. This product can cause serious or

even fatal injuries by re, electrocution and falling from height.

Only experienced and qualied users are allowed to install and use the

products in CHROMLECH’s ELIDY range.

Do not allow inexperienced persons to handle the products.

!

Elidy

11

Electrical safety

• • •

Check that your electrical installation complies with current standards.

• • •

Always connect the product to electrical ground.

• • •

The PSX9 power unit must be connected directly to the mains

(100-240 VAC~ / 50-60 Hz).

DO NOT CONNECT TO AN ELECTRONIC OUTPUT

(dimmer, solid-state relay, etc.)

• • •

Do not connect any device other than the PSX9 power unit to the power supply

repeater socket.

• • •

Ensure the repeater power supply is not overloaded (MAX 16 A).

• • •

To ensure the PSX9 power unit operates satisfactorily, be careful not to obstruct

the ventilation grills.

• • •

The ELIDY-S, WALL and BIG products need a hybrid power cable designed by

CHROMLECH to operate. This cable is not supplied with the product and is

available as an optional extra in a wide variety of lengths. Chromlech declines

any liability if other cables are used to operate products in the ELIDY range.

RISK OF ELECTRIC SHOCKS. ALWAYS DISCONNECT EQUIPMENT

BEFORE HANDLING OR CARRYING OUT MAINTENANCE

!

Elidy

12

Installation

Products must be installed according to "best practice" by qualied and certied

personnel.

• • •

Installation personnel should wear statutory safety equipment while putting up

and taking down the system.

• • •

Ensure that the public and personnel are prevented from passing underneath

the system while it is being rigged. The rigging area must be cordoned off and

inaccessible to the public.

• • •

Never leave the system unattended

during installation.

• • •

Do not allow anybody, whether stage hands, artists or members of the public, to

climb, jump or hang from products in the ELIDY range.

• • •

Do not place any object, however small, on the equipment during

rigging. It may fall while the equipment is being suspended and cause personal

injury.

• • •

NEVER attach any equipment other than CHROMLECH accessories to ELIDY

products.

• • •

CHROMLECH is not liable for rigging accessories that are not manufactured by

CHROMLECH.

• • •

The safety cable (not supplied) must have a suitable SWL for the weight

of the device you wish to secure. The safety cable, which must be attached

correctly to the device and the support frame, must be installed so that if the

main support system fails, the fall of the device will be limited as much as

possible. If a safety cable comes into play

following a fall, IT IS ESSENTIAL to replace it.

• • •

Take the same care when taking the system down as

when installing it. Pack it away carefully after use.

Elidy

13

Further information

The protection rating for products in the ELIDY range is IP 32.

PRODUCTS IN THE ELIDY RANGE MUST NOT BE USED OUTSIDE WITHOUT

PROTECTION FROM THE WEATHER.

• • •

Risk to the eyes. Products in the ELIDY range use high-power LED

(Light Emitting Diode) light sources. As such

you are strongly advised not to look directly at the light source.

Prolonged exposure can cause ocular lesions.

• • •

Devices must not come into contact with a ammable surface.

In all cases, comply with a distance of at least 200 mm between the devices and

nearby ammable surfaces.

• • •

All information provided in this manual is liable to change without notice. It is

your responsibility to check for updates to this manual.

• • •

Chromlech reserves the right to modify and improve any aspect

of the products in its range over time without being obliged to incorporate these

modications into products sold previously.

• • •

It is strictly prohibited to put products in the ELIDY range in a washing machine

and even less in a microwave oven.

Elidy

14

Elidy-S

Rigging system

The Elidy-S is an array tted with a swivelling double yoke.

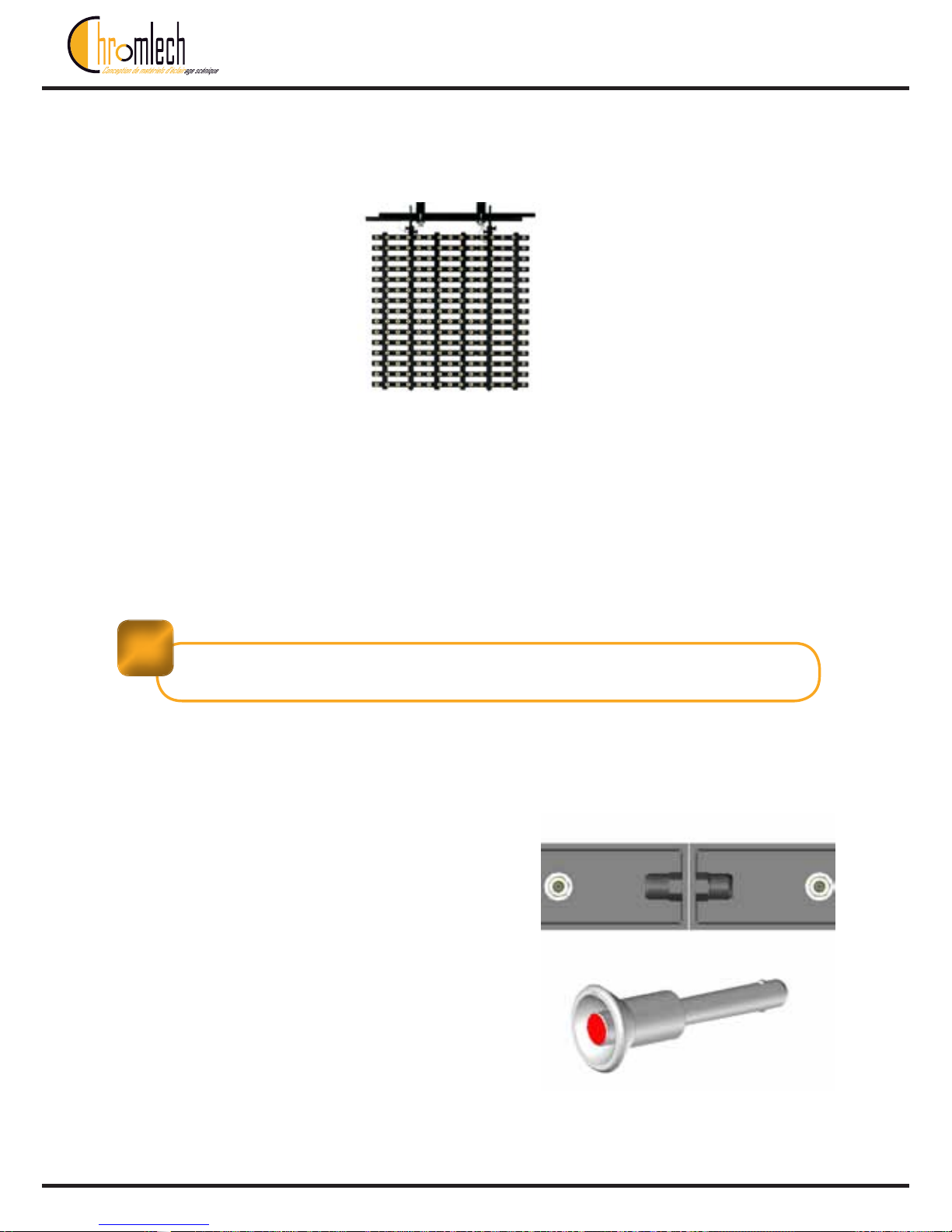

The Elidy-S-yoke has 4 main functions:

1- Attach the Elidy-S by means of a standard proprietary hook

2- Attach to another Elidy-S in order to create a ladder of up to
three Elidy-S suspended one underneath the other.
Assembly is by means of two M10 bolts inserted into the

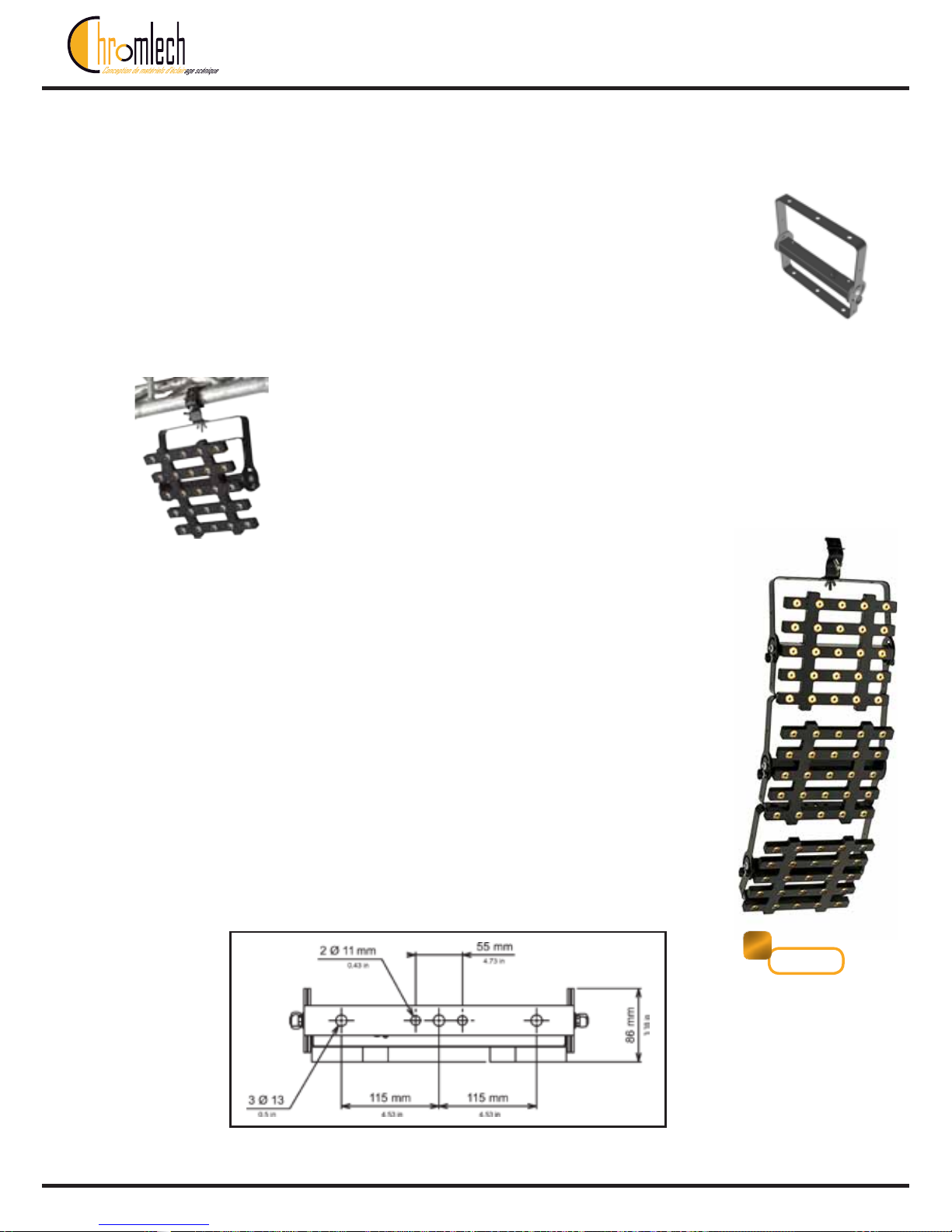

external drilled holes of the yoke. (see drawing)

A safety sling must be used between arrays
and the rigging component.

3- Install the Elidy-S on the ground
Through its double yoke, the Elidy-S may be placed on the ground

and very simply swivelled into any position.
4- Install the Elidy-S on a standard proprietary mount

Diameter of through hole for hook:
13 mm (see drawing)
The hook must be able to support the
weight of the Elidy-S, namely 3.1 Kg

A safety sling must be used between the
array and the rigging component.

3 MAX

!

Elidy

15

Elidy-S

Connections

The Elidy-S must only be powered from a PSX9 power unit.

We recommend the use of Chromlech cables (M-cable, S-cable).
Input connector:

The Elidy-S is tted with one XLR 4 input connector.

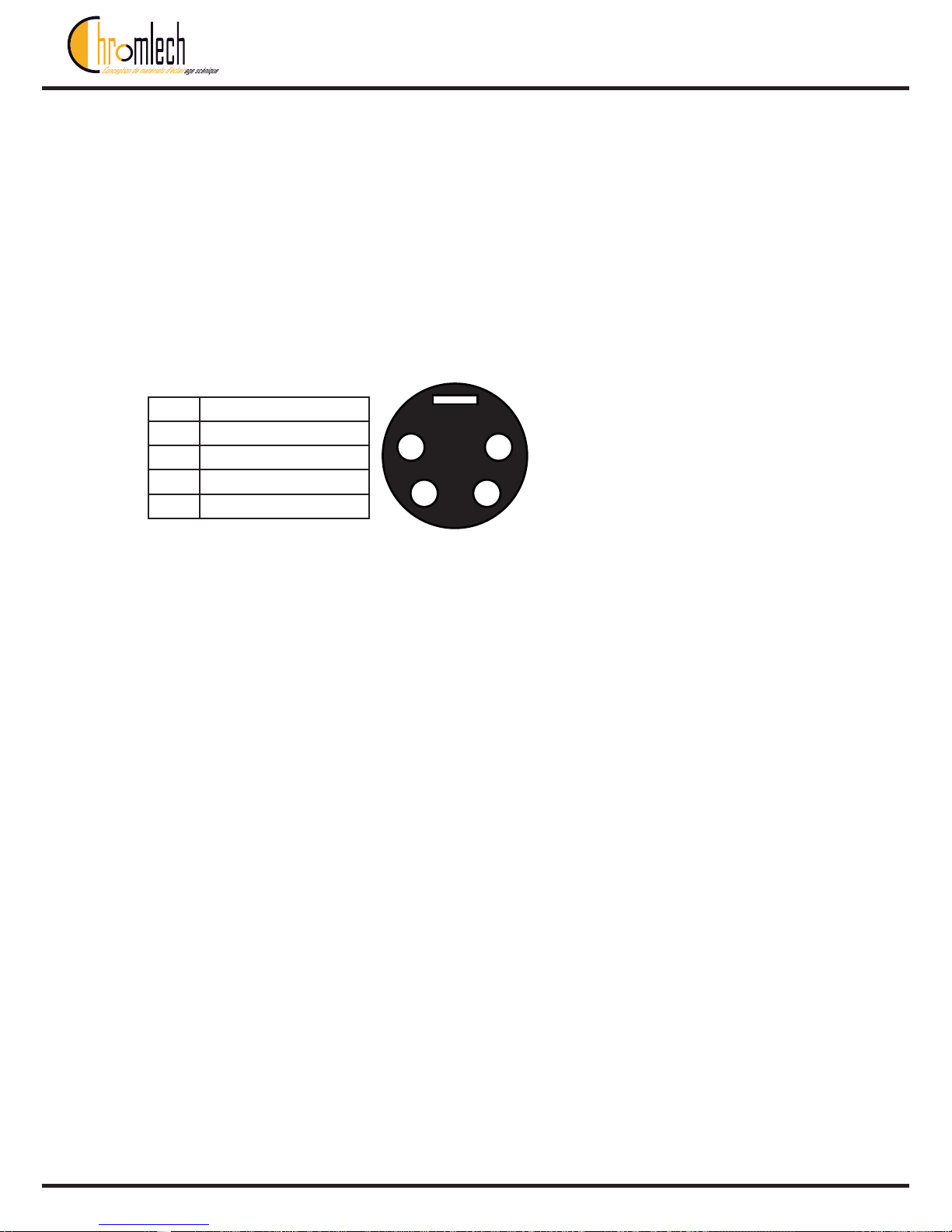

Pinouts:

Cable characteristics:
Power supply: 2 x 2mm²
Data: Screened twisted pair 2 x 0.35mm²

It is possible to connect 3 Elidy-S onto each of the 3 PSX9 power outputs, i.e.
9 Elidy-S maximum per PSX9.

To this end, use the Spider Box tapoff boxes provided for this purpose.

1 Power Gnd
2 DMX ­3 DMX +
4 Power 48V

G Ground (optional)

The distance

between the PSX9

and the Elidy-S

tiles is 50m

maximum

- Never connect more than 3 Elidy-S per PSX9 output.

- Do not chain more than 2 Spider Boxes.

!

i

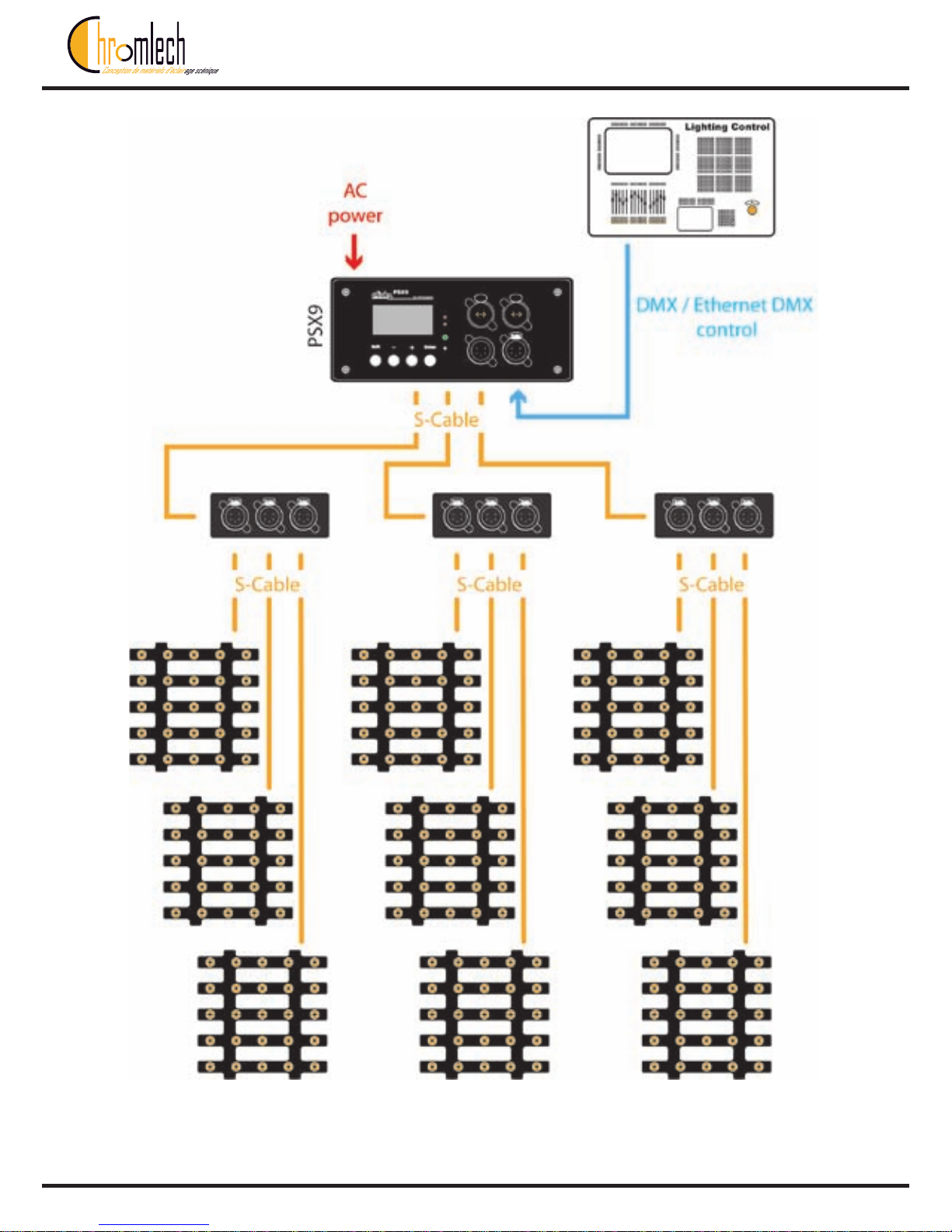

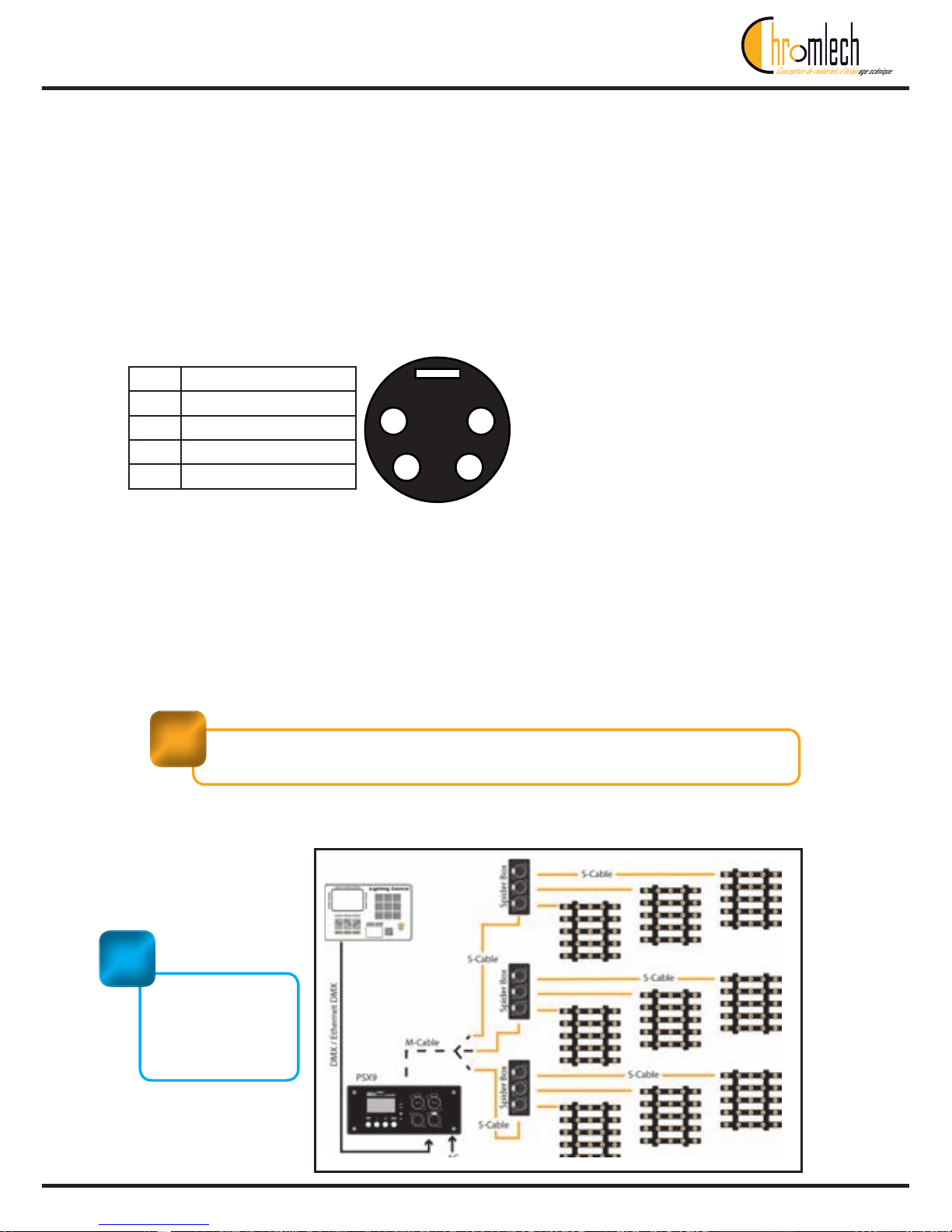

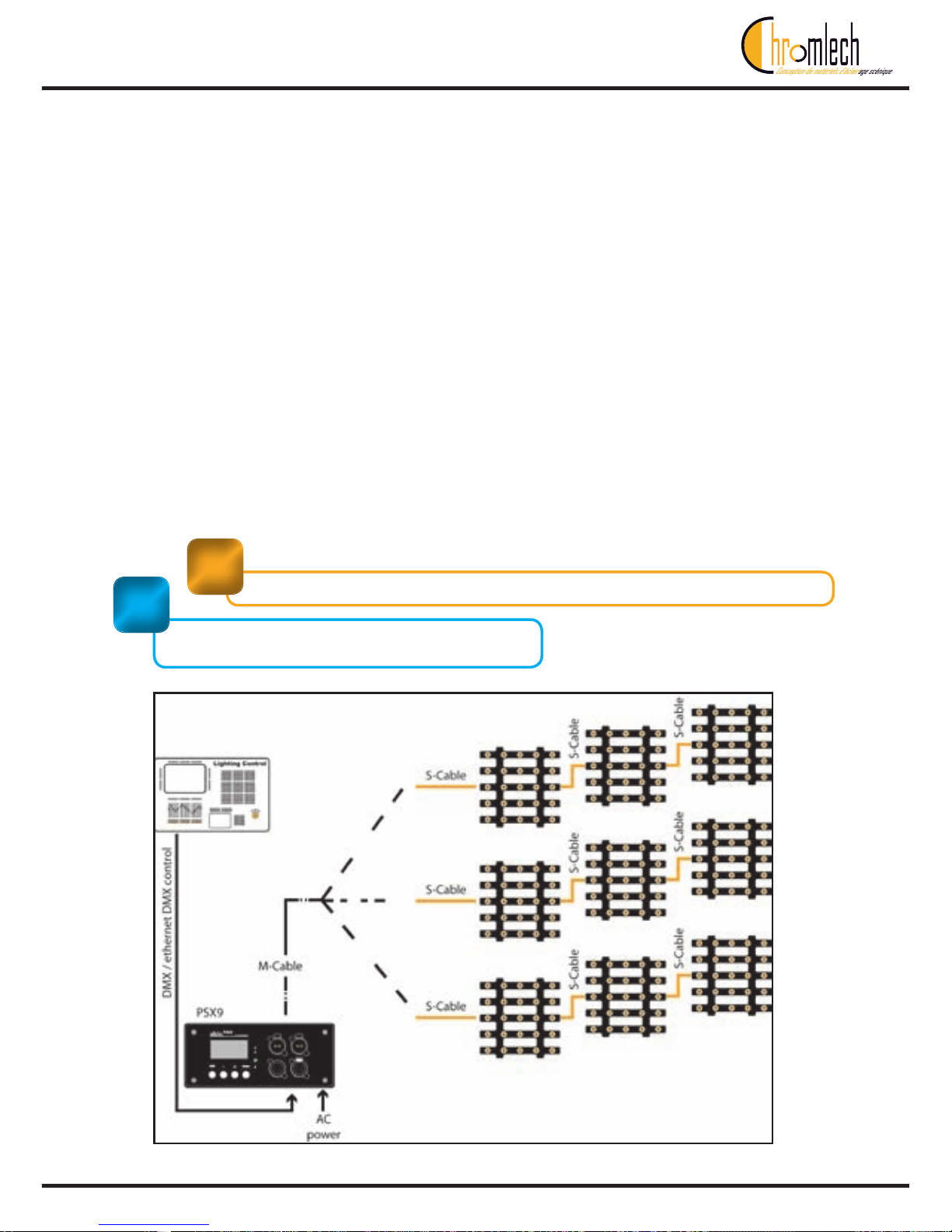

Functional diagram

G

1 4

32

Elidy

16

Elidy-T

Rigging system

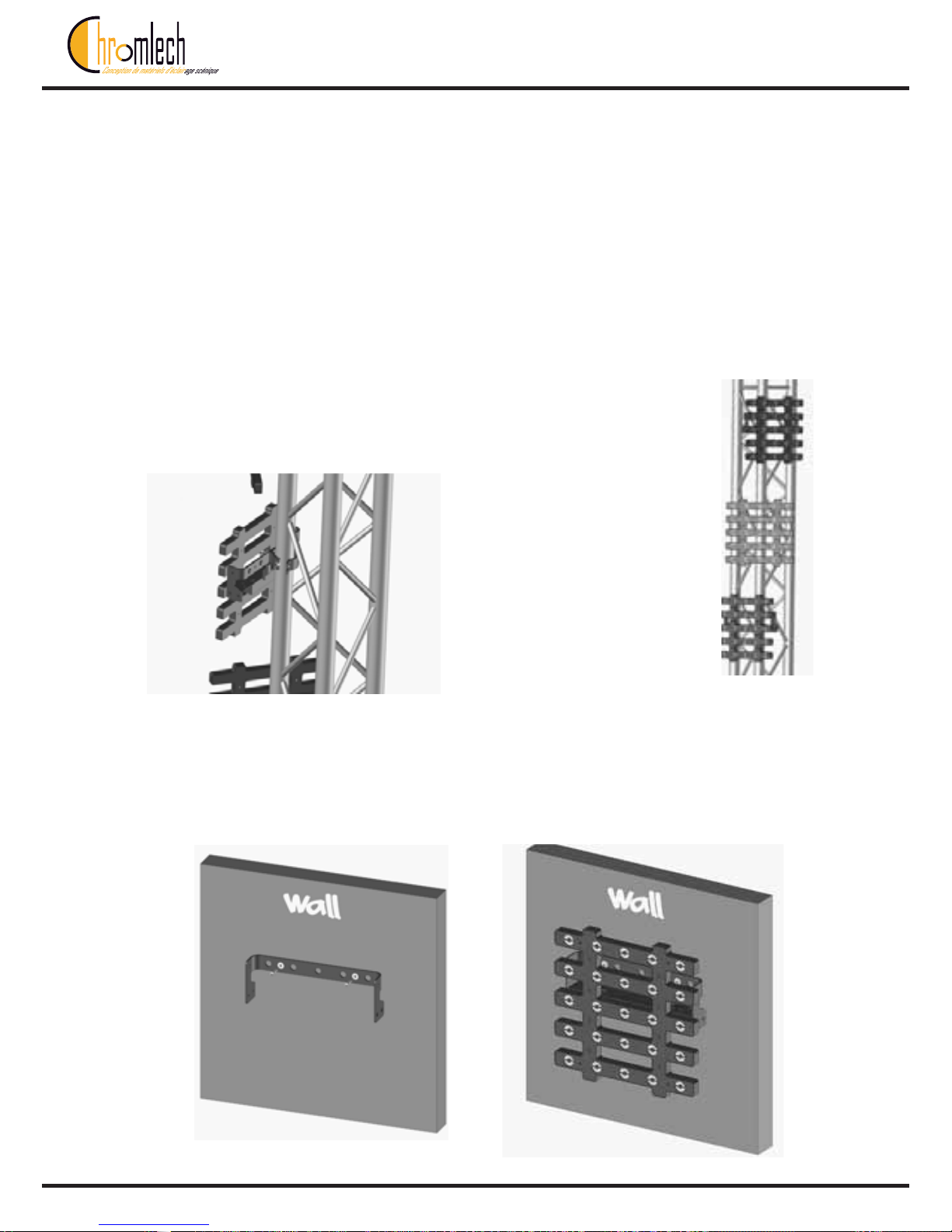

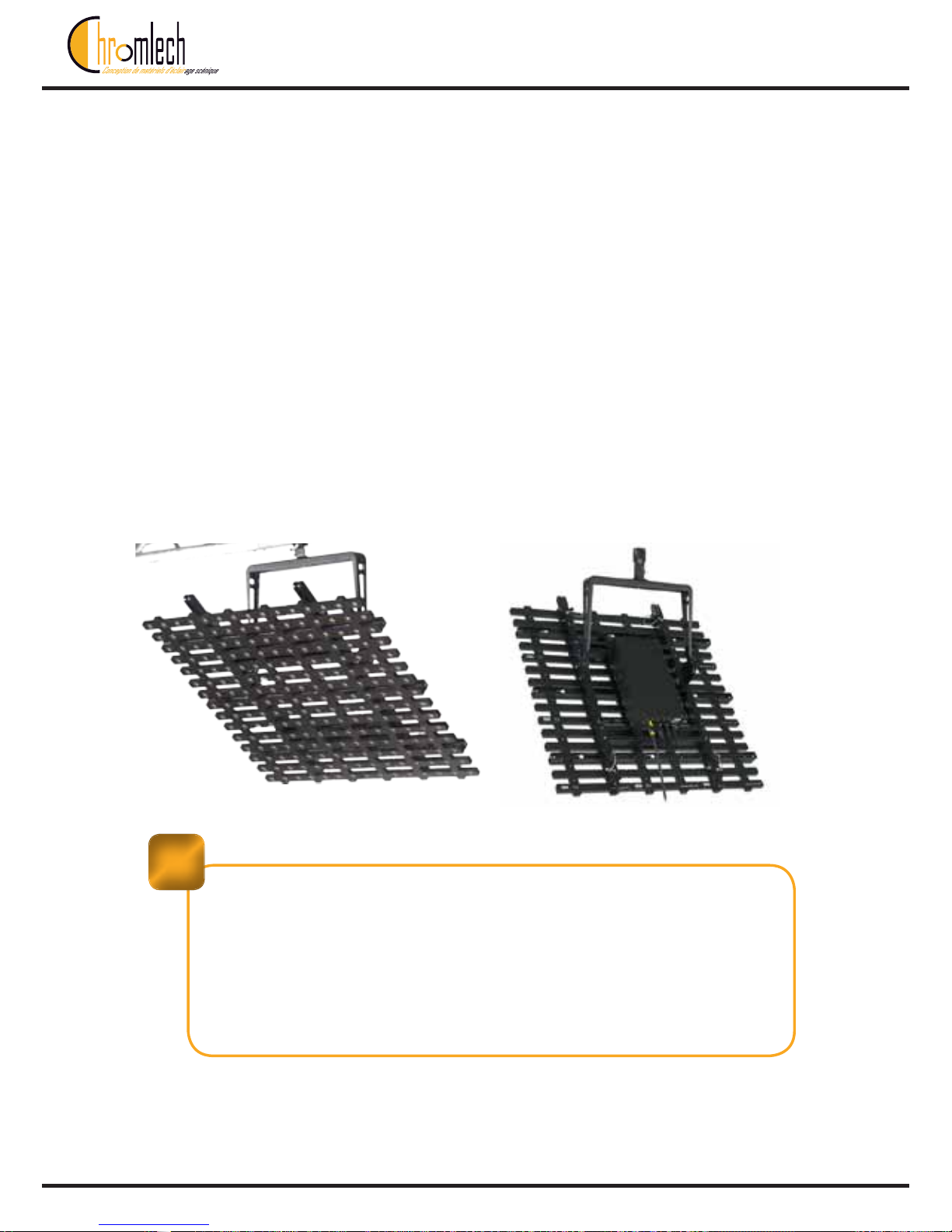

The Elidy-T is an array tted with a xed rigging system, the T-mount.

The purpose of the T-mount is to secure the Elidy-T as near as possible
to its rigging support:

1- Attach the Elidy-T by means of a standard proprietary hook

2- Attach the Elidy-T to a decoration item

Elidy

17

The Elidy-T must only be powered from a PSX9 power unit.

We recommend the use of Chromlech cables (M-cable, S-cable).

The Elidy-T are tted with an input and an output and can thus be chained.

However, it is still possible to use Spider Boxes.

Input connector: XLR female 4 pin
Output connector: XLR male 4 pin

The cable used features the same characteristics as Elidy-S (see page 15).

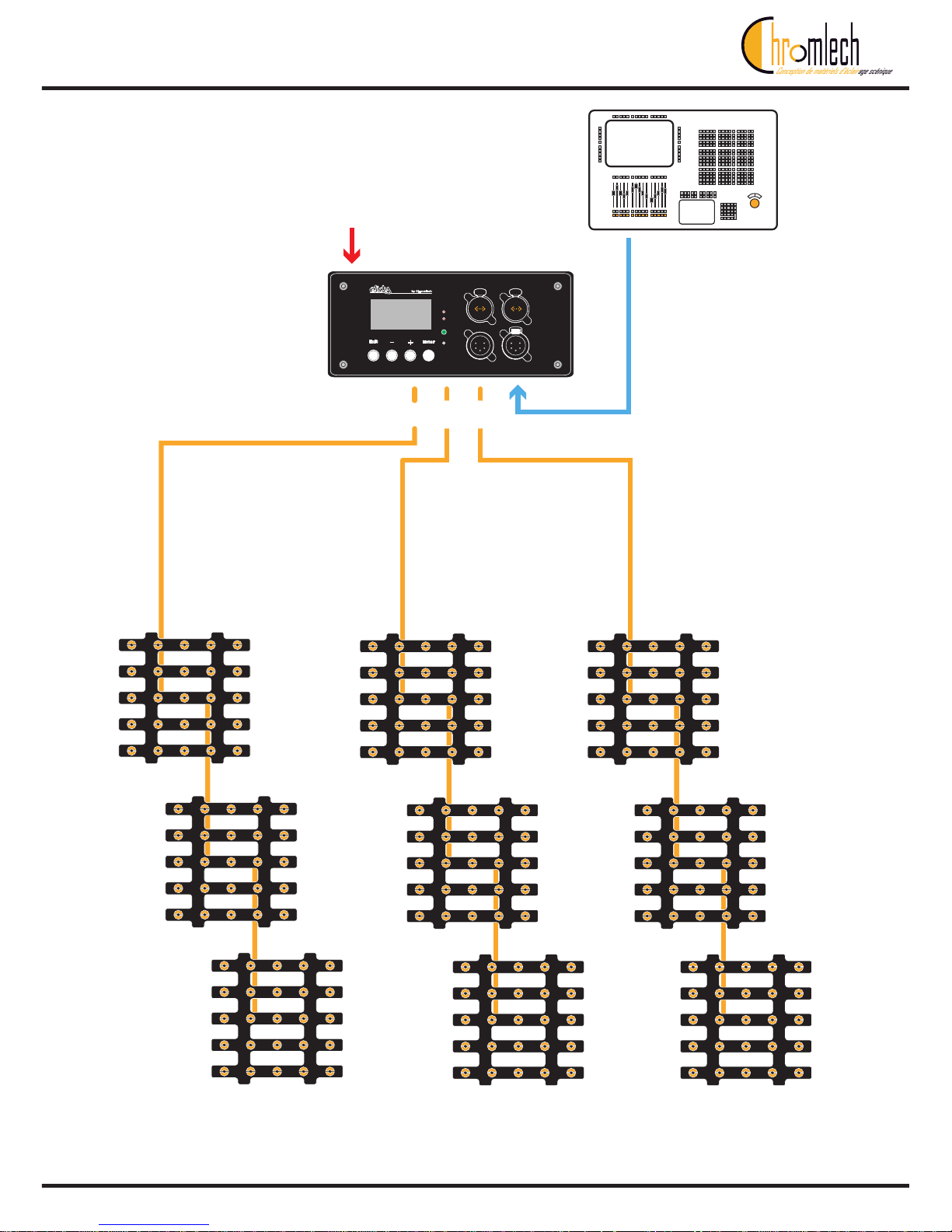

It is possible to connect 3 Elidy-T onto each of the 3 PSX9 power outputs, i.e. 9
Elidy-T maximum per PSX9.

- Never connect more than 3 Elidy-T per PSX9 output

!

The distance between the PSX9 and the

Elidy-T tiles is 50m maximum

i

Functional diagram

Elidy-T

Connections

Elidy

18

Elidy-BIG

Rigging system

Yoke mounting

The yoke allows the Elidy-BIG to be attached to any type of framework using
standard hooks so that it can be panned and tilted easily.

The Elidy-BIG is an array tted with a swivelling yoke.

The yoke can be removed. It is tted to the frame using the 4 screws provided.

A suitable safety sling must be used between the array and the rigging
component.

The yoke of the Elidy-BIG has been designed

to support a frame and its 9 active tiles.

Do not rig other frames beneath it

Under no circumstances may the yoke replace

a spreader bar ("bumper")

!

Elidy

19

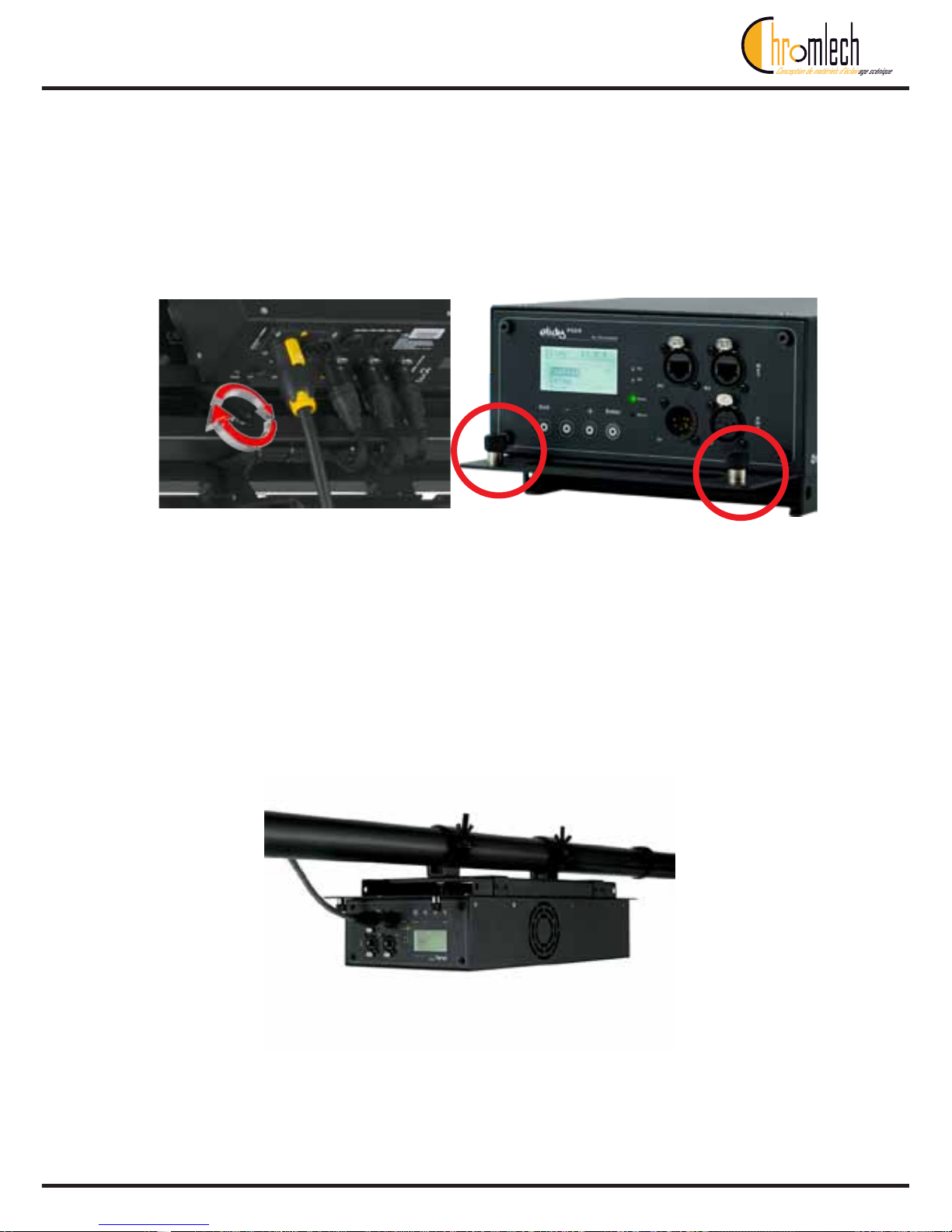

Elidy-BIG

Connections

Fit the PSX9 power unit onto the frame using the support plate provided.

Connect the 3 outputs (XLR 4) of the PSX9 to the 3 inputs (XLR 4) on the frame.
Connect the PSX9 power unit to the mains (100-230V / 50-60Hz / 3.5A / 800W).
Connect the DMX or Ethernet cable.

If you wish, you can install the PSX9 remotely using an M-Cable or 3 S-Cables.

Elidy

20

Elidy-WALL

Rigging system

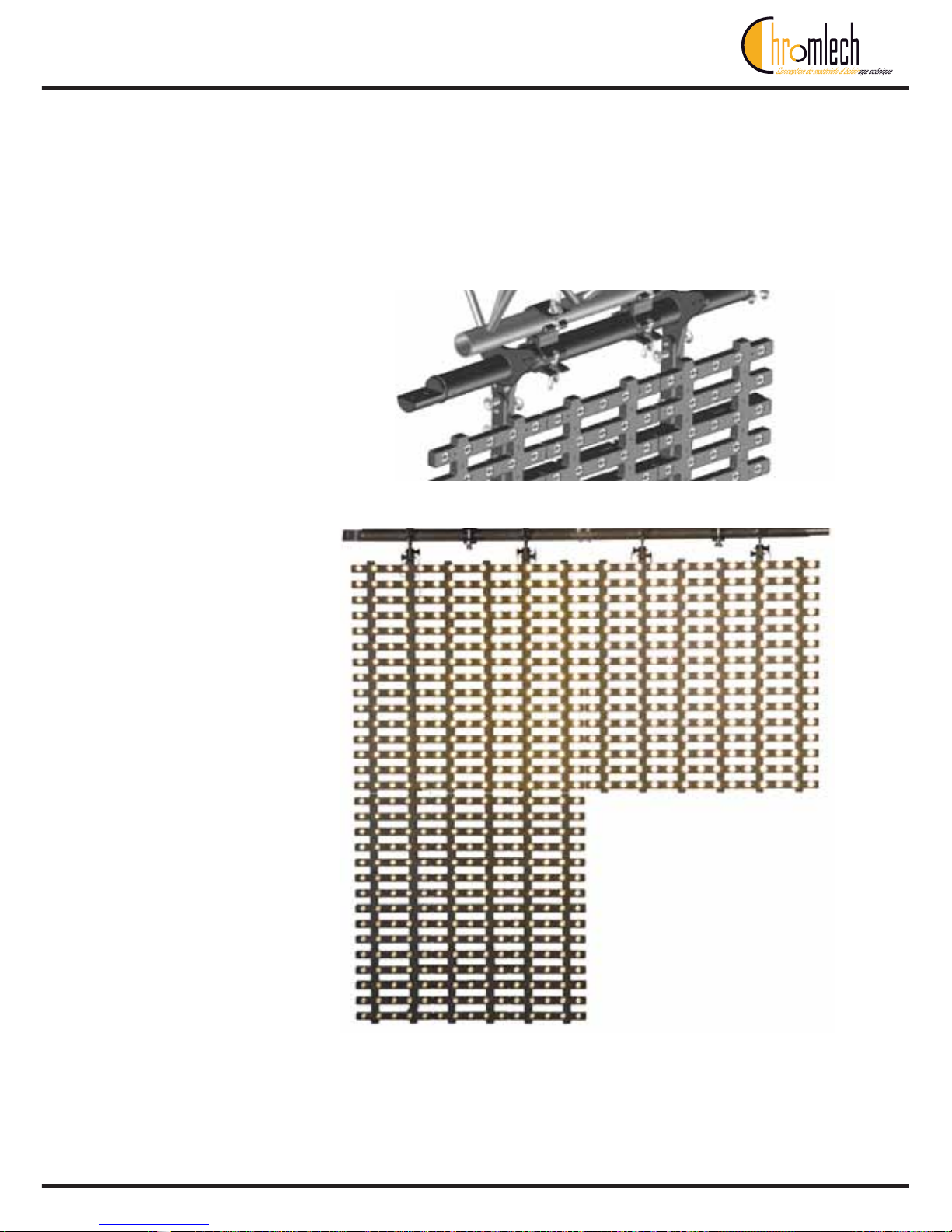

The Elidy-WALL have been designed to be assembled VERTICALLY very
quickly.
You can assemble up to 11 Elidy-WALL one underneath the other (MAX
10 meters).

All the parts necessary for tting are integrated in the frame of the Elidy-

WALL.
However, it is essential to use the Elidy-BUMPER spreader bar provided
to start assembling each column.
1 COLUMN = 1 ELIDY-BUMPER.

1- Fitting the Elidy-BUMPER

- Rigging must be carried out by qualied personnel (for more information refer

to chapter "Safety rules and precautions for use").

- Ensure that the support on which the Elidy-WALL are to be rigged can support
the load, is in a good state of repair, stable and made safe.
In all cases, YOU ARE FULLY LIABLE FOR THE SUPPORTING FRAME ON
WHICH THE ELIDY-WALL ARE MOUNTED.

The Elidy-BUMPERs must be xed to the supporting frame using 2 double

collars, diameter 50 mm (not supplied). These double collars must have a SWL
suited to the height and weight of your column.

1 ELIDY-WALL = 30 Kgs (including power supply and cabling)
11 ELIDY-WALL = 330 Kgs.

We recommend you begin assembling your wall with the central Elidy-BUMPER,
this will ensure your rig is centred correctly.

Then place the Elidy-BUMPERs on either side of your reference point to form

your rst row.

Elidy

21

The ideal collar location on the Elidy­BUMPER is as follows:

However, it may not be possible to

produce this conguration. In this case,

you can move the collars on the Elidy­BUMPER. However, you must ensure
the collars are installed within the male
clevises.

Check that the Elidy-BUMPER is
orientated correctly. The clevis stops
and quick-release pins must be pointing
downwards.

To t the Elidy-BUMPERs to each

other, you must use the bolts provided.
For assembly in a row, lock the 2 bolts

as indicated in the gure opposite.

You can also place the
Elidy-BUMPERs off-centre, to create
different orientation angles.
To do this, you must only use one of
the two bolts and space out the ends of
each Elidy-BUMPER.

Now you have created your Elidy-BUMPER row, you can assemble the Elidy­WALL underneath.

Elidy

22

Elidy-WALL is composed of 9 Active Tiles and 1 frame.
It works with 1 PSX9, 1 M-cable or 3 S-cables, 1 Bumper for each Elidy-WALL

column.

- 2 people are required to correctly assemble the Elidy-WALL on the Elidy­BUMPERs. Stand on either side of the array to move and lock it.

- You can grip the Elidy-WALL anywhere. All components can temporarily
support the weight of the array.

- Ensure your Elidy-WALL is orientated correctly . The female clevises of the load
bearing components must be facing upwards and the connectors downwards.

- The 3 transverse bars are only used for xing the active tiles.

THE TRANSVERSE BARS ARE NOT A LOAD BEARING FRAME

To insert or unhook the detent pins, you
must press the red push-button fully down
to unlock the safety device.

Coupling of two transverse bars

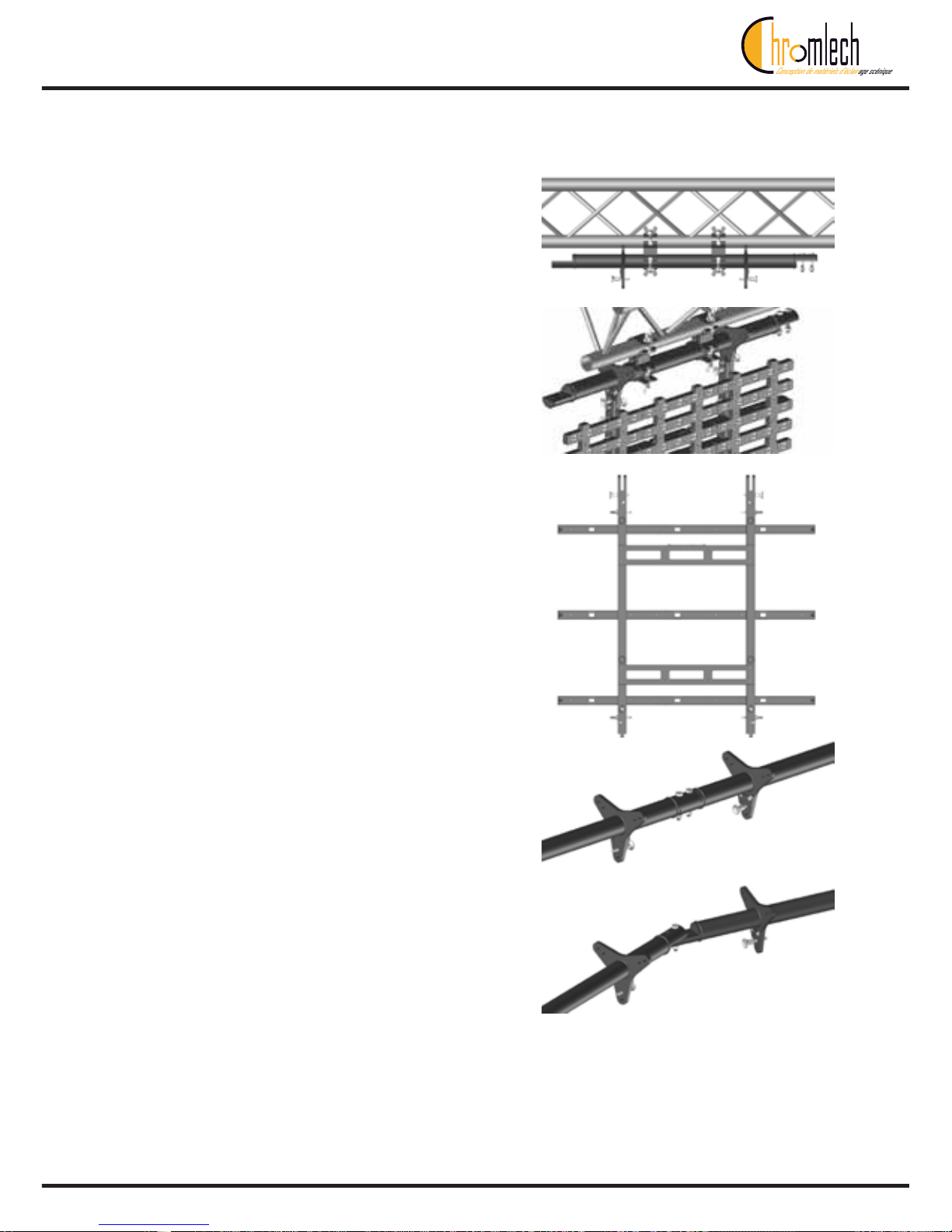

The Elidy-WALL can be assembled vertically

using the 2 load bearing components provided

!

Elidy

23

Start by assembling the central Elidy-WALL. Insert the female clevises of
the Elidy-WALL into the male clevises of the Elidy-BUMPER up to the stops
provided.
Lock the assembly using the 4 detent pins
(2 on the Elidy-BUMPER, 2 on the Elidy-WALL).

Repeat the operation up to your rst row.

To nish off, wire up the Elidy-WALL, secure them, raise your supporting frame

by 1 m and start to work on the next row.

Elidy

24

Elidy-WALL

Connections

The Elidy-WALL must only be powered from a PSX9 power unit.

We recommend the use of Chromlech cables (M-cable, S-cable).
The maximum distance between the PSX9 power unit and the Elidy-Wall is 50m.
Input connector:

The Elidy-WALL is tted with 3 XLR 4 input connectors.

Pinouts:

Cable characteristics:
Power supply: 2 x 2mm²
Data: Screened twisted pair 2 x 0.35mm²

1 ELIDY-WALL = 1 PSX9

Connect the cable bundles from the frame to the PSX9 power unit

Different congurations are possible:

- PSX9 on the frame

- PSX9 installed remotely on a bridge above the screen (50m max.)

- PSX9 installed remotely on the ground in a rack provided for this

purpose (50m max.)

1 Power Gnd
2 DMX ­3 DMX +
4 Power 48V

G Ground (optional)

G

1 4

32

Elidy

25

Functional diagrams

Elidy

26

Screen interface Menu function Setting function

Exit

Return to previous menu Cancel setting

X

-

Previous row Decrement value

-

+

Next row Increment value

+

Enter

Enter menu Conrm setting

OK

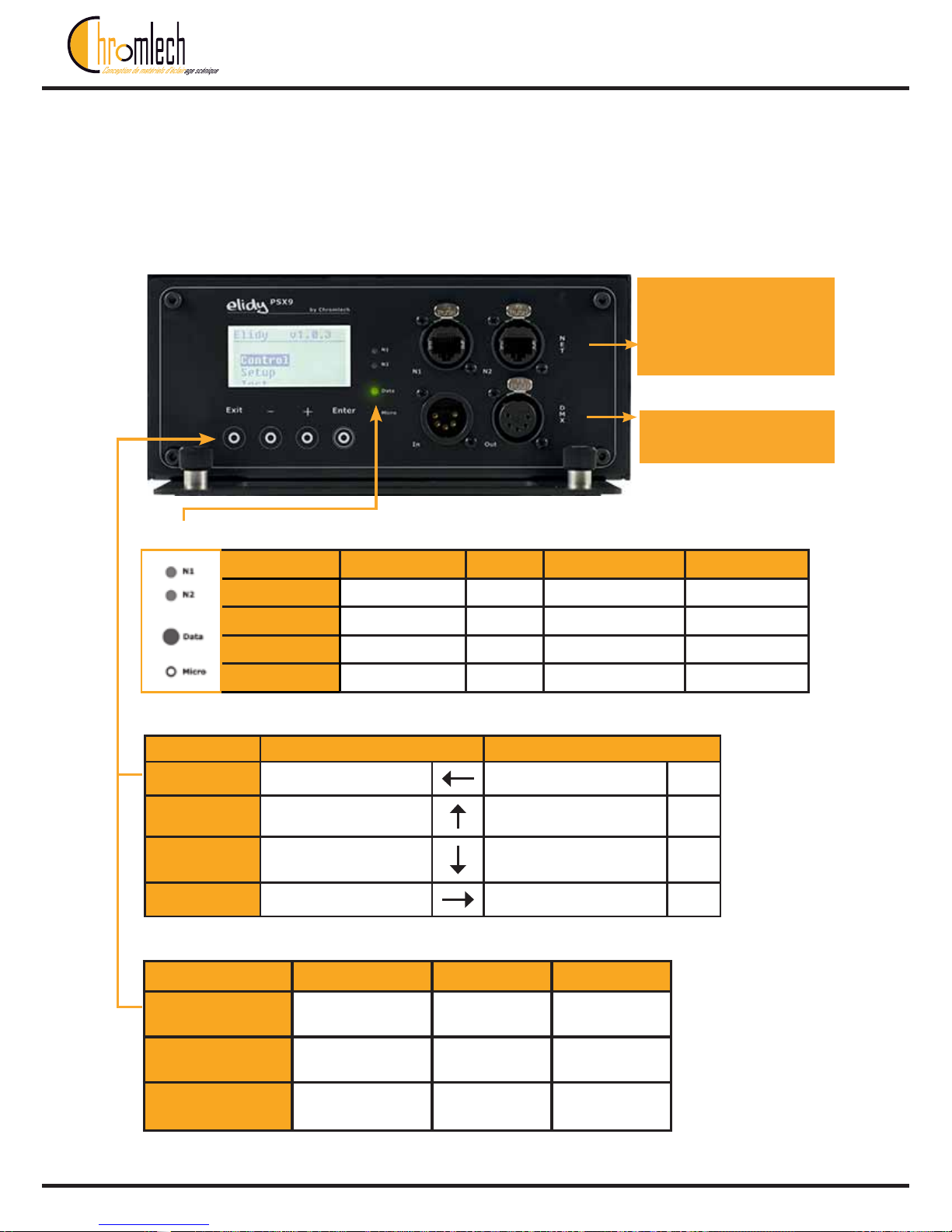

PSX9 Power unit

Detail of buttons and menu

Front panel

On Red Green Flashing

LED Network 1

Network present (1) X X Network data

LED Network 2

Network present (2) X X Network data

LED DATA

PSX9 energised No DATA DATA OK (DMX or Artnet) Fault

MICRO

X X X X

RJ45 network connectors
on Neutrik socket base
Ethernet control: Splitter type link

for "daisy chain" chaining
Power supply conguration: link
to web browser

DMX type XLR5 connectors
on Neutrik socket base
DMX input and output

Keys Homepage Menu Adjust value

-

Shortcut to

conguration view

+

Shortcut to output

status view

- & +

(Press simultaneously)

Return to the

screen

Return to the

min. value

Depending on the context, these keys also have an alternative function:

Key functions:

Information:

Elidy

27

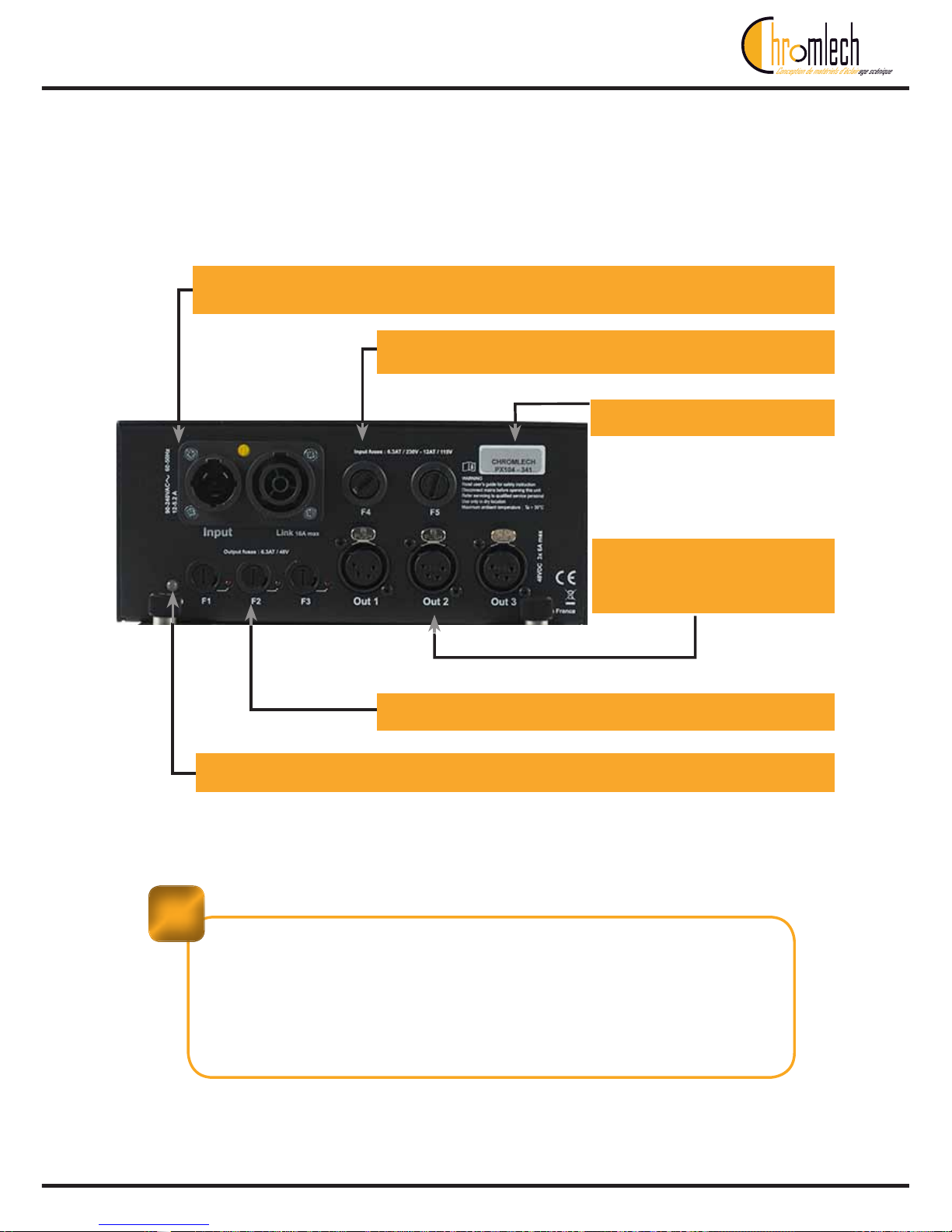

Rear panel

XLR 4 connectors
on Neutrik socket base to
provide the Elidy tiles
with electrical power and data.

Serial number of the PSX9 power unit.

Input protection fuses, mains supply

Protection fuses for outputs, 48V power supply for Elidy tiles.
The indicator LED lights up (red) if the fuse is out of action.

Connectors from the mains supply of the PSX9 power unit.
"Powercon True-One" connectors, 1 Input / 1 Output
(option to cascade the PSX9 power units up to 16A max).

The number of the outputs is for information only,

you can invert them without affecting the operation

of the ELIDY arrays

1 Output = 3 ACTIVE TILES Max.

!

LED DATA, LED DATA repeater on the front panel (see table on previous page).

Elidy

28

The Elidy combines 2 separate DMX machines, the Pixel Engine and the
Animation Maker.

Each of the 2 machines features its own DMX address and can be controlled

using the following protocols:

- DMX 512

- sACN

- ARTNET

Control

Elidy

29

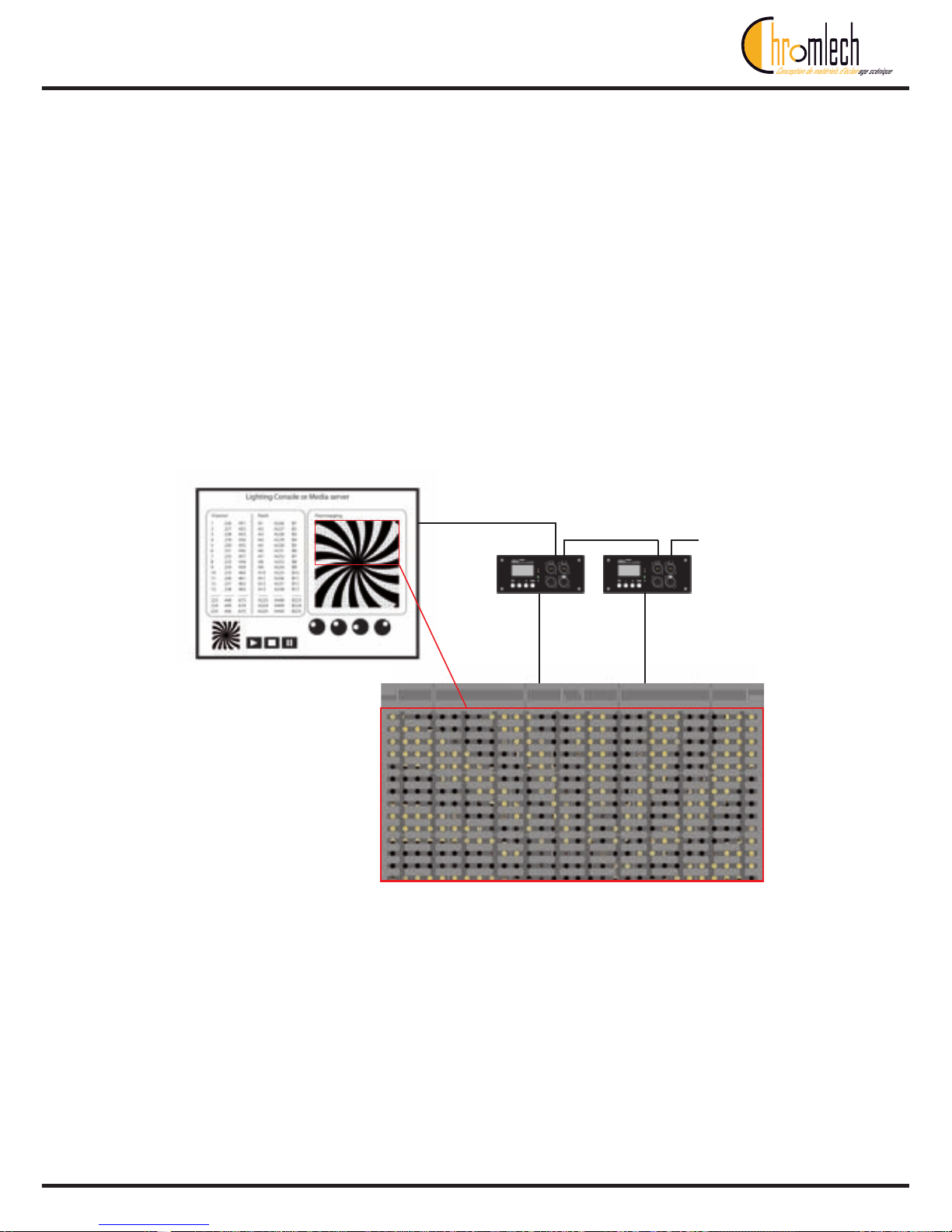

Pixel Engine

Each Led can be controlled separately. Each PSX9 power unit can control up to 9 tiles
with 25 Leds, thus 225 separate DMX channels.

1 Elidy Led (1 pixel) = 1 DMX address. To light the 9 Elidy-S or 1 Elidy-BIG/WALL
connected to a power unit, t the 225 channels on the console or media server.

The DMX channel number of each Led depends on the settings in the Patch Mode

and Rotation menus (see sections P26 to 28)

...

Elidy

30

Animation Maker

Effects generator control built-in to the power unit. Each power unit can also

control the 225 Leds, but with only 2, 4, 8 or 14 DMX channels.
The Elidy-S and Elidy-BIG/WALL are controlled by a lighting console and
operate as robotic arrays, 9 Elidy-S or 1 Elidy-BIG/WALL per power unit.

Each of the 9 Elidy-S is controlled using:

- 1 Dimmer (16 Bits)

- 1 animation bank (65 xed factory-congured animated GIF supplied with the

power unit and 20 user animated GIF that can be downloaded into the power
unit via the dedicated software)

- 1 GIF speed parameter

- 1 Shutter

- 1 Iris

- 1 Rotation effect

- 1 General fade out

Each Elidy-Big/Wall is controlled using:

- 1 Dimmer (16 Bits)

- 2 animation banks (65x2 xed factory-congured animated GIF supplied with

the power unit and 20x2 user animated GIF that can be downloaded into the
power unit via the dedicated software)

- 2 GIF speed parameters

- 1 Crossfade between the 2 banks / Selection of the crossfade mode

- 1 Shutter

- 1 Iris

- 1 Bank of effects

- 1 Rotation effect

- 1 General fade out

Refer to Tutorial 9

Detail of the Anim maker effects

i

Elidy

31

Animation Maker: Animations

The animations are created from animated GIF type les.
2 banks (A & B) are available for the user, with a series of 65 factory-congured
GIF for each bank provided with the power unit and non-modiable.

It is possible to create your own GIF and load them into the PSX9 power unit,

within the limit of 20 GIF per bank.

Refer to Tutorial 7

Factory-congured GIF library

i

Refer to Tutorial 8

Procedure for the creation and loading of the user GIF

i

...

Elidy

32

Sources and Controllers

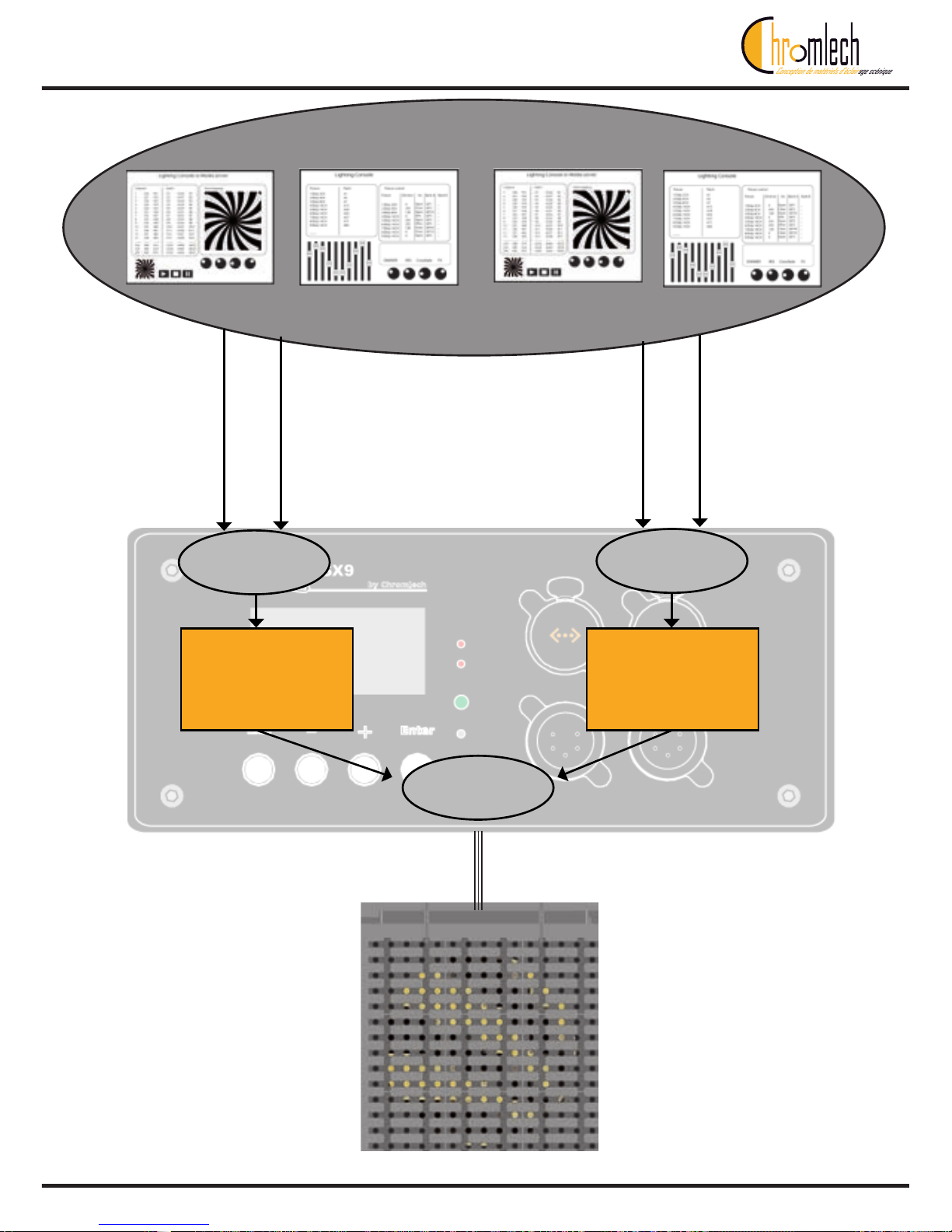

The 2 Controllers of the PSX9 power unit can be monitored using
different protocols, simultaneously.

Elidy performs a HTP merger between the 2 controller outputs.
The two controllers are independent, therefore:

• They can both be activated or disabled.

• They can both receive different protocols (DMX source, Artnet source, sACN

source).

• Each mode supports up to two active sources simultaneously. If, for the

same control mode, two sources are simultaneously active, Elidy also
performs a HTP merger of these 2 sources.

• The protocol parameters are independent (DMX address, Mode, sACN and

Artnet universe) and must be set for each control mode. However, a "link"
mode allows to automatically copy the settings of the Pixel Engine mode
towards the Animation Maker mode.

Use several sources for each controller

If for one (or both) controller(s), more than two sources are activated, then only
two sources will be selected, according to the following order of priority:

1: DMX
2: sACN
3: Artnet

To be taken into account, a source must be active (transmit data) in the selected
universe.

If a source no longer transmits data over a sufciently long period of time, it is

automatically replaced by another active source (according to the same priority
rules). If the original source is reactivated, it is immediately taken into account
(as per the same rules of priority).

If there are several sACN sources, the PSX9 considers

the "priority" parameter set in the console.

If the priority parameter is identical, the weakest source

IP addresses (console) are given priority.

i

If there are several Artnet sources, the weakest source

IP addresses (console) are given priority.

Elidy

33

DMX, sACN, Artnet ...

for the selected universes

HTP

HTP

HTP

Pixel Engine

Animation

Maker

Elidy

34

Menu detail

Menu 1 Menu 2 Menu 3 Function Default

value

Description

page

SETUP Patch mode 9x Elidy-S 36

1x Big/Wall

ü

37

Rotation none

ü

38-39

90 deg

180 deg

270 deg

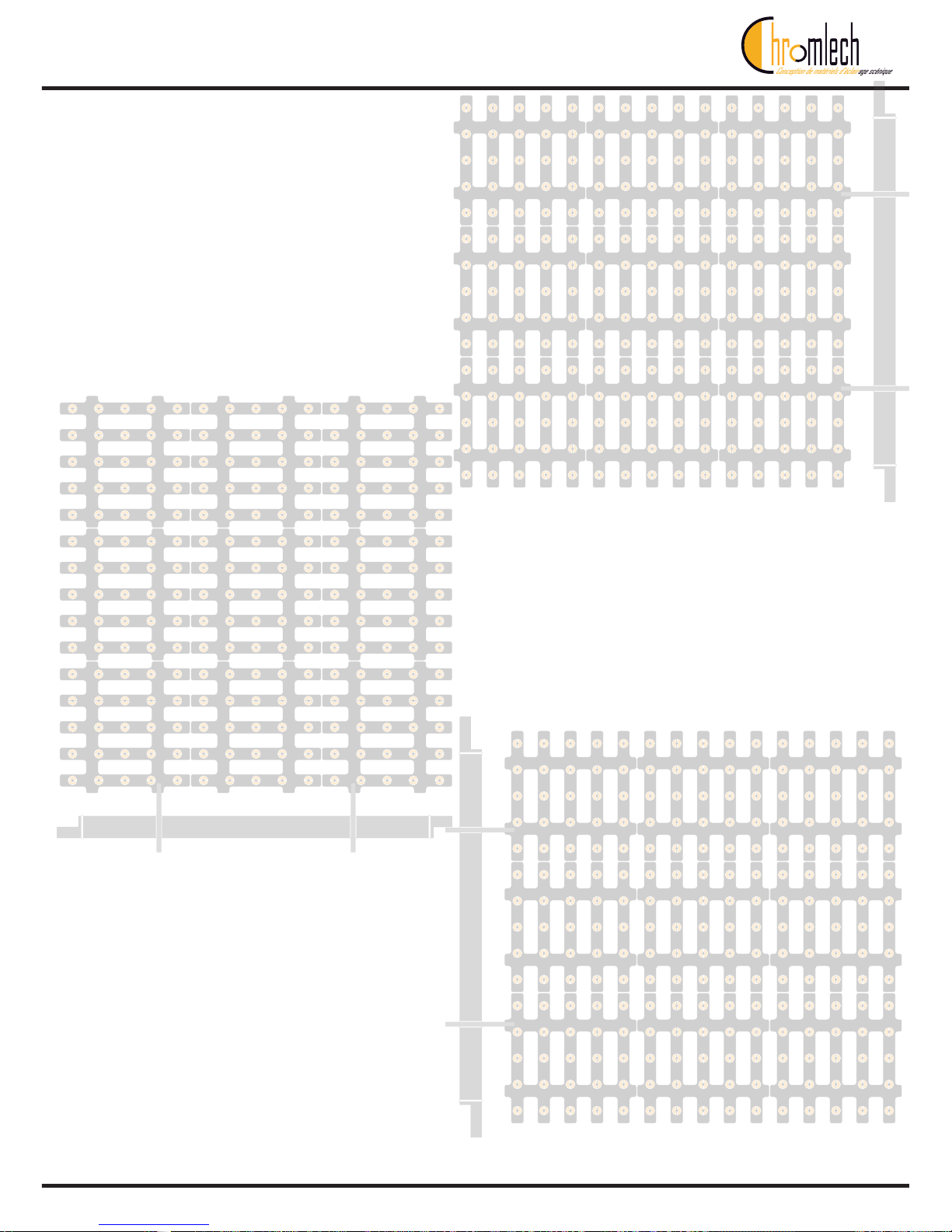

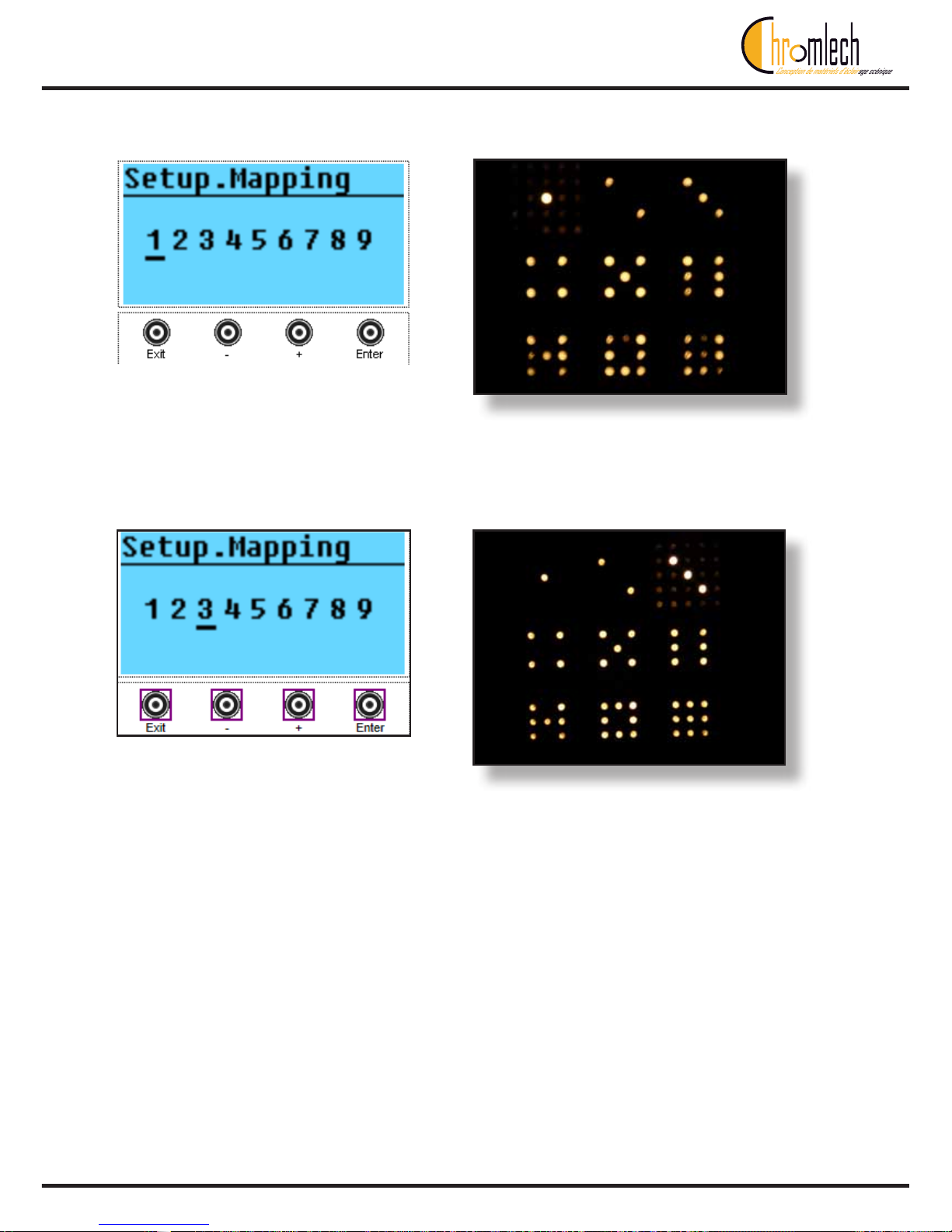

Tile mapping - - - - - - - - - 40-43

PIXEL

ENGINE

Mode OFF 44

225 Channels

ü

DMX Address XXX 001 44-45

ARTNET Universe x 0 46
sACN Universe x 1

Source DMX On / Off On

Artnet On / Off On
sACN On / Off On

ANIMATION
MAKER

Mode Off 49

2 channels
4 channels

8 channels

(Patch mode: 9x Elidy-S)

14 channels

(Patch mode: 1x Elidy-Big)

ü

LINK- Patch Auto Link On 48

Manual

DMX Address XXX 226 50

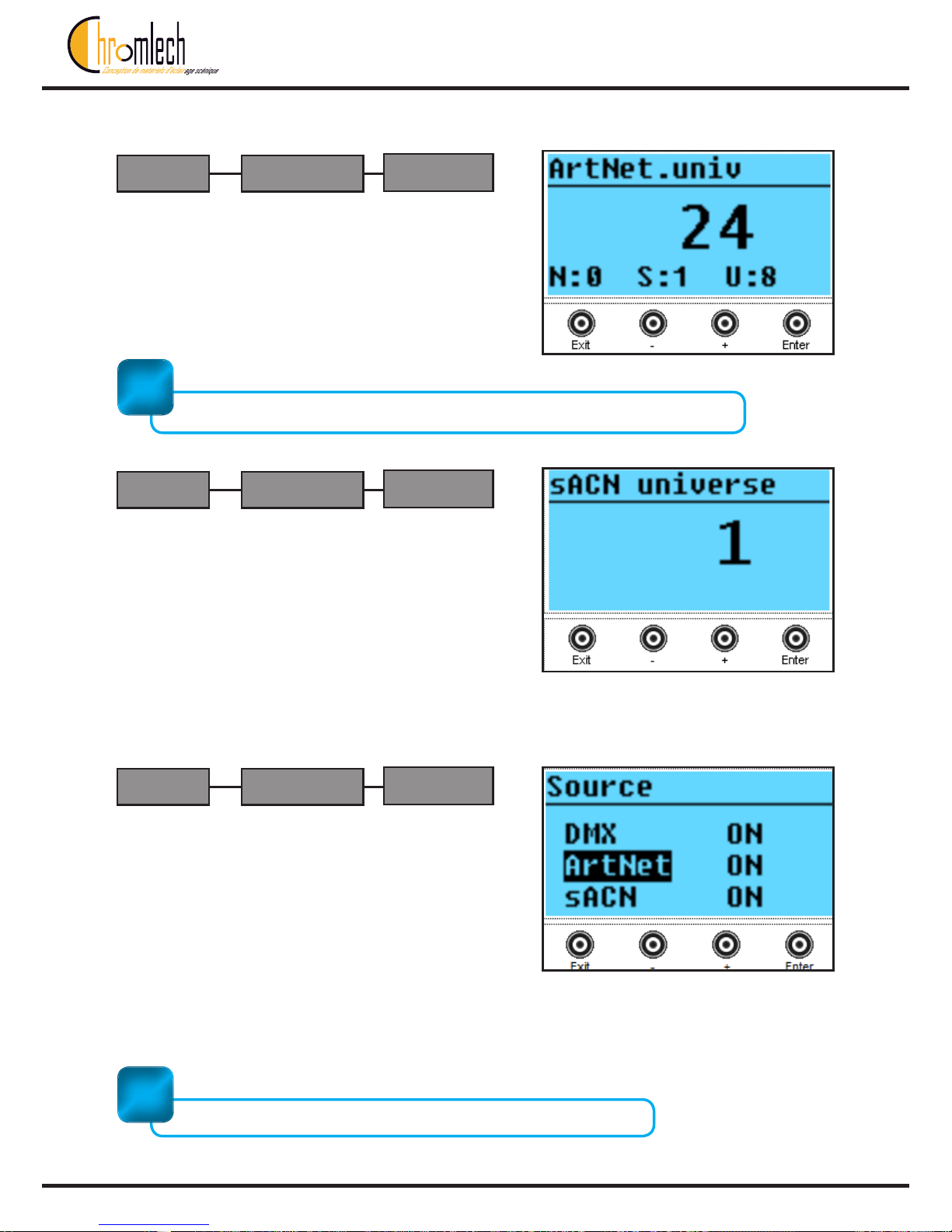

ARTNET Universe x 0
sACN Universe x 1
Curve Legacy 51

Source DMX On / Off On

Artnet On / Off On
sACN On / Off On

Elidy

35

Menu 1 Menu 2 Menu 3 Function Default

value

Description

page

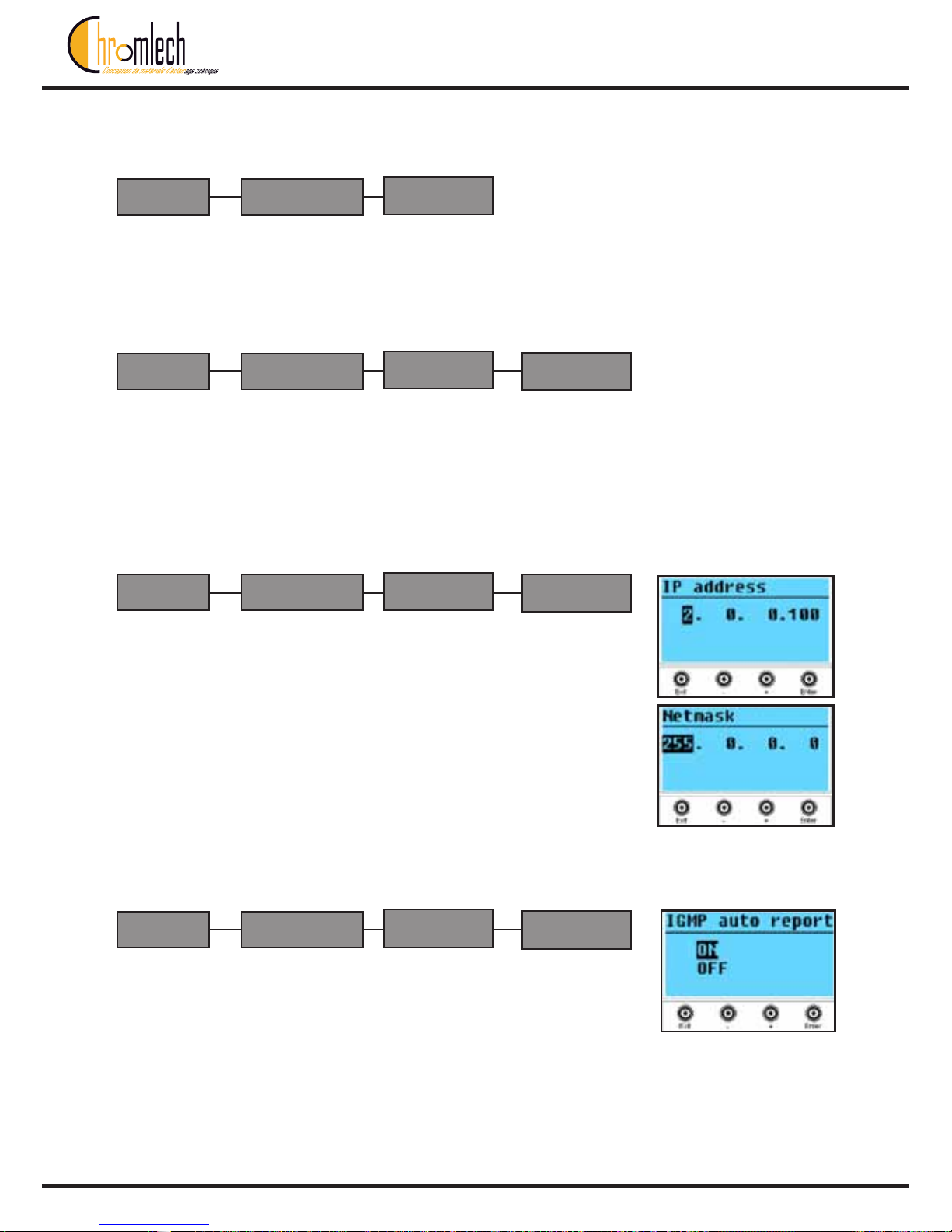

NETWORK IP address Auto 2.x.x.x

ü

52

10.x.x.x

Manual IP x.x.x.x

Netmask x.x.x.x

Multicast Multicast

IGMP report

ON

ü

OFF

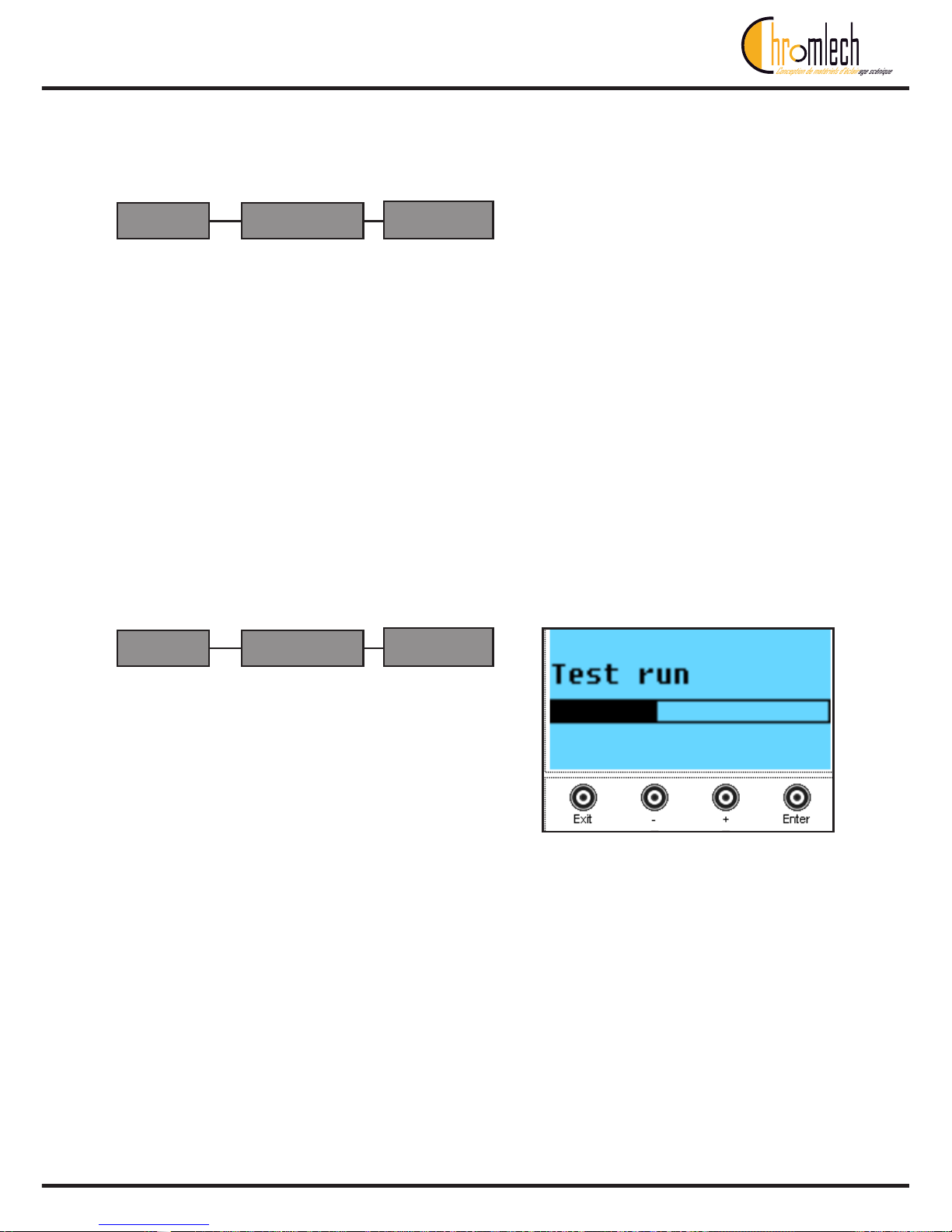

TEST Test Full x (0-100%) 53

Test Chase "Run test"

UTILITY Data In "Info" 54

Memory Bank-S factory "Info"

Bank - user "Info"
Bank A factory "Info"
Bank A user "Info"
Bank B factory "Info"
Bank B user "Info"

Display Auto Off Always ON

ü

Auto OFF

Back Light x 35
Contrast x 80

Fan Level Low

Normal

ü

High

Measures Voltages "Info" 55

Temperature "Info"

Factory default NO

YES

EXPERT

Access to the
menu using a
code

Dot Calibration x 56
Tile Check "Info"

Elidy

36

Patch Mode

SetupMenu

A PSX9 power unit can operate up to 9 active tiles, either separate, mounted

on Elidy-S and Elidy-T, or assembled in a frame mounted in Elidy-Big and Elidy­WALL.

In the Patch Mode menu the user can chose between 2 modes: 9x Elidy-S
and 1x Elidy-BIG/WALL, that change the DMX assignment of each of the 225
available points of the Leds.

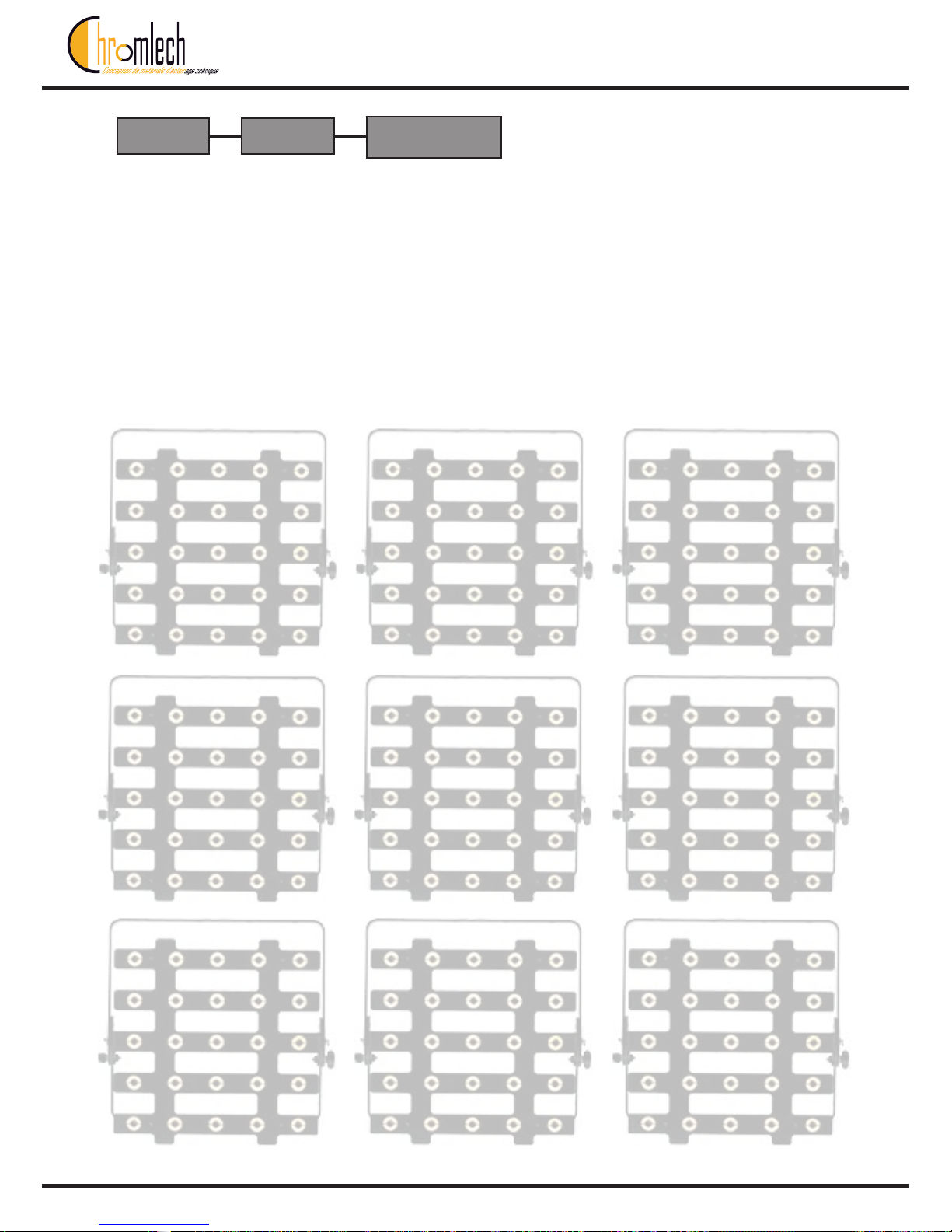

9x Elidy-S/T:

1 2 3 4 5

6 7 8 9 10

11 12 13 14 15

16 17 18 19 20

21 22 23 24 25

76 77 78 79 80

81 82 83 84 85

86 87 88 89 90

91 92 93 94 95

96 97 98 99

100

151 152 153 154 155

156 157 158 159 160

161 162 163 164 165

166 167 168 169 170

171 172 173 174 175

26 27 28 29 30

31 32 33 34 35

36 37 38 39 40

41 42 43 44 45

46 47 48 49 50

101 102 103 104 105

106 107 108 109 110

111 112 113 114 115

116 117 118 119 120

121 122 123 124 125

176 177 178 179 180

181 182 183 184 185

186 187 188 189 190

191 192 193 194 195

196 197 198 199 200

51 52 53 54 55

56 57 58 59 60

61 62 63 64 65

66 67 68 69 70

71 72 73 74 75

126 127 128 129 130

131 132 133 134 135

136 137 138 139 140

141 142 143 144 145

146 147 148 149 150

201 202 203 204 205

206 207 208 209 210

211 212 213 214 215

216 217 218 219 220

221 222 223 224 225

Elidy

37

1x Elidy-BIG/WALL:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

61 62 63 64 65 66 67 68 69 70 71 72 73 74 75

76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

91 92 93 94 95 96 97 98 99 100 101 102 103 104 105

106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

121 122 123 124 125 126 127 128 129 130 131 132 133 134 135

136 137 138 139 140 141 142 143 144 145 146 147 148 149 150

151 152 153 154 155 156 157 158 159 160 161 162 163 164 165

166 167 168 169 170 171 172 173 174 175 176 177 178 179 180

181 182 183 184 185 186 187 188 189 190 191 192 193 194 195

196 197 198 199 200 201 202 203 204 205 206 207 208 209 210

211 212 213 214 215 216 217 218 219 220 221 222 223 224 225

Elidy

38

Rotation

SetupMenu

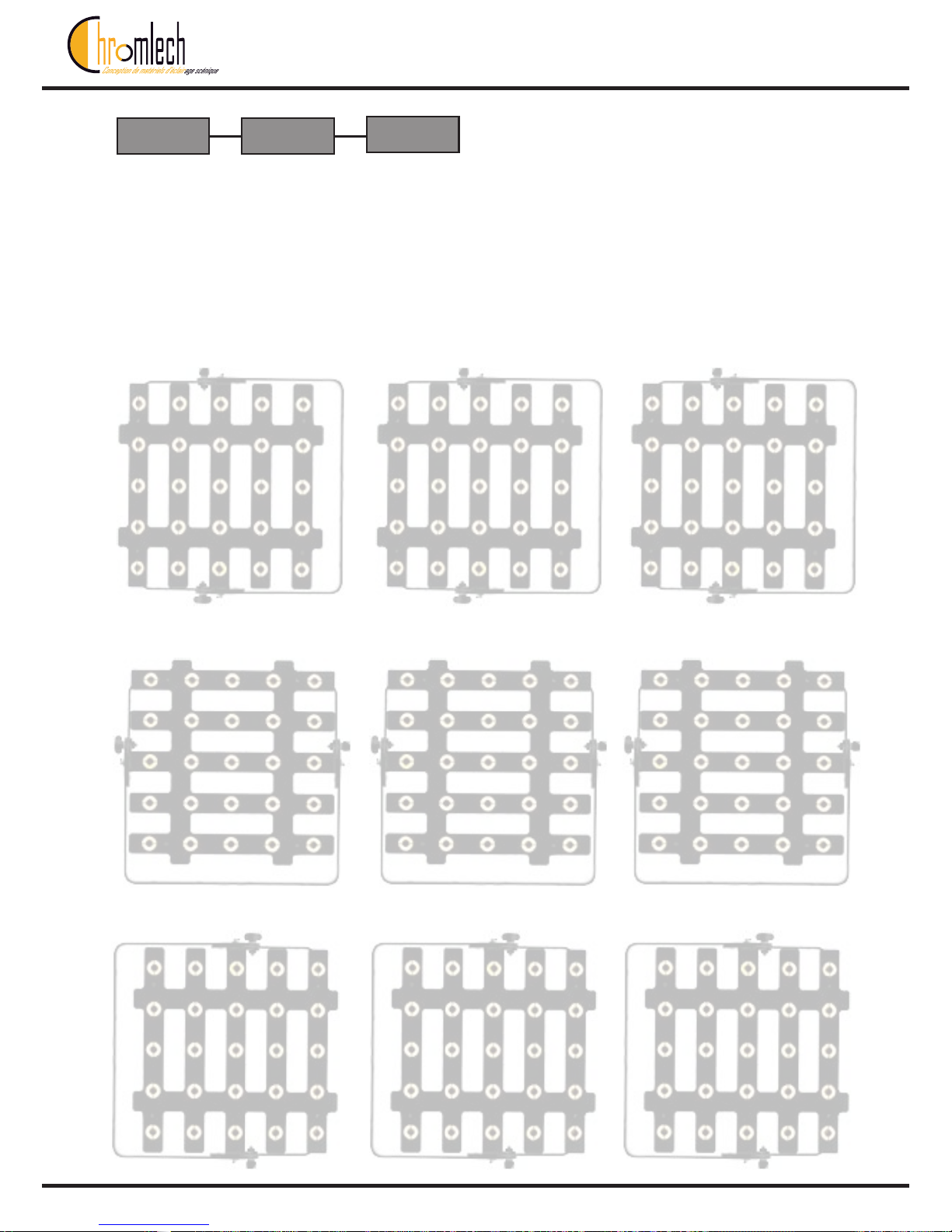

It is possible to perform virtual rotations of the Elidy tiles, in order to compensate

for a specic rigging system or simply to rapidly create a symmetrical
conguration.

Depending on the selected Patch mode, the tiles shall be assigned as follows:

Rotation 90°, Elidy-S/T mode:

Rotation 180°, Elidy-S/T mode:

Rotation 270°, Elidy-S/T mode:

1 2 3 4 5

6 7 8 9 10

11 12 13 14 15

16 17 18 19 20

21 22 23 24 25

26 27 28 29 30

31 32 33 34 35

36 37 38 39 40

41 42 43 44 45

46 47 48 49 50

51 52 53 54 55

56 57 58 59 60

61 62 63 64 65

66 67 68 69 70

71 72 73 74 75

1 2 3 4 5

6 7 8 9 10

11 12 13 14 15

16 17 18 19 20

21 22 23 24 25

26 27 28 29 30

31 32 33 34 35

36 37 38 39 40

41 42 43 44 45

46 47 48 49 50

51 52 53 54 55

56 57 58 59 60

61 62 63 64 65

66 67 68 69 70

71 72 73 74 75

1 2 3 4 5

6 7 8 9 10

11 12 13 14 15

16 17 18 19 20

21 22 23 24 25

26 27 28 29 30

31 32 33 34 35

36 37 38 39 40

41 42 43 44 45

46 47 48 49 50

51 52 53 54 55

56 57 58 59 60

61 62 63 64 65

66 67 68 69 70

71 72 73 74 75

...

...

...

Elidy

39

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

61 62 63 64 65 66 67 68 69 70 71 72 73 74 75

76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

91 92 93 94 95 96 97 98 99 100 101 102 103 104 105

106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

121 122 123 124 125 126 127 128 129 130 131 132 133 134 135

136 137 138 139 140 141 142 143 144 145 146 147 148 149 150

151 152 153 154 155 156 157 158 159 160 161 162 163 164 165

166 167 168 169 170 171 172 173 174 175 176 177 178 179 180

181 182 183 184 185 186 187 188 189 190 191 192 193 194 195

196 197 198 199 200 201 202 203 204 205 206 207 208 209 210

211 212 213 214 215 216 217 218 219 220 221 222 223 224 225

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

61 62 63 64 65 66 67 68 69 70 71 72 73 74 75

76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

91 92 93 94 95 96 97 98 99 100 101 102 103 104 105

106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

121 122 123 124 125 126 127 128 129 130 131 132 133 134 135

136 137 138 139 140 141 142 143 144 145 146 147 148 149 150

151 152 153 154 155 156 157 158 159 160 161 162 163 164 165

166 167 168 169 170 171 172 173 174 175 176 177 178 179 180

181 182 183 184 185 186 187 188 189 190 191 192 193 194 195

196 197 198 199 200 201 202 203 204 205 206 207 208 209 210

211 212 213 214 215 216 217 218 219 220 221 222 223 224 225

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

61 62 63 64 65 66 67 68 69 70 71 72 73 74 75

76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

91 92 93 94 95 96 97 98 99 100 101 102 103 104 105

106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

121 122 123 124 125 126 127 128 129 130 131 132 133 134 135

136 137 138 139 140 141 142 143 144 145 146 147 148 149 150

151 152 153 154 155 156 157 158 159 160 161 162 163 164 165

166 167 168 169 170 171 172 173 174 175 176 177 178 179 180

181 182 183 184 185 186 187 188 189 190 191 192 193 194 195

196 197 198 199 200 201 202 203 204 205 206 207 208 209 210

211 212 213 214 215 216 217 218 219 220 221 222 223 224 225

Rotation 90°,
Elidy-Big/Wall mode:

Rotation 180°,
Elidy-Big/Wall mode:

Rotation 270°,
Elidy-Big/Wall mode:

Elidy

40

A PSX9 power unit can operate up to 9 active tiles.
These active tiles can be assigned via the PSX9 power unit, that will assign
them a number between 1 and 9, thus determining the order of the tiles that are

connected.

For the Elidy-WALL and Elidy-BIG, addressing is factory-congured as follows.

Y ou will therefore only need to access this menu if you need to replace an active
tile.

On the other hand, if you have received Elidy-S, these are all addressed to 1
by default. You will therefore need to differentiate them to make them operate
correctly.

Access the SETUP / TILE MAPPING menu, then press ENTER.
Doing this starts the procedure for detecting active tiles connected to the PSX9

power unit.

DO NOT DISCONNECT THE POWER UNIT AT THIS POINT.

DO NOT DISCONNECT THE ACTIVE TILES.

This operation may take a few seconds. Once all the active tiles have been

detected, the corresponding number (1 to 9) is displayed directly on the tiles. At

the same time, a new window opens on the power unit.

Tile Mapping

SetupMenu

To dene the direction

of the frame:

- Female clevis facing upwards

- XLR connector facing
downwards

i

To dene the direction of the frame:

- XLR connector upwards

i

Elidy

41

Display of the numbers on tiles that are already assigned from 1 to 9:

Pressing + or - will move the cursor and highlight the corresponding tile.
For example if the cursor is placed beneath No. 3:

The cursor is positioned on the tile assigned to 1 and it is highlighted.

Elidy

42

D- V alidate by pressing ENTER, No. 5 then moves to the far right, the display is
always in the increasing order.
The cursor moves to a new tile, here it is geographically No. 2.

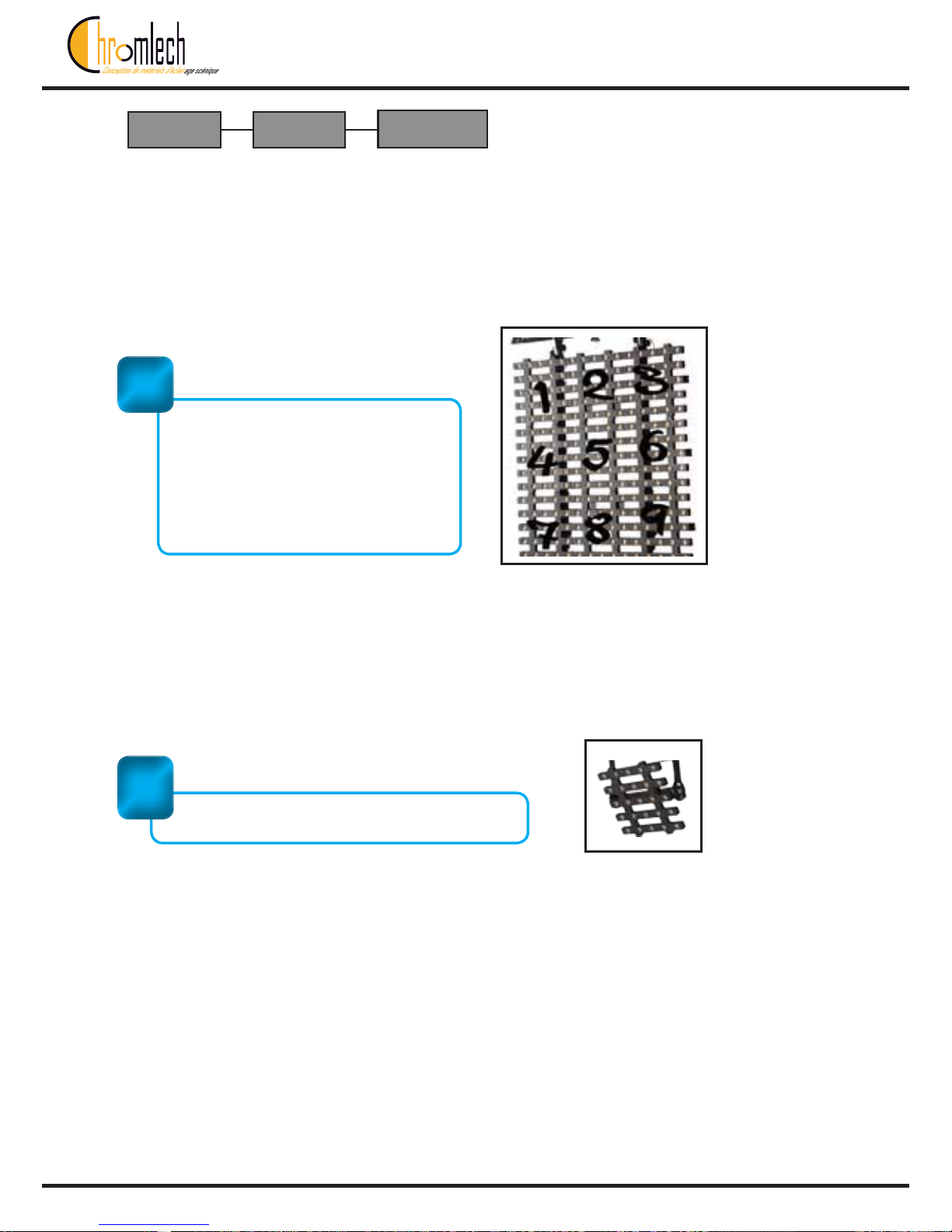

B- Press ENTER to change the
tile assignment, by default the 1st
available number is displayed. In
this example it is 2.

C- Press + up to value 5.

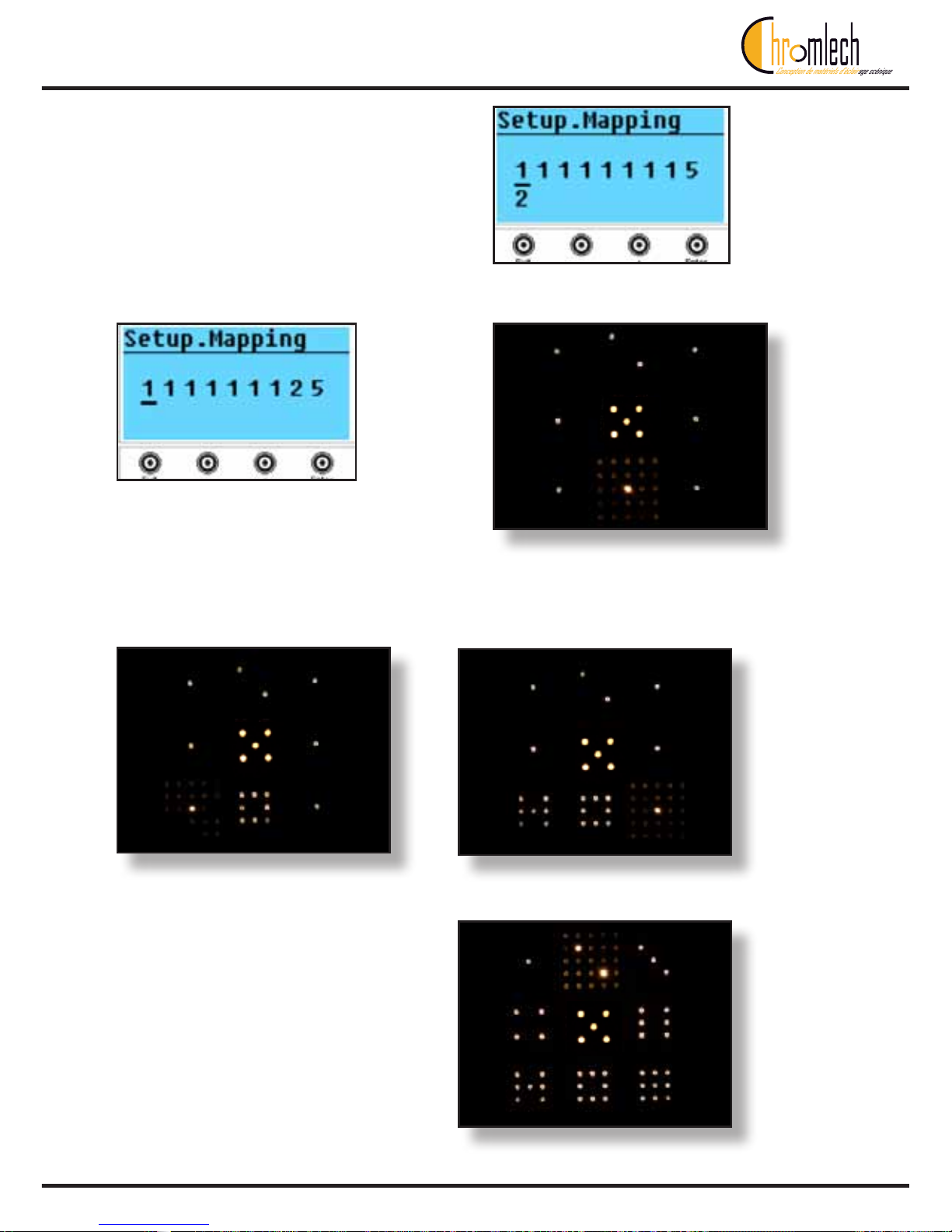

A- The screen then displays 9 x 1, which means that 9 tiles assigned to 1 have
been identied. The cursor moves to the 1

st

one, here it is geographically No. 5.

Example: Mapping of the 9 tiles that have all been pre-assigned to 1:

Elidy

43

E- Press ENTER and select No. 2 with
+ & - if necessary.
Press ENTER, the tile is assigned, the
number moves to the far right.
The cursor moves to a new tile, here it

is physically No. 8.

F- Repeat the operation from E onwards, until all the tiles are assigned

from 1 to 9.

.....

Elidy

44

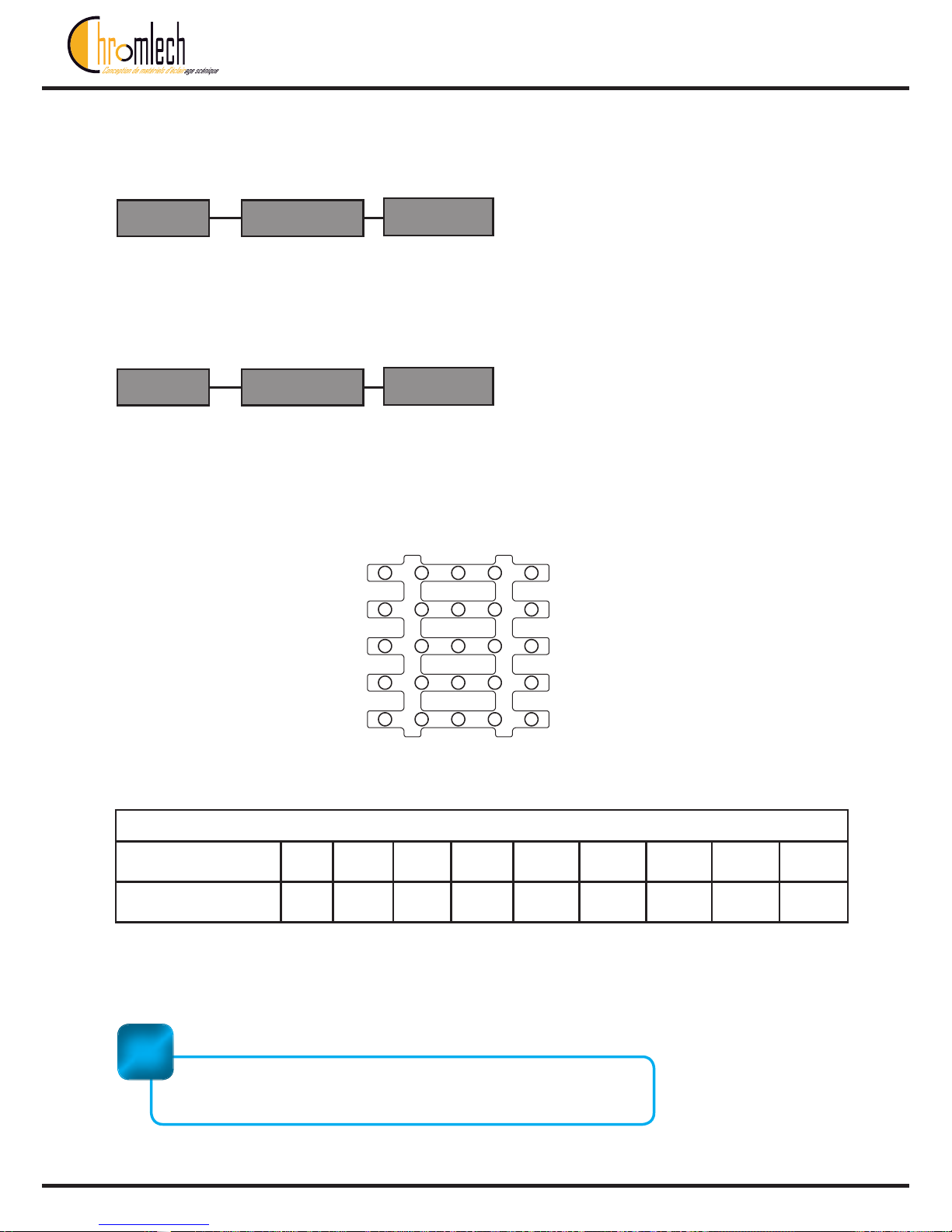

DMX address of the PSX9 power unit: N (N=287 max)

Allocation of active tiles
(Mapping menu)

1 2 3 4 5 6 7 8 9

DMX address of each
Elidy-S

N+1 N+26 N+51 N+76 N+101 N+126 N+151 N+176 N+201

This Menu allows to determine the DMX address (N) of the Pixel Engine.

In 9x Elidy-S/T Patch Mode:

An active tile has 25 LEDs which are factory-addressed as follows.

Up to 2 PSX9 power units can be patched on the same DMX universe.

Factory assignment of an active tile

11 13 14 1512

16 18 19 2017

6 8 9 107

21 23 24 2522

1 3 4 52

This menu allows to activate or disable the Pixel Engine.
In the Off position, the following menus are no longer active.

Mode

Pixel EngineMenu

DMX Address

Pixel EngineMenu

N = DMX address of the PSX9 power unit.

Pixel Engine

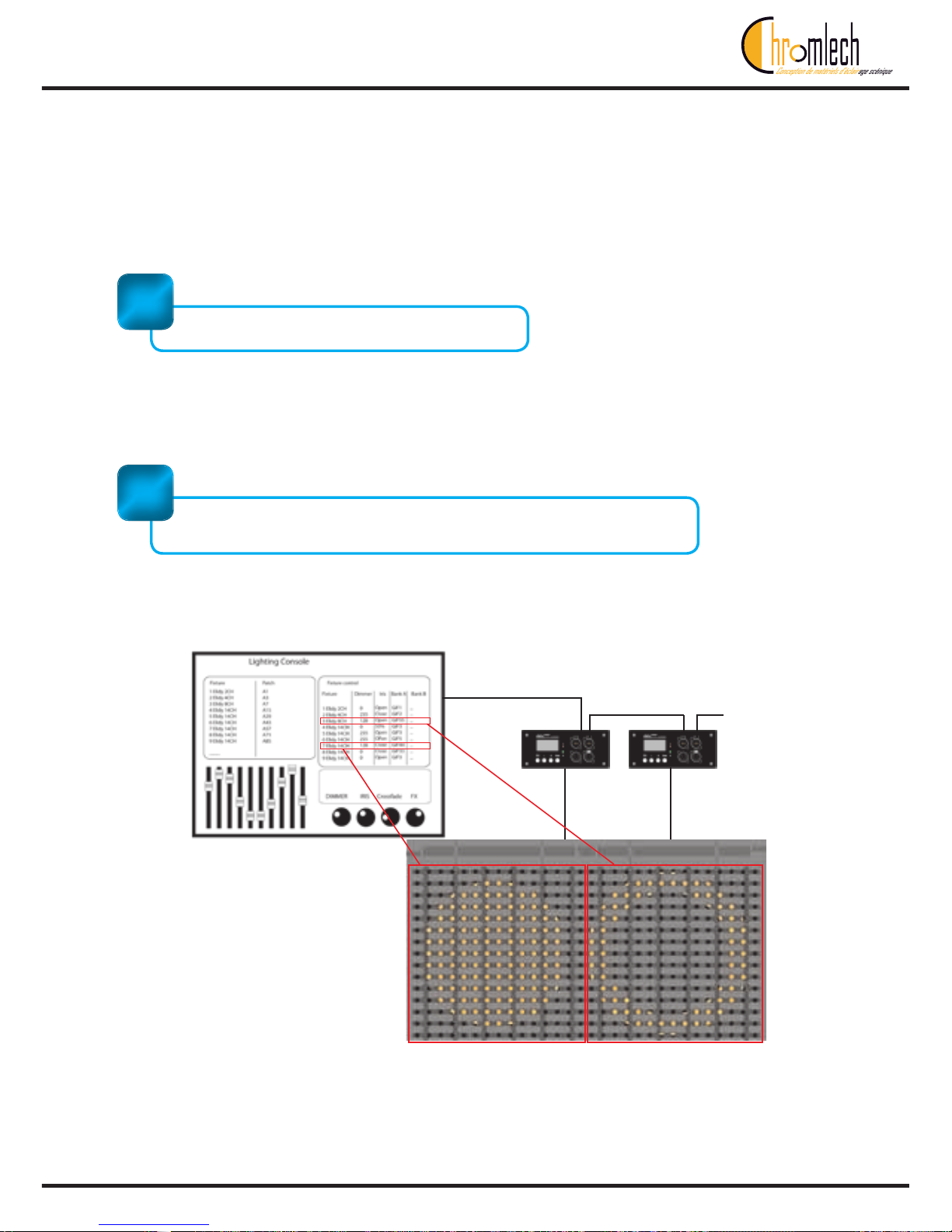

Refer to Tutorial 1

Standard addressing of an Elidy-S or Elidy-T kit

i

Elidy

45

Up to 2 PSX9 power units can be patched on the same DMX universe.

To change the allocation of the PSX9 power
unit:

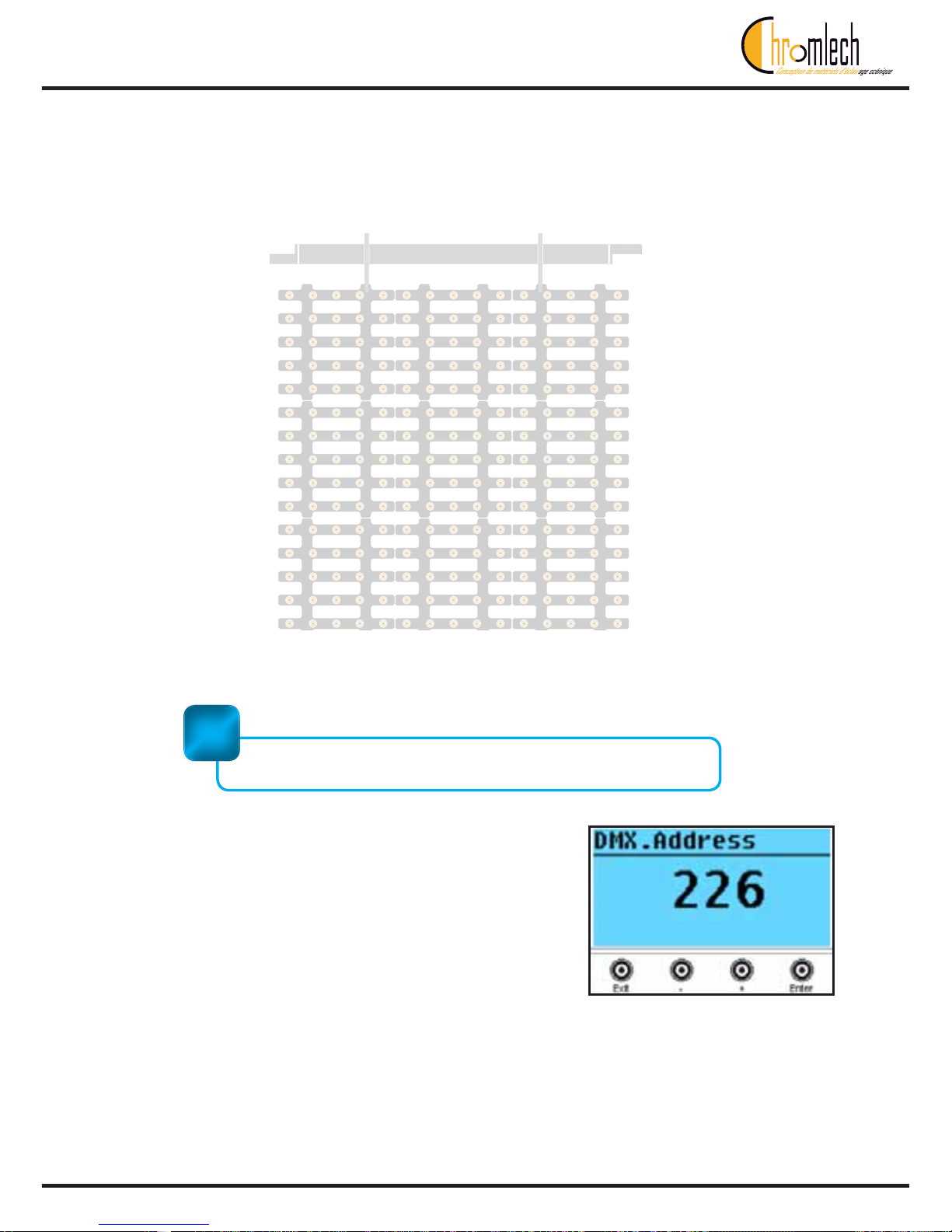

Give a value between 1 and 512 using the + and

- keys.

Conrm by pressing ENTER.
Then press EXIT twice to exit from the menu.

Tip: Pressing + and - simultaneously resets the
value to 1 or 226.

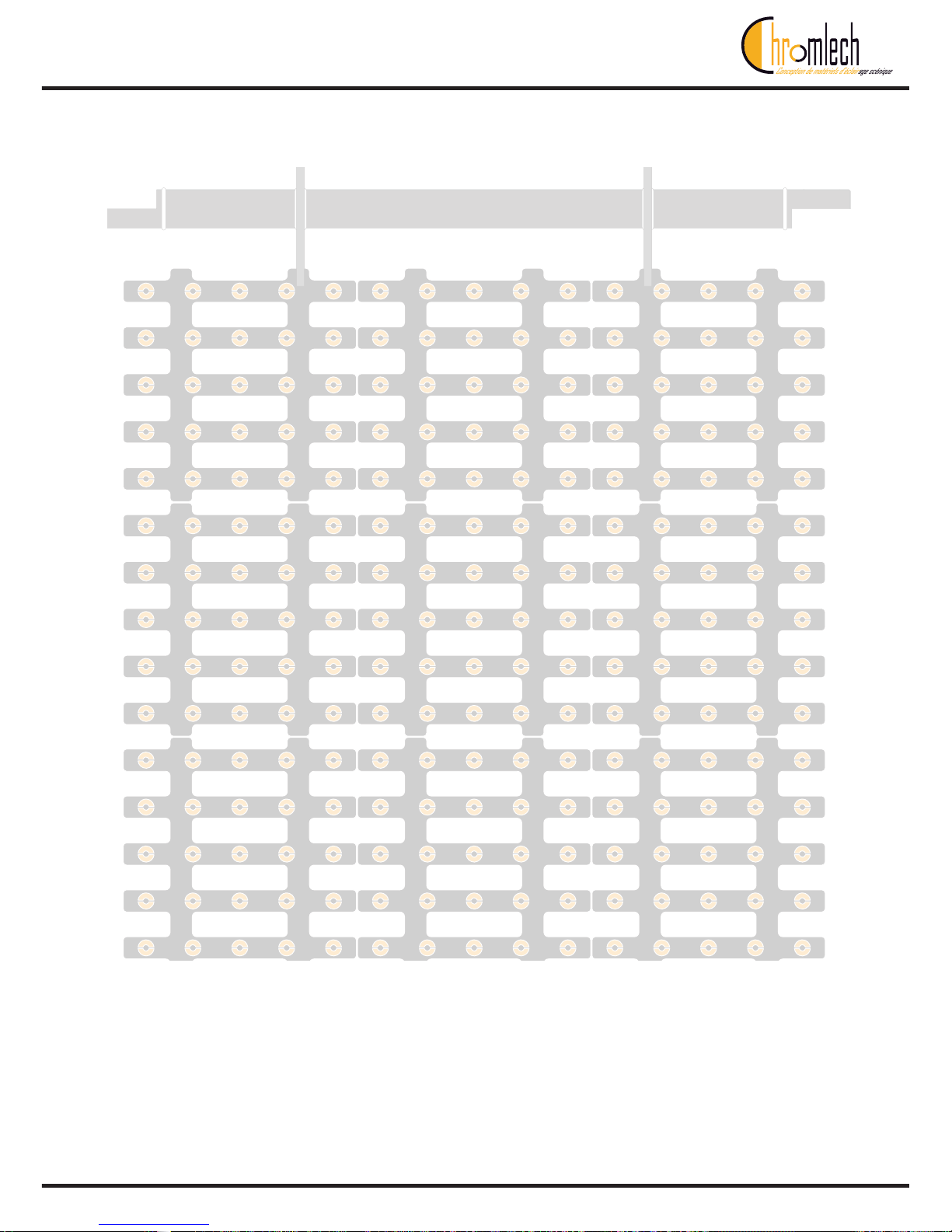

In 1x Elidy-BIG/WALL Patch Mode:

Consider the assembly of the 9 tiles as a large tile of 15 x 15 pixels. Once they

are correctly assigned in the Tile Mapping menu, the BIG/WALL is assigned
as follows:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

61 62 63 64 65 66 67 68 69 70 71 72 73 74 75

76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

91 92 93 94 95 96 97 98 99 100 101 102 103 104 105

106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

121 122 123 124 125 126 127 128 129 130 131 132 133 134 135

136 137 138 139 140 141 142 143 144 145 146 147 148 149 150

151 152 153 154 155 156 157 158 159 160 161 162 163 164 165

166 167 168 169 170 171 172 173 174 175 176 177 178 179 180

181 182 183 184 185 186 187 188 189 190 191 192 193 194 195

196 197 198 199 200 201 202 203 204 205 206 207 208 209 210

211 212 213 214 215 216 217 218 219 220 221 222 223 224 225

Assignment of a Big/Wall with standard mapping

Refer to Tutorial 2

Standard addressing of an Elidy-Big/Wall kit

i

Elidy

46

Artnet

Pixel EngineMenu

sACN

Pixel EngineMenu

This menu allows to determine the Artnet

universe number of the PSX9 power unit.

The number given is a variable between 0
and 32767 (Standard Artnet 3), the lower
line indicates the Net, Subnet and Universes
values.

This menu allows to determine the sACN

universe number of the PSX9 power unit.

The number given is a variable between 0
and 64000.

This menu allows to activate or disable the

DMX512, Artnet and sACN data reception

that will affect the Pixel Engine.
Each controller can indeed deactivate one or

several sources to prevent possible conicts

if several protocols are used simultaneously
in complex networks.

Source

Pixel EngineMenu

By default, all the sources are activated

i

Refer to Tutorial 3 Assigning Artnet universes

i

Elidy

47

Elidy

48

Link

Animation MakerMenu

The purpose of this menu is to simplify the addressing of the PSX9 power unit.

It allows to link the Animation Maker after the Pixel Engine, with the 2
controllers activated.

When Link is in Auto Link mode, the user only needs to enter one DMX
address and one single active source menu (Animation Maker / DMX Address
and Animation Maker / Source are greyed out, only the Pixel Engine / DMX
Address and Pixel Engine / Source menus are active)

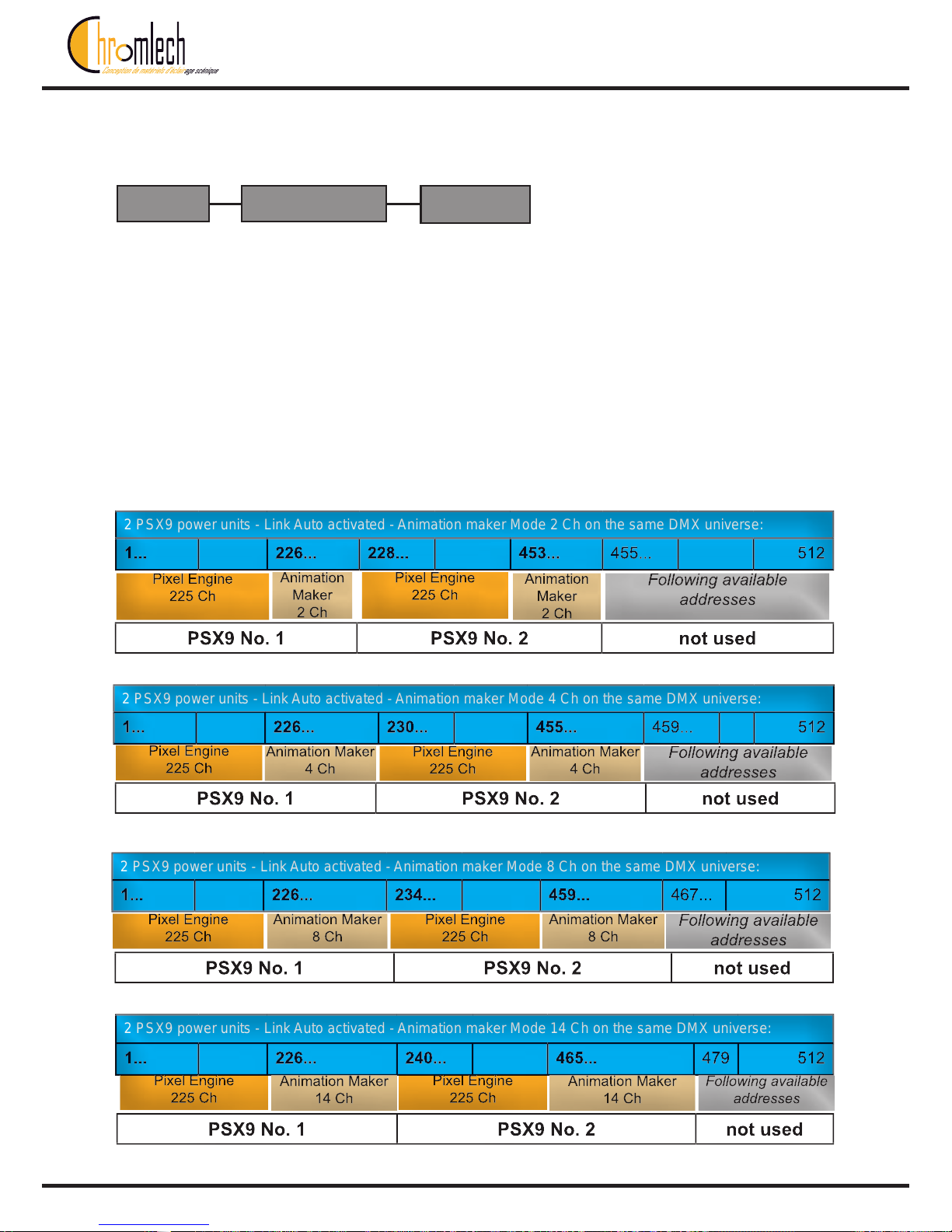

In this mode, the DMX addresses are the following:

2 PSX9 power units - Link Auto activated - Animation maker Mode 2 Ch on the same DMX universe:2 PSX9 power units - Link Auto activated - Animation maker Mode 2 Ch on the same DMX universe:

2 PSX9 power units - Link Auto activated - Animation maker Mode 4 Ch on the same DMX universe:2 PSX9 power units - Link Auto activated - Animation maker Mode 4 Ch on the same DMX universe:

2 PSX9 power units - Link Auto activated - Animation maker Mode 8 Ch on the same DMX universe:2 PSX9 power units - Link Auto activated - Animation maker Mode 8 Ch on the same DMX universe:

2 PSX9 power units - Link Auto activated - Animation maker Mode 14 Ch on the same DMX universe:2 PSX9 power units - Link Auto activated - Animation maker Mode 14 Ch on the same DMX universe:

Animation Maker

Elidy

49

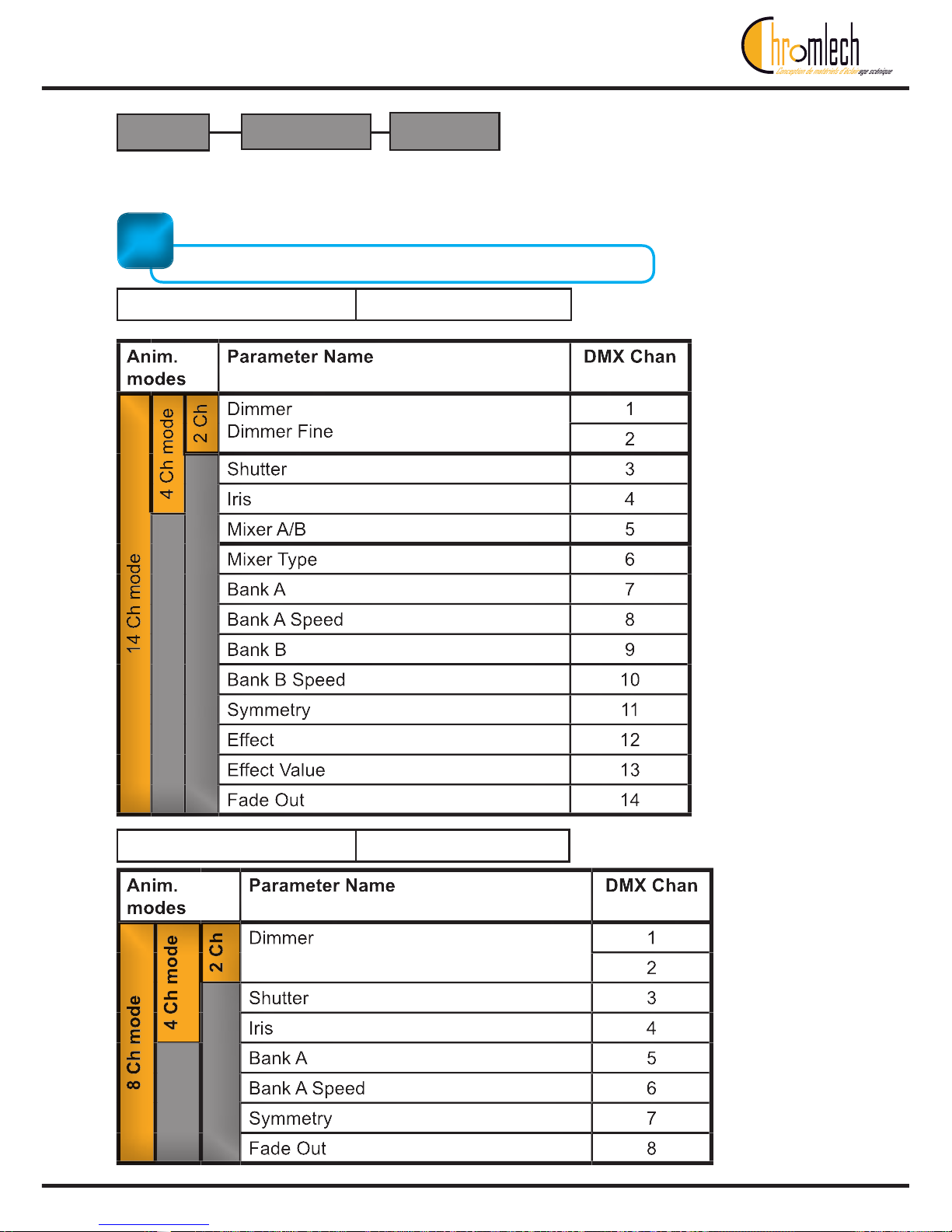

Mode

Animation MakerMenu

Patch Mode 1x Big/Wall

Patch Mode 9x Elidy-S

Several modes are available. They can be different depending on the selected

Patch Mode.

Detail of the parameters, refer to Tutorial 6

i

Elidy

50

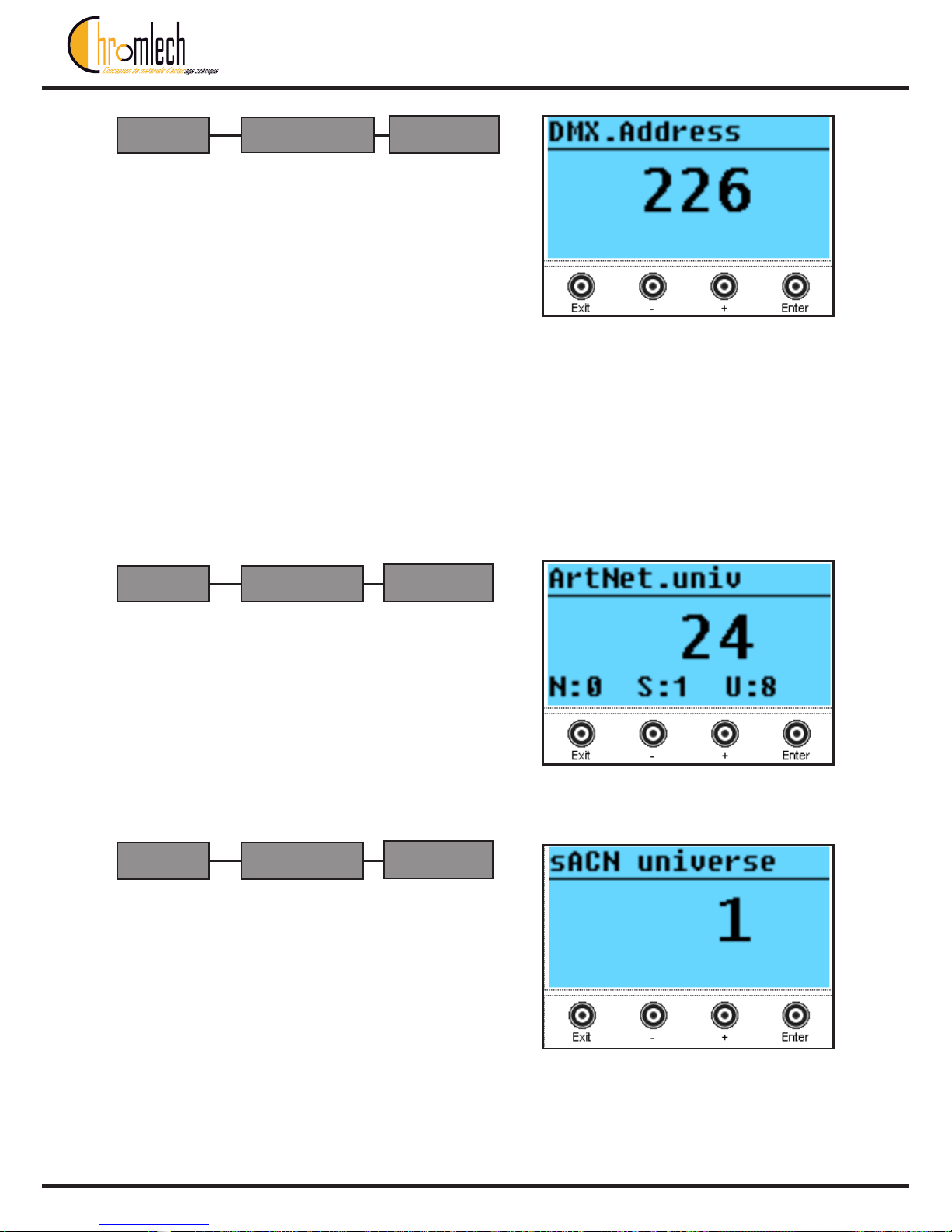

DMX address

Animation MakerMenu

To change the assignment of the
PSX9 power unit:

CONTROL / ENTER / ADDR / ENTER.
Give a value between 1 and 287 using the + and - keys.
Conrm by pressing ENTER.
Then press EXIT twice to exit from the menu.

Tip: Pressing + and - simultaneously resets the value to 1 or 226.

This Menu allows to determine the DMX

(N) address of the Pixel Engine.

Artnet

Pixel EngineMenu

sACN

Pixel EngineMenu

This menu allows to determine the Artnet

universe number of the PSX9 power unit.

The number given is a variable between
0 and 32767 (Standard Artnet 3), the lower
line indicates the Net, Subnet and Universes
values.

See Annex 3: assigning Artnet universes

This menu allows to determine the sACN

universe number of the PSX9 power unit.

The number given is a variable between 0
and 64000.

Elidy

51

This menu allows to activate or disable the

DMX512, Artnet and sACN data reception

that will affect the Animation Maker.

Each controller can indeed deactivate one or several sources to prevent possible

conicts if several protocols are used simultaneously in complex networks.

Source

Animation MakerMenu

By default, all the sources are activated

i

Elidy

52

The PSX9 power unit can be controlled via different protocols operating in a

computer network type architecture. It is thus necessary to assign a unique IP
address to the power unit, and a subnet mask.

By default, the PSX9 power unit is parametrised with an automatic IP address,

the user can only choose between 2 types of addresses:

2.x.x.x and 10.x.x.x / subnet mask 255.0.0.0 according to the Artnet standard
This automatic address is generated from a number specic to each PSX9

power unit, which makes it unique.

As for any computer network item, it is possible to assign an
IP address and a subnet mask to the power unit.

Tip:
The following type of addresses are typically used for the

Artnet: 2.X.X.X or 10.X.X.X subnet mask 255.0.0.0.

The sACN accepts any type of IP addresses.

In an advanced MULTICAST type network conguration,
it may be necessary for the receiver (here it is the PSX9

power unit) to send back the routing information, named
IGMP report to the transmitter (router or switch) every 10
seconds.

IP Address

NetworkMenu

IP Address

NetworkMenu

Auto

Multicast

NetworkMenu

IGMP report

IP Address

NetworkMenu

Manual

Network Menu

Elidy

53

Test Full

TestMenu

Test Chase

TestMenu

This function lets you directly control (without an input signal) the brightness of
your ELIDY arrays.

This way you can easily check if your PSX9 power unit is correctly connected

to your ELIDY arrays.
Use the + and - keys to adjust the output level from 0 to 100%.

Press ENTER to leave the menu.

This function shall allow to automatically light
(Chase) each Pixel 1 by 1 (without an input
signal).
This way you can easily check if your

PSX9 power unit is correctly connected to

your ELIDY arrays, if the tiles are correctly
assigned in the Mapping menu, and in which
patch mode the power unit is set.

Press ENTER to leave the menu.

Test Menu

Elidy

54

This menu informs the user on the types of sources currently controlling the
Pixel Engine and the Animation Maker.

This setting menu allows to set the LCD screen of the PSX9 power unit. To do

so, there are 3 available menus:

- Auto OFF: The screen is always either backlit (Always On), or turns off after a
few seconds (Auto Off), and can only be turned back on by pushing one of the
buttons.

- Backlight: Set the brightness of the backlighting from 0 to 100%.

- Contrast: Set the contrast value from 0 to 100%.

The PSX9 power unit fans are factory-congured in Normal mode, according

to the conditions of use (Heat and Noise), it is possible to lower the ventilation:
Low, or increase it: High

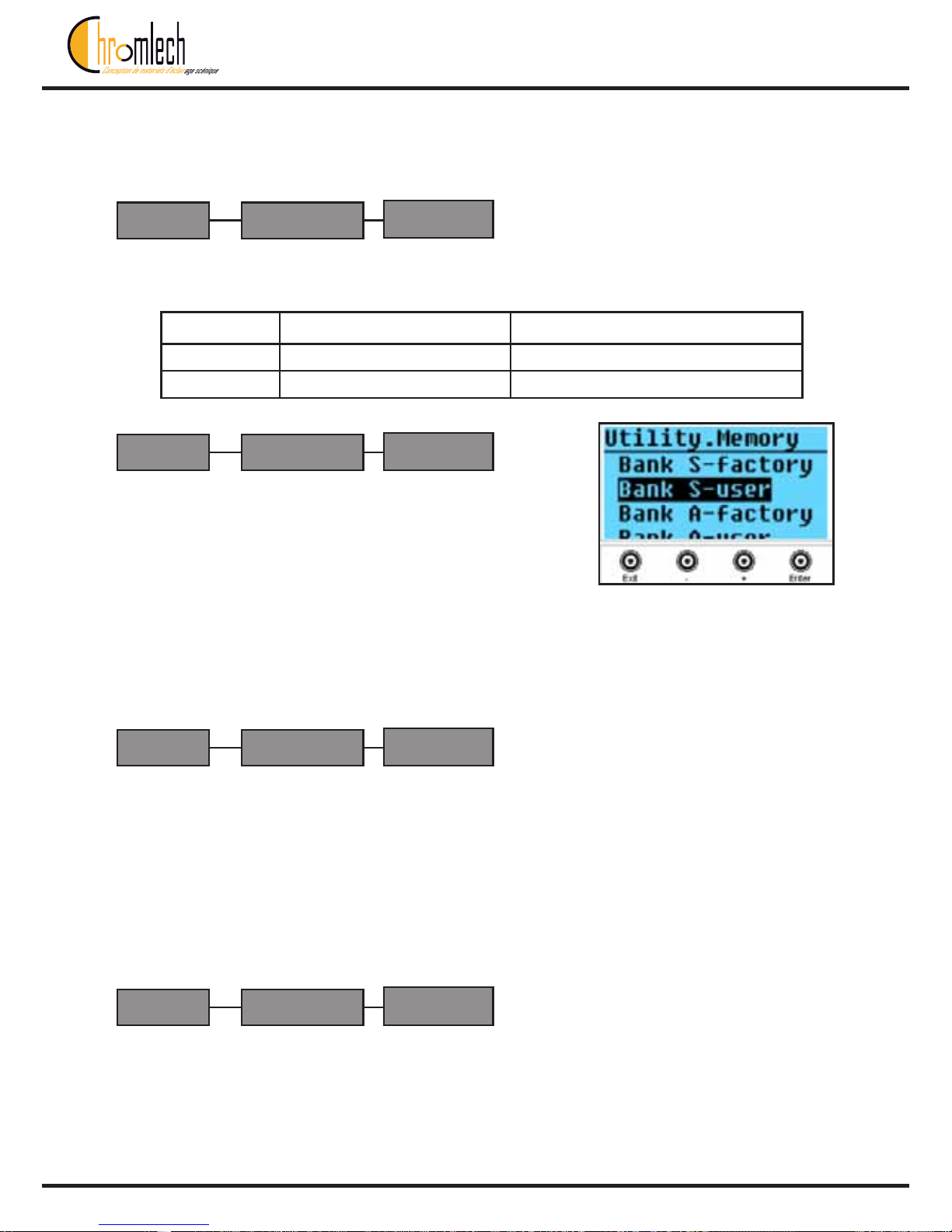

This menu informs on the memory capacity of the

PSX9 power unit occupied by the GIF banks of the

Animation Maker.
Indeed, the GIF take up memory space and the
user can add a maximum of 20 personal GIF in

each bank (A and B), within the limit of the dened memory size.

Bank S: Bank for Elidy-S/T
Banks A & B: Banks for Elidy-Big/Wall

Data In

UtilityMenu

Memory

UtilityMenu

Display

UtilityMenu

Fan level

UtilityMenu

Utility menu

Pixel Engine (Pix) Animation Maker (Anim)

Source 1 (S1) None / DMX / sACN / Artnet None / DMX / sACN / Artnet
Source 2 (S2) None / DMX / sACN / Artnet None / DMX / sACN / Artnet

Elidy

55

Voltages

This menu indicates the power unit output voltage that should be around 48V in

operation without any faults.

Temperature

Indicates the internal temperature of the power unit.

This menu allows to reset the power unit to its initial status (for more details
refer to the table p. 34-35).

Measures

UtilityMenu

Default

UtilityMenu

This reset does not affect the user GIF

i

Elidy

56

Dot Calibration

ExpertMenu

Tile Check

ExpertMenu

Expert Menu

This menu allows to recalibrate one of the leds of a tile, by applying an offset to

correct a luminous ux deviation, if necessary.

This menu displays the rmware versions of the detected tiles, it is reserved for

maintenance purposes.

This advanced settings menu is protected with a password

and reserved for users that have been trained for maintenance

operations

Contact your distributor to have access to this menu

!

Elidy

57

Elidy

58

Remotely installed power unit

menu controls

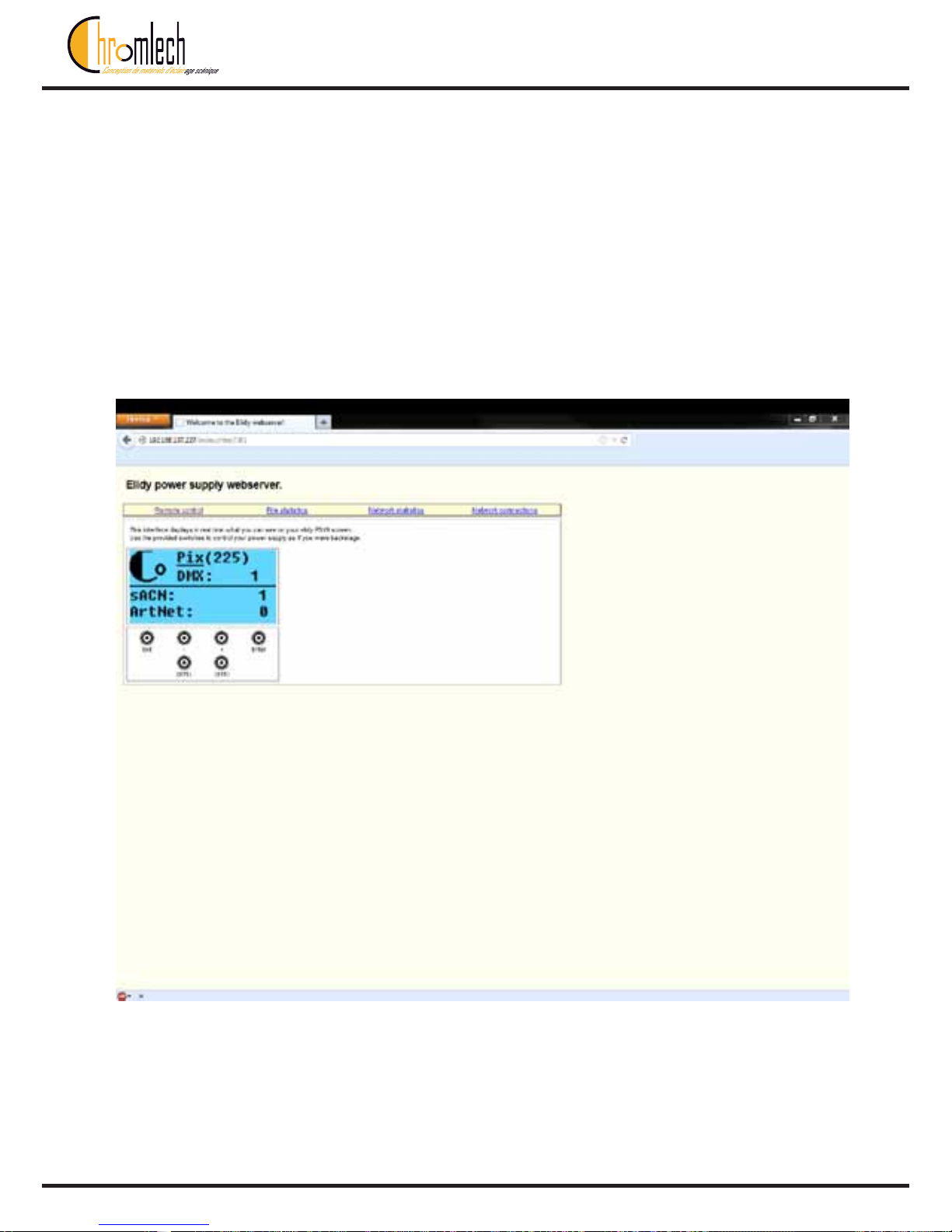

The PSX9 power unit has an integral web server. Simply enter the IP address

of the power unit in the Internet browser.

Use mouse to clic on virtual PSX9 buttons.

Elidy

59

Elidy

60

Technical specications

REF KITS Elidy-S Elidy-T Elidy-Wall Elidy-Big

PX100 Active tile 1 1 9 9

PX201 Frame - - 1 1

PX205 S-Yoke 1 - - -

PX208 T-mount - 1 - -

PX206 Big-Yoke - - - 1

PX104 PSX9 - - - 1

Make-up of the Elidy product range

Elidy

61

Parts numbers and names

Part numbers and names of products, accessories and spare parts.

Part number Family Name (French) Name (English)

PX100 Spare Part Dalle Active Active tile
PX101 Product Elidy-S Elidy-S
PX102 Product Elidy-BIG Elidy-BIG
PX103 Product Elidy-WALL Elidy-WALL
PX104 Product PSX9 PSX9
PX105 Accessory Dummy Dummy
PX106 Accessory Kit de câblage de

Elidy-S

Elidy-S

cable kit
PX107 Product Elidy-T Elidy-T
PX201 Spare Part Châssis Frame
PX202 Accessory Kit de mise en

Rack

Rack Kit

PX204 Accessory Volets-BIG BIG-Barndoors
PX205 Spare Part Lyre-S S-Yoke
PX206 Spare Part Lyre-BIG BIG-Yoke
PX207 Accessory Bumper Bumper
PX208 Accessory T-mount T-mount
PX301 Accessory M-Cable M-Cable
PX302 Accessory S-Cable S-Cable
PX305 Accessory Spider Box Spider Box
PX401 Accessory Flight case pour

Elidy-BIG & WALL

Flight case for

Elidy-BIG & WALL

PX402 Accessory Flight case pour

Elidy-S

Flight case for

Elidy-S

PX403 Accessory Rack 14U pour

PSX9

Rack 14U for

PSX9

PX404 Accessory Flight case pour

PSX9 & Câble

Flight case for

PSX9 & Cable

PX405 Accessory Flight case pour

Bumper

Flight case for

Bumper

Elidy

62

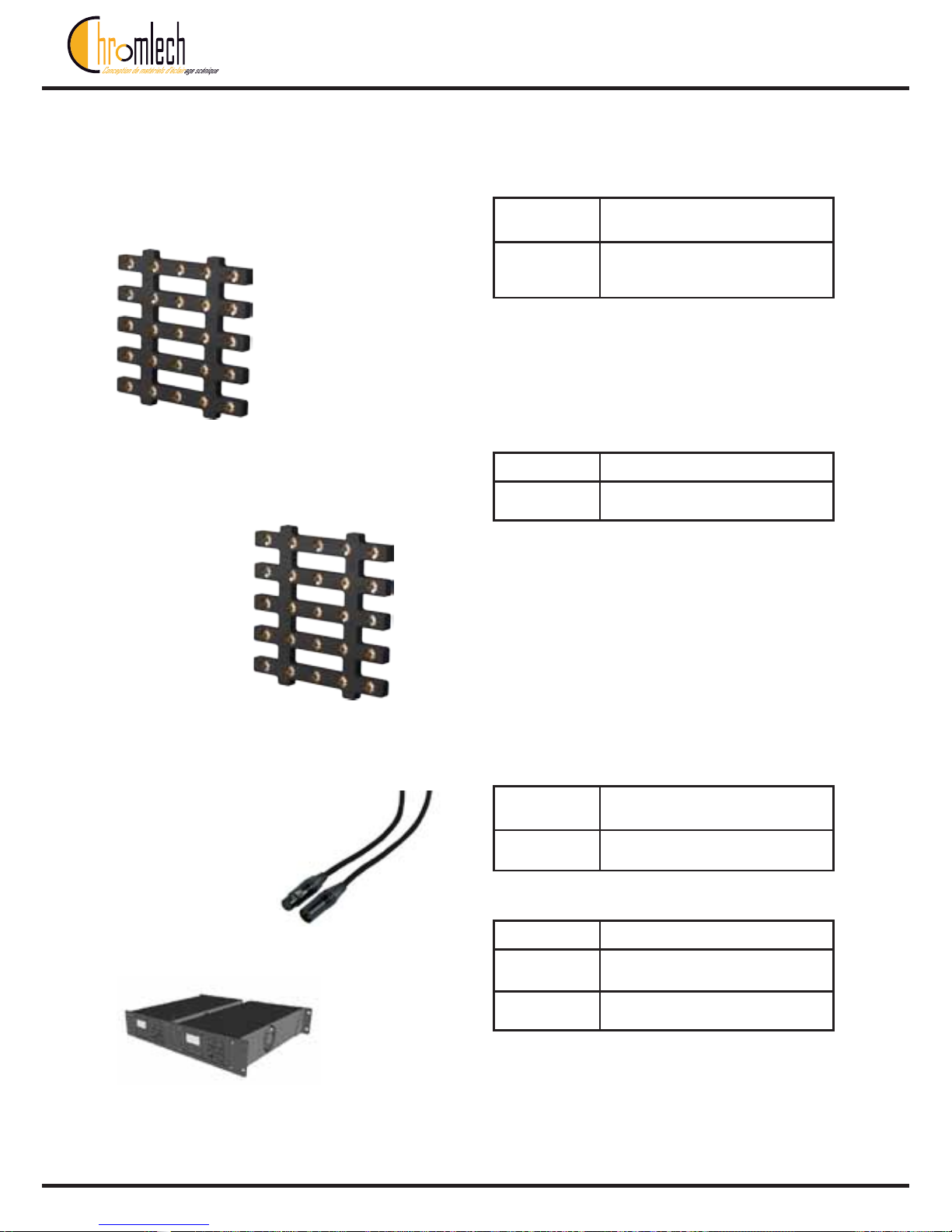

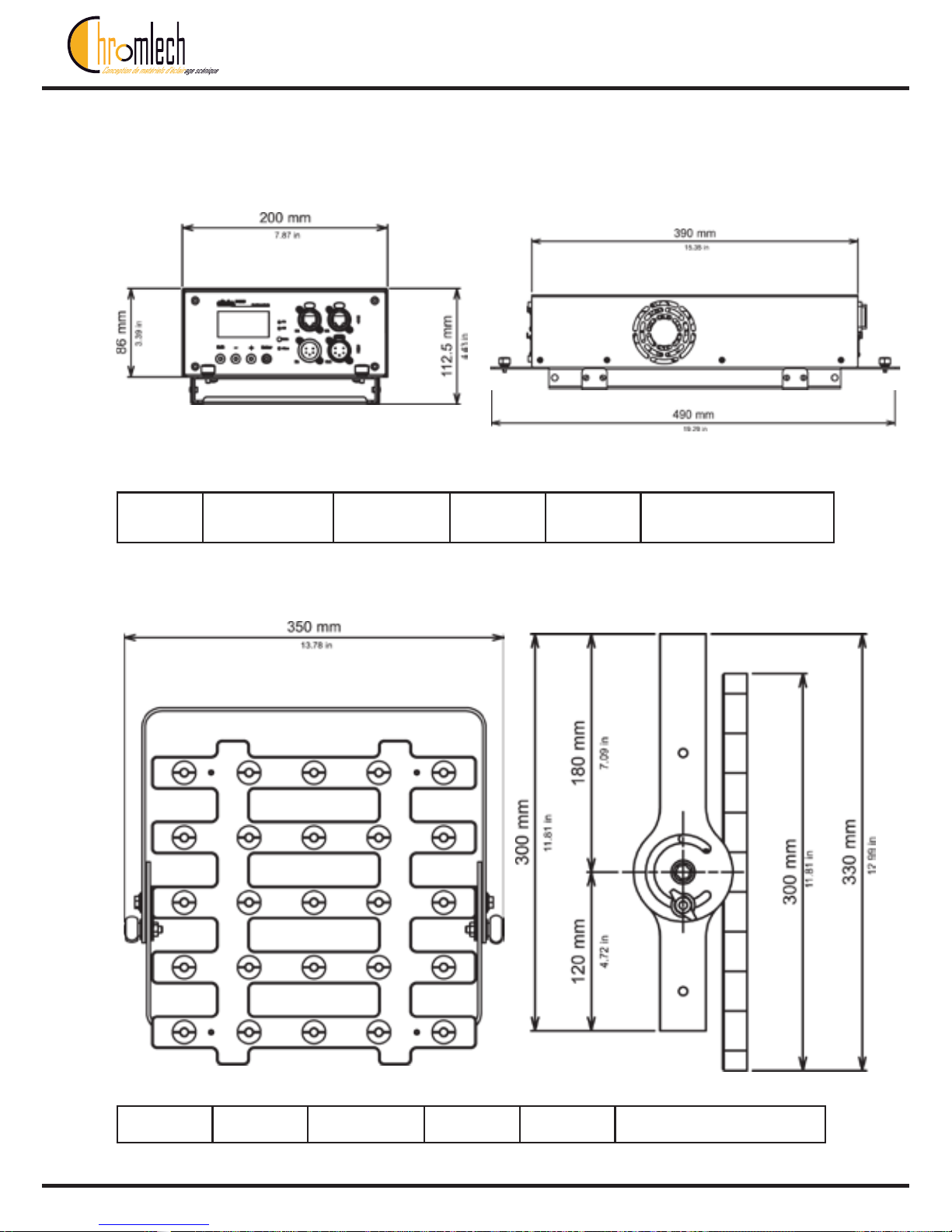

Products dimensions and weights

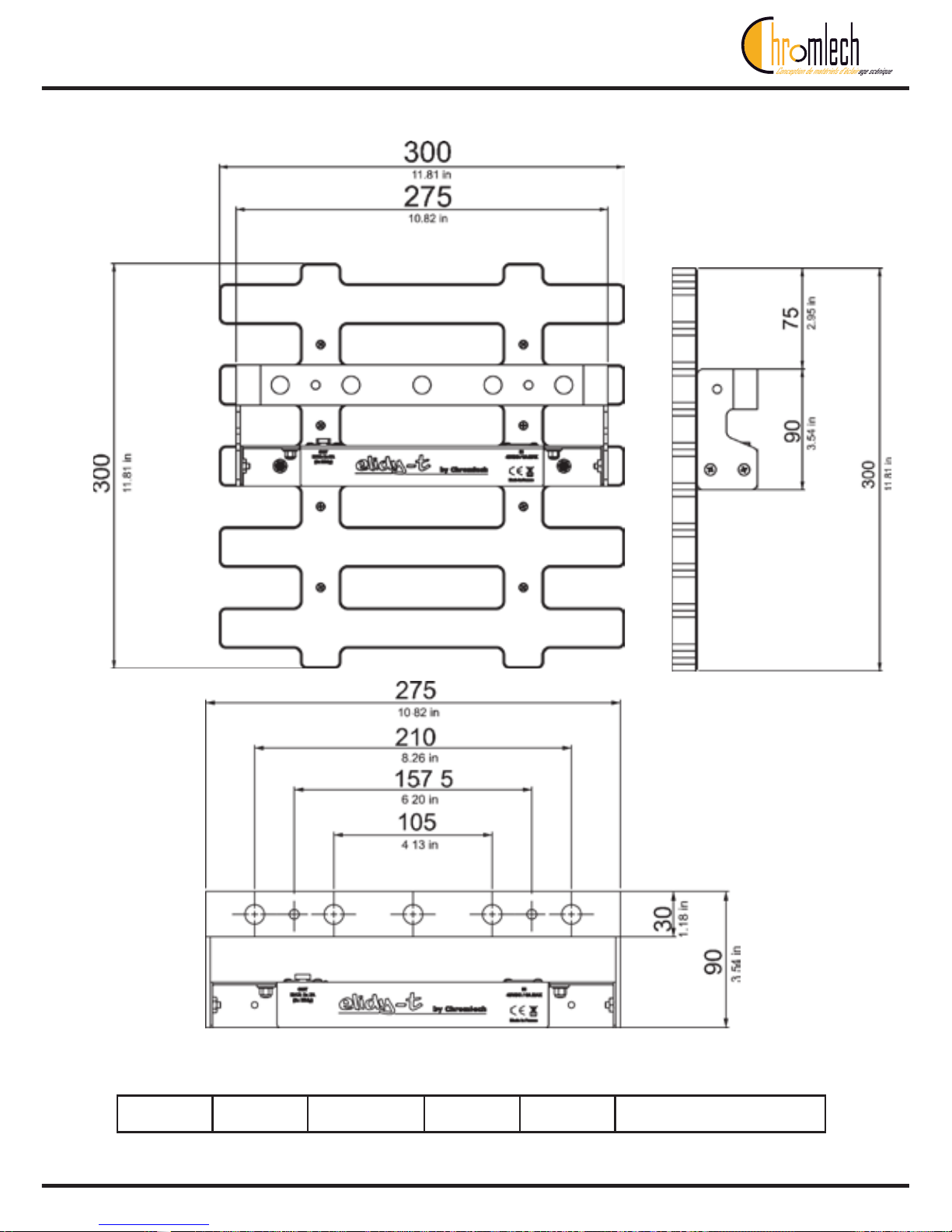

PX101Elidy-S

Elidy-PSX9_Power unit

PX104

Net weight

3.3 Kg

Gross weight incl.
packaging

4.25 Kg

Power supply Only on PSX9 - 48VDC/2A

Net weight

Power unit 4.45 Kg

Support 0.45 Kg

Gross weight incl.
packaging

5.15 Kg

Power supply Input: 90-240V / 12-5.2A / 50-60Hz

Output: 48V / 16A / 800W

Elidy

63

PX107Elidy-T

Net weight

2.35 Kg

Gross weight incl.
packaging

3.3 Kg

Power supply Only on PSX9 - 48VDC/2A

Elidy

64

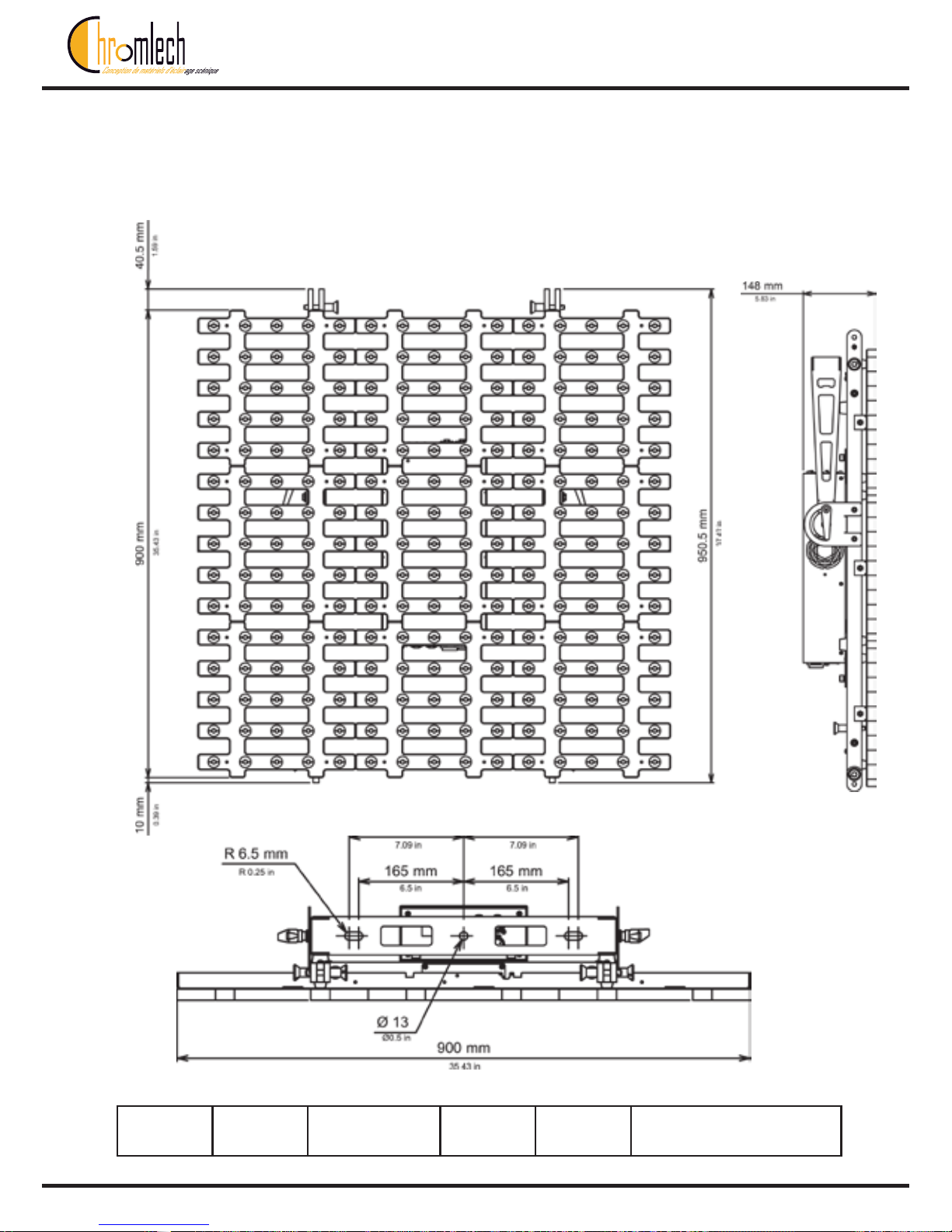

Elidy-BIG

PX102

Net weight

26.1 Kg

Elidy gross weight
PSX9 gross weight
(separate packages)

24.8 Kg

5.15 Kg

Power supply Only on PSX9 - 48VDC/16A

Elidy

65

Net weight

21.2 Kg

Gross weight inc.
packaging

24.8 Kg

Power supply Only on PSX9 - 48VDC/16A

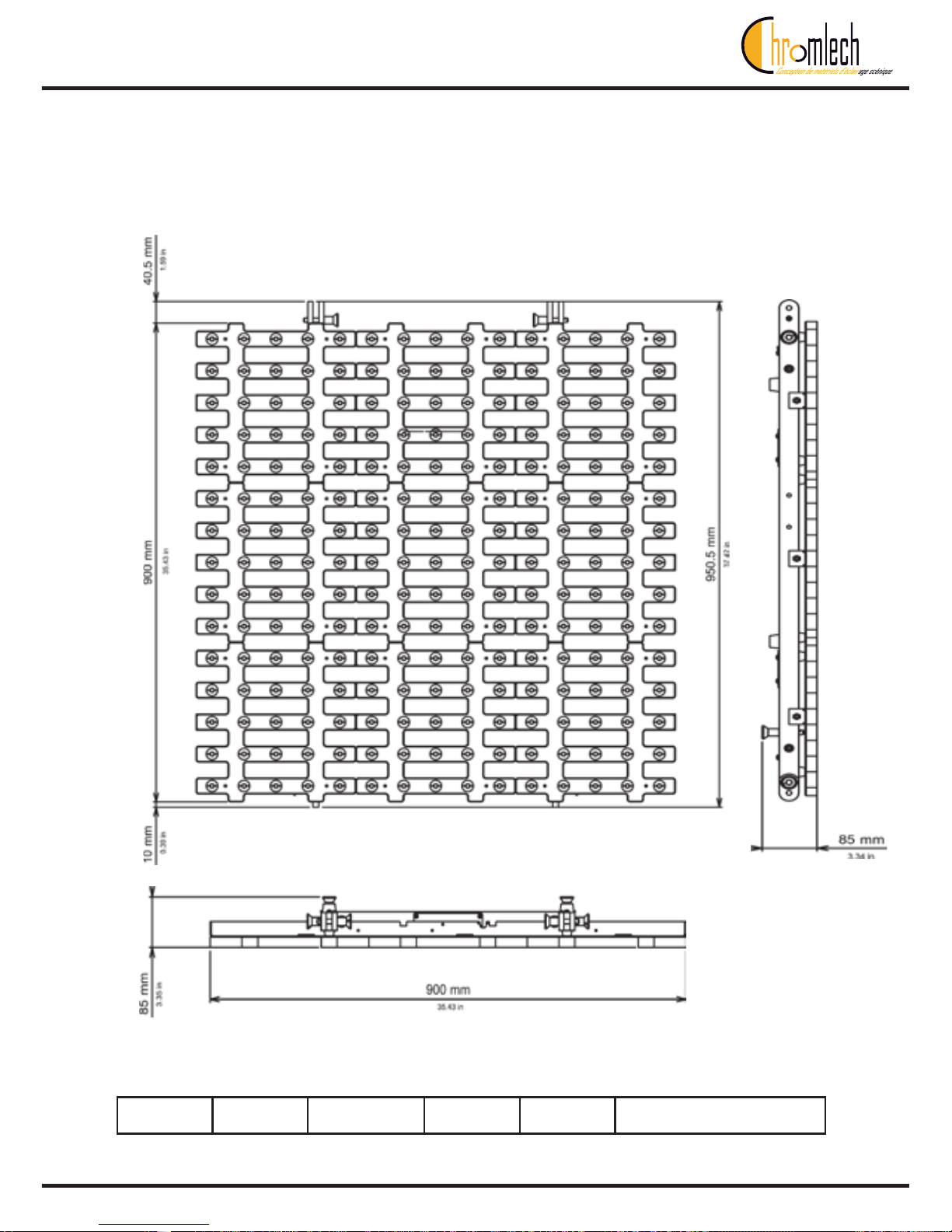

Elidy-WALL

PX103

Elidy

66

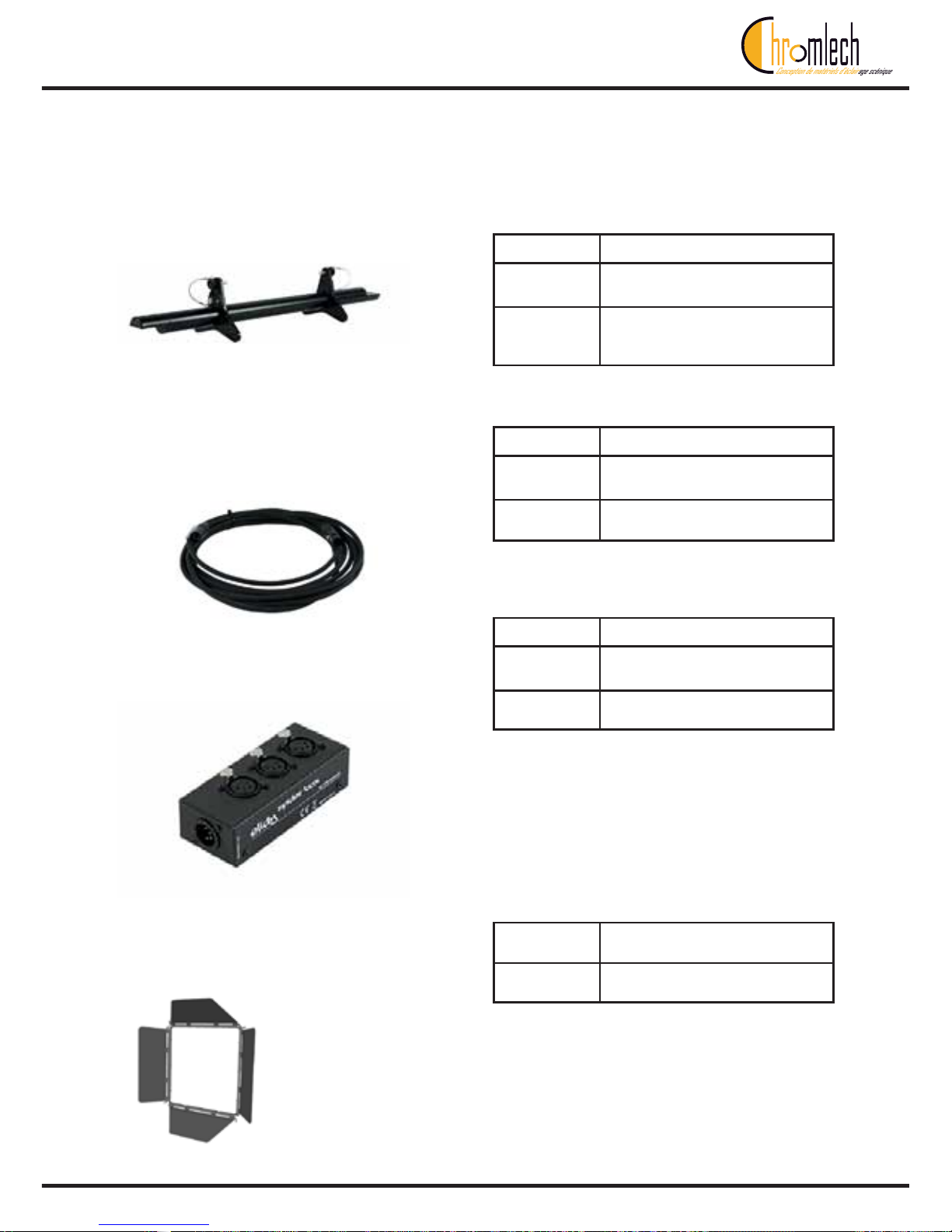

Accessories

Dummy

Rack kit

PX105

PX106 /2 /6 /12

PX202

Accessory for PX101 - PX102 - PX103

Description Tile without electronics to increase

the surface area articially or to act

as cover support

Accessory for PX101

Description Minimum kit to supply 9 Elidy-S with

one PSX9 power unit

Net weight

0.4 Kg

Accessory for PX104

Description Allows 2 PSX9 2Us to be racked

Elidy-S cable kit

PX100

Net weight

1.6 Kg

Description Component tile of all products

Active tile

Elidy

67

PX204
BIG-Barndoor

Accessory for PX102

Description Barndoors for Elidy-BIG

PX305

PX207

PX302

Net weight

5.5 Kg

Accessory for PX103

Description Column rigging system for 11 Elidy-

Wall max., xed to the frame by

50mm diameter collars.

Net weight

0.5 Kg / m

Accessory for PX101 - PX102 - PX103

Description Hybrid 48V power and data cable

(available in 2, 6 and 12 m lengths)

Net weight

0.1 Kg

Accessory for PX103

Description "Splitter" x3 for Elidy-S

Bumper

S-Cable

Spider Box

Elidy

68

Flight cases

PX401

PX402

PX403

PX404

PX405

Accessory for PX103

Accessory for PX101

Accessory for PX104

Accessory for PX104

Accessory for PX103

Flight case for 6 Elidy­WALL or 3 Elidy-BIG

Flight case for 9 Elidy-S, 1PSX9
and Cables

Rack 14U for 12 PSX9

Flight case for 8 PSX9 and
Cables

Flight case for 9 bumpers

Elidy

69

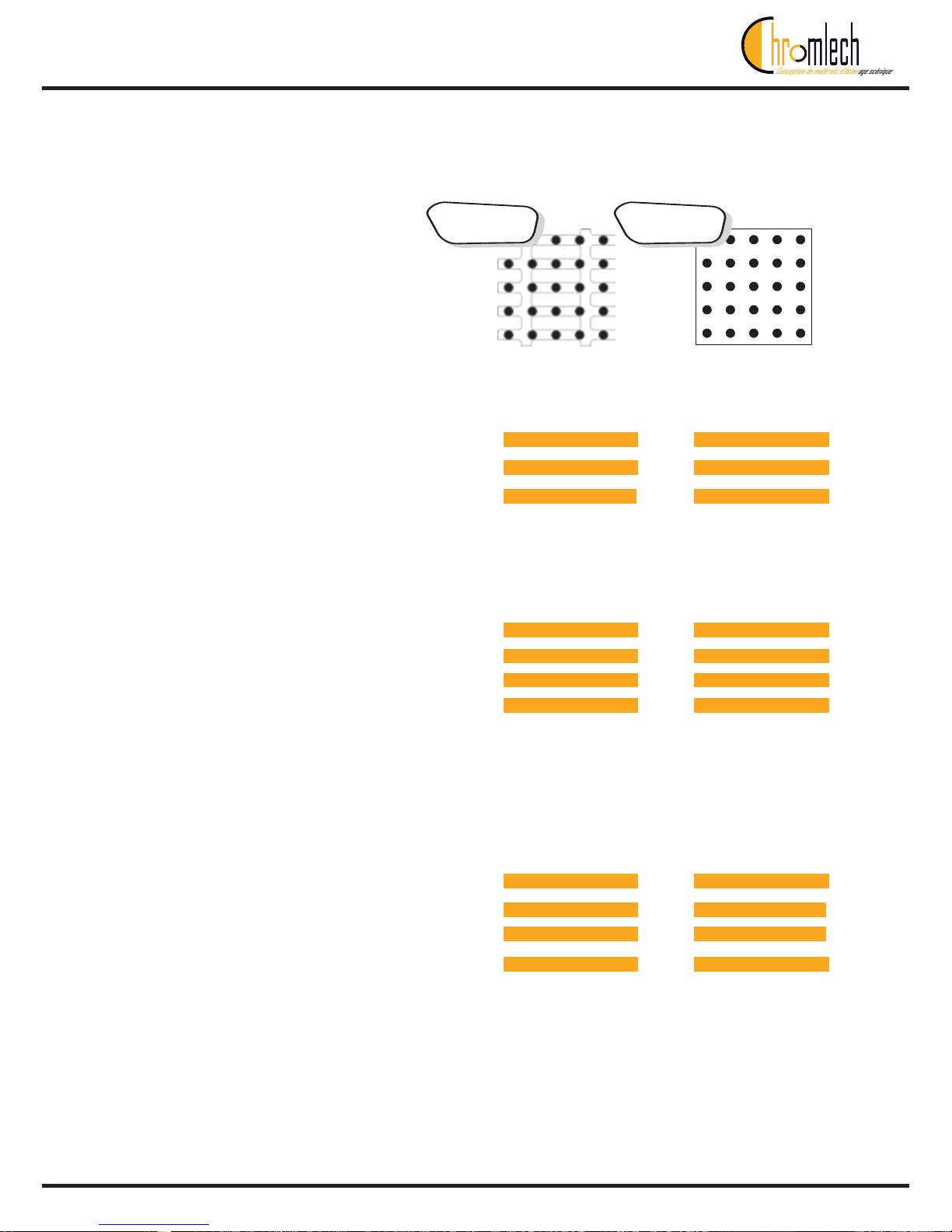

Covers

Magnetic covers for Elidy-S/T

Hard covers for Elidy-S/T

Hard covers for Elidy-BIG

Black

Black

Black

White

White

White

Printed, customised colour or
texture on request

Printed, customised colour or
texture on request

Printed, customised colour or
texture on request

Mirror

Mirror

PX501/OF/B

PX502/OF/B

PX503/OF/B

PX501/FF/B

PX502/FF/B

PX503/FF/B

PX501/OF/W

PX502/OF/W

PX503/OF/W

PX501/FF/W

PX502/FF/W

PX503/FF/W

PX501/OF/P

PX502/OF/M

PX503/OF/M

PX502/OF/P

PX503/OF/P

PX501/OF/P

PX502/FF/M

PX503/FF/M

PX502/FF/P

PX503/FF/P

Elidy-S/T size:

Elidy Big/Wall size:

Full Frame

Open Frame

Elidy

70

Spare parts

PX201

PX205

PX208

PX206

Net weight

6.35 Kg

Description Component of PX102 and PX103

Net weight

1.7 Kg

Description Component of PX101

Net weight

0.75 Kg

Description Component of PX107

Net weight

2.4 Kg

Description Component of PX102

Frame

S-Yoke

T-mount

BIG-Yoke

Elidy

71

Elidy

72

TUTORIAL

TUTORIALS

Elidy

73

TUTORIAL

Elidy-S / Elidy-T No. PSX9 DMX Universe Address

1 PSX9 1 1 1
2 26
3 51
4 76
5 101
6 126
7 151

8 176
9 201

10 PSX9 2 226
11 251
12 276
13 301
14 326
15 351
16 376
17 401

18 426
19 PSX9 3 2 1

20 26
21 51
22 76
23 101
24 126
25 151
26 176
27 201

28 PSX9 4 226
29 251

30 276
31 301
32 326
33 351
34 376
35 401
36 426
37 PSX9 5

...

3

...

1

... 26

...

TUTORIAL 1: Addressing the Pixel Engines
with an Elidy-S/T kit

Elidy

74

TUTORIAL

Elidy-Big / Wall PSX9 DMX Universe Address

1 PSX9 1 1 1
2 PSX9 2 1 226
3 PSX9 3 2 1
4 PSX9 4 2 226
5 PSX9 5

...

3

...

1

... 226

TUTORIAL 2: Addressing the Pixel Engine with
an Elidy-Big/Wall kit

Elidy

75

TUTORIAL

Universe No. Net.Subnet.ID (Artnet 3)

0 0.0.0
1 0.0.1
2 0.0.2
3 0.0.3
4 0.0,4
5 0.0.5
6 0.0.6
7 0.0.7

8 0.0.8

9 0.0.9

10 0.0.10
11 0.0.11
12 0.0.12
13 0.0.13
14 0.0.14
15 0.0.15
16 0.1.0
17 0.1.1

... ...

64000 127.15.15

TUTORIAL 3: Assigning the Artnet universes

Elidy

76

TUTORIAL

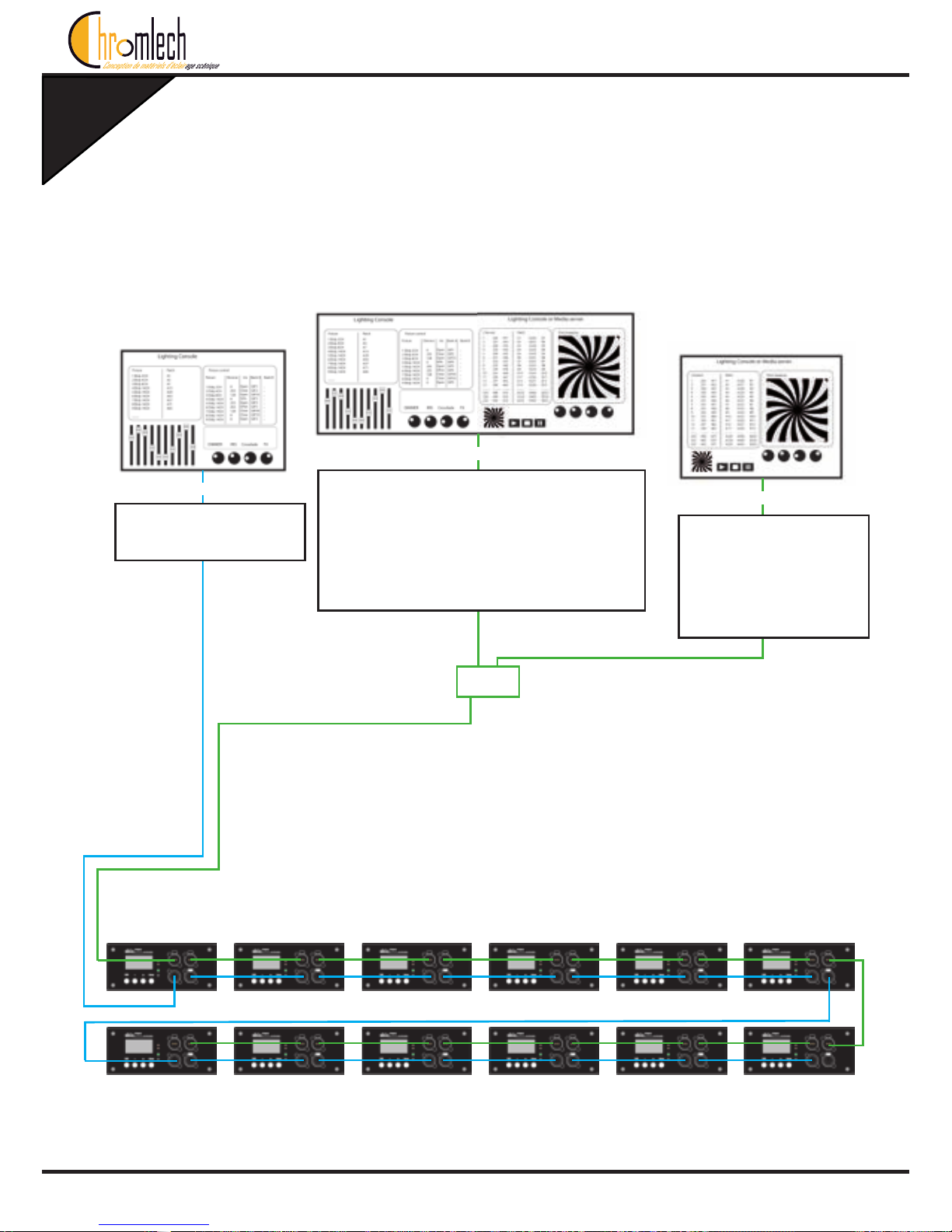

TUTORIAL 4: Case study of 12 Elidy-Wall
controlled by 3 sources

- Main lighting console

- Media server

- Backup lighting console

DMX OUT

ETHERNET OUT

ETHERNET OUT

Ethernet

Switch

3- Media server:
Universe sACN 1: 225 x 2 CH
Universe sACN 2: 225 x 2 CH
Universe sACN 3: 225 x 2 CH
Universe sACN 4: 225 x 2 CH
Universe sACN 5: 225 x 2 CH
Universe sACN 6: 225 x 2 CH

1- Media server:
Universe Artnet 1: 12 x 14CH
Universe Artnet 2: 225 x 2 CH
Universe Artnet 3: 225 x 2 CH
Universe Artnet 4: 225 x 2 CH
Universe Artnet 5: 225 x 2 CH
Universe Artnet 6: 225 x 2 CH
Universe Artnet 7: 225 x 2 CH

2- Backup DMX consoles:

Universe DMX 1

12 x 14CH

Pix Engine Addr 240

sACN 1 / Artnet 2

Anim mkr Addr 465
Artnet 1

Pix Engine Addr 240

sACN 4 / Artnet 5

Anim mkr Addr 465
Artnet 1

Pix Engine Addr 240

sACN 2 / Artnet 3

Anim mkr Addr 465
Artnet 1

Pix Engine Addr 240

sACN 5 / Artnet 6

Anim mkr Addr 465
Artnet 1

Pix Engine Addr 240

sACN 3 / Artnet 4

Anim mkr Addr 465
Artnet 1

Pix Engine Addr 240

sACN 6 / Artnet 7

Anim mkr Addr 465
Artnet 1

Pix Engine Addr 001

sACN 1 / Artnet 2

Anim mkr Addr 226
Artnet 1

Pix Engine Addr 001

sACN 4 / Artnet 5

Anim mkr Addr 226
Artnet 1

Pix Engine Addr 001

sACN 2 / Artnet 3

Anim mkr Addr 226
Artnet 1

Pix Engine Addr 001

sACN 5 / Artnet 6

Anim mkr Addr 226
Artnet 1

Pix Engine Addr 001

sACN 3 / Artnet 4

Anim mkr Addr 226
Artnet 1

Pix Engine Addr 001

sACN 6 / Artnet 7

Anim mkr Addr 226
Artnet 1

Power units:

Patch Mode: 1x Elidy Big/Wall

Link Auto: Off

Elidy

77

TUTORIAL

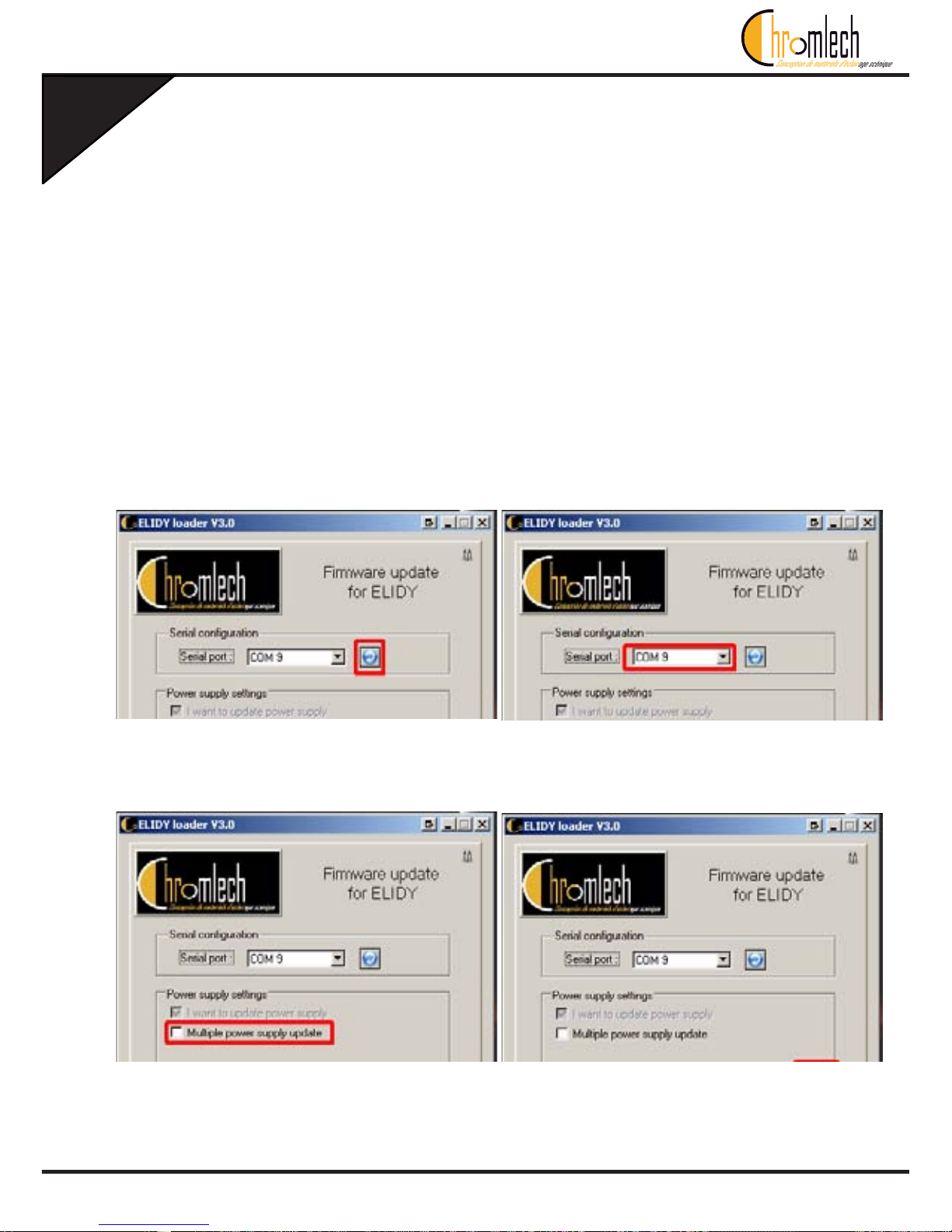

TUTORIAL 5: Upgrades

1- Install Update software on PC

First extract “Elidy_loader_client_Vx” software
Lauch Setup

2- Install USB RS485 cable adapter Drivers

3- Plug the cable in DMX XLR input
4- Congure COM port properties on PC

5- Start “Elidy loader” software

Follow these instructions :

Select COM port (Blue button to discover ports)

Check Mutliple power supply update if several PSX9 need to be updated at he
same time. (Power supplies must be connected by XLR DMX cables )

Elidy

78

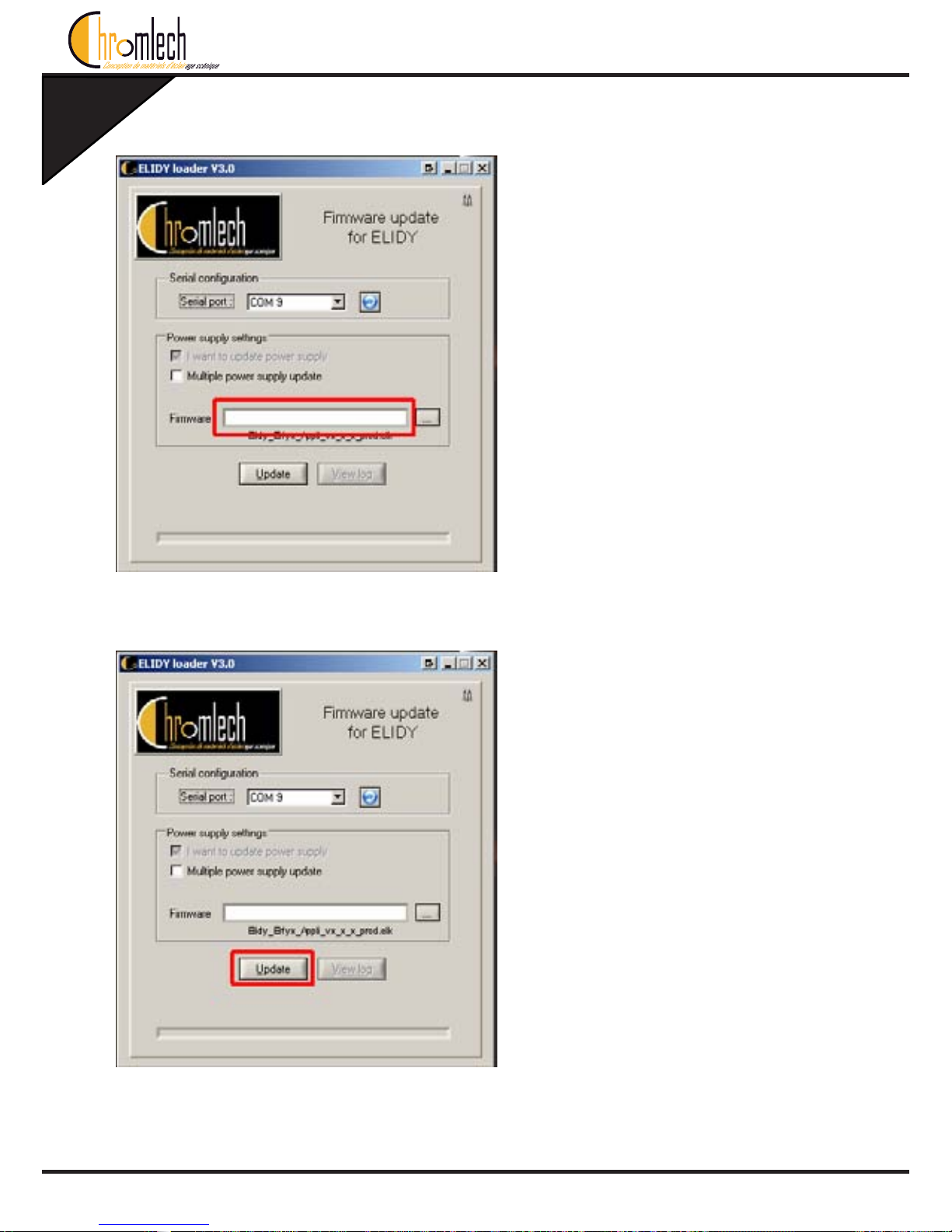

TUTORIAL

Select rmware for power supply

Press Update button to start update

Elidy

79

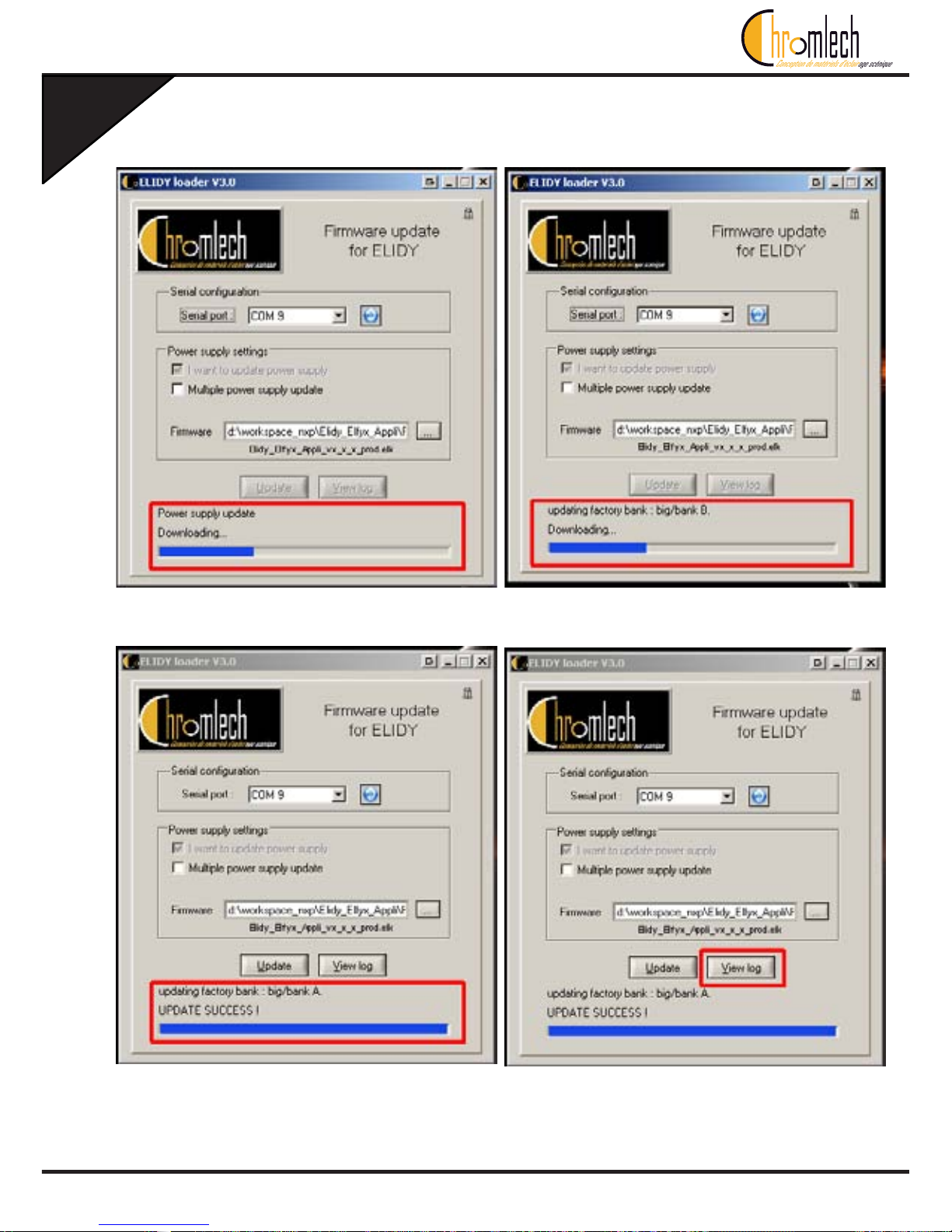

TUTORIAL

Power supply rmware and GIF library are updated at the same time

Elidy

80

TUTORIAL

Detail: Refer to Tutorial 9 Detail: Refer to Tutorial 9

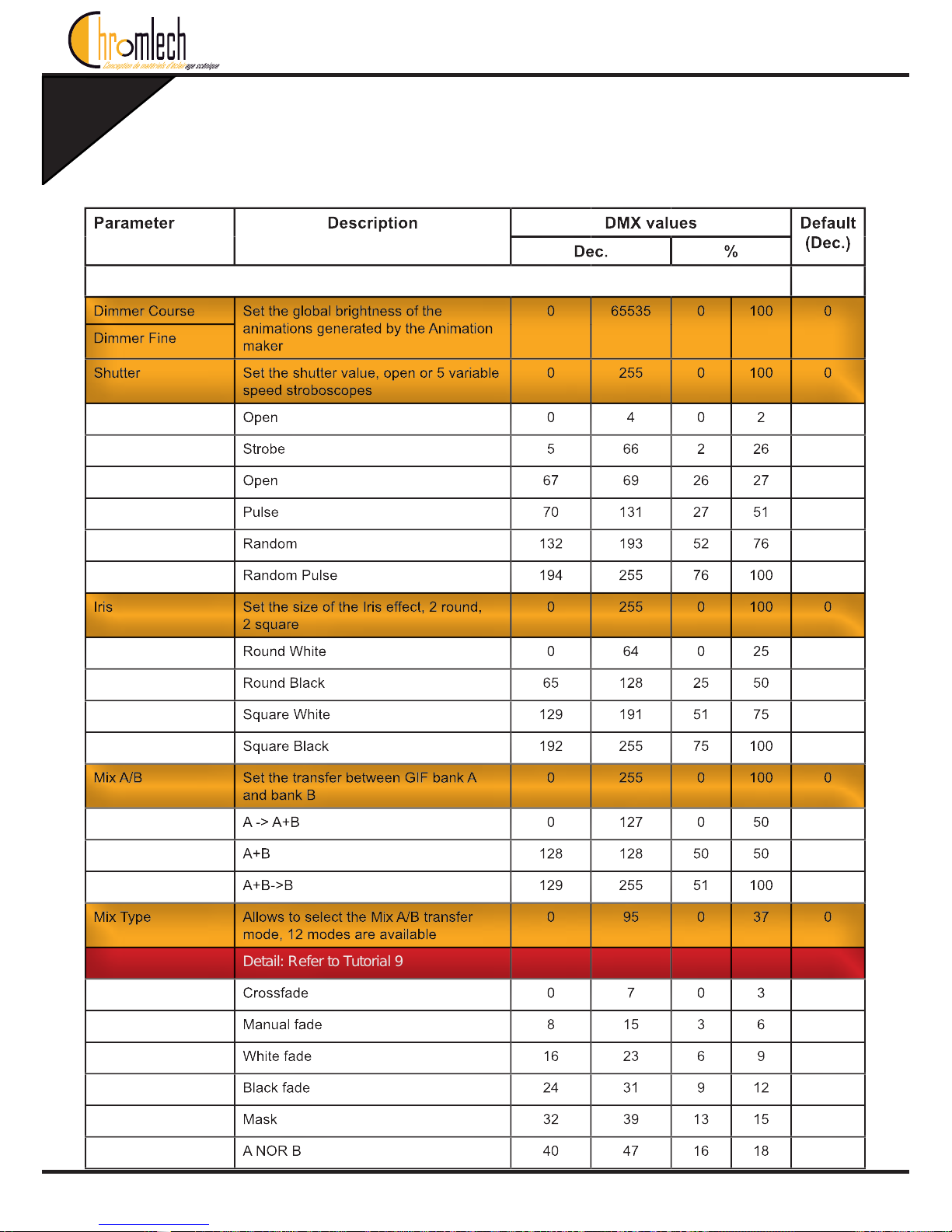

Animation Maker

Description and options of parameters 1-6

(Dimmer - Shutter - Iris - Mix A/B - Mix Type)

TUTORIAL 6:

Elidy

81

TUTORIAL

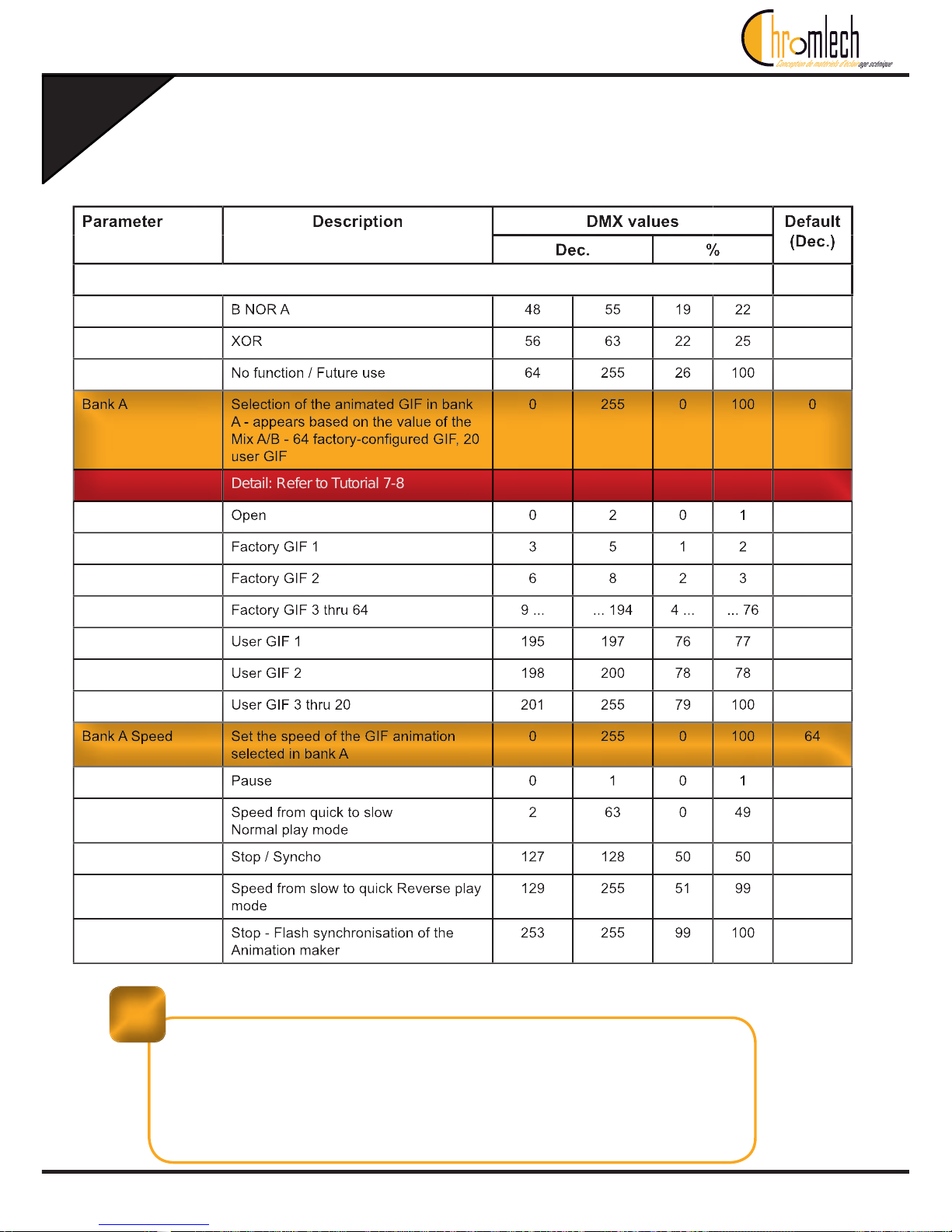

Animation Maker

Description and options of parameters 6-8

(Bank A - Bank A speed)

Detail: Refer to Tutorial 7-8 Detail: Refer to Tutorial 7-8

In 8 Channel mode (Elidy-S Patch mode only), Bank A speed works differently :

0-1 : Pause
2-63 : Speed from quick to slow Normal play mode
64 : Pause
65-126 : Speed from slow to speed Reverse play mode
127 : Stop
128-255 : Index mode

!

Elidy

82

TUTORIAL

Detail: Refer to Tutorial 7-8Detail: Refer to Tutorial 7-8

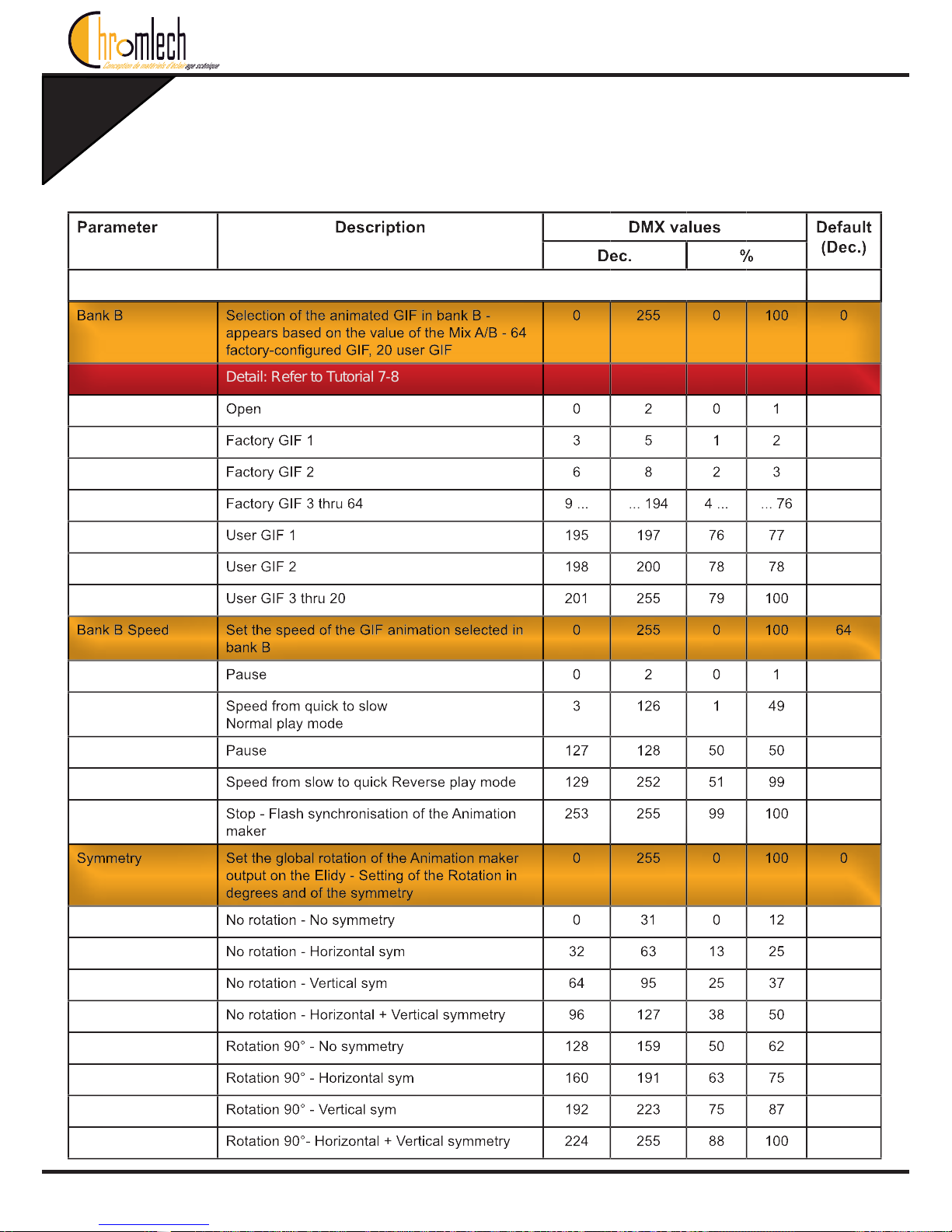

Animation Maker

Description and options of parameters 9-11

(Bank B - Bank B speed - Symmetry)

Elidy

83

TUTORIAL

Detail: Refer to Tutorial 10

Detail: Refer to Tutorial 11

Detail: Refer to Tutorial 10

Detail: Refer to Tutorial 11

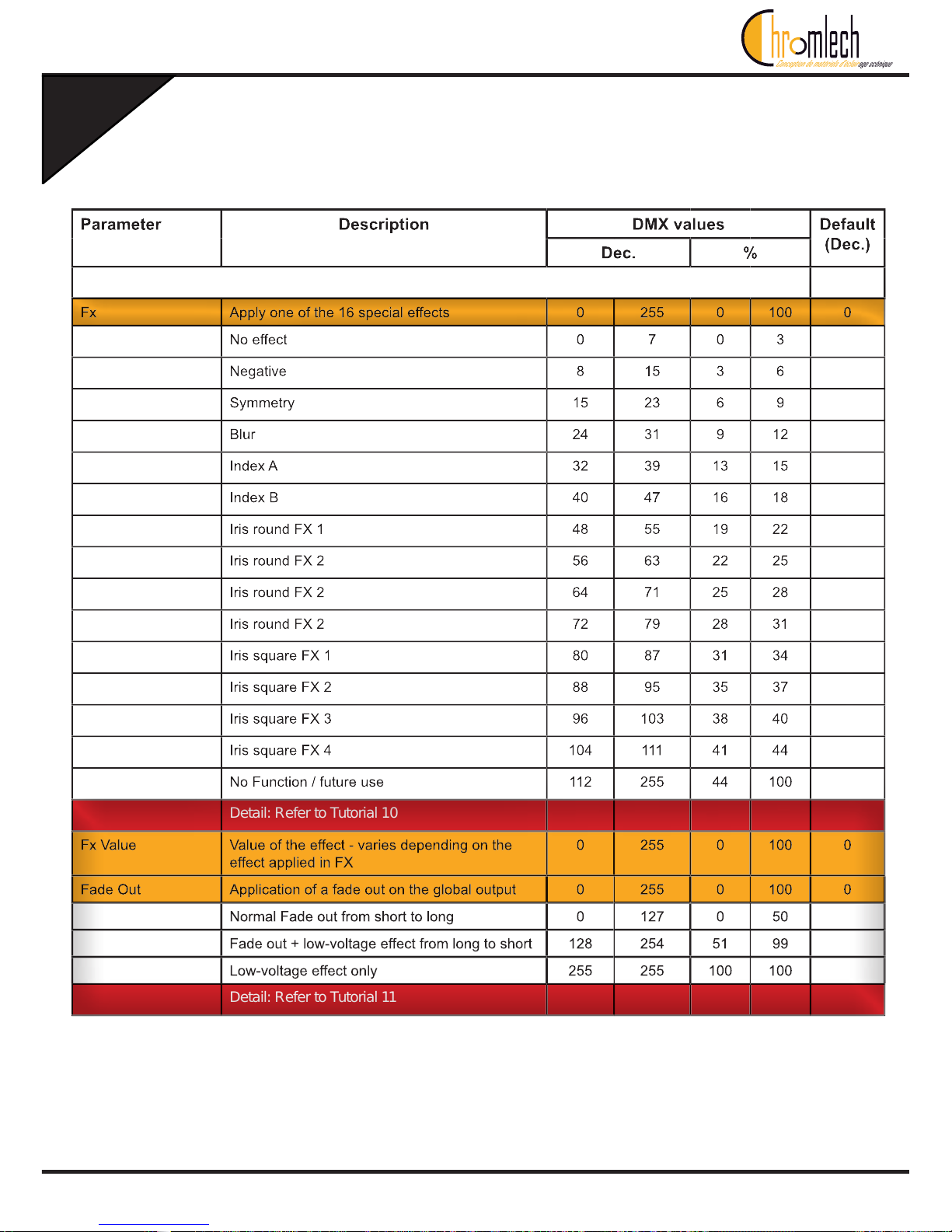

Animation Maker

Description and options of parameters 12-14

(Fx - Fx value - Fade out)

Elidy

84

TUTORIAL

TUTORIAL 7: GIF factory libraries

UNDER CONSTRUCTION

Elidy

85

TUTORIAL

TUTORIAL 8: Procedure for the creation and
loading of the user GIF

UNDER CONSTRUCTION

Elidy

86

TUTORIAL

TUTORIAL 9: Animation maker Mix Type

UNDER CONSTRUCTION

Elidy

87

TUTORIAL

TUTORIAL 10: Animation maker effects

UNDER CONSTRUCTION

Elidy

88

TUTORIAL

TUTORIAL 11: Animation maker Fade out

UNDER CONSTRUCTION

Elidy

89

TUTORIAL

Elidy

90

WARRANTY

Scope of the warranty

The Products are guaranteed against faulty materials and manufacturing faults

for 2 (two) years from the date of delivery, subject to written notication that a
fault has occurred being sent to CHROMLECH within 15 (fteen) days.

If the Product is repaired, the repairs will be carried out by CHROMLECH or
one of its subcontractors. Only CHROMLECH has the authority to appoint the
repairer.

If CHROMLECH carries out repairs and/or replaces a part or the Product during

the warranty period, the original warranty period is not extended.
CHROMLECH has sole authority for deciding what action should be taken

under the terms of this warranty, in particular:

- whether the product should be repaired on the customer's site,

- or the Products should be returned by the customer to CHROMLECH so that
they can be repaired.

Under the terms of the warranty , the customer is liable for any risks and transport
costs and may not claim for any losses due to the equipment being unavailable
while under guarantee.

Elidy

91

Exclusions

This warranty does not apply to visible faults.
The warranty is not valid in the following circumstances:

- failure to comply with the recommendations for using and maintaining the
equipment

- abnormal use of the equipment

- errors in operating the equipment

- failure to maintain the equipment

- repairs carried out by a third party without authorisation from CHROMLECH
This warranty also excludes:

- components with a life-time in normal use that is less than the warranty period

- replacement of consumables

- wear parts (in particular lamps, lters, gobos, ight case)

- faults and their consequences resulting from external causes

Chromlech

19, avenue Gabriel Fauré

35235 THORIGNE-FOUILLARD

FRANCE

Tel: [phone]

Fax: [phone]

E-mail: [email protected]

Website: www.chromlech.com
